Product type	Robot vacuum mop
Brand	ECOVACS
Model	Deebot U2 Pro
Power supply	Rechargeable battery, 19 V docking station (AC adapter YJS015F-1900600G/DK18-190060H-V/TS-A011-190060E2)
Main functions	Suction, mopping with microfiber cloth, automatic return to station, scheduling via app
Dust bin capacity	Standard (models DGN22-62/64) and XL (models DGN22-72/74)
Connectivity	Wi-Fi 2.4 GHz, ECOVACS HOME app (iOS/Android)
Sensors	Anti-drop sensors (4), infrared anti-collision
Brushes	Main brush (pre-installed) and side brushes (2); optional tangle-free brush (pet kit)
Filters	High-efficiency filter + sponge filter (pre-installed)
Cleaning modes	Automatic, spot, edge (via app)
Regular maintenance	Clean brushes (once a week), filters (once a week), anti-drop sensors, universal wheel, charging contacts
Replacement frequency	Main brush: 6-12 months; side brushes: 3-6 months; filters: 3-6 months; microfiber cloth: 50 uses
Safety	Anti-drop sensors, automatic stop in case of problem, use only on dry floor and indoors
Spare parts available	Brushes, filters, dust bin, cleaning cloths (disposable and microfiber), water tank, pet maintenance kit
Repairability	Battery replaceable only by a professional; contact customer service for any repairs
Warranty	Not specified in the manual; refer to the seller

Frequently Asked Questions - Deebot U2 Pro ECOVACS

How to connect the DEEBOT to the ECOVACS HOME app?

Make sure your phone is connected to a 2.4 GHz Wi-Fi network, the robot's Wi-Fi light is blinking slowly, and mobile data is turned off. Open the app, follow the setup instructions.

What to do if the robot does not charge?

Check that the robot is powered on (switch to ON) and that the charging contacts are properly aligned with the station pins. Make sure the docking station is plugged in and the robot has been placed correctly.

Why does the robot not return to its docking station?

The station must be connected and not moved during cleaning. The robot must have started from the station. Check that the station is well positioned and nothing blocks the path.

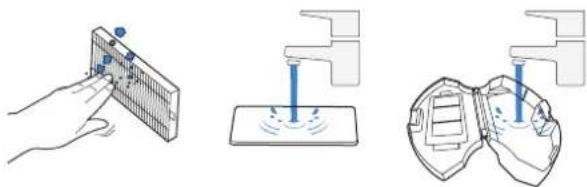

How to clean the brushes and filters?

Turn off the robot and unplug the station. Remove the main brush and side brushes, clean them with the multi-function tool. Filters can be tapped or washed with water (dry thoroughly before reuse).

What to do in case of abnormal noise during cleaning?

Stop the robot and check that it is not blocked by debris. Clean the brushes, bin, and filters. If the noise continues, contact customer service.

Can I use the robot on carpet?

Yes, but avoid using the mopping system (water tank) on rugs or carpets. Use only suction mode. Fold the rug fringes to prevent them from getting stuck.

How to install the pet maintenance kit?

The kit (tangle-free brush and XL bin) is compatible with models DGN22-72 and DGN22-74. Replace the main brush with the tangle-free brush and install the XL bin instead of the standard bin.

What to do if the Wi-Fi does not connect?

Check that the network is 2.4 GHz (not 5 GHz), the password is correct, the robot is within signal range, and the Wi-Fi light is blinking slowly. Disable VPNs and proxies. Reset the network by pressing the reset button.

How to reset the DEEBOT robot?

To reset the Wi-Fi, turn the switch to ON, place the robot on the station, then press and hold the auto mode button for 20 seconds until you hear three beeps. For a full reset, contact customer service.

Can I use the robot on a wet floor?

No, never use the robot on wet surfaces or surfaces covered with water. This could damage the device and pose an electrical risk. Use only on dry floor.

USER MANUAL Deebot U2 Pro ECOVACS

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician will be able to help you with your specific problem or question.

For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com

The company reserves the right to make technological and/or design changes to this product for continuous improvement.

Thank you for choosing DEEBOT!

Important Safety Instructions IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such

as curtains and tablecloths off the floor.

1. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

2. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.

3. Please make sure your power supply source voltage matches the power voltage marked on the Docking Station.

4. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.

5. Use only the original rechargeable battery and Docking Station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited.

6. Do not use without dust bin and/or filters in place.

7. Do not operate the Appliance in an area where there are lit candles or fragile objects.

8. Do not use in extremely hot or cold environments (below -5^/23^ or above 40^/104^ ).
9. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
10. Do not operate the Appliance in a room where an infant or child is sleeping.
11. Do not use Appliance on wet surfaces or surfaces with standing water.
12. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
13. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
14. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
15. Do not put objects into the suction intake. Do not use if the suction intake is blocked.

Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.

1. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.

2. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.

3. Do not use the Docking Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.

4. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.

5. Turn OFF the power switch before cleaning or maintaining the Appliance.

6. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.

7. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.

8. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.

9. Please dispose of used batteries according to local laws and regulations.

10. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.

11. When not using the Docking Station for a long period of time, please unplug it.

12. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.

13. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.

14. If the robot will not be used for a long time, power OFF the robot for storage and unplug the Docking Station.
15. WARNING: For the purposes of recharging the battery, only use the detachable supply unit DN622.13 provided with the Appliance.

SAVE THESE INSTRUCTIONS

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

To disable Wi-Fi module on DEEBOT, power the robot ON. Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection. Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps. To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON. The Wi-Fi module is turned on when DEEBOT is restarted.

	Class II
	Short-circuit-proof safety isolating transformer
[0CY2]	Switch mode power supply
	For indoor use only
[2DTH]	Direct current
	Alternating current
	detachable supply unit

For EU Countries

For EU Declaration of Conformity information, visit https://www.ecovacs.com/global/compliance

Correct Disposal of this Product

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To recycle your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can safely recycle this product.

Contents

1. Package Contents......8
2. Operating and Programming....12
3. Maintenance ....20
4. Troubleshooting....26
5. Product Specifications....29

1. Package Contents/1.1 Package Contents

Simple circular diagram with a central hole and two side lines, no text or symbols present.

Line drawings of a device with a cable and a plug, no text or symbols present

Robot Docking Station+Power Adapter Instruction Manual Side Brushes

Main Brush (Pre-installed)

High Efficiency Filter & Sponge Filter

Dust Bin and Reservoir (Pre-installed)

Cleaning Cloth Plate

Washable/Reusable Microfiber Cleaning Cloth

Disposable Cleaning Cloths

Technical line drawing of a robotic device with three views: top view, side view, and front view (no text or symbols)

Pet Care Kit (For DGN22-72 & DGN22-74) XL Dust Bin + Tangle-free Brush + Filter for XL Dust Bin
Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

1. Package Contents/1.2 Product Diagram

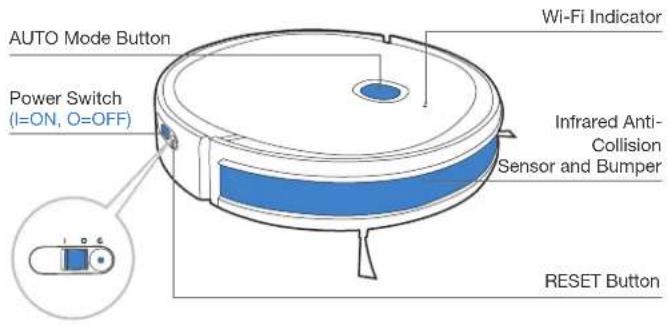

Robot

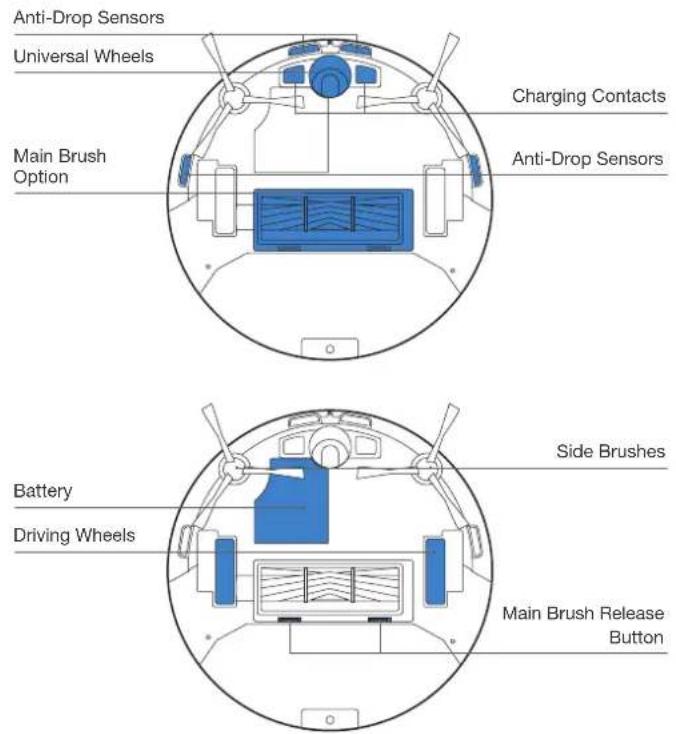

Bottom

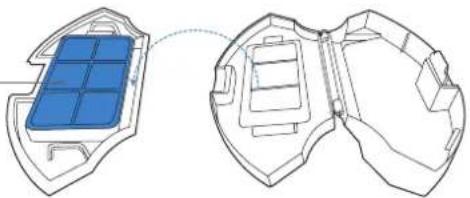

Dust Bin and Reservoir (Pre-installed)

Dust Bin

Multi-function Cleaning Tool

Dust Bin Handle

Filter Net

Sponge Filter

High Efficiency Filter

Reservoir

Water Inlet Cover

Line drawing of a car rear bumper with a blue tab on the side (no text or symbols)

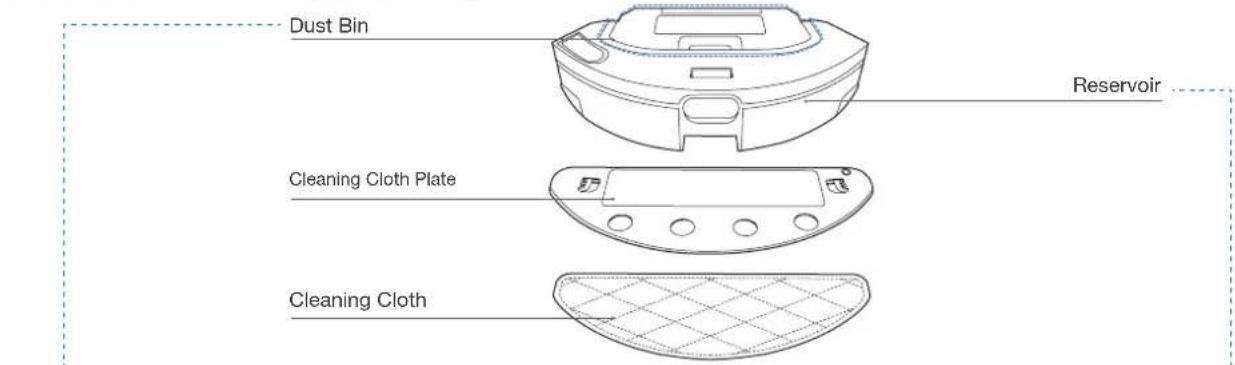

Cleaning Cloth Plate

Cleaning Cloth

XL Dust Bin (For DGN22-72 & DGN22-74)
Filter Cover Release Button

Line drawing of a medical or laboratory device with a vertical screen and blue adjustment knobs (no text or symbols)

Dust Bin Release Button

Sponge Filter

High Efficiency Filter

Filter Net

Diagram of a vehicle interior showing two views of a vehicle's front and side compartments (no text or symbols)

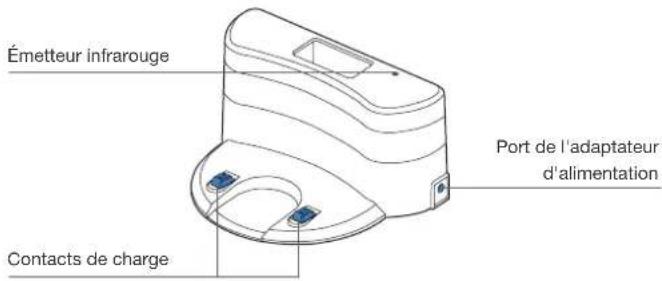

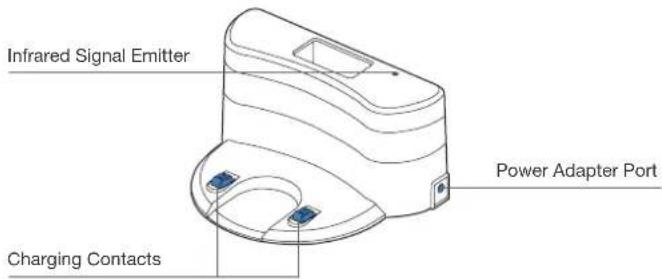

Docking Station

2. Operating and Programming/2.1 Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

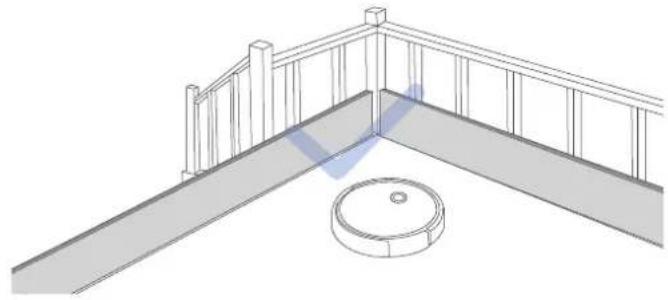

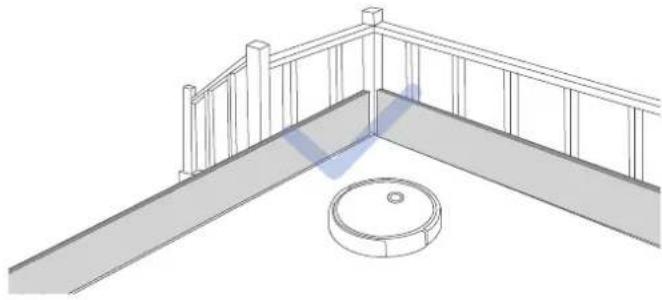

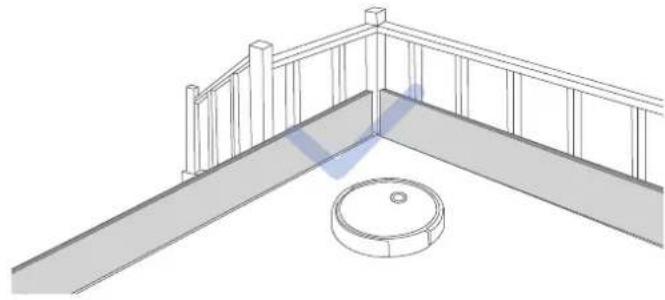

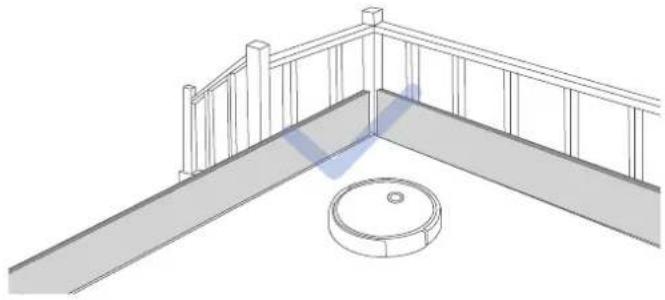

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Line drawing of a dining table with a fan, chair, and tableboard (no text or symbols)

Architectural line drawing of a two-level balcony structure with railing and circular base (no text or symbols)

Put away objects including wires, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Please do not stand in narrow spaces, such as hallways, and make sure not to block DEEBOT.

2. Operating and Programming/2.2 Quick Start

1 Remove Protective Materials

Simple line drawing of a circular device with a blue arrow pointing to the side (no text or symbols)

Line drawing of hands holding a circular object with arrows indicating direction (no text or symbols)

Line drawing of a medical device with a blue arrow indicating a specific area (no text or symbols present)

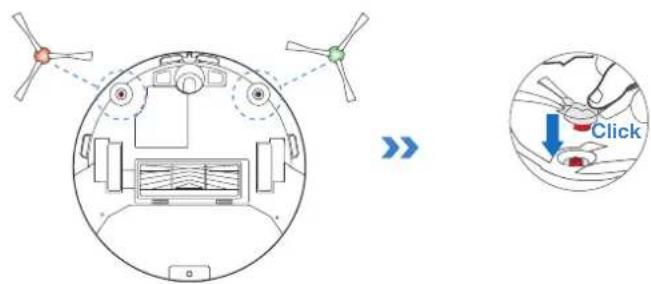

2 Install Side Brushes

2. Operating and Programming/2.3 Charging DEEBOT

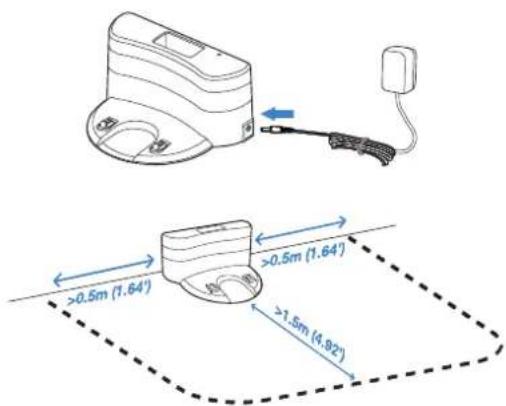

1 Docking Station Placement

③ Charge DEEBOT

* Empty the reservoir and remove the Cleaning Cloth Plate before charging DEEBOT.
* It is suggested to avoid picking up or moving DEEBOT during the cleaning for DEEBOT to return to charge successfully.

2 Power ON

Note: I = ON, O = OFF
DEEBOT cannot be charged when being powered OFF.

2. Operating and Programming/ 2.4 ECOVACS HOME App

To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME app.

• Your mobile phone is connected to a Wi-Fi network.
  • The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on DEEBOT is slowly flashing.

Wi-Fi Indicator LightBefore you start, make sure that:

	Slowly flashing	Disconnected to Wi-Fi or waiting for Wi-Fi connection
	Rapidly flashing Connecting to Wi-Fi
	Solid Connected to Wi-Fi

Tips: If you have any problems during the Wi-Fi setup process, refer to the Troubleshooting > Wi-Fi Connection section in this manual.

2. Operating and Programming/ 2.5 Operating DEEBOT

During the first cleaning, please supervise DEEBOT and assist it should there be a problem.

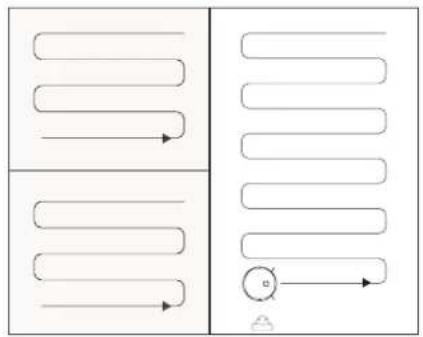

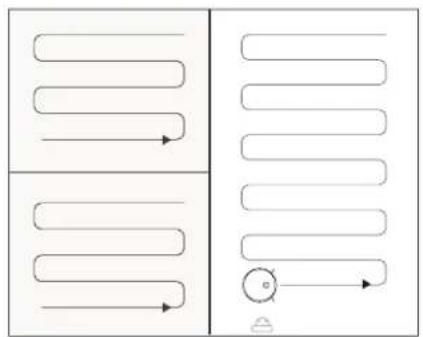

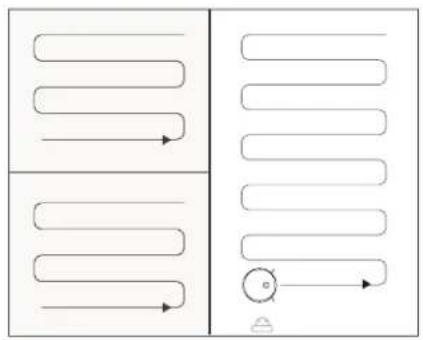

1 Start

Hand pointing at a circular component with a blue button, no text or symbols present

2 Start/Pause

The robot's Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.

Pause

Hand pointing at a circular component with a blue circular mark (no text or symbols)

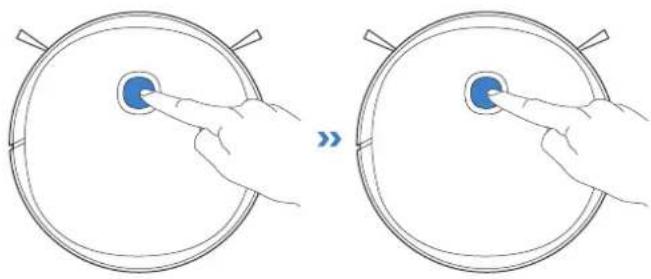

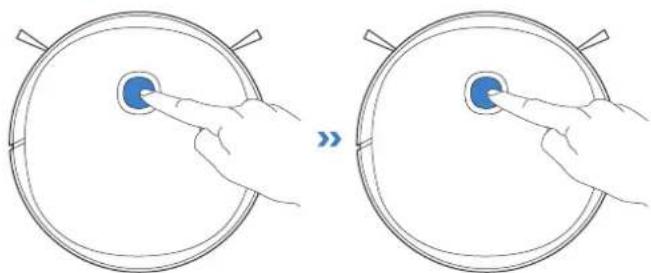

Wake Up Start

Illustration of two hands pointing at a circular component with a blue button, showing a change between them (no text or symbols present)

If the pause duration is shorter than 10 minutes, DEEBOT will return to finish the cleaning where it left off.

③ Power OFF

Line drawing of a portable electronic device with a control panel and a blue square button, no text or symbols present.

* If DEEBOT will not be used for a while, fully charge DEEBOT and power OFF before storage. Charge DEEBOT every 1.5 month to prevent battery drain.
- When DEEBOT is not cleaning, it is recommended to keep DEEBOT powered ON and charging.

2. Operating and Programming/2.6 Dust Bin & Reservoir

Note:

1. To prolong the service life of the reservoir, it is recommended to use purified water or softened water.
2. Please avoid using the mopping system on the carpet.

Add Water Install Dust Bin & Reservoir

1

Line drawing of a hand placing a small object into a container with an arrow indicating motion (no text or symbols)

4

Illustration of a hand holding a pen over a curved surface with a blue arrow pointing to a small circle (no text or symbols)

1

2

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

5

Illustration of a hand placing a component into a device with a blue arrow indicating rotation (no text or symbols)

2

Hand pointing at a circular blue button on a white surface (no text or symbols)

3

Line drawing of a mechanical component with a hand adjusting a small component (no text or symbols)

2. Operating and Programming/2.7 Pet Care Kit (For DGN22-72 & DGN22-74)

Tangle-free Brush is specifically designed to pick up hair without tangling. It is suggested to increase the vacuum power in ECOVACS HOME App when using Tangle-free Brush.

Install Tangle-free Brush

Release the Brush Cover

Install XL Dust Bin

Uninstall the Dust Bin and Reservoir

Uninstall the Main Brush

Install the XL Dust Bin

Install Tangle-free Brush

Click

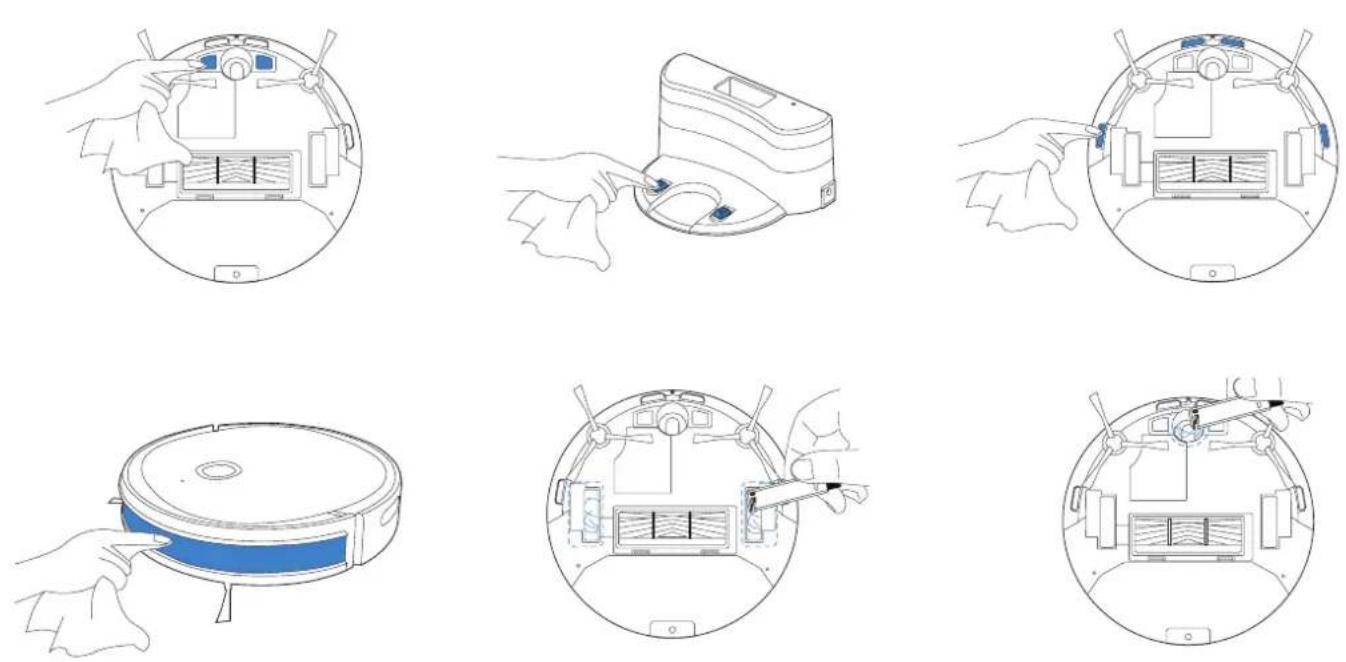

3. Maintenance/3.1 Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part Maintenance	Frequency Replacement Frequency
Disposable Cleaning Cloth / Dispose after each use
Washable/Reusable Microfiber Cleaning Cloth	After each use Every 50 washes
Reservoir After each use /
Side Brush Once every 2 weeks Every 3-6 months
Main Brush Tangle-free Brush	Once per week Every 6-12 months
Sponge Filter/ High Efficiency Filter Once per week Every 3-6 months
Universal Wheel Anti-Drop Sensors Bumper Charging Contacts Docking Station Pins	Once per week /

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

3. Maintenance/3.2 Dust Bin & Reservoir

Uninstall the Dust Bin & Reservoir

Line drawing of a circular device with a handle and arrow indicating rotation (no text or symbols)

Reservoir

1

Line drawing of a hand placing a component into a device inside a microwave oven (no text or symbols)

3

Line drawing of a boat hull with a water tap and blue anchor (no text or symbols)

Washable/Reusable Microfiber Cleaning Cloth

Diagram of a faucet with a grid-patterned surface and a central blue rod (no text or symbols)

Disposable Cleaning Cloth

2

Hand holding a pen-like object with grid pattern, no visible text or symbols

4

Line drawing of a hand holding a device with a blue tool, no text or symbols present

Illustration of a hand pouring liquid into a container with a blue arrow indicating flow (no text or symbols)

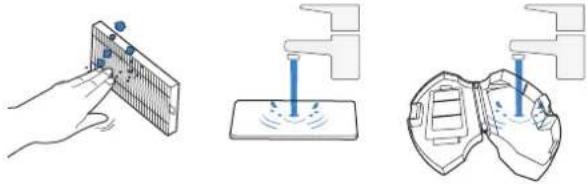

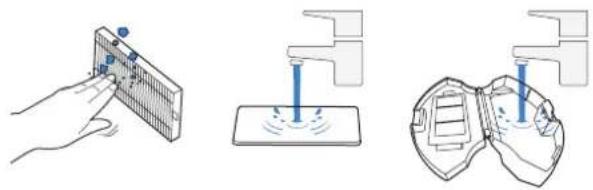

Dust Bin

1

Illustration of a hand pouring liquid into a container with blue particles (no text or symbols)

2

3

4

Two technical line drawings showing a mechanical device with a base and a container, both without any text or symbols.

5

Simple line drawing of a jar with a lid and a sun symbol (no text or labels)

3. Maintenance/3.3 XL Dust Bin (For DGN22-72 & DGN22-74)

1

Line drawing of a hand pressing down on a circular object with a blue arrow indicating motion (no text or symbols)

2

Diagram showing a container with liquid being poured into a container (no text or symbols present)

3

Line drawing of a device with a lid and two separate plates, no text or symbols present

4

Hand inserting a small black square into a device component (no text or symbols visible)

5

Three-step diagram showing a hand holding a grid device, a close-up of a screw with a screw, and a close-up of a mechanical component (no text or symbols)

6

Simple line drawing of a hand holding a device with a blue sun symbol nearby (no text or labels)

3. Maintenance/3.4 Main Brush & Side Brushes

Main Brush Side Brushes
1

Technical line drawing of a mechanical device with a blue component and an inset showing internal structure (no text or symbols)

1

Diagram of a vehicle interior with two propeller motors and directional arrows indicating flight or movement (no text or labels)

2

Technical line drawing of a robotic device with a blue arrow indicating a component (no text or symbols present)

2

Line drawing of a hand holding a small propeller or fan, with no visible text or symbols

3

3. Maintenance/3.5 Other Components

4. Troubleshooting/4.1 Troubleshooting

No. S	Scenario Possible Cause Solution
1	DEEBOT is not able to connect to the home Wi-Fi network.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal.
		Network setup started before DEEBOT was ready.	Turn ON Power Switch. Press the RESET Button. DEEBOT is ready for network setup when its Wi-Fi Indicator light flashes slowly.
		DEEBOT does not support 5 GHz Wi-Fi.	Make sure the robot has been connected with 2.4 GHz Wi-Fi network.
2	DEEBOT is not charging.	DEEBOT is not switched ON. Switch ON DEEBOT.
		DEEBOT has not connected to the Docking Station.	Be sure that the robot's Charging Contacts have connected to the Docking Station Pins.
		The Docking Station is not connected to the power supply.	Make sure the Docking Station is connected to the power supply.
		The battery is completely discharged. Please contact Customer Care for help.
No.	Scenario Possible Cause Solution
3	DEEBOT cannot return to the Docking Station.	The Docking Station is not correctly placed.	Refer to Section 3.2 correctly place the Docking Station.
		The Docking Station is not correctly connected. Make	sure the Docking Station is correctly connected.
		The Docking Station is manually moved during the cleaning.	It is suggested not to move the Docking Station during the cleaning.
		DEEBOT did not start cleaning from the Docking Station.	Make sure DEEBOT starts cleaning from the Docking Station.
4	DEEBOT misses cleaning spots to be cleaned, or repeats cleaning the area cleaned.	The cleaning cycle is interfered by small objects or barriers on the floor.	Remove power cords and small objects from the floor to ensure cleaning efficiency. DEEBOT will automatically clean the area missed, please avoid moving DEEBOT manually or block the path during the cleaning cycle.
		DEEBOT is working on slippery polished floors.	Make sure the floor wax is dried before DEEBOT starts cleaning.
		DEEBOT is unable to reach certain areas blocked by furniture or barriers.	Tidy up the area to be cleaned by putting furniture and small objects in their proper place.
5	DEEBOT gets stuck while working and stops.	DEEBOT gets stuck while working and stops.	DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
		DEEBOT might be stuck under furniture with an entrance of similar height.	Please set a physical barrier.
6	DEEBOT is making too much noise when cleaning.	DEEBOT is tangled or blocked with debris.	Clean DEEBOT as described in section Maintenance and restart. If the trouble persists, please contact Customer Care.

4. Troubleshooting/4.2 Wi-Fi Connection

Before Wi-Fi setup, make sure DEEBOT, mobile phone, and Wi-Fi network meet the following requirements.

DEEBOT and Mobile Phone Requirements

• DEEBOT is fully charged and the power switch of DEEBOT is turned on.
  • Wi-Fi status light slowly flashes.
• Turn off mobile phone's cellular data (you can turn it back on after setup).

Wi-Fi Network Requirements

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.

5. Product Specifications

Model DGN22-62/DGN22-64/DGN22-72/DGN22-74
Rated Input 19V	=== 0.6A 11.4W
Docking Station Model DN622.13
Input 19V	===	Output 0.6A
Power Adapter Model YJS015F	-1900600G/DK18-190060H-V/TS-A011-190060E2
Off/Standby Mode Power Less than 0.50 W
Networked Standby Power Less than 2.00 W
Frequency Bands and power	Operating frequency: 2412MHz - 2472MHz
	Maximum transmitting power: 19 dBm.

* Output power of the Wi-Fi module is less than 100mW.
Note: Technical and design specifications may be changed for continuous product improvement.

Live Smart. Enjoy Life.

Simple circular diagram with a central hole and two side lines, no text or symbols present.

Line drawings of a device with a cable and plug, no text or symbols present

Technical line drawing of a robotic device with three views: top view, side view, and front view (no text or symbols)

Line drawing of a car rear bumper with a blue tab on the side (no text or symbols)

Technical line drawing of a mechanical device with a stand and internal grid structure (no text or symbols)

Filterschwamm

Diagram of a vehicle interior showing front and side views with no text or symbols

Dockingstation
Infrarot-Signalsender

Technical line drawing of a mechanical device with two blue components and a handle (no text or symbols)

Line drawing of a dining table with a fan, chairs, and a stand (no text or symbols)

Technical line drawing of a balcony structure with railing and circular base (no text or symbols)

Simple line drawing of a circular device with a blue arrow pointing to the side (no text or symbols)

Line drawing of hands holding a circular object with arrows indicating direction (no text or symbols)

Line drawing of a medical device with a blue arrow indicating a specific area (no text or symbols present)

Diagram of a circular device with two propellers and control panels, no text or symbols present

Illustration of a portable device with a blue square button and a magnified inset showing a blue square (no text or symbols)

Hand pressing a blue circular button on a circular plate (no text or symbols)
    G["Arrow to Bottom Right"]

2 Start/Pause

Hand pointing at a circular blue button on a white plate (no text or symbols)

Illustration of a hand pressing a blue circular object on a circular plate, showing two sequential steps (no text or symbols)

Line drawing of a portable device with a control panel and a blue square button, no text or symbols present

Line drawing of a hand placing a small object into a container with an arrow indicating motion (no text or symbols)

4

Hand holding a pen over a tray with a blue arrow pointing to the tip (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

5

Illustration of a hand placing a small object into a container with a blue arrow indicating rotation (no text or symbols)

2

Line drawing of a hand pressing a blue circular button on a circular plate (no text or symbols)

3

Line drawing of a hand holding a small object on a curved mechanical component (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand holding the blade (no text or symbols)

Line drawing of a circular device with a handle and arrow indicating rotation (no text or symbols)

Behälter

1

Line drawing of a hand placing a component into a device (no text or symbols)

3

Line drawing of a boat hull with a water tap and a blue anchor (no text or symbols)

2

Hand holding a tray with a blue arrow pointing to the tray area (no text or symbols)

4

Line drawing of a hand holding a small electronic device with a lens (no text or symbols)

Diagram of a faucet with a grid-patterned surface and a blue rod inserted into it (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Staubbehälter

1

Illustration of a hand pouring liquid into a container with blue particles (no text or symbols)

2

3

4

Two technical diagrams showing a mechanical assembly with no visible text or symbols

5

Simple line drawing of a box with a lid and a sun symbol (no text or labels)

Line drawing of a robotic vacuum cleaner with a hand holding the lid and a blue arrow indicating motion (no text or symbols)

2

Diagram showing a container with liquid being poured into a container (no text or symbols present)

3

Diagram of a device with a lid and two separate plates, no text or symbols present

4

Hand holding a small black object inside a plastic housing, with no visible text or symbols

5

Illustration showing three different states of a device: holding a grid, mounting a base with screw holes, and finally disassembled into a final part (no text or symbols present)

6

Simple line drawing of a hand holding a device with a blue sun symbol nearby (no text or labels)

Technical line drawing of a mechanical device with a blue component and an inset showing internal components (no text or symbols)

1

Diagram of a vehicle interior with two propeller motors and directional arrows indicating flight or movement (no text or symbols)

2

Line drawing of a robotic device with a blue arrow indicating a component (no text or symbols present)

2

Line drawing of a hand holding a small propeller or fan, no text or symbols present

3

Line drawing of a medical or laboratory device with a vertical panel and internal grid structure (no text or symbols)

Diagram of a vehicle interior showing front and side views with no text or symbols

Estación de carga

Technical line drawing of a device casing with two blue buttons at the bottom (no text or symbols)

Line drawing of a dining table with a fan and seat, no text or symbols present

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Simple line drawing of a circular device with a blue arrow pointing to its side (no text or symbols)

Line drawing of hands holding a circular object with arrows indicating direction (no text or symbols)

Line drawing of a medical device with a blue arrow indicating a specific area (no text or symbols present)

Diagram of a circular device with internal components and two propellers, no text or symbols present

3 Carga del DEEBOT

Line drawing of a device with a blue square button and an arrow pointing to it, no text or symbols present.

Hand pointing at a circular component with a blue button, enclosed in a circular frame (no text or symbols)
    G["Arrow to Bottom Right"]

2 Inicio/Pausa

Hand pointing at a circular blue button on a white plate (no text or symbols)

Illustration of two hands pointing at a circular component with blue circular elements, showing a change (no text or symbols)

Diagram of a device with a control panel and a blue square button, no text or symbols present

Line drawing of a hand placing a small object into a container with an arrow indicating motion (no text or symbols)

4

Illustration of a hand holding a curved object with a blue arrow pointing to it (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

5

Line drawing of a hand placing a component into a container with a blue arrow indicating downward motion (no text or symbols)

2

Simple line drawing of a hand pressing a blue circular button on a circular plate (no text or symbols)

3

Line drawing of a hand holding a small object into a curved mechanical component (no text or symbols)

Technical line drawing of a mechanical device with a blue component and an inset showing internal components (no text or symbols)

2 Desinstale el cepillo principal

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand holding the blade (no text or symbols)

Line drawing of a circular device with a handle and arrow indicating rotation (no text or symbols)

Depósito

1

Line drawing of a hand placing a component into a device (no text or symbols)

3

Line drawing of a boat hull with a water tap and blue anchor (no text or symbols)

Diagram of a faucet dispensing liquid into a grid-patterned surface (no text or symbols)

2

Hand holding a flat object with a blue arrow pointing to it, no text or symbols present

4

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Illustration of a hand pouring liquid into a container with a blue arrow (no text or symbols)

Depósito de polvo

1

Illustration of a hand pouring liquid into a container with blue particles (no text or symbols)

2

3

4

Two technical line drawings showing a device with a base and a container with a handle, both without any text or symbols.

5

Simple line drawing of a jar with a lid and a sun symbol (no text or labels)

Line drawing of a robotic vacuum cleaner with a hand holding the lid and a blue arrow indicating motion (no text or symbols)

2

Diagram of a mechanical component pouring liquid into a container (no text or symbols)

3

Line drawing of a device with a lid and a separate panel, showing no text or symbols.

4

Hand holding a small black object inside a plastic housing, with no visible text or symbols

5

Three technical illustrations showing a hand holding a grid device, a mechanical component with force arrows, and a close-up of a hand holding a transparent container (no text or symbols present)

6

Simple line drawing of a hand holding a device with a blue sun symbol nearby (no text or labels)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

1

Diagram of a circular vehicle interior with two propeller motors and directional arrows indicating flight or movement (no text or symbols)

2

Technical line drawing of a mechanical device with a drill bit and handle (no text or symbols)

2

Line drawing of a hand holding a small propeller or fan, with no visible text or symbols

3

Simple circular diagram with a central hole and two side lines, no text or symbols present.

Line drawings of a device with a cable and a separate outline (no text or symbols)

Technical line drawing of a robotic device with three views: top view, side view, and front view (no text or symbols)

Line drawing of a medical or laboratory device with a stand and tray (no text or symbols)

Technical line drawing of a vehicle chassis with internal compartments and structural elements (no text or symbols)

Station d'accueil

Line drawing of a dining table with a fan, seatbelt, and floor planter (no text or symbols)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Simple line drawing of a circular device with a blue arrow pointing to the side (no text or symbols)

Line drawing of hands holding a circular object with arrows indicating direction (no text or symbols)

Line drawing of a medical device with a blue arrow indicating a specific area (no text or symbols present)

Diagram of a circular device with internal components and two propellers, no text or symbols present

3 Charge du DEEBOT

Line drawing of a device with a blue square button and an arrow pointing to it, no text or symbols present.

Hand pointing at a circular blue button on a white plate (no text or symbols)

2 Marche/Pause

Hand pointing at a circular component with a blue circular mark (no text or symbols)

Illustration of two hands pointing at a circular component with a blue button, showing a change between them (no text or symbols present)

Line drawing of a portable device with a control panel and a blue square button, no text or symbols present

Line drawing of a hand placing a component into a device (no text or symbols)

4

Hand holding a pen-like object with a blue arrow pointing to it, no text or symbols present

1

2

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

5

Illustration of a hand placing a small object into a device on top, with a blue arrow indicating motion (no text or symbols)

2

Hand pointing at a circular blue button on a white background (no text or symbols)

3

Line drawing of a hand holding a small object into a curved mechanical component (no text or symbols)

Technical line drawing of a mechanical device with a blue component and an inset showing a close-up view (no text or symbols)

2 Désinstaller la brosse principale

Technical line drawing of a mechanical device with a screw and handle (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand holding the blade (no text or symbols)

Line drawing of a circular device with a handle and arrow indicating rotation (no text or symbols)

Réservoir d'eau

1

Line drawing of a hand placing a component into a device (no text or symbols)

3

Line drawing of a boat hull with a water tap and a small boat at the base (no text or symbols)

2

Illustration of a hand holding a pen over a curved surface with grid lines (no text or symbols)

4

Line drawing of a hand holding a small object with glasses, next to a curved mechanical component (no text or symbols)

Diagram of a faucet with a grid-patterned base and a central valve (no text or symbols)

Chiffon de nettoyage jetable

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with blue particles (no text or symbols)

2

3

4

Two technical line drawings of a mechanical device: one with a base and spring, the other with a container (no text or symbols)

5

Simple line drawing of a container with a tray and a sun symbol (no text or labels)

Line drawing of a robotic vacuum cleaner with a hand holding the lid and a blue arrow indicating motion (no text or symbols)

4

Hand holding a small object with blue dots inside a plastic housing (no text or symbols visible)

2

Diagram showing a container with liquid being poured into a container (no text or symbols present)

5

Three-step diagram showing a hand holding a grid device, a close-up of a mechanical component with bolts, and a final view of a hand holding a cylindrical part (no text or symbols present)

3

Line drawing of a device with a lid and a separate panel, showing no text or symbols.

6

Simple line drawing of a hand holding a device with a blue sun symbol nearby (no text or labels)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

1

Diagram of a vehicle interior with two propellers and directional arrows indicating flight or movement (no text or symbols)

2

Line drawing of a robotic device with a blue arrow indicating a component (no text or symbols present)

2

Line drawing of a hand holding a small propeller or fan, with no visible text or symbols

3

Simple line drawing of a circular object with a central hole and two side lines (no text or symbols)

Line drawing of a portable electronic device with a cable and plug, no text or symbols present

Diagram showing three views of a robotic device: top view, side view with textured internal structure, and front view with grid-like panel (no text or symbols)

Line drawing of a closed container with blue lid (no text or symbols)

Rete del filtro

Filtro di spugna

Line drawing of a car rear bumper with a blue tab on the side (no text or symbols)

Line drawing of a medical or laboratory device with a stand and tray (no text or symbols)

Diagram of a vehicle interior showing two views of a vehicle's front and side compartments (no text or symbols)

Docking Station

Line drawing of a device with two blue buttons on a curved base (no text or symbols)

Line drawing of a dining table with a fan, seatbelt, and floor lamp (no text or symbols)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Simple line drawing of a circular device with a blue arrow pointing to the side (no text or symbols)

Line drawing of hands holding a circular object with arrows indicating direction (no text or symbols)

Line drawing of a medical device with a blue arrow indicating a specific area (no text or symbols present)

Diagram of a circular device with two propellers and a central screen, no text or symbols present

Diagram of a device with a blue square button and an arrow pointing to it, no text or symbols present.

Hand pointing at a circular component with a blue button, no text or symbols present

2 Avvio/Pausa

Hand pointing at a circular blue button inside a circular container (no text or symbols)

Riattivazione Avvio

Illustration of two hands pointing at a circular component with a blue circular mark, showing a change (no text or symbols)

Diagram of a device with a blue square button and a magnified inset showing a blue square (no text or symbols)

Line drawing of a hand placing a component into a device (no text or symbols)

4

Hand holding a pen over a tray with a blue arrow pointing to the tip (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

5

Illustration of a hand placing a component into a device with a blue arrow indicating motion (no text or symbols)

2

Hand pointing at a circular blue button on a white surface (no text or symbols)

3

Line drawing of a mechanical component with a hand adjusting a small component (no text or symbols)

Technical line drawing of a mechanical device with a blue component and an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating assembly or force (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand holding the blade (no text or symbols)

Line drawing of a circular device with a handle and arrow indicating rotation (no text or symbols)

Serbatoio

1

Line drawing of a hand placing a component into a device (no text or symbols)

3

Line drawing of a boat hull with a water tap and a small boat at the base (no text or symbols)

Diagram of a faucet with a grid-patterned base and a central valve (no text or symbols)

Hand holding a pen over a curved surface with grid lines (no text or symbols)

4

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Illustration of a hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with blue particles (no text or symbols)

2

3

4

Two technical diagrams showing a mechanical device with a base and a container, both without any text or symbols.

5

Simple line drawing of a container with a tray and a sun symbol (no text or labels)

Line drawing of a hand holding a circular object with a blue arrow indicating rotation (no text or symbols)

2

Diagram of a mechanical component pouring liquid into a container (no text or symbols)

3

Diagram of a device with a lid and two separate plates, showing a transformation or assembly process (no text or symbols present)

4

Hand inserting a small black square into a device component (no text or symbols visible)

5

Three-step diagram showing a hand holding a grid device, a close-up of a screw with a screw, and a close-up of a mechanical component (no text or symbols)

6

Simple line drawing of a hand holding a device with a blue sun symbol nearby (no text or labels)

Technical illustration of a robotic device with a blue handle and internal components, shown with an inset magnified view (no text or symbols)

1

Diagram of a circular device with two propeller heads and a central control panel, no text or symbols present.

2

Technical line drawing of a robotic device with a blue arrow indicating a component (no text or symbols present)

2

Line drawing of a hand holding a small mechanical component (no text or symbols)

3

Simple circular diagram with a central hole and two side lines, no text or symbols present.

Technical line drawing of a robotic device with three views: top view, side view, and front view (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Резервуар

Line drawing of a car rear bumper with a blue tab on the side (no text or symbols)

Line drawing of a dining table with a fan, seatbelt, and lamp (no text or symbols)

Architectural line drawing of a balcony with railing and circular base (no text or symbols)

Simple line drawing of a circular device with a blue arrow pointing to the side (no text or symbols)

Line drawing of hands holding a circular object with arrows indicating direction (no text or symbols)

Line drawing of a medical device with a blue arrow indicating a specific area (no text or symbols present)

Diagram of a circular device with two propellers and control panels, no text or symbols present

Line drawing of a portable electronic device with a blue indicator light and a magnified inset showing a blue square (no text or symbols)

Hand pointing at a circular component with a blue button, no text or symbols present

Hand pointing at a circular blue button inside a circular container (no text or symbols)

Hand pointing at a circular component with a blue circular mark on the top (no text or symbols)

Запуск

Hand pressing a blue circular button on a circular plate (no text or symbols)

Diagram of a device with a blue square button and a magnified inset showing a blue square (no text or symbols)

Line drawing of a hand placing a small object into a container with an arrow indicating motion (no text or symbols)

4

Hand holding a flexible object with a blue arrow pointing to it, no text or symbols visible

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

5

Illustration of a hand placing a component into a device with a blue arrow indicating rotation (no text or symbols)

2

Hand pointing at a circular blue button inside a circular container (no text or symbols)

3

Line drawing of a hand holding a small object into a curved mechanical component (no text or symbols)

Technical diagram of a mechanical device with internal components and an inset showing a close-up view (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating assembly or force (no text or symbols)

Illustration of a robotic vacuum cleaner with a hand holding the lid and a blue arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating a component (no text or symbols present)

Line drawing of a circular device with a handle and arrow indicating rotation (no text or symbols)

Diagram of a drain drain with a handle and water level indicator (no text or symbols)

Резервуар
1

Line drawing of a hand placing a small object into a device (no text or symbols)

3

Simple line drawing of a boat hull with a water tap at the base (no text or symbols)

Illustration of a hand holding a pen over a curved surface with a blue arrow indicating direction (no text or symbols)

4

Line drawing of a hand holding a small object over a device casing (no text or symbols)

Hand pouring liquid into a container with a blue arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with blue particles (no text or symbols)

2

3

Hand holding a device with a small black object inserted, no visible text or symbols

4

Two technical line drawings showing a mechanical component with a base and a container, both without any text or symbols.

5

Simple line drawing of a jar with a lid and a sun symbol (no text or labels)

Line drawing of a robotic vacuum cleaner with a hand holding the lid and blue arrow indicating motion (no text or symbols)

2

Diagram showing a device being poured into a container with blue particles (no text or symbols)

3

Diagram of a battery pack with an arrow indicating rotation, showing internal compartments and a grid pattern (no text or symbols)

4

Hand holding a small object with blue and black dots inside, no visible text or symbols

5

Three technical illustrations showing a hand interacting with a grid, a mechanical component, and a close-up of a mechanical part (no text or symbols present)

6

Simple line drawing of a helmet with a sun symbol (no text or labels)

Technical line drawing of a mechanical device with a blue component and an inset showing internal components (no text or symbols)

1

Diagram of a vehicle interior with two propellers and directional arrows indicating flight or movement (no text or symbols)

2

Line drawing of a robotic device with a blue arrow indicating a component (no text or symbols present)

2

Line drawing of a hand holding a small mechanical component (no text or symbols)

3

No. 18 You Xiang Road, Wuzhong District, Suzhou City, Jiangsu Province, P.R.China

DEEBOT U2s-EU01-IM2020R00
