Product Type	Microwave
Brand	Candy
Model	CMG 2381 MW
Capacity	23 liters
Dimensions (W x D x H)	485 x 370 x 300 mm
Weight	12 kg
Power Supply	230 V, 50 Hz
Microwave Power	800 W
Grill Power	1000 W
Functions	Microwave, Grill, Defrost, Auto Cook
Control Type	Touch + Dial
Display	LED
Turntable	Yes, 300 mm
Child Lock	Yes
Cleaning	Wipe interior with damp cloth; avoid abrasives
Safety Features	Door interlock, overheat protection
Spare Parts Availability	Replacement parts via authorized service centers
Warranty	1 year

Frequently Asked Questions - CMG 2381 MW CANDY

How do I set the cooking time on my Candy CMG 2381 MW?

Use the Time Cook button and rotate the dial to set minutes. Press Start to begin.

What is the maximum power level?

The maximum microwave power is 800 W. You can adjust power levels using the Power button.

How do I use the grill function?

Press the Grill button, set the time, and press Start. For combined microwave and grill, use the Combi mode.

Can I defrost food in this microwave?

Yes, use the Defrost function. Enter the food weight, and the microwave will automatically adjust time and power.

How do I clean the interior?

Wipe with a soft damp cloth after use. Do not use abrasive cleaners or scouring pads.

Why is my microwave not heating?

Check if the door is closed properly and the Child Lock is off. If problem persists, contact service.

Is there a child lock feature?

Yes, press and hold the Stop button for 3 seconds to activate or deactivate the child lock.

What does the 'Auto Cook' function do?

It offers pre-set programs for common foods like pizza, popcorn, or beverages. Select the program and weight, then press Start.

Can I use metal containers in the microwave?

No, metal can cause sparks. Use only microwave-safe glass, ceramic, or plastic containers.

Where can I find the user manual?

The manual is available for free download in PDF format on notice-facile.com.

USER MANUAL CMG 2381 MW CANDY

Microwave Oven INSTRUCTION MANUAL

MODEL:CMG 2381 MW

GB

Read these instructions carefully before using your microwave oven, And keep it carefully for future reference.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaning residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

GB

SPECIFICATIONS

Model:	CMG 2381 MW
Rated Voltage:	230V~ 50Hz
Rated Input Power:	1250 W
Rated Output Power:	800 W
Grill Power:	1000 W
Oven Capacity:	23 L
Turntable Diameter:	270 mm
Dimensions(LxWxH):	485mmX410mmX287mm
Weight(Net):	Approx. 14 Kg

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING—

To reduce the risk of fire, electric shock, injury to persons, or exposure to excessive microwave oven energy when using your appliance, follow these basic precautions:

1. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.(only for grill series)
5. only use utensils that are suitable for use in microwave ovens.
6. the oven should be cleaned regularly and any food deposits removed.
7. Read all instructions before using the appliance.
8. Read and follow the specific:" PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
9. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
10. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Do not overcook food.
12. Do not use the oven cavity for storage purposes. Do not store items such as bread, cookies, paper products, etc. inside the oven. If lightning strikes the power line, the oven may turn on by itself.

13. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

14. Install or locate this oven only in accordance with the installation instructions provided.

15. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

16. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook food. It is not designed for industrial or laboratory use.

17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

18. Do not store or use this appliance outdoors.

19. Do not use this oven near water, near a kitchen sink, in a wet basement or near a swimming pool.

20. The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surfaces, and do not cover or block any vents on the oven.

21. Do not let cord hang over edge of table or counter.

22. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation, so the oven should be cleaned regularly and any food deposits removed.

23. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

24. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

Two-round-pin plug

Line drawing of a plug with two leads (no text or symbols)

Utensils

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 2-pronged plug with a grounding slot & 2 grounding plates. A 2-slot receptacle, with a grounding prong or grounding terminal(s), will accept the plug of the appliance.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord, and 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See next page for further instructions "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking.Arcing can occur if foil is too close to oven walls.The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable.Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacture's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is nonmetallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacture's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent spattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions.Should be labeled "Microwave Safe". Some plastic containers soften as the food inside gets hot."Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may spilt or crack.

SETTING UP YOUR OVEN

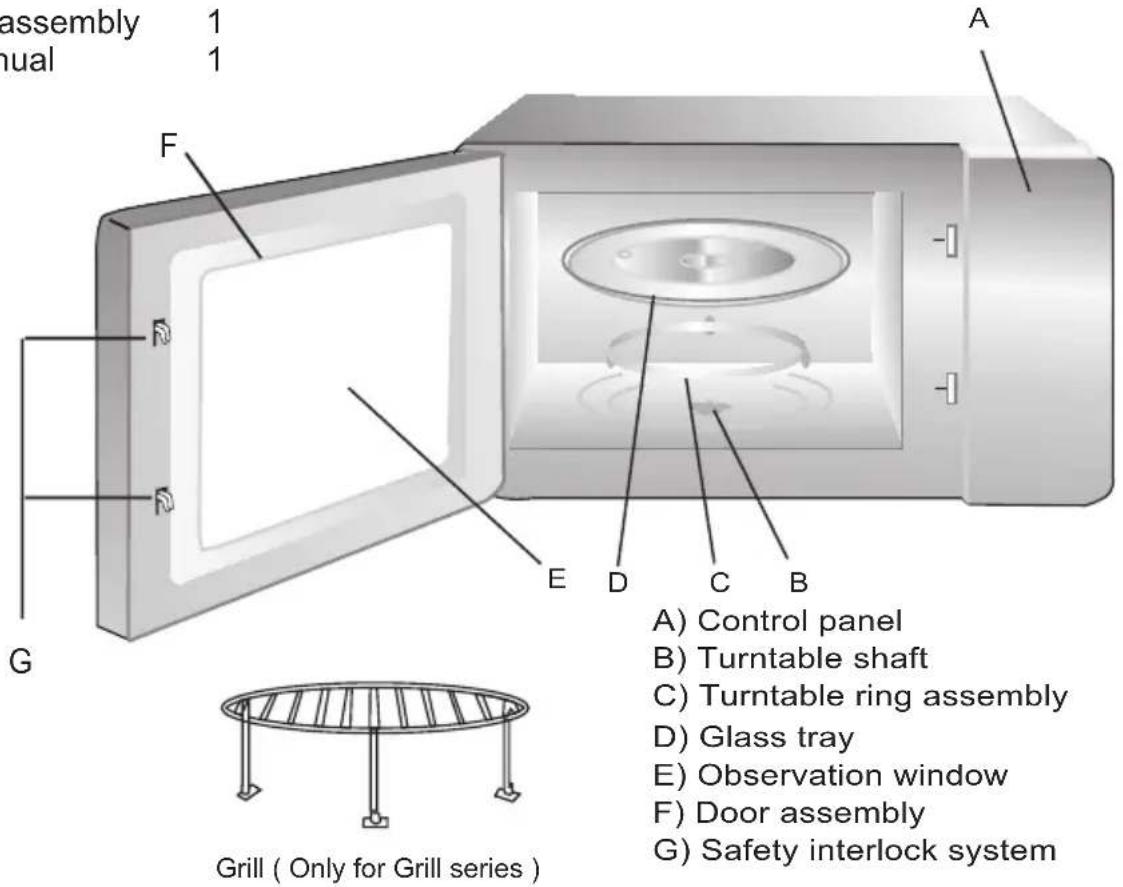

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

Shuts off oven power if door is opened during operation.

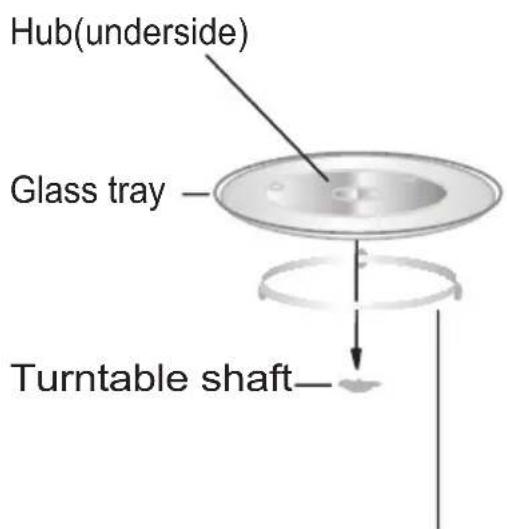

TURNTABLE INSTALLATION

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food should be always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service centre.

Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Countertop

Cabinet: Remove any protective film found on the cabinet surface.

Do not remove the light brown oven cover that is screwed to the oven cavity to protect the magnetron.

Installation

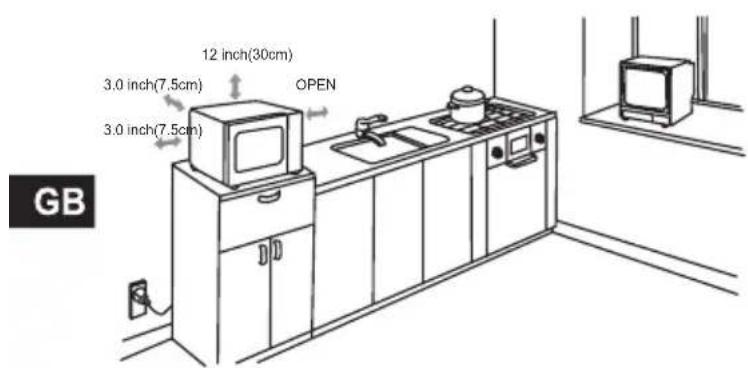

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inch (7.5cm) is required between the oven and any adjacent wall. One side must be open.

(1) Leave a minimum clearance of 12 inch(30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.

(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

Cleaning

Be sure to disconnect the oven from the power supply.

1. Clean the inside of the oven after use with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

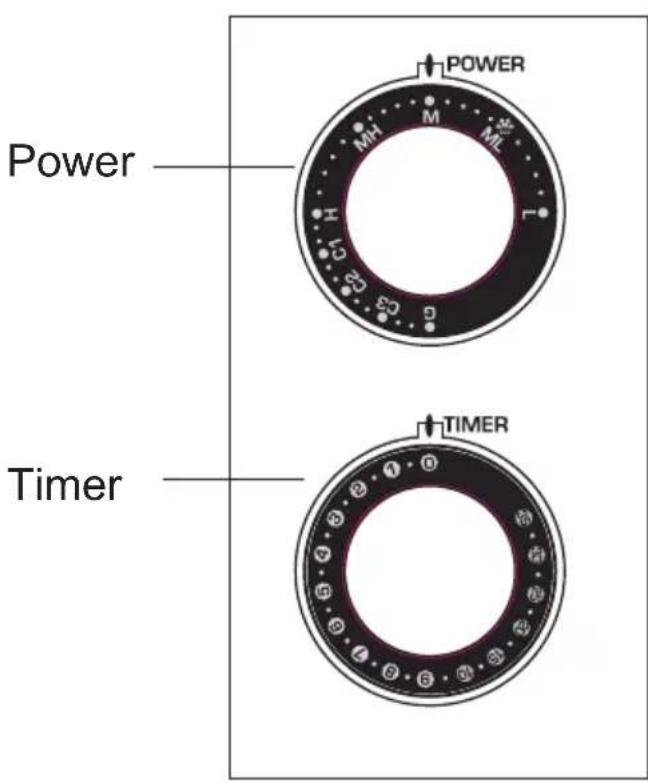

Control Panel and Features

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after Power level and time is set.
4. After the cooking time is up, the unit will "Ding" to stop.
5. If the unit is not in use, always set time to "0".

GB

Function/power	Control Panel	Output (%)	Application
Low power	L	17% microwave	Keep food temperature, soften ice cream
Defrost (med. low power)	ML	33% microwave	Defrost
Medium power	55% microwave	Cook cream	cake, braise food
Med. High power	77% microwave	rice, fish	and shell-fish, cookies, meat
High power	100% microwave		Reheat, boil water, cook fresh vegetable, chickens ducks, heat non-milk drink
Combi.1	C1	80% grill + 20% micro	Western steak, pork chop, meat, poultry, etc.
Combi.2	C2	70% grill + 30% micro	Chinese steak, meat, pork chop, etc.
Combi.3	C3	60% grill + 40% micro	Chickens, ducks, meat, make food crispy and tasty
Grill	G	100% grill	Spit-roasting, smoked fish fillets, potato chips

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It does no damage to oven if oven operates empty for quite short time. But it should be avoided.

GB

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as

household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Forno a Microonde

Line drawing of an electrical outlet plug with two leads (no text or symbols)

2. NON riscaldare:

Symbol of a trash bin crossed with two crossed arms, no text or labels present

Line drawing of a black electrical outlet plug with two leads (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Line drawing of a black electrical outlet plug with two leads (no text or symbols)

DE

Line drawing of an electrical outlet plug with two leads (no text or symbols)

Utensilios

PRECAUCIÓN

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of an electrical outlet plug with two leads (no text or symbols)

Utensílios CUIDADO

PT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Este electrodoméstico está marcado de acordo com o disposto na directiva europeia 2002/96/CE relativa aos resíduos de equipamentos eléctricos e electrónicos (REEE).
