Product Type	Microwave with Grill (Combi Oven)
Model	CMG 9623 DY
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1450 W
Rated Output Power (Microwave)	900 W
Rated Input Power (Grill)	1000 W
Oven Capacity	23 L
Turntable Diameter	315 mm
External Dimensions (L x W x H)	511 x 395 x 284 mm
Net Weight	Approx. 16.1 kg
Cooking Modes	Microwave, Grill, Combination 1 (55% MW + 45% Grill), Combination 2 (36% MW + 64% Grill)
Microwave Power Levels	10 levels (10% to 100% via Press key; 100%, 80%, 50%, 30%, 10%)
Auto Menus	8 auto menus: Auto Reheat, Vegetable, Pasta, Meat, Pizza, Potato, Fish, Soup
Defrost Functions	Defrost by Weight (100-2000 g) and Defrost by Time
Clock and Timer	24-hour clock, kitchen timer up to 95 minutes
Child Lock	Yes (press Stop/Cancel for 8 seconds)
Included Accessories	Glass tray, Turntable ring assembly, Grill rack (for grill models)
Installation Clearance	Minimum 7.5 cm from adjacent walls, 30 cm above
Cleaning and Maintenance	Disconnect power; wipe interior with damp cloth; clean accessories in soapy water; do not use abrasive cleaners
Safety Features	Grounding plug, door interlocks, automatic shut-off when door opened
Repairability / Spare Parts	Contact authorized service center; do not attempt repair yourself
Compatible Utensils	Microwave-safe glass, ceramic, plastic, paper; avoid metal
Warranty	Standard manufacturer warranty (details on product)

Frequently Asked Questions - CMG 9623 DY CANDY

How do I set the clock on my Candy CMG 9623 DY microwave?

Press the Clock/Pre-set button (√ key). Use the dial to set hour (0–23), press √, set minutes (0–59), then press √ again to confirm. The clock will flash to indicate it is set.

Why won't my microwave start?

Check that the power cord is plugged in securely and the door is fully closed. If the fuse has blown or circuit breaker tripped, reset it. For persistent issues, contact a qualified technician.

Can I use metal utensils in this microwave?

No, metal utensils or containers with metal trim can cause arcing and damage the oven. Only use microwave-safe materials such as glass, ceramic, and plastic labeled for microwave use. The grill rack is the only metal accessory allowed for grill mode.

How do I use the grill function?

Press the Grill key six times until 'G' appears. Turn the dial to set cooking time (up to 95 minutes). Press +30″ to start. For best results, preheat the grill for 4 minutes and turn food halfway through when the oven pauses and beeps.

What should I do if the oven smells like smoke during cooking?

Immediately switch off or unplug the appliance and keep the door closed to stifle any flames. Do not open the door until smoke has cleared. Remove overheated food and clean the oven interior before next use.

How can I defrost food by weight?

Press the Defrost key once to select 'dEF1'. Turn the dial to enter the weight of the food (100–2000 g). Press +30″ to start defrosting. The oven will automatically set the appropriate time and power level.

Is it safe to heat baby food or milk in this microwave?

Yes, but with caution. Always remove the teat from bottles. Heat baby food in a deep ceramic plate, stir well after heating, and check temperature before serving. Recommended serving temperature is 30–40°C for food and around 37°C for milk.

How do I clean the microwave properly?

Disconnect the oven from power. Clean the inside with a slightly damp cloth. Wash accessories like the glass tray and turntable ring in warm soapy water. Clean the door frame and seals with a damp cloth. Do not use abrasive cleaners or scouring pads.

What is the child lock and how do I activate it?

The child lock prevents accidental operation. In standby mode, press and hold the Stop/Cancel key for 8 seconds until a long beep sounds and 'LOC' appears. To deactivate, press and hold the same key for 8 seconds again.

Can I use the microwave without the turntable?

No, the glass tray and turntable ring assembly must always be used during cooking to ensure even heating. Never place the glass tray upside down or restrict its rotation.

USER MANUAL CMG 9623 DY CANDY

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	CMG 9323 DW - CMG 9423 DSCMG 9523 DB - CMG 9623 DY
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1450W
Rated Output Power(Microwave):	900 W
Rated Input Power(Grill):	1000W
Oven Capacity:	23L
Turntable Diameter:	315mm
External Dimensions(LxWxH):	511 x395x 284 mm
Net Weight:	Approx.16.1 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to disconnect the oven from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 2-pronged plug with a grounding slot & 2 grounding plates. A 2-slot receptacle, with a grounding prong or grounding terminal(s), will accept the plug of the appliance.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

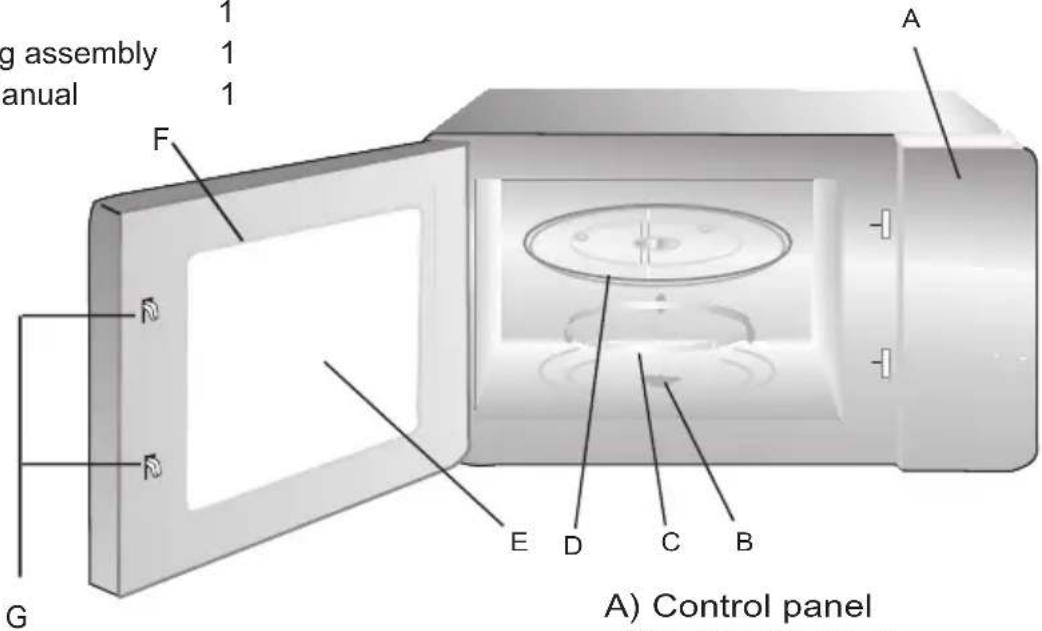

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

Warning: Do not use grill rack in microwave mode! Always take it out when using the microwave!

Line drawing of a circular metal structure with three legs and vertical supports (no text or symbols)

Grill Rack( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Shut off oven power if the door is opened during operation.

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible.

Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press " √ ", the hour figures will flah.
2) Turn " [icon] " to adjust the hour figures, the input time should be within 0--23.	89:00:
3) Press " √ the minute figures will flash.	89:00:
4) Turn " [icon] " to adjust the minute figures, the input time should be within 0--59.	89:58:
5) Press " √ to finish clock setting. ":" will flash.	89:58:
Note: 1) If the clock is not set, it would not function when powered.2) During the process of clock setting, if you press " " stop no operation in one minute, the oven will exit the setting.

2. Microwave Cooking

Press "several times to select the function you want. Turn "to adjust the cooking time. Press "+30" " to start cooking.

Example: If you want to use 80% power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " once, the LED will display "P100", " indicator will be lighted.	28:00:
2) Press " once again to choose 80% power, the LED will display "P80".	28:00:
3) Turn " to adjust the cooking time until the oven display"20:00"(The maximum cooking time is 95 minutes.)	20:00:

4) Press " +30" " to start cooking, ":" will light and the " indicator will flash (Buzzer will sound five times after finishing).

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Press	Once Twice Thrice 4 times 5 times
Microwave Power	100%	80%	50%	30%	10%

3. Grill Cooking

1) Press the " 🔊 🔒 🔔 🔔 " key six times, "G" displays and grill function is selected.

2) Turn " 🔍 " to adjust the cooking time. The maximum cooking time is 95 minutes.
3) Press the " +30" ◇ " key to start cooking. The" " will flash, ":" will be lighted.

Note: If half the grill time passes, the oven pause and beep twice. This is normal. You can just press " +30" ◆ " to continue cooking. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press " +30" ◆ " to continue cooking. If there is no operation in 1 minute, the oven will continue working and beep once.

4. Combination Cooking

1) Press the " ☐ ☐ ☐ " key for times, " C-1 " or "C-2" display and combination function is selected. " ☐ " and " ☐ " will light.

2) Turn " 🔍 " to adjust the cooking time. (The maximum cooking time is 95 minutes.)
3) Press " +30" ◇ " key to start cooking. The cooking indicators will flash and ":" will light.

Note: Combination instructions

Instructions	LED Display	Microwave Power	Grill Power
1		55%	45%
2		36%	64%

5. Speedy Cooking

When the oven is in the waiting states, press " +30" ◆ " key to start cooking with full microwave power for 30 seconds. The cooking time will add 30 seconds by every press on " *30" ◆ and the maximum setting time is 95 minutes.

Note: Be invalidation under other program during cooking.

6. Defrost by Weight

1) Press "pad once, the LED will display "dEF1".

2) Turn " 🔍" to select the weight of food. At the same time, "g" will light. The weight should be 100-2000g.

3) Press " "Key to start defrosting. " " and " indicators will flash and "g" indicator will go out.

7. Defrost By Time

1) Press " "key once, the LED will display "dEF2".

88:82

2) Turn " 🔍 " to select the cooking time. At the same time, " 🔍 " and " 🔍 " will be lighted. The time setting is from 00:05 to 95:00.

The default power level is P30. It is not adjustable.

88:88

3) Press " +key to start defrosting.

" " and " " indicators will flash .

8. Auto Menu

1). In waiting states, press "ato choose the menu you need." "A-1","A-2"...."A-8" will display in order.

88:88

2). Turn " 🔍 " to select the weight or portion of the menu.

3) Press " "+to" start cooking.

When cooking finish, buzzer will sound five times. If the clock has been set before, the current time will be displayed, otherwise, 0:00 will be displayed.

For example: to cook the pasta of 150g.

1) Press "Afor three times,"A-3" displays and pasta menu is selected.

" " and " AUTO COOM " indicator will light.

2). Turn " 🔍 " to select the weight of the menu. Stop turning when "150" displays.

3) Press " +30" ◆ " to start cooking.

When cooking finish, buzzer will sound five times. Then turn back to waiting states.

9.Multi-Stage Cooking

Two stages of cooking can be maximumly set. If one stages is defrosting, it will be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food of 500g + 80% microwave power for 5 minutes.

The steps are as following:

1) Press " "dEF1" displays;

88:88

2) Turn " " to adjust the weight of the food. Stop turning when "500" displays;

3) Press" "twice to choose 80% microwave power;

86:88

4) Turn " " to adjust the cooking time of 5 minutes;

85:00

5) Press " 4 to start cooking.

Note: When the first stage finish, buzzer sounds once then the second stage begins. When all of them finish, buzzer sounds five times and the unit turn back to the waiting states.

10. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most. Defrosting should not be set here.

3) Press "The current clock is displayed. The hour figure flash;

4) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.

88:00

5) Press " √", the minute figures will flash.

88:00

6) Turn " 🔥 " to adjust the minute figures, the input time should be within 0--59.

98:06

7) Press " +30" ◇ " to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: 1) Clock must be set first. Otherwise, pre-set function will not work.

2) If the pre-set program has been set without the cooking program, the whole setting will be used as an alarm clock. That means when pre-set time arrives, buzzer will sound five times only.

11. Inquiring Function

(1) In cooking state, press " , the current microwave power will be displayed for 3 seconds.

(2) In pre-set state, press "to inquire the time for delay start cooking. The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display.

(3) During cooking state, press " " to check the current time. It will be displayed for 3 seconds.

12. Lock-out Function for Children

Lock: In waiting state, press " " for 8 seconds, there will be a long "beep" denoting entering into the children-lock state and LED will display " " and " " will light. Lock quitting: In locked state, press " " for 8 seconds, there will be a long "beep" denoting that the lock is released, and LED will turn back to the clock stae, " " will go out.

13. Protection of Fan

When the microwave or combination cooking works over 5 minutes, it stops working at the last 15 seconds, only fan runs.

14. Protection Function of Magnetron Control Pipe

When the unit runs for 30 minutes with high power level, it will adjust to 80% microwave power to protect the magnetron control pipe.

This function works under multi-stage and other states.

15. Automatic Going Out Function

When the door is kept open for 10 minutes, the oven light will be off. Press any key after opening the door, time will count down again. The oven lamp will light.

16. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) " +30" ◆ " must be pressed to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set , " +30" ◇ " is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.

Auto menu Chart

Menu	Weight(g)	Display
A-1 AUTO REHEAT	150	150
	250	250
	350	350
	400	400
A-2 VEGETABLE	150	150
	350	350
	500	500
A-3 PASTA	50(with water 450g)	50
	100(with water 800g)	100
	150(with water 1200g)	150
A-4 MEAT	150	150
	300	300
	450	450
	600	600
A-5 PIZZA	1(About 80g)	1
	2(About 160g)	2
	3(About 250g)	3
A-6 POTATO	1(About 220 ± 10g)	1
	2(About 440 ± 10g)	2
	3(About 660 ± 10g)	3
A-7 FISH	150	150
	250	250
	350	350
	400	400
	450	450
A-8 SOUP	500	500
	750	750
	1000	1000

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly: switch off the appliance (do not subject it to rought treatment) and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important that you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CookingGuide

MICROWAVES

Microwaveenergyactuallypenetratesfood, attracted and absorbed by its water, fat and sugar content.

Themicrowavescausethemoleculesinthefoodtomoverapidly. Therapid movementofthesemoleculescreatesfrictionandtheresultingheatcooksthe food.

COOKING

Cookwareformicrowavecooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood, but they are reflected by metal, such as stainless steel, aluminium and copper. So food must never be cooked in metal containers.

Foodssuitableformicrowavecooking:

Manykindsoffoodaresuitableformicrowavecooking,includingfreshorfrozen vegetables,fruit,pasta,rice,grains,beans,fish,andmeat.Sauces,custard, soups,steamedpuddings,preserves,andchutneyscanalsobecookedina microwaveoven.Generallyspeaking,microwavecookingisidealforanyfood thatwouldnormallybepreparedonahob.

Coveringduringcooking

Tocoverthefoodduringcookingisveryimportant,astheevaporatedwaterrises assteamandcontributestocookingprocess.Foodcanbecoveredindifferent ways:e.g.withaceramicplate,plasticcoverormicrowavesuitableclingfilm.

Standingtimes

Aftercookingisoverfoodthestandingtimeisimportanttoallowthetemperature toevenoutwithinthefood.

CookingGuide

CookingGuideforfrozenvegetables

Useasuitableglasspyrexbowlwithlid.Cookcoveredfortheminimumtime-see table.Continuecookingtogettheresultyouprefer.

Stirtwiceduringcookingandonceaftercooking.Addsalt,herbsorbutterafter cooking.Coverduringstandingtime..

FoodPortion	Power		Time (min.)	Standing Time(min.)	Instructions
Spinach	150gP	805-62-3			Add15ml(1tablespoon) coldwater.
Broccoli	300gP	808-92-3			Add 30 ml (2 t b sp.) cold water.
Peas	300gP	807-82-3			Add 15 ml (1 t b sp.) cold water.
GreenBeans	300gP	807^1/2-8^1/22-3			Add 30 ml (2 t b sp.) cold water.
Mixed Vegetables (carrots/peas/corn)	300gP	807-82-3			Add 15 ml (1 t b sp.) cold water.
Mixed Vegetables (Chinesestyle)	300gP	807^1/2-8^1/22-3			Add 15 ml (1 t b sp.) cold water.

CookingGuide

CookingGuideforfreshvegetables

Useasuitableglasspyrexbowlwithlid.Add30-45mlcoldwater(2-3tbsp.)for every250gunlessanotherwaterquantityisrecommended-seetable.Cook coveredfortheminimumtime-seetable.Continuecookingtogettheresultyou prefer.Stironceduringandonceaftercooking.Addsalt,herbsorbutterafter cooking.Coverduringastandingtimeof3minutes.

Hint: Cutthefreshvegetablesintoevensizedpieces. Thesmallerthey arecut, thequickertheywillcook.

All fresh vegetables should be cooked using full microwave power (P100).

Food	Portion	Time (min.)	Standing Time(min.)	Instructions
Broccoli	250g 500g	31⁄2-4 6-7	3	Prepareevensizedflorets.Arrange thestemstothecentre.
Brussels Sprouts	250g5	51⁄23		Add60-75ml(5-6tbsp.)water.
Carrots	250g3	1⁄2-43		Cutcarrotsintoevensizedslices.
Cauliflower	250g 500g	4-41⁄2 61⁄2-71⁄2	3	Prepareevensizedflorets.Cutbig floretsintohalves.Arangestemsto thecentre.
Courgettes	250g3	31⁄23		Cutcourgettesintoslices.Add30ml (2tbsp.)wateroraknobofbutter. Cookuntiljusttender.
EggPlants	250g2	1⁄2-33		Cuteggplantsintosmallslicesand sprinklewith1tablespoonlemon juice.
Leeks	250g3	31⁄23		Cutleeksintothickslices.
Mushrooms	125g 250g	1-11⁄2 2-21⁄2	3	Preparesmallwholeorsliced mushrooms.Donotaddanywater. Sprinklewithlemonjuice.Spicewith saltandpepper.Drainbefore serving.
Onions	250g4	41⁄23		Cutonionsintoslicesorhalves.Add only15ml(1tbsp.)water.
Pepper	250g3	1⁄2-43		Cutpepperintosmallslices.
Potatoes	250g 500g	3-4 6-7	3	Weighthepeeledpotatoesandcut themintosimilarsizedhalvesor quarters.
Turnip Cabbage	250g	41⁄2-5	3	Cutturnipcabbageintosmallcubes.

CookingGuide

CookingGuideforriceandpasta

Rice: Usealargeglasspyrexbowlwithlid-ricedoublesinvolumeduring cooking. Cookcovered. Afterthecookingtimeisover, stirbeforestandingtimeandsaltor addherbsandbutter. Remark:thericemaynothaveabsorbedallwaterafterthecooking timeisfinished.

Pasta: Usealargeglasspyrexbowl.Addboilingwater, apinchofsalt and stirwell. Cookuncovered. Stiroccasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

FoodPortionPower			Time (min.)	Standing Time(min.)	Instructions
WhiteRice (parboiled)	250g375g	P100	15-16 1712-1812	5	Add500mlcoldwater.Add750mlcoldwater.
BrownRice (parboiled)	250g375g	P100	20-2122-23	5	Add500mlcoldwater.Add750mlcoldwater.
MixedRice (rice+wild rice)	250gP	10016-175			Add500mlcoldwater.
MixedCorn (rice+grain)	250gP	10017-185			Add400mlcoldwater.
Pasta	250gP	10010-115			Add1000mlhotwater.

REHEATING

Yourmicrowaveovenwillreheatfoodinafractionofthetimethatconventional ovenshobsnormallytake.

Usethepowerlevelsandreheatingtimesinthefollowingchartasaguide. The timesinthechartconsiderliquidswitharoomtemperatureofabout+18to+20°C orachilledfoodwithatemperatureofabout+5to+7°C.

Arrangingandcovering

Avoidreheatinglargeitemssuchasjointofmeat-theytendtoovercookanddry outbeforethecentreispipinghot.Reheatingsmallpieceswillbemore successful.

Powerlevelsandstirring

Somefoodscanbereheated using maximum powerwhileothersshouldbe reheated using lower power.

Checkthetablesforguidance.Ingeneral,itisbettertoreheatfoodusingalower powerlevel,ifthefoodisdelicate,inlargequantities,orifitislikelytoheatup veryquickly(mincepies,forexample).

Stirwellorturnfoodoverduringreheatingforbestresults.Whenpossible,stir againbeforeserving.

CookingGuide

Takeparticularcarewhenheatingliquidsandbabyfoods.Topreventeruptive boilingofliquidsandpossiblescalding,stirbefore,duringandafterheating. Keeptheminthemicrowaveovenduringstandingtime.Werecommendputtinga plasticspoonorglassstickintotheliquids.Avoidoverheating(andtherefore spoiling)thefood. Itispreferabletounderestimatecookingtimeandaddextraheatingtime,if necessary.

Heatingandstandingtimes

When reheating food for the first time, it is helpful to make an annotation of the time taken-for-future reference.

Alwaysmakesurethatthereheatedfoodispiipinghotthroughout.

Allowfoodtostandforashorttimeafterreheating-toletthetemperatureeven out. Therecommendedstandingtimeafterreheatingis2-4minutes,unless another time is recommended in the chart..

Takeparticularcarewhenheatingliquidsandbabyfood.Seealsothechapter withthesafetyprecautions.

REHEATINGLIQUIDS

Alwaysallowastandingtimeofatleast20secondsaftertheovenhasbeen switchedofftoallowthetemperaturetoevenout.Stirduringheating,if necessary,andALWAYSstirafterheating.Topreventeruptiveboilingand possiblescalding,youshouldputaspoonorglassstickintothebeveragesand stirbefore,duringandafterheating.

REHEATINGBABYFOOD

BABYFOOD:

Emptyintoadeepceramicplate.Coverwithplasticlid.Stirwellafterreheating! Letstandfor2-3minutesbeforeserving.Stiragainandcheckthetemperature. Recommendedservingtemperature:between30-40°C.

BABYMILK:

Pourmilkintoasterilisedglassbottle.Reheatuncovered.Neverheatababy's bottlewithteaton,asthebottlemayexplodeifoverheated.Shakewellbefore standingtimeandagainbeforeserving!Alwayscarefullycheckthetemperature ofbabymilkorfoodbeforegivingittothebaby.Recommended serving temperature:ca.37°C.

REMARK:

Babyfoodparticularlyneedstobecheckedcarefullybeforeservingtoprevent burns.

Usethepowerlevelsandtimesinthenexttableasaguidelinesforreheating.

CookingGuide

ReheatingLiquidsandFood
Usethepowerlevelsandtimesinthistableasaguidelinesforreheating.

FoodPortionPower			Time (min.)	Standing Time (min.)	Instructions
Drinks (coffee,milk, tea,water withroom temperature)	150ml (1cup)300ml (2cups)450ml (3cups)600ml (4cups)	P100	1-112 112-2 212-3 3-312	1-2	Pourintoaceramiccupand reheatuncovered.Place1 cup in the c e n t r e , 2 oppositeofeachotherand 3or4inacircle.Stir carefullybeforeandafter standingtime,becareful whiletakingthemoutof oven.
Soup (chilled)	250g350g450g550g	P100	2-212 212-3 3-312 312-4	2-3	Pourintoadeepceramic plateordeepceramicbowl.Coverwithplasticlid.Stir wellafterreheating.Stir againbeforeserving.
Stew (chilled)	350gP80		412-512 2-3		Putstewinadeepceramic plate.Coverwithplastic lid.Stiroccasionallyduring reheatingandagainbefore standingandserving.
Pastawith sauce (chilled)	350gP80	0312-412 3			Putpasta(e.g.spaghettior eggnoodles)onaflat ceramicplate.Coverwith microwaveclingfilm.Stir beforeserving.
Filledpasta withsauce (chilled)	350gP80		4-53		Putfilledpasta(e.g.ravioli, tortellini)inadeepceramic plate.Coverwithplasticlid. Stiroccasionallyduring reheatingandagainbefore standingandserving.
PlatedMeal (chilled)	350g450g550g	P80	412-512 5-6 512-612	3	Plateamealof2-3chilled componentsonaceramic dish.Coverwithmicrowave cling-film.

CookingGuide

ReheatingBabyFoodandMilk

Usethepowerlevelsandtimesinthistableasguidelinesforreheating.

FoodPortionPowerTime				Standing Time (min.)	Instructions
Babyfood (vegetables +meat)	190gP	8030sec.2-3			Emptyintoceramicdeepplate.Cookcovered.Stiraftercooking time.Standfor2-3minutes.Beforeserving,stirwelland checkthetem-peraturecarefully.
Baby porridge (grain+ milk+fruit)	190gP	8020sec.2-3			Emptyintoceramicdeepplate.Cookcovered.Stiraftercooking time.Standfor2-3minutes.Beforeserving,stirwelland checkthetem-peraturecarefully.
Babymilk	100ml200ml	P30	30-40 sec.1 min to 1 min 10sec.	2-3	Stirorshakewellandpourintoa sterilisedglassbottle.Placeinto thecentreofturntable.Cook uncovered.Shakewellandstand foratleast3minutes.Before serving,shakewellandcheckthe tempera-turecarefully.

CookingGuide

GRILL

Thegrill-heatingelementislocatedunderneaththeceilingofthecavity. It operateswhilethedoorisclosedandtheturntableisrotating. Theturntable's rotationmakesthefoodbrownmoreevenly. Preheatingthegrillfor4minuteswill makethefoodbrownmorequickly.

Cookwareforgrilling:

Shouldbeflameproofandmayincludemetal.Donotuseanytypeofplastic cookware,asitcanmelt.

Foodsuitableforgrilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kind soft to ast with toppings.

IMPORTANTREMARK:

Please remember that food must be placed on the high rack, unless another instruction is recommended.

MICROWAVE+GRILL

This cooking mode combines the other ad hoc and is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Duet other rotation of the turntable, the food brown sevenly.

Cookwareforcookingwithmicrowave+grill

Pleaseusecookwarethatmicrowavescanpassthrough.Cookwareshouldbe flameproof.Donotusemetalcookwarewithcombinationmode.Donotuseany typeofplasticcookware,asitcanmelt.

Foodsuitableformicrowave+grillcooking:

Foodsuitableforcombinationmodecookingincludeallkindsofcookedfood whichneedreheatingandbrowning(e.g.bakedpasta),aswellasfoodswhich requireashortcookingtimetobrownthetopofthefood.Also,thismodecanbe usedforthickfoodportionsthatbenefitfromabrownedandcrispytop(e.g. chickenpieces,turningthemoverhalfwaythroughcooking).Pleaserefertothe grilltableforfurtherdetails.

The food must be turned over, if it is to be browned on both sides.

CookingGuide

GrillGuideforfreshfood

Preheathegrillwiththegrill-functionfor4minutes.

Usethepowerlevelsandtimesinthistableasguidelinesforgrilling.

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
ToastSlices	4pcs(each25g)	Grill only	312-4123	-4	Putthetoastsslicessidebyside ontherack.
BreadRolls(already baked)	2-4 pieces	Grill only	212-3121	1/2-212	Putbreadrollsfirstwiththe bot t o m s i d e u p in a c r c l e directlyontheturntable.
Grilled Tomatoes	200g(2pcs)400g(4pcs)	C2	312-412 5-6	-	Cuttomatoesintohalves.Put somecheeseontop.Arrange inacircleinaflatglasspyrex dish.Placeitontherack.
Tomato-Cheese Toast	4 pcs(300g)	C24-5-			Toastthebreasslicesfirst.Put thetoastwithtoppingonthe rack.Standfor2-3minutes.
Toast Hawaii(pineapple,ham,cheese slices)	2 pcs(300g)4 pcs(600g)	C1	312-412 6-7	-	Toastthebreadslicesfirst.Put thetoastwithtoppingonthe rack.Put2toastsopposite directlyontherack.Standfor 2-3minutes.
Baked Potatoes	250g500g	C1	412-512 612-712	-	Cutpotatoesintohalves.Put h e min ac r c l e o n t h e r a c k with thecutsidetothegrill.
Gratin Potatoes/vegetables(chilled)	500g	C1	9-11-		Put t h e f r e s h g r a t i n i n to a small glass Grillpyrexdish.Put the dishontherack. Aftercooking standfor2-3minutes.
Chicken Pieces	450g(2pcs)650g(2-3pcs)850g(4pcs)	C2	7-89-1011-12	7-88-99-10	Brushchickenpieceswithoil andspices.Puttheminacircle withthebonestothemiddle.Putonechickenpiecenotinto thecentreoftherack.Standfor 2-3minutes.
Roast Chicken	900g1100g	C1	10-1212-14	9-1111-13	Brushchickenwithoiland spices.Putchickenfirstbreast sidedown,secondsidebreast sideupdirectlyonturntable. Standfor5minutesafter grilling.

CookingGuide

GrillGuideforfreshfood

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
LambChops (medium)	400g(4pcs)	Grill only	10-128-9		Brushthelambchopswithoil andspices.Laythemina circleontherack.After grillingstandfor2-3minutes.
PorkSteaks	250g(2pcs)500g(4pcs)	MW + Grill	C26-78-10	(Grill only)5-67-8	Brushtheporksteakswithoil andspices.Laythemina circleontherack.After grillingstandfor2-3minutes.
RoastFish	450g650g	C2	6-77-8	7-88-9	Brushskinofwholefishwith oilandherbsandspices.Put fishsidebyside(headtotail) onrack.
Baked Apples	2apple(ca.400g)4apples(ca.800g)	C2	6-710-12	-	Coretheapplesandfillthem withraisinsandjam.Put somealmondslicesontop.Putapplesonaflatglass pyrexdish.Placethedish directlyontheturntable.

CookingGuide

GrillGuideforfrozenfood

Usethepowerlevelsandtimesinthistableasguidelinesforgrilling.

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
BreadRolls(eachca.50g)	2 pcs4 pcs	MW+ Grill	C2 112-2 212-3	Grill only2-32-3	Arrangerollsinacircle withthebottomsideup directlyontheturntable.Grillthesecondsideof therollsuptothecrispyouprefer.Standfor2-5 minutes.
Baguettes/GarlicBread	200-250g(1pc)	MW+ Grill	C1 312-4	Grill only2-3	Putfrozenbaguette diagonallyonbaking paperontherack.After grillingstandfor2-3 minutes.
Gratin(vegetablesor potatoes)	400gC1		13-15-		Putfrozengratinintoa smallglasspyrexdish.Putthedishontherack.Aftercookingstandfor2-3minutes.
Pasta(Cannelloni, Macaroni, Lasagne)	400gC1	14-16-			Putfrozenpastaintoa smallflatrectangular glasspyrexdish.Putthe dishdirectlyontheturntable.Aftercooking standfor2-3minutes.
FishGratin400gC1			16-18-		Putfrozenfishgratinintoasmallflatrectangular glasspyrexdish.Putthe dishdirectlyontheturntable.Aftercooking standfor2-3minutes.

UsingtheCrustyPlate

YourCANDYmicrowaveovenhasacrustyplateasanadditional accessory.

Thiscrustyplateallowsyoutobrownfoodnotonlyonthetopwith thegrill,butalsothebottomofthefoodturnscrispyandbrowndueto thehightemperatureofthecrustyplate.

Severalitemswhichyoucanprepareonthecrustyplatecanbefound inthechart(seenextpage).

Thecrustyplatecanalsobeusedforbacon,eggs,sausages,etc.

1. Placethecrustyplatedirectlyontheturntableandpreheat itwithhighestMicrowave-Grill-Combination[600W+Grill]by followingthetimesandinstructionsinthechart.

•Alwaysuseovenglovestotakeoutthecrustyplate,as itisbecomingveryhot.

1. Brushtheplatewithoilifyouarecookingfood,suchas baconandeggs,inordertobrownthefoodnicely.

- Plesenotethatthecrustyplatehasateflonlayer whichisnotscratch-resistant.Donotuseanysharp objectslikeaknifetocutonthecrustyplate.

- Useplasticaccessoriestoavoidscratchesonthe surfaceofthecrustyplateorremovethefoodfromthe platebeforecutting

1. Placethefoodonthecrustyplate.

- Donotplaceanyobjectsonthecrustyplatethatare noheat-resistant; e.g. plasticbowels.

- Neverplacethecrustyplateintheovenwithout turntable.

1. Placethecrustyplateonthemetalrack(orturntable)inthe microwave.

2. Select the appropriate cooking time and power. Refertothetable on thenextpage.

UsingtheCrustyPlate

HowtocleantheCrustyPlate

Cleanthecrustyplatewithwarmwateranddetergentandrinse offwithcleanwater.

Donotuseascrubbingbrushorahardspongeotherwisethetop layerwillbedamaged.

PleaseNote

Thecrustyplateisnotdishwasher-safe.

CrustyPlateSetting

Werecommendtopreheathecrustyplatedirectlyontheturn-table. Preheathecrustyplatewiththe600W+Grillfunctionandfollowthe timesandinstructionsinthetable.

FoodPortionPowerPreheati		ngTime	Cooking Time	Recommendations
Bacon	4slices (80g)8slices (160g)	C13min.3-3 12 min.	4 12 -5min.	Preheatcrustyplate.Put slicesidebysideon crustyplate.Putcrusty plateontherack.
Grilled Tomatoes	200g (2pcs)400g (4pcs)	C13min.3min.	4min.	Preheatcrustyplate.Cuttomatoesinhalves.Putsomecheeseon top.Arrangeinacircle oncrustyplate.Put crustyplateontherack.
Burger (frozen)	2 pieces (125g)4 pieces (250g)	C13min.6-6 12 min	8-8 12 min.	Preheatcrustyplate.Put frozenburgerinacircle oncrustyplate.Put crustyplateontherack.Turnoverafter4-5min.
Baguettes (frozen)	100-150g (1pc)200-250g (2pcs)	C15min.5-6min.	6-7min.	Preheatcrustyplate.Put onebaguettebesidethe centre,2baguettesside bysideontheplate.Put crustyplateonrack.
OvenChips (frozen)	200g300g400g	C14min.9min.	12min.15min.	Preheatcrustyplate.Distributeovenchipson crustyplate.Putthe plateontherack.Turn overafterhalfofcooking time.

CrustyPlateSetting

FoodPortionPowerPreheating Time			Cooking Time	Recommendations
FishFingers (frozen)	150g(5pcs)300g(10pcs)	C14min.6-6 12 min.	8 12 -9min.	Preheatcrustyplate.Brushplatewith1tbsp.Putfishfingersinacircleontheplate.Turnoverafter3 12 min (5 pcs)orafter5min(10 pcs).
ChickenNuggets (frozen)	125g250g	C14min.4 12 -5min.	6 12 -7min.	Preheatcrustyplate.Brushplatewith1tbsp.Putchickennuggetson theplate.Putcrustyplateontherack.Turnoverafter3min(125g)or5min(250g).

CANDY

Forno a microonde

MANUALE DI ISTRUZIONI MODELLI: CMG 9323 DW CMG 9423 DS CMG 9523 DB CMG 9623 DY

9. Cotture in sequenza

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

1. Collocareilcibosulpiattocrisper.

Anillo de soporte
