Product Type	Solo Microwave
Model	CMXW22DB-UK
Capacity	22 Liters
Power Output	800 Watts
Power Levels	10
Control Type	Touch control with LED display
Turntable	Yes, glass turntable
Timer	Up to 95 minutes
Defrost Function	By weight or time
Quick Start	+30 seconds button
Child Lock	Yes
Clock	Digital clock with 12/24h
Interior Light	Yes
Dimensions (W x D x H)	456 x 365 x 262 mm
Cavity Dimensions (W x D x H)	306 x 306 x 206 mm
Weight	11.5 kg
Color	Black / Stainless steel
Power Supply	230V / 50Hz, 1250W
Plug Type	UK 3-prong
Door Opening	Left-hinged with handle
Warranty	2 years
Accessories Included	Glass turntable, turntable ring, user manual
Cleaning	Wipe with damp cloth; do not use abrasive cleaners
Energy Efficiency Class	A

Frequently Asked Questions - CMXW22DB-UK CANDY

How do I set the clock on the Candy CMXW22DB-UK microwave?

Press the Clock button, then use the numeric keypad to enter the time. Press Clock again to confirm. Hold the Clock button for 3 seconds to toggle between 12h and 24h format.

What is the maximum cooking time?

You can set up to 95 minutes using the timer dial or numeric keypad. For quick start, press the +30s button repeatedly.

How do I defrost food using this microwave?

Press the Defrost button. You can choose defrost by weight (enter weight in grams) or defrost by time. The microwave will automatically adjust power.

Can I use metal containers in the microwave?

No, metal and aluminum foil can cause sparks and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds until you hear a beep and the display shows a lock icon. Repeat to unlock.

Why is my microwave not heating?

Check that the door is fully closed, the child lock is off, and you have set a cooking time. If still not heating, ensure the power cord is plugged in and the fuse is not blown.

How do I clean the interior?

Unplug the microwave. Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners or immerse in water. Remove the turntable for separate washing.

What is the correct way to place the turntable?

Place the turntable ring on the bottom of the cavity with the rollers facing up. Then place the glass turntable on top, ensuring it sits correctly on the ring.

Does this microwave have a memory function?

No, the CMXW22DB-UK does not have a memory function. You need to set cooking time and power each time. However, it has auto-cook menus for common foods.

What should I do if the microwave makes a loud noise?

Loud noise may indicate a problem with the turntable or magnetron. First, check if the turntable is properly seated. If noise persists, contact Candy customer service.

USER MANUAL CMXW22DB-UK CANDY

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

By placing the CE (CE) marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	CMXW22DW-UK / CMXW22DS-UK / CMXW22DB-UK
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1250W
Rated Output Power(Microwave):	800 W
Oven Capacity:	22 L
Turntable Diameter:	∅ mm 245
External Dimensions(LxWxH):	461 x 365x 290 mm
Net Weight:	11,8 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to personor exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including he following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been givensupervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

GB

1. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

2. Do not overcook food.

3. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

4. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

5. Install or locate this oven only in accordance with the installation instructions provided.

6. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

7. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. Do not store or use this appliance outdoors.

3. Do not use this oven near water, in a wet basement or near a swimming pool.

4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.

GB

1. Do not let cord hang over edge of table or counter.
2. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
3. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
4. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
5. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. Children should be supervised to ensure that they do not play with the appliance.
7. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
8. Accessible parts may become hot during use. Young children should be kept away.
9. Steam cleaner is not to be used.
10. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
11. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

GB

1. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

2. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

3. The rear surface of appliance shall be placed against a wall.
4. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal componentscan cause serious personal injury or death.Do not disassemble this appliance.

WARNING

Electric Shock HazardImproper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a groundingwire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician orserviceman if the grounding instruction are not completely understood or if doubtexists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top ortabletop where it can be pulled on bychildren or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION Personal Injury Hazard

It is hazardous for anyone other than a competent personto carry out any service or repairo peration that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

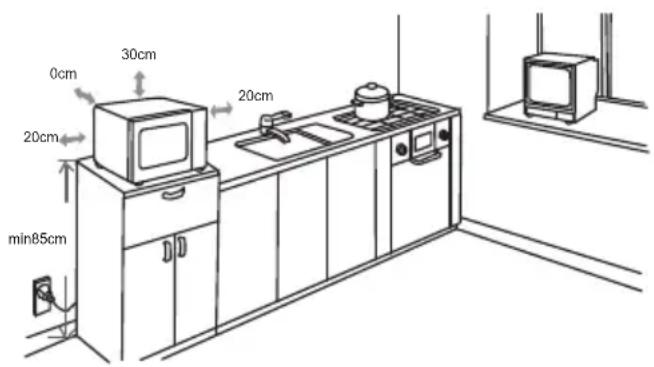

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over arange cooktop or other heat-producing appliance. If installed near or over a heatsource, the oven could be damaged and the warranty would be

void.

The accessible surfacemay be hot duringopera

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press " √| √ ", the hour figures will flah.
2) Turn " 🔥 " to adjust the hour figures, the input time should be within 8:00:
0--23.
3) Press " √, the minute figures will flash. 89:80:
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 89:58:
0--59.
5) Press " √: | √ " to finish clock setting. ":" will flash. 89:58:
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " " or no operation in one minute, the oven will exit the setting.

2. Microwave Cooking

Press " ≈ "once, "P100" displays. Then turn " "to select the function you want.Press "+30" " to confirm the T'power." " to adjust the cooking time.

Press " + 30" ◆ " to start cooking.

Example: If you want to use 80% power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " since, the LED will display "P100", " ≈" indicator will be lighted.

2) Turn " " to choose 80% power, the LED will display "P80". Press "+30" " to confirm power.

3) Turn " 🔍" to adjust the cooking time until the oven display"20:00"(The maximum cooking time is 95 minutes.)

4) Press " +30" ◇ " to start cooking, ":" will light and the " ≈ " indicator will flash (Buzzer will sound five times after finishing).

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Microwave Power

80% 50%

30%

10%

GB

3. Speedy Cooking

1). When the oven is in the waiting states, press "+30" ◆ "key to start cooking with full microwave power for 30 seconds. The cooking time will add 30 seconds by every press on " + key,and the maximum setting time is 95 minutes.

Note: Time can be increased by press "+30" ◆ button except weight defrost and auto menu program.

2). In waiting state, turn " " left to choose cooking time directly then press " +30" ◆ key to cook with 100% microwave power.

This program can be set as the first one of multi-stage.

4. Defrost By Time

1) Press "key once, the LED will display "dEF1".

2) Turn " 🔍 " to select the cooking time. At the same time, " ≡ " and " ✱" will be lighted. The time setting is from 00:05 to 95:00. The default power level is P30. It is not adjustable.

3) Press " +"key to start defrosting. " ≈ " and " * " indicators will flash.

5. Defrost by Weight

1) Press " " pad twice, the LED will display "dEF2".

2) Turn " 🔍 " to select the weight of food. At the same time, "g" will light. The weight should be 100-2000g.

3) Press " + key" to start defrosting. " ≡ " and " * " indicators will flash and "g" indicator will go out.

6. Auto Menu

1). In waiting states, press "auto" or turn "or turn" right to choose the menu you need. "A-01", "A-02".... "A-10" will display in order.

2) Press " +30" ◇ " to confirm the selected main menu.

2). Turn " " to select the menu from b-1 to b-4.

3) Press " + to start cooking. When cooking finish, buzzer will sound five times. If the clock has been set before, the current time will be displayed, otherwise, 0:00 will be displayed.

For example: to cook the pasta.

1) Press " " for seven times, "A-07" displays and pasta menu is selected. " ≈ " and " ☐ " indicator will light.

2) Press " +30" ◊ " to confirm the selected main menu.

3). Stop turning " " when "b-4" displays.

3) Press " +30" " to start cooking. When cooking finish, buzzer will sound five times. Then turn back to waiting states.

7.Multi-Stage Cooking

Two stages of cooking can be maximally set. If one stages is defrosting, it will be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food of 500g + 80% microwave power for 5 minutes.

The steps are as following:

1) Press " twice "dEF2" displays;

2) Turn " " to adjust the weight of the food. Stop turning when "500" displays;

3) Press" "once, turn " "o choose 80% microwave power;

Press " +30" ◆ " to confirm the power;

4) Turn " " to adjust the cooking time of 5 minutes;

5) Press "+"30"start cooking.

Note: When the first stage finish, buzzer sounds once then the second stage begins. When all of them finish, buzzer sounds five times and the unit turn back to the waiting states.

8. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most. Defrosting should not be set here.
3) Press "√|√The current clock is displayed. The hour figure flash;
4) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
5) Press " minute figure will flash.
6) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
7) Press " +30" ◆ " to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: 1) Clock must be set first. Otherwise, pre-set function will not work.

2) If the pre-set program has been set without the cooking program, the whole setting will be used as an alarm clock. That means when pre-set time arrives, buzzer will sound five times only.

9. ECO Function

In waiting state, Press "eC" or if no operation in 1 minute, the screen will be off. At this time, press any button to turn the screen on.

Note: 1). The oven cannot enter ECO mode if the door is open.

2). Press any button or open the door to turn the screen on under ECO mode.
3). If enter ECO mode under child lock state, recover to still child lock state.

10. Inquiring Function

(1) In cooking state, press "the current microwave power will be displayed for 3 seconds.
(2) In pre-set state, press " √| √" to inquire the time for delay start cooking. The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display.
(3) During cooking state, press " √ | √ to check the current time. It will be displayed for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press "☐ for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and LED will display "☐ and "☐ will light.

Lock quitting: In locked state, press "for 3 seconds, there will be a long "beep" denoting that the lock is released, and LED will turn back to the clock stae,"will go out.

12. Silent Mode

In waiting states, press "STOP", and then press "+30" simotaneously in 3 seconds to enter silent mode. All the buttons and buzzers will stop ringing under silent mode.

To active the sound: in waiting state, press “ STOP Ⓥ”, and then press “ +30” ◇” simotaneously in 3 seconds to exit the silent mode.

13. Protection of Fan

When the microwave or combination cooking works over 5 minutes, it stops working at the last 15 seconds, only fan runs.

14. Protection Function of Magnetron Control Pipe

When the unit runs for 30 minutes with high power level, it will adjust to 80% microwave power to protect the magnetron control pipe.

This function works under multi-stage and other states.

15. Automatic Going Out Function

When the door is kept open for 10 minutes, the oven light will be off. Press any key after opening the door, time will count down again. The oven lamp will light.

16. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) " +30" must be pressed to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, " + 30" ◇ " is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.

Auto menu Chart

Menu	Display	Weight(g)	Power
A-01 BAKERY	b-1 Pizza reheat	200	P100
	b-2 Bread reheat	200	P100
	b-3 Savoury pie	400	P80+P0+P80
	b-4 Dough	500	P30
A-02 POTATOES	b-1 Steam	400	P100
	b-2 Potato croquettes	250	P80+turn over+P0
	b-3 Potato bake	1	P80+P0
	b-4 French fries	200	P100
A-03 MEAT	b-1 Chicken	800	P100
	b-2 Turkey	800	P100
	b-3 Pork	450	P100
	b-4 Red meat	800	P100
A-04 FISH	b-1 Mussels	200	P80
	b-2 Salmon (Fish)	350	P80
	b-3 Tuna	350	P80
	b-4 Sea bass	350	P80
A-05 VEGETABLES	b-1 Broccoli	400	P100
	b-2 Spinach	400	P100
	b-3 Carrots	400	P100
	b-4 Fennel	200-400	P80+P0
A-06 HOT BEVERAGE	b-1 Milk(1 cup/240ml)	1 cup	P100
	b-2 Coffee(1 cup/120ml)	1 cup	P100
	b-3 Tea	1 cup	P100
	b-4 Hot chocolate	200	P70
A-07 PASTA-RICE	b-1 Pasta parcels	450	P80
	b-2 Rice	1 cup	P100+P50
	b-3 Soup (reheat vegetable soup)	250	P100
	b-4 Pasta	50(add water 500ml)	P80

Auto menu Chart

Menu	Display	Weight(g)	Power
A-08 PATISSERIE	b-1 Biscuits	200	P80+P0+P80
	b-2 Cake	1 cup	P80
	b-3 Jam	400	P100+P0
	b-4 Muffins	400	P100
A-09 HEALTHY	b-1 Dried food	100	P80+P0
	b-2 Homemade yogurt	1 liter	P30
	b-3 Wholemeal pasta	150(add water 500l)	P100
	b-4 Legumes	500	P100
A-10 BABY	b-1 Pureed Baby Food	150	P80+P0
	b-2 Broth	200	P100+P0
	b-3 Sterilization	1 bottom	P100
	b-4 Baby milk	100 ml	P30

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly: switch off the appliance (do not subject it to rought treatment) and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important that you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CookingGuide

MICROWAVES

Microwaveenergyactuallypenetratesfood, attracted and absorbed by its water, fatandsugar content.

Themicrowavescausethemoleculesinthefoodtomoverapidly. Therapid movementofthesemoleculescreatesfrictionandtheresultingheatcooksthe food.

COOKING

Cookwareformicrowavecooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood, but they are reflected by metal, such as stainless steel, aluminium and copper. So food must never be cooked in metal containers.

Foodssuitableformicrowavecooking:

Manykindsoffoodaresuitableformicrowavecooking,includingfreshorfrozen vegetables,fruit,pasta,rice,grains,beans,fish,andmeat.Sauces,custard,soups,steamedpuddings,preserves,andchutneyscanalsobecookedina microwaveoven.Generallyspeaking,microwavecookingisidealforanyfood thatwouldnormallybepreparedonahob.

Coveringduringcooking

Tocoverthefoodduringcookingisveryimportant,astheevaporatedwaterrises assteamandcontributestocookingprocess.Foodcanbecoveredindifferent ways:e.g.withaceramicplate,plasticcoverormicrowavesuitableclingfilm.

Standingtimes

Aftercookingisoverfoodthestandingtimeisimportanttoallowthetemperature toevenoutwithinthefood.

CookingGuide

CookingGuideforfrozenvegetables

Useasuitableglasspyrexbowlwithlid.Cookcoveredfortheminimumtime-see table.Continuecookingtogettheresultyouprefer.

Stirtwiceduringcookingandonceaftercooking.Addsalt,herbsorbutterafter cooking.Coverduringstandingtime..

FoodPortion	Power		Time (min.)	Standing Time(min.)	Instructions
Spinach	150gP	805-62-3			Add15ml(1tablespoon) coldwater.
Broccoli	300gP	808-92-3			Add 30 ml (2 t b sp.) cold water.
Peas	300gP	807-82-3			Add 15 ml (1 t b sp.) cold water.
GreenBeans	300gP	8071/2-81/22-3			Add 30 ml (2 t b sp.) cold water.
Mixed Vegetables (carrots/peas/corn)	300gP	807-82-3			Add 15 ml (1 t b sp.) cold water.
Mixed Vegetables (Chinesestyle)	300gP	8071/2-81/22-3			Add 15 ml (1 t b sp.) cold water.

CookingGuide

CookingGuideforfreshvegetables

Useasuitableglasspyrexbowlwithlid.Add30-45mlcoldwater(2-3tbsp.)for every250gunlessanotherwaterquantityisrecommended-seetable.Cook coveredfortheminimumtime-seetable.Continuecookingtogettheresultyou prefer.Stironceduringandonceaftercooking.Addsalt,herbsorbutterafter cooking.Coverduringastandingtimeof3minutes.

Hint: Cutthefreshvegetablesintoevensizedpieces. Thesmallerthey arecut, thequickertheywillcook.

All fresh vegetables should be cooked using full microwave power (P100).

Food	Portion	Time (min.)	Standing Time(min.)	Instructions
Broccoli	250g500g	31⁄2-46-7	3	Prepareevensizedflorets.Arrange thestemstothecentre.
Brussels Sprouts	250g5	51⁄23		Add60-75ml(5-6tbsp.)water.
Carrots	250g3	1⁄2-43		Cutcarrotsintoevensizedslices.
Cauliflower	250g500g	4-41⁄261⁄2-71⁄2	3	Prepareevensizedflorets.Cutbig floretsintohalves.Arangestemsto thecentre.
Courgettes	250g3	31⁄23		Cutcourgettesintoslices.Add30ml (2tbsp.)wateroraknobofbutter. Cookuntiljusttender.
EggPlants	250g2	1⁄2-33		Cuteggplantsintosmallslicesand sprinklewith1tablespoonlemon juice.
Leeks	250g3	31⁄23		Cutleeksintothickslices.
Mushrooms	125g250g	1-11⁄22-21⁄2	3	Preparesmallwholeorsliced mushrooms.Donotaddanywater. Sprinklewithlemonjuice.Spicewith saltandpepper.Drainbefore serving.
Onions	250g4	41⁄23		Cutonionsintoslicesorhalves.Add only15ml(1tbsp.)water.
Pepper	250g3	1⁄2-43		Cutpepperintosmallslices.
Potatoes	250g500g	3-46-7	3	Weighthepeeledpotatoesandcut themintosimilarsizedhalvesor quarters.
Turnip Cabbage	250g	41⁄2-5	3	Cutturnipcabbageintosmallcubes.

CookingGuide

CookingGuideforriceandpasta

Rice: Usealargeglasspyrexbowlwithlid-ricedoublesinvolumeduring cooking. Cookcovered. Afterthecookingtimeisover, stirbeforestandingtimeandsaltor addherbsandbutter. Remark: thericemaynothaveabsorbedallwaterafterthecooking timeisfinished.

Pasta: Usealargeglasspyrexbowl. Addboilingwater, apinchofsalt and stirwell. Cookuncovered. Stiroccasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

FoodPortionPower			Time (min.)	Standing Time(min.)	Instructions
WhiteRice (parboiled)	250g375g	P100	15-16 171/2-181/2	5	Add500mlcoldwater.Add750mlcoldwater.
BrownRice (parboiled)	250g375g	P100	20-2122-23	5	Add500mlcoldwater.Add750mlcoldwater.
MixedRice (rice+wild rice)	250gP	10016-1	75		Add500mlcoldwater.
MixedCorn (rice+grain)	250gP	10017-1	85		Add400mlcoldwater.
Pasta	250gP	10010-1	15		Add1000mlhotwater.

REHEATING

Yourmicrowaveovenwillreheatfoodinafractionofthetimethatconventional ovenshobsnormallytake.

Usethepowerlevelsandreheatingtimesinthefollowingchartasaguide. The timesinthechartconsiderliquidswitharoomtemperatureofabout+18to+20°C orachilledfoodwithatemperatureofabout+5to+7°C.

Arrangingandcovering

Avoidreheatinglargeitemssuchasjointofmeat-theytendtoovercookanddry outbeforethecentreispipinghot.Reheatingsmallpieceswillbemore successful.

Powerlevelsandstirring

Somefoodscanbereheated using maximum powerwhileothersshouldbe reheated using lower power.

Checkthetablesforguidance.Ingeneral,itisbettertoreheatfoodusingalower powerlevel,ifthefoodisdelicate,inlargequantities,orifitislikelytoheatup veryquickly(mincepies,forexample).

Stirwellorturnfoodoverduringreheatingforbestresults.Whenpossible,stir againbeforeserving.

CookingGuide

Takeparticularcarewhenheatingliquidsandbabyfoods. Topreventeruptive boilingofliquidsandpossiblescalding, stirbefore, during and after heating.

Keep them in the microwave oven during standing time. Were recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food.

Itispreferabletounderestimatecookingtimeandaddextraheatingtime,if necessary.

Heatingandstandingtimes

When reheating food for the first time, it is helpful to make an annotation of the time taken-for-future reference.

Alwaysmakesurethatthereheatedfoodispiipinghotthroughout.

Allowfoodtostandforashorttimeafterreheating-toletthetemperatureeven out. Therecommendedstandingtimeafterreheatingis2-4minutes,unless another time is recommended in the chart..

Takeparticularcarewhenheatingliquidsandbabyfood.Seealsothechapter withthesafetyprecautions.

REHEATINGLIQUIDS

Alwaysallowastandingtimeofatleast20secondsaftertheovenhasbeen switchedofftoallowthetemperaturetoevenout.Stirduringheating,if necessary,andALWAYSstirafterheating.Topreventeruptiveboilingand possiblescalding,youshouldputaspoonorglassstickintothebeveragesand stirbefore,duringandafterheating.

REHEATINGBABYFOOD

BABYFOOD:

Emptyintoadeepceramicplate.Coverwithplasticlid.Stirwellafterreheating! Letstandfor2-3minutesbeforeserving.Stiragainandcheckthetemperature. Recommendedservingtemperature:between30-40°C.

BABYMILK:

Pourmilkintoasterilisedglassbottle.Reheatuncovered.Neverheatababy's bottlewithteaton,asthebottlemayexplodeifoverheated.Shakewellbefore standingtimeandagainbeforeserving!Alwayscarefullycheckthetemperature ofbabymilkorfoodbeforegivingittothebaby.Recommended serving temperature:ca.37°C.

REMARK:

Babyfoodparticularlyneedstobecheckedcarefullybeforeservingtoprevent burns.

Usethepowerlevelsandtimesinthenexttableasaguidelinesforreheating.

CookingGuide

ReheatingLiquidsandFood

Usethepowerlevelsandtimesinthistableasaguidelinesforreheating.

FoodPortionPower			Time (min.)	Standing Time (min.)	Instructions
Drinks (coffee,milk, tea,water withroom temperature)	150ml (1cup)300ml (2cups)450ml (3cups)600ml (4cups)	P100	1-11/2 11/2-2 21/2-3 3-31/2	1-2	Pourintoaceramiccupand reheatuncovered.Place1 cup in the centre , 2 oppositeofeachotherand 3or4inacircle.Stir carefullybeforeandafter standingtime,becareful whiletakingthemoutof oven.
Soup (chilled)	250g350g450g550g	P100	2-21/2 21/2-3 3-31/2 31/2-4	2-3	Pourintoadeepceramic plateordeepceramicbowl.Coverwithplasticlid.Stir wellafterreheating.Stir againbeforeserving.
Stew (chilled)	350gP80		41/2-51/2 2-3		Putstewinadeepceramic plate.Coverwithplastic lid.Stiroccasionallyduring reheatingandagainbefore standingandserving.
Pastawith sauce (chilled)	350gP80	031/2-41/2 3			Putpasta(e.g.spaghettior eggnoodles)onaflat ceramicplate.Coverwith microwaveclingfilm.Stir beforeserving.
Filledpasta withsauce (chilled)	350gP80		4-53		Putfilledpasta(e.g.ravioli, tortellini)inadeepceramic plate.Coverwithplasticlid. Stiroccasionallyduring reheatingandagainbefore standingandserving.
PlatedMeal (chilled)	350g450g550g	P80	41/2-51/2 5-6 51/2-61/2	3	Plateamealof2-3chilled componentsonaceramic dish.Coverwithmicrowave cling-film.

CookingGuide

ReheatingBabyFoodandMilk

Usethepowerlevelsandtimesinthistableasguidelinesforreheating.

FoodPortionPowerTime				Standing Time (min.)	Instructions
Babyfood (vegetables +meat)	190gP	8030sec.2-3			Emptyintoceramicdeepplate.Cookcovered.Stiraftercooking time.Standfor2-3minutes.Beforeserving,stirwelland checkthetem-peraturecarefully.
Baby porridge (grain+ milk+fruit)	190gP	8020sec.2-3			Emptyintoceramicdeepplate.Cookcovered.Stiraftercooking time.Standfor2-3minutes.Beforeserving,stirwelland checkthetem-peraturecarefully.
Babymilk	100ml200ml	P30	30-40 sec.1 min to 1 min 10sec.	2-3	Stirorshakewellandpourintoa sterilisedglassbottle.Placeinto thecentreofturntable.Cook uncovered.Shakewellandstand foratleast3minutes.Before serving,shakewellandcheckthe tempera-turecarefully.

CookingGuide

GRILL

Thegrill-heatingelementislocatedunderneaththeceilingofthecavity.It operateswhilethedoorisclosedandtheturntableisrotating. Theturntable's rotationmakesthefoodbrownmoreevenly.Preheatingthegrillfor4minuteswill makethefoodbrownmorequickly.

Cookwareforgrilling:

Shouldbeflameproofandmayincludemetal.Donotuseanytypeofplastic cookware,asitcanmelt.

Foodsuitableforgrilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kind soft to ast with toppings.

IMPORTANTREMARK:

Please remember that food must be placed on the high rack, unless another instruction is recommended.

MICROWAVE+GRILL

This cooking mode combines the other adiant that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Duet other rotation of the turntable, the food brown sevenly.

Cookwareforcookingwithmicrowave+grill

Pleaseusecookwarethatmicrowavescanpassthrough.Cookwareshouldbe flameproof.Donotusemetalcookwarewithcombinationmode.Donotuseany typeofplasticcookware,asitcanmelt.

Foodsuitableformicrowave+grillcooking:

Foodsuitableforcombinationmodecookingincludeallkindsofcookedfood whichneedreheatingandbrowning(e.g.bakedpasta),aswellasfoodswhich requireashortcookingtimetobrownthetopofthefood.Also,thismodecanbe usedforthickfoodportionsthatbenefitfromabrownedandcrispytop(e.g. chickenpieces,turningthemoverhalfwaythroughcooking).Pleaserefertothe grilltableforfurtherdetails.

The food must be turned over, if it is to be browned on both sides.

CookingGuide

GrillGuideforfreshfood

Preheatthegrillwiththegrill-functionfor4minutes.

Usethepowerlevelsandtimesinthistableasguidelinesforgrilling.

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
ToastSlices	4pcs(each25g)	Grill only	31/2-41/23	-4	Putthetoastsslicessidebyside ontherack.
BreadRolls(already baked)	2-4 pieces	Grill only	21/2-31/21	1/2-21/2	Putbreadrollsfirstwiththe bot t o m s i d e u p in a c r c l e directlyontheturntable.
Grilled Tomatoes	200g(2pcs)400g(4pcs)	C2	31/2-41/2 5-6	-	Cuttomatoesintohalves.Put somecheeseontop.Arrange inacircleinaflatglasspyrex dish.Placeitontherack.
Tomato-Cheese Toast	4 pcs(300g)	C24-5-			Toastthebreasslicesfirst.Put thetoastwithtoppingonthe rack.Standfor2-3minutes.
Toast Hawaii(pineapple,ham,cheese slices)	2 pcs(300g)4 pcs(600g)	C1	31/2-41/2 6-7	-	Toastthebreadslicesfirst.Put thetoastwithtoppingonthe rack.Put2toastsopposite directlyontherack.Standfor 2-3minutes.
Baked Potatoes	250g500g	C1	41/2-51/2 61/2-71/2	-	Cutpotatoesintohalves.Put h e min a c r c l e o n t h e r a c k with thecutsidetothegrill.
Gratin Potatoes/vegetables(chilled)	500g	C1	9-11-		Put t h e f r e s h g r a t i n i n to a small glass Grillpyrexdish.Putthe dishontherack. Aftercooking standfor2-3minutes.
Chicken Pieces	450g(2pcs)650g(2-3pcs)850g(4pcs)	C2	7-89-1011-12	7-88-99-10	Brushchickenpieceswithoil andspices.Puttheminacircle withthebonestothemiddle.Putonechickenpiecenotinto thecentreoftherack.Standfor 2-3minutes.
Roast Chicken	900g1100g	C1	10-1212-14	9-1111-13	Brushchickenwithoiland spices.Putchickenfirstbreast sidedown,secondsidebreast sideupdirectlyonturntable. Standfor5minutesafter grilling.

CookingGuide

GrillGuideforfreshfood

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
LambChops (medium)	400g(4pcs)	Grill only	10-128-9		Brushthelambchopswithoil andspices.Laythemina circleontherack.After grillingstandfor2-3minutes.
PorkSteaks	250g(2pcs)500g(4pcs)	MW + Grill	C26-78-10	(Grill only)5-67-8	Brushtheporksteakswithoil andspices.Laythemina circleontherack.After grillingstandfor2-3minutes.
RoastFish	450g650g	C2	6-77-8	7-88-9	Brushskinofwholefishwith oilandherbsandspices.Put fishsidebyside(headtotail) onrack.
Baked Apples	2apple(ca.400g)4apples(ca.800g)	C2	6-710-12	-	Coretheapplesandfillthem withraisinsandjam.Put somealmondslicesontop.Putapplesonaflatglass pyrexdish.Placethedish directlyontheturntable.

CookingGuide

GrillGuideforfrozenfood

Usethepowerlevelsandtimesinthistableasguidelinesforgrilling.

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
BreadRolls (eachca.50g)	2 pcs4 pcs	MW+ Grill	C2 11/2-2 21/2-3	Grill only2-32-3	Arrangerollsinacircle withthebottomsideup directlyontheturntable.Grillthesecondsideof therollsuptothecrispyouprefer.Standfor2-5 minutes.
Baguettes/ GarlicBread	200-250g (1pc)	MW+ Grill	C1 31/2-4	Grill only2-3	Putfrozenbaguette diagonallyonbaking paperontherack.After grillingstandfor2-3 minutes.
Gratin (vegetablesor potatoes)	400gC1		13-15-		Putfrozengratinintoa smallglasspyrexdish.Putthedishontherack.Aftercookingstandfor2-3minutes.
Pasta (Cannelloni, Macaroni, Lasagne)	400gC1	14-16-			Putfrozenpastaintoa smallflatrectangular glasspyrexdish.Putthe dishdirectlyonthe turntable.Aftercooking standfor2-3minutes.
FishGratin400g	C1		16-18-		Putfrozenfishgratininto asmallflatrectangular glasspyrexdish.Putthe dishdirectlyonthe turntable.Aftercooking standfor2-3minutes.
