CMW 2070S - Microwaves CANDY - Free user manual and instructions

Product Type	Solo Microwave
Brand	Candy
Model	CMW 2070S
Capacity	20 L
Dimensions (H x W x D)	258 x 440 x 360 mm
Weight	10.5 kg
Power Consumption	1050 W
Microwave Power Output	700 W
Power Levels	5 levels
Control Type	Mechanical dials
Timer	Up to 30 minutes
Defrost Function	Weight-based defrost
Turntable	Glass turntable, 245 mm diameter
Interior Light	Yes
Door Opening	Side hinged
Child Lock	Yes
Safety Features	Door interlock, overheat protection
Interior Material	Stainless steel
Exterior Finish	White
Spare Parts Available	Turntable, roller ring, fuse
Reparability	Contact authorized service center
Cleaning Instructions	Wipe with damp cloth, mild detergent, no abrasives

Frequently Asked Questions - CMW 2070S CANDY

How do I set the cooking time?

Turn the timer dial clockwise to the desired time (up to 30 minutes). The microwave will start automatically.

How do I adjust the power level?

Turn the power dial to your desired level (e.g., Low, Medium, High). The power level can be set before starting.

How do I use the defrost function?

Turn the function dial to the defrost setting. Then set the time based on the weight of the food. Consult the manual for recommended times.

What materials are safe to use in the microwave?

Use microwave-safe glass, ceramic, or plastic containers. Avoid metal, foil, or containers with metal trim.

How do I clean the microwave?

Unplug the microwave. Wipe interior and exterior with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads.

Why is my microwave not heating?

Check if the door is fully closed. Ensure the timer is set. If it still does not heat, it may need service; contact support.

How do I activate the child lock?

Press and hold the Stop/Cancel button for 3 seconds. The lock icon will appear. Repeat to deactivate.

Can I operate the microwave empty?

No, never operate the microwave empty as it can damage the magnetron. Always have food or a cup of water inside.

What is the correct way to place the turntable?

Place the roller ring on the bottom, then set the glass turntable on top, ensuring it sits correctly on the rollers.

How do I prevent overheating?

Do not block the ventilation openings. Do not use the microwave for prolonged periods without food. The overheat protection will shut it off if needed.

USER MANUAL CMW 2070S CANDY

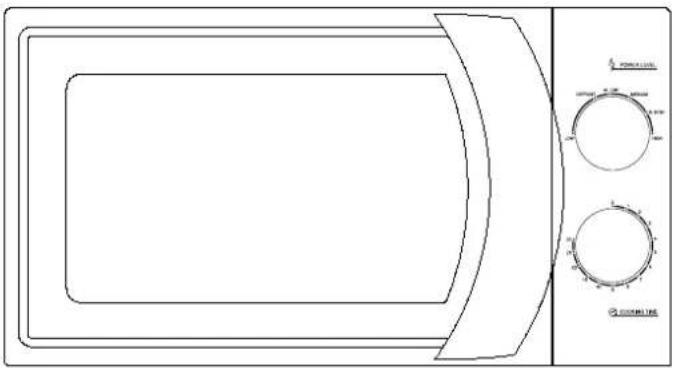

Line drawing of a microwave oven with control knobs (no text or symbols)

MICROWAVE OVEN

Model: CMW 2070S

Owner's Manual

Please read these instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

By placing the mark on this product, we are confirming compliance to all relevant

European safety, health and environmental requirements which are applicable in legislation for this product.

WASTE MANAGEMENT AND ENVIRONMENTAL PROTECTION

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused.) It's important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste;
• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

PRECAUTIONS TO A VOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the
   a. Door (bent),
   b. Hinges and latches (broken or loosened),
   c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENT

IMPORTANT SAFETY INSTRUCTIONS .... 3

SPECIFICATIONS 3

INSTALLATION....4

RADIO INTERFERENCE 4

MI CROW A VE COOKING PRINCIPLES....4

GROUNDING INSTRUCTIONS 4

BEFORE YOU CALL FOR SERVICE....5

UTENSILS GUIDE 5

PART NAMES....6

CONTROL PANEL 6

OPERATION 7

CLEANING AND CARE 7

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard
5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
6. To reduce the risk of fire in the oven cavity:

When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
Remove wire twist-ties from paper or plastic bags before placing bag in oven.
If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
3. Do not fry food in the oven. Hot oil can damage

oven parts and utensils and even result in skin burns.

1. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
2. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
3. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
4. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
5. Utensils should be checked to ensure that they are suitable for use in microwave oven.
6. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
7. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radiofrequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
9. Children should be supervised to ensure that they do not play with the appliance.

SPECIFICATIONS

Power Consumption:	230V-240V/50Hz, 1200W(Microwave)
Rated microwave power output:	700W
Operation Frequency:	2450MHz
Outside Dimensions:	262mm(H)x452mm(W)x335mm(D)
Oven Cavity Dimensions:	198mm(H)x315mm(W)x297mm(D)
Oven Capacity: 20Litres
Cooking Uniformity:	Turntable System
Net Weight:	Approx.10.5 kg

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
4. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above

the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

1. Do not operate the oven without glass turntable and turntable support in their proper positions.
2. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
3. The socket must be readily accessible so that it can be easily unplugged in an emergency.
4. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH Blue= NEUTRAL

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.

2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating

properly, test the outlet with another appliance.

1. Check to ensure that the control panel is programmed correctly and the timer is set.

2. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.

3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.

4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE MICROWAVE
Heat-Resistant Glass	Yes
Non Heat-Resistant Glass	No
Heat-Resistant Ceramics	Yes
Microwave-Safe Plastic Dish	Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminum Foil & Foil Containers	No

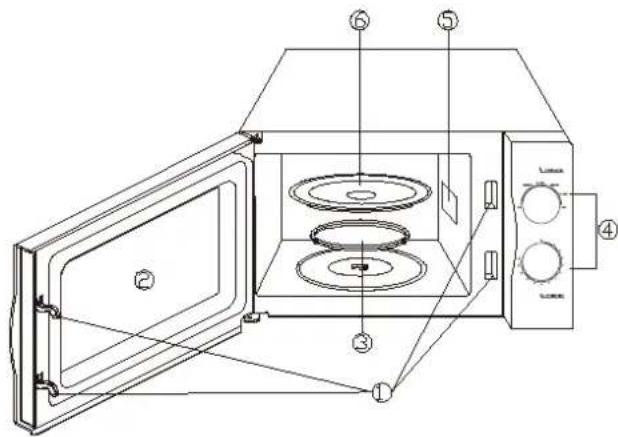

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Turntable Roller
4. Control Panel
5. Wave Guide
6. Glass Turntable

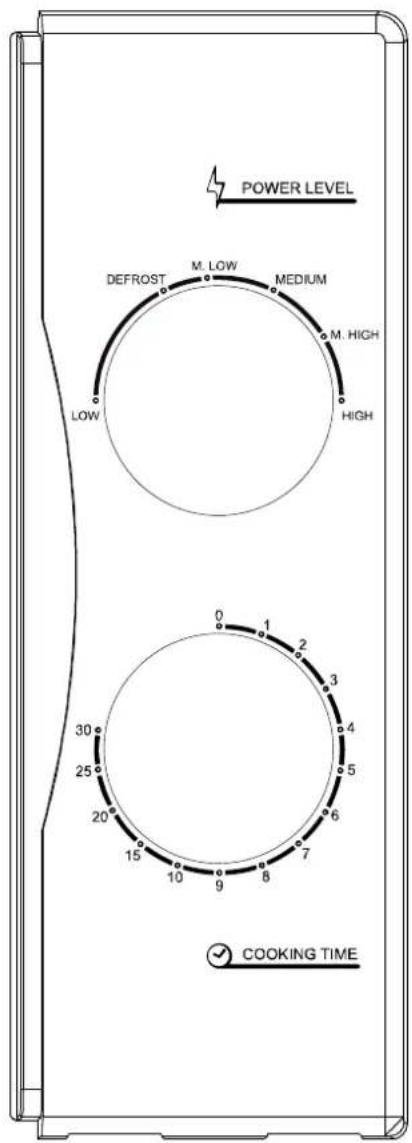

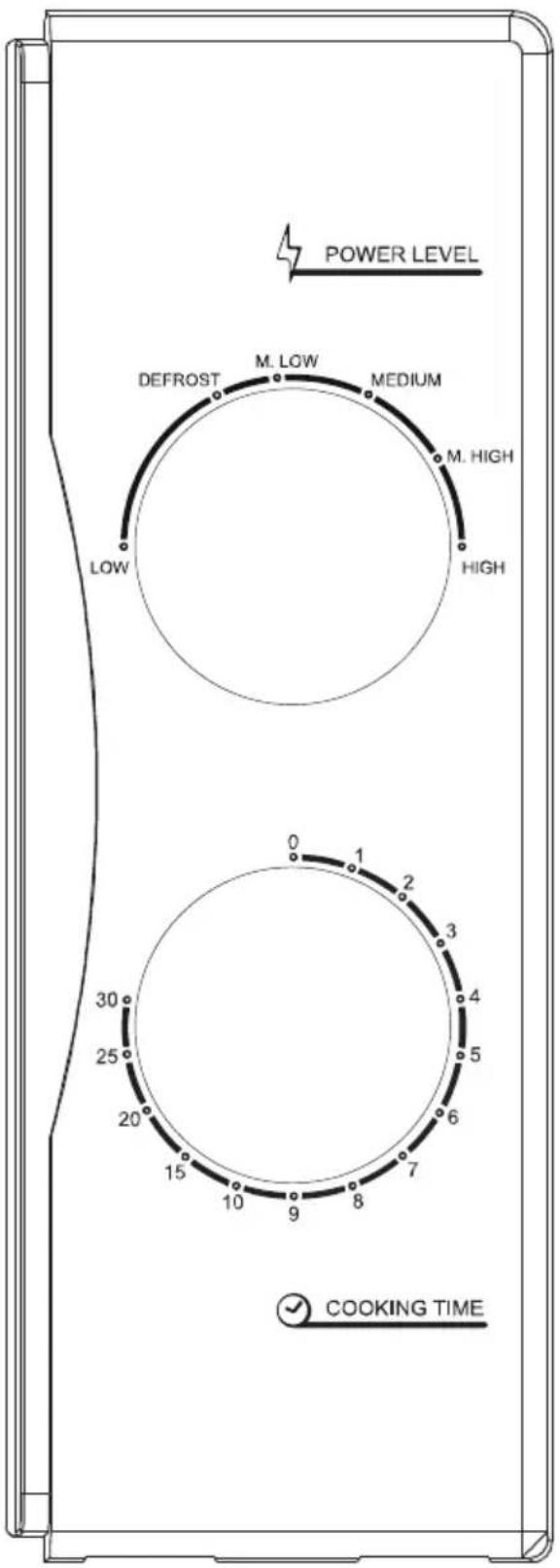

CONTROL PANEL

The control panel consists of two function operators. One is a time knob, and the other a power knob.

POWER LEVEU ACTION SELECTOR

You use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

TIMER KNOB

Offers visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

MICROWAVE COOKING

For pure microwave cooking, there are six power levels from which to choose one as best fit to do the job at hand.

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

Power Output Description
1	100% HIGH
2	88%	M.HIGH
3	73% MED
4	52% M.LOW
5	42% DEFROST
6	20% LOW

OPERATION

To start a cooking session,

1. Place food in oven and close the door.
2. Turn Power Level Selector to select a power level.
3. Use Timer knob to set a cooking time. NOTE:

As soon as the timer is turned, oven starts cooking.

When selecting time for less than 2 minutes,

turn timer past 2 minutes and then return to the correct time.

CAUTION: ALWAYS RETURN TIMER BACK TO ZERO POSITION if food is removed from oven before the set cooking time is complete or when oven is not in use. To stop oven during cooking process, push the door release button or open the door by the handle.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in

warm sudsy water or in a dishwasher.

1. The turntable roller and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The turntable roller may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
2. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
3. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
4. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
5. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities

Line drawing of a microwave oven with control knobs (no text or symbols)

FOUR À MICRO-ONDES

Modèle: CMW 2070S

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

МИКРОВОЛНОВАЯ ПЕЧЬ

Модель: CMW 2070S

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

МИКРОХВИЛЬОВА ПІЧ

Модель: CMW 2070S

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

MIKROVALOVNA PEČICA

Model: CMW 2070S

Navodila za uporabo

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

KUCHENKA MIKROFALOWA

Model: CMW 2070S

Instrukcja obsługi

Line drawing of a microwave oven with control knobs and a door (no text or symbols)

FORNO A MICROONDE

Modello: CMW 2070S

Manuale istruzioni

Line drawing of a microwave oven with control knobs (no text or symbols)

CMW 2070S

Návod k použití

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a microwave oven with two circular gauges (no text or symbols)

CMW 2070S

Návod na obsluhu

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

1. Bezpečnostná zámka dvierok
2. Okienko rúry
3. Podložka pod tanier s kolieskami
4. Ovládací panel
5. Vlnovod
6. Skleneny tanier

Ovládací panel

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)
