Product Type	Stand Mixer / Food Processor
Model	KR5401
Brand	VOX
Power Consumption	Approx. 1000W
Bowl Capacity	5 liters (estimate)
Speed Settings	Multiple (0 to max)
Included Attachments	Beater, Dough Hook, Whisk
Max Operating Time	6 minutes
Rest Time Required	Minimum 20 minutes between cycles
Head Design	Tilt-head with lock
Voltage	220-240V
Frequency	50/60Hz
Material	Plastic and Metal
Weight	Approx. 7 kg
Dimensions (Approx.)	40 x 30 x 35 cm
Safety Features	Tilt lock, overheat protection (implicit), auto-off not specified
Cleaning Method	Bowl and attachments: warm soapy water; body: damp cloth
Dishwasher Safe Parts	Not specified, hand wash recommended
Intended Use	Household only

Frequently Asked Questions - KR5401 VOX

How to attach the beater?

Insert the beater directly into the hole until it locks. Ensure it is fully inserted for best results.

What is the maximum operating time?

Do not exceed 6 minutes continuously. Allow at least 20 minutes rest between cycles to prevent overheating.

Can I wash the bowl and attachments in the dishwasher?

The manual recommends washing in warm soapy water. Dishwasher safety is not specified, so hand wash is advised.

How to clean the mixer body?

Wipe the exterior with a damp cloth and polish with a soft dry cloth. Never immerse the mixer in water or any liquid.

Why does the mixer stop during use?

It may have overheated due to extended use. Turn off, unplug, and let it cool for at least 20 minutes before resuming.

What attachments are included?

The mixer comes with a beater (for mixing and beating), a dough hook (for kneading), and a whisk (for egg whites and cream).

How to knead dough properly?

Use the dough hook. Start at low speed to incorporate ingredients, then increase to high speed for thorough kneading. Scrape the bowl sides if needed.

What is the bowl capacity?

The bowl capacity is approximately 5 liters, suitable for most household baking tasks.

How do I tilt the mixer head?

Press the tilt button on the side. The head will automatically release and lock into the tilt position. Ensure beaters are centered first.

What should I do if the beater hits the bowl when tilting?

Before tilting, ensure the beater is in the center of the head. If not, run the mixer briefly on low speed to reposition it, then turn off and tilt.

USER MANUAL KR5401 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

KR - 5401/5402 IM

OPERATING INSTRUCTIONS STAND MIXER MANUALE DELL'UTENTE SBATTITORE CON CIOTOLA BEDIENUNGSANLEITUNG KÜCHENMASCHINE ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ СТАЦИОНАРНЫЙ МИКСЕР UPUTSTVO ZA UPOTREBU MIKSER S POSUDOM MANUAL DE USUARIO BATIDORA AMASADORA MANUAL DO USUÁRIO ROBOT DE COZINHA ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ ΕΠΙΤΡΑΠΕΖΙΟ ΜΙΞΕΡ NAVODILA ZA UPORABO MEŠALINIK S POSODO UPUTE ZA UPORABU MIJEŠALICA S POSUDOM UPUTSTVO ZA UPOTREBU MIKSER S POSUDOM УПАТСТВА ЗА УПОТРЕБА МИКСЕР СО САД, MANUALI I PERDORUESIT MIKSER ME ENË

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

Stand Mixer

INSTRUCTION MANUAL

KR - 5401/5402 IM

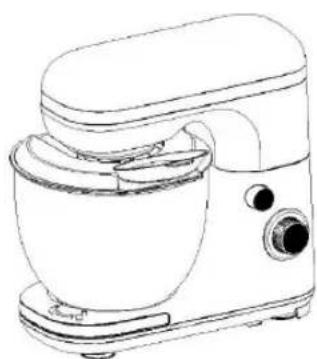

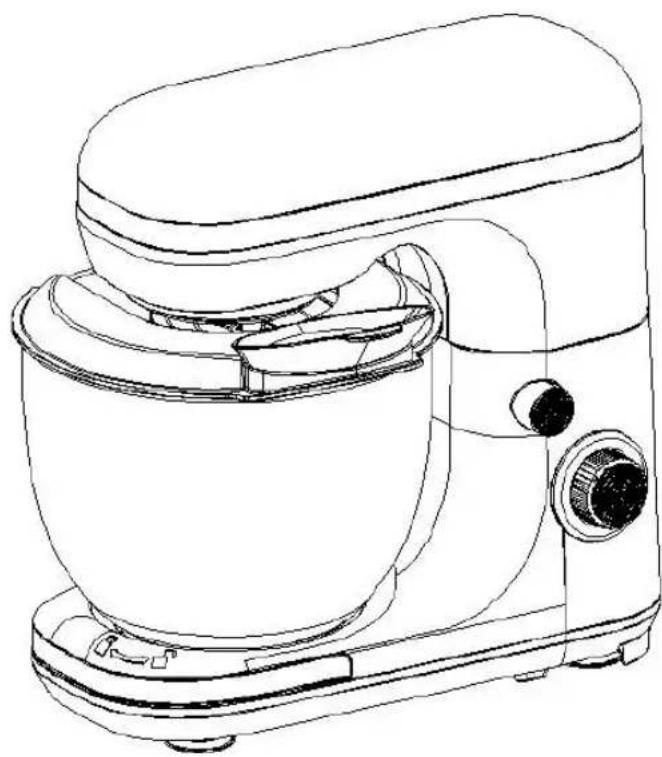

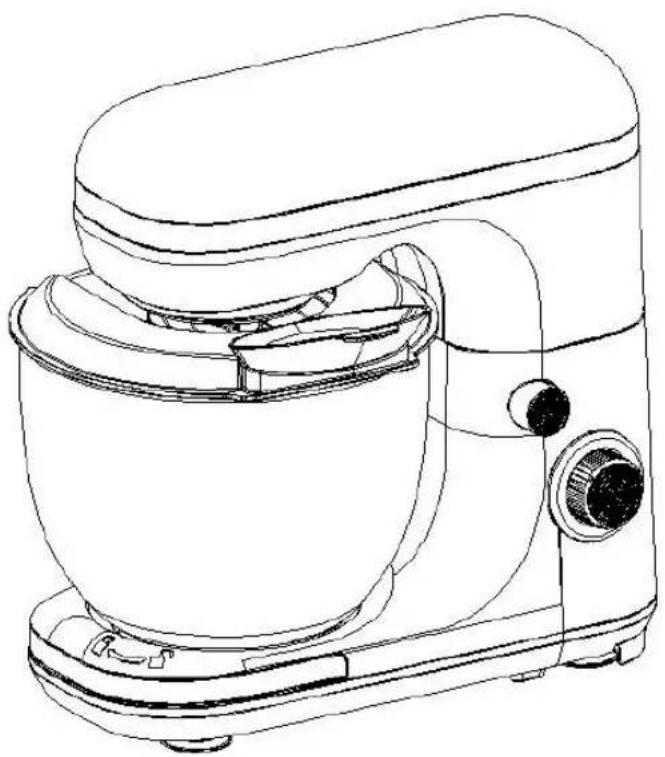

Line drawing of a kitchen mixer with control panel and side-mounted fan (no text or symbols)

Read this manual thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Before use, check if the voltage of your wall outlet corresponds to the rating plate which is on the bottom of the appliance.
3. Do not operate the appliance with a damaged cord or after malfunction or if it has been damaged in any manner.

4. Do not let the cord hang over the edge of a table, counter or hot surface.

5. Do not immerse cord or the body of mixer into water as this can give rise to electric shock.

6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

7. Close supervision is necessary when your appliance is used near children or infirm persons.

8. Do not place the appliance on or near a hot gas or on a heated oven.

9. Never eject beaters or dough hooks when the appliance is in operation.

10. Do not leave the appliance unattended while it is operating.

11. Unplug the appliance from outlet when not in use, before putting or taking off parts, and before cleaning.

12. The use of any attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury

13. Remove the beaters from the mixer before washing them.

14. Always check that the control is OFF before plugging cord into wall outlet. To disconnect, turn the control to OFF, then remove plug from wall outlet.

15. Avoid contact with moving parts.

16. Keep hands, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons, and/or damage to the mixer.

17. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning it.

18. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

19. Switch off the appliance before changing accessories or approaching parts which move in use.

20. This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.

1. Save these instructions.

HOUSEHOLD USE ONLY

KNOW YOUR MIXER

Product may be subject to change without prior notice

BEFORE USING MIXER

Before assembling the mixer, make sure the power cord is unplugged from the power outlet and the speed selector is in the 0 position.

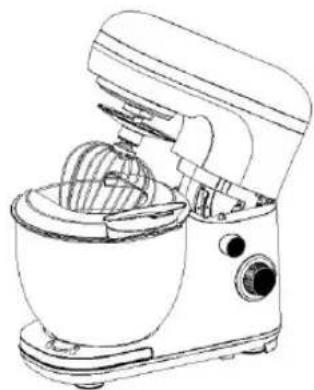

1. By pressing the tilt button, the head of the mixer will automatically release and lock into the tilt position.
2. Select the desired attachments, depending on the mixing task to be performed: beater for mixing and beating egg, dough hook for kneading, whisk for beating egg whites.
3. Insert the beater/ dough hook/whisk directly, until it locks into position.

Note: Ensure the beater or dough hook or whisk is fully inserted into the hole, otherwise your mixing results may be affected.

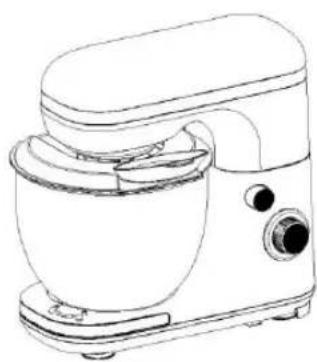

1. Place the bowl. First place the bowl on the base, then turn it clockwise until it is locked into the position (see fig.1).

2. To lower the head and place beater / dough hook/whisk into the bowl hold the head with one hand and ease the head down. A click sound will be heard when the head has reached the correct position.

3. Make sure the bowl is covered (see fig.2).

Line drawing of a kitchen mixer with a bowl and fan (no text or symbols)

Fig.1

Line drawing of a kitchen mixer with control panel and side buttons (no text or symbols)

Fig.2

USING YOUR MIXER

1. Make sure the speed selector is at the "0" position, then plug into the power source.
2. Turn the speed selector to your desired setting.

Warning: Do not stick knives, metal spoons, forks and so on into bowl when operating.

1. The maximum operating time shall not exceed 6 minutes and there must be minimum
   20 minutes rest between two consecutive cycles. When kneading yeast dough, we suggest

you should first use low speed and then use high speed to achieve best results.

Note: during kneading, some flour may be adhered on the inside of the bowl; you should remove the bowl cover and scrape the flour from the inside wall of bowl by spatula to obtain well kneading results.

1. When mixing is completed, turn the speed selector to "0" position and unplug the cord
   from the power outlet.
2. Press the tilt button, the head of the mixer will automatically lift and lock into the tilt
   position.

Caution: Before pressing down the tilt button (before lifting the head of mixer), make

sure the beater or whisk or dough hook is in the middle of the head of mixer, otherwise, when lifting the head of mixer, the beater or whisk or dough hook will intervene the mixing bowl; if the beater or whisk or dough hook is on the front of the head of mixer, turn on the speed selector again, let the mixer rotate for a few seconds, then turn off the speed selector to stop the beater or whisk or dough hook in the middle of the head of mixer.

1. If necessary you can scrape the excess food particles from the beaters or dough hooks
   by plastic spatula.
2. Pull out the beater/dough hook/whisk with a little force.

Caution: The speed selector must be at "0" position and the power outlet must be

unplugged before pulling out the beater/dough hook/whisk.

CLEANING AND MAINTENANCE

1. Unplug the appliance and wait for it to cool down completely before cleaning.
   Caution: the mixer cannot be immersed in water or other liquid.
2. Wipe over the outside surface of the head and base with a damp cloth and polish with a soft dry cloth.
3. Wipe any excess food particles from the power cord.
4. Immerse the bowl, beater, spatula, dough hook and whisk in warm soapy water for complete cleaning. Then rinse under running water and wipe dry.

COOKERY TIPS

1. Refrigerated ingredients, such as butter and eggs should be at room temperature before mixing begins. Take these ingredients out ahead of time.
2. To eliminate the possibility of shells or deteriorated-off eggs while mixing, break eggs into separate container first, and then add them to the mixture.
3. Do not over-beat. Be careful that you only mix/blend mixtures as recommended in your recipe. Stir dry ingredients until they combine. Always use the low speed.
4. Climatic conditions, seasonal temperature changes, temperature of ingredients and their texture variation from area to area all play a big part in the required mixing time and the results achieved.

IMPORTANT SAFEGUARD

Always start mixing at the lowest speed. When ingredients combine smoothly, increase gradually to the recommended speed, as recommended in the recipe below.

RECIPE

Test items	Material Recommended	Weight
Beater	Flour	150g
	Sugar	150g
	Butter	150g
	Eggs	3pcs
	Baking Soda	3g
Dough hook	Flour	500g
	Water	300g
Whisk	Eggs	4pcs

ENVIRONMENT FRIENDLY DISPOSAL

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal center.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

SBATTITORE CON CIOTOLA

MANUALE DELL'UTENTE

KR - 5401/5402 IM

Line drawing of a kitchen mixer with control panel and side-mounted fan (no text or symbols)

Line drawing of a kitchen mixer with a spherical bowl and handle (no text or symbols)

Fig.1

Line drawing of a kitchen mixer with control panel and side-mounted dish (no text or symbols)

Fig.2

UTILIZZO DELL'APPARECCHIO

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

Line drawing of a kitchen mixer with control panel and side-mounted buttons (no text or symbols)

Line drawing of a kitchen mixer with a bowl and fan (no text or symbols)

Fig.1

Line drawing of a kitchen mixer with control panel and side buttons (no text or symbols)

Fig.2

BEDIENUNG DES KÜCHENGERÄTES

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or restriction (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

RUS

СПАЦИОНАРНЫЙ МИКСЕР

Line drawing of a kitchen mixer with control panel and side-mounted buttons (no text or symbols)

Line drawing of a kitchen mixer with a bowl and fan (no text or symbols)

Рис.1

Line drawing of a kitchen mixer with a bowl and control panel (no text or symbols)

Рис.2

ПРИМЕНЕНИЕ МИКСЕРА

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

MIKSER SPOSUDOM

KORISNIČKO UPUTSTVO

KR - 5401/5402 IM

Line drawing of a kitchen mixer with control panel and side-mounted buttons (no text or symbols)

Pažljivo pročitajte ovo uputstvo pre korišćenja i sačuvajte ga

za kasniju upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

Line drawing of a kitchen mixer with a spherical bowl and control panel (no text or symbols)

Slika1

Line drawing of a kitchen mixer with control panel and side buttons (no text or symbols)

Slika 2

KORIŠĆENJE MIKSERA

1. Vodite računa da je selektor brzine u položaju “0” pre nego što stavite kabl za napajanje u utičnicu.
2. Podesite selektor brzine na svoju željenu brzinu

UPOZORENJE: Ne stavljajte noževe, metalne kašike, viljuške i slično u posudu dok uređaj radi.

1. Maksimalno vreme rada uređaja ne treba da premašuje 6 minuta i treba pustiti uređaj da se odmori minimum 20 minuta pre ponovnog uključivanja. Za gnječenje testa preporučujemo prvo upotrebu male brzine, a zatim koristite veću brzinu do postizanja željenog rezultata.

Napomena: tokom gnječenja testa brašno se može zalepiti za unutrašnju stranu posude, te možete pomeriti poklopac posude i špatulom ogrebati brašno sa unutrašnje strane posude kako biste postigli željeni rezultat gnječenja testa.

1. Kada završite mućenje, stavite selektor brzine u položaj “0” i isključite kabl iz utičnice.
2. Pritisnite dugme za zaključavanje, glava miksera će se automatski podignuti do zaključane pozicije.

Pažnja: Pre pritiskanja dugmeta za zakjučavanje (pre podizanja glave miksera), vodite računa da mutilica i mešalica leži na sredini glave miksera, kako prilikom podizanja glave miksera ne bi upala u posudu za mućenje; ako je mutilica ili mešalica na prednjoj strani glave miksera, uključite opet selektor brzine, pustite mikser da se okreće nekoliko sekundi, a zatim isključite selektor brzine kako biste zaustavili mutilicu ili mešalicu na sredini glave miksera.

1. Ukoliko je neophodno, gumenom ili drvenom špatulom uklonite ostatke hrane sa mutlica ili sa mešalice za testo.
2. Povucite malo jače prilikom izvlačenja mutlice/ mešalice.

Pažnja: Izvlačite mutilicu / mešalicu samo onda kada je selektor brzine u položaju “0” i kada je kabl uređaja isključen iz utičnice.

ČIŠĆENJE I ODRŽAVANJE

1. Izvucite utičnicu iz utikača i sačekajte da se uređaj poptuno ohladi pre čišćenja.
   Pažnja: ne smete potapati uređaj u vodu ili bilo koju vrstu tečnosti.
2. Obrišite spoljne delove glave i baze uređaja vlažnom krpom i osušite mekom suvom krpom.
3. Obrišite sa kabla ostatke hrane ukoliko ih ima.
4. Operite posudu, mutilicu, mešalicu i špatulu u toploj sapunjavoj vodi. Isperite mlazom vode i osušite.

KULINARSKI SAVETI

1. Namirnice iz frižidera, na primer puter i jaja treba da odstoje pre mućenja na sobnoj temperaturi. Blagovremeno izvadite namirnice iz frižidera.
2. Da biste izbegli mogućnost ispadanja ljuski sa jaja ili pokvarena jaja, prvo slomite jaja u posebnu činiju, a onda ih mutite.
3. Ne mutite previše. Vodite računa da mutite i mešate samo onoliko koliko se to traži u receptu. Promešajte suve sastojke dok se ne sjedine i tom prilikom uvek koristite malu brzinu.
4. Klimatski uslovi, sezonske temperaturne promene, temperatura sastojaka i varijacije u njihovoj teksturi imaju veliku ulogu u traženom vremenu mućenja i postizanju željenih rezultata.

VAŽNA BEZBEDNOSNA UPUTSTVA

Uvek počnite mućenje najmanjom brzinom. Kada se sastojci glatko sjedine postepeno povećavajte brzinu, i to kao što je preporučeno u receptu ispod.

RECEPT

Testirano	Preporučeni materijal	Težina
Obična mutilica	Brašno	150g
	Šećer	150g
	Puter	150g
	Jaja	3 komada
	Prašak za pecivo	3g
Mešalica za testo	Brašno	500g
	Voda	300g
Mutilica	Jaja	4 komada

EKOLOŠKO ODLAGANJE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Line drawing of a kitchen mixer with control panel and side-mounted buttons (no text or symbols)

Line drawing of a kitchen mixer with labeled parts (no text or symbols present)

Cabeza

Simple line drawing of a mechanical or architectural component with no text or symbols

Batidora

Batidoras de varilla

Gancho de masa

Line drawing of a kitchen mixer with a bowl and fan (no text or symbols)

Fig.1

Line drawing of a kitchen mixer with control panel and side-mounted cup (no text or symbols)

Fig.2

USO DE BATIDORA AMASADORA

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

ROBOTDE COZINHA

MANUAL DE INSTRUÇÕES

KR - 5401/5402 IM

Line drawing of a kitchen mixer with control panel and side-mounted fan (no text or symbols)

Line drawing of a kitchen mixer with a bowl and fan (no text or symbols)

Fig.1

Line drawing of a kitchen mixer with a side bowl and control panel (no text or symbols)

Fig.2

USAR A BATEDEIRA

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

Επιτραπέζιο μίξερ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

KR - 5401/5402 IM

Line drawing of a kitchen mixer with control panel and side-mounted buttons (no text or symbols)

Line drawing of a kitchen mixer with a bowl and handle (no text or symbols)

Fig.1

Line drawing of a kitchen mixer with control panel and side-mounted dish (no text or symbols)

Fig.2

ΧΡΗΣΗ ΤΟΥ ΜΙΞΕΡ

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

MEŠALNIK S POSODO

NAVODILA ZA UPORABO

KR - 5401/5402 IM

Line drawing of a kitchen mixer with handle and control panel (no text or symbols)

Line drawing of a kitchen mixer with a bowl and fan (no text or symbols)

Slika 1

Line drawing of a kitchen mixer with control panel and side-mounted cup (no text or symbols)

Slika 2

UPORABA MEŠALNIKA

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or numbers present)

Line drawing of a modern kitchen mixer with control panel and side-mounted fan (no text or symbols)

Line drawing of a kitchen mixer with a spherical bowl and control panel (no text or symbols)

Slika 1

Line drawing of a kitchen mixer with control panel and side buttons (no text or symbols)

Slika 2

KORIŠĆENJE MIJEŠALICE

1. Vodite računa da je selektor brzine u položaju “0” prije nego što stavite kabel za napajanje u utičnicu.
2. Podesite selektor brzine na svoju željenu brzinu

UPOZORENJE: Ne stavljajte noževe, metalne žlice, vilice i slično u posudu dok uređaj radi.

1. Maksimalno vrijeme rada uređaja ne treba da premašuje 6 minuta i treba pustiti uređaj da se odmori minimum 20 minuta prije ponovnog uključivanja. Za gnječenje tijesta preporučujemo prvo uporabu male brzine, a zatim koristite veću brzinu do postizanja željenog rezultata.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

MIKSER SPOSUDOM

KORISNIČKO UPUTSTVO

KR - 5401/5402 IM

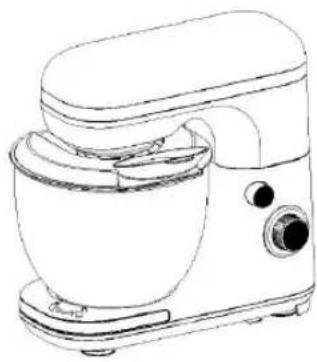

Line drawing of a kitchen mixer with control panel and side-mounted fan (no text or symbols)

Pažljivo pročitajte ovo uputstvo prije korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBJEDNOSNA UPUTSTVA

Prije korišćenja ovog uređaja trebalo bi ispuniti osnovne bezbjednosne preduslove uključujući sljedeće:

1. Pročitajte cijelo uputstvo.
2. Prije upotrebe provjerite da li napon u zidnoj utičnici odgovara naponu uređaja koji se može naći na natpisnoj tablici pri dnu uređaja
3. Ne koristite uređaj sa oštećenim kablom, nakon kvara ili ako je oštećen na bilo koji način.
4. Ne ostavljajte kabl da visi preko ivice stola, radne površine ili bilo koje zagrijane površine.
5. Ne potapajte kabl ili tijelo miksera u vodu, jer to može dovesti do strujnog udara.
6. Ako je kabl za napajanje oštećen, može ga zamijeniti samo ovlašćeni serviser ili neko drugo kvalifikovano lice kako bi se izbjegla opasnost od strujnog udara.
7. Ukoliko se uređaj koristi u blizini djece ili osoba sa invaliditetom, neophodan je stalni nadzor.
8. Ne stavljajte uređaj na ili u blizini plinskog ili električnog šporeta.
9. Ne izbacujete mutilicu ili miješalicu za tijesto dok uređaj radi.
10. Ne ostavljajte mikser bez nadzora dok radi.
11. Isključite uređaj iz utičnice kada ga ne koristite, kao i prije stavljanja ili skidanja dijelova i prije čišćenja.
12. Upotreba bilo kakvih dodataka koji nisu preporučeni ili prodati od strane proizvođača može prouzrokovati požar, strujni udar ili povrede.
13. Izvadite mutilice iz miksera prije pranja.
14. Vodite računa da je kontrolno dugme postavljeno u položaj OFF prije nego što uključite kabl za napajanje u električnu utičnicu. Prilikom isključivanja takođe prvo postavite kontrolno dugme na OFF, a zatim izvucite kabl za napajanje iz zidne utičnice.
15. Tokom rada uređaja, izbjegavajte kontakt sa dijelovima koji se pomijeraju.
16. Vodite računa da vam tokom rada uređaja ruke, odjeća, kao i sav ostali pribor budu udaljeni od mutilice kako biste smanjili rizik od povreda ljudi i/ ili oštećenja uređaja.
17. Uvijek izvucite kabl za napajanje iz zidne utičnice ukoliko je uređaj ostavljen bez nadzora, ili prije sastavljanja, rasklapanja ili čišćenja uređaja.
18. Djeca ne smiju koristiti ovaj uređaj. Uređaj i kabl uređaja držati van domašaja djece.

19. Isključite uređaj prije mijenjanja ili dodirivanja onih dijelova koji su u pokretu tokom rada uređaja.

20. Uređaj je namijenjen za kućnu upotrebu i slične uslove, kao što su:

– Kuhinjske prostorije u prodavnicama, kancelarijama i drugim radnim okruženjima;
– Seoska domaćinstva;
– Hoteli, moteli i slični tipovi smještaja;
– Ostali pansioni za izdavanje na bazi noćenja sa doručkom.

Line drawing of a kitchen mixer with a spherical bowl and control panel (no text or symbols)

Slika 1

Line drawing of a kitchen mixer with control panel and side buttons (no text or symbols)

Slika 2

KORIŠĆENJE MIKSERA

1. Vodite računa da je selektor brzine u položaju “0” prije nego što stavite kabl za napajanje u utičnicu.
2. Podesite selektor brzine na svoju željenu brzinu

UPOZORENJE: Ne stavljajte noževe, metalne kašike, viljuške i slično u posudu dok uređaj radi.

1. Maksimalno vrijeme rada uređaja ne treba da premašuje 6 minuta i treba pustiti uređaj da se odmori minimum 20 minuta prije ponovnog uključivanja. Za gnječenje tijesta preporučujemo prvo upotrebu male brzine, a zatim koristite veću brzinu do postizanja željenog rezultata.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

МИКСЕР СО САД

КОРИСНИЧКО УПАТСТВО

KR - 5401/5402 IM

Line drawing of a kitchen mixer with control panel and side-mounted buttons (no text or symbols)

Line drawing of a kitchen mixer with a spherical bowl and control panel (no text or symbols)

Слика 1

Line drawing of a kitchen mixer with control panel and side buttons (no text or symbols)

Слика 2

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

MIKSERME ENË

UDHËZIM PËR PËRDORIM

KR - 5401/5402 IM

Line drawing of a kitchen mixer with control panel and side-mounted buttons (no text or symbols)

Line drawing of a kitchen mixer with a bowl and fan (no text or symbols)

Fot.1

Line drawing of a kitchen mixer with control panel and side buttons (no text or symbols)

Fot.2

PËRDORIMI I MIKSERIT

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)
