USER MANUAL Picturall Twin Compact MSTC02-R1 Analog Way

Picturall Series Media Servers

(V2.9.0)

References: MST02-R1, MSTC02-R1, MSQ04-R1, MSQC04-R1, MSP16-R1

Three black analog warehouse units labeled Analog Way®, Pictureall Pro®, and Pictureall Twin® (no visible text beyond branding labels)

ANALOG WAY®

Pioneer in Analog, Leader in Digital

Information contained in this document, in particular data, pictures, information, trademarks and logos are exclusive property of Analog Way and are protected by copyrights and other intellectual property rights.

2018, Analog Way, all rights reserved – 11/2019

Consequently, any representation and/or reproduction, in part or in full, is prohibited and would be considered a violation of Analog Way's copyright and other intellectual property rights.

Visual representations (diagrams, photos, icons, pictograms, screenshots, spare parts, etc.) are not contractual.

Contents

1 Disclaimer....7

1.1 Copyrights 7
1.2 Media 7
1.3 Warranty....7
1.4 Liability....7
1.5 Force Majeure....7

2 Introducing Picturall Series Media Servers 8

2.1 Picturall Series Media Servers....8
2.2 Package Contents....8
2.3 Front panel....9
2.3.1 Display screen....9
2.3.2 Power off 9
2.3.3 Forced shutdown....9
2.4 Rear panels and Connections....9
2.4.1 Picturall Twin rear panel....10
2.4.2 Picturall Twin Compact rear panel 10
2.4.3 Picturall Quad rear panel....11
2.4.4 Picturall Quad Compact rear panel 11
2.4.5 Picturall Pro rear panel 12
2.4.6 Optional Hardware 13
2.4.7 External Audio support (optional) 13

3 Getting Started....14

3.1 Precautions when Mounting Picturall Series Media Server 14

3.2 Start the Picturall Series Media Server 14

4 Configuration 15

4.1 Web configurator....15

4.1.1 Dashboard 15

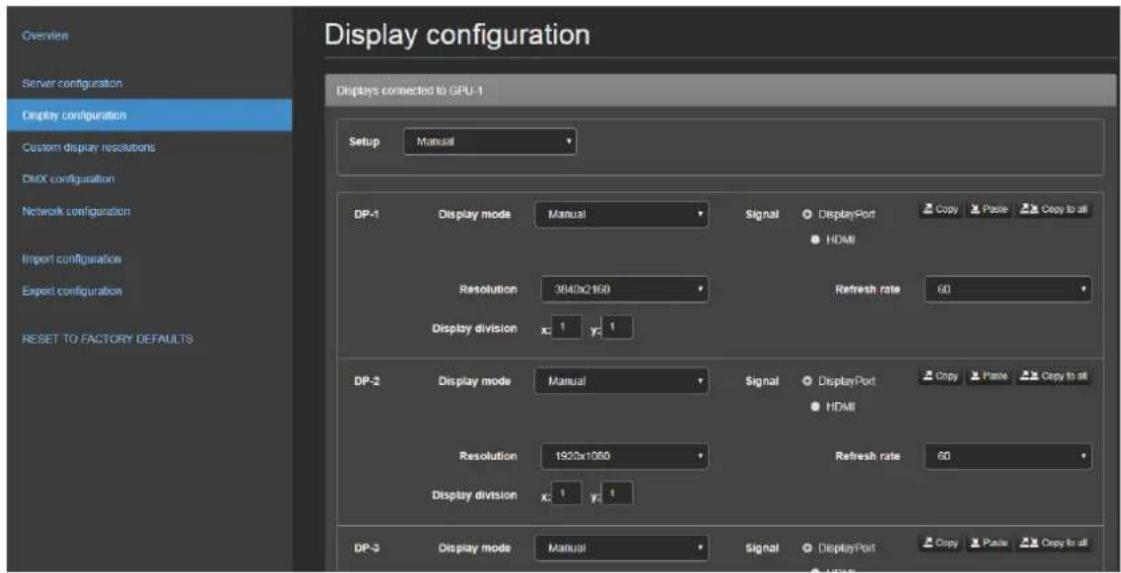

4.1.2 Server configuration 16

4.1.3 Display configuration....17

4.1.4 DMX Configuration 18

4.1.5 Network configuration 19

4.1.6 Import and Export configuration 20

4.1.7 Format Media Drives - Storage configuration 21

4.1.8 Conflicting Settings 21

4.2 Configuration mode....22

4.3 Update Server Software....23

4.3.1 Creating an installation USB stick 23

4.3.2 Installing the server software from a USB stick 23

5 Configure Picturall Commander 24

5.1 Java compatibility ....24

5.2 Installing / Updating Picturall Commander....24

5.3 Connecting to Picturall Series Media Server....25

5.4 User Interface 25

5.5 Control Tabs 25

5.5.1 Arrange windows....26

5.5.2 Reset windows....26

5.6 Preferences....26

5.7 Hotkeys 26

6 Media....27

6.1 Media types 27

6.2 Importing and encoding Media files....28

6.2.1 Import a local media file 28

6.2.2 Import and encode a file to AWX format 29

6.2.3 Import an image sequence 29

6.2.4 Import a media using FTP 29

6.2.5 Reuse imported media files - Add server files to a media collection 30

6.2.6 Encode a media present on the server....30

6.3 Edit server filenames and location....31

6.4 Add inputs to a media collection 31

6.5 Add web pages and video streams....31

6.5.1 Add a web page to a media collection 31

6.5.2 Import a web page using FTP 32

6.5.3 Add FTP imported web page to a media collection.... 32

6.5.4 Add a URL video stream to the server 32

6.5.5 Add an NDI video stream to the server 33

6.6 Add a custom text....33

6.7 Manage Media Collections ....33

6.8 Default Media transition....33

6.8.1 End action (Media) 33

6.8.2 Media Crossfade 34

6.8.3 Media Fade in / Fade out....34

7 Displays 35

7.1 Display menu icons 36

7.2 Display adjustment tabs....36

7.3 Test images 36

7.4 Positioning and Grouping Displays ....37

7.4.1 Multi-display screen - Display wizard 38

7.4.2 Reset Display 39

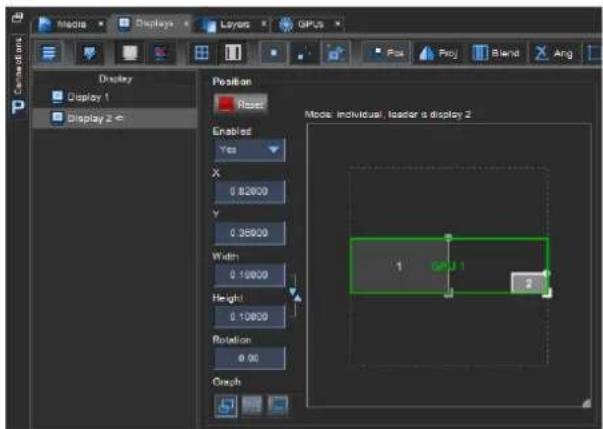

7.5 Optimize pixel space - GPUs tab 39

7.6 Edge Blending....39

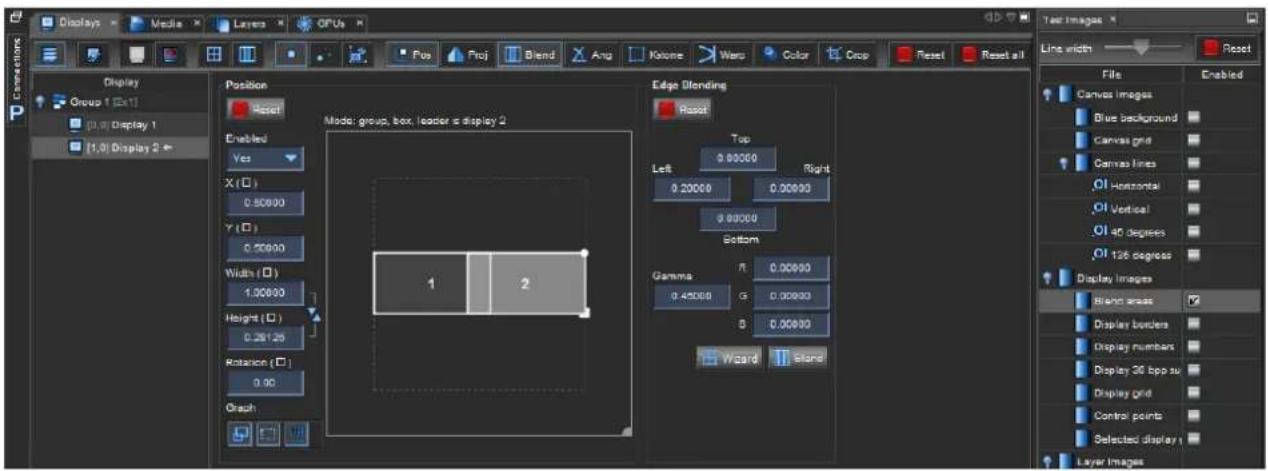

7.6.1 Keystone and Angle Correction 39

7.7 Adjust curved surface projection - Warp correction ....41

7.8 Color correction (Display) 41

7.8.1 Adjust display color 41

7.8.2 Alpha display 41

7.9 Crop display size....41

8 Layers 42

8.1 Layers tab....42

8.1.1 Layer List 42

8.1.2 Layer Priority 42

8.1.3 Layers adjustments....42

8.2 Select and play a media - Media selection....43

8.2.1 Playback control 43

8.2.2 End action (Layer) 43

8.2.3 Layer fading settings 43

8.3 Composition....44

8.3.1 Draw modes....45

8.3.2 Graph....46

8.3.3 Composition Advanced settings 46

8.4 Color correction (layer) 47

8.5 Advanced....47

8.5.1 Synchronize to another layer 47

8.5.2 Set layer Frame rate 47

8.6 Audio (optional) 47

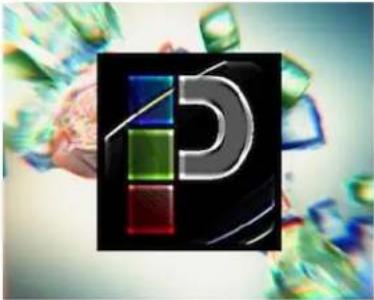

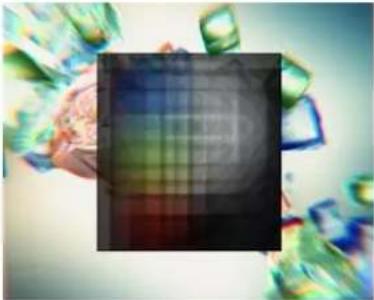

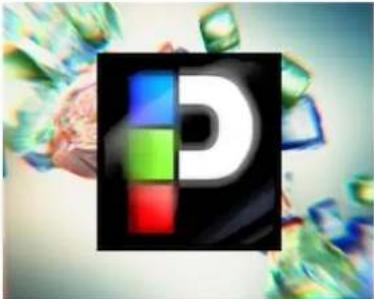

8.7 Using Effects....48

8.7.1 Alpha Fill and Alpha Key – Cut & Fill 55

8.8 Layer macro....56

8.8.1 Create a layer macro 56

8.8.2 Load a layer macro 56

8.9 Geometry 56

8.10 Set default show on server boot – Export show....56

9 Program a Show - Cue....57

9.1 Presentation....57

9.1.1 How cues work 57

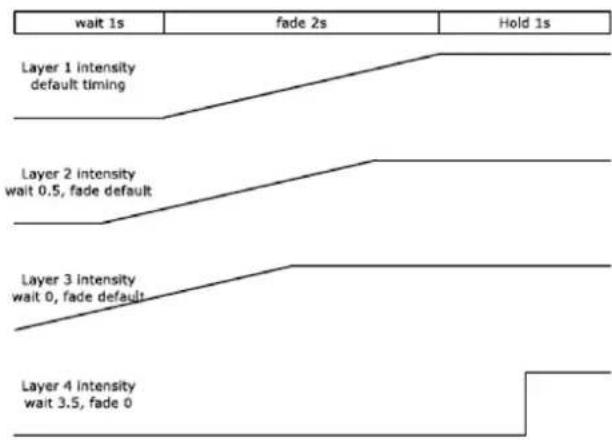

9.1.2 Timings (Wait, Fade and Hold) 57

9.1.3 Trigger....59

9.2 Creating Cues 59

9.2.1 Create the first Cue....59

9.2.2 Edit a Cue....59

9.2.3 Stop cue....60

9.3 Cue Stacks 60

9.3.1 Create a cue stack....60

9.3.2 Remove a cue from a cue stack 60

9.3.3 Change trigger type 60

9.3.4 Order cues in the stack – Index number....60

9.4 Timing and Running Cues in Playback....61

9.5 Example Show....61

9.6 Live show recommendations....62

9.7 Cue macro....62

9.7.1 Cue macro and Cue stack macro 62

9.7.2 Cue macro actions....63
9.7.3 Edit or remove a cue macro 64
9.7.4 Create cue macros using Lua commands 64

10 Miscellaneous 65

10.1 Save a show....65

10.2 Refresh displays 65

10.3 Sync card – Genlock (Picturall Pro only) 65

10.3.1 Genlock menu....65

10.3.2 House sync status LED 65

10.3.3 GPU sync status 65

10.4 Performance 66

10.4.1 Toggle view 67

10.4.2 Refresh....67

10.4.3 Color 67

10.5 Timecode....67

10.6 Control Model....68

10.7 Commander Log....68

11 User maintenance and Troubleshooting....69

11.1 User Maintenance – Air filter....69
11.1.1 Air filter cleaning - Picturall Twin, Quad and Pro....69
11.1.2 Air filter cleaning - Picturall Twin Compact and Quad Compact 69
11.2 System Diagnostics 69
11.3 Troubleshooting....70

APPENDICES 71

Appendix A. DMX chart 71
Appendix B. BIOS setup 79
Appendix C. Optimize GPU resolution and drawing performance....80
Appendix D. Picturall Pro communication protocol specifications 83

CONTACT INFORMATION....91

1 Disclaimer

The information in this document is subject to change without notice, while every effort is made to be accurate. Analog Way cannot be held liable for any kind of loss whatsoever that may be caused by the use of or reliance in this manual.

1.1 Copyrights

The Software installed in the Picturall Series Media Server remains the sole property of Analog Way unless stated otherwise in a separate licensing agreement. Any attempt to copy or alter the software is prohibited and will render any warranties void.

1.2 Media

Analog Way may have supplied video libraries pre-installed on the media server. If you have any questions regarding them, please contact us. These videos have been licensed exclusively for use within the Picturall Series Media Servers. Any copying or other usage without proper rights clearance is forbidden. Analog Way will not accept any liability or claims from third parties.

1.3 Warranty

The Picturall Series Media Server has been tested in various applications and is deemed to be suitable for uses described in this manual. This product is provided “as is”, including all or any ‘perceived’ or possible faults. The Licensor grants no warranty regarding the utility or contents of the software. Analog Way will warrant the hardware for three years from the date of purchase. The method of warranty is Return to Base (transport costs from and to us are the owner’s responsibility). In case of hardware fault please contact your local distributor or us (www.analogway.com).

While not an exhaustive list, the following are provided for guidance. Warranty claims will be invalidated in these circumstances:

• A hardware failure is caused by inappropriate handling of hardware such as dropping the media server, using the media server without proper ventilation, exposing the media server to water, other liquids or dust.
• The software has been loaded or there has been an attempt to load software onto the media server in any way other than described in the manual or recommended by Analog Way.
  • The hardware has been modified by someone other than a certified Analog Way dealer.

1.4 Liability

Analog Way shall not be liable for any loss or damage, be it direct or indirect in regards to the utility or contents of the software or hardware, except to the extent provided by law. Notwithstanding the above, liability for indirect, special, incidental or consequential loss or damage that may arise in respect of the software or hardware, is expressly excluded.

1.5 Force Majeure

Liability of Analog Way is excluded in all cases that constitute Force Majeure circumstances, namely, circumstances beyond the control of Analog Way.

2 Introducing Picturall Series Media Servers

Thank you for choosing Picturall Series Media Servers! The one that combines cutting-edge technology with ease-of-use and unrivalled efficiency.

Picturall Series Media Servers are powerful real time multi-output media servers. They can manage multiple inputs (media files, live feeds or network streams) with various features and effects. Then output them to multiple displays.

Control the server with Picturall Commander, a dedicated software designed exclusively for Picturall Series Media Servers. Alternatively, Picturall Series Media Servers can also be controlled with External controllers such as Lighting consoles.

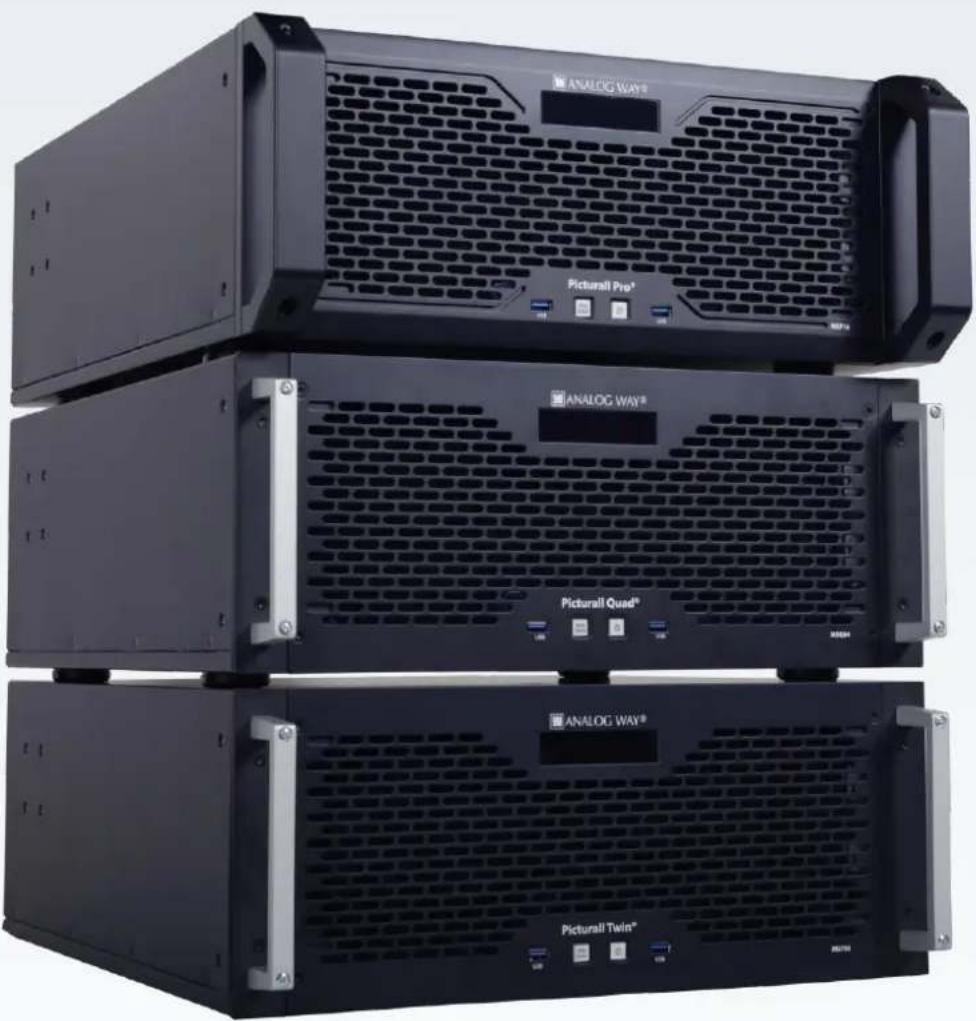

Picturall Series Media Servers are 19" wide and 4 rack units (4U) high, following the industrial rack mounting standard. The Twin and Quad are also available in Compact versions (2U) with the same number of outputs and the same efficiency as their 4U counterparts.

2.1 Picturall Series Media Servers

The Picturall Series Media Servers product range includes 3 models: Twin, Quad, and Pro. The following table illustrates the differences between the units.

Picturall Series Media Servers	Outputs	Description
Twin & Twin Compact	2	Heavy-duty dual-output 4K Series Media Server. Designed for medium-sized events and installations requiring high levels of performance and reliability.
Quad & Quad Compact	4	Heavy-duty quad-output 4K Series Media Server. Designed for large scale events and installations requiring high levels of performance and stability.
Pro	Up to 16	Mission critical 8K modular Series Media Server. Engineered to support massive events and installations from one single server unit.

Table 1 - Picturall Series Media Servers family

2.2 Package Contents

The Picturall Series Media Server sales package includes:

• One Picturall Series Media Server
• One Power cord
• One Rackmount kit
• One Ethernet cross cable
• One USB memory stick containing the Picturall Commander and server software

A USB keyboard is needed for configuring the server and a remote computer for running Picturall Commander.

2.3 Front panel

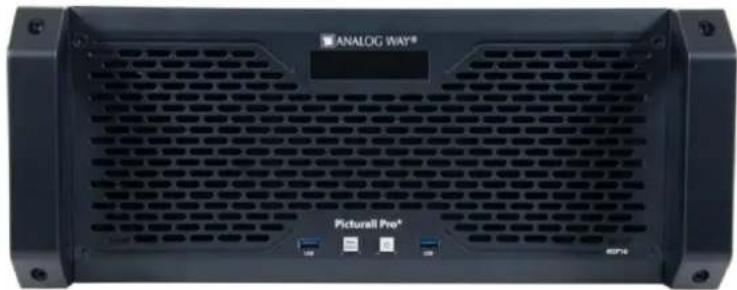

All the Media Servers have the same front panel. It is composed of one OLED display, two USB ports, a Power button and a Next/Status button.

ANALOG WAY® PictureAll Pro®

Fig. 1 - Front panel

2.3.1 Display screen

The front panel displays information such as device IP address, firmware version, or CPU.

• Press the Next/Status button to wake the display and show server information.
• Press again to cycle through the next pages.

The display automatically goes off after 3 minutes of inactivity.

2.3.2 Power off

Tip: The following procedure is the recommended method to safely turn off the Media Server.

To turn off the media server, press the Power button then press the Next/Status button to confirm.

2.3.3 Forced shutdown

If the Media Server crashed, turn off the power by Forced shutdown.

- Press and hold the Power button until shutdown.

Caution: Using Forced shutdown regularly is not recommended. Use Forced shutdown only if the Media Server has crashed.

2.4 Rear panels and Connections

The Media Server chassis and the hardware are designed to produce the best possible performance in a sleek, rack-mountable unit.

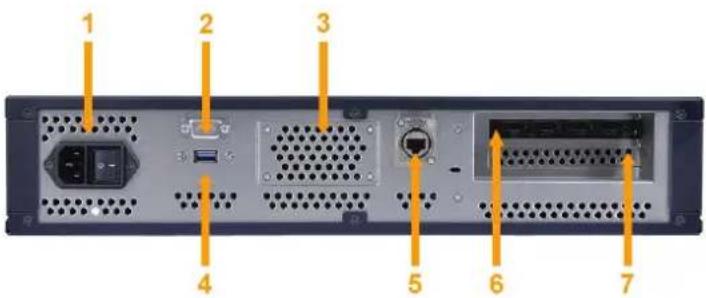

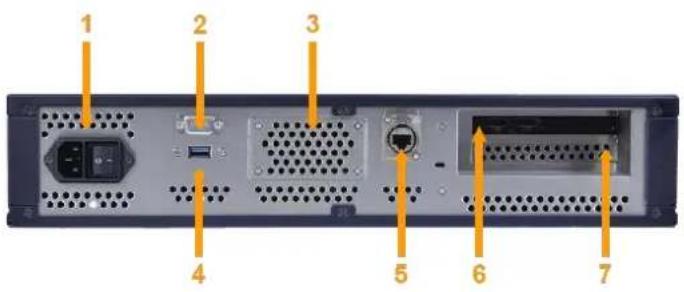

2.4.1 Picturall Twin rear panel

1 2 3 4 5 6 7

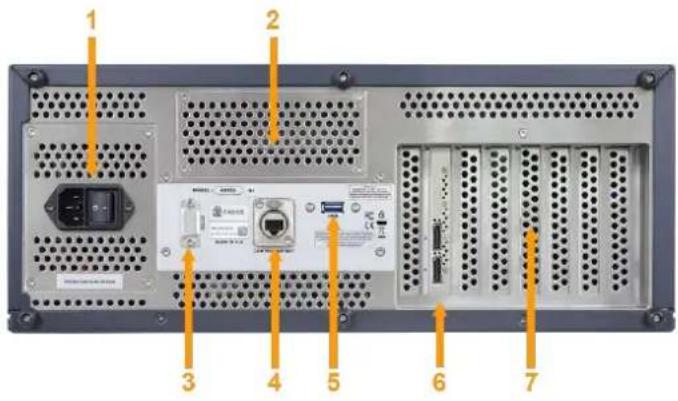

Fig. 2 - Picturall Twin rear panel

1. Power supply (optional redundant and hot-swappable power supplies)
2. Two-channel audio interface with balanced XLR outputs (optional)
3. RS232 plug (optional)
4. Ethernet plug
5. USB plug
6. Two DisplayPort 1.2 outputs (4K@60Hz 10-bit 4:4:4)
7. Two slots for additional input cards

2.4.2 Picturall Twin Compact rear panel

1 2 3 4 5 6 7

Fig. 3 - Picturall Twin Compact rear panel

1. Power supply
2. RS232 plug (optional)
3. Two-channel audio interface with balanced XLR outputs (optional)
4. USB plug
5. Ethernet plug
6. Two DisplayPort 1.2 outputs (4K@60Hz 10-bit 4:4:4)
7. One slot for additional input card

2.4.3 Picturall Quad rear panel

1 2 3 4 5 6 7

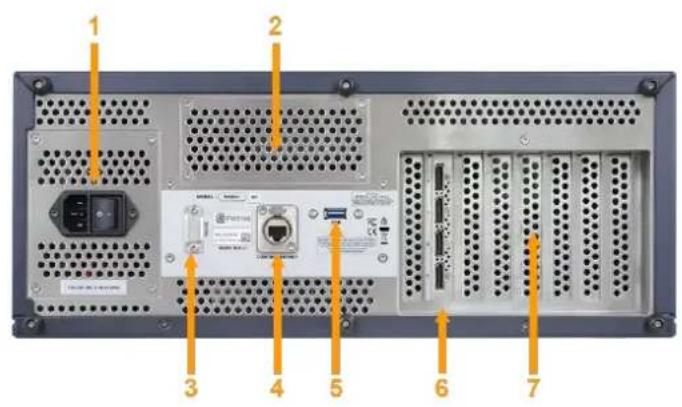

Fig. 4 - Picturall Quad rear panel

1. Power supply (optional redundant and hot-swappable power supplies)
2. Two-channel audio interface with balanced XLR outputs (optional)
3. RS232 plug (optional)
4. Ethernet plug
5. USB plug
6. Four DisplayPort 1.2 outputs (4K@60Hz 10-bit 4:4:4)
7. Two slots for additional input cards

2.4.4 Picturall Quad Compact rear panel

1 2 3 4 5 6 7

Fig. 5 - Picturall Quad Compact rear panel

1. Power supply
2. RS232 plug (optional)
3. Two-channel audio interface with balanced XLR outputs (optional)
4. USB plug
5. Ethernet plug
6. Four DisplayPort 1.2 outputs (4K@60Hz 10-bit 4:4:4)
7. One slot for additional input card

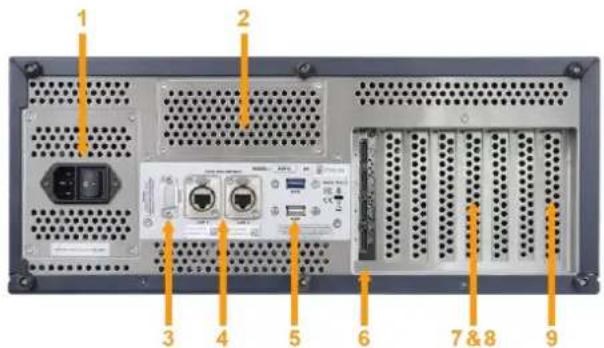

2.4.5 Picturall Pro rear panel

1 2 3 4 5 6 7&8 9

Fig. 6 - Picturall Pro rear panel

1. Power supply (optional redundant and hot-swappable power supplies)
2. Two-channel audio interface with balanced XLR outputs (optional)
3. RS232 plug (optional)
4. Primary Ethernet plug (left), secondary Ethernet plug (right)
5. Two USB plugs
6. Four DisplayPort 1.2 outputs (4K@60Hz 10-bit 4:4:4)
7. Three slots for additional output cards or input cards
8. One slot for additional input card only
9. One slot for optional sync card

2.4.6 Optional Hardware

The Picturall Series Media Servers can be equipped with various options.

Option	Description
Dual Power supply unit	Redundant, hot-swappable power supplies
Audio XLR output	Two-channel audio interface with balanced XLR outputs
SSD storage device	Replaces the default SSD for more storage
Performance and Performance+ SSD*	Replaces the default SSD for more storage and enhanced performance
Output card	4 x DisplayPort 1.2
Input cards	2 x HDMI 1.4
	4 x HDMI 1.4
	1 x HDMI 2.0
	2 x HDMI 2.0*
	2 x 3G-SDI
	4 x 3G-SDI
	1 x DVI
	2 x DVI
Sync card*	Add Genlock feature to the Media Server
10GB Network card*	Add a 10GB RJ45 port to the Media Server

*option available for Picturall Pro only

Table 2 - Picturall Series Media Servers optional hardware

For more information on optional hardware, visit www.analogway.com or contact Analog Way support. For more information on the Sync card, see 10.2 Refresh displays Sync card – Genlock (Picturall Pro only) page 65).

2.4.7 External Audio support (optional)

Caution: Disconnecting the sound card may freeze all layers with audio playback.

The Picturall Series Media Servers support various audio interfaces.

Audio support lets the media server adjust audio settings for medias files with embedded audio.

For more information, see document Picturall Servers Audio Options available on www.analogway.com or contact your reseller or Analog Way support.

3 Getting Started

3.1 Precautions when Mounting Picturall Series Media Server

Caution: Follow these precautions to avoid risks for products and users.

When mounting the server, ensure proper air flow and consider the following points on safe use.

• Always use the handles built on the sides of the chassis for easy mounting into any standard rack or flight case.
• Remove the front and back panels of the flight case during operation to provide sufficient air flow through the unit and prevent overheating.
• Place the server preferably in a cool and dry environment.
• The fans inside the server expel the heat through the front and rear panels. Therefore, it is crucial that both the front and the rear are unobstructed at all times. A minimum of 50 cm (20 in.) of clear space at the front and rear of the unit is recommended.
• Do not block the ventilation.
• Do not place any fluid above or near the server.
• Do not apply any pressure against the chassis or the connectors.

3.2 Start the Picturall Series Media Server

When starting the media server for the first time, a test image with server IP address and display number is sent to every connected display. This helps identifying displays and checking the setup is correct.

Tip: Connect all displays before starting the media server for the first time.

To start the Picturall Series Media Server safely and correctly:

1. Connect the power cable to the server and then plug it into a mains socket.
2. Connect displays to the media server (at least one display to the first connector).
3. If configuration is needed, connect a USB keyboard to the USB port on the server front panel.
4. Press the power button.

Tip: - If the media server is restarted, close and restart Picturall Commander as well.

- If a new display is connected, restart the server and Picturall Commander.

4 Configuration

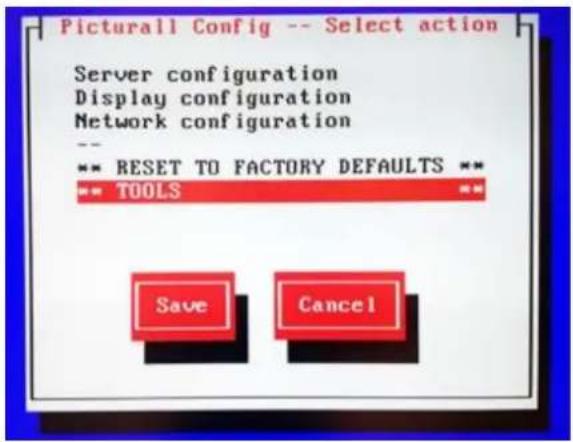

The server can be configured from the Web configurator or by booting the server in Configuration mode. Configuration is needed for DMX / Art-Net, display, network and media storage settings.

4.1 Web configurator

The web configurator allows the user to configure the server from a computer connected to same network without installing a separate control software.

To access the web configurator, launch a web browser and enter the server IP address in the address bar.

Picturall Twin ← → C ⓘ 192.168.2.140

Fig. 7 - Web configurator connection

All devices default IP addresses are 192.168.2.140.

Note: The Picturall Series Media Server and the computer must be connected to the same network to run the Web configurator.

4.1.1 Dashboard

ANALOG WAY® Picturall Twin 2.5.1 Dashboard Configurator Tools Picturall Twin Quick start Configure server Backup, format or run a stress test Visit Java & download page Visit Analog Way website Twin details Model: Picturall Twin Software version: 2.5.1 System services OK Connected GPUs: 1 / Maximum GPUs: 1 MAC address: 60:45:cb:9b:31:e6 Media drive usage: 7.2% Used: 16.3 G / Free: 211.8 G / Total: 228.1 G / Browse media

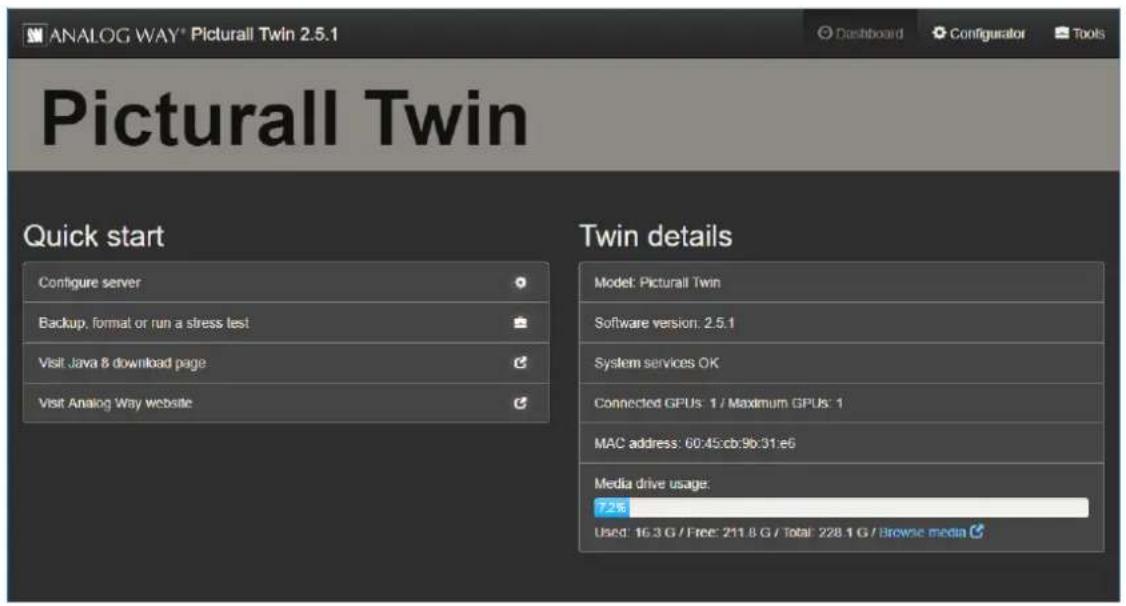

Fig. 8 - Web configurator Dashboard

The Dashboard is the home page of the Web configurator. It shows general information about the media server.

• Click Configure server or Configurator to access server configuration.
• Click on a link in the left tab to open the corresponding menu.

4.1.2 Server configuration

Server configuration Number of layers 32 Restore default values Max layer width 8192 Max layer height 2160 Triplebuffering Save Server configuration Display configuration Custom display resolutions DMX configuration Network configuration Import configuration Export configuration RESET TO FACTORY DEFAULTS

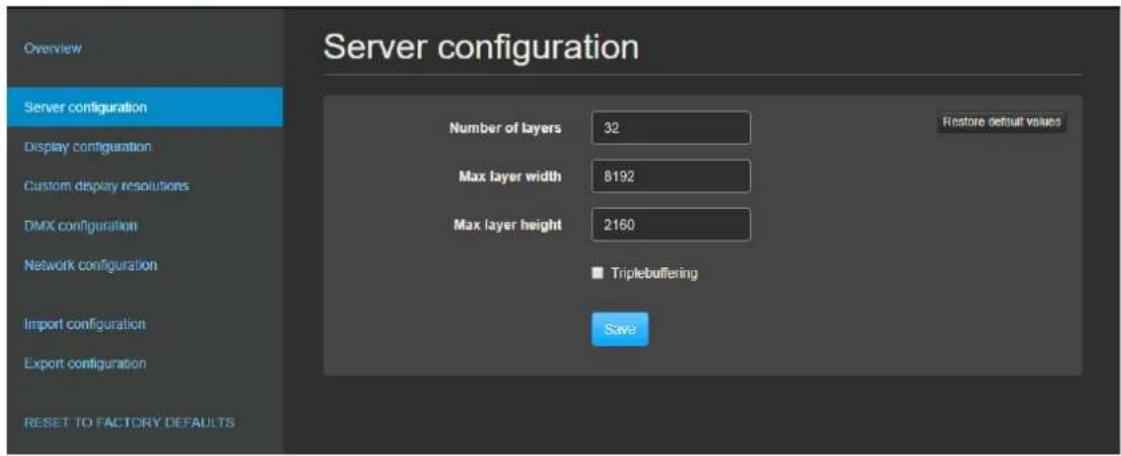

Fig. 9 - Server configuration

Set server settings from the Server configuration:

• Number of layers: Set the number of layers to use and patch to Art-Net (max 200). This affects the number of available layers in Picturall Commander.
• Max layer width and height: Set the maximum resolution to be processed by the media server.

Caution: Media with a larger resolution than the max layer size might not be displayed correctly. This does not apply to medias encoded in AWX and PRKL.

• Triplebuffering: check to enable Triplebuffering.
• Enable sync card and genlock (Picturall Pro only): check to enable Genlock (checked by default if the sync card is installed).

4.1.2.1 Select audio device (optional)

If the server has more than one audio card installed select the audio card in the Audio device drop down menu in Server configuration.

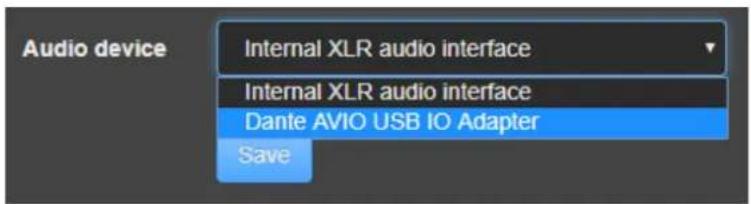

Audio device Internal XLR audio interface Internal XLR audio interface Dante AVIO USB IO Adapter Save

Fig. 10 - Audio device selection

4.1.3 Display configuration

Display configuration Displays connected to GPU-1 Setup Manual DP-1 Display mode Manual Signal DisplayPort Copy Paste Copy to all HDMI Resolution 3840x2160 Refresh rate 60 Display division x: 1 y: 1 DP-2 Display mode Manual Signal DisplayPort Copy Paste Copy to all HDMI Resolution 1920x1060 Refresh rate 60 Display division x: 1 y: 1 DP-3 Display mode Manual Signal DisplayPort Copy Paste Copy to all HDMI

Fig. 11 - Display configuration

In the Display configuration menu, set Auto mode for the whole output card or Manual display mode per output plug:

Tip: Use the buttons Copy, Paste and Copy to all for Displays using identical settings.

4.1.3.1 Set Auto mode for the whole output card

In Auto mode, sets all plugs of the same output card (GPU) to follow EDID.

Tip: In Auto mode, connect and power all the relevant displays before booting the media server.

1. In Setup, select Auto.
2. Per output plug, select Auto to follow EDID (or Disable the output if needed).
3. If needed, select Signal: HDMI to force the HDMI signal on any DisplayPort output (adapter needed).

4.1.3.2 Set Manual mode per output plug

In Manual mode, set each output plug manually.

1. In Setup, select Manual.
2. Per output plug, select the Display mode:
   ○ Disabled: disable the output

3. Manual: set the output resolution and refresh rate manually
   ○ Custom: select a custom display configuration
   Special: select a preset mode for display signal splitters (Analog Way DPH104, Matrox TH2GO and DH2GO, Datapath X4 and FX4)

4. If needed, select Signal: HDMI to force the HDMI signal on any DisplayPort output (adapter needed).

4.1.3.3 Display division

Displays can be divided into grids of virtual displays with Display division. This separates all Displays into independent displays. These displays are affected independently (Keystone, Angle, Crop). This is very useful for complex screens and Led walls.

4.1.4 DMX Configuration

Picturall Series Media Servers have three fixture profiles for Art-Net / DMX control.

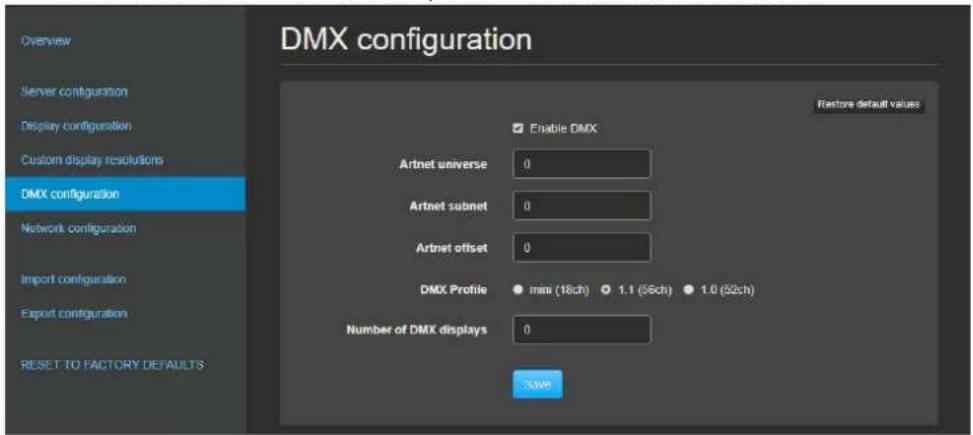

DMX configuration Overview Server configuration Display configuration Custom display resolutions DMX configuration Network configuration Import configuration Export configuration RESET TO FACTORY DEFAULTS Enable DMX Artnet universe 0 Artnet subnet 0 Artnet offset 0 DMX Profile mini (18ch) 1.1 (56ch) 1.0 (52ch) Number of DMX displays 0 Save

Fig. 12 - DMX configuration

1. Art-Net universe: Set the first universe and the rest of the layers will be patched to next universes. If patching more than 9 layers, the server will use several Art-Net universes.
2. Art-Net subnet: Set the Art-Net subnet value (between 0 and 15).
3. Art-Net offset: Set the first channel of the first universe for layer 1.
4. DMX profile: Set the preferred DMX fixture profile (1.1, 1.0 or mini).
5. Number of DMX displays: Enter the number of the displays controlled with DMX

DMX control for the Picturall Series Media Server consists of two elements: layers and master block. The master block controls general functions that are not specific to any layer such as choosing display preset (for more information, see Appendix A DMX chart page 71).

Layers are patched first starting from a given offset on a given universe. Layers are patched so that they do not split at the universe border. The following table shows the patching for 32 layers (default). Master block is patched immediately after the layers.

Universe	DMX	Layer
1	1	Layer 1
	57	Layer 2
	113	Layer 3
	168	Layer 4
	225	Layer 5
	281	Layer 6
	337	Layer 7
	393	Layer 8
	449	Layer 9
2	1	Layer 10
	57	Layer 11
	113	Layer 12
	168	Layer 13
	225	Layer 14
	281	Layer 15
	337	Layer 16
	393	Layer 17
	449	Layer 18

Universe	DMX	Layer
3	1	Layer 19
	57	Layer 20
	113	Layer 21
	168	Layer 22
	225	Layer 23
	281	Layer 24
	337	Layer 25
	393	Layer 26
	449	Layer 27
4	1	Layer 28
	57	Layer 29
	113	Layer 30
	168	Layer 31
	225	Layer 32
	281	Master Block

Table 3 - Example patch of 32 layers using 56ch DMX profile

4.1.5 Network configuration

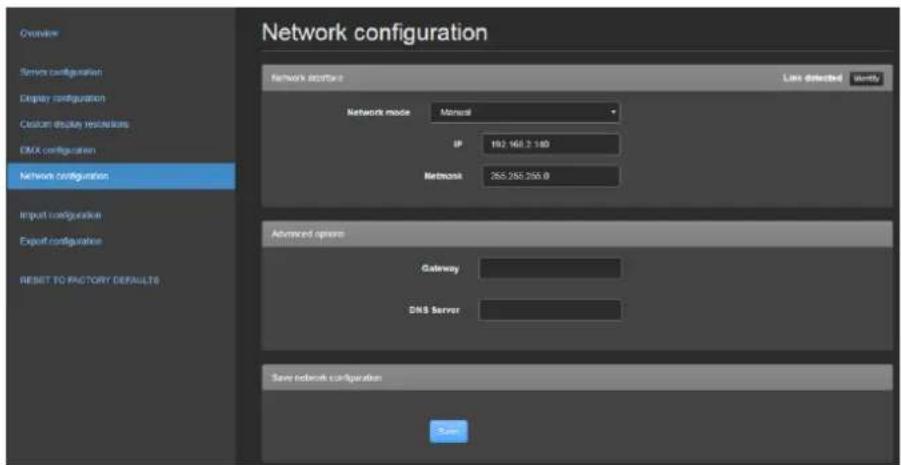

Network configuration Network settings Line detected verify Network mode Manual IP 192.168.2.180 Network 265.265.265.0 Advanced options Gateway DNS Server Save network configuration Save

Fig. 13 - Network configuration

Tip: Click Identify to make the selected ethernet connector blink on the rear panel of the unit.

There are three ways to set the IP addresses for the server:

• Automatic (DHCP): The server gets IP address from DHCP server in the same network
• Automatic (ARTNET): The IP address is generated based on the Art-Net protocol
• Manual: Set the IP address and netmask manually

Caution: Never have two DHCP servers in the same network.

Caution: Set the IP address manually if Automatic (DHCP) is activated in the server.

4.1.5.1 Network configuration for Picturall Pro

Network configuration • To ensure startup priorities incoming connectors. At least one interface must be tested. • At initial point selection must be tested Network Interface LAN1 (FGB) Line enabled Network mode: Automatic (DHCP) ■ Security Network Interface LAN2 (USB) Network mode: Disabled Network Interface LAN3 (USB) ■ Security Network mode: Manual IP 190.164.3.160 Network 190.164.206-9 Gateway ■ Security

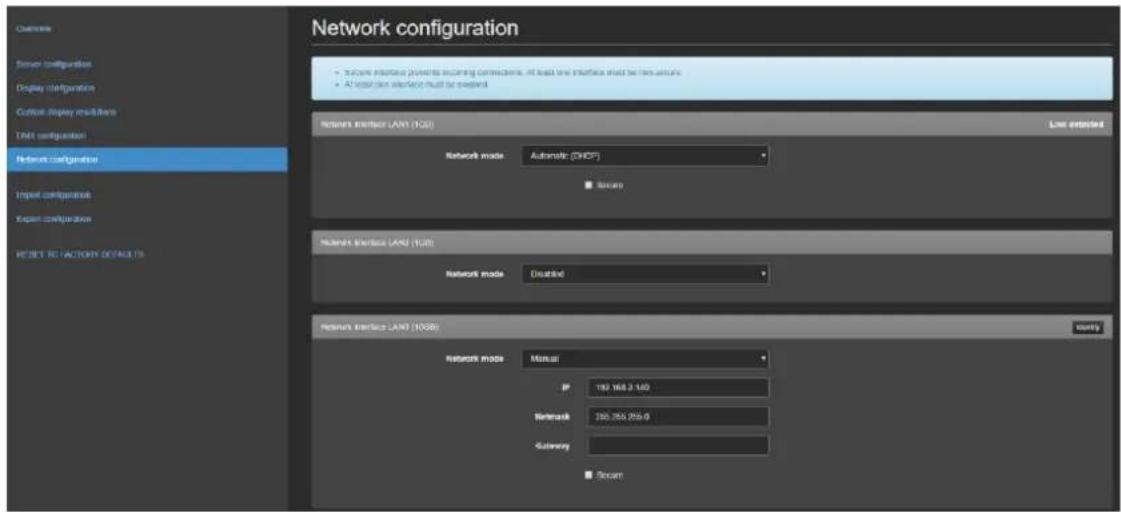

Fig. 14 - Network configuration (Picturall Pro with dual network interface and 10GB option)

Picturall Pro has supports two different networks. Enable the Secure mode to prevent incoming connections.

Note: At least one interface must be enabled and at least one interface must be non-secure.

An additional 10GB network ethernet interface is available as an option for the Picturall Pro.

The 10GB network option can be set either to secure or non-secure network.

4.1.6 Import and Export configuration

4.1.6.1 Export configuration (save)

Tip: Export server configuration before updating the Server Software as this deletes Configuration options.

To save the current configuration:

1. On a web browser, enter the media server IP address in the address bar.
2. Go to Configurator or Configure Server.
3. Go to Export configuration.
4. Choose the configuration parameters to be saved.
5. Click Export configuration.

The Configuration is saved in a PSC file.

4.1.6.2 Import configuration (load)

1. On a web browser, enter the media server IP address in the address bar.
2. Go to Configurator or Configure Server.
3. Go to Import configuration.
4. Choose the PSC file to import.
5. Choose the configuration parameters to load.
6. Click Import configuration.

4.1.6.3 Back up the contents on another Picturall Series Media Server

It is possible to back the contents of one server onto another one connected on the same network. The following example shows how to back from a Server A to a Server B.

1. Make sure the two servers have the same software version (latest if possible).
2. Make sure the two servers have Picturall Commander installed in same version (latest if possible).
3. Create a show and transfer some media files on Server A.
4. Make sure that Server B is up and running.
5. On a web browser, enter the IP address of Server A in the address bar.
6. Go to Tools / Backup.
7. Select Server B in the dropdown list or enter the IP address of server B then click Save. Server A sends all medias and shows to Server B (configuration settings are not duplicated and existing medias on server B are not deleted).
8. After the transfer is complete, restart Server B and make sure that it has the same shows and media data as Server A.

4.1.7 Format Media Drives - Storage configuration

In Tools / Format media drives, set the hard drives formatting method.

In the following example, a Picturall Series Media Server has two hard drives of 1TB capacity.

• RAID 0 (striped): 2TB of storage with fastest writing speed. Media drive failure loses all media files.
• RAID 1 (mirrored): 1TB of total storage, medias are stored identically on both media drives. If one media drive fails, the show continues using the other media drive. Best reliability but performance is halved.

Recommendation: Use RAID 0 for optimal performance.

Note: - If the formatting method is modified, all media on hard drives will be deleted.

- RAID 1 is only available for Quad and Pro.

4.1.8 Conflicting Settings

Sometimes settings may conflict with each other. For example: the same Display resolution cannot be set to 1920x1080 and to automatic. In case of conflict, the most recent value is kept and the previous value is discarded.

Settings that easily conflict in the display settings:

Settings	Conflicts with
Auto	A connector, a resolution, a refresh rate and a special mode
A special mode	Auto, or a connector, setting a resolution, a refresh rate
A connector, a resolution or a refresh rate	Auto and a special mode

Settings that easily conflict in the network settings:

Settings	Conflicts with
An IP address and a netmask	DHCP client
DHCP client	DHCP server, an IP address and a netmask
DHCP server	DHCP client

4.2 Configuration mode

The Configuration mode allows the user to configure the directly on the media server using a connected keyboard. This mode includes all the functionality of Web configurator.

To enter the Configuration mode:

1. Make sure a USB Keyboard is connected to the media server.
2. Start the server and press any key when the startup screen displays.
3. Use the arrow keys in the start menu to select Configuration mode. The Configurator menu is displayed.

Configurator has three main sections: Server configuration, Display configuration, and Network configuration. Use arrow keys to navigate menus and use enter to select. Use the Tab button to move between different sections.

Picturall Config -- Select action Server configuration Display configuration Network configuration -- ** RESET TO FACTORY DEFAULTS ** -- TOOLS Save Cancel

Fig. 15 - Configuration mode

4.3 Update Server Software

Caution: Picturall Commander must always be in the same version as the Server software. Update Picturall Commander together with Server software for best compatibility and performance. A message is displayed in Picturall Commander if the versions do not match.

Tip: Updating the Server Software resets Configuration options but medias are not deleted. Export server configuration to recover it after the update (see

Import and Export configuration page 20).

The server comes fully installed with the server software. If a software update is needed, create an installation USB stick and use it to update the software.

Find all installation files for the Media servers on www.analogway.com

4.3.1 Creating an installation USB stick

Tip: Use a high-quality USB memory stick, a low-quality USB memory might cause problems when installing the software.

Note: At the moment, the Picturall Series Media Server installer only runs on Windows.

On a computer:

1. Connect an empty, FAT32 formatted USB stick with at least 2GB of free space.
2. Go to www.analogway.com and download the Picturall installer.
3. Run the installer.
4. In the Distribution menu, select the latest version (non-beta).
5. Make sure the selected Drive is the USB stick.
6. Click OK to write the installer onto the USB stick.

The USB stick is now ready for installation.

4.3.2 Installing the server software from a USB stick

1. Connect a USB keyboard and the installation USB stick to the server.
2. (Re)boot the server.
3. When booting, enter Boot menu by pressing F8 (Twin and Quad) or F12 (Pro).
4. Select the USB stick. The installer starts.
5. Follow the instructions displayed on the screen.

After the installation, the server reboots and sends a test image with server IP address and display number is sent to every connected display.

1. If needed, go to the Network configuration > Manual and set new IP address.
2. If needed, import saved Configuration.

5 Configure Picturall Commander

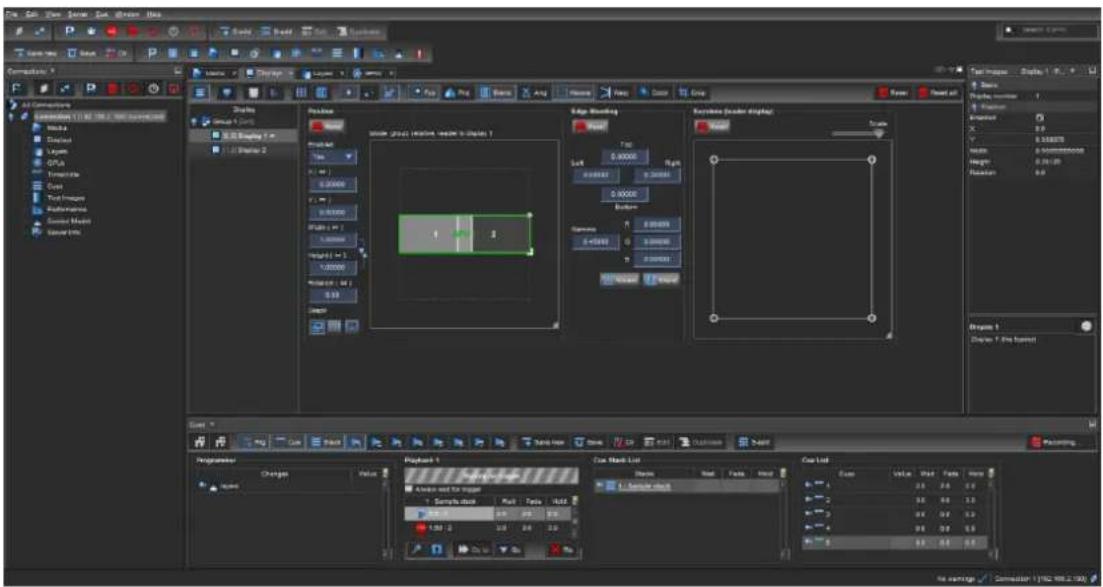

All Connections CONSENSO (1) IN: 50% / 50% (non-convex) Mode 4 Clutch Layer GPTA Transformer Color Text Image Audiovisual Scene Mode Scene Info Display Group 1 (Cont) Group 2 Shower Product Type 0.0000 0.0000 Width (mm) 100mm Height (mm) 100mm Width (mm) 100mm Height Edge Masking Top Left Right Bottom Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Center Candle Masking Display Candle Masking Display Candle Masking Display Candle Masking Display Candle Masking Display Candle Masking Display Candle Masking Display

Fig. 16 - Picturall Commander

Picturall Commander is the software (Java application) used to control the Picturall Series Media Server. This chapter describes the installation and the top-level parts of the Picturall Commander user interface.

5.1 Java compatibility

Starting from version 2.8.0, Picturall Commander is bundled with Java. Installing Java separately is no longer required.

Note: For versions prior to 2.8.0, the operating systems must support Java version 8 for Picturall Commander to be installed. Make sure Java version 8 is installed on the computer before installing Picturall Commander, or use the latest version of Picturall Commander.

5.2 Installing / Updating Picturall Commander

Caution: Picturall Commander must always be in the same version as the Server software. Update Picturall Commander together with Server software for best compatibility and performance. A message is displayed in Picturall Commander if the versions do not match.

Tip: Use a dedicated computer for running Picturall Commander. This ensures that the show files are safe at all times.

The software is on the USB stick delivered with the server. The latest version of Commander is automatically downloaded during the installation process.

If needed, the latest version of Picturall Commander can also be downloaded from www.analogway.com.

To install Picturall Commander, follow these steps:

1. On the computer, insert the USB stick delivered with the media server.
2. Copy the installer file matching the operating system from the USB stick to the computer.
3. Run the installer file and follow the instructions to complete the installation process.
4. If needed, open Picturall Commander and go to File / Load show to load previous configuration.

5.3 Connecting to Picturall Series Media Server

Caution: If the computer goes into a standby mode, the connection to the server is lost after the computer resumes.

Tip: If the media server is restarted, close and restart Picturall Commander as well.

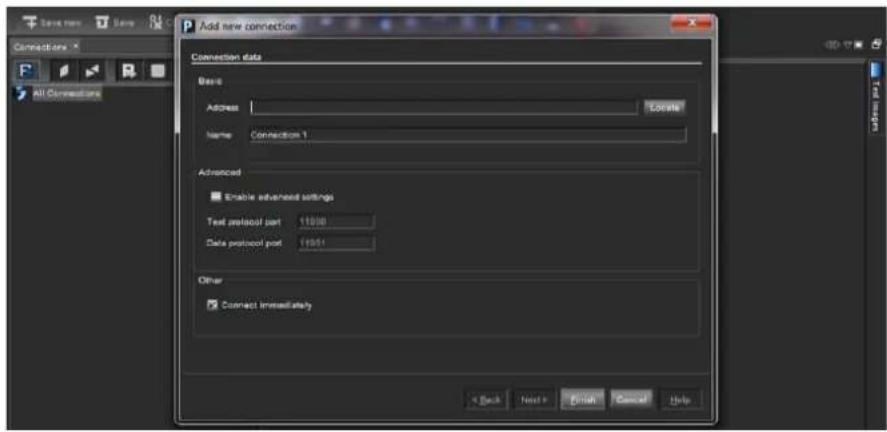

Add new connection Connection data Base Address Name Connection 1 Advanced Enable advanced settings Text protocol port 11000 Data protocol port 16551 Other Connect immediately < Back Next > Finish Cancel Help

Fig. 17 - Add new connection dialog

1. Connect the computer and the Picturall Series Media Server to the same network.
2. Use same netmask in the server and the computer if not using DHCP server. If DHCP server is enabled in the server, use automatic network settings in the computer.
3. Run Picturall Commander and click Add new connection on the Connections tab.
4. Type the IP address of the server in the Address field or click Locate to automatically find the servers in the same network and view the server versions before connecting.
5. In the Name field, enter a name for the connection.
6. Under Advanced, change the values for Text protocol port and Data protocol port if needed.
7. If needed, uncheck Connect immediately.
8. Click Finish to Create the Connection. A message confirms the connection to the Picturall Series Media Server.

5.4 User Interface

The Picturall Commander user interface consists of a few basic elements:

• The main Commander toolbar.
• The control tabs.
• The control panels within the tabs.

The control tabs are positioned in the right, middle, left or bottom depending on their function.

5.5 Control Tabs

Click Window then click any menu to open the corresponding control panel.

• Connections: Connect and reconnect to a server pressing Reconnect button. The main control tabs are available in the Connections tab.
• Media: Transfer media files to the Picturall Series Media Server and arrange the media library. For more information, see Media page 27.

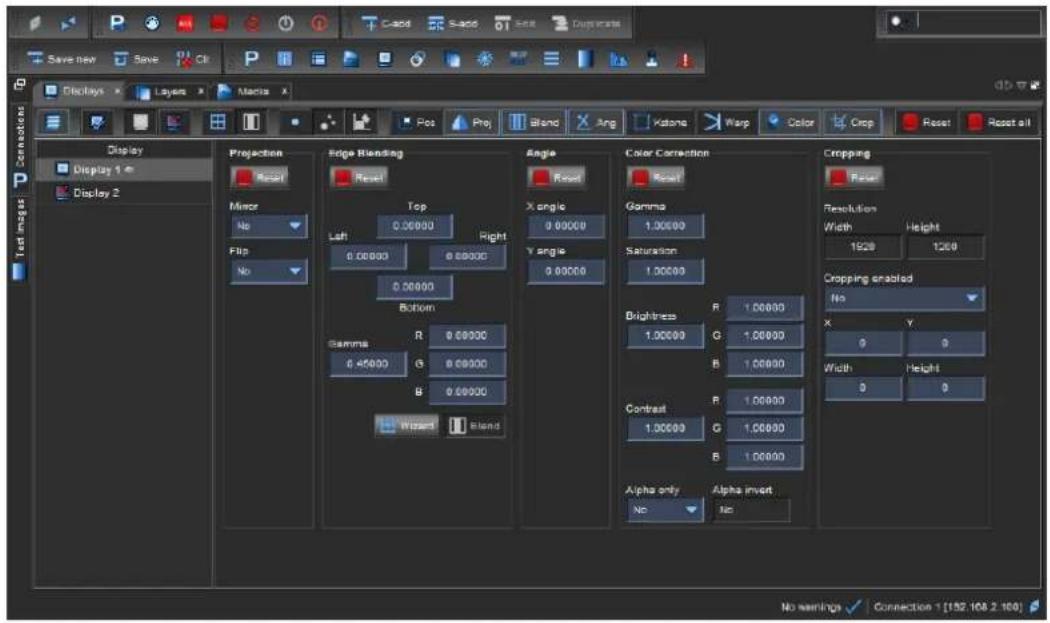

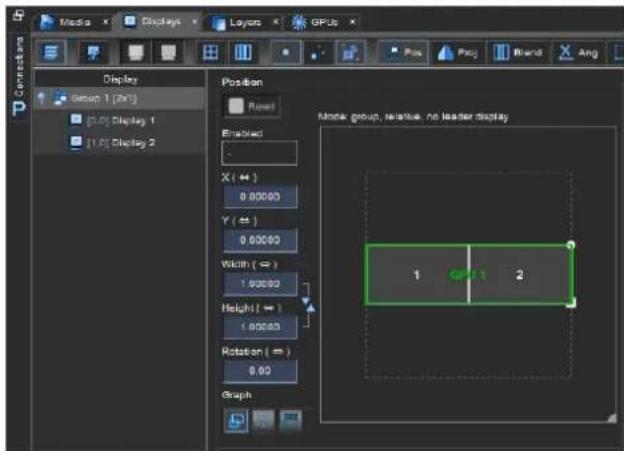

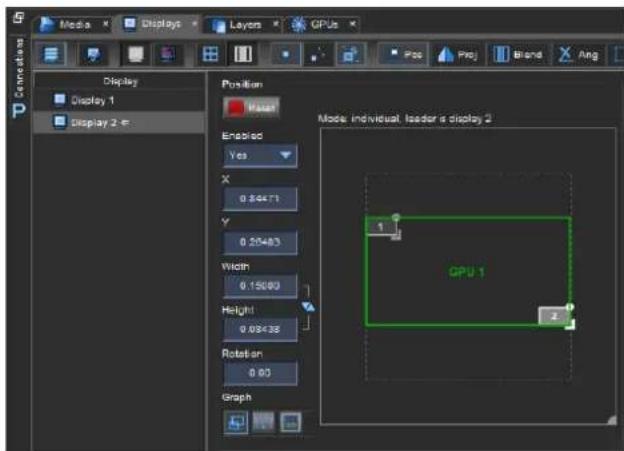

• Displays: Configure the display setup. For more information, see Displays page 35.
• Displays Graph: Open the Display Graph in a whole tab for precise adjustment, see Displays page 35.

• Genlock (only for Picturall Pro equipped with optional sync card): Check / Resync the genlock.

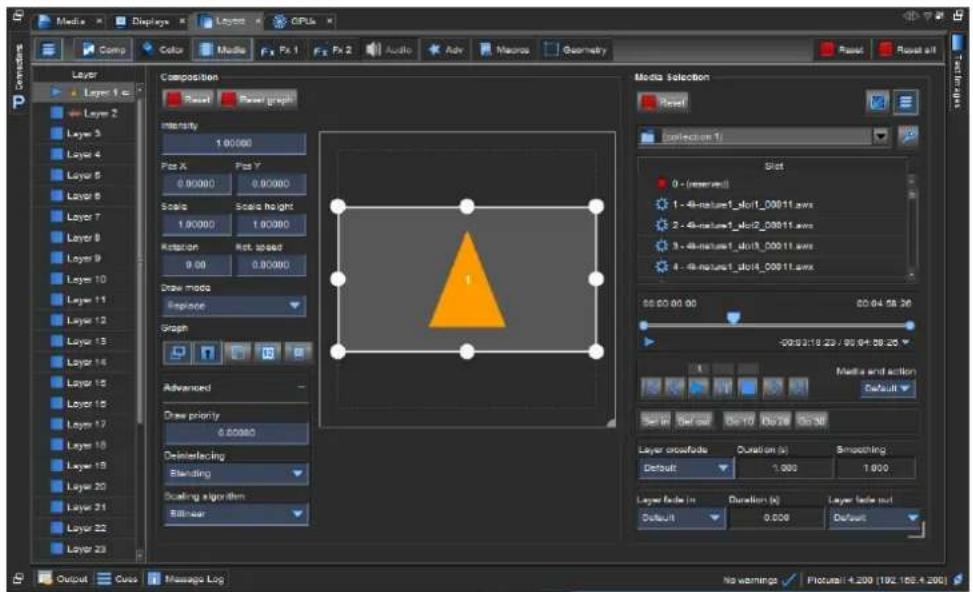

• Layers: Control all layer parameters. This is the main menu for controlling the Picturall Series Media Server with Picturall Commander. For more information, see Layers page 42.

• Layers Graph: Open the Layers Graph in a whole tab for precise adjustment, see Layers page 42.
• GPUs: Optimize the use of the GPUs.

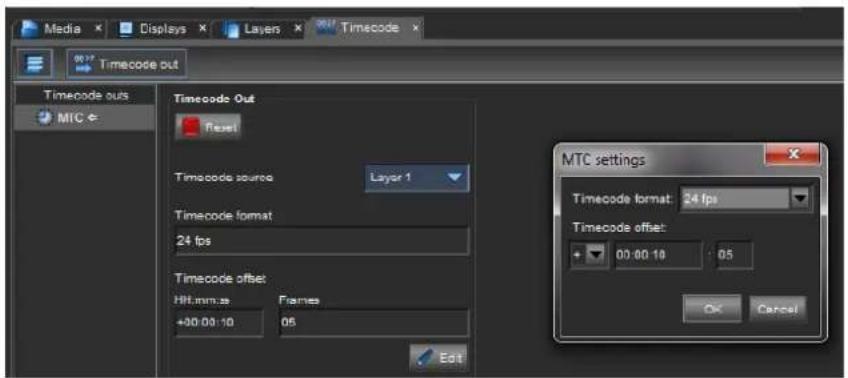

• Timecode: Set the timecode format and offset.
• Cues: Program and time cues for the show.
• Test images: Configure test images to help when setting up the show.

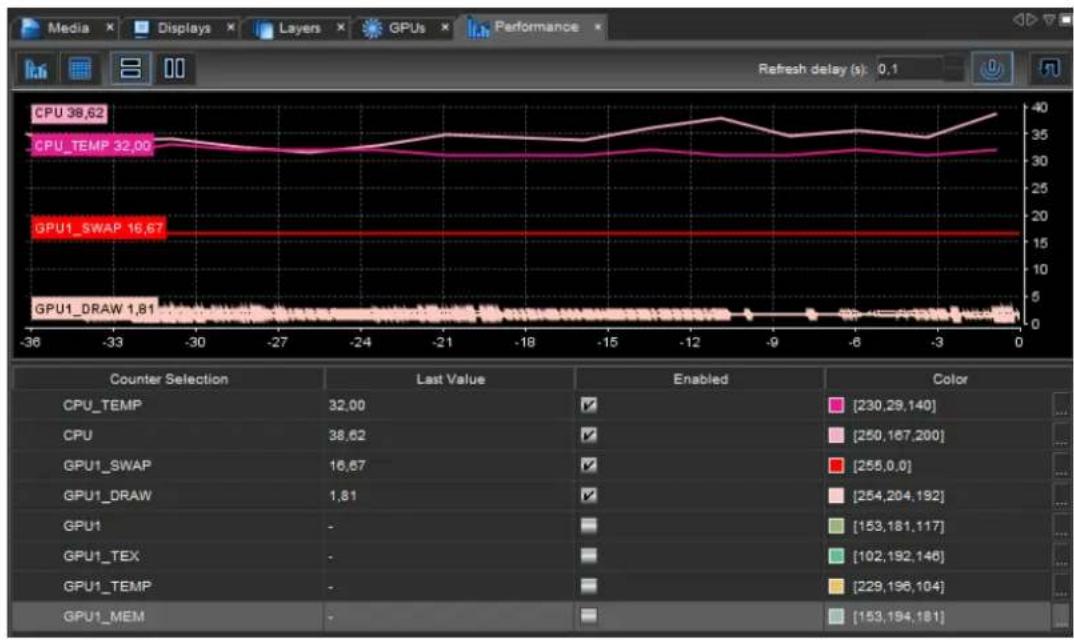

• Performance: Check the performance and temperature of the server. For more information, see Performance page 66.

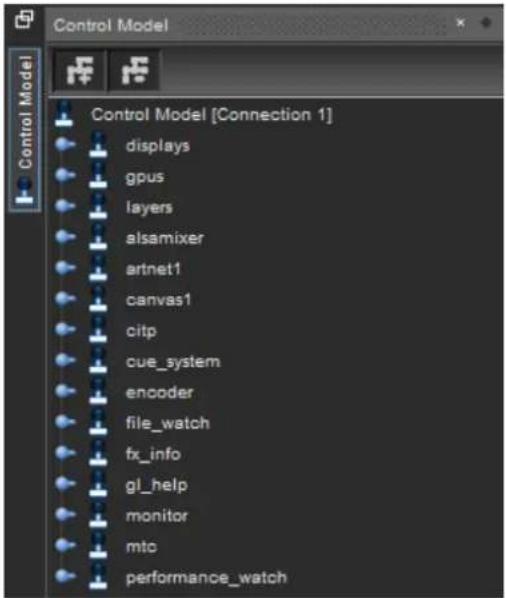

• Control model: Shows a tree structure of all the parameter information on the server.
• Server info: Opens a window with all server information.
• Properties: Shows additional information on a given selected item. Located in Window > Properties.

Tip: Open these menus in one click from the menu icons toolbar:

Screenshot of a software toolbar with icons for file operations, desktops, and system tools

5.5.1 Arrange windows

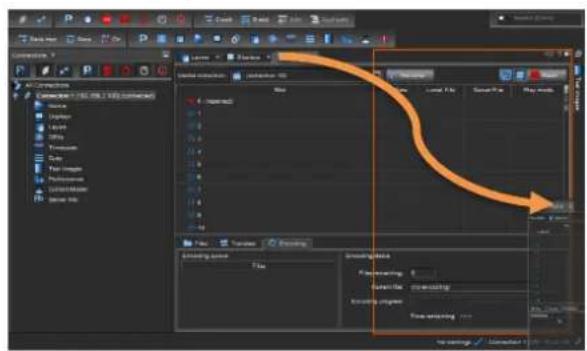

Once a panel is opened, drag and drop a tab to customize the layout. All tabs can be placed anywhere in the layout (top, bottom, left or right).

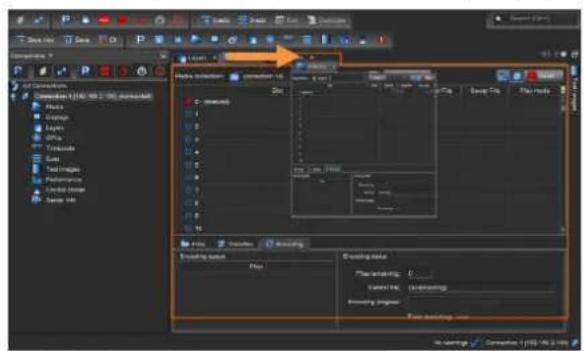

File Edit View Help Browse Form1 Form2 Form3 Form4 Form5 Form6 Form7 Form8 Form9 Form10 Form11 Form12 Form13 Form14 Form15 Form16 Form17 Form18 Form19 Form20 Form21 Form22 Form23 Form24 Form25 Form26 Form27 Form28 Form29 Form30 Form31 Form32 Form33 Form34 Form35 Form36 Form37 Form38 Form39 Form40 Form41 Form42 Form43 Form44 Form45 Form46 Form47 Form48 Form49 Form50 Form51 Form52 Form53 Form54 Form55 Form56 Form57 Form58 Form59 Form60 Form61 Form62 Form63 Form64 Form65 Form66 Form67 Form68 Form69 Form70 Form71 Form72 Form73 Form74 Form75 Form76 Form77 Form78 Form79 Form80 Form81 Form82 Form83 Form84 Form85 Form86 Form87 Form88 Form89 Form90 Form91 Form92 Form93 Form94 Form95 Form96 Form97 Form98 Form99 Form100

File File name: File name: File type: File size: 100 File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File File name File File path File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: File path: Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Fid Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tueser Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese Tuese

Fig. 18 - Windows arrangement

5.5.2 Reset windows

If needed, reset the default layout by clicking Window/ Reset windows.

5.6 Preferences

Go to Edit > Options to set user preferences (General, Media, Layer, Cue, Keymap and Logging).

5.7 Hotkeys

Hotkeys can be set to several actions in Picturall Commander. Go to Edit > Options > Keymap to set custom hotkeys. Here is a list of common features using default hotkeys:

• Hold Shift while adjusting values to make fine adjustments to numerical sliders and control.
• Hold Alt and click parameter values or other settings to record or unrecord it in the Programmer. The value turns green if it is recorded. For more information, see Program a Show - Cue page 57.
• Hold Ctrl and click a parameter to reset it to default value. (Use cmd on Mac OS).
• Use Alt + arrow keys on the keyboard to change the selected control point on the Warp and Keystone tabs.
  • Use Ctrl and click to reset a single control point on the Warp and Keystone tabs.

6 Media

In the Media menu, manage all contents that will be played during the show:

• import files to the server,
• encode medias,
• add web pages and video streams,
• organize server files and inputs in collections to be used in layers.

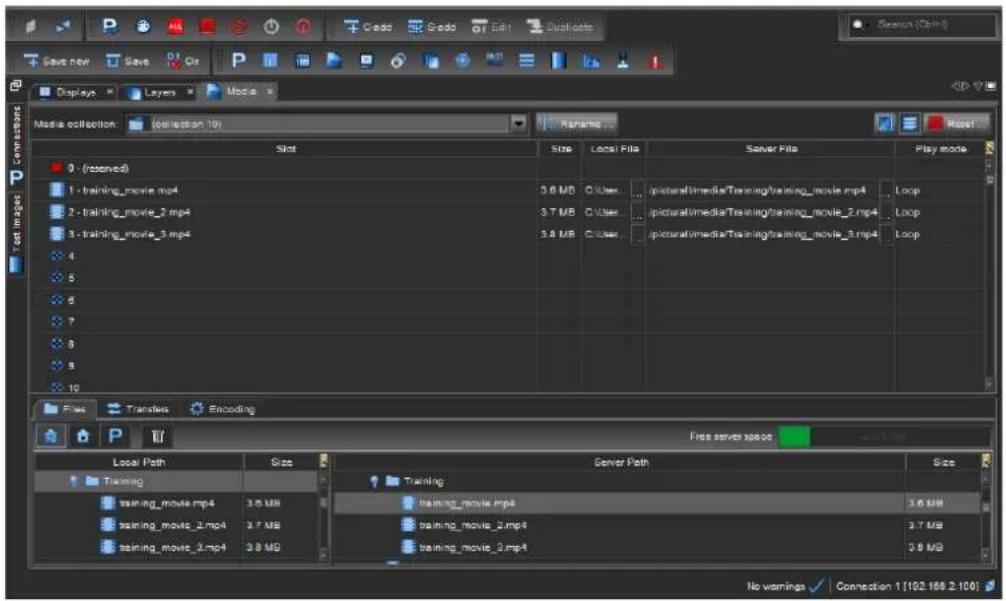

Save new Save O Pass to Edit Duplicate Search (Ctrl+) Displays Layers Mode Media collection (collection 10) Rename Size Local File Server File Play mode 0 - (reserved) 1 - training_movie.mp4 5.6 MB C:\Users... pictorial\imedia\Training\training_movie.mp4 Loop 2 - training_movie_2.mp4 3.7 MB C:\Users... pictorial\imedia\Training\training_movie_2.mp4 Loop 3 - training_movie_3.mp4 3.8 MB C:\Users... pictorial\imedia\Training\training_movie_3.mp4 Loop 4 5 6 7 8 9 10 Files Transfers Encoding Free server space Local Path Size Server Path Size Training trainingOutcome: TrainingMovie.mp4 3.6 MB TrainingMovie_2.mp4 3.7 MB TrainingMovie_3.mp4 3.8 MB No warnings Connection 1 [102.168.2.100]

Fig. 19 - Picturall Commander Media menu

The Media menu can be customized to show the media columns as needed. Right click a media library column name and select which columns to display or hide.

6.1 Media types

Picturall Series Media Servers support the following codecs:

• AWX (also with alpha channel)
• HAP
- MPEG1
- MPEG2
- MPEG4
- MJPEG
H.264
H.265
- ProRes
• PRKL (also with alpha channel)

• JPEG
  • PNG (also with alpha channel)
• DPX (also as sequences)
  • TGA (also as sequences)

AWX is a format designed by Analog Way specifically for the Picturall Series Media Servers. Encoding high resolution files (4K and higher) to AWX format is recommended for optimal performance.

All codecs can be played with nearly any frame rate and bit rate within the server performance limits. Audio is supported in PCM, WAV and AAC formats.

6.2 Importing and encoding Media files

Tip: If running Picturall Commander on Windows, it may be needed to disable the firewall to transfer files smoothly.

Note: The amount of free space on the server is displayed in the Free server space bar.

6.2.1 Import a local media file

To import a local media file to the server:

1. Select a media file in the Local path list or computer file browser. Hold Ctrl or Shift to select multiple files.
2. Drag and drop it on the media collection slot to use.

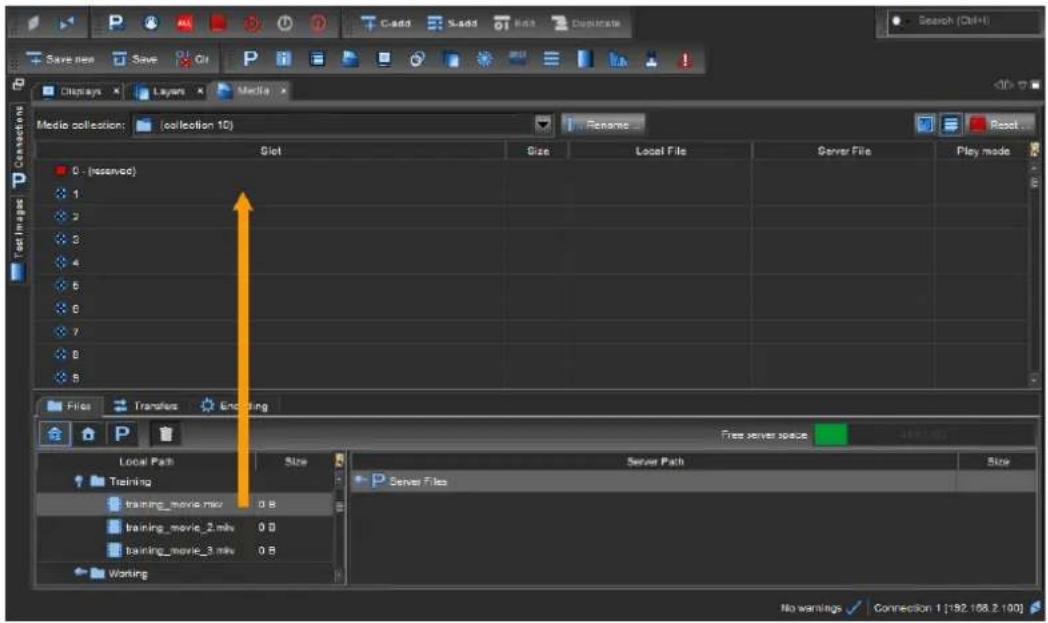

Save new Save Ctrl Cadd Sadd Rms Duplicate Search (Ctrl+1) Displays Layers Media Media collection: (collection 10) Rename Reset Glot Size Local File Server File Play mode 0 - (reserved) 1 2 3 4 5 6 7 8 9 Files Transfers Encoding Free server space Local Path Training training_movie.mmv 0 B training_movie_2.mmv 0 B training_movie_3.mmv 0 B Worling Server Path Size Server Files No warnings ✓ Connection 1 [192.168.2.100]

Fig. 20 - Importing a media file

1. The Local files to be transferred window opens with a list of the importing files. If needed, set target directory and filename.
2. Click OK. The current transfer and encoding process bars are displayed on the Transfers subtab.

Note: After a file is imported on the server, it is impossible to change its filename and location.

If importing multiple folders, Picturall Commander puts all folders into their own media collections.

1. If needed, use Cancel buttons for canceling file transfer.

Medias added to the server are displayed in the Media collection and are available in Server path files.

6.2.2 Import and encode a file to AWX format

Tip: For optimal performance, encode 4K and higher files to AWX format (and AWX Alpha if alpha channel).

Note: Encoding is only applicable for original video files (no image and no PRKL or AWX file).

1. Select a media file in the Local path list or computer file browser. Hold Ctrl or Shift to select multiple files.
2. Drag and drop it on the media collection slot to use.
3. The Local files to be transferred window opens with a list of the importing files. If needed, set target directory and filename. Then click OK.
4. In the Default encoding dropdown, select AWX format (or AWX Alpha).
5. Click OK. The current transfer and encoding process bars are displayed on the Transfers subtab.
6. If needed, use Cancel buttons for canceling file transfer.

Medias added to the server are displayed in the Media collection and are available in Server path files.

6.2.3 Import an image sequence

Picturall Commander is able to convert images and create an image sequence as one media object with uncompressed image quality.

Tip: - An image sequence must have at least 49 frames. - Images must have the same filename ending in 000, 001, 002, etc. to be detected as a sequence.

To import an image sequence, follow these steps:

1. Select the images files in the Local path list or computer file browser. Hold Ctrl or Shift to select multiple files.
2. Drag and drop it on the media collection slot to use.
   Tip: Group the images in one folder then drag and drop the whole folder.

The Local files to be transferred window opens with a list of the importing files.

1. Enter the number of Frames per second (FPS).
2. If needed, select the encoding format and choose to keep the original images on the server as individual files.
3. If needed, set target directory and filename.
   Note: After a file is imported on the server, it is impossible to change its filename and location.
4. Click OK. The current transfer and encoding process bars are displayed on the Transfers subtab.

6.2.4 Import a media using FTP

Caution (Risk of server crashing): Do not overwrite files that are playing on the server through an FTP connection.

Tip: Importing media using FTP can slow down the media server. Avoid transferring large files during a show or while making changes to the configuration.

To import media through FTP connection, follow these steps:

1. Open an FTP connection to the Picturall Series Media Server.
2. Log in:
   -Username: picmedia
3. Password: aidemcip
4. Import the media files to the server. The media are located in /picturall/media.

6.2.5 Reuse imported media files - Add server files to a media collection

To add media files already present on the server to a media collection, follow these steps:

1. Select a media file in the Server path list. Hold Ctrl or Shift to select multiple files.
2. Drag and drop it on the media collection slot to use.

Save next Save Ctr P Displays Layers Media Media collection (collection 11) Rename Reset Slot Size Local File Server File Play mode 0 (reserved) 1 - training_movie_3.mp4 3.8 MB C User: pictures/media/Training/learning_movie_3.mp4 Loop 2 3 4 5 6 7 8 9 10 Files Transfers Encoding Local Path Size Server Path Size Training training_movie.mp4 3.8 MB training_movie_2.mp4 3.7 MB training_movie_2.mp4 3.8 MB No warnings Connection 1 [192.16x 2.100]

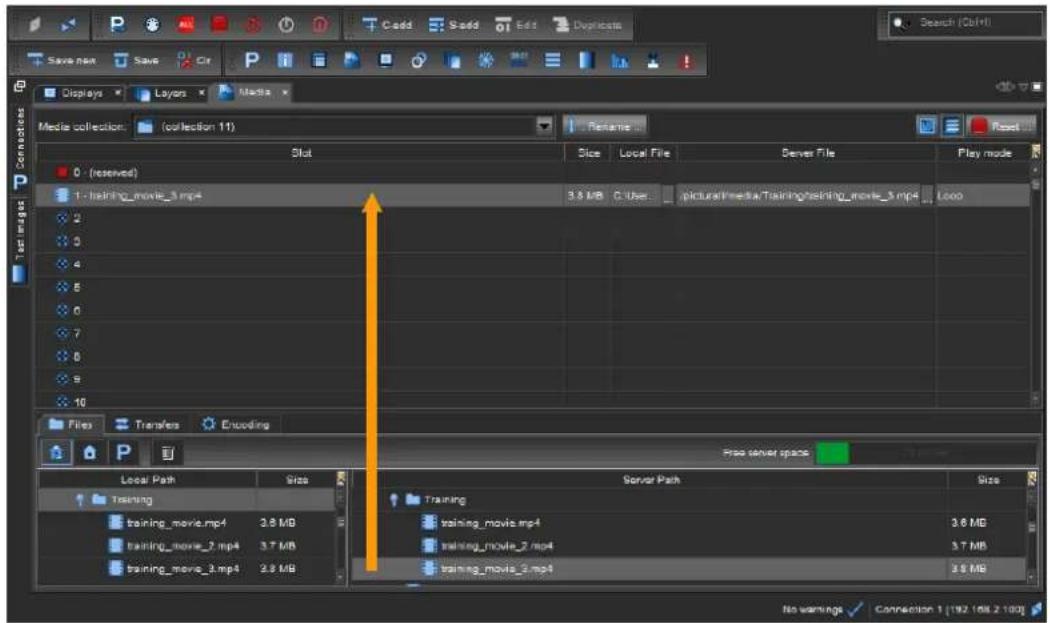

Fig. 21 - Add a server file to a media collection

1. If adding multiple folders, Picturall Commander will automatically put all folders into their own media collections.

6.2.6 Encode a media present on the server

Tip: For optimal performance, encode 4K and higher files to AWX format (and AWX Alpha if alpha channel).

Note: Encoding is only applicable for original video files (no image and no PRKL or AWX file).

1. Right-click a media file in the Server path list. Hold Ctrl or Shift to select multiple files.
2. Click Encode files...
3. The Remote files to be encoded window opens with a list of the encoding files.
4. In the Default encoding dropdown, select AWX format (or AWX Alpha).
5. If needed, set target directory and filename. Then click OK.
6. Click OK. The current encoding process bars are displayed on the Transfers subtab.
7. If needed, use Cancel buttons.

Tip: Right-click a media file and click Encode to >Encode to AWX to quickly encode to the same location and with the same filename.

6.3 Edit server filenames and location

Editing server filenames and location is only possible when using an FTP client.

1. Open an FTP connection to the Picturall Series Media Server.
2. Log in:

-Username: picmedia

- Password: aidemcip

1. Go to /picturall/media. The Server files are displayed.
2. Edit the media filenames and location

6.4 Add inputs to a media collection

Note: Inputs are only available for Media Servers equipped with optional input cards.

An input is available as a Server File if it is connected to the media server.

To add an input to a media collection, follow these steps:

1. Select an input in the Server path list. Hold Ctrl or Shift to select multiple inputs.
2. Drag and drop it on the media collection slot to use.

6.5 Add web pages and video streams

6.5.1 Add a web page to a media collection

Picturall Series Media Servers connected to the internet support web page playback. Multiple web pages can be played at the same time and background transparency is supported.

Note: Web page sound and interaction are not supported.

To add a web page to a media collection, follow these steps:

1. In the Server path list, under Network, select Web page.
2. Drag and drop it on the media collection slot to use.

Media collection (10) Training Name Size Local File Server File Play mode 0 (assumed) 1 - training_movie.mp4 2 - training_movie_2.mp4 3 - training_movie_3.mp4 C:\Users\Users\Users\Users... C:\Users\Users\Users\Users... C:\Users\Users\Users\Users... C:\Users\Users\Users\Users... Local files Local files Documents Desktop Windows (C:) Windows (C:) Local Path Size Server Path Size macula input Network Red Page Video stream No warnings / Connection 1 [192:168.2.140]

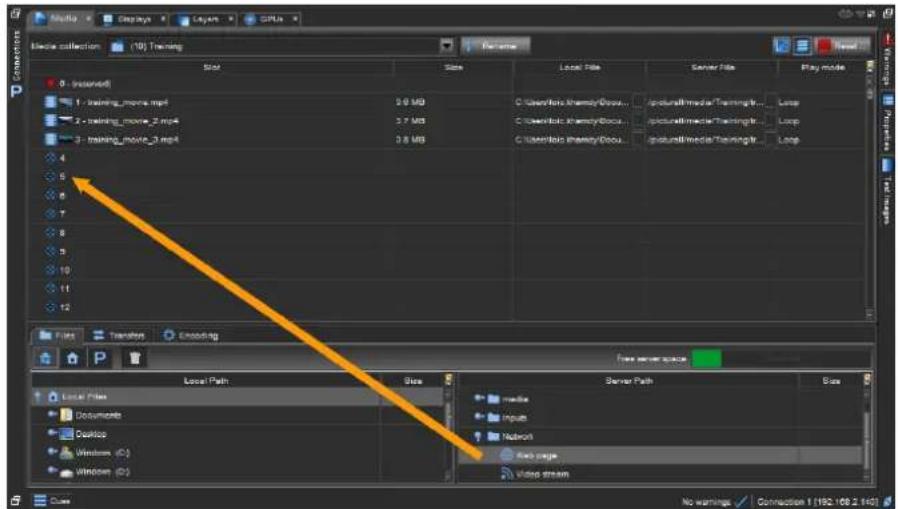

Fig. 22 - Add a web page to a media collection

1. A window opens, enter the Web page address (URL), the reload timing and the browser window width and height in pixels.
2. Click OK.

Note: After a web page is added to a collection, it is impossible to change its URL.

6.5.2 Import a web page using FTP

Caution (Risk of server crashing): Do not overwrite files that are playing on the server through an FTP connection.

To import a web page through FTP connection, follow these steps:

1. Open an FTP connection to the Picturall Series Media Server.
2. Log in:

-Username: picmedia
- Password: aidemcip

1. Import the files to the server.

The imported files are located in /picturall/media/.webpages/.

6.5.3 Add FTP imported web page to a media collection

To add an FTP imported web page:

1. In the Server path list, under Network, select Web page.
2. Drag and drop it on the media collection slot to use.
3. A window opens, enter the URL to the html file starting with http://localhost/webpages/
4. Enter the browser window width and height in pixels.
5. Click OK.

Note: After a web page is added to a collection, it is impossible to change its URL.

6.5.4 Add a URL video stream to the server

Picturall Media Servers connected to the internet support video stream playback for URL beginning with:

• rtsp://
• rtmp://
• srt://
• udp://

To add a video stream to a media collection, follow these steps:

1. In the Server path list, under Network, select Video stream.
2. Drag and drop it on the media collection slot to use.
3. A window opens, enter the Video stream URL.
4. If using RTSP, set transport parameters.
5. Click OK.

Note: After a video stream is added to a collection, it is impossible to change its URL.

6.5.5 Add an NDI video stream to the server

Note: NDI™ is a trademark of NewTek, Inc. For more information, see https://ndicentral.com/

• NDI™ streams connected on the network are available in the Server path.
• Audio is not supported for NDI streams.

To add an NDI video stream to a media collection, follow these steps:

1. In the Server path list, under Network > NDI, select and available NDI video stream.
2. Drag and drop it on the media collection slot to use.
   A window opens with the URL already entered.
3. Click OK.

6.6 Add a custom text

Create a text with custom settings (font, style, size, color and resolution).

To add a custom text to a media collection, follow these steps:

1. In the Server path list, under Generators, select Text generator.
2. Drag and drop it on the media collection slot to use.
3. A window opens, enter a text and set the parameters.
4. Click OK.

To edit a custom text, right-click it in the Media tab or in the Layers tab in Media selection then choose Edit.

6.7 Manage Media Collections

• Select a media collection in the Media collection dropdown on the top part of the Media tab.
• Rename the media collection using the Rename... button.
• To delete a media from a collection, right-click it and select Delete.
• To delete all medias from all collections, click the Reset... button.

6.8 Default Media transition

Define a default media transition from the Media collection.

Note: Media transition can also be set in the Layers menu.

6.8.1 End action (Media)

To define the default action at end of the playback of one media, click the dropdown in the Play mode column and select an end action.

End action	Description (at the end of the media)
Loop	Loop the media file.
Loop collection	Play the next media in collection and loop. At the end of the last media, replay the collection from the first media.
Next	Play the next media in collection. At the end of the last media, stop the playback.
Pause	Pause the playback (still frame).
Stop	Stop the playback (no frame).

6.8.2 Media Crossfade

During a Crossfade, the Media Server starts to play the next media at the same time as the end of the current one for a smooth crossfade.

To define the default crossfade setting for one media, click the dropdown in the Crossfade column and select a Crossfade style or right-click a media and select Edit media fading settings.

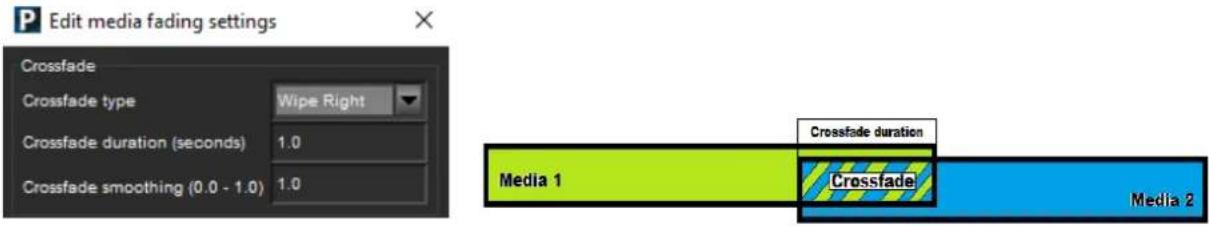

Edit media fading settings Crossfade Crossfade type Wipe Right Crossfade duration (seconds) 1.0 Crossfade smoothing (0.0 - 1.0) 1.0 Crossfade duration Media 1 Crossfade Media 2

Fig. 23 - Media Crossfade settings

Crossfade setting	Description
Crossfade type	Select a transition between the available Crossfades styles.
Duration	Set the crossfade duration in seconds.
Smoothing	Set the smoothness of the fade from 0 to 1. 0 is sharper and 1 is smoother.

Note: - If the two medias have different frame rates, the transition uses the highest frame rate.
- Audio crossfade is always linear.

6.8.3 Media Fade in / Fade out

Media can be set to fade in at the beginning of the playback and/or fade out at the end. Default values for fade in and fade out can be set with a right-click on a media and select Edit media fading settings.

Tip: Enable Fade at loop point to automatically fade when looping.

Fade in and out Fade in duration (seconds) 0.0 Fade out duration (seconds) 0.0 ✓ Fade at loop point OK Cancel

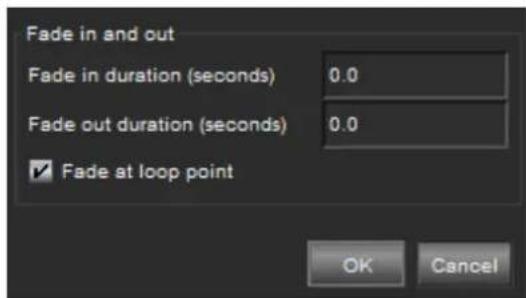

Fig. 24 - Media Fade in/Fade out settings

7 Displays

In the Displays menu, configure the displays of the show.

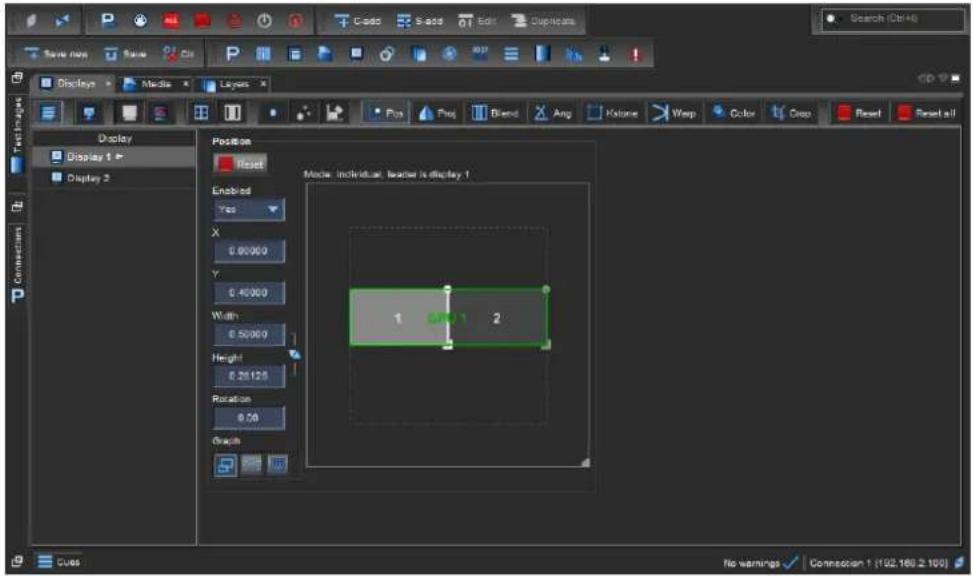

Code S-025 Edit Duplicates Search (Ctrl+1) Display Media Layers Position Reset Enabled Yes X 0.0000 Y 0.4000 Width 0.5000 Height 0.26128 Rotation 0.20 Graph 1 2 Cubes No warnings Connection 1 [192.160.2.100]

Fig. 25 - Picturall Commander Display Menu

1. Select a display from the Display list.
2. At the right of the Display list, there are control panels to adjust the display. Click the tabs (Pos, Proj, etc.) to show or hide the corresponding panels.

Display Display 1 Display 2 Projection Reset Mirror No Flip No Edge Blending Reset Top 0.00000 Left 0.00000 Right 0.00000 0.00000 Bottom Gamma R 0.00000 G 0.00000 B 0.00000 Wisead Blend Angle Reset X angle 0.00000 Y angle 0.00000 Color Correction Reset Gamma 1.00000 Saturation 1.00000 Brightness R 1.00000 G 1.00000 B 1.00000 Contrast R 1.00000 G 1.00000 B 1.00000 Alpha only No Alpha invert No warnings ✓ Connection 1 [157.168 2.168] Text images

7.1 Display menu icons

Icon	Description
	Show / hide the display list.
	Select all enabled displays.
	Enable selected displays.
	Disable selected displays.
	Opens the Display wizard to create a group of displays (see Multi-display screen - Display wizard page 38).
	Blend the selected group of displays (see Multi-display screen - Display wizard page 38).
	Enable/disable adjusting selected displays as a group.
	Enable/disable adjusting single display as a group.
	Set current state as a default, adjustments become relative to this state.

7.2 Display adjustment tabs

Adjustment tab	Description
Positioning	Place, transform, and enable/disable displays
Projection	Flip and mirror
Edge blending	Edge blending functions
Angle	Distortion (for example to correct a projection onto a screen from an angle)
Keystone	Keystone
Warp	Curved surface projection
Color correction	Display color correction
Cropping	Crop the display

7.3 Test images

Picturall Commander provides test images to help setup.

• Double-click the Test images button on the Connections tab (or click the icon in the menu toolbar) to open the Test images tab on the right side.
• Select the test images to be displayed.

Test image	Description
Line width	Adjust the line width in a test image using the slide bar.
Blue background	Show display areas that are not drawn in blue. Use when adjusting Keystone or curved surface correction.
Canvas grid	Show white continuous grid across the composition. Also shows yellow X in the middle of composition. Use for final adjustments.
Canvas lines	Show multicolored lines in selected angle. Use the checkboxes for defining the line orientation. Use when adjusting display positions and bezel corrections.
Blend areas	Show display borders, edge blend area and edge blend center.Use when adjusting edge blends.
Display borders	Show display borders with white lines. Use when adjusting keystone.
Display numbers	Show the display number of each display. Use to identify displays and make sure they are properly connected.
(Selected) Display grid	Show grid and middle point of selected display. Use when adjusting angle and curved surface corrections.
Control points	Show selected control points on the output. The selected control point turn from green to red on the output. If selecting multiple points, only one point turns red.
Layer borders / Layer numbers	Show layer borders and/or numbers. Use to identify layers and help position them in the show.
System info	Show server IP address, display number, output resolution and system runtime.This test image is enabled on first boot, and after Media Server update.

Table 4 - Test images

7.4 Positioning and Grouping Displays

1. Select the display to control in the Display list.
2. Open the Positioning panel and adjust the position, size, aspect ratio and rotation for the display. Drag or scroll to adjust the values (hold Shift for precise adjustments).

Display Display 1 Display 2 Position Reset Enabled Yes 0.00000 0.40000 Width 0.80000 Height 0.28 125 Rotation 0.00 Crash Mode: individual, leader is display 1 1 2 No warnings ✓ Connection 1 (192.109.2.100)

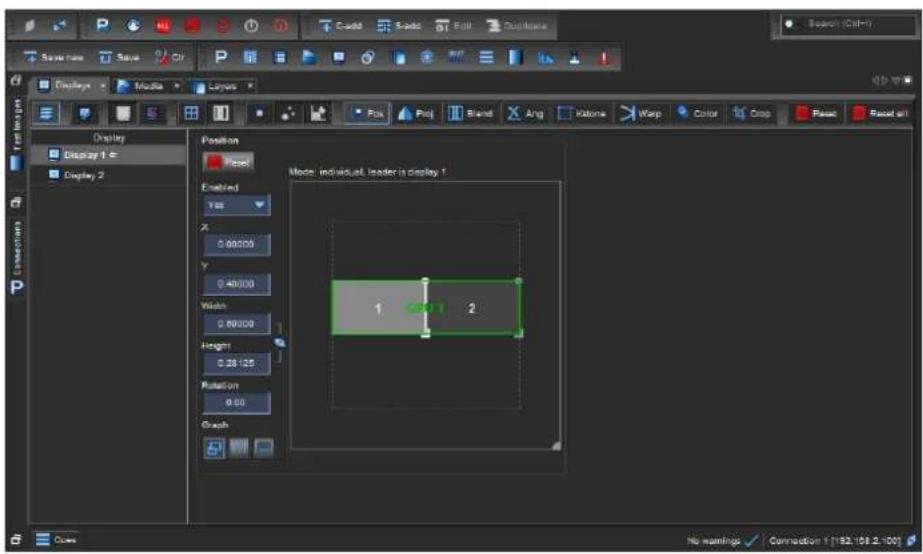

Fig. 26 - Positioning panel

1. If needed, open the Projection panel to mirror and flip the image.

Tips: - Right-click a parameter and select Edit to enter numerical values.

• Position the displays from the same graphics card close to each other to avoid performance loss.
• For best performance, disable displays when they are not used.
• Copy and paste settings from one display to the other by selecting displays and clicking Copy and Paste buttons.
  It is possible to copy and paste one object over several objects and vice versa.
• Go to Windows / Displays Graph to open the display graph in a separate tab.

7.4.1 Multi-display screen - Display wizard

Displays can be arranged in groups to allow control of multiple displays at once. The Display wizard helps creating screens made with multiple displays.

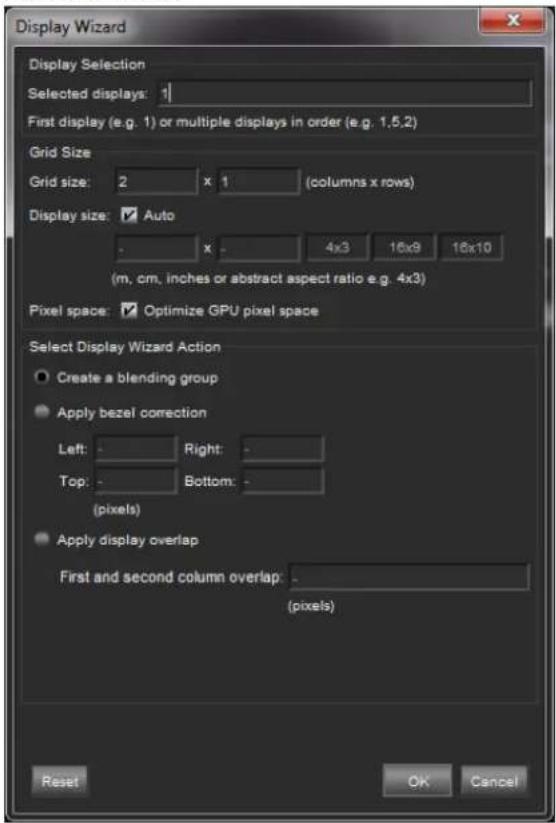

Display Wizard Display Selection Selected displays: 1 First display (e.g. 1) or multiple displays in order (e.g. 1,5,2) Grid Size Grid size: 2 x 1 (columns x rows) Display size: ✓ Auto - x - 4x3 16x9 16x10 (m, cm, inches or abstract aspect ratio e.g. 4x3) Pixel space: ✓ Optimize GPU pixel space Select Display Wizard Action ○ Create a blending group ● Apply bezel correction Left: - Right: - Top: - Bottom: - (pixels) ● Apply display overlap First and second column overlap: - (pixels) Reset OK Cancel

Fig. 27 - Display wizard

1. Click the Display Wizard button in the Edge blending panel, or in the Displays tab toolbar. If displays are selected, they are automatically added to the Selected displays field.

Preselected displays appear in order of selection.

1. In the Selected displays field, enter the displays in order (1,2,4,8) or just the first one if they are ordered logically.
2. Enter the Grid size and display aspect ratio.
3. If needed, create a Blending and set the blending size (see Edge Blending page 39).
4. If needed, use Bezel correction to correct video wall bezels. Enter the display total dimensions and bezel width and height.
5. Click OK to create the display group.

7.4.2 Reset Display

• Hold Ctrl and click a field to reset the value.
• Use the Adjustment tab Reset button to reset the corresponding parameter for the selected display.
• Use the Upper right Reset button to reset all parameters from the selected display.
• Use the Reset all button to reset all displays.

7.5 Optimize pixel space - GPUs tab

For best results, use canvas optimization when working with a display setup where the displays are not side-by-side horizontally. Using optimize also displays a sharper image.

- Open the GPUs menu and click Optimize to start an automatic calculation that optimizes graphic card performance with the current display setup.

For more information about GPU optimization, see Optimize GPU resolution and drawing performance page 80.

7.6 Edge Blending

Edge blending is a feature that gradually fades out the overlapping area from both projectors to create a seamless projection.

7.6.1 Keystone and Angle Correction

The Keystone correction tool moved the picture corners on the display. Use Keystone when the projection angle is not optimal.

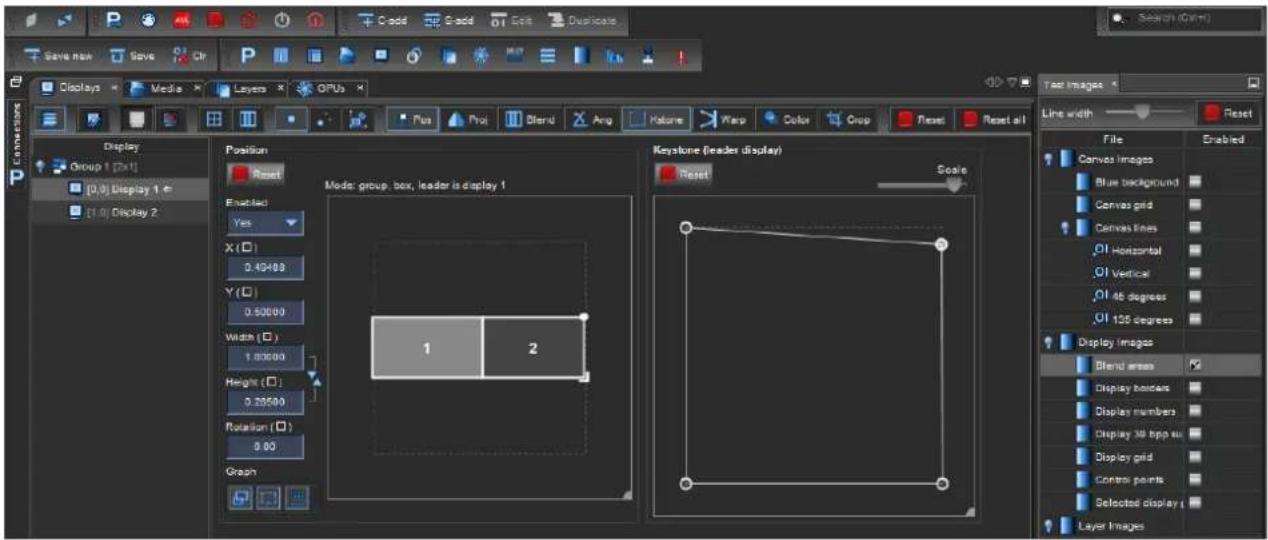

Display Media Layers OPUs Play Proi Blend Ang Kalore Warp Color Crop Reset Reset all Display Group 1 [2x1] [0,0] Display 1 [1,0] Display 2 Position Reset Enabled: Yes X (☐) 0.49488 Y (☐) 0.50000 Width (☐) 1.00000 Height (☐) 0.20500 Rotation (☐) 9.00 Grain Keystone (leader display) Reset Scale 1 2 Line width Reset File Enabled Canvas Images Blue background Canvas grid Canvas lines OI Horizontal OI Vertical OI 46 degrees OI 135 degrees Display Images Blend areas Display borders Display numbers Display 38 bpp su Display grid Control points Selected display i Layer Images

Fig. 28 - Keystone and Angle correction

1. Open the Test images tab and enable the Display borders test image.
2. Go to Displays and select the display to control in the Display list.
3. Open the Keystone panel.
4. Click and drag the corners to correct the position or click the corner and use arrow keys to move it. It is possible to select multiple points. Hold the Shift key for more precise adjustments.
5. If needed, open the Angle panel to correct the image with Angle controls.
6. Enable the Display grid test image.
7. Adjust X angle and Y angle controls until the red cross is in the middle of the projection.

1. Open the Test images side panel and enable the Blend areas test image.
2. Open the Edge Blending panel, then click the Display Wizard button to create a display grid.
3. Check the Create blending group box to group the displays and click OK to create the group.
4. In the Displays list, select the first display of the group.
5. In the Edge blending control panel, use the Left, Right, Top and Bottom controls to set edge blending size. Hold Shift for precise adjustment or right-click to enter a value.
6. Adjust the value until the red line overlaps with the border of the adjacent display.
7. Select the other displays of the group and repeat the adjustment step (red line overlap).
8. When all overlaps are done, click the Blend button to enable edge blend.
9. Open the GPUs menu, click Optimize for best performance.

Display Media Layers OFUs Pos Proj Blend Ang Klome Warp Color Crop Reset Reset all Display Group 1 (Ex1) (0,0) Display 1 (1,0) Display 2 Position Reset Enabled Yes X (☐) 0.50000 Y (☐) 0.50000 Width (☐) 1.00000 Height (☐) 0.26129 Rotation (☐) 0.90 Orach Mode: group, box, leader a display 2 Edge Blending Reset Top 0.00000 Left 0.20000 Right 0.00000 Bottom Gamma R 0.45000 G 0.00000 S 0.00000 Wizard Stand Line width Reset File Enabled Canvas Images Blue background Canvas grid Canvas lines OI Horizontal OI Vertical OI 40 degrees OI 128 degrees Display Images Brand areas Display borders Display numbers Display 30 bpo su Display grid Control points Selected display i Layer Images

Fig. 29 - Edge blending panel

Tip: If blend area is brighter or dimmer than rest of the picture, use the Gamma setting to correct the image. The color correction is also possible with the RGB controls.

Note: When clicking Blend, the displays overlap and sizes are automatically calculated from blend values. The result is displayed on the Positioning area.

7.6.3 Edge blending example

The following is an example for making a three-projector blend of displays 1, 2 and 3:

1. Open the Test images side panel and enable the Blend areas test image.
2. Open the Edge Blending panel, click the Display Wizard button to create a display grid.
3. Enter Display number (1), Grid size (3x1) and Aspect ratio (16:9).
4. Check the Create blending group box to group the displays and click OK to create the group.
5. In the Displays list, select Display 1 and open the Edge blending control panel.
6. Adjust the Right value until the red line overlaps with the left border of Display 2.
7. Select Display 2 and adjust Left and Right until overlap.
8. Select Display 3 and adjust Left until overlap.
9. Click Blend to enable the edge blend.
10. If needed, correct the Gamma and RGB.
11. Open the GPUs menu, click Optimize for best performance.

7.7 Adjust curved surface projection - Warp correction

Warp correction transforms the display for curved surface projection or projector lens distortion. There are 16 control points.

Tip: Use the Display borders, Display grid and Canvas grid test images.

1. Go to Displays and select the display to control in the Display list.
2. Open the Warp panel.
3. Click and drag a point to correct the position or use arrow keys to move it. It is possible to select multiple points. Hold the Shift key for more precise adjustments.

Use Alt + arrow keys to change the selected control point, and Ctrl + click to reset a point.

7.8 Color correction (Display)

7.8.1 Adjust display color

Adjust color correction independently for each display.

1. Go to Displays and select one or more displays in the Display list.
2. Open the Color Correction panel to set the Gamma, Saturation, Contrast and Brightness levels for each display.
3. Red (R), Green (G), and Blue (B) values can be adjusted for contrast and brightness separately.

7.8.2 Alpha display

Force a display to Alpha drawing mode.

1. Go to Displays and select one or more displays in the Display list.
2. Open the Color Correction panel and enable Alpha only.
3. If needed, enable Alpha invert.

7.9 Crop display size

Use Cropping to limit the size of the display.

Tip: Use Cropping with LED walls with non-scaling processors and custom resolution.

1. Go to Displays and select the display to control in the Display list.
2. Open the Cropping panel. The values in Resolution gives the original width and height of the display.
3. Set Cropping enabled to Yes. Adjust the cropping values even if cropping is disabled.
4. Set the X and Y position values for the display and limit its size in Height and Width to make the display smaller than its normal size.

8 Layers

In the Layers menu, control and program layers. Layers are the elements containing the medias, one layer contains one media.

Note: - The Layer menu is not needed if using external controller (lighting consoles or show control systems).

- Playing back too many large resolution files may cause playback issues or even a unit crash.

Media Comp Color Media F: Fx 1 F: Fx 2 Audio Adv Macros Geometry Layer 1 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 Layer 7 Layer 8 Layer 9 Layer 10 Layer 11 Layer 12 Layer 13 Layer 14 Layer 15 Layer 16 Layer 17 Layer 18 Layer 19 Layer 20 Layer 21 Layer 22 Layer 23 Composition Reset Power graph Intensity 1.00000 Pos X Pos Y 0.00000 0.00000 Scale Scale height 1.00000 1.00000 Rotation Rot speed 9.00 0.00000 Draw mode Improve Graph Advanced Draw priority 0.00000 Deinterfering Blending Scaling algorithm: Bilinear Media Selection Reset collection 1) Plot 0 - (reserved) 1 - 4a-nature1_dlo1_00611.xx 2 - 4a-nature1_dlo2_00611.xx 3 - 4a-nature1_dlo3_00611.xx 4 - 4a-nature1_dlo4_00611.xx 55.00.00.00 55.64.58.26 55.62.15.23 / 55.64.58.26 Media and action Default Set off Out of the Out of the Layer crossfades Duration (s) Smoothing Default 1.000 1.900 Layer fade in Duration (s) Layer fade out Default 0.000 Default Output Cuts Message Log No warnings ✓ Picture# 4.200 (192.165.4.200)

Fig. 30 - Picturall Commander Layers menu

8.1 Layers tab

8.1.1 Layer List

The layers are listed on the left panel. Right click a layer to show quick interactions (Rename, Play, etc.)

Tip: Rename the layers for easier use.

8.1.2 Layer Priority

The layers a listed from 1 to 32. By default, the layer number defines its priority. If layers overlap on the composition, the layer with the highest number is displayed on the overlap area. It is possible to override the layer priority with Advanced settings, see Advanced page 47.

Tip: Use the layers wisely and create the layers from background to foreground.

8.1.3 Layers adjustments

Adjustment panel	Description
Composition	Preview the media and set position, rotation, intensity for each layer
Color correction	Layer color correction
Media Selection	Browse media collection, assign media to layer, play back and end action
Effect 1 and 2	Select layer effects
Advanced	FPS and layer synchronization settings
Macros	Save layer settings
Geometry	Warp, Keystone and Edge Blending for each layer

8.2 Select and play a media - Media selection

In Media Selection, assign a media to a layer and choose playback mode.

1. Go to Layers and select the layer to control in the Layer list.
2. Open the Media panel.
3. Select a collection in the dropdown.
4. Double-click a media to select it.
5. Click the Play button. The Media is displayed.
6. In Media end action, select the action at the end of playback.

Tip: - Click the Pin button to go to current Media location. - Click the Toggle view button to toggle between List and Thumbnail.

8.2.1 Playback control

Playback button	Description
Play	Play/Resume video from the current frame.
Pause	Pause the video and leaves a still image of current visible frame.
Stop	Stop media playback and returns to the media start point.
Set in and Set out points	Use current position as start and end points for the media. It is possible to set the In and Out points on the playback bar by dragging the points or right-clicking on the bar.
Go 10 (20 or 30)	Set the current playback position to X seconds before the end.

8.2.2 End action (Layer)

Select what the player does when the playback reaches the end of a media. The end action set in Layer overrides the one set in the Media menu.

End action	Description (at the end of the media)
Default	Follow the media file Play mode set in the media collection.
Loop	Loop the media file.
Loop collection	Play the next media in collection and loop. At the end of the last media, replay the collection from the first media.
Random	Loop the collection in random order.
Next	Play the next media in collection. At the end of the last media, stop the playback.
Pause	Pause the playback (still frame).
Stop	Stop the playback (no frame).

8.2.3 Layer fading settings

Layer fading settings are located under the Playback controls in the Media selection. The fading set in Layer overrides the one set in the Media menu. To open the settings for one media (and not the layer), right-click a media then click Edit media fading settings.

8.2.3.1 Layer Crossfade

Select the transition between two media played in the same layer. The Media Server starts to play the next media at the same time as the end of the current one for a smooth crossfade.

Crossfade setting	Description
Layer Crossfade	Select a transition between the available Crossfades styles. (Default follows the crossfade set in the media collection)
Duration	Set the crossfade duration in seconds.
Smoothing	Set the smoothness of the fade from 0 to 1. 0 is sharper and 1 is smoother.

8.2.3.2 Layer Fade in / Fade out

Set the fade in and fade out settings for all medias in one layer (or a selection of layers).

Fade setting	Description
Layer fade in	Select Layer to enable a fade in at the start of every media played on this layer. (Default follows the fade in set in the media collection).
Duration	Set the fade in duration in seconds (the fade out duration is always 1 second).
Layer fade out	Select Layer to enable a fade out at the end of every media played on this layer. (Default follows the fade in set in the media collection).

8.3 Composition

In Composition, adjust the layer position, scale, and rotation on the display.

Click then drag or scroll to adjust the values (hold Shift for precise adjustments).

1. Go to Layers and select the layer to control in the Layer list.
2. Open the Composition panel. If a media is playing, its thumbnail is shown in the Graph.
3. Use the adjustments to control the layer.

Tips: - Right-click a parameter and select Edit to enter numerical values.

- Copy and paste settings from one layer to the other by selecting layers and clicking Copy and Paste buttons. It is possible to copy and paste one object over several objects and vice versa.

- Go to Windows / Layers Graph to open the layers graph in a separate tab.

Adjustment	Description
Intensity	Transparency (opacity) of the layer
Pos X and Y	Horizontal and Vertical position of the layer. 0 is the center of the composition.
Scale	Size of the layer scaled on the full composition. 1 fills the composition horizontally.
Scale height	Height of the layer scaled on the Scale value. 1 keeps the original aspect ratio.
Rotation	Rotate the layer (360 degrees).
Rot. speed	Enable a continuous rotation of the layer. Set the speed of the rotation (set negative value to rotate clockwise).
Draw mode	Set how this layer is drawn compared to other layers.

Note: For more information on position coordinates, see Canvas and coordinates page 80.

8.3.1 Draw modes

Draw mode determines how a layer is drawn and how it affects the layers beneath it.

The following table describes the different draw modes:

LAYER 1 + LAYER 2

Fig. 31 - Draw mode example images

• Layer 2 (L2) is always on top of Layer 1 (L1).
• The Draw mode of L1 does not affect L2 (L1 is set to Replace in the following examples).
• Changing the Draw mode of Layer 2 gives different results.

Effect	Image	Description
Replace		Equation: L2Default mode. Draw the layer on top of layers below. The layers below the drawn layer are not visible (except alpha channel).
Additive		Equation: L1+L2Add the pixel values of the drawn layer to layers below it (brighter image). White areas in either layer stay white.
Subtract		Equation: L1-L2Subtract the pixel values of the drawn layer from layers below it (darker image). Black areas on L2 leaves L1 unmodified. White areas on L2 become black areas.
Darken		Equation: min(L1,L2)Compare the drawn layer to layers below it.The darker pixels of the result are drawn.
Lighten		Equation: max(L1,L2)Compare the drawn layer to layers below it.The brighter pixels of the result are drawn.
Multiply		Equation: L1xL2Multiply drawn layer pixel values with layer below it (darker image). Black areas on either layer will result black areas. This mode is useful when creating masks.
Linear burn		Equation: L1+L2-1Variant of the Subtract mode. The result is a darker image.
Screen		Equation: 1-(1-L1)x(1-L2)Opposite of the multiply mode. The result is a brighter image.

Table 5 - Draw modes

8.3.2 Graph

Icon	Description
	Show / hide the layers graph.
	Show / hide all layer numbers on the graph.
	Show / hide all enabled display numbers on the graph.
	Show / hide all enabled displays on the graph.

Adjust the layer from the graph:

• Drag the layer to set Position.
• Use the handles in the right corners to scale and rotate the layers.

8.3.3 Composition Advanced settings

Under Advanced (in Composition), set the layer Draw priority, Deinterlacing and Scaling algorithm.

- Draw priority: Set a number to override the layer number priority system (see Layer Priority page 42). By default, all layers have a Draw priority at 0. Draw priority values goes from -5 to 5.

For example: a layer with draw priority set at 1 is displayed on top of all layers with draw priority under 1, no matter the Layer number. If layers have same Draw priority, the Layer number defines the priority.

Tip: Use draw priority wisely to have a clear configuration. Prioritize using layer numbers and use draw priority for rare exceptions (force layer on foreground or background).

• Deinterlacing: Select the Deinterlacing mode (No deinterlacing, Line doubling or Blending).
• Scaling algorithm: Select the Scaling technology (Bilinear, Cubic weighted, Quintic weighted, Sinus weighted or Bicubic).

8.4 Color correction (layer)

Adjust color correction independently for each layer.

1. Go to Layers and select one or more layers to control in the Layer list.
2. Open the Color Correction panel to set the Gamma, Saturation, Contrast and Brightness levels for each display.
3. Red (R), Green (G), and Blue (B) values can be adjusted for contrast and brightness separately.

8.5 Advanced

In Advanced, set the frame rate values and synchronize the layers.

Note: Frame rate can be modified only if no audio track is embedded to the media.

8.5.1 Synchronize to another layer

This feature makes one layer follow the framerate of another layer or a MIDI timecode (MTC).

1. Go to Layers and select one or more layers to control in the Layer list.
2. Click Sync selected
3. Select the layer or MTC to be the source for the current layer.

Note: By default, the layers do not synchronize to any source.

8.5.2 Set layer Frame rate

Note: Frame rate can only be set if:

• the layer is not part of synchronization.
• the media file doesn't have audio track (even if audio is disabled).
• and media is not a stream video or input.

Modified frame rate (or FPS) can be defined or relative to original frame rate.

Adjustment	Description
Effective FPS	Current effective FPS of the playback with the following settings applied.
FPS controllable	Yes or No. Displays if the frame rate can be modified.
FPS mode	Select Media to use media original frame rate or Defined to use manual value.
Defined FPS	Set absolute frame rate (number of frames per second).
Relative FPS	Set a frame rate relative to the original frame rate (from 0.10 to 2.00).
Frame blending	Set to Enabled or Disabled. This uses a crossfade between frames and displays a smoother playback when frame rate is lower than original.

8.6 Audio (optional)

Note: Audio is grayed-out if Audio support is not enabled in Configuration mode.

In Audio, control the volume for the selected layer and assign audio channel to output.

Use the Channel mixer to assign an output and volume for each audio channel. Use values from 0.0 to 1.0 for the channel volume.

For example: To play a mono audio media file (1 channel) from two speakers, assign that channel to output from both output 1 and 2 (O1 and O2) with full volume (1.0).

Note: By default, channel number 1 gets assigned to output 1, channel 2 to output 2 and so on.

8.7 Using Effects

In Effect1(Fx1) and Effect2(Fx2), use effects on the media in the layers (keying, blur, waves, glow, etc.). Two effects per layer can be used at the same time and both panels are identical.

Note: Effect1 is applied on the layer before Effect2. If Fx1 = Pixelize and Fx2 = 3D Cube, the media is pixelized then rotated with cube effect and vice versa if Fx1 = 3D Cube and Fx2 = Pixelize.

Color Media Fx Fx 1 Fx Fx 2 Audio Adv Macros Geometry Color Correction Reset Gamma 1.00000 Saturation 1.00000 Brightness R 1.00000 G 1.00000 B 1.00000 Contrast R 1.00000 G 1.00000 B 1.00000 Effect 1 Reset R params Effect - none - - none - Wave Water Ripple Blur Heavy blur Gaussian blur Radial Blur Radial Blur Advanced Directional Blur Glow 0.50000 Effect 2 Reset R params Effect Water Ripple Size 0.00000 X 0.50000 Y 0.50000 0.50000 0.50000 0.50000

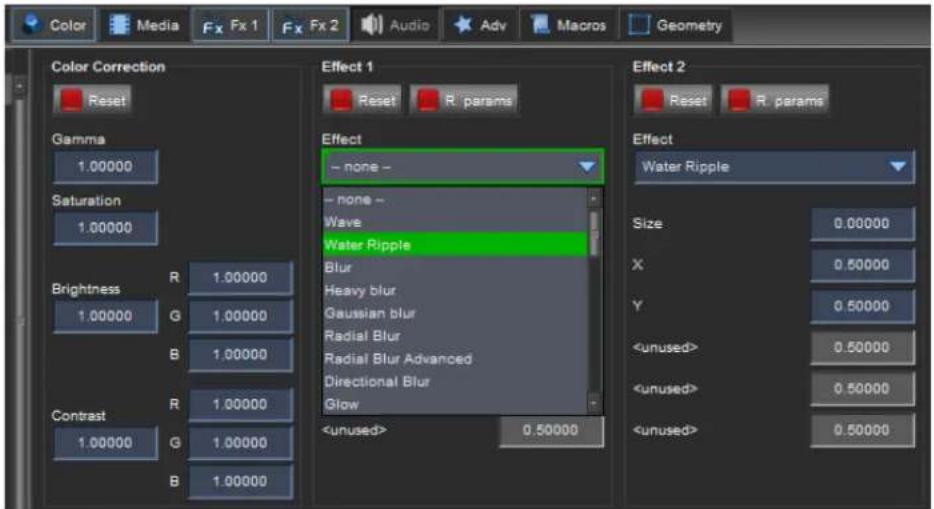

Fig. 32 - Effects

• To apply an effect, select one effect in the dropdown list, and adjust the effect-specific parameters to see the result.
• Click the Reset button to reset the current effect panel and cancel the effect.
• Click the R. params button to reset the parameters and keep the effect selected.

The following table describes the various effects:

Effect	Image	Description
3D Cube		Reshape the layer into a cube shaped object. Adjust rotation speed and axes.

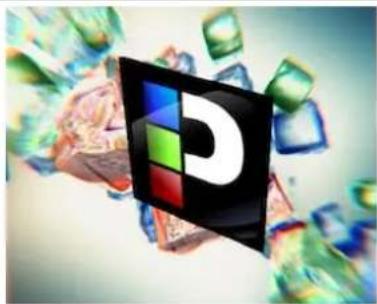

3D Plane		Reshape the layer into a 3D plane. Adjust rotation speed and axes.
3D Sphere		Reshape the layer into a 3D sphere. Adjust rotation speed and axes.
Alpha Fill		Uses this layer as the Fill Layer for alpha keying when using the Alpha Key effect (see Alpha Fill and Alpha Key – Cut & Fill page 55).
Alpha Key		Uses this layer as the Alpha Key layer for the previous layer (see Alpha Fill and Alpha Key – Cut & Fill page 55).

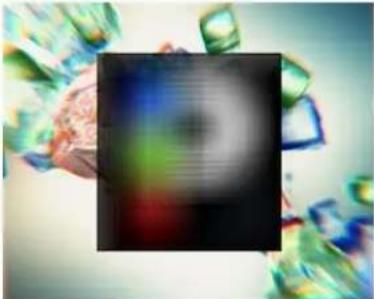

Blur		Add blur to the layer by comparing surrounding pixels, making outlines less distinct.

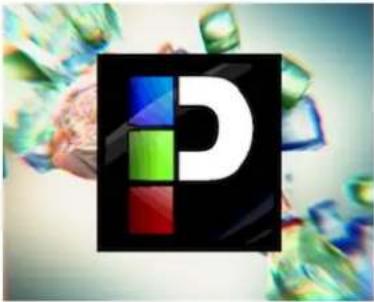

Cartoon		Simplify the colors and smooths the shading in the layer, increasing the difference between low and high contrast areas.

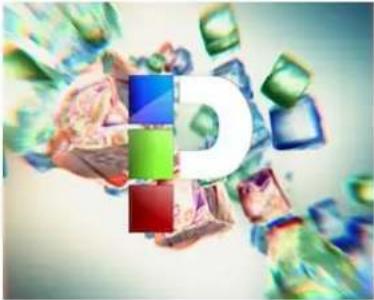

Chromakey		Create a color key compositing function. Adjust Red, Green and Blue value parameters to set transparency.

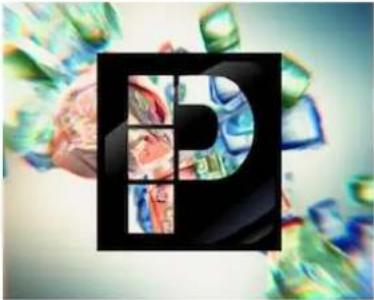

Chromakey inverse		Create a color key compositing function with inverse values to the Chromakey effect.
Comic		Reduce the number of colors and hues used in the layer, creating a comic book-like effect.

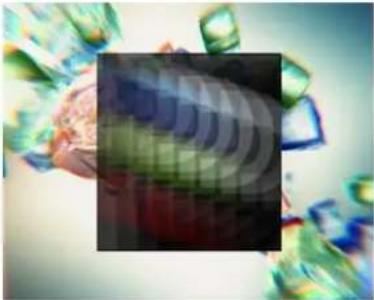

Directional blur		Smear the pixels of the layer into a given direction.

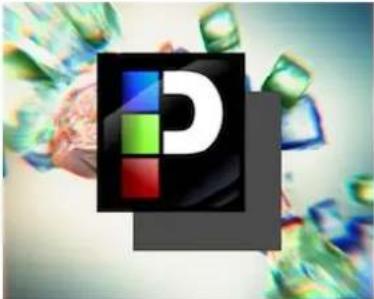

Drop shadow		Create a background shadow to the layer, giving the impression that the layer is situated above the layer behind it.

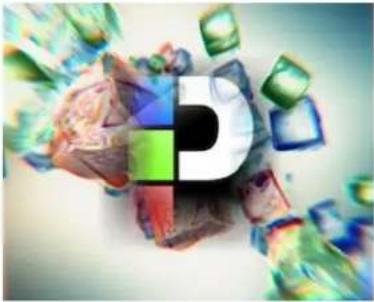

Edge blur		Blur the outer borders of the layer.
Edge Laplace		Detect edges in the layer by adding blur and subtract the result from the original layer image gradually using the mixing parameter.
Edge Laplace add		Detect edges in the layer by adding blur and subtracts the result from the original layer image.
Gaussian blur		Add blur to the layer using the Gaussian function. The result is a very smooth blur, as if looking through a translucent glass.
Glow		Make bright areas in the layer appear brighter, adding the impression of glow.

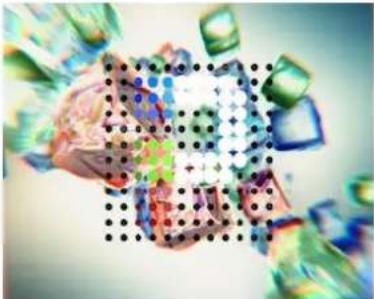

Halftone		Modify the layer from continuous colors to single-colored dots. Adjust dots size.
Halftone advanced		Modify the layer from continuous colors to single-colored dots. Adjust dots size, background color and alpha channel.
Heavy blur		Add a large amount of blur by comparing surrounding pixels with a large radius.

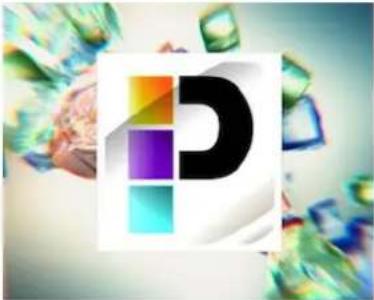

Inverse		Invert the color values of the layer.
Kaleidoscope		Create uniform hyperbolic tiling on the layer, resembling the view through a kaleidoscope.
Keystone		Modify the layer using the keystone corner points.

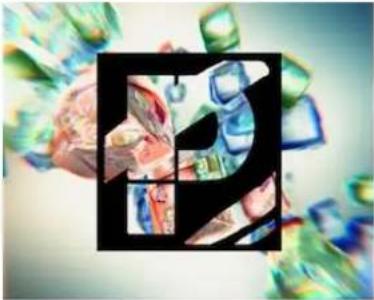

Lumakey		Create a luminance key compositing function for the layer, making the bright areas transparent.

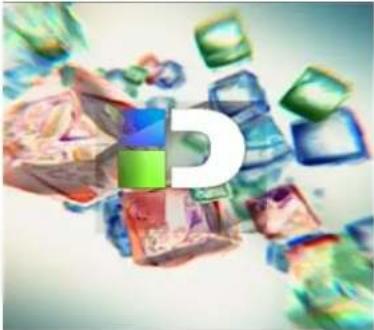

Lumakey inverse		Create a luminance key compositing function with inverse values to the Lumakey effect.

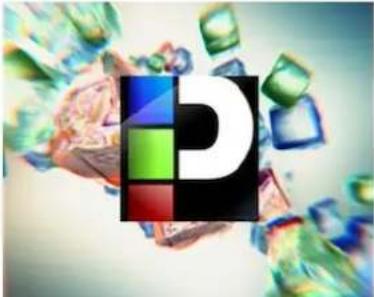

Mask		Mask out or crop the layer so only part of it is displayed.

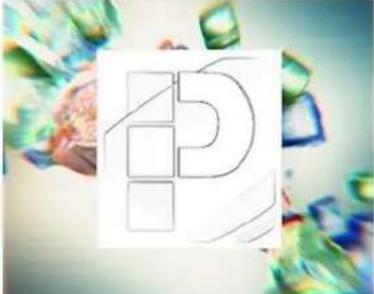

Pencil sketch		Color the outlines black and the background white, creating the impression of a pencil sketch.
Pixelize		Blur the layer by substantially reducing its apparent resolution.

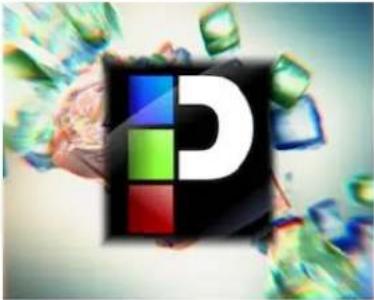

Quick border		Blur and color the outer border of the layer. Similar to the Edge blur effect with more parameters.
Radial blur		Blur the layer by smearing pixels around the center point.

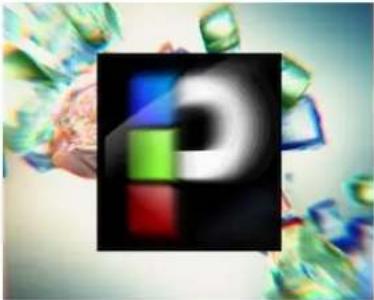

Radial blur advanced		Blur the layer by smearing pixels around the center point and adjust the position of the center point.

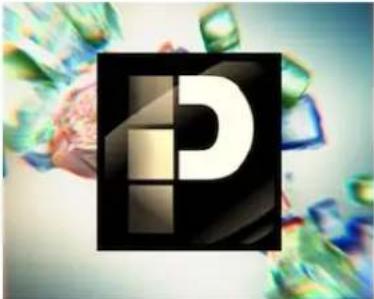

Sepia		Recolor the layer with a reddish-brown sepia color.

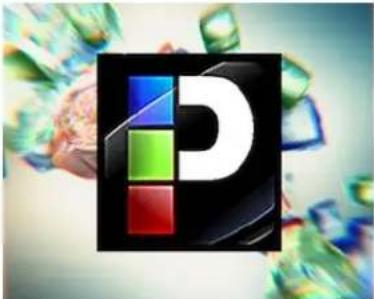

Sharpen		Increase the contrast where color changes occur, resulting in a sharper layer image.

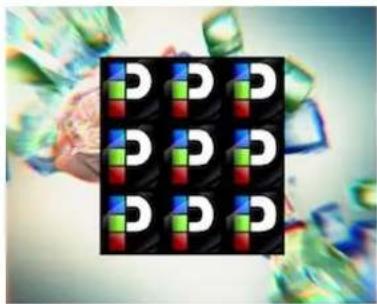

Tiles		Create scaled-down, tiled copies of the layer.

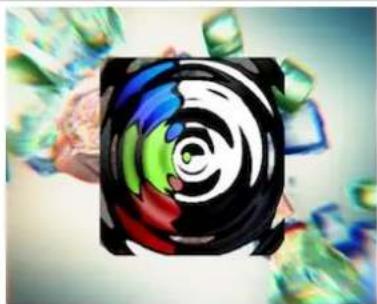

Water ripple		Add a distortion on the layer resembling a ripple on water.

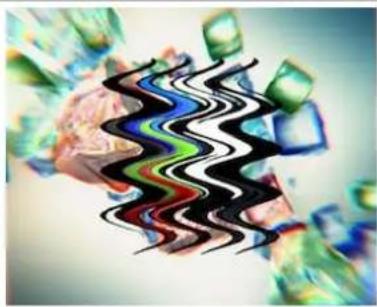

Wave		Add distortion to the layer to create the impression of waves.

Table 6 - Effects descriptions

8.7.1 Alpha Fill and Alpha Key – Cut & Fill

Create a Cut & Fill effect using Alpha keying to limit the way the fill layer is displayed.

Note: The lower layer is always the Alpha Fill layer and the upper layer is always the Alpha Key layer.

Tip: To use Cut & Fill, prepare medias to be the "Cut media". Cut medias are preferably black and white with the black area being the "displayed" part.

1. Select a Layer in the Layer list.
2. In the Media panel, select a media and play it.
3. In the Effect 1(Fx1) panel, select the Alpha Fill effect in the dropdown list.
   This layer is now the Alpha Fill layer.
4. Select the next layer in the Layer list.
5. In the Media panel, select the "Cut media" and play it.
6. In the Effect 1(Fx1) panel, select the Alpha Key effect in the dropdown list.

This layer is now the Alpha Key layer.

The content of the Alpha Fill layer is now displayed in the black areas of the Alpha Key layer.

Note: - Alpha Fill is only effective if the next layer has the Alpha Key effect.

• Alpha Key is only effective if the previous layer has the Alpha Fill effect.
• The Alpha Key layer only contain the contents from actual media or input. Other effects, composition or color correction are not applied.

Tip: Use the Alpha Fill Inverse effect on the Alpha Fill layer to display the its content in the white areas instead of the black ones.

8.8 Layer macro

Tip: Go to Edit > Options > Layer > Layer Macros to define the number of available macros (save slots).

Use Macro to save and load the state of one layer.

8.8.1 Create a layer macro

1. Select a layer in the Layer list to save as a macro.
2. Right-click a macro slot and select the layer parameters to save.
3. Click Save.

The layer macro is saved with the selected parameters.

Tip: Name the macro for a clear configuration. Right-click the macro and click Rename to label the macro. Use only alphanumeric characters.

8.8.2 Load a layer macro

1. Select one or more layers in the Layer list.
2. Click a macro slot.
   The macro is loaded on the selected layers.

Tip: Right-click a saved macro and click Reset to empty the macro.

8.9 Geometry

Use Geometry to use Warp, Keystone and Edge Blending features at layer level.

For more information, see Edge Blending page 39.

8.10 Set default show on server boot – Export show

Use Export to set the current show as a default show. This show will be loaded every time the Picturall Series Media Server is turned on. When starting with exported show, Playback 1 automatically starts playing assigned cue stack if any is assigned.

- Click Server then Export to save the current show as a default show.

Exporting erases the previous export. The last exported show is loaded automatically at startup.

Note: The active values on the Layers tab are also exported at the time of the export, they will be the media state where the first cue starts playing.

9 Program a Show - Cue

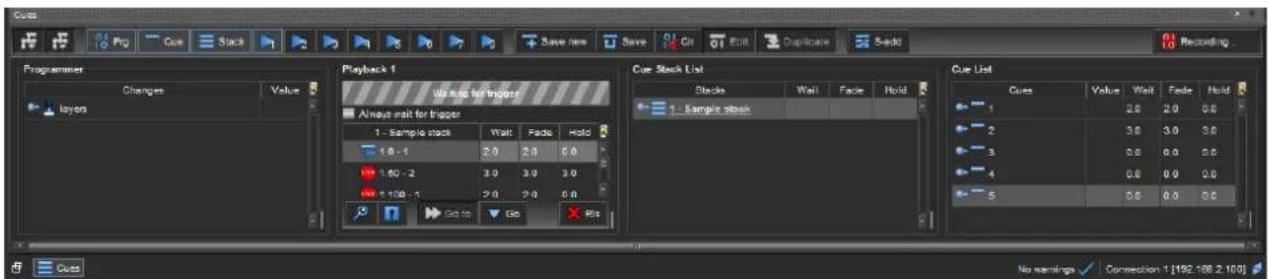

Cues Prog Cus Stacks Save new Save Ctrl Exit Duplicate S-add 10 Recording... Programmer Changes Value Layers Playback 1 Use and for trigger Always wait for trigger 1 - Sample stack Wait Fade Hold 1.6 - 1 2.0 3.0 3.0 3.0 1.60 - 2 3.0 3.0 3.0 1.100 - 1 2.0 2.0 0.0 Go to Get Cue Stack List Stacks Wait Fade Hold 1 - Sample stack Cue List Cues Value Wait Fade Hold 1 2.0 2.0 0.0 2 3.0 3.0 3.0 3 0.0 0.0 0.0 4 0.0 0.0 0.0 5 0.0 0.0 0.0 No warnings ✓ Connection 1:1192.168.2-1001

Fig. 33 - Cues panel
In the Cue menu, create presets of Layers (with their parameters) and order them with timing settings. A cue holds visual and non-visual information about a particular media state. A cue is a preset with layers settings to create a specific view on the displays. For example, cues can time media states or run a sequence of different media states. Cues are organized in Cue Stacks.

9.1 Presentation

9.1.1 How cues work

By default, any modification in the Displays or Layers tab is marked in Green, which indicates that it is recorded in a cue. The cue records the last assigned value for an unchanged parameter (not always the default parameter value). It is possible to record unchanged or default values into a cue manually.
A change in a cue depends on difference between the output from the previous cue and the current cue. A parameter only changes if it is defined in the cue.

Cue	Parameter 1	Parameter 2	Parameter 3
Call Cue 1	10	20	30
Call Cue 2	20	no change (keep 20)	35
Call Cue 3	no change (keep 20)	25	40
Call Cue 2	20	no change (keep 25)	35

Table 7 - Cue logic example

In the example above, parameter 2 remains at value 20 when cue 3 is played after cue 2, because no change is recorded for it. And parameter 2 remains at value 25 when cue 2 is played after cue 3.

9.1.2 Timings (Wait, Fade and Hold)

A cue is associated with timing settings: Wait, Fade and Hold.

• Wait – Time before executing the content
• Fade – Time of the execution of the content
• Hold – Time before the next Cue (for Automatic trigger)

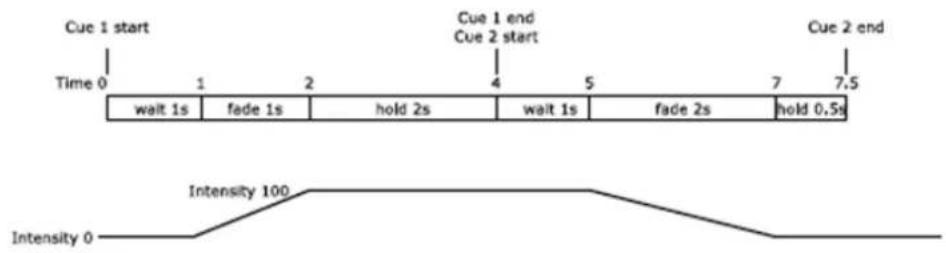

Cue 1 start Time 0 1 2 4 5 7 7.5 wait 1s fade 1s hold 2s wait 1s fade 2s hold 0.5s Intensity 100 Intensity 0

Fig. 34 - Cue timing example

The previous example shows two cues: Cue 1 and Cue 2.

• Cue 1 has an intensity value of 100.
• Cue 2 has an intensity value of 0.
• The intensity starts at 0 and progressively increases to 100 at the fade of Cue 1.
• After the end of Cue 1, Cue 2 starts.
• The intensity progressively decreases to 0 at the fade of Cue 2.

It is possible to set Default Cue timings for all cues and custom wait and fade times for specific cues. In case of conflict, the custom timings prevail. Otherwise a cue is complete when the cue hold time is finished.

Note: Cues can run for a longer time than the timing values indicated in the Cues panels.

Fig. 35 - Timing parameters for layers 2, 3 and 4 override default cue timings

Fade exceptions

The following parameters do not fade but will take the new value at start of fade:

• Media selection / FX selection
• Deinterlacing type
• Draw mode / Play mode
• Scaling algorithm
• Timecode settings
• Layer synchronization
• Media end action
• Frame blending
• FPS mode

9.1.3 Trigger

A trigger is the transition from one cue to the next inside a cue stack. These are the different types of triggers:

• Manual: The user must click the Go button to trigger the next cue.
• Automatic: The next cue is triggered after the previous cue has been completed (wait + fade + hold).
• End of media: The next cue is triggered at the end of one media playback. This can be set for a specific layer or for any layer.

9.2 Creating Cues

9.2.1 Create the first Cue

1. Make sure the Layers menu, Cue menu and cue panels are opened.
2. On the Layers menu, click Reset all to have default settings in all the layer controls.
3. On the Cues panel, click the S-add button to create a new Cue stack. The new stack is activated, new Cues are automatically added to this Cue stack.
4. Click the Clr button to clear the Programmer.
5. Make adjustments on the layer controls to create a media state. Values turn green to indicate the change has been recorded to the Programmer.
6. Hold Alt and click a parameter to manually select or deselect it from the Recorded selection.
7. Click Save new to save the Cue. The new cue item appears in the Cue list and the Programmer gets cleared.

Saving a cue empties the Programmer and makes it ready for the next one.

Tips:

• Name the cues to have a clear list using right-click then Rename.
• Check the parameters recorded in the Programmer before saving a Cue.
• Clear the Programmer before creating a Cue.

9.2.2 Edit a Cue

All the created cues are available in the Cue List. To edit a cue:

• Select a cue in the Cue list.
• Make adjustments on the layer controls to create a media state. Values turn green to indicate the change has been recorded to the Programmer.
• Click Save.
• Right-click a cue and select Run to test it. Select Edit to open the cue in the Programmer to see the saved control states. If needed, make adjustments then click Save.

Tip: Click the Recording... button to disable / enable recording on layer controls.

9.2.3 Stop cue

A stop cue is a cue with the default values of all the layer controls. It ensures the next cue starts from the default settings.

• Select all layers in the Layer list (using Ctrl + A or Holding Shift + click).
• Right click the list and select Toggle in programmer. All layers are set to Default value.
• Create a cue with default values on all layers and name it "Stop Cue".

Tip: Create a "stop cue" and put it at the end of each stack.

Note: It is also possible to reset to default values manually by clicking Reset all between cue stacks.

9.3 Cue Stacks

A cue stack is a sequence that runs the cues in ascending order. Create as many stacks as needed. For example, a media show in a music concert might have a cue stack for each song.

9.3.1 Create a cue stack

1. Click S-add to create a cue stack.
2. Create cues or select cues in the Cue List and drag and drop them in the stack.
3. Order the cues inside the stack.
4. Create cue stacks as needed for the show.
5. Each cue in a cue stack is a reference to the original cue in the Cue list. This reference is called Cue Stack Entry or CSE).

Caution: Use a cue once per Cue Stack. Reusing the same cue too many times might produce unpredictable results.

9.3.2 Remove a cue from a cue stack

Right-click a cue in a stack and select Remove to remove it from the stack. This only removes it from the cue stack and does not delete the cue. The CSE is removed but the cue is still present in the Cue List.

9.3.3 Change trigger type

Right-click a cue in the stack to change trigger type. Choose between Manual and Automatic depending on whether to trigger the cue manually or want it to run automatically after the previous cue. This can be done either in the Cue Stack List or in the Playback list.

9.3.4 Order cues in the stack – Index number

Order cues in the stack by using drag and drop or custom index number.

- Drag and drop a cue in a stack to change its position in the sequence.

Index number

Each Cue Stack Entry (CSE) has a Major index number and a Minor index number. CSEs are ordered by Major index number in ascending order. The Minor index number is used in case of equal Major index number.

- Right-click a cue in a stack and select Move, then enter the index numbers.

For example, to move a cue between cues numbered 5.0 and 6.0, enter a major index number 5 and a minor index number 1.

9.4 Timing and Running Cues in Playback

Picturall Series Media Servers can run up to three cue stacks simultaneously using the three different playback areas in the cue system. Separate playbacks are useful to play different sequences of media on different displays.

To run a cue stack in playback:

1. Click to open Playback 1.

2. Drag a cue stack to Playback 1. One playback can only play one stack at a time.

3. If needed, right-click the cue stack in the playback list to change its trigger type (Manual or Automatic).

4. Tick the Always wait for trigger box to manual trigger for every cue in the Playback.

5. Click Go at the bottom of the Playback area to run the playback. Select a cue and click Go to skip to a specific cue.

6. Enter timings for the cues in the Wait, Fade and Hold columns.

7. Click RIs to release the cue stack from the playback. This only removes the cues from playback, not from the cue stack list or the cue list.

Note: If a show is exported with cue stacks in one of the Playback areas, rebooting the server will automatically start playing the cues in the stack.

9.5 Example Show

Let us create a simple show in which one media layer is playing in the background and another layer is on top of it with a logo (still image) on it. Using cues, the logo will move from the left side of the projection area to the right side.

To achieve this, do the following:

1. Open the Cues panel and make sur Recording... is enabled.
2. Go to Layers, select a background media and play it on Layer 1 (a green border appears around these controls).
3. In Cues, click Save new to create a cue with the recorded media state. A new cue appears in the Cue list.
4. In Layers, select the logo image in the Media selection panel of Layer 2, play it and use the position controls to place it on the left side of the composition.
5. Make sure that media selection, play mode and position control adjustments are recorded on the Programmer.
6. In Cues, click Save new to create a new cue.
7. In Layer 2, use the position controls to move the logo to the right side of the composition.
8. In Cues, click Save new to save the position change to a new cue.

Three cues are created in the Cue List: a background media without logo, the background media with the logo on the left and the background media with the logo on the right.

1. Click S-add to create a new cue stack in the Cue stack list. Select the cues and drag them into this stack.

2. Drag the stack into Playback 1.

3. Select the first cue in the Playback list and click Go.

4. Enter timings for each cue (Wait, Fade and Hold).

5. Right-click a cue to change its trigger type (Manual or Automatic).
   ○ In Manual mode, keep clicking Go to go through the three cues of the Playback.

9.6 Live show recommendations

Here a few tips and recommendations for live show setup:

• Create a "Stop cue" and put it at the end of each cue stack.
• Use separate playbacks to play different sequences of media on different displays.
• Set the User Interface so that the Cues, Layers, and Performance panels are visible.
• When live, use the Layers panel only for adjusting minor things such as audio volume.
• Hide the Displays, GPU and other tabs that do not directly affect the show.
• Set hotkeys on the keyboard to play specific Playbacks (Edit > Options > Keymap), by default F9, F10 and F11 play Playback 1, 2 and 3 respectively.

9.7 Cue macro

A cue macro is an action associated to a Cue or a Cue stack.

Note: - Cue macro and Layer macro are different concepts.

- A saved show (.pcf file) containing Cue macros can only be loaded on Picturall Commander from version 2.6 and onwards.

9.7.1 Cue macro and Cue stack macro

9.7.1.1 Cue macro

A cue macro is associated to a cue and affects all CSEs of this cue.

- The cue macro is executed when the cue is executed.

To create a cue macro:

- Right-click a cue in the Cue List (or a CSE in a Cue stack) then click Edit macro...

9.7.1.2 Empty cue

It is possible to create a cue macro on an empty cue (a cue with no layer change).

To create an empty cue:

- Right-click a cue in the Cue List then click Add cue.

Note: It is also possible to delete the parameters of an existing cue to make it empty.

9.7.1.3 Cue stack macro

A Cue stack can have two types of macro associated to it: entry macro and exit macro.

• The entry macro is executed when the Cue stack is loaded in a playback.
• The exit macro is executed when the Cue stack is released from a playback.

To create a Cue stack macro:

- Right-click a Cue stack in the Cue Stack List then click Edit entry macro... or Edit exit macro...

9.7.2 Cue macro actions

Tip: A little "M" appears next to the Cue number (or Cue stack number) to indicate that a Cue macro is enabled.

When creating a Cue macro, the following window opens and four macro actions are available:

• Trigger a specific cue
• Trigger a specific playback
• Send a network command
• Custom macro

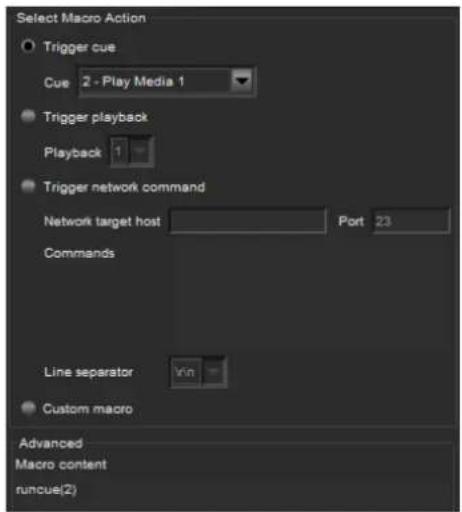

Select Macro Action Trigger cue Cue 2 - Play Media 1 Trigger playback Playback 1 Trigger network command Network target host Port 23 Commands Line separator Vin Custom macro Advanced Macro content runcue(2)

Fig. 36 - Cue macro

9.7.2.1 Trigger cue macro

This executes a cue when a macro is executed.

1. Click Trigger cue.
2. Click the dropdown list and select a cue.
3. Click OK.

9.7.2.2 Trigger playback

This executes a playback when a macro is executed.

1. Click Trigger playback.
2. Click the dropdown list and select a playback number.
3. Click OK.

9.7.2.3 Trigger network command

This sends a custom command to a device connected on the same network when a macro is executed.

1. Click Trigger network command.
2. Enter the target address and port number.
3. Enter the command to be sent.
4. Choose the Line separator.
5. Click OK.

9.7.2.4 Macro content and Custom macro command

When creating a cue macro, the content of the macro is displayed in the Macro content section.

Custom macro Advanced Macro content runcue(2)

Fig. 37 - Macro content

Cue macros are written in Lua language. Using a custom macro, it is possible to write anything in Lua in the content section. For example, a custom macro can be used to trigger multiple cues and playbacks and send a network command at the same time.

Tip: - Click an action to load a command then click custom macro to edit the content. - The command list is available in a document enclosed to this User Manual.

To create a custom cue macro:

1. If needed, click any action to load the content.
2. Click Custom macro.
3. Edit the content to create a custom command.
4. Click OK.

Note: Custom macro does not have syntax validation. Enter custom commands carefully.

9.7.3 Edit or remove a cue macro

To edit a cue macro:

1. Right-click a Cue or a Cue stack then click Edit macro...
2. Edit the cue macro then click OK.

To remove a cue macro:

1. Right-click a Cue or a Cue stack then click Edit macro...
2. Click Remove macro.

9.7.4 Create cue macros using Lua commands

For more information, see the document Cue_Macro_Lua_API.pdf attached to this manual.

10 Miscellaneous

10.1 Save a show

Save a show to recover it or to reuse it on another computer using Picturall Commander.

1. Run Picturall Commander.
2. Go to File > Save show.
3. Select a folder and enter a filename.
4. Click Save.

The show is saved in a PSF file.

- Go to File > Load show to load a show.

10.2 Refresh displays

10.3 Sync card – Genlock (Picturall Pro only)

The sync card is an optional card for Picturall Pro to enable Genlock.

Note: - Genlock is automatically enabled if the sync card is installed.
- The Frame Lock connectors are currently not supported.
- Genlock is possible for the following refresh rates: 50Hz, 60Hz, 100Hz, 120Hz and 200Hz.

10.3.1 Genlock menu

In the Genlock menu, check the sync status.

• If needed, click Resync genlock to reset synchronization.
• If needed, use Framelock pulse delay to adjust the sync manually using an offset in nanoseconds.

10.3.2 House sync status LED

When the Genlock is correctly connected, the LED under the connector lights up (labeled House sync).

HOUSE SYNC House Sync Status LED

Fig. 38 - Genlock connection status LED

10.3.3 GPU sync status

The "SYNC" LEDs indicate the sync status per GPU.

The following image shows which LED corresponds to which GPU.

Fig. 39 - LED-GPU correspondence

SYNC LED status
LED off	GPU is not connected
Yellow LED on	GPU is not synchronized
Yellow LED blinking	GPU is synchronized but nearly losing sync
Green LED blinking	GPU is synchronizing
Green LED on	GPU is synchronized

Table 8 - GPU sync status

10.4 Performance

Fig. 40 - Performance menu

In the Performance menu, monitor the performance of the system as graphs.

Use the Enabled checkboxes to show/hide the corresponding graphs.

Tip: These metrics are useful to show potential problems.

Graph	Description
CPU	Average workload."1" means the load is equivalent to a single CPU core being fully loaded."8" means that 8 cores are fully loaded.If the value is higher than number of CPU cores installed, the CPUs is doing more than it can handle. However, this value does not reflect the smoothness of the playback. The average workload can get high without affecting playback quality.
CPU_TEMP	CPU temperature in Celsius degrees.
GPU	GPU refresh rate. The server unit's performance is fine if the indicator values match the display's refresh rate. In this example the display refresh rate is 60.
GPU_DRAW	Time it takes GPU to draw one single frame. If GPU_DRAW reaches 80% of GPU_SWAP, lower GPU load (effects, resolutions, active layers).
GPU_MEM	The amount of memory used by the GPU.
GPU_SWAP	Time it takes GPU to show one frame (except when Triple buffering is enabled). This should always be 16.67 ms for 60Hz displays.
GPU_TEMP	GPU temperature in Celsius degrees.
GPU_TEX	The amount of data transferred to the GPU (in megabytes per second).

Table 9 - Performance

10.4.1 Toggle view

On the top left of the Performance tab toolbar are the view buttons:

Toggle between graph and table view, or both of them side by side horizontally or vertically.

10.4.2 Refresh

On the top right corner, set refresh rate, turn refreshing on/off and manually refresh the graphs.

10.4.3 Color

In the Color column in the table, click the [...] buttons on every row to set the color scheme of the graph view.

10.5 Timecode

In the Timecode menu, set the timecode format and offset it by time or frames.

Media Displays Layers Timecode 00?? Timecode out Timecode outs MTC Timecode Out Reset Timecode sourcea Layer 1 Timecode format: 24 fps Timecode offset: Hit:mm:ss Frames +00:00:10 05 Edit MTC settings Timecode format: 24 fps Timecode offset: 00:00:10 05 OK Cancel

The Timecode format and Timecode offset fields show the current values.

1. In Timecode source, click the dropdown and select the layer to output the timecode from. Or select OFF to disable sending the outgoing timecode.
2. Click Edit and enter new values in the MTC Settings dialog.

10.6 Control Model

The Control Model is a tree structure of all the control groups and the controls in them. It is mostly used when programming custom control systems.

Control Model Control Model [Connection 1] displays gpus layers alsamixer artnet1 canvas1 citp cue_system encoder file_watch fx_info gl_help monitor mtc performance_watch

1. Open both the Control Model and Properties tab.
2. Click in the tree structure to view control-specific information and view the information on the Properties tab.

10.7 Commander Log

Every action taken in Picturall Commander is logged.

- Go to View > Commander Log... to open the panel.

Seeing the command format is useful for advanced Linux users as Picturall Commander can be controlled via sent commands.

11 User maintenance and Troubleshooting

11.1 User Maintenance – Air filter

Tip: For optimal performance, this air filter must be cleaned by the user regularly (once a year).

The Picturall Series Media Server is equipped with a removable air filter at the front of the Media Server.

11.1.1 Air filter cleaning - Picturall Twin, Quad and Pro

Tools: Phillips screwdriver size 2, duster or vacuum.

1. Turn the media server off and unplug mains.
2. Remove the four screws on the front panel.
3. Using both hands, gently pull the front panel on a straight axis.
4. Gently tilt it down until mechanical stop.

The front panel is in safe still position.

1. Pull the air filter and take it out from the media server.
2. Carefully clean the air filter with a duster or vacuum.
3. When the air filter is clean, gently put it back in place.
4. Gently tilt up the front panel until it is aligned.
5. Gently push the front panel back in place on a straight axis.
6. Set the screws back in place.

The air filter is cleaned and the media server is ready for use.

11.1.2 Air filter cleaning - Picturall Twin Compact and Quad Compact

Tools: Phillips screwdriver size 2, duster or vacuum.

1. Turn the media server off and unplug mains.
2. Remove the screws of the air filter on top of the front panel.
3. Using both hands, gently pull the air filter upwards on a straight axis.
4. Pull the air filter and take it out from the media server.
5. Carefully clean the air filter with a duster or vacuum.
6. When the air filter is clean, gently put it back in place.
7. Set the screws back in place.

The air filter is cleaned and the media server is ready for use.

11.2 System Diagnostics

System diagnostics are used for technical support. It is a file exported from Picturall Commander to be sent to technical support.

To export the system diagnostics file:

1. Go to File > Get system diagnostics.
2. Save the file on the computer.

11.3 Troubleshooting

Picturall Commander installation failure

- Make sure to install the latest version of Picturall Commander as it corrects all known issues

Layer control > Advanced: Dropdown menus are not visible

- Make sure to use the latest version of Picturall Commander as it corrects all known issues

Unable to Connect to the Server

• Verify that the server and the computer running Picturall Commander are using the same netmask.
• Verify that the server IP-address is correct.
• Verify that the network is running correctly with a ping command.
• Verify that there is no more than one DHCP server in the network.
• Verify that the firewall is not blocking the connection.

Video Playback is not smooth

• Disable unused displays.
• Verify there are no playing back of layers that are not visible: select all layers in the Layer list, right-click on them and select Stop. Then click Play on the desired layers only.
• Too many layers or too high resolutions are in use. Playback performance is 4-16 layers of FullHD depending on the display setup, codecs and bitrates.
• Simultaneous use of displays with different refresh rates. Force resolution and refresh rate in the Configurator.

Video output has poor resolution

• Disable unused outputs.
• Position displays using the same graphic card closer to each other and optimize the pixel space in the GPUs tab.

"Cable disconnected" error message keeps displaying

- Stop all playbacks.

Output not displayed due to cable disconnection or image processor reboot

- In Picturall Commander, go to GPU menu and click Refresh displays.

Sync error when connecting an external clock while the media server is running (Picturall Pro with Genlock)

- In Picturall Commander, go to Genlock menu and click Resync genlock.

APPENDICES

Appendix A. DMX chart

PICTURALL V2.8

DMX Chart - Layer full

LAYER SIZE AND POSITION:

• Composition canvas has coordinates from 0,0 to 1,1 with 0,0 being the bottom left corner
• Layer default position is 0.5, 0.5 (32768, 32768 in DMX values).
• Position coordinate is the layer center point coordinate.
• Default scale for layer is 1.0 (32768 in DMX values). Default layer width is 1.0 in canvas coordinates.
• Layer height is affected by media Aspect ratio and Aspect-control. Media default Aspect is used when Aspect is 1.0.
• Aspect ratio height multiplier derived from media aspect ratio and scale.
• For Scale and Aspect value, descriptions contain physical value multiplier. For example, "7 x" in Scale means the layer is seven times larger is scaled and "7 x" in Aspect means the media aspect ratio is multiplied by seven.

LAYER:

DMX COARSE	DMX FINE	Name	Description	Values	Values description	Default Value	Home/ locate value
1		Intensity				0	255
2	3	X	Layer X position	0-65535	Coordinate ranges from -5 to 5	32768	32768
4	5	Y	Layer Y position	0-65535	Coordinate ranges from -5 to 5	32768	32768
6	7	Rotation		0-65535		32768	32768
				0-16383	Continuous rotation counterclockwise, 240 RPM - 0 RPM
				16384	Indexing rotation counterclockwise 360'
				16385-32767	Indexing rotation counterclockwise
				32768	Center position
				32769-49151	Indexing rotation clockwise
				49152	Indexing rotation clockwise 360'
				49153-65535	Continuous rotation clockwise, 0 RPM - 240 RPM
8	9	Scale		0-65535		32768	32768
				0	Mirrored and flipped layer max size, -5 x
				1-21844	Mirrored and flipped layer upscaling, -5 x
				21845	Mirrored and flipped layer fullscreen, -1 x
				21846-27306	Mirrored and flipped layer downscaling -1 x - 0 x
				27307-32767	Layer downscaling, 0 x - 1 x
				32768	Layer fullscreen, 1 x
				32769-65534	Layer upscaling, 1 x - 7 x
				65535	Layer upscaling max size, 7 x
10	11	Aspect	Vertical Scaling	0-65535		32768	32768
				0	Flipped layer upscaling max size, -5 x
				1-21844	Flipped layer upscaling, -5 x - -1 x
				21845	Flipped layer original aspect ratio, -1 x
				21846-27306	Flipped layer downscaling, -1 x - 0 x
				27307-31402	Layer downscaling, 0 x - 0.75 x
				31403	4:3 -> 16:9 conversion, 0.75 x
				31404 - 32767	Layer downscaling, 0.75 x - 1 x
				32768	Layer original aspect ratio, 1 x
				32769 - 34587	Layer upscaling, 1 x - 1.33333 x
				34588	16:9 -> 4:3 conversion, 1.33333 x
				34589 - 65534	Layer upscaling, 1.33333 x - 7 x
				65335	Layer upscaling max size, 7 x
12		Draw mode		0 - 255	Check ranges table	0	0
13		Media index		0 - 255		0	No value
14		Media library		0 - 255		0	No value
15		Media mode		0 - 255	Check ranges table	0	0
16		FPS		0 - 255		112	112
				0	Media default fps
				1 - 63	1 - 63 fps fixed playback
				64 - 160	0% - 200% relative playback speed
				112	Media default fps
				161 - 255	Reserved (frame blending)
17	18	Seek	Seek to position	0 - 65535		No value	No value
				0	Beginning of the media
				65535	End of the media
19		Audio volume		0 - 255		0	255
20		Reserved	Reserved			No value	No value
21		Reserved	Reserved			No value	No value
22		Sync source	Layer sync source (V1.2 and later)	0	Internal (no sync)	0	0
				1 - 128	Sync to layer 1 - 128
				255	Sync to MTC
23		Saturation		0 - 255		128	128
				0 - 127	Less saturation
				128	Default
				129 - 255	More saturation
24		Brightness		0 - 255		128	128
				0 - 127	Less brightness
				128	Default
				129 - 255	More brightness
25		Contrast		0 - 255		128	128
				0 - 127	Less contrast
				128	Default
				129 - 255	More contrast
26		Gamma		0 - 255		128	128
				0 - 127	Low gamma
				128	Default
				129 - 255	High gamma
27		Brightness Red		0 - 2550-127	Reduce Red	128	128
				128	Default
				129-255	Increase Red
28		Brightness Green		0-255		128	128
				0-127	Reduce Green
				128	Default
				129-255	Increase Green
29		Brightness Blue		0-255		128	128
				0-127	Reduce Blue
				128	Default
				129-255	Increase Blue
30		Contrast Red		0-255		128	128
				0-127	Reduce contrast for Red color
				128	Default
				129-255	Increase contrast for Red color
31		Contrast Green		0-255		128	128
				0-127	Reduce contrast for Green color
				128	Default
				129-255	Increase contrast for Green color
32		Contrast Blue		0-255		128	128
				0-127	Reduce contrast for Blue color
				128	Default
				129-255	Increase contrast for Blue color
33		FX1 Library	FX1 Library	0-255	Select FX (look at FX Assignment sheet)	0	0
34		FX1 Index	FX1 Index	0-255	Select FX	No value	No value
35		FX1 Param1	FX1 Param1	0-255		No value	No value
36		FX1 Param2	FX1 Param2	0-255		No value	No value
37		FX1 Param3	FX1 Param3	0-255		No value	No value
38		FX1 Param4	FX1 Param4	0-255		No value	No value
39		FX1 Param5	FX1 Param5	0-255		No value	No value
40		FX1 Param6	FX1 Param6	0-255		No value	No value
41		FX1 Library	FX1 Library	0-255	Select FX	0	0
42		FX1 Index	FX1 Index	0-255	Select FX	No value	No value
43		FX1 Param1	FX1 Param1	0-255		No value	No value
44		FX1 Param2	FX1 Param2	0-255		No value	No value
45		FX1 Param3	FX1 Param3	0-255		No value	No value
46		FX1 Param4	FX1 Param4	0-255		No value	No value
47		FX1 Param5	FX1 Param5	0-255		No value	No value
48		FX1 Param6	FX1 Param6	0-255		No value	No value
49		Reserved	Reserved			No value	No value
50		Reserved	Reserved			No value	No value
51		Reserved	Reserved			No value	No value
52		Reserved	Reserved			No value	No value
53		Reserved	Reserved			No value	No value
54		Reserved	Reserved			No value	No value
55		Reserved	Reserved			No value	No value
56		Reserved	Reserved			No value	No value

RANGES:

Parameter	Value	Name	Description
Draw mode	0	Additive	Add layer intensities
	1	Replace	Replace lower layer
	2	Subtract	Subtract upper layer from lower layers
	3	Darken	Select darker parts of upper and lower layers
	4	Lighten	Select lighter parts of upper and lower layers
	5	Multiply	Multiply layer intensities
	6	Linear burn	Linear burn (Subtract variant)
	7	Screen	Screen layers (opposite of Multiply)
Media mode	0	Media default
	1	Play Next	Play next media after current
	2	Play Stop	Stop after playing current media
	3	Play Pause	Pause on the last frame of current media
	4	Play Loop	Loop current media
	5	Pause
	6	Stop
	10	Play Loop collection	Play next media and after last media in collection, replay from the first one.

EFFECTS:

FX NAME	Library	Index	Parameter 1	Parameter 2	Parameter 3	Parameter 4	Parameter 5	Parameter 6
Wave	1	1	Amplitude	Amplitude aspect	Frequency	Frequency aspect	Speed
Water Ripple	1	2	Size	X	Y
Blur	2	1	Size
Heavy blur	2	2	Blur size
Gaussian blur	2	3	Blur size
Radial Blur	2	4	Size	Amount
Radial Blur Advanced	2	5	Size	Amount	Blur center X	Blur center Y
Directional Blur	2	6	Blur size	Angle
Glow	2	7	Threshold	Glow size
Chromakey	3	1	Threshold	Red key	Green key	Blue key	Smoothing
Chromakey Inverse	3	2	Threshold	Red key	Green key	Blue key	Smoothing
Lumakey	3	3	Accuracy	Key	Smoothing
Lumakey Inverse	3	4	Accuracy	Key	Smoothing
Alpha Fill	3	5
Alpha Fill inverse	3	6
Alpha Key	3	7
Quick Border	4	1	Amount of border	Outside blur	Inside blur	Border color red	Border color green	Border color blue
Edge Blur	4	2	Blur amount
Mask	4	3	Mask left	Mask right	Mask top	Mask bottom
Keystone	4	4	On/Off	Left side	Right side	Top side	Bottom side
3D Plane	5	1	X Rotation	Y Rotation	Z Rotation	Continuous rotation speed	FOV	Material mode
3D Cube	5	2	X Rotation	Y Rotation	Z Rotation	Continuous rotation speed	FOV	Material mode
3D Sphere	5	3	X Rotation	Y Rotation	Z Rotation	Continuous rotation speed	FOV	Material mode
Sepia	6	1	Amount
Inverse	6	2
Halftone	6	3	Amount
Halftone Advanced	6	4	Amount	Background Red	Background Green	Background Blue	Background Transparency
Comic	6	5	Amount
Pixelize	6	6	Amount
Edge Laplace	7	1	Mixing	Laplace amount
Edge Laplace Add	7	2	Amount
Sharpening	7	3	Radius
Pencil Sketch	7	4	Amount	Intensity
Cartoon	7	5	Border	Intensity
Tiles	8	1	Scale
Kaleidoscope	8	2	Amount	Shape	Scale	Zoom	Speed	Amplitude
Drop Shadow	9	1	Opacity	X Offset	Y Offset	Color Red	Color Green	Color Blue

PICTURALL V2.8

Ranges are same as in full layer

DMX COARSE	DMX FINE	NAME
1		Intensity
2	3	X
4	5	Y
6	7	Rotation
8	9	Scale
10	11	Aspect
12		Draw mode
13		Media index
14		Media library
15		Media mode
16		FPS
17		Audio Volume
18		Reserved

PICTURALL V2.8

DMX Chart - Master

DMX COARSE	DMX FINE	Name	Description	Values	Values description	Default Value	Home/ locate value
1		Grid width	Number of displays in a display grid horizontally	0 – 255	Number of columns in a display grid	1	1
2		Grid height	Number of displays in a display grid vertically	0 – 255	Number of rows in a display grid	1	1
3		Blend size	Amount of blend overlap in percentage	0 – 255	Blend the edges of adjacent displays	0	0
4		Blend gamma	Blend gamma value	0 – 255	Gamma correction on blend area	128	128
				0 – 128	Less intense blend gamma (0.00 to 0.45)
				128	Default value: 0.45
				128 – 255	More intense blend gamma (0.45 to 0.90)
5		Aspect ratio	Select display aspect ratio	0 – 255	3 predefined values
				0	16:9 (default)
				1	4:3
				2	16:10
				3 – 255	16:9 (ignored)
6		Test images	Test images	0 – 255	Show test images on display	0	0
				0	None (default)
				1	Display numbers (DN)
				2	DN + Blend areas
				3	DN + Display borders
				4	DN + Display grid
				5	DN + Control points
				6	DN + Selected display grid
				7	DN + Layer borders
				8	Layer numbers (disables Display numbers)
				9	DN + Blue background
				10	DN + Canvas grid
				11	DN + Canvas lines all (horizontal, vertical, diagonal)
				12	DN + Canvas lines only horizontal
				13	DN + Canvas lines only vertical
				14	DN + Canvas lines only 45 degrees diagonal
				15	DN + Canvas lines only 135 degrees diagonal
				16	DN + Canvas lines horizontal and vertical
				17	DN + Canvas lines horizontal and 45 degrees diagonal
				18	DN + Canvas lines horizontal and 135 degrees diagonal
				19	DN + Canvas lines vertical and 45 degrees diagonal
				20	DN + Canvas lines vertical and 135 degrees diagonal
				21	DN + Canvas lines diagonal of 45 and 135 degrees
				22 – 255	None (ignored)
7	8	CueTriggering		0	Do nothing
				1-65535	Trigger cue
9		Playback 1		0	Do nothing
				1-255	Select cue stack & trigger first cue
10		Playback 2		0	Do nothing
				1-255	Select cue stack & trigger first cue
11		Playback 3		0	Do nothing
				1-255	Select cue stack & trigger first cue
12		Playback 4		0	Do nothing
				1-255	Select cue stack & trigger first cue

PICTURALL V2.8

DMX Chart - Display

DMX COARSE	DMX FINE	Name	Description	Values	Values description	Default Value	Home/ locate value
1		Display position		0 – 255		0	0
				0	Display not affected by setup, keeps previously set values
				1 – 254	Display position. Display within grid size is enabled. Display out of grid is disabled.
				255	Reset display position and grouping
2	3	Keystone TL X	Keystone top left X	0 – 65535	Moves coordinate 0 – 0.5 units towards the center	0	0
4	5	Keystone TL Y	Keystone top left Y	0 – 65535	Moves coordinate 0 – 0.5 units towards the center	0	0
6	7	Keystone TR X	Keystone top right X	0 – 65535	Moves coordinate 0 – 0.5 units towards the center	0	0
8	9	Keystone TR Y	Keystone top right Y	0 – 65535	Moves coordinate 0 – 0.5 units towards the center	0	0
10	11	Keystone BR X	Keystone bottom right X	0 – 65535	Moves coordinate 0 – 0.5 units towards the center	0	0
12	13	Keystone BR Y	Keystone bottom right Y	0 – 65535	Moves coordinate 0 – 0.5 units towards the center	0	0
14	15	Keystone BL X	Keystone bottom left X	0 – 65535	Moves coordinate 0 – 0.5 units towards the center	0	0
16	17	Keystone BL Y	Keystone bottom left X	0 – 65535	Moves coordinate 0 – 0.5 units towards the center	0	0
18	19	Angle X	Angle correction by X	0 – 65535	Horizontal distortion to compensate tilted viewing angle. Range - 0.0 – 1.0	32768	32768
				0	0.0 No distortion (default)
20	21	Angle Y	Angle correction by Y	0 – 65535	Vertical distortion to compensate tilted viewing angle. Range - 0.0 – 1.0	32768	32768
				0	0.0 No distortion (default)

Appendix B. BIOS setup

Press the Del button on startup to access BIOS settings.

Tip: Load default settings and reboot the server before modification (Exit > Load Setup Defaults).

Here are the default Pro BIOS settings:

• Advanced > SATA Configuration > SATA Mode > AHCI Mode
• Advanced > SATA Configuration > S.M.A.R.T Status Check > Disabled
• Advanced > Onboard devices configuration > Azalia HD Audio > Disabled
• Advanced > Onboard devices configuration > Intel LAN1 Controller > Disabled
• Advanced > Onboard devices configuration > Intel LAN2 PXE OPROM > Enabled
• Advanced > Onboard devices configuration > Asmedia USB 3.0 Controller > Disabled
• Advanced > Onboard devices configuration > Marvell Storage OPROM > Disabled
• Boot > Boot > Full Screen Logo > Disabled
• Boot > Boot > Wait for 'F1' if error > Disabled
• Boot > Boot > Setup mode > Advanced mode
• Boot > Hard Drive BBS Priorities > SSD first
• Tool > ASUS O.C. Profile > Label "pro_defaults" > Save to Profile "1"

Appendix C. Optimize GPU resolution and drawing performance

This chapter describes how to optimize the GPUs performance when positioning displays.

C.a. Definitions

• GPU Output board consisting of two outputs.
• Output Physical DVI output.
• Display Destination where the picture will be displayed. For example, it could be a single display or a projection surface composed of one or several outputs. Usually there is one display for each output.
• Canvas Total drawing area. Displays are placed inside a canvas.

Note: Using display splitters enables having more than one display for one output.

C.b. Calculated optimization

In the GPUs menu, select a GPU and click Optimize.

The automatic calculation optimizes the graphic card performance with the current display setup.

If the displays are not side-by-side horizontally in the show composition, using the automatic canvas optimization gives the best results.

C.c. Canvas and coordinates

Canvas is the drawing area defined in coordinate system, it is not a pixel space.

Canvas coordinates are in 0.0 - 1.0 range in both X and Y axis and origin is in left bottom corner. A display is positioned in the canvas by setting display X and Y position, display width and height and rotation.

Use the display wizard to set display grids easily.

Display Group 1 (Shr) [0.0] Display 1 [1.0] Display 2 Position Reset Enabled X (←) 0.0000 Y (←) 0.0000 Width (←) 1.0000 Height (←) 1.0000 Rotation (←) 0.00 Graph Mode: group, relative, no leader display 1 2

Fig. 41 - 2x1 grip made with Display wizard

Display coordinates are independent of the display resolution and physical aspect ratio. X and Y in display positioning point to the left bottom corner of the display.

• X and Y in layers point to center of the layer.
• When scale and scale height are 1, the layer fills the entire display.
• Layer aspect ratio control adjusts the aspect ratio of content.
• Layer scale controls layer width and height while keeping aspect ratio constant.

C.d. Calculating pixels

Drawing is done independently on all GPUs and each GPU draws only the part of the canvas that is needed by all the displays connected to that GPU. Then GPU draws one rectangular area that covers all the displays.

GPU allocates drawing area that has same resolution as all outputs combined. Output resolutions are composed in horizontal grid except for Matrox TH2GO modes 3x1080p @ 50Hz and 3x1366x768 which have vertical composition.

For example, if GPU is configured for 2 x 1280x1024 resolution, then drawing area will have resolution of 2560 x 1024. For TH2Go 3 x 1280x1024 resolution will be 7680x1024 (2 x 3 x 1280 = 7680). For vertical exceptions 3 x 1366x768 will be 4098x1536 and 3 x 1080p resolution is 5760x2160.

If the displays for GPU are positioned in canvas so that they form similar horizontal (or vertical for the exceptions mentioned before) grid, then displays will have true native resolution ^1 .

If displays have gap between them or they have different sizes then scaling will be performed and native resolution might not be archived.

To know actual pixels representing single display, first calculate the total area covered by GPU. Then for each display, multiply the display X and Y resolution by portion of the display width/height of the GPU draw area. With total width (Total_w), total height (Total_h), display size (w and h) and GPU resolution (GPU_w and GPU_h). Equation for display "real" resolution is:

$$ w i d t h: G P U _ w \times \frac {w}{T o t a l _ w} $$

$$ \text { height }: G P U _ {-} h \times \frac {h}{T o t a l _ {-} h} $$

For example, a setup has two displays with resolutions of 1280x1024.

• Display 1 has position 0.0, 0.36 and size 0.5 × 0.28 .
• Display 2 has position 0.82, 0.36 and size 0.18 x 0.10.
• Total width for GPU drawing those displays will be 1: Display 2 has rightmost point in the canvas which is position 0.82 + width 0.18 = 1.0.
• From this we subtract leftmost point, which is inside display 1 and X position is 0. So total width is 1.

Total height is computed similarly, in this case display 1 has both upper and lower limits so area height is same as display 1 height: 0.28.

Mode: individual, leader is display 2 Display Display 1 Display 2 Position Reset Enabled Yes X 0.82000 Y 0.35000 Width 0.19000 Height 0.10000 Rotation 0.90 Graph 1 GPT 1 2

Fig. 42 - Drawing area example

• GPU_w = 2_1280 = 2560
  Then:
• GPU_h = 1024
• Total_w = 1
• Total_h = 0:28
• Display 2 w = 0:18 and h = 0:10.

$$ \text { width }: 2 5 6 0 \times \frac {0 . 1 8}{1 . 0 0} = 4 6 0 $$

$$ h e i g h t: 1 0 2 4 \times \frac {0 . 1 0}{0 . 2 8} = 3 6 5 $$

The GPU draws Display 1 and 2 in the same pixel space (green area).

Display 2 will have only 460 x 365 pixels representing full display area.

Situation will be even worse in the following situation:

Media Displays Layers GPUs Pro Proj Blend Ang Display Display 1 Display 2 Position Pixel Enabled Yes X 0.86471 0.20483 Width 0.15000 Height 0.09438 Rotation 0.00 Graph Mode: Individual, Leader a display 2 GPU 1 1 2

Fig. 43 - Another example of bad performance optimization

Total area is huge compared to either display.

Common situation is for the setup display to be "control monitor" showing everything.

Note: If the control monitor is connected to a GPU that has other displays connected, resolution in those display is going to be bad. This also affects performance.

C.e. Performance

All layer that are even partially inside GPU draw area are drawn in that GPU. Videos playing on those layers have to be transferred to the GPU by PCIe bus and the layers have to be drawn. This requires lot of resources from PCIe bandwidth and GPU processing power. This is particularly troublesome in control monitor situation.

C.f. Conclusion

To get optimal performance and resolution for displays:

• Position displays that are connected to same GPU as close to each other as possible
• Avoid setups where many displays show same area of canvas

Appendix D. Picturall Pro communication protocol specifications

D.a. Locating Pro on network

Pro listens to multicast group 224.0.0.180 port 11009. When it receives message "HELLO", it responds with a UDP packet containing following data:

/**
 * Structure for Pro identification over network.
 *
 * All strings use UTF-8 character encoding and are always null terminated if
 * not otherwise specified.
 *
 * If string doesn't fit into the allocated buffer it will be silently
 * truncated, but will remain null terminated.
 *
 * bc_version is currently 1. If you get larger values, then protocol has been
 * changed and you should discard the packet and get updated specifications
 * from Picturall.
 * */
struct bcast_identity_s {
char magic[16]; // "PICTURALL SERVER" (no null termination)
uint32_t bc_version; // bcast protocol version network byte order
char ip[32]; // null terminated TP-address
char name[32]; // null terminated host name
char version[32]; // null terminated server version string
} __attribute__ ((packed));

Clients can then connect to a given IP address and use the version field for detecting compatible versions.

D.b. Connecting to Pro

Communication with Picturall Pro works through TCP/IP based telnet-like connection to Pro command line. Client starts communication by connecting to Pros IP address and port 11000. You can then send commands to Pro.

For example, you can telnet 10.0.0.1 11000 on the command line on a Windows or a Mac computer. This grants you access to the Pro command line. You can then enter config on the command line. Pro should print current version number and some internal configuration data.

When you connect to Pro you should immediately send following command:

wait\startup

This command waits until Pro startup procedure and show loading is completed. If you connect while Pro startup is still in progress you might get unexpected results or even hanging due to other commands being sent. If Pro startup is already completed when this command is given, the command will not do anything.

D.b.a. Compatibility with older versions

If you need compatibility with 1.2 series and older Pros you need to send following special hexadecimal characters: 0xFF 0xFE 0x01 0x0A. They have to be sent immediately after connection has been established (even before wait_startup command)

D.c. Control model

Pro has three layers of control abstractions: objects, controls and parameters. Objects are independent units that implement some parts of Pro's functionality. Objects usually have some user controllable parameters to control functionality. They are grouped into different controls. Controls contain any number of parameters. Parameters are basic controllable entities and they can be of different types:

• Int 64bit signed integer
• Double floating point value
• String UTF-8 string
• DoubleArray Array of floats

- Bool True / false value which is actually integer value where 0 is false and any other value is true.

One video layer in Pro consists of several objects: Source, Composer and Audio which are named sourcen, layern and audion where n is the number of the layer. Layer 1 is controlled by objects source1, layer1 and audio1.

To get description of controls on a given object you can send command ctrl_info object where object is name of the object. By sending command ctrl_info source1 a similar output is displayed:

cmd_ctrlInfo() at cmdiface.cc:2409: Control info for source1:
Control:object:0:"Object controls"
Parameter:name:String:"Object name":0:source1
Parameter:description:String:"Description of the object":0:
Control:info:0:"Media information"
r
Parameter:play_state:Int:"Play state. Like Media Mode, but this is read-only and tells the actual playback state.":1:6:0:255
Parameter:timecode:Int:"Timecode of currently playing media in nanoseconds":1:0:0:9223372036854775807
Parameter:media_length:Int:"Length of current media in nanoseconds":1:0:0:9223372036854775807
Control:selection:0:"Media selection"
Parameter:slot:Int:"Currently playing media":0:0:0:255
Parameter:collection:Int:"Currently playing media library":0:0:0:255
Control:control:0:"Media control"
Parameter:media_end_action:Int:"Media: Action to take at end of file":0:0:0:10
Parameter:play_state_req:Int:"Media: Requested play mode":0:6:0:6
Parameter:seek:Double:"Seek":2:0:0:1
Control:sync:0:"Layer synchronization"
Parameter:source:Int:"Sync source":0:0:0:255
Control:time:0:"Media timing"
Parameter:fps:Double:"Frame rate control":0:30:1:140
Parameter:relative_fps:Double:"Relative fps":0:1:0.1:2
Parameter:fps_mode:Int:"FPS mode":0:0:0:1
Parameter:effective_fps:Double:"Current effective fps":1:0:0:10000
Parameter:fps_control_allowed:Boolean:"":1:1:0:1
Control:frame_blending:0:"Frameblending"
Parameter:mode:Int:"Frameblending mode":0:0:0:1

1^st	"Parameter" text (always the same)
2^nd	Name of the parameter
3^rd	Parameter type
4^th	Parameter description
5^th	undefined
6^th	Default value
7^th	Minimum value (only for numbers)
8^th	Maximum value (only for numbers)

Table 10 - Fields in parameter descriptions
Looking at the above, you can see that there are 7 controls, although many of them are not really useful for anything but Pro internal functionality. The most interesting ones in the layer source are the info, selection and control controls. They all have parameters that define what you are currently playing back.
Parameter description contains at least 6 fields separated by ‘:’ that are defined in table 7
You can also use command ctrl_status object to see an object's current parameter values. Both ctrl_status and ctrl_info commands send their output normally as human readable text, but also as a message that is easier to parse by computers.

D.d. Parameter descriptions

Because most of the parameters are trivially understood and you can query them using the ctrl_info command, only the nontrivial parameters are described here.

D.d.a. Media Mode

Media mode parameter in Source / control describes whether the media is paused, stopped or playing. There are multiple play modes because we need to know what to do when the media is played to the end: should we loop, stop or continue to next clip.

-1	Error condition
0	Default (play loop)
1	Play next
2	Play stop
3	Play pause
4	Play loop
5	Pause
6	Stop

Table 11 - Media modes

Media modes. We have multiple play modes where the last word tells us what happens when the media is played to the end: should it loop, stop or continue to next clip

0	Additive
1	Replace
2	Subtract
3	Darken
4	Lighten
5	Multiply
6	Linear burn
7	Screen

Table 12 - Draw modes

D.d.b. Playback information

When video is playing on any layer, the source for layer actively updates Source / info control.

D.d.c. Draw modes

Layer draw mode is defined in Composer / draw_mode. Draw modes are described in table 9

D.e. Messages from Pro

Pro has specifically formatted messages that can be used to receive information about different aspects of the system.

Messages are sent together with any other output in normal Pro connection. Messages are formed as single lines in following format:

MSG(target, source, type, content)

• target: ID of message target
• source: Object ID of the sender
• type: Message type specified as number
• content: Content of message depends on message type

13	CTRL_STATUS	Control status (result of ctrl_status)
14	CTRL_INFO	Control info (result of ctrl_info)
15	ENUM_OBJECTS	Object list (result of enum_objects)
20	OVERFLOW	Message queue overflow (value 20)
24	MODEL_CHANGE_ADD	Model changed: object added (value 24)
33	CMD_SYSTEM_RESULTS	system and system_bg command results
38	CMD_SYSTEM_LINE_RESULTS	system_bg command line output

Table 13 - Message types

D.e.a. Model changed: object added

When new object is added, server sends MODEL_CHANGE_ADD message. Message has 24 as a type. Message content is the name of the added object.

D.e.b. Message queue overflow

If the client cannot keep up with the network traffic the server generates, the server will send the client a message with type 20 (message queue overflow). This message has no content. Immediately after sending this message, the server will disconnect the client to prevent server crash resulting from out-of-memory condition.

D.e.c. Control status

Control status message is generated either by directly requesting it by running command ctrl_status or by changing a parameter in control. For example, if you change layer intensity from lighting console, you should get control status message to all clients connected to Pro.

Find the object that the controls belong to by translating messages source field from number to object name as specified in section D.E

Message contents are strings that lists controls and their current values in a format that is compatible with set command. Many controls can be specified by separating them with string "\n".

Example message (linefeeds added for better readability):

MSG(100002, 176, 13, object name="source1", description="\\ninfo media_file="/picturall/media/33_CederbergWildernessArea.jpg", play_state=5, timecode=0, media_length=40000000\nselection slot=2, collection=0\ncontrol media_end_action=0, play_state_req=0, seek=0\nsync source=0\ntime fps=30, relative_fps=1, fps_mode=0, effective_fps=25, fps_control_allowed=1\nframe_blending mode=0\n)

D.e.d. Control info

Control info message is like control status except that instead of status this message sends information about objects parameters.

Message content is the parameter descriptions for object.

Example message (linefeeds added for better readability):

MSG(100002, 176, 14, Control:object:0:"Object controls"\nParameter:name:
String:"Object name":0:source1\n
Parameter:description:String:"Description of the object":0:\nControl:info:0:"
Media information"\nParameter:media_file:String:"Filename of current media":
1:\nParameter:play_state:Int:"Play state.
Like Media Mode, but this is read-only and tells the actual playback state.": 1:6:0:255\n
Parameter:timecode:Int:"Timecode of currently playing media in nanoseconds":
1:0:0:9223372036854775807\nParameter:media_length:Int:"Length of current media in nanoseconds":1:0:0:9223372036854775807\nControl:selection:0:"Media selection"\n
Parameter:slot:Int:"Currently playing media":0:0:0:255\nParameter:collection:Int:"
Currently playing media library":0:0:0:255\nControl:control:0:"Media control"\nParameter:media_end_action:Int:"Media: Action to take at end of file":0:0:0:10\nParameter:play_state_req:
Int:"Media: Requested play mode":0:6:0:6\n
Parameter:seek:Double:"Seek":2:0:0:1\nControl:sync:0:"Layer synchronization"
\nParameter:source:Int:"Sync source":0:0:0:255\nControl:time:0:"Media timing"\nParameter:fps:Double:"Frame rate control":0:30:1:140\n
Parameter:relative_fps:Double:"Relative fps":0:1:0.1:2\nParameter:fps_mode:Int:"FPS mode":
0:0:0:1\nParameter:effective_fps:Double:"Current effective fps":1:0:0:10000\nParameter:fps_control_allowed:Bool:"":1:1:0:1\nControl:frame_blending:0:"
Frameblending"\nParameter:mode:Int:"Frameblending mode":0:0:0:1\n)

D.e.e. Object list

Object list is result of enum_objects. It lists objects and their object ID:s. It is used to translate object IDs to object names.

Message content is list of all the objects in object_number:object_name format separated by \n.

Example message (linefeeds added for better readability and message is clipped):

MSG(100002, 1, 15, 101:gl_help:\n102:canvas1:\n103:artnet1:\n104:encoder:\n105:mtc:\n140:fx_info:\n175:layer1:\n176:source1:\n180:audio1:\n181:fx_11_fx1:\n182:fx_11_fx2:\n183:layer2:\n184:source2:\n188:audio2:\n189:fx_12_fx1:\n190:fx_12_fx2:\n191:layer3:\n192:source3:\n196:audio3:\n197:fx_13_fx1:\n198:fx_13_fx2:\n199:layer4:\n200:source4:\n204:audio4:\n205:fx_14_fx1:\n206:fx_14_fx2:\n207:layer5:\n208:source5:\n212:audio5:\n213:fx_15_fx1:\n214:fx_15_fx2:\n215:layer6:\n216:source6:\n220:audio6:\n221:fx_16_fx1:\n222:fx_16_fx2:\n223:layer7:\n224:source7:\n228:audio7:\n229:fx_17_fx1:\n230:fx_17_fx2:\n231:layer8:\n232:source8:\n236:audio8:\n237:fx_18_fx1:\n238:fx_18_fx2:\n239:layer9:\n240:source9:\n244:audio9:\n245:fx_19_fx1:\n246:fx_19_fx2:\n247:layer10:\n248:source10:\n252:audio10:\n253:fx_110_fx1:\n254:fx_110_fx2:\n255:layer11:\n256:source11:\n260:audio11:\n261:fx_111_fx1:\n262:fx_111_fx2:\n263:layer12:\n264:source12:\n268:audio12:\n269:fx_112_fx1:\n270:fx_112_fx2:\n271:layer13:\n272:source13:\n276:audio13:\n277:fx_113_fx1:\n278:fx_113_fx2:\n279:layer14:\n280:source14:\n284:audio14:\n285:fx_114_fx1:\n286:fx_114_fx2:\n287:layer15:\n288:source15:\n292:audio15:\n293:fx_115_fx1:\n294:fx_115_fx2:\n295:layer16:\n296:source16:\n300:audio16:\n301:fx_116_fx1:\n302:fx_116_fx2:\n303:layer17:\n304:source17:\n308:audio17:\n309:fx_117_fx1:\n310:fx_117_fx2:\n311:layer18:\n312:source18:\n316:audio18:\n317:fx_118_fx1:\n318:fx_118_fx2:\n319:citp:\n320:monitor:\n321:file_watch:\n322:stack1:\n323:stack2:\n324:stack3:\n325:cue1:\n326:gpu1:\n327:gpu2:\n328:gpu3:\n329:gpu4:\n)

In example above object source1 would have object id of 176.

D.f. Commands

D.f.a. ctrl\_status

This command displays current parameter status for given object. If the object is not specified, all parameters for all objects are displayed. Parameters are sent both as human readable format and as a message.

Examples:

ctrl_status layer30
ctrl_status source1

D.f.b. ctrl\_info

This command displays parameter information for a given object. If an object is not specified, all parameters for all objects are displayed. Parameters are sent both as human readable format and as a message.

Examples:

ctrl_info layer30
ctrl_info source1

D.f.c. enum\_objects

This command sends a list of objects defined in the Pro show. The list is sent both as human readable format and as a message.

D.f.d. loglevel

This command allows the client to specify whether debugging log messages and human readable messages from commands should be sent to this client. This command takes either "all" or "none" as argument.

D.f.e. receiving

This command controls receiving of the system messages. It takes one parameter that is either "all" or "none". receiving all orders Pro to start sending messages to the client giving the command. receiving none on the other hand stops messages from being transmitted to that client.

D.f.f. set

The 'set' command sets parameter values in given control / object combination. This command takes three arguments: First is name of the object to control, the second is control name and the third one specifies parameters and their values.

Third argument takes the form parameter=value[...] where parameter is name of the parameter belonging to selected object and value is a valid value for that parameter. Multiple parameter / value pairs can be given by separating them with comma.

Examples:

set layer14 composition x="0.3", y="0.2", intensity="0.8"
set source1 selection slot=3, collection=2

Set command also allows specifying timing for single set command. When time is specified, the set command effects are crossfaded to new values in time seconds.

Complete set command format:

set object_name ctrlname [time=<time>] paramname=pvalue[,param2name=p2val[,...]]

For example:

set layer1 composition time=1.5 intensity=0.0
set layer1 composition time=1.5 intensity=1.0, x=1.0

D.f.g. wait\_startup

This command blocks all other commands until server startup has been completed. This should be called immediately after you have connected to Pro to verify that server startup is complete before sending any commands.

D.f.h. fullscreen

This command allows you to set layer position to match given screen. It is also possible to set layer to cover list of displays.

Example:

Fullscreen layer1 4 Set layer 1 to fill display 4.
fullscreen layer2 2 5 3 Set layer 2 to fill bounding box formed by displays 2, 3 and 5.

D.g. system and system\_bg

These commands execute arbitrary command as Linux shell command. Difference between system and system_bg is that system blocks while the command is running and then gives all of the command output in one message. system_bg on the other hand runs the command on background sending one MSG for each line the command outputs as it is available.

These commands send CMD_SYSTEM_RESULTS message once the command is complete and CMD SYSTEM_LINE RESULTS for each output line.

CMD SYSTEM RESULTS has following fields that can be in any order:

• stdout Complete output from standard output
• stderr Complete output from standard error output
• exit_code Command exit code. 0 usually means success and any other value some kind of error. This depends on the command being run.
• id Unique id for this system call. Used to identify possibly overlapping output from multiple system_bg calls.
• error Error description in case of bad system call.
• success yes/no depending on whether the call succeeded.

None of the fields are mandatory except for success and that either error or exit_code must be given.

All strings have ''' and '' escaped and linefeed replaced with 'n'.

CMD_SYSTEM_LINE_RESULTS has only fields id, stdout and stderr. They behave like in CMD SYSTEM RESULTS. Id field is mandatory.

Both system calls have following structure in sending messages:

• Send CMD_SYSTEM_LINE_RESULTS to define id
• Run the command and send CMD_SYSTEM_LINE_RESULTS for each line the command outputs
• Send CMD_SYSTEM_RESULTS when the command completes

Example:

10.0.0.1 # loglevel none
10.0.0.1 # receiving all
10.0.0.1 # system ls /picturall/media/bbb
MSG(100001, 0, 38, id=3)
MSG(100001, 0, 38, id=3, stdout="bbb_sunflower_2160p_60fps_normal.mp4\n")
MSG(100001, 0, 38, id=3, stdout="bbb_sunflower_2160p_60fps_normal.mp4.thumb\n")
MSG(100001, 0, 33, success="yes", id=3, stdout="bbb_sunflower_2160p_60fps_normal.mp4\n
bbb_sunflower_2160p_60fps_normal.mp4.thumb\n", stderr="", exit_code=0)

Line wrapping has been changed in the example to increase readability.

CONTACT INFORMATION

Analog Way UK Analog Way Germany Analog Way World HQ Paris Analog Way Italy Analog Way Dubai Analog Way Asia HQ Hong Kong Subsidiary Analog Way Americas HQ Atlanta Subsidiary

The Americas

be, Middle East & Africa

Asia Pacific

Analog Way SAS - Headquarters

Toll free: [phone]

Analog Way Ltd

Tel.: [phone]

Sales/General information:

[e-mail]

Technical support:

[e-mail]

Sales/General information:

[e-mail]

Technical support:

[e-mail]

Unit 2705-06, 27/F, Tung Seng

Commercial Building,

69 Jervois Street

Sheung Wan, Hong Kong

Sales/General information:

[e-mail]

Technical support:

[e-mail]
