Product Type	Multi-function Stainless Steel Built-in Oven
Brand	Logik
Model	LBMFMX14
Overall Dimensions (WxDxH)	595 x 575 x 595 mm
Weight	32 kg
Power Supply	230-240V~ 50Hz, 2600-3100 W, 13-14 A
Energy Class	A
Energy Consumption (Conventional)	0.85 kWh/cycle
Energy Consumption (Fan Forced)	0.79 kWh/cycle
Oven Volume	65 litres
Temperature Range	50-250°C
Timer Control	0-120 minutes (minute minder & automatic oven timer)
Cooking Functions	Rapid Preheating, Defrost, Faster Grilling, Enhanced Grilling, Grilling, Lower Heating, Static Cooking, Convection Heating, Fan, Convection with Lower Heating
Oven Lamp	25 W, E14, 300°C
Number of Cavities	1
Accessories Included	2 Oven Shelves, Grill Pan, Grill Rack, Grill Pan Handle, Fixing Screws
Installation Type	Built-in
Minimum Cabinet Size (WxDxH)	560 x 560 x 600 mm
Safety Features	Child safety (8+ with supervision), auto shut-off, requires double-pole isolation switch
Cleaning Instructions	Hand wash shelves; wipe interior with mild detergent; do not use abrasive pads or steam cleaners
Spare Parts Availability	Contact Partmaster (UK) at 0344 800 3456 or visit partmaster.co.uk

Frequently Asked Questions - LBMFMX14 Logik

How do I set the timer for automatic cooking?

Turn the timer control clockwise to select the desired cooking time (0-120 minutes). Then set the oven function and temperature. The oven will turn off automatically when the time elapses and an alarm will sound.

Why is my oven not heating up after setting the timer?

If the timer is set to automatic mode, the oven will not operate until the timer is set. Ensure the timer dial is turned to the manual symbol () if you want to use the oven without automatic shut-off.

Can I use aluminium foil inside the oven?

No, never line the oven with aluminium foil as it may cause overheating. Do not place dishes directly on the oven base.

How do I clean the oven door glass?

Remove the door, then remove the plastic vent panel with a flat screwdriver. Take out the glass panels and clean with appropriate glass cleaner. Avoid abrasive cleaners or metal scrapers to prevent shattering.

How do I replace the oven lamp?

Ensure the oven is off and cool. Switch off the isolation switch. Remove the lamp cover, unscrew the old bulb anti-clockwise, and replace with a 25W, E14, 300°C bulb. Re-fit the cover.

What are the recommended shelf positions for grilling?

For grilling, place the shelf on the highest position (guide 5) to ensure a minimum distance of 30mm between food and the upper heating element.

How do I use the defrost function?

Place frozen food on a shelf in the 3rd guide slot from the bottom. Put an oven tray underneath to catch water from melting ice. This function does not cook or bake, only defrosts.

What electrical connection is required?

A qualified electrician must install a fused double-pole isolation switch with 3mm contact separation. Use a cable of minimum H05VV-F 3x4mm². The appliance must be earthed.

Can children use this oven?

Yes, children aged 8 years and above can use the oven if supervised and instructed on safe use. Young children should be kept away as the oven becomes hot.

How do I save energy while using the oven?

Cook multiple dishes together, keep pre-heating short, avoid opening the door during cooking, and turn off the oven at the end of cooking. Use the fan function for even heat distribution at lower temperatures.

USER MANUAL LBMFMX14 Logik

Multi-function Stainless Steel Built-in Oven

LBMFMX14

Contents

Safety Warnings....4

Unpacking....6

Installation....7

Installing the Built-in Oven 8

Making an Electrical Connection....9

Terminal Box Connections 9

Product Overview....10

Front View 10

Control Panel....10

First Time Use of the Oven/Grill....11

Thermostat Control 11

Using the Oven 11

Replacing the Anti-tilting Oven Shelf 12

Using the Timer Control 12

Using the automatic timer function 12

Using the Functions and Temperature Controls 13

Function Selector Control....14

Thermostat Control 14

Cleaning Tips....15

Cleaning the Outside of the Oven 15

Cleaning the Oven Door Glass....15

Replacing the Oven Lamp....16

Door Removal 16

Taking out the Glass from the Oven Door for Cleaning....17

Energy Saving Tips and Energy Label 18

- Main Oven....18

Product Fiche and Specifications 19

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• It is recommended that this appliance is installed by a qualified electrical engineer. The manufacturer is not responsible for any damage caused by incorrect installation.
• Check whether there is any damage to the appliance after you have unpacked it. If any damage is found, do not use the appliance and contact the store where you purchased it. • This appliance is for Domestic Use only.
• For disconnection from the mains supply you must have a switch with a contact separation of at least 3.0 mm in all poles and suitably rated that provides full disconnection, this must be incorporated in the fixed wiring in accordance with the local wiring rules.
• If your mains cable gets damaged, it should be replaced by an authorized service agent or qualified electrician in order to avoid a hazard. • Only operate your appliance in a dry atmosphere.
• Ensure that the appliance is switched off at the mains supply switch and allowed it to completely cool down before cleaning, replacing the oven lamp or performing any maintenance to avoid the possibility of an electric shock.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• During use the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven.
• The appliance and its accessible parts become hot during use. Young children should be kept away.
• Danger of fire: Do not store items in the oven other than the accessories supplied.
• When the oven is hot never touch the oven glass or any other parts that get hot. Allow the oven to cool before touching these parts.
• Do not use harsh abrasives, cleaners, or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in the glass shattering.
• Before starting to use your appliance, keep curtains, tulle, paper, or flammable materials away from your appliance. Do not keep combustible or flammable things in or on the appliance.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
• Do not use steam cleaners for cleaning the appliance.
• Do not rest any items on or stand on the open door. Take care when handling parts with glass; knocks, chips, heavy handling, and dropping could cause the glass to shatter.
• The glass oven door uses toughened glass and is designed to break into many 'nugget' size pieces if it breaks. These pieces will still have sharp edges, please handle broken glass with care.

Thank you for purchasing your new Logik Multi-function Stainless Steel Built-in Oven. You must read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it, please do so according to local regulations.

The following items are included:

The Main Unit

Oven Shelf x 2

Grill Pan x 1, Grill Rack x 1, Grill Pan Handle x 1

Fixing Screws x 4

If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

* All images are for indication only; please refer to your individual unit for actual item.

Installation

• The electrical connection of this oven should be carried out by a qualified electrician. Follow the instructions in the installation section of this manual and comply with current regulations. • The oven is intended for household use only.

• This oven must be installed in compliance with local safety regulations. - Wiring connections must be in accordance with Local Wiring Rules and any particular conditions of the local authority. - Refer to the data plate for rating information. The data plate is positioned on the rear of the oven. The wiring diagram is positioned on the rear panel of the appliance. - A means of disconnection with a contact separation of at least 3mm must be supplied in the fixed wiring. If this does not exist, a qualified electrician will need to fit one. • This appliance must be properly earthed. - Do not lift the appliance by the door handles. • Prepare the cupboard opening to match your appliance measurements. (See diagrams) - Slide appliance into the cupboard, ensuring that the mains cable (where fitted) does not kink. - To prevent tipping, secure your oven into the cupboard by fastening with the 2 screws supplied. - The cabinet must be suitable for use with built-in ovens and capable of withstanding 100°C. Installation into low temperature tolerant cabinetry (e.g. Vinyl coated) may result in deterioration of the low temperature coating by discolouring or bubbling. - Ensure the cabinet is rated at a temperature suitable for built-in ovens. We cannot accept responsibility for damage caused by installation into low temperature tolerant cabinets. • After installation, test and ensure that the appliance operates correctly.

To avoid any potential hazard, you must follow these instructions when you install your appliance.

Installing the Built-in Oven

1. The space where the oven will be placed needs to be at least 560mm wide, 560mm deep and 600mm high. A minimum gap of 2.5cm between the work surface and the control panel, and a distance of 5cm between the work surface and top of the oven is needed, in order to be able to get to the back of the oven if necessary and for easy access when sliding the oven out.

1. Ensure the electrical connections have been made.
2. Once the oven has been positioned into the gap, the front frame of the oven can be secured to the surrounding kitchen unit using the mounting screws.

Insert the oven into the cabinet by pushing it back into the space within the cabinet. Open the oven door and insert the screws into the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

8 * All images are for indication only; please refer to your individual unit for actual item.

Making an Electrical Connection

An approved suitable cable must be connected from the Consumer Unit (main fuse box) and be protected by its own 30amp fuse or Micro Circuit Breaker (MCB).

The electrician must provide a fused double-pole isolation switch, which disconnects both the line (live) and neutral conductors, with a contact separation of at least 3 mm incorporated into the fixed wiring. The fused switch should be fitted to the kitchen wall, and must be placed in an easily accessible position in accordance with IEE regulations. Connect the fused switch to a junction box which should be fitted on the wall. The oven's power supply cable can then be connected. Connect one end to the junction box and connect the other end to the oven's power connection box which is located at the back of the oven. Remove the cover of the power connection box and install the cable, in accordance with the connection diagram. The power supply cable must be positioned away from direct heat sources. It should not be subjected to a temperature rise of more than 50°C above room temperature.

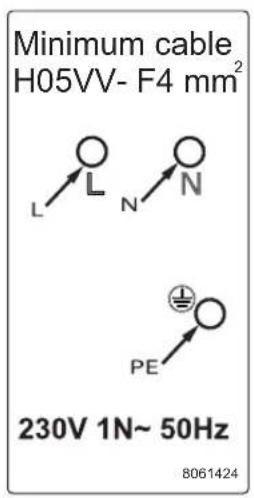

Terminal Box Connections

For this oven, the cable type must be a minimum of H05VV-F (PVC insulated and sheathed) 3 cores x 4mm² and the connection should be made as detailed below.

This appliance must be earthed.

Green / Yellow (Earth) to the PE ⏻ terminal. Brown (Live) wire to the terminal marked L. Blue (Neutral) wire to the terminal marked N.

Ensure the cable exits through the cable grip clamping on the outer sheath of the cable and fix in place by tightening the fixing screw.

Ensure all screws are adequately tightened. Do not over tighten as you may risk damaging the screw threads.

Grounding lead must be connected to screw with symbol.

Product Overview

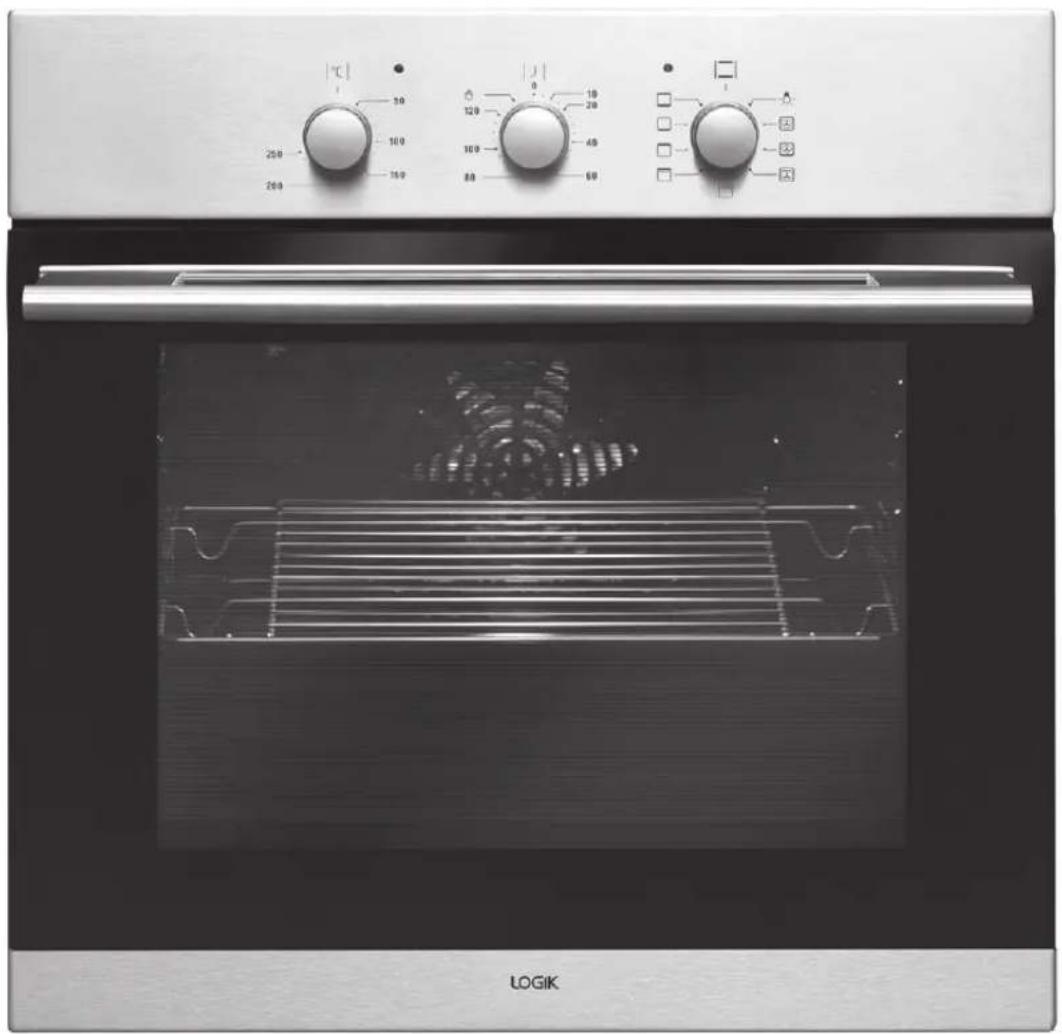

Front View

1. Control Panel
2. Fan
3. Shelf guide slots
4. Oven shelf

Control Panel

1. Thermostat Control
2. Timer
3. Function Selector Control
4. Thermostat Lamp
5. Oven Indicator Lamp

First Time Use of the Oven/Grill

• Unpack the oven. Remove any insert cards or plastic bags. Use a damp cloth to carefully wipe the inner cavity wall and housing. Clean all the detachable parts in hot, soapy water before using.
• Ensure the appliance is installed correctly before turning it on.
• Heat the appliance on maximum, making sure the room is well ventilated as there may be a little smoke and odour. This is normal, and is due to the protective substance on the appliance which protects it during shipping from the factory. Switch the appliance off once the smoke and odour has stopped. This can take up to 30 minutes.

If the time has not been set or a cooking program has been set on the digital timer, the oven will not operate. If the oven fails to function, please ensure the timer is set correctly.

Thermostat Control

The temperature can be set from 50°C to 250°C. Select the desired temperature as follows:

To keep food warm 50 - 100°C position
For traditional oven cooking 50 - 250°C position
For all types of grilling 190°C position

Using the Oven

• Under no circumstances should the oven be lined with aluminium foil as overheating may occur. - Do not place dishes or baking trays directly onto the base of the oven as it becomes very hot and damage may occur. - Bread may catch fire if the toasting time is too long. Close supervision is necessary during toasting. - During use, this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g., oven door, heating elements. - Accessible parts may become hot when in use. Children should be kept away. - Do not leave the handle in position when grilling. If the handle is left in position when grilling, it will get very hot.

• To get the best results, the smallest distance allowed between the food and the upper heating element is 30mm.

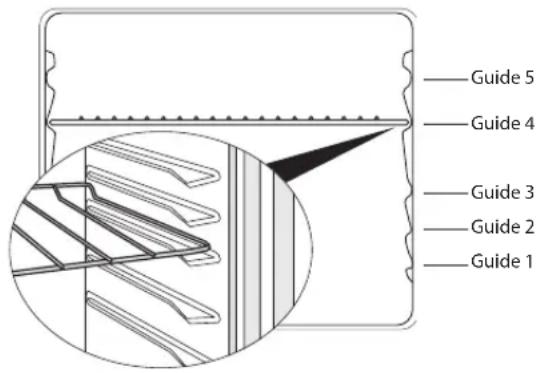

• On the wall of the inner cavity there are 5 different shelf guide slots. You can place the shelf at different heights to achieve the best cooking performance depending on the heat of the heating elements and the size of the food. If only the upper heating element is on, we suggest that you place the shelf on guide 5 (ensure a minimum distance of 30mm between the food and the upper heating element).

* All images are for indication only; please refer to your individual unit for the actual item.

• Always monitor the food during cooking to ensure that you are not overcooking it. • For heavy food, use an oven tray (not supplied) rather than the wire shelf. - Select the oven function you require. Select the temperature you require. • Before placing food in the oven you may need to pre-heat the oven for 10 minutes. • The temperature light will go out when the chosen temperature has been reached. • To switch the oven off, turn the function control dial to the off position '0'.

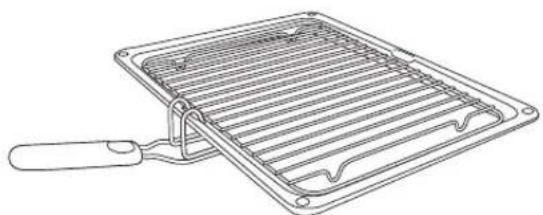

Using the Grill

• Place the grill pan on an oven shelf at your desired height; the smallest distance allowed between the food and the grill element is 30mm.
• When using the grill, remove the handle and close the door. Do not leave unattended whilst grilling. • Use the supplied handle when removing the grill pan.
• The grill pan has a detachable handle. Ensure when using the grill pan handle that it is centralised and secure as shown.

Replacing the Anti-tilting Oven Shelf

• Insert the shelf at an angle with the vertical section to the rear to clear the stops at either side of the guide slot. Once past this stop, the shelf can be placed level again.
• To remove, completely angle the shelf upward so the shelf stop is cleared from the guide stop.

Using the Timer Control

The timer control can be used as either a minute minder or an automatic oven timer function and can be set at any time between 0 and 120 minutes. An alarm bell will sound once the time has elapsed.

• To use the timer control as an automatic oven timer function, turn the dial clockwise to select the desired time.
• To use the timer as a minute minder, turn the dial anti-clockwise past the symbol to select the desired time.
• To use the oven without the automatic oven timer the control must be turned to the manual symbol 🔊

The oven must be set to the position to be used manually.

Using the automatic timer function

1. Set the cooking function and temperature required.
2. Turn the timer control clockwise to select the cooking time.
3. The alarm bell will sound and the oven will automatically switch off when the cooking time has elapsed.

Using the Functions and Temperature Controls

Symbol Function Description
	The oven light will be turned on.
	Rapid PreheatingUse this function to heat the oven quickly.
	Defrost FunctionTo use the defrost function, place your frozen food in the oven on a shelf placed in the 3rd guide slot from the bottom. Place an oven tray under the defrosting food, to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.
	Faster Grilling FunctionThis function is used for faster grilling and for covering a larger surface area, such as grilling meats, which tend to take up more room on a grilling rack. The grill pan and rack should be used together to catch the drips of oil or fat.
	Enhanced Grilling FunctionThis function increases the temperature in the top part of the oven', which makes it suitable for browning and roasting larger portions of food. The grill pan and rack should be used together to catch the drips of oil or fat.
	Grilling FunctionThis function is used for grilling foods such as cheese on toast, always use the highest shelf. Lightly brush the grill rack with oil to stop foods sticking and place the foods in the centre. The grill pan and rack should be used together to catch the drips of oil.
	Lower Heating FunctionThis function uses only the lower element and can be used for baking cakes.
	Static Cooking FunctionThe static cooking function emits heat, ensuring even cooking of the lower and upper food, this is an excellent function for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended.
	Convection Heating FunctionThis function ensures that heat is evenly dispersed throughout the oven, allowing lower baking temperatures to be used.
	Fan FunctionThis function is very good for pastry baking. Cooking is carried out by the lower and upper heating element within the oven and by the air circulation device, which will give a slight grill effect to the food. The fan evenly disperses the heat of the oven.
	Convection Heating with Lower Heating Element FunctionThis function increases the temperature at the bottom of the oven and is useful for baking pizzas and cakes.

Function Selector Control

This control is used to select the available cooking functions, which are:

Symbol
Oven Light	●	●	●	●	●	●	●	●	●	●	●
Oven Indicator Light	●	●	●	●	●	●	●	●	●	●	●
Thermostat Indicator Light		●		●	●	●	●	●	●	●	●
Thermostat		●		●	●	●	●	●	●	●	●
Fan		●	●	●						●	●
Upper Heating Element		●		●	●				●	●
Lower Heating Element								●	●	●	●
Grill Element		●		●	●	●	●
Ring Element									●		●

Thermostat Control

The temperature can be set from 50°C to 250°C. Select the desired temperature, as follows:

To keep food warm 50 - 100°C position
For traditional oven cooking 50 - 250°C position
For all types of grilling 190°C position

Cleaning Tips

Ensure that the appliance is switched off and isolated before cleaning the oven to avoid the possibility of electric shock.

1. Allow the oven to fully cool before cleaning. Remove the wire shelves, wash them separately in hot soapy water and dry thoroughly.
2. Wash the interior of the oven with hot soapy water and wipe down with a damp cloth.
3. Leave the door open until the interior has dried, before replacing the wire shelves.
4. Clean the oven after each use, especially after roasting or grilling, this will prevent spilt or splattered food debris burning and becoming difficult to remove.
5. Do not use abrasive pads to clean the interior of the oven as this may remove the enamel, which will affect the efficiency of your oven.
6. Steam cleaners must never be used to clean this oven.

Cleaning the Outside of the Oven

1. You should regularly wipe over the control panel and oven door using a soft cloth and liquid detergent as spilt liquids may damage the finish.
2. Wash enamelled or chrome plated parts of the oven with hot soapy water or with non-abrasive detergents.
3. Never use abrasive pads to clean enamelled, chromed or stainless steel surfaces.
4. When using commercially available stainless steel cleaning products, avoid cleaning any lettering or symbols, as they can become damaged.

Cleaning the Oven Door Glass

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they scratch the surface, which may result in shattering of the glass.

Take care when handling parts with glass, knocks, chips, heavy handling and dropping could cause the glass to shatter.

Replacing the Oven Lamp

Ensure that the appliance is switched off before replacing the light to avoid the possibility of electric shock.

1. Turn off the oven and make sure that it is cold. Switch off its isolation switch.
2. After removing the cover in front of the light, take out the bulb by turning anti-clockwise.
3. Insert the new bulb, which should be resistant to 300°C. For replacement bulbs contact your local service centre or Partmaster Direct (details at the back of this guide).
4. Re-fit the cover.
5. If in any doubt, consult a qualified electrician for help.

Bulb specifications

230V~50 Hz, 25W, E14

Door Removal

• Take care when handling parts with glass, knocks, chips, heavy handling and dropping could cause the glass to shatter. - Allow the door to cool down before removing it.

It is possible to remove the door. Follow the steps below to remove the door. This may be required if easier access to the cavity is required or if you wish to clean the door parts.

1. Open the door completely.

1. The swivel retainers of the right hand and left hand hinges are hooked onto the metal bar above them. Lift the retainers as shown.

* All images are for indication only; please refer to your individual unit for actual item.

1. Slightly close the door and lift. The notch on the bottom of the hinge will disengage.
2. Now pull the door forward off the oven. Releasing both hinge sections from the slots.

To replace the door, repeat the above steps in reverse order. Ensure to locate the hinge correctly, place the groove of the hinge directly on the edge of the door frame. Push forward the swivel retainers to the original position and gently close the door. If the door does not close properly, repeat the steps again.

Taking out the Glass from the Oven Door for Cleaning

1. Remove the oven door.
2. Use a flat headed screwdriver to remove the plastic vent panel from the top edge of the door. Gently insert the screwdriver into the side of the strip and prise it out.

* All images are for indication only; please refer to your individual unit for actual item.

1. Remove the inner glass panel by pulling it out from the locating tabs at the bottom, then lifting it out. Note which side of the glass faces outwards (the outer side has the printing on it).

1. Remove the middle glass panel, pulling it out of the locating tabs at the bottom and noting where the spacers are positioned. These can be removed to clean the glass, but must be replaced in the correct positions.

1. Clean the glass using appropriate glass cleaning products.
2. Replace the middle glass panel by placing it back into the locating tabs at the bottom and repositioning the spacers.
3. Replace the outer glass panel by placing it back under the two locating tabs at the bottom.
4. To replace the vent panel, first insert the left side, then insert the right side and press until it clicks into position. Press in the left side until it clicks.
5. Ensure the glass is not damaged in any way.

Energy Saving Tips and Energy Label

Main Oven

• Cook the meals together, if possible. - Keep the pre-heating time short. • Do not elongate cooking time. - Do not forget to turn off the oven at the end of cooking. - Do not open the oven door during cooking.

Product Fiche and Specifications

Brand Logik
Model LBMFMX14
Type of Oven Electric
Mass 32Kg
Energy Efficiency Index - Conventional 106.9
Energy Efficiency Index - Fan Forced 106.9
Energy Class A
Energy Consumption (electricity) - Conventional 0.85 kWh/cycle
Energy Consumption (electricity) - Fan Forced 0.79 kWh/cycle
Number of cavities 1
Heat Source Electric
Volume 65 litres
This product complies with EN 60350-1
Overall Dimension (WxDxH)	595(W) x 575(D) x 595(H) mm
Oven Lamp	25 W, E14, 300°C
Supply Voltage	230V - 240V~ 50 Hz
Power (electricity)	2600 – 3100 W
Current 13 – 14 A
Top Element	900 W
Bottom Element	1000 W
Grill	2900 W
Fan	60 W
Noise (dB(A) re 1 pW)	51

Features and specifications are subject to change without prior notice.

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0344 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only). Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

DSG Retail Limited (Registered in England No. 504877) Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK

IB-LBMFMX14-150323V2
