Brand	Elysee
Model	Stentor 13272
Product Type	Wristwatch
Movement Type	Quartz (compatible with Citizen/Miyota, Ronda, Seiko/TMI, ETA/Valjoux)
Case Material	Stainless steel (typical)
Case Diameter	Approx. 40 mm (typical men's size)
Case Thickness	Approx. 10 mm (typical)
Weight	Approx. 80 g (with bracelet)
Water Resistance	3 ATM (splash/rain resistant); refer to case back for exact rating
Crown Positions	0 (normal), 1 (date), 2 (time)
Functions	Time, date, chronograph (start/stop/reset)
Battery Type	SR626SW or equivalent (depending on movement)
Warranty Period	2 years from date of purchase
Country of Manufacture	Germany (Düsseldorf)
Crystal Material	Mineral (typical)
Band Material	Stainless steel or leather (not specified)
Clasp Type	Deployment clasp or buckle (typical)
Luminous Hands	Likely yes (typical for Elysee)
Date Display	Analog at 3 o'clock (typical)
Chronograph Subdials	Small seconds, 30-minute counter, 1/10 second (typical)

Frequently Asked Questions - Stentor 13272 Elysee

How do I set the date on my Elysee Stentor 13272?

Pull the crown out to position 1 and turn it counterclockwise (for Citizen/Miyota and Ronda) or clockwise (for Seiko/TMI) to set the previous day's date. Then pull to position 2 and advance the hour and minute hands until the date changes to the current date. Set the time and push the crown back to position 0.

How do I set the time?

Pull the crown out to position 2 and turn it clockwise (or in the direction needed) to set the current time. Push the crown back to position 0.

How do I use the chronograph?

Press Pusher A to start/stop timing. Press Pusher B to reset the chronograph hands to zero after stopping. You can repeat start/stop as needed.

What should I do if the chronograph hands are not at zero?

Pull the crown to position 2. Depending on movement: for Citizen/Miyota, press Pusher A to reset the second hand; for Ronda, press both pushers for 2 seconds then adjust; for Seiko/TMI, press Pusher B for 2 seconds; for ETA/Valjoux, see manual. After adjustment, push crown back to 0.

What water resistance rating does my watch have?

The water resistance is indicated on the case back. Common ratings are 3 ATM (splash-resistant), 5 ATM (not suitable for swimming), 10 ATM (swimming/snorkeling), or 20 ATM (diving). For this model, it is typically 3 ATM but check your watch.

How long is the warranty period?

Your Elysee Stentor 13272 comes with a 2-year warranty from the date of purchase against manufacturing defects. Excludes bracelet, glass, battery, and damage from unauthorized access.

How do I reset the date after a short month?

On the first day of a month following a month with less than 31 days, you need to manually correct the date by pulling the crown to position 1 and adjusting it to the current date.

What type of battery does my watch use?

The battery type depends on the movement. Common is SR626SW. For exact type, refer to the movement calibre printed on the case back or consult a professional.

Can I set the day and date between 9 PM and 3 AM?

For ETA/Valjoux movements, avoid setting the weekday and date between 21:00 and 03:00 as this may damage the clockwork. For other movements, it is generally safe but best to avoid if unsure.

Where can I get my watch repaired under warranty?

Send your watch with the original receipt to: ELYSEE Uhren GmbH, Heerdter Lohweg 212, 40549 Düsseldorf, Germany. Contact [e-mail] or call [phone] for questions.

USER MANUAL Stentor 13272 Elysee

Settings for CITIZEN/MIYOTA movement .....26

Settings for RONDA movement 30

Settings for SEIKO/TMI movement 34

Settings for ETA/VALJOUX movement 38

Water resistance 41

Warranty and guarantee 42

Environmental note and disposal 43

Since 1960 ELYSEE stands for classic watchmaking and finest watch design. Here in Düsseldorf, we are producing high quality time pieces – Made in Germany. A constant motivation to do even better, is for the entire team living company philosophy:

"At the heart of our work is the sum of design, quality and great value for money, of course, connected with the varied desires of watch lovers."

We would like to congratulate you on your new ELYSEE and we hope that you will enjoy it.

With best regards, your ELYSEE team

SETTINGS FOR CITIZEN/MIYOTA MOVEMENT

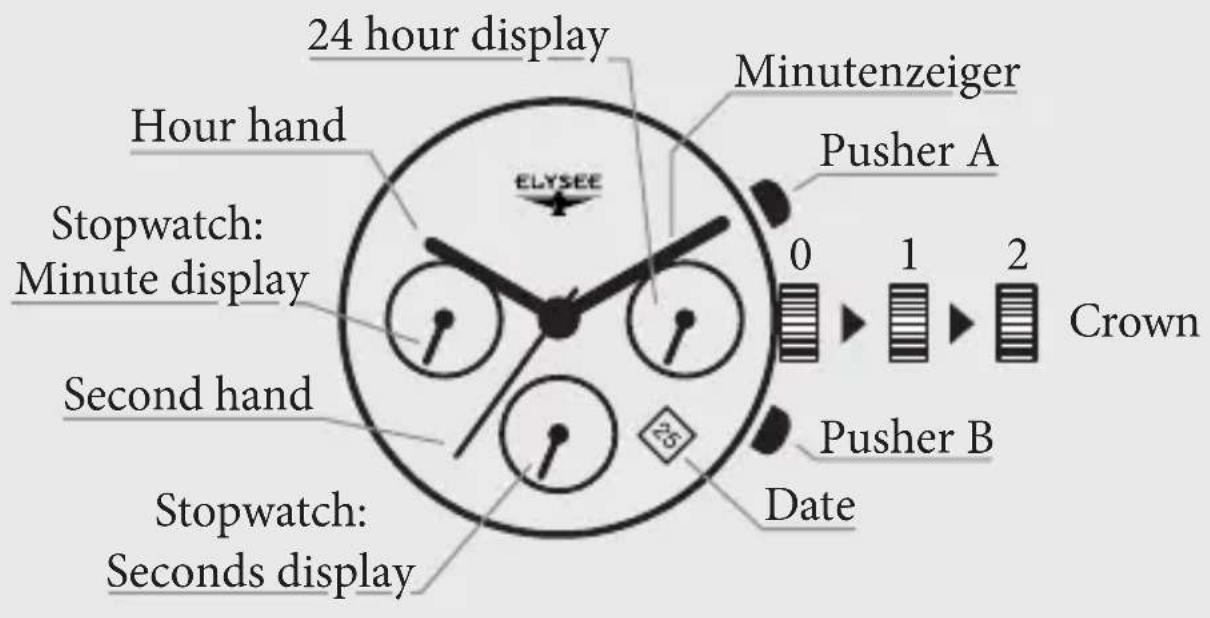

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

Setting the date

1. Pull the crown out to position 1 and turn the crown counterclockwise to set the date of the previous day.
2. Pull the crown out to position 2. To ensure that the indication of the date will not change at noon, turn the hour and minute hands forward until the indication of the date changes to the current date.
3. By turning the crown, set the hour and minute hand to the current time.
4. Push the crown back to its normal position (0).

Setting the time

1. Pull the crown out to position 2 and turn the crown clockwise to set the current time.
2. Push the crown back to its normal position (0).

The date must be reset on the first day of each month following a month with less than 31 days.

USE OF THE CHRONOGRAPH

1. By pressing Pusher A, the stopwatch is started or stopped. The stop operation can be continued or stopped by pressing the Pusher A again.
2. Once the Pusher B is pressed, the stopwatch is reset if the time measurement has been stopped.

Example:

1. Pusher A = start time measurement
2. Pusher A = stop time measurement and read the time
3. Pusher A = resume time measurement
4. Pusher A = stop time measurement and read the time again
5. Pusher B = The hands of the chronograph return to their zero position

RESET THE CHRONOGRAPH

You should always carry out a reset, if the second hands won't be in their correct zero position or every time after changing the battery.

1. Pull out the crown into position 2.
2. By pressing the Pusher A you can reset the second hand of the Chronograph to position "0".
3. After being back exactly on zero position, please adjust the time and pull back the crown into its normal position.

Do not press the crown back into its normal position while the chronograph's second hand is not yet in the right zero position. Otherwise, the chronograph assumes the intermediate position as the zero position.

SETTINGS FOR RONDA MOVEMENT

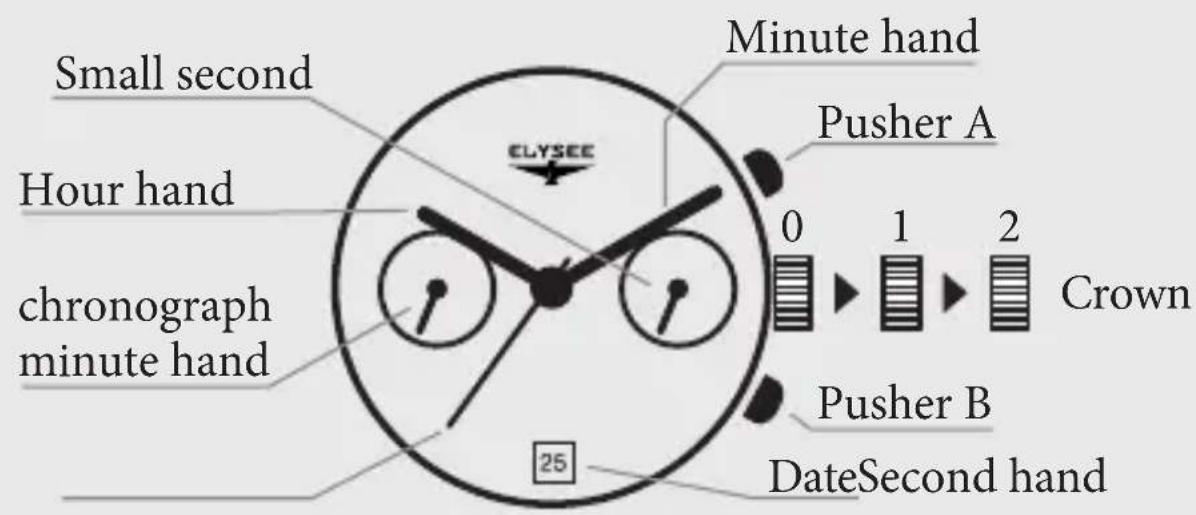

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

Setting the date

1. Pull the crown out to position 1 and turn the crown counterclockwise to set the date of the previous day.
2. Pull the crown out to position 2. To ensure that the indication of the date will not change at noon, turn the hour and minute hands forward until the date changes to the current date.
3. By turning the crown, set the hour and minute hand to the current time.
4. Push the crown back to its normal position (0).

Setting the time

1. Pull the crown out to position 2 and turn the crown to set the current time.
2. Push the crown back to its normal position (0).

The date must be reset on the first day of each month following a month with less than 31 days.

USE OF THE CHRONOGRAPH

Chronograph: Basic function (Start / Stop / Zero)

1. Press the Pusher A to start or stop the time measurement. The stop operation can be continued or stopped by pressing the Pusher A again.
2. Pressing the Pusher B once resets the chronograph hands back to their zero positions, if the time measurement has been stopped before.

Other time measurements are also possible. For further information please visit www.elysee-watches.com

RESET THE CHRONOGRAPH

One or more chronograph hands are not in theirs correct zero positions and must be aligned (e.g. after battery change).

Alignment of the chronograph pointer to the zero position

1. Pull the crown to position 2. (All chronograph hands move to their correct or incorrect position.)
2. Press the Pushers A and B simultaneously for at least 2 seconds. The correction mode is activated when the second hand rotates 360^ .
3. Now press Pusher A (1 x short = single steps, long = continuous) to adjust the alignment of the hands.
4. Move to the next hand by pressing Pusher B. Repeat steps 3 and 4 until you have set all hands to the correct zero position.
5. Push the crown back to its normal position (0).

SETTINGS FOR SEIKO/TMI MOVEMENT

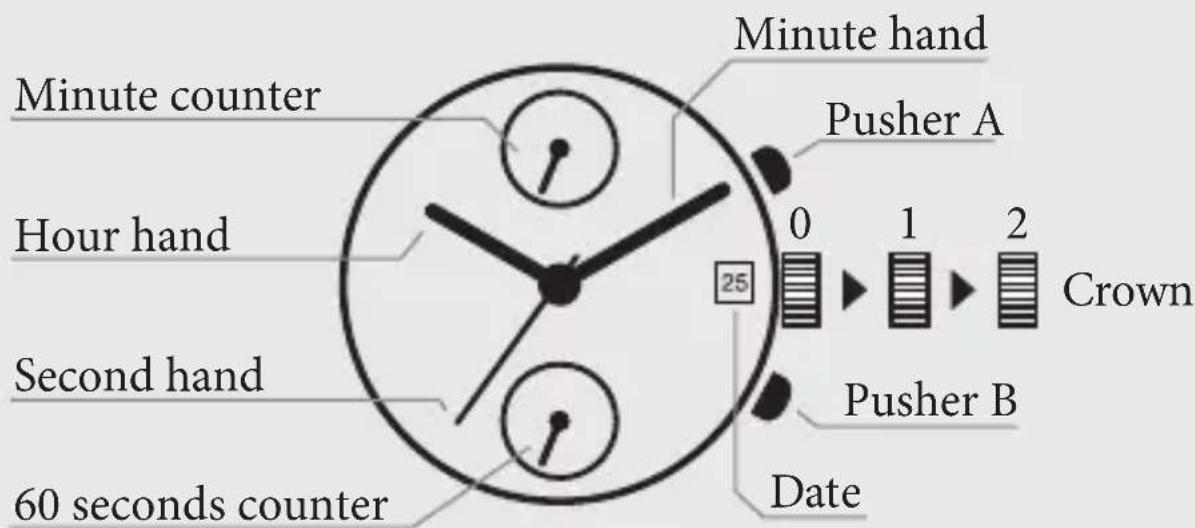

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

Setting the date

1. Pull the crown out to position 1 and turn it clockwise to set the date of the previous day.
2. Pull the crown out to position 2. To ensure that the date display does not switch at noon, turn the hour and minute hand forward until the display changes to the current date.
3. Set the current time by turning the crown and check whether the current time is before or after noon.
4. Push the crown back to its normal position (0).

Setting the time

1. Pull the crown out to position 2 and turn it to set the current time. Note that the current time is before or after noon.
2. Press the crown back to its normal position (0).

USE OF THE CHRONOGRAPH

Chronograph: Basic function (Start / Stop / Zero)

1. Press the Pusher A to start or stop the time measurement. The stop operation can be continued or stopped by pressing the Pusher A again.
2. Pressing the Pusher B once resets the chronograph hands back to their zero positions, if the time measurement has been stopped before.

Other time measurements are also possible. For further information please visit www.elysee-watches.com

RESET THE CHRONOGRAPH

One or more chronograph hands are not in theirs correct zero positions and must be aligned (e.g. after battery change).

Alignment of the chronograph pointer to the zero position

1. Pull the crown out to position 2.
2. Press the Pusher B for two seconds and release the Pusher.
3. Push the crown back to its normal position (0).

The small second hand will move at two-second interval for 10 seconds as a demonstration. If the crown is operated within these 10 seconds, the two-second interval movement will not be activated.

SETTING FOR ETA/VALJOUX MOVEMENT

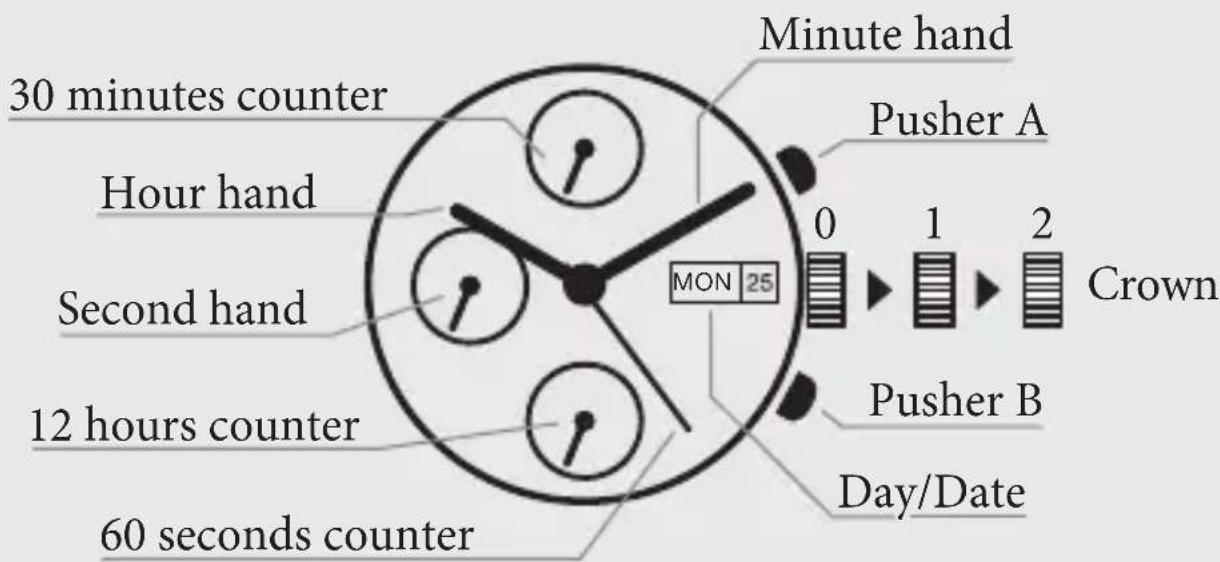

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

Setting the day and date

1. Pull the crown out to position 1 and turn it clockwise to set the indication of the date of the previous day. Rotate the crown counterclockwise to set the indication of the day of the previous day.
2. Pull the crown out to position 2. To ensure that the indications will not change at noon, turn the hour and minute hands forward until the day and date change to the current day and date.
3. By turning the crown, set the hour and minute hand to the current time.
4. Push the crown back to its normal position (0).

Setting the time

1. Pull the crown out to position 2 and turn it to set the current time.
2. Press the crown back to its normal position (0).

Please do not set the weekday and date display between 21:00pm and 03:00am, otherwise damage to the clockwork may occur.

USE OF THE CHRONOGRAPH

1. Pressing Pusher A starts or stops the stopwatch. The stop operation can be continued or stopped by pressing the Pusher A again
2. Once the Pusher B is pressed, the chronograph's hands are reset to theirs zero positions, but only if the time measurement has been stopped first.

Example:

1. Pusher A = start time measurement
2. Pusher A = stop time measurement and read the time
3. Pusher A = resume time measurement
4. Pusher A = stop time measurement and read the time again
5. Pusher B = The hands of the chronograph return to theirs zero positions

WATER RESISTANCE (DIN 8310)

3 ATM Resistant to splashes, sweat and rain drops

5 ATM Waterproof, but not suitable for swimming

10 ATM Suitable for swimming or snorkeling

20 ATM Suitable for swimming, snorkeling and diving

The details of the water resistance can be found on the case back of your watch.

WARRANTY AND GUARANTEE

Your ELYSEE has a warranty of 2 years from the date of purchase against all manufacturing defects. This excludes the use of bracelet, glass, battery and damage caused by unauthorized access.

Should you need the warranty or a repair, please send your ELYSEE with the original receipt to the following address:

ELYSEE Uhren GmbH

Heerdter Lohweg 212

40549 Düsseldorf

Germany

Should you have any questions regarding the service processing, please do not hesitate to contact us by phone [phone] or just write an e-mail to [e-mail].

ENVIRONMENTAL NOTE AND DISPOSAL

Some products are made of high quality materials and parts that can be recycled and reused. Therefore, at the end of their service life, they must not dispose of the product via household waste. Disposal must be in accordance with the applicable directives for WEEE. Please dispose of the products at a local collection point for waste electrical and electronic equipment.

As a consumer you are legally obliged by the battery regulation to return all used batteries and accumulators. Disposal in household waste is prohibited. You can dispose of used batteries free of charge at the collecting points of your municipality and everywhere where batteries are sold.

With the recycling of old equipment and the proper disposal of batteries / accumulators, you make an important contribution to the protection of our environment.
