Sithon Automatic Calendar 13297 - Montre-bracelet Elysee - Free user manual and instructions

Product Type	Wristwatch
Brand	Elysee
Model	Sithon Automatic Calendar 13297
Movement Type	Automatic (self-winding)
Functions	Hour, minute, second, day of the week, date
Crown Type	Push-pull (screw-down on some models)
Water Resistance	3 ATM (splashes), 5 ATM (rain), 10 ATM (swimming), 20 ATM (diving) - check case back
Case Material	Stainless steel (assumed)
Crystal	Mineral glass (assumed)
Strap Material	Leather (assumed)
Case Diameter	Approx. 40 mm
Case Thickness	Approx. 12 mm
Weight	Approx. 80 g
Power Reserve	Typical 40 hours (if fully wound)
Warranty	2 years from purchase date
Country of Origin	Germany (Made in Germany)
Maintenance	Avoid date adjustment between 9pm and 3am; manual winding if not worn
Service Contact	ELYSEE Uhren GmbH, [e-mail], [phone]

Frequently Asked Questions - Sithon Automatic Calendar 13297 Elysee

How do I start the automatic movement for the first time?

Turn the crown clockwise in the normal position (0) about 20 times. This winds the mainspring and starts the movement.

How do I set the day and date on my Elysee Sithon?

Pull the crown to position 1. Turn clockwise to set the day to the previous day, and counterclockwise to set the date to the previous day. Then pull to position 2 and advance the hands until the day/date switch to the current day at midnight. Finally, set the correct time and push the crown back to position 0.

Can I adjust the date between 9pm and 3am?

No, avoid setting the date during that time as it may damage the gear mechanism. Adjust only outside this window.

Is my Elysee watch water-resistant?

Water resistance depends on the model. Check the case back for the specific ATM rating. It can range from 3 ATM (splash-proof) to 20 ATM (diving). Do not press buttons or pull crown underwater.

How do I know if my watch has a screw-down crown?

If the crown feels tight and needs to be unscrewed before setting, it is a screw-down crown. After setting, screw it back firmly to maintain water resistance.

What is the warranty period for my Elysee watch?

The warranty is 2 years from the date of purchase against manufacturing defects. It excludes bracelet, glass, battery, and damage from unauthorized access.

How do I wind the watch manually?

Turn the crown clockwise in position 0 about 20 turns. The watch also winds automatically with wrist movement.

What should I do if my watch stops?

First, wind the crown manually to start the movement. If it still doesn't run, it may need servicing. Contact Elysee service.

Can I swim with my Elysee watch?

Only if the case back indicates at least 10 ATM (100 meters). For swimming or snorkeling, 10 ATM is required; for diving, 20 ATM. Lower ratings are not suitable.

How do I contact Elysee for service or warranty?

Send the watch with original receipt to: ELYSEE Uhren GmbH, Heerdter Lohweg 212, 40549 Düsseldorf, Germany. Or email [e-mail], phone [phone].

USER MANUAL Sithon Automatic Calendar 13297 Elysee

Settings for automatic movement 14

Water resistance 17

Warranty and guarantee ....19

Close-up of interlocking mechanical gears in a mechanical assembly (no text or symbols visible)

Close-up of interlocking mechanical gears and gears in a mechanical assembly (no text or symbols visible)

Since 1960 ELYSEE stands for classic watchmaking and finest watch design. Here in Düsseldorf, we are producing high quality time pieces – Made in Germany. A constant motivation to do even better, is for the entire team living company philosophy:

"At the heart of our work is the sum of design, quality and great value for money, of course, connected with the varied desires of watch lovers."

We would like to congratulate you on your new ELYSEE and we hope that you will enjoy it.

With best regards, your ELYSEE team

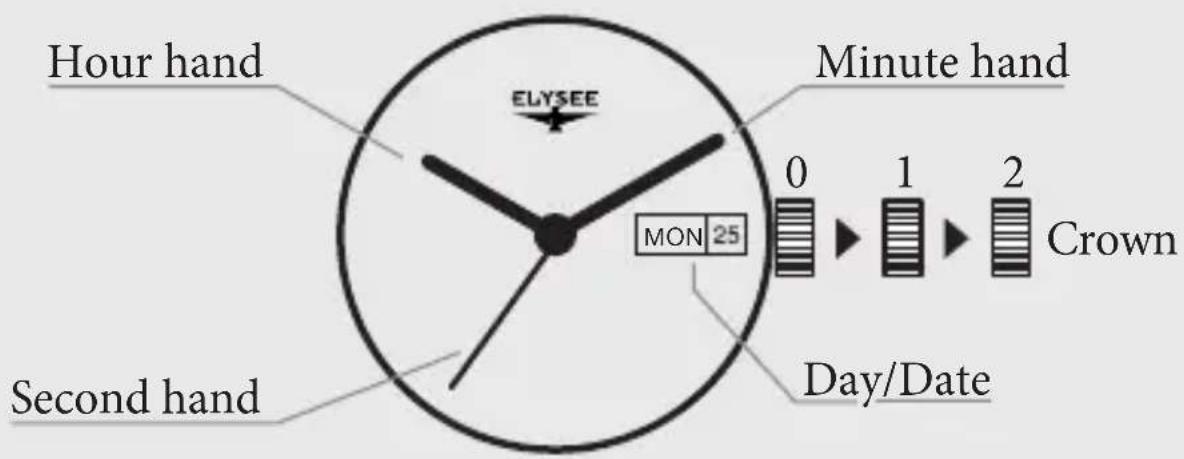

EVERYTHING AT A GLANCE

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

SET YOUR AUTOMATIC WATCH

To start the movement of your new ELYSEE for the first time, turn the crown clockwise in the normal position (0). Usually about 20 turns. The spring tension is now applied by the movement of the weight, the so-called “rotor”, on the bottom of the movement. If the watch has a display of the power reserve, the spring tension can be read on the dial.

Please note that for mechanical watches the date adjustment is between 9pm and 3am. Please do not adjust during this time, as otherwise the gear will be engaged and damage may occur.
Some ELYSEE watches have a screw-down crown. You must first loosen these to set the clock. To do this, simply turn the crown. After adjustment, screw the crown back into its normal position (0).

SETTING DAY / DATE / TIME

1. Pull the crown out to position 1 and turn it to set the day of the week to the previous day. Turn the crown counter clockwise to set the date to the previous day, too.
2. Pull the crown out to position 2. To ensure that the indication of the day and date will not change at noon, turn the hour and minute hand until the day and date switch to the current day and date at midnight.
3. Now, by turning the crown, adjust the hour and minute hand to the current time and make sure that the current time is before or after noon.
4. Push the crown back to its normal position (0).

WATER RESISTANCE (DIN 8310)

3 ATM Resistant to splashes, sweat and rain drops

5 ATM Waterproof, but not suitable for swimming

10 ATM Suitable for swimming or snorkeling

20 ATM Suitable for swimming, snorkeling and diving

The details of the water resistance can be found on the case back of your watch.

Close-up of interlocking mechanical gears and gears in a mechanical assembly (no text or symbols visible)

WARRANTY AND GUARANTEE

Your ELYSEE has a warranty of 2 years from the date of purchase against all manufacturing defects. This excludes the use of bracelet, glass, battery and damage caused by unauthorized access.

Should you need the warranty or a repair, please send your ELYSEE with the original receipt to the following address:

ELYSEE Uhren GmbH

Heerdter Lohweg 212

40549 Düsseldorf

Germany

Should you have any questions regarding the service processing, please do not hesitate to contact us by phone [phone] or just write an e-mail to [e-mail].

ELYSEE

— SEIT 1960 —

DÜSSELDORF / GERMANY

ELYSEE Uhren GmbH
