HUSQVARNA ROYAL 50 S - Motorcycle
📄 96 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice HUSQVARNA ROYAL 50 S - page 6
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Self-propelled gasoline lawn mower
Brand Husqvarna
Model Royal 50S
Power source Unleaded gasoline
Engine Briggs & Stratton 4-stroke
Cutting width 50 cm
Cutting height adjustment Multi-position adjustment lever
Grass catcher Yes, with fill indicator
Mulching system Optional mulching insert
Starting Recoil starter (model 50S); electric (model 50SE)
Safety Engine brake with safety handle, automatic blade stop (optional BBC)
Drive Forward drive with traction handle
Engine oil SAE 30, change every 25 hours
Battery (model 50SE) Rechargeable, charging time 24 h
Blade maintenance Replace every 50 hours or 2 years
Cleaning Brush, dry cloth – no water or solvents
Warranty Contact a brand agent

Frequently Asked Questions - ROYAL 50 S HUSQVARNA

The engine does not start, what should I do?
Check that the safety handle is engaged and that the throttle control is on the « + » position. Make sure there is enough fuel and that the spark plug is clean and dry. If the problem persists, contact an authorized service station.
How to adjust the cutting height?
Use the adjustment lever located on the deck. Pull it out of the positioning slots and place it on the desired position. The positions are multiple, from highest to lowest.
How to replace the blade?
Disconnect the spark plug. Loosen the blade bolt by turning counterclockwise. Remove the blade and washer. Mount the new blade with the cutting edges outward and tighten the bolt. Wear gloves to avoid cuts.
How to recharge the battery (model 50SE)?
Stop the engine and disconnect the spark plug. Remove the cap of the connection socket on the harness, plug in the charger, then connect it to a wall outlet. Let it charge for 24 hours. After charging, unplug and replace the cap.
What oil to use and when to change it?
Use a good quality 4-stroke engine oil SAE 30. Check the level every 5 hours. Change the oil after the first 5 hours, then every 25 hours of use.
How to clean the lawn mower?
Never use water or chemicals. Remove grass under the deck with a brush and clean air intakes, height adjustment, and wheels with a soft brush. Wipe with a dry cloth.
What to do in case of excessive vibrations?
Disconnect the spark plug. Check that the blade is properly mounted and in good condition. Replace it if worn. If vibrations persist, contact an authorized service station.
How to empty the grass catcher?
Release the attachment of the catcher, detach the bag and empty it. A fill indicator (ball in tube) tells you when it's time to empty: when the ball goes down, empty the catcher.
How to use the mulching insert?
Stop the engine and disconnect the spark plug. Lift the safety flap and insert the mulching insert into the ejection channel. Make sure it is securely fastened, then close the flap. This allows you to mulch the grass.
When to drain oil and fuel for winter storage?
At the end of the season, drain the oil and gasoline. Clean the mower, have the air filter serviced if necessary. Store in a cool, dry place. Wait for the engine to cool before storing.

User questions about ROYAL 50 S HUSQVARNA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Motorcycle in PDF format for free! Find your manual ROYAL 50 S - HUSQVARNA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ROYAL 50 S by HUSQVARNA.

USER MANUAL ROYAL 50 S HUSQVARNA

ROYAL 50SE

Line drawing of a lawn mower with visible frame and wheels (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

ROYAL 50S/BBC

Simple line drawing of an open book with no text or symbols visible

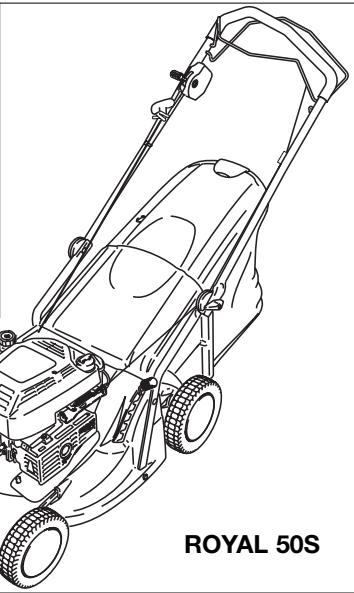

ROYAL 50S

ROYAL 50SE

ROYAL 50S/BBC

CE

GB

Operator's Manual

Read the operator's manual carefully and make sure that you understand the contents before using the lawnmower.

D

Betriebsanleitung

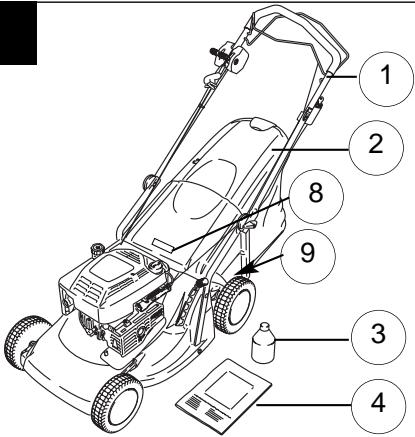

  1. Handle Assembly
  2. Grassbox
  3. Bottle of oil
  4. Instruction Manual
  5. Mulching Plug
  6. Key Start (Royal 50SE)
  7. BBC Lever (Royal 50S/BBC)
  8. Warning Label
  9. Rating Label
  10. Battery Charger (Royal 50SE)

D - CONTENTS

Line drawing of a folded paper airplane with a numbered circle (5) at the bottom left corner, no text or symbols present.

(A) ROYAL 50SEUK ONLY 10

Labeled diagram of a lawn mower with numbered parts for identification

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a folded paper or envelope with a numbered circle (5) and no visible text or symbols

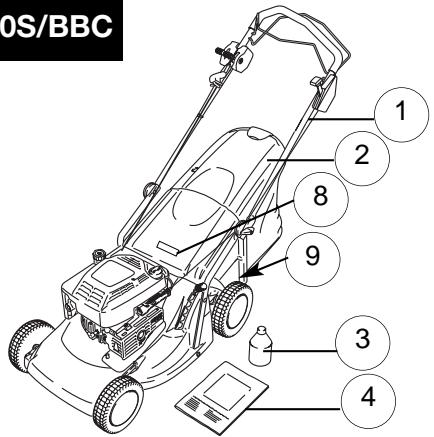

(A) ROYAL 50S/BBC0S/BBC 1 2 8 9 3 4

7

Line drawing of a mechanical component with a numbered circle (5) and no visible text or symbols

SAFETY PRECAUTIONS

Warning symbol with exclamation mark inside a triangle

If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawnmower. The operator is responsible for following the warning and safety instructions in this manual and on the lawnmower.

Never use the mower unless the grassbox or guards provided by the manufacturer are in position.

Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC

HUSQVARNA ROYAL 50 S - Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC - 1

Warning

HUSQVARNA ROYAL 50 S - Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC - 2

Read the user instructions carefully to make sure you understand all the controls and what they do.

HUSQVARNA ROYAL 50 S - Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC - 3

Always keep the lawnmower on the ground when mowing. Tilting or lifting the lawnmower may cause stones to be thrown out.

HUSQVARNA ROYAL 50 S - Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC - 4

Keep bystanders away. Do not mow whilst people, especially children or pets, are in the mowing area.

HUSQVARNA ROYAL 50 S - Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC - 5

Beware of severing toes or hands. Do not put hands or feet near a rotating blade.

HUSQVARNA ROYAL 50 S - Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC - 6

Disconnect the spark plug before attempting any maintenance, cleaning, or adjustment, or if you are going to leave the lawnmower unattended for any period.

HUSQVARNA ROYAL 50 S - Explanation of Symbols on your Husqvarna Royal 50S, 50SE & 50SBBC - 7

Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them.

General

  1. Never allow children or people unfamiliar with these instructions to use the mower. Local regulations may restrict the age of the operator.
  2. Only use the lawnmower in the manner and for the functions described in these instructions.
  3. Never operate the lawnmower when you are tired, ill, or under the influence of alcohol, drugs, or medicine.
  4. The operator or user is responsible for accidents or hazards occurring to other people or their property.

Fuel Safety WARNING - Petrol is highly flammable.

  • Store fuel in a cool place in a container specifically designed for the purpose. In general, plastic containers are unsuitable.
  • Refuel outdoors only and do not smoke while refuelling.
  • Add fuel BEFORE starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot.
  • If petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated.
  • Replace all fuel tanks and container caps securely.
  • Move the product away from the fuelling area before starting.

Safety Procedures when Charging the Battery (ROYAL 50SE)

  1. Check the charger cable regularly for damage or deterioration due to age.
  2. Do not use the lawnmower if the charging cable is not in good condition.
  3. Do not attempt to charge other products with the charger from this unit.
  4. Do not attempt to use this battery with any other charger.
  5. Charging should only be carried out in a safe location where neither battery nor cord cable can be trodden on or tripped over.
  6. Location should be well-ventilated.
  7. During charging, the battery charger becomes warm. This is normal and means the charger is operating properly.
  8. Do not cover the battery charger with anything during charging.
  9. Ensure that neither the charger nor the battery are exposed to moisture.
  10. Avoid extreme temperatures.
  11. The charger will not operate below freezing point nor above 40°C.
  12. Do not short circuit the battery terminals.

SAFETY PRECAUTIONS

Preparation

  1. Do not mow barefoot or in open sandals. Always wear suitable clothing, gloves, and stout shoes.
  2. The use of ear protection is recommended.
  3. Make sure the lawn is clear of sticks, stones, bones, wire and debris; they could be thrown by the blade.
  4. Before using always visually inspect to see that blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades together with their fixings in sets to preserve balance.
  5. Have faulty silencers replaced.

Use

  1. Do not operate the engine in a confined space where exhaust fumes (carbon monoxide) can collect.
  2. Use the lawnmower only in daylight or good artificial light.
  3. Avoid operating your lawnmower in wet grass, where feasible.
  4. Take care in wet grass, you may lose your footing.
  5. On slopes, be extra careful of your footing and wear non-slip footwear.
  6. Mow across the face of slopes, never up and down.
  7. Exercise extreme caution when changing direction on slopes.
  8. Mowing on banks and slopes can be dangerous. Do not mow on banks or steep slopes.
  9. Do not walk backwards when mowing, you could trip. Walk never run.
  10. Never cut grass by pulling the mower towards you.
  11. Stop the engine before pushing the mower across surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.
  12. Never operate the lawnmower with damaged guards or without guards in place.
  13. Do not overspeed the engine or alter governor settings. Excessive speed is dangerous and shortens lawnmower life.
  14. Disengage all blade and drive clutches before starting.
  15. Always start the lawnmower carefully with feet well away from the blades.
  16. Do not tilt lawnmower when starting the engine.
  17. Do not put hands near the grass discharge chute whilst engine is running.
  18. Never pick up or carry a lawnmower while the engine is running.
  19. Spark plug wire may be hot - handle with care.
  20. Do not attempt any maintenance on your lawnmower when the engine is hot.
  21. Stop the engine, and wait until the blade has stopped:-
  22. before leaving the mower unattended for any period;
  23. Stop the engine, wait until the blade has stopped and disconnect the spark plug lead:-
  24. before refuelling
  25. before clearing a blockage;
  26. before checking, cleaning or working on the appliance;
  27. if you hit an object. Do not use your lawnmower until you are sure that the entire lawnmower is in a safe operating condition.;
  28. if the lawnmower starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
  29. Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

Maintenance and storage

  1. Keep all nuts, bolts and screws tight to be sure the lawnmower is in safe working condition.
  2. Check the grassbox/grassbag frequently for wear or deterioration. Replace worn or damaged parts for safety.
  3. Only use the replacement blade, blade bolt, spacer and impeller specified for this product.
  4. Never store the lawnmower with fuel in the tank inside a building where fumes can reach an open flame or spark.
  5. Allow the engine to cool before storing in any enclosure.
  6. To reduce fire hazard, keep the engine, silencer, battery compartment and fuel storage area free of grass, leaves or excessive grease.
  7. If the fuel tank has to be drained, this should be done outdoors.
  8. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

PRODUCT RATING LABEL

B

Product Number ....

Model Number ....

Serial Number.....

Date of Purchase ....

Place of Purchase....

- PLEASE KEEP PROOF OF PURCHASE-

Your product is uniquely identified by a silver and black product rating label. To ensure you have full product information when obtaining spares or advice from one of our approved service centres or if you need to contact our customer service department you should make a note in the space provided of the information shown in Fig B

ASSEMBLY INSTRUCTIONS

Handle Assembly

  1. Your product is supplied with the handles folded over the product. (C1)
  2. Loosen handle adjusters (C2) on both sides of the product and lift handle assembly up.
  3. Adjust handle assembly to the most comfortable operating position (C3) and tighten handle adjusters (C2) on both sides of the product.

Recoil Starter

  1. Disconnect the spark plug lead.
  2. Pull the Operator Presence Control (D1) to release the brake on the engine. ROYAL 50S AND ROYAL 50SE ONLY

You must release the brake by pulling the OPC lever to the handle before pulling out the cord.

Line drawing of a wheeled vehicle chassis with wheels and suspension components (no text or symbols)

C2Handle adjuster

Line drawing of a person operating a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

  1. Locate cord in the pull cord guide on the lower handle. (D2)
  2. Locate cord in the pull cord guide on the upper handle. (D3)

Fitting the Grassbox

  1. Lift safety flap. (E1)
  2. Locate grassbox to machine. (E2)
  3. Locate safety flap onto the top of the grassbox. (E3). Ensure the grassbox is securely located.

E2Line drawing of a vehicle's front wheel assembly with visible brackets and wheels (no text or symbols)

D2Line drawing of a hand holding a tool near a surface, no text or symbols present

D3Line drawing of a hand holding a tool with a spring attached to a bracket (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a mechanical device with gears and components (no text or symbols)

Please Note :- Ensure no gap remains between the safety flap and the grassbox

Where grass collection is not required you can use the lawnmower without the grassbox. Ensure the safety flap is fully closed

ENGINE NOTES

Oil

  1. Check oil level periodically and after every five hours of operation.
  2. Add oil as necessary to keep the level to the FULL mark on the dipstick.
  3. Use a good quality SAE 30 four stroke oil.
  4. To fill with oil:- a) Remove oil filler cap. (F1) b) Fill to the FULL mark on the dipstick. (F2)
  5. Change the oil after the first five hours of operation and thereafter every 25 working hours.
  6. Always change the oil while the engine is warm - but not hot - never attempt any maintenance on a hot engine.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Line drawing of a car interior with steering wheel and dashboard (no text or symbols)

Petrol

  1. Use fresh regular grade lead-free petrol.
  2. Do not fill the fuel tank when the engine is hot.
  3. Do not fill the fuel tank while smoking.
  4. Do not fill the fuel tank while the engine is

running. 5. To avoid introducing dirt into the fuel system, wipe all grass and dirt from the petrol filler cap before unscrewing it. (G1)

  1. It is recommended that you fill the tank through a funnel with a filter. (G2)
  2. Wipe away spillages before starting.

Line drawing of a car dashboard with a hand valve and control knob (no text or symbols)

Mechanical diagram showing a lever and gear assembly (no text or symbols)

Please Note: Move the product away from the fuelling area before starting.

STARTING - PRIMING THE ENGINE

Please Note: When starting the engine for the first time, fill with oil and petrol as described above in the Oil and Petrol section.

Priming is usually unnecessary when restarting a warm engine. However, cool weather may require priming to be repeated.

Starting the engine for the first time

  1. Advance engine speed control to FAST '+' as illustrated in the Use - starting and stopping section.
  2. Push primer bulb (H) firmly five times.
  3. Follow instructions in the Use - starting and stopping section.
  4. If engine fails to start after three pulls of the pull cord, push primer bulb three times and repeat step 3.

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Starting engine thereafter

  1. Move engine speed control to FAST '+' position and push primer bulb firmly three times before starting engine. (If engine stopped because it ran out of fuel, refuel engine - push primer bulb three times.)

USE - STARTING AND STOPPING

Starting & Stopping Royal 50S

Starting

  1. Connect the spark plug lead.
  2. Move the Engine Speed Control to the FAST '+' position before starting. (J1)
  3. Pull the operator presence control (OPC) to release the brake on the engine and the blade. (J2)
  4. Pull the recoil starter fully towards you until you feel the full resistance, return the handle slowly then pull the handle firmly towards you to its full extent. (J3)
  5. After the engine has started, allow to run for 30 seconds before commencing to use.

Engaging the Drive

  1. Forward drive is engaged and disengaged with the Powerdrive lever at the top of the handle (J4).
  2. Releasing the Powerdrive Lever stops the forward drive automatically.

Stopping

  1. Release the powerdrive lever.
  2. Release the OPC lever.

J1 engine speed control -

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

J3 recoil starter

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Starting & Stopping Royal 50SE

Starting

  1. Follow steps 1-3 for the Royal 50S.
  2. Turn the key and hold until the engine starts (K). The key will return to the original position when released.
  3. If the engine fails to start when you turn the key, your battery may not be charged.

Pure mechanical diagram showing a lever and connecting rod (no text or symbols)

Engaging the Drive - See Royal 50S.

Drive speed can be altered with the drive speed control (L).

Stopping - See Royal 50S.

L drive speed control

Please note: Your Royal 50SE can be started manually by following steps 1-5 in Starting & Stopping Royal 50S.

Key Start Only - During mowing, your engine will recharge the battery.

Starting & Stopping Royal 50S/BBC (BBC - Blade, Brake, Clutch).

  1. Follow steps 1, 2, 4, and 5 for the Royal 50S.
  2. Pull the BBC arm to the handle (M1).
  3. While holding the BBC arm, push forward the BBC control lever until a click is heard (M2).
  4. Release the BBC control lever, which will return to its original position.
  5. Releasing the BBC arm will stop the blade from rotating.

Please Note:

Leaving the engine running without the blade rotating for an extended length of time could lead to the engine overheating.

Illustration of a hand using a bicycle seatbelt mechanism (no text or symbols)

Diagram of a hand holding a flexible hose with a curved handle and arrow indicating rotation (no text or symbols)

Engaging the Drive - See Royal 50S

Drive speed can be altered with the drive speed control. (L)

Stopping

  1. Release the powerdrive lever.
  2. Release the BBC arm.
  3. Move Engine Speed Control to the '-' position.

How to Mow

  1. Always use the correct mowing position (N1).
  2. Start mowing from the outside edge of the lawn, mowing in strips in alternate directions (N2).
  3. Mow twice a week in the growing season, your lawn will suffer if more that one third of its length is cut at one time and this may also result in poor collection.

N1Line drawing of a person using a lawn mower to maintain a vehicle (no text or symbols)

N2

Pure schematic diagram of a mechanical or electrical component with no text, numbers, or symbols

Please Note:-

Do not overload your lawnmower.

When mowing in long, thick grass, a first cut with the cutting height adjusted to its highest setting (see Cutting Height) will help reduce engine overload and help prevent damage to your lawnmower.

Cutting Height

Adjustment

  1. The height of cut is altered by pulling the adjustment lever away from the location slots and moving it to the selected position (N3).

Grass Collection Indicator

  1. Your lawnmower has a grass collection indicator that tells you when the grassbox needs emptying (N4).
  2. When the indicator is at the top of the tube, grass is being collected.
  3. When the indicator starts to drop, it's time to empty the grassbox. Adopt a stationary position, keeping the lawnmower running for 10 seconds. Release the OPC lever or BBC arm and remove the grassbox for emptying (N5).

Interior view of a vehicle showing dashboard, steering wheel, and rearview panel (no text or symbols visible)

N4Simple line drawing of a curved road with a shaded oval object, no text or symbols present

Technical line drawing of a vehicle chassis with visible components and structural details (no text or symbols)

Emptying the Grassbox

  1. Release the latch on the grassbox (N6).
  2. Release the collection bag from the grassbox frame (N7).
  3. Empty the grassbox (N8).

N7Line drawing of a mechanical device with handle and internal components (no text or symbols)

Using as a mulcher

  1. Your lawnmower is supplied with a mulching plug. (N9)
  2. Stop your lawnmower as described in Use - starting and stopping, and disconnect the spark plug.
  3. Lift safety flap. Twist and slide mulching plug into rear discharge chute. (N10)
  4. Ensure mulching plug is securely fitted. (N11)
  5. The mulching plug prevents grass from being collected by blocking the collection chute on the underside of the deck. (N12)
  6. Ensure the safety flap is positioned correctly. (N13)

N12Illustration of a mechanical device with gears and a central rotating component (no text or symbols)

N6Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Line drawing of a person using a manual machine to lift a tree (no text or symbols)

Line drawing of a geometric object resembling a folded paper or 3D shape, with no visible text or symbols.

N10

Line drawing of a vehicle chassis with wheels and a cylindrical component, no text or symbols.

Line drawing of a grass lawn mower with visible wheels and handle, no text or symbols.

MAINTENANCE

IMPORTANT

Do not attempt any maintenance on your lawnmower when the engine is hot.

Cleaning

IMPORTANT

Never use water for cleaning your lawnmower. Do not clean with chemical, including petrol, or solvents - some can destroy critical plastic parts.

  1. Remove grass from under the deck with a brush (P1 and P2).

Mechanical diagram showing a hand operating a car wheel assembly, no text or symbols visible.

P2

  1. Using a soft brush, remove grass clippings from the engine air intakes and exhaust (P3), cutting height adjustment area (P4), around the wheels (P5), and the grassbox (P6 & P7).

Line drawing of a hand operating a vehicle tire with a mechanical component, no text or symbols.

  1. Wipe over the surface of your lawnmower with a dry cloth.

Technical line drawing of a vehicle chassis with visible components and suspension, no text or symbols.

Mechanical assembly diagram showing hands operating a component, no visible text or symbols.

Line drawing of a mechanical device with a handle and internal components, no text or symbols.

Line drawing of a hand using a tool to clean or adjust a mechanical component, no text or symbols visible.

Cutting System - Removing the Blade (Q1 or Q2 BBC Only)

  • Disconnect the spark plug lead.
  • Use a spanner to loosen the blade bolt by turning anti-clockwise.
  • Remove the blade bolt, blade, and spacer washer.
  • Inspect for damage and clean as necessary.

Fitting the Blade

(Q1 or Q2 BBC Only)

  1. Fit the blade to the machine with the sharp edges pointing away from the machine.
  2. Re-assemble the blade bolt through the blade and spacer washer.
  3. Hold firmly and tighten the blade bolt firmly with a spanner. Do not over-tighten.

Q1- 50S/50SE

Q2 - BBC Only

Please note:

If you have a machine fitted with BBC, then you must remove both blade bolts with a hexagonal drive key.

Always handle the blade with care - sharp edges could cause injury.

USE GLOVES

Renew your metal blade after 50 hours mowing or 2 years whichever is the sooner - regardless of condition. If the blade is cracked or damaged replace it with a new one.

How to Charge the Battery (50SE ONLY)

  1. Stop your lawnmower.
  2. Disconnect the spark plug.
  3. Remove the cap from the charging point at the bottom of the wiring loom (R).
  4. Plug charger lead into connection on battery loom
  5. Plug the battery charger into a domestic electric socket.
  6. Charging will then commence.
  7. Charge for 24 hours.
  8. After charging, disconnect the charger from the socket and charging point.
  9. Replace the cap on the charging point.
  10. The unit is now ready for use.
  11. Stop your lawnmower.
  12. Disconnect the spark plug.
  13. Remove the cap from the charging point at the bottom of the wiring loom (R).
  14. Plug charger lead into connection on battery loom
  15. Plug the battery charger into a domestic electric socket.
  16. Charging will then commence.
  17. After charging, disconnect the charger from the socket and charging point.
  18. Replace the cap on the charging point.
  19. The unit is now ready for use.

ENVIRONMENTAL INFORMATION

Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products' life.

  • Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
  • Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
  • If necessary, contact your local authority for disposal information.
  • Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
  • Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
  • If necessary, contact your local authority for disposal information.

BATTERY DISPOSAL

  • The battery should be taken to an Approved Service Centre or your local Recycling Station.
  • Do NOT dispose of used battery with household waste
  • Lead/Acid batteries can be harmful and should be disposed of through the recognised recycling facility in accordance with European Regulation
  • Do NOT dispose of battery to water.
  • Do NOT incinerate
  • The battery should be taken to an Approved Service Centre or your local Recycling Station.
  • Do NOT dispose of used battery with household waste
  • Lead/Acid batteries can be harmful and should be disposed of through the recognised recycling facility in accordance with European Regulation
  • Do NOT dispose of battery to water.
  • Do NOT incinerate

DISPOSAL OF FUELS AND LUBRICATING OILS

  • Wear protective clothing when handling any fuels and lubricants.
  • Avoid contact with skin.
  • Remove petrol and engine oil before transporting the product.
  • Contact your local authority for information of your nearest Recycling/Disposal Station.
  • Do NOT dispose of used fuels/oils with household waste
  • Waste fuels/oils are harmful, but can be recycled and should be disposed of through the recognised facilities.
  • Do NOT dispose of used fuels/oils to water.
  • Do NOT incinerate
  • Wear protective clothing when handling any fuels and lubricants.
  • Avoid contact with skin.
  • Remove petrol and engine oil before transporting the product.
  • Contact your local authority for information of your nearest Recycling/Disposal Station.
  • Do NOT dispose of used fuels/oils with household waste
  • Waste fuels/oils are harmful, but can be recycled and should be disposed of through the recognised facilities.
  • Do NOT incinerate

R Wiring Loom charging point cap

ENVIRONMENTAL INFORMATION

Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products' life.

BATTERY DISPOSAL

DISPOSAL OF FUELS AND LUBRICATING OILS

MAINTENANCE

Battery Replacement

  1. The battery is located underneath a cover behind the engine.
  2. Stop the lawnmower and disconnect the spark plug.
  3. Remove the screws from the cover.
  4. Remove cover to gain access to the battery.

IMPORTANT: Replacement batteries will need to be charged before use.

Ensure that neither the charger nor the battery are exposed to moisture.

The battery pack can be replaced by unclipping the battery from its housing and disconnecting the battery pack from the battery leads.

General Guidance on Rechargeable Battery

  1. Charging time is 24 hours.
  2. Under normal usage the battery will be charged during the running of the engine.
  3. To keep in prime condition the battery should be charged at least once every six months.
  4. Exceeding the charging period may shorten the battery life.
  5. Protect the electric cable. Never carry the battery charger by the electric cable only.
  6. If after an extended usage period the battery quickly runs down after a full 24-hour charging period, a replacement battery is probably needed.
  7. Do not attempt to open the main body casing.
  8. Clean only with a dry soft cloth.
  9. Never use a damp cloth or flammable liquids such as petrol, white spirits, thinners, etc.
  10. Dispose of old batteries safely.

The engine brake cable should always be adjusted to stop the engine within 3 seconds. CAUTION! For adjustment, contact your authorized service dealer.

At the End of the Mowing Season

  1. Replace blade, bolts, nuts, or screws if necessary.
  2. Clean your lawnmower thoroughly.
  3. Ask your local Service Centre to clean the air filter thoroughly and carry out any service or repairs required.
  4. Drain engine of oil and petrol.

Storing Your Lawnmower

  1. Do not store your lawnmower immediately after use.
  2. Wait until the engine has cooled to avoid a potential fire hazard.
  3. Clean your lawnmower
  4. Store in a cool, dry place where your lawnmower is protected from damage.

Service Recommendations

We strongly recommend that your product is serviced at least every twelve months, more often in a professional application.

Engine Maintenance Schedule

Follow the hourly or calendar intervals, whichever occur first. More frequent service is required when operating in adverse conditions.

First 5 hours - Change oil.

Every 5 hours or daily - Check oil level. Clean finger guard. Clean around muffler.

Every 25 hours or every season - Change oil if operating under heavy load or high ambient temperature. Service air cleaner.

Every 50 hours or every season - Change oil. Inspect spark arrester, if equipped.

Every 100 hours or every season - Clean cooling system*. Replace spark plug.

* Clean more often under dusty conditions, or when airborne debris is present or after prolonged operation cutting tall, dry grass.

Engine Servicing & Guarantee

The engine fitted to your lawnmower is guaranteed by the Engine Manufacturer. To obtain further information contact your dealer.

Fault Finding

Engine Will Not Start

  1. Ensure OPC Lever /BBC arm is in the start position.
  2. Check that the control lever is in the '+' position
  3. Check that there is sufficient fuel in the tank and the cap air vent is clear.
  4. Remove and dry the spark plug.
  5. Petrol may be stale, replace. Once petrol has been replaced, it may take a little time for fresh petrol to filter through.
  6. Check that the blade bolt is tight. A loose bolt could cause difficult starting.
  7. If the engine will still not start, immediately disconnect the spark plug lead.
  8. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Engine Will Not Turn Over (50SE only)

  1. Ensure OPC Lever /BBC arm is in the start position.
  2. Battery flat - start your lawnmower manually.
  3. If the engine will still not turn over, immediately disconnect the spark plug lead.
  4. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Lack of Engine Power and/or Overheating

  1. Check that the control lever is in the 'normal' position.
  2. Disconnect the spark plug lead and allow the engine to cool down.
  3. Clean grass clippings and debris from around the engine and air inlets and the underside of the deck including the chute.
  4. Clean the engine air filter (Ask your local Approved Service Centre to clean the engine air filter thoroughly).
  5. Petrol may be stale, replace. Once petrol has been replaced, it may take a little time for fresh petrol to filter through.
  6. If the engine still lacks power and/or is overheating, immediately disconnect the spark plug lead.
  7. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Excessive Vibration

  1. Disconnect the spark plug lead.
  2. Check that the blade is correctly fitted see page 7.
  3. If the blade is damaged or worn replace it with a new one.
  4. If vibration persists, immediately disconnect the spark plug lead.
  5. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

C2Adjustment device for the blade

Line drawing of a person operating a lawn mower (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

D2Line drawing of a person using a tool on a mechanical component (no text or symbols)

D3Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a mechanical component with gears and levers (no text or symbols)

Line drawing of a car wheel assembly with no visible text or symbols

Gasoline

Diagram of a car intake being poured into a container, showing mechanical components (no text or labels)

J3 Zugstarter

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a pulley system without any text, numbers, or symbols

Diagram of a mechanical or electrical component with directional arrows and a central rod, labeled N2 (no text or symbols on the diagram itself)

Note:

Simple line diagram showing a circular object on parallel lines with curved lines, labeled N4 (no text or symbols within the diagram itself)

Line drawing of a vehicle chassis with wheels and structural components (no text or symbols)

Line drawing of a printer with paper spines and a keyboard (no text or symbols)

Line drawing of a person collecting or sorting material from a pile (no text or symbols)

N10

Line drawing of a vehicle chassis with front wheel, wheels, and structural components (no text or symbols)

Diagram of a circular mechanical or robotic device with multiple wheels and a central rotating element (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a handle, labeled N13 (no text or symbols on the diagram itself)

MAINTENANCE

IMPORTANT

P2

Mechanical assembly diagram showing a vehicle with levers and suspension components (no text or labels)

Mechanical assembly diagram showing hands operating a mechanical component (no text or symbols visible)

Line drawing of a mechanical device with hands operating it, labeled P6 (no text or symbols on the diagram itself)

Line drawing of a hand holding a tool interacting with a grid-patterned device (no text or symbols)

Cutting deck

Removing the blade

Q1 or Q2, only BBC

Q2 - Only BBCTechnical line drawing of a mechanical component with no visible text or symbols

Note

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using pliers to handle a tool, labeled D1 (no text or symbols on the diagram itself)

Line drawing of a hand holding a tool near a textured object, possibly a tool or device (no text or symbols present)

Line drawing of a mechanical clamp or wire assembly with no visible text or symbols

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a car's front wheel assembly (no text or symbols)

Diagram of a vehicle's dashboard and steering wheel assembly (no text or labels)

Gasoline

Mechanical diagram showing a hand pouring liquid into a container with a valve, no text or symbols present

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a hand holding a curved pipe or clamp, with a black arrow indicating a motion or force direction (no text or symbols)

Isometric diagram of a mechanical or architectural component with directional arrows and a spring-like element.

Simple line diagram showing a circular object on parallel lines with curved lines, labeled N4.

Line drawing of a vehicle chassis with visible structural components.

Shredding

Line drawing of a hand holding a tool.

Line drawing of a person handling a large pile of material or debris.

Line drawing of a geometric 3D object resembling a folded paper or prism.

N10

Line drawing of a vehicle chassis with wheels and structural components.

Line drawing of a small wheeled vehicle with wheels and a handle, labeled N13.

MAINTENANCE

IMPORTANT

Illustration of a mechanical device with a hand operating it.

Line drawing of a car's front suspension system with visible brackets and wheels (no text or symbols)

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Line drawing of a hand using a tool to interact with a vehicle or mechanical component (no text or symbols visible)

Line drawing of a car interior with hand holding a tool, no text or symbols present

Q2 BBC only

C2adjusting screw

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

D2Line drawing of a hand holding a tool over a surface, with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a mechanical component with gears and a handle.

Mechanical assembly diagram showing a motor or engine component.

Benzine

Mechanical assembly diagram showing a lever and valve mechanism.

Line drawing of a hand using a tool to adjust or install a mechanical component.

Pure mechanical diagram showing a lever mechanism.

Diagram of a hand holding a tool with a curved handle and a separate bracket, labeled M2.

Note:

Isometric diagram of a mechanical component with directional arrows and a central rod.

Simple line drawing of a curved path with a circular object on the ground.

Line drawing of a car chassis with visible structural components and no text or symbols.

Empty the grass catcher

Line drawing of a hand holding a tool, no text or symbols present.

Line drawing of a person handling a tray with a bucket, standing on a tree (no text or symbols).

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

N10

Technical line drawing of a vehicle chassis frame with no visible text or symbols.

Line drawing of a grassy tractor with visible wheels and handle (no text or symbols).

MAINTENANCE

IMPORTANT

P2

Mechanical assembly diagram showing hands operating a component with no visible text or symbols.

Line drawing of a mechanical device with hands operating it (no text or symbols).

Line drawing of a hand holding a tool interacting with a grid-patterned object (no text or symbols)

Cutting mechanism

Q2 - only BBC

Note

C2Handle adjustment device

Line drawing of a person using a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

D2Line drawing of a hand holding a tool over a car wheel (no text or symbols)

D3Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Line drawing of a mechanical device with hands operating it, no text or symbols present

Line drawing of a mechanical device with gears and levers (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Gasoline

Mechanical diagram showing a lever and gear assembly (no text or symbols).

J3 Snorstarter

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible).

Diagram of a hand holding a curved pipe with a valve, labeled M2 (no text or symbols on the diagram itself).

Isometric diagram of a mechanical component with arrows indicating direction, no text or symbols present.

Brand:

Simple line diagram with a circular object on a horizontal line, no text or symbols present.

Technical line drawing of a vehicle chassis with visible components and wiring (no text or symbols).

Line drawing of a printer with visible keyboard and paper spines (no text or symbols)

Line drawing of a person bending over a pile of material, no text or symbols present

Using BioClip

N10

Technical line drawing of a vehicle chassis frame with no visible text or symbols

Top-down schematic of a mechanical or robotic device with four wheels and a central circular component (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and attached sensors (no text or symbols)

MAINTENANCE

IMPORTANT

P2

Line drawing of a vehicle's front suspension system with visible brackets and wheels (no text or symbols)

Mechanical assembly diagram showing a motor or gear mechanism with no visible text or symbols

Line drawing of a car interior with hand positioning and exhaust pipe (no text or symbols)

Line drawing of a hand using a tool to clean or adjust a grid-patterned object (no text or symbols)

Cutting system

Removing the blade

Only Q1 or Q2 BBC

Q2 - Kun for BBC

Note

Starter rope

  1. Disconnect the spark plug wire.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a vehicle chassis with gears and structural components (no text or labels)

Line drawing of a car body panel with no visible text or symbols

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Gasoline

Mechanical diagram showing a lever mechanism with no visible text or symbols

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Diagram of a hand holding a flexible hose with a curved handle and attached bracket (no text or symbols)

Note!

N2

Pure schematic diagram of a mechanical or electrical component with directional arrows, no text or symbols present.

N4Simple line drawing of a curved track with an oval object on one end (no text or symbols)

Line drawing of a vehicle chassis with visible structural components and no text or symbols

N6Line drawing of a hand holding a tool or device, no text or symbols present

N8Line drawing of a person pouring grain from a machine (no text or symbols)

N9Line drawing of a geometric object resembling a folded paper or envelope (no text or symbols)

N11Line drawing of a vehicle chassis with wheels and a cylindrical component (no text or symbols)

N12Technical line drawing of a mechanical component with gears and a central rotating wheel (no text or symbols)

N13Line drawing of a grass lawn mower with visible tracks and wheels (no text or symbols)

MAINTENANCE

P2

Technical line drawing of a car under assembly, showing engine, suspension, and wheel components (no text or symbols)

Mechanical assembly diagram showing hands operating a component with a textured base and circular components (no text or symbols)

Line drawing of a hand using a tool to interact with a vehicle chassis (no text or symbols)

Line drawing of a hand using a tool to clean or inspect a grid-patterned object (no text or symbols)

Q2 - BBC - MODELSTechnical line drawing of a mechanical component with no visible text or symbols

C2Hand tag adjuster

Line drawing of a person operating a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

D2Line drawing of a hand holding a tool near a surface, no text or symbols present

D3Line drawing of a hand holding a tool with a spring attached to a bracket (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a mechanical device with gears and components (no text or symbols)

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Petrol

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

Subsequent starts

J3 Ryckstart

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Engagement of

the drive - see

Royal 50S

Diagram of a hand holding a flexible hose with a curved handle and arrow indicating rotation (no text or symbols)

Engagement of the drive - see Royal 50S

Isometric diagram of a mechanical component with directional arrows and a central rod (no text or symbols)

Note:

Simple line drawing of a curved road with a circular object on the ground (no text or symbols)

Technical line drawing of a vehicle chassis with visible structural components (no text or symbols)

Emptying the grass collector

MAINTENANCE

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a person bending over a pile of grain or soil, no text or symbols present

Line drawing of a 3D geometric object resembling a conical frustum or pyramid, with no visible text or symbols.

N10

Line drawing of a vehicle chassis with wheels and a cylindrical component (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a handle, labeled N13 (no text or symbols on the diagram itself)

IMPORTANT

Cutting system

P2

Illustration of a hand using a tool to clean or repair a mechanical component (no text or symbols visible)

Line drawing of a mechanical component with hands operating it, labeled P6 (no text or symbols on the diagram itself)

Line drawing of a hand using a tool to clean or wire meshing a small container (no text or symbols)

Removing the blade

Note

Q2 - Endast BBK

C2

D2Line drawing of a person using a lawn mower on a lawn (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

D3Line drawing of a hand holding a tool over a surface, with no visible text or symbols.

PetrolLine drawing of a hand holding a spring attached to a cable or wire, with no text or symbols.

Line drawing of a mechanical device with a hand operating it, with no text or symbols present.

Line drawing of a grass lawn mower with visible frame and wheel, with no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Starting and stopping the Royal 50SE Start

Mechanical assembly diagram showing a lever and shaft assembly, with no text or symbols.

Line drawing of a hand using a tool to adjust or install a mechanical component, with no text or symbols.

J3 Rekylstarter

Illustration of hands using a tool to adjust or install a mechanical component, with no text or symbols visible.

N2

Diagram of a hand holding a curved mechanical component, labeled M2 (no text or symbols on the diagram itself)

N4

Pure diagram of a mechanical linkage system without any text, numbers, or symbols

N7Simple line drawing of a curved track with a shaded oval object (no text or symbols)

Technical line drawing of a mechanical assembly or vehicle component (no visible text or symbols)

N7Line drawing of a mechanical device with handle and base (no text or symbols)

Line drawing of a person digging with a shovel, labeled 'N8' in the top-left corner (no other text or symbols)

Use of bioprop

N10

Line drawing of a military vehicle chassis with tires and a turret (no text or symbols)

N12Illustration of a mechanical device with gears and a central rotating component (no text or symbols)

Line drawing of a small wheeled vehicle with wheels and a handle (no text or symbols)

MAINTENANCE

IMPORTANT

Illustration of a mechanical device with a hand operating it, showing no text or symbols.

Technical line drawing of a lawn mower assembly (no text or symbols).

Mechanical assembly diagram showing hands operating a component with a meshed ring and lever mechanism (no text or symbols).

Line drawing of a hand using a tool to interact with a mechanical device (no text or symbols).

Line drawing of a hand holding a tool interacting with a grid-patterned device (no text or symbols).

Cutting system

Removing the blade

Only Q1 or Q2 BBC

Q2 - KUN BBC

Please note

G2 Handle adjuster

Line drawing of a person using a lawn mower (no text or symbols).

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols).

D2Line drawing of a hand holding a tool over a surface, with no visible text or symbols.

D3Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

Line drawing of a grasshopper with visible mechanical components and no text or symbols

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Gasoline

Mechanical diagram showing a lever and gear assembly (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

Diagram of a hand holding a flexible hose with a curved handle and a switch, labeled M2 (no text or symbols on the diagram itself)

Starting and stopping the Royal 50SE

Starting

Isometric diagram of a mechanical component with arrows indicating direction, no text or symbols present

Simple line diagram with a circular object on a horizontal line, no text or symbols present

Technical line drawing of a vehicle chassis with no visible text or symbols

Line drawing of a person bending over a pile of grain, no text or symbols present

Line drawing of a mechanical device with no visible text or symbols

N10

Line drawing of a vehicle chassis with wheels and a cylindrical component (no text or symbols)

Top-down schematic of a mechanical component or assembly (no text or symbols visible)

Line drawing of a small wheeled vehicle with wheels and attached sensors (no text or symbols)

MAINTENANCE

IMPORTANT

P2

Line drawing of a vehicle's front suspension system with visible brackets and wheels (no text or symbols)

Mechanical assembly diagram showing a motor and gear assembly (no text or symbols).

Line drawing of a person using a tool to adjust or install a vehicle chassis (no text or symbols visible).

Line drawing of a hand using a tool to clean or adjust a car interior panel (no text or symbols visible).

Warning symbol with exclamation mark inside a triangle.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible).

  1. Position the rope in the starter rope guide located on the lower handle. (D2)
  2. Position the rope in the starter rope guide located on the upper handle. (D3)

Line drawing of a mechanical device with hands operating it, no text or symbols present.

Line drawing of a mechanical device with gears and components (no text or symbols).

Technical line drawing of a mechanical assembly with no visible text or symbols.

Gasoline

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

Rear Engine Start

J3 Starting System with Recoil

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Stop

  1. Release the engagement lever.
  2. Release the CPO lever.

Diagram of a hand holding a tool with a curved handle and a bracket, labeled M2 (no text or symbols on the diagram itself)

Engagement -

See Royal 50S

Isometric diagram of a mechanical device positioned on a grid-patterned surface with directional arrows (no text or symbols)

Note that:-

Technical line drawing of a mechanical assembly or vehicle component (no visible text or symbols)

N6Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a person handling a container with a pile of material, with no visible text or symbols.

Line drawing of a geometric 3D object resembling a folded paper or prism, with no visible text or symbols.

N10

Line drawing of a vehicle chassis frame with wheels and a cylindrical component, with no visible text or symbols.

Line drawing of a grassy tractor with visible wheels and handle, with no visible text or symbols.

MAINTENANCE

IMPORTANT

Illustration of a mechanical device with a hand operating it, with no visible text or symbols.

Mechanical assembly diagram showing a vehicle's wheel and suspension components, with no visible text or labels.

Mechanical assembly diagram showing hands operating a component with a textured handle, with no visible text or symbols.

Line drawing of a hand using a tool to lift a car interior, with no visible text or symbols.

Line drawing of a hand using a tool to clean or filter material inside a container, with no visible text or symbols.

Cutting System

Blade Removal

Q1 or Q2, BBC Only

Q2 - Only BBC

Note that:

C2Line drawing of a person operating a lawn mower (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols)

D3Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with a hand operating it, no text or symbols present

E2Line drawing of a vehicle chassis with visible frame and wheels (no text or symbols)

E3Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Gasoline

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

Line drawing of hands operating a mechanical device (no text or symbols).

Illustration of hands using a tool to adjust or install a component, no text or symbols present.

Pure mechanical diagram showing a pulley system without any text, numbers, or symbols.

Line drawing of a hand holding a flexible hose with a clip attached (no text or symbols).

Isometric diagram of a mechanical component with arrows indicating direction, no text or symbols present.

Note well:

Simple line diagram with a circular object on a horizontal line, no text or symbols present.

Line drawing of a printer with visible keyboard and paper spines (no text or symbols).

Line drawing of a person bending over a pile of material, no text or symbols present.

N10

Line drawing of a vehicle chassis with wheels and a cylindrical component.

Top-down schematic of a vehicle or robot with wheels and a central gear.

Line drawing of a small wheeled vehicle with wheels and a handle, labeled N13.

MAINTENANCE

IMPORTANT

Technical line drawing of a mechanical assembly.

  1. Wipe the surface of the lawn mower with a dry cloth.

Technical line drawing of a lawn mower assembly.

Mechanical assembly diagram showing hands operating a component.

Line drawing of a hand using a tool to interact with a mechanical device.

Line drawing of a hand using a tool to clean or inspect a mechanical component.

Q2 - Solo BBC

Note:

Electrolux Outdoor Products

Aycliffe Industrial Park

NEWTON AYCLIFFE

Co. Durham DL5 6UP

ENGLAND

Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339

UK Customer Helpline - 01325 300303 Fax - 01325 310339

Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and trademarks in several countries.

© Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ

Registered number 974979 England

HUSQVARNA ROYAL 50 S - Note: - 1

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.

HUSQVARNA ROYAL 50 S - From the Electrolux Group. The world's No.1 choice. - 1

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HUSQVARNA

Model : ROYAL 50 S

Category : Motorcycle
