USER MANUAL JDL4530B JUNO

Instruction on mounting and use of the cooker hood

JDL 4530

1 2 5 4 3 3 Fig. 1

A B Fig. 2

C Fig. 3

Diagram showing a device with labeled components D, including a magnified view of the screen area.

Fig. 4

Fig. 5

261 496 Fig. 6

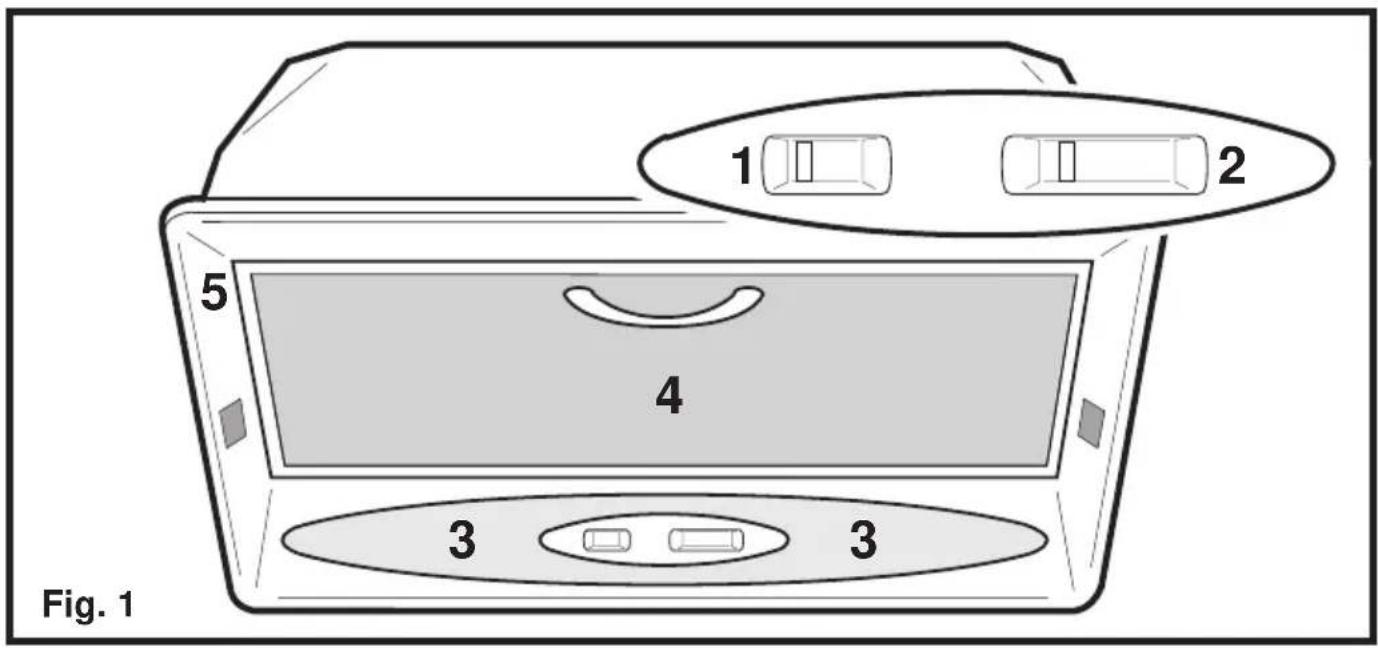

1) Light switch
2) Motor switch
3) Work surface lamp
4) Metal filter/Inlet grid

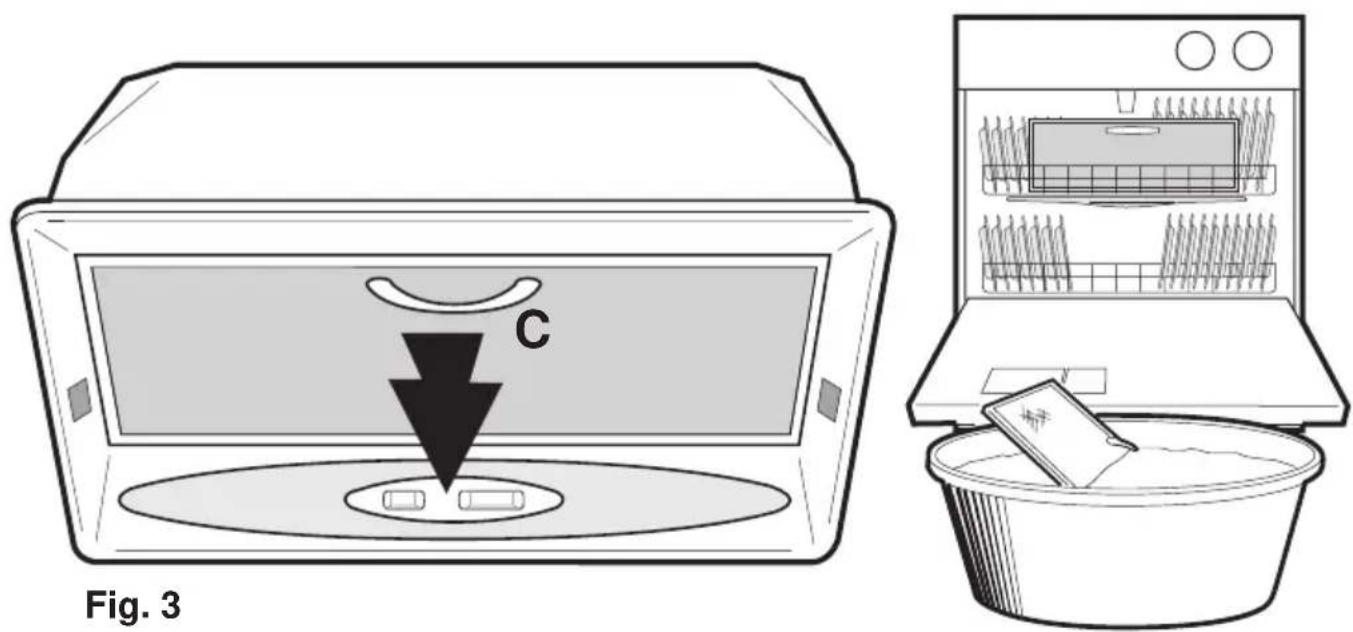

To remove the metal filter - Fig. 3
Pull downwards its handle C.
5) Frame

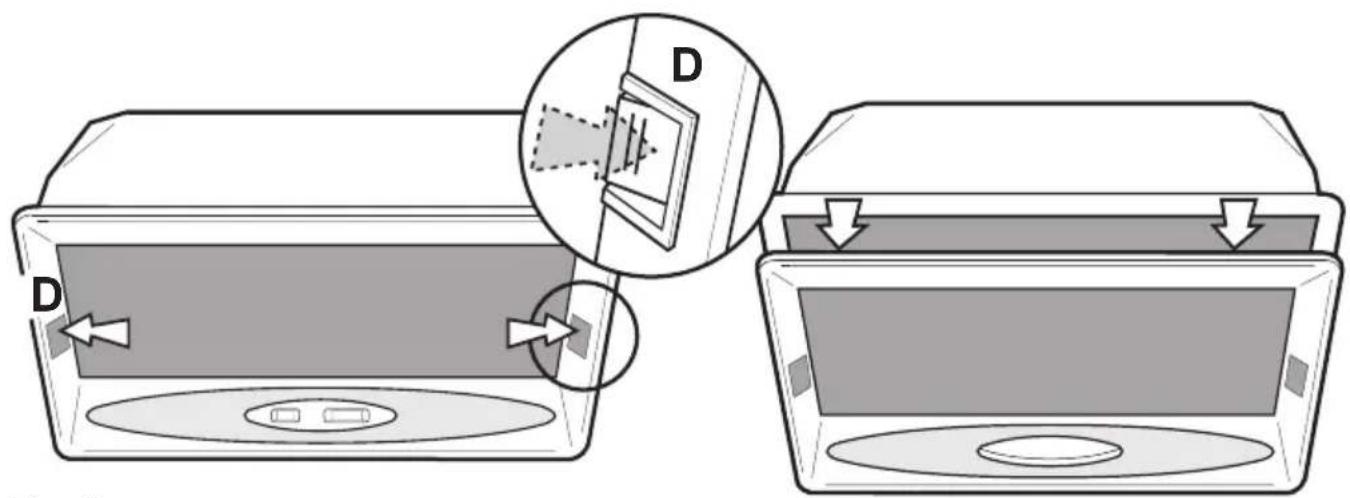

To remove the frame - Fig. 4
Push the two side release button D and extract the support.

Use

The hood may be used as follows:

Exhaust mode

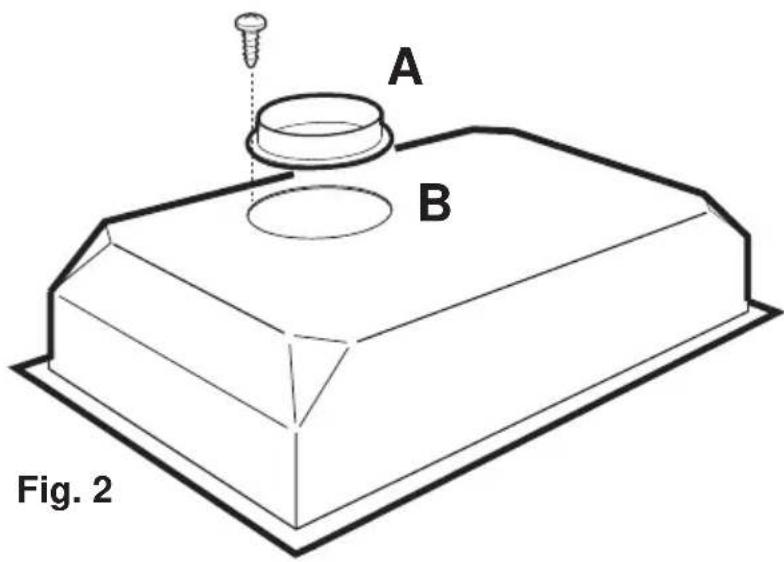

The air is conveyed out through a pipe which is connected to the outlet hole A (fig.

2) by means of a coupling flange B.

Choosing the exhausting pipe

The coupling ring B has a diameter of 120mm.

The air must be vented out by means of a pipe with an internal diameter of 120mm.

Recirculation mode

— The air is purified through an active carbon filter and returned to the room.
— The use of 2 active carbon filters are necessary when an exhaust pipe to the exterior is not available, or when it is not possible to install this type of pipe.

In the case of the recirculation mode proceed as follows:

a) Request 2 active carbon filter suitable for this model from your supplier.
b) Remove the metal filter (Fig. 3) and the frame (Fig. 4).

Some carbon filters are supplied wrapped in a plastic film, this to protect their filtering properties, remove this plastic film before fitting the carbon filter.

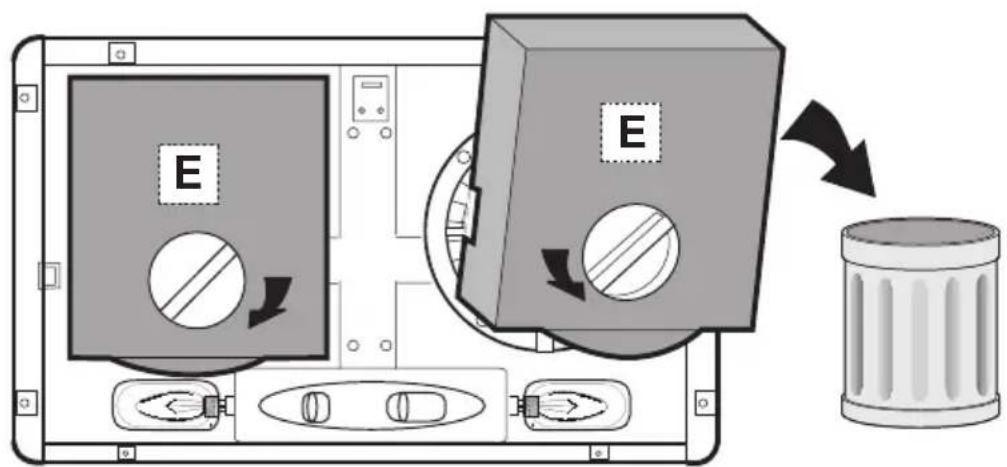

c) Place the filter on its seat (fig. 5 - E) and rotate the central knob clockwise until it stops.
d) Refit the frame (Fig. 4) and the metal filter (Fig. 3).

In this version vapour and fumes will be exhausted on the top of the cupboard where the hood will be mounted through an exhaust pipe with an internal diameter of 120 mm.

Installation

When installed, the hood must be not less than 65 cm. above electric burners or 75 cm. above gas or mixed-fuel burners.

Warning!

— The hood cannot be connected to flues of other appliances that run on energy sources other than electricity.
— When the hood is used at the same time of other appliances that run on energy sources other than electricity, provision must be made for an adequate supply of air.
— No food must be cooked flambé underneath the hood.
The use of an unprotected flame is dangerous for the filters and could cause fires.
Therefore, never use an open flame under the hood. When frying foods, never leave the pan alone because the cooking oil could flare up.
— Please, keep to the provisions of official directives regarding the question of fume discharge.
— The manufacturers refuse to accept any responsibility for damage to the hood or its catching on fire because of failure to observe the above instructions.

Suggestions for the installation and use of the hood

— The horizontal sections of the pipe must be slanted slightly downwards (about 10%) to ensure the condensed vapour not to come back on the motor of the hood.
— The best performance of the unit is obtained in the exhaust mode, therefore in the limits of the possibilities it is advised to use the external exhaust (suction) type.

— The best performances are obtained with short pipes (max. 4 m) and with few curves.

Electric connection

Before completing any connection, make sure the house voltage corresponds with the voltage indicated on the label affixed inside the hood.

The hood is supplied with a standard plug; connect it to a correspondingly standard socket.

In the case is intended to connect the appliance permanently to the mains after having removed the plug supplied, must be fitted a two-pole switch conforming to regulations with an opening distance between contacts of not less than 3mm.

The manufacturers are not liable for any problems caused by the user's failure to observe the above instructions.

Fixing the hood

After having adjusted the hood for the version required, it may be installed.

— This appliance is designed for fitting in a cabinet or some other support.

— The opening to be made on the bottom of the wall-hung cabinet must correspond with the measurements shown in fig. 5.

To fix the hood proceed as follows:

a) Remove the metal filter and the frame.

b) Fit the hood into the opening.

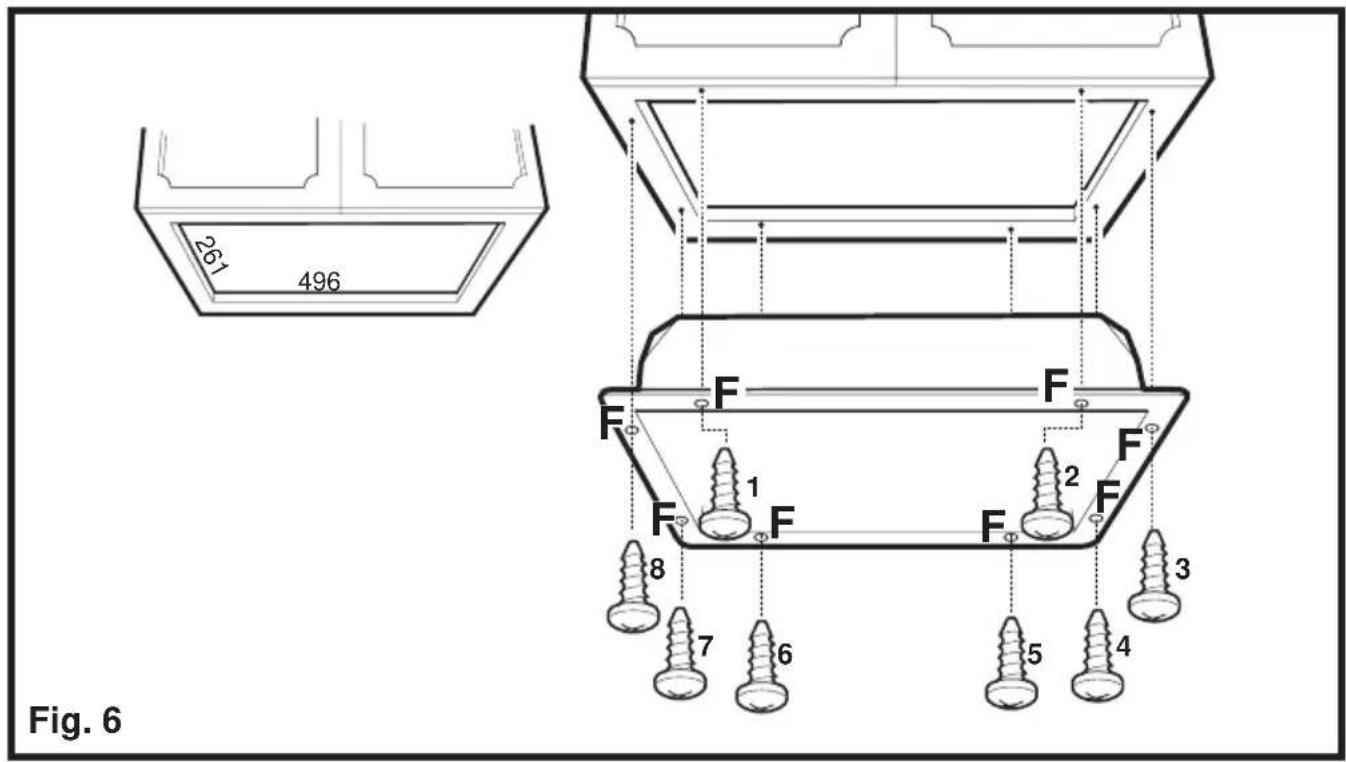

c) Secure the unit to the cabinet by screwing up screws through holes F (fig. 6).

d) Refit the frame (Fig. 4), then the metal filter (Fig. 3).

Instructions

Hoods model JDL 4530 is fitted with 2 motors.

The power is adjusted by means of an electronic sliding switch, plus an intensive set located at the end of the switch run.

For the best performance, we recommend using the low speeds in normal conditions and the high speeds in particular cases of strong odour and vapour concentration.

We recommend starting up the hood a few minutes before cooking and keeping it running until all the odours have been eliminated.

The switching plate is fitted with two switches one for continuous adjustment of the ventilator (right switch) and one for illuminating the work surface (left switch).

Maintenance

Before performing any maintenance operation, disconnect the hood from the electricity.

Metal grease filter

The hood has a metal grease filter.

The metal grease filter lasts forever and must be washed either by hand or in the dishwasher (65°C) with suitable detergents. The grease filters must be washed at least once a month.

Attention! When washed in a dishwasher, the metal grease filter may discolour.

Before refitting the filter ensure that it is perfectly dry.

When cleaning the grease filter, we recommend washing the frame that surrounds the filter.

Carbon filter

It keeps the odours and smells and leave the aspirated air cleaned from them.

The carbon filter should be replaced every 4 months under normal use.

The carbon filter cannot be washed nor regenerated.

To dismount it proceed as follows:

a) Remove the metal filter (Fig. 3) and the frame (Fig. 4).

b) Turn the central handle of the carbon filter anticlockwise and extract it (Fig. 5, E).

To fit the carbon filter proceed in reverse order.

Attention

Failure to observe the rules for cleaning the appliance and changing and cleaning the filters may cause fires.

Therefore, we recommend observing these instructions.

Replacing the lamp

a) Disconnect the hood from the electricity.
b) Remove the metal filter (Fig. 3) and the frame (Fig. 4).
c) Always replace burnout bulbs with olive-shaped max 40 Watt (E14) bulbs.
Before calling for repair service because the hood fails to light up, make sure the bulbs are screwed in tightly.

Cleaning

To clean the outside of the hood use a cloth moistened with denatured alcohol or neutral liquid detergents.

Never use products containing abrasive.

Wipe brushed stainless steel in the same direction as the brushing to avoid scratching.
