JDK7240 - Range hood JUNO - Free user manual and instructions

Product Type	Range Hood
Brand	Juno
Model	JDK7240
Dimensions (WxDxH)	60 cm x 50 cm x 15 cm (approx.)
Weight	10 kg (approx.)
Power Supply	220-240 V, 50 Hz
Motor Power	180 W
Fan Speeds	3
Noise Level (max)	60 dB(A)
Extraction Capacity	450 m³/h
Filter Type	Aluminum grease filter (washable)
Optional Carbon Filter	Yes (for recirculation mode)
Lighting	LED strip, 2 x 3 W
Installation Type	Built-in / under cabinet
Control Type	Push buttons
Ducting	Ducted (outlet diameter 150 mm) or recirculating
Energy Class	A
Material	Stainless steel
Maintenance	Clean grease filter monthly; replace carbon filter every 3-6 months
Safety Features	Motor overload protection, automatic shut-off (if applicable)
Spare Parts Available	Grease filter, carbon filter, LED lamp
Repair Service	Authorized service centers; spare parts available for DIY

Frequently Asked Questions - JDK7240 JUNO

What are the dimensions of the Juno JDK7240 range hood?

The approximate dimensions are 60 cm width, 50 cm depth, and 15 cm height. Always check the manual for exact measurements.

How do I clean the grease filter?

Remove the aluminum grease filter and wash it with warm soapy water or in a dishwasher. Allow it to dry completely before reinstalling. Clean monthly for optimal performance.

Can this range hood be used in recirculation mode?

Yes, you can use it in recirculation mode by installing a carbon filter (not included). This is ideal for kitchens without external ducting.

How loud is the JDK7240 during operation?

The maximum noise level is 60 dB(A), which is similar to a normal conversation. Lower fan speeds are quieter.

What type of lighting does it have?

It features LED lighting (2 strips, 3 W each) that provides bright, energy-efficient illumination over the cooking area.

How do I install the range hood?

The hood is designed for under-cabinet or built-in installation. Secure it to the cabinet above using the provided screws and template. Ensure proper ducting or carbon filter for recirculation.

What is the extraction capacity?

The maximum extraction capacity is 450 m³/h, suitable for medium-sized kitchens. Choose the appropriate fan speed based on cooking intensity.

How often should I replace the carbon filter?

If using recirculation mode, replace the carbon filter every 3 to 6 months, depending on usage. A clogged filter reduces efficiency.

Is there a warranty on the Juno JDK7240?

Juno typically offers a 2-year warranty on range hoods. Register your product and keep the receipt for service requests.

Can I control the fan speed?

Yes, the hood has 3 fan speeds controlled by push buttons. Use higher speeds for heavy steam and lower for silent operation.

USER MANUAL JDK7240 JUNO

Instruction on mounting and use of the cooker hood

JDK 7130, JDK 8130

JDK 7240, JDK 8240

Technical line drawing of a conical exhaust hood with labeled components (no text or symbols on the diagram itself)

Technical drawing of a mechanical assembly with two components, labeled Abb. 3 and Fig. 3 (no text or symbols on the diagram itself)

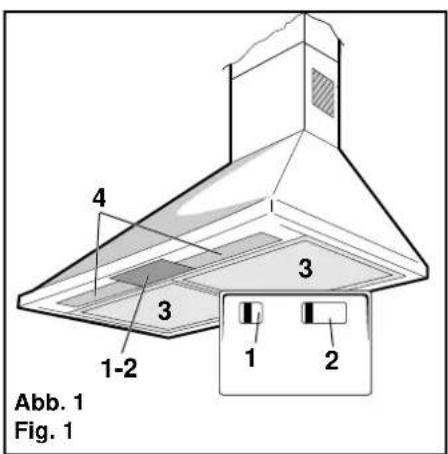

Hood Description

1) Motor speed button

2) Light button

3) Grease filters

4) Work-lights

Use

The hood may be used as follows:

— Exhausting version

— Recycling version

Exhausting version

The air is vented outdoors by a duct which must be connected to the coupling ring S (See figure 5 "Installation").

Choosing the exhausting pipe

The coupling ring S has a diameter of 150mm. We suggest to use ∅ 150 mm exhausting pipe.

Recycling version

The air is filtered through two carbon filters (to install them see paragraph - Carbon filter -) and recirculated into the room through the grating on the lower chimney part.

Attention!

If the hood is not supplied with carbon filter, then it must be ordered and mounted.

This version is used when there is no exhaust duct for venting outdoors or when it is impossible to install one.

Installation

When installed, the hood must be not less than 65 cm. above electric burners or 75 cm. above gas or mixed-fuel burners.

Warning!

— The hood cannot be connected to flues of other appliances that run on energy sources other than electricity.
— When the hood is used at the same time of other appliances that run on energy sources other than electricity, provision must be made for an adequate supply of air.

— No food must be cooked flambé underneath the hood.

The use of an unprotected flame is dangerous for the filters and could cause fires.

Therefore, never use an open flame under the hood. When frying foods, never leave the pan alone because the cooking oil could flare up.

— Please, keep to the provisions of official directives regarding the question of fume discharge.
— The manufacturers refuse to accept any responsibility for damage to the hood or its catching on fire because of failure to observe the above instructions.

Suggestions for the installation and use of the hood

— The horizontal sections of the pipe must be slanted slightly upwards (about 10%) to ensure an easy flow of the air outwards.
— The best performance of the unit is obtained in the external exhaust model (suction), therefore in the limits of the possibilities it is advised to use the external exhaust (suction) type.
— The best performances are obtained with short pipes (max. 4 m) and with few curves.

Electric connection

Before completing any connection, make sure the house voltage corresponds with the voltage indicated on the label affixed inside the hood.

The hood is supplied with a standard plug; connect it to a correspondingly standard socket.

In the case is intended to connect the appliance permanently to the mains after having removed the plug supplied, must be fitted a two-pole switch conforming to regulations with an opening distance between contacts of not less than 3mm.

The manufacturers are not liable for any problems caused by the user's failure to observe the above instructions.

Mounting the hood - Fig. 5

a. Put the template onto the wall and drill two ∅12mm holes.

b. Fit two hooks (1) on the drilled holes.

c. Hang the hood on the hooks and adjust the position of the hood using the two screws on the bottom of the hooks (4).

d. Remove the metal filters (3) and from the inside of the hood mark two point (2). Remove the hood and drill two ∅8mm holes on the marked points.

Fit two ∅8mm wall dowels, Hang again the hood and fix the hood definitively with two screws 5X45 (5) from the inside of the hood.

Mounting the chimney

e. Fix the chimney support (7) with two screws 5 x 45 mm (8) and two wall dowels (6) on the wall close to the ceiling.

f. For exhausting version: Fit the connection ring on the top of the hood with two screws ∅ 3,5 x 6,5 mm (9S) then fit an exhausting pipe long enough to reach the outside (10S).

For recycling version: first insert the fixing nooses of the deflector (K) on the rear slot (9K) then fix definitively the deflector (K) on the top of the hood with two screws ∅ 3,5 x 6,5 mm on the front holes (9K).

g. Prepare the electric connection (11) (see relative chapter).

h. Fit the chimney (12) and fix it on the chimney support with two screws 3,0 x 9 mm (13).

The lower part of the chimney must be slid down and inserted on the housing on the upper part of the hood (14).

i. Fit the two grids (15) on both sides of the chimney.

Operation

The hoods JDK 7130, JDK 8130, JDK 7240 are JDK 8240 are provided with a motor with three speed.

For the best performance, we recommend using the low speeds in normal conditions and the high speeds in particular cases of strong odour and vapour concentration.

We recommend starting up the hood a few minutes before cooking and keeping it running until all the odours have been eliminated.

Maintenance

Before performing any maintenance operation, disconnect the hood from the electricity.

Metal grease filter

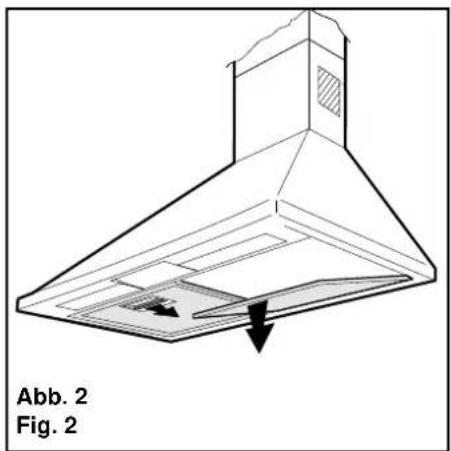

The cooker hood is fitted with metal filters. Remove the metal filter using the handles designed for this purpose by pulling them backwards and then downwards (Fig. 2).

The metal grease filter lasts forever and must be washed either by hand or in the dishwasher (65°C) with suitable detergents.

The grease filters must be washed at least once a month.

Before refitting the filter ensure that it is perfectly dry.

Position of filters is interchangeable.

Carbon filter (2 pieces)

This filter dissolves cooking odours.

The carbon filter must never be washed.

It should be changed every 4 months in normal use.

Mounting and replacing the carbon filter:

a) Disconnect the hood from the electricity.

b) Remove the grease filters (Fig. 2).

c) If the filters have not been installed, place one filter on each side so that they cover the grates protecting the rotor on the motor. Then turn the center handle for the filters in the clockwise direction (Fig. 3).

d) If the charcoal filters have already been installed (covering the grates protecting the rotor on the motor) and must be replaced, turn the central handle in the counter-clockwise direction until the filters are unlocked.

e) Refit the exhaust grate or the grease filter.

Replacing the lamp

a) Disconnect the hood from the electricity.

b) Remove the grease filters (Fig. 2).

c) Always replace burnt-out lamps with 40Watt max. (E14).

d) Fit again the grease filters.

e) Before calling for repair service because the hood fails to light up, make sure the bulbs are screwed in tightly.

Before calling for Repair Service because the hood fails to light up, make sure the lamp is well-inserted.

Cleaning

To clean the outside of the hood use a cloth moistened with denatured alcohol or neutral liquid detergents.

Never use products containing abrasive.

Attention

Failure to observe the rules for cleaning the appliance and changing and cleaning the filters may cause fires.

Therefore, we recommend observing these instructions.

Fastening of shelves (optional)

Fasten the four side supports I to the adjacent cabinets and place the shelf on the supports (Fig. 4).
