USER MANUAL JDK7130S JUNO

Instruction on mounting and use of the cooker hood

JDK 7130, JDK 8130

JDK 7240, JDK 8240

4 3 1-2 3 1 2 Abb. 1 Fig. 1

Technical line drawing of a conical exhaust hood with labeled components (no text or symbols on the diagram itself)

Technical diagram of a mechanical assembly with two components, labeled Abb. 3 and Fig. 3 (no text or symbols on the diagram itself)

Abb. 4 Fig. 4

Abb. 5 - Fig. 5 - Installation - 6 7 13 6 8 8 13 12 11 15 14 14 1 1 4 2 4 5 3 Ø 150mm Ø 120mm 10S S 4 3 9K 9S 9K 9K 9S 9K 9K

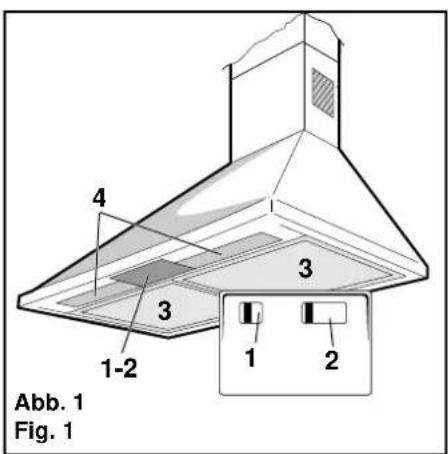

Hood Description

1) Motor speed button

2) Light button

3) Grease filters

4) Work-lights

Use

The hood may be used as follows:

— Exhausting version

— Recycling version

Exhausting version

The air is vented outdoors by a duct which must be connected to the coupling ring S (See figure 5 "Installation").

Choosing the exhausting pipe

The coupling ring S has a diameter of 150mm. We suggest to use ∅ 150 mm exhausting pipe.

Recycling version

The air is filtered through two carbon filters (to install them see paragraph - Carbon filter -) and recirculated into the room through the grating on the lower chimney part.

Attention!

If the hood is not supplied with carbon filter, then it must be ordered and mounted.

This version is used when there is no exhaust duct for venting outdoors or when it is impossible to install one.

Installation

When installed, the hood must be not less than 65 cm. above electric burners or 75 cm. above gas or mixed-fuel burners.

Warning!

— The hood cannot be connected to flues of other appliances that run on energy sources other than electricity.

— When the hood is used at the same time of other appliances that run on energy sources other than electricity, provision must be made for an adequate supply of air.

— No food must be cooked flambé underneath the hood.

The use of an unprotected flame is dangerous for the filters and could cause fires.

Therefore, never use an open flame under the hood. When frying foods, never leave the pan alone because the cooking oil could flare up.

— Please, keep to the provisions of official directives regarding the question of fume discharge.

— The manufacturers refuse to accept any responsibility for damage to the hood or its catching on fire because of failure to observe the above instructions.

Suggestions for the installation and use of the hood

— The horizontal sections of the pipe must be slanted slightly upwards (about 10%) to ensure an easy flow of the air outwards.

— The best performance of the unit is obtained in the external exhaust model (suction), therefore in the limits of the possibilities it is advised to use the external exhaust (suction) type.

— The best performances are obtained with short pipes (max. 4 m) and with few curves.

Electric connection

Before completing any connection, make sure the house voltage corresponds with the voltage indicated on the label affixed inside the hood.

The hood is supplied with a standard plug; connect it to a correspondingly standard socket.

In the case is intended to connect the appliance permanently to the mains after having removed the plug supplied, must be fitted a two-pole switch conforming to regulations with an opening distance between contacts of not less than 3mm.

The manufacturers are not liable for any problems caused by the user's failure to observe the above instructions.

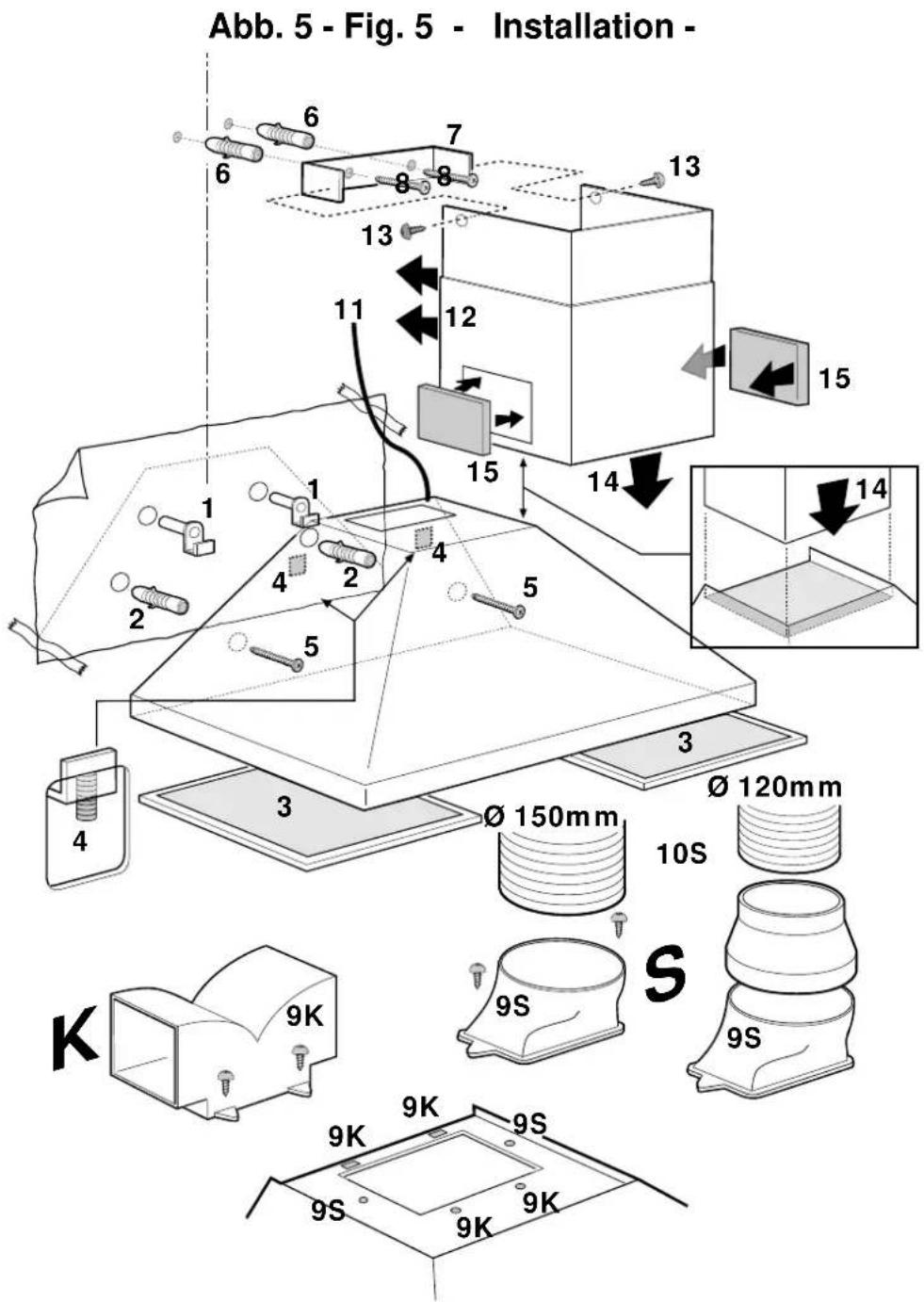

Mounting the hood - Fig. 5

a. Put the template onto the wall and drill two ∅12mm holes.

b. Fit two hooks (1) on the drilled holes.

c. Hang the hood on the hooks and adjust the position of the hood using the two screws on the bottom of the hooks (4).

d. Remove the metal filters (3) and from the inside of the hood mark two point (2). Remove the hood and drill two ∅8mm holes on the marked points.

Fit two ∅8mm wall dowels, Hang again the hood and fix the hood definitively with two screws 5X45 (5) from the inside of the hood.

Mounting the chimney

e. Fix the chimney support (7) with two screws 5 x 45 mm (8) and two wall dowels (6) on the wall close to the ceiling.

f. For exhausting version: Fit the connection ring on the top of the hood with two screws ∅ 3,5 x 6,5 mm (9S) then fit an exhausting pipe long enough to reach the outside (10S).

For recycling version: first insert the fixing nooses of the deflector (K) on the rear slot (9K) then fix definitively the deflector (K) on the top of the hood with two screws ∅ 3,5 x 6,5 mm on the front holes (9K).

g. Prepare the electric connection (11) (see relative chapter).

h. Fit the chimney (12) and fix it on the chimney support with two screws 3,0 x 9 mm (13).

The lower part of the chimney must be slid down and inserted on the housing on the upper part of the hood (14).

i. Fit the two grids (15) on both sides of the chimney.

Operation

The hoods JDK 7130, JDK 8130, JDK 7240 are JDK 8240 are provided with a motor with three speed.

For the best performance, we recommend using the low speeds in normal conditions and the high speeds in particular cases of strong odour and vapour concentration.

We recommend starting up the hood a few minutes before cooking and keeping it running until all the odours have been eliminated.

Maintenance

Before performing any maintenance operation, disconnect the hood from the electricity.

Metal grease filter

The cooker hood is fitted with metal filters. Remove the metal filter using the handles designed for this purpose by pulling them backwards and then downwards (Fig. 2).

The metal grease filter lasts forever and must be washed either by hand or in the dishwasher (65°C) with suitable detergents.

The grease filters must be washed at least once a month.

Before refitting the filter ensure that it is perfectly dry.

Position of filters is interchangeable.

Carbon filter (2 pieces)

This filter dissolves cooking odours.

The carbon filter must never be washed.

It should be changed every 4 months in normal use.

Mounting and replacing the carbon filter:

a) Disconnect the hood from the electricity.

b) Remove the grease filters (Fig. 2).

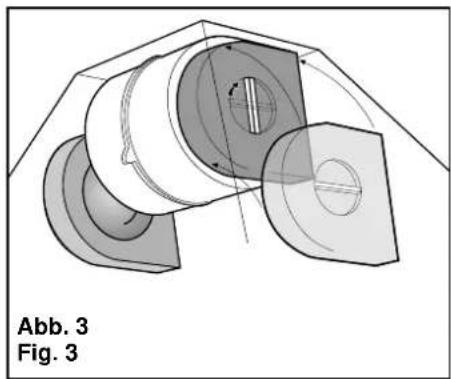

c) If the filters have not been installed, place one filter on each side so that they cover the grates protecting the rotor on the motor. Then turn the center handle for the filters in the clockwise direction (Fig. 3).

d) If the charcoal filters have already been installed (covering the grates protecting the rotor on the motor) and must be replaced, turn the central handle in the counter-clockwise direction until the filters are unlocked.

e) Refit the exhaust grate or the grease filter.

Replacing the lamp

a) Disconnect the hood from the electricity.

b) Remove the grease filters (Fig. 2).

c) Always replace burnt-out lamps with 40Watt max. (E14).

d) Fit again the grease filters.

e) Before calling for repair service because the hood fails to light up, make sure the bulbs are screwed in tightly.

Before calling for Repair Service because the hood fails to light up, make sure the lamp is well-inserted.

Cleaning

To clean the outside of the hood use a cloth moistened with denatured alcohol or neutral liquid detergents.

Never use products containing abrasive.

Attention

Failure to observe the rules for cleaning the appliance and changing and cleaning the filters may cause fires.

Therefore, we recommend observing these instructions.

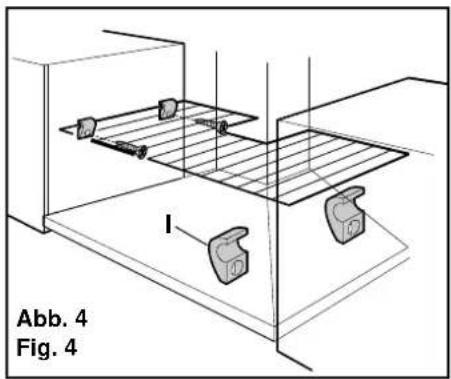

Fastening of shelves (optional)

Fasten the four side supports I to the adjacent cabinets and place the shelf on the supports (Fig. 4).

ELECTROLUX HAUSGERÄTE GMBH
