Product Type	Range Hood
Brand	JUNO
Model	JDU1230S
Colour	Stainless Steel
Width	60 cm
Depth	50 cm
Height (min - max)	60 - 110 cm
Weight	12 kg
Power Supply	220-240 V, 50 Hz
Motor Power	150 W
Lighting Power	2 x 20 W (halogen)
Number of Speeds	3
Extraction Capacity	450 m³/h
Noise Level (max)	65 dB(A)
Control Type	Push buttons
Grease Filter Type	Aluminium mesh, washable
Charcoal Filter	Optional (for recirculation mode)
Operation Mode	Extraction or recirculation
Energy Class	A
Annual Energy Consumption	50 kWh
Safety Features	Motor thermal protection
Spare Parts Availability	Filters, bulbs, motor available from service

Frequently Asked Questions - JDU1230S JUNO

How do I install the JUNO JDU1230S range hood?

Installation must be done by a qualified professional. Ensure the hood is mounted at least 65 cm above electric hobs or 75 cm above gas hobs. Follow the mounting template and secure it to the wall with suitable fixings.

Can I use the hood in recirculation mode?

Yes, the hood can be used in recirculation mode. You need to install a charcoal filter (model AC-JDU1230S). This filter is not included and must be purchased separately.

How often should I clean the grease filters?

Clean the aluminium grease filters every 2 months or more frequently with heavy use. They are dishwasher safe. A clean filter ensures optimal performance and reduces fire risk.

How do I replace the halogen bulbs?

Disconnect the hood from power. Remove the bulb cover by gently prying it off. Replace with a halogen bulb 20W (G4 base). Do not touch the new bulb with bare hands; use a cloth.

The hood is noisy, what can I do?

Check if the grease filters are clean and properly installed. Ensure the ducting is not blocked or kinked. If noise persists, contact service for motor inspection.

What does the 'filter alarm' indicator mean?

The filter alarm lights up after 30 hours of operation to remind you to clean the grease filters. To reset, press and hold the speed 1 button for 3 seconds.

Can I install the hood without ducting?

Yes, but only if you use recirculation mode with a charcoal filter. The hood will then filter and recirculate air back into the kitchen.

What is the recommended distance between hob and hood?

For electric hobs, minimum 65 cm; for gas hobs, minimum 75 cm. This ensures efficient extraction and safety.

The hood does not turn on. What should I check?

Check if the power cord is plugged in and the circuit breaker is on. Also ensure the thermal safety switch has not tripped. If problem persists, call service.

Where can I purchase spare parts?

Spare parts like filters, bulbs, and motors are available from JUNO authorized service centers or online spare parts shops. Use the model number JDU1230S for correct parts.

USER MANUAL JDU1230S JUNO

Instruction on mounting and use of the cooker hood

JDU 1450

JDU 1230

JDU 1130

SDU 1130

Abb. 1 - Fig. 1

Abb. 2 - Fig. 2

Abb. 3 - Fig. 3

Abb. 4 - Fig. 4

Technical line drawing of a mechanical device inside a container, showing internal components and motion arrows (no text or symbols)

Abb. 5 - Fig. 5

Abb. 8 - Fig. 8

Use

The hood may be used as follows:

Exhausting version

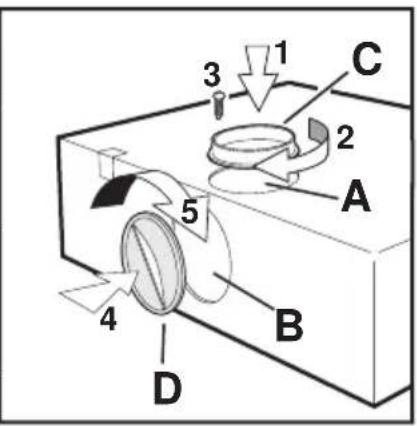

The appliance is fitted with 2 exhaust outlets: one at the top A and the other at the back B (Fig. 1).

To connect the pipe fit the coupling ring C in the outlet selected.

Use cover D to close the unused outlet (Fig. 1).

Remove the exhausting grid (Fig. 2).

Lever E: in position G (Fig. 3).

Refit the exhausting grid.

Choosing the exhausting pipe

The coupling ring C has a diameter of 120mm.

We suggest to use ∅ 120 mm exhausting pipe.

Recycling version

The air is purified by means of a charcoal filter and recycled into the room through the front grid.

Remove the exhausting grid (Fig. 2).

Lever E: in position F (Fig. 4).

Refit the exhausting grid.

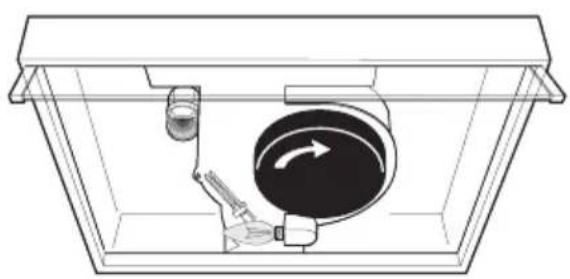

Mounting the circular charcoal filter (Fig. 5):

a. Position the circular charcoal filter so that it covers the plastic grate which protects the fan wheel and motor.
b. Check that the small tab (1) coincides with the arrow (2) printed on the conveyor.
c. Turn in clockwise direction.

Installation

When installed, the hood must be not less than 60 cm. above electric burners or 70 cm. above gas or mixed-fuel burners.

Warning!

— The hood cannot be connected to flues of other appliances that run on energy sources other than electricity.
— When the hood is used at the same time of other appliances that run on energy sources other than electricity, provision must be made for an adequate supply of air.

— No food must be cooked flambé underneath the hood.

The use of an unprotected flame is dangerous for the filters and could cause fires.

Therefore, never use an open flame under the hood. When frying foods, never leave the pan alone because the cooking oil could flare up.

— Please, keep to the provisions of official directives regarding the question of fume discharge.
— The manufacturers refuse to accept any responsibility for damage to the hood or its catching on fire because of failure to observe the above instructions.

Suggestions for the installation and use of the hood

— The horizontal sections of the pipe must be slanted slightly upwards (about 10%) to ensure an easy flow of the air outwards.
— The best performance of the unit is obtained in the exhausting version, therefore in the limits of the possibilities it is advised to use this version.
— The best performances are obtained with short pipes (max. 4 m) and with few curves.

Electric connection

Before completing any connection, make sure the house voltage corresponds with the voltage indicated on the label affixed inside the hood.

The hood is supplied with a standard plug; connect it to a correspondingly standard socket.

In the case is intended to connect the appliance permanently to the mains after having removed the plug supplied, must be fitted a two-pole switch conforming to regulations with an opening distance between contacts of not less than 3mm.

The manufacturers are not liable for any problems caused by the user's failure to observe the above instructions.

Fixing to the cabinet - Fig. 6

a. Make four holes at the bottom of the cabinet.
b. Remove the exhausting grid (Fig. 2).
c. Remove the screws from the container on the side of the conveyor.
d. Fit the four 4.2x35 screws supplied, from inside the cabinet in the holes on the appliance.
e. Refit the exhaust grid.

Using the hood

JDU 1230 - JDU 1450

The hood is provided with a 3-speed motor. For the best performance, we recommend using the low speeds in normal conditions and the high speeds in particular cases of strong odour and vapour concentration.

JDU 1130 - SDU 1130

The hood is provided with a 1-speed motor. — We recommend starting up the hood a few minutes before cooking and keeping it running until all the odours have been eliminated.

Maintenance

Before performing any maintenance operation, disconnect the hood from the electricity.

Grease filter

The hoods JDU 1230, JDU 1130 and SDU 1130 have a thin paper grease filter; the hood JDU 1450 has a metal grease filter. The metal grease filter lasts forever and must be washed at least once a month either by hand or in the dishwasher (60°C) with suitable detergents.

Attention! When washed in a dishwasher, the metal grease filter may discolour.

Let the filter dry without damaging it before putting it back into place.

This paper grease filter must be replaced every month.

To replace the filter, proceed as follows:

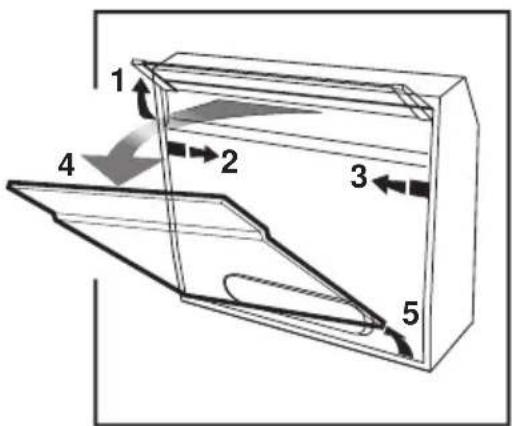

a. Slide the two side latches to release the grid (Fig. 2,2 - Fig. 2,3).

b. Remove the grid completely, pull the right side of the grid forward and unhook

it from the slots to which it is attached (Fig. 2,5).

c. Remove the stops of the filter (Fig. 7,1 - Fig. 7,2).

When the filters are washed, the grid should also be cleaned with warm water and biodegradable detergent.

Charcoal filter

This filter dissolves cooking odours.

The charcoal filter must never be washed. It should be changed every 4 months in normal use.

Mounting and replacing the charcoal filter:

a. Disconnect the hood from the electricity.
b. Remove the exhausting grid (Fig. 2).
c. Pull-out the tab (1).
d. Turn the filter in the counterclockwise direction (2).

To mount a new charcoal filter, see the section in the paragraph Recycling version - Mounting the circular charcoal filter

e. Refit the exhaust grid.

Replacing the lamp

a. Disconnect the hood from the electricity.
b. Remove the exhaust grid (Fig. 2).
c. Always replace burnt-out lamps with 40Watt max. (E14).
d. Fit again the exhaust grid.
e. Before calling for repair service because the hood fails to light up, make sure the bulbs are screwed in tightly.

Cleaning

To clean the outside of the hood use a cloth moistened with denatured alcohol or neutral liquid detergents.

Never use products containing abrasive.

Attention

Failure to observe the rules for cleaning the appliance and changing and cleaning the filters may cause fires.

Therefore, we recommend observing these instructions.
