USER MANUAL LHDD 9010 RC WH Fulgor Milano

Symbol of a trash bin crossed with no text or labels

GB This product complies with EU Directive 2002/96/EC.

The crossed bin symbol on the appliance indicates that the product, at the end of its life, must be disposed of separately from domestic waste, either by taking it to a separate waste disposal site for electric and electronic appliances or by returning it to your dealer when you buy another similar appliance. The user is responsible for taking the appliance to a special waste disposal site at the end of its life. If the disused appliance is collected correctly as separate waste, it can be recycled, treated and disposed of ecologically; this avoids a negative impact on both the environment and health, and contributes towards the recycling of the product's materials. For further information regarding the waste disposal services available, contact your local waste disposal agency or the shop where you bought the appliance.

Technical line drawing showing a door panel installation and internal components, including a close-up of the interior (no text or symbols present)

Close-up of a mechanical clamp or bracket assembly with two white arrows pointing to a component, labeled 'Fig. 3' (no text or symbols on the diagram itself)

ALLACCIAMENTO ELETTRICO

Exterior view of a device with labeled components (F) and cable, no readable text or symbols beyond labels

Metallic industrial cabinet with open lid and internal structure (no visible text or symbols)

3D mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols)

Exterior view of a modern office building (no signage)

Filtri carbone

ATTENTION: The downdraft must only be installed from a qualified technician. Every responsibility regarding installations from unauthorized persons will be declined.

Before proceeding with the downdraft installation, please read carefully these instructions.

Keep this booklet together with the downdraft.

WARNING

ATTENTION: When the downdraft is closed, do not put pots or other containers on it, in order to avoid eventual spills in phase of opening.

The downdraft is equipped of a security system of micro-switches that blocks the movement of the downdraft in case the cover would raise. In phase of closure of the downdraft, if some object is between the cover and the work top, the raising of the cover will block the movement. In order to reactivate the movement it will be sufficient to replace the cover and activate the desired command.

Do not let children or disabled people use the downdraft if not in presence of adults.

Before cleaning or performing any periodic maintenance of the downdraft always ensure the electric power is turned off by removing the plug from the socket and turning the main switch to position 0 (OFF).

Do not connect the downdraft to any piping used for combustion appliances, such as burners, boilers or fireplaces.

Check that the main power supply corresponds to the voltage required by the downdraft (see silver label on the electric box).

Ensure that the electric system is correctly earthed and that the earth discharge works correctly.

When cooking do not use materials that could form high or unusual flames. Oil and fat used twice are particularly dangerous and could easily catch on fire.

Do not prepare flambé dishes under the hood.

Respect local legislation and regulations issued by the relative authorities regarding the exhaust air when the suction is operating.

Failure to respect and perform all the maintenance operations described in this booklet could cause a fire hazard.

INSTALLATION

The suction of the downdrafts, regarding the traditional hoods, is penalized in the suction of the cooking vapors of the front pots. For this reason the use of a panoramic glass ceramic top is suggested.

The downdraft can be used for both filtering and suction.

When the filtering function is operating, with air recycle, carbon filters must be used.

When the downdraft is used in the filtering function, there must be a suitable section for spillage of the air suction on the base of the kitchen.

When the suction function is operating, exhausting the filtered air on the outside, a suitable compensation system must be used according to current standards in force. The diameter of the fume exhaust pipe must be the same or greater than the diameter of the downdraft pipe union.

There must be sufficient ventilation in the room where the downdraft is installed, to allow the simultaneous use of other appliances that use gas or other fuels.

ASSEMBLY INSTRUCTIONS

Make a hole in the downdraft approximately 50mm from the work top hole.

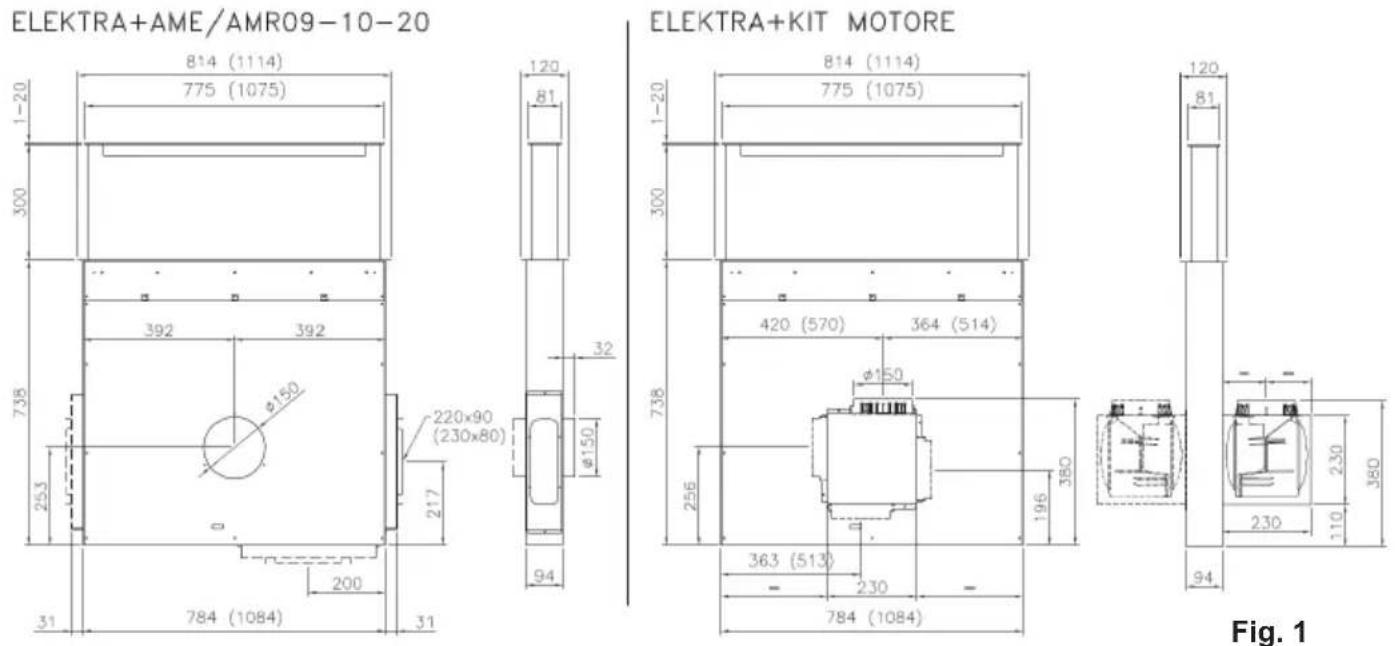

For the dimensions of the hole, see drawing here below.

In the INOX version, the gluing of the cover (as rule, use the same material of the work top) of the downdraft, must be performed in the same place after finishing the assembly of the downdraft.

The support for the gluing of the cover is supplied with the downdraft.

Technical line drawing showing a door frame assembly with an inset close-up of the component (no text or symbols present)

The controls must be assembled in order to guarantee an eventual attendance of technical assistance.

In the kitchen furniture, provide in front of the downdraft a removable wall.

It is possible to connect on the front or on the back part of the downdraft a tube of diameter 150. It is possible to connect on the side of the downdraft a tube 220x90 or 230x80 on both sides.

As for the height adjustment of the moving part of the downdraft, see Fig. 2. According to the thickness of the cover, it is possible to adjust of 20mm.

Fig. 2
This adjustment is possible by acting on the two nuts that secure the central pivot of the actuator Fig.3

Close-up of a mechanical assembly with arrows pointing to a component, labeled 'Fig. 3' (no readable text or symbols beyond label)

ELECTRIC WIRING

Safety Instructions:

• Before any manipulation of the controller power cord (230 volt)
• Before each operation, all devices connected
  • Electrical connections must be performed by professionals

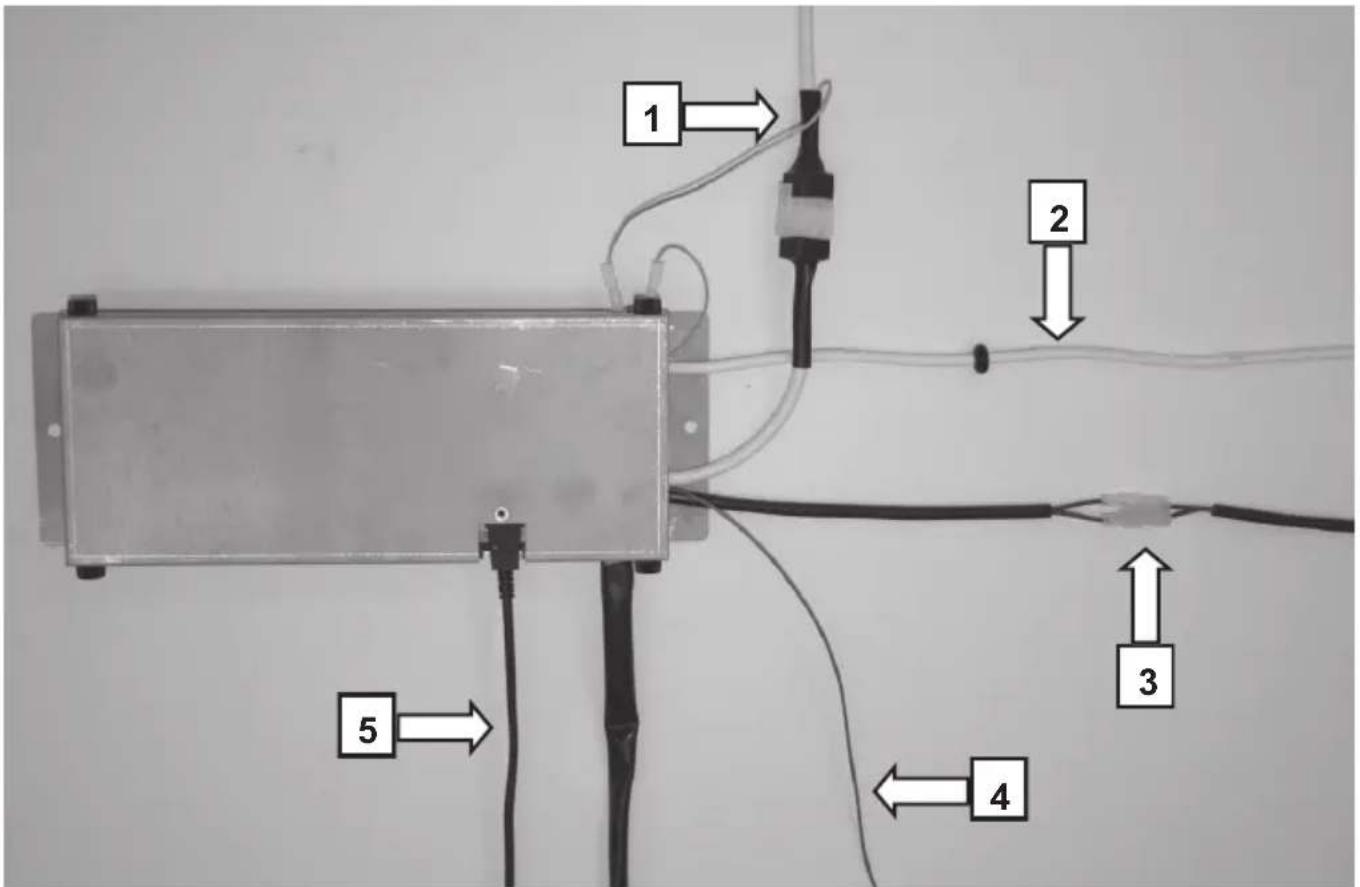

1 - External motor connector
2 - Power supply 230V
3 - Cable with faston for microswich hood
4 - Remote control antenna cable (has to remain free)
5 - Hood activator cable

ELEKTRA CONTROL FUNCTIONS

PLEASE NOTE : THE SUCTION OF THE DOWNDRAFT CAN BE STARTED ONLY WHEN THE DOWNDRFT IS COMPLETELY EXTRACTED.

BUTTON "A"

With suction motor turned on, every time the button is pressed the motor speed will be reduced of one step.

BUTTON "B"

With the downdraft completely removed, the suction motor can be turned on and/or off.

While pressing the button long enough, the suction motor turns off automatically.

The activation of the timer is signaled by the blue flashing led and the suction motor turns off after 10 minutes.

BUTTON "C"

With suction motor turned on, every time the button is pressed the motor speed will be increased of one step.

BUTTON "D"

By pressing the button once, the downdraft is completely extracted.

If the button is pressed while the downdraft is moving, the downdraft automatically stops.

To restart the movement, it is necessary to press button "D" or "E".

BUTTON "E"

By pressing the button once, the downdraft returns in completely.

If the button is pressed while the downdraft is moving, the downdraft automatically stops.

To restart the movement, it is necessary to press button "D" or "E".

If the button is pressed when the suction motor is on, the motor automatically turns off.

NOTES:

Exterior view of a server rack with cable and connector, labeled 'F' (no readable text or symbols beyond labels)

- At first use it is necessary to start the remote control learning.

When the downdraft is turned off, keep button "F" pressed for a long time.

The remote control learning is indicated with the flashing led.

If, within one minute there is a valid remote control code (sent by pressing any button of the remote control), the led will be on

continuously for 3 seconds and then it will turn off, indicating the proper learning.

USE AND MAINTENANCE

Before beginning any sort of cleaning and maintenance work, turn off the power of the downdraft by turning the main switch to 0 (OFF).

Cleaning the metal filters

The metal filters fitted in the downdraft should be washed every 2-3 months depending on how much they are used, using hot water and a non aggressive liquid detergent.

To access the metal filters, you must open the cover from the downdraft. In order to open the cover,

take the cover out from the downdraft and open the cover lifting it upwards. (Fig.A)

The metal filters can be removed using the special handle unhooking first the filter in the front part and pulling up. (Fig.B)

Interior view of a metallic industrial device with open lid and internal structure (no visible text or symbols)

3D CAD model of a mechanical component with mounting holes and a circular cutout (no text or symbols)

After washing the filters, they must be thoroughly dried and reassembled correctly.

Exterior view of a dark rectangular electronic device with metallic frame and visible internal structure (no text or symbols)

Carbon filters

If the downdraft is used with the internal recycle filtering system, then active carbon filters must be used.

The active carbon in the filters traps the cooking smells.

Warning: The carbon filters can not be reused or washed and should be changed periodically (every 4 months if the hood is used for two hours every day). Saturated filters cause fire hazards.

The carbon filters are placed underneath the metal filters.

Cleaning the hood

If the downdraft is stainless steel, use specific products and rags for satin stainless steel (non-abrasive and / or corrosive detergents free of chlorine), ensuring to clean in the same direction as the satin finish.

Do not use aggressive products, chemical solvents or derivatives of oil distillates that could leave oily traces which could cause oxidation and polymerization.

The manufacturer is not responsible for damage to the surface of the downdraft due to failure to respect these instructions.

Technical line drawing showing a door frame assembly with an inset close-up of the component (no text or symbols present)

Close-up of a mechanical clamp or bracket assembly with two white arrows pointing to features, no visible text or symbols.

STROMANSCHLUSS

Exterior view of a mechanical device with labeled components (no readable text or symbols)

Exterior view of a dark rectangular electronic component with metallic edges and a flat top (no text or symbols visible)

Aktivkohlefilter

Technical line drawing showing a door panel installation and internal components, including a close-up of the base panel (no text or symbols present)

Close-up of a metal bracket with screws and bolts, showing a mechanical assembly with two directional arrows indicating alignment (no text or symbols)

LIGAÇÃO ELÉCTRICA

Warning sign depicting a lightning bolt symbol (no text or numbers present)

Exterior view of a server or electronic device with cables and a labeled component 'F' (no readable text or symbols beyond labels)

Interior view of a metallic industrial cabinet or enclosure with metal panels and internal components (no visible text or symbols)

3D CAD model of a mechanical assembly with mounting brackets and cutouts (no text or symbols)

Exterior view of a modern office building (no signage)

Filtros carvão
