FTHD 900 TC BK X - Range hood Fulgor Milano - Free user manual and instructions
Find the device manual for free FTHD 900 TC BK X Fulgor Milano in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Fulgor Milano |
| Model | FTHD 900 TC BK X |
| Width | 90 cm (35.4 inches) |
| Installation Type | Under Cabinet / Wall Mounted |
| Material | Stainless Steel and Tempered Glass |
| Color | Black (BK) with Stainless Steel Trim |
| Control Type | Electronic Push Button |
| Number of Speeds | 3 speeds + Boost |
| Air Extraction Rate (Max) | 600 m³/h (212 CFM) |
| Noise Level (Max) | 55 dB(A) |
| Lighting | 2 x LED (4W each) |
| Grease Filter Type | Washable Aluminum Mesh |
| Charcoal Filter (Optional) | Yes, sold separately |
| Duct Diameter | 150 mm (6 inches) |
| Energy Class | B |
| Power Input | 250 W |
| Voltage / Frequency | 220-240 V / 50-60 Hz |
| Weight | Approx. 15 kg (33 lbs) |
| Safety Features | Thermal Cut-Out Protection |
| Maintenance | Clean metal filters monthly; replace charcoal filters every 3-6 months |
Frequently Asked Questions - FTHD 900 TC BK X Fulgor Milano
How do I clean the grease filters?
Remove the aluminum mesh filters and wash them in warm soapy water or in the dishwasher. Ensure they are completely dry before reinstalling. For best performance, clean monthly.
Does this hood require a charcoal filter?
Yes, if you use the hood in recirculation mode (no duct to outside), you must install a charcoal filter. It is not included and must be purchased separately.
How often should I replace the charcoal filter?
Charcoal filters should be replaced every 3 to 6 months depending on usage. Dispose of them as they cannot be washed.
What is the noise level of this range hood?
The noise level varies by speed: up to 55 dB(A) on the highest setting. Lower speeds are quieter, around 45 dB(A).
Can I install this hood over a gas cooktop?
Yes, but ensure a minimum clearance of 65 cm (26 inches) between the cooktop and the bottom of the hood, as recommended for safety.
How do I turn on the LED lights?
Press the light button (marked with a bulb icon) on the control panel. The lights are independent from the fan and can be used separately.
What should I do if the hood stops working suddenly?
Check the household fuse or circuit breaker. If the thermal cut-out activated, allow the motor to cool down for 30 minutes before restarting. If the problem persists, contact service.
Is the hood ducted or recirculation?
The hood can be used both as ducted (exhaust outside) or recirculation (with charcoal filter). The duct outlet is 150 mm diameter.

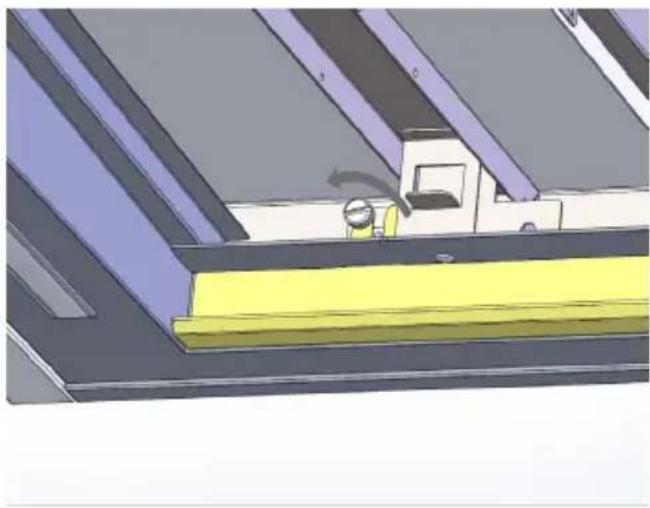

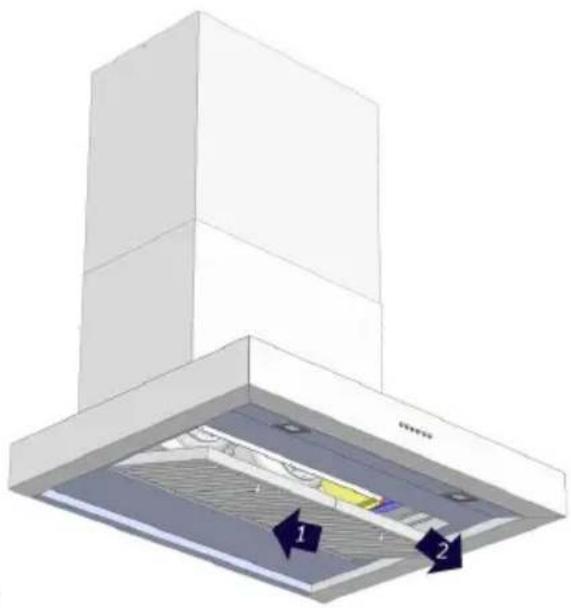

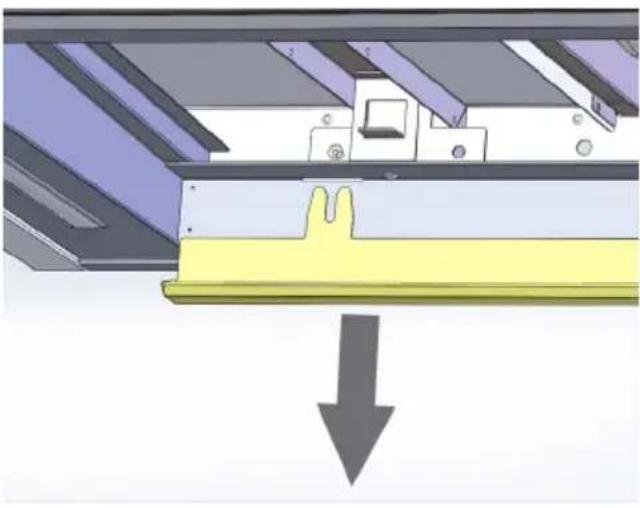

How do I replace the LED lights?
The LED modules are integrated and should be replaced by a qualified technician. Contact Fulgor Milano support for assistance.
What are the dimensions of the duct outlet?
The duct outlet diameter is 150 mm (6 inches). Use a compatible duct pipe for optimal airflow.
