Product Type	Solo Microwave
Brand	Hanseatic
Model	TC925B2F-SDEE
Capacity	20 liters
Power Output	700 W
Power Levels	5 levels
Grill Function	No
Convection	No
Defrost Function	Yes, by weight
Timer	Up to 60 minutes
Clock	Digital display
Child Lock	Yes
Turntable	Yes, glass
Interior Light	Yes
Dimensions (W x D x H)	45.5 x 33.0 x 26.2 cm
Weight	11.5 kg
Power Supply	220-240 V, 50 Hz
Cord Length	1.2 m
Control Type	Rotary knobs
Door Opening	Side hinged, push-button
Cleaning	Wipe with damp cloth, mild detergent
Safety Features	Child lock, auto shut-off
Spare Parts	Turntable, glass plate, fuse
Repairability Index	6.5 / 10

Frequently Asked Questions - TC925B2F-SDEE Hanseatic

How do I set the clock on my Hanseatic TC925B2F-SDEE microwave?

Press the Clock button, then turn the dial to set hours, press again to set minutes, and press Clock to confirm.

How do I defrost food using this microwave?

Press the Defrost button, then enter the food weight using the dial. The microwave will automatically calculate defrost time.

What is the maximum cooking time?

The timer can be set up to 60 minutes. For longer cooking, restart the timer.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild detergent. Avoid abrasive cleaners. Remove the turntable and wash separately.

Why is my microwave not heating?

Check if the door is fully closed and the child lock is disengaged. If still not heating, ensure the power cord is plugged in and the outlet works.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds. A lock icon will appear on the display. Repeat to unlock.

Can I use metal containers in this microwave?

No, metal can cause sparking. Use microwave-safe glass, ceramic, or plastic containers.

What does the turntable direction reverse mean?

Some models have a reverse turntable function to ensure even cooking. It alternates direction during operation.

How do I reset the microwave after a power outage?

Unplug the microwave for 10 seconds, then plug it back in. The clock will need to be reset.

Where can I find replacement parts like the turntable?

Contact Hanseatic customer service or visit authorized parts dealers. Use model TC925B2F-SDEE for reference.

USER MANUAL TC925B2F-SDEE Hanseatic

Illustration of a microwave oven with digital display and control buttons (no text or symbols)

Gebrauchsanleitung

Inhaltsverzeichnis

Diagram of concentric ovals with a central cross-like pattern, labeled (3) at the bottom (no text or symbols within the diagram itself)

Technical diagram of an oval-shaped device with internal structure and four connectors (no text or symbols)

Illustration of a microwave oven with various interior components including a lid, fan, and base mount (no text or symbols present)

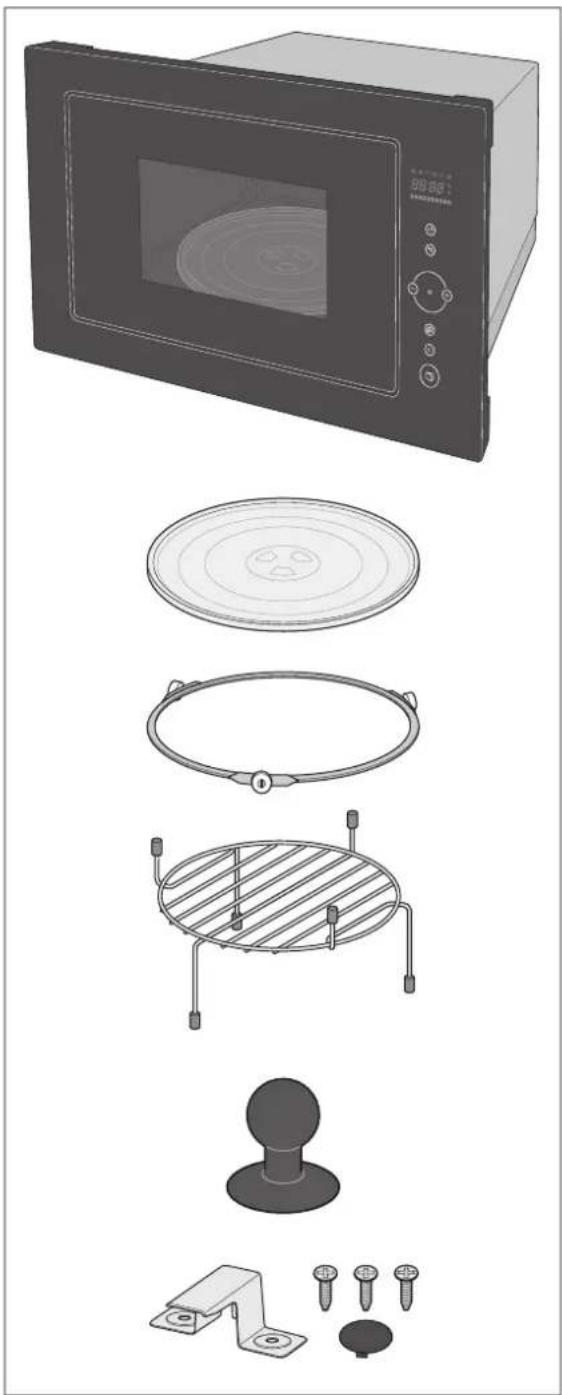

Lieferumfang

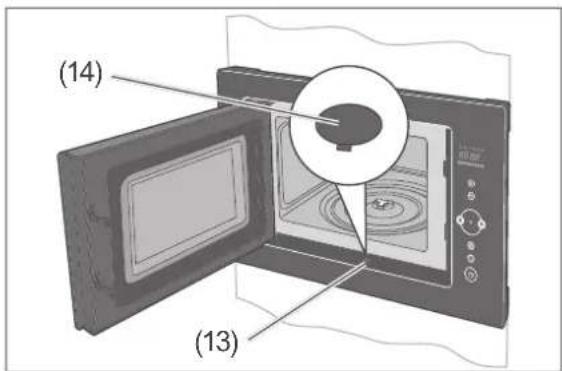

Illustration of a microwave oven mounted on a shelf with an inset showing the mounting bracket (no text or symbols)

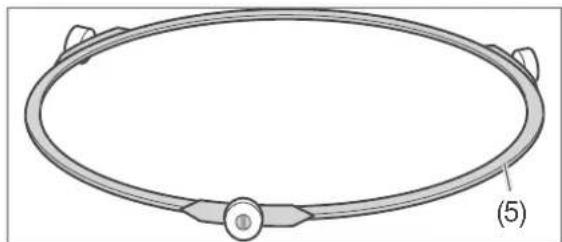

Diagram of a circular mechanical component with a central knob and two side handles, labeled (5), showing no text or symbols.

Illustration of a microwave oven with digital display and control buttons (no text or symbols)

User manual

Table of contents

You can find information on installation and start-up from page EN-35.

Explanation of terms and symbols,

definitions ...... EN-3

Explanation of terms ..... EN-3

Explanation of symbols ..... EN-3

Definitions ...... EN-3

Safety EN-4

Intended use ...... EN-4

Safety notices EN-4

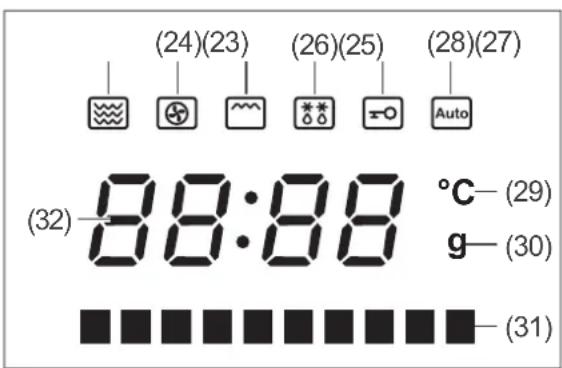

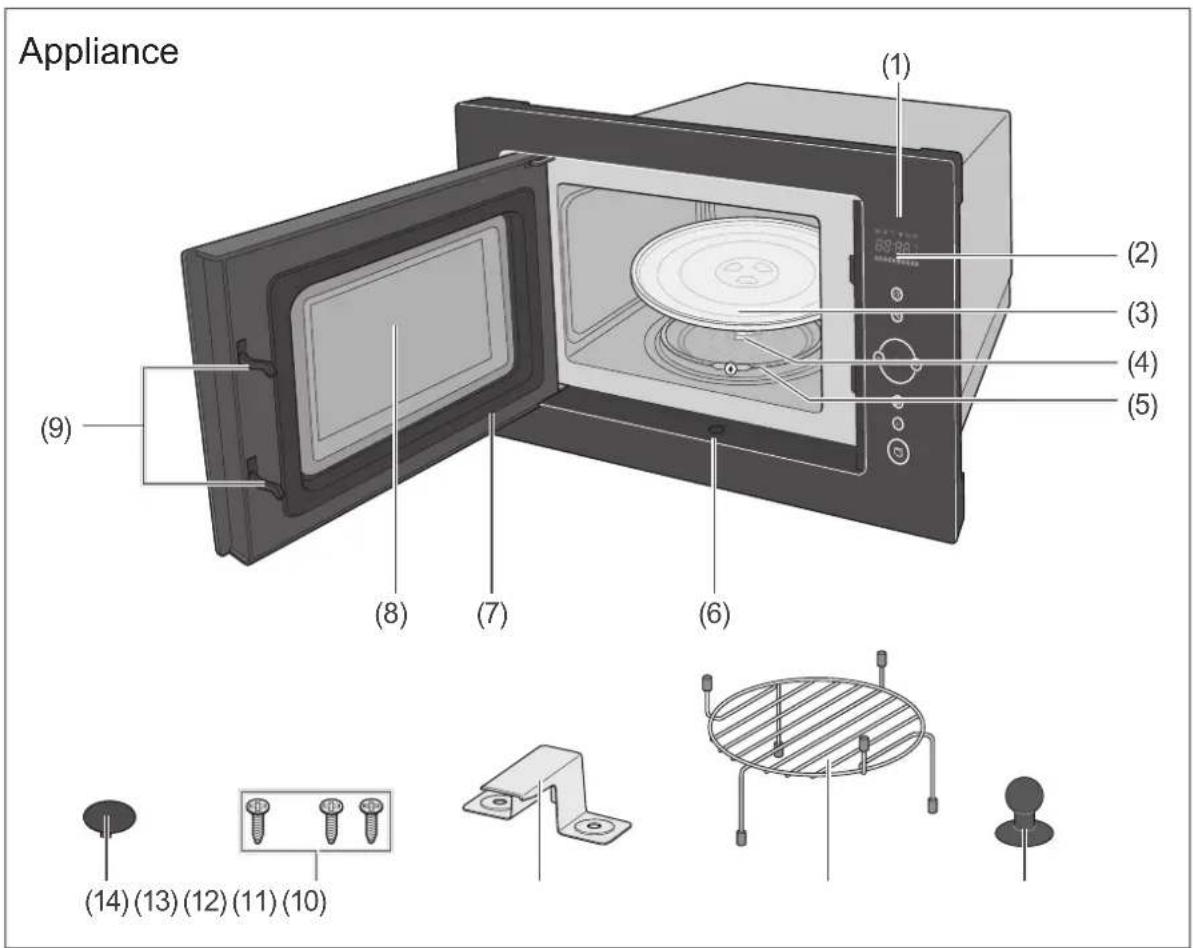

Appliance parts and control elements . . . EN-11

Information about microwaves ..... EN-13

Suitable dishware ..... EN-14

For all heating modes ..... EN-14

For microwave and defrost mode ..... EN-14

For grill and convection modes ..... EN-14

For the automatic programmes ..... EN-15

Size and shape EN-15

Using the accessories....EN-16

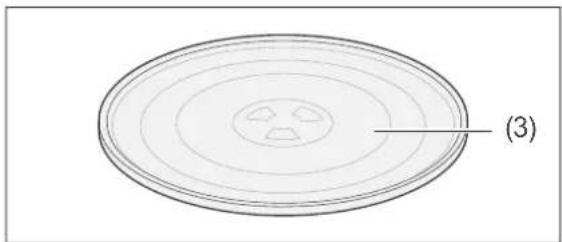

The turntable ..... EN-16

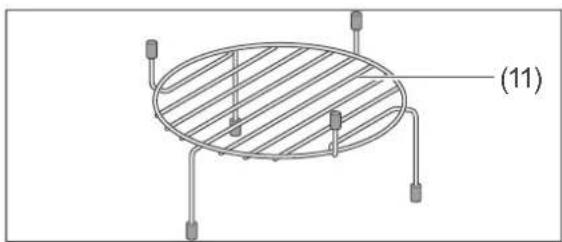

Grill rack....EN-16

General operating instructions ..... EN-17

Audio indicator....EN-17

Cooking chamber light ..... EN-17

Opening the cooking chamber door . . . EN-17

Pause/stop......EN-17

Select the heating mode ..... EN-17

Setting the cooking time ..... EN-17

Safety lock (child safety lock) ..... EN-18

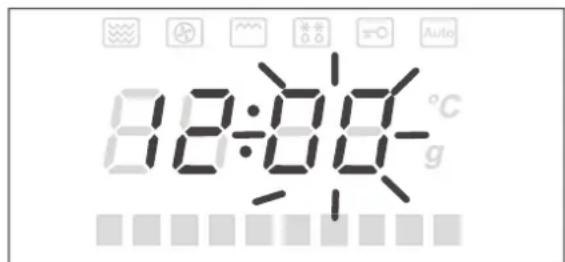

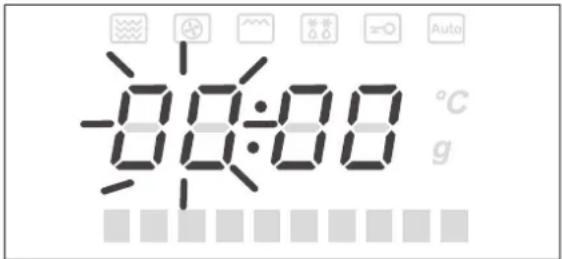

Setting the time ..... EN-18

Finding out the settings ..... EN-20

Heating modes ..... EN-21

Microwave mode....EN-21

Grill mode EN-23

Convection mode ..... EN-24

Microwave-combi mode ..... EN-25

Defrosting EN-25

Two-level cooking ..... EN-27

Automatic programmes ..... EN-28

All automatic programmes ..... EN-28

Automatic programme R8 "Cake" ..... EN-28

Programme table....EN-29

Practical tips ..... EN-30

The correct cooking temperature ..... EN-30

The correct quantity ..... EN-30

Order of dishes ..... EN-30

Piercing and scoring ..... EN-30

Stir and turn....EN-31

Care and maintenance ..... EN-32

Regular cleaning ..... EN-32

Delivery EN-33

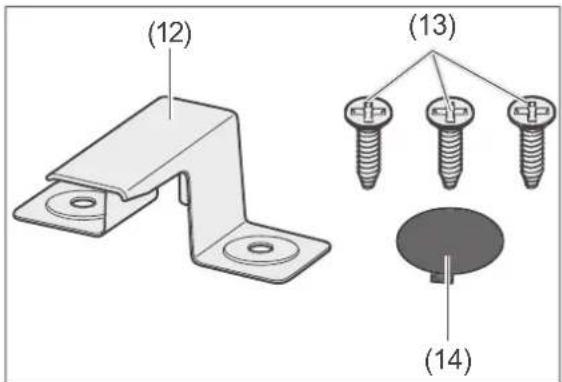

Package contents ..... EN-33

Check the delivery ..... EN-33

Regular checks EN-34

Start-up....EN-35

Moving and unpacking ..... EN-35

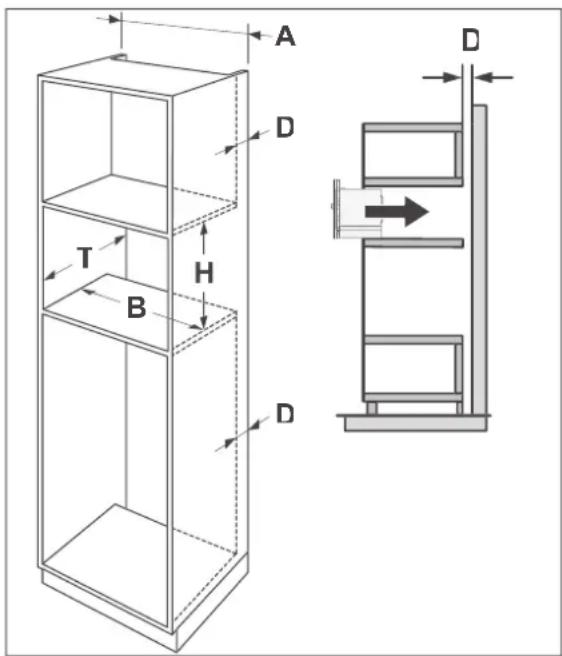

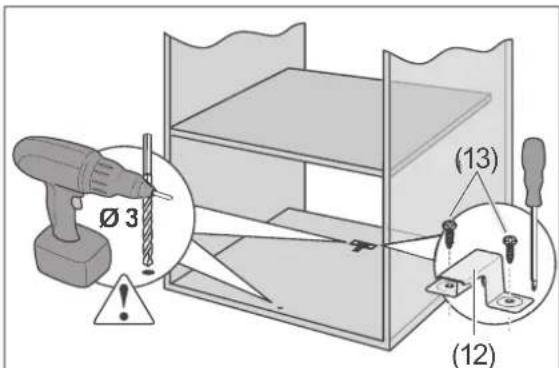

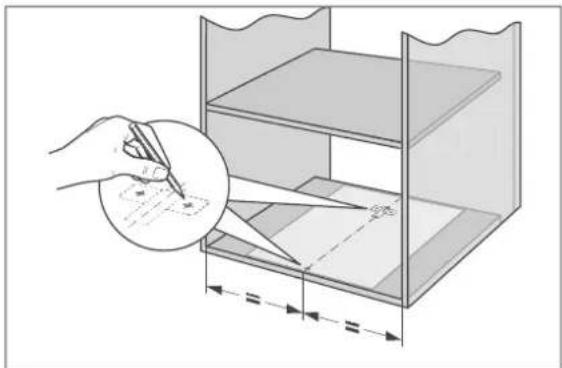

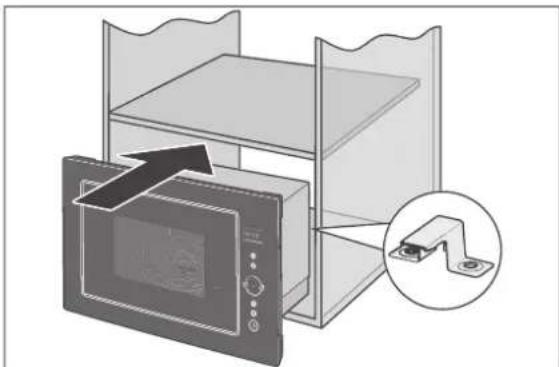

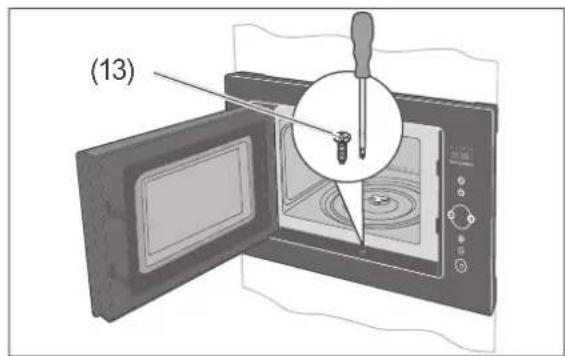

Installing the appliance ..... EN-35

Heating up the appliance

for the first time ..... EN-38

Troubleshooting table ..... EN-39

Service EN-41

General customer service ..... EN-41

Spare parts ...... EN-41

Waste prevention, free return

and disposal....EN-42

Waste prevention EN-42

Free return of old electrical appliances. EN-42

Disposal......EN-42

Packaging EN-43

Technical specifications ..... EN-44

Explanation of terms and symbols, definitions

Read the important safety instructions carefully and retain them for future use. Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you can use all the functions reliably and safely.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Explanation of terms

The following signal terms can be found in this user manual:

WARNING

This signal term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This signal term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This signal term warns against possible damage to property.

Explanation of symbols

The following symbols can be found in this user manual:

This symbol refers to useful additional information.

Hot surface

Definitions

"Microwave mode": food is only heated by microwaves.

“Microwave-combi mode” means that food is heated by microwaves as well as heat, like a typical oven. The same risks and safety precautions apply as for microwave mode.

“Oven mode” means that food is heated by convection/hot air, grills or top/bottom heat, for example.

Safety

Intended use

The appliance is designed for reheating and cooking, defrosting and grilling of food.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

It is not suitable for use outdoors or on non-stationary sites (e.g. ships).

The appliance is designed for installation in suitable built-in furniture units. It may not be used as a freestanding appliance. It may only be operated with the built-in unit door open.

Ensure that the appliance is properly fixed in place. Never use adhesives or glue to fix the appliance in place.

The interior light must only be used to illuminate the interior of the appliance. It is not suitable for lighting a room.

The appliance is not suitable

– for heating a room.
– for drying or storing food, clothes or other items.
– for heating up hot water bottles, slippers, sponges, moist cleaning cloths or similar items.

Persons who are unable to operate the appliance safely due to their physical, sensory or mental abilities or lack of knowledge must be supervised during use.

Do not make any technical changes to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, setup etc.

Risks to children

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts from the appliance or taking them out of the accessory bag and putting them in their mouths.

Risk of burns!

The door glass can become very hot during operation and lead to burns.

- Keep children away from the door glass!

Risks for certain groups of people

WARNING

Risk of injury!

Children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge could be injured when using the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING!

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if

- it exhibits visible damage, e.g. the connector cable is defective, the control panel is cracked or the door function is impaired.

– it starts smoking or there is a smell of burning.
– it makes unfamiliar noises.

In such cases, you should pull the mains plug out of the socket or switch off/unscrew the fuse, keep the cooking chamber door closed and have the appliance repaired (see chapter "Service").

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Check the appliance regularly for damage.
■ Do not use the appliance in wet rooms or outdoors.

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been properly installed. Ensure that the voltage is correct when connecting it. More detailed information about this can be found on the nameplate.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-41).
■ We recommend using a pulse-sensitive fault current switch (residual current operated circuit-breaker).
■ The appliance must only be connected to the mains after completion of all installation and assembly work.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces. The insulation of the mains cord could melt.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
■ Never pull the mains plug out of the socket by the mains cord; always hold the mains plug itself.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cord or plug in water or any other liquids.
In the event of a fault, as well as before cleaning or maintenance, pull out the mains plug/switch off or unscrew the fuse.

■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.
■ A steam cleaner is not to be used for cleaning.
■ Only parts corresponding to the original appliance specifications may be used for repairs.
■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our Service department.
■ Unauthorised repairs to the appliance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair the appliance yourself.

CAUTION!

Fire hazard!

Improper handling of the appliance can lead to fire.

■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.
■ The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

NOTICE

Risk of damage to property! Improper handling of the appliance may result in damage or explosions.

■ If a trolley is used to move the appliance, the appliance must be lifted as shown on the packaging.

■ Do not use the appliance door handle to lift the entire oven! The handle is not designed to carry the whole weight of the appliance.

■ Do not use sharp objects to unpack the appliance.

When cleaning, please note:

• Never use soap or any harsh, granular, soda-based, acid-based, solvent-based or abrasive cleaners. All-purpose cleaners with a neutral pH are recommended.
• The door seals can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
  – Use only soft cloths for cleaning.
• Ensure that water does not enter the ventilation slits or enter into the electrical components.

■ The lighting in the appliance is exclusively for lighting the cooking chamber. It is not suitable for lighting a room.

Risks when handling heat-generating appliances

CAUTION

Risk of burns!

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

■ Children less than 8 years of age shall be kept away unless continuously supervised.
■ Do not touch the parts of the housing!
■ Do not touch hot parts. Always protect hands with oven gloves or pot

holders when working on the hot appliance. Only use dry oven gloves or potholders. Wet textiles are better heat conductors and can cause steam burns.

■ Allow the appliance to cool completely before cleaning.

Fire hazard!

Improper handling of the appliance may result in fire and damage to property.

■ Do not operate the appliance unattended.
■ To ensure sufficient air circulation, it is imperative that the instructions in the “Start-up” chapter are followed.
■ Do not cover the appliance with blankets, cloths or similar, as these objects may become hot and catch fire.
■ When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
■ The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition, or fire.
■ Do not place any objects in the cooking chamber (recipe book, oven gloves, etc.). Accidentally switching on the appliance can cause damage or even ignition. Do not use the cooking chamber for storage purposes.
■ Never heat fl ammable objects or dishes containing alcohol.
■ Never deep-fry or heat oil! The oil temperature cannot be monitored.
■ If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifl e any fl ames.

If a fire starts, keep the cooking chamber door closed, immediately pull the mains plug out of the socket or switch off the automatic circuit breakers and/or unscrew the fuses.
- Never extinguish burning oil or fat with water. To extinguish the fi re, use a suitable fi re extinguisher with the designation “F” or a fi re blanket.
■ Once the fi re has been extinguished, have the appliance checked by our Service department (see “Service” on page EN-41).

Opening the cooking chamber door creates a draught. Baking paper could touch the heating elements and catch fire.

■ Never place loose baking paper on the accessories. Always secure baking paper with a piece of dishware or a baking dish.
■ Only line the required area with baking paper. Baking paper must not protrude over the accessory edges.

Health hazard!

Improper use of this appliance can lead to damage to health.

■ Clean the appliance regularly and remove any traces of food leftovers immediately.
■ Particularly with poultry and dishes containing fresh egg, and when heating up meals, ensure that the food is fully cooked through to kill off all pathogens (e.g. salmonella).

General risks when cooking food Health hazard!

Improper use of this appliance can lead to damage to health.

■ Clean the appliance regularly and remove any traces of food leftovers immediately.
■ Particularly with poultry and dishes containing fresh egg, and when warming up meals, ensure that the food is fully cooked through to kill off all pathogens (e.g. salmonella).

Acrylamide may be carcinogenic. Acrylamide is produced when starch is exposed to excessive heat, e.g. in potatoes (fries, chips), biscuits, toast, bread etc.

• Keep cooking times as short as possible.
  ■ Only brown the food slightly, do not allow it to brown too much.
  ■ Cut larger-sized fries and then bake at maximum of 180 °C.
  ■ Brushing baked goods with egg whites or egg yolks helps to reduce the formation of acrylamide (only in convection mode).

Defrosting meat, poultry or fish in the oven can cause dangerous microorganisms (e.g. salmonella) to multiply rapidly. This increases the risk of food poisoning.

■ Do not defrost meat and fish in the appliance.
■ Only use the defrosting function to defrost vegetables, pre-cooked food, etc.
■ Take the frozen food out of the freezer ahead of time and let it defrost in

the refrigerator. The fluid from the frozen food must be able to properly drain, otherwise harmful microorganisms can form.

The water that melts during defrosting can contain harmful bacteria, especially with meat and poultry.

■ Avoid any physical contact.
■ Pour defrost water away. Do not use it for any other purpose.
■ Thoroughly clean the crockery you have used.

Risks in microwave and microwave-combi mode

WARNING

Microwave hazard!

The cover in the cooking chamber serves to protect the magnetron, which emits the microwaves.

■ Never remove the cover inside the cooking chamber!

Microwaves can be emitted if the cooking chamber door is insufficiently sealed when closed. Under such circumstances, the appliance may not be used.

■ If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
■ It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.

Danger of explosion!

Improper handling of the appliance may result in damage or explosions.

■ Only use utensils that are suitable for use in microwave ovens. Containers that become hotter than the food inside them are not suitable for microwave cooking. Do not use such containers.
■ Metallic containers for food and beverages are not allowed during microwave cooking. Metal in the cooking chamber may cause sparks during operation! This can damage the viewing window or the entire appliance! Do not use metal pots, metal pans and metal lids or dishware with metal parts such as gold edges under any circumstances.
■ Do not use any aluminium foil, due to the fact that this can also cause sparks when coming into contact with the cooking chamber walls.
■ Never place a mixture of water and oil or fat into the appliance. This can explode.
■ Liquids and other foods must not be heated in sealed containers since they are liable to explode.
■ Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Prick holes in tomatoes, sausages, aubergines or similar food with a closed skin before cooking to prevent bursting.

CAUTION

Risk of scalding!

Microwave heating of beverages can result in delayed and eruptive boiling, therefore care must be taken when handling the container. The liquid then reaches boiling temperature without any outward visible sign of boiling. Even a small vibration can cause the liquid to squirt out suddenly, e.g. when being taken out of the appliance.

■ To avoid a boiling delay, place a plastic or glass spoon in the container. The spoon must always maintain a minimum distance of 2 cm from the inner walls.
■ Do not use tall, thin containers with a narrow top section.
■ Please ensure you stir the food before eating and after half the cooking time has elapsed.
■ Please wait a short moment after heating up; carefully tip the dish and stir before removing the container from the cooking chamber.

Risk of burns!

Improper handling of the appliance can lead to burns. Accessible parts, accessories and dishes become very hot during operation.

■ Do not touch the parts of the housing!
■ Food is sometimes heated unevenly. The containers should not get as hot as the food inside. Please therefore ensure to check the temperature of any food thoroughly and carefully, especially for children.

■ Before heating up baby food, please remove the screw cap and suction teat from the feed bottle.
■ The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
■ Set the power level and time exactly in accordance with the packaging instructions.

NOTICE

Risk of damage to property! Improper handling of the appliance can lead to property damage.

■ The appliance must never be operated without the turntable and roller ring and never without food in it.
■ Always place cooking containers on the turntable. This prevents liquid from seeping into the appliance if it should boil over.
■ Care should be taken not to displace the turntable when removing containers from the appliance.
■ Do not exceed a weight of 4 kg on the turntable. Risk of breakage!
■ Do not place the hot glass turntable on a cold surface such as, for example, a work surface made of granite or tile. Otherwise, the turntable could shatter. Always place it on top of a suitable mat.
■ Only heat plastic containers from the freezer for as long as is needed until

the food can be decanted into another container.

■ Do not use any damaged containers! They could break and the leaked contents could damage the inside of the microwave.
If accessories such as the turntable are not completely inside the cooking chamber, the viewing panel may become scratched when closing the cooking chamber door. For this reason, always push accessories all the way into the cooking chamber.
■ The oven should be cleaned regularly and any food deposits removed.
■ Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Specific risks in automatic mode

CAUTION

Fire hazard!

Any improper use of the appliance can lead to fi re.

■ Before starting automatic mode, please make sure you inform all members of the household so that they do not put anything in the cooking chamber.
■ Never leave anything to grill unattended in automatic mode!
■ Monitor the appliance during automatic mode in order to prevent spilling and burning. Please note that fats, oils and alcohol can catch on fire when heated.

Appliance parts and control elements

(1) Control panel
(2) Display
(3) Turntable
(4) Turntable drive
(5) Roller ring
(6) Drill hole for fastening
(7) Cooking chamber door
(8) Viewing panel

(9) Locking system
(10) Cooking chamber door emergency opener
(11) Grill rack
(12) Anti-tip feature
(13) Screws for securing the anti-tip feature
(14) Cover

Control panel

(15) Button to set the heating mode
(16) Button to select the defrost function
(17) Button to confirm inputs, to start the cooking process and to extend the cooking time
(18) Button to increase a set value, change a selection and select an automatic programme
(19) Button to reduce a set value, change a selection and select the rapid start function
(20) Button to set the time, the preparation time or the timer
(21) Button to stop or pause an action and activate/deactivate the safety lock
(22) Button to open the cooking chamber door

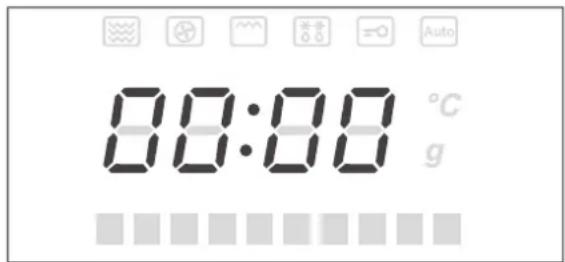

Display/indicators

(23) Display microwave mode
(24) Display convection mode
(25) Display grill mode
(26) Display defrost mode
(27) Display "Safety lock active"
(28) Display "Automatic programme active"
(29) Display unit °C
(30) Display unit grammes
(31) Temperature indicator
(32) Display time/preparation time/weight/quantity/programme number

Information about microwaves

What are microwaves?

Microwaves are electromagnetic waves like those for radio and television; as with radio and TV waves, they cannot be seen or felt.

Microwaves

– are reflected by all metals,
– can penetrate glass, porcelain, plastic and paper,
– are absorbed by foodstuffs.

What effect do microwaves have on foodstuffs?

• The microwaves penetrate foodstuffs to a depth of approximately 3 cm.
• The water, fat and sugar molecules are heated up (dishes with a high water content are heated up most quickly).
• This heat then slowly penetrates the entire dish and leads to the dish being defrosted, heated and cooked.
  – Due to the fact that the individual elements of the dish are heated unevenly, it is important to stir or turn the dish over to ensure that it is cooked through evenly.
• Heating the liquid can cause so-called "delayed boiling". The liquid then reaches boiling temperature without any outward visible sign of boiling. Even a small vibration can cause the liquid to squirt out suddenly, e.g. when being taken out of the appliance.
• The cooking chamber and the air inside it are not heated – the food container becomes warm primarily due to the heat of the food.
• Every dish requires a certain amount of energy for cooking or defrosting – a good rule of thumb is “high power, low time” or “low power, high time”.

How does a microwave oven work?

– A microwave generator, the so-called magnetron, generates the microwaves and disperses them into the cooking chamber.
- The cooking chamber walls and inner screen reflect microwaves, preventing them from being emitted out of the cooking chamber.
– The turntable ensures that the microwaves are distributed evenly to the food.
- The microwave power can be set to several levels.

Suitable dishware

WARNING

Risk of explosion!

Improper handling of the appliance may result in damage or explosions.

■ Only use utensils that are suitable for use in microwave ovens. Containers that become hotter than the food inside them are not suitable for microwave cooking. Do not use such containers.
■ Metallic containers for food and beverages are not allowed during microwave cooking. Metal in the cooking chamber may cause sparks during operation! This can damage the viewing window or the entire appliance! Do not use metal pots, metal pans and metal lids or dishware with metal parts such as gold edges under any circumstances.
■ Do not use any aluminium foil, due to the fact that this can also cause sparks when coming into contact with the cooking chamber walls.

NOTICE

Risk of damage to property!

Improper handling of the appliance can lead to property damage.

■ Do not use any containers made of porcelain, ceramic or plastic and any protective fi lms that are not resistant to high heat in grill or microwave-combi mode!

■ Do not use baking paper or similar!

The appliance offers different heating modes: microwave mode, grill mode, microwave-combi mode (see from page EN-21). Always select suitable dishware for the different heating modes. In each case observe the information provided by the manufacturer. Unsuitable crockery can lead to the appliance becoming damaged.

For all heating modes

Crockery/accessories made from microwave-safe and fireproof material is suitable for all modes. This includes:

– fire-resistant glass, ceramic, porcelain,
– fire and frost resistant glass ceramics,
– highly heat-resistant plastic (e.g. oven bag).

For microwave and defrost mode

For microwave mode only and for defrosting, the following can also be used:

• microwaveable plastics,
• baking parchment.

For grill and convection modes

All materials which are also used in a conventional oven are suitable for use with these modes.

The grill rack which is supplied is also suitable.

For the automatic programmes

• Automatic programmes A1 to A7 run in microwave mode only. The crockery/accessories must be microwave-safe.
• Programmes A8 to A10 run with microwave, grill and convection. The crockery/accessories must be suitable for all heating modes.

In order to find out whether the dishware is microwaveable, you can conduct the following test:

1. Fill the container for testing with 250 ml cold water and place it in the cooking chamber.
2. Press the ▶ button (17) twice.

The appliance will start with full microwave power for 1 minute.

- If the crockery becomes hot or if sparks start to form, immediately open the cooking chamber door to stop the cooking process: This dishware is not suitable!

- If the dish remains cold or only lukewarm, it may be used in microwave mode.

Size and shape

• Flat, wide containers are more suitable than tall, narrow ones. "Flat" dishes can cook through more evenly.
  – Round or oval shaped containers are more suitable than square or rectangular containers. There is a potential for localised overheating in the corners.

Using the accessories

The turntable

- Use the turntable (3) every time you use the appliance.

Diagram of concentric ovals with a central cross-like pattern, labeled (3) at the top right (no text or symbols within the diagram itself)

• It rotates during cooking, in order to ensure that the food is evenly heated.
• It also collects dripping fat if used with the grill rack (11).

- Always place cooking containers on the turntable (3). This prevents liquid from seeping into the appliance if it should boil over.

Grill rack

Technical diagram of an oval-shaped device with internal components and labeled parts (11), no readable text or symbols beyond the label.

- Only use the grill rack (11) with the grill mode and always place it on the turntable (3).

General operating instructions

Audio indicator

A beep each will sound time a button is pressed.

Cooking chamber light

The cooking chamber light switches on automatically when

– the appliance is in operation;
– the cooking chamber door (7) is open.

The cooking chamber light switches off automatically when

– preparation is complete,
– the cooking chamber door (7) is open for more than 10 minutes.

Opening the cooking chamber door

- Press the button (22) to open the cooking chamber door (7).

The appliance will pause if the cooking chamber door (7) is opened while in operation. In order to continue the cooking process, close the cooking chamber door (7) and then press the ▶ button (17).

Pause/stop

You can briefly pause or end the current operation in any heating mode with the Ⓐ button (21).

• Press the button (21) once to pause operation: The turntable (3) will stop and the cooking chamber light will go out. Briefly tap the button (17) to continue operation.
• Press the ^11 button (21) twice quickly to end the operation.

Select the heating mode

1. Press the ⏻ button (15) as many times as required until the desired heating mode is displayed.

Available settings:

• Microwave mode only
• Grill mode 📌
• Convection mode
• Defrosting
• Automatic programmes Auto

• Microwave-combi mode

• Press the Ⓐ button (17) to confirm the selection.

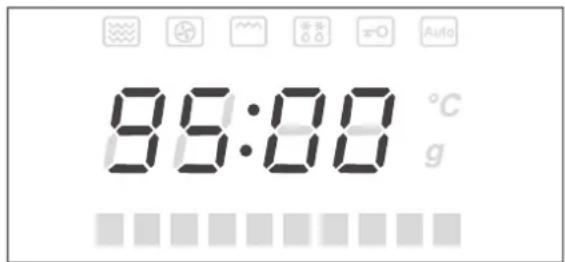

Setting the cooking time

You can only set the cooking time if you have previously selected a heating mode (microwave, grill, convection, defrost, an automatic programme or microwave-combi mode). Depending on the heating mode, a cooking time of up to 95 minutes is possible.

1. Select the desired heating mode as described in section "Select the heating mode" on page EN-17.
2. Press the ▶ button (17) to confirm the function mode.
3. Press the ⊕ (18) or ⊖ (19) buttons until the desired heating duration has been set.
4. Press the ▶ button (17).

The cooking process will start.

Extending the cooking time

During the cooking process, you can extend the cooking time in the following heating modes in 30-second increments:

• Microwave
• Grill
• Convection
• Timed defrosting Ⓞ
• Microwave-combi mode

- To extend the cooking time, press the ▶ (17) button during the cooking process.

You can repeat this several times if necessary.

The remaining cooking time is extended by 30 seconds.

The cooking time extension can be repeated several times if necessary.

Safety lock (child safety lock)

If the safety lock (child safety lock) is activated, the 📋 indicator lights up on the display (2). None of the buttons then work.

CAUTION

Risk of injury!

The safety lock function is no longer active after a power failure. Improper use may lead to injuries or property damage.

■ The safety lock needs to be reactivated after a power failure.

Activating/deactivating the safety lock

• Press the "Stop/Pause" ⏻ button (21) for 3 seconds to switch on the safety lock.
  A beep will sound. The indicator appears on the display (2).
• Press the "Stop/Pause" ⏻ button (21) for 3 seconds again to switch off the safety lock. A beep will sound. The 📋 indicator will disappear from the display (2).

Setting the time

The integrated clock is used for time display, to set the cooking time and as a timer (“egg timer”).

The time is always shown in 24-hour format.

The maximum time which can be set for the cooking time and the timer is 95:00 minutes.

When you press the ⊕ (18) or Ⓧ19) buttons, the times will change in different increments depending on the previously set values:

Set time in the range from-to	Increment when you press ⏻
0–1 min. 5 secs
1–5 min. 10 secs
5–10 min. 30 secs
10–30 min. 1 min.
30-95 min.	5 min.

Setting the time

After a power failure and when you set up the appliance for the first time, ☐☐☐ will appear on the display (2). You must set the time in order to be able to use the appliance correctly.

1. Press the Ⓐ button (20) twice in quick succession.

The hour reading will start to flash on the display (2).

1. Set the hours using the Ⓕ(18) or Ⓔ9 buttons.
2. Press the clock Ⓤ button (20) again.

The minute reading will start to flash on the display (2).

1. Set the minutes using the ⓕ18) or (19) buttons.
2. Press the Ⓞ button (20) one more time.

The indicator stops flashing; the time has been set.

Press the Ⓤ button (21) to cancel the time-setting process. The previous setting will remain in place.

Changing the time

To change the time (e.g. when changing from GMT to BST), follow the steps described in "Setting the time".

Using the clock as a timer

You can also use the appliance's clock ("egg timer") as a timer.

1. Press the clock ⏻ button (20).

A beep will sound and the display (2) will show the □□□□ indicator.

1. Set the desired time with the ⊕(18) or ⊖(19) buttons.

The maximum time which can be set is 95:00 minutes.

1. Press the ⏻ button (17) to start the timer. There is a countdown for the time which has been set. When the countdown reaches zero, 5 beeps will sound.

Press the Ⓞbutton (21) to cancel the timer before it is finished.

A beep will sound and the display (2) will show the time again.

Finding out the settings

During operation, you can display the time, the microwave power currently being used or the selected temperature.

Displaying the time

- Press the button (20) during operation. The time will be displayed for 3 seconds.

Displaying the microwave power or temperature

- Press the button (15) during operation. The microwave power or temperature will be displayed for 3 seconds.

Heating modes

Microwave mode

WARNING

Microwave hazard!

The cover in the cooking chamber serves to protect the magnetron, which emits the microwaves.

■ Never remove the cover inside the cooking chamber!

Microwaves can be emitted if the cooking chamber door is insufficiently sealed when closed. Under such circumstances, the appliance may not be used.

■ If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
■ It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Do not operate the appliance with an external timer or a separate remote control system.
If a fire starts, keep the cooking chamber door closed, immediately pull the mains plug out of the socket or switch off the automatic circuit breakers and/or unscrew the fuses.

CAUTION

Risk of scalding!

Microwave heating of beverages can result in delayed and eruptive boiling, therefore care must be taken when handling the container.

■ In order to avoid a boiling delay, place a spoon in the container.
■ Make sure that the spoon is always at least 2 cm away from the interior walls of the microwave.

NOTICE

Risk of damage to property!

Improper handling of the appliance may cause it to become damaged.

■ Never operate the appliance without the turntable and never without food!

The grill rack is not suitable for pure microwavemode.

■ Use the grill rack exclusively in simple grill mode, convection mode or microwave-combi mode.

The “microwave” mode without additional functions, recognised by the on the display (2), is well-suited to the preparation of:

• Stews, soups, sauces
• Meat without crusts
• Steamed fish
• Vegetables
  – Side dishes (rice, boiled potatoes, some pasta)
• Hot drinks
  – Defrosting small portions

Appliance power levels

The appliance has 5 power levels for preparing different dishes (P 100 to P 10). This corresponds to the respective percentage (100 % to 10 %) of the maximum microwave power.

As standard, the appliance is set to power level P 100, i.e. 100 % microwave oven output.

Power level	suitable dishes/preparation
P 100100 %	Heating or reheating water, poultry, fish, vegetables
P8080 %	Heating food up, mushrooms, shellfish, dishes that contain eggs or cheese
P5050 %	Rice, soup
P3030 %	Defrosting, melting chocolate and butter
P 1010 %	Defrosting fragile and irregularly shaped dishes, proofing yeasted dough

Setting the power level

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the ⓣ button (15).

The indicator will appear on the display (2) and the power level indicator P 100 (=100 % microwave power) will be displayed.

1. Press the ⏻ button (19).

P8:80

The display changes to P80.

1. If necessary, press the ⏻ button (19) again until the desired power level is displayed.
2. Press the ⬇ button (17) to confirm the setting.

Starting the appliance up quickly

Two versions are available:

-in 30-second intervals
– with time preselection

Rapid start in 30-second intervals

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the ▶ button (17).

The appliance will start in microwave mode at full power (P 100).

The cooking process finishes after 30 seconds.

- To extend the cooking time by another 30 seconds, press the Ⓐ button (17) one more time during the cooking process. You can repeat this several times if necessary.

Rapid start with time preselection

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the Ⓑ button (19).
3. Set the cooking time using the ⊕(18) or ⊖(19) buttons.
4. Press the ▶ button (17).

The appliance will start in microwave mode at full power (P 100).

The cooking process finishes after the set cooking time has elapsed.

Start normal cooking

Example: You want to cook at a power level of 80 % for 3 minutes.

Setting the heating mode

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the ⓣ button (15).

The indicator will appear on the display (2) and the power level indicator P 100 (=100 % microwave power) will be displayed.

Setting the power level

1. Press the Ⓒ button (19).

The display (2) changes to PBO.

1. Press the Ⓐ button (17) to confirm the setting.

Setting the cooking time

1. Set the cooking time using the ⊕(18) or ⊖(19) buttons.

1. Press the Ⓑ button (17) to start the cooking process.

2:59

The appliance will start and the fan will switch on.

When the time indicator reaches ☐☐☐, five beeps will sound and the appliance will switch off.

Grill mode

The grill mode 📋 is best for cooking thin portions of meat or fish.

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the ⚙ button (15) as many times as required until the indicators 📂 and 🔊 appear on the display (2).

1. Press the "Start" ▶ button (17) to confirm the setting.
2. Now set the cooking time as described in section "Setting the cooking time" on page EN-17.

3. Press the "Start" button (17) to start the cooking process.
   The cooking process will start. The display (2) shows a countdown of the remaining cooking time.
   Two short beeps will sound when half of the cooking time has elapsed. For optimal grilling results, you should now turn the food:

4. Open the cooking chamber door (7).

5. Turn the food and close the cooking chamber door (7).
6. Press the Ⓐ button (17) to continue the grilling process.
   The appliance will now grill automatically until the end of the grilling process.

When the time indicator reaches ☐☐☐, five beeps will sound and the appliance will switch off.

If nothing happens after half of the cooking time has elapsed, the grilling process continues until the set cooking time is elapsed.

Convection mode

With the convection mode 📊 you can use the appliance like a normal oven. You can set temperatures between 130 °C and 220 °C.

Two versions are available:

• no pre-heating
  – with pre-heating

Convection without pre-heating

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the button (15) as many times as required until the indicators and 130 °C appear on the display (2).

1. Set the temperature using the ⊕(18) or ⊖(19) buttons.
2. Press the "Start" button (17) to confirm the setting.
3. Set the cooking time using the ⊕ (18) or ⊖ (19) buttons.
4. Press the ▶ button (17) to start the cooking process.

Convection with pre-heating

With the “Convection with pre-heating” cooking mode, the cooking chamber is initially heated to the selected cooking temperature without the food being placed in the cooking chamber.

1. Press the ⏻ button (15) as many times as required until the indicators ⏻ and 130 °C appear on the display (2).

1. Set the temperature using the ⊕(18) or ⊖(19) buttons.
2. Press the ▶ button (17) to confirm the setting.
3. Press the ⬇ button (17) again to start the pre-heating process.

The pre-heating process will start. Once the set temperature has been reached, two beeps will sound.

1. Open the cooking chamber door (7), place the food in the cooking chamber and close the cooking chamber door (7).
2. Set the cooking time using the ⊕ (18) or ⊖ (19) buttons.
3. Press the ▶ button (17) to confirm the setting and start the cooking process.

Microwave-combi mode

The appliance has four functions which combine the microwave and grill modes:

Function	Microwave	Convection	Grill
[-1]	●	●	--
[-2]	● -- ●
[-3]	-- ●	●
[-4]	●	●	●

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the "Set the heating mode" button (15) as many times as required until the indicators and 5 appear on the display (2).
3. Use the ④18) or (19) buttons to select one of the functions from E - 1 to E - 4. E - 1 is selected in the example:

1. Press the Ⓑ button (17) to confirm the setting.
2. Set the cooking time using the ⊕(18) or ⊖(19) buttons.
3. Press the ▶ button (17) to confirm the setting and start the cooking process. When the time indicator reaches □□□, five beeps will sound and the appliance will switch off.

Defrosting

WARNING

Health hazard!

The water that melts during defrosting can contain harmful bacteria, especially with meat and poultry!

■ Avoid all physical contact with defrost water.
■ Pour away the defrost water. Do not use it for any other purpose.
■ Please ensure that you clean the dishware you have used very thoroughly.
■ Afterwards, wash your hands very thoroughly with soap and warm water.

NOTICE

Risk of damage to property!

The grill rack is not suitable for pure microwavemode.

■ Use the grill rack exclusively in simple grill mode, convection mode or microwave-combi mode.

When defrosting frozen food you have two options available:

- Defrosting by weight (dE F I)

– Timed defrosting (dEF2)

Within this programme, you can freely select your desired defrosting time.

Preparation:

• Ideally, use food which has been frozen at -18^ in portions that are as thin as possible.
• Removal all packaging.
• If you wish to defrost by weight, you need to weigh the food.
• Place the food in an appropriately large container which can collect the defrost water without overflowing.
• Do not cover the food.

Defrosting by weight

You can defrost food up to a weight of 2,000 g. The standard setting is 500 g.

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the (16) button ⓐ.

The indicators and as well as DEF I will illuminate on the display (2).

1. Set the weight using the ④(18) or ⑮ buttons. Values between 100 g and 2000 g are possible. The standard value is 500 g.
2. Press the ▶ button (17) to confirm the setting and start the defrosting process.

The remaining defrosting time is shown on the display (2). The display shows a count-down.

The required defrosting time depends on the weight of the food to be defrosted:

• For 100 g, the defrosting time is 3:40 minutes.
• For 2,000 g, the defrosting time is 41:40 minutes.

Once the defrosting time has elapsed, 5 beeps will sound and the appliance will switch itself off.

Allow larger dishes to stand for another 10 to 30 minutes after the defrosting process has finished, while separating individual parts/slices from each other.

Timed defrosting

1. Place the food to be defrosted into the cooking chamber and close the cooking chamber door (7).
2. Press the ⓞ button (16) twice.

The indicators and as well as DEF2 will illuminate on the display (2).

1. Set the desired defrosting time with the ⊕ (18) or ⊖(19) buttons.

The maximum defrosting time is 95:00 minutes.

The defrosting time must be at least 5 seconds and not exceed 95 minutes.

1. Press the ⬇ button (17) to confirm the setting and start the defrosting process.

The required defrosting time appears on the display (2). The display (2) shows a countdown.

Once the defrosting time has elapsed, 5 beeps will sound and the appliance will switch itself off.

If you wish, you can extend the defrosting time as described in section (see “Extending the cooking time” on page EN-17).

Allow larger dishes to stand for another 10 to 30 minutes after the defrosting process has finished, while separating individual parts/slices from each other.

Two-level cooking

You can set two different cooking levels – e.g. when you first wish to defrost a dish at a high power then finish the cooking process at a lower power.

NOTICE

Risk of damage to property! The grill rack is not suitable for pure microwavemode.

■ Use the grill rack exclusively in simple grill mode, convection mode or microwave-combi mode.

If you wish to cook at two levels, you cannot select an automatic programme.

Example: You want to initially defrost a dish that you had frozen for 5 minutes, and then complete the cooking process in 7 minutes with 80% microwave power.

1. Place the dish in the cooking chamber and close the cooking chamber door (7).
2. Press the ⓞ button (16) twice.

The indicators

as well as

dEF2 will illuminate on the display (2).

1. Set the desired defrosting time with the ⊕ (18) or ⏻(19) buttons.

1. Press the ⓣ button (15).

1. The indicator 📋ll illuminate on the display (2) and the power level indicator P100 (=100 % microwave power) will be displayed.

2. Press the ⏻ button (19).

The display changes to P80.

1. Press the ⏻ button (17) to confirm the setting.
2. Set the cooking time using the ⊕(18) or ⊖(19) buttons.
3. Press the ⬇ button (17) to confirm the setting and start the programme.

The programme begins. On the display (2) the required defrosting time will count down.

When the defrosting time has elapsed and the cooking time begins, a short beep will sound before the cooking process begins.

You can extend the defrosting time and cooking time as described in section (see "Extending the cooking time" on page EN-17).

5 beeps will sound once the cooking time has elapsed.

Automatic programmes

! NOTICE

Risk of damage to property! Improper handling of the appliance may cause it to become damaged. The grill rack is not suitable for microwave mode.

■ Use the grill rack exclusively with the automatic programmes A8, A9 or A10.

10 automatic programmes allow you to prepare food with ease. You just need to select the desired programme and set the weight or quantity of the food. Automatic mode does the rest.

All automatic programmes

1. Remove all packaging and weigh the food. The weight is needed to ensure the correct setting.
2. Place the dish in the cooking chamber and close the cooking chamber door (7).
3. Press the Ⓑ button (18) to start selecting an automatic programme.
4. Use the Ⓕ18) or (19) buttons to select the desired automatic programme, e.g. R4 (Vegetables).

A beep will sound. The indicators 📄 and the indicator R4 will appear on the display (2).

1. Press the ⏻ button (17) to confirm the menu.

2. Set the weight or quantity using the ⏻18) or ⏻19) buttons.

3. Press the Ⓑ button (17) to confirm the setting and start the programme.

Automatic programme R8 "Cake"

With the automatic programme R B "Cake", the cooking chamber is pre-heated without any food initially.

1. Press the Ⓐ button (18) repeatedly until the automatic programme R8 is displayed and confirm the entry by pressing the ▶ button (17).

A beep will sound. The indicators 📄 and the indicator R8 will appear on the display (2).

1. Press the ▶ button (17) again.

Pre-heating to 180 °C will start. The progress bar at the bottom of the display shows the heating progress.

Once the temperature has been reached, two beeps will sound.

1. Open the cooking chamber door (7), place the food in the cooking chamber and close the cooking chamber door (7).
2. Press the ⬇ button (17) again to start the actual cooking process.

Programme table

Programme	Dish Weight/quantity Cooking		duration (min)	Heating mode
R1	Heating up(pre-cooked dishes)	150 g 1:30		100 %
		250 g 02:10
		350 g 03:10
		450 g 04:10
		600 g 05:40
R2	Potatoes 1 piece (= 230 g) 5:30			100 %
			2 pieces (= 580 g) 10:30
			3 pieces (>700 g) 13:00
R3	Meat 150 g 2:30			100 %
			300 g 04:00
			450 g 06:00
			600 g 07:30
R4	Vegetables 150 g 2:30			100 %
			350 g 04:30
			500 g 06:00
R5	Fish 150 g 2:30			80 %
			250 g 03:50
			350 g 05:00
			450 g 06:00
			650 g 07:30
R6	Pasta 50 g (+ 450 ml cold water)		18:00	80 %
			100 g (+ 800 ml cold water)	21:00
			150 g (+ 1200 ml cold water)	24:00
R7	Soup/drinks 200 ml 2:00			100 %
			400 ml 04:00
			600 ml 06:00
R8	Cake Pre-heating to 180 °CCooking (475 g)		45:00	180 °C
R9	Pizza	200 g 10:00		100 %
		300 g 10:30
		400 g	11:00
R10	Poultry	500 g 25:00		100 %
		750 g 30:00
		1000 g 36:00
		1200 g 43:00

Practical tips

The correct cooking temperature

Given that microwaves react with varying intensity to water, fat and sugar, the cooking time depends significantly on the composition of the dish.

• Dishes with a high fat or sugar content (doughnuts, puddings, fruitcakes) cook through more quickly and reach higher temperatures faster than other dishes. Make absolutely sure to follow recommended cooking times to avoid burning the food and damaging the appliance.
  – Dishes that have a high water content (fish, vegetables, sauces) cook faster than “dry” dishes.
• “Dry” dishes (rice, grain products, dried beans) cook very slowly. Please add a little water to these before cooking.

The correct quantity

The larger the quantity to be prepared, the longer the cooking time. If, for example, a potato takes 4 minutes, then two potatoes will take 7 minutes.

Rule of thumb: Twice the quantity requires approximately twice the amount of time.

• Small food items cook more quickly than large food items. And food items of equal size cook through more evenly than food items of different sizes. If possible, cut all food into pieces of roughly the same size. Remember to do this when freezing!
• When defrosting, size and form play a key role. Small, flat food portions defrost faster and more evenly than larger, thicker food portions. During the defrosting process, separate portions that have already begun to thaw, as exposed pieces defrost faster.

Order of dishes

To achieve an even result, special attention must be paid to arranging the food correctly for cooking:

• Arrange food with several equally sized pieces (potatoes, meatballs, hamburgers) in a circle in the container and leave the middle empty.
• For pieces of different sizes, place the small or thin pieces in the middle.
• For irregularly shaped pieces (e.g. fish) place the thinner or flatter end towards the middle.
  – Lay thin slices of meat on top of each other or criss-cross them.
• Place thicker slices and pieces of meat (joints, sausages etc.) close together.
• Heat any meat juices or sauces in a separate container. Only fill to 23 full.

Piercing and scoring

Excess pressure can be caused in many dishes when heating them through. It is therefore recommended to pierce or score certain dishes, in order to prevent them from bursting.

• Do not microwave eggs in their shells – unless using special containers which are commercially available.
• Pierce food with peels or skins (potatoes, tomatoes, sausages, aubergines, egg yolks) to prevent it from bursting open.
• Score the skin of whole fish to prevent it from tearing open.

Stir and turn

WARNING

Risk of burns!

Food is sometimes heated up unevenly in the microwave. The containers should not get as hot as the food inside.

■ Please therefore ensure to check the temperature of any food thoroughly and carefully, especially for children.
■ The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Baby food in particular must be stirred or agitated carefully to avoid burns. It is essential to check the temperature by tasting the food.
• With poultry and dishes containing fresh egg, and when warming up meals, make absolutely sure that the food is fully cooked through to kill off all pathogens (such as salmonella).
• Stirring and turning the food after half the cooking time is particularly important because the microwave oven does not heat up food evenly.

Care and maintenance

Regular cleaning

Regular cleaning ensures that the quality of the dishes remains consistent and guarantees the full service life of the appliance.

WARNING

Health hazard!

Improper use of this appliance can lead to damage to health.

■ The oven should be cleaned regularly and any food deposits removed.
■ Cleaning and user maintenance shall not be made by children without supervision.

CAUTION

Risk of burns!

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

■ Children less than 8 years of age shall be kept away unless continuously supervised.

Risk of electric shock!

Improper cleaning may lead to electric shocks and short circuits.

■ Isolate the fuse and pull out the mains plug from the socket before cleaning. Always take hold of the plug itself, do not pull on the mains cord.
■ Ensure that no cleaning water or other liquids can penetrate the ventilation slits or the electrical components.
■ A steam cleaner is not to be used for cleaning. Steam can get into live components through cracks.

Risk of burns!

The housing becomes hot during operation, especially in the area of the vents. The containers can also get very hot due to the foods. After use in grill, convection or combi mode, the grill (at the top of the cooking chamber) will be very hot.

■ Allow the appliance to completely cool down before cleaning.

NOTICE

Risk of damage to property!

The surfaces and door seals can get damaged by improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
■ The door seals are sensitive to oil and grease – making the rubber porous and brittle.
■ Only use soft cloths.

If possible, clean the appliance after each use before any dirt can dry.

• The grill rack (11) is best washed by hand with a mild detergent.
• The turntable (3) can be cleaned in a dishwasher.
• Clean the appliance with a soft, damp cloth, especially the cooking chamber floor

Delivery

Illustration of a microwave oven with various interior components including lid, pan, and base mount (no text or symbols)

Package contents

• Microwave
• Turntable
• Roller ring
• Grill rack
  – Cooking chamber door emergency opener
• Installation materials (see "Start-up" on page EN-35)
• User manual

Check the delivery

1. Move the appliance to a suitable place and unpack it (see "Start-up" on page EN-35).
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transit, please contact our Service department (see "Service" on page EN-41).

WARNING!

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

and door seal faces. Use warm water and a normal all-purpose cleaner or washing-up liquid and a soft sponge or cloth.

• Loosen stubborn dirt with undiluted all-purpose cleaner.
• Wipe off all surfaces with a soft, dry cloth after cleaning.
• Only replace the roller ring, turntable and grill rack when they are fully dry.
• Leave the cooking chamber door (7) open to allow the cooking chamber to dry out completely.

Regular checks

WARNING

Microwave hazard!

Microwaves can be emitted if the cooking chamber door is insufficiently sealed when closed. Under such circumstances, the appliance may not be used.

■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.
■ If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
■ It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

• For your own safety, please check regularly whether the appliance is intact:
• Are the mains cable and plug undamaged?
• Are the housing and the viewing panel (8) undamaged?
  – Is the turntable (3) undamaged?
  – Are the door seal faces clean?
• Can the door hinges move freely?
  – Are both hooks for the locking system (9) undamaged?
• Does the cooking chamber door (7) close correctly? Or is it warped?
  – A defective interior light may be repaired only by an authorised professional.

The bulb is not located under the cover inside the cooking chamber! Never unscrew or damage this cover! It serves to protect the magne-

tron, which emits the microwaves.

Start-up

WARNING

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. If possible, two people should work together to transport and install the appliance.
■ Do not use the cooking chamber door for lifting.

Fire hazard!

Improper handling of the microwave may result in damage or cause a fire. Heat trapped inside the appliance may shorten its service life.

■ Ensure suffi cient ventilation. Do not cover the vents, for example with oven mitts or cookery books!
■ When installing the appliance, follow the dimension specifications for ventilation.

NOTICE

Risk of damage to property! Improper handling of the appliance may result in damage.

■ Do not use sharp objects to unpack the appliance.
■ Do not use any adhesives or bonding agents for the installation.
■ Never remove the cover inside the cooking chamber! It serves to protect the magnetron, which emits the microwaves.

Moving and unpacking

• Carefully unpack the appliance and remove all packaging items, plastic profiles, adhesive strips and foam padding from the cooking chamber, the outside of the appliance and the reverse side of the appliance.
• To open the door when the appliance is not plugged in, use the emergency door opener (10) (suction cup).
  Press the emergency door opener onto the right side of the cooking chamber door (7) and pull the cooking chamber door (7) open.

Installing the appliance

Installation alcove

The appliance can be installed in a tall cupboard or underneath a work surface. The following conditions must be observed at all times:

The appliance should be installed

– at a maximum of 1 m away from an earthed socket;
– away from a site directly above a cooking area as the heat output from this may damage the appliance.

The installation alcove

– must be at least 85 cm above the floor;
- must offer air passage above and below of at least 250~cm^2 .

The measurements of the installation alcove must correspond to the details in the following figures.

Interior measurements of the installation alcove

Height H 380-382 mm

Width B 560-568 mm

Depth T ≥ 550 mm

Cupboard dimensions
Outer width A 600	mm
Air passage D ≥ 45	mm

- The installation alcove must not have a rear wall.

Your built-in furniture may need to be modified.

If you do not have the manual skills to do this, you should hire a professional.

- Veneers or plastic coverings on the built-in furniture require heat-resistant adhesive (100 °C). If the adhesive and surfaces are not heat-resistant, the covering may warp and come loose.

- An earthed socket must be installed in the alcove or its immediate vicinity (max. 1 m away) (see the "Connection" section).

• The appliance should not be placed directly beside a refrigerator or freezer. Heat loss unnecessarily increases their energy consumption.
  – There must be a minimum spacing of 2 m from radio devices, televisions etc. to ensure that the reception is not distorted.

Connection

Depending on the installation alcove, the appliance must be connected before or after installation.

WARNING

Electric shock / fi re hazard!

Touching live parts may result in severe injury or death.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-41).

• Check whether the appliance's supply voltage is compatible with the supply voltage used in your house (see the type plate).
• Please ensure you only connect the appliance to a professionally installed earthed socket with sufficient fuse protection (230 V\~/50 Hz/16 A).
• Do not use multiple plug sockets or extension cables.

After inserting the mains plug into the socket, a beep will sound and the display (2) shows ☐☐☐ (see "Setting the time" on page EN-18).

Installation materials

No.	Name Quantity
(12)	Anti-tip feature 1
(13)	Screws 3
(14)	Cover 1

In addition, you will require:

– the drill template which is supplied
– A pencil and ruler/tape measure
- Rechargeable drill or similar with 3 mm wood drill
– Phillips screwdriver

Installing the appliance

1. Place the drill template exactly in the centre of the installation alcove.

The marked contact edge must be flush with the front floor edge of the installation alcove.

1. Copy the drill hole marks onto the floor of the installation alcove.

Drill to a maximum depth of 10 mm to avoid drilling through the floor.

1. Screw the anti-tip feature (12) tight with two of the supplied screws (13).

Illustration of a microwave oven mounted on a shelf with an inset showing the mounting bracket (no text or symbols)

1. Slide the appliance into the installation alcove slightly.

2. Connect the mains plug to the socket.

A beep will sound and ☐☐☐ will appear on the display (2) when you connect the appliance to the power supply.

1. Slide the appliance fully into the installation alcove.
2. Check that the appliance is positioned right in the centre of the installation alcove: the gap at the left and right side must be of equal width.
3. Open the cooking chamber door (7), including with the cooking chamber door emergency opener if necessary (10).

1. Insert the third screw (13) through the hole in the appliance floor and tighten it.


1. Cover the screw (13) with the cover (14).

Heating up the appliance for the first time

In order to remove any potential manufacturing residue, the appliance should be cleaned before it is used for the first time.

1. Press the "Open" button (22) to open the cooking chamber door (7).
2. Clear the cooking chamber out completely and clean the inner walls and all accessories (see "Care and maintenance" on page EN-32).

1. Where applicable, place the turntable drive (4) in the recess in the middle of the appliance.


Diagram of a circular mechanical component with a central knob and two side handles, labeled (5), without any text or symbols.

1. Place the roller ring (5) on the cooking chamber floor.
2. Place the turntable (3) on the roller ring (5) and turn it until its centre clicks into place on the turntable drive (4).
3. Close the cooking chamber door (7).
4. Heat the appliance for 10 minutes in microwave-combi mode [-3] on (see "Microwave-combi mode" on page EN-25). A slight odour may be produced when the heating elements are used for the first time. This is non-toxic and disappears after a short moment.
5. Set the time as described in section "Setting the time" on page EN-18.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

■ Never try to repair the appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause	Use Solutions, tips
Appliance will not start, display is off.	No electricity to socket.	Check by connecting another appliance.
	Mains plug is loose.	Check the tightness of the mains plug.
Cooking chamber door cannot be closed properly.	Foreign bodies on the door seal faces.	Clean the door seal faces thoroughly.
	The cooking chamber's door is broken or the door lock is defective.	Do not use the appliance. Contact our service team (see “Service” on page EN-41).
Cooking chamber lighting does not work.	Lamp defective.	Contact our service team (see “Service” on page EN-41).
The turntable does not turn or does not turn properly.	The turntable is not correctly positioned on the turntable drive.	Position the turntable correctly.
	The cooking chamber floor is dirty.	Clean the cooking chamber floor thoroughly.
Scratching, grinding sounds in the cooking chamber.	Turntable does not rotate properly.	Position the turntable correctly.
	The food dish is either too large or is positioned incorrectly.	The container may not protrude over the edge of the turntable.
Exploding, popping sounds in the cooking chamber.	The dish is being cooked and/or defrosted with too much power, and will burst open.	Cancel the setting and reselect a lower power level.
Other noises or flashes of light in the cooking chamber.	Sparks – metal objects in the cooking chamber!	Pull out the mains plug or isolate the fuse immediately. Remove metal parts.
The dish is cooked unevenly.	The dish was not sufficiently rotated or stirred.	Stir or rotate the food dish, and allow it to heat up a little more.
Problem Possible cause	Solutions, tips
The food will not be warm enough or is cooked unevenly.	The power or time is set too low.	Heat the dish for a little more time.
	The dish was very cold when being placed inside.
	The container is not suitable (see “Suitable dishware” on page EN-14).	Use a suitable container.
The appliance emits odours.	This happens when the tubular heating elements are used for the first time.	See section “Heating up the appliance for the first time” on page EN-38.
The cooking chamber door and/or viewing window steams up.	Moisture is escaping from the food. This is normal.	Wipe up the moisture after operation.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

Damage resulting from non-compliance with this manual cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Model Order number.
hanseatic Built-in microwave with grill and convection	TC925B2F-SDEE 607431

General customer service

Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.

Spare parts

Customers in Germany

Please contact the company Hermes Fulfilment GmbH:

Phone: [phone]

Monday–Thursday 8 a.m.–3 p.m., Friday 8 a.m.–2 p.m.

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure "Waste Prevention Programme – of the German Government with the Involvement of the Federal States".

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that batteries and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all batteries and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority or borough or to a retailer, so that they can be disposed

of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Batteries and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the poles of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Before disposing of the appliance, batteries and rechargeable batteries which are not permanently built into the appliance must be removed and disposed of separately.

Please only dispose of batteries and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of ward

• Moulded parts made of foamed, CFC-free polystyrene (PS)
  – Films and bags made of polyethylene (PE)
  – Tension bands made of polypropylene (PP)
• Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If the appliance needs to

be sent out for repairs, only the original packaging will provide sufficient protection. If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Technical specifications

Data sheet for the built-in microwave (607431)

Manufacturer hanseatic
Name of appliance	Built-in microwave with grill and convection
Model TC925B2F-SDEE
Microwave power consumption (W) 1450
Grill power consumption (W) 1100
Convection power consumption (W) 2500
Microwave power (W, max.) 900
Rated frequency (MHz) 2450
Microwave oven power levels 5 (10%, 30%, 50%, 80%, 100%)
Grill power levels 1
Built-in appliance Yes
Fuse protection (A, min.) 16
Supply voltage V~ / Hz 230 / 50
Cooking chamber volume (L)	25
Turntable diameter (mm)	315 mm
Appliance dimensions (height × width × depth) (mm)	388 × 595 × 470
Recess dimensions (height × width × depth) (mm)	380–382 × 560–568 × min. 550
Empty weight (kg), approx.	21.5

This microwave corresponds to the device category:

Group 2, Class B.

Group 2: Generates high-frequency electromagnetic radiation that is suitable for the treatment of food.

Class B: May be operated in the living area and directly from the normal mains at a voltage of up to 230 volts (low voltage network).

This device has been designed, manufactured and marketed in accordance with the following directives: Safety requirements of the Low Voltage Directive 2006/95/EC and Electromagnetic Compatibility Directive 2004/108/EC.

Observe the country-specific standards and rules!
