MW 190 G - Microwaves TEKA - Free user manual and instructions

Product Type	Microwave with Grill
Model	MW 190 G BLANCO
Brand	Teka
External Dimensions (H x W x D)	258.2 x 440 x 340 mm
Net Weight	Approx. 10.7 kg
Power Supply	230 V ~ 50 Hz
Power Consumption	1050 W
Microwave Output Power	700 W
Grill Power	1000 W
Oven Capacity	19 L
Turntable Diameter	255 mm
Functions	Microwave (5 power levels: 17%, 33%, 55%, 77%, 100%), Grill, Combi (3 modes: 80% grill+20% micro, 70% grill+30% micro, 60% grill+40% micro)
Control Type	Two rotary knobs (Power level and Timer)
Display	Analog timer
Door Type	Drop-down door with observation window
Safety Features	Safety interlock system, child lock (supervision required), grounding plug
Interior Material	Stainless steel cavity with light brown Mica cover
Exterior Finish	White with black mesh grille
Accessories Included	Glass tray, turntable ring assembly, grill rack, instruction manual
Cleaning Instructions	Unplug, clean interior with damp cloth, door and seals with damp cloth, accessories in soapy water
Installation Requirements	Level surface, min. 7.5 cm clearance sides, 30 cm above, not over heat source
Warranty	Standard manufacturer warranty (refer to local Teka subsidiary)
Disposal	WEEE directive: do not dispose with household waste; take to WEEE collection point

Frequently Asked Questions - MW 190 G TEKA

What should I do if the oven does not start?

Check that the power cord is plugged in tightly. If not, unplug and plug again after 10 seconds. If the fuse blows or circuit breaker trips, replace the fuse or reset the breaker (contact a professional). Test the outlet with another appliance. Ensure the door is closed properly.

Can I use metal containers in the microwave?

No, metal containers and metal-trimmed utensils can cause arcing and damage the oven. Use only microwave-safe utensils such as glass, ceramic, or plastic labeled 'Microwave Safe'.

Why does my microwave make noise when the turntable rotates?

Noise may be due to a dirty roller rest or oven bottom. Clean these parts as per the maintenance instructions. If the noise persists, check the turntable ring assembly for damage.

How do I clean the microwave oven?

Always unplug the appliance before cleaning. Wipe the interior with a slightly damp cloth. Clean the door frame and seals with a damp cloth. Wash accessories in soapy water. Do not use harsh chemicals.

What is Combi cooking and how do I use it?

Combi cooking combines microwave and grill functions for browning and crisping. Turn the function knob to Combi 1 (80% grill + 20% micro), Combi 2 (70% grill + 30% micro), or Combi 3 (60% grill + 40% micro). Set the power and time accordingly.

Is it safe to leave the microwave on with no food inside?

No, running the oven empty is dangerous and can damage the magnetron. Always ensure food or a microwave-safe container with liquid is inside when operating.

Can children use this microwave?

Children should only use the oven without supervision if they have been given adequate instructions on safe use and understand the hazards. In grill or combination modes, children must be supervised due to high temperatures.

What should I do if the door is damaged?

Do not operate the oven if the door or seals are damaged. Contact a competent person for repair. Using a damaged door can result in harmful exposure to microwave energy.

Why does steam accumulate on the door during cooking?

Steam from food may condense on the cooler door surface. This is normal. Most steam exits through the vents. Wipe the door dry if needed.

Can I use plastic wrap in the microwave?

Yes, use only microwave-safe plastic wrap. Cover food to retain moisture, but do not allow the wrap to touch the food directly. Slit or vent bags as directed.

USER MANUAL MW 190 G TEKA

White microwave oven with black mesh grille and control knobs (no visible text or symbols)

Horno Microondas

Line drawing of a plug with two leads (no text or symbols)

FUNCIONAMIENTO

MANUAL DE INSTRUÇÕES

MODELO: MW 190 G BLANCO

Line drawing of a plug with two leads (no text or symbols)

LOUÇA

PRECAUÇÃO

Perigo de lesões

OPERAÇÃO

Read these instructions carefully before using your microwave oven, And keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURETO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MW 190 G BLANCO
Power Source:	230V~ 50Hz
Power Consumption:	1050 W
Maximum Output:	700 W
Grill:	1000 W
Oven Capacity:	19 Litres
Turntable Diameter:	255 mm
External Dimensions (LxWxH):	440mmX340mmX258.2 mm
Net weight:	Approx. 10.7 Kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.

26. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

27. The appliances are not intended to be operated by means of an external timer or separate remote-control system.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

CLEANING

Be sure to unplug the

appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Donot use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Donot leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Grease-proof paper	Use as a cover to prevent splattering, retain moisture or as a wrap for steaming.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

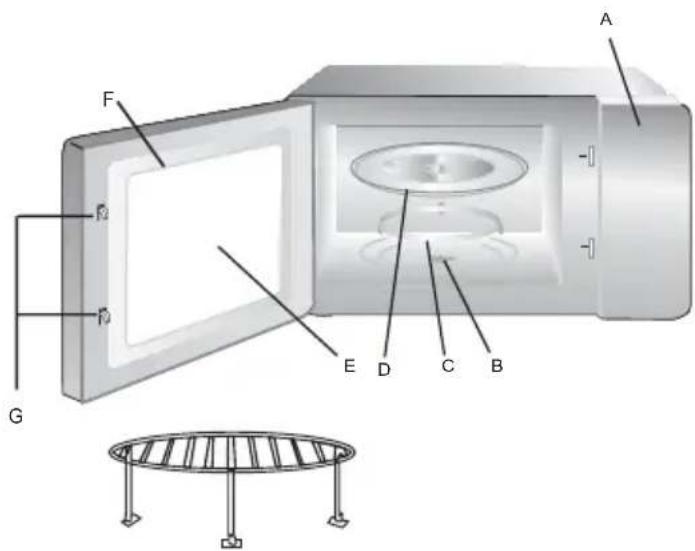

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Grill Rack( Only for Grill series )

Shut off oven power if the door is opened during operation.

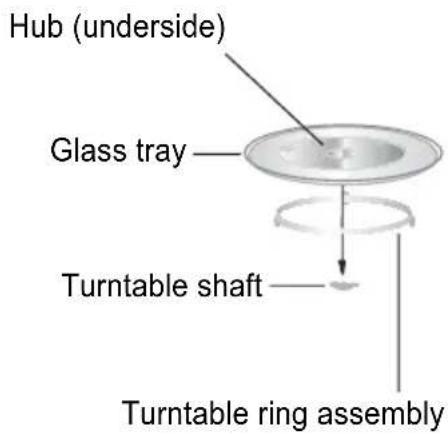

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

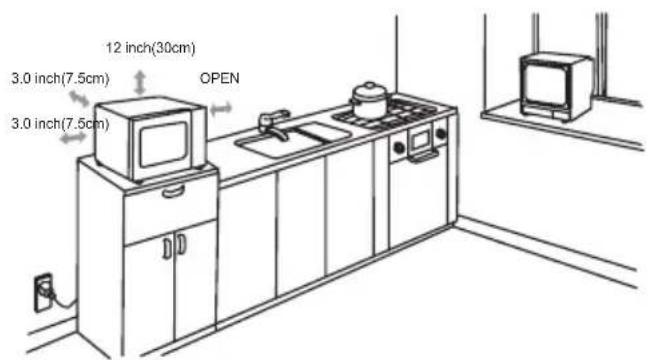

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.

(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

Warning symbol of rising steam inside a triangle (no text or numbers)

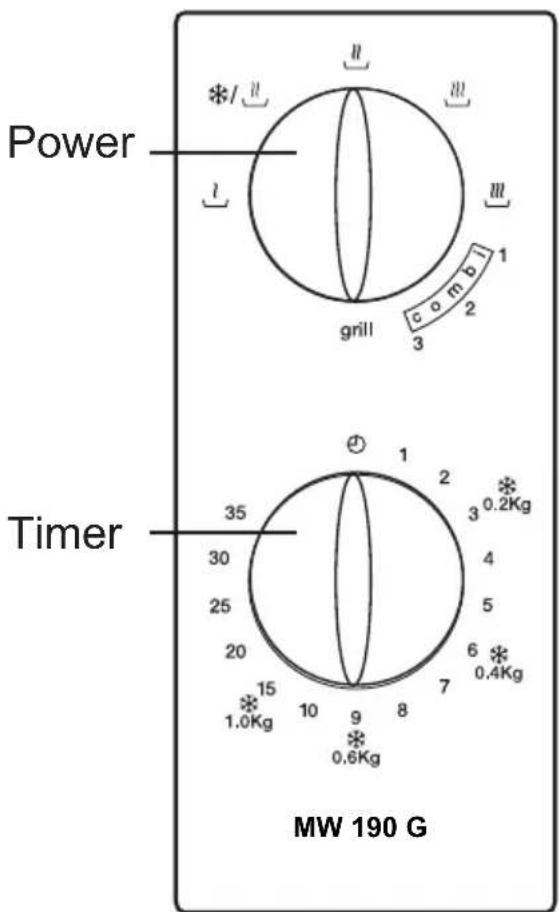

Control Panel and Features

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after Power level and time is set.
4. After the cooking time is up, the unit will "Ding" to stop.
5. If the unit is not in use, always set time to "0".

Function/power	Output (%)	Application
	17% microwave	Keep food temperature, soften ice cream
	33% microwave	Defrost
	55% microwave	Cook cream cake, braise food
	77% microwave	rice, fish and shell-fish, cookies, meat
	100% microwave	Reheat, boil water, cook fresh vegetable, chickens ducks, heat ilk m ,beverage .s
Grill 100% grill Spit-roasting, smoked fish fillets, potato chips
	80% grill + 20% micro	Western steak, pork chop, meat, poultry, etc.Combi 1
Combi 2	70% grill + 30% micro	Chinese steak, meat, pork chop, etc.
Combi 3	60% grill + 40% micro	Chickens, ducks, meat, make food crispy and tasty

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Teka Subsidiaries

Country Subsidiary Address City Phone

AustriaKüppersbusch Austria	Eitnergasse, 13	1231 Wien	[phone]
BelgiumKüppersbusch Belgium S.P.R.L.	Doomveld Industrie, Asse 3, No. 11 - Boite 7	1731 Zellik	[phone]
BulgariaTeka Bulgaria EOOD	Blvd. "Tsarigradsko Shosse" 135	1784 Sofia	[phone]
ChileTeka Chile S.A.	Avd El Retiro Parque los Maitenes, 1237. Parque Enea	Pudahuel, Santiago de Chile	[phone]
ChinaTeka International Trading (Shanghai) Co. Ltd.	6/F. Datong Business Center, No. 369 Fuxing Middle Rd.	200025 Shanghai	[phone]
Czech RepublicTeka CZ S.R.O.	V Holesovickách, 593	182 00 Praha 8 - Liben	[phone]
DenmarkJuvél A/S	Københavnsvej 222	DK-4600 Køge	[phone]
EcuadorTeka Ecuador S.A.	Parque Ind. California 2, Via a Daule Km 12	Guayaquil	[phone]
GermanyTeka Küchentechnik GmbH	Sechsheldener Str. 122	35708 Haiger	[phone]
Great BritainTeka Products Ltd.	177 Milton Park	OX14 4SE Milton, Abingdon	[phone]
GreeceTeka Hellas A.E.	Thesi Roupaki - Aspropyrgos	193 00 Athens	[phone]
HungaryTeka Hungary Kft.	Bajcsy Zsilinszky u. 53	1065 Budapest	[phone]
IndonesiaPT Teka Buana	Jalan Menteng Raya, Kantor Taman A9 Unit A3	12950 Jakarta	[phone]
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd	10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie	40150 Shah Alam, Selangor Darul Ehsan	[phone]
MexicoTeka Mexicana S.A. de C.V.	Ferrocarril 200, Esquina Norte 29, Col. Moctezuma	15500 Mexico D.F.	[phone]
MoroccoTeka Maroc S.A.	73, Bd. Slimane, Depôt 33, Route de Ain Sebaa	Casablanca	[phone]
NetherlandsTeka B.V.	Wijkermeerstraat, 34	2131 HA Hoofddorp	[phone]
NorwayIntra, A.S	Storsand	7563 Malvik	[phone]
PolandTeka Polska Sp. ZO.O.	ul. 3-go Maja 8 / A2	05-800 Pruszków	[phone]
PortugalTeka Portugal S.A.	Estrada da Mota - Apdo 533	3834-909 Ilhavo, Aveiro	[phone]
RomaniaS.C. Teka Küchentechnik Romania S.R.L.	Sevastopol str., no 24, 5th floor, of. 15	010992 Bucharest Sector 1	[phone]
RussiaTeka Rus LLC	Barklaya str. 6, bld. 3, Barklay plaza center, office 402	121087 Moscow âTM Russia	[phone]
SingaporeTeka Singapore PTE Ltd	Clemenceau Avenue, 83, 01-33/34 UE Square	239920 Singapore	[phone]
SpainTeka Industrial, S.A.	C/ Cajo,17	39011 Santander	[phone]
SwedenIntra Mölntorp AB	Säbyvägen, 8	734 93 Kolbäck	[phone]
ThailandTeka (Thailand) Co. Ltd.	364/8 Sri-Ayuttaya Road, Phayathai, Ratchetavee	10400 Bangkok	[phone]
TurkeyTeka Teknik Mutfak Aletleri Sanayi Ve	Büyükdere Cad. 24/13	80290 Mecidiyeköy, Istanbul	[phone]
UkraineTeka Ukranie LLC	86-e, Bozhenko Str .2nd floor,4th entrance	03150 Kyiv	[phone]
United Arab EmiratesTeka Middle East Fze	Building LOB 16, Office 417	P.O. Box 18251 Dubai	[phone]
United Arab EmiratesTeka Küchentechnik U.A.E LLC	Bin Khedia Centre	P.O. Box 35142 Dubai	[phone]
VenezuelaTeka Andina S.A.	Ctra. Petare-Santa Lucia, km 3 (El Limoncito)	1070 Caracas	[phone]
VietnamTEKA Vietnam Co., Ltd.	803 Dai Minh Convention Tower, 8th Floor	77 Hoang Van Thai, District 7, Ho Chi Minh	[phone]
