USER MANUAL IB-DK2102-C Raidsonic

Simple line drawing of a 3D cube with visible edges and faces (no text or symbols)

ICY BOX®

Manual IB-DK2102-C

USB Type-C™ Notebook DockingStation

Handbuch IB-DK2102-C

USB Type-C™ Notebook DockingStation

Exterior view of a gray USB flash drive with ports and connectors (no text or symbols visible)

Safety information IB-DK2102-C

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
• Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

- Read the operating instructions prior to assembly

- Avoid coming into contact with sharp edges or pointed components

- Do not force components together

- Use suitable tools

- Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

- Prevent externally heating up components and ensure an exchange of air

- Do not cover the fan outlet and passive cooling elements

- Avoid direct sunlight on the device/power unit

Safety information IB-DK2102-C

• Guarantee sufficient ambient air for the device/power unit
- Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
- Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at

[e-mail] or visit our website at www.raidsonic.de.

IB-DK2102-C, quick installation guide

Verpackungsinhalt

Close-up of a curved metallic pipe or tube with a labeled dimension line (no text or symbols beyond the number)

Back panel of a network device showing ports, connectors, and a port with a GND symbol (no text or labels visible)

1.2.3.4.5.6.7.8.

1. 1x USB 3.0 Type-A data interface/Datenschnittstelle + 1.5 A charging/aufladen
2. 2x USB 3.0 Type-A data interface/Datenschnittstelle + 0.9 A charging/aufladen
3. microSD 3.0 card reader/microSD 3.0 Kartenleser (UHS-I)

SD 3.0 card reader/SD 3.0 Kartenleser (UHS-I)

Insert the SD card into the SD card slot with the bevelled corner in front of it. The golden PIN's of the card must be directed downwards.

microSD card (UHS-I)

Insert the microSD card into the microSD card slot with the bevelled corner in front of it. The golden PIN's of the card must be directed upwards.

SD Karte (UHS-I)

microSD Karte (UHS-I)

Note: In order to power and charge your connected laptop, its USB Type- C^TM port must support USB Power Delivery 2.0 or Thunderbolt 3^TM .

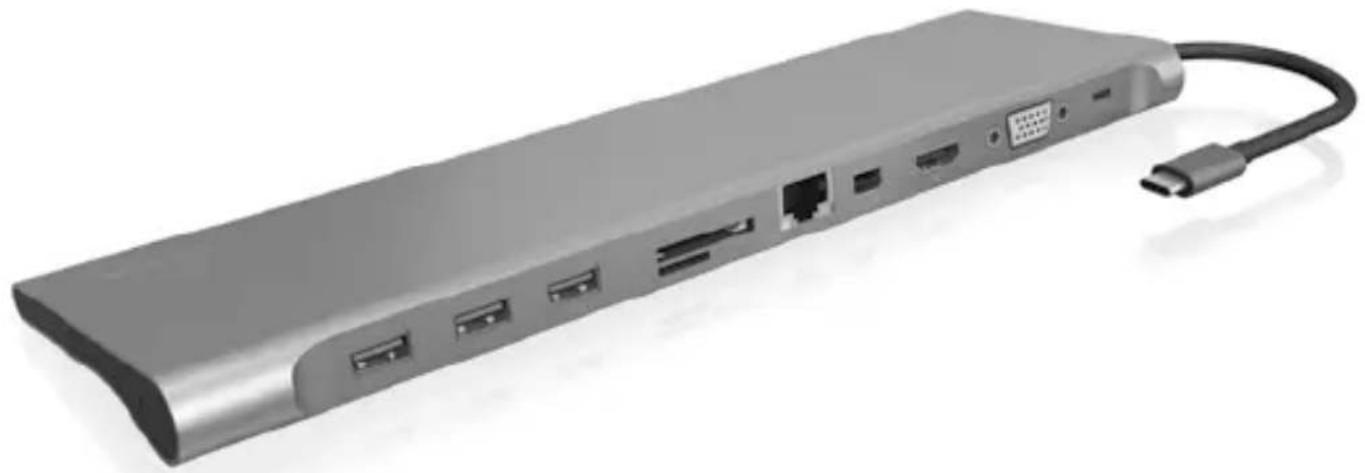

The USB Type- C^TM multi DockingStation is designed for extra connectivity demands. With this DockingStation you can extend a USB Type- C^TM host interface and DisplayPort ^TM Alt Mode supported computer to more displays and USB peripherals, Ethernet network, memory cards, speaker and microphone through one USB Type- C^TM cable. Adopting Power Delivery 2.0 charging technology, upstream charging function through the Type- C^TM interface, you can charge the connected notebook by using your existing Type- C^TM power supply at once.

Features

• Premium aluminium enclosure
• USB Type-C ^TM with Power Delivery (specification 2.0)
- Charge your notebook with up to 60 W via the USB Type-C™ interface
- Three additional video interfaces: 1x High Speed HDMI® Type-A (up to 3840x2160@30 Hz) 1x Mini DP++ interface (up to 3840x2160@30 Hz) 1x VGA interface up to 1920x1200@60 Hz

• Three USB 3.0 Type-A interfaces, data transfer rate up to 5 Gbit/s
  • SD 3.0 (UHS-I) and microSD 3.0 (UHS-I) card reader for data transfer up to 100 MB/s
  • Gigabit LAN RJ45 interface with wake-on-LAN function
  • 3.5 mm stereo combo jack (headset)

Requirements

- Host notebook with an available USB Type- C^TM port (to ensure full dock functionality, the host USB Type- C^TM port must support USB Power Delivery 2.0 and DisplayPort ^TM Alt Mode or Thunderbolt ^TM 3).

Note: The docking station can still connect to a host laptop with a USB Type- C^TM port that doesn't support Power Delivery (must still support DisplayPort™ Alt Mode). In this configuration, the docking station will not provide power to your host laptop.

• DisplayPort™, HDMI® or VGA enabled display(s) with cables as needed (for additional external displays)
  • A 4K-capable display is required to achieve 3840x2160@30 Hz resolution
• Any of the following operating systems: Windows® 10, macOS® (no MST support for macOS® computer)

Manual IB-DK2102-C

USB Type-C™

Not all USB Type-CTM ports support the full functionality of the USB Type-CTM standard. Some ports might only provide data transfers, and might not support video or Power Delivery over USB. To use this dock to its full potential, ensure that the host USB Type-CTM port from your computer supports DisplayPortTM Alt Mode, as well as USB Power Delivery or Thunderbolt 3TM.

Note! The USB Type-CTM port on the DockingStation supports only Power Delivery 2.0.

Install and use the docking station

The dock will automatically install some of the required drivers once it is connected to your laptop's USB Type-C™ port. If you receive a prompt to automatically install the driver(s), follow the on-screen instructions to complete the installation.

Connect your devices to the appropriate ports on the dock. Connect your external display(s) to the dock's video port(s).

Note: Video output capabilities are dependent on the video card and hardware specifications of your connected host laptop. Certain video cards have limited MST support, while some monitors will also limit the available resolution.

Configure a display device

Please setup your display settings accordingly to your operating system and requirements. For detailed information, see the corresponding operation manual and description of your operating system. Your laptop hardware must support dual external displays (e.g.: MST). You can set up dual displays by using the video output ports (1x Mini DisplayPort™ and 1x HDMI® or 1x Mini DisplayPort™ and VGA).

Supported video resolutions

The docking station supports 4K HD resolution if the connected HDMI® or DisplayPort™ display supports it.

Number of displays Video output configuration Maximum resolution/monitor

2 mini DisplayPort™ and HDMI® 1920x1080@60Hz

2 mini DisplayPort™ and VGA 1920x1080p@60 Hz

1. Mini DisplayPort™ and HDMI® can work simultaneously; Mini DisplayPort™ and VGA can work simultaneously, but HDMI® and VGA cannot work at the same time.
2. When connecting Mini DisplayPort™ and HDMI® on macOS® based system, the computer can read only one EDID (Extended Display Interface Data). It is recommended using two monitors, which have the same highest resolution. If the resolutions are different for these two monitors, please adjust manually. On Windows® OS the computer can read two different EDID's at the same time.
3. When connecting Mini DisplayPort™ and VGA on macOS®, the computer can read only one EDID. Please connect the Mini DisplayPort™ port before the VGA port; otherwise, there might be no sound from the device. Please adjust the resolution for both monitors manually. This issue will not happen on Windows® OS.
4. When using macOS® on the dual monitor mode, the computer can read only one EDID. If you are using two monitors which do not using the same resolution, there won't be an image. Please properly reset the resolution and adjust it manually.
5. When connecting the USB Type-C plug of the IB-DK2102-C to a Chromebook, the mouse to be connected to the USB 3.0 Type-A port will not work immediately; it will have seconds' delay. This problem also occurs in other similar Type-CTM adapter (including Apple original 3 in 1 adapter) when connected to Chromebook.
6. When connecting the IB-DK2102-C to Chromebook, the VGA video signal may not appear on the screen of the VGA monitor under certain resolutions.
7. Attention! When plugging in and out a PD 2.0 adapter to the Type- C^TM interface of the IB-DK2102-C, the connected USB devices will get disconnected flashily and then reconnect in a few seconds, so to prevent possible data loss or corruption, avoid (dis-)connecting the PD 2.0 adapter from AC power while transferring data.

Handbuch IB-DK2102-C

1 VGA 1920x1200p@60 Hz

Handbuch IB-DK2102-C

Wichtig:

© Copyright 2018 by RaidSonic Technology GmbH. All Rights Reserved.

The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have. The terms HDMI® and HDMI® High-Definition Multimedia Interface, and the HDMI® logo are trademarks or registered trademarks of HDMI® LA, Inc. in the United States and other countries. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
