Product Type	Thunderbolt 3 Docking Station
Brand	Raidsonic (ICY BOX)
Model	IB-DK2701-TB3
Enclosure Material	Premium aluminum
Host Interface	Thunderbolt 3 Type-C (up to 40 Gbit/s)
Power Delivery	Up to 70 W charging for host notebook
Power Supply Included	135 W (20 V / 6.75 A)
DisplayPort Output	1x DisplayPort, up to 4096x2160@60 Hz
Thunderbolt 3 Data Port	1x Thunderbolt 3 Type-C (15 W PD), up to 40 Gbit/s
USB 3.1 Gen 2 Ports	2x Type-A, up to 10 Gbit/s
USB 3.0 Ports	3x Type-A, up to 5 Gbit/s
Ethernet	1x Gigabit RJ45 (10/100/1000 Mbit/s)
Audio Jacks	3.5 mm microphone and headphone
Supported Operating Systems	Windows 10 or later, macOS
Maximum External Displays	2 displays (both at 4K60 via DP and Thunderbolt 3)
Data Transfer Rate (Thunderbolt 3)	Up to 40 Gbit/s (2300 MB/s)
Cleaning Instructions	Use dry, anti-static cloth; disconnect before cleaning
Package Contents	Docking station, 135W power supply, power cable, passive Thunderbolt 3 cable, quick installation guide

Frequently Asked Questions - IB-DK2701-TB3 Raidsonic

How do I set up the IB-DK2701-TB3 Docking Station?

Connect the power supply, then connect the Thunderbolt 3 cable to your host computer. The drivers will install automatically. Authenticate the Thunderbolt device when prompted.

Can I charge my laptop through the docking station?

Yes, the dock provides Power Delivery up to 70 W to charge the connected host notebook via the Thunderbolt 3 host port.

Why is my external display not showing?

Ensure your display is connected to the DisplayPort or Thunderbolt 3 data port. The number of supported displays depends on your laptop's graphics hardware. Configure display settings in your operating system.

Do I need to install drivers?

Most drivers install automatically. For Thunderbolt 3 drivers, check with your computer manufacturer for the latest version. Follow on-screen authentication steps.

Can I use the dock with a regular USB-C port?

No, the dock requires a Thunderbolt 3 Type-C port. Regular USB-C ports do not support Thunderbolt 3 functionality.

What is the maximum video resolution supported?

The DisplayPort and Thunderbolt 3 ports each support up to 4096x2160@60 Hz. With two displays, both can run at 4K60 simultaneously.

How many USB ports does the dock have?

It has 5 USB ports: 2x USB 3.1 Gen 2 (10 Gbit/s) and 3x USB 3.0 (5 Gbit/s).

What should I do if my device overheats?

Ensure proper ventilation. Do not cover the dock, keep away from direct sunlight, and maintain airflow around the device.

How do I clean the docking station?

Disconnect the device from power. Use a dry, anti-static cloth. Avoid aggressive cleaners or moisture.

Is the dock compatible with macOS?

Yes, it supports both Windows and macOS operating systems.

USER MANUAL IB-DK2701-TB3 Raidsonic

Simple geometric diagram of a cube with internal diagonals (no text or symbols)

ICY BOX®

Manual IB-DK2701-TB3

Thunderbolt™ 3 DockingStation with Power Delivery

Handbuch IB-DK2701-TB3

Black rectangular electronic device with ports and connectors, no visible text or symbols on the body

THUNDERBOLT.

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

WARNING

CAUTION

IMPORTANT

Warns of a directly hazardous situation causing death or serious injury.

Warns of a potentially hazardous situation that may cause death or serious injury.

Warns of a potentially hazardous situation that may cause minor injury.

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
  • Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
- Do not cover the fan outlet and passive cooling elements
- Avoid direct sunlight on the device/power unit
• Guarantee sufficient ambient air for the device/power unit
- Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
  • Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

Safety information IB-DK2701-TB3

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.raidsonic.de.

Manual IB-DK2701-TB3

Thunderbolt™ 3 DockingStation with Power Delivery

This DockingStation features 10 ports and solves the problem of ever-growing shortage of connections with thin notebooks, equipped with a Thunderbolt ^™ 3 Type-C ^™ capable interface. This makes it easier and more fun to use notebooks. Curved shapes in a high-quality aluminium housing, highest precision in production and ingenious technology are combined in one device. Everything to give the user the impulse: The workplace can impress not only with its effectiveness, but also with its design.

With this DockingStation you can extend a Thunderbolt ^® 3 host interface supported computer to more displays and USB peripherals, Ethernet network, speaker and microphone through one Thunderbolt ^® 3 cable.

Adopting PD charging technology, upstream charging function through Thunderbolt® 3 interface, you can charge the connected laptop at once.

Features

• Premium aluminium enclosure
- Charge your notebook with up to 70 W via the Thunderbolt® 3 interface
• DisplayPort™ interface up to 4096x2160@60 Hz
- Two USB 3.1 (Gen 2) Type-A interfaces up to 10 Gbit/s
• Three USB 3.0 Type-A interfaces up to 5 Gbit/s
• 3.5 mm jacks for microphone and headphone connection
• Gigabit LAN RJ45 interface up to 10/100/1000 Mbit/s
• Including 135 W power supply (20 V / 6.75 A)

- Data transfer rate up to 40 Gbit/s, Power Delivery 2.0 and video/audio transfer via one Thunderbolt® 3 cable

Requirements and information

• Host computer with an available Thunderbolt ^TM 3 Type-C ^TM port
• The host computer must support Power Delivery and Thunderbolt ^TM 3
  • Available AC electrical outlet
• 4K-capable displays are required to achieve 4096x2160@60 Hz resolutions
• Any of the following operating systems: Windows ^ or macOS ^
  • Supported transfer rates: USB 3.0 up to 350 MB/s, USB 3.1 (Gen 2) up to 750 MB/s, Thunderbolt 3 up to 2300 MB/s

Thunderbolf™ 3 Type-C™

Thunderbolt ^® 3 provides connectivity with top speed and versatility. It has twice the bandwidth of Thunderbolt 2 and combines data transmission, video output and power supply in a single, compact port. By integrating Type-C ^™ , the fast Thunderbolt ^® 3 port has become even more practical since it can be connected in any orientation, making it a truly universal port.

While Thunderbolt ^™ 3 utilizes the Type-C ^™ connector, not all Type-C ^™ interfaces support Thunderbolt ^™ 3. Please check the specifications of your computer system to confirm which Type-C ^™ ports on your computer support Thunderbolt ^™ 3.

Product Overview

• The Thunderbolt 3 DockingStation with Power Delivery up to 70 W is an easy and versatile way to connect multiple devices using a single connection to a Thunderbolt™ 3 computer system.
• The DockingStation will be targeted to Windows® and macOS® Thunderbolt™ 3 notebook applications in consumer and professional IT markets.
• The DockingStation is be able to provide a seamless dock and undock experience with respect to all displays and I/O peripherals.
  • Video output resolution and compatibility may be limited by MST ability of your computer system.

Package content:

IB-DK2701-TB3, power supply, power cable, passive Thunderbolt 3 cable, quick installation guide

Manual IB-DK2701-TB3

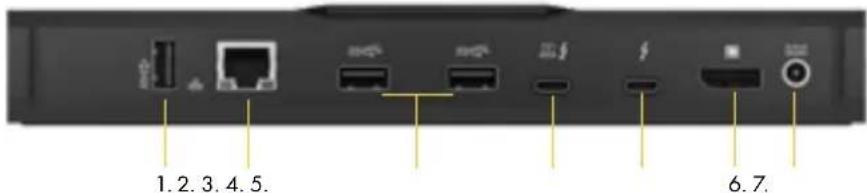

Rear view

1. USB 3.0 Type-A data interface with data transfer rates up to 5 Gbit/s
2. RJ45 Ethernet Gigabit interface with data transfer rates up to 1000 Mbit/s
3. 2x USB 3.1 (Gen 2) Type-A data interface with data transfer rates up to 10 Gbit/s
4. Thunderbolt ^TM 3 Type-C ^TM host computer interface with data transfer rates up to 40 Gbit/s and 70 W Power Delivery support
5. Thunderbolt ^™ 3 Type-C ^™ data interface with data transfer rates up to 40 Gbit/s and 15 W Power Delivery support
6. DisplayPort ^™ interface with up to 4096x2160@60 Hz
7. Power jack, 20 V@6.75 A

Side view

1. 3.5 mm jack for microphone connection
2. 3.5 mm jack for headphone connection
3. 2x USB 3.0 Type-A data interfaces with data transfer rates up to 5 Gbit/s

Starting up

- Plug in power supply

- Connect Thunderbolt™ 3 cable

Manual IB-DK2701-TB3

Install Driver

The necessary drivers for this dock will be installed automatically. For Thunderbolt ^® 3 driver, please contact the manufacturer of your computer for the latest Thunderbolt ^™ 3 driver or software.

Note:

• This docking station only supports Thunderbolt ^™ 3 laptops.
- Your computer will ask for authentication of the new Thunderbolt™ device.

Thunderbolt™ Authentication (based on Windows® 10)

1. When new Thunderbolt™ device is connected, the message will be at the bottom right corner.

Click "OK".

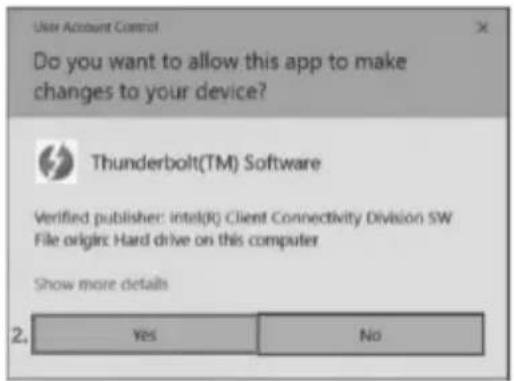

1. The Windows ^® system will ask whether the user wants to allow Thunderbolt ^™ 3 make changes.

Click "Yes".

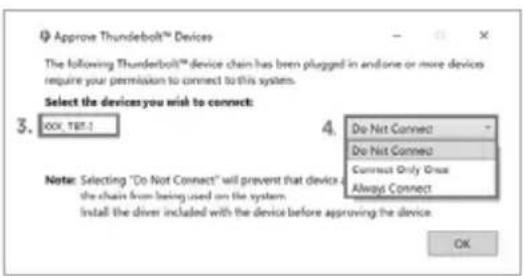

1. User should see the window as below image. Make sure the connected device is "XXX-TB3".

1. Click the drop down menu and select "Always connect".
2. Click "Ok" and finish the authentication.

Manual IB-DK2701-TB3

Connect your devices to the appropriate interfaces on the dock

Pure electrical circuit lines without any symbols

Configure a display device

Please setup your display settings accordingly to your operating system and requirements. For detailed information, see the corresponding operation manual and description of your operating system.

The number of displays that are natively supported over a Thunderbolt ^™ 3 dock depends on the design of the laptop. It is not changeable by software or a Thunderbolt ^™ 3 dock.

Supported video resolutions

The DockingStation supports:

• 4K resolution via DisplayPort ^TM if the connected DisplayPort ^T2 display supports it.
• 4K resolution via Thunderbolt ^TM 3 if the connected Thunderbolt ^TM 3 display supports it.

Video output table

Note: Video output capabilities are dependent on the video card and hardware specifications of your connected host notebook. Certain graphic cards have limited support, while some monitors will also limit the output resolution.

Thunderbolt ^™ 3 supports DisplayPort ^™ Alternate Mode over USB-Type-C ^™ . The docking station supports up to two displays. The following table is the resolution supported for each port.

Number of attached displays Video output configuration Maximum resolution/monitor

1	DisplayPort ^TM 4096x2160@60 Hz
1	Thunderbolt ^TM 3 4096x2160@60 Hz
2	DisplayPort ^TM +Thunderbolt ^TM 3 2x 4096x2160@60 Hz

Handbuch IB-DK2701-TB3

Back view of a black electronic device with two ports and a yellow indicator line (no text or symbols visible)

1.2.3.

Wählen Sie "OK".

Klicken Sie "Ja".

Handbuch IB-DK2701-TB3

Pure electrical circuit lines without any symbols

Monitoreinrichtung

Simple line drawing of a 3D cube with visible and hidden edges (no text or symbols)
