USER MANUAL InTANK iR2622 Raidsonic

Thank you for purchasing RAIDON products. This manual will introduce the InTANK iR2622 Series. Before using your InTANK iR2622, please read this manual thoroughly. Although all information contained in this user manual has been carefully verified before publishing, however, the actual product specification will be based on the time of delivery from RAIDON. Any updates to the product specifications or relevant information may be found on www.raidon.com.tw. Products are subject to change without prior notifications.

If you have any questions regarding the products of RAIDON, or you would like to know the latest product information, user manual update, or firmware update, please contact your local supplier or visit www.raidon.com.tw for further information.

Copyright © RAIDON TECHNOLOGY, INC. All rights reserved.

Table of Contents

1. Package Contents and Product Views
2. Operating Information
3. Hardware Requirements and Precautions
4. Hardware Installation Procedure
5. Setting RAID Mode
6. Computer Set Up
7. Hard Disk status on LCD screen
8. Data Rebuilding Operation
9. GUI Monitoring Software and Firmware Update GUI
10. Frequently Asked Questions

1. Package Contents and Product Views

Open the package and you should find the following:

iR2622

iR2622 × 1 ( with removable drive tray enclosed x2)

Internal RS232 Cable x 1

External RS232 Cable x 1

SATA Cable x 1

CD-Rom x 1

Accessories Kit bag x 2

Quick Installation Guide x 1

Please make sure that the contents listed above are not damaged or missing. If you should fire damages or missing contents, please contact your supplier immediately.

1. LCD Display
2. LED of failure Alarm
3. Pri. HDD status indicator
4. Sec. HDD status indicator
5. Mute Button
6. Removable drive tray
7. HDD tray key lock
8. HDD Access
9. Cooling fan
10. RAID mode switch
11. RS232 Port
12. SATA Port
13. 15 PIN Power Connector
14. 4Pin Power Connector

Status	Fail LED	HDD 1	HDD 2	TRAY 1	TRAY 2	Buzzer
Stand by	——	Orange / light on		Blue / light on		——
HDD Failure	Red / light on	——		Red / light on		On
Access	——	Orange / light on		Blue and Purple / blinking		——
Rebuilding(Source)	——	Orange / light on		Blue / light on		——
Rebuilding(Target)	——	——		Red / blinking		——
Fan Failure	Red / light on	——		——		On
Over Heat(≥50°C)	Red / light on	——		——		On

2. Operating Information

Operating Temperature : 0 \~ 40°C (32 \~ 104°F)

Storage Temperature: -10 \~ 70°C (14 \~ 158°F)

Line Voltage : 100 \~ 240V AC

3. Hardware Requirements and Precautions

1. Computers or servers with SATA I & SATA II & SATA III.
2. Hard drive with SATA I & SATA II & SATA III
3. You are strongly advised to set the storage mode (the default is the Independent mode) before using the iR2622.
4. The product allows the user to simultaneously utilize two hard drives manufactured by different companies. However, if the user expects better efficiency, we strongly recommend the users to use hard drives manufactured by the same manufacturer.
5. Please make sure that the two hard drives are free from bad blocks or defects prior to installation in order to avoid system crashes or data loss.

6. The actual storage capacity of iR2622 recognized by the system may differ from the total capacity stated on the hard drives combined once the drives have been formatted.

7. It is highly recommended for users to back up important data contained within the iR2622 unit on a regular basis or whenever the user feels necessary to a remote or a separate storage device. Stardom will not be responsible for any lost of data caused during the use of the unit or the recovery of the data lost.

Note :

Once the drive mode configuration has been completed, re-configuration using the same hard drives to set the drive mode will result in complete data loss. If you must change the drive mode, make sure to backup all data prior to the mode change.

4. Hardware Installation Procedure

Please follow the instructions below to complete the hardware installation.

Step 1 Open the package and take out the product making sure that all the enclosed contents are not damaged or missing. Should you find damages or missing contents, please contact your supplier immediately.

Step 2 Place the system on a stable surface. Ensure that it is well ventilated without blockage to the vent and kept away from areas near water and damage prone areas.

Step 3 Use the key included in the accessory kit and inserted into the key access opening to eject the removable drive tray latch and extract the removable drive tray.

Step 4 Mount your hard drives onto the removable drive tray and secure it with the screws included in the accessory kit to avoid any damage to the hard drive due to accidental movements.

Step 5 When the hard drive installation has been completed, insert the hard drive tray into the system horizontally and secure the latch into place.

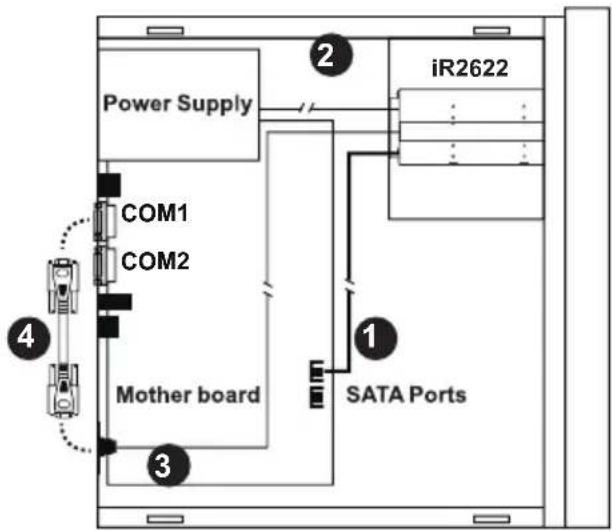

Step 6 Use the preferred cable included to connect your computer to the relative interface connection on the iR2622 unit.

※ Note :

1. RS232 Port and RS232 Cable: Provides hardware status monitoring to industrial control system or IPC via RS232.
2. We do not recommend users to disassemble the device without proper instructions and authorization. The manufacture warranty will not cover the damages caused by unauthorized disassembling.
3. To prevent the device from malfunction, please make sure the device is connected with a direct and dedicated power connection of a stable power input.

5. Setting the Hard Drive Array Mode

Please select the RAID mode with the jumper located at the back panel. The original default is RAID 1, still there are three pins at the back panel for RAID mode selection: RAID 0 mode by setting the jumper on the bottom of the two pins. RAID 1 mode by setting the jumper on the top of the two pins.

1. RAID 1 Mode

1). Place two new hard drives into iR2622 and strongly suggest you to use two identical h drives to get the equal capacity. If the capacity is different, iR2622 is downward to the small hard drive capacity.
2). Under RAID 1 mode, two hard drives have the identical information as one to mirror to the other one, therefore each of the hard drive failed is still able to function normally. When you replace the failed hard disk to the new one the system automatically rebuilding the data to the newly place hard disk.

2. RAID 0 Mode

1). Place two new hard drives into iR2622 and strongly suggest you to use two identical hard drives to get the equal capacity. If the capacity is different, iR2622 is downward to the small hard drive capacity.
2). Under RAID 0 mode, capacity is add up to a one big volume, also with the feature of faster read/write performance efficient.

6. Computer Set Up

When the hardware setup for iR2622 is complete, you are now ready to turn the machine on.

After the hardware installation is complete, the iR2622 will be treated as one single hard drive. Set the hard drive to AUTO in the computer's BIOS. When the computer is turned on, the system will retrieve the following information:

1. In iR2622, the installed hard drive can be detected by the Device Manager of Computer Management for Windows.

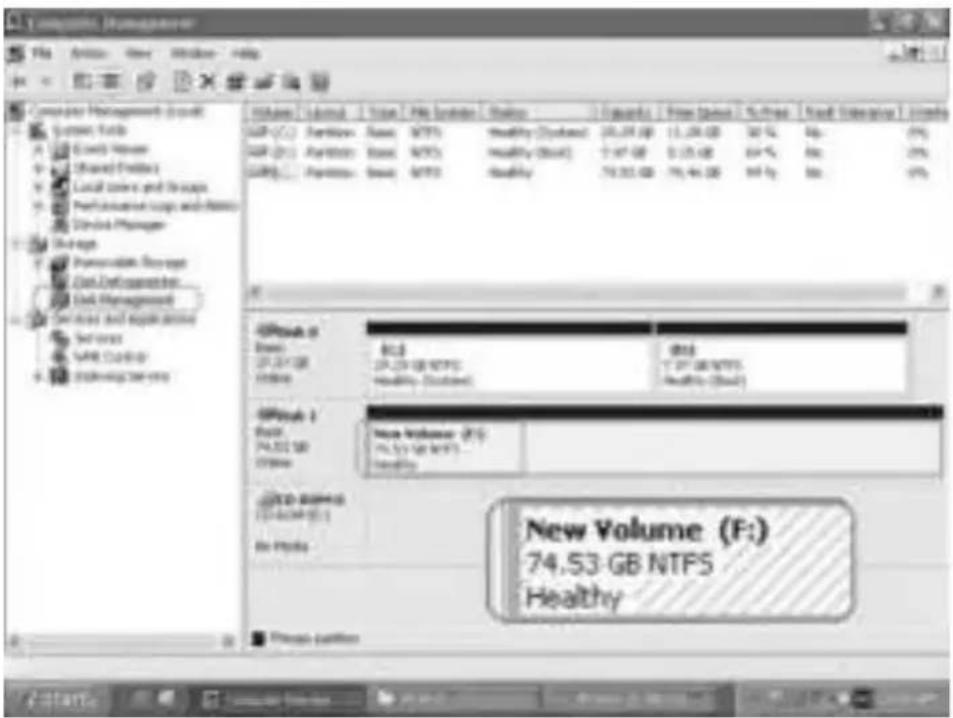

2. Customers can choose to format the hard drive by using the Disk Management tool of the operating system before using the iR2622.

14.1 Management - Manager File Edit View Window Help Computer Management (I) List GMP (C:) Properties: None NTFS Healthy (Cybernet) 20,27,08 13,29,08 50 % No: 0% GMP (P:) Properties: None NTFS Healthy (Cloud) 2,47,68 0,25,68 64 % No: 0% GMP (Q:) Properties: None NTFS Healthy 79,33,08 79,44,08 99 % No: 0% New Volume (F:) 74.53 GB NTPS Healthy

At this point, the installation process is completely finished. The user can freely retrieve and save data to iR2622 just like retrieving and saving data to a regular hard drive. If the user experiences any abnormality during the operation, please refer to the trouble shooting Q&A section in Appendix.

7. Hard Disk status on LCD screen

1. Booting and Normal status.

iR2622 RAID-1 vxxxxxx.x

1. RAID 1 Degraded. Primary hard drive is failure, but secondary hard drive is normal.

RAID-1 degraded Pri : X Sec : O

1. RAID 1 Failure. Primary and secondary hard drives are failure.

RAID-1 failure Pri : X Sec : X

1. RAID 1 Failure. (Double Source)

RAID-1 failure Double Source

1. RAID 0 Failure. Primary hard drive is missing, but secondary hard drive is normal.

RAID-0 failure Pri : M Sec : O

1. Rebuilding

Rebuilding Sec→Pri 32%

8. Data Rebuilding Operation

The hard drive Hot Swap and Auto Rebuilding functions are available.

Off-line Back up When the data is stored within iR2622, the user can remove one of the hard drives from iR2622 as back up drive for data such as system operation file, secured files, seldom modified files or image and music files. The user can periodically insert the hard drive back into iR2622 to execute automatic backup to protect the system from being hit by computer virus or to avoid risk of having both hard drives failing at the same time.

When one of the two hard drives fails in the iR2622 system, the system will alarm the hard drive failure message both on the LCD display screen and in the monitoring software. The user can remove the failed hard drive from the system while the system is still in operation without shutting down the machine. If the failed hard drive is replaced shortly, the system will automatically execute the Auto Rebuilding function without affecting the system operation and without any operation command from the user.

When the iR2622 detects a hard drive missing or a hard drive failure, the Buzzer will start and the LCD display screen will display the following messages:

RAID-1 degraded

Pri : X Sec : O

After removing the failed hard drive and replacing with a new hard drive, if the hard drive is properly installed, the LCD display screen will display the following messages:

After few seconds of installing the new hard drive, the LCD display screen will display the c rebuilding progress:

Rebuilding Sec→Pri 32%

Rebuilding Pri→Sec 32%

When the rebuilding is fully completed, the LCD display screen will again display the following messages:

9. GUI Monitoring Software and Firmware Update

You can install GUI software to monitor the status of iR2622. This can be done by installing software from CD.

※ The HDD1 equals to Pri HDD and HDD2 equals to Sec HDD.

1. System Status

RAIDON Image-based MR-1016 - 20000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 RAIDON Type: 345, 4859 Temperature: 21°C Device: 1.622 (25.622) System Capacity: 141.126 Capacity: 29.126 Capacities: 74.126 Capacities: 74.126 Capacity: 14.126 Capacity: 14.126 Capacity: 14.126 Capacity: 14.126 Capacity: 14.126 Capacity: 14.126 Capacity: 14.126 Capacity: 14.126 Capacity: 14.126 Capacity: 14.126 Capacity: 29.126 Capacity: 29.126 Capacity: 29.126 Capacity: 29.126 Capacity: 29.126 Capacity: 29.126 Capacity: 29.126 Capacity: 29.126 Capacity: 29.126 Capacity: 29.126 Capacity: 28.126 Capacity: 28.126 Capacity: 28.126 Capacity: 28.126 Capacity: 28.126 Capacity: 28.126 Capacity: 28.126 Capacity: 28.126 Capacity: 28.126 Capacity: 28.126 Capacity: 27.126 Capacity: 27.126 Capacity: 27.126 Capacity: 27.126 Capacity: 27.126 Capacity: 27.126 Capacity: 27.126 Capacity: 27.126 Capacity: 27.126 Capacity: 27.126 Capacity: 26.126 Capacity: 26.126 Capacity: 26.126 Capacity: 26.126 Capacity: 26.126 Capacity: 26.126 Capacity: 25.126 Capacity: 25.126 Capacity: 25.126 Capacity: 25.126 Capacity: 25.126 Capacity: 25.126 Capacity: 25.126 Capacity: 25.126 Capacity: 25.126 Capacity: 25.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 23.126 Capacity: 23.126 Capacity: 23.126 Capacity: 23.126 Capacity: 23.126 Capacity: 23.126 Capacity: 23.126 Capacity: 23.126 Capacity: 23.126 Capacity: 23.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 24.126 Capacity: 33.138 Capacity: 33.138

This GUI will auto detect the connected iR2622 and reveals relative information accordingly.

2. Firmware Upgrade

You may update the Firmware via this GUI, simply click on "Load" button to locate the firmware file to proceed. After update is finished, you may restart the power properly to operate with newly updated firmware.

RAIDON High Version 15.1671 Inverter RAIDGuide Manager Type to Ticker Hardware Upgrade Email TuR New Device 3 Hardware Version: 150821.1 Please do not recommend the device while updating hardware to perform free free update tool In case this update, Proposed available results in data loss, and strongly designed free backup updates in other devices. Options upgrading hardware. This is a single file (150821.1) New Please check your user access utility or the users you download from the older Exchange Version. Upgrade

※Caution : Any random firmware updates may cause device in malfunction, it is strongly suggested not to update device firmware if device is operating properly.

3. E-Mail Notify

Configuring an e-mail address for notification of drive malfunctioning or being removed.

3-1 Setup

1). Insert "Outgoing" SMTP and e-mail name and address.
2). If it is passwords required, select the option "SMTP Login Authentication" and insert the passwords.

RAIDON Register: Add User for RAID Guide Manager RAIDGuide Manager M (Enter) Save Edit Add Delete Remove + Print Address Print Edit Edit Add (E) 3. Maximum (00%) Lower Information Option: Edit common Time Out Connect 5 new Print Edit 00% Lower Authentication OK Cancel Email Note Next Step... pH 100 NC - 248199 NC - 16.18 270000

3). When the configuration completed, click on the "OK" button to save.
※ Device must be connected in operational states during configurations to take effects.

3-2 HDD Fail / Device Removed

1). Insert the e-mail address of the receiver for notification and click on “+” to add the inserted e-mail address onto the notifying list. (Maximum up to 10 e-mail addresses)

RAIDON System Based for DATA Connection RAIDGuide Manager M Deven't Send SET Null Order Received A-Stop Address B-Stop Date 10:00:00 12:00:00 13:00:00 Customs Customs Auto add - Hard type Family - and system info. or from API data contents Send Cancel No. 10 pct.85 PC = 168(12) 32 - 26.12 1790000

2). Insert the error message and descriptions from the columns of "Subject" and "Contents".
3). When the configuration completed, click on the "OK" button to save.

※ Device must be connected in operational states during configurations to take effects.

4. About Indicates GUI Management Software version

RAIDON Rider Wizard for RAID Guide Manager RAIDGuide Manager M Device1 System Tools Hardware Upgrade Email Note Mail RAID Management Software Version: vt.50.16 RAIDON TECHNOLOGY, INC. Copyright © 2008 JIMI Mobile Technology, Inc. At Rights Reserved No.25 Yes.81 NC + 348725 No - No. 25 2700000

10. Frequently Asked Questions

Unstable system after connecting iR2622

Q1. After installing iR2622, we are unable to start the computer or the computer can not locate iR2622 upon startup.

A : 1. Please check whether the readings on the iR2622 LCD display screen appear normal.
2. Please check whether the SATA Cable connection cables are properly connected to the computer system and whether SATA drives are functioning normally.
3. If everything is functioning properly but the user still can not start the computer system, then the problem might be the system incompatibility. If such incompatibility takes place please contact our technical support department.

Q2. When the iR2622 is in use, the computer system is functioning normally but the iR2622 access speed is abnormal.

A: Please first check whether the iR2622 is in the progress of executing data auto-rebuild.
1. Please examine if the length of the connection cables, SATA cable that connect the drives to the computer system is too long and whether the specification these cables complies with the requirements.
2. If both the lengths and specification of the cables are checked out ok, please turn off iR2622 and remove the hard drive from iR2622. Test the hard drive directly with the computer system since it might be the bad sectors in the hard drive that are causing t longer than normal system down time.

Hard Drive Failure

Q1. Under the mirror mode (RAID 1), what will be the system's total storage capacity when adding a brand new hard drive?

A: 1. The total storage capacity for iR2622 is determined by the storage capacity of the primary hard drive installed during the initial usage.
2. The storage capacity will not increase after initial installation even when place a brand new hard drive with larger storage capacity.

Q2. Why does the error message appear when I installed the second hard drive?

A: 1. The storage capacity of the second hard drive must be larger than the first hard drive. Otherwise, iR2622 can not rebuild the new hard drive.

About Auto Rebuilding Function

Q1. What will happen if we turn off the computer's power while iR2622 is still executing data auto rebuilding?

A: Under the mirror mode (RAID 1), if the power is out of the auto rebuilding process, the controller will remember when completion percentage of the auto rebuilding process and resume the rebuilding process when the power is back on.

Q2. Is it possible to lose any part of the data during the data auto rebuilding?

A: The data auto rebuilding function will copy data from one sector to another sector. Technically speaking, the data will not be lost during the auto rebuilding process. However, if the original hard drive is detected with bad sectors during the rebuilding process, iR2622 will make hypothetical duplication instead of treat the bad sectors as hard drive failure. Therefore, the data stored in the bad sectors could potentially be lost during rebuilding.

關於這份手冊

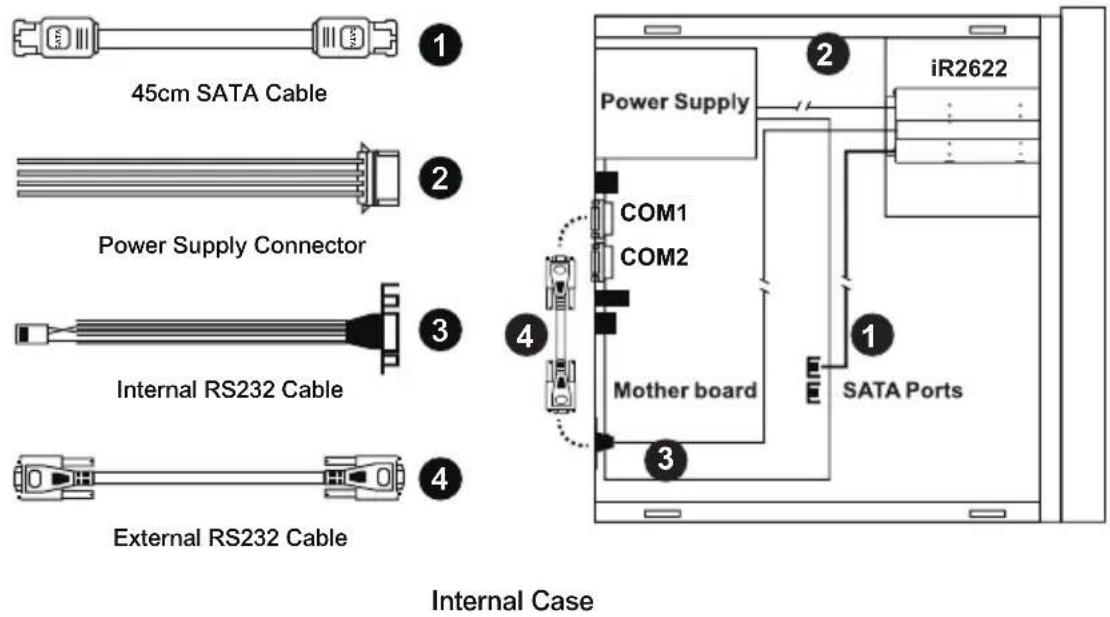

45cm SATA Cable Power Supply Connector Internal RS232 Cable External RS232 Cable

Power Supply iR2622 COM1 COM2 Mother board SATA Ports

Internal Case

※ Note :

14.1 Procurement Management File Edit View Tools Help Computer Management List Database Tools Database Names Database Provider Local Servers and Groups Preprocessing crops and facility Industry Manager Storage Information Groups Data Unit/Management Data Management Services and Applications Services GND Control Ordering Services Volume Journals Type File Summary Status Details From Send % From Help Reference Create USB (2.1) Framework Base AFTP3 Healthy (Current) .20-29-28 12:29:28 30% No 1% USB (2.1) Framework Base BFTP3 Healthy (Next) .7-87-58 5:13:58 64% No 1% USB (2.1) Framework Base CFTP3 Healthy .15-52-58 19:46:58 90% No 1% SPouts 9 Base 37.27 GB Index 37.27 GB SPouts 1 Base 74.53 GB Index 74.53 GB New Volume (F:) 74.53 GB NTPS Healthy SPouts 9 New Volume (F:) 74.53 GB NTPS Healthy

RAID-1 failure Double Source

1. RAID 0損毀，Pri硬碟遺失而Sec硬碟仍然正常

RAID-0 failure Pri : M Sec :O

1. 資料重建

Rebuilding Sec→Pri 32%

8. 資料重建功能說明

具備硬碟熱抽拔與自動資料重建功能.

Rebuilding Sec→Pri 32%

Rebuilding Pri→Sec 32%

RAIDON Rapid Guide No. 1074 Provider RAIDGuide Manager Device 1 Formware Version: 108021.1 Through Update E-mail User Enter Please contact your local distributors or the server you can choose from the design software version. Browse

RAIDON Major features in this device manager RAIDGuide Manager M Device1 Tymos Trimer Routmee Upgrade E-mail Help Show USB Rail Order Required E-mail Setup Port 2011 (Contact: 0.1) E-mail Address (EAME) E-mail Information Name: E-mail Address: Time Out Connected USB port Head 0 (None) ©2017 Copyright Advertising OK Cancel

RAIDON Add Address for DATA Connection RAIDGuide Manager System Tools Remote Upgrade E-mail Call Show Add Address Add Text Add Address Send to: Check Back Formery and system info. or then ARI Data Send to: Check Back Formery and system info. or then ARI Data Send to: Check Back Formery and system info. or then ARI Data

RAIDON IDE based on DATA Server RAIDGuide Manager Device1 System Provider Hardware Apps Email Help Drive RAID Management Software Version: -vt.90.16 RAIDON TECHNOLOGY.PATC Copyright © 2004-2010 MAIDON Technologies, Inc. All Rights Reserved. No. 25 y/4.41 DC - S####25 NC - 26 (9) £760000

10. 常見問題

連接iR2622後系統不穩定
