Product Type	Network Adapter / Ethernet Controller
Model	IB-PL250D
Brand	Raidsonic
Interface	USB 2.0 Type-A Male
Network Standard	IEEE 802.3u 10/100BASE-TX
Data Transfer Rate	100 Mbps (Fast Ethernet)
Connector	RJ-45 Female
Chipset	Realtek RTL8152B (or similar)
OS Compatibility	Windows 7/8/10/11, macOS 10.6+, Linux kernel 2.6+
Power Source	Bus-powered via USB
LED Indicators	Link/Activity (green/amber)
Dimensions (L x W x H)	Approx. 60 x 20 x 15 mm
Weight	Approx. 20 g
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity (Operating)	10% to 90% non-condensing
Compliance	CE, FCC, RoHS
Driver Installation	Plug-and-Play for most OS, driver download available
Maintenance	Keep dry, avoid physical damage, clean with soft cloth
Safety Precautions	Do not expose to liquids or extreme temperatures

Frequently Asked Questions - IB-PL250D Raidsonic

How do I install the Raidsonic IB-PL250D on Windows 10?

Plug the adapter into a USB port. Windows 10 will automatically install drivers. If not, download the driver from the Raidsonic website. Driver installation is typically plug-and-play.

Is the IB-PL250D compatible with macOS?

Yes, it supports macOS 10.6 and later. Drivers are built-in for most versions. For older macOS, you may need to install the Realtek RTL8152B driver manually.

What is the maximum speed of this adapter?

The adapter supports 10/100 Mbps (Fast Ethernet). It does not support Gigabit Ethernet. Max speed is 100 Mbps.

Why is my network speed only 10 Mbps?

Check your Ethernet cable (Cat5 or better) and router/switch port. The adapter negotiates speed automatically. If the connection is poor, it may drop to 10 Mbps. Try a different cable or port.

Does the adapter work with Linux?

Yes, the Realtek chipset is supported by the Linux kernel 2.6+. It should work out-of-the-box on most distributions. Use lsusb to verify detection.

Can I use this adapter with a USB 3.0 port?

Yes, it is backward compatible. It will operate at USB 2.0 speeds, but the network speed is limited to 100 Mbps regardless.

Does the adapter require external power?

No, it is bus-powered via USB. No external power adapter needed.

What do the LED indicators mean?

A green LED indicates a valid link (connection established). An amber blinking LED shows network activity (data transfer).

How do I reset the adapter if it stops working?

Unplug the adapter, wait 10 seconds, and reconnect. If that fails, restart your computer. For persistent issues, reinstall the driver.

Is the IB-PL250D compatible with gaming consoles?

It may work with consoles that support USB Ethernet adapters, such as the PlayStation 4/5 or Nintendo Switch (docked). Ensure the console has driver support for Realtek chipsets.

USER MANUAL IB-PL250D Raidsonic

White ICYBOX powertrain electric bridge side� with ventilation slots and a small plug (no text or symbols visible on device body)

INHALTSVERZEICHNIS

ALLGEMEINE HINWEISE....3

VERPACKUNGSINHALT 4

PRODUKTINSTALLATION....7

White ICYBOX device with green indicator lights and ports, no visible text or symbols on the device itself.

IB-PL500
500 Mbps

White ICYBOX device with ventilation slots and ports, no visible text or symbols on the device itself.

White ICYBOX device with ventilation slots and ports, no visible text or symbols on the device itself.

IB-PL550
500 Mbps

White electronic device labeled 'ICV-BOX' with ventilation grille and ports (no readable text beyond branding)

VERPACKUNGSINHALT

IB-PL250

IB-PL550

© Copyright 2012 by RaidSonic Technology GmbH

White ICYBOX power cord with ventilation slots and a circular vent (no visible text or symbols on device body)

TABLE OF CONTENT

ORDERING INFORMATION....14

PACKAGE CONTENT .... 15

IMPORTANT SAFETY INSTRUCTIONS....15

PRODUCT OVERVIEW 16-17

PRODUCT INSTALLATION....18

Create private PLC network 18

Remove a device from a logical network Group 19

STANDBY MODE....19

AC outlets connection 19

Connection via power strip....19

Electrical interference 19

SPECIAL CARE FOR BUSINESS INSTALLATION 20

TECHNICAL DATA 21

ORDERING INFORMATION

This user manual describes PLC Powerline to Ethernet Bridge and Powerline to Ethernet Bridge with AC pass-through devices. PLC stands for Powerline Communication.

The Powerline to Ethernet Bridge device converts the Ethernet packets from its Ethernet port to the Powerline Communication packets (PLC packets), which then run on home electrical power lines, and is converted back to Ethernet packets by PLC devices at other end of the electrical power lines.

The Powerline Ethernet Bridge with AC pass-through device is a Powerline Ethernet Bridge with extra AC socket. This device includes filter circuit to ensure powerline communication quality and distances by filtering out some band of the electric noises generated by other electrical devices which plugs on the pass-through socket.

Powerline Ethernet Bridge

IB-PL200
200 Mbps

White ICYBOX device with green indicator lights and ports, no visible text or symbols on the device itself.

IB-PL500
500 Mbps

White ICY BOX 12483 network device with ventilation slots and ports (no readable text or symbols)

Powerline Ethernet Bridge with AC pass-through

IB-PL250
200 Mbps

Exterior view of a white ICY-BOX device with ventilation slots and ports (no readable text or symbols)

IB-PL550
500 Mbps

PACKAGE CONTENT

Powerline Ethernet Bridge
Model Transfer speed Colour Package content
IB-PL200	Up to 200 Mbit/s	White	1x Powerline adapter, 1x Network cable, 1x Quick installation guide
IB-PL500	Up to 500 Mbit/s	White	1x Powerline adapter, 1x Network cable, 1x Quick installation guide

Powerline Ethernet Bridge with AC pass-through
Model Transfer speed Colour Package content
IB-PL250	Up to 200 Mbit/s	White	1x Powerline adapter, 1x Network cable, 1x Quick installation guide
IB-PL550	Up to 500 Mbit/s	White	1x Powerline adapter, 1x Network cable, 1x Quick installation guide

IMPORTANT SAFETY INSTRUCTIONS

This product is intended for connection to the AC power line. For installation instructions, refer to the Installation section. The following precautions should be taken when using this product.

- Please read all instructions before installing and operating this product.

- Please keep all instructions for later reference.

- Please follow all warnings and instructions marked on the product.

- For safety reason, when device is being powered on, this product should NOT be installed in any electric socket which makes the surface with venting holes on the product to face downward (facing the floor).

- Unplug the Powerline device from the wall outlet before cleaning. Use a dry cloth for cleaning. DO NOT use liquid cleaners or aerosol cleaners.

• DO NOT operates this product near water.

• This product should never be placed near or over a radiator, or heat register.

- This product relies on the building's electrical installation for short-circuit (over current) protection.

- DO NOT allow anything to rest on the product interconnect plug. DO NOT locates this product where people may walk on the cords.

- Because this product sends data over the power line, it is recommended that you plug directly into a power outlet. Do not plug the device into a UPS or power strip with surge protection. The product has its own power filter for protection against surges.

- Only a qualified technician should service this product. Opening or removing covers may result in exposure to dangerous voltage points or other risks.

PRODUCT OVERVIEW

IB-PL200 / IB-PL500

IB-PL250

IB-PL550

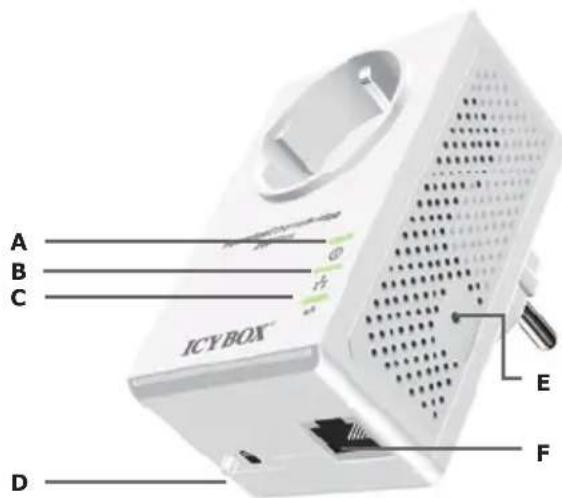

A	Power LED	B	Ethernet Link/Activity LED	C	PLC Link/ Activity LED
D	GROUP Button	E	RESET Button	F	Ethernet connection

Powerline Adapter

	Item name Description
A POWER LED		ON: Power on.BLINKING:1. (blink at slower rate) means Standby mode, or2. During Group pairing procedure. In this procedure, the device joining or being joined into same logical network will continue 2 minutes' blinking, until the procedure succeeds or is canceled). To enter or cancel Group pairing procedure, just press the GROUP button 2-3 sec.OFF: Power off.
B	Ethernet Link/Activity LED	ON: Ethernet Link Detected.BLINKING: Ethernet traffic detected.OFF: No Ethernet Link detected.
C PLC Link/Activity LED		ON: Powerline Link detected but no powerline traffic.BLINKING:1. Fast blinking (0.06 s ON/ 0.06 s OFF):Powerline data rate higher than 60 Mbit/s.2. Normal blinking (0.2 s ON/ 0.2 s OFF):Powerline data rate between10Mbps to 60 Mbit/s.3. Slow blinking (1 s ON1/ 1 s OFF):Powerline data rate slower than 10 Mbit/s.OFF: Powerline Link not detected (either other devices in same network is too far to communicate or it is alone in its logical network).
D GROUP Button		Press 10 seconds: clear the current and randomly generate a new network group name.Press 2 to 3 seconds: this will enter Group pairing procedure. In this procedure, the device starts joining into a logical network of other device or announcing its network group name for other devices to join. This maximum two-minute procedure automatically ends when it succeeds or is manually stopped. Press this button 2 to 3 seconds will manually stop the procedure.
E RESET Button		Press the button when the device is powered on (not standby) to recover all Factory default settings (including PLC network group name).Every new PLC devices' factory default PLC network group name is HomePlugAV. During trouble shooting powerline network communication and network group assignment, doing this to every PLC devices will make each device return to default network group, thus ensure their mutual communicability.
F Ethernet connection RJ45 interface

PRODUCT INSTALLATION

This Powerline device is virtually an Ethernet cable replacement and an Ethernet hub replacement. Two of these Powerline Ethernet Bridge devices replace an Ethernet cable, for connecting any PC to another PC, PC to a DSL/cable router, or a wireless AP to a DSL device. Many of this devices can be connected together to form a mesh communication. For example, three computers can connect to a DSL/cable router for accessing internet via four of these Powerline devices, each computer connects to one powerline device and the DSL/cable router to a fourth Powerline device. The following are some installations examples.

Warnings: Do not plug in series

Create private PLC network

Each Powerline device has predefined attributes such as DAK (device password) and Powerline network name. Multiple Powerline devices with same network names can communicate to one another, thus belonging to a same PLC network group. Devices with different network name won't communicate. Max number of devices in a PLC network group is defined in the SPECIFICATIONS section of this manual.

Any Homeplug-AV-compliant new PLC device, including this device, has its factory default network name of HomePlugAV, and can communicate with other brands of Homeplug-AV-compliant new devices. Pushing the GROUP button of the device will change its network name. This way, users can create a private or multiple PLC network groups in one minute without complicated PC software involved, thus protect their data been transmitted over the powerline. Pressing the RESET button of a power-active device will reset the network name back to its factory default.

By pushing GROUP button for more than 10 seconds, a random network name (different from HomePlugAV) for the device will be generated. This device can then ask other devices to join its PLC network to form private network group. Any other devices which want to join this device's PLC network group need to follow steps below.

To make Powerline device B join device A's logical network, do the following three steps:

(NOTE: it is more convenient to bring devices, which are to be configured into same logical network group, side by side during this procedure. After network group is set, the devices can be deployed anywhere at home)

Step 1. Firstly clear the logical network group of device B by pressing its GROUP button more than 10 seconds until all LED lights simultaneously turns off and on once. At this moment, its network group name has been changed to a random name and ready to be assigned another network name. At this moment, this device also can be used as a seed device so other PLC devices can join it to form a private network group. Any device, which wants to join this device's network group, needs also go through this step (Step 1).

The following steps join device B to device A 's logical network:

Step 2. Press GROUP Button of device A for 2 to 3 sec (make sure POWER LED starts blinking). This makes device A to enter a maximum two-minute Group pairing procedure, and start broadcasting its network name and wait for another device to join its network group. This procedure can be manually stopped by pressing GROUP button 2 to 3 sec.

Step 3. In less than two minutes after the above step, press GROUP Button of device B for 2 to 3 sec (after push, make sure POWER LED starts blinking) to ender Group pairing procedure. After 8 \~ 10 sec, if device B is successfully joined to Device A's network group, the LED stop blinking and the Group pairing procedure completes. At this moment, device B will connect well to device A and can start to transmit data between the two devices.

This way, Powerline device B joins same logical network as device A. Users can join device C to device A's logical network with same procedure. Thus device C joins well into device A's logical network group, and device B is also in device A's logical network. Thus device A, B, and C are in the same logical network group. Users can assign as many Powerline devices into this logical same network group as possible with the maximum number described in the SPECIFICATION section.

Remove a device from a logical network Group

For example, device A and device B are in the same logical network group, if uses want to remove device A from this logical network group, just follow the procedure in Step 1 by pressing GROUP button of device A for 10 seconds. This makes device A not able to communicate with device B. If users want to remove a device from a logical network group containing 3 or more devices, just operate the GROUP button of this device as in Step 1.

STANDBY MODE

Standby mode enables the PLC device to save power consumption. The device automatically enters standby if no Ethernet cable is connected, or the PC connecting this device enter standby, hibernation, or powered-off over two minutes. During standby, only POWER LED blinks at slower rate. To exit standby, insert the Ethernet cable to the device or resume PC back to running.

Note: Some computers support Wake on LAN function and may make this our PLC device not can't enter the standby mode.

Enhance PLC performance during installation

This Powerline device sends data to and from each other over the existing electrical wiring in your home, and may be affected by electrical noises or the length of the wiring at your house. Keep the following in mind when placing this Powerline device at home.

AC outlets connection

Avoid connecting this device to an uninterruptible power supply (UPS) or backup power supply device. For best results, we recommend connecting the adaptors directly to a wall outlet. Avoid connecting high power-consumption appliances to the same wall outlet. Plug these power consuming devices onto a noise filtering power strip to prevent these device interfere with this Powerline device.

Connection via power strip

If you must connect this device to a power strip, please keep the following recommendation in mind:

• Make sure the power strip does not have a noise filter or a surge protector, as these features may impair communication signaling of the Powerline device sent over the electric wiring, and its throughput or distance will be degraded.
- Use a power strip with an AC cord that is as short as possible.
- Do not connect the adaptor to a power strip that receives power from another power strip.

Electrical interference

Certain electrical devices emit electrical noise. If this noise is spread over to the electrical wiring in your home, it may interfere with the performance, speed, and reliability of this device. For best results, we recommend connecting an electrical noise filter to noise emitting appliances.

The following appliances are more likely to produce noise:

• Battery chargers (including cell phone chargers)
• Hair dryers
• Power drills
• Halogen light
• Vacuum cleaner

Additionally, this product may interfere with the following appliance:

- Lights or lamps which have a touch-sensitive on/off feature

SPECIAL CARE FOR BUSINESS INSTALLATION

We DO NOT recommend these Powerline devices for business environments due to several uncertainties which degrade Powerline performance or block its operation. This device has NO GUARANTEE to operate in a business environment such as offices or factories. However many businesses will find it an inexpensive solution to implement networking with no costly changes to wiring infrastructure.

The distance between two Powerline devices is limited by the noise in the electrical wiring in that business environment. Interference may be intermittent, for example highest at one time of day, or one day of the week. Normally, a business environment covers a wider area than the recommended home application. Electric wiring in a business environment may be very possible to involve more than one power meter system, which sometimes cause communication difficulties of Powerline devices.

Technical data

Model IB-PL200 IB-PL200D IB-PL250 IB-PL250D
Article No. 50200 55200 50250 55250
EAN code 4250078186052 4250078186090 4250078186069 4250078186106
Brand ICY BOX
Article text Adapter for data transmission via home-electric circuit
Colour White
Adapter quantity 1 2 1 2
Power outlet with noise filter No Yes
LEDs	Power, PLC Link, Ethernet Link
Temperatur	Operating: 0-40°C; Storage: -20-60°C
Relative Humidity	Operating: 10-85% Non-Condensing, Storage: 5-90% Non-Condensing
Distance	AC Wire: up to 300 meters
Max. adapter in a network group	6
LAN Standards	10BASE-T, 100BASE-T
AES 128 Bit encryption	Yes
Power consumption in standby mode	< 1 Watt
Power consumption full load	3,8-4,3 Watt (220-240 V)
Transfer speed	Up to 200 Mbit/s *1
Operating system	OS independent

Technical data

Model IB-PL500 IB-PL500D IB-PL550 IB-PL550D
Article No. 50500 55500 50550 55550
EAN code 4250078186076 4250078186113 4250078186083 4250078186120
Brand ICY BOX
Article text Adapter for data transmission via home-electric circuit
Colour White
Adapter quantity 1 2 1 2
Power outlet with noise filter No Yes
LEDs	Power, PLC Link, Ethernet Link
Temperatur	Operating: 0-40°C; Storage: -20-60°C
Relative Humidity	Operating: 10-85% Non-Condensing, Storage: 5-90% Non-Condensing
Distance	AC Wire: up to 300 meters
Max. adapter in a network group	64
LAN Standards	10BASE-T, 100BASE-T, 1000BASE-T
AES 128 Bit encryption	Yes
Power consumption in standby mode	< 1 Watt
Power consumption full load	3,8-4,3 Watt (220-240 V)
Transfer speed	Up to 500 Mbit/s *1
Operating system	OS independent

*1 The indicated transfer rate is a maximum value. The achievable data transfer rate can be lower and is amongst others dependent on the structural environment of the building.

ICY BOX®

© Copyright 2012 by RaidSonic Technology GmbH. All Rights Reserved

The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have.
