Product Type	Type-C™ Docking Station with Triple Video Output
Manufacturer	Raidsonic
Model	IB-DK2244AC
Power Supply	External Power Adapter (conforms to nameplate)
Video Outputs	2x DisplayPort™/HDMI® (up to 4K@60Hz) and 1x HDMI® (up to 4K@30Hz) or 1x 5K@60Hz via DisplayPort™
USB Ports (Front)	1x USB 3.0 Type-C™, 1x USB 3.0 Type-A (with 1.5A charging function)
USB Ports (Rear)	4x USB 3.0 Type-A
Ethernet	RJ45 Gigabit
Audio	Headphone and Microphone Jack (3.5 mm)
Host Connection	USB Type-C™ (supports DisplayPort™ Alt Mode and Power Delivery)
Operating System	Windows® 10, macOS®
Supported Resolutions	Up to 2x 4K@60Hz or 1x 5K@60Hz + 1x 4K@30Hz
Driver	DisplayLink driver required (download from displaylink.com)
Package Contents	IB-DK2244AC, power adapter, power cord, USB Type-C™ cable (100 cm), quick installation guide
Cleaning	With a dry anti-static cloth; no harsh cleaning agents
Safety	Electrical safety according to warning notices; operate only with compliant power adapter
Disposal	Do not dispose of electrical waste in household waste; recycle according to WEEE
Warranty	Information from manufacturer

Frequently Asked Questions - IB-DK2244AC Raidsonic

How do I install the driver for the IB-DK2244AC?

Download the latest drivers from displaylink.com and install them before connecting the docking station. Then restart your PC and connect the station via a USB Type-C™ cable.

Which resolutions are supported?

The IB-DK2244AC supports up to 2x 4K@60Hz via DisplayPort™ or HDMI® and 1x 5K@60Hz via DisplayPort™. An additional HDMI® monitor can be operated at up to 4K@30Hz.

Can I use the docking station without Power Delivery on the host?

Yes, but then your notebook will not be powered via the USB Type-C™ interface. Video output and data transfer will still work if the host supports DisplayPort™ Alt Mode.

Which cables do I need for the monitor connection?

Use certified DisplayPort™ or HDMI® cables (not included). For optimal results, we recommend monitors of the same size and resolution.

How do I clean the docking station?

Clean the device with a dry anti-static cloth. Do not use harsh or abrasive cleaning agents to avoid scratches or moisture damage.

What to do in case of data loss?

Always back up your data before initial use or connecting new hardware. Follow the instructions in the user manual.

Is the docking station compatible with my Mac?

Yes, the IB-DK2244AC is compatible with macOS®. Install the DisplayLink driver for Mac, connect the station, and restart your computer.

Why is the video output not working?

Make sure your USB Type-C™ port supports DisplayPort™ Alt Mode. Install the latest driver and check the monitor cables. For 5K resolution, use both DisplayPort™ ports.

Can I connect multiple monitors?

Yes, you can connect up to three monitors: two via DisplayPort™ or HDMI® (up to 4K@60Hz) and one additional HDMI® (up to 4K@30Hz). Alternatively, a 5K monitor via two DisplayPort™ ports is possible.

How do I dispose of the device?

Do not dispose of the docking station and accessories in household waste. Take them to a retail store or a community recycling collection point in accordance with the WEEE directive.

USER MANUAL IB-DK2244AC Raidsonic

Simple line drawing of a 3D cube with visible edges and faces (no text or symbols)

ICY BOX®

Manual IB-DK2244AC

Type-C™ DockingStation with triple video output

Handbuch IB-DK2244AC

Black rectangular electronic device with ports and indicator lights (no visible text or symbols)

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
  • Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
• Use suitable tools
  • Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
  • Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit

Safety information IB-DK2244AC

4. Hazards caused by very small parts and packaging

WARNING

Risk of suffocation

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
  • Make sure there is no residual moisture after cleaning
  • We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part

of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at

[e-mail] or visit our website at www.raidsonic.de.

Manual IB-DK2244AC

Package content

IB-DK2244AC, power supply, power cable, USB Type-C™ cable including USB 3.0 Type-A adapter (100 cm), quick installation guide

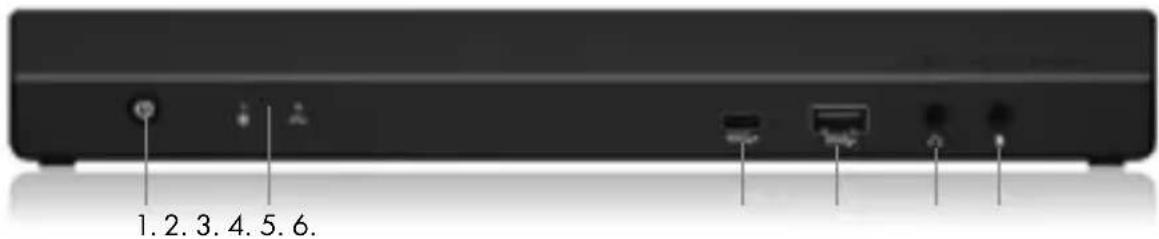

Front view

1. Power button
2. LED for Power and access
3. USB 3.0 Type-C ^TM data interface
4. USB 3.0 Type-A data interface + 1.5 A charging
5. Headset interface
6. Microphone interface

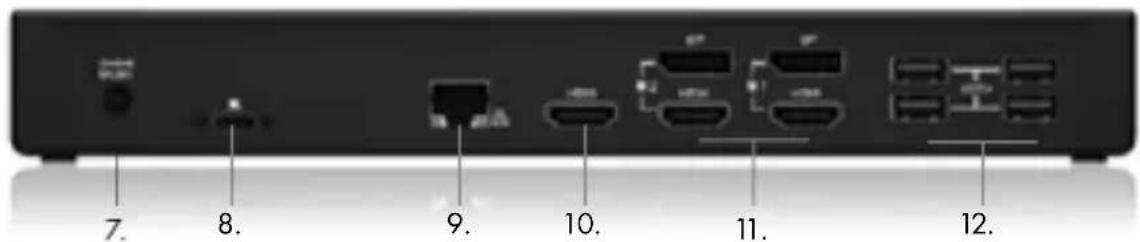

Rear view

1. Power jack
2. USB Type-C ^TM host PC interface
3. RJ45 Ethernet interface / Gigabit
4. HDMI ^® interface up to 4k@30Hz
5. 2x DisplayPort ^TM and 2x HDMI ^ interfaces up to 4k@60Hz/each monitor
6. 4x USB 3.0 Type-A data interfaces

- Host PC with an available USB Type-C™ port (to ensure full dock functionality, the host USB Type-C™ port must support USB Power Delivery and DisplayPort™ Alt Mode or Thunderbolt™ 3

Note: The docking station can still connect to a host computer with a USB Type-C™ port that does not support Power Delivery (must still support DisplayPort™ Alt Mode). In this configuration, the docking station will not provide power to your host computer.

• Available AC electrical outlet
- HDMI® and DisplayPort™ enabled displays with cable as needed (for additional external display)
- 4K-capable displays are required to achieve 4K resolutions
- Any of the following operating systems: Windows ^ 10, macOS ^

USB Type-C™

Not all USB Type-C ^™ ports support the full functionality of the USB Type-C ^™ standard. Some ports might only provide data transfers, and might not support video or power delivery over USB.

To use this dock to its full potential, ensure that the host USB Type-C ^™ port from your computer supports DisplayPort ^™ Alt Mode, as well as USB Power Delivery or Thunderbolt ^™ 3

Starting up

Install the Driver!

Caution: Do not connect the DockingStation to your computer before installing the driver from the download area of: https://www.displaylink.com/downloads

Windows®:

A. Download the correct driver from webpage above.
B. Click on "Run Setup.exe".
C. Follow the instructions and finish the driver installation.
D. Connect the DockingStation to a supported USB Type-C
E. Restart the PC.
F. The IB-DK2244AC is ready to be used.

^TM or USB 3.0 Type-A port on the PC.

macOS®:

A. Download the correct driver from webpage above.
B. Run the file Mac_driver\ driver.dmg by double click.
C. Follow the instructions and finish the driver installation.
D. Connect the DockingStation to a supported USB Type-C macOS® computer.

E. Restart the computer.

F. The IB-DK2244AC is ready to be used.

^TM or USB 3.0 Type-A port on the

Manual IB-DK2244AC

Starting up

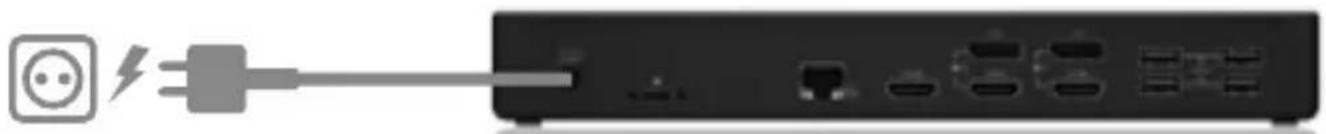

1. Plug in power supply

Exterior view of a network device showing an AC power outlet connected to a terminal block (no text or symbols visible)

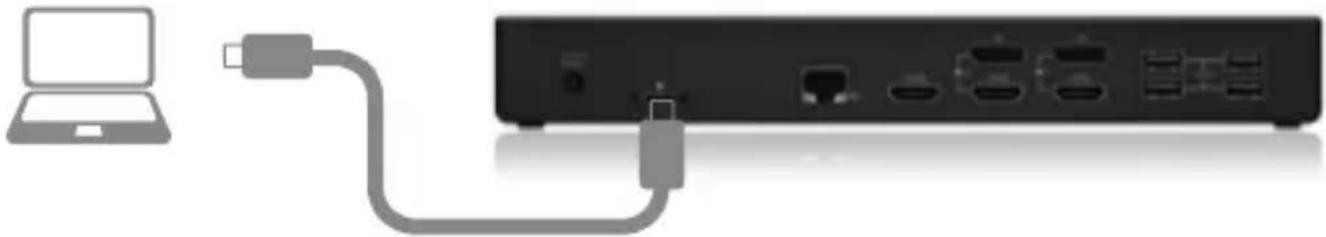

1. Connect the USB Type-C ^TM to Type-C ^TM (Type-A) cable

Diagram showing a laptop connected to a network device via USB cable (no text or symbols present)

1. Switch on the device

Back view of a black electronic device with a gray arrow pointing to the left side (no text or symbols visible)

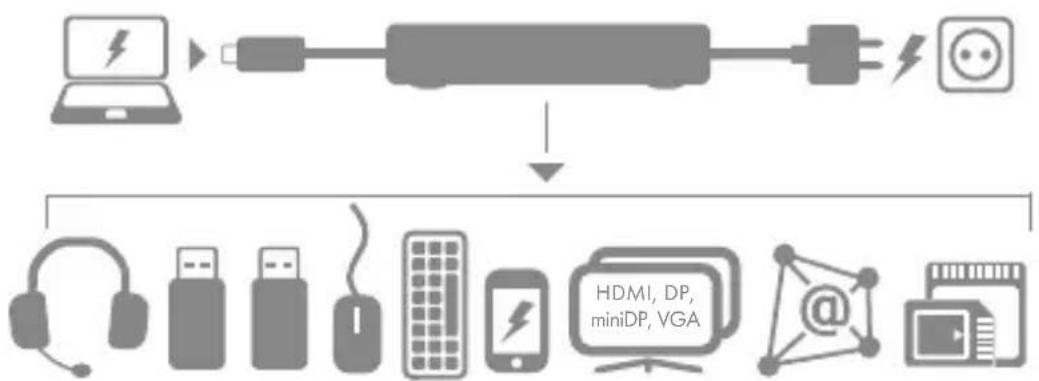

1. Connect your devices to the appropriate interfaces on the dock

Manual IB-DK2244AC

Connection to two DisplayPort™ or two HDMI® Monitors

You can set up dual displays by using the video output ports of the IB-DK2244AC (2x DisplayPort, or 2x HDMI®).

Connect your monitors to the DisplayPort™/ HDMI® interfaces by using certified DisplayPort™/ HDMI® cables (not included).

It is recommended that to use the same size, type and resolution monitors for connecting. Same type monitor means the monitors have the same native resolution and display refresh rate.

Connection to one 5K DisplayPort™ Monitor

You can set up one 5K display by using both video output ports of the IB-DK2244AC (2x DisplayPort).

Connect your 5K monitor to both DisplayPort ^™ interfaces by using certified DisplayPort ^™ cables (not included).

Connection to an additional HDMI ^® monitor

Additionally, you can connect a HDMI ^® monitor via the HDMI ^® interface of the IB-DK2244AC.

Connect your HDMI® monitor to the HDMI® interface by using a certified HDMI® cable (not included).

Please setup your displays settings accordingly to your operating system and requirements.

For detailed information of your operating system, see the corresponding operation manual and description of your operating system.

Supported video resolutions

The DockingStation supports 2x 4K@60 Hz Ultra HD resolution if the connected DisplayPort®/ HDMI® displays supports it (up to 3840x2160@60 Hz /each).

or

The DockingStation supports 1x 5K@60 Hz Ultra HD resolution if the connected DisplayPort® display supports it (up to 5120x2880@60 Hz).

and

The DockingStation supports 1x 4K@30 Hz Ultra HD resolution if the connected HDM® display supports it (up to 3840x2160@30 Hz).

Handbuch IB-DK2244AC

Verpackungsinhalt

Diagram of a network device showing an AC power outlet connected to a terminal block with ports and cables (no text or symbols visible)

Diagram showing a laptop connected to a network device via USB cable (no text or symbols present)

1. Gerät einschalten

Back view of a black electronic device with ports and an arrow pointing to the left side (no visible text or symbols)
