User's Manual (English) IB-DK4025-CPD

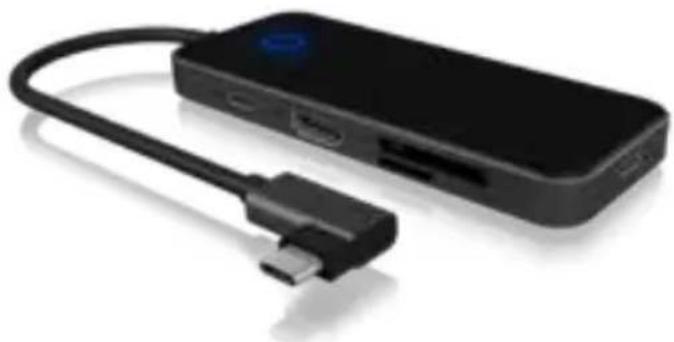

USB Type-C™ Notebook DockingStation

Black USB device with attached black cable, showing ports and cables (no text or symbols visible)

Black USB device with connector and ports, no visible text or symbols

Please read carefully the following information to prevent injuries, damage to material and device as well as data loss:

Warning levels

Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.

DANGER

Warns of a directly hazardous situation causing death or serious injury.

WARNING

Warns of a potentially hazardous situation that may cause death or serious injury.

CAUTION

Warns of a potentially hazardous situation that may cause minor injury.

IMPORTANT

Warns of a potential situation that may cause material or environmental damage and disrupt operative processes.

1. Risk of electrical shock

WARNING

Contact with parts conducting electricity

Risk of death by electrical shock

• Read the operating instructions prior to use
  • Make sure the device has been de-energised prior to working on it
  • Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
  • Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
  • Do not connect the device during thunderstorms
  • Approach specialist retailers if you require repairs

2. Hazards during assembly (if intended)

CAUTION

Sharp components

Potential injuries to fingers or hands during assembly (if intended)

• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
  • Do not force components together
  • Use suitable tools
  • Use potentially enclosed accessories and tools only

3. Hazards caused by a development of heat

IMPORTANT

Insufficient device/power unit ventilation

Overheating and failure of the device/power unit

• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
- Avoid direct sunlight on the device/power unit
• Guarantee sufficient ambient air for the device/power unit
- Do not place objects on the device/power unit

4. Hazards caused by very small parts and packaging Risk of suffocation

WARNING

Risk of death by suffocation or swallowing

• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
  • Do not hand over small parts and packaging to children

Safety information IB-DK4025-CPD

5. Potential data loss

IMPORTANT

Data lost during commissioning

Potentially irreversible data loss

• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product

6. Cleaning the device

IMPORTANT

Harmful cleaning agents

Scratches, discolouration, damage caused by moisture or short circuit in the device

• Disconnect the device prior to cleaning
- Aggressive or intense cleaning agents and solvents are unsuitable
• Make sure there is no residual moisture after cleaning
• We recommend cleaning devices using a dry, anti-static cloth

7. Disposing of the device

IMPORTANT

Environmental pollution, unsuitable for recycling

Potential environmental pollution caused by components, recycling circle interrupted

This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal and recycling point.

If you have any questions, please do not hesitate to contact our support at [e-mail] or visit our website at www.raidsonic.de.

Manual IB-DK4025-CPD

Type-C™ Notebook DockingStation

The USB Type- C^TM multi DockingStation is designed for extra connectivity demands. With this DockingStation you can extend a USB Type- C^TM host interface and DisplayPort™ Alt Mode supported computer to one more display and USB peripherals, memory cards, speaker and microphone through one USB Type- C^TM cable. Adopting Power Delivery charging technology, upstream charging function through the Type- C^TM interface, you can charge the connected notebook by using your existing Type- C^TM power supply at once.

Features

• Premium aluminium enclosure with high-gloss glass surface at the top
- Data transfer, video and Power Delivery via one integrated Type-C ^TM cable
- HDMI® video interface supports resolutions up to 3840x2160@30 Hz
• Mirroring and extending of a notebook display
- One USB 3.0 Type-C ^TM and two USB 3.0 Type-A interfaces, data transfer rates up to 5 Gbit/s
• One USB Type-C ^™ interface supports only Power Delivery (no data transfer)
- Single-LUN card reader for SD 3.0 and microSD 3.0 (UHS-I) cards up to 100 MB/s
• Bus powered, no power supply necessary
• 3.5 mm stereo combo jack (headset)

Package content

IB-DK4025-CPD, pouch, quick installation guide

Side view

Front view

2.3.

Rear view

4. 5. 6. 7.

1. USB 3.0 Type-C ^TM data interface
2. 1x Headset interface
3. 2x USB 3.0 Type-A data interface + 1.5 A charging
4. USB Type-C ^™ only for Power Delivery (PD) up to 20 V@5 A
5. High Speed HDMI® interface up to 3840x2160@30 Hz
6. microSD 3.0 card reader (UHS-I)
7. SD 3.0 card reader (UHS-I)

Manual IB-DK4025-CPD

Starting up

1. Connect USB Type-C cable

Illustration of a USB cable connector next to a laptop (no text or symbols)

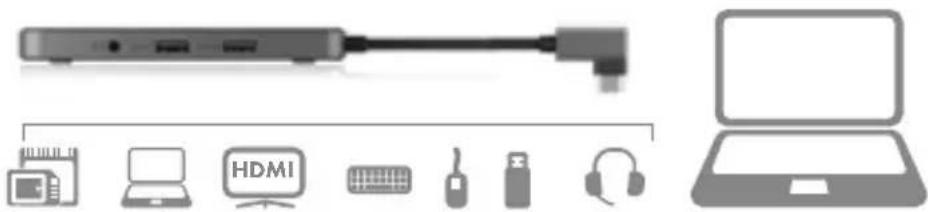

1. Connect your devices to the appropriate interfaces on the dock

Diagram showing hardware components including a USB cable, connected to devices including a laptop and headphones (no text or symbols present)

Usage of memory card slots

Insert the SD card into the SD card slot with the bevelled corner in front of it. The golden PIN's of the card must be directed downwards.

microSD card (UHS-I)

Insert the microSD card into the microSD card slot with the bevelled corner in front of it. The golden PIN's of the card must be directed upwards.

Single-LUN - the card reader can only work with one memory card at a time

Note: In order to power and charge your connected laptop, its USB Type-C ^™ port must support USB Power Delivery or Thunderbolt 3 ^™ .

Requirements

- Host notebook with an available USB Type-C ^TM port (to ensure full dock functionality, the host USB Type-C ^TM port must support USB Power Delivery and DisplayPort ^TM Alt Mode or Thunderbolt ^TM 3).

Note: The DockingStation can still connect to a host laptop with a USB Type-C ^TM port that doesn't support Power Delivery (must still support DisplayPort ^TM Alt Mode). In this configuration, the DockingStation will not provide power to your host laptop.

• HDMI ^ enabled display(s) with cables as needed (for additional external displays)
• A 4K-capable display is required to achieve 3840x2160@30 Hz resolution
• Any of the following operating systems: Windows®, macOS®

USB Type-C™

Not all USB Type-C ^™ ports support the full functionality of the USB Type-C ^™ standard. Some ports might only provide data transfers, and might not support video or Power Delivery over USB.

To use this dock to its full potential, ensure that the host USB Type-C ^TM port from your computer supports DisplayPort ^TM Alt Mode, as well as USB Power Delivery or Thunderbolt 3 ^TM .

Install and use the DockingStation

The dock will automatically install some of the required drivers once it is connected to your laptop's USB Type-C ^TM port. If you receive a prompt to automatically install the driver(s), follow the on-screen instructions to complete the installation.

Manual IB-DK4025-CPD

display(s) to the dock's video port(s).

Note: Video output capabilities are dependent on the video card and hardware specifications of your connected host laptop. Certain video cards have limited MST support, while some monitors will also limit the available resolution.

Configure a display device

Please setup your display settings accordingly to your operating system and requirements. For detailed information, see the corresponding operation manual and description of your operating system.

Supported video resolutions

The DockingStation supports 4K HD resolution if the connected HDMI ^® display supports it.

Number of displays supported 1 HDMI

Video output configuration

Max. resolution/monitor

^⑥ 3820x2160@30 Hz

Important:

1. When connecting the USB Type-C plug of the IB-DK4025-CPD to a Chromebook, the mouse to be connected to the USB 3.0 Type-A port will not work immediately; it will have seconds' delay. This problem also occurs in other similar Type-C adapter (including Apple original 3 in 1 adapter) when connected to Chromebook.
2. Attention! When plugging in and out an adapter to the Type-C ^™ interface of the IB-DK4025-CPD, the connected USB devices will get disconnected flashily and then reconnect in a few seconds, so to prevent possible data loss or corruption, avoid (dis-) connecting the PD adapter from AC power while transferring data.

Handbuch IB-DK4025-CPD

Type-C™ Notebook DockingStation

Illustration of a USB cable connector next to a laptop (no text or symbols)

Diagram showing a network device connected to a laptop via Ethernet, with icons for devices and a monitor (no text or symbols on devices)

microSD Karte (UHS-I)

Simple line drawing of a 3D cube with visible edges and faces (no text or symbols)

ICY BOX®

CE FC

© Copyright 2019 by RaidSonic Technology GmbH. All Rights Reserved.

The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above-mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences between the product mentioned in this manual and the product you may have. DisplayPort® and the DisplayPort® logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. The terms HDMI® and HDMI® High-Definition Multimedia Interface, and the HDMI® logo are trademarks or registered trademarks of HDMI® LA, Inc. in the United States and other countries. Apple and macOS are registered trademarks of Apple Computer Inc. Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation.
