Product Type	Beard Trimmer & Grooming Kit
Brand	Arzum
Model	AR5502
Power Input	100-240 V ~ 50/60 Hz 0.2 A
Power Output	3.0 V 600 mA
Charging Time	8 hours (first charge)
Operating Time	Up to 60 minutes after full charge
Battery Type	Rechargeable (NiMH? not specified)
Cutting Lengths	3-12 mm via two adjustable combs
Included Accessories	U-blade beard head, vertical nose & ear trimmer, body shaving head, adjustable combs (3-7 mm and 8-12 mm), support base, AC/DC power supply, cleaning brush, storage case
Blade Material	Stainless steel (likely)
Water Resistance	Blades washable under running water; main body not waterproof
Special Features	Micro precision button, LED charge indicator, ergonomic design
Warranty	3 years
Usage	Household use only; not for commercial/industrial
Safety Certifications	Compliant with EEE and WEEE directives
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - AR5502 Arzum

How do I charge the Arzum AR5502 beard trimmer?

Ensure the appliance is off. Plug the power supply unit into a socket. The LED indicator turns red during charging. Charge for 8 hours for the first use. After charging, unplug the device. Do not leave it permanently connected.

How long does the battery last after a full charge?

After a full charge (8 hours), the device can be used for up to 60 minutes.

Can I use the trimmer while it is plugged in?

Yes, the socket is designed for both charging and operation with mains power. However, it is recommended to unplug after charging to extend battery life.

How do I clean the blades?

Switch off and unplug the device. Remove the blade head. Clean with the provided brush. You can also wash the blades under running water, but ensure they are completely dry before reattaching. Do not immerse the main body in water.

How do I replace or remove accessories?

To attach an accessory (beard head, nose/ear trimmer, body shaver), hold the device and push the head down until you hear a click. To remove, press the central part upwards with your thumb and pull off.

How do I adjust the cutting length?

Use the adjustable combs (3-7 mm or 8-12 mm). Slide the comb onto the U-blade and move it back and forth to set the desired length. For fine adjustments, use the micro precision button.

Is the Arzum AR5502 waterproof?

No, it is not waterproof. Only the blades can be washed under running water. The main body must never be immersed in water or other liquids.

What should I do if the blades become hot?

Clean the blades with the brush and lubricate them with the provided oil. Insufficient lubrication is the most common cause of overheating.

Can I use the body shaver head on any body part?

Yes, the body shaver head is designed to remove hair from all body areas. Use gently and ensure the skin is clean and dry.

How can I extend the battery life?

Do not charge every day. Fully discharge the battery every six months, then charge for 8 hours. Avoid overcharging; do not leave the appliance connected longer than recommended.

USER MANUAL AR5502 Arzum

Black Ducati hairbrush with Dufzum mark and logo (no text or symbols on body)

3

YIL

YEARS

JAHRE

GARANTI

WARRANTY

GARANTIE

AR 5502 DUCATI BY ARZUM GEARBOX ERKEK BAKIM SETİ

Illustration of four stylized icons representing hairbrushes, face profiles, and a beaded mouth (no text or symbols)

ipuçları

Simple line drawing of a teardrop-shaped object and a human face (no text or symbols)

Three anatomical illustrations: a simple torso outline, a human torso with shaded muscles, and a seated human torso with shaded muscles (no text or labels)

İnce Dokunuşlar

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Illustration of a hand using a tool to lift a guitar into a button (no text or symbols)

SORUN GİDERME

OUTPUT: 3.0 V = 600 mA

TAŞIMA VE NAKLİYE SIRASINDA DİKKAT EDİLECEK HUSUSLAR

Xiaxiang Tanjialing West Road, Lanjinag District,

Yuyao City, Zhejiang Province, Cn

İthalatçı:

Simple line drawing of a funnel-shaped container with two circular cutouts and a labeled dimension '10' (no text or symbols beyond the label)

Simple line drawing of a bag with a handle and label '13' (no text or symbols on the bag itself)

Illustration of a handheld electronic device with a coiled cable and labeled component (no text or symbols beyond the number 11)

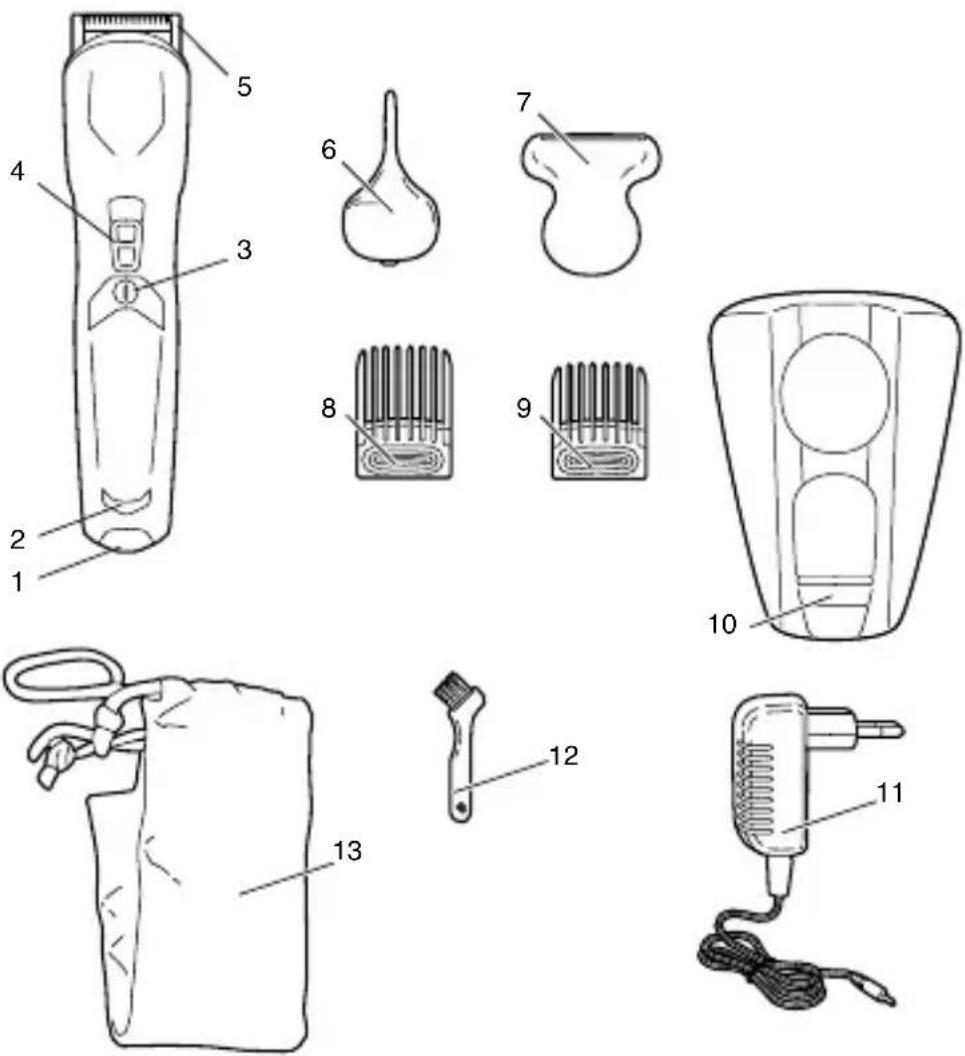

1- Socket for charging batteries and operation with mains power
2- LED display (charge - high battery - low battery)
3- ON/OFF button
4- Trimmer micro precision button
5- U-Blade: Beard blade
6- Vertical nose and ear trimmer

7- Body shaving head
8- Adjustable U-blade comb (8-9-10-11-12mm)
9- Adjustable U-blade comb (3-4-5-6-7mm)

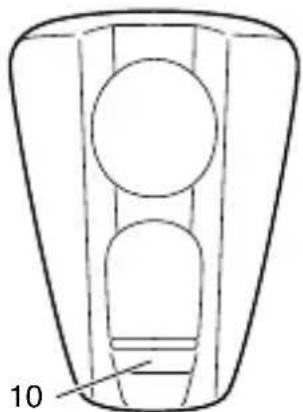

10- Support base
11- AC/DC power supply unit with power cable
12- Cleaner brush

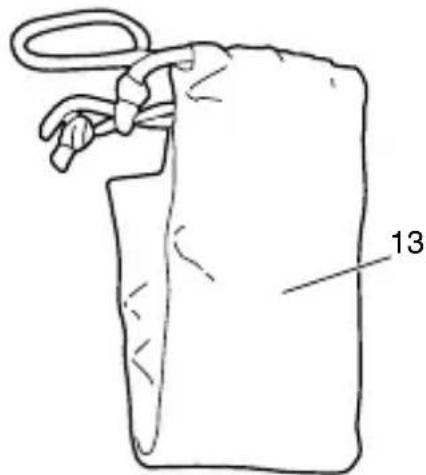

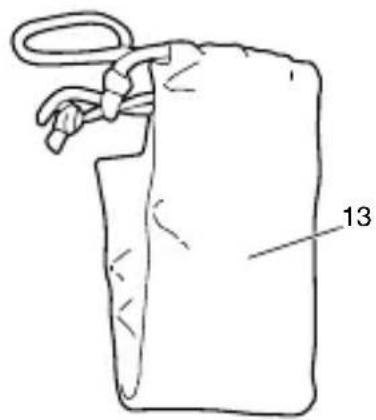

13- Case

We thank you for having selected the Ducati by Arzum brand Grooming kit. This product as well is one of those we offer to you to make life easier for you. Designed and produced with customer satisfaction in focus.

Please read the instructions carefully to take a good output from the appliance and then save it for the future references.

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on your appliance corresponds with the mains voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.

- Your device is for household use only. Do not use outdoors for commercial or industrial purposes. Otherwise, inconvenient uses shall not be covered by the guarantee.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children

without supervision.

• Do not use extension cords that supply improper current in order to prevent damage to your machine.
• NEVER immerse your appliance in water or other liquid and NEVER use near containers containing water or other liquid. You can clean the outside of your appliance using a dry or moist cloth when not in use.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner, such as falling down, etc. Do not dismantle or repair yourself. Take the appliance to an Arzum Authorized Service.
• Use only original spare parts in your appliance.
• Do not use accessories of other appliances in your product. Use with only its own accessories.
• Do not use this appliance on animal fur or wigs and on hair made of synthetic material.
• Do not use your shaver without cleaning if it is used by others.
• NEVER touch the moving section of the appliance when it is on. Keep the appliance away from clothes, eyelashes and other objects.
• Switch the appliance off and make sure you unplug your appliance before all kinds of interventions on the appliance.
• Do not expose the appliance to temperatures below 0°C or over +45°C and especially to direct sunlight for a long time.
• Keep your grooming appliance and its accessories away from all kinds of heat sources.
• Do not use extension cords that supply improper current in order to prevent damage to your machine.
• Unplug your appliance after use, before attaching accessories and before cleaning and maintenance.
  · Do not leave your appliance running when not in use and unplug it.

CHARGING THE APPLIANCE

• When the product is used for the first time, please fully charge the battery, and battery power should be completely emptied before it is charged for the second time, thereby extending the life of the battery.
• Charge the appliance for 8 hours until it is completely charged before starting to use it for the first time.
• If you do not charge the battery for a long time, it will malfunction that never charge again.
  • Always make sure that the appliance is completely dry before using or charging.
• Your battery has a product life as others. If you use your battery considering the charging rules, its usage life will be increase.
• When the lifetime of the battery has completed, the battery has to be changed only by an Arzum Authorized Service. Please charge and discharge the new battery according to the instructions mentioned before. Batteries of appliances which are not to be used according to be above mentioned instructions will complete its lifetime early.
• Charging takes approximately 8 hours. The appliance can be used up to 60 minutes after it is charged.
• Switch the appliance off.
• Your appliance starts charging when charge indicator light turns red. Charging process is completed in 8 hours.
• Plug the power supply unit into a socket.
• Do not leave the appliance permanently connected to the mains power socket.
  • Always switch the beard trimmer off and unplug the plug from the charger socket after charging is complete.

To extend the lifespan of the beard trimmer battery:

- Do not charge the battery every day. Preferably discharge the battery completely every six months and then charge for 8 hours.

- Do not charge the appliance for longer than the recommended charge time. Overcharging reduces the lifespan of rechargeable batteries.

- If the appliance is not to be used for a prolonged period of time, it must be charged for 8 hours before putting it away.

CAUTION:

• Risk of corrosive substance EN leakage and explosion. Batteries shall NOT be disassembled, exposed to excessive heat such as that caused by sunlight, fire or similar sources. They shall NOT be short circuited, mechanically damaged, thrown into the fire, put into water, stored with metallic objects, dropped on hard surfaces. In case of battery leakage, avoid any contact with skin, eyes and clothing.
• Risk of serious lesions. Always keep the batteries out of reach of children. If swallowed, the batteries can cause lethal lesions. Therefore, alw keep the batteries out of reach of children. In the event that is swallowed, contact a doctor or the local poison centre immed
• Charge your appliance at room temperature. The appliance shall not be charged at the temperatures under the 0°C and over 45°C. The charging unit may heat during charging the appliance. It is normal while the battery is charging, the adapter may heat.

CONNECTING/DISCONNECTING THE ACCESSORIES

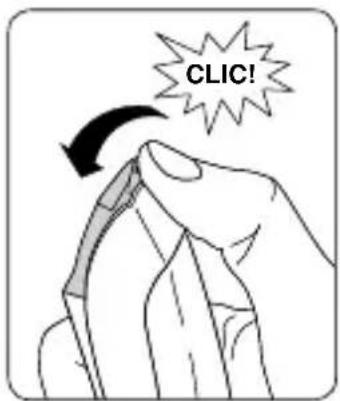

• To insert an accessory (5, 6, or 7): hold the appliance in one hand, position the desired head and push it down with force until you hear a "click".
  • To remove an accessory (5, 6, or 7): press the central part of the head upwards using your thumb, then remove it from the appliance.

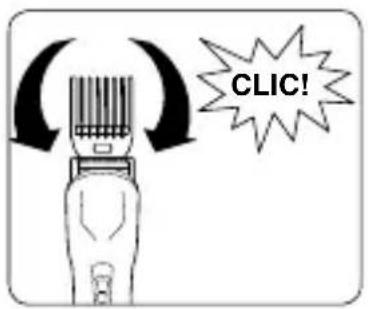

- Assembly, disassembly and adjustment of U-Blade (8 or 9): Hold the appliance with one hand and place the desired comb by pushing the blade part of metal beard head forward. Push the comb up to remove. You can move the comb back and forth to set the desired cutting length.

USING YOUR APPLIANCE WARNING:

• Switch the appliance off before changing any accessories.
• DO NOT use this appliance if there are visible signs of damage. DO NOT use the appliance if the blades are damaged or do not work properly.
  • Make sure that your beard is dry and clean, with no residue of hairspray, mousse, gel or other hair products.
• Lubricate the blades of the appliance before each use. Clean the appliance blades using the brush provided and lubricate again.

Trimming Your Beard (5-8-9)

Do not move the trimmer too fast if you are trimming your beard for the first time. Use the appliance with smooth movements.

• Position the precision head (5) on the appliance when it is off, making it slide onto the head. Slide the comb (8 or 9) at the desired cutting height.
• It is recommended to clean the blade and comb with the provided brush after each use to prevent the accumulation of residual hair.
• You can also wash blades under running water. Make sure blades are dry before replacing on the body.
  • To adjust the cutting length further, use the micro precision button (4).

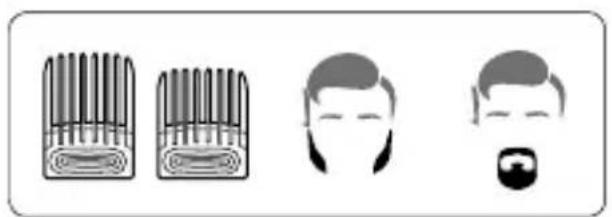

Tips

• If hair builds-up on the adjustable comb, disconnect it from the appliance and clean by blowing/shaking to remove the hair.
  • Take note of the settings of the cutting length used as a reminder for future use.

Illustration of four stylized human face profiles: rolled-up, straight, closed, and beaded (no text or symbols)

Using the vertical nose and ear trimmer (6) Warning :

• Make sure your nostrils are clean.
• Make sure your ears are free of oil and dirt.
- Do not insert the vertical accessory in your ears and nostrils more than 0.5 cm while the appliance is running.
• After applying it on the product, carefully trim any extra nose and ear hair.

Simple line drawing of a teardrop and a human face (no text or symbols)

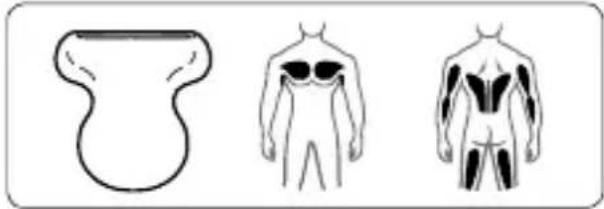

Using the Body Shaver Head (7)

This head was designed to remove hair in all areas of your body. After applying it on the product, trim the hair in the concerned areas.

Three anatomical illustrations: a simple rounded shape, a human torso with shaded regions, and a human torso with shaded regions (no text or labels)

Touching Up

With the minimum cutting height and with the U-blade (5), touch up your sideburns, moustache and edges as you like.

CLEANING AND CARE

• Always disconnect the appliance from the socket before. You can clean the exterior by wiping with a dry or damp cloth.
- Do not use powdered products, abrasive liquid products or solvents such as alcohol or petroleum-based products to clean the appliance.
- NEVER plunge your appliance into water or another liquid. Clean also the main body of your appliance with a dried cloth.

Cleaning Blade Head

• Switch the appliance off and disconnect the power supply unit plug
• Do not drop the blade head.

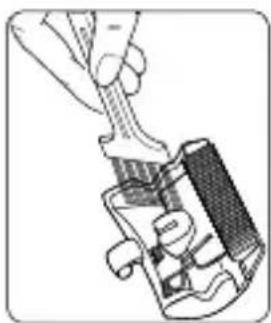

• Clean the blade head and the interior of the appliance with the brush provided.

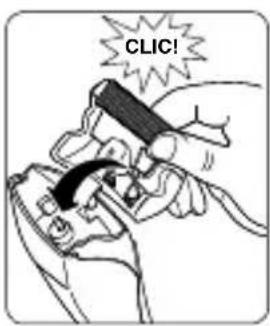

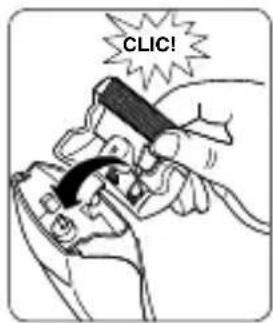

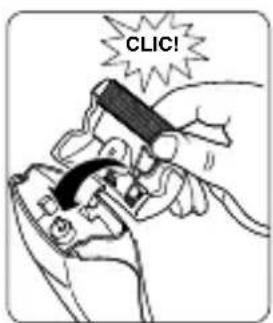

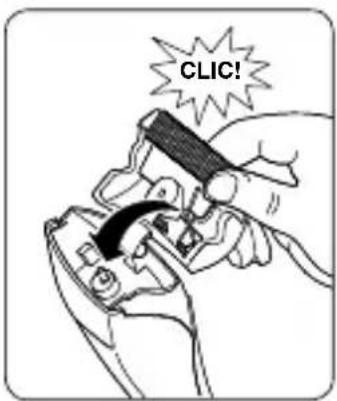

• Insert the lock tab of the blade head in the slot on the appliance and push the head until it clicks into place.

Line drawing of a hand using a tool to brush or mark on a mechanical component (no text or symbols)

Illustration of a hand using a tuning fork to adjust a mechanical component (no text or symbols visible)

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The blades do not move Blades	not lubricated correctly	Clean with the brush and lubricate with the oil
Blades become hot Blades not	ubricated correctly	Clean with the brush and lubricate with the oil

Product life 7 years

TECHNICAL SPECIFICATIONS

INPUT: 100-240 V \~ 50/60 Hz 0.2 A

OUTPUT: 3.0 V ____ 600 mA

HANDLING AND SHIPMENT

• During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.
• Keep at normal position during shipment.
• Do not drop the product when transporting and protect from impacts.
  • After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

The product is in compliance with the EEE Directives.

WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer:

Ningbo Bangshou Electric Co., Ltd.

Xiaxiang Tanjialing West Road, Lanjinag District,

Yuyao City, Zhejiang Province, Cn

Importer:
