BK20100 - Chauffe-eau instantané et chauffe-eau SIEMENS - Free user manual and instructions

Product Type	Storage Water Heater
Brand	Siemens
Model	BK20100
Dimensions (H x W x D)	320 mm x 265 mm x 195 mm
Weight	Approx. 4 kg
Power Consumption	1200 W
Voltage	220-240 V
Water Capacity	5 L
Max Water Flow Rate	10 L/min
Temperature Range	Cold to 100 °C (boiling)
Features	Mixer tap, descaler drawer, pilot light, temperature selector, safety thermostat
Safety	Overheating protection, automatic shut-off, frost protection
Installation	Wall-mounted, requires earth socket, professional installation
Cleaning	Wipe with damp cloth, no abrasive cleaners
Descaling	Use descaling drawer, commercial descaling liquid
Spare Parts	Heating element, thermostat, cable (via customer service)
Disposal	WEEE compliant, recycle at appropriate facility
Warranty	As per country, contact dealer

Frequently Asked Questions - BK20100 SIEMENS

How do I fill the water heater for the first time?

Open the hot-water tap, then switch on the heater. Wait until water flows steadily from the outlet pipe before selecting temperature.

How do I select the water temperature?

Turn the temperature selector clockwise to increase temperature, anti-clockwise to decrease. The pilot light indicates heating.

How do I descale the water heater?

Pull out the descaler drawer, pour in approx. 100 ml of commercial descaling liquid, add water, then heat to middle setting for 15-30 minutes. Rinse thoroughly.

What should I do if the pilot light flashes or the heater does not switch off?

If the pilot light flashes when empty, the safety thermostat has activated. Switch off and let cool. If it flashes when switched off, unplug and call customer service.

Can I install the water heater myself?

No, only a qualified professional should connect and install the heater. It must be mounted on a wall in a frost-free room with proper electrical and water connections.

How do I clean the appliance?

Wipe the housing and mixer tap with a damp cloth. Do not use acidic or abrasive cleaning products, and never use a steam cleaner.

How can I save energy while using the water heater?

Only heat the amount of water you need. Use the water as soon as it reaches the desired temperature to avoid reheating.

What should I do if the heater leaks?

Immediately shut off the cold water supply and disconnect the power. Contact a qualified technician to repair the leak.

Is the appliance safe for children?

Children aged 8+ can use it under supervision. The appliance can become very hot (up to 100 °C), so keep children away from hot parts.

How do I dispose of the water heater?

Follow local regulations for WEEE. Do not dispose with household waste. Ask your retailer for recycling options.

USER MANUAL BK20100 SIEMENS

operating instructions

Sicherheitshinweise

Medical device diagram showing a surgical instrument with multiple pressure vessels and tubing (no text or labels)

Temperatur wählen

Einschalten

Knopf drücken.

Ausschalten

Hinweise

Eine Störung, was tun?

Achtung!

Illustration of an open book with a curved arrow pointing upward (no text or symbols)

Safety information

This appliance is intended for domestic use or for household-based, non-commercial applications. Household-based applications include, e.g. usage in employees catering facilities for shops, offices, agricultural and other commercial operations, as well as usage by guests of guest houses, small hotels and similar residential establishments.

Risk of electric shock! Switch off the mains voltage supply immediately if a fault occurs.

We do not accept liability for damage resulting from failure to heed these instructions.
The water heater may only be connected and put into operation by a qualified professional.
■ Disconnect the power supply before opening the appliance.
The statutory regulations of the respective country, as well as those of the local electricity and water suppliers, must be adhered to.

■ The water heater may only be installed in a frost-free room.
The dismounted appliance must be stored in a frost-free area (residual water) and may not be subjected to frost.
■ Disconnect the electrical connection cable from the supply and shut off the water supply before connecting the appliance!
■ Connect the water supply and then connect the electrical supply.
The heater should only be connected to a properly installed, earthed socket. Do not use a socket strip.
- Do not plug the heater into the electricity supply until it has been mounted on the wall.
- Do not use an extension cable.
■ Ensure that the mains cable does not come into contact with any of the hot parts of the appliance. The insulation could be damaged.

This appliance can be used by children aged 8 years and older as well as by persons with diminished bodily, sensory or mental perception, or those who lack knowledge or experience, if they are monitored or have received instruction concerning use and comprehend the possible dangers that can result. Children may not play with the appliance. Cleaning and maintenance by the user may not be performed by unsupervised children.
- Keep children away from the appliance.
■ Please monitor children to ensure that they do not play with the appliance.
The mixer and the warm water pipe may be hot. Please inform and instruct children appropriately.

Please switch off all fuses immediately with a malfunction. Immediately shut off the cold water supply to the appliance should it leak. The malfunction can only be repaired by factory service or an authorised service agent.
- Do not use aggressive or abrasive cleaning detergents!
- Do not use a steam cleaner.

Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.

Please read this installation and operating instruction manual carefully, then act accordingly! Store for future reference.

Installation instructions

Install the water heater as described in the illustrated section. Observe the instructions in the text.

The illustrations can be found in the centre of the instruction manual.

Installation

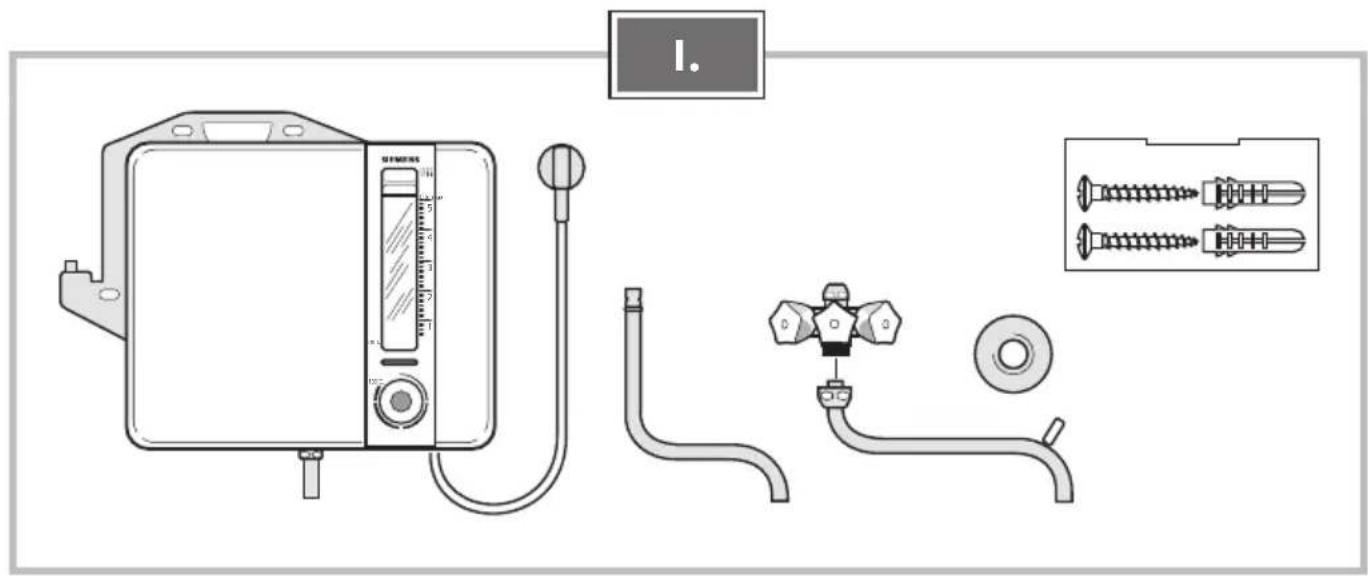

Parts supplied

Preparations for installation

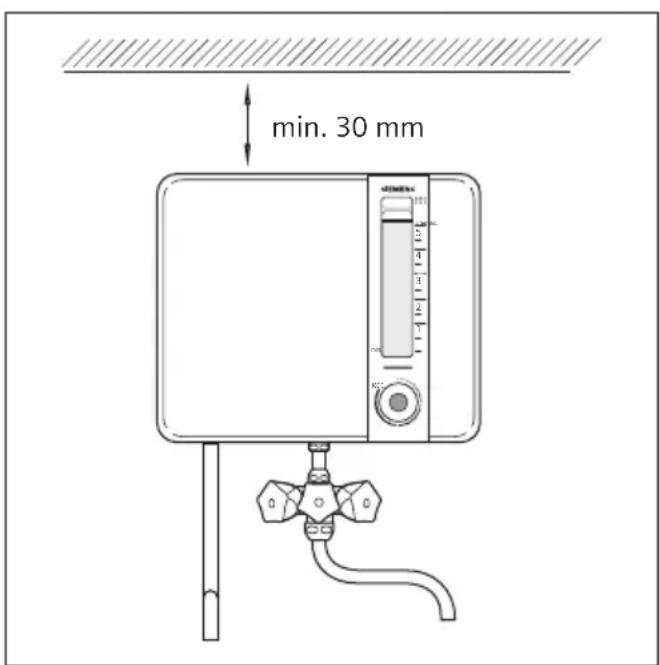

Leave a gap of at least 30 cm above the top edge of the appliance housing.

The water heater must be mounted so that it is absolutely perpendicular. Use a standard pipe joining piece to compensate for an uneven wall surface (Fig. VI, 2).
For an additional water connection, use a standard 50 mm branch adapter (Fig. VI, 3).

- Check the length of the mains connecting cable. If necessary, fit a longer cable to heater before it is mounted on the wall (Fig. V).

Attention!

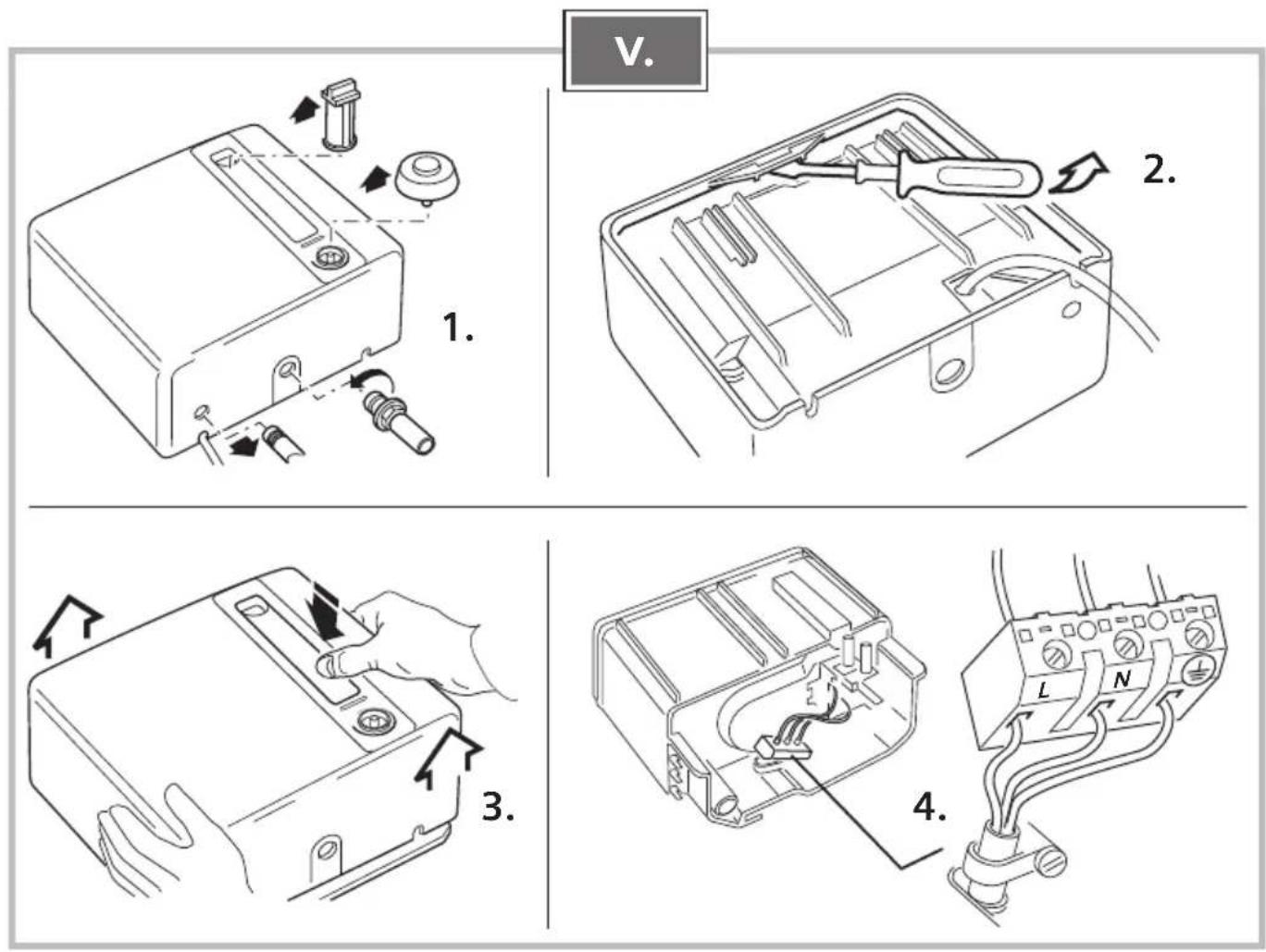

Unplug the heater from the electricity supply before changing the cable!

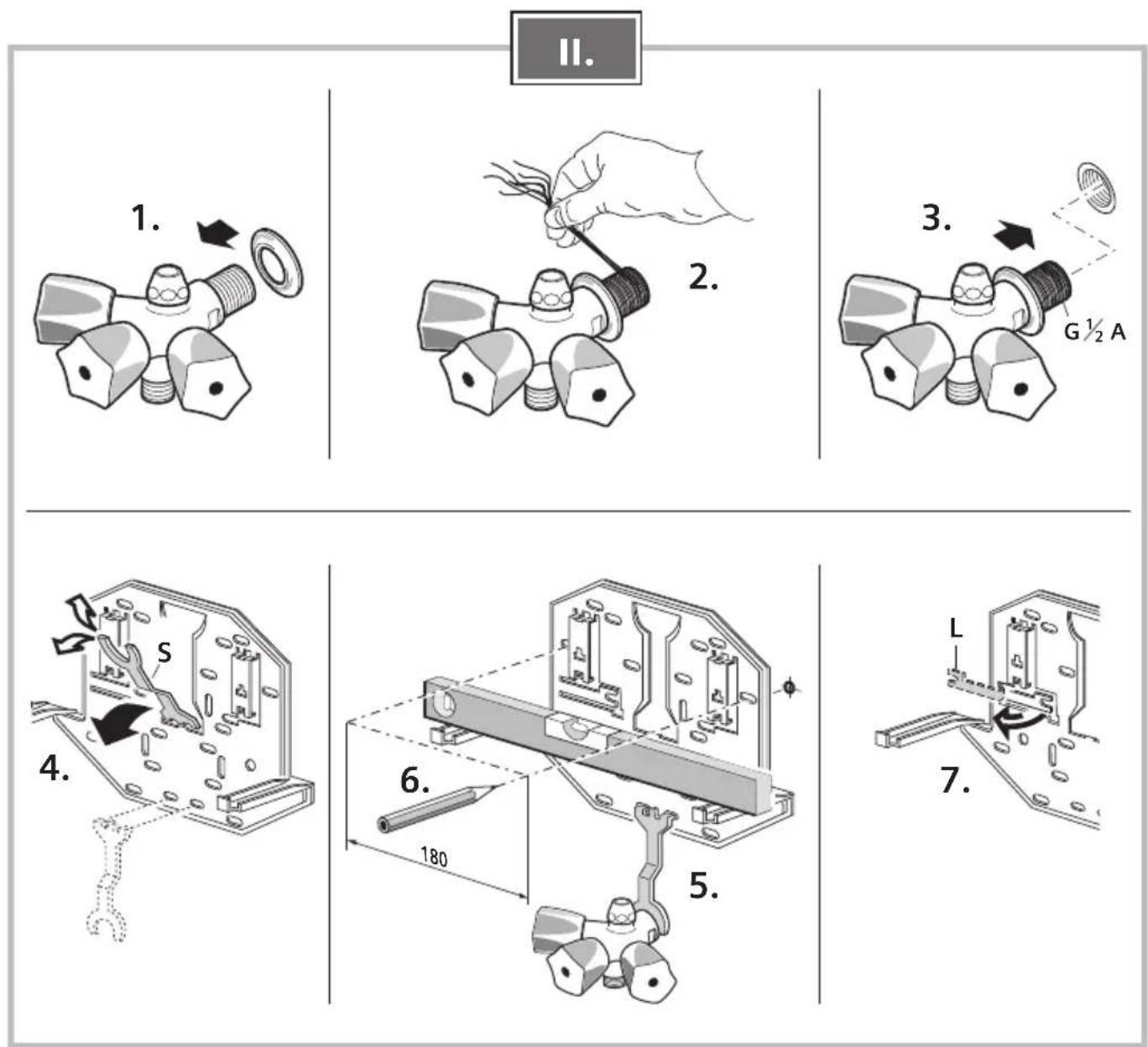

■ Installation of the mixer tap (Fig. II, 1–3).
- Detach the mounting plate from the appliance.
■ Break off the template "S" (Fig. II, 4).
- Hold the template against the mounting plate and place it over the mixer tap (Fig. II, 5).
■ Mark the position of the holes for mounting the plate (Fig. II, 6).

Note: Make sure that the mounting plate is absolutely horizontal!

Any holes in the wall and rawlplugs that remain from a previous water heater can be used again. Simply identify the corresponding holes in the mounting plate.

If the previous water heater was a Siemens BK0562, bend strap "L" outwards and use the existing holes and rawlplugs (Fig. II, 7).

Wall mounting

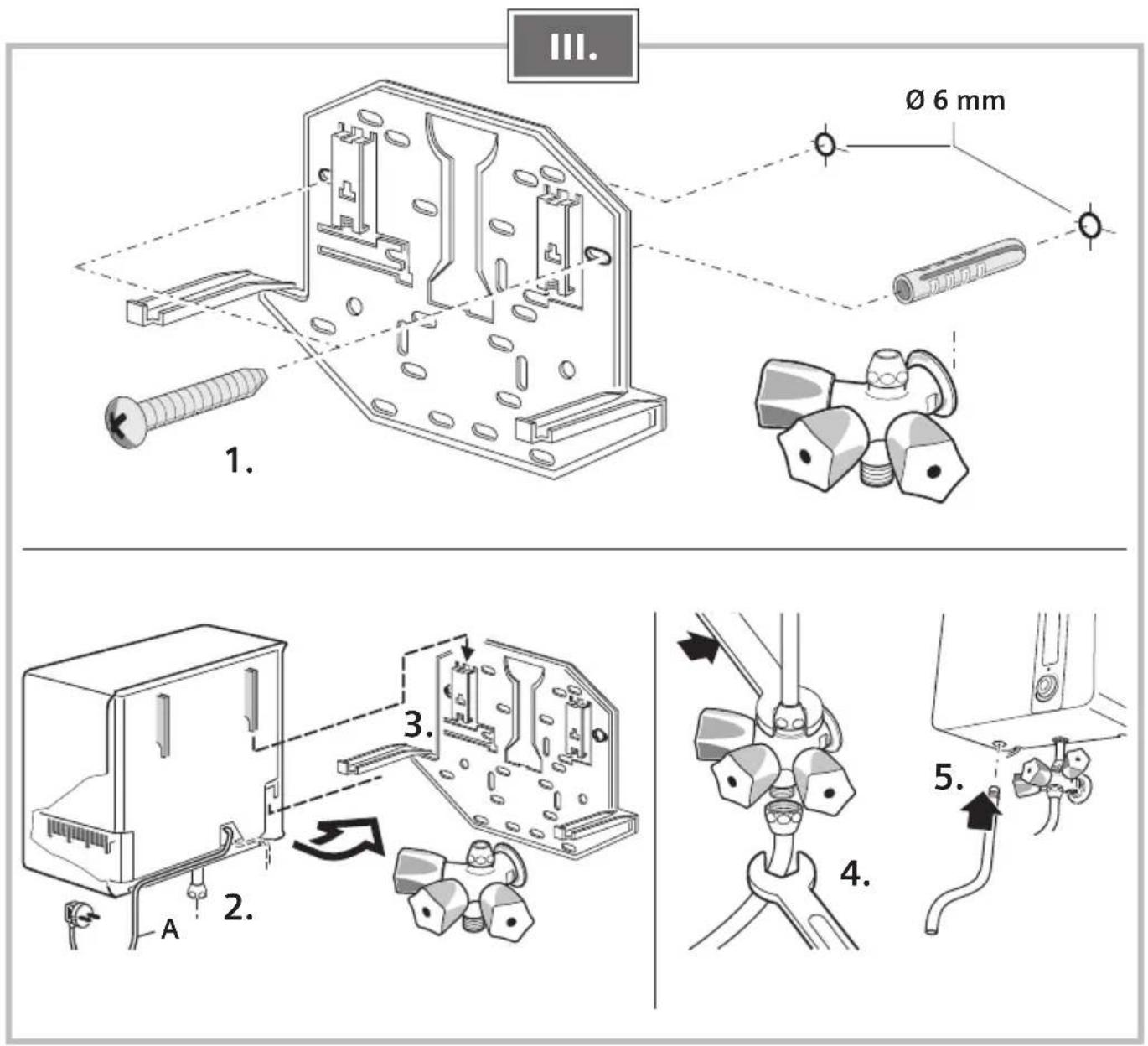

• Fixing the mounting plate (Fig. III, 1).
  Insert mains cable "A" into the recess – towards right or left – depending on position of socket (Fig. III, 2).

- Hook the heater onto the mounting plate (Fig. III, 3).

- Attach and tighten the water intake and outlet pipes (Fig. III, 4).

- Insert the overflow pipe (Fig. III, 5).

Setting the water flow rate

The maximum water flow rate is 10 l/min, i. e. 1 litre of water takes 6 seconds to flow into the tank.

Open tap "G" fully.

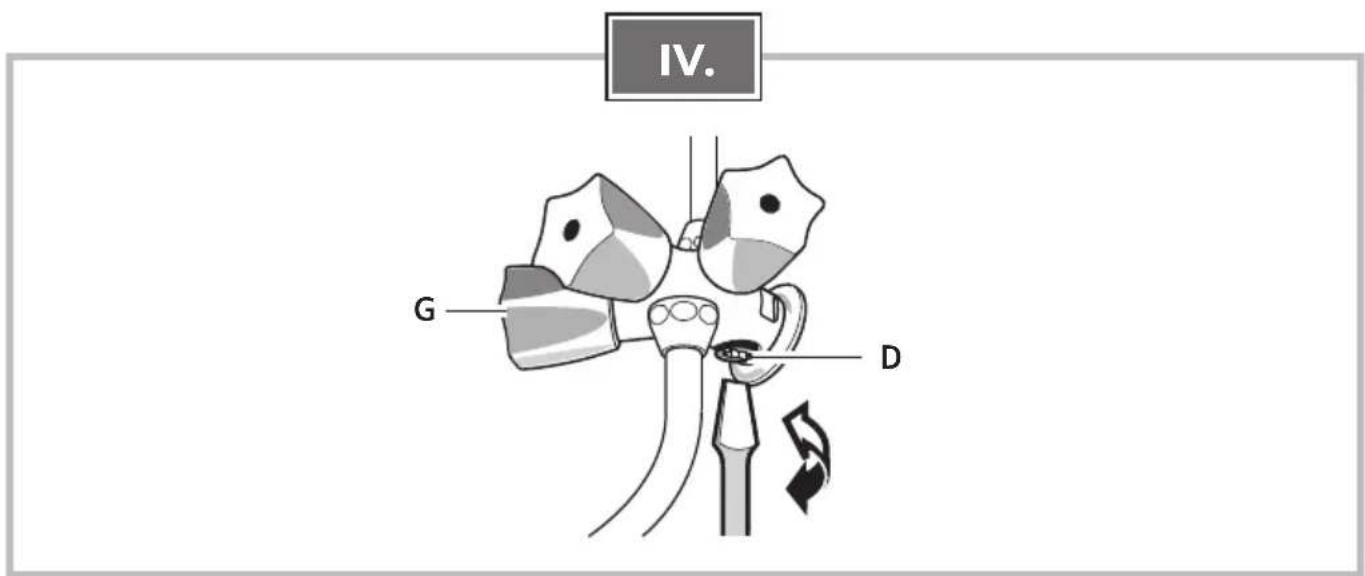

- Adjust the flow rate by turning throttle screw "D" on the underside of the mixer unit (1/2 turn max.).

Electrical connection

The heater should only be connected to a properly installed, earthed socket. Do not use a socket strip.
Do not plug the heater in to the electricity supply until it has been mounted on the wall.

When installation has been completed

Explain the heater to the user and hand over the operating instructions.

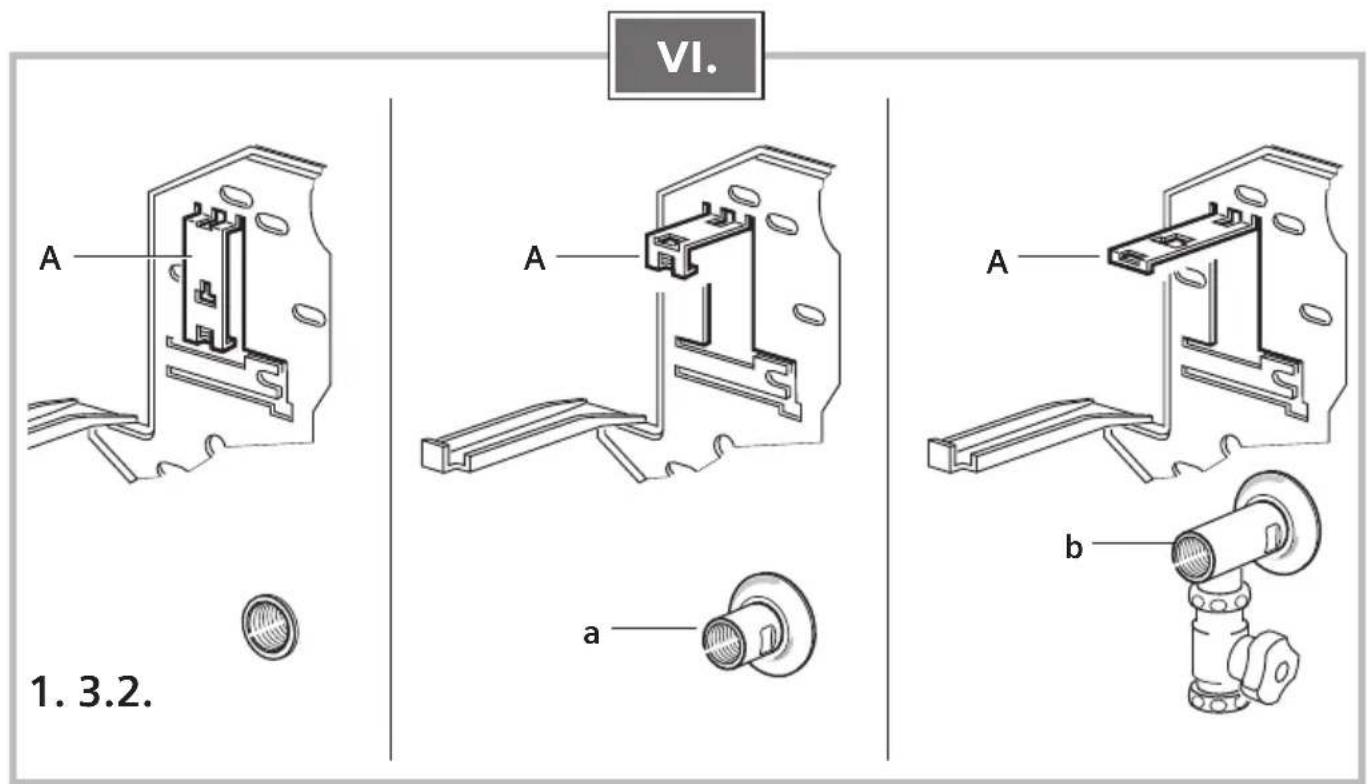

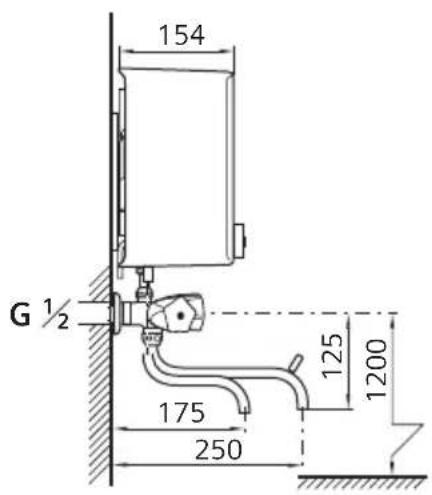

Distance from wall

If the heater is not going to be mounted flush on the wall, use a standard pipe connecting piece and bend stand-off "A" to the appropriate position.

1 Mounted flush on the wall
2 Wall mounting using commercially available adapter piece a, 30 mm long
3 Wall mounting using commercially available adapter piece b, 50 mm long, equipped with an additional water connection

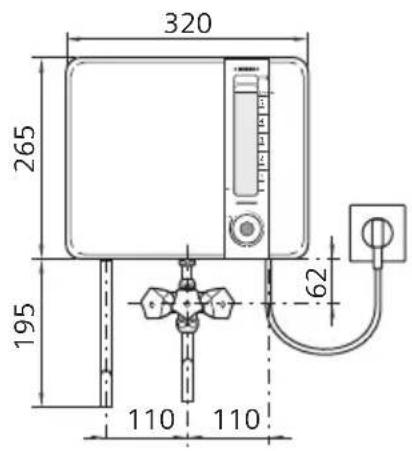

Technical data

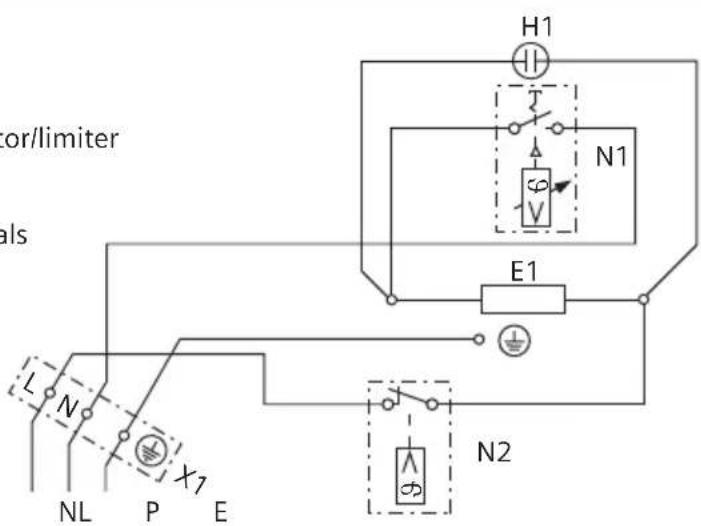

Circuit diagram

E1 Heating element
H1 Pilot light
N1 Temperature selector/limiter
N2 Safety thermostat
X1 Power input terminals

Operating instructions

Please read and observe the detailed safety instructions at the start of these instructions!

■ Important: The appliance may never be exposed to frost!

Risk of electric shock! Switch off the mains voltage supply immediately if a fault occurs.

- Immediately shut off the cold water supply to the appliance should it leak.

Your new appliance

This water heater is suitable for heating drinking water for household use when installed within a closed, frost-free room.

You can use the water heater for warm water, hot water, boiling, germ-free water.

Cold water is available at any time from the mixer tap.

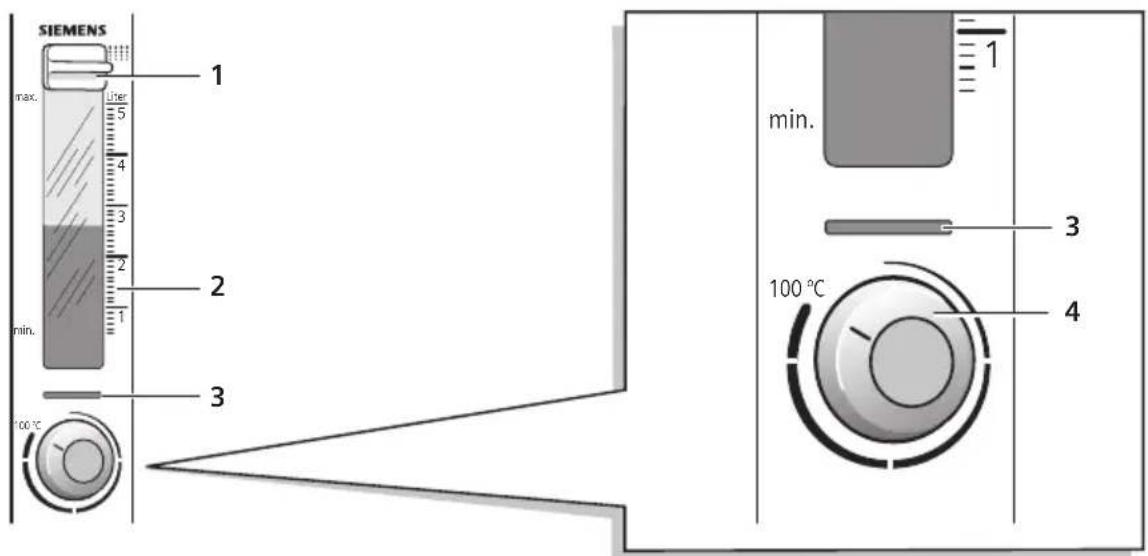

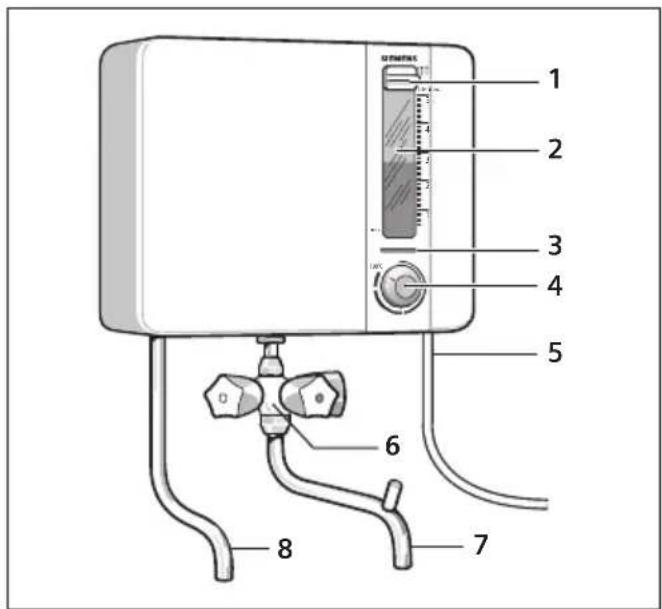

General view

1 Descaler drawer
2 Water volume indicator (in litres)
3 Pilot light, shines during heating
4 Temperature selector and ON switch
5 Mains cable
6 Mixer tap
7 Outlet pipe
8 Overflow pipe

How to operate the heater

The water must be able to flow freely out of the outlet and overflow pipes. Do not attach an aerator to the outlet pipe.
- Do not place any objects on the appliance.
■ Ensure that the mains cable does not come into contact with any of the hot parts of the appliance.
The water heater will become very hot during use! Keep children away from the heater. The water tank, mixer tap with outlet pipe and overflow pipe can all reach a temperature of 100 °C.

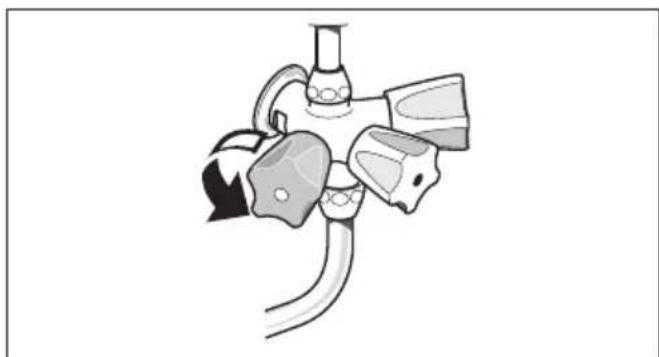

Fill with water

Diagram of a mechanical device with three components and directional arrows, no visible text or symbols

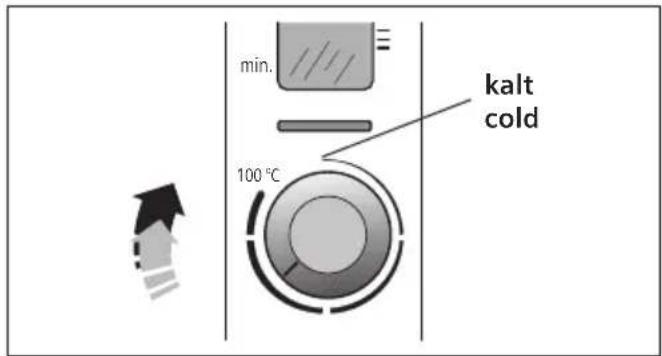

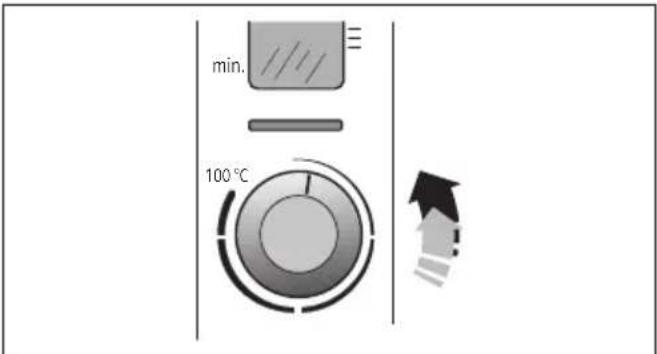

Select temperature

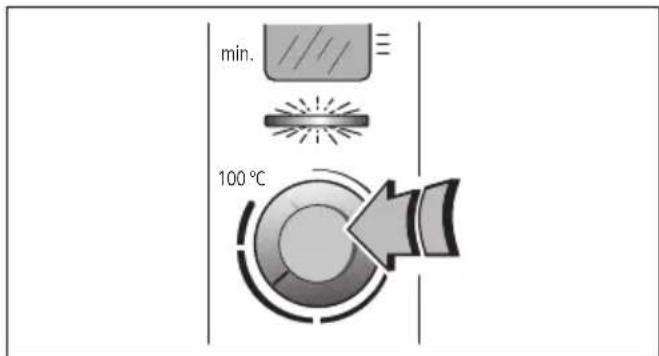

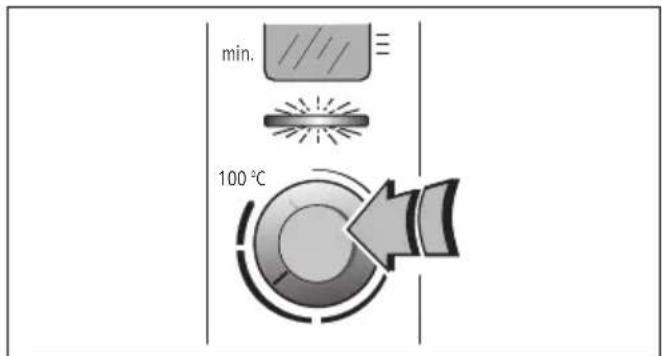

Switching ON

Press button.

Switching OFF

If a low temperature is selected, the device automatically switches off. If the device is set at higher temperatures, it must be switched off manually.

■ Turn temperature selector anti-clockwise as far as the end stop.

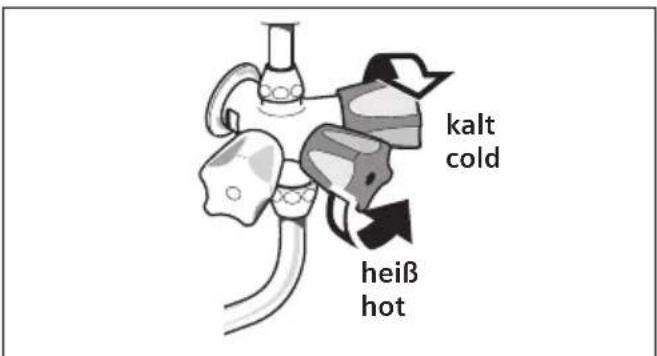

Open the hot-water tap

Further information

If the appliance does not switch OFF when the water boils, the appliance continues heating until the water has evaporated.

The overheating protection switches the heater OFF. Rotate the temperature selector as far as possible in an anti-clockwise direction.

After the heater has cooled down, it is ready for use again.

The temperature at which the heater switches off can vary, although the setting remains the same, due to:

• internal furring,
  – different volumes of water in the tank,
  – using the heater again before it has cooled down.

Saving energy

Only heat the amount of water that you actually require. Run the water out of the heater as soon as it has reached the selected temperature.

Cleaning

■ Simply wipe the the housing and the mixer tap with a damp cloth. Do not use acidic or abrasive cleaning materials.

Descaling the appliance

The device must be descaled if the following situations apply after selecting the maximum temperature setting:

– the water does not come to the boil,
– heater and pilot lamp switch off and on at intervals without the buzzer sounding,
– the flow of hot water out of the outlet pipe is significantly slower.

Attention!

Descaling agents can be corrosive! Wash off any spillage with water immediately! Observe the instructions for use provided by the manufacturer.

Descaling procedure

• Fill the tank with a 1/2 litre of cold water.
  ■ Pull out the descaler drawer as far as the stop.
  Pour in approx. 100 ml (small bottle) of commercially available descaling liquid suitable for use on water boilers, and add a little water.
  If the furring is quite severe, increase the amount of descaling liquid accordingly (max. 150 ml).
• Push the descaler drawer all the way into the heater.

• Adjust the temperature selector to the middle setting and switch on. Allow the solution to react for 15 minutes.
  ■ Next, top up the tank to the 5-litre mark, heat the water again and wait 30 minutes while descaling takes place.

• Slightly open the tap for filling the tank with cold water, so that the descaling solution is slowly flushed out through the overflow where it also dissolves any scale in the pipe.
  ■ After about 5 minutes, drain the tank and then rinse it out several times with fresh water.

A fault, what to do?

Attention!

Repairs to electrical appliances must only be carried out by an authorised technician. Improper repairs can lead to risk of serious injury to the user.

If the pilot light comes on at regular intervals when the heater is empty, this indicates that the integrated safety thermostat is protecting the appliance from overheating.

- Switch the heater off (turn the temperature selectorfullyanti-clockwise).

If the pilot light comes on at intervals although the heater is switched off:

■ Unplug the appliance from the mains and call Customer Service.

Customer Service

If you encounter a problem, please check the following before calling Customer Service:

– Is the heater plugged in?
– Is the fuse in the domestic wiring in order?
- Has the heater cooled down sufficiently since the last time it was used to boil water?

You will save yourself the costs of an unnecessary visit by customer service personnel.

We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer. You will find these numbers on the underside of the water heater.

Disposal

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the framework for the return and recycling of used appliances as appli cable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
