USER MANUAL DG15602 SIEMENS

Illustration of a Siemens water heater with dual supports and a handle (no text or symbols)

DG15602

DO15652

9001042094

Montage- und

Gebrauchsanleitung

Installation and

operating instructions

Sicherheitshinweise

Eine Störung, was tun?

Achtung!

Illustration of an open book with a curved arrow pointing right, indicating a concept or direction (no text or symbols present)

1.

DO 15652DG 15602

Medical implant components including a metallic tube, threaded connectors, and a cap (no text or labels visible)

Mechanical component diagram showing a lever and adjustment parts (no text or symbols)

1.

III.

IV.

V.
1

2

VI.

VII.

Mechanical assembly diagram showing a rotating component with labeled parts (A, B, C) and directional arrows indicating motion or force (no text or symbols beyond labels)

VIII.

DO 15652

Pure mechanical diagram showing a vertical pipe with a valve and pipe fitting, no text or symbols present.

Mechanical assembly diagram showing a valve mechanism with rotating arrows and adjustment knobs (no text or symbols)

Safety information

This appliance is intended for domestic use or for household-based, non-commercial applications. Household-based applications include, e.g. usage in employees catering facilities for shops, offices, agricultural and other commercial operations, as well as usage by guests of guest houses, small hotels and similar residential establishments.

■Install and operate the appliance as described in the text and illustrations. We do not accept liability for damage resulting from failure to heed these instructions.
This appliance is intended for use up to an altitude of 2000 m above sea level.
The appliance may only be installed and stored in a frost-free room (due to residual water).

Risk of electric shock! If an fault occurs, immediately disconnect the plug from the power supply or turn off the mains voltage! Immediately shut off the cold water supply to the appliance should it leak.

The appliance may only be connected and put into operation by qualified professional.
To avoid potential sources of danger, repairs and maintenance may only be undertaken by a suitably qualified specialist.
The statutory regulations of the respective country, as well as those of the local electricity and water suppliers, must be adhered to.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, an authorised servicing agent or a similarly qualified person so as to avoid danger.
The connection cable may not make contact with hot components. This can damage the insulation.
- Do not touch electrically live parts after installation.

■ Shut off the water supply before connecting the appliance. Do not insert the plug into the mains socket or disconnect the power supply.
■ Disconnect the power supply or turn off the mains voltage before opening the appliance.
■ Connect the water supply first, circulate water through the appliance and then connect the electrical supply.
■ Compliance with the IEC 60364-7-701 (DIN VDE 0100 Part 701) must be observed during installation of the appliance or the electrical accessories.
No modifications to the appliance are permissible.
This appliance can be used by children aged 8 years and older as well as by persons with diminished bodily, sensory or mental perception, or those who lack knowledge or experience, if they are monitored or have received instruction concerning use and comprehend the possible dangers that can result. Children may not play with the appliance. Cleaning and maintenance by the user may not be performed by unsupervised children.
- Keep children away from the appliance.
■Please monitor children to ensure that they do not play with the appliance.
The mixer tap and the warm water pipe may be hot. Please inform and instruct children appropriately.
■ Do not use aggressive or abrasive cleaning detergents!
■ Do not use a steam cleaner.
The appliance is only to be descaled by a suitably qualified specialist. Please observe the manufacturers warnings when decalcifying.

DG15602

Only connect the appliance to a correctly earthed electrical socket. Do not use extension cables.
Only a prototype-tested diaphragm safety valve may be installed.
During the heating process, expansion water must drip out of the safety valve outlet. The outlet pipe of the safety valve must remain open to the atmosphere.
The safety valve prevents excessive pressure from developing in the water heater during the heating process. Expansion water must be able to drain off via the safety valve.
■ Do not block the outlet pipe!
The size of the outlet pipe must suit the fully opened safety valve. The blow-off opening of the safety valve must remain open to the atmosphere.
The blow-off pipe of the safety group must be installed with a constant decline in a frost-free room. Regular maintenance and operation of the safety valve are required to remove deposits and to ensure that the safety valve is not blocked.
■The installation instructions of the safety group must be followed.
A shutoff valve must not be installed between the safety valve and the water heater.
Supplied stickers: "For reasons of safety, water must come out of the outlet pipe during the heating period! Do not block!" – attach the stickers to the outlet pipe in a clearly visible position.
The safety valve must be operated regularly to verify its function and to decalcify the valve.

DO15652

The small water heater is only suitable for use with an open (unpressurised) and a single tap connection. The warm water outlet is used for pressure compensation and may only be connected to suitable fittings (Order No. BZ 13051, BZ 13062 or BZ 13071 for undersink appliances oder BZ 11113 for over-sink appliances).
The tap outlet must always remain free. Do not use perlators (diffusers) or shower taps.
The instructions for unpressurised (open) water heaters that are used with a spray head must state that the spray head must be regularly cleaned and water scale removed.
The installation instructions for unpressurised (open) water heaters must state that the water outlet must only be connected to the specified valves and fittings and NOT to any others.

Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.

Please read this installation and operating instruction manual carefully, then act accordingly! Store for future reference.

Installation instructions

Install the small water heater as described in the illustrated section. Observe the instructions in the text.

The illustrations can be found in the centre of the instruction manual.

Unpacking

■Inspect the new appliance for transport damage!

■Please dispose of the packaging, and if applicable, the old appliance in an environmentally-friendly manner.

1.

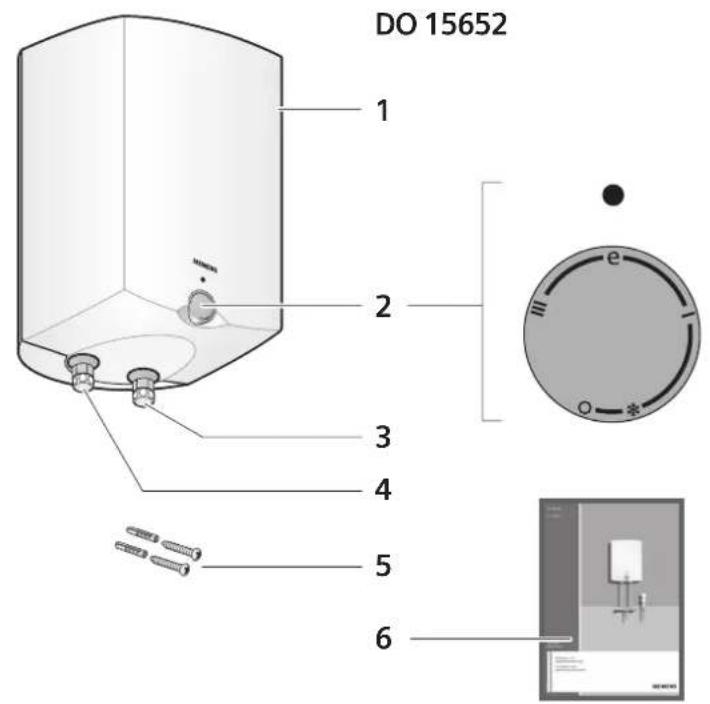

Scope of delivery

1 Housing
2 Temperature selector switch
3 Cold water supply
4 Hot water outlet
5 Mounting (2 screws, 2 wall plugs)
6 Documentation
7 Hand shower
8 Mixer tap

Open circuit operation (unpressurised) to supply just a singletap: Installation only with a suitable overflow fitting

– BZ 11114: Mixing tap with visible cross-connected body for mounting on vertical surface and hand-held shower head
– BZ 11113: Mixing tap with visible cross-connected body for mounting on vertical with pivoting outlet

Closed circuit operation (pressure-resistant), for several taps: Installation only with permitted pressurised fittings and safety valve

• AK 030300: Safety valve combination up to 5 bar water pressure
• AK 040300: Safety valve combination up to 5 bar water pressure with pressure reducing valve

Installation

II.

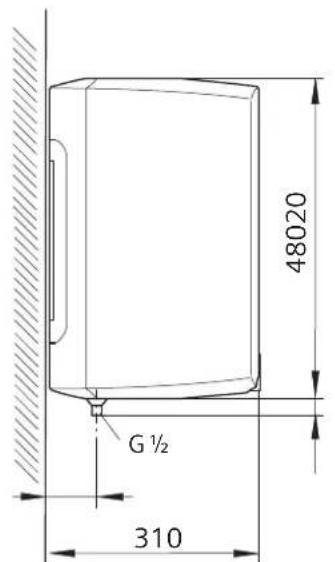

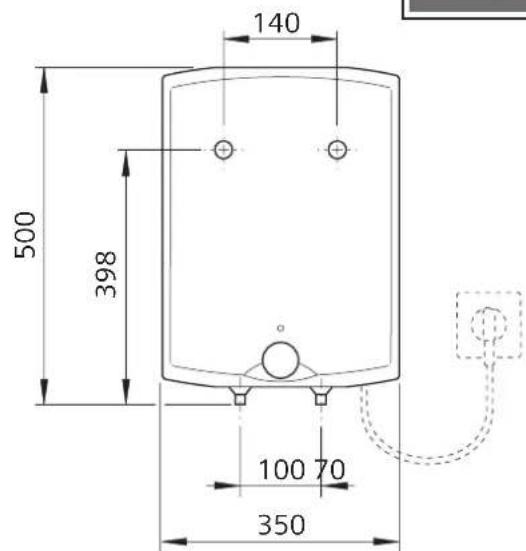

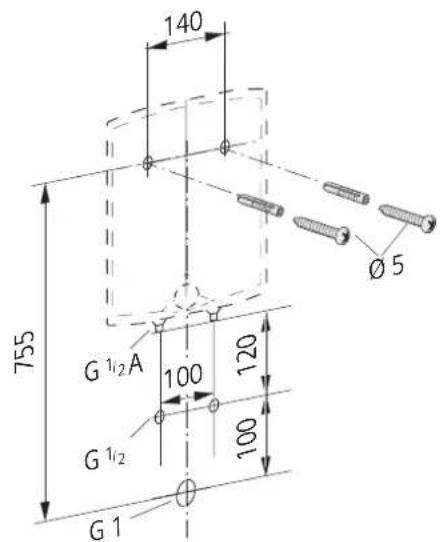

Dimensions

III.

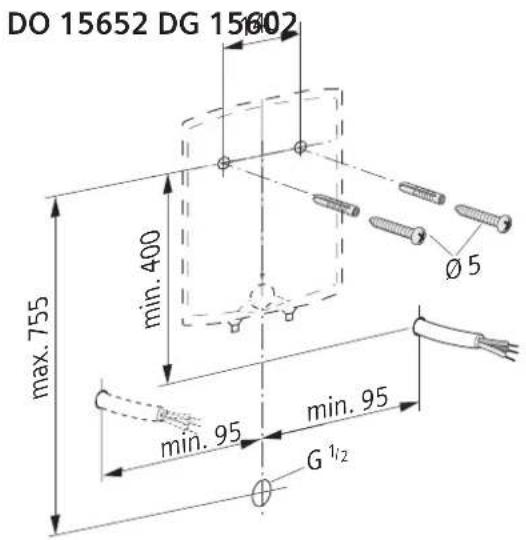

Wall mounting

Note: When exchanging an appliance, check whether you can re-use existing boreholes.
■ Mark the locations for the holes; drill the holes and insert the wall plugs. (DO15652: unpressurised operation with fitting BZ 11114 or DG15602: Pressure-resistant operation with safety valve combination AK 030300/AK 040300)

IV.

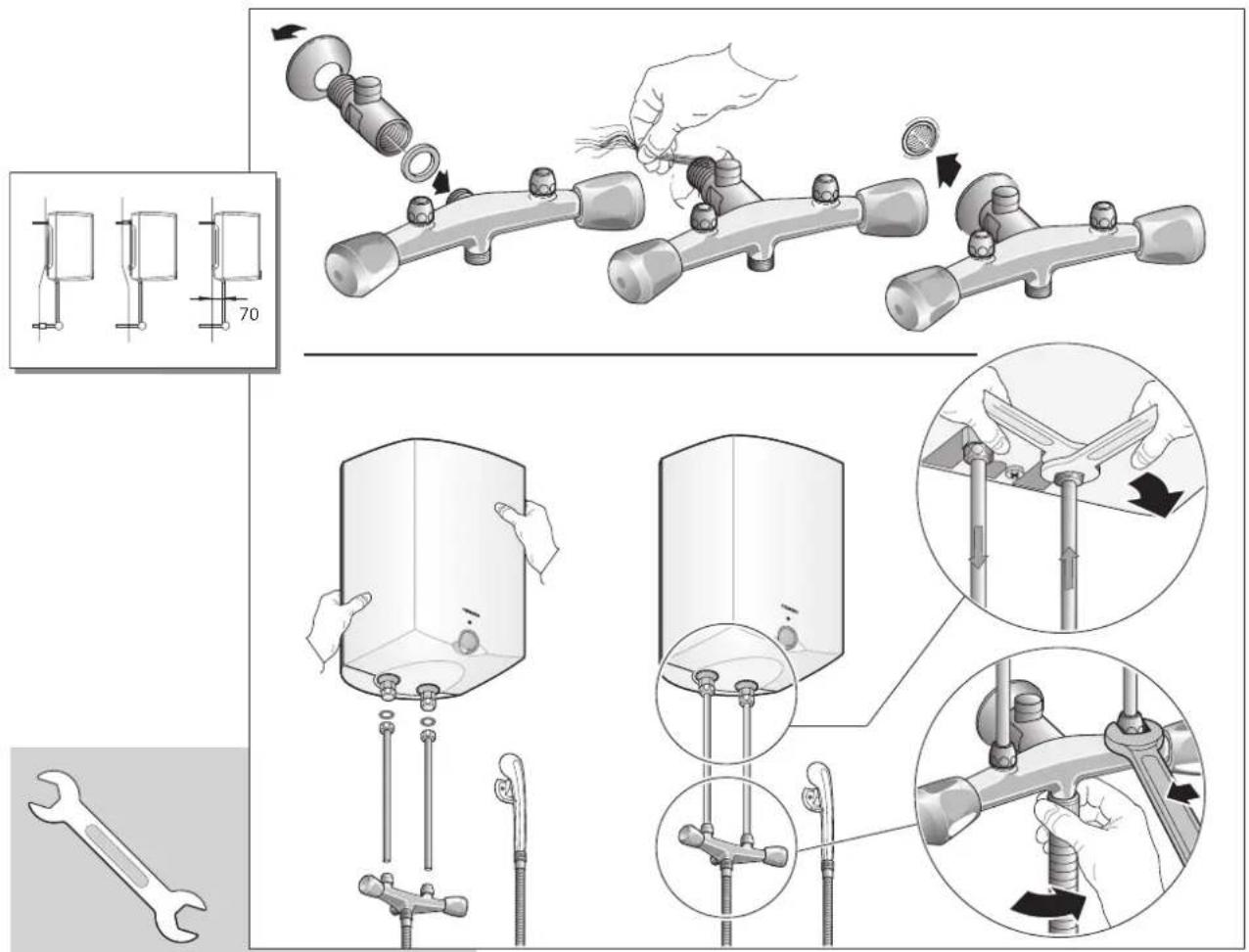

Water connection DO15652

Note: Make sure you mount the appliance vertically and the wall is flat.

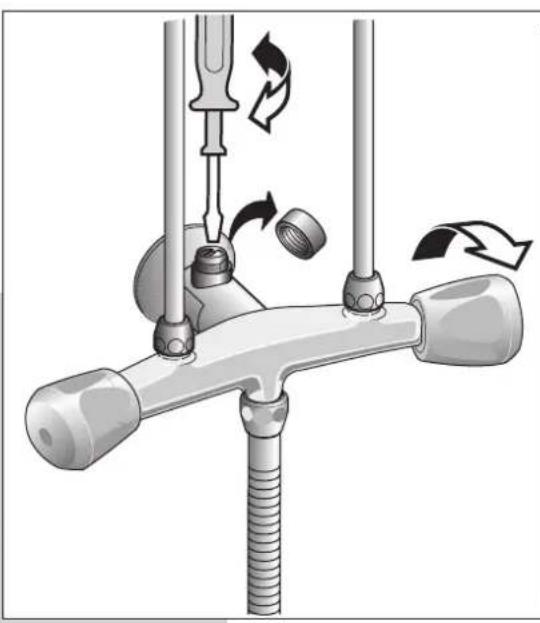

■ Connect the mixer tap.
- Insert the connecting pipes to the mixer tap.
■Mount the hot water heater on the wall.
Screw the connecting pipes to the heater and the mixertap. Prevent the screw necks on the water heater from turning by using a screw wrench.

V.

Water connection DG15602

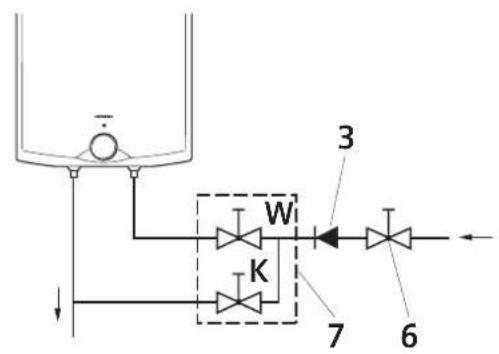

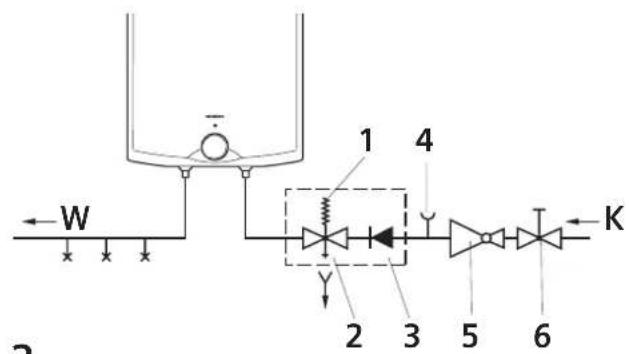

Fig. 1: Unpressurised operation,
Fig. 2: Pressure-resistant operation

K Cold water

W Warm water

1 Prototype-tested diaphragm safety valve
2 Manometer test nozzle
3 Check valve
4 Test device for check valve
5 Pressure reducing valve
6 Stop valve
7 Tap fittings

Closed circuit operation (pressure-resistant)

■Install in the vicinity of the tap at which most water is taken.
■Rinse the water pipes thoroughly to remove impurities and contaminants before connecting the taps.

A safety valve (1) is to be fitted with a water pressure up to 0.5 MPa (5 bar). A pressure reducing valve (5) must be fitted and set accordingly if the pressure exceeds this value.

A stop valve may not be fitted between the safety valve (1) and the cold water supply.

The safety valve (1) outlet must always be open.

Safety valve combination AK 030300 and safety valve combination with pressure reducing valve AK 040300 can be fitted with commercially available thermostat premixers.

Note: According to the energy conservation regulations, the temperature in pipes may not exceed 60 °C if the length of the warm water pipes exceeds 5 m.

Fill the appliance with water first until the water flows from the fitting.

vi. Electrical connection 230VAC

To guarantee compliance to relevant safety regulations, an all-pole separator must be fitted during installation. The contact opening must be at least 3 mm.

If the appliance is connected to the power supply by a plug, the disconnecting device is not required if the plug is accessible to the user.

Appliances fitted with plugs may only be connected to correctly earthed electrical sockets. Do not use multiway adaptors or pushon terminal strips.

Do not connect the appliance to the power supply until it is mounted on the wall and filled with water.

Attention! Only appliance installation with fixed connection is permissible in wet areas.

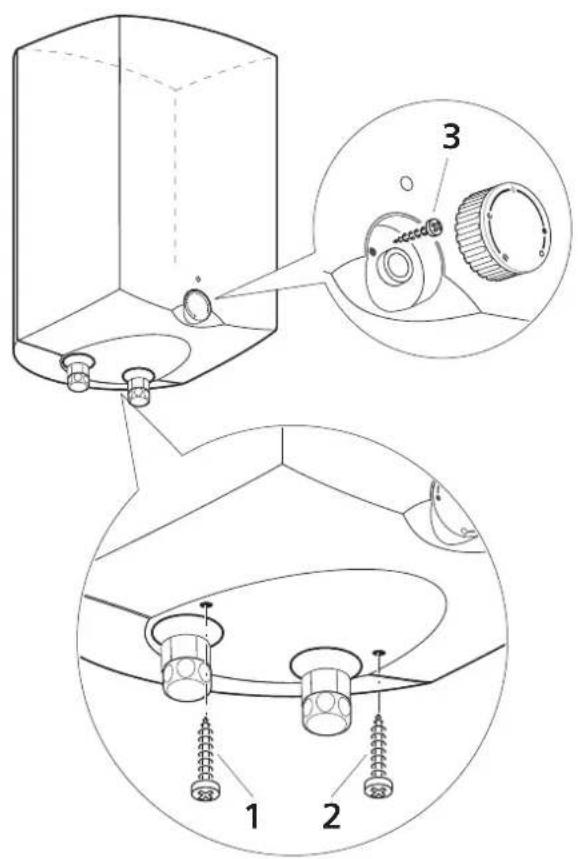

■ Remove screws 1 and 2.

■ Pull off temperature selector switch.

■ Remove screw 3.

■ Lift off the housing cover.

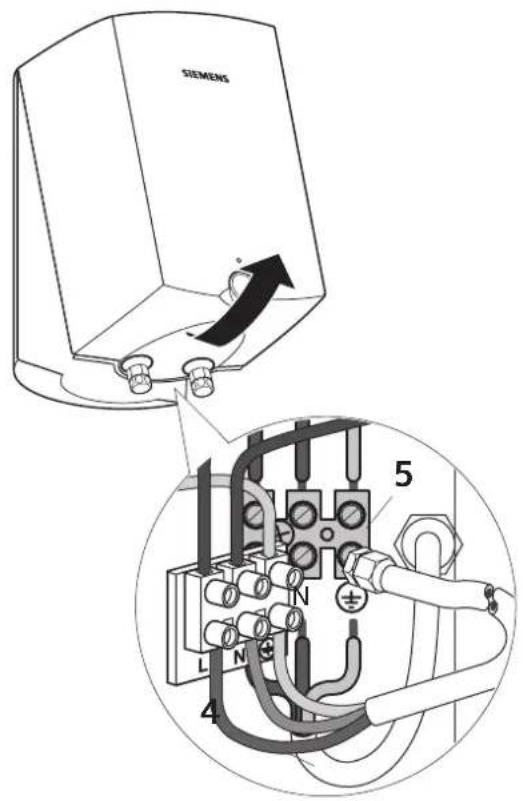

■ Connect electrical cable 4 to terminal 5.

■Replace the housing cover and screw it on.

VII. Limiting the water temperature

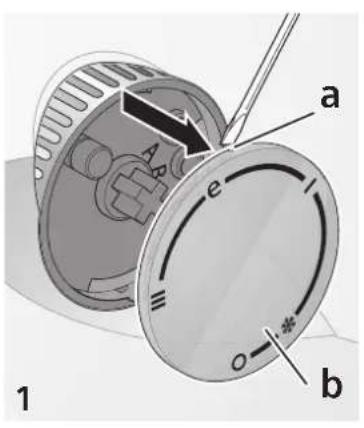

Fig. 1: Insert the screwdriver into gap a and remove cover b.

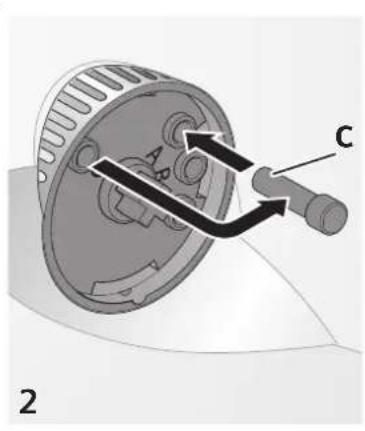

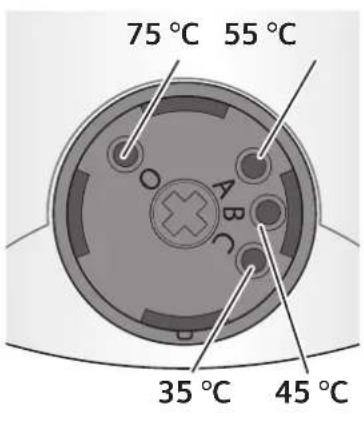

Fig. 2: Insert pin c into one of the 4 holes in order to limit the temperature:

Hole C: ≈ 35 °C

Hole B: ≈ 45 °C

Hole A: ≈ 55 °C

Hole O: ≈ 75 °C

Fig. 3: Replace cover b.

Startup

Attention! Fill the appliance with water before inserting the mains plug or turning on the mains voltage! Otherwise the temperature protection will trip and has to be reset by a trained service professional.

VIII. Flow rate setting DO15652

■ Rinse out the appliance by fully opening the hot water tap.

■ Set the flow rate as per DIN 44531 or according to the specifications of the fittings manufacturer: max. flow rate: 10 l/min, i. e. the water flows out at a rate of 1 litre in 6 seconds.

■ Set the flow rate by turning the screw valve on the upper side of the mixer tap.

First heat-up

■ Turn the temperature selector switch to position "O".

■ Switch on the fuses or insert the plug into the mains socket.

■ Turn the temperature selector switch to position „III“.

■Monitor the heating-up process (see „Technical Data“ for heating times).

Check the temperature.

■ Turn the temperature selector switch to position „e“.

■Hand over the installation and operating instructions to the user and explain how the appliance operates.

■Instruct the user regarding the necessity of regular descaling.

Technical Data

		DG15602DO15652
Capacity	[l] 15.0
Rated output	[kW] 2
Rated voltage	[V] 230
Rated pressurepressure-resistant operation	[MPa (bar)]	0.6 (6)
unpressurised operation	[MPa (bar)]	0 (0)
Weightempty filled	[kg]	11
	[kg]	26
Heat-up timefrom 12 °C to 60 °Cfrom 12 °C to 75 °C	[min]	25
	[min]	75
Energy efficiency class		A
Hot water heating energy efficiency	[%]	36.1
Load profile		XXS
Annual energy consumption	[kWh]	510
Daily energy consumption	[kWh]	2.391
Sound power level	[dB]	15

Operating instructions

Please read and observe the detailed safety instructions at the start of these instructions!

■ Important: The appliance may never be exposed to frost!

Risk of electric shock!

If an fault occurs, immediately disconnect the plug from the power supply or turn off the mains voltage!

- Immediately shut off the cold water supply to the appliance should it leak.

For reasons of safety the appliance must be checked thoroughly by an engineer every 2 years!

Getting to know your appliance

With this small water heater, you can heat up and store water up to 75 °C to meet your requirements. On request, the temperature can be limited to approx. 55 °C by a specialist. You can also obtain cold water from the mixer tap at any time.

The appliance can be used to supply one (open circuit operation) or more (closed circuit operation) taps.

1.

Operating elements

1 Housing
2 Temperature selector switch
3 Cold water supply
4 Hand shower
7 Mixer tap
8 Hot water outlet

Operating the appliance

Open circuit operation (unpressurised): Always keep the spout free. Do not use perlators.

Water drips out of the spout during heating.

Closed circuit operation (pressure-resistant): Water drips out of the safety valve overflow during heating.

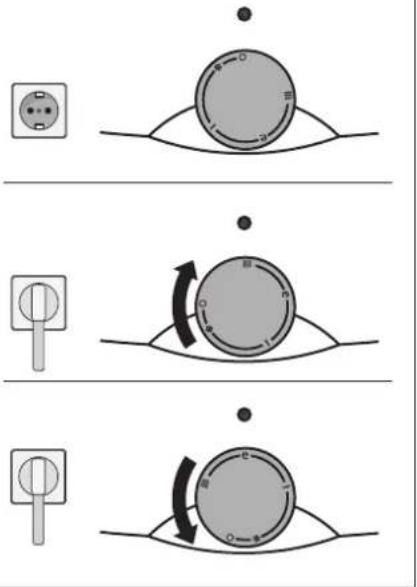

■Switch on the heater with the temperature selector switch.
The hot water temperature can be limited between position O and position III (see „Limiting the water temperature“, page 12).
■ Turn the temperature selector switch to position "O" to stop the heater.

Setting the water temperature

0 Off

* In this position the appliance is additionally protected against frost damage.
I Recommended setting for optimum energy saving ( ≈ 35 ^ C)
e Setting for the average hot-water requirement, e. g. for washing dishes (at ≈ 55 °C)
III Setting for hot water and greater warm water requirement, e. g. for cleaning ( ≈ 75 ^ C)

The specified temperatures are average values. They may vary according to local conditions.

Note: Most efficient operation results with the recommended setting I ( ≈ 35^ ). In setting e there is no longer any growth of legionnaire's disease bacteria. Legionnaire's disease bacteria are killed in setting III.

Cleaning

■Simply wipe the appliance and mixer tap with a damp cloth. Do not use acidic or abrasive cleaning materials.

Maintenance for the customer

If required, unscrew the shower head or outlet pipe and descale with a commercially available descaler or household vinegar.
■ Only pressure-resistant operation: The safety valve must be operated regularly to verify its function and to descale the valve.
When the water flows out of the hot water tap much more slowly with the tap fully open, this is an indication that the appliance requires dechalking. Call a specialist immediately otherwise the water heater could be subjected to high pressures.

Decalcifying, internal cleaning and repairs to the appliance may only be performed by one of our authorised customer service representatives.

A fault, what to do?

Attention!

Repairs must only be carried out by an authorised technician. Improper repairs can lead to risk of serious injury to the user.

If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.

The electrical mains supply and the water supply must be shut off before all work on the appliance.

Fault Cause Solution Who
The appliance does not start (heat), only cold water flows.	The fuse in the house electrical installation has tripped/blown.	Check the fuse in the house electrical installation.	Customer
	The mains plug is not inserted.	Insert the plug into the mains socket.	Customer
	The safety temperature limitation has tripped.	Unplug the mains plug or turn off the mains voltage, open the warm water tap and allow approx. 4 litres of water to flow. Insert the plug into the mains socket or turn on the mains voltage.	Customer
Too low a water flow or no water flow	The filter in the tap is clogged.	Remove the filter and either clean it or descale it.	Customer
	The water outlet or the tap is clogged by limescale.	Descale or install a new fitting. Servicing expert	expert
The warm water connection	nozzle is clogged.	Clean the warm water connection nozzle and exchange the water connection if necessary.	Servicing expert

If the fault could not be eliminated, please call customer service.

Customer Service

We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer. You will find the numbers on the type plate affixed on the water heater.

Disposal

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased, or directly from our representative in the country. Furthermore, the guarantee conditions can also be found on the Internet at the website address stated. The bill of sale or receipt must be produced when making any claims under the terms of this guarantee.

Kundendienst – Customer Service

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bg

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/hr

LU Luxembourg

www.siemens-home.com/lu

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:[e-mail]

MK Macedonia, Makedonija

GORENEC

Jane Sandanski 69 lok. 3

1000 Skopje

Tel.: [phone]

Mobil:070 697 463

mailto:[e-mail]

PH Philippines

Häfele Philippines, Incorporated

Levi Mariano Avenue, Brgy. Ususan,

Taguig City 1632

Metro Manila

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

2034/11-15 Ital Thai Building,

1st Floor, New Petchburi Road

Bangkapi, Huaykwang,

Bangkok, 10310

Tel.: [phone]

Fax: [phone]

Service Call Center

Tel.: [phone]

Spareparts

Tel.: [phone]

www.siemens-home.com/th

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A. S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/tr
