C61R2AAST - Cooker SAMSUNG - Free user manual and instructions

Product Type	Built-in ceramic glass hob
Brand	Samsung
Model	C61R2AAST
Appliance Dimensions (W x D x H)	575 mm x 505 mm x 55 mm

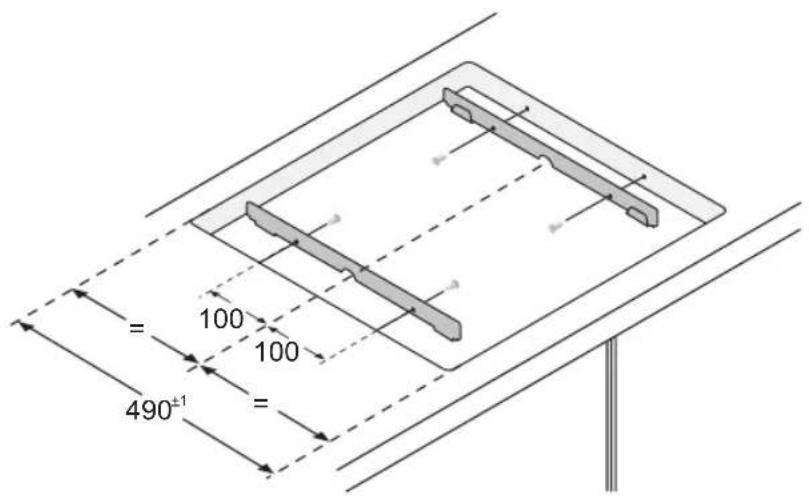

Worktop Cut-out Dimensions (W x D)	560 mm x 490 mm, corner radius 3 mm
Net Weight	7.5 kg
Gross Weight	10.0 kg
Power Supply	230 V ~ 50 Hz
Maximum Connected Load	6.0 kW

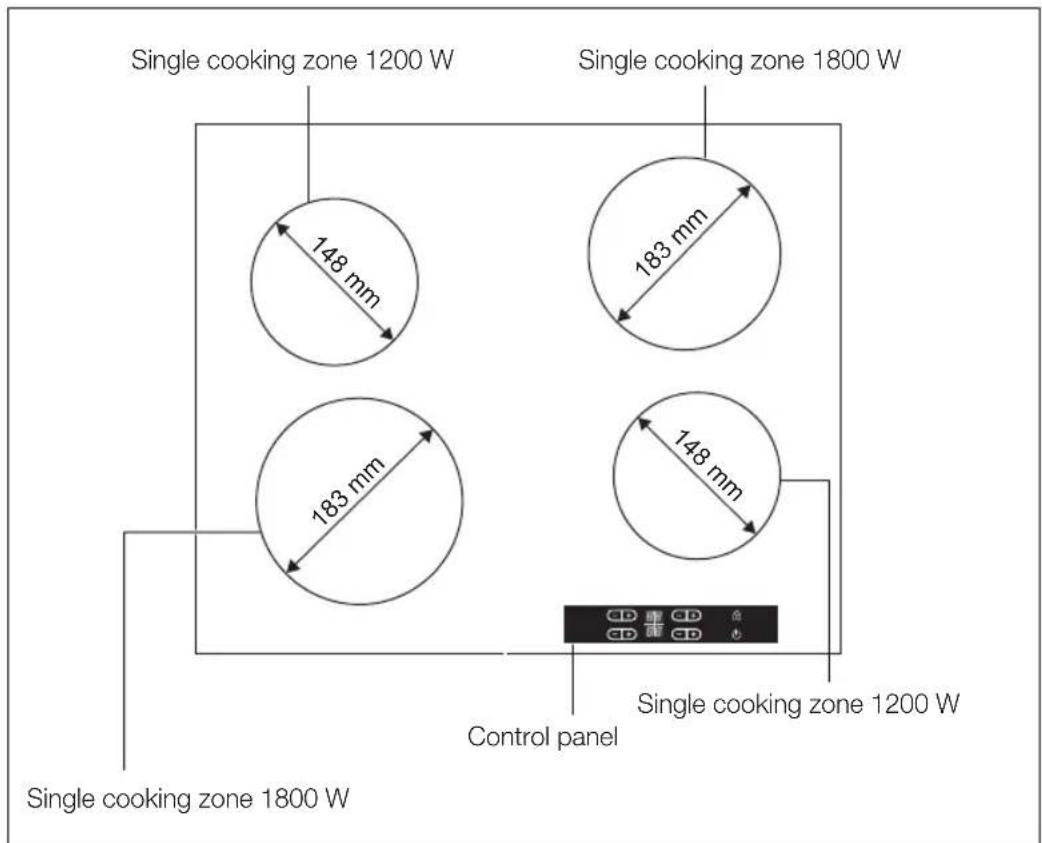

Number of Cooking Zones	4 radiant zones
Cooking Zones (Front Left)	183 mm Ø, 1800 W
Cooking Zones (Rear Left)	148 mm Ø, 1200 W
Cooking Zones (Rear Right)	183 mm Ø, 1800 W
Cooking Zones (Front Right)	148 mm Ø, 1200 W
Control Type	Touch control sensors
Safety Features	Child safety lock, safety shutoff, residual heat indicator
Cleaning	Smooth ceramic glass surface, easy to clean with damp cloth and ceramic cleaner
Included Accessories	Installation brackets, screws
Energy Consumption (Hob)	198.3 Wh/kg (ECelectric hob)

Frequently Asked Questions - C61R2AAST SAMSUNG

How do I switch on the hob?

First unlock the child lock by touching the Lock sensor for approximately 3 seconds. Then touch the On/Off sensor. Within 10 seconds, select a heat setting for a cooking zone.

How do I activate the child safety lock?

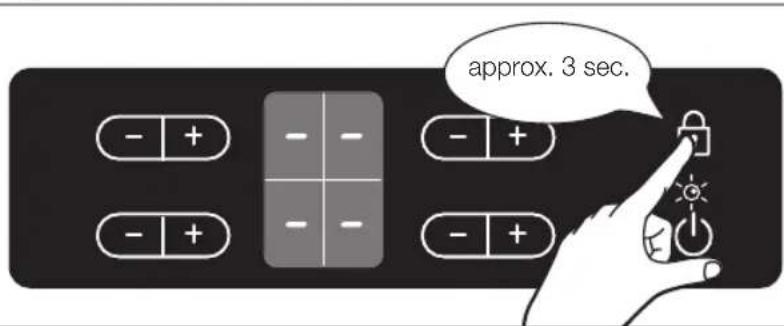

With the hob on, touch the Lock sensor for approximately 3 seconds. An acoustic signal sounds. Then touch any heat setting control sensor; L will appear in the displays.

What does the residual heat indicator mean?

After a cooking zone is turned off, an H appears in the digital display if the zone is still hot. The indicator disappears only after the zone cools. Beware of burns even if the indicator is off.

What kind of cookware should I use?

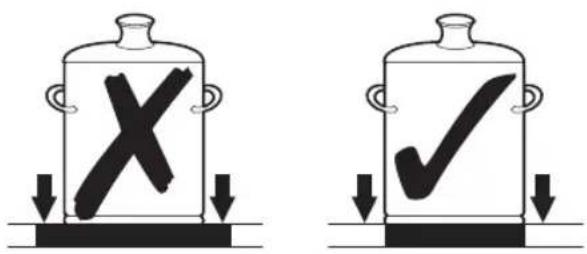

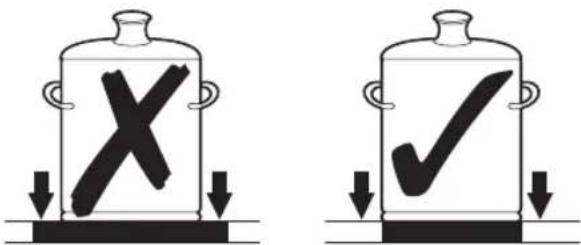

Use pans with thick, flat bases that are the same size as the cooking zone. Avoid pans with rough edges or cast iron that can scratch the surface. Always place pans before switching on the zone.

How do I clean the ceramic glass surface?

Wipe with a damp cloth after each use while still warm. For stubborn soiling, use a glass scraper at an angle. For weekly cleaning, use a ceramic glass cleaner. Do not use abrasive cleaners or sharp scrapers.

Why does the display show '58'?

This indicates that a sensor has been touched for more than 10 seconds. To reset, press the On/Off sensor.

What should I do if a cooking zone does not heat up?

Check if the hob is switched on, the cooking zone is selected, and the fuse is intact. Also ensure that more than 10 seconds have not elapsed after switching on. If the problem persists, contact service.

How can I save energy while cooking?

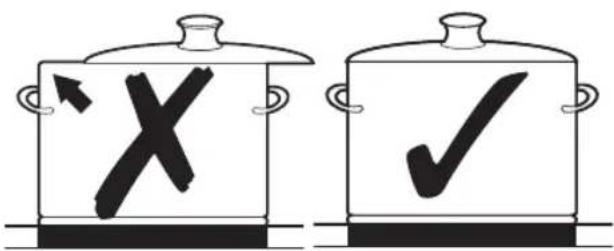

Always cover pans with lids, use the correct pan size, switch off zones before the end of cooking to use residual heat, and keep cooking zones and pan bases clean.

Can I use aluminium foil on the hob?

No. Do not heat aluminium foil, products wrapped in foil, or frozen foods in aluminium containers on the hob. It can damage the glass surface.

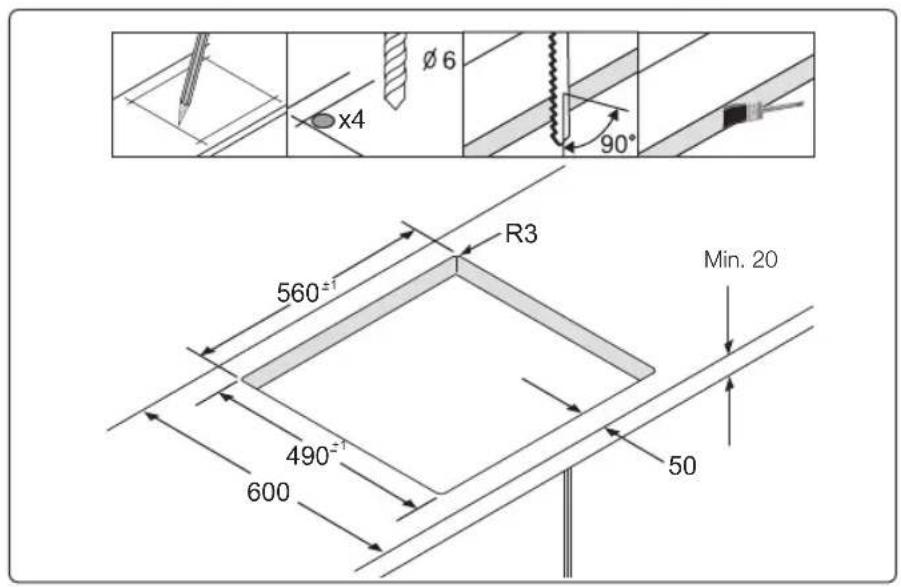

What are the dimensions for the worktop cut-out?

The cut-out should be 560 mm wide and 490 mm deep with a corner radius of 3 mm. Minimum clearance from the wall is 50 mm.

USER MANUAL C61R2AAST SAMSUNG

Isometric view of a rectangular electronic component or tray (no text or symbols)

Technical line drawing of two parallel metal bracket components (no text or symbols)

Simple line drawing of a folded paper or sheet with three evenly spaced screw holes (no text or symbols)

3 Винтове

BG

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Правилно!

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Simple line drawing of a cooking pot with a 'X' symbol crossed out, placed on a surface (no text or symbols)

Неправилно!

Управление на температурата

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Illustration of a hand using a power tool to clean or brush a white substance (no text or symbols visible)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Рамка на плочата

Isometric view of a square electronic component or panel with no text or symbols

1 Staklokeramička ploča za kuhanje

Technical line drawing of two parallel metal profiles with slots and mounting holes (no text or symbols)

2 Držači za postavljanje

Simple line drawing of a folded paper with three evenly spaced pins (no text or symbols)

3 Vijci

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Ispravno!

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Pogrešno!

Korištenje ploče za kuhanje (nastavak)

• Posude i lonce uvijek stavite na zonu za kuhanje prije nego što je uključite.
• Prljave zone za kuhanje i prljave posude povećavaju potrošnju energije.
• Kad je to moguće, čvrsto i u potpunosti poklopite posude i lonce.
• Isključite zone za kuhanje prije kraja vremena za kuhanje kako biste preostalu toplinu iskoristili za otapanje hrane ili održavanje hrane toplom.
• Dno posude za kuhanje trebalo bi biti iste veličine kao i zona za kuhanje.
• Korištenje ekspres lonca smanjuje vrijeme kuhanja do 50 %.

Korištenje senzorskog upravljanja na dodir

Kako biste koristili senzorsko upravljanje na dodir, željenu ploču dotaknite vrhom kažiprsta dok zaslon ne zasvijetli ili se ne ugasi ili dok se ne aktivira željena funkcija.

Prilikom rada s uređajem dodirujte samo jednu ploču odjednom. Ako je vaš prst na ploču položen previše ravno, mogao bi se aktivirati i susjedni senzor.

Korištenje ploče za kuhanje (nastavak)

HR

Upravljanje temperaturom

Kako biste postavili i podesili razinu snage za kuhanje (do) glodirnite gumbe za odgovarajuće zone za kuhanje (+, -).

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Korištenje ploče za kuhanje (nastavak)

HR

Illustration of a hand using a power tool to clean or smoke from a pipe (no text or symbols)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Okvir ploče za kuhanje

Važno: Ne stavljajte ocat, sok od limuna ili sredstva za uklanjanje kamenca na okvir ploče za kuhanje; mogu se pojaviti mat mrlje.

1. Okvir brišite vlažnom krpom.

2. Sasušenu nečistoću omekšajte vlažnom krpom. Obrišite i obrišite nasuho.

Maksimalna snaga spajanja 6,0 kW

Težina: Neto 7,5 kg

Bruto 10,0 kg

Isometric view of a rectangular electronic component or panel with no visible text or symbols

1 Керамичко-стаклена плотна

Technical line drawing of two parallel metal bracket components (no text or symbols)

Simple line drawing of a folded paper or sheet with three evenly spaced screw holes (no text or symbols)

3 Завртки

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Правилно!

Simple line drawing of a cooking pot with a crossed X mark, no text or symbols present

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Неправилно!

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Illustration of a hand using a power tool to clean or brush a white substance (no text or symbols)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Рамка на плотната

Isometric view of a square electronic component or panel with no visible text or symbols

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

2 Suporturi de instalare

Simple line drawing of a folded paper or sheet with three screw-like pins (no text or symbols)

3 Suuburi

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Corect!

Simple line drawing of a cooking pot with a crossed X mark, no text or symbols present

Simple line drawing of a cooking pot with a 'X' symbol crossed out, no text or symbols present.

Greşit!

Utilizarea plitei (continuare)

Utilizarea butoanelor tactile

Utilizarea plitei (continuare)

RO

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Utilizarea plitei (continuare)

RO

Illustration of a hand using a power tool to clean or brush a white substance (no text or symbols visible)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Rama plitei

Putere maximă 6,0 kW

Greutate: Netă

Brută

7,5 kg

10,0 kg

Date tehnice (Continuare)

Line drawing of an open book or tablet with a cable inserted, placed on a stand (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction (no text or symbols present)

Isometric diagram of a square plate mounted on a base with two diagonal lines and directional arrows indicating forces or movement (no text or symbols)

Isometric view of a rectangular electronic component or panel with no visible text or symbols

Technical line drawing of two parallel metal bracket components (no text or symbols)

2 kllapa instalimi

Simple line drawing of a folded paper or sheet with three evenly spaced screw holes (no text or symbols)

3 vida

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

E drejtë!

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

E gabuar!

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Illustration of a hand using a pliers to clean or absorb smoke from a curved pipe (no text or symbols)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

L: Braon
N: Plava
PE: Zelena

Upozorenje: Obratite pažnju (saglasnost) na fazu i nulu za povezivanje kućišta i uređaja (šeme povezivanja); u suprotnom, komponente se mogu oštetiti.

Garancija ne pokriva oštećenja izazvana nepravilnom instalacijom.

Isometric view of a square electronic component or panel with no visible text or symbols

1 Keramičko staklena grejna ploča

Technical line drawing of two parallel metal profiles with mounting holes (no text or symbols)

2 Držači za instalaciju

Simple line drawing of a folded paper with three evenly spaced screw holes (no text or symbols)

3 Šrafovi

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Ispravno!

Simple line drawing of a cooking pot with a crossed X mark, no text or symbols present

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Pogrešno!

Korišćenje senzora kontrola koji se aktiviraju dodirom

Da biste koristili senzore kontrola koji se aktiviraju na dodir, pritisnite prstom i držite željenu tablu dok se odgovarajući displej ne uključi ili isključi, odnosno dok ne aktivirate željenu funkciju.

Illustration of a hand interacting with a control panel and battery icons (no text or symbols)

Kontrola temperature

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Illustration of a hand using a power tool to clean or absorb a surface (no text or symbols visible)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Okvir grejne ploče

Line drawing of an open book or tablet stand with a cable inserted, placed on a table (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction (no text or symbols present)

Isometric diagram of a square plate mounted on a base with two diagonal lines and directional arrows indicating forces or movement (no text or symbols)

Deli in funkcije

SL

Isometric view of a rectangular electronic component or panel with no visible text or symbols

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

Simple line drawing of a folded paper or sheet with three evenly spaced screw holes (no text or symbols)

3 Vijaki.

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Pravilno!

Simple line drawing of a cooking pot with a crossed X mark, no text or symbols present

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Narobe!

Uravnavanje temperature

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Illustration of a hand using a power tool to clean or brush the brush (no text or symbols visible)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Isometric view of a square electronic component or panel with no visible text or symbols

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

Simple line drawing of a folded paper with three evenly spaced screw holes (no text or symbols)

3 Šrouby

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Správně!

Simple line drawing of a cooking pot with a crossed X symbol inside, no text or symbols present

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Špatně!

Regulace teploty

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Illustration of a hand using a power tool to clean or smoke from a pipe (no text or symbols)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Rám sporáku

Isometric view of a square electronic component or panel with no text or symbols

1 Kerámia főzőlap

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

2 Szerelőkengyelek

Simple line drawing of a folded paper or sheet with three evenly spaced screw holes (no text or symbols)

3 Csavarok

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Helyes!

Simple line drawing of a cooking pot with a crossed X symbol inside, no text or symbols present.

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Helynerg!

Hand pointing at a control panel with battery and lock icons (no text or symbols)

Illustration of a hand using a pliers to clean or absorb a substance from a curved pipe (no text or symbols)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Főzőlap szegélye

	Rated current of appliance (A) Nominal cross-sectional area (mm ^2 )
1N~	>25 a ≤ 32 ≥ 2.5
2N~ > 1	0 a ≤ 16 ≥ 1.5

Isometric view of a rectangular electronic component or panel with no visible text or symbols

Technical line drawing of two parallel metal profiles with mounting holes (no text or symbols)

2 Inštalačné svorky

Simple line drawing of a folded paper with three evenly spaced screw holes (no text or symbols)

3 Skrutky

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Správne!

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Nesprávne!

Illustration of a hand interacting with a touchscreen display showing battery and lock icons (no text or symbols)

Nastavenie teploty

Hand interacting with a control panel displaying multiple buttons and icons (no text or symbols)

Illustration of a hand using a power tool to clean or brush the brush (no text or symbols visible)

Abstract diagram with concentric curved lines and scattered gray shapes, no text or symbols present

Rám varnej dosky

Ceramic Glass Hob user manual

ENGLISH

imagine the possibilities

Thank you for purchasing this Samsung product.

SAMSUNG

EN

Contents

Using This Manual 3

Safety Instructions 4

Disposal Instructions 9

Installing the Hob 10

Safety instructions for the installer 10

Connecting to the mains power supply 11

Installing into the countertop. 12

Parts and Features .... 14

Cooking zones and control panel....14

Components 15

The key features of your appliance....16

Safety shutoff....17

Residual heat indicator....17

Before You Begin 18

Initial cleaning....18

Hob Use....18

Using suitable cookware 18

Using the touch control sensors....19

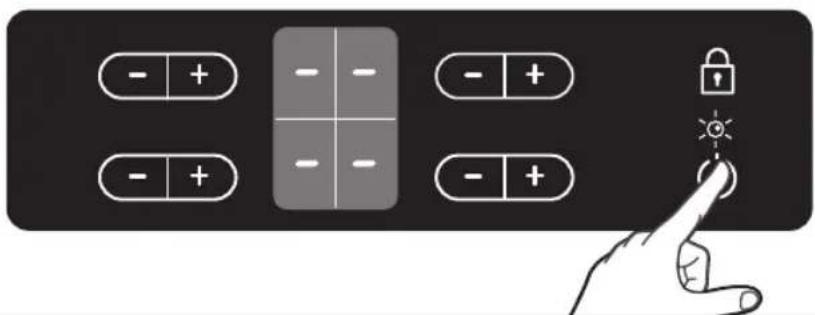

Switching the appliance on 20

Temperature control 20

Switching the appliance off. 21

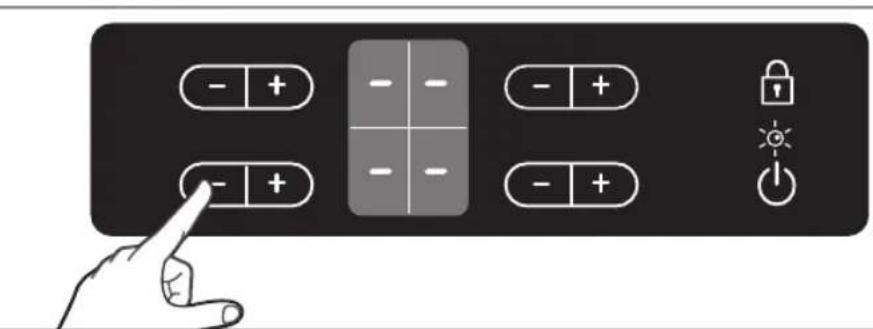

Switching a cooking zone off 21

Using the child safety lock 22

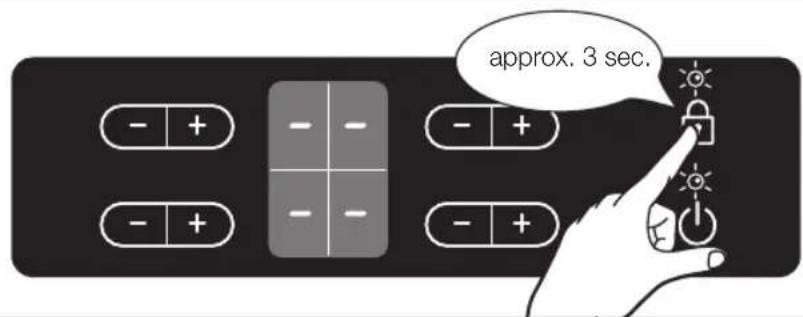

Locking and unlocking the control panel. 23

Suggested settings for cooking specific foods 23

Cleaning and Care 24

Hob 24

Hob frame 25

To avoid damaging your appliance 25

Warranty and Service 26

FAQs and troubleshooting 26

Service....27

Technical Data 28

Product Information 29

Appendix 30

Model name & serial number 30

Using This Manual

Please take the time to read this owner's manual, paying particular attention to the safety information contained in the following section, before using your appliance. Keep this manual for future reference. If transferring ownership of the appliance, please remember to pass the manual on to the new owner.

ImpoRTAnT SAfeTy SymbolS And pReCAuTlonS

The following symbols are used in the text of this Owner's Manual :

WARNING	Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION	Hazards or unsafe practices that may result in minor personal injury or property damage.
CAUTION	To reduce the risk of fire, explosion, electric shock, or personal injury when using your hob, follow these basic safety precaution

	Do NOT attempt.
	Do NOT disassemble.
	Do NOT touch.
	Follow directions explicitly.
	Unplug the power plug from the wall socket.
	Make sure the machine is grounded to prevent electric shock.
	Call the service center for help.
	Note
	Important

Safety Instructions

EN

The safety aspects of this appliance comply with all accepted technical and safety standards. However, as manufacturers we also believe it is our responsibility to familiarize you with the following safety instructions.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is defective, it must be replaced by a special cord or assembly available from the manufacturer or an authorised service agent. (Fixed wiring type model only)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (power cord type model only)

★ Appliance should allow the disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the hob.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

Safety Instructions (Continued)

A steam cleaner is not to be used to clean the product.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the hob glass since they can scratch the surface, which may result in shattering of the glass.
☐ Appliance is not intended to be operated by means of an external timer or separate remote-control system.
WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements inside the hob.
Children less than 8 years of age shall be kept away unless continuously supervised.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
The temperature of accessible surfaces may be high when the appliance is operating.

Safety Instructions (Continued)

EN

Keep the appliance and its cord out of reach of children less than 8 years.

CAUTION

Be sure the appliance is properly installed and grounded by a qualified technician.
The appliance should be serviced only by qualified service personnel. Repairs carried out by unqualified individuals may cause injury or serious malfunction. If your appliance is in need of repair, contact your local service centre. Failure to follow these instructions may result in damage and void the warranty.
Flush - mounted appliances may be operated only after they have been installed in cabinets and workplaces that conform to the relevant standards. This ensures sufficient protection against contact for electrical units as required by the essential safety standards.
If your appliance malfunctions or if fractures, cracks or splits appear:

- switch off all cooking zones;

- disconnect the hob from the mains supply; and

- contact your local service centre.

If the cooktop cracks, turn the appliance off to avoid the possibility of electric shock. Do not use your hob until the glass surface has been replaced.
☐ Do not use the hob to heat aluminium foil, products wrapped in aluminium foil or frozen foods packaged in aluminium cookware.
Liquid between the bottom of the pan and the hob can produce steam pressure. Which may cause the pan to jump.

Always ensure that the hotplate and the base of the pan are kept dry.

Safety Instructions (Continued)

The cooking zones will become hot when you cook. Always keep small children away from the appliance.
Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
This appliance is to be used only for normal cooking and frying in the home. It is not designed for commercial or industrial use.
☐ Never use the hob for heating the room.
Take care when plugging electrical appliances into mains sockets near the hob. Mains leads must not come into contact with the cooktop.
☐ Overheated fat and oil can catch fire quickly. Never leave surface units unattended when preparing foods in fat or oil, for example, when cooking chips.
Turn the cooking zones off after use.
Always keep the control panels clean and dry.
☐ Never place combustible items on the hob, it may cause fire.
There is the risk of burns from the appliance if used carelessly.
Cables from electrical appliances must not touch the hot surface of the hob or hot cookware.
Do not use the hob to dry clothes.
WARNING: Users with Pacemakers and Active Heart Implants must keep their upper body at a minimum distance of 30 cm from induction cooking zones when turned on. If in doubt, you should consult the manufacturer of your device or your doctor. (Induction hob model only)

Safety Instructions (Continued)

EN

Do not attempt to repair, disassemble, or modify the appliance yourself.
★ Always turn the appliance off before cleaning.
★ Clean the hob in accordance with the cleaning and care instructions contained in this manual.

Disposal Instructions

dISpoSIng of The pACkAgIng mATeRIAl

All materials used to package the appliance are fully recyclable. Sheet and hard foam parts are appropriately marked. Please dispose of packaging materials and old appliances with due regard to safety and the environment.

pRopeR dISpoSAI of youR old ApplIAnCe

WARNING: Before disposing of your old appliance, make it inoperable so that it cannot be a source of danger.

To do this, have a qualified technician disconnect the appliance from the mains supply and remove the mains lead.

The appliance may not be disposed of in the household rubbish.

Information about collection dates and public refuse disposal sites is available from your local refuse department or council.

CoRReCT dISpoSAI of ThIS pRoduCT (WASTe eleCTRICAL & eleCTRonIC eQuIpmenT)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporate citizenship/data_corner.html

Installing the Hob

EN

Important: Be sure the new appliance is installed and grounded only by qualified personnel. Please observe this instruction. The warranty will not cover any damage that may occur as a result of improper installation. Technical data is provided at the end of this manual.

Safety instructions for the installer

• A device must be provided in the electrical installation that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm. Suitable isolation devices include line protecting cut - outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.
• With respect to fire protection, this appliance corresponds to EN 60335 - 2 - 6. This type of appliance may be installed with a high cupboard or wall on one side.
• Drawers may not be fitted underneath the hob.
• The installation must guarantee shock protection.
• The kitchen unit in which the appliance is fitted must satisfy the stability requirements of DIN 68930.
• For protection against moisture, all cut surfaces are to be sealed with a suitable sealant.
• On tiled work surfaces, the joints in the area where the hob sits must be completely filled with grout.
• On natural, artificial stone, or ceramic tops, the snap action springs must be bonded in place with a suitable artificial resin or mixed adhesive.
• Ensure that the seal is correctly seated against the work surface without any gaps. Additional silicon sealant must not be applied; this would make removal more difficult when servicing.
• The hob must be pressed out from below when removed.

Installing the Hob (Continued)

Connecting to the mains power supply

Before connecting, check that the nominal voltage of the appliance, that is, the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob.

Shut off power to circuit before connecting wires to circuit.

The heating element voltage is AC 230 V\~. The appliance also works perfectly on older networks with AC 220 V\~.

The hob is to be connected to the mains using a device that allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm, eg. automatic line protecting cut - out, earth leakage trips or fuse.

A type H05SS - F (180 °C) cable or one of a higher grade must be used as the mains connecting cable.

	Rated current of appliance (A) Nominal cross-sectional area (mm ^2 )
1N~	>25 and ≤32 ≥2.5
2N~ > 1	0 and ≤16 ≥1.5

The connection must be carried out as shown in the diagram. The connecting links should be fitted according to the appropriate connection diagram.

The earth lead is connected to terminal. The earth lead must be longer than leads carrying electric current.

The cable connections must be made in accordance with regulations and the terminal screws tightened securely.

The connecting cable is to be secured with the mains cable cleat and the covering closed by pressing firmly (locking into place). Before switching on for the first time, any protective foil or stickers must be removed from the ceramic glass surface.

The hob is connected to the mains supply, check that all cooking zones are ready for use by briefly switching each on in turn at the maximum setting.

the hob is powered on for the first time, all displays light and the child safety lock is activated.

1N ~
2N ~

L: Brown

N: Blue

PE: Green

Warning: Pay attention (conformity) to phase and neutral allocation of house connection and appliance (connection schemes); otherwise, components can be damaged.

Warranty does not cover damage resulting from improper installation.

Installing the Hob (Continued)

EN

Installing into the countertop

Make a note of the serial number on the appliance rating plate prior to installation. This number will be required in the case of requests for service and is no longer accessible after installation, as it is on the original rating plate on the underside of the appliance.

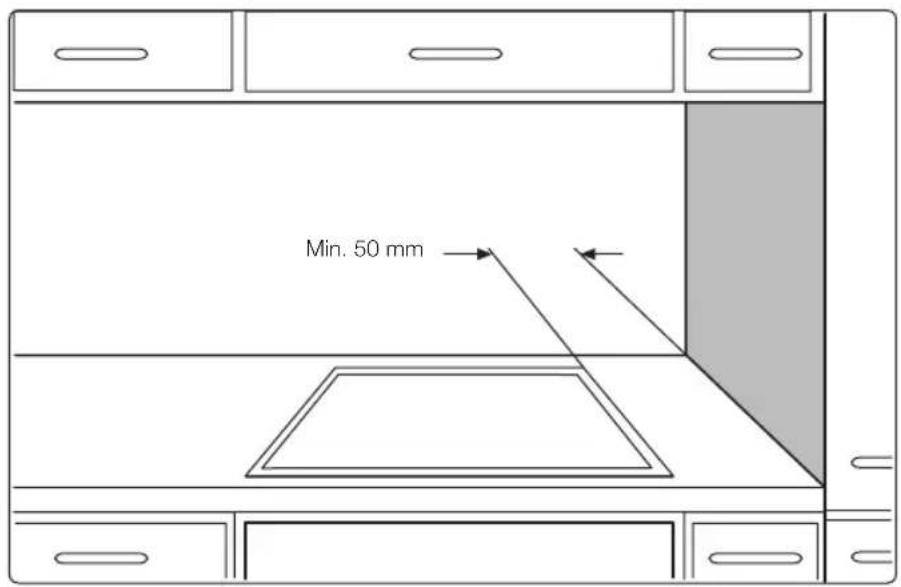

Pay special attention to the minimum space and clearance requirements.

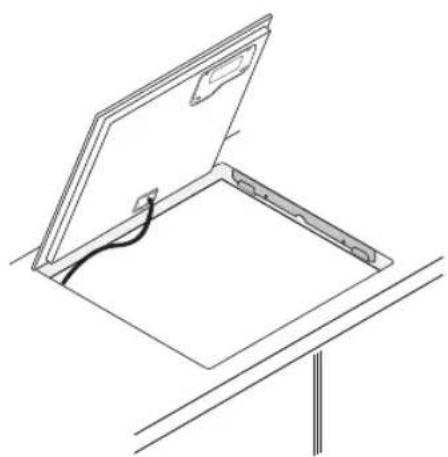

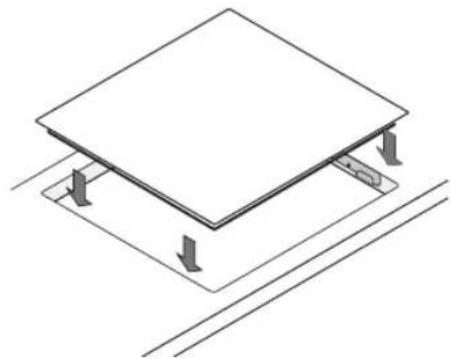

Secure the brackets at both sides with the provided screws before mounting the hob onto the brackets.

Installing the Hob (Continued)

Diagram showing a mechanical component with an arrow indicating direction (no text or symbols present)

Line drawing of an open book or tablet with a cable inserted, placed on a stand (no text or symbols)

Isometric diagram of a square plate mounted on a base with two diagonal lines and directional arrows indicating forces or movement (no text or symbols)

Parts and Features

EN

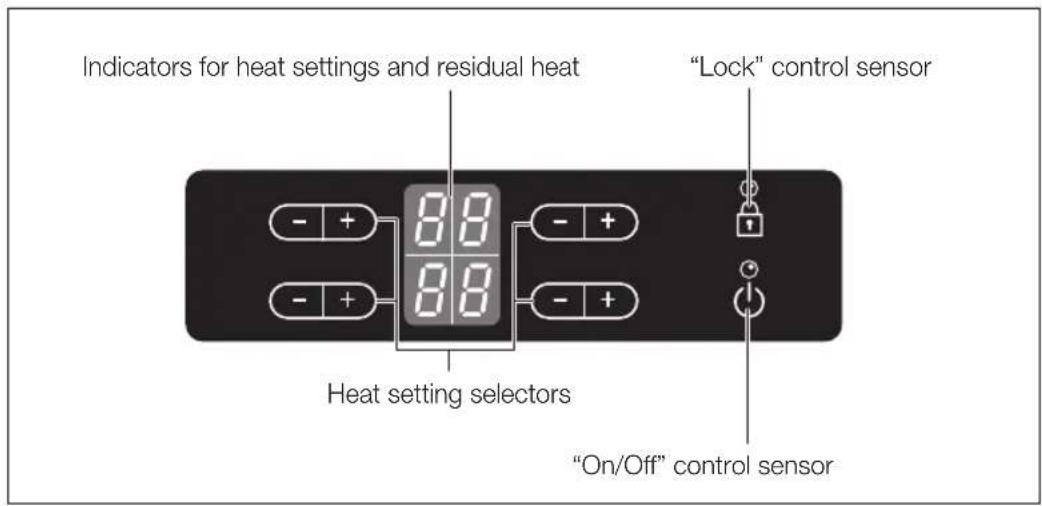

Cooking zones and control panel

Parts and Features (Continued)

Components

Isometric view of a rectangular electronic component or panel with no visible text or symbols

1 Ceramic Glass Hob

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

2 Installation Brackets

Simple line drawing of a folded paper or sheet with three evenly spaced screw holes (no text or symbols)

3 Screws

Parts and Features (Continued)

EN

The key features of your appliance

• Ceramic glass cooking surface: The appliance has a ceramic glass cooking surface and four rapid - response cooking zones. The hob's powerful radiant heater elements significantly shorten the amount of time required for the zones to heat up.
• Touch control sensors: Your appliance is operated using touch control sensors.
• Easy cleaning: The advantage of the ceramic glass cooking surface and the control sensors is their accessibility for cleaning. The smooth, flat surface is easy to clean.
• On/Off sensor: The “On/Off” control sensor provides the appliance with a separate mains switch. Touching this sensor switches the power supply on or off completely.
• Control and function indicators: Digital displays and indicator lights provide information about settings and activated functions, as well as the presence of residual heat in the various cooking zones.
• Safety shutoff: A safety shutoff ensures that all cooking zones switch off automatically after a period of time if the setting has not been changed.
• Residual heat indicator: An icon for residual heat appears in the display if the cooking zone is so hot that there is a risk of burning.

Digital displays: The four display fields are assigned to the four cooking zones.

They show the following information:

• the appliance has been switched on,
• 1 to 9 selected heat settings,
• H residual heat,
• the child lock is activated; and
• 58 error message, the sensor has been touched for longer than 10 seconds.
• 0.5 error message, when the Hob is overheated because of abnormal operation.

Parts and Features (Continued)

Safety shutoff

If one of the cooking zones is not switched off or the heat setting is not adjusted after an extended period of time, that particular cooking zone will automatically switch itself off.

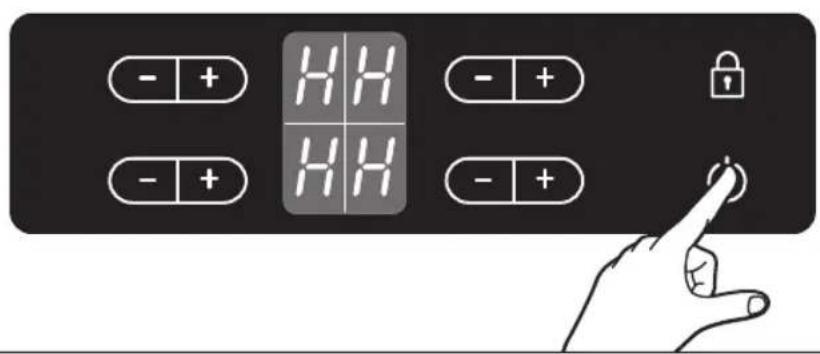

Any residual warmth will be indicated with H (for "hot") in the digital displays corresponding to the particular cooking zones.

The cooking zones switch themselves off at the following times.

Cooking setting 1 - 2 After 6 hours

Cooking setting 3 - 4 After 5 hours

Cooking setting 5 - 6 After 3 hours

Cooking setting 7 - 9 After 1 hour

Hob is overheated because of abnormal operation, And the Hob will be switched off.

will be displayed.

Id one or more of the cooking zones switch off before the indicated time has elapsed, see the section "Troubleshooting".

Other reasons why a cooking zone will switch itself off

All cooking zones will immediately switch themselves off if liquid boils over and lands on the control panel.

The automatic shutoff will also be activated if you place a damp cloth on the control panel. In both of these instances, the appliance will need to be switched on again using the main power sensor after the liquid or the cloth has been removed ⏻.

Residual heat indicator

When an individual cooking zone or the hob is turned off, the presence of residual heat is shown with an H (for "hot") in the digital display of the appropriate cooking zones. Even after the cooking zone has been switched off, the residual heat indicator goes out only after the cooking zone has cooled.

You can use the residual heat for thawing or keeping food warm.

artant: As long as the residual heat indicator is illuminated, there is a risk of burns.

ant: If the power supply is interrupted, the H symbol will go out and information about residual heat will no longer be available. However, it may still be possible to burn yourself. This can be avoided by always taking care when near the hob.

Before You Begin

EN

Initial cleaning

Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass cleaner.

Important: Do not use caustic or abrasive cleaners. The surface could be damaged.

Hob Use

Using suitable cookware

Better pans produce better results.

• You can recognise good pans by their bases. The base should be as thick and flat as possible.
• When buying new pans, pay particular attention to the diameter of the base. Manufacturers often give only the diameter of the upper rim.
• Pots with aluminium or copper bases can cause metallic discolouration on the ceramic glass surface. The discolouration is very difficult or impossible to remove.
• Do not use pans made of cast iron or which have damaged bases with rough edges or burrs. Permanent scratching can occur if these pan are slid across the surface.
• When cold, pan bases are normally bowed slightly inwards (concave). They should never be bowed outwards (convex).
• If you wish to use a special type of pan, for example, a pressure cooker, a simmering pan, or a wok, please observe the manufacturer's instructions.

Energy saving tips

can save valuable energy by observing the following points.

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Right!

Simple line drawing of a cooking pot with a crossed X mark, no text or symbols present

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Wrong!

Hob Use (Continued)

• Always position pots and pans before switching on the cooking zone.
- Dirty cooking zones and pan bases increase power consumption.
- When possible, position the lids firmly on the pots and pans to cover completely.
- Switch the cooking zones off before the end of the cooking time to use the residual heat for keeping foods warm or for thawing.
- The base of the pan should be the same size as the cooking zone.
• Using a pressure cooker reduces cooking times by up to 50 %.

Using the touch control sensors

To operate the touch control sensors, touch the desired panel with the tip of your pointed finger until the relevant displays illuminate or go out, or until the desired function is activated.

Ensure that you are touching only one sensor panel when operating the appliance. If your finger is too flat on the panel, an adjacent sensor may be actuated as well.

Hob Use (Continued)

EN

Switching the appliance on

Touch the "Lock 🔒 sensor for approximately 3 seconds.

The appliance is switched on using the "On/Off ⏻" control sensor.

Touch the "On/Off 🔊 sensor.

The digital displays will show -.

the "On/Off

" sensor has been actuated to switch on your appliance, a heat

setting must be selected within approximately 10 seconds. Otherwise, the appliance will switch itself off for safety reasons.

Temperature control

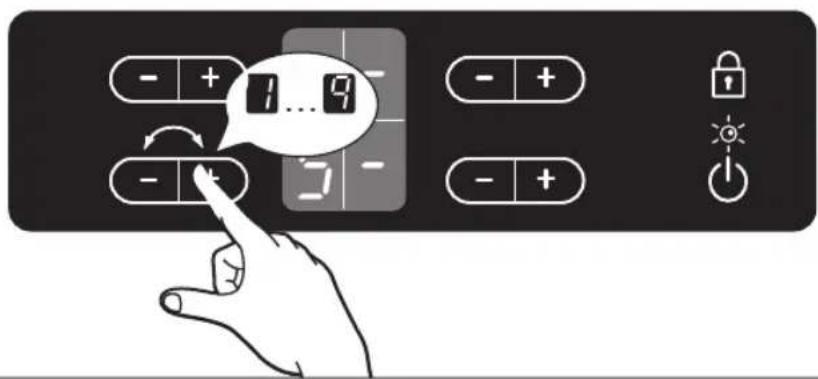

For setting and adjusting the power level (☐) for cooking, touch the corresponding cooking zone's ☐, ☐ keys.

The first time ☐ is pressed, the heat level is set to 5.

The first time ⊕ is pressed, the heat level is set to 5.

Use the ☐ key to increase the heat setting and the ☑ key to decrease.

Hob Use (Continued)

Switching the appliance off

To completely switch off the appliance, use the "On/Off" control sensor. Touch the "On/Off" sensor.

switching off a single cooking zone or the entire cooking surface, the presence of residual heat will be indicated in the digital displays of the corresponding cooking zones in the form of an H (for "hot").

heat setting is at and 9 you want to turn the + burner off, the sensor can be touched one additional time, and the heat setting will go to zero. aster adjustment, keep your finger on the + or - sensor until the required value is obtained. re than one sensor is pressed for longer than 10 seconds, 5 will show in the heat setting display. To reset, touch the "On/Off" sensor.

Switching a cooking zone off

To switch off a cooking zone, return the setting to by using the control panel's heat setting and touch sensors (-) or (+)

Hand pointing at a control panel with battery, grid, and lock icons (no text or symbols)

Hob Use (Continued)

EN

Using the child safety lock

You can use the child safety lock to safeguard against unintentionally turning on a cooking zone and activating the cooking surface. The lock control sensor can be used only when the power is on.

Switching the child safety lock on

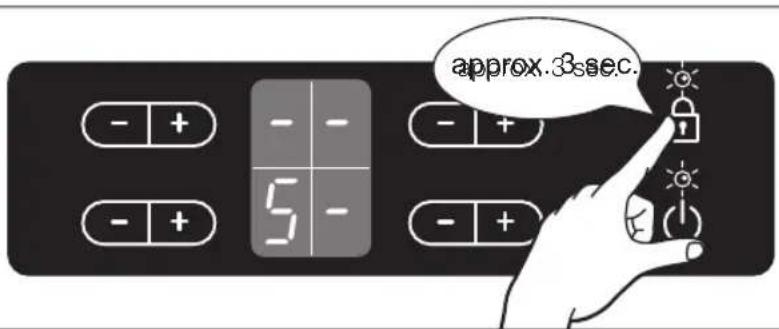

1. Touch the control sensor for approximately 3 seconds.

An acoustic signal will sound as confirmation.

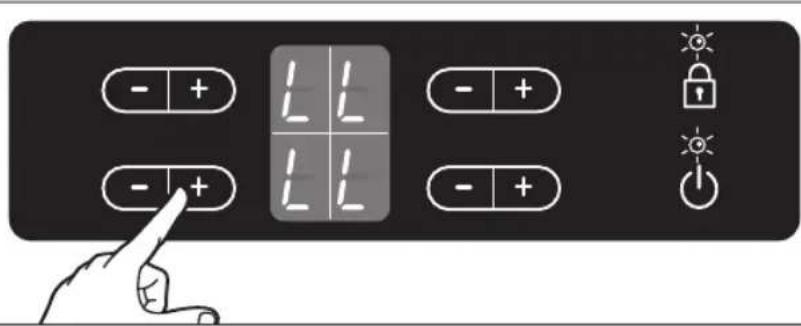

1. Touch any heat setting control sensor.

will appear in the displays, indicating the child safety lock has been activated.

Switching the child safety lock off

1. Touch the control sensor for approximately 3 seconds.

An acoustic signal will sound as confirmation.

switching off the appliance, child safety lock will be activated automatically within some minutes for safety reasons.

Hob Use (Continued)

Locking and unlocking the control panel

At any stage during the cooking process, the control panel, with the exception of the "On/Off" control sensor, can be locked in order to prevent the settings from being changed unintentionally, for example, by wiping over the panel with a cloth.

1. Touch the lock control sensor for approximately 3 seconds.
   The indicator light in the lock control sensor will illuminate. The control sensors are now locked.
2. To unlock the control sensor, touch the lock control sensor again for approximately 3 seconds. The indicator light in the lock control sensor will extinguish.

Suggested settings for cooking specific foods

The figures in the table below are guidelines. The heat settings required for various cooking methods depend on a number of variables, including the quality of the cookware being used and the type and amount of food being cooked.

Switch setting	Cooking method	Examples for use
9	Warming Sautéing Frying	Warming large amounts of liquid, boiling noodles, searing meat, (browning goulash, braising meat)
8	Intensive Frying	Steak, sirloin, hash browns, sausages, pancakes/ griddle cakes
7
6 Frying	Schnitzel/chops, liver, fish, rissoles, fried eggs
5	Boiling	Cooking up to 1.5 l liquid, potatoes, vegetables
4
3 Steaming	Stewing Boiling	Steaming and stewing of small amounts of vegetables, boiling rice and milk dishes
2
1 Melting		Melting butter, dissolving gelatine, melting chocolate

Note

• The heat settings indicated in the table above are provided only as guidelines for your reference.
• You will need to adjust the heat settings according to specific cookware and foods.

Cleaning and Care

EN

Hob

Important: Cleaning agents must not come into contact with a heated ceramic glass surface: All cleaning agents must be removed with adequate amounts of clean water after cleaning because they can have a caustic effect when the surface becomes hot. Do not use any aggressive cleaners such as grill or oven sprays, scouring pads or abrasive pan cleaners.

the ceramic glass surface after each use when it is still warm to the touch. This will prevent spillage from becoming burnt onto the surface. Remove scales, watermarks, fat drippings and metallic discolouration with the use of a commercially available ceramic glass or stainless steel cleaner.

Light Soiling

1. Wipe the ceramic glass surface with a damp cloth.
2. Rub dry with a clean cloth. Remnants of cleaning agent must not be left on the surface.
3. Thoroughly clean the entire ceramic glass cooking surface once a week with a commercially available ceramic glass or stainless steel cleaner.
4. Wipe the ceramic glass surface using adequate amounts of clean water and rub dry with a clean lint - free cloth.

Stubborn Soiling

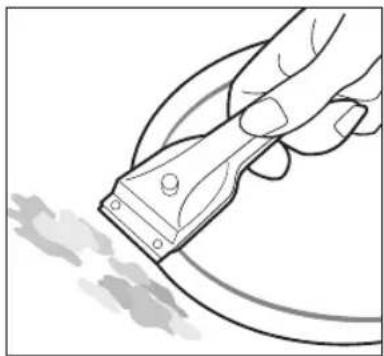

1. To remove food that has boiled over and stubborn splashes, use a glass scraper.
2. Place the glass scraper at an angle to the ceramic glass surface.
3. Remove soiling by scraping with the blade.

scrapers and ceramic glass cleaners are available from specialty retailers.

Illustration of a hand using a power tool to clean or smoke from a pipe (no text or symbols)

Cleaning and Care (Continued)

Problem Dirt

1. Remove burnt-on sugar, melted plastic, aluminium foil or other materials with a glass scraper immediately and while still hot.

Important: There is a risk of burning yourself when the glass scraper is used on a hot cooking zone:

1. Clean the hob as normal when it has cooled down.

cooking zone on which something has melted has been allowed to cool, warm it up again for cleaning. Scratches or dark blemishes on the ceramic glass surface, caused, for example, by a pan with sharp edges, cannot be removed. However, they do not impair the function of the hob.

Abstract diagram with concentric curved lines and scattered gray shapes (no text or symbols)

Hob frame

Important: Do not use vinegar, lemon juice or scale remover on the hob frame; otherwise dull blemishes will appear.

1. Wipe the frame with a damp cloth.

2. Moisten dried debris with a wet cloth. Wipe and rub dry.

To avoid damaging your appliance

• Do not use the cooktop as a work surface or for storage.
• Do not operate a cooking zone if there is no pan on the cooktop or if the pan is empty.
• Ceramic glass is very tough and resistant to temperature shock, but it is not unbreakable. It can be damaged by a particularly sharp or hard object dropping onto the cooktop.
• Do not use pans made of cast iron or which have damaged bases with rough edges or burrs. Scratching may occur if these pans are slid across the surface.
• Do not place pans on the hob frame. Scratching and damage to the finish may occur.
• Avoid spilling acidic liquids, for example, vinegar, lemon juice and descaling agents, onto the hob frame, since such liquids can cause dull spots.
• If sugar or a preparation containing sugar comes into contact with a hot cooking zone and melts, it should be cleaned off immediately with a kitchen scraper while it is still hot. If allowed to cool, it may damage the surface when removed.
• Keep all items and materials that could melt, for example, plastics, aluminium foil and oven foils, away from the ceramic glass surface. If something of this nature melts onto the cooktop, it must be removed immediately with a scraper.

Warranty and Service

EN

FAQs and troubleshooting

A fault may result from a minor error that you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case.

Warning: Repairs to the appliance are to be performed only by a qualified service technician. Improperly effected repairs may result in considerable risk to the user. If your appliance needs repair, please contact your customer service centre.

What should I do if the cooking zones are not functioning?

Check for the following possibilities:

• The fuse in the house wiring (fuse box) is intact. If the fuses trip a number of times, call an authorised electrician.
  • The appliance is properly switched on.
• The control indicators in the control panel are illuminated.
  • The cooking zone is switched on.
• The cooking zones are set at the desired heat settings.

What should I do if the cooking zones will not switch on?

Check for the following possibilities:

• A period of more than 10 seconds has elapsed between when the On/Off button was actuated and the desired cooking zone switches on (see the section "Switching the appliance on").
• The control panel is partially covered by a damp cloth or liquid.

What should I do if the display except for the residual warmth indicator suddenly disappears?

This could be a result of one of two possibilities:

• The On/Off sensor was accidentally actuated.
- The control panel is partially covered by a damp cloth or liquid.

What should I do if, after the cooking zones have been switched off, residual warmth is not indicated in the display?

Check for the following possibility:

- The cooking zone was only briefly used and therefore did not become hot enough. If the cooking zone is hot, please call the customer service centre.

What should I do if the cooking zone will not switch on or off?

This could be due to one of the following possibilities:

• The control panel is partially covered by a damp cloth or liquid.
  • The child safety lock is on.

What should I do if the 58 display is illuminated?

Check for the following:

- The control panel is partially covered by a damp cloth or liquid. To reset, press the "On/Off" control sensor.

Warranty and Service (Continued)

What does it mean when the burner does not glow red?

- The selected temperature of the cooking zone is maintained by a sensor that cycles the zone on and off, so the surface cooking area will not always glow red. If you select a low heat setting, the heat will cycle on and off more frequently than at higher settings. The heat also cycles on and off at the highest setting.

If you request a service call because of an error made in operating the appliance, the visit from the customer service technician may incur a charge even during the warranty period.

Service

Before calling for assistance or service, please check the section "Troubleshooting". If you still need help, follow the instructions below.

Is it a technical fault?

If so, please contact your customer service centre.

Always prepare in advance for the discussion. This will ease the process of diagnosing the problem and also make it easier to decide if a customer service visit is necessary.

Please take note of the following information.

• What form does the problem take?
• Under what circumstances does the problem occur?

When calling, please know the model and serial number of your appliance. This information is provided on the rating plate as follows:

• Model description
  • S/N code (15 digits)

We recommend that you record the information here for easy reference.

Model:

Serial number:

When do you incur costs even during the warranty period?

• If you could have remedied the problem yourself by applying one of the solutions provided in the section "Troubleshooting".
• If the customer service technician has to make several service calls because he was not provided with all of the relevant information before his visit and as a result, for example, has to make additional trips for parts. Preparing for your phone call as described above will save you the cost of these trips.

Technical Data

EN

Appliance dimensions

Width 575 mm

Depth 505 mm

Height 55 mm

Worktop cut - out dimensions

Width 560 mm

Depth 490 mm

Corner radius 3 mm

Cooking rings

Position Diameter Power
Front left 183 mm 1800 W
Rear left 148 mm 1200 W
Rear right 183 mm 1800 W
Front right 148 mm 1200 W

Connection voltage 230 V \~ 50 Hz

Maximum connected load power 6.0 kW

Weight : Net 7.5 kg

Gross 10.0 kg

Technical Data (Continued)

Product Information

Supplier's name Samsung Electronics co. Ltd.
Model identification	C61R2AASTC61R2AEECC61R2AEEPCTR464EB01C61R1AAMST
Type of hob Built-In
Heating technology Radiant cooking zones
Number of cooking zones and/or area 4
For circular cooking zones or area:diameter of useful surface area per electric heated cooking zone (∅)	∅ 18.5 cm, ∅ 15.0 cm,∅ 15.0 cm, ∅ 18.5 cm
Energy consumption per cooking zone or area calculated per kg (ECelectric cooking)	∅ 18.5 cm (front) : 202.3 Wh/kg∅ 15.0 cm (front) : 199.0 Wh/kg∅ 15.0 cm (rear) : 198.7 Wh/kg∅ 18.5 cm (rear) : 193.3 Wh/kg
Energy consumption for the hob calculated per kg (ECelectric hob)	198.3 Wh/kg

* Data determined according to standard EN 60350-2 and Commission Regulations (EU) No 66/2014.

Energy saving tips

• Always position pots and pans before switching on the cooking zone.
- Dirty cooking zones and pan bases increase power consumption.
• Using a pressure cooker reduces cooking time.

Appendix

EN

Model name & serial number

Both the model name and the serial number are labeled underneath the cooktop base.

For later use, write down the information or attach the additional product label (located on the top of the product) onto the current page.

Model Name

Serial Number

Memo

EN

SAMSUNG

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
BOSNIA 055 233 999 www.samsung.com/support
BULGARIA	*3000 Цена в мрежата0800 111 31 , Безплатна телефонна линия	www.samsung.com/bg/support
CROATIA 072 726 786 www.samsung.com/hr/support
CZECH 800 - SAMSUNG (800-726786) www.samsung.com/cz/support
HUNGARY	0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)	www.samsung.com/hu/support
MONTENEGRO 020 405 888 www.samsung.com/support
POLAND	801-172-678* lub [phone]*Dedykowana infolinia do obsługi zapytań dotyczącychtelefonów komórkowych: 801-672-678* lub [phone]** (koszt połączenia według taryfy operatora)	www.samsung.com/pl/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG) Apel GRATUIT	www.samsung.com/ro/support
SERBIA	011 321 6899	www.samsung.com/rs/support
SLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com/sk/support
LITHUANIA 8-800-77777 www.samsung.com/lt/support
LATVIA 8000-7267 www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si

DG68-00125D-04
