USER MANUAL Flush 36-6461 North Light

Two overlapping circular objects with gradient shading, no text or symbols visible

Art.no. Model

36-6461 H-CL-RI10W-S827-DI (Silver)

36-6463 H-CL-RI10W-W827-DI (White)

36-6462 H-CL-RI15W-S827-DI (Silver)

36-6464 H-CL-RI15W-W827-DI (White)

Flush Ceiling Light

Art.no 36-6461 Model H-CL-RI10W-S827-DI (Silver)

36-6463 H-CL-RI10W-W827-DI (White)

36-6462 H-CL-RI15W-S827-DI (Silver)

36-6464 H-CL-RI15W-W827-DI (White)

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions concerning technical problems please contact our Customer Services Department (see address on reverse.)

Safety

• This flush ceiling light is designed for fixed installation.
  • Installation should only be carried out by a qualified electrician.

Warning symbol

The light bulb of the light fitting must only be replaced by a qualified electrician.

Care and maintenance

• Switch off the power to the light fitting before cleaning it.
• Clean the light using a soft, damp cloth. Use a mild detergent. Never use solvents or strong, abrasive cleaning agents.

Product description

Flush ceiling light fitting with built-in LED bulb and suitable for mounting onto a ceiling or wall.

Technical diagram of a mechanical device with numbered components and exploded view, likely for assembly or maintenance instructions.

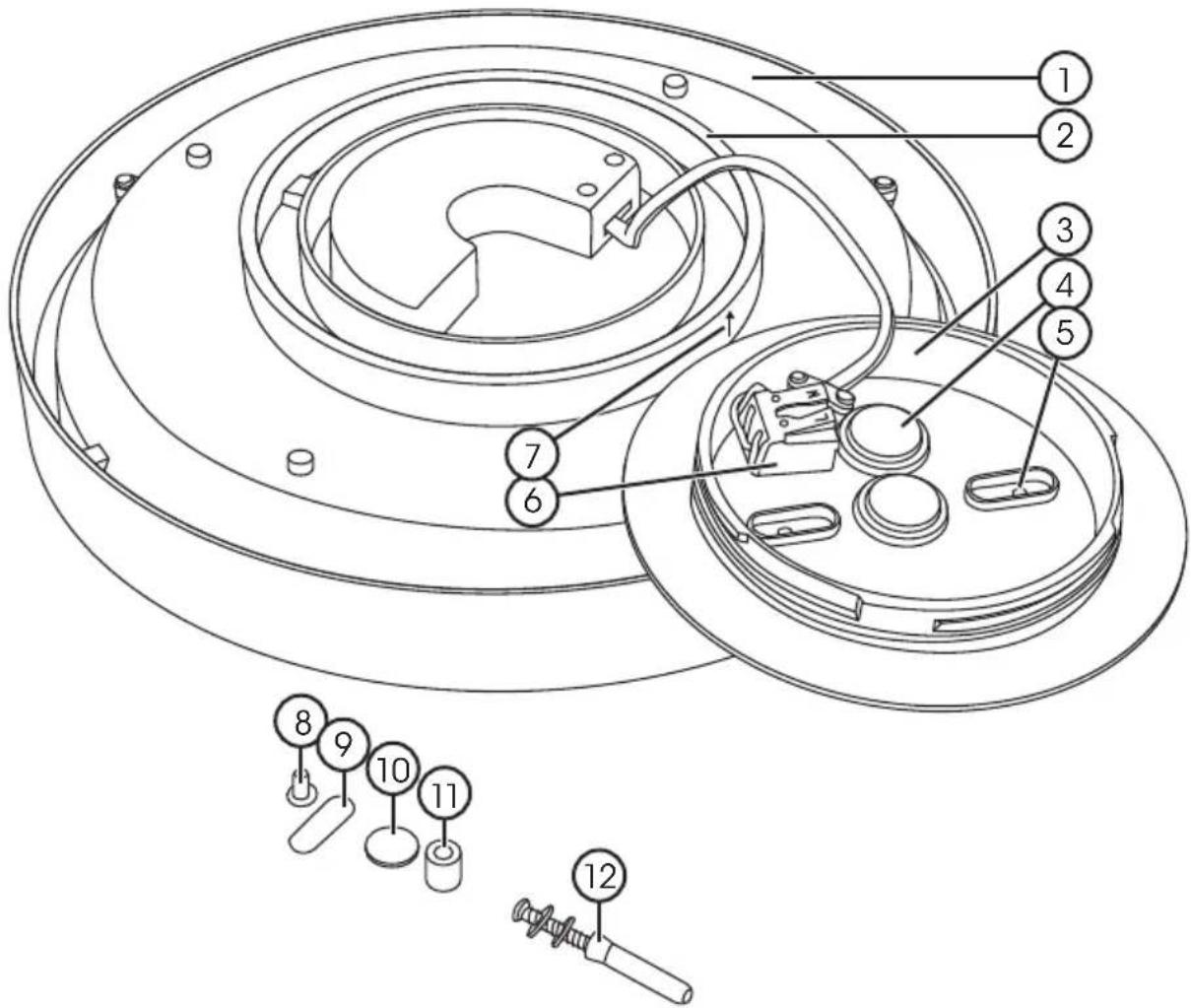

1. Light fitting
2. Gasket
3. Mounting plate
4. Grommets
5. Marks for screw holes (ceiling pattress mounting)
6. Terminal block for power supply cable
7. Marks for attaching the light fitting to the mounting plate
8. Extra screws for the ceiling pattress (2 ×)
9. Washers for mounting onto a ceiling pattress (2 ×)
10. Self-adhesive tape for the spacers on the mounting plate (3 x)
11. Spacers (3 ×)
12. Screw with steel washer, soft washer and wall plug (3 ×)

Installation

The light fitting can be installed in one of several ways:

A) Mounted onto a recessed ceiling pattress

Warning: Always turn off the power before beginning the installation.

! ON OFF ✓

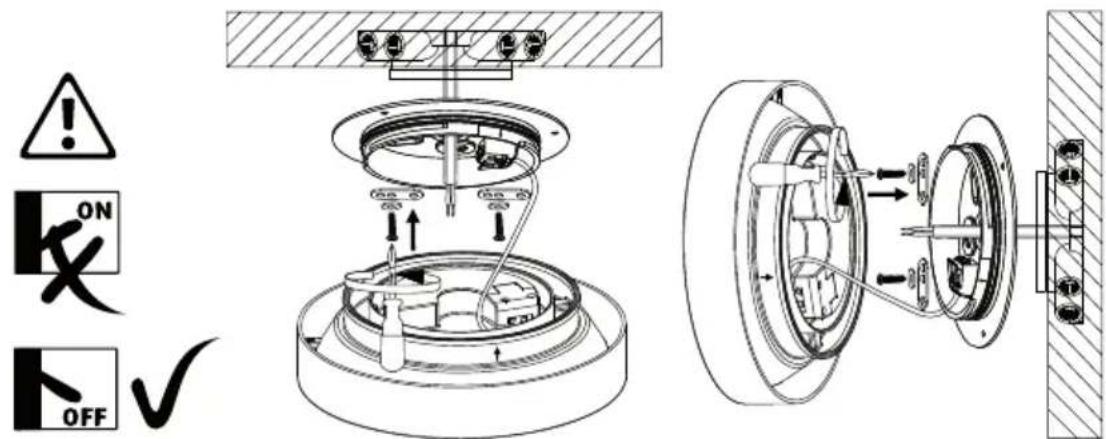

1. The mounting plate is prepared for attachment to a ceiling pattress. Measure the distance between the screws in the ceiling pattress and drill corresponding holes in the mounting plate. The mounting plate already has mounting hole markings (5) for the most common ceiling pattresses. Make a hole for the screws in the washers (9).

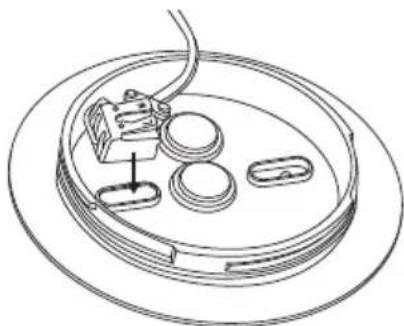

2. Pull the power supply cable through one of the grommets (4). Fit the gasket (2) onto the light fitting (1).

Technical line drawing of a mechanical assembly with rollers and a coiled cable (no text or symbols)

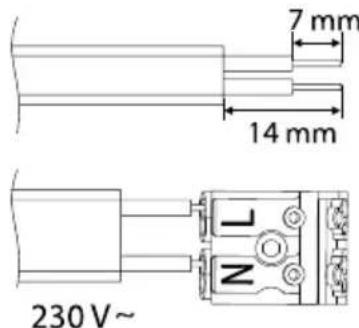

7 mm 14 mm 230 V~ N

1. Screw the mounting plate to the ceiling pattress using the washers (9) as shown.

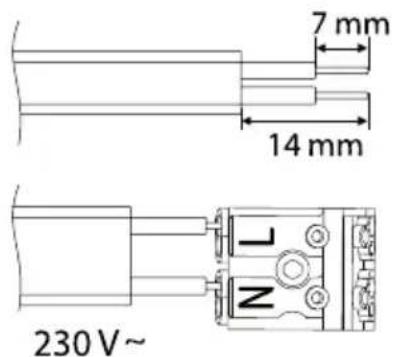

2. Strip the end of the power cable as shown and connect it to the terminal block (6). Blue wire to N and phase wire to L. The light fitting is rated protection class II □ and does not require a safety connection to electrical earth.

3. Make sure that the gasket (2) is fitted correctly and that the cables don't get crushed between the mounting plate and the light fitting.

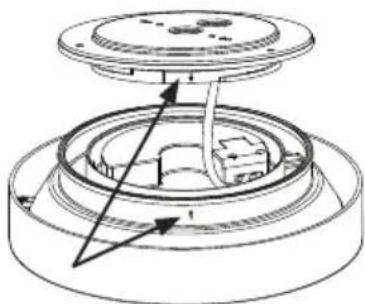

4. Push the light fitting onto the mounting plate so that the markings (7) line up, then twist the light fitting anticlockwise until it locks into place.

Technical line drawing of a mechanical assembly with no visible text or symbols

B) Mounted directly onto a ceiling or wall

Warning: Always turn off the power before beginning the installation.

! ON OFF

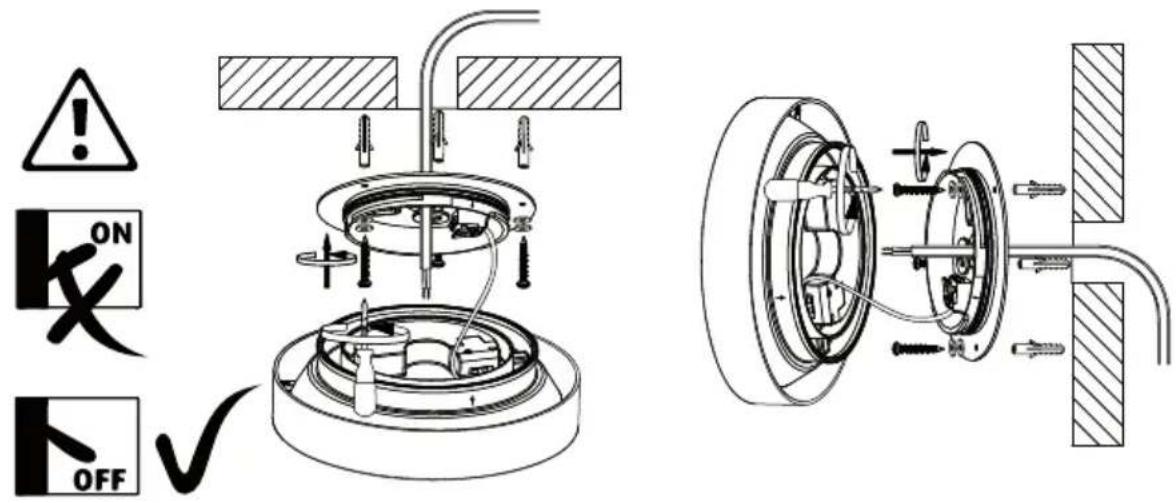

1. The positions of the mounting holes are marked on the mounting plate. Drill mounting holes in the marked positions.
2. Use the mounting plate as a template and mark where the holes are to be drilled on the wall or ceiling. Use an appropriate size of drill bit.
3. Pull the power supply cable through one of the grommets (4). Fit the gasket (2) onto the light fitting (1).
4. Screw on the mounting plate using the fasteners (12). The soft washer should be placed closest to the mounting plate.

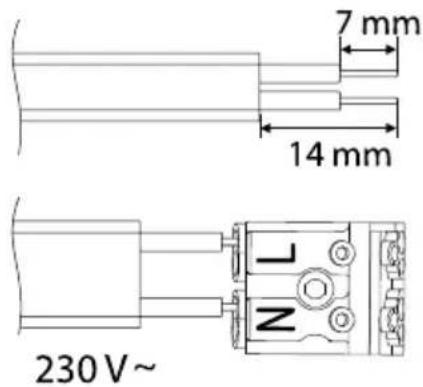

7 mm 14 mm 230 V~ Z

1. Strip the end of the power cable as shown and connect it to the terminal block (6). Blue wire to N and phase wire to L. The light fitting is rated protection class II □ and does not require a safety connection to electrical earth.
2. Make sure that the gasket (2) is fitted correctly and that the cables don't get crushed between the mounting plate and the light fitting.

Technical line drawing of a mechanical assembly with no visible text or symbols

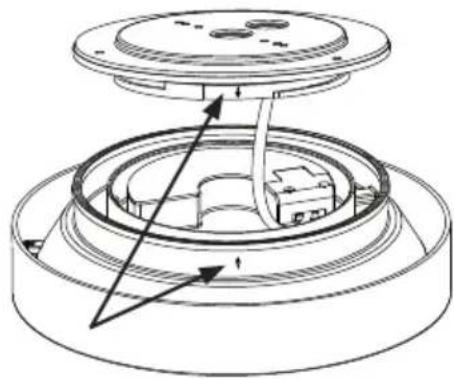

1. Push the light fitting onto the mounting plate so that the markings (7) line up, then twist the light fitting anticlockwise until it locks into place.

C) Mounted on a ceiling/wall with surface mounted cable

Warning: Always turn off the power before beginning the installation.

! ON OFF ✓

1. The positions of the mounting holes are marked on the mounting plate. Drill mounting holes in the marked positions.
2. Use the mounting plate as a template and mark where the holes are to be drilled on the wall or ceiling. Use an appropriate size of drill bit.

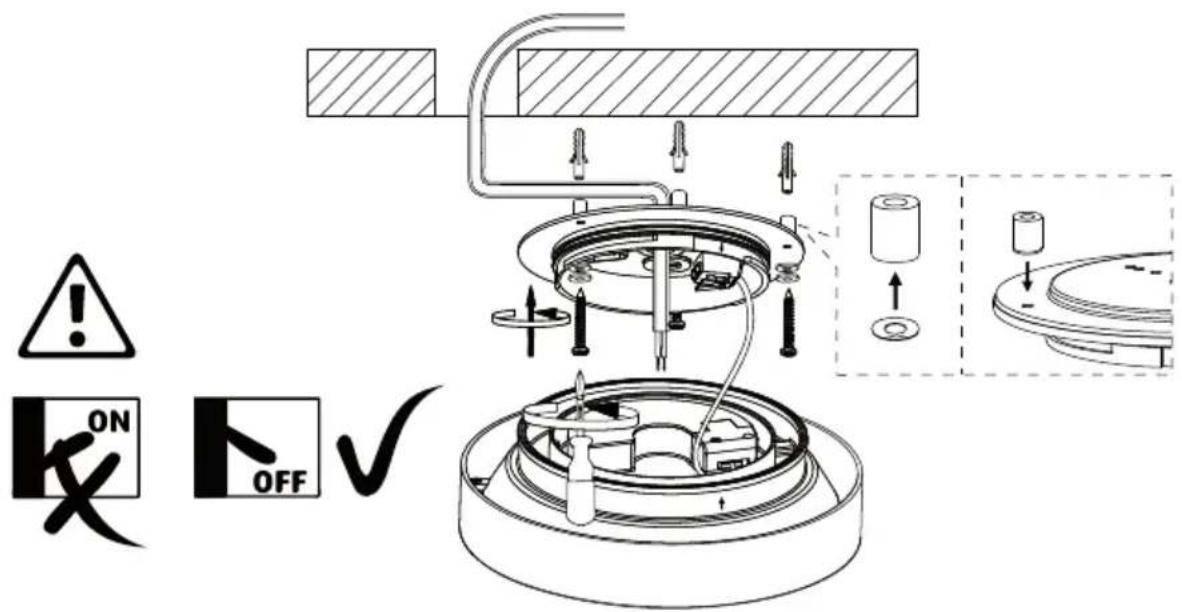

3. Pull the power supply cable through one of the grommets (4). Fit the gasket (2) onto the light fitting (1).
4. Attach the spacers (11) onto the back of the mounting plate (over the holes) using the self-adhesive tape.
5. Screw on the mounting plate using the fasteners (12). The soft washer should be placed closest to the mounting plate.

7 mm 14 mm 230 V~ N

1. Strip the end of the power cable as shown and connect it to the terminal block (6). Blue wire to N and phase wire to L. The light fitting is protection class II □ and does not require a safety connection to electrical earth.

2. Make sure that the gasket (2) is fitted correctly and the cables don't get crushed between the mounting plate and the light fitting.

Technical line drawing of a mechanical assembly with no visible text or symbols

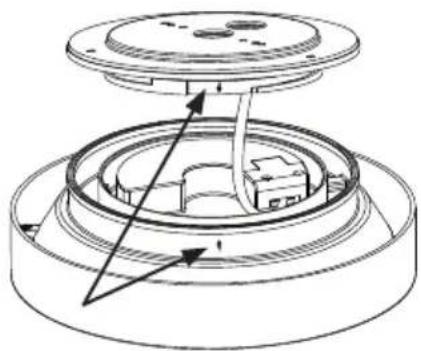

1. Push the light fitting onto the mounting plate so that the markings (7) line up, then twist the light fitting anticlockwise until it locks into place.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Specifications

36-6461 Silver, 36-6463 White

Bulb LED 10 W, The light bulb must only be replaced by a qualified electrician.

Diameter 22 cm

Luminous flux 800 lm

Weight 0.55 kg

36-6462 Silver, 36-6464 White

Bulb LED 15 W, The light bulb must only be replaced by a qualified electrician.

Diameter 30 cm

Luminous flux 1100 lm

Weight 0.82 kg

Input voltage 220–240 V, 50 Hz

Colour temperature 2700 K

IP rating IP54

Stepless brightness control/dimmable (only for standard or LED dimmers).

Plafond

Art.nr 36-6461 Modell H-CL-RI10W-S827-DI (Silver)

36-6463 H-CL-RI10W-W827-DI (Vit)

36-6462 H-CL-RI15W-S827-DI (Silver)

36-6464 H-CL-RI15W-W827-DI (Vit)

Technical diagram of a mechanical assembly with numbered components and exploded view indicators

Technical line drawing of a mechanical assembly with circular components and a cable (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

! ON OFF ✓

Technical line drawing of a mechanical assembly with no visible text or symbols

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Specifikationer

36-6461 Silver, 36-6463 Vit

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or maintenance instructions.

1. Plafond
2. Pakning
3. Feste
4. Tetningsplugger
5. Merking for skruehull ved montering i takboks
6. Plint for innkommende kabel
7. Merkinger for montering av plafond på feste
8. Ekstra skrue til takboks (2 ×)
9. Pakning til montering på takboks (2 ×)
10. Selvheftende teip til distansehylsene på festet (3 ×)
11. Distansehylse (3 stk.)
12. Skrue, stålskive, myk skive og plugg (3 ×)

Installasjon

! ON OFF ✓

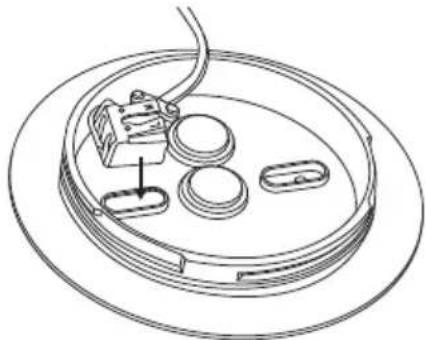

1. Festet er beregnet for montering på takboks. Mål avstanden mellom takboksens skruer og bore hull i festet med den samme avstanden. I festet er det merket (5) for hulltaking for de vanligste takboksene. Lag hull til skruen i pakningen (9).

2. Trekk innkommende kabel gjennom en tetningsplugg (4). Monter pakningen (2) på plafonden (1).

Technical line drawing of a mechanical assembly with circular components and a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

B) Montering i tak eller på vegg

Technical diagram of a mechanical assembly with gears and shafts, showing internal components and motion indicators (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Trykk plafonden mot festet sånn at markeringene (7) er rett ovenfor hverandre, og drei plafonden moturs så den låses fast.

C) Montering mot tak/vegg med utenpåliggende kabel

! ON OFF ✓

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Trykk plafonden mot festet sånn at markeringene (7) er rett ovenfor hverandre, og drei plafonden moturs så den låses fast.

Avfallshåndtering

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Spesifikasjoner

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for assembly or maintenance instructions.

Technical line drawing of a mechanical assembly with circular components and a coiled cable (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with gears and shafts, showing internal components and motion indicators (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Tekniset tiedot

Technical diagram of a mechanical assembly with numbered components and exploded view indicators

! ON OFF ✓

Technical line drawing of a mechanical assembly with no visible text or symbols

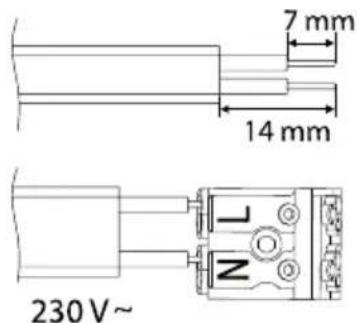

7 mm 14 mm 230 V ~

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Technische Daten
