USER MANUAL A340 FUJIFILM

This manual will show you how to use your FUJIFILM DIGITAL CAMERA FinePix A330/FinePix A340 correctly. Please follow the instructions carefully. BLO0359-201 (1)

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject io the following ho conditions: (1) This device may not cause harmiul interterence, and (2) this device must accept any inteerence received. including imerlerence that may cause undesired operation GCAUTION This equipment has been tested and found 10 comply with the limits for a Class B digial device, pursuant to Part 15 of the FCC Rules. These limis are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not oceur in a particular installation. If ihis equipment does cause harmful interference to radio or television reception, which can be determined by tuming the equipment off and on, the user is encouraged to try IMPORTANT to correct the interference by one or more of the following — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outiet on à circuit diferent from that to which Ihe receiver is connected. — Consul the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressiy approved in this manual could void the users authority 10 operate the equipment. Notes on the Grant: To comply with Part 15 of 1he FCC rules, this product must be used wilh a Fujfim-speciied ferrite-core AV cable, USB cable and DC supply cord. For customers in Canada CAUTI This Class 8 digital apparatus complies with Canadian ICES-003. Please read the Safety Notes (=P.87) and make sure you understand them before using the camera. Be sure to read this page before using the Software. NOTICE

BEFORE OPENING THE PACKAGE OF CD-ROM

BOUND BY THIS AGREEMENT. End User License Agreement This End User Licanse Agreement l'greomanr) is an agreement between Ful Photo Fim Co. id. FUUIFLLAT) and au, we ss foth Me terms and condiions oh lens grand or You use ne solare provided D} FLJIFLM The GO AOM contains third par solar. n case a ceparate agreement is provided by a td part suppl fr 1 altware the provisions of such Éoparate agreement shal ay o Ie uso of such thAG party solar, Pr a fe em Detinitions. {al”Heda® moans he CD-ROM led "Sotvare fr FinePix AX" hic grovided 1 you together ih I Agreement. fb Éohware® aans ho sofuare which & recorded on Media (el Dacumenaton’ means ho operalon manuas of Software and oter Felaed writen maerials which are provided 10 you together with {a "Product means Media [neluéing Solar) and Documentation colectve)

mers AT cepams and oter propritan EU Le Sottware and Dacumentañon are owned ardrolina o FLIFILH er Mo tré par Supplers as iécated on or in Solare or Documentation, Noling éohtained harein shal be construed, express or Implcit. 23 Fanelrtng or raning any fig, heense, or 1 Yu cer an ose spy gant under is Agreement Limited Warranty. FIN aan 1 you iat Moda i ee from any dfet in material and wotkmansip und normal use for net (50 days rom ho dal O1 Your recept ol Media. Should Media not meute {regain waranÿ, HLIFILM Shan replace such delectue Mega win ober Medla bearing Pa dec EUIFILMS entre s2bly and our so and ua red regard to any elec in Med El! Do oups Emtod Lo SUN FUAFIS replacement l Media as prouided or

1. Obligation upon termination.

This Agréoment shall be governed by and construed in accordance wi aus f Japan. ” EC Declaration of Conformity

Contents Warning IMPORTANT EC Declaration of Conformity Preface Accessories included Camera parts and features Attaching the strap -… Using the strap Example of LCD Monitor text display 2 Stil photography mode - M Playback mode SOwNN LovowE® 1 Getting Ready

EV (EXPOSURE COMPENSATION) -

FRAME RESET/SET ALL/RESET ALL

6.1.2 Connecting to a TV

6.2 CONNECTING THE CAMERA DIRECTLY TO THE PRINTER FOR PRINTING IMAGES

PictBridge FUNCTION)

6.2.1 Specling mages or printing on the camera

6:2.2 Speciing images for printing without using DPOF (single-rame printing)

6.3 CONNECTING TO À COMPUTER

6.3.1 Connecting to a Computer

6.3.2 Disconnecting the Camera

System Expansion Options Overview of the Optional Cradie - Accessories Guide Using Your Camera Correctly Power Supply and Batteries Applicable Batteries 71 AC Power Adapter = 72 Procedure for discharging rechargeable 73 NiMH batteries 74 Notes on the xD-Picture Card'" 74 Warning Displays

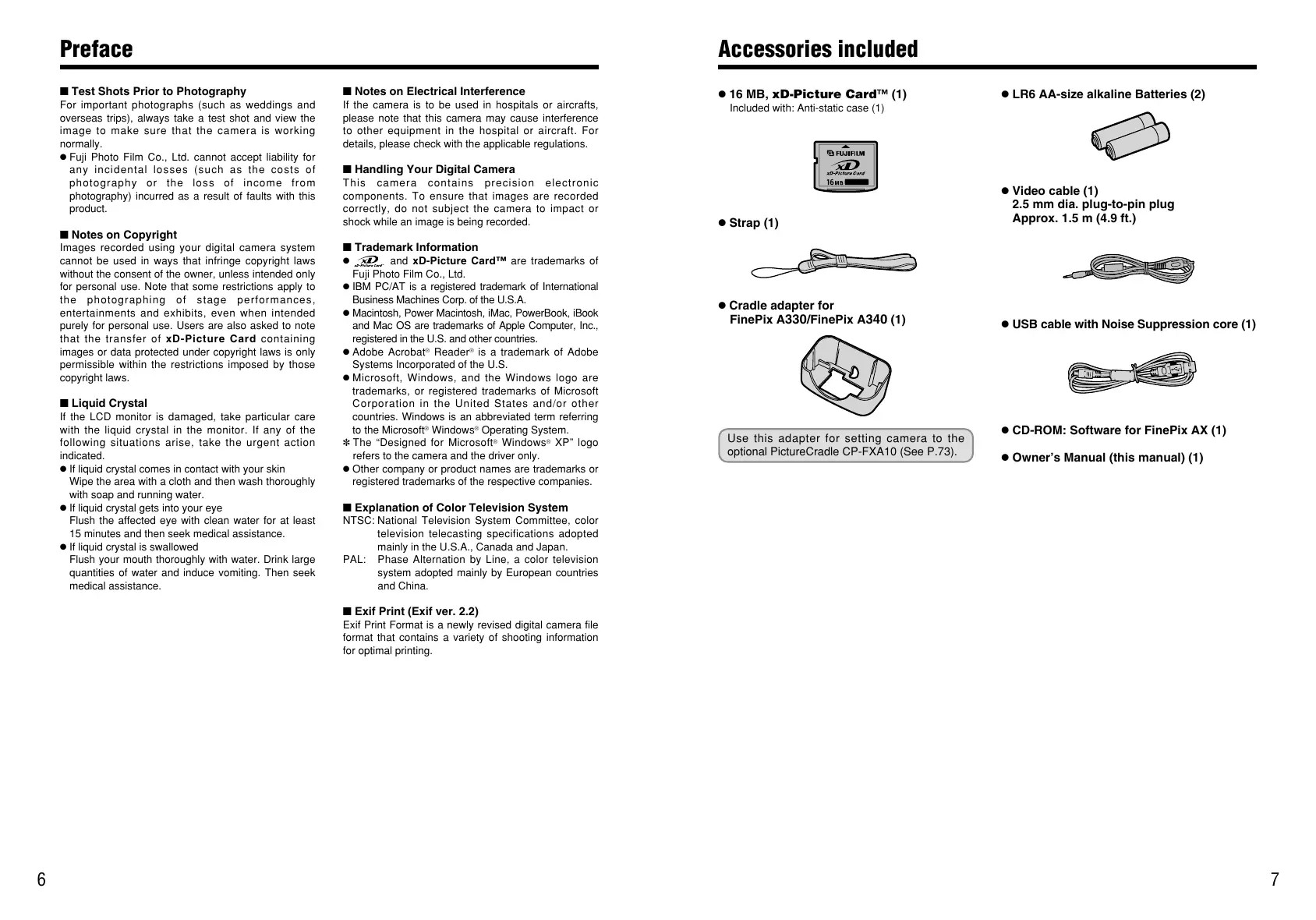

Preface m Test Shots Prior to Photography For important photographs (such as weddings and overseas trips), always take a test shot and view the image to make sure that the camera is working normally. ‘ Fuji Photo Fim Co., Ltd. cannot accept liability for any incidental losses (such as the costs of photography or the loss of income from photography) incurred as a result of faults with this product 1 Notes on Copyright Images recorded using your digital camera system cannot be used in ways that infringe copyright laws without the consent of the owner, unless intended only for personal use. Note that some restrictions apply to the photographing of stage performances entertainments and exhibits, even when intended purely for personal use. Users are also asked to note that the transfer of xD-Picture Card containing images or data protected under copyright laws is only permissible within the restrictions imposed by those copyright laws. Liquid Crystal H the LCD monitor is damaged, take particular care with the liquid crystal in the monitor. If any of the following situations arise, take the urgent action indicated ‘ lfliquid crystal comes in contact with your skin Wipe the area with a cloth and then wash thoroughly with soap and running water. ‘ Ifliquid crystal gets into your eye Flush the affected eye with clean water for at least 15 minutes and then seek medical assistance. Hfliquid crystal is swallowed Flush your mouth thoroughly with water, Drink large quantities of water and induce vomiting. Then seek medical assistance. 1 Notes on Electrical Interference W the camera is to be used in hospitals or aircrafts, please note that this camera may cause interference to other equipment in the hospital or aircraft. For details, please check with the applicable regulations. M Handling Your Digital Camera This camera contains precision electronic components. To ensure that images are recorded correctiy, do not subject the camera to impact or shock while an image is being recorded 1 Trademark Information e 2. and xD-Picture Card" are trademarks of Fuj Photo Film Co, Ltd. IBM PC/AT is a registered trademark of International Business Machines Corp. of the U.S.A. ‘ Macintosh, Power Macintosh, iMac, PowerBook, iBook and Mac OS are trademarks of Apple Computer, Inc. registered in the US. and other countries. ‘Adobe Acrobat’ Reader‘ is a trademark of Adobe Systems Incorporated of the U.S. e Microsoft, Windows, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. Windows is an abbreviated term referring to the Microsoft” Windows® Operating System. The “Designed for Microsoft® Windows® XP” logo refers to the camera and the driver only ‘+ Other company or product names are trademarks or registered trademarks of the respective companies. M Explanation of Color Television System NTSC: National Television System Committee, color television telecasting specifications adopted mainly in the U.S.A., Canada and Japan PAL: Phase Alteration by Line, a color television system adopted mainly by European countries and China. M Exif Print (Exif ver. 2.2) Exif Print Format is a newly revised digital camera flle format that contains a variety of shooting information for optimal printing, Accessories included °16 MB, xD-Picture Card” (1) Included with: Ant-static case (1) © Strap (1) e Cradle adapter for ePix A330/FinePix A340 (1) Use this adapter for setting camera to the optional PictureCradle CP-FXA10 (See P.73). © LRG AA-size alkal © Video cable (1)

2.5 mm dia. plug-to-pin plug

Approx. 1.5 m (4.9 ft.) e CD-ROM: Software for Finel AX (1) © Owner’s Manual (this manual) (1)

Camera parts and features # Refer lo the pages in parentheses for information on using the camera pars or features. Shutter button Flash (P.27) Power switch / lens cover (P.12) Lens Viewlinder lamp Viewtinder LCD monitor Tripod mount Battery cover

Attach the strap as shown in © and ©. ® Loop the strap over your wrist. @ To avoid dropping the camera, secure the strap around your wrist by sliding the fastener to adjust the length. Example of LCD Monitor text display Still photography mode SEV (Exposure compensation) © Self-Timer Quality mode Dash —— p————— Number of available frames à F Photography mode CE CIRE Ce —— I Battery level warning # White balance AP — AF warning Camera shake warning

TT LOADING THE BATTERIES AND THE MEDIA Compatible batteries e AA-size alkaline batteries (2), Rechargeable Battery NH-10 (sold separately), or AA-size Ni-MH batteries (sold separately) (2). & Please use the same brand and grade AA-size alkaline batteries as those supplied with the camera. % How to use the batteries @ e Never use the following types of batteries, as this could cause serious problems such as batteries fluid leakage or overheating:

1. Batteries with split or peeling outer casings S)

2. Combinations of different types of batteries or new and used batteries together É) E

« Do not use manganese or Ni-Cd batteries. Soil, such as fingermarks on the poles of the batteries can shorten time for which the batteries can be used The time for which AA-size akaline batteries (referred to hereafter simply as alkaline batteries) can be used varies depending on the brand, and some alkaline batteries may stop providing power more quickly than those supplied with the camera. Note also that due to their nature, the time for which alkaline batteries can be used decreases in cold conditions (0°C to +10°C/+32°F to +50°F). The use of AA-size Ni-MH batteries is better for this reason. eCradle can be used in combination with camera and to charge rechargeable Battery NH-10 (sold separately). Use Fujifilm Battery charger (sold separately) to charge AA-size Ni-MH batteries. e See P.74, 75 for other notes on using batteries. When first purchased or if left unused for a long period, the time for which AA-size Ni-MH batteries or rechargeable Battery NH-10 can be used may be shorter. See P.75 more information. ‘When the surfaces of the Rechargeable Battery NH-10 terminals have become worn through repeated use or the battery has been taken out of the camera and left for a long period, the battery may stop Supplying power or may become usable only for shorter periods. To restore normal battery operation, open and close the battery cover several times to dislodge any soiling on the terminals. Outer casing Check that the camera is turned off (viewtinder 1 lamp is off) before opening the battery cover. o) 4 Opening the battery cover will the camera is on, the camera is tummed of j 4 Do not apply force to the batery cover. Do not open the battery cover while the camera is on. This could damage the xD-Picture Card or ruin the image files on the xD-Picture Card. Load the batteries correctly as indicated by the polarity icons. Rechargeable 1 battery NH-10 Align the gold marking on the xD-Picture Card slot with the gold contact area on the xD-Picture Card and push the card firmly all the way into the slot

4 ne xD-Picture Card is orented incorrecty, will not go al the way into the slot. Do not apply excessive force when insering an xD-Plcture Card. 4 Close the battery cover.

© How to replace the xD-Picture Card € 7 Pull out the xD-Picture Card, taking care that the batteries do not fall out. % ie xD-Picture Card is difficult to remove, take out the batteries first. Checking the battery charge Turn the camera on and check the battery charge. @ There is ample battery charge. @ Noicon @ There is insufficient charge left in the batteries. The batteries will soon run out. Have a new set @ 43 utred of batteries ready. @The batteries are depleted. The display will shortly go blank and the camera will stop working. Replace or recharge the batteries © I Binkingred “L” appears as a small icon on the right-hand side of the LCD monitor. “1” appears as a large icon on the LCD monitor. CIRE

Blinking red & The information above is a guide for photography mode. Depending on the camera mode and the type of batteries used, the transition from “{-" to “£" may occur more quickly. 4 Due to the nature of the battery, the battery low warning may appear early when the camera is used in cold locations. This is normal. Try warming the batteries in your pocket or a similar location before use. # Battery level warning

1) The cameras estimation of the remaining battery charge varies greatly depending on the camera operation mode.

Consequentÿy, even if “8” or *L" is not displayed in Playback mode, one of them may appear when you change to Photography mode.

2) Depending on the battery type and the level of charge in the batteries, the camera may run out of power without first

displaying a battery level warning. This is particulany to happen when batteries that have run out of charge once are re-used. In situation 2), immediately load new or fully charged replacement batteries. + Power save function & When this function is active, it turns off the LCD monitor to reduce power consumption if the camera is not used for 30 seconds (=P.50). If the camera is then left unused for 2 minutes or 5 minutes, the Power save function turns the camera off. To restore power to the camera to take pictures, briefly close and then re-open the lens cover completely so that it makes two successive clicks and will not move further. To play back images, close the lens cover until it stops and then hold down the “Playback" button for approx. 1 second. kprou Bumoo a

Turn the camera on in Photography mode Open the lens cover completely so that it makes two successive clicks and will not move further. Close the lens cover until it stops. The camera is turned off in Photography mode.

The camera is turned on in Photography mode. Turn the camera on in Playback mode

MENU 10K Press the “Playback” button for approx. 1 second to turn the camera on in Playback mode. Press the “Playback” button during playback to turn the camera of. Leave the lens cover closed % Power save function & When this function is active, it turns off the LCD monitor to reduce power consumption if the camera is not used for 30 seconds (=P.50). If the camera is then left unused for 2 minutes or 5 minutes, the Power save function turns the camera off. To restore power to the camera to take pictures, briefly close and then re-open the lens cover completely so that it makes two successive clicks and will not move further. To play back images, close the lens cover until it stops and then hold down the “Playback” button for approx. 1 second. Move to Photography mode or Playback mode MENU 10K Open the lens cover to turn the camera on in Photography mode. Press the “Playback” button for approx. 1 second during shooting to change to Playback mode. Press the “Playback” button for approx. 1 second again to return to Photography mode.

After purchasing the camera, first time when you turn camera on, the date and time are cleared. Press the *MENU/OK" button to set the date and time. 4 To set ne date and time later, press 1he “DISP/BACK" buiton. 1 you do not set ne date and time, this message will appear each time you tu the camera on @Press “4%” or “æ" to select Year, Month, Day, Hour or Minute. @ Press “A” or “Y” to correct the setting. 4 Holding dou “A” or *Y” changes the numbers continuousiy. 1 Wnen the time displayed passes “12:00”, the AM/PM setting changes. Once you have set the date and time, press the “MENU/OK" button. Pressing the “MENU/OK" button changes the camera to Photography or Playback mode. 4 the time of purchase and atter you leave the camera for à long period with the batteries removed, setings such as the daté and time are cieared. Once the AC pour adapter has been connected or ine batteries have been loaded for 20 minutes or more, the camera settings wil be retained for roughly 3 hours even when the camera has no power (batiries removed and AG power adapler disconnected) kprou Bumoo a

CORRECTING THE DATE AND TIME / CHANGING THE DATE ORDER S | @Press “<” or “" to select “| @ Press the *MENU/OK" button. OPTION and then press “A” or “Y' to select “SET-UP”. @ Press the *MENU/OK" button. @Press “4” or “B" to move to option 2 and then Press “A” or “Y” to select *DATE/TIME”. @ Press * Correcting the date and time @Press “4” or “&” to select Year, Month, Day, Hour or Minute. @ Press “4” or “W” to correct the setting. @Always press the “MENU/OK” button to complete the settings. 4 Holding down “A” or “W” changes the numbers continuousiy. 1-4 When he time displayed passes “12:00", the AM/PM setting changes. Changing the date order T-® Press “4 or “&” to select the date order. @Press “A” or “W” to set the date order. Refer to the table below for details of the settings. @Always press the “MENU/OK” button to complete the settings. Date order Explanation Displays the date in he “yearmonth. day” YYYY-MM.DD | PRpi Mmoorvvyy | Pisplays the date in the “month/day/ year format. Displays the date in he “day.month. year”

VIDEO SYSTEMENTSC DISCHARGE :0K @Press the “MENU/OK” button to display the menu on the LCD monitor. @Press “4”, “Y”, “€” or from the “8” OPTION menu. @ Press the *MENU/OK" button. to select “SET-UP" @ The “SET-UP" screen appears. Press “A' or “W” B/LANG. ". to select “B##”, “ENGLISH “FRANCAIS”, *DEUTSCH", “ESPANOL" or “x”. Press “æ" to cycle through the language settings. 4 The screens in this manual are shown in English 4 See P.49 for more information on the “8” OPTION menu. Apeeu Burnen

@ Open the lens cover. @To take pictures using the viewfinder, press the “DISP/BACK" button to turn the LCD monitor off turning the LCD monitor off conserves battery power). e Focal range: Approx. 60 cm (2.0 ft.) to infinity. 4 Use Macro mode for subjects closer than 60 em (2.0 11.) (eP26) % The LCD monitor cannot be tumed off in Macro mode. 15°C CARD ERAOR j”, “NO CARD, "[ CARD FULL J' or CAD NOT INTAUZED. |” appears, see P.78. Brace your elbows against your sides and hold the camera with both hands. Position your right thumb so that it is handy for using the zoom. 4 Moving the camera while shooting gives à blurred picture {camera shake). Use a tripod to avoid camera Shake pariculariy for shots in the dark when the selected flash mode is Suppressed flash 4 There may be some unevenness in the brighiness at the lower edge of the LCD monitor. This is normal and does not afect the image. Hold the camera so that your fingers or the strap do not cover the lens or flash. If the lens or flash is obscured, the brightness (exposure) of your shot may be incorrect. 4 Check that he lens is clean. 1 it is din, clean the lens as described on P.74. 41 the flash is used in very dusty conditions or when it is snowing. wiite dots may appear in the image due to flash rellecting off dust paricles or snowlakes. Use Suppressed flash mode To zoom in on your subject, press Zoom switch “ {C4 telephoto). To zoom out, press “W” (F1 wide- angle). À “zoom bar’ appears on the LCD monitor. e Optical zoom focal length (85 mm camera equivalent) Approx. 38 mm-114 mm Maximum zoom scale: 3x 4 Zooming stops brieliy when the camera changes between optical zoom and digital zoom (=P.21). Press lhe same Zoom suilch again to change zoom modes difficulty focusing on the following Very shiny subjects such as a mirror or car body ‘ Subjects photographed through glass ‘ Subjects that do not reflect well, such as hair or fur ‘ Subjects with no substance, such as smoke or flames ‘e Dark subjects ‘ Subjects with little or no contrast between the subject and the background (such as white walls or subjects dressed in the same color as + Subjects not suitable for autofocus & ‘The FinePix A330/FinePix A340 uses a high-precision autofocusing mechanism. However, it may have Use the LCD monitor to frame the shot so that the subject fills the entire AF (Auto Focus) frame. D When the subject is not in the AF frame, use AF/AE lock 10 take the picure (=P.20) 4 The image on he LCD monitor belore the picture is taken may dir in brghiness, color, etc. from the image actually recorded. Play back Ine recorded image to check it (P.22) Press the Shutter button down halfway. The camera emits a short double-beep and focuses on your subject. The AF frame on the LCD monitor becomes smaller (the viewfinder lamp (green) stops blinking and remains lit). D if ine camera does not emit a short double-beep and “!AF appears on the LCD monitor, ine camera cannot focus. 4 Pressing the Shutier button down halfway freezes the image en the LCD monitor brel. This is not the recorded image. 4 1S-1AF" appears on ihe LGD monitor (e.g. he shot s too dark for ine camera to focus), stand about 2 m (6.6 11) from your subject 10 take the picture. To take the picture, press the Shutter button down fully without lifting your finger off. The camera beeps and takes the picture. The data is then recorded. D There is a siight delay between the Shuiter button being pressed and the picture being taken. Playback {he shot to Gheck Ie image 4 When pressing the Shutter button dou fuly in one motion, the camera takes the picture without he AF frame changing 4 Wnen the camera takes the picture, the vieutinder lamp lights orange (shooting disabled). The viewinder lamp then tumns green and the next picture can be taken 4 The viewinderlamp binks orange while the flash is charging Ifthe LOD monitor is turned on, Ine screen goes dark. This is normal. 4 See P.78, 79 or information on the waming éisplays the background) € Fast moving subjects © Shots where another high-contrast object (not the subject) is close to the AF frame and is either closer or further away than your subject (such as a shot of someone against a background with strongly contrasting elements) For such subjects, use AF/AE lock (=P.20) eieueo oui Buisn

o 000 o 0 0 0 AF frame To take pictures using the viewtinder, press the “DISP/BACK" button to turn the LCD monitor off (Turning the LCD monitor off conserves battery power). The viewfinder cannot be used to take pictures in Macro mode. Brace your elbows against your sides and hold the camera with both hands. Position of your right thumb so that it is handy for using the zoom. % Moving the camera while shooting gives a blurred picture {camera shake). Use a tripod to avoid camera shake pariculariy for Shots in the dark when the selected flash mode is Suppressed flash Position the AF frame in the center of the viewtinder over the subject to set the focus. If the subject is between 0.6 m and 1.5 m (2.0 ft and 4.9 ft.) away, the area marked by “2” in the figure is photographed. 4 For more precise shot framing, use the LCD monitor to take the picture.

VIEWFINDER LAMP DISPLAY

Display Status Lit green Ready to shoot Blinking green AF/AE in progress, camera Shake warning or AF warning (Ready 10 shoot) Blinking green and orange alternately Recording 0 xD-Picture Card (Ready 10 shoot) Lit orange Recording o xD-Picture Card (Not ready) Blinking orange Flash charging (Flash will not fire) Blinking green {1-second intervals) Camera in Power Save mode (=P.50) Blinking red xD-Picture Card Wamings ‘e Lens operation error No card loaded, card not formatted, incorrect format, card full xD-Picture Card error # When the LOD monitor is swilched on, more detailed warning messages are displayed (=P.78-79)

BER OF AVAILABLE FRAMES

The number of available frames appears on the LCD monitor. 4 See P.29 or information on changing the quality setting 1 The default quality “€” set at shjpment is “ED N° (FinePix 330). N' (FinePix A340). E Standard number of frames per xD-Picture Card ‘The table below shows the standard number of frames for a new xD-Picture Card formatted on te camera. The larger the xD-Picture Card capacity, the bigger ihe difference between {he actual number of frames and the number shown here. Also the size of an image file varies depending on the subject. So {he number of remaining shots may decreace by 2 or may remain the same. For this reason, the number displayed may not show the actual number of frames. FinePix A330 Quality seting CE En 2" CA Number of recorded pixels ae 1600 x 1200 1280 x 960

In this shot, the subjects (two people in this case) are not in the AF frame. Taking the picture at this point will result in the subjects being out of focus. Move the camera slightly so that one of the subjects is in the AF frame. 3 = Press the Shutter button down halfway (AF/AË 1 lock). Focusing is complete when the AF frame on EE the LCD monitor becames smaller and the a viewtinder lamp (green) stops blinking and remains lit. Continue to hold the Shutter button down halfway (AF/AE lock). Move the camera back to the original image and press the Shutter button fully. 4 AF/RE lock can be applied repeatediy before the shuiter is released 4 Use AF/AE lock in al photography modes to ensure excellent results. F % AF (Autofocus)/AE (Auto-exposure) lock & On the FinePix A330/FinePix A340, pressing the Shutter button down half way locks the focus and exposure settings (AF/AE lock). To focus on a subject that is off to one side or to set the exposure before composing the final shot, locks the AF and AE settings. Then compose and take the picture to get the best results. SING THE ZOOM (OPTICAL ZOOM/DIGITAL ZOOM) Press the “A ([#)" or “Y (Ef)” switch to zoom in or out The digital zoom can be used with the “D” and “D” quality mode setting. When zooming changes between optical and digital, — ET the “M indicator stops. Press the same Zoom switch again to start the “' indicator moving again. [el The digital zoom cannot be used with the “ED” (FinePix 330), “D” (FinePix A340) setting. 4 See P.29 for information on changing the quality mode. 1 ifihe shot goes out of ous during Zooming, hold the Shutter button doun naliy Lo refocus 1h shot e Optical zoom focal length* Approx. 38 mm-114 mm, max. zoom scale: 3x « Digital zoom focal lengths* Zoom bar display Digitalzcom | m FinePix A330 soit ki. Maximum Digital zoom focal distance Bo) a D Sphcal zoom en Cannot be uses ED [Eauvalentto approx. 114 mm-148 mm | Apper Lx The position of the “#” indicator on the | [tm [Equivalent to approx 114 mm-162 mm | Appron. 1.6 200m bar shows the zooming status. The area to the above of the separator | IH FinePix A340 indicates digital zooming, while the area _ = to the below indicates optical zooming. Digital zoom focal distance Maximum 00m scale Cannot be used Equivalent 10 approx. 114 mm-160 mm | Approx. 1.4x Equivalent 10 approx. 114 mm-194 mm | Approx. 17x #35 mm camera equivalents # Screen for FinePix A330 | ŒE BEST FRAMING Select framing guideline function in Photography —————— mode. Text displayed Pressing the “DISP/BACK" button changes the M LCD monitor display. Press the *DISP/BACK" button until *Framing Guideline” appears. Framing guideline displayed No text displayed à! @ LCD monitor OFF on | N = © Important & — a , Always use AF/AE lock when composing a shot. =, 15 The image may be out of focus if AF/AE lock is not used. Scene En ci Position the main subject at the intersection of two lines in this D a ‘ane or aign one of the horizontal ines with the horizon. Use this 2 1 frame as a guide to the subjects size and the balance of the shot FRE while composing a shot. en 4 The framing guideline is not recorded on 1he image. EX 4 The lines in ine scene frame divide the image into 3 roughy equal parts val s horizontally and vertically. The resulting printed image may be shifted slightly Vel from the scene frame. uoureo eu Bus

° ol È °0 Menu 7x Ê oo Text displayed No text displayed Multi-frame playback K? J © Still images viewable on the FinePix A330/FinePix A340 @& Single-frame playback __] @Press the “Playback” button for approx. 1 second to change to Playback mode. @Press to scan forward through your images and Press “4” to scan backwards 4 When ihe camera is set to Playback mode, the last image shot appears on the LCD monitor 4 1fine lens is extended during playback, the lens automatically retracts as à protective measure if he camera is not used for approx. 6 seconde: 4 When the Power save function turns the camera of, close the lens cover and then hold doun îne “Playback” button for approx. 1 second, Selecting images To select images on the thumbnail lists screen, hold down “4” or “B” for approx. 1 second during playback. Multi-frame playback In Playback mode, press the “DISP/BACK" button to change the display shown on the LCD monitor. Press the “DISP/BACK" button until the multi-frame playback screen (9 frames) appears. @Press v to move the cursor {orange frame) to the frame you want to select Press “A” or “Y” repeatedly to jump to the next page. @ Press the “DISP/BACK" button again to view an enlarged version of the image. 4 The LCD monitor text display disappears alter 3 seconds. 4 Playback z00m cannot be used with mult-frame playback, This camera will display still images recorded on the FinePix A330/FinePix A340 or still images (excluding some uncompressed images) recorded on any FUJIFILM digital camera that supports xD- Picture Cards.

[ETCANCEL) Playback zoom Press the “A ([E)" or “Y (Æ)" switch during single- frame playback to zoom in (enlarges) or out on a still image. À zoom bar appears. Press the *DISP/BACK” button to return to single- frame playback. M Zoom scales Quality mode Max. zoom scale ED (2272 x 1704) tax

• FinePix A340 only ED (2016 x 1512) 4x
• FinePix A330 only 7 (1600 » 1200) Fox I (1280 » 960) & @ Press “€” or “Be” t @Press “4”, “w”, “ area. Press the “DISP/BACK" button to return to playback 00m. lect to “PANNING”. or “b" to display another eieueo oui Buisn

| ERASING IMAGES (TT ERASE FRAME) FRAME 2 I PQ + | Cu D ALL FRAUES Press the “Playback” button for approx. 1 second to à turn the camera on in Playback mode. @Press the “MENU/OK" button during playback to display the mei @ Press * to select “I” ERASE. Erased frames (files) cannot be recovered. Back up important frames (files) onto your computer or another media. Return to single-frame playback @ Press “4” or “W” to select ‘FRAME. @Press the “MENU/OK" button to confirm the selection. See P.33 for information on “ALL FRAMES”.

ox? MENU 70k o 0 0 0 Press “4” or “&" to select the frame (file) to be erased. @Press the “MENU/OK" button to erase the displayed frame (file) To erase another image, repeat steps D and @). When image erasing is completed, press the “DISP/BACK" button. 4 Press ihe “MENU/OK" button repeatediy to erase consecutive images. Take care not to erase important images.

TAKING PICTURES — SELECTING THE CAMERA SETTINGS

Consider the scene you are photographing and the sort of image you want to achieve when you specify the camera settings. À general guide is given below. Advanced Features 1 Select the Photography mode (=P.31). @A Auto Leaves the “EV” and “White balance” settings to the camera. &Ù Manual Sets the “EV” and “White balance” to manual to easily control yourself. ® Portrait Uses for photography getting beautiful skin tones and soft overall tone A Scene Uses for shooting scenery in daylight. % Sport Uses for shooting sporting events. € Night Uses for shooting evening and night scene. 2 Specify the photography settings (=P.26-30, 32). % Macro Uses for close-up shots. # Flash Uses for photography in dark locations or for backlit subjects, etc. € Quality Set the size of the recorded image when the picture is taken. The size set is matched to the intended use of the print size. Ÿ Self-timer Uses in situations such as group shots where the photographer is included in the shot. EV (Exposure compensation) Uses the AE exposure as a reference value of 0, this function brightens (+) or darkens (-) the shot. Uses to fix the white balance to suit the photography conditions and lighting {B White balance 3 Take the pictures HE Photography Mode Speci Defaut Seting | 4 | a) e | a || ce « % MACRO OFF YES | YES | NO | NO | NO | NO AUTO Auto Flash ves [ves | ves | no | ves | vo © Red-Eye Reduction Es | Yes | ves | No | No | no & Forced Flash ves [ves | ves | no | ves | vo > |srias AUTO © Suppressed Flash ves [ves | ves [ves | ves | ves 54 Slow Synchro No | vs | ves | no | no | ves SR RedEye + Siow no | ves | ves | no | no | ves ED N (FinePix A330) < Quality EN pren ado, | YES | YES VES Menu [© Setrtimer OFF DES [ES VES 3 EV (Exposure Compensation) o No |vEs No TE White balance AUTO No [vEs No someeu poouenpy Q

IL PHOTOGRAPHY FUNCTIONS] Ÿ, MACRO (CLOSE-UP) When you use the viewfinder to take a picture in Macro mode, the field visible through the viewfinder does not match the field actually photographed because the viewfinder and lens are in different positions. Accordingly, you should use the LCD monitor to take pictures in Macro mode. Select Macro mode to take close-up shots. © Open the lens cover. @Press the “&" Macro button (4). The “%” appears on the LCD monitor indicating that you can take close-up shots. To cancel Macro mode, press the “&” Macro button (4) again. e Focus distance Approx. 0.1 m to 0.8 m (3.9 in. to 2.6 ft.) e Effective flash range Approx. 0.3 m to 0.8 m (1.0 ft. to 2.6 ft.) 4 Macro mode is cancelled in the folowing situations: + When the SHOOTING MODE is changed When the camera is tumed off 4 Select he appropriate flash mode for ne conditions. 4 Use à ipod to avoid camera shake when shooting in the dark (uen 1). 4 The lens is fixed at Ine wide-angle z00m setting and oniy the digital 200m can be used. 4 Once ihe LCD monitor is turned ON and cannot be turned OFF. 4 Canceling Macro mode, he LCD monitor remains on. 4 FLASH Choose from 6 flash modes according to the type of shot. @ Open the lens cover. @ The flash setting changes each time you press the “£” Flash button (b). The last flash mode displayed is selected. « Effective flash range (for GA AUTO) Wide-angle: Approx. 0.6 m to 3.5 m (2.0 ft.to11.5t) Telephoto_: Approx. 0.6 m to 3.0 m (2.0 ft.to 9.8.) 7 Di the flash is used in very dusty conditions of when it is snowing, white dots may appear in lhe image due to flash rellecting off dust particles or snowtiakes. Use Suppressed flash mode. 4 The flash charging time may increase when the batteries are low on charge 4 When taking a picture using the flash, he image may disappear and the LCD monitor go dark as he flash charges. The viewfinder lamp then blinks orange. 4 The available Flash modes are limited depending on the Photography menu selected (=P.25). 4 The flash res several imes (pre-lashes and the main flash) Auto Flash Mode (no icon) Use this mode for ordinary photography. The flash fires as required by the shooting conditions. 4 1 pressing the Shuter button ile the flash is charging the picture wil be taken ithout the flash Press the Shutter button down halfway. “&” appears in the LCD monitor when the flash is used. @ Red-eye reduction Use this mode to make sure that the subject's eyes appear normal when taking pictures of people in low-light conditions. The flash fires a pre-flash just before the picture is taken and then fires again to take the actual picture. The flash fires as required by the shooting conditions. 4 1 pressing the Shuter button ile the flash is charging the picture wil be taken ithout the flash + Red-eye effect When using the flash to taken a picture people in low-light conditions, their eyes sometimes appear red in the picture. This is caused by the light of the flash reflecting off the inside of the eye. Use Red-eye reduction flash to minimize the likelihood of the effect Take the following measures to make Red-eye reduction more effective: e Get the subjects to look at ihe camera. © Get as close as possible to the subjects. Continued someeu poouenpy Q

4 FLASH 4 Forced flash Use this mode in backlit scenes, such as a subject against a window or in the shade of a tree, or to get the correct colors when taking a picture under right lighting. In this mode, the flash fires in bright as well as dark conditions. © Suppressed flash Use this mode for taking pictures using indoor lighting, for shots taken through glass, and for photography in places such as theaters or at indoor sporting events where the distance is too great for the flash to be effective. In this situation, use the specified white balance (=P.32) to take pictures that retain the atmosphere given by the ambient lighting. 4 Use a tipod 10 avoid camera shake when shooting in Suppressed Flash mode in the dark condition. 4 See P.78 for information on {ne camera shake warning, S£ Slow synchro This is a Flash mode that uses a slow shutter speed. This allows you to take pictures of people at night that cleariy show both your subjects and the night time backdrop. To prevent camera shake, always use a tripod. Slowest shutter speed “C” Night: Up to 2 sec. $ Red-eye reduction + Slow synchro Use this mode for Slow synchro shots with Red-eye reduction: 4 The image may be overexposed when shooting bright scenes. To take a picture of a main subject at night with the background brighiy li, please use the SHOOTING MODE *C” (Night) settings (=P.31). [STILL PHOTOGRAPHY MENU) & STILL PHOTOGRAPHY MENU OPERATION (Important. Please read.)

Quality =P.29 Set the size of the recorded image when the picture is taken. The size set is matched to the intended use of the print size. Ÿ Self-timer =P.30 Use this seing for taking pictures such as group shots where the photographer is included in the shot. à Shooting mode =P.31,43 Specify “@A” Auto, “GW” Manual, “® Portrait, “A” Scene, “#" Sports, “C” Night or “#” Movie. @Press the “MENU/OK" button to display the menu on the LCD monitor. @ Press “4” or “R" to select the menu item and “A or “#” to change the setting. @Press the *MENU/OK" button to contirm the selection. When you enable the setting, an icon appears in the top-left corner of the LCD monitor. 4 The setings available in the menu screen vary depending on the Si photography mode EV p.32 Set when the correct exposure cannot be obtained. {B White balance =P.32 Change this setting to take a picture with the white balance fixed for the surroundings and lighting when the picture is taken.

QUALITY SETTINGS IN STILL PHOTOGRAPHY MODE

Choose from 4 settings. Using the table below as a guide, select the setting that best suits the aims. L The numbers to the right of each seting show {he number of available frames 4 When changing the quality seting, the number of available frames also changes (=P19) Quality mode Sample Uses EDF, HN (2272 x 1704) ED N (2016 x 1512) # FinePix A330 only # FinePix A340 only | Printing at A4 or A5 size or printing part of the image cropped at A6 size. For better image quality, select *F. ED (1600 x 1200) Printing at A5 or A6 size. HD (1280 » 960) Printing at A6 size. someeu poouenpy Q

& STILL PHOTOGRAPHY MENU OPERATION (Important. Please read.) SEL. IMER PHOTOGRAPHY The self-timer is used in situations where the photographer is included in the shot. Settng the self-timer to “ON”, LCD monitor. In this mode, a timer runs for roughly 10 seconds before the shutter is released. appears on the @ The seittimer setting is cancelled in the following situations. + Wen shooting ends + When the camera is changed to'@" or “OM” mode + When the camera is set to Playback mode + When the camera is turned off ® Position the AF frame over the subject. @ Press the Shutter button down halfway to focus the shot. @ Without releasing the Shutter button, press the button all the way down (fully pressed) to start the self-timer. 4 The AF/AE lock can be used (=P 20) 4 Take care not to stand in front of he lens wihen pressing the Shutter button. The image may not be in focus or get correct brighiness (exposure) The self-timer lamp lights steadily for roughly 5 seconds and then blinks for another 5 seconds, after which the picture is taken. 4 To stop he selimer, once it has started running, press the DISP/BACK" buton A countdown appears on the LCD monitor indicating the time remaining until the picture is taken. Self-timer mode is cancelled after each shot © SHOOTING MODE @ Press the *MENU/OK" button to display the menu on the LCD monit

al @PORTRAIT GMANUAL MOVIE @Press * MODE. O ©] @Press “A” or “Y” to select “3” SHOOTING = e| MODE. = E) Pod © :| Press te “MENU/OK" button to confirm the ©| Selection. SHOOTING MODE AT @PORTRAIT GAUTO ÆNOVTÉ Shooting mode Explanation Available flash modes This is the mode ior speciying “EV" (exposure compensation) | AUTO / © / # / © / 54 / 3 MANUAL | {=P.32) and white balance (=P.32) settings: & “1e ‘This is the easiest mode for taking pictures and can be used in speeds of up to 2 seconds. To prevent camera shake, always use a tripod. B AUTO a wide range of conditions; AUTO/@/#1© This is the best mode for shooting portraits. Skin tones are | AUTO/ © /#/©/58/ P PORTRAIT | shoun beautituly and the overal tone is soft É This is the best mode for shooting scenery in daylight and A SCENE provides crisp, clear shots of scenery such as buildings and | can not be used mountains. This is ne best mode for shooting sporting events. This mode ; Ÿ& SPORT gives prior to faster shutter speed AUTO/#/1@ This is the best mode for evening and night scenes. This mode alows you to take shots where priority is given lo slow shutter € NIGHT " Et eu #/R1© 4°," 7 and “C7 can not be selected Macro mode. someeu poouenpy Q

à SHOOTING MODE E4 EV (EXPOSURE COMPENSATION) Select EV in the “£a MANUAL" photography mode. Use this function for shots to get the correct brightness (exposure), such as shots with extremely high contrast between the subject and the background. © Compensation range

2.1 EV to +1.5 EV (13 steps in 0.3 EV increments)

See P.86 for more information on EV. 4 Exposure compensation is disabled in the following situations When he flash is used in Auto or Red-oye reduction mode When dark Scenes ar shot in Forced flash mode + To obtain the optimum brightness & Adjust the exposure compensation according to the level of brighiness or darkness in ihe image. When the subject appears too bright Try a negative (-) compensation setting. This will make the overall image darker. 1 Guide to compensation Backlit portraits: +0.6 EV to +1.5 EV + Very bright scenes (such as snowfields) and highly reflective subjects: +0.9 EV + Shots made up predominantiy of sky: +0.9 EV + Spotit subjects, particularly against dark backgrounds: -0.6 EV + Scenes with low reflectivity, such as shots of pine trees or dark foliage: -0.6 EV ‘e When the subject appears to0 dark Try a positive (+) compensation setting. This will make the overall image brighter. {B WHITE BALANCE (SELECTING THE LIGHT SOURCE) Select white balance in the “Æ MANUAL" photography mode. Change the white balance setting to take a picture with the white balance locked for the surroundings and lighting, In AUTO mode, the correct white balance may not be got for subjects such as close-ups of people's faces and shots taken under a special light source. Select the correct white balance for the light source. See P.86 for more information on the white balance. 4 The color tones may vary depending on the shooting conditions (light source, te) AUTO : Automatic adjustment ## : Shooting under “Daylight” fluorescent {shooting to show the ambience of lamps the light source) #$ : Shooting under “Warm White” fluorescent : Shooting outdoors in fine weather lamps = : Shooting in shade #4 : Shooting under “Cool White” fluorescent lamps “+ : Shooting in incandescent light # When the flash fires, the white balance setting for the flash is used. Consequentl, to achieve a particular effect, the Flash mode should be set to Suppressed flash (=P.28).

1 ERASING SINGLE / ALL FRAMES

1 @Press the “Playback” button for approx. 1 1 Lo \ GE second to turn the camera on in Playback mode. = El @Press the “MENU/OK" button to display the on LI °° menu on the LCD monitor.

L | © 0 0 0 FRAME @Press “4” or “&” to select the frame (file) to be erased. @Press the “MENU/OK" button to erase the currently displayed frame (file). To erase another frame (file), repeat steps © and ©. When you have finished erasing frames (files), press the “DISP/BACK" button. 4 Pressing the -MENU/OK® button repeatediy erases consecutive frames (files). Take care not to erase an frame {ile) by mistake. 4 Protected frames (files) camnot be erased. Unprotect the frames (fes) before érasing them (=P 38) ALL FRAMES Pressing the *MENU/OK" button erases all the frames (files). 4 To cancel ihe erasing of rames once it is in progress, press ‘he “DISP/BACK® button. Even if you stop the procedure immediately, some rames (iles) vil be erased. 4 Protected frames (files) cannot be erased. Unprotect the frames (iles) before erasing them (=P.36). (IF CHPOFSPEGIFES D" appears, press the ‘MENU/OK' button again to erase the frames (files). + To stop the procedure mid-way &

To cancel erasing of all the frames (flles) while it is in progress, press the “DISP/BACK” button. Some unprotected frames (files) will be left unerased. 4 Even i you stop he procedure immediately, some trames (ile) will be erased

HOW TO SPECIFY PRINT OPTIONS (DPOF) “_ DPOF stands for Digital Print Order Format and refers to a format that is used for recording printing specifications for images shot using a digital camera on media such as an xD-Picture Card. The recorded specifications include information on which frames DPOF are to be printed. This section gives a detailed description of how to order your prints with the FinePix A330/FinePix A340. On the FinePix A330/FinePix A340, you can specify only one print per image in the DPOF settings. # Note that some printers do not support date and time imprinting or specification of the number of prints. # Note that the warnings shown below may be displayed while you are specifying the prints. print specifications.

Up to 999 images can be specified on the same xD-Picture Card. DPOF SPECIFIED. ERASE OK ? DPOF SPECIFIED. ERASE ALL OK? ) (=P.34) When you erase the image, the DPOF setting for that image is deleted at the same time. CRESET DPOF OK?) (=P.36) When you insert an xD-Picture Card that contains images specified for printing on by another camera, those print specifications are all reset and replaced by the new HOW TO SPECIFY PRINT OPTIONS (FRAME SET/RESET) o 00000 @Press the “Playback” button for approx. 1 second to turn the camera on in Playback mode. @Press the “MENU/OK” button to display the menu on the LCD monitor. Press “@ or “&” to select “A” DPOF. RESET ALL WITHOUT DATE

= During playback, (Ge check that “@* appears for the DPOF settings that have been specified! 4/23/2004 3500 P Continued someeu poouenpy Q

CE #E ren RESET ALL WITHOUT DATE x-9 : = © When DPOF settings were [2] [000000] RESET DPOF OK? specified on another camera & @Press * ” to select “WITH DATE" or “WITHOUT DATE”. Selecting “WITH DATE” will cause the date to be imprinted on your prints. @ Press the *MENU/OK button. dWhen selecting the “WITH DATE" setting, the date is imprinted on your Shots using ine Print Service or a DPOF- compatible printer (depending on 1he printer specifations, the date may not be printed in some cases). When the data includes a frame (file) with DPOF setting that were specified on another camera, " CRÉSÉTDPOF OK) * appears. Pressing the ‘MENU/OK" button erases al of the DPOF settings already specified for each frame (file). You must then specify the DPOF setting for each frame (file) again. 4 Press the “DISP/BACK® button to leave the previous setings unchanged

000) o 000) [al [opor TOTAL/ SSSHEETS Total number of prints Press “4” or “R” to display the frame (file) for which you want to specify DPOF settings. @Press “4” or “Y' to set a value up to 99 as the number of copies of the frame (file) to be printed For frames (files) that you do not want printed, set the number of prints to 0 (zero). To specify more DPOF settings, repeat steps © and ©. 4 Prints of up to 999 image trames (fles) can be ordered on the same xD-Picture Card ® DPOF settings cannot be specified for movies. Pressing the “DISP/BACK® button during the settings, all the new settings are cancelled. there were previous DPOF settings, only the modifications are cancelled. Always press the “MENU/OK” button to complete the settings. Pressing the “DISP/BACK" button, no DPOF settings are specified. % Canceling a frame & To cancel the DPOF setting for a frame you have specified (cancel frame), perform steps 1 to 3 and then: Press “4” or “be” to select the frame (ile) with the DPOF setting you want to cancel. @Set the number of prints to O(zero). To cancel the DPOF setting for another frame (file), repeat steps À and ©. Press the “MENU/OK” button to complete the settings. À DPOF SET FRAME (RESET ALL) o © © © o o

WITHOUT DATE WITH DATE 4 æÆ LEE RESET DPOF OK?

@Press the “Playback” button for approx. 1 second to turn the camera on in Playback mode. @Press the “MENU/OK” button to display the menu on the LCD monitor. Press “@" or “b" to select “@” DPOF. @ Press “A” or “W” to select *“RESET ALL". @ Press the *MENU/OK" button. A message appears. To reset all the DPOF settings, press the *MENU/OK" button. soimeey peaueapy

On PROTECTING IMAGES: FRAME / SET ALL / RESET ALL @Press the “Playback” button for approx. 1 second to turn the camera on in Playback mode. @Press the “MENU/OK” button to display the menu on the LCD monitor. Protection is a setting that prevents frames (files) from being accidentally erased. However, the “FORMAT” function erases all the frames (files), including protected frames (files) (=P.50). °00000 or“ to select “On” PROTECT. — RESET ALL Removes the protection from all the frames (files). RESET ALL SET ALL

- SET ALL Protects all the frames (files) = | _‘- FRAME Protect or unprotects only the selected frame (file). PROTECT OK? CHIEN o 5] @Press “A” or “# to select “FRAME”, “SET ALL" o| _ or‘RESET ALL” Des ©| @Press “MENU/OK" button to confirm your ol Selection. RESET ALL SET ALL 4 FRAME SET FRAME @Press “4” or “&” to select the frame (file) to be protected. @Press the “MENU/OK" button to protect the frame (file) currently displayed. To protect another frame (file), repeat steps © and @. To finish protecting frames (files), press the “DISP/BACK" button.

UNPROTECT OK? [Yes Grs cancel] LDy 08 4 | (>) I RE) © oo 0 0 TALL SET ALL OK? LT MAY

(CS cancEL] FRAME RESET @Press “€” or “&” to select the protected frame (file) @ Press the *MENU/OK" button to unprotect the displayed trame (file). SET ALL Press the “MENU/OK" button to protect all the frames (files). RESET ALL Press the *MENU/OK" button to unprotect all the frames (files). If the images are very large, protecting or unprotecting all the frames (files) may take some time. If you want to take a picture or recording a movie during the procedure, press the “DISP/BACK® button. To then return to protecting or unprotecting all the frames (les), start the procedure on P.38 from step

(o] © | oo = co I o 5 = ET Se

3 [Dm 4 | MENU 70K o 000] à @Press the “Playback” button for approx. 1 second to turn the camera on in Playback mode. @Press the “MENU/OK" button to display the menu on the LCD monitor. 4 The Power save function does not operate during playback 4 Movie starts automatically. When thé previeu movie or movie ends, playback moves on to the next frame: Press “@” or “&” to select “E"” PLAYBACK. @Press “A” or “W” to select the playback interval and the type of image transition @ Press the “MENU/OK" button. The image frames are advanced and played back. To_interrput “#” PLAYBACK, press “4” (MENU/OK" button). # Pressing the “DISP/BACK® button once during playback causes Îhe playback frame number to appear on the LCD monitor. | 2 TRIMMING o 00000 3 LD — 0m # |

@Press the “Playback” button for approx. 1 second to turn the camera on in Playback mode. @Press the “MENU/OK” button to display the menu on the LCD monitor. © Press “4” or “&”" to select “æ” TRIMMING. @ Press the *MENU/OK" button. @ Pressing the “A ([E)" or “Y (F)" switch during single-frame playback zooms in (enlarges) or out on a still image. Using this function, a zoom bar appears. @ Press “@” or “R”" to trim an image. d Press he “DISP/BACK- button to return to single-frame playback The size of saved image varies depending on the zoom ratio. Up to M can be saved. @Press “4”, “w”, * area. @ Press the *MENU/OK" button to crop the image. or “æ" to display another Continued soimeey peaueapy

Check the saved image size and press the Up to 60 seconds long (at the “Æ" setting) or 240 seconds long movie (at the “ED” setting) can be “MENU/OK" button. The cropped image is added recorded. as a separate file in the final frame. e Specifications 4 See P.45. for information on changing the quality mode. M Image Sizes Motion JPEG _ without sound 1 The avalable recording time for à movie may decrease ï ï depending on the amount of free space on the xD- née loer Best for A6 or AS size prints. e Quality selection method Piüture Card P Best or A6 size prints ED (320 x 240 pixels) 4 See P.83, 85 for the available recording time with xD- [CHOnEC ETS cANCEL] #5 (160 x 120 pixels) Picture Cards. # You cannot turn the LCD monitor off in this mode. e Frame rate: 10 frames per second ° 0 See P.86 for information on the frame rate. oo (C may not be possible to playback your movies on other cameras. ) CIE @ Press the “MENU/OK" button to display the menu 1 D |A 5 | onihe LCD monitor a © IEEE) press “< or "> 10 select “à” SHOOTING l = MODE.

Al @PORTRAIT GMANUAL “MOVIE 229: Press “A” or “W” to select “® MOVIE”. @ Press the *MENU/OK" button. 20 Yo À ED ee «: someeu poouenpy Q SHOOTING MODE AT @ PORTRAIT GAUTO GHANUAL a The available recording time and “C#STANDBY )” dl Can appears on the LCD monitor. sTaDer Cohtinued, 43

During movie recording, the lens is fixed at the wide-angle zoom setting and only the digital zoom can be used. Press the “A (C)” or “Y (Æ)" switch to zoom in and out. À zooming bar appears on the LCD monitor. e Digital zoom focal length (85 mm camera equivalent) Maximum Model Digital zoom focal length. | om acae FinePoc 330 | Approx 38 mm 114mm Es FinePix A340 Approx. 38 mm-129 mm 4x e Focal range Approx. 1 m (3.3 ft.) to infinity 4 Pictures taken with the digital zoom have slighily lower image quality. Choose the zoom mode that best suits the scene being shot. Press the Shutter button down fully to start recording. % The focus is fixed at about 1 m (3.3 f1.) to infinity. 4 The brighiness and color of the LCD monitor shown during movie recording may differ from those shown before recording begins. 4 Do not need to hold down the Shutter button. Pressing the Shutter button down fully locks the focus, but the exposure is adjusted for to the scene being shot “eREC” appears in the top-right comer of the LCD monitor during recording shows the remaining time. 4 When the remaining time runs out, recording ends and the movie is saved onto the xD-Picture Card. Press the Shutter button during recording, recording ends and the movie is stored on the xD-Picture Card. % 1 recording is stopped immediately after it begins, 1 second of movie is recorded onto the xD-Picture Card.

@Press the “MENU/OK” button to display the menu on the LCD monitor. @ Press “<” or “B” to select £" QUALITY. Press “4” or “Y” to change the setting. 2 levels of quality can be selected. For better image quality, select “”, and for longer photography time, select B Recording times per movie movi maximum sho Ex] 820 x 240 60 sec. Le] 160120 240 sec. @Press the “MENU/OK" button to confirm the setting. someeu poouenpy Q

| >= PLAYING BACK MOVIES

@Press the “Playback” button for approx. 1 second to turn the camera on in Playback mode. @ Press “%” or *®” to select the movie file. % Movies cannot be played back using muli-frame playback. Press the *DISP/BACK button to select singie-frame playback

• icon. ) (indicated bythe* (ESSTor @RPAUSE) ® Press “Y” to play the movie. @ The LCD monitor shows the playback time and a playback progress bar. % if ie subject of the shot is very bright, white vertical streaks or black horizontal streaks may appear in the image during playback. This is normal. Movies are displayed one size smaller than still images. M Playing Back Movies Control Stop (GE) x Press “4° or “be” while playback is stopped to go back to the previous file or advance to the next file respectively. Fast forward/Rewind Fast Tonward Press “4” or “&” during playback to skip forwards or backwards through the movie. Skip playback TS — ©) When paused Press “@° or “Re” when he movie is paused, the movie advances or goes back one frame. Hold down “4 or “be” 10 move through the frames quickly. hard disk and then playback the saved file. + You may not be able to playback some movie files recorded on other cameras. + To playback movie files on a computer, save the movie file on the xD-Picture Card to the computers

@Press the “Playback” button for approx. 1 second to turn the camera on in Playback mode. @Press the “MENU/OK" button to display the menu on the LCD monitor. or “æ” to select “Si” OPTION and LCD". @Press “ then press “A” or “W” to select “à @ Press the ‘MENU/OK" button. @Press “4” or “æ" to adjust the LCD monitor brightness. @ Press the ‘MENU/OK" button to confirm the new setting. 4 To exit is procedure without changing the setings, press the “DISP/BACK button sôumes Es

@Press the “MENU/OK" button to display the menu on the LCD monitor. @Press “4” or “&” to select “&” OPTION and then press “A” or “W” to select “SET-UP”. @Press the “MENU/OK" button to display the SET-UP screen. % Aways turn the camera off when replacing the batteries. Opening the battery cover or disconnecting the AC power adapter without tuming the camera off may cause the camera settings to revert to the factory default values set at shipment. Press “4” or “B” to move to option 1 to 4. ® Press “A” or “#” to select a menu option and then @ Press “4” or “b" to change the setting. Press “»" for “FORMAT, *DAÂTE/TIME”, “TIME DIFFERENCE", “DISCHARGE" or “GRESET”. After you have changed the settings, press the “MENU/OK" button to confirm the changes. H SET-UP menu options Setings Display [Factory defaut Explanation Specifies whether an image checking screen (photography result) IMAGE DISP. ONOFF ON | appears aîter taking a picture The image appears for a few moments and ihen recorded. Reduces the cameras power consumption and lo subsequently 1 [POWER SAVE | 2 MINS MIN 2 MIN | tu the camera off when not being used. See P.50 for detail FORMAT CS —[Erases alles, See P.50 for detais. eve LowmieHorr | Low [5 he voume of the tone emitted when the camera controls are used. DATETIME SET — | Gorrecis ine date or time. See P.13 for details. TIME DIÉERENCE SET — | species the time difference setings. See P.51 for detais. 2 Specifies whether the LCD monitor is ON or OFF when the ic ONOFF ON | camera is turned on in Photography mode. Specifies whether frame numbers are assigned consecutively FRAME NO. | CONT/RENEW | CONT. om previous numbers or begin again. See P.52 for detail. SIGNES | Selects ine function when the camera is connected to a computer USB MODE as US$ Jora printer. See P.61 for details. EASENGLISH! 3|aLaNG. |FRANCAISDEUTSOH| ENGLISH | Speciies the language used for LCD monitor display, ESPAROLÆhX VIDEO SYSTEM] NTSC/PAL = | Species wneter video output is setto NTSC or PAL. DISCHARGE CS —[Discharges rechargeable batteries. See P.76 for details. Resets allie camera Setings (other nan 1e DATEITIME, TIME 4 DIFFERENCE LANG. and VIDEO SYSTEM) to the factory ORESET œ — | defauit values set at shipment. À confirmation message appears when you press “be. To reset the camera setings, press the MENUJOK' button again. sôumes Es

When this function is enabled, the screen temporarily turns off (Sleep mode) and the viewtinder lamp (green) blinks at 1 second intervals to save power if the camera is not used for 30 seconds. If the camera remains unused for an additional interval (2 minutes or 5 minutes), it is tumed off. Use this function when you want to get the maximum possible running time from your batteries. SThe Power save setting is disabled during automatic playback, during rechargeable battery discharging and when a USB connection is being used. The Sleep function does not operate in SET-UP or Playback mode, but the camera will turn off if it is left unused for a set some time (2 minutes or 5 minutes). When the camera is in Sleep mode, pressing the Shutter button down halfway wakes the camera up so that it is ready to take pictures. This is useful since the camera can be ready to take pictures almost instantly.

> 4 Pressing any other button as well as the Shutter button wakes the camera up. Be). To restore power to the camera AY To restore power to the camera to take pictures, Gif °'io'i close and then re-open the lens cover D completely so that it makes two successive clicks and will not move further. To play back images, close [oi « the lens cover until it stops and then hold down the

a —./ “Playback” button for approx. 1 second.

Formatting erases all the frames (files). Initialize the xD-Picture Card for use in the FORMAT OK? camera. Back up important frames (files) onto your computer ERASE ALL DATA or another media. Mise cancel D Press “@” or “be” to select “OK” @ Pressing the “MENU/OK" button erases all the CRE frames (files) and initializes the xD-Picture Card. Formatting erases protected files also.

dir “CoDERRoN HATEERRON D", <CHRDENRON" or LGHAONOTINMAUED-] appears, see P.78 for information before formatng the xD-Picture Card. o 0 0 0 o 0 0 0 TIME DIFFERENCE (TIME DIFFERENCE SETTING) This function sets a time difference relative to the date and time currentiy set. When this setting is enabled, the specified time difference is applied when pictures are taken. Use this function when traveling to destinations in different time zones. 15 =

Press “@" or “b" to change between “© HOME" and “4 LOCAL". To set the time difference, select “# LOCAL". @ HOME _ : Your home time zone + LOCAL : Your destination time zone Press “4” or “W” to select ‘TIME DIFFERENCE”. @ Press “D”. @Press “" or “R to select +, hour and minute. @ Press “A” or “Y” to correct the setting. e Available time settings -23:45 to +23:45 (in 15 minutes increments) Continued sôumes Es

#Formatted xD-Picture Card used for both À and B.

Directory number File number Frame number 4/23/2004 0 FN] Always press the “MENU/OK" button to complete the settings. When the photography mode is selected with world time set, “4” appears on the LCD monitor for 3 seconds. CONT. : Pictures are stored beginning from the highest file number stored on the last xD- Picture Card used. RENEW: Pictures are stored on each xD-Picture Card beginning with a file number “0001”. Setting this function to “CONT." makes file management easier as it ensures that file names are not duplicated when images are downloaded to aPC. 4 When the camera setings are “ARESET", ine frame number seting (-CONT." or “RENEW) is changed to CONT." and the frame number itself does not return to “0001 4 When ine xD-Plcture Card already contains image fles with file numbers higher than the highest fle number on the last xD-Picture Card, images are stored beginning from the highest file number on the current xD-Picture Card. Check the file number by viewing the image. The last 4 digits of the 7-digit number in the top right corner of the LCD monitor are the file numbers, while the first 3 digits show the directory number. When changing the xD-Picture Card, always turn the camera off before opening the battery cover. Opening the battery cover without tuming the camera off may cause the frame number memory to not function. 4 File number runs from 000! to 9999. Once 9999 is exceeded, the directory number changes from 100 to 101. The maximum number is 999-9099. SThe displayed frame number may differ for images photographed on other cameras. INC ELENO FU l' appears, see P.78. Software Installation

5.1 INSTALLATION ON À Windows PC

Pre-installation checklist To run this software, you must have the hardware and software described below. Check your system before you begin the installation. Operating System Windows 98 (including the Second Edition) Windows Millennium Édition (Windows Me) Windows 2000 Professional" Windows XP Home Edition*? Windows XP Professional*2 CPU 200 MHz Pentium or better recommended (800 MHz Pentium Il or better recommended for Windows XP) RAM 64 MB minimum (128 MB minimum for Windows XP), 256 MB or more recommended Hard disk space Amount required for installation: 450 MB minimum Amount required for operation: 600 MB minimum {When using ImageMixer VCD for FinePix: 2 GB or better) Display 800 x 600 pixels or better, 16-bit color or better {When using ImageMixer VCD for FinePix: 1024 x 768 or better) + To use FinePix Internet Service or mail attachment function: An Internet connection and e-mail transmission software + Connection speed: 56 k or better recommended Internet connection* #1 Models with one of the above operating systems pre-installed. #2 When you install the software, log in using a system administrator account (e.g. “Administrator") #3 Required to use the FinePix Internet Service. The software can stil be installed even if you do not have an Internet connection € Notes & + Connect the camera directly to the computer using the USB cable (included). The software may not operate correctiy when you use an extension cable or connect the camera via a USB hub. + When your computer has more than one USB port, the camera can be connected to either port. + Push the USB connector fully into the socket to ensure that it is securely connected. The software may not operate correctly if the connection is faulty. + Additional USB interface board is not guaranteed. + Windows 95 and Windows NT cannot be used. + Operation is not guaranteed on home-built computers or on computers running updated operating system software. + When you reinstall or remove FinePixViewer, the Internet menu and your user ID and password for the FinePix Internet Service are deleted from your computer. Click the [Register now] button, enter your registered user ID and password and download the menu again + To use Video Chat, a PC running Windows XP Professional (Service Pack 1) or Windows XP Home Edition (Service Pack 1) is required with a sound card, a connected microphone and speakers, and Windows Messenger 5.0 or later installed. When using a router, check that the router is compatible with Windows Messenger.

Do not connect the camera to your PC until the software installation is completed. 1 Install FinePixViewer as instructed in the Quick start guide. % Launching the installer manually & ® Double-click the “My Computer” icon. # Windows XP users should click ‘My Computer” in 1he “Start menu. @ Right-click “FINEPIX" (CD-ROM drive) in the “My Computer” window and select “Open”. ® Double-click *SETUP” or “SETUP.exe” in the CD-ROM window.

SETUP SETUPexe 4 The way fle names are displayed difers as described below depending on your computer settings. + File extensions (3-ettr sutfhes indicatig the file type) may be shown or hidden. (2.g. Selup.exe or Setup) + Text may be shown normal or all in uppercase (6.9. Setup or SETUP) % Installing other applications @ You may see messages for installing ImageMixer VCD2 for FinePix and WINASPI. Install these applications as directed by the on-screen instructions. The installation screens for these applications are displayed as required. After restarting the PC, install DirectX as directed by the on-screen instructions and then restart your PC again. If the latest version of DirectX is already installed on your PC, this installation is not performed. 4 11e latest version is already instaled, this window does not appear. 4 Do notremove the CD-ROM during this procedure USB Vite lee Drivers 3 After the restart, the USB Video Class driver is installed. D) ns M ea og 4 1 the latest version is already installed, this window does not Sanaa est appear. 4 The driver is oni installed on Windows XP SP 1 After restarting the PC, the “installation of the FinePixViewer has been completed” message appears.

5.2 INSTALLATION ON A Mac OS 9.2

Pre-installation checklist To run this software, you must have the hardware and software described below. Check your system before you begin the installation. Power Macintosh G3*", PowerBook G3°1 Power Macintosh G4, iMac, iBook, Power Macintosh G4 Cube or PowerBook G4 Operating System Mac OS 9.227 RAM 64 MB minimum*, 256 MB or more recommended {When using ImageMixer VCD for FinePix: 128 MB or better) Amount required for installation: 400 MB minimum Amount required for operation: 600 MB minimum {When using ImageMixer VCD2 for FinePix: 2 GB or better) Display 800 x 600 pixels or better, at least 32,000 colors {When using ImageMixer VCD for FinePix: 1024 x 768 or better) + To use the FinePix Intemet Service or mail attachment function An Internet connection and e-mail transmission software + Connection speed: 56 k or better recommended Compatible Mac Hard disk space Internet connection*t #1 Models with a USB port as a standard feature #2 This software does not run correct} in the Mac OS X Classic environment. #3 Turn virtual memory on if necessary. #4 Required to use the FinePix Internet Service. The software can stil be installed even if you do not have an Internet connection — # Notes + Connect the camera directly to the Macintosh using the USB cable (included). The software may not operate correctiy if you use an extension cable or connect the camera via a USB hub. + Push the USB connector fully into the socket to ensure that it is securely connected. The software may not operate correctly if the connection is faulty. + Additional USB interface board is not guaranteed. + On Macintosh computers, allocate at least 400 MB of virtual memory when RAW FILE CONVERTER LE is used. If other applications will be used at the same time, allocale the additional amount required for those applications also. 1 Turn on your Macintosh and start up Mac OS 9.2.2. Ÿ Do not connect the camera t your Macintosh until te soltware instalation is completed. When the bundled CD-ROM is loaded into the CD-ROM drive, the [FinePix] volume appears. Double-click the volume icon to open the volume window. 4 the +FinePhe window does not open automaticaly, double-cik ne CD-ROM icon 3 Double-click “Installer for MacOS9" to launch the Installer. Continued uonenmeur exmyos (EST

The Installer setup screen appears. Click the 4 {installing FinePixViewer] button. 4 For more information on what is installed, clik the [Read Me Firsy button and [Using FinePixViewer] button. Unns FRET

À confirmation message appears asking whether you want to continue with the installation. Click the [OK] button. The User License Agreement for this software appears. Read the agreement carefully and then, if you agree to the terms of the Agreement, click the [Agree] button. If you click the IDisagree] button, the software is not installed. Select the installation destination for FinePixViewer. @ Click the [Open] button to open the installation | Gr — | destination folder. FE Macintosh DENT Selectthe instalation destination tolder. @ Click the [Save] button. Ga systeme vi siarage Selectthe instalation destination tolder. 8 Install ImageMixer VCD2 for FinePix as directed by the on-screen instructions. After restarting the Macintosh, the “FinePixViewer 9 installation completed” message appears. Click “Using FinePixViewer' to view the basic FinePixViewer functions. Uno Free] 10: install Acrobat Reader, click “Install Acrobat Reader”. instal Adobe Systems: Acrobat Reader sofhware 0 read ie FinePixViewer Users Guide (PDF) He latest version already has been installed, is step is not required il Proceed with the installation as directed by the on-screen instructions. © Toinstall Acrobat Reader later. @ ® Double-click the “FinePix” CD-ROM to open the CD-ROM window. @ Double-click “FinePixViewer for MacOS" = “Acrobat Reader” = “English' folder. @ Double-click “English Reader Installer”. @ Proceed with the installation as directed by the on-screen instructions. uonelesu] a1emyos [CF

Pre-installation checklist BHardware and software requirements To run this software, you must have the hardware and software described below. Check your system before you begin the installation. Power Macintosh G3*1, PowerBook G3*, Power Macintosh G4, iMac, iBook, Power Macintosh G4 Cube, or PowerBook G4, Power Macintosh G5 Operating System Mac OS X (compatible with version 10.2.6 to 10.3.1) RAM 192 MB minimum, 256 ME or more recommended Hard disk space Amount required for installation: 200 MB minimum Amount required for operation: 400 MB minimum {When using ImageMixer VCD2 for FinePix: 2 GB or better) Display 800 x 600 pixels or better, at least 32,000 colors {When using ImageMixer VCD2 for FinePix: 1024 x 768 or better) + To use the FinePix Internet Service or mail attachment function An Internet connection and e-mail transmission software + Connection speed: 56 k or better recommended Compatible Mac Internet connection? #1 Models with à USB port as à standard feature 42 Required lo use the FinePix Internet Service. The software can still be installed even if you do not have an Internet connection. r— % Notes @ + Connect the camera directly to the Macintosh using the USB cable (included). The software may not operate correctiy if you use an extension cable or connect the camera via a USB hub. + Push the USB connector full into the socket to ensure that it is securely connected. The software may not operate correctly if the connection is faulty. + Additional USB interface board is not guaranteed. + On Macintosh computers, allocate at least 400 MB of virtual memory when RAW FILE CONVERTER LE is used. If other applications wil be used at the same time, allocate the additional amount required for those applications also. 1 Turn your Macintosh on and start up Mac OS X. Do not launch any other applications. When the bundled CD-ROM is loaded into the CD- ‘eo tune ROM drive, the [FinePix] icon appears. Double-click CE the [FinePix] icon to open the [FinePix] volume window. Av A > 3 Double-click “Installer for MacOS X". The Installer setup dialog appears. Click the 290 mm {lnstalling FinePixViewer] button. FinePixViewer 4 For more information on what is installed, cick ine [Read Me pee Firsf button and [Using FinePixViewer] button Using FPT The ‘Authenticate” dialog appears. Enter the name and password for the administrator account and then click the [OK] button.* #The administrator account is the user account used for Mac OS X installation and you can confirm the user account in the Accounts dialog in the System Preferences. The “License” dialog appears. Read the agreement carefully and then, if you agree to the terms 6 of the Agreement, click the [Accept] button. 7 The “Read me” dialog appears. Click the [Continue] button. Continued uoneresur emyos (JT

The “FinePixinstallOSX" window appears. Click the “Install” button to install FinePixViewer and RAW FILE CONVERTER LE. ee asso image VOD2EA PARLER

3 inst image VCD Bagaren Si dan est md dr isa von imaginer VC MR imagubicer VCD The ImageMixer VCD2 installer automatically starts up and a window showing the installation progress appears. (Installation may take several minutes.) 102 “FinePixViewer installation completed” message dialog appears then click exit button and close it. il Launch ‘Image Capture” from the “Applications” folder. Change the Image Capture settings. Er Î Select “Preferenes.….." from the “Image Capture” |° == menu si g 1 Select “Other...” from “When a camera is connected, open”. Select “FPVBridge” from “FinePixViewer" folder in Î the “Applications” folder and click the “Open” button

Always use only the FUJIFILM *AC Power Adapter AC-3V” or the “AC Power Adapter AC-3VW" bundled with the PictureCradie CP-FXA10 (=P.73). Use the AC power adapter to avoid losing power at inconvenient times, such as when you are downloading photographed images to your computer. You can take pictures and play back images without worrying about depleting the batteries. 4 See P.75 for notes on using the AC pouer adapter. 4 By using the optional cradie, the AC power adapter bundled with the cradie must be used. The use of AC pouer adapters other than the bundied product wil cause fault. 4 Only connect or disconnect he AC power adapter when the camera is turned of. Connecting or disconnecting the AC power adapter while the caméra is turned on temporariy iterrupts {he power supply 10 the camera, so hat images or movies being shot are not recorded. Faling to tum the camera off ret can also result in damage to the xD-Picture Card or malfunctions during PC connection Check that the camera is tumed off. Plug the AC power adapter connector into the “DC IN 3V' socket and then plug the AC power adapter into the power outlet. 4 The socket-outlet shall be installed near the equipment and shall be easiy accessible. 4 The shape of the plug and socket-outlet depends on the country of use. *Sold separately {Do not connect the AC power adapter to charge the AAsize nickel-metal hydride batteries. Please use the optional charger (=P.73). -2 Connecting to a TV Turn off the camera and TV. Plug the Video cable {provided with the camera) into the “VIDEO OUT” {video output) socket. VIDEO OUT socket Lof 4 images are oniy sent to the TV in Playback mode (FinePix 330 oni). DC IN 3V socket 4 there is a power outlet available, connect the AG-3V AC Power Adapter. Plug the other end of the cable into the video input socket on the TV. Then turn the camera and TV on and playback images as you would normally. To video input socket nn =: 4 Reler to the instructions provided with your TV for more information on video input or your TV. 4 The image qualty for movie playback is lower than for still images. sobeur Suman ©D

PRINTING IMAGES (PictBridge FUNCTION) If a printer that supports PictBridge is available, images can be printed by connecting the camera directly to the PictBridge-compatible printer without using a computer.

6.2.1 Specifying images for printing on the camera

Co Hi Set to “&<" in the “USB MODE" setting in the *SET-UP" menu (=P.48) 4 Do not connect to a PC when the ‘USB MODE” setting is set to“B<". See P.81 if you connect to PC by mistake. ® Connect the camera to the printer using the USB cable (included). @ Turn the printer on. 4 The camera cannot be used to specify printer settings such s the paper size and print quality. Please connect the AC Power Adapter AC-3V (sold separately) or AC-3VW (included with optional PictureCradie CP-FXA10) to your camera. 4 Use an xD-Picture Card hat was formatted on ihe camera. Press the “Playback” button to turn the camera on in Playback mode. COHECIING US)” appears and then the menu screen is displayed % I te menu screen does not appear, check whether the USB mode setting is “BR”. 4 Depending on the printer, some functions are disabled. ® Press “4” or “W” to select “PRINT DPOF”. @ Press the *MENU/OK" button. When “ LARHOTSETDPOE |” appears, the DPOF settings are not specified. 4 To use DPOF printing, the DPOF settings must be specified on FinePix A330/FinePix A340 beforehand (=P-35). 4 Even when WITH DATE" is specified in the DPOF settings, the date is not inserted on printers that do not support date printing. T_DPOF TSSHEETS APRINT DPOF OK?

Press the “MENU/OK" button to download the data to the printer and print the frames specified in the DPOF settings. d Press the “DISP/BACK” button to cancel the printing Depending on the printer, the priing may not be Canceled immediately or printing may stop mid way through. When printing tops midway, brief tum the camera off and hen On again g images for printing without using DPOF (single-frame printing) Set to “ss” in the “USB MODE" setting in the *SET-UP” menu (=P.48). 4 Do not connect to a PC when he “USB MODE” seting is set to*B+". See P.81 if you connect to PC by mistake. ® Connect the camera to the printer using the USB cable (included). @ Turn the printer on. 4 The camera cannot be used to specily printer settings such 28 the paper size and print quality. dPiease connect the AG Power Adapter AC-3V (sold Separate) or AC-3VW (included with optional PictureGradle CP-FXA10) to your camera. 4 Use an xD-Picture Card that was formatted on the camera. Press the “Playback” button to turn the camera on in Playback mode. “CCHECKING USE)" appears and then the menu screen is displayed. D 1 the menu screen does not appear, check whether he USB mode setting is “&æ". ® Depending on the printer, some functions are disabled. Continued sebeur Suman ©

PRINTING IMAGES (PictBridge FUNCTION) ®Press “A” or “Y to select “PRINT WITH DATE" or “PRINT WITHOUT DATE”. If “PRINT WITH DATE" is selected, the date is imprinted on your prints. @ Press the ‘MENU/OK" button. SPRINT WITH DATE" is not available when the camera is connected lo a printer that does not support date printing, 5] DPress “%” or “b” to display the frame (file) for 5 [DO me © ©| which you want to specify PRINT settings. &= == || ul @@ à| Press “4” or ‘y’ to set a value up to 99 as the Y | number of copies of the frame (file) to be printed For frames (files) that you do not want printed, set the number of prints to 0 (zero). TOTAL: 00002 To specify more PRINT settings, repeat steps D and ©. sers @ Always press the “MENU/OK" button to complete ÿ the settings. LD rAME EYES CPEANCEU 4 Movie images cannot be printed. ——— Press the “MENU/OK" button to download the data 6 to the printer and start printing the specified PRUNTINS number of prints. To end printing, press the “DISP/BACK" button: 1/7 S6SHEETS] CREME 4 Press the “DISP/BACK® button to cancel the printing Depending on the printer, ihe printing may not be canceled l ° MENU « 7x ° 2 © printing stops mid-way, brelly turn the camera off and then on again. immediately or printing may stop mid way through. When o 0 0 0 © Disconnecting the printer @ IT | ù Check that “CMD” is not displayed on the A camera's screen. @Turn the camera off. Unplug the USB cable. < (USB)socket

6.3 CONNECTING TO À COMPUTER

6.3.1 Connecting to a Computer

The “Connecting to a Computer” section explains how to connect the camera to your computer using the USB cable (included) and describes the functions you can use once the camera and computer are connected. Ifthe power cuts out during data transmission, the data will not be transmitted correctiy. Always use the AC power adapter when connecting the camera to a computer. Refer to Section 5 the first time you connect the camera to your computer. Install the software first. Do not connect the camera with the computer before installing all the software. CD-ROM {Software for FinePix AX) [DS DSC (Mass storage device) mode ] This mode provides a simple way to read images from an xD-Picture Card and store images onto an xD-Picture Card (=P.66). [WEB WEB CAM (Web Camera) mode ] This function allows you to conduct videoconferencing sessions between PCs connected to the Internet. 4 The WEB Camera function can only be used on Windows XP SP1 À Microsoit Windows Messenger 5.0 or later is required o use the WEB Camera function Please download it from the Messenger web site. 4 images are not output to a TV. Change between “CJ#" and “& WEB” in the camera's SET-UP screen. % Using Video Chat with Windows Messenger $ Connecting camera to a Computer © Plug the AC power adapter connector into the “DC IN 3V” socket on the camera and then plug the adapter itself into the main power outlet. 2 Turn the camera on in Photography mode (=P.12).

3) Set the “USB MODE” setting in the “SET-UP” menu to “@ WEB” (=P.48)

© Use the USB cable to connect the camera to your computer

2) Turn the camera on in Photography mode (=P.12).

& Using Video Chat with Windows Messenger, refer to “How to use FinePixViewer” in the HELP menu which was installed from the CD-ROM. Dire FAQ à About FinePsiuer. 4 Take care to ensure that the USB cable is connected the correct way around and that the plugs are pushed fly into the connection sockets. + “CGNER CANERA )" appears on the LCD monitor. + Power save and Auto power off are disabled during USB connection Disconnecting the Camera © Quit all applications (FinePixViewer etc.) that are using the camera. 2 Turn the camera off (=P.12).

3) Unplug the USB cable from the camera.

1 Set a camera @insert an xD-Picture Card into your camera. LEON Plug the AC power adapter connector into the = “DC IN 3V” socket on the camera and then plug « the adapter itself into the main power outlet. @Press the “Playback” button to tu the camera on in Playback mode. @ Set the “USB MODE" setting in the “SET-UP" menu to “CJ<" (=P.48) @Press the “Playback” button to tu the camera off.

2 Connect a camera to a PC Camera] [Q] —tenie à @ Turn your PC on. @Use the USB cable (included) to connect the camera to your computer. @ Turn the camera on. 4 Take care to ensure that the USB cable (included) is connected the correct way around and that 1h plugs are pushed ul into the connection socket. (USB) ac-av | socket © When the camera and PC are exchanging data, the self-timer lamp blinks and the viewtinder lamp blinks alternately green and orange. e “55080 )" appears on the LCD monitor. e Power save and Auto power off are disabled during USB connection 4 Betore replacing the xD-Pleture Card, aMays disconnect the camera from the PC using the procedure on P.68. 4 Do not disconnect the USB cable when the camera is communicatng with he PC. See P.68 for information on the disconnection procedure. Set a PC Windows 98 / 98 SE / Me / 2000 Professional / Macintosh D The Windows CD-ROM may also be required during instalation. In this event, change CD-ROMS as directed by the onscreen instructions. e FinePixViewer automatically starts up and the Save Image Wizard window (Save Image dialog box) appears. Follow the instructions provided on screen to save the images at this point. To proceed without saving the images, click the “Cancel” button. mmmmues ÉEELCTE [ei 10 me i 25 # Screen for Windows 98 SE. rer © À removable disk icon appears and you can use Windows Macintosh your PC to transfer files to and from the camera: = Removable untitled Disk Ithe above operations do not oceur, you do not have the required sofiware programs or drivers installed on your PC. Complete the required PC setup procedures. Then reconnect the camera to your PC. Windows XP @The “Found New Hardware” help message appears in the bottom-right comer of your screen. This message will close when the settings are completed. No action is required. Found New Hardare Free Dia Cane d This step is not required for subsequent connections. @ Specity the settings in the “AutoPlay” dialog box. When FinePixViewer is included in the list of actions to perform Select “Viewing images using FinePixViewer” and then select the “Always do the selected action” checkbox (This checkbox may not be shown in some cases). Click the [OK] button to launch FinePixViewer. ‘+ When FinePixViewer is not included in the list of actions to perform Select “Take no action” and then select the “Always do the selected action” checkbox. (This checkbox may not be shown in some cases) Click the [OK] button and launch FinePixViewer manually. @ A new removable disk icon appears in the “My Computer” window. FinePixViewer automatically starts up and the Save Image Wizard window (Save Image dialog box) appears. Follow the instructions provided on screen to save the images at this point. To proceed without saving the images, click the “Cancel” button: he next time you connect the camera, the removable disk drive icon and name change to the “FinePix icon and name. EF + Regarding the Icons &

6.3.2 Disconnecting the Camera

Windows Once the image has been saved, the “Remove Camera/Media” window appears (Save Image Wizard Windows). To disconnect the camera, click the [Remove] button Em carpe Cick[erovelbuten Wrentre oméenrena cp remove be care ma Ch real utero never Macintosh Once the image has been saved, the “Remove camera/media” window appears (Save Image dialog box). To disconnect the camera, click the [OK] button. G: Saving of Images was competed.

ane) (D (HT | @When the “it is now safe to disconnect the 2 2 Es MN camera” message appears, click the [OK] button DA and disconnect the camera. Æ @ Turn the camera off. @Unplug the USB cable (included) from the camera. AD AV

For all information on FinePixViewer functions, refer to “How to Use FinePixViewer” in the Help menu for details. © Macintosh & ‘+ To read “How to Use FinePixViewer”.. You must install Adobe Systems’ Acrobat Reader. See P.57 for information on installing Acrobat Reader. 4 For more information on using Acrobat Reader, ee to 1ne Acrobat Reader “Help menu What is explained in “How to Use FinePixViewer”.. “How to Use FinePixViewer” covers a range of topics, including batch processing and ordering prints. M Example: Looking up slide shows ® Click “How to Use FinePixViewer” in the FinePixViewer Help menu. @ Click “Basic Operation” and then click “Basic Slide Show Operations” in the menu that appears. @The “Basic Slide Show Operations” information appears. Press the “<<<” key to view the previous page or the “>>>" key to view the next page.

6.4.2 Uninstalling the Software

Only perform this operation when you no longer require the installed software or when the software was not installed correctiy. Windows @ Check that the camera is not connected to the PC. © Quit all currently running applications. @ Open the “My Computer’ window, open the “Control Panel”, and double-click “Add/Remove Programs”. [RédRemovel | Programs @ The “Add/Remove Programs Properties” window appears. Ésnrisspespeer] Select the software to be uninstalled (FinePixViewer or the pe driver) and then click the [Add/Remove] button. = <To remove FinePixViewer> ea FinePixViewer Ver.4.2 TA = <To remove the driver software» FUJIFILM USB Driver Continued sobeur Suman ©D

@When the message appears, click the [OK] button. Check your selection carefully since the process cannot be cancelled once you click [OK] button. FUJIFILM USB Driver FUJIFILM USB Driver is deleted. OK? | Cancel © Automatic uninstallation begins. When uninstallation ends, click the [OK] button: Macintosh Mac OS 9.2 E Uninstalling Exif Launcher, FinePixViewer @ After you have quit Exif Launcher in “Exif Launcher Settings” in the FinePixViewer “Settings” menu, move the Exif Launcher file from the “Startup Items” folder in the System folder to the Trash. Then select “Empty Trash" in the “Special” menu. @ After you have exited FinePixViewer drag the installed FinePixViewer folder to the Trash Then click “Empty Trash" in the “Special” menu. Mac OS X E Uninstalling FinePixViewer Quit FinePixViewer. Then drag the installed FinePixViewer folder to the Trash and select “Empty Trash” in the “Special” menu. System Expansion Options By using the FinePix A330/FinePix A340 together with other optional FUJIFILM products, your system can be expanded to fill a wide range of uses. M Image input/output to the PC FinePix A330 / FinePix A840 Digital Camera xD-Picture Card MB Print creation {USB) {USB) Pictureradie _GP-FXA1O+Adapter _| DPC-R1 {PC card slot) Image Memory Card Reader ture Card”* USB DRIVE

Printer (commercially available)

4 For a detaled description of ne cradle and how to use refer to the Ouners Manual supplied ith he crade. elnstalling the cradle Cradle adapter for. A330 2e A340 ] (Supplied with the camera)

AC-3VW ideo cable included) USB cable Set the for FinePix A330/FinePix A340 cradie adapter supplied with the camera into the crade. eCharging the Rechargeable Battery NH-10 Connect the AC-3VW, video cable (included) or USB cable to the cradle:

\17 AIS Load the camera containing a Rechargeable Battery NH-10 into the cradle. Taking the camera out of the cradle Charging begins when you load the camera into the cradie. Hold the cradle firmiy and lift the camera out. 4 images are not output to a TV in st image or movie recording mode or in WEB Camera mode http2/home.fuiifilm.com/products/digital/index.html e xD-Picture Card DPC-16 (16 ME)DPC-32 (32 ME)DPC-64 (64 MB)/DPC-128 (128 MB)/DPC-256 (256 MB)DPC-512 (512 MB) e AC Power Adapter AC-3V Use the AC-3V when you want to take pictures or play back images for long periods or when the FinePix A830/ FinePix A340 is connected lo a personal computer. Do not use the AC-3V to charge the camera batteries with the cradie. # The shape of 1e AC power adapter, the plug and socket outlet depend on the country, € Fujifilm Rechargeable Battery 2HR-3UF The 2HR-SUF includes 2 pieces of high-capacity AA-size Nickel-Metal Hydride (Mi-MH) batteries € Fujifilm Battery Charger with Battery BK-NH/BK-NH2 {With Euro type or UK type plug) The BK-NHIBK-NH2 includes the quick battery charger BCH-NHECH-NH2 and 2 N-MH batteries. The BCH-NH/BCH-NH2 can charge 2 NiMH batteries in approximately 120 minutes. Up to 4 N-MH batteries can be charged simultaneousiy e PictureCradle CP-FXA10 I you connect the AC power and USB cable lo this crade, you can charge the camera battery pack in the camera or connect ne camera lo your computer just by placing the camera in the crade. The rechargeable battery NH-10 and AC Power Adapter AC-3VW are supplied with the Picture Cradie CP-FXA10. N-MH bateries (comarcialy available) can not be charged with this cradie. To use the cradle for charging the camera batteries, use the AC-3VW power adapter supplied with the crade. © Rechargeable Battery NH-10 This is a battery pack that uses nickel-metal hychide (N-MH) bateries. The NH-10 can be charged using the Digital Camera FinePix A330/FinePix A340 and Cradie CP-FKA10, or the AC Power Adapter AC-3VW. Obtain his battery pack i You need a spare battery after purchasing the crade. © Carrying Case SC-FXA02 This is a special case made of polyester 1hat protects 1he camera against soil dust and minor impacts when it is being carried © Image Memory Card Reader DPC-R1 The DPC-R1 provides a quick and easy way lo transfer images back and forth between your PC and an image memory card (D-Plcture Card and SmarlMedia). The DPC-R1 uses the USB interface for high-spéed Île transfer. + Compatible wi Windows 98:98 SE, Viindows Me, Windows 2000 Professional, Windows XP or iMac, Mac OS 8.6 to 9.2.2, Mac OS X (10.12 to 10.2.2) and models that support USB as standard + Compatible wih xD-Picture Card of 16 ME to 512 MB, and SmarWedia of .3V, 4 MB to 128 ME. e PC Card Adapter DPC-AD The PC Card Adapter allows the xD-Picture Card and SmarMedia to be used as a PC Card Standard ATA-compliant (PCMCIA 2.1) PC card (Type ID + Compatible with xD-Pieture Card of 16 MB to 512 MB, and SmarlMecia of 3.3V, 2 MB to 128 MB. © CompactFlash'" Card Adapter DPC-CF Loading an xD-Picture Card into this adapter allows you to use the card as a CompactFlash card (Type I). ‘ Windows 95/98/98 SE/Me/2000 Professional XP Mac OS 8.6 10 9.2 (10.1.2 to 10.1.5) e xD-Picture Card'" USB Drive DPC-UD1 This is a compact card reader for xD-Picture Cards. Simply plug the drive into the USB port 0 read and write data lo an xD-Picture Card (No driver installation is required except on Windows 98/98 SE). ‘e Compatible with xD-Picture Card of 16 MB to 512 MB Windows 98/98 SE/Me/2000 Professional XP ‘+ Mac OS 9.0 0 9.2/X (10.0.4 to 10.2.6)

Using Your Camera Correctly D Read this information and the “Safety Notes” (=P.87), to make sure you use your camera correctly. m Places to Avoid Do not store or use the camera in the following types of locations: In the rain or in very humid, dirty or dusty places ein direct sunlight or in places subject to extreme temperature rises, such as in a closed car in summer e Extremely cold places Places with strong vibration laces with smoke or steam «Places subject to strong magnetic fields (such as near motors, transformers or magnets) ‘in contact with chemicals such as next to rubber or vinyl products 1 Damage by Water or Sand The FinePix AS30/FinePix A340 can be damaged on the inside and outside by water and sand. When you are at the beach or close to water, make sure that the camera is not damaged by water or sand. Take care no to place the camera on a wet surface. M Damage by Condensation I the camera is carried from a cold location into a warm place, water droplets (condensation) may form on the inside of the camera or on the lens. When this oceurs, turn the camera off and wait an hour before using the camera. Condensation may also form on the Power Supply and Batteries xD-Picture Card. In this event, remove the xD- Picture Card and wait a short time. M When the Camera is Not Used or is stored Periods of Time I you do not intend to use the camera for a long period of time, remove the batteries and the xD-Picture Card Cleaning Your Camera e Use a blower brush to remove dust from the lens. LCD monitor screen or viewfinder, and then wipe lightly with a soft, dry cloth. I any soiling remains. apply a small amount of lens cleaning liquid to a piece of FUJIFILM lens cleaning paper and wipe gentiy. ‘Do not scratch hard objects against the lens, LCD monitor screen or viewfinder as these surfaces are easily damaged. ‘ Clean the body of the camera with a soft, dry cloth. Do not use volatile substances or cleaning products these items can cause damage. MB Using the Camera When Traveling When traveling overseas, do not place your camera in the check-in baggage. Baggage can be subjected violent shocks, and the camera may be damaged inside or outside. Applicable Batteries In the camera, use AA-size alkaline or nickel-metal hydride batteries and the rechargeable battery NH-

Do not use AA-size manganese or nickel-cadmium {Ni-Cd) batteries in your FinePix A830/FinePix A340 because the heat created by the batteries could damage the camera or cause is not to Work. e The life of alkaline batteries varies between brands. The life of batteries you purchase may be shorter than those provided with the camera Notes on the Batteries Incorrect use of the batteries could cause them to leak, become hot, ignite or burst. Always observe the precautions given below ‘ Do not heat the batteries or throw them into a fire. ‘Do not carry or store batteries with metal objects such as necklaces or hairpins: ‘Do not expose the batteries to water, and keep batteries from getting wet or stored in moist locations. ‘+ Do not attempt to take apart or change the batteries, including battery casings: ‘ Do not subject the batteries to strong impacts «Do not use batteries that are leaking, deformed. discolored ‘ Do not store batteries in warm or humid places. Keep the batteries out of reach of babies and small children. eMake sure that the battery polarity (D and ©) is correct. «Do not use new with used batteries. Do not use charged and discharged batteries together. ‘ Do not use different types or brands of batteries at the same time. ‘e1f you do not intend to use the camera for a long period of time, remove the batteries from the camera {Note if the camera is left with the batteries removed, the time and date settings are cleared). e The batteries feel warm right after being used. Before removing the batteries, turn the camera off and wait for the batteries cool down. Since batteries do not work well in cold weather or locations, warm the batteries by placing it inside your garments before use. À battery that is not working well due to cold will work again when the temperature is return to normal ‘ Soil (such as fingerprints) on the battery terminals makes the batteries charge less reducing the number of images they will allow you to take Caretully wipe the battery terminals with a soft dry cloth before loading AN any liquid at all leaks from the batteries, wipe the battery compartment thoroughly and then load new batteries. NI any battery fluid comes into contact with your hands or clothing, flush the area thoroughly with water. Note that battery fluid can cause loss of eyesight if it gets into your eyes. If this oceurs, do not rub your eyes. Flush the fluid out with clean water and contact your physician for treatment M Disposing of Batteries When disposing of batteries, do so in accordance with your local waste disposal regulations. Using the AA-size Ni-MH Batteries and the Rechargeable Battery NH-10 Correctly e AS a power source in digital cameras, AA-size Ni- MH batteries and the Rechargeable Battery NH-10 (referred to hereafter as Ni-MH batteries) are superior to alkaline batteries in several ways, such as allowing more shots to be taken with the camera. However, care must be taken with the way Ni-MH batteries are used if their original performance is to be maintained eNi-MH batteries left unused in storage for long periods can become “deactivated”. Also, repeatedlÿ charging Ni-MH batteries that are only partially discharged can cause them to suffer from the “memory effect”. Ni-MH batteries that are “deactivated” or affected by “memory” suffer from the problem of only providing power for a short time after being charged. To prevent this problem, discharge and recharge them several times using the camera’s “Discharging rechargeable batteries” function. By repeating this cycle several times, the temporary reduction in performance caused by “memory” or “deactivation” can be remedied and the batteries can be restored to their original performance levels. Deactivation and memory are specific to Ni-MH batteries and are not in fact battery faults. See P.76 for the procedure for “Discharging rechargeable batteries”. Do not use the “Discharging rechargeable batteries” function when alkaline batteries are being used. e To charge Ni-MH batteries, use the quick battery charger (sold separately). Refer to the instructions supplied with the charger to ensure that the charger is used correct e Do not use the battery charger to charge other batteries. e Note that the batteries feel warm after being charged. e Due to the way the camera is constructed, a small amount of current is used even when the camera is turned off. Note in particular that leaving AA-size Ni MH batteries and the Rechargeable Battery NH-10 in the camera for a long period will overdischarge the batteries and may render them unusable even after recharging. e Ni-MH batteries and the Rechargeable Battery NH- 10 wil self-discharge even when not used, and the time for which they can be used may be shortened as a result e The rechargeable battery NH-10 can be charged by setting the camera in the PictureCradle CP-FXA10 (sold separately) eNi-MH batteries cannot be charged using a combination of the camera and the cradle eNi-MH batteries will deteriorate rapidly if overdischarged (eg. by discharging the batteries in a flashlight). Use the “Discharging rechargeable batteries” function provided in the camera to discharge the batteries. eNi-MH batteries have a limited service life. If a battery can only be used for a short time even after repeated discharge-charge cycles, it may have reached the end of its service life. AC Power Adapter Always use only the AC-3V AC Power Adapter (sold separately) or the AC-3VW AC Power Adapter {supplied with PictureCradle sold separately). The use of other AC power adapters may result in damage to your camera. The AC-8V cannot be used to charge the NH-10 Rechargeable Battery. e Use AC power adapter for indoor use only. e Plug the connection cord plug securely into the DC input terminal of the FUJIFILM Digital camera. e Turn off the FUJIFILM Digital camera before disconnecting the cord from the FUJIFILM Digital camera's DC input terminal. To disconnect, pull out the plug gentiy (Do not pull on the cord) e Do not use this AC power adapter with any device other than your camera. e During use, the AC power adapter will become hot to the touch. This is normal. e Do not take apart the AC power adapter. Doing so could be dangerous e Do not use this device in a place with hot humid place Do not subject AC power adapter to strong shocks. ‘This device may emit a humming. But this is normal e Ifused near a radio, this device may cause static, this happens move the camera away from the radio.

Power Supply and Batteries Procedure for discharging rechargeable Ni-MH batteries Only use the “Discharging rechargeable batteries” function with Ni-MH batteries (rechargeable batteries). The “Discharging rechargeable batteries” function should not be used with alkaline batteries as it will completely drain the battery charge. Use the “Discharging rechargeable batteries” function in the following situations: + When the batteries can only be used for a short time after being charged normally + When the batteries have not been used for a long period + When you purchase new Ni-MH batteries Do not use the “Discharging rechargeable batteries” function when the camera is set in the crade or while using the AC power adapter. In these situations, the Ni-MH batteries will not be discharged due to the external power supply.

WHILE FOR DISCHARGING MAS CANCEL @ Press the *MENU/OK" button. @Press “4” or “&” to select “I” OPTION and then press “A” or “Y' to select “SET-UP”. @ Press the *MENU/OK" button. 4 Remove the camera from the cradle when discharging batteries, 4Do not use the procedure for discharging rechargeable batteries with alkaline batteries. @ Press “4” or “to move to option 3 and then press “A” or “W” to select “DISCHARGE". @Press “D”. @Press “4” or *æ” to select “OK”. @ Press the ‘MENU/OK" button. The screen changes and discharging begins. When the battery level indicator blinks red and discharging ends, the camera turns off. 4 To cancel discharging, press the *DISP/BACK: button. Notes on the xD-Picture Card" M image Memory Card e This image Memory Card is a new image recording media (xD-Picture Card) developed for digital cameras. The Image Memory Card consists of a semiconductor memory (NAND-type flash memory) to record digital image data. The recording process is electrically performed and enables erasure of existing image data as well as re- recording of new image data. e When using a new Memory Card, or a Memory Card that has been formatted by a PC, be sure to format the card with your digital camera before using it M Protecting Your Data ° Images and movies may be lost or destroyed in the following situations. Please note that FUJIFILM assumes no responsibility for data that is lost or destroyed.

1. Removal of the memory card or tuming the power

off while the memory card is being accessed (.e., during record, erase, initialization, and playback operations).

2. Improper handling and use of the memory card by.

the user or third party. Save your important data to another media (Le., MO disk, CD-R, hard disk, etc.) M Handling xD-Picture Card When storing xD-Picture Cards, make sure that they are kept out of the reach of children. An xD-Picture Card could be swallowed cause suffocation. If a child swallows an xD-Picture Card, seek medical attention or call emergency number right away. e When inserting the xD-Picture Card into the camera, hold the xD-Picture Card straight as you push it in exD-Picture Card are precision electronic devices. Do not bend, drop or otherwise subject the xD- Picture Card to strong force or shocks. e Do not use or store xD-Picture Card in hot humid places or in places where they are exposed to corrosive substances. e Clean the xD-Picture Card with a soft dry piece of cloth when dirty. When carrying or storing an xD-Picture Card, keep it in the special protective case. e The xD-Picture Card will work well for long time, but will sooner or later lose its ability to store and play back images or movies. If this happens replace it with a new xD-Picture Card. e Never remove the xD-Picture Card or turn the camera off during data recording or erasing (xD- Picture Card formatting) as this could be damaged to the xD-Picture Card e The use of xD-Picture Cards is recommended with the FinePix A330/FinePix A340. The recording quality cannot be guaranteed when an xD-Picture Card other than those manufactured by FUJIFILM are used. The xD-Picture Card may feel warm when it is removed from the camera after taking pictures. This is normal. e Do not put labels on the xD-Picture Card. Peeling labels can cause the camera not to work properiy. M Using xD-Picture Card with a PC When you take pictures using an xD-Picture Card that has been used on a PC, reformat the xD- Picture Card using your camera for best quality When you format an xD-Picture Card, à directory (folder) is created. Image data is then recorded in this directory e Do not change or delete the directory (folder) or file names on the xD-Picture Card because this will make it impossible to use the xD-Picture Card in Your camera. e Always use the camera to erase image data on an xD-Picture Card e To edit image data, copy the image data to the PC and edit the copy. e Do not copy files other than those that will be used by the camera: m Specifications Type Image memory card for digital cameras (xD-Picture Card) Memory type NAND-type flash memory Conditions for use | Temperature: 0°C to +40°C (432°F to +104°F) Humidity 80% max. (no condensation) 25 mm x 20 mm x 2.2 mm (0.98 in. x 0.79 in. x 0.09 in.) (Wx H x D) Dimensions

Warning Displays D The table below lists the wamings that are displayed on the LCD monitor. Warning Displayed Explanation Remedy LI ire) D] (Binkng rec) The batteries in the camera are fully depleted or very low on charge. Load new or fully charged batteries. Explanation Remedy ! ÿ" There is a strong likelihood of camera shake because the shutter speed is slow. Use flash photography. However, use a tripod for some scenes and modes. Prints were specified for 1000 or more frames in the DPOF frame settings. The maximum number of frames for which prints can be specified on the same xD- Picture Card is 999. Copy the images for which you want to order prints onto another xD-Picture Card and then specify the DPOF settings. VAE Outside the AE continuous range The picture can be taken, but the correct brighihess (exposure) will not be obtained. YAF The AF (auto focus) cannot work effectively + Ifthe image is too dark, take the picture at a distance of around 2 m (6.6 ft.) from the subject + Use AF lock to take the picture. Camera malfunction or fault + Turn the camera on again, taking care not to touch the lens. + Turn the camera off and on again. If the message is still displayed, contact your FUJIFILM dealer. No xD-Picture Card is inserted. Insert an xD-Picture Card. Movie selected in the DPOF settings. You cannot use DPOF to order prints of movies. The xD-Picture Card is not formatted < The xD-Picture Card contact area is soiled. + Camera fault + Format the xD-Picture Card in the camera. + Wipe the contact area on the xD-Picture Card with a soft dry cloth. lt may be necessary to format the xD-Picture Card. If the error message is still displayed, replace the xD-Picture Card. + Contact your FUJIFILM dealer. COMMUNICATION ERROR Displayed for PictBridge. + Check that the USB cable is connected properiy. + Check that your printer is tumed on. + The xD-Picture Card contact area is soiled. + The xD-Picture Card is damaged. + The xD-Picture Card format is incorrect + Camera fault + Wipe the contact area on the xD-Picture Card with a soft dry cloth. lt may be necessary to format the xD-Picture Card. If the error message is still displayed, replace the xD-Picture Card. + Contact your FUJIFILM dealer. PRINTER ERROR Displayed for PictBridge. + Check that the printer is not out of paper or out of ink. + Turn the printer off briefly and then turn it back on. + Refer to the user manual supplied with Your printer. Displayed for PictBridge. Check that the printer is not out of paper or out of ink. Printing automatically restarts when the error is cleared. If the error message still appears after checking, press the "MÉNU/OK" button to restart printing. The xD-Picture Card is fully recorded Erase some images or use an xD-Picture Card that has ample free space. The file played back was not recorded correct. + The xD-Picture Card contact area is soiled. + Camera fault + You attempted to play a movie that was not recorded on this camera. + Images cannot be played back + Wipe the contact area on the xD-Picture Card with a soft dry cloth. lt may be necessary to format the xD-Picture Card. If the error message is still displayed, replace the xD-Picture Card. + Contact your FUJIFILM dealer. + Movies cannot be played back. CANNOT 3€ PRINTED Displayed for PictBridge. + Refer to the user manual for the printer being used and check whether the printer supports the JFIF-JPEG or Exit-JPEG image format. If not, the printer cannot print the image (s). + Movie images cannot be printed. + Was the image data photographed using FinePix A330/FinePix A3407 You may not be able to print some images: photographed on other cameras. The frame number has reached 999-9999. ® Insert a formatted xD-Picture Card into the camera. @ Set "RENEW" as the FRAME NO setting in the SET-UP menu. HIT Displayed for PictBridge. This message appears when printing is performed from à FUJIFILM printer that Supports PictBridge. Refer to the user manual for the printer for details. + The image cannot be recorded as it is too large to fit in the available space on the xD-Picture Card. © Start taking pictures. (The frame numbers start from “100-0001 ”.) @ Set "CONT." as the FRAME NO. setting in the SET-UP menu. + The data could not be recorded due | + Re-insert the xD-Picture Card or turn the to an xD-Picture Card error or a | camera off and then on again. If the error connection error between the xD-| message is still displayed, contact your Picture Card and camera. FUJIFILM dealer. + Use a new xD-Picture Card. A protected file was encountered. Protected files cannot be erased. Remove the protection

Troubleshooting DH you think the camera is faulty, check the following once more: Troubleshooting Possible causes Solutions Troubleshooting Possible causes Solutions No power. + The batteries have run out. + The batteries are loaded backwards. + The battery cover is not closed properly. + The AC power adapter plug has come out of the power outlet. + Load new or fully charged batteries. + Load the batteries in the correct direction. + Close the battery cover correcty. + Plug the adapter back in. Frame erase does not erase the frame. The ERASE ALL function does not erase all the frames. Some frames may be protected. Unprotect frames using the camera on which the protection was first applied. Nothing happens when 1 press the “Playback” button. + Lens coveris opened. + Camera malfunction. + The batteries run out. + Close the lens cover. +Briefly remove the batteries or disconnect the AC power adapter. Then reload the batteries or reconnect the AC power adapter and try again. + Load new or fully charged batteries. Power cuts out during operation. The batteries run out. Load new or fully charged batteries. Batteries run out quickly. + You are using the camera in extremely cold conditions. + The terminals are soiled. + The batteries get un-rechargeable. + Put the batteries in your pocket or another warm place to heat them and then load them into the camera just before you take a picture. + Wipe the battery terminals with a clean, dry cloth. + Load new batteries. Screens are not displayed in English. + A language other than English is selected in the * ÆLANG.” setting in SET-UP (=P.49). Press the “MENU/OK" button to display the menu on the LCD monitor. @Press “4” or “R” to select “Æ” and press “A” or “Y” to select “SET-UP” (SET-UP screen appears on the LCD monitor). @Press “4” or to move to option 3

and then use “A” or *W' to select

• ARALANG @Press “4” or *&" several times to select ENGLISH ®Press the *MENU/OK" button. No photograph is taken when the Shutter button is pressed. + No xD-Picture Card is inserted + The xD-Picture Card is fully recorded + The xD-Picture Card is not formatted + The xD-Picture Card contact area is soiled + The xD-Picture Card is damaged. + The Auto power off function has switched the camera off. + The batteries run out. + Insert an xD-Picture Card. + Insert a new xD-Picture Card or erase some unwanted frames + Format the xD-Picture Card. + Wipe the xD-Picture Card contact area with a clean dry cloth. + Insert a new xD-Picture Card. + Turn the camera on. + Load new or fully charged batteries. There is no image on the TV. Photography mode is selected {FinePix A330 only). + The camera is not connected to the TV correctiy. + "TV'is selected as the TV input + The video output setting is incorrect. + Images do not appear on a TV when Photography mode is selected {FinePix A330 only) + Connect the camera and TV correctly. + Set the TV input to “VIDEO”. + Change the setting to “NTSC” or “PAL” (+P.49) When the camera is connected to a personal computer (PC), the photographed image appears on the camera's LCD monitor. + The USB cable (included) is not correctly connected to the PC or camera. + The PC is not turned on. + Set up the camera and the USB cable (included) correct. + Turn the PC on. Can't use the flash. + The flash is set to Suppressed Flash mode. + You pressed the Shutter button while the flash was charging. + The batteries run out. + Set the Flash mode to Auto, Red-eye Reduction or Forced Flash (The flash cannot be used in some modes). + Wait until the flash has finished charging before pressing the Shutter button. + Load new or fully charged batteries. The camera no longer works correctiy. The camera has suffered an unforeseen problem. Briefly remove the batteries or disconnect the AC power adapter. Then reload the batteries or reconnect the AC power adapter and try again. Cant print with PictBridge. "is not selected in USB mode in the SET-UP menu. Select "A" in USB mode in the SET- UP menu. The playback image is too dark even though the flash was used. + The Subject is too far away. + Your finger was covering the flash. + Move to within the effective flash range before taking the picture. + Hold the camera correctiy. The image is blurred. + The lens is dirty. + The photographed subject was too dark. + You photographed scenery with Macro mode selected. + You took a close-up shot without selecting Macro mode. + You are shooting a subject that is not suited to autofocusing + Clean the lens. + Try standing approx. 2 m (6.6 ft.) from your subject to take the picture. + Cancel Macro mode + Select Macro mode. + Use AF/AE lock to take the picture. There is speckling on the image. The shot was taken with a slow shutter speed (long exposure) in à high- temperature environment. This is a characteristic of CCDs and does not indicate a camera fault. The camera was connected to PC when the USB mode was setto "à Perform steps D to ® to remove the camera from PC. © Windows @ The “New Hardware Found” wizard {or “Scanner and Camera” wizard) appears. If the wizard does not appear, proceed to step ®. @ Click the [Cancel] button. @ Disconnect the camera from the PC. © Macintosh @ The window for locating the driver appears. If the window does not appear, proceed to step ®. @ Click the [Cancel] button. ® Disconnect the camera from the Macintosh. Can't format the xD- Picture Card. The xD-Picture Card contact area is soiled. Wipe the xD-Picture Card contact area with a clean dry cloth

Specifications (FinePix A330) Model Digital camera FinePix A330 Number of effective pixels 3.2 millon pixels CCD sensor T72.7 inch square pixel CCD Number of total pixels 3.34 milion pixels Number ofrecorded pixels Still image: 2016 x 1512 pixels/1600 x 1200 prels/1280 x 960 pixels (Een) Movie: 320 x 240 pixels (10 frames per second without sound) 160 x 120 pixels (10 frames per second without sound) xD-Picture Card (16/32764/128/256/612 ME) St mage: JPEG (Ex ver. 2.2) # Design rule for Camera File System compliant DPOF compatible Movie: AVI format, Motion JPEG orage media File format Lens Fujinon 3 x optical zoom lens, F2.8-F4.8 Aperiure F2.8 to F4.8/F5.6 lo F9.5 (automatically selected) Focal length 125.7 mm (0 17.1 mm {Equivalent to 38 mm to 114 mm on a 35 mm camera) Focal range Normal: Approx. 0.6 m (2.0 ff. 10 infinity Macro: Approx. 0.1 m (3.9 in.) to 0.8 m (2.6 ft.) Shutter speed 2 sec. to 1/2000 sec. (combined with mechanical shutter) Focus TTL contrastiype, Auto focus Sensitivity Equivalent 10 1SOT00 (at flash off] Photometry TTL 64-zones metering Exposure control Program ÀË Exposure compensation 2.1 EV to +1.5 EV in 0.3-step increments (in Manual mode) White balance Auto Manual modes, 7 positions can be selected Real image optical Approx. 80% coverage .5-inches, 60,000-pixel Amorphous silicon TT, Approx. 90% coverage Flash Auto flash Effective range: Wide-angle: Approx. 0.6 m to 3.5 m (2.0 ft. to 11.5 ft.) {Approx. 0.3 m to 0.8 m (1.0 ft. to 2.6 ft.): Macro) Telephoto: Approx. 0.6 m to 3.0 m (2.0 ft. to 9.8 ft.) Flash modes: Auto, Red-Eye Reduction, Forced Flash, Suppressed Flash, Slow Synchro*, Red-Eye Reduction + Slow Synchro* # In Manual mode Viewfinder LCD monitor eH-Timer T0 sec. Video output NTSC/PAL selectable Input/Output Terminals Video output socket 2.5 mm dia. jack Æ (USB) socket For file transfer to a computer and connection to the optional cradle DC input Socket for specified AC power adapter AC-3V (sold separately) Connection for the AC Power Adapter AC-3VW bundled with the cradle (sold separately) Power Supply and Others Power supply Use one of the following: + 2xAA-size alkaline batteries + Rechargeable Battery NH-10 (sold separately) + 2xAh-size Ni-MH (Nickel-Metal Hydride) batteries (sold separately) + AC-3VW (PictureCradie CP-FXA10, sold separately) + AC Power Adapter AC-3V (sold separately) Guide to the number of available frames for battery operation Battery Type With LCD monitor ON | With LCD monitor OFF Akaïne batteries Rechargeable Battery NH-10 N-MH batteries 2300 mAñ Approx. 160 irames Approx. 250 frames Approx. 250 frames Approx. 400 frames Approx. 330 irames Approx. 540 frames The number of available frames for batery operation given here is à guide lo ine number of consecutive shots that can be taken under FULIFILM test conditions. + Bateries used: akaline batteries bundled with the camera fully charged N-MH batteries or ine NH-10 Rechargeable Battery + Shooting conditions: Measured at normal temperature wilh 50% flash use + Note: Because the number of avallable frames {hat can be taken varies depending on he capaciies of alkaline batteries and the amount of charge in N-MH batteries or NH-10 Rechargeable Battery, ie figures given here for he number of frames that can be taken using batteries are not guaranteed. At low temperatures, fewer pictures can be taken when the camera is running on batteries. Temperalure: OC to +400 (+327F to +104 F); 80% humidiy or less (no condensation) Camera dimensions (W/H/D)_104.1 mm x 61.5 mm x 31.3 mnvd.1 in. x 24 in. x 12in. {not including accessories and attachments) Approx. 145 g/5.1 oz {not including accessories, batteries and xD-Picture Card) Ton ons for use Camera mass (weight) Weïght for photography Approx. 193 g/6.8 oz. {including batteries and xD-Picture Card) Accessories See P7 Optional Accessories See P.73 M Standard number of available frames/recording time per xD-Picture Card ‘The number of available frames, recording time or file size varies slightly depending on the subjects photographed. Note also that ihe divergence between standard number of available frames and the actual number of available frames is greater for xD-Picture Cards with higher capacitis. Quality Seting CE En 2M CA Movie En Movie 155 Number of recorded phels 2016 x 1512 1600 x1200 | 1280x960 | 320x240 60 x 120 Image Data Size FINE 1.5 MBJNORAL 7H9K8| — 620 KB 460 KB = = DPC-16 (16 ME) 10 20 25 83 |Approx S8sec. |Approx 56 min. DPC-32 (82 ME) 20 # 50 68 | Approx 199 sec. [Approx 113 min. DPC-64 (64 ME) 42 &æ 101 187 JApprox 66 min.|Approx 227 min DPC-128 (128 MB) E 166 204 275 | Approx. 13.3 min.| Approx. 45,5 min. DPC-256 (256 ME) 168 332 409 550 [Approx. 26,7 min. | Approx 91.2 min. DPC-512 (512 MB) 33 665 a18 1101 Approx 53.5 min Approx. 182.5 min. # These specifications are subject to change without notice. FUJIFILM shall not be held liable for damages resulting from errors in this Owners Manual. # The LCD monitor on your digital camera is manufactured using advanced high-precision technology. Even so, small bright points and anomalous colors (particulany around text) may appear on the monitor. These are normal display characteristics and do not indicate a fault with the monitor. This phenomenon will not appear on the recorded image. # The operation error may be caused in a digital camera by the strong radio interference (i. e. electric fields, static electricity, line noise, etc.). # Due to the nature of the lens, the edges of images may appear distorted. This is normal.

Specifications (FinePix A340) Model Digital camera FinePix A340 Number of effective pixels 4.0 millon pixels CCD sensor 72.7 inch square pixel CCD Number of total pixels 4.23 milion pixels Number ofrecorded pixels _Stillimage: 2272 x 1704 pixels/1600 x 1200 pels/1280 x 960 pixels em) Movie: 320 x 240 pixels (10 frames per second without sound) 160 x 120 pixels (10 frames per second without sound) xD-Picture Card (16/32764/128/256/612 ME) St mage: JPEG (Ex ver. 2.2) # Design rule for Camera File System compliant DPOF compatible Movie: AVI format, Motion JPEG orage media File format Lens Fujinon 3 x optical zoom lens, F2.8-F4.8 Aperiure F2.8 to F4.8/F5.6 lo F9.5 (automatically selected) Focal length 125.7 mm (0 17.1 mm {Equivalent to 38 mm to 114 mm on a 35 mm camera) Focal range Normal: Approx. 0.6 m (2.0 ff. 10 infinity Macro: Approx. 0.1 m (3.9 in.) to 0.8 m (2.6 ft.) Shutter speed 2 sec. to 1/2000 sec. (combined with mechanical shutter) Focus TTL contrastiype, Auto focus Sensitivity Equivalent 10 1SOT00 (at flash off] Photometry TTL 64-zones metering Exposure control Program ÀË Exposure compensation 2.1 EV to +1.5 EV in 0.3-step increments (in Manual mode) White balance Auto Manual modes, 7 positions can be selected Real image optical Approx. 80% coverage .5-inches, 60,000-pixel Amorphous silicon TT, Approx. 90% coverage Flash Auto flash Effective range: Wide-angle: Approx. 0.6 m to 3.5 m (2.0 ft. to 11.5 ft.) {Approx. 0.3 m to 0.8 m (1.0 ft. to 2.6 ft.): Macro) Telephoto: Approx. 0.6 m to 3.0 m (2.0 ft. to 9.8 ft.) Flash modes: Auto, Red-Eye Reduction, Forced Flash, Suppressed Flash, Slow Synchro*, Red-Eye Reduction + Slow Synchro* # In Manual mode Viewfinder LCD monitor eH-Timer T0 sec. Video output NTSC/PAL selectable Input/Output Terminals Video output socket 2.5 mm dia. jack Æ (USB) socket For file transfer to a computer and connection to the optional cradle DC input Socket for specified AC power adapter AC-3V (sold separately) Connection for the AC Power Adapter AC-3VW bundled with the cradle (sold separately) Power Supply and Others Power supply Use one of the following: + 2xAA-size alkaline batteries + Rechargeable Battery NH-10 (sold separately) + 2xAh-size Ni-MH (Nickel-Metal Hydride) batteries (sold separately) + AC-3VW (PictureCradie CP-FXA10, sold separately) + AC Power Adapter AC-3V (sold separately) Guide to the number of available frames for battery operation Battery Type With LCD monitor ON | With LCD monitor OFF Akaïne batteries Rechargeable Battery NH-10 N-MH batteries 2300 mAñ Approx. 140 irames Approx. 220 frames Approx. 220 frames Approx. 340 frames Approx. 290 irames Approx. 460 frames The number of available frames for batery operation given here is à guide lo ine number of consecutive shots that can be taken under FULIFILM test conditions. + Bateries used: akaline batteries bundled with the camera fully charged N-MH batteries or ine NH-10 Rechargeable Battery + Shooting conditions: Measured at normal temperature wilh 50% flash use + Note: Because the number of avallable frames {hat can be taken varies depending on he capaciies of alkaline batteries and the amount of charge in N-MH batteries or NH-10 Rechargeable Battery, ie figures given here for he number of frames that can be taken using batteries are not guaranteed. At low temperatures, fewer pictures can be taken when the camera is running on batteries. Temperalure: OC to +400 (+327F to +104 F); 80% humidiy or less (no condensation) Camera dimensions (W/H/D)_104.1 mm x 61.5 mm x 31.3 mnvd.1 in. x 24 in. x 12in. {not including accessories and attachments) Approx. 145 g/5.1 oz {not including accessories, batteries and xD-Picture Card) Ton ons for use Camera mass (weight) Weïght for photography Approx. 193 g/6.8 oz. {including batteries and xD-Picture Card) Accessories See P7 Optional Accessories See P.73 M Standard number of available frames/recording time per xD-Picture Card ‘The number of available frames, recording time or file size varies slightly depending on the subjects photographed. Note also that ihe divergence between standard number of available frames and the actual number of available frames is greater for xD-Picture Cards with higher capacitis. Quality Seting CE En 2M CA Movie En Movie 155 Number of recorded phels 2272x 1704 1600 x1200 | 1280x960 | 320x240 60 x 120 Image Data Size FINE 1.9 MBJNORIAL KB] — 620 KB 460 KB = = DPC-16 (16 ME) 8 56 25 83 |Approx S8sec. |Approx 56 min. DPC-32 (82 ME) 56 æ 50 68 | Approx 199 sec. [Approx 113 min. DPC-64 (64 ME) El 66 101 187 JApprox 66 min.|Approx 227 min DPC-128 (128 MB) 66 132 204 275 | Approx. 13.3 min.| Approx. 45,5 min. DPC-256 (256 ME) 184 266 409 550 [Approx. 26,7 min. | Approx 91.2 min. DPC-512 (512 MB) 268 532 a18 1101 Approx 53.5 min Approx. 182.5 min. # These specifications are subject to change without notice. FUJIFILM shall not be held liable for damages resulting from errors in this Owners Manual. # The LCD monitor on your digital camera is manufactured using advanced high-precision technology. Even so, small bright points and anomalous colors (particulany around text) may appear on the monitor. These are normal display characteristics and do not indicate a fault with the monitor. This phenomenon will not appear on the recorded image. # The operation error may be caused in a digital camera by the strong radio interference (i. e. electric fields, static electricity, line noise, etc.). # Due to the nature of the lens, the edges of images may appear distorted. This is normal.

Explanation of Terms Deactivated batteri Leaving an Ni-MH battery unused in storage for a long period may cause a rise in the level of substances that inhibit current flow inside the battery and result in a dormant battery. À battery in this state is referred to as deactivated. Because current flow is inhibited in a deactivated Ni-MH battery, the battery's original level of performance cannot be achieved. DPOF: Digital Print Order Format DPOF is a format used for recording information on a storage media (image memory card, etc.) that allows you to specify which of the frames shot using a digital camera are to be printed and how many prints are made of each image. EV: À number that denotes Exposure Value. The EV is determined by the brightness of the subject and sensitivity speed) of the film or CCD. The number is larger for bright subjects and smaller for dark subjects. As the brightness of the subject changes, a digital camera maintains the amount of light hitting the CCD at a constant level by adjusting the aperture and shutter speed. When the amount of light striking the CCD doubles, the EV increases by 1. Likewise, when the light is halved, the EV decreases by 1 Frame rate (fps): The frame rate refers to the number of images (frames) that are photographed or played back per second. For example, when 10 frames are continuously photographed in a 1-second interval, the frame rate is expressed as 10 fps. For reference, TV images are displayed at 30 fps. JPEG: Joint Photographics Experts Group A file format used for compressing and saving color images. The higher the compression rate, the greater the loss of quality in the decompressed (restored) image. Memory effect: If an NI-MH battery is repeatediy charged without fist being fully discharged, its performance may drop below its original level. This is referred to as the “memory effect’. Motion JPEG: A type of AVI (Audio Video Interleave) file format that handles images and sound as a single file. Images in the file are recorded in JPEG format. Motion JPEG can be played back by QuickTime 3.0 or later. PC Card: A generic term for cards that meet the PC Card Standard. PC Card Standard: A standard for PC cards determined by the PCMCIA. PCMCIA: Personal Computer Memory Card International Association (US) White Balance: Whatever the kind of the light, the human eye adapts to it so that a white object still looks white. On the other hand, devices such as digital cameras see a white subject as white by first adjusting the color balance to suit the color of the ambient light around the subject. This adjustment is called matching the white balance. EuifPrint Exif Print Format is a newly revised digital camera file format that contains a variety of shooting information for optimal printing. Safety Notes © To ensure that you use your FinePix A330/FinePix A340 camera correct, read these Safety Notes and your Ouwners Manual carefully beforehand! e After reading these Safety Notes, store them in a safe place [About the Icons The icons shown below are used in this document to indicate the severity of the injury or damage that can resuk the information indicated by the icon is ignored and the product is used incorrect as a result This icon indicates that death ZA\ WARNING or serious injury can result if the information is ignored. This icon indicates that personal injury or material A\CAUTION damage can result if the information is ignored. The icons shown below are used to indicate the nature ofthe information which is to be observed Triangular icons tell you that this information requires attention (‘important’) Cireular icons with a diagonal bar tell you that the action indicated is prohibited (Prohibited'). Filled circles with an exclamation mark tell you an action that must be performed CRequired”) © Oo Z\ WARNING a problem arises, turn the camera off, remove the batteries, disconnect and unplug the AC power adapter. Continued use of the camera when it is emiting smoke, is emiting any unusual odor, or is in any other abnormal state can cause a fire or electric shock. Contact your FUJIFILM dealer. Unolug rom poser Socket. Do not allow water or foreign objects to enter the camera. If water or forelgn objects get inside the camera, turn the camera off, remove the balteries and disconnect and unplug the AC power adapter. Continueg use of the camera can cause aire or electric shock. ‘e Contact your FUJIFILM dealer. Do not use the camera in the bathroom or shower. ‘This can cause a fire or electric shock.

Never attempt to change or take apart the camera. (Never open the casing.) Do not use the camera when it has been dropped or the casing is damaged. ‘This can cause a fire or electric shock. Contact your FUJIFILM dealer.

2 rot disaéamble. Do not change, heat or unduly twist or pull the connection cord and do not place heavy objects on the connection cord. ‘These actions could damage the cord and cause a fire or electric shock. If the cord is damaged, contact your FUJIFILM dealer. Do not place the camera on an unstable surface. ‘This can cause the camera to fal or tip over and cause injury Never attempt to take pictures while in motion. Do not use the camera while you are walking or driving a vehicle. ‘This can result in you falling down or being involved in a traffic accident. Do not touch any melal parts of the camera during a thunderstorm. ‘This can cause an electric shock due to induced current from the lightning discharge. Do not use the batteries except as specified. Load the batteries with the @ and © marks. dd ©

Safety Notes Z\ WARNING AN CAUTION Do not heat, change or take apart the batteries. Do not drop or subject the batteries to impacts. Do not attempt to recharge thium or alkaline batteries. Do not store the batteries with metallic products. Do not use chargers other than the specified model to charge the batteries. Any of these actions can cause the batteries to burst or leak and cause fire or injury as a result.

Do not use this camera in locations affected by oil fumes, steam, humidity or dust. ‘This can cause a fire or electric shock. Do not leave this camera in places subject to extremely high temperatures. Do not leave the camera in locations such 8 a sealed vehicle orin direct sunlght. ‘This can cause à fire. Use only the batteries or AC power adapters specified for use with this camera. Do not use voltages other than the power supply voltage shown. The use of other power sources can cause a fire. Keep out of the reach of small children. This product could cause injury in the hands of a child Do not place heavy objects on the camera. ‘This can cause the heavy object to tip over or fall and cause injury. If the battery leaks and fluid gets in contact with your eyes, skin or clothing. Flush the affected area with clean water and seek medical attention or call emergency number right away. Do not move the camera while the AC power adapter is still connected. Do not pull on the connection cord to disconnect the AC power adapter. This can damage the power cord or cables and cause a fre or electric shock, Do not use the charger to charge batteries other than those specified here. The charger is designed for Fujiflm HR- SUF Ni-MH batteries. Using the charger to charge conventional batteries or other types of rechargeable batteries can cause the battery to leak fluid overheat or burst Do not use the AC power adapter when the plug is damaged or the plug socket connection is loose. ‘This could cause a fie or electric shock. Do not cover or wrap the camera or the AC power adapter in a cloth or blanket. This can cause heat to build up and distort the casing or cause a fire. When discarding or storing batteries, cover the battery terminals with insulation tape. ‘+ Contact with other metallc objects or batteries could cause the batieries to ignite or burst Keep xD-Picture Cards out of the reach of small children. Because xD-Picture Cards are small they can be swallowed by children. Be sure to store xD-Picture Cards out of the reach of small children. If a child swallows an xD-Picture Card, seek medical attention or call emergency number. © © 2 010 When you are cleaning the camera or you do not plan to use the camera for an extended period, remove the batteries and disconnect and unplug the AC power adapter. Failure to do so can cause a fire or electric shock. When charging ends, unplug the charger from the power socket. Leaving the charger plugged into the power Socket can cause a ire Using a flash too close to a persons or animals eyes may temporarily affect the eyesight. Take particular care when taking pictures of children or animals: When an xD-Picture Card is removed, the card could come out of the slot too quickly. Use your finger to hold it and gentlÿ release the card. Request regular internal testing and cleaning for your camera. Build-up of dust in your camera can cause a fire or electric shock. e Contact your FUJIFILM dealer to request iniernal cleaning every 2 years. bem e02000V00000

© FUJIFILM FUJI PHOTO FILM CO. LTD. 26-80, Nishiazabu 2-chome, Minato-ku, Tokyo 108-8620, Japan http1/home tujifim.com/products/digital Printed on recycled paper. Printed in Japan FGS-406102-FG
