USER MANUAL X-A2 FUJIFILM

BL00004880-203 EN Introduction Thank you for your purchase of this product. Be sure that you have read this manual and understood its contents before using the camera. Keep the manual where it will be read by all who use the product. For the Latest Information For the latest information on this product, including the latest versions of the manuals and sample color photographs, visit: http://fujifilm-dsc.com/manuals/ The site can be accessed not only from your computer but also from smartphones and tablets.

3 Basic Photography and Playback

4 Movie Recording and Playback

5 Taking Photographs

6 The Shooting Menus

10 Peripherals and Optional Accessories

Menu List Camera menu options are listed below.

Shooting Menus Adjust settings when shooting photos or movies.

The Playback Menu Adjust playback settings.

2⁄2 MOUNT ADAPTOR SETTING WIRELESS COMMUNICATION Setup Menus Adjust basic camera settings.

3 Basic Photography and Playback

39 Taking Photographs (Mode P) 40 a Viewing Pictures43 b Deleting Pictures 44

4 Movie Recording and Playback

45 F Recording Movies 46 Adjusting Movie Settings48 a Viewing Movies 49

5 Taking Photographs

23 Attaching the Shoulder Strap 24 Attaching a Lens 26 Charging the Battery 27 Inserting the Battery 30 Inserting Memory Cards 32 Using Two Cards 33 Compatible Memory Cards 34 Turning the Camera On and Off 35 Checking the Battery Level36 Basic Setup 37 Choosing a Different Language38 Changing the Time and Date 38

N Sensitivity 74 Auto Sensitivity (A) 75 C Metering 76 d Exposure Compensation77 Focus/Exposure Lock 78 The AF-L and AE-L Buttons 79 BKT Bracketing80 O AE BKT 80 W ISO BKT 80 X FILM SIMULATION BKT 80 V WHITE BALANCE BKT81 Y DYNAMIC RANGE BKT81 I Continuous Shooting (Burst Mode) 82 j Multiple Exposures 83

6 The Shooting Menus

10 Peripherals and Optional Accessories

Supplied Accessories

N The plug adapter supplied with the camera varies with the country

or region of purchase; be sure to use the adapter appropriate to your country or region as described in the enclosed notice. The viewfinder can be removed, but the text that follows assumes that it is attached.

The following are included with the camera: • NP-T125 rechargeable battery • BC-T125 battery charger • Plug adapter • EVF-GFX1 interchangeable electronic viewfinder • Body cap • Strap clips (× 2) • Clip locks (× 2) • Shoulder strap • Cable protector • Hot shoe cover (comes attached to hot shoe) • Sync terminal cap (comes attached to camera) • Vertical battery grip connector cover (comes attached to camera) • Owner’s Manual (this manual)

About This Manual This manual contains instructions for your FUJIFILM GFX 50S digital camera. Be sure you have read and understood its contents before proceeding.

Symbols and Conventions The following symbols are used in this manual: O Information that should be read to prevent damage to the product. Additional information that may be helpful when using the N product. P Pages on which related information may be found. Menus and other text in the displays are shown in bold. Illustrations are for explanatory purposes only; drawings may be simplified, while photographs are not necessarily taken with the model of camera described in this manual. Terminology The optional SD, SDHC, and SDXC memory cards the camera uses to store pictures are referred to as “memory cards”. The electronic viewfinder may be referred to as the “EVF” and the LCD monitor as the “LCD”.

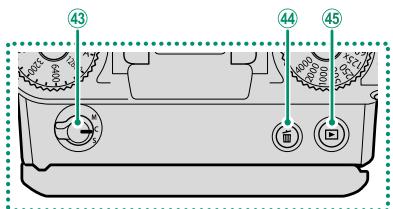

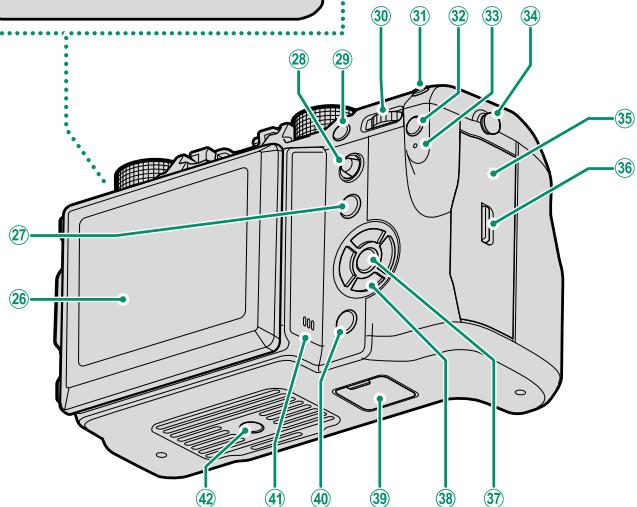

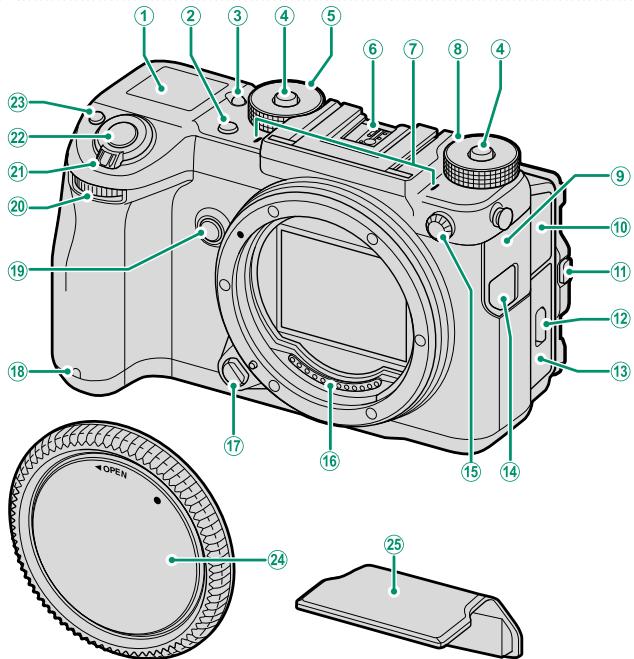

A Secondary LCD monitor 21 B Drive button 7 C Secondary monitor backlight button 21 D Dial lock release 5 E Shutter speed dial 5, 52, 54, 58, 60

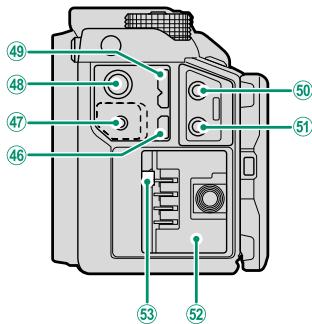

N Remote release connector cover 57 O Sync terminal 199 P Lens signal contacts26, 188 Q Lens release button 26 R Self-timer lamp 104 S Fn2 button 180 T Front command dial 6, 164 U ON/OFF switch 35 V Shutter button 42 W Fn1 button 180

F Hot shoe 194, 200 G Microphone 47, 117 H Sensitivity dial 5, 74, 109 I Connector cover 129, 57, 208, 213 d (exposure compensation) button 77 J Connector cover 247, 117, 152 K Tilt lock release9 X Body cap 26 L Battery-chamber cover latch 30 Y Hot shoe cover 194, 200 M Battery-chamber cover 30

y Headphone jack 152 z Battery chamber 30 0 Battery latch 31 1 Memory card slot 1 32 2 Memory card slot 2 32

The Cable Protector A The cable protector prevents accidental disconnection of the USB cable or AC adapter. Attach the protector as shown and tighten the lock screw.

B Connect the cable and pass it through A the protector as shown.

B The Serial Number Plate Do not remove the serial number plate, which provides the FCC ID, KC mark, serial number, and other important information.

The Selector Press the selector up (e), right (h), down (f), or left (g) to highlight items. The up, right, down, and left buttons also double as function buttons Fn6 through Fn9 (P 180).

The Focus Stick Tilt or press the focus stick to select the focus area.

The Shutter Speed and Sensitivity Dials Press the dial lock release to release the dial before rotating it to the desired setting. Press the release again to lock the dial in place. Sensitivity

Control Lock To prevent accidental operation of the selector and the Q and Fn5 buttons during shooting, press MENU/OK until X is displayed. The controls can be unlocked by pressing MENU/OK until X is no longer displayed.

The Command Dials Rotate or press the command dials to: Front command dial

tion of shutter speed and aperture (program shift) • Adjust aperture • Adjust sensitivity when is C selected with the sensitivity dial • View other pictures during playback • Select menu tabs or page through menus

Switch back and forth between aperture and sensitivity when C is selected with sensitivity dial.

of shutter speed and aperture (program shift) • Choose a shutter speed • Adjust exposure compensation by pressing the d button and rotating the dial • Adjust settings in the quick menu • Choose the size of the focus frame • Zoom in or out during focus zoom or in full frame or multi-frame playback • Highlight menu items • Perform the function assigned to function button Fn10 • Zoom in on the active focus point during playback • Press and hold to choose the manual focus mode focus display

The Drive Button Pressing the drive button displays the following drive mode options.

The Indicator Lamp When the viewfinder is not in use, camera status is shown by the indicator lamp.

Indicator lamp Glows green Blinks green Blinks green and orange Glows orange Blinks orange Blinks red

Camera status Focus locked. Focus or slow shutter speed warning. Pictures can be taken. Recording pictures. Additional pictures can be taken. Recording pictures. No additional pictures can be taken at this time. Flash charging; flash will not fire when picture is taken. Lens or memory error.

N Warnings may also appear in the display.

The LCD Monitor The LCD monitor can be tilted for easier viewing, but be careful not to touch the wires or trap fingers or other objects behind the monitor. Touching the wires could cause camera malfunction.

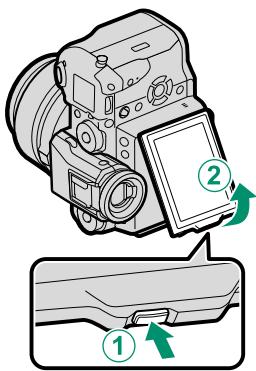

N The LCD monitor also functions as a touch screen (P 70, 125). “Tall” (Portrait) Orientation When the camera is rotated to take pictures in “tall” (portrait) orientation, you can press the tilt lock release and tilt the display as shown. This is particularly useful when taking pictures from low or high angles.

N Hold the camera as shown when taking “tall” (portrait) orientation pictures from high angles.

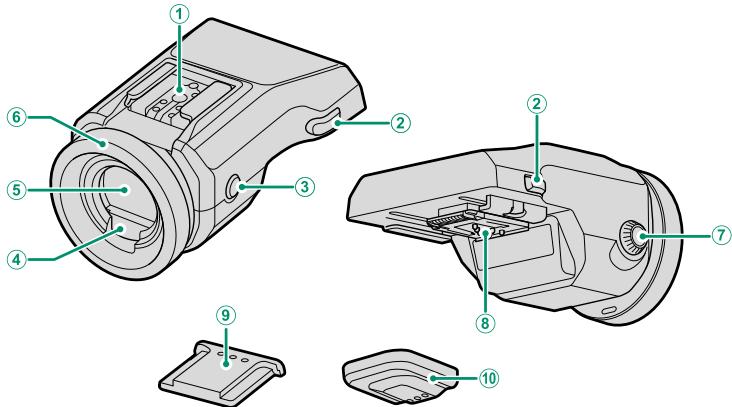

F Eye cup 11 G Diopter adjustment control 11 H Connectors 11 I Hot shoe cover J Connector cover

Attaching the Viewfinder Using the viewfinder makes it easier to frame your subject accurately. Remove the hot shoe cover from the camera and slide the viewfinder onto the hot shoe, stopping when it clicks into place.

Removing the Viewfinder Keeping the lock releases pressed (A), press down on the front of the viewfinder (B) and slide it off as shown.

The Eye Cup To remove the eye cup, press the bottom in with both thumbs and slide eye cup up.

Focusing the Viewfinder The camera is equipped with diopter adjustment in the range −4 to +2 m–1 to accommodate individual differences in vision. Rotate the diopter adjustment control until the viewfinder display is in sharp focus.

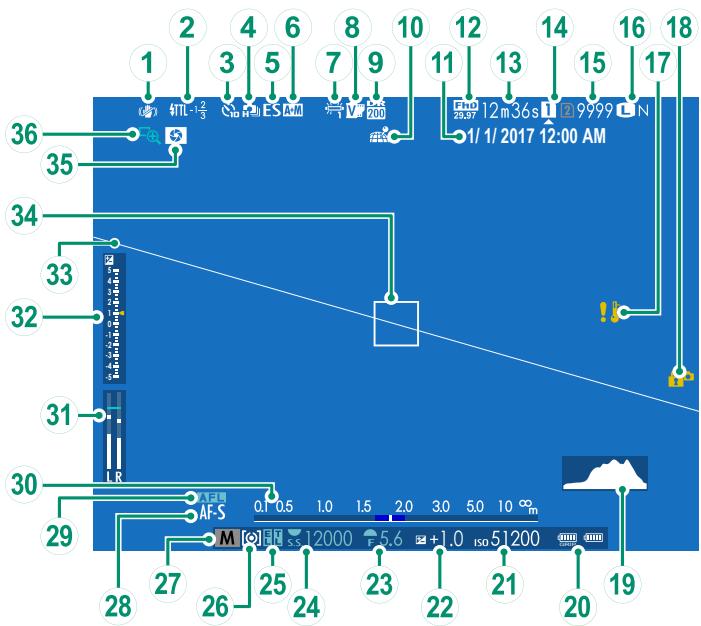

Camera Displays This section lists the indicators that may be displayed during shooting.

O For illustrative purposes, displays are shown with all indicators lit. The Electronic Viewfinder

* Shows “9999” if there is space for over 9999 frames. ) or manual focus (j) indicator may also be displayed. † In-focus (

Control Lock Pressing a locked control displays a X icon.

Display Rotation When ON is selected for D SCREEN SETTING > AUTOROTATE DISPLAYS, the indicators in the viewfinder and LCD monitor automatically rotate to match camera orientation.

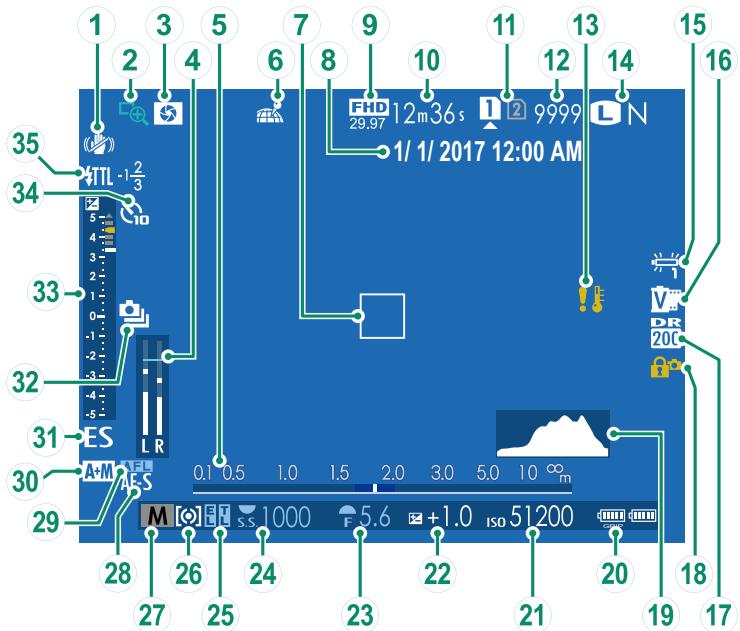

T Battery level 36 U Sensitivity 74 V Exposure compensation 77 W Aperture53, 58, 60 X Shutter speed 53, 54, 60 Y AE lock79, 165 TTL lock 114, 163, 183

Z Metering 76 a Shooting mode 52 b Focus mode † 63 c AF lock79, 165 d AF+MF indicator101 e Shutter type 108 f Continuous mode 82 g Exposure indicator 60, 77 h Self-timer indicator 104 i Flash (TTL) mode 200 Flash compensation 200

* Shows “9999” if there is space for over 9999 frames. † In-focus ( ) or manual focus (j) indicator may also be displayed.

Choosing a Display Mode Press the VIEW MODE button to cycle through the following display modes: • E EYE SENSOR: Putting your eye to the viewfinder turns the viewfinder on and the LCD monitor off ; taking your eye away turns the viewfinder off and LCD monitor on. • EVF ONLY: Viewfinder on, LCD monitor off. • LCD ONLY: LCD monitor on, viewfinder off. • EVF ONLY + E: Putting your eye to the viewfinder turns the viewfinder on; taking it away turns the viewfinder off. The LCD monitor remains off. The Eye Sensor The eye sensor may respond to objects other than your eye or to light shining directly on the sensor.

The DISP/BACK Button The DISP/BACK button controls the display of indicators in the viewfinder and LCD monitor.

Full screen (no indicators)

Dual display (manual focus mode only)

The Dual Display The dual display consists of a large full-frame window and a smaller closeup of the focus area.

Customizing Standard Indicators To choose the items shown in the standard indicator display: Display standard indicators. Press the DISP/BACK button until standard indicators are displayed.

Save changes. Press DISP/BACK to save changes.

Exit the menus. Press DISP/BACK as needed to exit the menus and return to the shooting display.

Virtual Horizon Selecting ELECTRONIC LEVEL displays a virtual horizon. The camera is level when the two lines overlap. Note that the virtual horizon may not be displayed if the camera lens is pointed up or down. For a 3D display, press the function button to which ELECTRONIC LEVEL is assigned (P 162, 182)

Framing Outline Enable FRAMING OUTLINE to make the borders of the frame easier to see against dark backgrounds. Histograms Histograms show the distribution of tones in the image. Brightness is shown by the horizontal axis, the number of pixels by the vertical axis. Number of pixels Shadows

Highlights Pixel brightness

To view separate RGB histograms and a display showing areas of the frame that will be overexposed at current settings superimposed on the view through the lens, press the function button to which HISTOGRAM is assigned (P 162, 182). Overexposed areas blink

At default settings, the secondary LCD shows the following: • Text: A SHUTTER SPEED, B APERTURE, C EXPO. COMP., D ISO • Icons:* E FILM SIMULATION, F WHITE BALANCE, G IMAGE SIZE , H SHOOTING MODE The following options are also available:

ITY *, BATTERY LEVEL, CARD SLOT OPTIONS, SHUTTER TYPE *, DYNAMIC RANGE *, MOVIE MODE *, NONE The Secondary Monitor Backlight To turn on the secondary monitor backlight when you find the secondary LCD monitor too dark to read, press the secondary monitor backlight button. Press the button again to turn the backlight off.

The Secondary LCD Monitor The secondary LCD monitor shows eight camera settings, four as text (items A to D) and four as icons (items E to H). Use D SCREEN SETTING > SUB MONITOR SETTING to choose the items displayed. Items for display when you are taking photographs can be selected separately from those shown in movie mode; in the lists that follow, items not available in movie mode are indicated by asterisks (“*”).

N Use the front command dial to select menu tabs or page through menus and the rear command dial to highlight menu items.

Attaching the Shoulder Strap Attach the strap clips to the shoulder strap and then attach the strap to the camera.

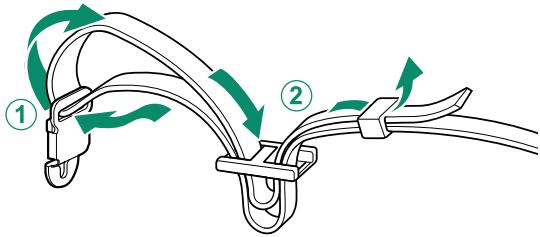

Attach a clip to the strap. Slide a clip onto the strap (A) and pass the strap through the strap adjuster and strap retainer (B).

Attach the clip to the camera. Pull the strap upwards (A) until the clip clicks securely into place (B) in the ✔ (“correct”) position. If the clip is in the I (“incorrect”) position, press the tongue (C) until it clicks into place in the ✔ position.

Repeat Steps 1–2 for the second clip.

O Attach the strap as shown. To avoid dropping the camera, be sure the strap is correctly secured.

Attaching the Shoulder Strap

Locking the Clips Be sure to insert the clip locks after confirming that clips are correctly attached (P 24). To prevent the strap becoming detached accidentally, insert the clip locks as shown.

O The clips are small and easily swallowed; keep out of reach of children.

Be sure that the clips are correctly attached before inserting the locks (P 24). Failure to observe this precaution could damage the clips.

Do not attempt to attach the clips with the locks inserted. Failure to observe this precaution could damage the clips. Unclipping the Strap

Remove the clip locks.

O Remove the strap from the clips before removing the locks.

Grasping both sides of the clip, release it as shown (A) and then slide it from the anchor (B).

Attaching a Lens The camera can be used with lenses for the FUJIFILM G-mount.

Remove the body cap from the camera and the rear cap from the lens. Place the lens on mount, keeping the marks on the lens and camera aligned, and then rotate the lens until it clicks into place.

O Be careful not to touch the camera’s internal parts. Do not press the lens release button while attaching the lens and be sure the latch has securely clicked into place.

Removing Lenses To remove the lens, turn the camera off, then press the lens release button and rotate the lens as shown.

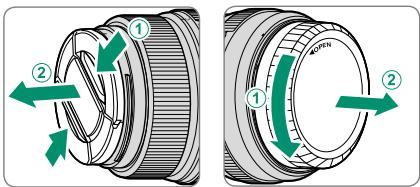

O To prevent dust accumulating on the lens

or inside the camera, replace the lens caps and camera body cap when the lens is not attached.

Lenses and Other Optional Accessories The camera can be used with lenses and accessories for the FUJIFILM G-mount.

O Before attaching or removing (exchanging) lenses, attach the lens

caps and check that the lenses are free of dust and other foreign matter. Do not change lenses in direct sunlight or under another bright light source, as light focused into the interior of the camera could cause it to malfunction.

Charging the Battery The battery is not charged at shipment. Before proceeding, use the supplied battery charger to fully charge the battery.

NP-T125 rechargeable battery is supplied with the camera. Charging takes about 140 minutes.

Connect the plug adapter. The plug adapter supplied with the camera varies with the country or region of purchase; use the adapter appropriate to your country or region as described in the enclosed notice. Place the battery in the charger. Insert the battery in the orientation shown by the arrow.

Plug the charger in. Plug the charger into an indoor power outlet. The charging indicator will light.

Charge the battery. Remove the battery when charging is complete.

The Charging Indicator The charging indicator shows battery charge status as follows: Battery status Action Charging indicator Battery not inserted. Insert the battery. Off Battery fully charged. Remove the battery. On Battery charging. — Unplug the charger and Blinks Battery fault. remove the battery.

O Use the charger with the plug adapter for your country or region.

Do not affix labels or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera. Do not short the battery terminals. The battery could overheat. Read the cautions in “The Battery and Power Supply”. Use only battery chargers designated for use with the battery. Failure to observe this precaution could result in product malfunction. Do not remove the labels from the battery or attempt to split or peel the outer casing. The battery gradually loses its charge when not in use. Charge the battery one or two days before use. If the battery fails to hold a charge, it has reached the end of its charging life and must be replaced. Unplug the charger when it is not in use. Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent the battery from charging. Note that charging times increase at low temperatures.

Charging the Battery

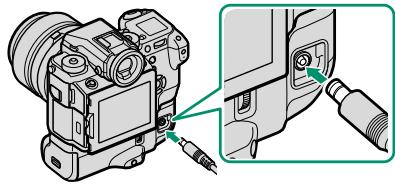

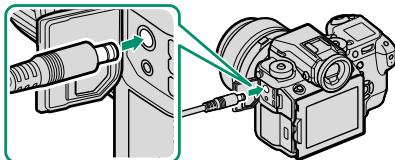

Charging via AC Adapter The battery inserted in the camera will also charge when the camera is powered by an optional AC-15V AC adapter. Charging takes about 120 minutes.

Battery charge status is shown by battery status icons when the camera is on (playback mode) and by the indicator lamp when the camera is off. Battery status icon (camera on) Indicator lamp (camera off ) Battery status Y (yellow) On Battery charging N (green) Off Charging complete Z (red) Blinks Battery fault

Inserting the Battery After charging the battery, insert the battery in the camera as described below.

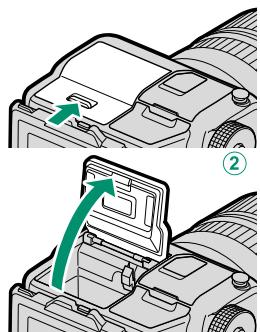

Open the battery-chamber cover. Slide the battery-chamber latch as shown and open the battery-chamber cover.

O Do not remove the battery when the

camera is on. Failure to observe this precaution could damage image files or memory cards. Do not use excessive force when handling the battery-chamber cover.

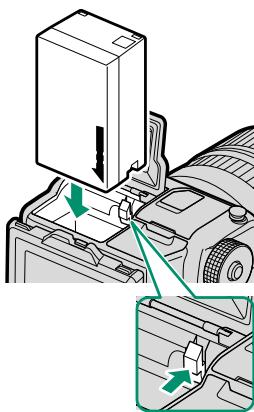

Insert the battery. Using the battery to keep the battery latch pressed to one side, insert the battery contacts first in the direction shown by the arrow. Confirm that the battery is securely latched.

O Insert the battery in the orientation

shown. Do not use force or attempt to insert the battery upside down or backwards. The battery will slide in easily in the correct orientation.

Inserting the Battery

Close the battery-chamber cover. Close and latch the cover.

O If the cover does not close, check that the battery is in the correct orientation. Do not attempt to force the cover shut.

Removing the Battery Before removing the battery, turn the camera off and open the battery-chamber cover.

To remove the battery, press the battery latch to the side, and slide the battery out of the camera as shown.

O The battery may become hot when used in high-temperature environments. Observe caution when removing the battery.

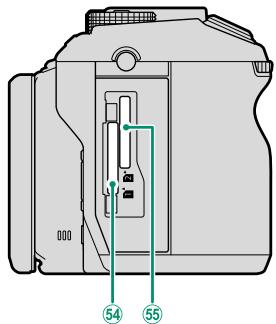

Inserting Memory Cards Pictures are stored on memory cards (sold separately).

N The camera can be used with two cards, one in each of its two slots. 1

Open the memory card slot cover. Unlatch and open the cover.

O Do not remove memory cards when

the camera is on. Failure to observe this precaution could damage image files or memory cards.

Insert the memory card. Holding the card in the orientation shown, slide it in until it clicks into place at the back of the slot.

O Be sure card is in the correct orienta-

tion; do not insert at an angle or use force.

Close the memory card slot cover. Close and latch the cover.

Inserting Memory Cards

Removing Memory Cards Before removing memory cards, turn the camera off and open the memory card slot cover. Press and release the card to eject it part way (to prevent the card falling from the slot, press the center of the card and release it slowly, without removing your finger from the card). The card can then be removed by hand.

SEQUENTIAL (default)

Description The card in the second slot is used only when the card in the first slot is full. If the second slot is selected for D SAVE DATA SETTING > SWITCH SLOT (SEQUENTIAL), recording will start on the card in the second slot and switch to the first slot when the card in the second slot is full.

BACKUP Each picture is recorded twice, once to each card.

RAW/JPEG As for SEQUENTIAL, except that the RAW copy of pictures taken with FINE + RAW or NORMAL + RAW selected for H IMAGE QUALITY SETTING > IMAGE QUALITY will be saved to the card in the first slot and the JPEG copy to the card in the second slot.

Using Two Cards The camera can be used with two cards, one in each of its two slots. At default settings, photos are saved to the card in the second slot only when the card in the first slot is full. This can be changed using D SAVE DATA SETTING > CARD SLOT SETTING (STILL IMAGE).

Inserting Memory Cards

Compatible Memory Cards FUJIFILM and SanDisk SD, SDHC, and SDXC memory cards have been approved for use in the camera; UHS-II cards can be used in both slots, while cards with a UHS speed class of 1 or better are recommended for movies. A complete list of approved memory cards is available at http://www.fujifilm.com/support/ digital_cameras/compatibility/. Operation is not guaranteed with other cards. The camera can not be used with xD-Picture Cards or MultiMediaCard (MMC) devices.

O Do not turn the camera off or remove the memory card while the memory

card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card. Memory cards can be locked, making it impossible to format the card or to record or delete images. Before inserting a memory card, slide the write-protect switch to the unlocked position. Format memory cards before first use, and be sure to reformat all memory cards after using them in a computer or other device.

Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows a memory card, seek medical assistance immediately. miniSD or microSD adapters that are larger or smaller than memory cards may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card. Do not affix labels or other objects to memory cards. Peeling labels can cause camera malfunction. Movie recording may be interrupted with some types of memory card. Formatting a memory card in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image files. Always use the camera to delete pictures; before editing or renaming files, copy them to a computer and edit or rename the copies, not the originals. Renaming the files on the camera can cause problems during playback.

Turning the Camera On and Off Use the ON/OFF switch to turn the camera on and off. Rotate the switch to ON to turn the camera on, or to OFF to turn the camera off.

O Fingerprints and other marks on the lens or viewfinder can affect picN Press the a button to start playback. Press the shutter button halfway to return to shooting mode.

The camera will turn off automatically if no operations are performed for the length of time selected for D POWER MANAGEMENT > AUTO POWER OFF. To reactivate the camera after it has turned off automatically, press the shutter button halfway or turn the ON/OFF switch to OFF and then back to ON.

tures or the view through the viewfinder. Keep the lens and viewfinder clean.

Checking the Battery Level After turning the camera on, check the battery level in the display. Battery level is shown as follows:

Indicator e f g h i i (red) j (blinks red)

Description Battery partially discharged. Battery about 80% full. Battery about 60% full. Battery about 40% full. Battery about 20% full. Low battery. Charge as soon as possible. Battery exhausted. Turn camera off and recharge battery.

Basic Setup A language-selection dialog is displayed the first time the camera is turned on.

Turn the camera on. A language-selection dialog will be displayed.

Set the date and time. DATE/TIME NOT SET Press the selector left or right to highlight the year, month, day, hour, 2015 2016 or minute and press up or down YY.MM.DD 2017 . 1 . 1 12 ： 00 AM 2018 to change. To change the order in 2019 which the year, month, and day are displayed, highlight the date format and press the selector up or down. Press MENU/OK to exit to shooting mode when settings are complete.

N If the battery is removed for an extended period, the camera clock will

be reset and the language-selection dialog will be displayed when the camera is turned on.

Skipping the Current Step Press DISP/BACK to skip the current step. Any steps you skip will be displayed the next time the camera is turned on.

Choosing a Different Language To change the language:

Changing the Time and Date To set the camera clock:

Display DATE/TIME options. Select D USER SETTING > DATE/TIME.

Set the clock. Press the selector left or right to highlight the year, month, day, hour, or minute and press up or down to change. Press MENU/OK to set the clock.

Basic Photography and Playback

Taking Photographs (Mode P) This section describes how to take pictures using program AE (mode P). See pages 52–61 for information on S, A, and M modes.

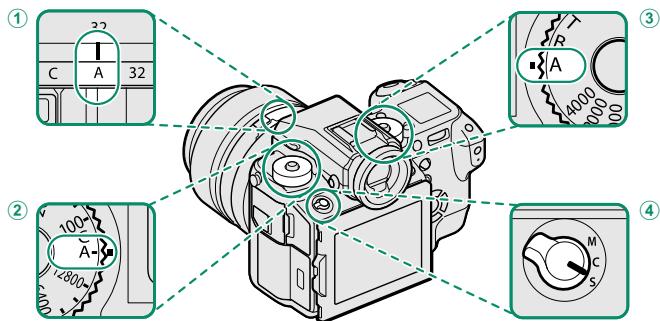

Adjust settings for program AE.

3 Basic Photography and Playback

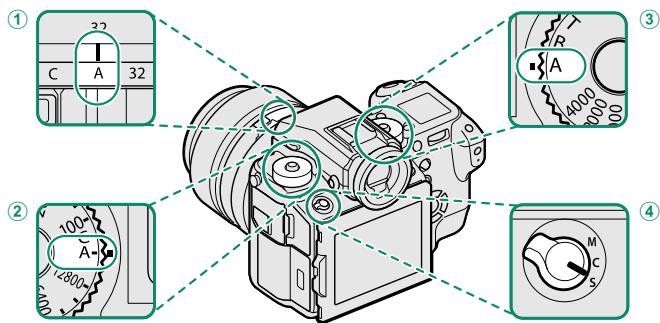

A Aperture (P 52): Select A (auto). B Sensitivity (P 74): Select A (auto). C Shutter speed (P 52): Select A (auto). D Focus mode (P 63): Select S (single AF).

N To use the shutter speed and sensitivity dials, press the dial lock release and rotate the dial to the desired setting.

Check the shooting mode. Confirm that P appears in the display.

Taking Photographs (Mode P)

Ready the camera. Hold the camera steady with both hands and brace your elbows against your sides. Shaking or unsteady hands can blur your shots.

To prevent pictures that are out of focus or too dark (underexposed), keep your fingers and other objects away from the lens.

Basic Photography and Playback

Frame the picture. Lenses with Zoom Rings Use the zoom ring to frame the picture in the display. Rotate the ring left to zoom out, right to zoom in.

Taking Photographs (Mode P)

Focus. Press the shutter button halfway to focus.

If the camera is able to focus, it will beep twice and focus area and focus indicator will glow green. Focus and exposure will lock while the shutter button is pressed halfway.

3 Basic Photography and Playback

If the camera is unable to focus, the focus frame will turn red, s will be displayed, and the focus indicator will blink white.

Shoot. Smoothly press the shutter button the rest of the way down to take the picture.

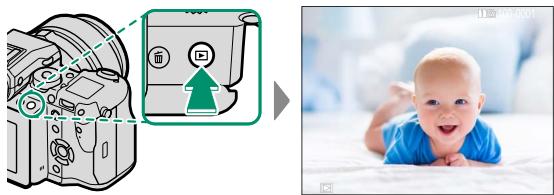

a Viewing Pictures Pictures can be viewed in the viewfinder or LCD monitor. To view pictures full frame, press a. 100-0001

N Pictures taken using other cameras are marked with a m (“gift image”)

icon to warn that they may not display correctly and that playback zoom may not be available.

Two Memory Cards If two memory cards are inserted, you can press and hold the a button to choose a card for playback. You can also select a card using the C PLAY BACK MENU > SWITCH SLOT option.

3 Basic Photography and Playback

Additional pictures can be viewed by pressing the selector left or right or rotating the front command dial. Press the selector or rotate the dial right to view pictures in the order recorded, left to view pictures in reverse order. Keep the selector pressed to scroll rapidly to the desired frame.

b Deleting Pictures Use the b button to delete pictures.

O Deleted pictures can not be recovered. Copy important pictures to a computer or other storage device before proceeding.

With a picture displayed full frame, press the b button and select FRAME.

3 Basic Photography and Playback

Press the selector left or right to scroll through pictures and press MENU/OK to delete (a confirmation dialog is not displayed). Repeat to delete additional pictures.

N Protected pictures can not be deleted. Remove protection from any pictures you wish to delete (P 133).

Pictures can also be deleted from the menus using the C PLAY BACK MENU > ERASE option (P 129).

Movie Recording and Playback

F Recording Movies This section describes how to film movies in auto mode.

Press the drive mode button and select F MOVIE. Adjust settings for program AE.

4 Movie Recording and Playback

A Aperture (P 52): Select A (auto). B Sensitivity (P 74): Select A (auto). C Shutter speed (P 52): Select A (auto). D Focus mode (P 63): Select S (single AF).

N To use the shutter speed and sensitivity dials, press the dial lock release and rotate the dial to the desired setting.

Press the shutter button to start recording. A recording indicator (V) and the time remaining are displayed while recording is in progress.

Press the button again to end recording. Recording ends automatically when the maximum length is reached or the memory card is full.

O Sound is recorded via the built-in microphone or an optional external microphone. Do not cover the microphone during recording. Note that the microphone may pick up lens noise and other sounds made by the camera during recording. Vertical or horizontal streaks may appear in movies containing very bright subjects. This is normal and does not indicate a malfunction.

N The indicator lamp lights while recording is in progress.

During recording, you can change exposure compensation by up to ±2 EV and adjust zoom using the zoom ring on the lens (if available).

Recording may be unavailable at some settings, while in other cases settings may not apply during recording. Using an External Microphone Sound can be recorded with external microphones that connect using jacks 3.5 mm in diameter; microphones that require plug-in power can not be used. See the microphone manual for details.

4 Movie Recording and Playback

If the lens is equipped with an aperture mode switch, select the aperture mode before beginning recording. If an option other than A is selected, shutter speed and aperture can be adjusted while recording is in progress.

Adjusting Movie Settings Frame size and rate can be selected using B MOVIE SETTING > MOVIE MODE, while the card used to store movies can be selected using D SAVE DATA SETTING > MOVIE FILE DESTINATION. Focus mode is selected using the focus mode selector; for continuous focus adjustment, select C, or choose S and enable Intelligent Face Detection. Intelligent Face Detection is not available in focus mode M. Depth of Field Choose low f-numbers to soften background details.

4 Movie Recording and Playback

a Viewing Movies View movies on the camera. In full-frame playback, movies are identified by a W icon.

1/1/2017 12:00 AM PLAY

The following operations can be performed while a movie is displayed:

4 Playback in progress ((x x)

Pause playback Adjust speed

Progress is shown in the display during playback.

O Do not cover the speaker during playback.

STOP PAUSE N Press MENU/OK to pause playback and display volume controls. Press the selector up or down to adjust the volume; press MENU/OK again to resume playback. Volume can also be adjusted using D SOUND SETTING > PLAYBACK VOLUME.

Movie Recording and Playback

Playback Speed Press the selector left or right to adjust playback speed during playback. Speed is shown by the number of arrows (M or N).

4 Movie Recording and Playback

PAUSE Taking Photographs

P, S, A, and M Modes P, S, A, and M modes give you varying degrees of control over shutter speed and aperture. Mode P: Program AE Let the camera choose shutter speed and aperture for optimal exposure. Other values that produce the same exposure can be selected with program shift.

Set shutter speed and aperture to A (auto) and confirm that P appears in the display.

O If the subject is outside the metering range of the camera, the shutter speed and aperture displays will show “– – –”.

N To use the shutter speed dial, press the dial lock release and rotate the dial to the desired setting.

P, S, A, and M Modes

Program Shift If desired, you can rotate the rear command dial to select other combinations of shutter speed and aperture without altering exposure (program shift).

O Program shift is not available during movie recording or if the flash

supports TTL auto or an auto option is selected for H IMAGE QUALITY SETTING > DYNAMIC RANGE.

N To cancel program shift, turn the camera off.

5 Taking Photographs

Mode S: Shutter-Priority AE Choose a shutter speed and let the camera adjust aperture for optimal exposure.

Shutter speed: Choose a speed.

Aperture: Select A (auto).

Set aperture to A (auto) and use the shutter speed dial to choose a shutter speed. S will appear in the display.

5 Taking Photographs

O If the correct exposure can not be achieved at the selected shutter speed, aperture will be displayed in red. If the subject is outside the metering range of the camera, the aperture display will show “– – –”.

N To use the shutter speed dial, press the dial lock release and rotate the

dial to the desired setting (the dial can be used even while the shutter button is pressed halfway). Shutter speed can also be adjusted in increments of 1⁄3 EV by rotating the rear command dial.

P, S, A, and M Modes

Time (T) Rotate the shutter speed dial to T (time) to choose slow shutter speeds for long time-exposures. Use of a tripod is recommended to prevent the camera moving during the exposure.

Rotate the shutter speed dial to T.

Rotate the rear command dial to choose a shutter speed.

5 Press the shutter button all the way down to take a picture at the selected shutter speed. A count-down timer will be displayed while the exposure is in progress.

N To reduce “noise” (mottling) in long time-exposures, select ON for

H IMAGE QUALITY SETTING > LONG EXPOSURE NR. Note that this may increase the time needed to record images after shooting.

Bulb (B) Select a shutter speed of B (bulb) for long time-exposures in which you open and close the shutter manually. Use of a tripod is recommended to prevent the camera moving during the exposure.

Rotate the shutter speed dial to B.

Press the shutter button all the way down. The shutter will remain open for up to 60 minutes while the shutter button is pressed; the display shows the time elapsed since the exposure started.

N Selecting an aperture of A fixes shutter speed at 30 s. To reduce “noise” (mottling) in long time-exposures, select ON for H IMAGE QUALITY SETTING > LONG EXPOSURE NR. Note that this may increase the time needed to record images after shooting.

P, S, A, and M Modes

Using a Remote Release An optional RR-90 remote release can be used for long time-exposures. The RR-90 connects via the Micro USB (Micro-B) USB 2.0 connector.

Alternatively, electronic releases from third-party suppliers can be connected via the remote release connector (⌀2.5 mm 3-pole mini jack)

5 Taking Photographs

Mode A: Aperture-Priority AE Choose an aperture and let the camera adjust shutter speed for optimal exposure.

Shutter speed: Select A (auto).

Aperture: Choose an aperture.

Rotate the shutter speed dial to A (auto), and rotate the lens aperture ring to adjust aperture as desired. A will appear in the display.

5 Taking Photographs

O If the correct exposure can not be achieved at the selected aperture, shutter speed will be displayed in red. If the subject is outside the metering range of the camera, the shutter speed display will show “– – –”.

N To use the shutter speed dial, press the dial lock release and rotate the dial to the desired setting.

Aperture can be adjusted even while the shutter button is pressed halfway.

P, S, A, and M Modes

Previewing Depth of Field When PREVIEW DEPTH OF FIELD is assigned to a function button, pressing the button displays a L icon and stops aperture down to the selected setting, allowing depth of field to be previewed in the display.

N Depth of field can also be previewed using

the depth-of-field indicator in the standard display. Press DISP/BACK to cycle through display modes until standard indicators are displayed. In autofocus mode, the depthof-field indicator is displayed when the shutter button is pressed halfway.

5 Taking Photographs

Use the G AF/MF SETTING > DEPTH-OF-FIELD SCALE option to choose how depth of field is displayed. Choose FILM FORMAT BASIS to help you make practical assessments of depth of field for pictures that will be viewed as prints and the like, PIXEL BASIS to help you assess depth of field for pictures that will be viewed at high resolutions on computers or other electronic displays.

Mode M: Manual Exposure Alter exposure from that selected by the camera.

Shutter speed: Choose a speed.

Aperture: Choose an aperture.

Set shutter speed to a value other than A, and rotate the lens aperture ring to choose the aperture. M will appear in the display.

N To use the shutter speed dial, press the dial lock release and rotate the

dial to the desired setting. Shutter speed can be adjusted in increments of 1⁄3 EV by rotating the rear command dial.

P, S, A, and M Modes

Exposure Preview To preview exposure in the LCD monitor, select an option other than OFF for D SCREEN SETTING > PREVIEW EXP./WB IN MANUAL MODE. Select OFF when using the flash or on other occasions on which exposure may change when the picture is taken.

5 Taking Photographs

Autofocus Take pictures using autofocus.

Rotate the focus mode selector to S or C (P 63).

Use G AF/MF SETTING > AF MODE to choose an AF mode (P 65).

Choose the position and size of the focus frame (P 67).

5 Taking Photographs

Focus Mode Use the focus mode selector to choose how the camera focuses.

Choose from the following options: Mode

Description Single AF: Focus locks while the shutter button is pressed halfway. Choose for stationary subjects. Continuous AF: Focus is continually adjusted to reflect changes in the distance to the subject while the shutter button is pressed halfway. Use for subjects that are in motion. Eye-detection AF is not available. Manual: Focus manually using the lens focus ring. Choose for manual control of focus or in situations in which the camera is unable to focus using autofocus (P 71).

lens is in manual focus mode.

If ON is selected for G AF/MF SETTING > PRE-AF, focus will be adjusted continuously in modes S and C even when the shutter button is not pressed.

N Regardless of the option selected, manual focus will be used when the

The Focus Indicator The focus indicator turns green when the subject is in focus and blinks white when the camera is unable to focus. Brackets (“( )”) indicate that the camera is focusing and are displayed continuously in mode C. j is displayed in manual focus mode. Focus indicator

5 Taking Photographs

Autofocus Options (AF Mode) Choose how the camera focuses in modes S and C.

Press MENU/OK and go to the shooting menu. Select G AF/MF SETTING > AF MODE. Choose an AF mode.

N This feature can also be accessed via shortcuts (P 176). How the camera focuses depends on the focus mode. Focus Mode S (AF-S) Option

Camera focuses on subject in selected focus point. Use for pinSINGLE POINT point focus on selected subject.

Camera focuses on subject in selected focus zone. Focus zones include multiple focus points, making it easier to focus on subjects in motion.

Camera focuses automatically on high-contrast subjects; display WIDE/TRACKING shows areas in focus.

Focus tracks subject at selected focus point. Use for subjects moving SINGLE POINT toward or away from camera.

Focus tracks subject in selected focus zone. Use for subjects that are moving fairly predictably.

Focus tracks subjects moving z WIDE/TRACKING through wide area of frame.

Focus-Point Selection Choose a focus point for autofocus. Viewing the Focus-Point Display

Press MENU/OK and go to the shooting menu. Select G AF/MF SETTING > FOCUS AREA to view the focus-point display. Use the focus stick and rear command dial to choose a focus area.

Selecting a Focus Point Use touch controls or the focus stick (focus lever) to choose the focus point and the rear command dial to choose the size of the focus frame. The procedure varies with the option selected for AF mode.

Select center focus point

Rotate Press Choose from 6 frame sizes Restore original size Choose from 3 frame sizes —

N Manual focus-point selection is not available when z WIDE/TRACKING is selected in focus mode S.

The Focus-Point Display The focus-point display varies with the option selected for AF mode.

N Focus frames are shown by small squares (), focus zones by the large squares.

Number of points avail- Choose from zones with Position focus frame over able can be selected using 7 × 7, 5 × 5, or 3 × 3 focus subject and press MENU/OK. G AF/MF SETTING > points. NUMBER OF THE FOCUS POINTS.

Autofocus Although the camera boasts a high-precision autofocus system, it may be unable to focus on the subjects listed below. • Very shiny subjects such as mirrors or car bodies. • Subjects photographed through a window or other reflective object. • Dark subjects and subjects that absorb rather than reflect light, such as hair or fur. • Insubstantial subjects, such as smoke or flame. • Subjects that show little contrast with the background. • Subjects positioned in front of or behind a high-contrast object that is also in the focus frame (for example, a subject photographed against a backdrop of highly contrasting elements). Checking Focus To zoom in on the current focus area for precise focus, press the control to which focus zoom has been assigned (at default settings, the center of the rear command dial). Press the control again to cancel zoom.

5 Taking Photographs

N In focus mode S, zoom can be adjusted by rotating the rear command dial. Focus zoom is not available in focus mode C or when G AF/MF SETTING > PRE-AF is on or an option other than r SINGLE POINT is selected for AF MODE.

To assign focus zoom to a control, select FOCUS CHECK for D BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING.

Touch Focus Controls Use the touch screen to focus when taking photographs. Tap the touch screen mode indicator in the shooting display to cycle through the following touch-screen modes:

AF Description Tap the display to select a focus point and lock focus. The shutter can be released by pressing the shutter button all the way down.

AREA Tap the display to move the focus frame to the selected point. The selected point will be used for focus and focus zoom.

5 Taking Photographs

OFF Touch controls off.

N Touch control settings can be adjusted using G AF/MF SETTING > TOUCH SCREEN MODE. To disable touch controls and hide the touch screen mode indicator, select OFF for D BUTTON/DIAL SETTING > TOUCH SCREEN SETTING.

Manual Focus Adjust focus manually.

Rotate the focus mode selector to M.

j will appear in the display.

Focus manually using the lens focus ring. Rotate the ring left to reduce the focus distance, right to increase.

N Use D BUTTON/DIAL SETTING > FOCUS RING to reverse the direction of rotation of the focus ring.

Regardless of the option selected, manual focus will be used when the lens is in manual focus mode.

Quick Focus To use autofocus to focus on the subject in the selected focus area, press the button to which focus lock or AF-ON has been assigned (the size of the focus area can be chosen with the rear command dial). In manual focus mode, you can use this feature to quickly focus on a chosen subject using either single or continuous AF according to the option chosen for G AF/ MF SETTING > INSTANT AF SETTING.

5 Taking Photographs

Checking Focus A variety of options are available for checking focus in manual focus mode. The Manual Focus Indicator Focus distance The manual focus indicator indicates (white line) how closely the focus distance matches the distance to the subject in the focus brackets. The white line indicates the distance to the subject in the focus area Depth of field (in meters or feet according to the option selected for D SCREEN SETTING > FOCUS SCALE UNITS in the setup menu), the blue bar the depth of field, or in other words the distance in front of and behind the subject that appears to be in focus.

N If STANDARD or FOCUS PEAK HIGHLIGHT is selected for G AF/MF SETTING > MF ASSIST, zoom can be adjusted by rotating the rear command dial.

Focus Peaking Select FOCUS PEAK HIGHLIGHT for G AF/MF SETTING > MF ASSIST to highlight high-contrast outlines. When focusing, rotate the focus ring until the subject is highlighted.

N The MF ASSIST menu can be displayed by pressing and holding the center of the rear command dial.

5 Taking Photographs

Focus Zoom If ON is selected for G AF/MF SETTING > FOCUS CHECK, the camera will automatically zoom in on the selected focus area when the focus ring is rotated.

N Sensitivity Adjust the camera’s sensitivity to light. Press the sensitivity dial lock release, rotate the dial to the desired setting, and press the release again to lock the dial in place.

5 Taking Photographs

Description Sensitivity is automatically adjusted in response to shooting conditions according to option chosen for A SHOOTING SETTING > ISO AUTO SETTING. Choose from AUTO 1, AUTO 2, and AUTO 3. Sensitivity can be set by rotating the front command dial. Choose from values of from 100 to 12800 or select “extended” values of ISO 50 or of ISO 25600 or higher. Adjust sensitivity manually. Selected value is shown in display.

Adjusting Sensitivity High values can be used to reduce blur when lighting is poor, while lower values allow slower shutter speeds or wider apertures in bright light; note, however, that mottling may appear in pictures taken at high sensitivities.

Auto Sensitivity (A) Use A SHOOTING SETTING > ISO AUTO SETTING to choose the base sensitivity, maximum sensitivity, and minimum shutter speed for the A position on the sensitivity dial. Settings for AUTO 1, AUTO 2, and AUTO 3 can be stored separately; the defaults are shown below. Option

Default AUTO 2 100 1600 ⁄ s

The camera automatically chooses a sensitivity between the default and maximum values; sensitivity is only raised above the default value if the shutter speed required for optimal exposure would be slower than the value selected for MIN. SHUTTER SPEED. lected for MAX. SENSITIVITY, DEFAULT SENSITIVITY will be set to the value selected for MAX. SENSITIVITY. The camera may select shutter speeds slower than MIN. SHUTTER SPEED if pictures would still be underexposed at the value selected for MAX. SENSITIVITY.

5 Taking Photographs

N If the value selected for DEFAULT SENSITIVITY is higher than that se-

C Metering Choose how the camera meters exposure. A SHOOTING SETTING > PHOTOMETRY offers a choice of the following metering options:

O The selected option will only take effect when G AF/MF SETTING > FACE/EYE DETECTION SETTING is OFF.

Description The camera meters lighting conditions in an area at the center of the frame equivalent to 2% of the total. Recommended with backlit subjects and in other cases in which the background is much brighter or darker than the main subject. The camera meters the entire frame but assigns the greatest weight to the area at the center. The camera instantly determines exposure based on an analysis of composition, color, and brightness distribution. Recommended in most situations. Exposure is set to the average for the entire frame. Provides consistent exposure across multiple shots with the same lighting, and is particularly effective for landscapes and portraits of subjects dressed in black or white.

d Exposure Compensation Adjust exposure. Hold the d button and rotate the rear command dial until the desired value is displayed in the viewfinder or LCD monitor.

O The amount of compensation available varies with the shooting mode. The d Button If ON/OFF SWITCH is selected for D BUTTON/DIAL SETTING > EXPO. COMP. BUTTON SETTING, exposure compensation can be set by pressing the d button once, rotating the rear command dial, and then pressing the d button again. Exposure compensation can be assigned to other controls using D BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING.

5 Taking Photographs

Focus/Exposure Lock Compose photographs with off-center subjects.

Focus: Position the subject in the focus frame and press the shutter button halfway to lock focus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).

Recompose: Keep the shutter button pressed halfway.

Shoot: Press the button all the way down.

N Focus lock using the shutter button is only available when ON is selected for D BUTTON/DIAL SETTING > SHUTTER AF, SHUTTER AE.

The AF-L and AE-L Buttons Focus and exposure can also be locked using function buttons. At default settings, the Fn4 button locks focus, the Fn5 button exposure. Focus and/or exposure will remain locked while the button is pressed, whether or not the shutter button is pressed halfway.

Fn5 button (exposure lock)

5 Taking Photographs

The roles of the buttons can be changed using the following D BUTTON/DIAL SETTING options: • FUNCTION (Fn) SETTING: Choose the roles played by the function buttons. • AE/AF-LOCK MODE: If AE&AF ON/OFF SWITCH is selected for AE/AF-LOCK MODE, focus and/or exposure lock when the button is pressed and remain locked until the button is pressed again.

Fn4 button (focus lock)

BKT Bracketing Automatically vary settings over a series of pictures. Press the drive button and choose from the options below. O AE BKT Use A SHOOTING SETTING > AE BKT SETTING to choose the bracketing amount and number of shots. Each time the shutter button is pressed, the camera will take the specified number of shots: one using the metered value for exposure and the others over- or under-exposed by multiples of the selected bracketing amount.

N Regardless of the bracketing amount, exposure will not exceed the limits of the exposure metering system.

W ISO BKT Taking Photographs

Select a bracketing amount (±1, ±2⁄3, or ±1⁄3). Each time the shutter is released, the camera will take a picture at the current sensitivity and process it to create two additional copies, one with sensitivity raised and the other with sensitivity lowered by the selected amount.

X FILM SIMULATION BKT Each time the shutter is released, the camera takes one shot and processes it to create copies with different film simulation settings, chosen using A SHOOTING SETTING > FILM SIMULATION BKT.

V WHITE BALANCE BKT Select a bracketing amount (±1, ±2, or ±3). Each time the shutter is released, the camera takes one shot and processes it to create three copies: one at the current white balanced setting, one with fine-tuning increased by the selected amount, and another with fine-tuning decreased by the selected amount.

Y DYNAMIC RANGE BKT Each time the shutter button is pressed, the camera takes three shots with different dynamic ranges: 100% for the first, 200% for the second, and 400% for the third.

N While dynamic range bracketing is in effect, sensitivity will be restrict-

ed to a minimum of ISO 400 (or to a minimum of ISO 100 to 400 when an auto option is selected for sensitivity); the sensitivity previously in effect is restored when bracketing ends.

5 Taking Photographs

I Continuous Shooting (Burst Mode) Capture motion in a series of pictures. Press the drive button and select I CONTINUOUS. The camera will take pictures while the shutter button is pressed; shooting ends when the shutter button is released or the memory card is full.

O If file numbering reaches 999 before shooting is complete, the remaining pictures will be recorded to a new folder.

Burst shooting may not begin if the space available on the memory card is insufficient. Frame rate varies with the subject, shutter speed, sensitivity, and focus mode. Frame rates may slow and recording times increase as more shots are taken. The flash may or may not fire, depending on shooting conditions.

5 Taking Photographs

Exposure To vary exposure with each shot, select OFF for D BUTTON/DIAL SETTING > SHUTTER AE.

N Depending on such factors as aperture, sensitivity, and exposure compensation, exposure may not be adjusted automatically.

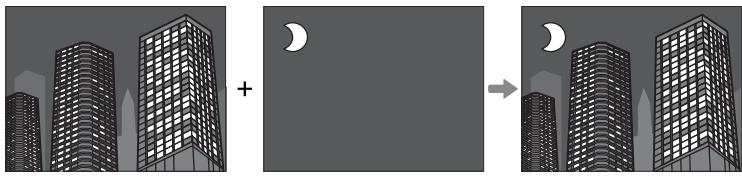

j Multiple Exposures Create a photograph that combines two exposures.

Press the drive button and select j MULTIPLE EXPOSURE. Take the first shot. Press MENU/OK. The first shot will be shown superimposed on the view through the lens and you will be prompted to take the second shot.

N To return to Step 2 and retake the first

EXIT Taking Photographs

shot, press the selector left. To save the first shot and exit without creating a multiple exposure, press DISP/BACK.

Take the second shot, using the first frame as a guide.

Press MENU/OK to create the multiple exposure, or press the selector left to return to Step 4 and retake the second shot.

RETRY EXIT O Multiple exposures can not be recorded via tethered shooting (P 174). 83

H IMAGE QUALITY SETTING Adjust image quality settings. To display image quality settings, press MENU/OK in the shooting display and select the H (IMAGE QUALITY SETTING) tab.

画質設定 IMAGE QUALITY SETTING

画像サイズ IMAGE SIZE 画質モード IMAGE QUALITY RAW 記録方式 RAW RECORDING フィルムシミュレーション FILM SIMULATION グレイン･エフェクト GRAIN EFFECT ダイナミックレンジ COLOR CHROME EFFECT ホワイトバランス ハイライトトーン

DYNAMIC RANGE WHITE BALANCE EXIT N The options available vary with the shooting mode selected.

IMAGE SIZE Choose the size and aspect ratio at which still pictures are recorded. Option O4:3 O3:2 O 16 : 9 O1:1 O 65 : 24 O5:4 O7:6

6 The Shooting Menus

Image size 8256 × 6192 8256 × 5504 8256 × 4640 6192 × 6192 8256 × 3048 7744 × 6192 7232 × 6192

Option Q4:3 Q3:2 Q 16 : 9 Q1:1 Q 65 : 24 Q5:4 Q7:6

N IMAGE SIZE is not reset when the camera is turned off or another shooting mode is selected.

IMAGE QUALITY SETTING IMAGE QUALITY Choose a file format and compression ratio. Select SUPER FINE (minimum compression), FINE (low compression), or NORMAL (high compression) to record JPEG images, RAW to record RAW images, or SUPER FINE+RAW, FINE+RAW, or NORMAL+RAW to record both JPEG and RAW images. With JPEG images, the lower the compression ratio, the higher the quality of the image, while higher compression ratios allow more images to be stored in the same amount of memory. The Function Buttons To toggle RAW image quality on or off for a single shot, assign RAW to a function button (P 182). If a JPEG option is currently selected for image quality, pressing the button temporarily selects the equivalent JPEG+RAW option. If a JPEG+RAW option is currently selected, pressing the button temporarily selects the equivalent JPEG option, while if RAW is selected, pressing the button temporarily selects FINE. Taking a picture or pressing the button again restores the previous setting.

RAW RECORDING Choose whether to compress RAW images.

LOSSLESS COMPRESSED Description RAW images are not compressed. RAW images are compressed using a reversible algorithm that reduces file size with no loss of image data. The images can be viewed in RAW FILE CONVERTER EX 2.0 or other software that supports “lossless” RAW compression (P 212).

FILM SIMULATION Simulate the effects of different kinds of film, including blackand-white (with or without color filters). Choose a palette according to your subject and creative intent. Option

6 The Shooting Menus

Description Standard color reproduction. Suited to a wide range of c PROVIA/STANDARD subjects, from portraits to landscapes. A high-contrast palette of saturated colors, suited to d Velvia/VIVID nature photos. Enhances the range of hues available for skin tones in portraits while preserving the bright blues of daylight e ASTIA/SOFT skies. Recommended for outdoor portrait photography. Soft color and enhanced shadow contrast for a calm i CLASSIC CHROME look. Offers slightly more contrast than h PRO Neg. Std. g PRO Neg. Hi Recommended for outdoor portrait photography. A soft-toned palette. The range of hues available for skin tones is enhanced, making this a good choice for studio h PRO Neg. Std portrait photography. Take black-and-white photos with rich gradation and a ACROS * outstanding sharpness. Take pictures in standard black and white. b MONOCHROME * Take pictures in sepia. f SEPIA * Available with yellow (Ye), red (R), and green (G) filters, which deepen shades of gray corresponding to hues complementary to the selected color. The yellow (Ye) filter deepens purples and blues and the red (R) filter blues and greens. The green (G) filter deepens reds and browns, including skin tones, making it a good choice for portraits.

N Film simulation options can be combined with tone and sharpness settings.

Film simulation settings can also be accessed via shortcuts (P 176). For more information, visit: http://fujifilm-x.com/en/x-stories/the-world-offilm-simulation-episode-1/

IMAGE QUALITY SETTING GRAIN EFFECT Add a film grain effect. Select an amount (STRONG or WEAK) or choose OFF to turn film grain off. Options

WEAK STRONG OFF COLOR CHROME EFFECT Deepen colors in shadows. Select an amount (STRONG or WEAK) or choose OFF to turn the effect off. Options

WEAK STRONG OFF O COLOR CHROME EFFECT is not available during bracketing or burst photography.

AUTO is selected, the camera will automatically choose either V 100% or W 200% according to the subject and shooting conditions. Shutter speed and aperture will be displayed when the shutter button is pressed halfway.

W 200% is available at sensitivities of ISO 200 and above, X 400% at sensitivities of ISO 400 and above.

6 The Shooting Menus

DYNAMIC RANGE Control contrast. Choose lower values to increase contrast when shooting indoors or under overcast skies, higher values to reduce loss of detail in highlights and shadows when photographing high-contrast scenes. Higher values are recommended for scenes that include both sunlight and deep shade, for such high-contrast subjects as sunlight on water, brightly-lit autumn leaves, and portraits taken against a blue sky, and for white objects or people wearing white; note, however, that mottling may appear in pictures taken at higher values.

WHITE BALANCE For natural colors, choose a white balance option that matches the light source. Option AUTO k/l/m k i j k l m n g

Description White balance is adjusted automatically. Measure a value for white balance. Choose a color temperature. For subjects in direct sunlight. For subjects in the shade. Use under “daylight” fluorescent lights. Use under “warm white” fluorescent lights. Use under “cool white” fluorescent lights. Use under incandescent lighting. Reduces the blue cast typically associated with underwater lighting.

N Results vary with shooting conditions. Play pictures back after shooting to check colors.

White balance is adjusted for flash lighting only in AUTO and g modes. Turn the flash off using other white balance options.

6 The Shooting Menus

White balance options can also be accessed via shortcuts (P 176).

IMAGE QUALITY SETTING Fine-Tuning White Balance Pressing MENU/OK after selecting a white balance option displays the dialog shown at right; use the selector to fine-tune white balance or press DISP/BACK to exit without fine-tuning.

WB SHIFT AUTO R:0 B:0

SET Custom White Balance Choose k, l, or m to adjust white CUSTOM WB balance for unusual lighting conditions. White balance measurement options will be displayed; frame a white object so that it fills the display and press the shutter button all the way down to measure white balance (to select the most recent custom value and exit without measuring white balance, press DISP/BACK, or press MENU/OK to select the most recent value and display the fine-tuning dialog). • If “COMPLETED!” is displayed, press MENU/OK to set white balance to the measured value. • If “UNDER” is displayed, raise exposure compensation and try again. • If “OVER” is displayed, lower exposure compensation and try again.

10000K 9100K 8300K 7700K

7100K Color Temperature Color temperature is an objective measure of the color of a light source, expressed in Kelvin (K). Light sources with a color temperature close to that of direct sunlight appear white; light sources with a lower color temperature have a yellow or red cast, while those with a higher color temperature are tinged with blue. You can match color temperature to the light source, or choose options that differ sharply from the color of the light source to make pictures “warmer” or “colder.”

6 The Shooting Menus

IMAGE QUALITY SETTING HIGHLIGHT TONE Adjust the appearance of highlights. Choose from seven options between +4 and −2. +4

SHADOW TONE Adjust the appearance of shadows. Choose from seven options between +4 and −2. +4

COLOR Adjust color density. Choose from nine options between +4 and −4. +4

SHARPNESS Sharpen or soften outlines. Choose from nine options between +4 and −4.

NOISE REDUCTION Reduce noise in pictures taken at high sensitivities. Choose from nine options between +4 and −4. +4

LONG EXPOSURE NR Select ON to reduce mottling in long time-exposures. Options

ON OFF LENS MODULATION OPTIMIZER Select ON to improve definition by adjusting for diffraction and the slight loss of focus at the periphery of the lens. Options ON

OFF The Shooting Menus

COLOR SPACE Choose the gamut of colors available for color reproduction. Option sRGB Adobe RGB

Description Recommended in most situations. For commercial printing.

IMAGE QUALITY SETTING PIXEL MAPPING Use this option if you notice bright spots in your pictures.

Press MENU/OK in the shooting display and select the H IMAGE QUALITY SETTING tab.

Highlight PIXEL MAPPING and press MENU/OK to perform pixel mapping. Processing may take a few seconds.

O Results are not guaranteed. Be sure the battery is fully charged before beginning pixel mapping. Pixel mapping is not available when the camera temperature is elevated.

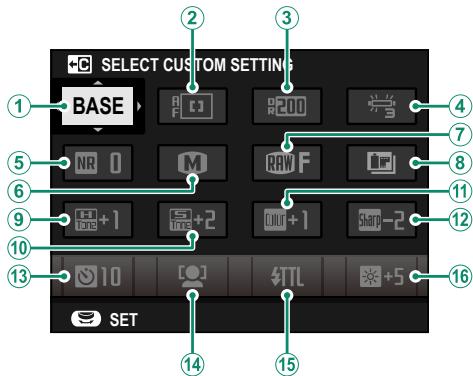

SELECT CUSTOM SETTING Recall settings saved with EDIT/SAVE CUSTOM SETTING. Settings can be recalled from any of the seven custom settings banks. Banks CUSTOM 1

IMAGE QUALITY SETTING EDIT/SAVE CUSTOM SETTING Save up to 7 sets of custom camera settings for commonly-encountered situations. Saved settings can be recalled using H IMAGE QUALITY SETTING > SELECT CUSTOM SETTING.

Press MENU/OK in shooting mode to display the shooting menu. Select the H IMAGE QUALITY SETTING tab, then highlight EDIT/SAVE CUSTOM SETTING and press MENU/OK.

Highlight a custom settings bank and press MENU/OK to select.

Adjust the following as desired:

EXIT SAVE CUSTOM SETTING CUSTOM 1 SET OK?

OK CANCEL N To store current camera settings in the selected bank, highlight SAVE CURRENT SETTINGS in Step 3 and press MENU/OK. Banks can be renamed using EDIT CUSTOM NAME. To restore default settings for the current bank, select RESET.

G AF/MF SETTING Adjust focus settings. To display focus settings, press MENU/OK in the shooting display and select the G (AF/MF SETTING) tab.

AF/MF SETTING FOCUS AREA AF MODE STORE AF MODE BY ORIENTATION RAPID AF AF POINT DISPLAY NUMBER OF THE FOCUS POINTS PRE-AF FACE/EYE DETECTION SETTING EXIT N The options available vary with the shooting mode selected. FOCUS AREA Choose the focus area for autofocus, manual focus, and focus zoom. AF MODE Choose the AF mode for focus modes S and C. Option

6 The Shooting Menus

Description The camera focuses on the subject in the selected focus point. The number of focus points available can be selected using G AF/ r SINGLE POINT MF SETTING > NUMBER OF THE FOCUS POINTS. Use for pin-point focus on a selected subject. The camera focuses on the subject in the selected focus zone. y Focus zones include multiple focus points, making it easier to ZONE focus on subjects that are in motion. In focus mode C, the camera tracks focus on the subject in the selected focus point while the shutter button is pressed halfway. In focus mode S, the camera automatically focuses on high-conz WIDE/TRACKING trast subjects; the areas in focus are shown in the display. The camera may be unable to focus on small objects or subjects that are moving rapidly.

STORE AF MODE BY ORIENTATION Choose whether the focus mode and focus area used when the camera is in portrait orientation are stored separately from those used when the camera is in landscape orientation. Option Description OFF The same settings are used in both orientations. FOCUS AREA ONLY The focus area for each orientation can be selected separately. ON The focus mode and focus area can be selected separately.

RAPID AF Select ON for faster focus times. Display quality will drop while the camera focuses. Options ON

OFF AF POINT DISPLAYyz Choose whether individual focus frames are displayed when ZONE or WIDE/TRACKING is selected for G AF/MF SETTING > AF MODE.

OFF AF/MF SETTING NUMBER OF THE FOCUS POINTS Choose the number of focus points available for focus-point selection in manual focus mode or when SINGLE POINT is selected for AF MODE. Option 117 POINTS (13 × 9) 425 POINTS (25 × 17)

Description Choose from 117 focus points arranged in a 13- by 9-point grid. Choose from 425 focus points arranged in a 25- by 17-point grid.

PRE-AF If ON is selected, the camera will continue to adjust focus even when the shutter button is not pressed halfway. Note that this increases the drain on the battery. Options

6 The Shooting Menus

FACE/EYE DETECTION SETTING Intelligent Face Detection sets focus and exposure for human faces anywhere in the frame, preventing the camera from focusing on the background in group portraits. Choose for shots that emphasize portrait subjects. Faces can be detected with the camera in vertical or horizontal orientation; if a face is detected, it will be indicated by a green border. If there is more than one face in the frame, the camera will select the face closest to the center; other faces are indicated by white borders. You can also choose whether the camera detects and focuses on eyes when Intelligent Face Detection is on. Choose from the following options: Option FACE ON/EYE OFF

6 The Shooting Menus

Description Intelligent Face Detection only. The camera automatically chooses which eye to focus FACE ON/EYE AUTO on when a face is detected. The camera focuses on the right eye of subjects deFACE ON/RIGHT EYE PRIORITY tected using Intelligent Face Detection. The camera focuses on the left eye of subjects detectFACE ON/LEFT EYE PRIORITY ed using Intelligent Face Detection. FACE OFF/EYE OFF Intelligent Face Detection and eye priority off.

O In some modes, the camera may set exposure for the frame as a whole rather than the portrait subject.

If the subject moves as the shutter button is pressed, the face may not be in the area indicated by the green border when the picture is taken.

N If the camera is unable to detect the subject’s eyes because they are hidden by hair, glasses, or other objects, the camera will instead focus on faces.

Face/eye detection options can also be accessed via shortcuts (P 176).

AF/MF SETTING AF+MF If ON is selected in focus mode S, focus can be adjusted manually by rotating the focus ring while the shutter button is pressed halfway. Both standard and focus peaking MF assist options are supported. Options

ON OFF O Lenses with a focus distance indicator must be set to manual focus

mode (MF) before this option can be used. Selecting MF disables the focus distance indicator. Set the focus ring to the center of the focus distance indicator, as the camera may fail to focus if the ring is set to infinity or the minimum focus distance.

N Focus peaking can be used to check focus. To enable focus peaking, select FOCUS PEAK HIGHLIGHT for MF ASSIST.

AF + MF Focus Zoom When ON is selected for G AF/MF SETTING > FOCUS CHECK and SINGLE POINT selected for AF MODE, focus zoom can be used to zoom in on the selected focus area. The zoom ratio (2.5×, 4×, 8×, or 16.7×) can be selected using the rear command dial.

STANDARD FOCUS PEAK HIGHLIGHT Description Focus is displayed normally. The camera heightens high-contrast outlines. Choose a color and peaking level.

MF ASSIST Choose how focus is displayed in manual focus mode.

FOCUS CHECK If ON is selected, the display will automatically zoom in on the selected focus area when the focus ring is rotated in manual focus mode. Options

ON OFF O Pressing the center of the rear command dial cancels focus zoom. INTERLOCK SPOT AE & FOCUS AREA Select ON to meter the current focus frame when SINGLE POINT is selected for AF MODE and SPOT is selected for PHOTOMETRY. Options ON

OFF INSTANT AF SETTING Choose whether the camera focuses using single AF (AF-S) or continuous AF (AF-C) when the button to which focus lock is assigned is pressed in manual focus mode.

AF-C AF/MF SETTING DEPTH-OF-FIELD SCALE Choose FILM FORMAT BASIS to help you make practical assessments of depth of field for pictures that will be viewed as prints and the like, PIXEL BASIS to help you assess depth of field for pictures that will be viewed at high resolutions on computers or other electronic displays. Options

PIXEL BASIS FILM FORMAT BASIS RELEASE/FOCUS PRIORITY Choose how the camera focuses in focus mode AF-S or AF-C. Option

RELEASE FOCUS Description Shutter response is prioritized over focus. Pictures can be taken when the camera is not in focus. Focus is prioritized over shutter response. Pictures can be only taken when the camera is in focus.

TOUCH SCREEN MODE Choose whether touch controls can be used for focus.

AF AREA OFF Description Tap the display to select a focus point and lock focus. The shutter can be released by pressing the shutter button all the way down. Tap the display to move the focus frame to the selected point. The selected point will be used for focus and focus zoom. Touch controls off.

N To disable touch controls and hide the touch screen mode indicator,

select OFF for D BUTTON/DIAL SETTING > TOUCH SCREEN SETTING.

SHOOTING SETTING SELF-TIMER SAVE SELF-TIMER SETTING INTERVAL TIMER SHOOTING AE BKT SETTING FILM SIMULATION BKT PHOTOMETRY SHUTTER TYPE IS MODE EXIT N The options available vary with the shooting mode selected. SELF-TIMER Choose a shutter release delay. Option

6 The Shooting Menus

Description The shutter is released two seconds after the shutter button is pressed. R 2 SEC Use to reduce blur caused by the camera moving when the shutter button is pressed. The self-timer lamp blinks as the timer counts down. The shutter is released ten seconds after the shutter button is pressed. S 10 SEC Use for photographs in which you wish to appear yourself. The self-timer lamp blinks immediately before the picture is taken. OFF Self-timer off.

If an option other than OFF is selected, the timer will start when the shutter button is pressed all the way down. The display shows the number of seconds remaining until the shutter is released. To stop the timer before the picture is taken, press DISP/BACK.

O Stand behind the camera when using the shutter button. Standing in front of the lens can interfere with focus and exposure.

SHOOTING SETTING SAVE SELF-TIMER SETTING If ON is selected, the chosen self-timer setting will remain in effect after a picture is taken or the camera is turned off. Options

Use the selector to choose the interval and number of shots. Press MENU/OK to proceed.

CANCEL Use the selector to choose the starting time and then press MENU/OK. Shooting will start automatically.

ESTIMATED START TIME 11 : 00 PM O Interval timer photography can not be used at a shutter speed of B

(bulb) or with multiple exposure photography. In burst mode, only one picture will be taken each time the shutter is released.

N Use of a tripod is recommended. Check the battery level before starting. We recommend using an optional AC-15V AC power adapter. The display turns off between shots and lights a few seconds before the next shot is taken. The display can be activated at any time by pressing the shutter button. To continue shooting until the memory card is full, set the number of shots to ∞.

AE BKT SETTING Adjust exposure bracketing settings. Option

6 The Shooting Menus

Description Choose the number of shots in the bracketing sequence FRAMES/ (FRAMES) and the amount exposure is varied with each shot STEP SETTING (STEP). 1 FRAME/ Choose whether the shots in the bracketing sequence are taken CONTINUOUS one at a time (1 FRAME) or in a single burst (CONTINUOUS). SEQUENCE SETTING Choose the order in which the shots are taken.

FILM SIMULATION BKT Choose the three film simulation types used for film simulation bracketing (P 88). Options

c PROVIA/STANDARD i CLASSIC CHROME a ACROS *

d Velvia/VIVID g PRO Neg. Hi b MONOCHROME *

* Available with yellow (Ye), red (R), and green (G) filters.

e ASTIA/SOFT h PRO Neg. Std

f SEPIA SHOOTING SETTING PHOTOMETRY Choose how the camera meters exposure.

O The selected option will only take effect when G AF/MF SETTING > FACE/EYE DETECTION SETTING is OFF. Mode

Description The camera instantly determines exposure based on an analo ysis of composition, color, and brightness distribution. RecMULTI ommended in most situations. The camera meters the entire frame but assigns the greatest p CENTER-WEIGHTED weight to the area at the center. The camera meters lighting conditions in an area at the center of the frame equivalent to 2% of the total. Recommended v SPOT with backlit subjects and in other cases in which the background is much brighter or darker than the main subject. Exposure is set to the average for the entire frame. Provides consistent exposure across multiple shots with the same w AVERAGE lighting, and is particularly effective for landscapes and portraits of subjects dressed in black or white.

6 The Shooting Menus

SHUTTER TYPE Choose the shutter type. Choose the electronic shutter to mute the shutter sound. Option Description t MECHANICAL SHUTTER Take pictures with the mechanical shutter. s ELECTRONIC SHUTTER Take pictures with the electronic shutter. Reduces the lag between the shutter button being Q E-FRONT CURTAIN pressed and the start of the exposure. The mechanical SHUTTER shutter is used at high shutter speeds (P 244). t MECHANICAL + The camera chooses the mechanical or electronic s ELECTRONIC shutter according to shooting conditions. Q E-FRONT CURTAIN + The camera chooses the electronic or electronic front s ELECTRONIC curtain shutter according to shooting conditions.

If an option other than t MECHANICAL SHUTTER is selected, shutter speeds faster than ¼000 s can be chosen by rotating the shutter speed dial to 4000 and then rotating the rear command dial.

O When the electronic shutter is used, distortion may be visible in shots

of moving subjects and in hand-held shots taken at high shutter speeds, while banding and fog may occur in shots taken under fluorescent lights or other flickering or erratic illumination. When taking pictures with the shutter muted, respect your subjects’ image rights and right to privacy.

N When the electronic shutter is used, the flash is disabled, sensitivity is

restricted to values of ISO 12800–100, and long exposure noise reduction has no effect.

SHOOTING SETTING IS MODE Reduce blur. Option

l CONTINUOUS Description Image stabilization on. Image stabilization enabled only when the shutter button m SHOOTING ONLY is pressed halfway (focus mode C) or the shutter is released. Image stabilization off ; x appears in the display. RecOFF ommended when the camera is on a tripod.

N This option is available only with lenses that support image stabilization. ISO AUTO SETTING Choose the base sensitivity, maximum sensitivity, and minimum shutter speed for the A position on the sensitivity dial. Settings for AUTO 1, AUTO 2, and AUTO 3 can be stored separately; the defaults are shown below. AUTO 1 800

Default AUTO 2 100 1600 ⁄ s

The camera automatically chooses a sensitivity between the default and maximum values; sensitivity is only raised above the default value if the shutter speed required for optimal exposure would be slower than the value selected for MIN. SHUTTER SPEED.

N If the value selected for DEFAULT SENSITIVITY is higher than that se-

lected for MAX. SENSITIVITY, DEFAULT SENSITIVITY will be set to the value selected for MAX. SENSITIVITY. The camera may select shutter speeds slower than MIN. SHUTTER SPEED if pictures would still be underexposed at the value selected for MAX. SENSITIVITY.

DEFAULT SENSITIVITY MAX. SENSITIVITY MIN. SHUTTER SPEED MOUNT ADAPTOR SETTING Adjust settings for lenses attached via a mount adapter. Shutter Select When using lenses with an internal shutter, choose whether to use the shutter on the camera (BODY) or the lens (LENS).

O This option may have no effect with some lenses. Saved Settings Store settings for up to 6 lenses, or choose OFF to disable corrections for focal length, distortion, color shading, and peripheral illumination. Choosing a Focal Length Use the selector to enter the focal length.

LENS 5 INPUT FOCAL LENGTH

SET The Shooting Menus

Distortion Correction Choose from STRONG, MEDIUM, or WEAK options to correct BARREL or PINCUSHION distortion.

LENS5 DISTORTION CORRECTION BARREL STRONG BARREL MEDIUM BARREL WEAK OFF PINCUSHION WEAK PINCUSHION MEDIUM PINCUSHION STRONG

CANCEL SHOOTING SETTING Color Shading Correction Color (shading) variations between the center and edges of the frame can be adjusted separately for each corner. To use color shading correction, follow the steps below.

Rotate the rear command dial to choose a corner. The selected corner is indicated by a triangle.

Use the selector to adjust shading until there is no visible difference in color between the selected corner and the center of the image. Press the selector left or right to adjust colors on the cyan–red axis. Press the selector up or down to adjust colors on the blue–yellow axis.

N To determine the amount required, adjust color shading correction while taking photos of blue sky or a sheet of gray paper.

SET The Shooting Menus

Peripheral Illumination Correction Choose from values between –5 and +5. Choosing positive values increases peripheral illumination, while choosing negative values reduces peripheral illumination. Positive values are recommended for vintage lenses, negative values to create the effect of images taken with an antique lens or a pinhole camera.

CANCEL N To determine the amount required, adjust peripheral illumination correction while taking photos of blue sky or a sheet of gray paper.

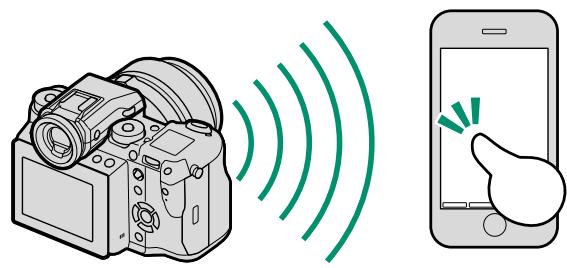

SHOOTING SETTING WIRELESS COMMUNICATION Connect to smartphones running the “FUJIFILM Camera Remote” app. The smartphone can be used to browse the images on the camera, download selected images, control the camera remotely, or upload location data to the camera.

N For downloads and other information, visit: http://fujifilm-dsc.com/wifi/

6 The Shooting Menus

F FLASH SETTING Adjust flash-related settings. To display flash-related settings, press MENU/OK in the shooting display and select the F (FLASH SETTING) tab.

N The options available vary with the shooting mode selected.

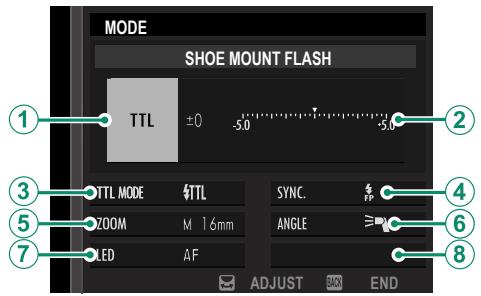

EXIT FLASH FUNCTION SETTING Choose a flash control mode, flash mode, or sync mode or adjust the flash level. The options available vary with the flash.

MODE SHOE MOUNT FLASH N See page 197 for more information.

ADJUST END RED EYE REMOVAL Remove red-eye effects caused by the flash.

FLASH + REMOVAL FLASH REMOVAL OFF Description A red-eye reduction pre-flash is combined with digital red-eye removal. Flash red-eye reduction only. Digital red-eye removal only. Flash red-eye reduction and digital red-eye removal off.

N Flash red-eye reduction can be used in TTL flash control mode. Digital red-eye removal is performed only when a face is detected and is not available with RAW images.

TTL-LOCK MODE Instead of adjusting flash level with each shot, TTL flash control can be locked for consistent results across a series of photographs. Option

Description Flash output is locked at the value metered for the most LOCK WITH LAST FLASH recent photo. An error message will be displayed if no previously metered value exists. LOCK WITH METERING The camera emits a series of pre-flashes and locks flash FLASH output at the metered value.

N To use TTL lock, assign TTL-LOCK to a camera control and then use the control to enable or disable TTL lock (P 182).

Flash compensation can be adjusted while TTL lock is in effect.

LED LIGHT SETTING Choose whether to use the flash unit’s LED video light (if available) as a catchlight or AF-assist illuminator when taking photos.

6 The Shooting Menus

CATCHLIGHT AF ASSIST AF ASSIST + CATCHLIGHT OFF Role of LED video light in still photography Catchlight AF-assist illuminator AF-assist illuminator and catchlight None

N This option can also be accessed via the flash settings menu.

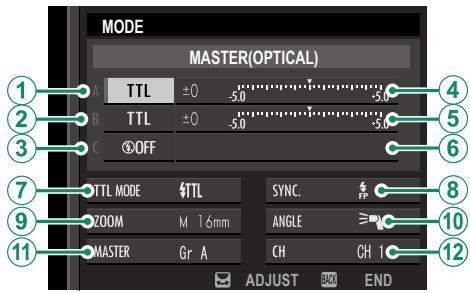

FLASH SETTING MASTER SETTING Choose a flash group (A, B, or C) for the flash mounted on the camera hot shoe when it functions as a master flash controlling remote flash units via FUJIFILM wireless optical flash control, or choose OFF to limit master flash output to a level that does not affect the final picture. Options

Gr A Gr B Gr C OFF N This option can also be accessed via the flash settings menu. CH SETTING Choose the channel used for communication between the master flash and remote flash units when using FUJIFILM optical wireless flash control. Separate channels can be used for different flash systems or to prevent interference when multiple systems are operating in close proximity. Options CH1

画像サイズ MOVIE MODE 画質モード MOVIE AF MODE RAW 記録方式 HDMI OUTPUT INFO DISPLAY フィルムシミュレーション HDMI REC CONTROL グレイン･エフェクト MIC LEVEL ADJUSTMENT ダイナミックレンジ ホワイトバランス ハイライトトーン 終了

EXIT N The options available vary with the shooting mode selected.

MOVIE MODE Choose a frame size and rate for movie recording.

6 The Shooting Menus

Option i 1080/29.97P i 1080/25P i 1080/24P i 1080/23.98P h 720/29.97P h 720/25P h 720/24P

MOVIE AF MODE Choose how the camera selects the focus point for movie recording. Option MULTI AREA

Description Automatic focus-point selection. The camera focuses on the subject in the selected focus area.

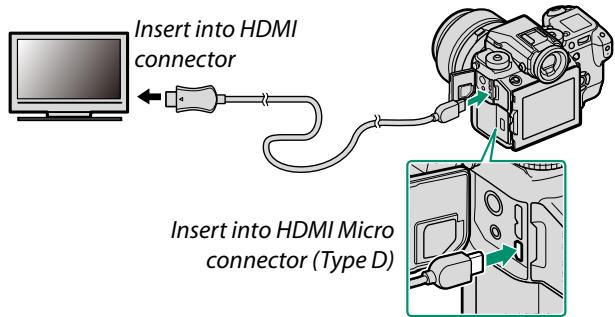

MOVIE SETTING HDMI OUTPUT INFO DISPLAY If ON is selected, HDMI devices to which the camera is connected will mirror the information in the camera display. Options

ON OFF HDMI REC CONTROL Choose whether the camera sends movie start and stop signals to the HDMI device when the shutter button is pressed to start and stop movie recording. Options

ON OFF MIC LEVEL ADJUSTMENT Adjust the recording level for the built-in and external microphones.

MIC LEVEL ADJUSTMENT

OFF CANCEL Description Choose a recording level. Disable the microphone.

N Displays shows the peak recording level detected in a given period. You can assign MIC LEVEL ADJUSTMENT to a camera control and then using the control to adjust the microphone level during recording.

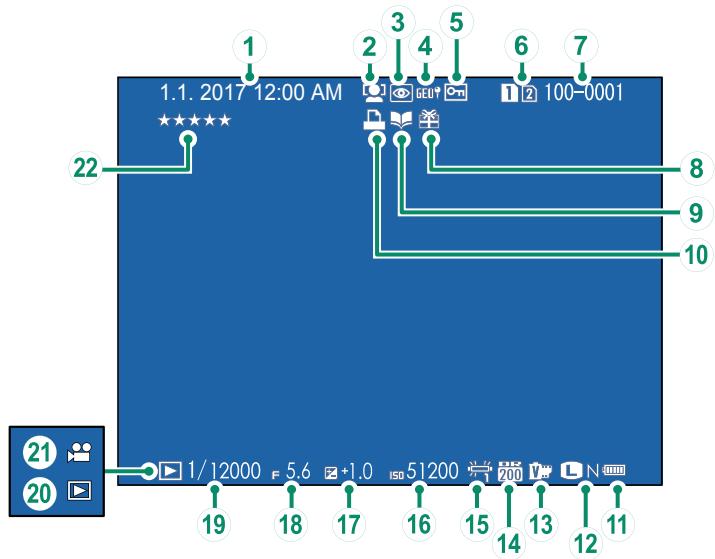

The Playback Display This section lists the indicators that may be displayed during playback.

O For illustrative purposes, displays are shown with all indicators lit.

1.1. 2017 12:00 AM Playback and the Playback Menu

7 A Date and time37, 147 B Face detection indicator 100 C Red-eye removal indicator113, 135 D Location data173, 210 E Protected image 133 F Card slot126 G Frame number 169 H Gift image 43 I Photobook assist indicator 139 J DPOF print indicator 141 K Battery level 36

L Image size/quality 86, 87 M Film simulation 88 N Dynamic range 89 O White balance 90 P Sensitivity 74 Q Exposure compensation 77 R Aperture53, 58, 60 S Shutter speed 53, 54, 60 T Playback mode indicator 43 U Movie icon 49 V Rating121

The DISP/BACK Button The DISP/BACK button controls the display of indicators during playback.

The Info Display In the info display, you can press the selector up to cycle through a series of information and histogram displays. Favorites: Rating Pictures To rate the current picture, press DISP/BACK and press the selector up and down to select from zero to five stars.

The Playback Display

Viewing Photo Information The photo information display changes each time the selector is pressed up.

Zooming in on the Focus Point Press the center of the rear command dial to zoom in on the focus point. Press again to return to full-frame playback.

Viewing Pictures Read this section for information on playback zoom and multi-frame playback. Use the rear command dial to go from full-frame playback to playback zoom or multi-frame playback.

Multi-frame playback Nine-frame view

Playback Zoom Rotate the rear command dial right to zoom in on the current picture, left to zoom out. To exit zoom, press DISP/BACK, MENU/OK, or the center of the rear command dial.

N The maximum zoom ratio varies with the option selected for H IM-

AGE QUALITY SETTING > IMAGE SIZE. Playback zoom is not available with cropped or resized copies saved at a size of a.

Playback and the Playback Menu

Scroll When the picture is zoomed in, the selector can be used to view areas of the image not currently visible in the display.

Multi-Frame Playback To change the number of images displayed, rotate the rear command dial left when a picture is displayed full frame.

N Use the selector to highlight images and press MENU/OK to view the

highlighted image full frame. In the nine- and hundred-frame displays, press the selector up or down to view more pictures.

Playback Touch Controls When ON is selected for D BUTTON/DIAL SETTING > TOUCH SCREEN SETTING, touch controls can be used for the following playback operations. • Swipe: Swipe a finger across the display to view other images.

Playback and the Playback Menu

• Pinch-out: Place two fingers on the display and spread them apart to zoom in.

• Pinch-in: Place two fingers on the display

and slide them together to zoom out. Zooming out when the picture is displayed full frame triggers multi-frame playback.

• Double-tap: Tap the display twice to zoom in on the selected area.

View other areas of the image during playback zoom.

C The Playback Menu Adjust playback settings. The playback menu is displayed when you press MENU/OK in playback mode.

PLAY BACK MENU SWITCH SLOT RAW CONVERSION ERASE CROP RESIZE PROTECT IMAGE ROTATE RED EYE REMOVAL EXIT Playback and the Playback Menu

SWITCH SLOT Choose the card from which images will be played back.

N If two memory cards are inserted, you can press and hold the a button to choose a card for playback.

RAW CONVERSION RAW pictures store information on camera settings separately from the data captured by the camera image sensor. Using C PLAY BACK MENU > RAW CONVERSION, you can create JPEG copies of RAW pictures using different options for the settings listed on page 128. The original image data are unaffected, allowing a single RAW image to be processed in a multitude of different ways. With a RAW picture displayed, press MENU/OK to display the playback menu.

Press the selector up or down to highlight C PLAY BACK MENU > RAW CONVERSION and press MENU/OK to display settings.

N These options can also be displayed by pressing the Q button during playback.

Press the selector up or down to highlight a setting and press the selector right to display options. Press the selector up or down to highlight the desired option and press MENU/OK to select and return to the settings list. Repeat this step to adjust additional settings.

The settings that can be adjusted when converting pictures from RAW to JPEG are: Setting

Playback and the Playback Menu

Description Create a JPEG copy using the settings in effect at the REFLECT SHOOTING COND. time the photo was taken. FILE TYPE Choose a file format. IMAGE SIZE Choose an image size. IMAGE QUALITY Adjust image quality. PUSH/PULL PROCESSING Adjust exposure. DYNAMIC RANGE Enhance details in highlights for natural contrast. FILM SIMULATION Simulate the effects of different types of film. GRAIN EFFECT Add a film grain effect. COLOR CHROME EFFECT Deepen colors in shadows. WHITE BALANCE Adjust white balance. WB SHIFT Fine-tune white balance. HIGHLIGHT TONE Adjust highlights. SHADOW TONE Adjust shadows. COLOR Adjust color density. SHARPNESS Sharpen or soften outlines. NOISE REDUCTION Process the copy to reduce mottling. Improve definition by adjusting for diffraction and LENS MODULATION OPTIMIZER the slight loss of focus at the periphery of the lens. COLOR SPACE Choose the color space used for color reproduction.

ERASE Delete individual pictures, multiple selected pictures, or all pictures.

O Deleted pictures can not be recovered.

Protect important pictures or copy them to a computer or other storage device before proceeding.

FRAME SELECTED FRAMES ALL FRAMES Description Delete pictures one at a time. Delete multiple selected pictures. Delete all unprotected pictures.

Press the selector left or right to scroll through pictures and press MENU/OK to delete (a confirmation dialog is not displayed). Repeat to delete additional pictures.

SELECTED FRAMES 1 Select SELECTED FRAMES for ERASE in the playback menu.

Highlight pictures and press MENU/OK to select or deselect (pictures in photobooks or printer orders are shown by S). Selected pictures are indicated by check marks (R).

When the operation is complete, press DISP/BACK to display a confirmation dialog.

Highlight OK and press MENU/OK to delete the selected pictures.

A confirmation dialog will be displayed; highlight OK and press MENU/OK to delete all unprotected pictures.

N Pressing DISP/BACK cancels deletion; note that any pictures deleted before the button was pressed can not be recovered.

If a message appears stating that the selected images are part of a DPOF print order, press MENU/OK to delete the pictures. Playback and the Playback Menu

CROP Create a cropped copy of the current picture.

Display the desired picture.

Press MENU/OK to display a confirmation dialog.

Select CROP in the playback menu. Use the rear command dial to zoom in and out and press the selector up, down, left, or right to scroll the picture until the desired portion is displayed.

N Larger crops produce larger copies; all copies have an aspect ratio of 3∶2. If the size of the final copy will be a, YES will be displayed in yellow.

Playback and the Playback Menu

Press MENU/OK again to save the cropped copy to a separate file.

RESIZE Create a small copy of the current picture.

Display the desired picture.

Press MENU/OK again to save the resized copy to a separate file.

Select RESIZE in the playback menu. Highlight a size and press MENU/OK to display a confirmation dialog.

Playback and the Playback Menu

N The sizes available vary with the size of the original image.

PROTECT Protect pictures from accidental deletion. Highlight one of the following options and press MENU/OK. • FRAME: Protect selected pictures. Press the selector left or right to view pictures and press MENU/OK to select or deselect. Press DISP/BACK when the operation is complete. • SET ALL: Protect all pictures. • RESET ALL: Remove protection from all pictures.

O Protected pictures will be deleted when the memory card is formatted. Playback and the Playback Menu

Display the desired picture.

Press MENU/OK. The picture will automatically be displayed in the selected orientation whenever it is played back on the camera.

Select IMAGE ROTATE in the playback menu. Press the selector down to rotate the picture 90° clockwise, up to rotate it 90° counterclockwise.

N Protected pictures can not be rotated. Remove protection before rotating pictures.

The camera may not be able to rotate pictures created with other devices. Pictures rotated on the camera will not be rotated when viewed on a computer or on other cameras. Pictures taken with D SCREEN SETTING > AUTOROTATE PB are automatically displayed in the correct orientation during playback.

RED EYE REMOVAL Remove red-eye from portraits. The camera will analyze the image; if red-eye is detected, the image will be processed to create a copy with reduced red-eye.

Display the desired picture. Select RED EYE REMOVAL in the playback menu. Press MENU/OK.

N Results vary depending on the scene and the camera’s success in deThe amount of time needed to process the image varies with the number of faces detected. Red eye removal can not be performed on RAW images.

Playback and the Playback Menu

tecting faces. Red eye can not be removed from pictures that have already been processed using red-eye removal, which are indicated by a e icon during playback.

VOICE MEMO SETTING Add a voice memo to the current photograph.

Select ON for VOICE MEMO SETTING in the playback menu. Display a photo to which you wish to add a voice memo. Press and hold the center of the front command dial to record the memo. Recording ends after 30 s or when you release the dial.

N The new memo will be recorded over any existing memos. Deleting Playback and the Playback Menu

the picture also deletes the memo.

Voice memos can not be added to movies or protected pictures. Playing Voice Memos Pictures with voice memos are indicated by q icons during playback. To play a memo, select the picture and press the center of the front command dial; a progress bar will be displayed while the memo plays back. Volume can be adjusted by pressing MENU/OK to pause playback and then pressing the selector up or down to adjust the volume. Press MENU/OK again to resume playback. Volume can also be adjusted using D SOUND SETTING > PLAYBACK VOLUME.

COPY Copy pictures between the cards in the first and second slots.

Select COPY in the playback menu.

Highlight one of the following options and press MENU/OK: • FRAME: Copy selected pictures. Press the selector left or right to view pictures and press MENU/OK to copy the current picture. • ALL FRAMES: Copy all pictures.

Highlight one of the following options and press the selector right: • SLOT1 y SLOT2: Copy pictures from the card in the first slot to the card in the second slot. • SLOT2 y SLOT1: Copy pictures from the card in the second slot to the card in the first slot. Playback and the Playback Menu

O Copying ends when the destination is full.

WIRELESS COMMUNICATION Connect to smartphones running the “FUJIFILM Camera Remote” app. The smartphone can be used to browse the images on the camera, download selected images, control the camera remotely, or upload location data to the camera.

PHOTOBOOK ASSIST Create books from your favorite photos. Creating a Photobook 1 Select NEW BOOK for C PLAY BACK MENU > PHOTOBOOK ASSIST.

Scroll through the images and press the selector up to select or deselect. Press MENU/OK to exit when the book is complete.

N Neither photographs a or smaller nor movies can be selected The first picture selected becomes the cover image. Press the selector down to select the current image for the cover instead.

Highlight COMPLETE PHOTOBOOK and press MENU/OK (to select all photos for the book, choose SELECT ALL). The new book will be added to the list in the photobook assist menu.

N Books can contain up to 300 pictures. Books that contain no photos are automatically deleted.

Photobooks Photobooks can be copied to a computer using MyFinePix Studio software.

Viewing Photobooks Highlight a book in the photobook assist menu and press MENU/OK to display the book, then press the selector left or right to scroll through the pictures.

Playback and the Playback Menu

Editing and Deleting Photobooks Display the photobook and press MENU/OK. The following options will be displayed; select the desired option and follow the onscreen instructions. • EDIT: Edit the book as described in “Creating a Photobook”. • ERASE: Delete the book.

Select C PLAY BACK MENU > PRINT ORDER (DPOF). Select WITH DATE s to print the date of recording on pictures, WITHOUT DATE to print pictures without dates, or RESET ALL to remove all pictures from the print order before proceeding. Display a picture you wish to include in or remove from the print order.

Press the selector up or down to choose the number of copies (up to 99). To remove a picture from the order, press the selector down until the number of copies is 0.

PRINT ORDER (DPOF) DPOF: 00001

01 SHEETS FRAME SET Total number of prints Number of copies

Repeat steps 3–4 to complete the print order. The total number of prints is displayed in the monitor. Press MENU/OK to exit.

N The pictures in the current print order are indicated by a u icon during playback.

Print orders can contain a maximum of 999 pictures. If a memory card is inserted containing a print order created by another camera, a message will be displayed. Pressing MENU/OK cancels the print order; a new print order must be created as described above.

instax PRINTER PRINT To print pictures to optional FUJIFILM instax SHARE printers, first select D CONNECTION SETTING > instax PRINTER CONNECTION SETTING and enter the instax SHARE printer name (SSID) and password, then follow the steps below.

Turn the printer on. Select C PLAY BACK MENU > instax PRINTER PRINT. The camera will connect to the printer.

Use the selector to display the picture you want to print, then press MENU/OK. The picture will be sent to the printer and printing will start.

TRANSMIT instax-12345678

CANCEL N Pictures taken with other cameras can not be printed. The area printed is smaller than the area visible in the LCD monitor.

DISP ASPECT Choose how High Definition (HD) devices display pictures with an aspect ratio of 4∶3 (this option takes effect only when an HDMI cable is connected). Select 16∶9 to display the image so that it fills the screen with its top and bottom cropped out, 4∶3 to display the entire image with black bands at either side. 16:9

N Select 16∶9 when viewing pictures with an aspect ratio of 16∶9.

D USER SETTING Adjust basic camera settings. To access basic camera settings, press MENU/OK, select the D (SET UP) tab, and choose USER SETTING.

Select D USER SETTING > FORMAT in the D (SET UP) tab.

A confirmation dialog will be displayed. To format the memory card, highlight OK and press MENU/OK. To exit without formatting the memory card, select CANCEL or press DISP/BACK.

Highlight the slot containing the card you wish to format and press MENU/OK. FORMAT FORMAT CARD IN SLOT 1, OK?

ERASE ALL DATA OK CANCEL O All data—including protected pictures—will be deleted from the

memory card. Be sure important files have been copied to a computer or other storage device. Do not open the battery-chamber cover during formatting.

N The format menu can also be displayed by pressing the center of the rear command dial while pressing and holding the b button.

Press MENU/OK to set the clock.

Press the selector left or right to highlight the year, month, day, hour, or minute and press up or down to change. To change the order in which the year, month, and day are displayed, highlight the date format and press the selector up or down.

TIME DIFFERENCE Switch the camera clock instantly from your home time zone to the local time at your destination when traveling. To specify the difference between your local and home time zone: Highlight g LOCAL and press MENU/OK. Use the selector to choose the time difference between local time and your home time zone. Press MENU/OK when settings are complete.

To set the camera clock to local time, highlight g LOCAL and press MENU/OK. To set the clock to the time in your home time zone, select h HOME. If g LOCAL is selected, g will be displayed in yellow for about three seconds when the camera is turned on. Options g LOCAL

a Choose a language. MY MENU SETTING Edit the items listed in the E (MY MENU) tab, a personalized custom menu of frequently-used options.

Press the selector up or down to highlight MY MENU SETTING and press MENU/OK. Options that can be added to “my menu” are highlighted in blue.

MY MENU SETTING マイメニュー登録 順序変更 削除

MY MENU SETTING RANK ITEMS REMOVE ITEMS MY MENU SETTING IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION GRAIN EFFECT COLOR CHROME EFFECT DYNAMIC RANGE WHITE BALANCE OK N 3

SELECT CANCEL Items currently in “my menu” are indicated by check marks.

OK SAVE Press MENU/OK to return to the edit display. Repeat Steps 3 and 4 until all the desired items have been added.

N “My menu” can contain up to 16 items. Editing “My Menu” To reorder or delete items, select RANK ITEMS or REMOVE ITEMS in Step 1.

USER SETTING SENSOR CLEANING Remove dust from the camera image sensor. • OK: Clean the sensor immediately. • WHEN SWITCHED ON: Sensor cleaning will be performed when the camera is turned on. • WHEN SWITCHED OFF: Sensor cleaning will be performed when the camera turns off (sensor cleaning is not however performed if the camera turns off in playback mode).

N Dust that can not be removed using sensor cleaning can be removed manually.

BATTERY AGE Check the age (expressed as a number between 0 and 4) of the batteries in the camera and the vertical power-booster grip.

USER SETTING RESET Reset shooting or setup menu options to default values. Custom white balance, custom settings banks created using EDIT/SAVE CUSTOM SETTING, WIRELESS SETTINGS, and the setup menu DATE/TIME and TIME DIFFERENCE options are not affected.

D SOUND SETTING Make changes to camera sounds. To access sound settings, press MENU/OK, select the D (SET UP) tab, and choose SOUND SETTING.

SOUND SETTING AF BEEP VOL. SELF-TIMER BEEP VOL. OPERATION VOL.

HEADPHONES VOLUME SHUTTER VOLUME SHUTTER SOUND PLAYBACK VOLUME AF BEEP VOL. Choose the volume of the beep that sounds when the camera focuses. The beep can be muted by selecting f. Options b (high)

OPERATION VOL. Adjust the volume of the sounds produced when camera controls are operated. Choose f to disable control sounds. Options b (high)

SELF-TIMER BEEP VOL. Choose the volume of the beep that sounds while the self-timer is active. The beep can be muted by selecting f.

SOUND SETTING HEADPHONES VOLUME Adjust headphone volume. Choose from values between 0 and 10. SHUTTER VOLUME Adjust the volume of the sounds produced by the electronic shutter. Choose f to disable the shutter sound. Options b (high)

SHUTTER SOUND Choose the sound made by the electronic shutter. i

PLAYBACK VOLUME Adjust playback volume. Choose from values between 0 and 10. The Setup Menus

AUTOROTATE DISPLAYS PREVIEW EXP./WB IN MANUAL MODE PREVIEW PIC. EFFECT EVF BRIGHTNESS Adjust the brightness of the display in the electronic viewfinder. Select MANUAL to choose from 11 options from +5 (bright) to −5 (dark), or select AUTO for automatic brightness adjustment. Options

LCD BRIGHTNESS Adjust monitor brightness. +5

IMAGE DISP. Choose how long images are displayed after shooting. Colors may differ slightly from those in the final image and “noise” mottling may be visible at high sensitivities. Option CONTINUOUS 1.5 SEC

0.5 SEC OFF Description Pictures are displayed until the MENU/OK button is pressed or the shutter button is pressed halfway. To zoom in on the active focus point, press the center of the rear command dial; press again to cancel zoom. Pictures are displayed for the selected time or until the shutter button is pressed halfway. Pictures are not displayed after shooting.

AUTOROTATE DISPLAYS Choose whether the indicators in the viewfinder and LCD monitor rotate to match camera orientation. The Setup Menus

OFF SCREEN SETTING PREVIEW EXP./WB IN MANUAL MODE Select PREVIEW EXP./WB to enable exposure and white balance preview in manual exposure mode, or choose PREVIEW WB to preview only white balance (PREVIEW WB is recommended in situations in which exposure and white balance are likely to change during shooting, as may be the case when you use a flash with an incandescent monitoring lamp). Select OFF when using a flash or on other occasions on which exposure may change when the picture is taken.

PREVIEW EXP./WB Options

PREVIEW WB OFF Options

ON OFF N If OFF is selected, the effects of camera settings will not be visible

in the monitor and colors and tone will differ from those in the final picture. The display will however be adjusted to show the effects of advanced filters and of monochrome and sepia settings.

PREVIEW PIC. EFFECT Choose ON to preview the effects of film simulation, white balance, and other settings in the monitor, OFF to make shadows in low-contrast, back-lit scenes and other hard-to-see subjects more visible.

P For “rule of thirds” composition.

P H HD FRAMING P A six-by-four grid.

Frame HD pictures in the crop shown by the lines at the top and bottom of the display. Framing guides can be changed as desired for tethered shooting.

N Framing guides are not shown at default settings but can be displayed using D SCREEN SETTING > DISP. CUSTOM SETTING (P 158).

Tethered shooting is available with Adobe® Photoshop® Lightroom® and HS-V5 tethered shooting software (available separately). Users of Adobe® Photoshop® Lightroom® who wish to customize the HD framing guide will require FUJIFILM Tether Shooting Plug-in PRO (available separately).

SCREEN SETTING AUTOROTATE PB Choose ON to automatically rotate “tall” (portrait-orientation) pictures during playback. Options

ON OFF FOCUS SCALE UNITS Choose the units used for the focus distance indicator. Options

METERS FEET The Setup Menus

In shooting mode, press DISP/BACK until standard indicators are displayed.

Press MENU/OK and select D SCREEN SETTING > DISP. CUSTOM SETTING in the D (SET UP) tab.

Press DISP/BACK to save changes. Press DISP/BACK as needed to exit the menus and return to the shooting display.

SCREEN SETTING SUB MONITOR SETTING Choose the items shown in the secondary LCD monitor.

Press MENU/OK and select D SCREEN SETTING > SUB MONITOR SETTING in the D (SET UP) tab.

Select STILL MODE or MOVIE MODE.

Highlight items for display in positions A to H and press MENU/OK to select or deselect. Items not available when MOVIE MODE is selected are indicated by asterisks (“*”).

• Text (items A to D):

Press DISP/BACK to save changes.

D BUTTON/DIAL SETTING Access options for camera controls. To access control options, press MENU/OK, select the D (SET UP) tab, and choose BUTTON/DIAL SETTING.

BUTTON/DIAL SETTING FOCUS LEVER SETTING EDIT/SAVE QUICK MENU FUNCTION (Fn) SETTING SELECTOR BUTTON SETTING COMMAND DIAL SETTING SHUTTER AF SHUTTER AE SHOOT WITHOUT LENS FOCUS LEVER SETTING Choose the functions performed by the focus stick (focus lever). Option LOCK (OFF)

Description The focus stick can not be used during shooting. Press the stick to view the focus-point display and tilt the stick PUSH n TO UNLOCK to select a focus point. Tilt the stick to view the focus-point display and select a focus ON point.

The current quick menu will be displayed; use the selector to highlight the item you wish to change and press MENU/OK.

Highlight any of the following options and press MENU/OK to assign it to the selected position. *

* Stored in custom settings bank.

Select NONE to assign no option to the selected position. When SELECT CUSTOM SETTING is selected, current settings are shown in the quick menu by the label BASE.

Highlight the desired item and press MENU/OK to assign it to the selected position.

N The quick menu can also be accessed in shooting mode by holding the Q button.

FUNCTION (Fn) SETTING Choose the roles played by the function buttons.

Highlight the desired control and press MENU/OK. Highlight any of the following options and press MENU/OK to assign it to the selected control.

• EXP. COMPENSATION • IMAGE SIZE • IMAGE QUALITY • RAW • FILM SIMULATION • GRAIN EFFECT • COLOR CHROME EFFECT • DYNAMIC RANGE • WHITE BALANCE • SELECT CUSTOM SETTING • FOCUS AREA • RAPID AF • FOCUS CHECK • AF MODE • FACE/EYE DETECTION SETTING • SELF-TIMER • AE BKT SETTING • PHOTOMETRY • SHUTTER TYPE

• ISO AUTO SETTING • WIRELESS COMMUNICATION • FLASH FUNCTION SETTING • TTL-LOCK • MODELING FLASH • MIC LEVEL ADJUSTMENT • PREVIEW DEPTH OF FIELD • PREVIEW EXP./WB IN MANUAL MODE • PREVIEW PIC. EFFECT • HISTOGRAM • ELECTRONIC LEVEL • AE LOCK ONLY • AF LOCK ONLY • AE/AF LOCK • AF-ON • LOCK SETTING • PLAYBACK • NONE (control disabled)

N Function button assignment options can also be accessed by holding

the DISP/BACK button. The selector can not be assigned more than one role at a time.

BUTTON/DIAL SETTING AF-ON If AF-ON is selected, you can press the control instead of keeping the shutter button pressed halfway. MODELING FLASH If MODELING FLASH is selected when a compatible shoe-mounted flash unit is attached, you can press the control to test-fire the flash and check for shadows and the like (modeling flash). TTL-LOCK If TTL-LOCK is selected, you can press the control to lock flash output according to the option selected for F FLASH SETTING > TTL-LOCK MODE (P 114).

SELECTOR BUTTON SETTING Choose the roles played by the up, down, left, and right buttons on the selector. Option

Fn BUTTON FOCUS AREA Description The selector buttons serve as function buttons. The selector buttons can be used to position the focus area.

N Selecting FOCUS AREA prevents you accessing the functions assigned to the function buttons.

COMMAND DIAL SETTING Choose the roles played by the command dials. Option Y F X S.S.

Y S.S. X F Description The front command dial controls aperture, the rear command dial shutter speed. The front command dial controls shutter speed, the rear command dial aperture.

SHUTTER AF Choose whether the camera focuses when the shutter button is pressed halfway. Option

Description In focus mode S (AF-S), the camera focuses when the shutter button is pressed halfway and locks focus while the button remains in this position. In focus mode C (AF-C), focus is adjusted continually while the button is pressed halfway. The camera does not focus when the shutter button is pressed halfway.

BUTTON/DIAL SETTING SHUTTER AE If ON is selected, exposure will lock while the shutter button is pressed halfway. Options

ON OFF N Select OFF to allow the camera to adjust exposure before each shot taken in burst mode.

SHOOT WITHOUT LENS Choose ON to enable the shutter release when no lens is attached. Options

ON OFF Options X CW (clockwise)

Y CCW (counterclockwise)

AE/AF-LOCK MODE If AE & AF ON WHEN PRESSING is selected, exposure and/or focus will lock while you press the button to which exposure or focus lock is assigned. If AE & AF ON/OFF SWITCH is selected, exposure and/or focus will lock when the button is pressed and remain locked until it is pressed again. Options

FOCUS RING Choose the direction in which the focus ring is rotated to increase the focus distance.

BUTTON/DIAL SETTING EXPO. COMP. BUTTON SETTING Control the behavior of the rear command dial and the button to which exposure compensation is assigned. If d ON WHEN PRESSING is selected, exposure compensation can be adjusted by holding the button while rotating dial; if d ON/OFF SWITCH is selected, exposure compensation can be set by pressing the button once, rotating the dial, and then pressing the button again. Options

ON WHEN PRESSING ON/OFF SWITCH TOUCH SCREEN SETTING Enable or disable touch-screen controls. Options ON The Setup Menus

OFF LOCK Lock selected controls to prevent unintended operation. Options

LOCK SETTING FUNCTION SELECTION Description Choose from the following: • UNLOCK: Reset lock options. • ALL FUNCTION: Lock all controls in the FUNCTION SELECTION list. • SELECTED FUNCTION: Lock only the controls selected in the FUNCTION SELECTION list. Choose the controls locked when SELECTED FUNCTION is chosen for LOCK SETTING.

N The selector and the Q button can be locked at any time by pressing and holding the MENU/OK button (P 5).

D POWER MANAGEMENT Adjust power management settings. To access power management settings, press MENU/OK, select the D (SET UP) tab, and choose POWER MANAGEMENT.

POWER MANAGEMENT AUTO POWER OFF SHOOTING STAND BY MODE AUTO POWER SAVE AUTO POWER OFF Choose the length of time before the camera turns off automatically when no operations are performed. Shorter times increase battery life; if OFF is selected, the camera must be turned off manually. Options 5 MIN

SHOOTING STAND BY MODE In standby mode, all displays except the secondary LCD monitor turn off to save power. Choose how long the camera waits before entering standby mode when no operations are performed, or select OFF to disable standby mode. 30 SEC

POWER MANAGEMENT AUTO POWER SAVE If ON is selected, the display frame rate will drop to save power if no operations are performed for a short period, but the normal frame rate can be restored by operating camera controls. Options

OFF D SAVE DATA SETTING Make changes to file management settings. To access file management settings, press MENU/OK, select the D (SET UP) tab, and choose SAVE DATA SETTING.

SAVE DATA SETTING FRAME NO. SAVE ORG IMAGE EDIT FILE NAME CARD SLOT SETTING (STILL IMAGE) SWITCH SLOT (SEQUENTIAL)

MOVIE FILE DESTINATION COPYRIGHT INFO Option

CONTINUOUS RENEW Description Numbering continues from the last file number used or the first available file number, whichever is higher. Choose this option to reduce the number of pictures with duplicate file names. Numbering is reset to 0001 after formatting or when a new memory card is inserted.

N If the frame number reaches 999-9999, the shutter release will be disabled. Format the memory card after transferring to a computer any pictures you wish to keep.

Selecting D USER SETTING > RESET sets FRAME NO. to CONTINUOUS but does not reset the file number. Frame numbers for pictures taken with other cameras may differ.

FRAME NO. Frame number New pictures are stored in image files named using a four-digit file number assigned by adding one to the last file number used. The File file number is displayed during playback as Directory number number shown. FRAME NO. controls whether file numbering is reset to 0001 when a new memory card is inserted or the current memory card is formatted.

SAVE ORG IMAGE Choose ON to save unprocessed copies of pictures taken using RED EYE REMOVAL. Options

CARD SLOT SETTING (STILL IMAGE) Choose the role played by the card in the second slot. Option SEQUENTIAL BACKUP

RAW/JPEG Description The card in the second slot is used only when the card in the first slot is full. Each picture is recorded twice, once to each card. As for SEQUENTIAL, except that the RAW copy of pictures taken with FINE + RAW or NORMAL + RAW selected for H IMAGE QUALITY SETTING > IMAGE QUALITY will be saved to the card in the first slot and the JPEG copy to the card in the second slot.

SWITCH SLOT (SEQUENTIAL) Choose the card that is recorded to first when SEQUENTIAL is selected for CARD SLOT SETTING (STILL IMAGE). Options SLOT 1

COPYRIGHT INFO Copyright information, in the form of Exif tags, can be added to new images as they are taken. Changes to copyright information are reflected only in images taken after the changes are made. Option Description DISP COPYRIGHT INFO View the current copyright information. ENTER AUTHOR’S INFO Enter the creator’s name. ENTER COPYRIGHT INFO Enter the name of the copyright holder. Delete the current copyright information. This change applies DELETE COPYRIGHT INFO only to images taken after this option is selected; copyright information recorded with existing images is not affected. The Setup Menus

N Copyright information can be edited using touch controls.

D CONNECTION SETTING Adjust settings for connection to other devices. To access connection settings, press MENU/OK, select the D (SET UP) tab, and choose CONNECTION SETTING.

CONNECTION SETTING WIRELESS SETTINGS PC CONNECTION SETTING GEOTAGGING SET-UP

instax PRINTER CONNECTION SETTING PC SHOOT MODE WIRELESS SETTINGS Adjust settings for connection to wireless networks. Option

Description Choose a name (NAME) to identify the camera on the wireless network (the camera is assigned a unique name by GENERAL SETTINGS default) or select RESET WIRELESS SETTINGS to restore default settings. Choose ON (the default setting, recommended in most circumstances) to resize larger images to H for upload to RESIZE IMAGE FOR smartphones, OFF to upload images at their original size. SMARTPHONE H Resizing applies only to the copy uploaded to the smartphone; the original is not affected.

CONNECTION SETTING PC CONNECTION SETTING Choose the method used for connection to computers. Choose SIMPLE SETUP to connect using WPS, MANUAL SETUP to configure network settings manually. Options

SIMPLE SETUP MANUAL SETUP N For more information on wireless connections, visit: http://fujifilm-dsc.com/wifi/

GEOTAGGING SET-UP View location data downloaded from a smartphone and choose whether to save the data with your pictures. Option

GEOTAGGING N For more information on wireless connections, visit: http://fujifilm-dsc.com/wifi/

instax PRINTER CONNECTION SETTING Adjust settings for connection to optional FUJIFILM instax SHARE printers. The Printer Name (SSID) and Password The printer name (SSID) can be found on the bottom of the printer; the default password is “1111”. If you have already chosen a different password to print from a smartphone, enter that password instead.

LOCATION INFO Description Choose whether location data downloaded from a smartphone are embedded in pictures as they are taken. Display the location data last downloaded from a smartphone.

CONNECTION SETTING PC SHOOT MODE Adjust settings for remote photography (tethered shooting). Option

OFF USB AUTO USB FIXED Description Choose this option if you do not intend to use tethered shooting. Tethered shooting mode is selected automatically when the camera is connected to a computer via USB. When no computer is connected, the results are the same as OFF. The camera functions in tethered shooting mode even when not connected to a computer. At default settings, pictures are not saved to the memory card, but pictures taken while the camera is not connected will be transferred to the computer when it is connected.

O D POWER MANAGEMENT > AUTO POWER OFF also apply during

tethered shooting. Select OFF to prevent the camera turning off automatically.

N Tethered shooting is available with software such as HS-V5 (available

separately) or FUJIFILM X Acquire (available for free download from the FUJIFILM website) or when the FUJIFILM Tether Shooting Plug-in PRO or Tether Shooting Plug-in (both available separately) is used with Adobe® Photoshop® Lightroom®.

Shortcut Options Customize camera controls to suit your style or situation. Frequently-used options can be added to the Q menu or a custom “my” menu or assigned to an Fn (function) button for direct access: • The Q menu (P 177): The Q menu is displayed by pressing the Q button. Use the Q menu to view or change the options selected for frequently-used menu items. • “My menu” (P 184): Add frequently-used options to this custom menu, which can be viewed by pressing MENU/OK and selecting the E (“MY MENU”) tab. • The function buttons (P 180): Use the function buttons for direct access to selected features.

The Q (Quick Menu) Button Press Q for quick access to selected options. The Quick Menu Display At default settings, the quick menu contains the following items:

SELECT CUSTOM SETTING BASE SET I HIGHLIGHT TONE J SHADOW TONE K COLOR L SHARPNESS M SELF-TIMER N FACE/EYE DETECTION SETTING O FLASH FUNCTION SETTING P EVF/LCD BRIGHTNESS The quick menu shows the options currently selected for items B–P, which can be changed as described on page 179. SELECT CUSTOM SETTING The H IMAGE QUALITY SETTING > SELECT CUSTOM SETTING item (item A) shows the current custom settings bank: • q: No custom settings bank selected. • t–u: Select a bank to view the settings saved using the H IMAGE QUALITY SETTING > EDIT/SAVE CUSTOM SETTING option. • r–s: The current custom settings bank.

Viewing and Changing Settings 1 Press Q to display the quick menu during shooting.

Use the selector to highlight items and rotate the rear command dial to change.

SELECT CUSTOM SETTING BASE N Changes

are not saved to the current settings bank. Settings that differ from those in the current settings bank (t–u) are shown in red.

SET Press Q to exit when settings are complete.

N The quick menu can also be edited using touch controls.

Press and hold the Q button during shooting.

The current quick menu will be displayed; use the selector to highlight the item you wish to change and press MENU/OK.

Highlight any of the following options and press MENU/OK to assign it to the selected position. *

* Stored in custom settings bank.

• AF-C CUSTOM SETTINGS • FACE/EYE DETECTION SETTING • MF ASSIST • SELF-TIMER • PHOTOMETRY • SHUTTER TYPE • TOUCH SCREEN MODE • FLASH FUNCTION SETTING • FLASH COMPENSATION • MOVIE MODE • MIC LEVEL ADJUSTMENT • EVF/LCD BRIGHTNESS • EVF/LCD COLOR

• NONE N Select NONE to assign no option to the selected position. When SELECT CUSTOM SETTING is selected, current settings are shown in the quick menu by the label BASE.

N The quick menu can also be edited using D BUTTON/DIAL SETTING > EDIT/SAVE QUICK MENU.

The Fn (Function) Buttons Assign roles to the function buttons and the center of the rear command dial for quick access to selected features. The default assignments are:

Exposure compensation

Center of rear command dial

Assigning Roles to the Function Buttons To assign roles to the buttons:

Press and hold the DISP/BACK button until a button selection menu is displayed.

Highlight a button and press MENU/OK. Highlight the desired role and press MENU/OK to assign it to the selected button. Choose from:

• EXP. COMPENSATION • IMAGE SIZE • IMAGE QUALITY • RAW • FILM SIMULATION • GRAIN EFFECT • COLOR CHROME EFFECT • DYNAMIC RANGE • WHITE BALANCE • SELECT CUSTOM SETTING • FOCUS AREA • RAPID AF • FOCUS CHECK • AF MODE • FACE/EYE DETECTION SETTING • SELF-TIMER • AE BKT SETTING • PHOTOMETRY • SHUTTER TYPE

• ISO AUTO SETTING • WIRELESS COMMUNICATION • FLASH FUNCTION SETTING • TTL-LOCK • MODELING FLASH • MIC LEVEL ADJUSTMENT • PREVIEW DEPTH OF FIELD • PREVIEW EXP./WB IN MANUAL MODE • PREVIEW PIC. EFFECT • HISTOGRAM • ELECTRONIC LEVEL • AE LOCK ONLY • AF LOCK ONLY • AE/AF LOCK • AF-ON • LOCK SETTING • PLAYBACK • NONE (control disabled)

N Button assignments can also be selected using D BUTTON/DIAL SETTING > FUNCTION (Fn) SETTING. The selector can not be assigned more than one role at a time.

The Fn (Function) Buttons

AF-ON If AF-ON is selected, you can press the control instead of keeping the shutter button pressed halfway. MODELING FLASH If MODELING FLASH is selected when a compatible shoe-mounted flash unit is attached, you can press the control to test-fire the flash and check for shadows and the like (modeling flash). TTL-LOCK If TTL-LOCK is selected, you can press the control to lock flash output according to the option selected for F FLASH SETTING > TTL-LOCK MODE (P 114).

E tab is only available if options have been assigned to MY MENU.

MY MENU SETTING RANK ITEMS REMOVE ITEMS Press the selector up or down to highlight MY MENU SETTING and press MENU/OK. Options that can be added to “my menu” are highlighted in blue.

MY MENU SETTING IMAGE SIZE IMAGE QUALITY RAW RECORDING FILM SIMULATION GRAIN EFFECT COLOR CHROME EFFECT DYNAMIC RANGE WHITE BALANCE OK N 3

SELECT CANCEL Items currently in “my menu” are indicated by check marks.

OK SAVE Press MENU/OK to return to the edit display. Repeat Steps 3 and 4 until all the desired items have been added.

N “My menu” can contain up to 16 items. Editing “My Menu” To reorder or delete items, select RANK ITEMS or REMOVE ITEMS in Step 1.

Peripherals and Optional Accessories

Lenses The camera can be used with lenses for the FUJIFILM G-mount. Lens Parts

Peripherals and Optional Accessories

A Lens hood B Mounting marks C Focus ring D Aperture ring lock release E Mounting marks (focal length)

F Aperture ring G Lens signal contacts H Front lens cap I Rear lens cap

N A GF63mmF2.8 R WR lens is used here for illustrative purposes.

Lens Care Use a blower to remove dust, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. Replace the front and rear caps when the lens is not in use. Removing Lens Caps Remove lens caps as shown.

Attaching Lens Hoods When attached, lens hoods reduce glare and protect the front lens element.

Peripherals and Optional Accessories

N Lens caps may differ from those shown.

Vertical Battery Grips The optional VG-GF1 vertical battery grip accommodates an extra battery for improved endurance and makes it easier to hold the camera rotated 90° to frame pictures in “tall” (portrait) orientation.

Peripherals and Optional Accessories

A Shutter button B Control lock C Front command dial D Fn2 (function 2) button E Lock screw knob F Tripod socket G Fn1 (function 1) button H Eyelet for camera strap I Battery-chamber cover J Lock screw K Fn5 (function 5) button L Focus stick (focus lever)

M Connector N Compartment for connector cover supplied with camera

O 15 V DC-IN connector P Fn4 (function 4) button Q Rear command dial R Fn3 (function 3) button S Q (quick menu) button T MENU/OK button U Indicator lamps V Battery-chamber cover latch

O Do not attempt to attach the clips supplied with the camera to the eyelets (H) on the battery grip.

N All controls perform the same function as the matching controls on the camera.

Vertical Battery Grips

Attaching the VB-GF1 The VB-GF1 attaches as shown below.

Remove the vertical battery grip connector cover from the camera and place it in the grip connector cover compartment.

Peripherals and Optional Accessories

Align the connectors on the grip with the matching connectors on the camera. Rotate the lock screw knob to tighten the lock screw.

Inserting a Battery Insert a battery as shown below.

Unlatch and open the battery-chamber cover.

Slide the battery in until it latches.

Close the battery-chamber cover.

Peripherals and Optional Accessories

O The battery in the grip is used before the battery in the camera. The camera automatically switches to the camera battery when the battery in the grip is exhausted. Movie recording and bulb photography will end when the camera switches batteries. When the battery in the grip is exhausted, remove and charge the battery or insert a fully-charged spare battery. If the camera battery has enough charge to power the camera, the battery in the grip can be replaced without turning the camera off.

Vertical Battery Grips

Using an AC Adapter An optional AC-15V AC adapter can be used to power the camera when the battery grip is attached. The battery inserted in the grip will charge while the adapter is connected; charging takes about 120 minutes. Turn the camera off before disconnecting the AC adapter.

Peripherals and Optional Accessories

Battery charge status is shown by battery status icons when the camera is on (playback mode) and by the indicator lamp when the camera is off. Battery status icon Indicator lamp (camera on) (camera off ) Battery status Y (yellow) On Battery charging N (green) Off Charging complete Z (red) Blinks Battery fault

Peripherals and Optional Accessories

E Connectors F Connector cover G Hot shoe cover

Viewfinder Tilt Adapters

Attaching the EVF-TL1 Slide the EVF-TL1 onto the camera hot shoe and then attach the EVF-GFX1 electronic viewfinder.

N Remove the hot shoe covers from the camera and EVF-TL1 before attaching the adapter and viewfinder.

Removing the EVF-TL1 Remove the viewfinder and then, keeping the lock releases (A) pressed, press down on the front of the adapter (B) and slide it from the camera as shown.

Peripherals and Optional Accessories

O Use only one tilt adapter at a time.

Viewfinder Tilt Adapters

Using the EVF-TL1 Swivel the viewfinder into the desired position. Swiveling the Viewfinder Up or Down Loosen the tilt lock knob and swivel the viewfinder up or down from 0° to 90°.

With the viewfinder in the desired position (A), tighten the tilt lock knob (B) to lock the viewfinder in place.

Peripherals and Optional Accessories

Swiveling the Viewfinder Left or Right Release the horizontal swivel lock as shown and swivel the viewfinder left or right ±45°.

With the viewfinder in the desired position (A), return the horizontal swivel lock to the latched position (B) to lock the viewfinder in place.

External Flash Units Flash units can be mounted on the hot shoe or connected via the sync terminal. External flash units are more powerful than their built-in counterparts. Some support high-speed sync (FP) and can be used at shutter speeds faster than the flash sync speed, while others can function as master flash units controlling remote units via optical wireless flash control.

O You may be unable to test-fire the flash in some circumstances, for example when a setup menu is displayed on the camera.

Peripherals and Optional Accessories

Red-Eye Removal Red-eye removal is available when an option other than OFF is selected for F FLASH SETTING > RED EYE REMOVAL and G AF/MF SETTING > FACE/EYE DETECTION SETTING is ON. Red-eye removal minimizes “redeye” caused when light from the flash is reflected from the subject’s retinas.

Flash Settings To adjust settings for a flash unit mounted on the hot shoe or connected via the sync terminal:

Connect the unit to the camera. In shooting mode, select FLASH FUNCTION SETTING in the F (FLASH SETTING) menu tab. The options available vary with the flash unit.

画像サイズ FLASH FUNCTION SETTING 画質モード RED EYE REMOVAL RAW 記録方式 TTL-LOCK MODE フィルムシミュレーション LED LIGHT SETTING グレイン･エフェクト MASTER SETTING ダイナミックレンジ CH SETTING ホワイトバランス ハイライトトーン

EXIT Description P Displayed when no compatible flash unit is connected or SYNC if a unit is connected via the sync terminal or uses only 199 TERMINAL the X-contact on the hot shoe. SHOE MOUNT Displayed when an optional flash unit is mounted on the 200 FLASH hot shoe and turned on. Displayed if an optional flash unit functioning as a master MASTER flash for FUJIFILM optical wireless remote flash control is 203 (OPTICAL) connected and turned on. Menu

Peripherals and Optional Accessories

N SYNC TERMINAL will be also displayed if an incompatible flash unit or no flash unit is connected.

Highlight items using the selector and rotate the rear command dial to change the highlighted setting.

SHOE MOUNT FLASH ADJUST

Press DISP/BACK to put the changes into effect.

END External Flash Units

SYNC TERMINAL The following options are available when no compatible flash unit is connected or if a unit is connected via the sync terminal or uses only the X-contact on the hot shoe.

MODE SYNC TERMINAL ADJUST END Setting

The Sync Terminal Use the sync terminal to connect flash units that require a sync cable.

Peripherals and Optional Accessories

Description Choose from the following options: • M: A trigger signal is transmitted from the sync terminal and hot shoe when a picture is taken. Choose a shutter speed slower than the sync speed; even slower speeds may be A Flash control mode required if the unit uses long flashes or has a slow response time. • OFF: The sync terminal and hot shoe do not transmit a trigger signal. Choose whether the flash is timed to fire immediately after the shutter opens (H/1ST CURTAIN) or immediately before B Sync it closes (I/2ND CURTAIN). 1ST CURTAIN is recommended in most circumstances.

SHOE MOUNT FLASH The following options are available when an optional shoe-mounted flash unit is attached and turned on.

MODE SHOE MOUNT FLASH ADJUST Setting

END Peripherals and Optional Accessories

Description The flash control mode selected with the flash unit. This can in some cases be adjusted from the camera; the options available vary with the flash. • TTL: TTL mode. Adjust flash compensation (B). • M: The flash fires at the selected output regardless of subject A Flash control mode brightness or camera settings. Output in some cases can be adjusted from the camera (B). • MULTI: Repeating flash. Compatible shoe-mounted flash units will fire multiple times with each shot. • OFF: The flash does not fire. Some flash units can be turned off from the camera.

Peripherals and Optional Accessories

Description The options available vary with flash control mode. • TTL: Adjust flash compensation (the full value may not be applied if the limits of the flash control system are exceeded). In the cases of the EF-X20, EF-20, and EF-42, the selected value is added to the value selected with the flash unit. B Flash compensation/ • M/MULTI: Adjust flash output (compatible units only). output Choose from values expressed as fractions of full power, from ⁄ (mode M) or ¼ (MULTI) down to ⁄ in increments equivalent to ⁄ EV. The desired results may not be achieved at low values if they exceed the limits of the flash control system; take a test shot and check the results. Choose a flash mode for TTL flash control. The options available vary with the shooting mode (P, S, A, or M) selected. • E (FLASH AUTO): The flash fires only as required; flash level is adjusted according to subject brightness. A p icon displayed when the shutter button is pressed halfway indicates that the flash will fire when the photo is taken. F (STANDARD): The flash fires with every shot if possible; • C Flash mode (TTL) flash level is adjusted according to subject brightness. The flash will not fire if not fully charged when the shutter is released. • G (SLOW SYNC.): Combine the flash with slow shutter speeds when photographing portrait subjects against a backdrop of night scenery. The flash will not fire if not fully charged when the shutter is released. Control flash timing. • H (1ST CURTAIN): The flash fires immediately after the shutter opens (generally the best choice). • I (2ND CURTAIN): The flash fires immediately before the shutter closes. D Sync • AUTO FP(HSS): High-speed sync (compatible units only). The camera automatically engages front-curtain high-speed sync at shutter speeds faster than the flash sync speed. Equivalent to 1ST CURTAIN when MULTI is selected for flash control mode.

Peripherals and Optional Accessories

Description The angle of illumination (flash coverage) for units that support flash zoom. Some units allow the adjustment to be E Zoom made from the camera. If AUTO is selected, zoom will automatically be adjusted to match coverage to lens focal length. If the unit supports this feature, choose from: • J (FLASH POWER PRIORITY): Gain range by slightly reducing coverage. F Lighting • K (STANDARD): Match coverage to picture angle. • L (EVEN COVERAGE PRIORITY): Slightly increase coverage for more even lighting. Choose how the built-in LED light functions during still photography (compatible units only): as a catchlight (M/ CATCHLIGHT), as an AF-assist illuminator (N/AF ASSIST), or G LED light as both a catchlight and an AF-ASSIST illuminator (O/AF ASSIST+CATCHLIGHT). Choose OFF to disable the LED during photography. Choose the number of times the flash fires each time the G Number of flashes * shutter is released in MULTI mode. Choose the frequency at which the flash fires in MULTI mode. H Frequency * * Full value may not be applied if limits of flash control system are exceeded.

External Flash Units

MASTER(OPTICAL) The options will be displayed if the unit is currently functioning as master flash for FUJIFILM optical wireless remote flash control. MODE MASTER(OPTICAL)

ADJUST C A B Peripherals and Optional Accessories

The master and remote units can be placed in up to three groups (A, B, and C) and flash mode and flash level adjusted separately for each group. Four channels are available for communication between the units; separate channels can be used for different flash systems or to prevent interference when multiple systems are operating in close proximity.

D Flash compensation/ Peripherals and Optional Accessories

E Flash compensation/ output (group B)

F Flash compensation/ output (group C)

Description Choose flash control modes for groups A, B, and C. TTL% is available for groups A and B only. • TTL: The units in the group fire in TTL mode. Flash compensation can be adjusted separately for each group. • TTL%: If TTL% is selected for either group A or B, you can specify the output of the selected group as a percentage of the other and adjust overall flash compensation for both groups. • M: In mode M, the units in the group fire at the selected output (expressed as a fraction of full power) regardless of subject brightness or camera settings. • MULTI: Choosing MULTI for any group sets all the units in all groups to repeating flash mode. All units will fire multiple times with each shot. • OFF: If OFF is selected, the units in the group will not fire. Adjust flash level for the selected group according to option selected for flash control mode. Note that the full value may not be applied if the limits of the flash control system are exceeded. • TTL: Adjust flash compensation. • M/MULTI: Adjust flash output. • TTL%: Choose the balance between groups A and B and adjust overall flash compensation.

Peripherals and Optional Accessories

Description Choose a flash mode for TTL flash control. The options available vary with the shooting mode (P, S, A, or M) selected. • E (FLASH AUTO): The flash fires only as required; flash level is adjusted according to subject brightness. A p icon displayed when the shutter button is pressed halfway indicates that the flash will fire when the photo is taken. • F (STANDARD): The flash fires with every shot if possible; flash level is adjusted according to subject brightness. The flash will not fire if not fully charged when the shutter is released. • G (SLOW SYNC.): Combine the flash with slow shutter speeds when photographing portrait subjects against a backdrop of night scenery. The flash will not fire if not fully charged when the shutter is released. Control flash timing. • H (1ST CURTAIN): The flash fires immediately after the shutter opens (generally the best choice). • I (2ND CURTAIN): The flash fires immediately before the shutter closes. • AUTO FP(HSS): High-speed sync (compatible units only). The camera automatically engages front-curtain highspeed sync at shutter speeds faster than the flash sync speed. Equivalent to 1ST CURTAIN when MULTI is selected for flash control mode. The angle of illumination (flash coverage) for units that support flash zoom. Some units allow the adjustment to be made from the camera. If AUTO is selected, zoom will automatically be adjusted to match coverage to lens focal length.

Peripherals and Optional Accessories

L Channel L Frequency

Description If the unit supports this feature, choose from: • J (FLASH POWER PRIORITY): Gain range by slightly reducing coverage. • K (STANDARD): Match coverage to picture angle. • L (EVEN COVERAGE PRIORITY): Slightly increase coverage for more even lighting. Assign the master flash to group A (Gr A), B (Gr B), or C (Gr C). If OFF is selected, output from the master flash will be held to a level that does not affect the final picture. Available only if the unit is mounted on the camera hot shoe as a master flash for FUJIFILM optical wireless remote flash control in TTL, TTL%, or M mode. Choose the number of times the flash fires each time the shutter is released in MULTI mode. Choose the channel used by the master flash for communication with the remote flash units. Separate channels can be used for different flash systems or to prevent interference when multiple systems are operating in close proximity. Choose the frequency at which the flash fires in MULTI mode.

HDMI Output Camera shooting and playback displays can be output to HDMI devices. Connecting to HDMI Devices Connect the camera to TVs or other HDMI devices using a third-party HDMI cable.

Turn the camera off. Connect the cable as shown below, making sure the connectors are fully inserted. Insert into HDMI connector

Insert into HDMI Micro connector (Type D)

O Use an HDMI cable no more than 1.5 m (4.9 ft.) long. Connections

Configure the device for HDMI input as described in the documentation supplied with the device.

Turn the camera on. You can now shoot and play back pictures while viewing the television display and save pictures to the HDMI device.

O The USB cable can not be used while an HDMI cable is connected.

Shooting Shoot photos and record movies while viewing the scene through the camera lens on or saving footage to the HDMI device. Playback To start playback, press the camera a button. The camera monitor turns off and pictures and movies are output to the HDMI device. Note that the camera volume controls have no effect on sounds played on the TV; use the television volume controls to adjust the volume.

O Some televisions may briefly display a black screen when movie playback begins.

Wireless Transfer Establish a wireless LAN connection between your camera and smartphone. For downloads and other information, visit: http://fujifilm-dsc.com/wifi/ Wireless Connections: Smartphones Install the “FUJIFILM Camera Remote” app on your smartphone to browse the images on the camera, download selected images, control the camera remotely, or copy location data to the camera. Once the app is installed, connect using the A SHOOTING SETTING > WIRELESS COMMUNICATION or C PLAY BACK MENU > WIRELESS COMMUNICATION options in the camera menus.

Connecting to Computers via USB Connect the camera to a computer to download pictures or take pictures remotely. Tethered Shooting Take pictures remotely. Mac OS X/macOS Tethered shooting is available to purchasers of Adobe® Photoshop® Lightroom® and the FUJIFILM Tether Shooting PRO or Tether Shooting plug-ins. The FUJIFILM Tether Shooting PRO and Tether Shooting plug-ins are available from the Adobe add-ons website. Windows Tethered shooting is available to purchasers of HS-V5 or of Adobe® Photoshop® Lightroom® and the FUJIFILM Tether Shooting PRO or Tether Shooting plug-ins. The FUJIFILM Tether Shooting PRO and Tether Shooting plug-ins are available from the Adobe addons website. FUJIFILM X Acquire Tethered shooting is also available to users of FUJIFILM X Acquire, which can be downloaded free-of-charge from the FUJIFILM website.

Copying Pictures to a Computer Pictures can be copied to Windows and Mac OS X/macOS computers as described below. For information on using the software described, see online help. Windows Use MyFinePix Studio to copy pictures to your computer, where they can be stored, viewed, organized, and printed. MyFinePix Studio is available for download from the following website: http://fujifilm-dsc.com/mfs/ Once download is complete, double-click the downloaded file (“MFPS_Setup.EXE”) and follow the on-screen instructions to complete installation. Mac OS X/macOS Pictures can be copied to your computer using Image Capture (supplied with your computer) or other software. Viewing RAW Files To view RAW files on your computer, use the RAW FILE CONVERTER EX 2.0, available for download from: http://fujifilm-dsc.com/rfc/

Connecting to Computers via USB Connecting the Camera 1 Find a memory card containing pictures you want to copy to the computer and insert the card into the camera.

O Loss of power during transfer could result in loss of data or dam-

age to the memory card. Insert a fresh or fully-charged battery before connecting the camera.

Turn the camera off and connect a third-party USB 3.0 or 2.0 cable (either type can be used), making sure the connectors are fully inserted.

Micro USB (Micro-B) Micro USB (Micro-B) USB 3.0 USB 2.0

O Use a USB 3.0 cable for higher speeds with computers that support USB 3.0.

When transfer is complete, turn the camera off and disconnect the USB cable.

Copy pictures to your computer. During tethered shooting, you can copy pictures using tethered shooting software such as the FUJIFILM Tethered Shooting Plug-in PRO. Otherwise you can use MyFinePix Studio or applications provided with your operating system.

Connecting to Computers via USB O If a memory card containing a large number of images is inserted,

there may be a delay before the software starts and you may be unable to import or save images. Use a memory card reader to transfer pictures. The USB cable must be no more than 1.5 m (4.9 ft.) long and be suitable for data transfer. Connect the camera directly to the computer; do not use a USB hub or keyboard. Do not disconnect the USB cable while data are being exchanged between the camera and computer or insert or remove memory cards while transfer is in progress. Failure to observe this precaution could result in loss of data or damage to the memory card. In some cases, it may not be possible to access pictures saved to a network server using the software in the same way as on a standalone computer. The user bears all applicable fees charged by the phone company or Internet service provider when using services that require an Internet connection.

instax SHARE Printers Print pictures from your digital camera to instax SHARE printers. Establishing a Connection Select D CONNECTION SETTING > instax PRINTER CONNECTION SETTING and enter the instax SHARE printer name (SSID) and password. The Printer Name (SSID) and Password The printer name (SSID) can be found on the bottom of the printer; the default password is “1111”. If you have already chosen a different password to print from a smartphone, enter that password instead.

Printing Pictures 1 Turn the printer on.

Use the selector to display the picture you want to print, then press MENU/OK.

PRINTER PRINT 100-0020

TRANSMIT instax-12345678

CANCEL N Pictures taken with other cameras can not be printed. The area printed is smaller than the area visible in the LCD monitor.

The picture will be sent to the printer and printing will start.

Accessories from FUJIFILM The following optional accessories are available from FUJIFILM. For the latest information on the accessories available in your region, check with your local FUJIFILM representative or visit http://www.fujifilm.com/products/ digital_cameras/index.html. Rechargeable Li-ion batteries NP-T125: Additional high-capacity NP-T125 rechargeable batteries can be purchased as required. Battery chargers BC-T125: Replacement battery chargers can be purchased as required. AC power adapters AC-15V: Use this 100–240 V, 50/60 Hz AC power adapter for extended shooting and playback, when copying pictures to a computer, or to charge the battery in the camera or optional battery grip. Remote releases RR-90: Use to reduce camera shake or keep the shutter open during a time exposure. Stereo microphones MIC-ST1: An external microphone for movie recording. Technical Notes

FUJINON lenses GF-series lenses: Interchangeable lenses for use exclusively with the FUJIFILM G-mount.

Accessories from FUJIFILM Vertical battery grips VG-GFX1: This grip accommodates an extra battery for improved endurance and makes it easier to hold the camera rotated 90° to frame pictures in “tall” (portrait) orientation. The battery in the grip can be charged using an optional AC-15V AC adapter. Tilt adapters EVF-TL1: This adapter lets you swivel the viewfinder left or right ±45° or up or down between 0° and 90° to take shots from different angles.

Shoe-mounted flash units EF-X500: This clip-on flash unit has a Guide Number of 50/164 (ISO 100, m/ft.) and supports FP (high-speed sync), allowing it to be used at shutter speeds that exceed the flash sync speed. Powered by four AA batteries or an optional BF-BP1 battery pack, it supports manual and TTL flash control and auto power zoom in the range 24–105 mm (35 mm format equivalent) and features FUJIFILM optical wireless flash control, allowing it to be used as a master or remote flash unit for remote wireless flash photography. The flash head can be rotated 90° up, 10° down, 135° left, or 180° right for bounce lighting. EF-42: This clip-on flash unit (powered by four AA batteries) has a Guide Number of 42/137 (ISO 100, m/ft.) and supports manual and TTL flash control and auto power zoom in the range 24–105 mm (35 mm format equivalent). The flash head can be rotated 90° up, 180° left, or 120° right for bounce lighting. EF-X20: This clip-on flash unit has a Guide Number of 20/65 (ISO 100, m/ft.). Powered by two AAA batteries, this light, compact unit features a dial for adjusting TTL flash compensation or manual flash output. EF-20: This clip-on flash unit (powered by two AA batteries) has a Guide Number of 20/65 (ISO 100, m/ft.) and supports TTL flash control (manual flash control is not supported). The flash head can be rotated upwards 90° for bounce lighting.

Accessories from FUJIFILM Body caps BCP-002: Cover the camera lens mount when no lens is attached. instax SHARE printers SP-1/SP-2: Connect via wireless LAN to print pictures on instax film.

For Your Safety IMPORTANT SAFETY INSTRUCTIONS Instructions: All the safety and operating instructions • Read Instructions

should be read before the appliance is operated. Instructions: The safety and operating instructions • Retain Instructions should be retained for future reference. Warnings: All warnings on the appliance and in the • Heed Warnings operating instructions should be adhered to. Instructions All operating and use instructions • Follow Instructions: should be followed.

Antennas Outdoor Antenna Grounding: If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE Ground Clamp

Electric Servicee Equipmentt

Antenna Lead in Wire AAnntenna Discharge Unit D (NEC N SECTION 8 810-20)

Ground Clamps Power Service Grounding Electrode System (NEC ART 250. PART H)

Grounding Conductors (NEC SECTION 810-21)

Installation Power Sources: This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions. Grounding or Polarization: This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. Alternate Warnings: This video product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug. Overloading: Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. This video product should never be placed near or over a radiator or heat register. Attachments: Do not use attachments not recommended by the video product manufacturer as they may cause hazards. Water and Moisture: Do not use this video product near water—for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

Power-Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. Accessories: Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Power Lines: An outside antenna system should not be locat- Damage Requiring Service: Unplug this video product from ed in the vicinity of overhead power lines or other electric the wall outlet and refer servicing to qualified service personlight or power circuits, or where it can fall into such power nel under the following conditions: lines or circuits. When installing an outside antenna system, • When the power-supply cord or plug is damaged extreme care should be taken to keep from touching such • If liquid has been spilled, or objects have fallen into the power lines or circuits as contact with them might be fatal. video product. • If the video product has been exposed to rain or water. Use If the video product has been dropped or the cabinet has Cleaning: Unplug this video product from the wall outlet be- • been damaged. fore cleaning. Do not use liquid cleaners or aerosol cleaners. If the video product does not operate normally follow the Use a damp cloth for cleaning. operating instructions. Adjust only those controls that are Object and Liquid Entry: Never push objects of any kind into covered by the operating instructions as an improper adjustthis video product through openings as they may touch dan- ment of other controls may result in damage and will often gerous voltage points or short out parts that could result in require extensive work by a qualified technician to restore a fire or electric shock. Never spill liquid of any kind on the the video product to its normal operation. video product. When the video product exhibits a distinct change in perforLightning: For added protection for this video product re- mance — this indicates a need for service. ceiver during a lightning storm, or when it is left unattended Replacement Parts: When replacement parts are required, be and unused for long periods of time, unplug it from the wall sure the service technician has used replacement parts specoutlet and disconnect the antenna or cable system. This will ified by the manufacturer or have the same characteristics as prevent damage to the video product due to lightning and the original part. Unauthorized substitutions may result in power-line surges. fire, electric shock or other hazards. Service Safety Check: Upon completion of any service or repairs to Servicing: Do not attempt to service this video product this video product, ask the service technician to perform yourself as opening or removing covers may expose you to safety checks to determine that the video product is in propdangerous voltage or other hazards. Refer all servicing to er operating condition. qualified service personnel.

Be sure to read these notes before use Safety Notes

• Make sure that you use your camera correctly. Read these

The symbols on the product (including the accesories) represent the following: AC DC Class II equipment (The construction of the product is double-insulated.)

safety notes and your Owner’s Manual carefully before use.

• After reading these safety notes, store them in a safe place. About the Icons The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the information indicated by the icon is ignored and the product is used incorrectly as a result. This icon indicates that death or serious injury can result if the information is ignored. This icon indicates that personal injury or CAUTION material damage can result if the information is ignored.

WARNING WARNING Unplug from power socket

The icons shown below are used to indicate the nature of the instructions which are to be observed. Triangular icons tell you that this information requires attention (“Important”). Circular icons with a diagonal bar tell you that the action indicated is prohibited (“Prohibited”). Filled circles with an exclamation mark indicate an action that must be performed (“Required”).

Do not use in the bathroom or shower

If a problem arises, turn the camera off, remove the battery, and disconnect and unplug the AC power adapter. Continued use of the camera when it is emitting smoke, is emitting any unusual odor, or is in any other abnormal state can cause a fire or electric shock. Contact your FUJIFILM dealer. Do not allow water or foreign objects to enter the camera. If water or foreign objects get inside the camera, turn the camera off, remove the battery, and disconnect and unplug the AC power adapter. Continued use of the camera can cause a fire or electric shock. Contact your FUJIFILM dealer. Do not use the camera in the bathroom or shower. This can cause a fire or electric shock.

For Your Safety WARNING Do not disassemble

Do not touch internal parts

WARNING Using a flash too close to a person’s eyes may cause visual impairment. Take particular care when photographing infants and young children. Do not remain in prolonged contact with hot surfaces. Failure to observe this precaution could result in low-temperature burns, particularly at high ambient temperatures or with users who suffer from poor circulation or reduced sensation, in which case use of a tripod or similar precautions are recommended. Do not leave one part of the body in contact with the product for prolonged periods while the product is on. Failure to observe this precaution could result in low-temperature burns, particularly during prolonged use, at high ambient temperatures, or with users who suffer from poor circulation or reduced sensation, in which case use of a tripod or similar precautions are recommended. Do not use in the presence of flammable objects, explosive gases, or dust. When carrying the battery, install it in a digital camera or keep it in the hard case. When storing the battery, keep it in the hard case. When discarding, cover the battery terminals with insulation tape. Contact with other metallic objects or batteries could cause the battery to ignite or burst. Keep memory cards, hot shoes, and other small parts out of the reach of small children. Children may swallow small parts; keep out of reach of children. Should a child swallow a small part, seek medical attention or call emergency. Keep out of reach of small children. Among the elements that could cause injury are the strap, which could become entangled about a child’s neck, causing strangulation, and the flash, which could cause visual impairment. Follow the directions of airline and hospital personnel. This product generates radio-frequency emissions that could interfere with navigational or medical equipment.

CAUTION Do not use this camera in locations affected by oil fumes, steam, humidity or dust. This can cause a fire or electric shock. Do not leave this camera in places subject to extremely high temperatures. Do not leave the camera in locations such as a sealed vehicle or in direct sunlight. This can cause a fire. Do not place heavy objects on the camera. This can cause the heavy object to tip over or fall and cause injury. Do not move the camera while the AC power adapter is still connected. Do not pull on the connection cord to disconnect the AC power adapter. This can damage the power cord or cables and cause a fire or electric shock.

Never attempt to change or take apart the camera (never open the case). Failure to observe this precaution can cause fire or electric shock. Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation. Do not change, heat or unduly twist or pull the connection cord and do not place heavy objects on the connection cord. These actions could damage the cord and cause a fire or electric shock. If the cord is damaged, contact your FUJIFILM dealer. Do not place the camera on an unstable surface. This can cause the camera to fall or tip over and cause injury. Never attempt to take pictures while in motion. Do not use the camera while walking or driving. This can result in you falling down or being involved in a traffic accident. Do not touch any metal parts of the camera during a thunderstorm. This can cause an electric shock due to induced current from the lightning discharge. Do not use the battery except as specified. Load the battery as shown by the indicator. Do not disassemble, modify, or heat batteries. Do not drop, strike, or throw batteries or otherwise subject them to strong impacts. Do not use batteries that show signs of leaking, deformation, discoloration, or other abnormalities. Use only designated chargers to recharge rechargeable batteries and do not attempt to recharge non-rechargeable Li-ion or alkaline batteries. Do not short batteries or store them with metallic objects. Failure to observe these precautions could result in the batteries overheating, igniting, rupturing, or leaking, causing fire, burns, or other injury. Use only batteries or AC power adapters specified for use with this camera. Do not use voltages other than the power supply voltage shown. The use of other power sources can cause a fire. If the battery leaks and fluid gets in contact with your eyes, skin or clothing, flush the affected area with clean water and seek medical attention or call an emergency number right away. Do not use the charger to charge batteries other than those specified here. The supplied charger is for use only with batteries of the type supplied with the camera. Using the charger to charge conventional batteries or other types of rechargeable batteries can cause the battery to leak, overheat or burst.

CAUTION Do not cover or wrap the camera or the AC power adapter in a cloth or blanket. This can cause heat to build up and distort the casing or cause a fire. When you are cleaning the camera or you do not plan to use the camera for an extended period, remove the battery and disconnect and unplug the AC power adapter. Failure to do so can cause a fire or electric shock. When charging ends, unplug the charger from the power socket. Leaving the charger plugged into the power socket can cause a fire.

CAUTION When a memory card is removed, the card could come out of the slot too quickly. Use your finger to hold it and gently release the card. Injury could result to those struck by the ejected card. Request regular internal testing and cleaning for your camera. Build-up of dust in your camera can cause a fire or electric shock. Contact your FUJIFILM dealer to request internal cleaning every two years. Please note that this service is not free of charge. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

The Battery and Power Supply Note: Check the type of battery used in your camera and read ■ Storage the appropriate sections. Performance may be impaired if the battery is left unused The following describes the proper use of batteries and how for extended periods when fully charged. Run the battery to prolong their life. Incorrect use can shorten battery life or flat before storing it. cause leakage, overheating, fire, or explosion. If the camera will not be used for an extended period, remove the battery and store it in a dry place with an ambient Li-ion Batteries temperature of from +15 °C to +25 °C (+59 °F to +77 °F). Do Read this section if your camera uses a rechargeable Li-ion not store in locations exposed to extremes of temperature. battery. ■ Cautions: Handling the Battery The battery is not charged at shipment. Charge the battery • Do not transport or store with metal objects such as neckbefore use. Keep the battery in its case when not in use. laces or hairpins. ■ Notes on the Battery • Do not expose to flame or heat. The battery gradually loses its charge when not in use. • Do not disassemble or modify. Charge the battery one or two days before use. • Use with designated chargers only. Battery life can be extended by turning the camera off when • Dispose of used batteries promptly. not in use. • Do not drop or subject to strong physical shocks. Battery capacity decreases at low temperatures; a depleted • Do not expose to water. battery may not function when cold. Keep a fully charged • Keep the terminals clean. spare battery in a warm place and exchange as necessary, • The battery and camera body may become warm to the or keep the battery in your pocket or other warm place and touch after extended use. This is normal. insert it in the camera only when shooting. Do not place the ■ Disposal battery in direct contact with hand warmers or other heating Dispose of used batteries in accord with local regulations. devices. AC Power Adapters (Available Separately) ■ Charging the Battery Use only FUJIFILM AC power adapters designated for use Charge the battery in the supplied battery charger. Charging with this camera. Other adapters could damage the camera. times will increase at ambient temperatures below +10 °C • The AC power adapter is for indoor use only. (+50 °F) or above +35 °C (+95 °F). Do not attempt to charge • Be sure the DC plug is securely connected to the camera. the battery at temperatures above +40 °C (+104 °F); at tem- • Turn the camera off before disconnecting the adapter. Disperatures below +5 °C (+41 °F), the battery will not charge. connect the adapter by the plug, not the cable. Do not attempt to recharge a fully charged battery. The bat- • Do not use with other devices. tery does not however need to be fully discharged before • Do not disassemble. charging. • Do not expose to high heat and humidity. The battery may be warm to the touch immediately after • Do not subject to strong physical shocks. • The adapter may hum or become hot to the touch during charging or use. This is normal. use. This is normal. ■ Battery Life If the adapter causes radio interference, reorient or relocate At normal temperatures, the battery can be recharged about • the receiving antenna. 300 times. A noticeable decrease in the length of time the battery will hold a charge indicates that it has reached the end of its service life and should be replaced.

For Your Safety Using the Camera Trademark Information such as the sun in a cloudless sky. Failure to observe this Digital Split Image is a trademark or registered trademark precaution could damage the camera image sensor. of FUJIFILM Corporation. xD-Picture Card and E are • Strong sunlight focused through the viewfinder may dam- trademarks of FUJIFILM Corporation. The typefaces included age the panel of electronic viewfinder (EVF). Do not aim herein are solely developed by DynaComware Taiwan Inc. the electronic viewfinder at the sun. Macintosh, Mac OS, and macOS are trademarks of Apple Inc. in the U.S.A. and other countries. Windows is a regisTake Test Shots tered trademark of Microsoft Corporation in the U.S.A. and Before taking photographs on important occasions (such as other countries. Adobe, the Adobe logo, Photoshop, and at weddings or before taking the camera on a trip), take a Lightroom are trademarks or registered trademarks of Adobe test shot and view the results to ensure that the camera is Systems Incorporated in the U.S.A. and other countries. functioning normally. FUJIFILM Corporation can not accept Wi-Fi® and Wi-Fi Protected Setup® are registered trademarks liability for damages or lost profits incurred as a result of of the Wi-Fi Alliance. The SDHC and SDXC logos are tradeproduct malfunction. marks of SD-3C, LLC. The HDMI logo is a trademark. All other Notes on Copyright trade names mentioned in this manual are the trademarks or Unless intended solely for personal use, images recorded registered trademarks of their respective owners. using your digital camera system cannot be used in ways Electrical Interference that infringe copyright laws without the consent of the ownThis camera may interfere with hospital or aviation equiper. Note that some restrictions apply to the photographing ment. Consult with hospital or airline staff before using the of stage performances, entertainments, and exhibits, even camera in a hospital or on an aircraft. when intended purely for personal use. Users are also asked to note that the transfer of memory cards containing images Color Television Systems or data protected under copyright laws is only permissible NTSC (National Television System Committee) is a color television telecasting specification adopted mainly in the U.S.A., within the restrictions imposed by those copyright laws. Canada, and Japan. PAL (Phase Alternation by Line) is a color Handling television system adopted mainly in European countries and To ensure that images are recorded correctly, do not subject China. the camera to impact or physical shocks while images are being recorded. Exif Print (Exif Version 2.3) Exif Print is a newly revised digital camera file format in which Liquid Crystal information stored with photographs is used for optimal colIn the event that the display is damaged, care should be takor reproduction during printing. en to avoid contact with liquid crystal. Take the urgent action indicated should any of the following situations arise: IMPORTANT NOTICE: Read Before Using the Software • If liquid crystal comes in contact with your skin, clean the Direct or indirect export, in whole or in part, of licensed softarea with a cloth and then wash thoroughly with soap and ware without the permission of the applicable governing running water. bodies is prohibited. • If liquid crystal enters your eyes, flush the affected eye with clean water for at least 15 minutes and then seek medical assistance. • If liquid crystal is swallowed, rinse your mouth thoroughly with water. Drink large quantities of water and induce vomiting, then seek medical assistance. Although the display is manufactured using extremely high-precision technology, it may contain pixels that are always lit or that do not light. This is not a malfunction, and images recorded with the product are unaffected.

• Do not aim the camera at extremely bright light sources,

NOTICES To prevent fire or shock hazard, do not expose the unit to rain or moisture. Please read the “Safety Notes” and make sure you understand them before using the camera. Perchlorate Material—special handling may apply. See: http://www.dtsc.ca.gov/hazardouswaste/perchlorate For Customers in the U. S. A. Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE Contains IC : 7736B-02000003 Contains FCC ID : W2Z-02000003 FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless device employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifilm-specified ferrite-core A/V cable, USB cable, and DC supply cord. A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

For Your Safety For Customers in Canada CAN ICES-3 (B)/NMB-3(B) CAUTION: This Class B digital apparatus complies with Canadian ICES-003. Industry Canada statement: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios. The County Code Selection feature is disabled for products marketed in the US/ Canada. Radiation Exposure Statement: The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. GFX 50S has been tested and found to comply with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules.

Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. This symbol on the batteries or accumulators indicates that those batteries shall not be treated as household waste. If your equipment contains easy removable batteries or accumulators please dispose these separately according to your local requirements. The recycling of materials will help to conserve natural resources. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please contact your local authorities and ask for the correct way of disposal. In Japan: This symbol on the batteries indicates that they are to be disposed of separately.

Be sure to read these notes before use Safety Notes

• Make sure that you use the lens correctly. Read these safety notes and the camera Owner’s Manual carefully before use.

• After reading these safety notes, store them in a safe place.

About the Icons The icons shown below are used in this document to indicate the severity of the injury or damage that can result if the information indicated by the icon is ignored and the product is used incorrectly as a result.

This icon indicates that death or serious injury can result if the information is ignored. This icon indicates that personal injury or CAUTION material damage can result if the information is ignored.

Do not touch internal parts

WARNING The icons shown below are used to indicate the nature of the instructions which are to be observed. Triangular icons tell you that this information requires attention (“Important”). Circular icons with a diagonal bar tell you that the action indicated is prohibited (“Prohibited”). Filled circles with an exclamation mark indicate an action that must be performed (“Required”).

Do not immerse in or expose to water. Failure to observe this precaution can cause a fire or electric shock. Do not disassemble (do not open the case). Failure to observe this precaution can cause fire, electric shock, or injury due to product malfunction. Should the case break open as the result of a fall or other accident, do not touch the exposed parts. Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the battery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation. Do not place on unstable surfaces. The product may fall, causing injury. Do not view the sun through the lens or camera viewfinders. Failure to observe this precaution can cause permanent visual impairment.

CAUTION Do not use or store in locations that are exposed to steam, or smoke or are very humid or extremely dusty. Failure to observe this precaution can cause fire or electric shock. Do not leave in direct sunlight or in locations subject to very high temperatures, such as in a closed vehicle on a sunny day. Failure to observe this precaution can cause fire. Keep out of the reach of small children. This product could cause injury in the hands of a child. Do not handle with wet hands. Failure to observe this precaution can cause electric shock. Keep the sun out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fire or burns. When the product is not in use, replace the lens caps and store out of direct sunlight. Sunlight focused by the lens can cause fire or burns. Do not carry the camera or lens while they are attached to a tripod. The product can fall or strike other objects, causing injury.

For Your Safety European Union Regulatory Notice This product complies with the following EU Directives: • RoHS Directive 2011/65/EU • R & TTE Directive 1999/5/EC Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are listed on the EU Declaration of Conformity issued by FUJIFILM Corporation for this product or product family. This compliance is indicated by the following conformity marking placed on the product:

This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g. Bluetooth). Regarding the Declaration of Conformity, visit http://www. fujifilm.com/products/digital_cameras/gfx/fujifilm_gfx_50s/ pdf/index/fujifilm_gfx_50s_cod.pdf. IMPORTANT: Read the following notices before using the camera’s built-in wireless transmitter. Q This product, which contains encryption function developed in the United States, is controlled by the United States Export Administration Regulations and may not be exported or re-exported to any country to which the United States embargoes goods.

network.. FUJIFILM does not ac• Use only as part of a wireless network

cept liability for damages resulting from unauthorized use. Do not use in applications requiring a high degree of reliability, for example in medical devices or other systems that may directly or indirectly impact human life. When using the device in computer and other systems that demand a greater degree of reliability than wireless networks, be sure to take all necessary precautions to ensure safety and prevent malfunction. • Use only in the country in which the device was purchased. This device conforms to regulations governing wireless network devices in the country in which it was purchased. Observe all location regulations when using the device. FUJIFILM does not accept liability for problems arising from use in other jurisdictions. • Wireless data (images) may be intercepted by third parties. The security of data transmitted over wireless networks is not guaranteed. • Do not use the device in locations subject to magnetic fields, static electricity, or radio interference. Do not use the transmitter in the vicinity of microwave ovens or in other locations subject to magnetic fields, static electricity, or radio interference that may prevent reception of wireless signals. Mutual interference may occur when the transmitter is used in the vicinity of other wireless devices operating in the 2.4 GHz band. • The wireless transmitter operates in the 2.4 GHz band using DSSS and OFDM modulation.

Wireless Network Devices: Cautions

• This device operates on the same frequency as commercial, educational, and medical devices and wireless transmitters. It also oper-

ates on the same frequency as licensed transmitters and special unlicensed low-voltage transmitters used in RFID tracking systems for assembly lines and in other similar applications. • To prevent interference with the above devices, observe the following precautions. Confirm that the RFID transmitter is not in operation before using this device. Should you observe that the device causes interference in licensed transmitters used for RFID tracking, immediately stop using the affected frequency or move the device to another location. If you notice that this device causes interference in low-voltage RFID tracing systems, contact a FUJIFILM representative. This sticker indicates that this device operates in the 2.4 GHz band using DSSS and OFDM modulation and may cause interference at distances of up to 40 m.

Product Care To ensure continued enjoyment of the product, observe the following precautions. Camera body: Use a soft, dry cloth to clean the camera body after each use. Do not use alcohol, thinner, or other volatile chemicals, which could discolor or deform the leather on the camera body. Any liquid on the camera should be removed immediately with a soft, dry cloth. Use a blower to remove dust from the monitor, taking care to avoid scratches, and then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. To prevent dust entering the camera, replace the body cap when no lens is in place. Image sensor: Multiple photographs marred by spots or blotches in identical locations may indicate the presence of dust on the image sensor. Clean the sensor using D USER SETTING > SENSOR CLEANING.

Cleaning the Image Sensor Dust that can not be removed using D USER SETTING > SENSOR CLEANING can be removed manually as described below.

O Note that there will be a charge to repair or replace the image sensor if it is damaged during cleaning.

Use a blower (not a brush) to remove dust from the sensor.

O Do not use a brush or blower brush.

Failure to observe this precaution could damage the sensor.

Check whether the dust has been successfully removed. Repeat Steps 1 and 2 as necessary.

Firmware Updates Updates to product firmware may result in changes not described in the manual. For more information, visit: http://www.fujifilm.com/support/digital_cameras/software Checking the Firmware Version

O The camera will only display the firmware version if a memory card is inserted.

Turn the camera off and check that a memory card is inserted.

Turn the camera on while holding the DISP/BACK button. The current firmware version will be displayed; check the firmware version.

Turn the camera off.

Troubleshooting Consult the table below should you encounter problems using your camera. If you don’t find the solution here, contact your local FUJIFILM distributor. Power and Battery Problem

• The battery is exhausted: Charge the battery or insert a fully-charged spare battery (P 27).

The camera does not turn on.

• The battery is inserted incorrectly: Reinsert in the correct orientation (P 30).

• The battery-chamber cover is not latched:

Latch the battery-chamber cover (P 30). The monitor may not turn on if the camera is turned off The monitor does not and then on again very quickly. Press the shutter button turn on. halfway to activate the monitor. • The battery is cold: Warm the battery by placing it in a pocket or other warm place and reinsert it in the camera immediately before taking a picture. • There is dirt on the battery terminals: Clean the terminals The battery runs down with a soft, dry cloth. quickly. • ON is selected for G AF/MF SETTING > PRE-AF: Turn PRE-AF off (P 99). • The battery has been charged many times: The battery has reached the end of its charging life. Purchase a new battery. The camera turns off The battery is exhausted: Charge the battery or insert a fulsuddenly. ly-charged spare battery (P 27). Reinsert the battery in the correct orientation and make Charging does not start. sure that the charger is plugged in (P 27, 30). Charging is slow. Charge the battery at room temperature.

• There is dirt on the battery terminals: Clean the terminals The charging lamp blinks, but the battery does not charge.

with a soft, dry cloth (P 30).

• The battery has been charged many times: The battery has reached the end of its charging life. Purchase a new battery. If the battery still fails to charge, contact your FUJIFILM dealer (P 218).

Menus and Displays Problem

Solution Select ENGLISH for D USER SETTING > a Display is not in English. (P 38, 148).

• The memory card is full: Insert a new memory card or delete pictures (P 32, 129).

• The memory card is not formatted: Format the memory card (P 146).

• There is dirt on the memory card contacts: Clean the contacts

with a soft, dry cloth. No picture is taken when The memory card is damaged: Insert a new memory card • the shutter button is (P 32). pressed. • The battery is exhausted: Charge the battery or insert a fully-charged spare battery (P 27). • The camera has turned off automatically: Turn the camera on (P 35). • You are using a third-party mount adapter: Select ON for SHOOT WITHOUT LENS (P 165). Mottling (“noise”) Gain is increased to aid composition when the subject is appears in the monitor poorly lit and aperture is stopped down, which may result or viewfinder when in noticeable mottling when images are previewed in the the shutter button is displays. Images taken with the camera are unaffected. pressed halfway. The camera does not The subject is not suited to autofocus: Use focus lock or manual focus. focus (P 78).

• The subject’s face is obscured by sunglasses, a hat, long hair, or other objects: Remove the obstructions (P 100).

• The subject’s face occupies only a small area of the frame:

Change the composition so that the subject’s face occupies a larger area of the frame (P 100). • The subject’s head is tilted or horizontal: Ask the subject to hold their head straight (P 100). • The camera is tilted: Keep the camera level. • The subject’s face is poorly lit: Shoot in bright light. The selected subject is closer to the center of the frame Wrong subject is than the main subject. Recompose the picture or turn selected. face detection off and frame the picture using focus lock (P 78). The battery is exhausted: Charge the battery or insert a fulThe flash does not fire. ly-charged spare battery (P 27). • The subject is not in range of the flash: Position the subject in range of the flash. The flash does not fully The flash window is obstructed: Hold the camera correctly. • light the subject. • Shutter speed is faster than the sync speed: Choose a slower shutter speed (P 54, 60, 244). • The lens is dirty: Clean the lens (P 189). • The lens is blocked: Keep objects away from the lens (P 41). Pictures are blurred. • s is displayed during shooting and the focus frame is displayed in red: Check focus before shooting (P 42). • Shutter speed is slow and the ambient temperature is high: This is normal and does not indicate a malfunction. • Pixel mapping is required: Perform pixel mapping using H IMAGE QUALITY SETTING > PIXEL MAPPING Pictures are mottled. (P 95). • The camera has been used continuously at high temperatures or a temperature warning is displayed: Turn the camera off and wait for it to cool down (P 35, 241). No face is detected.

Solution The pictures were taken with a different make or model of Pictures are grainy. camera. Playback zoom is The pictures were created using RESIZE or with a different unavailable. make or model of camera. • Playback volume is too low: Adjust playback volume (P 152). No sound in movie • The microphone was obstructed: Hold the camera correctly during recording. playback. • The speaker is obstructed: Hold the camera correctly during playback. Some of the pictures selected for deletion are protected. Selected pictures are not Remove protection using the device with which it was deleted. originally applied (P 133). The battery-chamber cover was opened while the camFile numbering is era was on. Turn the camera off before opening the batunexpectedly reset. tery-chamber cover (P 169).

Connections Problem The monitor is blank.

No picture or sound on TV.

Both the TV and camera monitor are blank. The computer does not recognize the camera. Can not transfer RAW or JPEG files to computer.

Solution The camera is connected to a TV: Pictures will be displayed on the TV instead of in the camera monitor (P 16, 208). • The camera is not properly connected: Connect the camera properly (P 16, 208). • Input on the television is set to “TV”: Set input to “HDMI” (P 16, 208). • The volume on the TV is too low: Use the controls on the television to adjust the volume (P 16, 208). The display mode selected with the VIEW MODE button is EVF ONLY + E: Put your eye to the viewfinder or use the VIEW MODE button to choose another display mode. Be sure the camera and computer are correctly connected (P 211). Use MyFinePix Studio to transfer pictures (Windows only; P 211).

Wireless Transfer For additional information on troubleshooting wireless connections, visit: http://digital-cameras.support.fujifilm.com/app?pid=x Problem Problem connecting or uploading pictures to smartphone.

• The smartphone is too far away: Move the devices closer (P 210).

• Nearby devices are causing radio interference: Move the cam-

era and smartphone away from microwave ovens or cordless phones (P 210). • The smartphone is connected to another device: The smartphone and camera can connect to only one device at a time. End the connection and try again (P 210). • There are several smartphones in the vicinity: Try connecting Can not upload images. again. The presence of multiple smartphones can make connection difficult (P 210). • The current image is a movie or was created on another device and can not be uploaded to a smartphone (P 210). Select ON for D CONNECTION SETTING > WIRELESS SETTING > RESIZE IMAGE FOR SMARTPHONE H. Smartphone will not Selecting OFF increases upload times for larger images; in display pictures. addition, some phones may not display images over a certain size (P 172).

Miscellaneous Problem

• Temporary camera malfunction: Remove and reinsert the battery (P 30).

• The battery is exhausted: Charge the battery or insert a fully-charged spare battery (P 27).

• The camera is connected to a wireless LAN: End the con-

The camera is unresponsive. nection. • The controls are locked: Press and hold the MENU/OK button to unlock the controls (P 5). • Tethered shooting is in progress: Camera controls can not be used while tethered shooting is in progress. Choose a different operating mode (P 174). The camera does not func- Remove and reinsert the battery (P 30). If the problem persists, contact your FUJIFILM dealer. tion as expected. No sound. Adjust the volume (P 151). The EVF is not correctly attached: Slide the EVF on until it The EVF does not turn on. clicks into place (P 11).

Warning Messages and Displays The following warnings appear in the display. Warning

Description Low battery. Charge the battery or insert a fully-charged i (red) spare battery. Battery exhausted. Charge the battery or insert a fulj (blinks red) ly-charged spare battery. The camera can not focus. Use focus lock to focus on ans (displayed in red with other subject at the same distance, then recompose the red focus frame) picture. The subject is too bright or too dark and the picture will be Aperture or shutter over- or under-exposed. Use the flash for additional lightspeed displayed in red ing when taking photographs of poorly-lit subject. FOCUS ERROR LENS CONTROL ERROR Camera malfunction. Turn the camera off and then on TURN OFF THE CAMERA again. If the message persists, contact a FUJIFILM dealer. AND TURN ON AGAIN The shutter can only be released when a memory card is NO CARD inserted. Insert a memory card. • The memory card is not formatted or the memory card has been formatted in a computer or other device: Format the memory card using D USER SETTING > FORMAT. CARD NOT INITIALIZED • The memory card contacts require cleaning: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card. If the message persists, replace the card. • Camera malfunction: Contact a FUJIFILM dealer. Turn the camera off, remove the lens, and clean the mounting surfaces, then replace the lens and turn the camera on. LENS ERROR If the problem persists, contact a FUJIFILM dealer. Technical Notes

• The memory card is not formatted for use in the camera: Format the card.

• The memory card contacts require cleaning or the memory card

CARD ERROR PROTECTED CARD BUSY

b MEMORY FULL WRITE ERROR FRAME NO. FULL Technical Notes

is damaged: Clean the contacts with a soft, dry cloth. If the message is repeated, format the card. If the message persists, replace the card. • Incompatible memory card: Use a compatible card. • Camera malfunction: Contact a FUJIFILM dealer. The memory card is locked. Unlock the card. The memory card is incorrectly formatted. Use the camera to format the card. The memory card is full and pictures can not be recorded. Delete pictures or insert a memory card with more free space. • Memory card error or connection error: Reinsert the card or turn the camera off and then on again. If the message persists, contact a FUJIFILM dealer. • Not enough memory remaining to record additional pictures: Delete pictures or insert a memory card with more free space. • The memory card is not formatted: Format the memory card. The camera has run out of frame numbers (current frame number is 999-9999). Format the memory card and select RENEW for D SAVE DATA SETTING > FRAME NO.. Take a picture to reset frame numbering to 100-0001, then select CONTINUOUS for FRAME NO..

Warning Messages and Displays

• The file is corrupt or was not created with the camera: The file can not be viewed.

• The memory card contacts require cleaning: Clean the con-

tacts with a soft, dry cloth. If the message is repeated, format the card. If the message persists, replace the card. • Camera malfunction: Contact a FUJIFILM dealer. An attempt was made to delete or rotate to a protected picPROTECTED FRAME ture. Remove protection and try again. The picture is damaged or was not created with the camera. CAN NOT CROP Print orders can contain no more than 999 pictures. Copy any additional pictures you wish to print to another memoDPOF FILE ERROR ry card and create a second print order. The selected picture can not be rotated. CAN NOT ROTATE Movies can not be rotated. F CAN NOT ROTATE The picture can not be printed using DPOF. CAN NOT SET DPOF F CAN NOT SET DPOF Movies can not be printed using DPOF. F CANNOT EXECUTE Red-eye removal can not be applied to movies. Red-eye removal can not be applied to pictures created m CANNOT EXECUTE with other devices. Turn the camera off and wait for it to cool. Mottling may p (yellow) increase in pictures taken when this warning is displayed. Turn the camera off and wait for it to cool. While this warning is displayed, movies can not be recorded, mottling may p (red) increase, and performance, including frame advance rate and display quality, may drop.

Memory Card Capacity The following table shows the recording time or number of pictures available at different image sizes. All figures are approximate; file size varies with the scene recorded, producing wide variations in the number of files that can be stored. The number of exposures or length remaining may not diminish at an even rate. Capacity

51 minutes 105 minutes h720/29.97P, 25P, 24P, 23.98P * Use a UHS speed class 1 card or better. Individual movies can not exceed 30 minutes in length.

O Although movie recording will continue without interruption when the file

size reaches 4 GB, subsequent footage will be recorded to a separate file which must be viewed separately.

Specifications System Model Product Number Effective pixels Image sensor Storage media Memory card slots File system

System Shutter speed

Mode P MECHANICAL SHUTTER 4 s to ¼ s E-FRONT CURTAIN SHUTTER ELECTRONIC SHUTTER MECHANICAL + 4 s to ⁄ s ELECTRONIC E-FRONT CURTAIN +

ELECTRONIC Continuous

• Available frame advance rates (JPEG): 3.0 fps • Approximate maximum number of shots per burst: 25

O The frame rate varies with shooting conditions and

the number of images recorded. In addition, the frame rate and number of frames per burst may vary depending on the type of memory card used.

• Mode: Single or continuous AF; manual focus with focus ring • Focus-area selection: SINGLE POINT, ZONE, WIDE/TRACKING • Autofocus system: TTL contrast-detect

Custom 1, Custom 2, Custom 3, color temperature selection, auto, direct sunlight, shade, daylight fluorescent, warm white fluorescent, cool white fluorescent, incandescent, underwater Off, 2 sec., 10 sec. • MODE: TTL MODE (FLASH AUTO, STANDARD, SLOW SYNC.), MANUAL, MULTI, OFF • SYNC. MODE: 1ST CURTAIN, 2ND CURTAIN, AUTO FP(HSS) • RED EYE REMOVAL: e FLASH+REMOVAL, L FLASH, d REMOVAL, OFF Accessory shoe with TTL contacts; supports sync speeds as fast as ⁄ s X contact; supports sync speeds as fast as ⁄ s Provided

Self-timer Flash mode

Hot shoe Sync contact Sync terminal

EVF-GFX1 interchangeable electronic viewfinder (supplied) • Rear monitor: 3.2-in/8.1 cm, 2360k-dot color LCD touch screen with 3-way tilt • Shoulder monitor: 1.28-in/3.25 cm, 128 × 128-dot memory LCD monitor h 720/29.97P Movies (with stereo i 1080/29.97P i 1080/25P h 720/25P sound) i 1080/24P h 720/24P i 1080/23.98P

Power supply/other Power supply Battery life

• NP-T125 rechargeable battery (supplied with camera) • AC-15V AC adapter (available separately) • Battery type: NP-T125 • Photographs: The number of frames varies with the option selected for AUTO POWER SAVE: Camera battery alone AUTO POWER SAVE LCD ON Approx. 400 OFF Approx. 340

EVF Approx. 400 Approx. 340

With battery grip AUTO POWER SAVE LCD EVF ON Approx. 800 Approx. 800 OFF Approx. 660 Approx. 660 • Movies: The length of footage that can be recorded varies with the movie mode: Continuance Actual Battery life of Battery life of movie Mode movie capture capture i Approx. 145 minutes Approx. 70 minutes CIPA standard, measured in mode P, using fully charged battery (NP-T125), GF63mmF2.8 R WR lens, and SD memory card. Note: Battery life varies with battery charge level and will decline at low temperatures. Camera size 147.5 mm × 94.2 mm × 91.4 mm (41.6 mm excluding projections, (W × H × D) measured at thinnest part)/5.81 in. × 3.71 in. × 3.60 in. (1.64 in.) Camera weight Approx. 740 g/26.1 oz., excluding battery, accessories, and memory card Shooting weight Approx. 825 g/29.1 oz., including battery and memory card Operating conditions • Temperature: −10 °C to +40 °C/+14 °F to +104 °F (+5 °C to +40 °C/41 °F to 104 °F when battery is charging) • Humidity: 10% to 80% (no condensation)

Wireless transmitter Standards IEEE 802.11b/g/n (standard wireless protocol) Operating frequency 2,412 MHz–2,462 MHz (11 channels) Access protocols Infrastructure EVF-GFX1 interchangeable electronic viewfinder Type OLED Size 0.5-in/1.3 cm Pixel count Approximately 3.69 million dots Magnification 0.85× with 50 mm lens (35 mm format) at infinity and diopter set to −1.0 m−1 Diagonal angle of Approximately 40° (horizontal angle of view approximately 33°) view Diopter adjustment −4 to +2 m−1 Eye point Approximately 23 mm Dimensions 53.6 mm × 36.4 mm × 80.1 mm/2.11 in. × 1.43 in. × 3.15 in. (W × H × D) Weight Approx. 95 g/3.35 oz. NP-T125 rechargeable battery Nominal voltage 10.8 V Nominal capacity 1250 mAh Operating −10 °C to +40 °C/+14 °F to +104 °F temperature Dimensions 36.0 mm × 54.4 mm × 26.0 mm/1.4 in. × 2.1 in. × 1.0 in. (W × H × D) Weight Approx. 81 g/2.9 oz.

BC-T125 battery charger Rated input 100 V – 240 V AC, 50/60 Hz Input capacity 23 –31 VA Rated output 12.6 V DC, 800 mA Supported batteries NP-T125 rechargeable batteries Charging time Approx. 140 minutes (+25 °C/+77 °F) Operating +5 °C to +40 °C/+41 °F to +104 °F temperature Dimensions 71.4 mm × 97.0 mm × 34.2 mm/2.8 in. × 3.8 in. × 1.4 in., excluding projections (W × H × D) Weight Approx. 120 g/4.2 oz. Weight and dimensions vary with the country or region of sale. Labels, menus, and other displays may differ from those on the actual camera.

O Specifications and performance are subject to change without notice.

FUJIFILM will not be held liable for any errors this manual may contain. The appearance of the product may differ from that described in this manual.

http://www.fujifilm.com/products/digital_cameras/index.html
