USER MANUAL HDVS-200-TX Atlona

Switcher for HDMI and VGA

with Ethernet-Enabled HDBaseT Output

ATLONA® INPUT VOL DISPLAY A HDMI IN 1 VGA IN AT-HDVS-200-TX HDMI PWR 1 VGA 2 AUDIO IN

FW RS-232 + TX RX HDMI IN 2 LAN HDBaseT OUT

ATLONA® INPUT VOL DISPLAY HDMI IN 1 VGA IN AT-HDVS-200-TX HDMI PWR 1 VGA 2 AUDIO IN

FW R5-232 + TX RX DC 48V HDMI IN 2 LAN HDBaseT OUT

Version Information

Version Release Date Notes
1 01/16 Initial release
2 05/17 Updated
3 07/17 New format

Welcome to Atlona!

Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware. Atlona product registration is voluntary and failure to register will not affect the product warranty.

To register your product, go to http://www.atlona.com/registration

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.877.536.3976 (US Toll-free)

Office: +1.408.962.0515 (US/International)

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

http://www.atlona.com/

International Headquarters

Atlona International AG

Ringstrasse 15a

8600 Dübendorf

Switzerland

Office: [phone]

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit http://www.atlona.com/product/AT-HDVS-200-TX and http://www.atlona.com/product/AT-HDVS-200-TX-PSK for the latest firmware updates and User Manual.

- Consumer Electronics Control (CEC): Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “off” command, and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure defined in HDMI 1.2a. It is recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

©2017 Atlona, Inc. All Rights Reserved. All trademarks are the property of their respective owners. Atlona reserves the right to make changes to the hardware, packaging, and documentation without notice.

Atlona, Inc. ("Atlona") Limited Product Warranty

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

- repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping.

OR

- replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products.

OR

- refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona products is the purchaser's exclusive remedy and Atlona liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013.
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013.
• Lifetime Limited Product Warranty for all cable products.

Limited Product Warranty Terms - Refurbished (B-Stock) Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June 1, 2013.

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packaging or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

Atlona, Inc. ("Atlona") Limited Product Warranty

• Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com.

Important Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Statement

FC

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference

to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Table of Contents

Introduction 8

Features 8

Package Contents 8

Panel Description 9

Installation 10

RS-232 Connector 10

Connection Instructions 10

Connection Diagram 11

IP Configuration 12

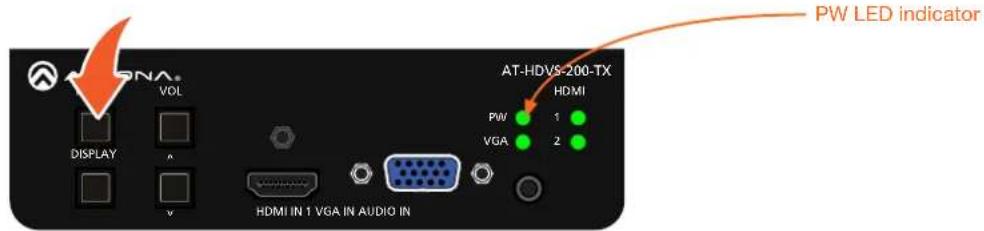

Using the Front Panel 12

Using Commands 12

Using the Web GUI 13

The Web GUI 14

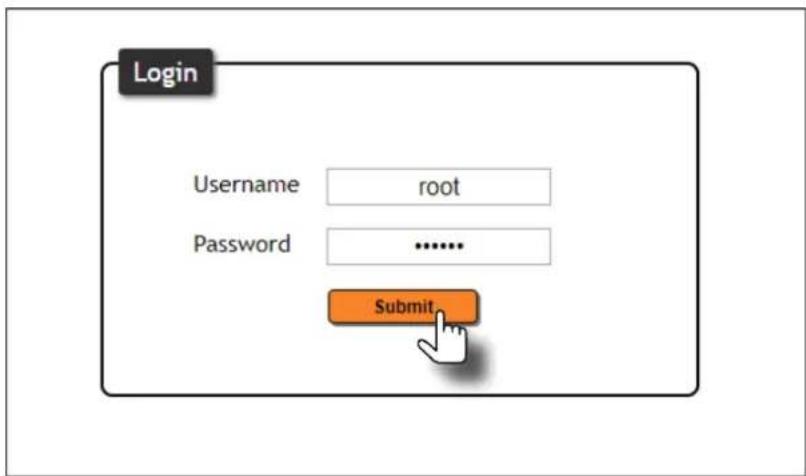

Introduction to the Web GUI 14

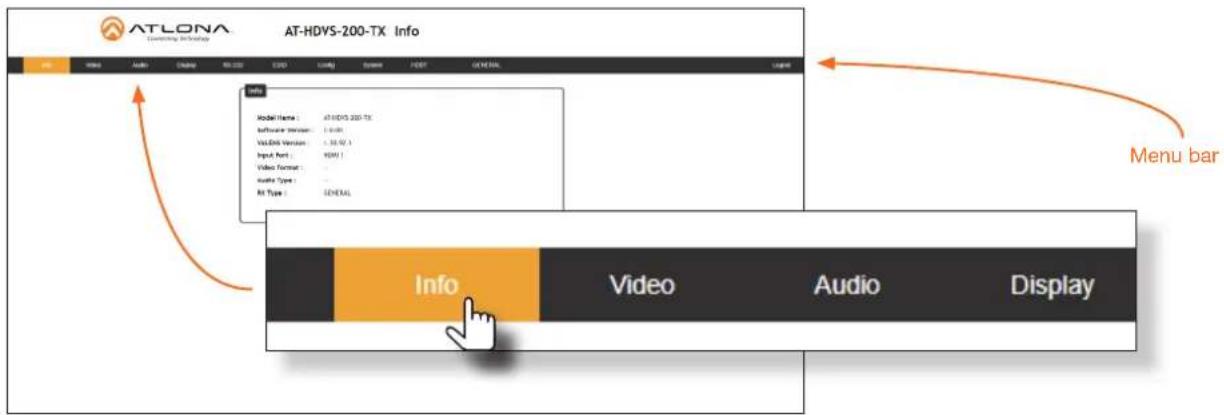

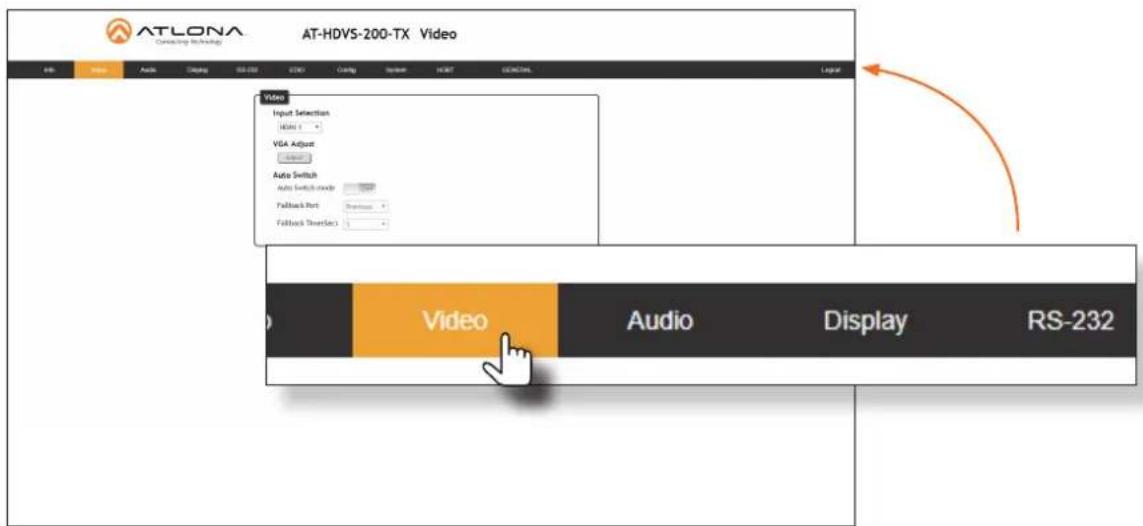

Menu Bar 15

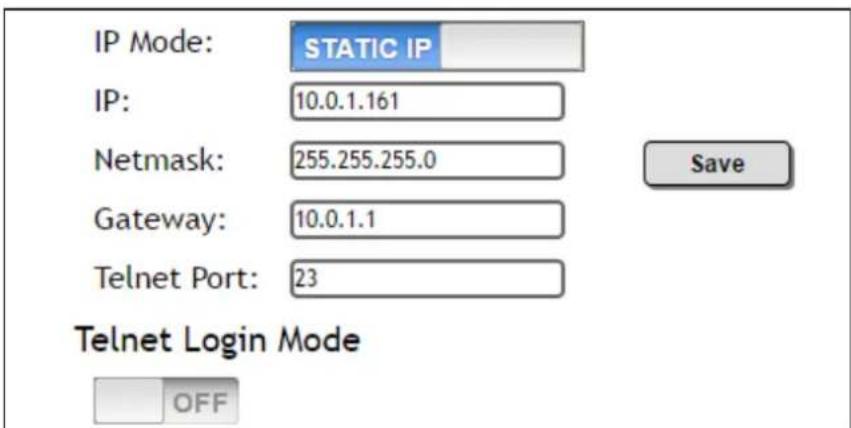

Toggles 16

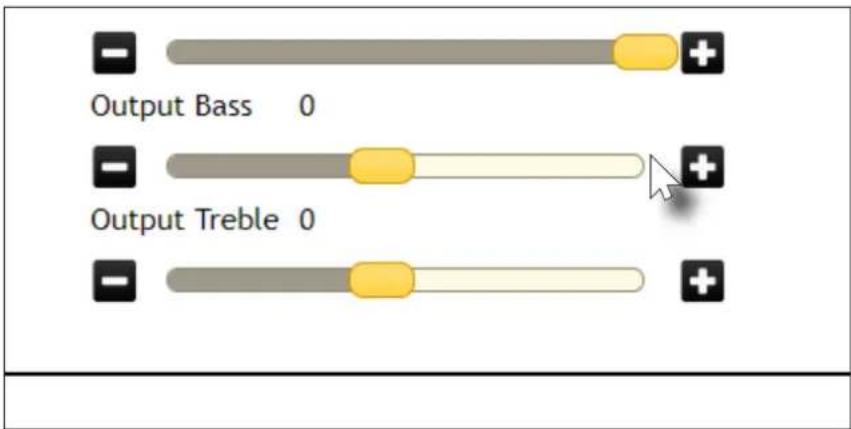

Sliders 16

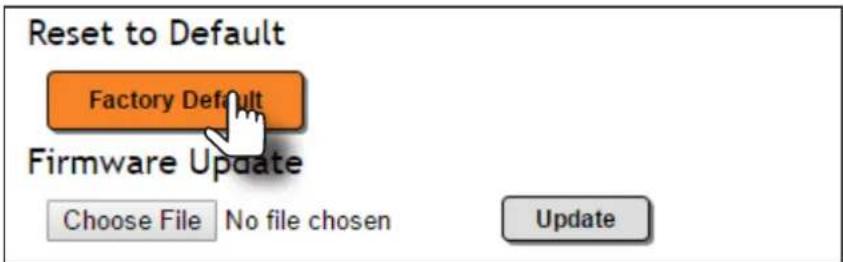

Buttons 16

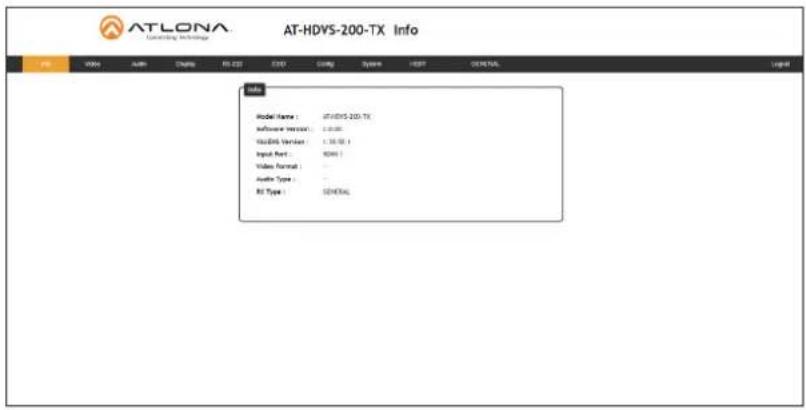

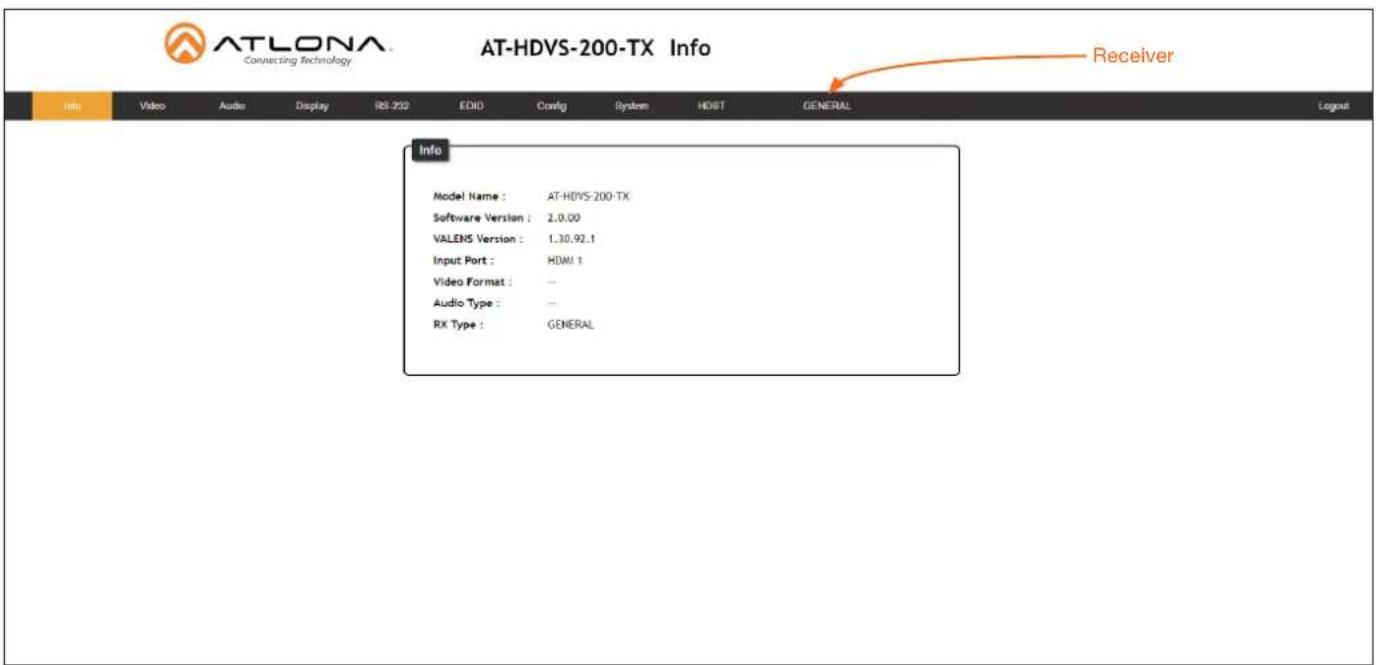

Info page 17

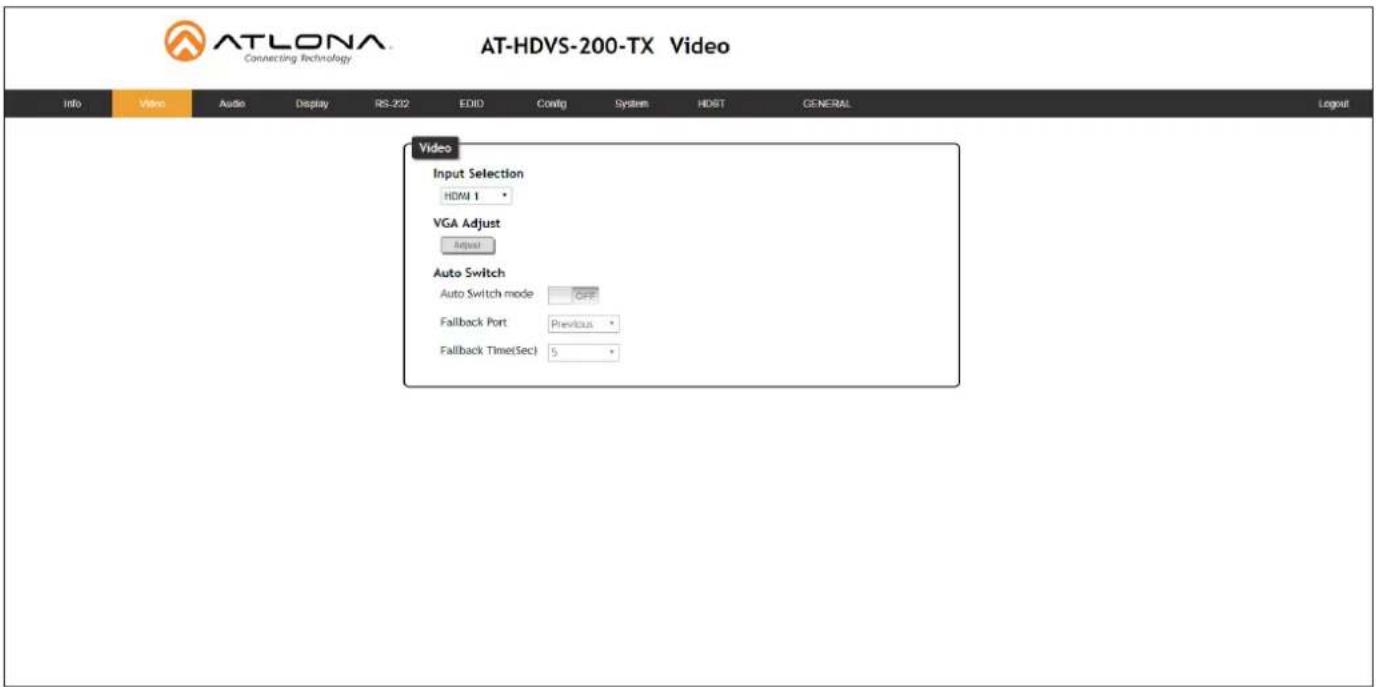

Video page 18

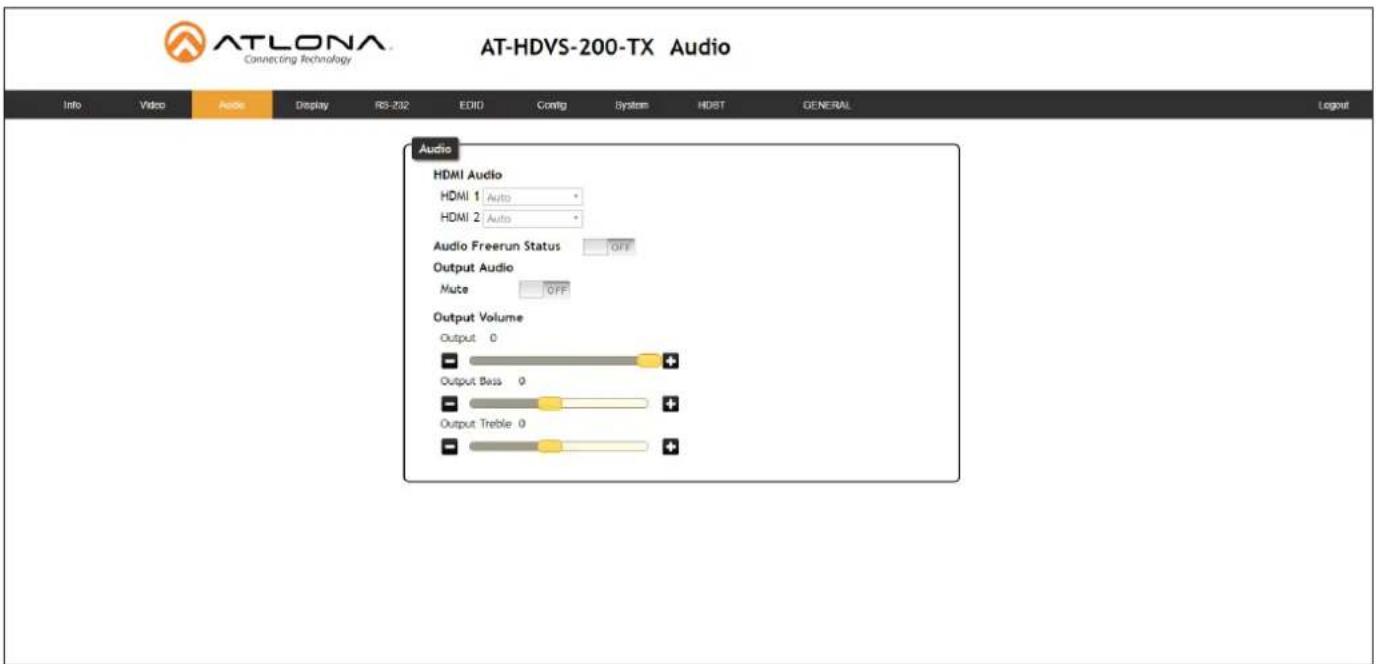

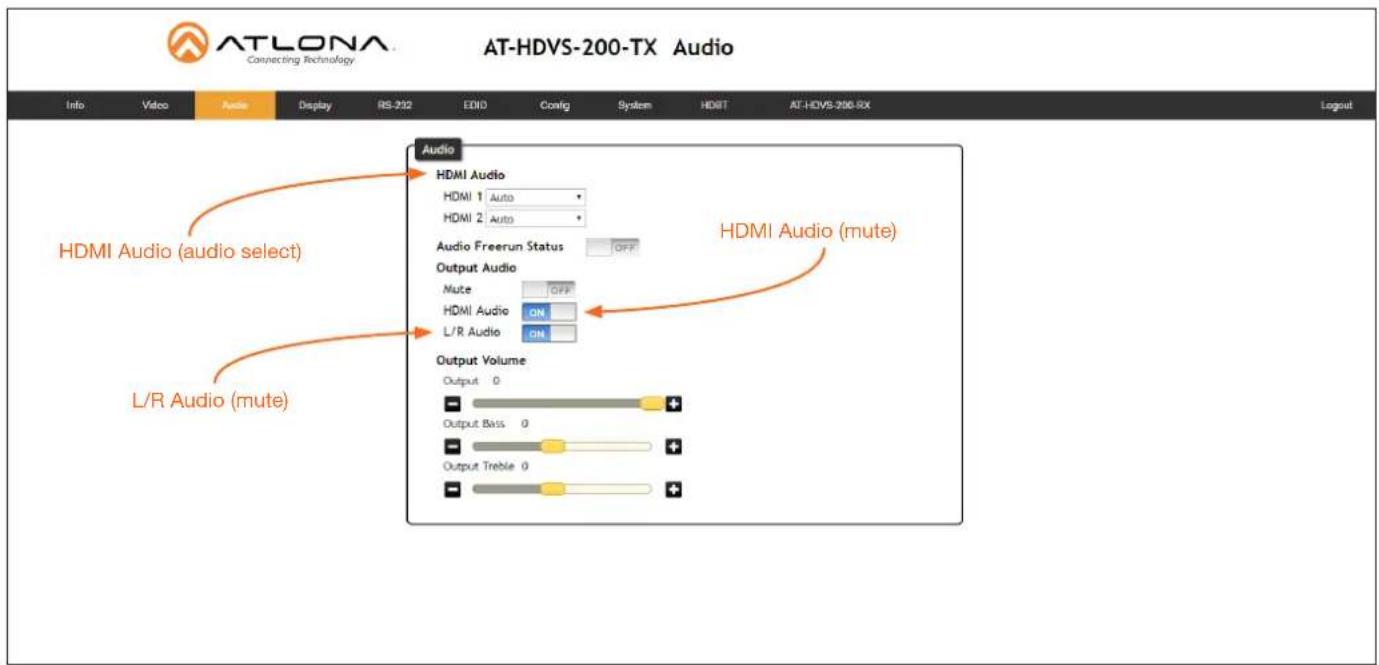

Audio page 19

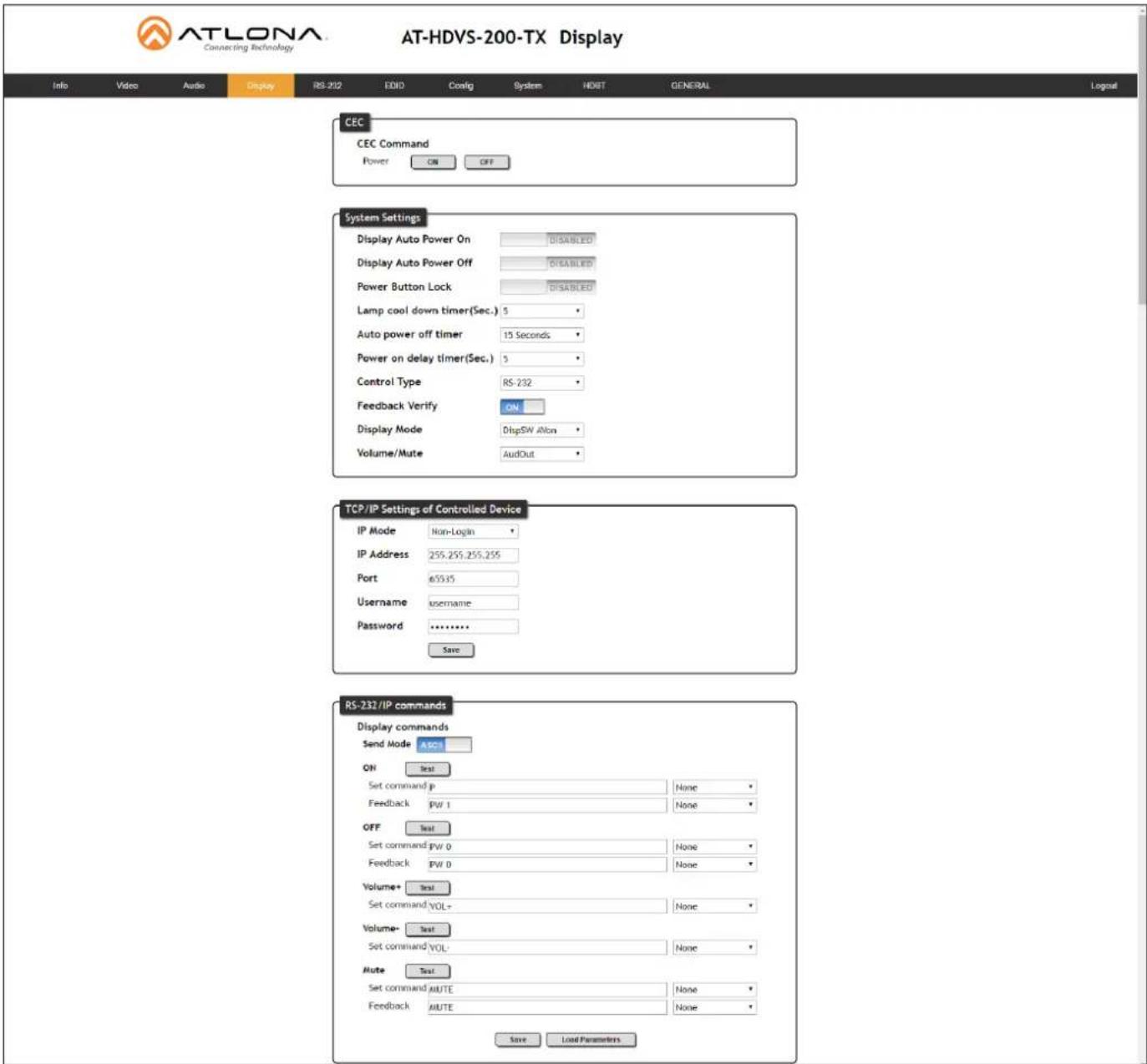

Display page 21

CEC 21

System Settings 22

TCP/IP Settings of Controlled Devices 23

RS-232 / IP Commands 24

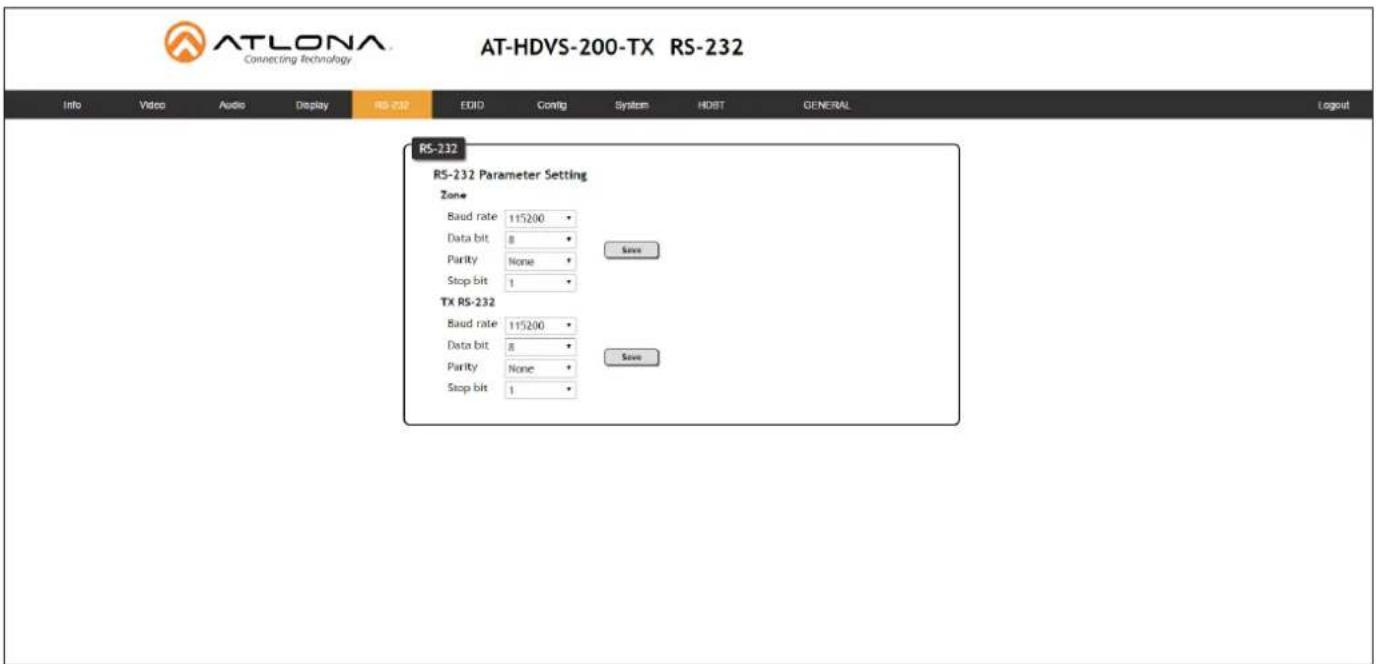

RS-232 page 25

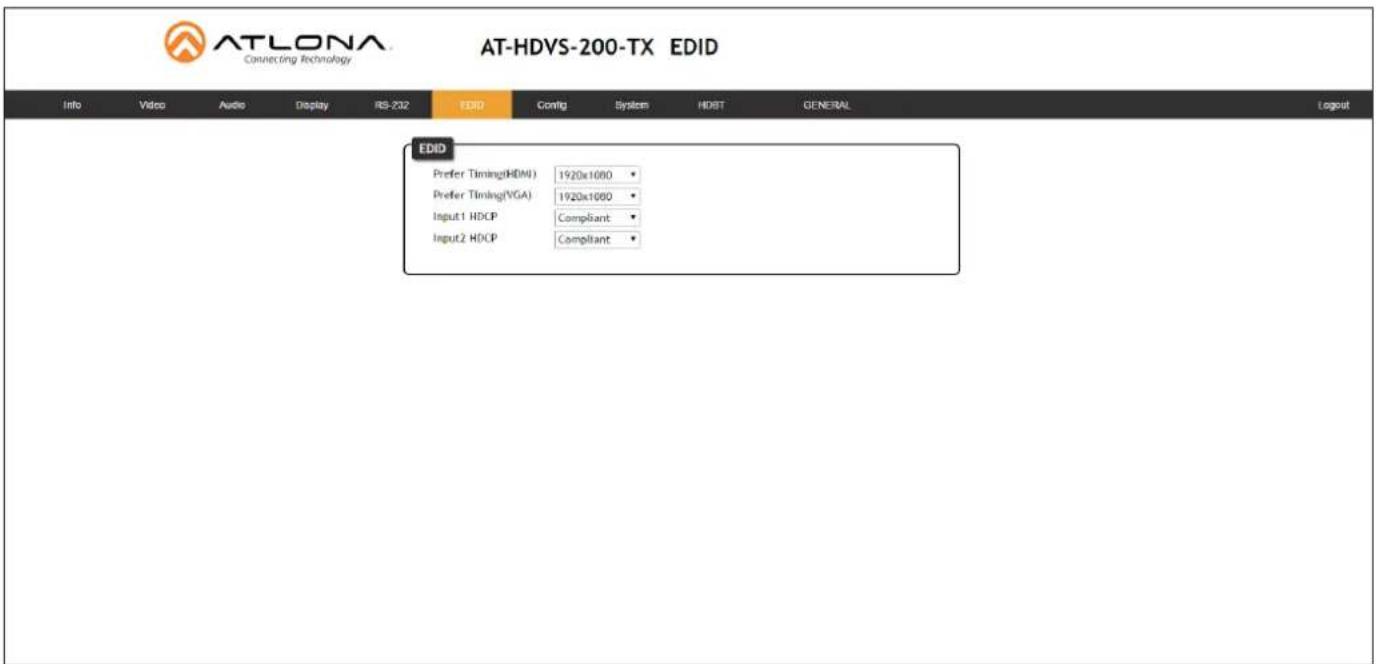

EDID page 26

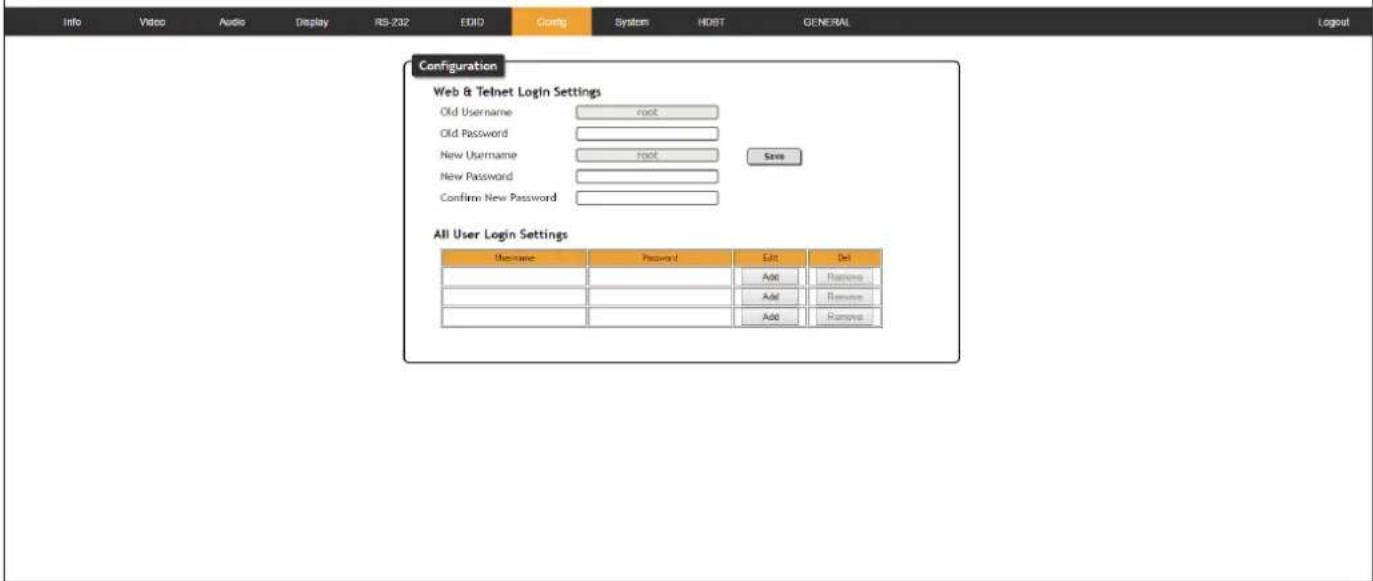

Config page 27

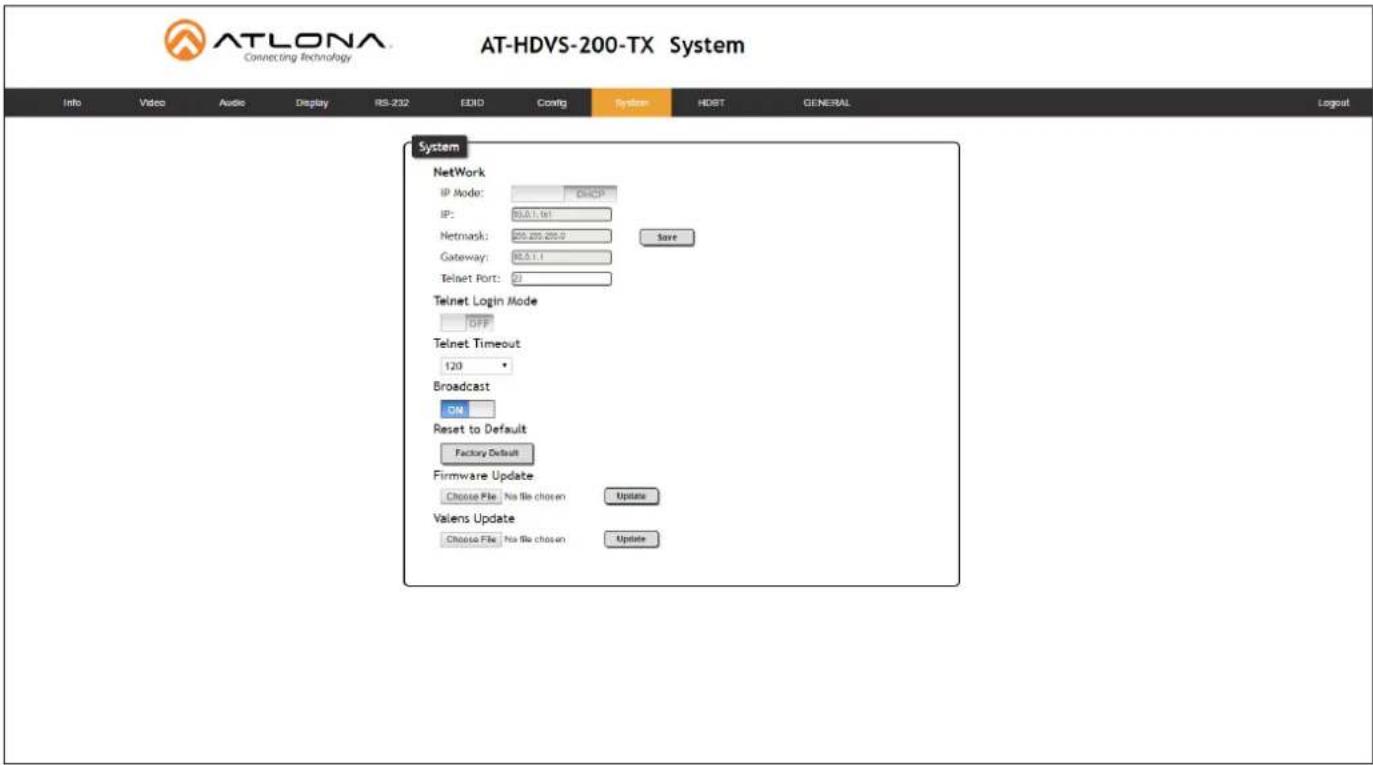

System page 28

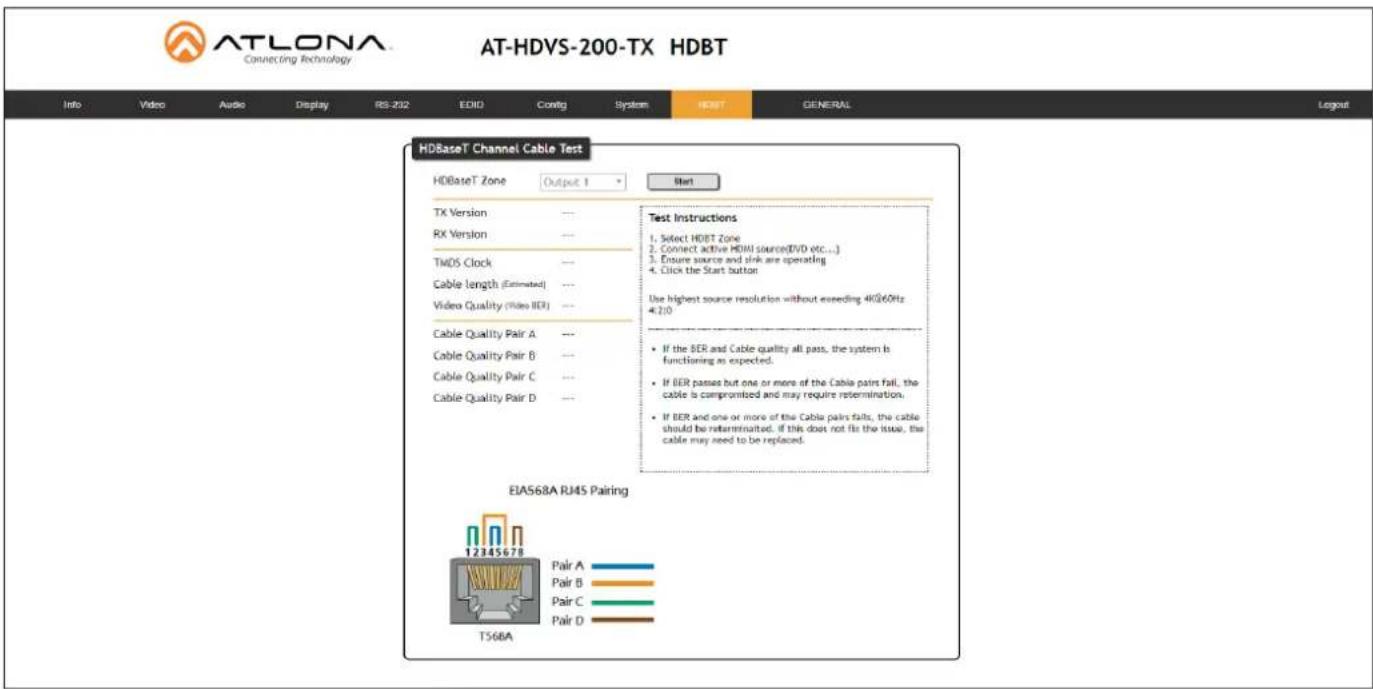

HDBT page 30

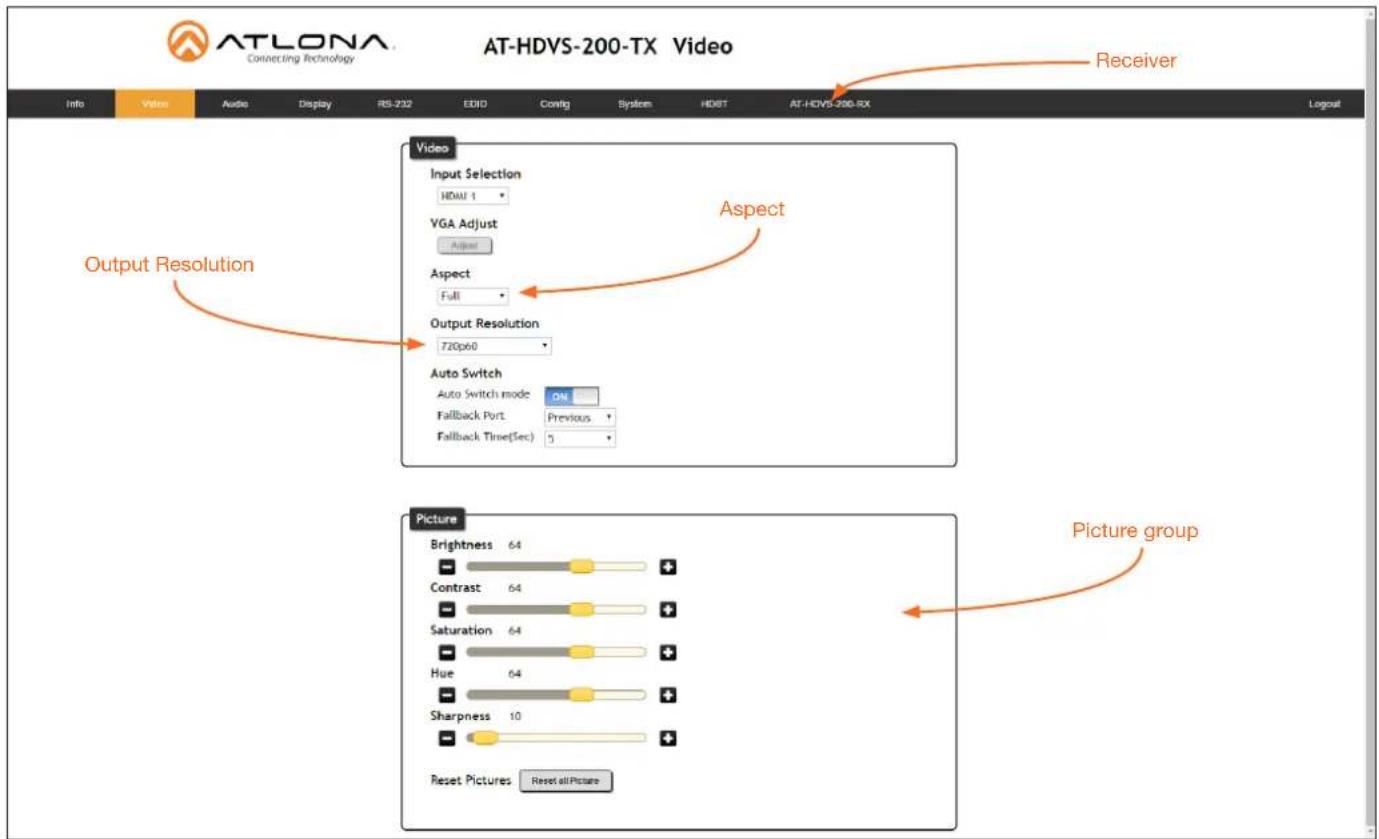

Kit Mode 31

Video 31

Audio 33

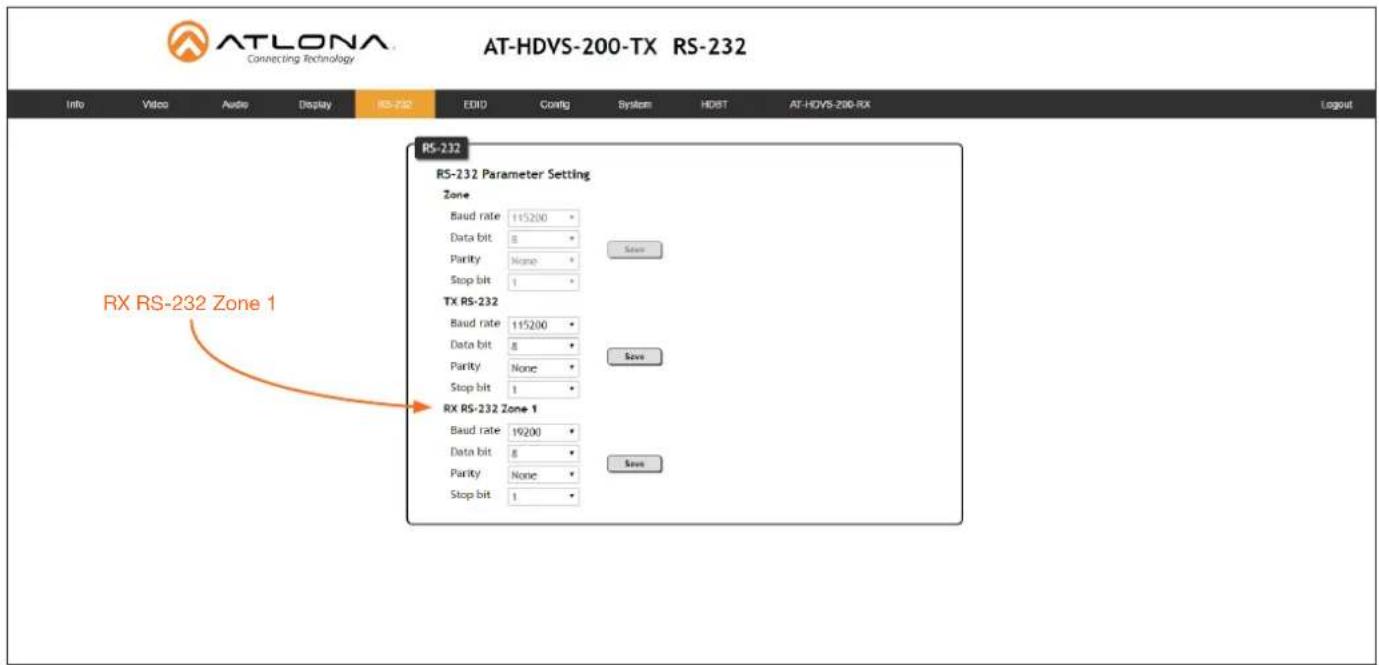

RS-232 34

Commands 35

Appendix 65

Updating the Firmware 65

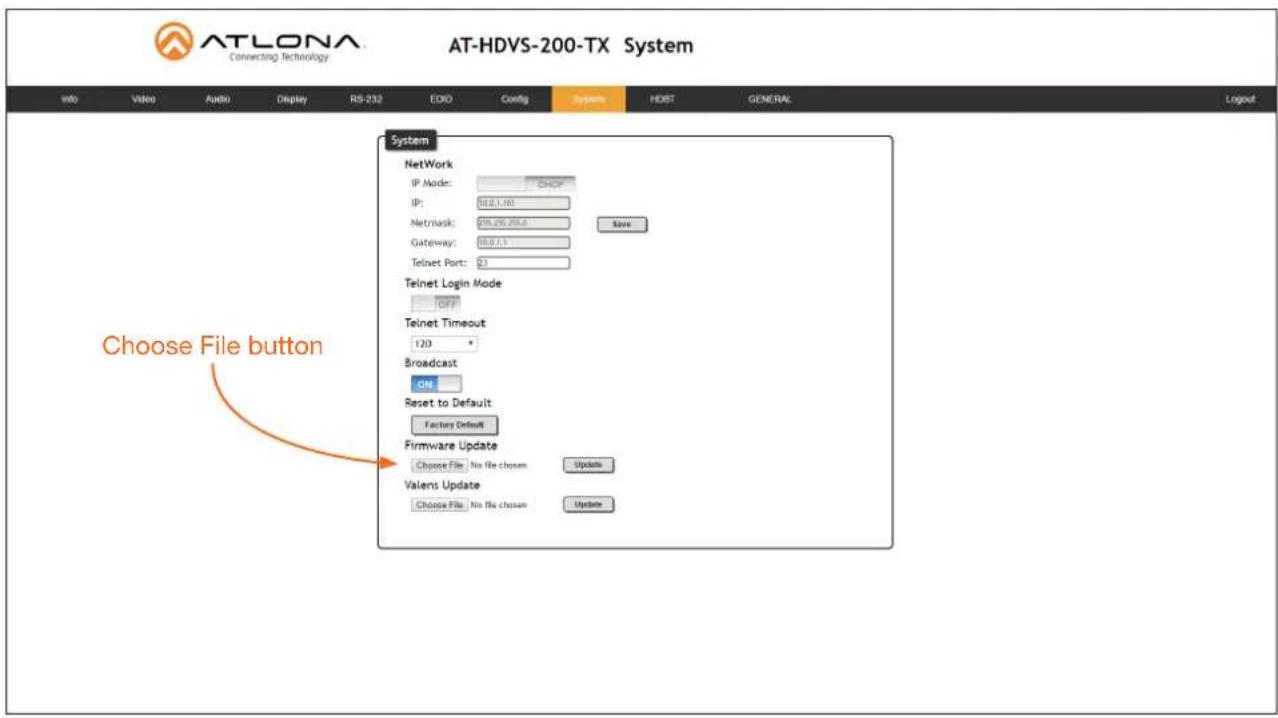

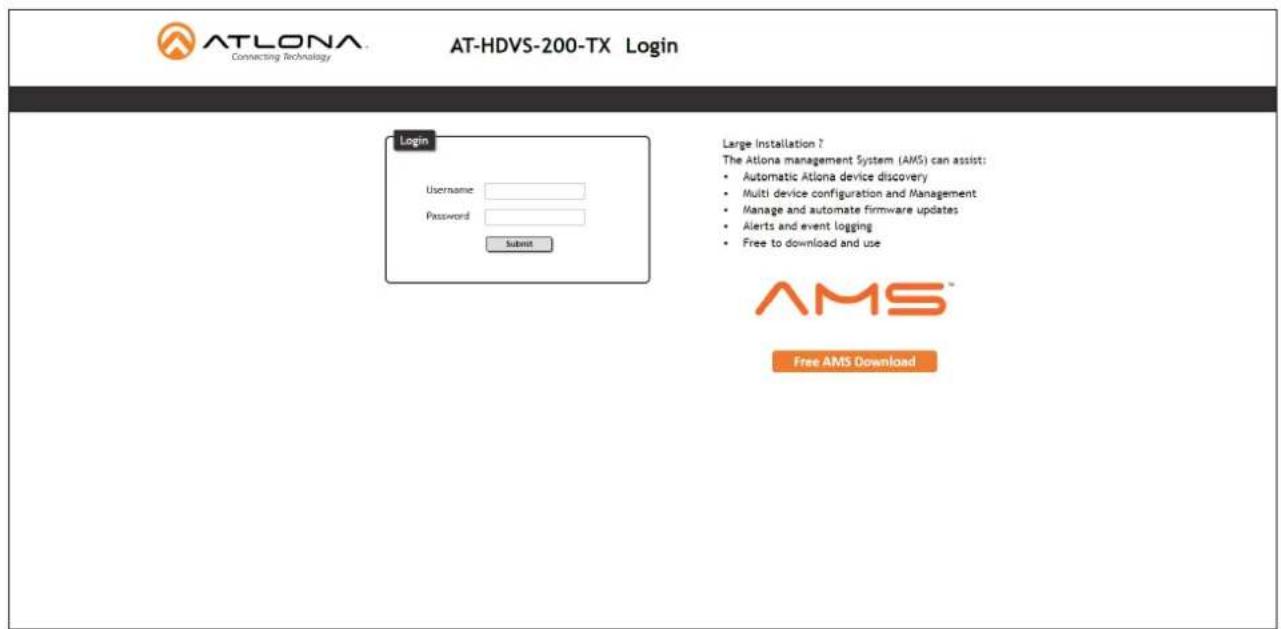

Using the Web GUI 65

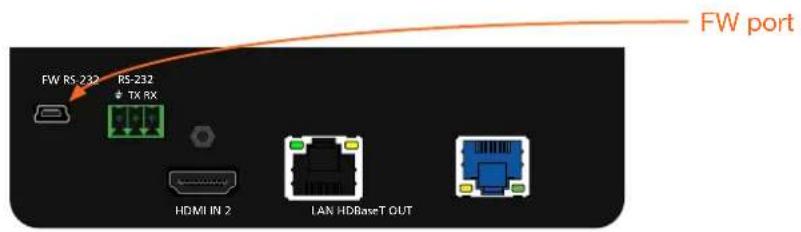

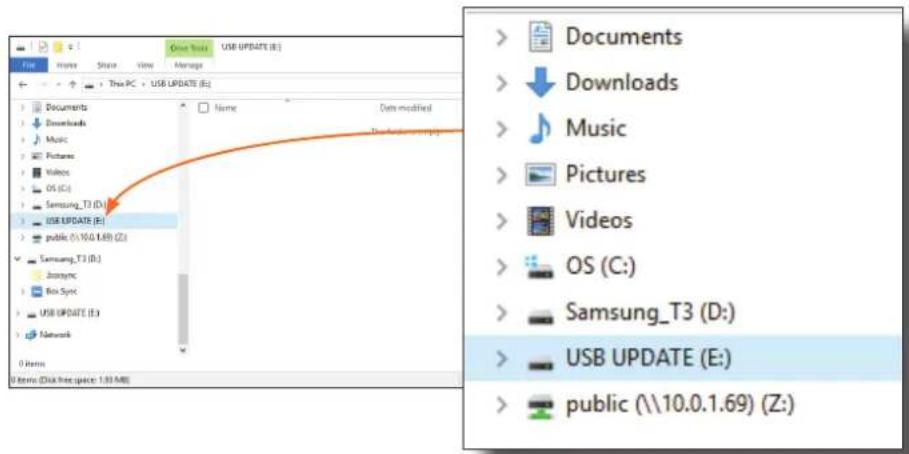

Using USB 66

Default Settings 68

Specifications 69

Index 71

Introduction

The Atlona AT-HDVS-200-TX is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to any of the video inputs and embedded for HDBaseT transmission. The HDVS-200-TX is designed for use with the AT-HDVS-200-TX receiver and HD scaler, but can also be used with the AT-UHD-EX-100CE-RX-PSE receiver for 4K/UHD extension, as well as Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the HDVS-200-RX or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

The Atlona AT-HDVS-200-TX-PSK is identical to the AT-HDVS-200-TX, with the addition of local powering capability and an external power supply. This makes it ideal for extending AV and control directly to a projector with an HDBaseT input. The HDVS-200-TX-PSK can serve as the central component of a compact, fully automated AV system with the convenience of automatic input selection, and by sending RS-232 or Ethernet control commands to the projector. With automatic display control capability, the HDVS-200-TX-PSK can power the projector on or off whenever a source is connected or disconnected from the unit.

Features

• 3×1 HDBaseT™ switcher with two HDMI® inputs and one VGA input
• Ideal for the AT-HDVS-200-TX scaling receiver and Atlona HDBaseT-equipped switchers
• HDBaseT transmitter for A/V, Ethernet, power, and control up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-UHD-EX-100CE-RX-PSE receiver)
• Includes external power supply (AT-HDVS-200-TX-PSK only) – ideal for point-to-point installations with an HDBaseT-equipped display or projector.
  • Automatic input selection and automatic display control
• Front panel input selection, display on/off, and volume control
  • TCP/IP and RS-232 control

Package Contents

AT-HDVS-200-TX AT-HDVS-200-TX-PSK

1 x AT-HDVS-200-TX

1 x Captive screw connector, 3-pin

1 x Mounting brackets

1 x Installation Guide

1 x AT-HDVS-200-TX-PSK

1 x Captive screw connector, 3-pin

1 x 48V DC power supply

1 x Mounting brackets

1 x Installation Guide

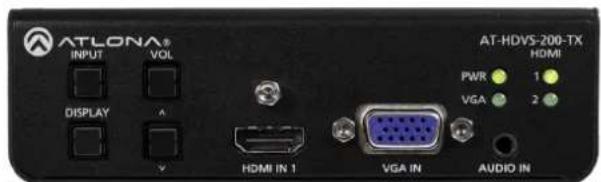

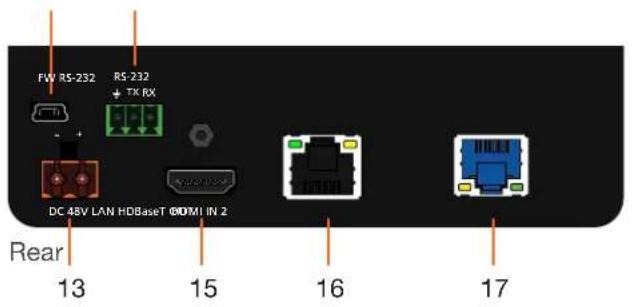

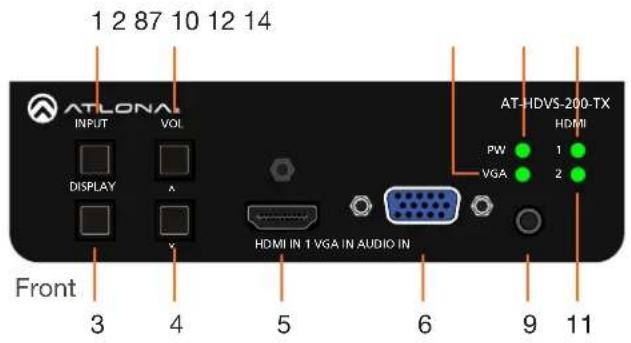

Panel Description

1 2 87 10 12 14 ATLONA INPUT VOL DISPLAY A HDMI IN 1 VGA IN AUDIO IN Front 3 4 5 6 9 11 AT-HDVS-200-TX HDMI PW 1 VGA 2

FW RS-232 RS 232 + TX RX DC 48V LAN HDBaseT 60M1 IN 2 Rear 13 15 16 17

1 INPUT

Press this button to cycle through each of the available inputs: HDMI IN 1, HDMI IN 2, and VGA IN.

2 VOL

Press this button to adjust the volume on the connected display and to select items within the OSD.

3 DISPLAY

Press this button to show the On-Screen Display (OSD), increase the volume level on the display, and select items within the OSD. This button will glow bright blue when the unit is powered.

4 DOWN CURSOR

Press this button to scroll down within the OSD or decrease the volume level on the display.

5 HDMI IN 1

Connect an HDMI cable from this port to an HD source.

6 VGA IN

Connect a VGA cable from this port to a VGA source.

7 VGA

This LED indicator will glow bright green when the VGA IN port is selected.

8 PW

This LED indicator will glow bright green when the switcher is powered.

9 AUDIO IN

Connect a 3.5mm mini-stereo audio cable, from an analog audio source, to this port.

10 HDMI 1

This LED indicator will glow bright green when the HDMI IN 1 port is selected.

11 HDMI 2

This LED indicator will glow bright green when the HDMI IN 2 port is selected.

12 FW

Connect a mini USB to USB-A type cable from this port to a computer to update the firmware. Refer to Updating the Firmware (page 65) for more information.

13 DC 48V

Connect the power supply to this port to power an HDBaseT receiver, projector, or other PoE device.

NOTE: The DC 48V port is only available on the AT-HDVS-200-TX-PSK.

14 RS-232

Connect the included 3-pin Phoenix block from this connector to an RS-232 control device.

15 HDMI IN 2

Connect an HDMI cable from this port to an HD source.

16 LAN

Connect an Ethernet cable from this port to the network.

17 HDBaseT OUT

Use an Ethernet cable to connect an HDBaseT PoE receiver to this port.

Installation

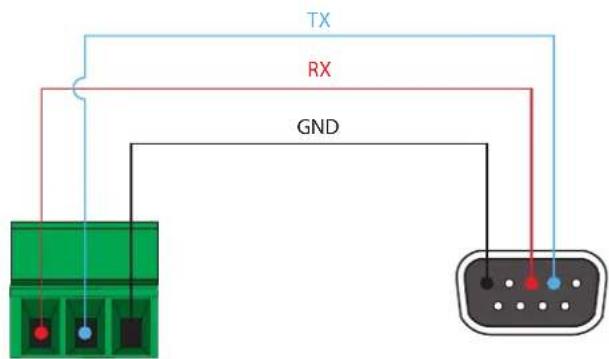

RS-232 Connector

The AT-HDVS-200-TX provides RS-232 control between an automation system and an RS-232 device. This step is optional.

1. Use wire strippers to remove a portion of the cable jacket.

2. Remove at least 3/16" (5 mm) from the insulation of the RX, TX, and GND wires.

3. Insert the TX, RX, and GND wires into correct terminal on the included Phoenix block. If using non-tinned stranded wire, presss the orange tab, above the terminal, while inserting the exposed wire. Repeat this step for the TX, RX, and GND connections.

Green 3D mechanical component with three circular holes (no text or symbols)

TX RX GND

Connection Instructions

AT-HDVS-200-TX / AT-HDVS-200-TX-PSK

1. Connect an HDMI cable between the HD source and the HDMI IN 1 port on the switcher.
2. Connect another HDMI cable between another HD source and the HDMI IN 2 port on the switcher.
3. Connect a VGA cable from a VGA source to the VGA IN port on the switcher.
4. Connect a 3.5 mm mini-stereo cable from the AUDIO IN port on the switcher to the analog audio source. The AT-HDVS-200-TX can pass audio either with or without a video signal. Refer to the Audio Freerun Status option under the Audio page (page 19).
5. Connect an Ethernet cable, up to 330 feet (100 meters), from the LAN port on the switcher to a Local Area Network (LAN). Refer to the System page (page 28) for information on switching between DHCP and static IP modes.

IMPORTANT: If EZ RJ-45 connectors are being used to terminate Ethernet cable, make sure that each twisted pair does not extend beyond the RJ-45 connector. Exposed twisted-pair wires may cause a short when connected to the LAN port.

1. Connect an Ethernet cable, up to 230 feet (70 meters), from the HDBaseT OUT port on the switcher to a PoE-compatible transmitter (not included). Ethernet cables should use EIA/TIA-568B termination.

2. OPTIONAL: Connect an RS-232 control device to the RS-232 port on the switcher. This port is used to control functions of the AT-HDVS-200-TX, such as volume up/down, display on/off, etc.

No power supply is required for the AT-HDVS-200-TX. This unit will be powered over the Ethernet cable, from an HDBaseT receiver.

AT-HDVS-200-TX-PSK Only

1. Connect the included power supply to the DC 48V port. Powering the AT-HDVS-200-TX-PSK will provide power to other HDBaseT receivers or projectors that require power.

2. Connect the power supply to an available AC outlet.

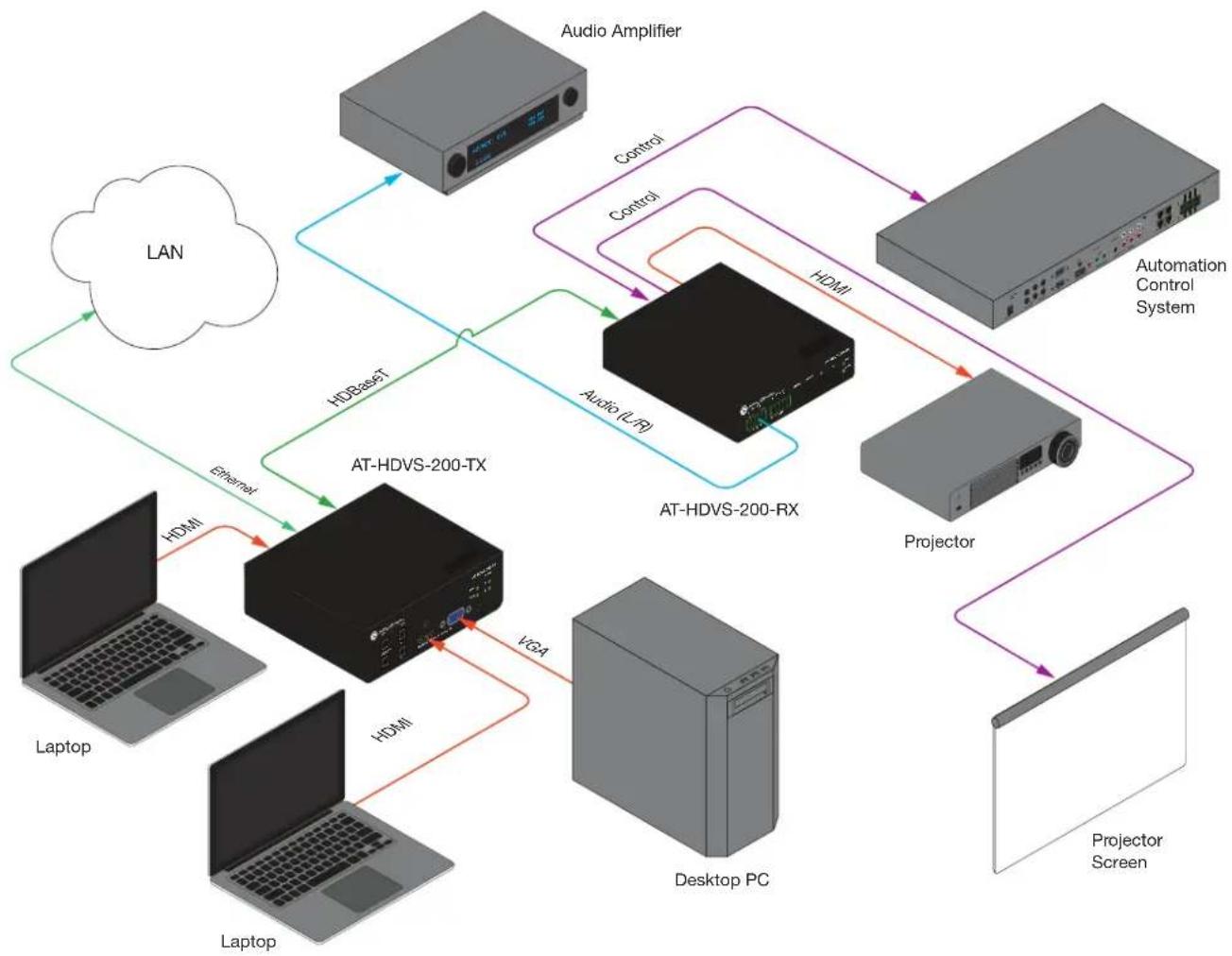

Connection Diagram

IP Configuration

The AT-HDVS-200-TX is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Use an IP scanner, along with the MAC address on the bottom of the unit, to identify both the unit and its IP address on the network. If a static IP address is desired, the unit can be switched to static IP mode. Use one of the following procedures to switch between DHCP and static IP mode. The default static IP address of the AT-HDVS-200-TX is 192.168.1.254.

Using the Front Panel

1. Make sure the AT-HDVS-200-TX is powered.
2. Press and hold the INPUT button for approximately 15 seconds.

AT-HDVS-200-TX HDMI PW 1 VGA 2 DISPLAY VOL HDMI IN 1 VGA IN AUDIO IN PW LED indicator

1. Release the INPUT button once the PW LED indicator begins to flash. The number of flashes will indicate the currently selected IP mode.

PW LED flashes Description
Two Static IP mode
Four DHCP mode

Using Commands

Use the IPStatic and IPDHCP commands to switch between DHCP and IP mode through RS-232 or Telnet. Refer to Commands (page 35), for more information. All commands and their arguments are case-sensitive.

- Setting static IP mode

1. Connect to the AT-HDVS-200-TX using RS-232 or Telnet.
2. At the command line, execute the IPDHCP command using the off argument, as shown.

IPDHCP off

1. Execute the IPStatic command. This command requires three arguments: the desired IP address of the AT-HDVS-200-TX, the subnet mask, and the gateway address. All arguments must be entered in dot-decimal notation. The following is an example:

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1

- Setting DHCP mode

1. Connect to the AT-HDVS-200-TX using RS-232 or Telnet.
2. At the command line, execute the IPDHCP command using the on argument, as shown. All characters are case-sensitive.

IPDHCP on

Once DHCP is enabled, the unit will be assigned an IP address by the DHCP server (if present).

Using the Web GUI

The System page (page 28), in the web GUI, allows the AT-HDVS-200-TX to use either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-HDVS-200-TX must be known.

1. Open the desired web browser and enter the IP address of the AT-HDVS-200-TX.
2. Log in, using the required credentials. The factory-default username and password are listed below:

Username: root

Password: Atlona

1. Click the System tab.

AT-LONA Connecting Technology AT-HDVS-200-TX System Info Video Audio Display RS 232 EOOD Config System HDBT GENERAL Logout System NetWork IP Mode: DHCP IP: 0.1.1 Netmask: 255.255.255.0 Save Gateway: 0.1.1 Telnet Port: 0 Telnet Login Mode CPIP Telnet Timeout 120 IP Mode: STATIC IP IP: 10.0.1.161 Netmask: 255.255.255.0 Save Gateway: 10.0.1.1 Telnet Port: 23

1. Click the IP Mode toggle to switch between the DHCP and STATIC IP setting.

When set to STATIC IP, the IP, Netmask, and Gateway fields can be modified.

1. Click the Save button to save the changes.

The Web GUI

Introduction to the Web GUI

The AT-HDVS-200-TX includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDVS-200-TX, as it provides intuitive management of all features.

The AT-HDVS-200-TX is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. Use an IP scanner to determine the IP address of the AT-HDVS-200-TX. If a static IP address is desired, refer to IP Configuration (page 12). The default static IP address of the AT-HDVS-200-TX is 192.168.1.254.

1. Launch a web browser.

2. In the address bar, type the IP address of the AT-HDVS-200-TX.

3. The Login page will be displayed.

AT-LONA Consulting Technology AT-HDVS-200-TX Login Login Domestic Password: Main Large Installation ? The Altions management system (AltS) can assist: • Automatic Altions device democracy • Multi device configuration and Management • Manage and automate firmware updates • Alerts and events tagging • Free to download and use AMS Free AMS Download

1. Type root, using lower-case characters, in the Username field.
2. Type Atlona in the Password field. This is the default password. The password field is case-sensitive. When the password is entered, it will be masked. The password can be changed, if desired. Refer to the Config page (page 27) for more information.
3. Click the Submit button or press the ENTER key on the keyboard.

Login Username root Password .......... Submit

7. The Info page will be displayed.

AT-LONA AT-HDYS-200-TX Info Model Name: AT-HDYS 200-TX Software Version: 1.0000 Video/DVD Version: 1.18.001 Input Port: 9000 Video Format: ... Audio Type: ... RS Type: GENERAL

Menu Bar

The dark-colored bar, near the top of the screen, is the menu bar. When the mouse is moved over each menu element, it will be highlighted in light orange. Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu.

ATLONA Information Technology AT-HDYS-200-TX Info Info Model Name: AT-HDYS-200-TX Software Version: 1.0 MB Video Version: 1.56 GB Input Port: HDMI Video Format: Audio Type: Alt Type: GENERAL Info Video Audio Display Menu bar

In this example, clicking Video, in the menu bar, will display the Video page.

ATLONA Drawing Technology AT-HDVS-200-TX Video File Edit Audio Dialog ISO-200 ISO Control Window HERT ISO2004 Video Input Selection Auto 1 VGA Adjust Auto Switch Auto Switch commands Fallback Port Fallback Transfer(S) Video Audio Display RS-232

Toggles

Several settings within the Web GUI use toggles, which enable, disable, or assign one of two settings. Generally, when the toggle is blue, it means that the feature is enabled or ON. If a feature is disabled, then the toggle will appear gray and be labeled as OFF. Toggle buttons may also indicate its current setting and, when enabled or set to a particular state, may also provide access to another set of controls or text fields within the Web GUI, as shown with the IP Mode toggle.

IP Mode: STATIC IP IP: 10.0.1.161 Netmask: 255.255.255.0 Gateway: 10.0.1.1 Telnet Port: 23 Telnet Login Mode OFF Save

Sliders

Click and drag slider controls to change their value.

Output Bass 0 Output Treble 0

Buttons

Buttons are used to execute an action or setting. Several pages within the Web GUI include a Save button. Clicking the Save button will apply and save all settings in the current page. Other buttons, such as the Factory Defaults button, under the System page, will reset the AT-HDVS-200-TX to factory-default settings.

Reset to Default Factory Default Firmware Update Choose File No file chosen Update

Info page

After logging in, the Info page will be displayed. The Info page provides basic information about the receiver, including the model name, software version, input video timing, and the device being using as the transmitter.

AT-LONA Connecting Technology AT-HDVS-200-TX Info Info Video Audio Display RS-202 EOID Config System HDBT GENERAL Logout Info Model Name : AT-HDVS-200-TX Software Version : 2.0.00 VALENS Version : 1.30.92.1 Input Port : HDMI 1 Video Format : -- Audio Type : -- RX Type : GENERAL

Model Name

The model SKU of this product.

Software Version

The version of firmware that the AT-HDVS-200-TX is running. Always make sure to check the AT-HDVS-200-TX product page, on the Atlona web site, for the latest version of firmware.

VALENS Version

The version of firmware used by the Valens chipset.

Video Format

Displays the input resolution of the source device.

RX Type

The model of the connected PoE-compatible receiver unit. If the AT-HDVS-200-TX is connected to a receiver, other than the AT-HDVS-200-RX, then the text "GENERAL" will be displayed here, and in the menu ribbon. However, if connected to the AT-HDVS-200-RX (using the HDBaseT port), this text will change to the name of the device and acts as a hyperlink to the AT-HDVS-200-RX web GUI. When the AT-HDVS-200-TX is connected to the AT-HDVS-200-RX, the system will be placed in kit mode. In kit mode, additional options will be available under the Video page and the RS-232 page. Refer to Kit Mode (page 31) for more information.

Video page

AT-LONA Connecting Technology AT-HDVS-200-TX Video Info Video Audio Display RS-232 EDID Config System HD&T GENERAL Logout Video Input Selection HDMI 1 VGA Adjust Adjust Auto Switch Auto Switch mode OFF Fallback Port Previous Fallback Time(Sec) 5

Input Selection

Click this drop-down list to select the desired input.

VGA Adjust

In most situations, adjustment of the VGA signal should not necessary. However, if the VGA signal does not appear correctly, click the Adjust button to automatically correct the clock and phase.

Auto Switch

Three controls are available under the Auto Switch feature.

• Click the Auto Switch mode toggle to enable or disable auto-switching.
• Click the Fallback Port drop-down list to select the fallback port. If the source is disconnected from the active port, then the switcher can be configured to automatically switch to the desired port. Click the Auto Switch mode toggle to enable or disable auto-switching.

Setting Description

HDMI 1 Automatically switches to HDMI 1.

HDMI 2 Automatically switches to HDMI 2.

VGA Automatically switches to VGA.

Previous The switcher will return to the previous (last connected) input. If no input is found, then it will attempt to switch to a ternary port.

- Click the Fallback Time (Sec) drop-down list and select the time interval before the switcher attempts to search for the next port. Range: 3 to 600.

When the system is in kit mode, additional options will be available. Refer to Kit Mode (page 31) for more information.

Audio page

AT-HDVS-200-TX Audio Info Video Audio Display RS-202 EDD Config System HDBT GENERAL Logout Audio HDMI Audio HDMI 1 Auto HDMI 2 Auto Audio Freerun Status OFF Output Audio Mute OFF Output Volume Output 0 Output Bass 0 Output Treble 0

HDMI Audio

These drop-down lists are only available when the system is in kit mode. Refer to Kit Mode (page 31) for more information.

Audio Freerun Status

Audio can be passed, without the presence of a video signal. To enable this functionality, click the Audio Freerun Status toggle to the ON position. To pass both video and audio, this toggle must be set to the OFF position.

IMPORTANT: Setting the Audio Freerun Status to ON is not recommended. When set to ON, both video auto switching and display control are disabled.

Mute

Click this toggle to the OFF position to mute all audio on the output.

HDMI Audio

Click this toggle to the OFF position to mute only the HDMI audio.

Output

Click and drag this slider bar to adjust the output audio volume. Range: -80 to 0.

Output Bass

Click and drag this slider bar to adjust the bass of the audio output. Range: -12 to 15.

Output Treble

Click and drag this slider bar to adjust the treble of the audio output. Range: -12 to 15.

The Web GUI

L/R Audio

Click this toggle to the OFF position to mute only the analog audio.

Output

Click and drag this slider bar to adjust the output audio volume. Range: -80 to 0.

Output Bass

Click and drag this slider bar to adjust the bass of the audio output. Range: -12 to 15.

Output Treble

Click and drag this slider bar to adjust the treble of the audio output. Range: -12 to 15.

Display page

AT-LONA Connecting Technology AT-HDVS-200-TX Display Info Video Audio Display RS-212 EDID Config System HDBT GENERAL Lognal CEC CEC Command Power ON OFF System Settings Display Auto Power On DISABLED Display Auto Power Off DISABLED Power Button Lock DISABLED Lamp cool down timer(Sec.) 5 Auto power off timer 15 Seconds Power on delay timer(Sec.) 5 Control Type RS-232 Feedback Verify ON Display Mode DispSW AMon Volume/Mute AudOut TCP/IP Settings of Controlled Device IP Mode Non-Login IP Address 255.255.255.255 Port 65535 Username username Password .......... Save RS-232/IP commands Display commands Send Mode ASCS ON Test Set command p None Feedback PW 1 None OFF Test Set command PW 0 None Feedback PW 0 None Volume+ Test None Set command YOL+ None Volume+ Test None Set command YOL- None Mute Test None Set command MUTE None Feedback MUTE None Save Load Parameters

CEC

CEC Command

Click the ON button to send the power-on command to the display device. Click the OFF button to toggle the power state to off.

Consumer Electronics Control (CEC): Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “off” command, and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure defined in HDMI 1.2a. It is recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

System Settings

Display Auto Power On

Sends the command to power-on the display when an A/V signal is detected. Click the toggle to enable or disable this feature. Otherwise, set to DISABLED.

Display Auto Power Off

Sends the command to power-off the display when an A/V signal is no longer present. Click the toggle to enable or disable this feature. Otherwise, set to DISABLED.

Power Button Lock

Allows the DISPLAY button, on the front panel, to be locked, preventing accidental operation when the product is in use. Click the toggle to enable or disable this feature.

Lamp Cool Down Timer

Sets the cool-down interval, in seconds, before the projector can be powered-off. During this time interval, the projector will not accept any commands until the "power off" command has been processed and the projector lamp has completed the cool-down cycle. Range: 0 to 300.

Display Warm Up Timer

Sets the time interval, in seconds, between when the display is powered on and when the DISPLAY button, on the front panel, will be locked. Range: 0 to 300.

Auto Power Off Timer

Sets the time interval, in seconds, between when the loss of A/V signal is detected and when the "Display Off" command is sent. Range: 5 seconds to 1 hour.

Control Type

Sets the control method for sending commands. The following options are available: RS-232, IP, CEC.

Setting Description

RS-232 RS-232 is used to send commands.

IP Commands are sent over IP.

CEC Uses CEC to send commands.

Feedback Verify

Sets the feedback verification state. Click the toggle to enable or disable this feature. The following options are available.

Setting Description
On This is the default setting.	The AT-HDVS-200-TX will make four attempts to send the command, if the feedback string is not acknowledged. After the fourth attempt, the process will fail.
Off Sends the command and ignores the feedback string.

Display Mode

Click this drop-down list to select the display mode.

Setting Description
DispSW AVon Display switches	on/off, source audio/video signal always on.
DispSW AVSW Display switches	on/off, source audio/video signal switches on/off.
AV SW Display is always on, source audio/video signal switches on/off

Volume / Mute

Click this drop-down list to select the control method for volume and muting.

Setting Description

AudOut Volume and mute buttons will control volume level of the output.

RS-232 Volume/Mute buttons will send the commands using RS-232 to compatible extenders and displays.

IP Volume/Mute buttons will send the commands over Ethernet using the LAN connection.

TCP/IP Settings of Controlled Devices

IP Mode

Click this drop-down list to select the login mode.

Setting Description

Non-login Does not require a username and password when using TCP/IP to control the display.

RS-232 Requires a username and password to control the display through TCP/IP.

IP Address

Enter the IP address of the device in this field.

Port

Enter the listening port of the device in this field.

Username

Enter the username for login. If the IP Mode is set to Non-Login, then this information will not be required.

Password

Enter the password for login. If the IP Mode is set to Non-Login, then this information will not be required.

Save

Click this button to save all changes in this window group.

RS-232 / IP Commands

Send Mode

Sets the type of commands that are sent to the display, either ASCII or Hex.

On/Off/Volume+/Volume-/Mute

- Set command

Enter the command in this field.

- Feedback

Enter the feedback string in this field.

- CR-LF

Click this drop-down list to select the desired end-of-line characters to be sent.

- Test

Click this button to test the command line and/or feedback.

Setting Description
None No end-of-line characters included
CR Carriage return
LF Line feed
CR-LF Carriage return + Line feed
Space Space character
STX Start-of-text character
ETX End-of-text character
Null Null character (binary zero)

Save

Click this button to save all changes in this window group.

RS-232 page

AT-LONA Connecting Technology RS-232 Info Video Audio Display RS-232 EDD Config System HDBT GENERAL Logout RS-232 RS-232 Parameter Setting Zone Baud rate 115200 Data bit 8 Purity None Stop bit 1 TX RS-232 Baud rate 115200 Data bit 8 Purity None Stop bit 1 Save Save

Zone

When the AT-HDVS-200-TX is connected to the AT-HDVS-200-RX, the system is placed in kit mode. In this mode, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200.

If the AT-HDVS-200-TX is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device.

TX RS-232

The RS-232 settings of the RS-232 port on the AT-HDVS-200-TX. Click the Save button to save the settings.

Setting Description

Baud rate Sets the baud rate. The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.

Data bit Sets the number of data bits used to represent each character of data. The following options are available: 7 or 8.

Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data. The following options are available: None, Odd, or Even.

Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

EDID page

AT-LONA Connecting Technology AT-HDVS-200-TX EDID Info Video Audio Display RS-232 EDD Config System HDBT GENERAL Logout EDID Prefer Timing(HDMI) 1920x1000 Prefer Timing(VGA) 1920x1000 Input1 HDCP Compliant Input2 HDCP Compliant

Perfer Timing (HDMI)

Adjusts the brightness setting of the output signal. Range: 0 - 128.

Prefer Timing (VGA)

Adjusts the contrast setting of the output signal. Contrast is the difference between the lightest and darkest area of an image. Range: 0 - 128.

Input1 HDCP / Input2 HDCP

Provides control over the transmission of HDCP content for the HDMI IN 1 and HDMI IN 2 ports. The following options are available:

• Compliant - Forces detection of HDCP-compliant sink devices. If the sink device is not HDCP-compliant, then no content will be transmitted.
• Noncompliant - Suppresses detection of HDCP-compliant sink devices, allowing non-HDCP content to be transmitted.
• Auto - Automatically detects the presence of HDCP-compliant sink devices. If an HDCP-compliant display is detected, then HDCP content will be sent. Otherwise, non-HDCP content will be sent.

NOTE: The HDCP control feature does not provide decryption of HDCP content to non-HDCP sink devices.

Config page

ATLONA Connecting Technology

AT-HDVS-200-TX Config

Info Video Audio Display RS-202 EDD Config System HDBT GENERAL Logout Configuration Web & Telnet Login Settings Old Username root Old Password New Username root Save New Password Confirm New Password All User Login Settings Username Password Edit Del Add Remove Add Remove Add Remove

Old Username

This field cannot be changed. "root" is the administrator user.

Old Password

Enter the current password for the "root" username in this field. The default password is "Atlona".

New Username

This field cannot be changed.

Save

Click this button to save all changes.

New Password

Enter the new password fro the "root" username in this field.

Confirm New Password

Verify the new password by retyping it in this field.

All User Login Settings

- Username

Displays the username.

- Password

Displays the password for the associated username.

- Edit

Click the Add button, in this column, to edit the username and password in the row.

• Del

Click the Remove button to delete the user in the row. This button will only be available if a username and password have been created.

System page

AT-LONA Connecting Technology AT-HDVS-200-TX System Info Video Audio Display RS-202 EDD Config System HDBT GENERAL Logout System NetWork IP Mode: ChTCP IP: BLU.1.61 Netmask: 25.255.255.0 Save Gateway: BLU.1.1 Telnet Port: 0 Telnet Login Mode OFF Telnet Timeout 120 Broadcast DM Reset to Default Factory Default Firmware Update Choose File No file chosen Update Valens Update Choose File No file chosen Update

IP Mode

Click this toggle to set the IP mode of the AT-HDVS-200-TX. By default, the AT-HDVS-200-TX is set to DHCP mode. Available settings: STATIC IP, DHCP.

IP

Enter the IP address of the AT-HDVS-200-TX in this field. This field will only be available if IP Mode is set to STATIC IP. The default IP address is 192.168.1.254.

Netmask

Enter the subnet mask in this field. This field will only be available if IP Mode is set to STATIC IP.

Gateway

Enter the gateway (router) address in this field. This field will only be available if IP Mode is set to STATIC IP.

Telnet Port

Enter the Telnet port in this field.

Telnet Login Mode

Click this toggle to set the login mode to ON or OFF. If this feature is set to ON, then the AT-HDVS-200-TX will prompt for both the username and password. Use the same credentials as the web GUI.

Telnet Timeout

Click this drop-down list to select the timeout interval, in seconds, before the Telnet connection is automatically closed after no activity. Range: 1 to 3600 (seconds).

Broadcast

By default, broadcast mode is set to off. When set to on, changes in the web GUI will also be affected on the control system (if connected), via TCP/IP. To separate control between web GUI and Telnet, set this feature off.

The Web GUI

Reset to Default

Click the Factory Default button to set the AT-HDVS-200-TX to factory-default settings.

Firmware Update

Click the Choose File button to select the firmware file, when upgrading the firmware on the AT-HDVS-200-TX. Once the firmware file is selected, click the Update button. Refer to Updating the Firmware (page 65) for more information.

Valens Update

Click the Choose File button to select the Valens firmware file, when upgrading the Valens chip on the AT-HDVS-200-TX. Once the firmware file is selected, click the Update button.

HDBT page

AT-HDVS-200-TX HDBT Info Video Audio Display RS-202 EDD Config System HDBT GENERAL Logout HDBaseT Channel Cable Test HDBaseT Zone Output 1 Start TX Version --- Test Instructions RX Version --- 1. Select HDBT Zone TMDS Clock --- 2. Connect active HDMI source(DVD etc...) Cable length (Estimated) --- 3. Ensure source and sink are operating Video Quality (Video IBD) --- 4. Click the Start button Cable Quality Pair A --- Use highest source resolution without exceeding 4K@60Hz Cable Quality Pair B --- 5. If the BER and Cable quality all pass, the system is functioning as expected. Cable Quality Pair C --- 6. If BER passes but one or more of the Cable pairs fail, the cable is compromised and may require retermination. Cable Quality Pair D --- 7. If BER and one or more of the Cable pairs fails, the cable should be reetermined. If this does not fix the issue, the cable may need to be replaced. EIA568A RJ45 Pairing 12845678 Pair A Pair B Pair C Pair D T568A

HDBaseT Channel

The AT-HDVS-200-TX has only a single HDBaseT output. Therefore, this drop-down list is disabled.

Start / Stop

Click the Start button to being the HDBaseT testing. During testing, the button text will change to "Stop". Click the Stop button to halt the HDBaseT testing process.

TX Version

The version of the Valens chip on the transmitter.

RX Version

The version of the Valens chip on the receiver.

TMDS Clock

Displays the pixel clock speed. If no source is connected, then this field will display as "None".

Cable length (Estimated)

This field indicates the approximate length of the Ethernet cable connected between the HDBaseT ports on the transmitter and the receiver. If the cable length is less than 15 feet, then this value will be displayed as 0 (zero).

Video Quality (Video BER)

The Bit Error Rate (BER). This field displays either PASS or FAIL during a test.

Cable Quality Pair (A, B, C, D)

Each of these fields will display either PASS or FAIL during a test.

Kit Mode

If the AT-HDVS-200-TX is connected to the AT-HDVS-200-TX, the system will be placed in kit mode. This section covers features only available in kit mode. Note that the text "GENERAL" has been replaced with the name of receiver (AT-HDVS-200-TX).

Video

AT-LONA Connecting Technology AT-HDVS-200-TX Video Info Video Audio Display RS-232 EID Config System HDBT AT-HDVS-200-RX Receiver Audio Display Video Input Selection HDMI 1 VGA Adjust Adjust Aspect Full Output Resolution 720p60 Aspect Auto Switch Auto Switch mode DN Fallback Port Previous Fallback Time(Sec) 5 Picture Brightness 64 Contrast 64 Saturation 64 Hue 64 Sharpness 10 Reset Pictures Reset all Picture Picture group

Aspect

Click the Aspect drop-down list and select the desired aspect ratio.

Aspect Ratio Description

Full The input signal is adjusted to fill the screen.

16:9 Set the aspect ratio to 16:9; common aspect ratio for HD and widescreen formats; also notated as 1:77.1

16:10 Set the aspect ratio to 16:10; typical aspect ratio for computer and tablet displays.

4:3 Sets the aspect ratio to 4:3; if the input signal is 16:9 or 16:10, up to 30% of the vertical resolution is lost.

Keep Ratio The output aspect ratio is the same as the input.

Output Resolution

Click the Output Resolution drop-down list and select the desired resolution. The default resolution is 720p.

Output Resolutions
800x600@60 1024x768@60	1280x800@60 1280x1024@60
1366x768@60 1400x1050@60	1600x900@60RB 1600x1200@60
1680x1050@60 1920x1200@60RB	720p25 720p29.97
720p30 720p50 720p59.94	720p60
1080i50 1080i59.94 1080i60	1080p23.98
1080p24 1080p25 1080p29.97	1080p30
1080p50 1080p59.94 1080p60	Input
Native

Brightness

Adjusts the brightness setting of the output signal. Range: 0 - 128

Contrast

Adjusts the contrast setting of the output signal. Contrast is the difference between the lightest and darkest area of an image. Range: 0 - 128

Saturation

Adjusts the color saturation of the output signal. Range: 0 - 128

Hue

Adjusts the hue of the output signal. Range: 0 - 128

Sharpness

Adjusts the sharpness of the output signal. Range: 0 - 128

Reset all Picture

Click this button to reset the above picture settings to their factory-default settings.

Audio

AT-LONA Connecting Technology AT-HDVS-200-TX Audio Info Video Audio Display RS-202 EDDI Config System HDBT AT-HDVS-200-RX Logout Audio HDMI Audio HDMI 1 Auto HDMI 2 Auto Audio Freerun Status OFF Output Audio Mute OFF HDMI Audio ON L/R Audio ON Output Volume Output 0 Output Bass 0 Output Treble 0

HDMI Audio

Click the drop-down list for HDMI 1 and HDMI 2 to select the input audio source used by each HDMI input.

Setting Description
Auto Automatically detects	the audio source. If an HDMI cable with embedded audio is connected, the system will use the digital audio on the HDMI cable. If a cable, which does not support audio (such as a DVI cable) is connected to the HDMI port, then the analog audio from theAUDIO INport will be used.
Digital The HDMI audio will	be used as the source.
Analog	The analog source, connected to theAUDIO INport, will be used.

HDMI Audio

Click this toggle to the OFF position to mute only the HDMI audio.

L/R Audio

Click this toggle to the OFF position to mute all audio on the output.

RS-232

AT-LONA Connecting Technology RS-232 Info Video Audio Display RS-232 EDD Config System HDBT AT-HDVS-200-RX Logout RS-232 RS-232 Parameter Setting Zone Baud rate 115200 * Data bit 8 * Parity None * Stop bit 1 * TX RS-232 Baud rate 115200 * Data bit 8 * Parity None * Stop bit 1 * RX RS-232 Zone 1 Baud rate 19200 * Data bit 8 * Parity None * Stop bit 1 * Save Save Save

RX RS-232 Zone 1

Each of these drop-down lists refer to the setting for the RS-232 1 port on the receiver. Click the Save button to save the settings.

Setting Description

Baud rate Sets the baud rate. The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.

Data bit Sets the number of data bits used to represent each character of data. The following options are available: 7 or 8.

Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data. The following options are available: None, Odd, or Even.

Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

NOTE: In the illustration above, note that the Zone RS-232 settings are "locked" because the system is in kit mode.

Commands

The following tables provide an alphabetical list of commands available on the AT-HDVS-200-TX. All commands are case-sensitive and must be entered as documented. If the command fails or is entered incorrectly, then the feedback is "Command FAILED".

IMPORTANT: Each command is terminated with a carriage-return (0x0d) and the feedback is terminated with a carriage-return and line-feed (0x0a).

Command Description
AnaGain Sets the gain of the analog audio input
APwrOffTime Sets the power-off time interval
Aspect Sets the aspect ratio of the output signal
ASwFstTime Sets detect delay time when power on
ASwOutTime Sets the time interval for auto-switching when no signal is detected
ASwPrePort Sets which port to switch to when no signal is detected
AudioSrc Set audio source for the HDMI inputs
AutoDispOff Enables or disables display auto-off
AutoDispOn Enables or disables display auto-on
AutoPwrMode Set the display mode for auto power on and off
AutoSW Enable or disables auto switching or display auto switching status
BASS Increases or decreases the amount of bass on the output
Blink Enables or disables blinking of the DN button on the front panel
Broadcast	Enables or disables broadcast mode
BRT	Sets the picture brightness
CliIPAddr	Sets the IP address of the Telnet client
CliMode	Sets the login mode of the Telnet client
CliPass	Sets the password for the Telnet client
CliPort	Sets the listening port for the Telnet client
CliUser	Sets the username for the Telnet client
CSpara	Sets the baud rate, data bits, parity bit, and stop bits for the serial port
CtlType	Sets the control type for communication with the display device
CTRST Sets the picture contrast
DispBtn	Simulates pressing the DISPLAY button on the front panel
DispCEC	Sets the display command type to CEC
DisplP	Sets the display command type to IP

Commands

Command Description
DispKeyLock Locks or unlocks the DISPLAY button on the front panel
Display Send the command to the display device using the current protocol
DispRS Sets the display command type to RS-232
FreeRun Enables or disables “audio-only” from the transmitter to the receiver
HDCPSet Sets the HDCP reporting mode for the HDMI IN 1 port
HDMIAUD Enables or disables audio on the HDMI output
HDVS Displays the model number of the connected receiver
help Displays the list of available commands
HUE Sets the picture hue
Input Sets the active input
IPAddUser Adds a user for Telnet control
IPCFG Displays the current network settings for the AT-HDVS-200-TX
IPDelUser Deletes the specified Telnet user
IPDHCP	Enables or disables DHCP mode on the AT-HDVS-200-TX
IPLogin	Enables or disables login credentials when starting a Telnet session
IPPort	Sets the Telnet listening port for the AT-HDVS-200-TX
IPStatic	Sets the static IP address, subnet mask, and gateway for the AT-HDVS-200-TX
IPTimeout	Specifies the time interval of inactivity before the Telnet session is closed
LRAUD	Enables or disables audio on the L/R analog output
Mreset	Resets the AT-HDVS-200-TX to factory-default settings
PictureRst	Resets all picture settings
PrefTimg	Sets the preferred HDMI input timing
ProjSWMode	Sets the cool-down intervale of the projector
ProjWarmUpT	Sets the projector warm-up time interval
RS232para	Sets the baud rate, data bits, stop bits, and parity for the RS-232 port
RS232zone Send a command to the HDBT device
RxRSparaZ Specifies the RS-232 settings for the RS-232 1 port on the receiver
SATRT	Sets the picture color saturation
SetCmd Assigns an RS-232 or IP command to the specified button on the front panel

Commands

Command Description
SetEnd Sets the end-character delimiter for the specified command
SetFbVerify Sets the feedback verification state
SetStrgType Sets the type of command string
SHARP Sets the picture sharpness
System Displays system information about the AT-HDVS-200-TX
TREBLE Increases or decreases the treble on the output
TrigCEC Triggers the stored CEC command
TrigIP Triggers the stored IP command
TrigRS Triggers the stored RS-232 command
Type Displays the model of the transmitter
Update Updates the MCU or Valens firmware from the command line
Version Displays the current firmware version of the AT-HDVS-200-TX
VGAAuto	Performs a VGA auto-adjust
VGAPrefT	Set the preferred timing for the VGA input
VidOutRes Sets the video output resolution
VolKeyOPT	Defines the function method of the VOL button on the front panel
VOUT	Increases or decreases the audio volume
VOUTMute Mutes or unmutes the audio

Commands

AnaGain

Sets the gain of the analog input.

Syntax

AnaGain X

Parameter Description Range

X Audio gain 0 ... 16

Example

AnaGain 1

Feedback

AnaGain 1

APwrOffTime

Set the time interval, in seconds, before the command to power-off the display is sent, once an A/V signal is no longer detected. Use the sta argument to display the current APwrOffTime setting.

Syntax

APwrOffTime X

Parameter Description Range

X Time interval 5 ... 3600, sta

Example

APwrOffTime 120

Feedback

APwrOffTime 120

Aspect

Sets the aspect ratio of the output signal. The default setting is Full. Use the sta argument to display the current setting.

Syntax

Aspect X

Parameter Description Range

X Aspect ratio 0 = Full

1 = 16:9

2 = 16:10

3 = 4:3

4 = Keep Ratio

Example

Aspect 1

Feedback

Aspect 1

Commands

ASwFstTime

Sets the time interval, in seconds, before the unit switches to the input used by a newly-powered or connected device. Use the sta argument to display the current setting.

Syntax

ASwFstTime X

Parameter Description Range
X Time interval	10 ... 600, sta

Example

ASwFstTime 10

Feedback

ASwFstTime 10

ASwOutTime

Sets the time interval, in seconds, before the unit automatically switches to another active input if no signal is received from the current input. Use the sta argument to display the current setting.

Syntax

ASwOutTime X

Parameter Description Range
X Time interval	3 ... 600, sta

Example

ASwOutTime 10

Feedback

ASwOutTime 10

ASwPrePort

Sets the default input to be used for auto-switching, once no A/V signal is detected from the currently active port. Use the sta argument to display the current setting.

Syntax

ASwPrePort X

Parameter Description Range
X Port 1 = HDMI IN 1		2 = HDMI IN 23 = VGA INPrev = Previous

Example

ASwPrePort 1

Feedback

ASwPrePort 1

Commands

AudioSrc

Sets the audio source for the each HDMI input. Parameter X specifies the HDMI port. Parameter Y specifies the type of audio that will be used. Do not include a space between the AudioSrc command and the first argument. Use the sta argument, for parameter Y, to display the current setting of the specified port.

Syntax

AudioSrcX Y

Parameter Description Range

X HDMI IN port 1 ... 2
Y Audio type auto = Automatically selects the audio type	dig = Digital audio onlyana = Analog audio from theAUDIO INport is embedded on the output.

Example

AudioSrc1 ana

Feedback

AudioSrc1 ana

AutoDispOff

Sends the command to power-off the display when an A/V signal is no longer present. Use the on argument to enable this feature. Use the sta argument to return the current setting.

Syntax

AutoDispOff X

Parameter Description Range

X Value on, off, sta

Example

AutoDispOff on

Feedback

AutoDispOff on

AutoDispOn

Sends the command to power-on the display when an A/V signal is detected. Use the on argument to enable this feature. Use the sta argument to return the current setting.

Syntax

AutoDispOn X

Parameter Description Range

X Value on, off, sta

Example

AutoDispOn on

Feedback

AutoDispOn on

Commands

AutoPwrMode

Sets the display mode for auto-power on and off.

Syntax

AutoPwrMode X

Parameter Description Range

X Value DISPAVON, DISPAVSW, AVSW, sta

Example

AutoPwrMode DISPAVON

Feedback

AutoPwrMode DISPAVON

AutoSW

Enables or disables auto switching or display auto switching status.

Syntax

AutoSW X

Parameter Description Range

X Value on, off, sta

Example

AutoSW on

Feedback

AutoSW on

BASS

Increases or decreases the amount of bass on the output. In addition to specifying an integer value, the + and - arguments can be used, by themselves, to increase or decrease the bass by 1 value, respectively.

Syntax

BASS X

Parameter Description Range

X Value -12 ... 15, sta

Example

BASS -5

BASS +

Feedback

BASS -5

BASS -4

Commands

Blink

Enables or disables blinking of the DN button on the front panel. When set to on, the DN button will flash red and can be used to physically identify the unit on a network. The DN button will flash until the Blink off command is executed. on = enables DN button blinking; off = disables DN button blinking; sta = displays the current setting. The default setting is off.

Syntax

Blink X

Parameter Description Range

X Value on, off, sta

Example

Blink on

Feedback

Blink on

Broadcast

Enables or disables broadcast mode. By default, broadcast mode is set to off. When set to on, changes in the web GUI will also be affected on the control system (if connected), via TCP/IP. To separate control between web GUI and Telnet, set this feature off. on = enables broadcast mode; off = disables broadcast mode; sta = displays the current setting.

Syntax

Broadcast X

Parameter Description Range

X Value on, off, sta

Example

Broadcast on

Feedback

Broadcast on

BRT

Sets the picture brightness. Use the sta argument to display the current brightness setting.

Syntax

BRT X

Parameter Description Range

X Value 0 ... 100, sta

Example

BRT 60

Feedback

BRT 60

Commands

CliIPAddr

Sets the IP address of the controlled device. The IP address must be specified in dot-decimal notation. Use the sta argument to display the IP address of the device. DHCP must be disabled before using this command. Refer to the IPDHCP command for more information.

Syntax

CliIPAddr X

Parameter Description Range

X IP address 0 ... 255 (per byte)

Example

CliIPAddr 192.168.1.61

Feedback

CliIPAddr 192.168.1.61

CliMode

Sets the login mode of the controlled device. login = requires login credentials, non-login = no login credentials required, sta = displays the current setting.

Syntax

CliMode X

Parameter Description Range

X Value login, non-login, sta

Example

CliMode login

Feedback

CliMode login

CliPass

Sets the password for the controlled device. Execute the CliPass command without arguments to display the current password. The default password is Atlona.

Syntax

CliPass X

Parameter Description Range

X Password 20 characters (max)

Example

CliPass R3ind33r

Feedback

CliPass R3ind33r

Commands

CliPort

Sets the listening port for the controlled device. Use the sta argument to display the current listening port. The default port is 23.

Syntax

CliPort X

Parameter Description Range
X Port 0 ... 65535, sta

Example

CliPort 30

Feedback

CliPort 30

CliUser

Sets the username for the controlled device. Execute the CliUser command without arguments to display the current username.

Syntax

CliUser X

Parameter Description Range
X Username 20 characters (max)

Example

CliUser BigBoss

Feedback

CliUser BigBoss

Commands

CSpara

Sets the baud rate, data bits, parity bit, and stop bits for the serial device. Use the sta argument to display the current serial port settings. Each argument must be separated by a comma; no spaces are permitted. Brackets must be used when executing this command.

Syntax

CSpara[W,X,Y,Z]

Parameter Description Range

W Baud rate 2400, 4800, 9600, 19200, 38400, 57600, 115200

X Data bits 7, 8

Y Parity bit None, Odd, Even

Z Stop bits 1, 2

Example

CSpara[115200,8,0,1]

CSpara[sta]

Feedback

CSpara[115200,8,0,1]

CSpara [115200,8,0,1]

CtIType

Sets the control type for communication with the display device.

Syntax

CtIType X

Parameter Description Range

Sets the picture contrast. Use the sta argument to display the current setting.

Syntax

CTRST X

Parameter Description Range

X Contrast 0 ... 100, sta

Example

CTRST 65

Feedback

CTRST 65

Commands

DispBtn

Simulates pressing the DISPLAY button on the front panel, activating the display mode and RS-232/CEC/IP display control commands. on = simulates pressing the DISPLAY button to the "on" state, off = simulates pressing the DISPLAY button to the "off" state, tog = reverses the current state of the DISPLAY button, sta = displays the current setting.

Syntax

DispBtn X

Parameter Description Range

X Setting on, off, tog, sta

Example

DispBtn on

Feedback

DispBtn on

DispCEC

Enables or disables the display command protocol to CEC. on = enable CEC, off = disable CEC, sta = displays the current setting.

Syntax

DispCEC X

Parameter Description Range

X Setting on, off, sta

Example

DispCEC on

Feedback

DispCEC on

DispIP

Enables or disables the display command protocol to IP. on = enable IP, off = disable IP, sta = displays the current setting.

Syntax

DisplP X

Parameter Description Range

X Setting on, off, sta

Example

DisplP on

Feedback

DispIP on

Commands

DispKeyLock

Locks the DISPLAY button on the front panel, preventing it from being accidentally activated. on = locks the DISPLAY button, off = unlocks the DISPLAY button, sta = displays the current setting.

Syntax

DispKeyLock X

Parameter Description Range
X Setting on, off, sta

Example DispKeyLock on

Feedback DispKeyLock on

Display

Sends the "on" or "off" command to the display using the current protocol. Use the sta argument to display the current setting. Refer to the DispCEC, DisplP, and DispRS command to set the protocol.

Syntax

Display X

Parameter Description Range
X Setting on, off, sta

Example Display on

Feedback Display on

DispRS

Enables or disables the display command protocol to RS-2232. on = enable RS-232, off = disable RS-232, sta = displays the current setting.

Syntax

DispRS X

Parameter Description Range
X Setting on, off, sta

Example DispRS on

Feedback DispRS on

Commands

FreeRun

Enables or disables only audio to be sent from the transmitter to the receiver. on = enable, off = disable, sta = displays the current setting.

Syntax

FreeRun X

Parameter Description Range
X Setting on, off, sta

Example

FreeRun on

Feedback

FreeRun on

IMPORTANT: Setting the Audio Freerun Status to ON is not recommended. When set to ON, both video auto switching and display control are disabled.

HDCPSet

Set the HDCP reporting mode of the specified HDMI IN port. Some computers will send HDCP content if an HDCP-compliant display is detected. Setting this value to off, will force the computer to ignore detection of HDCP-compliant displays. Disabling this feature will not decrypt HDCP content. on = enables HDCP detection; off = disables HDCP detection; sta = displays the current setting.

Syntax

HDCPSet X Y

Parameter Description Range
X Value 1 ... 2
Y Value on, off, sta

Example

HDCPSet 1 on

Feedback

HDCPSet 1 on

Commands

HDMIAUD

Enables or disables audio on the HDMI output. on = enables HDMI audio output; off = disables HDMI audio output; sta = displays the current HDMIAUD setting.

Syntax

HDMIAUD

Parameter Description Range
X Value on, off, sta

Example

HDMIAUD off

Feedback

HDMIAUD off

HDVS

Displays the model number of the connected receiver. The sta argument must be provided. If no receiver is connected, this command will return Null.

Syntax

HDVS X

Parameter Description Range
X Value sta

Example

HDVS sta

Feedback

AT-HDVS-200-RX

help

Displays the list of available commands. To obtain help on a specific command, enter the help command followed by the name of the command.

Syntax

help X

Parameter Description Range
X Command name (optional) Command

Example

help

Feedback

Command List:

help

Input

Version

...

...

Commands

HUE

Sets the picture hue. Use the sta argument to display the current HUE value.

Syntax

HUE X

Parameter Description Range
X Value 0 ... 100, sta

Example

HUE 40

Feedback

HUE 40

Input

Sets the active input. When specifying an HDMI input, the number of the input must also be specified. Do not add a space between the HDMI argument and the input number. Use the sta argument to display the current setting.

Syntax

Input X Y

Parameter Description Range
X Input HDMI, VGA, sta
Y HDMI port identifier 1 ... 2

Example

Input HDMI2

Feedback

Input HDMI2

IPAddUser

Adds a user for Telnet control. This command performs the same function as adding a user within the Config page of the web GUI. Refer to Config page (page 27) of the web GUI for more information.

Syntax

IPAddUser X Y

Parameter Description Range
X User name 20 characters (max)
Y Password 20 characters (max)

Example

IPAddUser BigBoss b055man

Feedback

IPAddUser BigBoss b055man

TCP/IP user was added

Commands

IPCFG

Displays the current network settings for the AT-HDVS-200-TX.

Syntax

IPCFG

This command does not require any parameters

Example

IPCFG

Feedback

IP Addr: 10.0.1.101

Netmask: 255.255.255.0

Gateway: 10.0.1.1

IP Port: 23

IPDelUser

Deletes the specified TCP/IP user. This command performs the same function as removing a user within the Config page of the web GUI. Refer to the Config page (page 27) for more information.

Syntax

IPDelUser X

Parameter Description Range

X User User name

Example

IPDeIUser BigBoss

Feedback

IPDelUser BigBoss

TCP/IP user was deleted

IPDHCP

Enables or disables DHCP mode on the AT-HDVS-200-TX. on = enables DHCP mode; off = disables DHCP mode; sta = displays the current setting. If this feature is disabled, then a static IP address must be specified for the AT-HDVS-200-TX. Refer to the IPStatic command for more information.

Syntax

IPDHCP X

Parameter Description Range

X Value on, off, sta

Example

IPDHCP on

Feedback

IPDHCP on

Commands

IPLogin

Enables or disables the use of login credentials when starting a Telnet session on the AT-HDVS-200-TX. If this feature is set to on, then the AT-HDVS-200-TX will prompt for both the username and password. Use the same credentials as the web GUI. on = login credentials required; off = no login required; sta = displays the current setting.

Syntax

IPLogin X

Parameter Description Range

X Value on, off, sta

Example

IPLogin off

Feedback

IPLogin off

IPPort

Sets the Telnet listening port for the AT-HDVS-200-TX. Use the sta argument to display the current port setting.

Syntax

IPPort X

Parameter Description Range

Sets the static IP address, subnet mask, and gateway (router) address of the AT-HDVS-200-TX. Before using this command, DHCP must be disabled on the AT-HDVS-200-TX. Refer to the IPDHCP command for more information. Each argument must be entered in dot-decimal notation and separated by a space. The default static IP address is 192.168.1.254.

Syntax

IPStatic X Y Z

Parameter Description Range

X IP address 0 ... 255 (per byte)

Y Subnet mask 0 ... 255 (per byte)

Z Gateway (router) 0 ... 255 (per byte)

Example

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1

Feedback

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1

Commands

IPTimeout

Specifies the time interval of inactivity before the Telnet session is automatically closed.

Syntax

IPTimeout X

Parameter Description Range

X Interval (in seconds) 1 ... 60000

Example

IPTimeout 300

Feedback

IPTimeout 300

LRAUD

Enables or disables the L/R audio output. on = enables L/R audio out, off = disables L/R audio out, sta = displays the current setting.

Syntax

LRAUD X

Parameter Description Range

X Value on, off, sta

Example

LRAUD off

Feedback

LRAUD off

Mreset

Resets the AT-HDVS-200-TX to factory-default settings.

Syntax

MReset

This command does not require any parameters

Example

Mreset

Feedback

Mreset

Commands

PictureRst

Resets the picture settings to factory-default settings. This command does not reset the unit to factory-default settings. Refer to the Mreset command for more information.

Syntax

PictureRst

This command does not require any parameters

Example

PictureRst

Feedback

PictureRst

PrefTimg

Sets the preferred input timing. Specify a value from 0 to 8.

Syntax

PrefTimg X

Parameter Description Range

X Timing 0 ... 8

Input Timing List

0 = Native

1 = 1280×800

2 = 1920×1080

3 = 1024×768

Example

PrefTimg 3

4 = 1280×1024

5 = 1920×1200

6 = 1366×768

7 = 1600×900

8 = Native

Feedback

PrefTimg 3

ProjSWMode

Sets the time interval before the "display on" command is sent. This value should be the same as the projector's delay setting. Use the sta argument to display the current setting.

Syntax

ProjSWMode X

Parameter Description Range

X Time interval 0 ... 300, sta

Example

ProjSWMode 120

Feedback

ProjSWMode 120

Commands

ProjWarmUpT

Sets the display warm-up interval, in seconds. During this time, the display will not accept any commands until the "power on" command has been processed. Use the sta argument to display the current setting.

Syntax

ProjWarmUpT X

Parameter Description Range

X Time interval 0 ... 300, sta

Example

ProjWarmUpT 120

Feedback

ProjSWMode 120

RS232para

Sets the baud rate, data bits, parity bit, and stop bits for the RS-232 port on the AT-HDVS-200-TX. Each argument must be separated by a comma; no spaces are permitted. Brackets must be used when typing this command. Use the sta argument, without brackets and including a space, to display the current settings.

Syntax

RS232para[W,X,Y,Z]

Parameter Description Range

W Baud rate 2400, 9600, 19200, 38400, 56000, 57600, 115200

X Data bits 7, 8

Y Parity bit None, Odd, Even

Z Stop bits 1, 2

Example

RS232para[115200,8,0,1]

RS232para sta

Feedback

RS232para[115200,8,0,1]

RS232para[115200,8,0,1]

Commands

RS232zone

Sends commands to the connected display. Refer to the User Manual of the display device for a list of available commands. Brackets must be used when specifying the command argument. The command line must not contain any spaces.

Syntax

RS232zone[X]

Parameter Description Range

X Command String

Example

RS232zone[command]

Feedback

RS232zone[command]

RxRSparaZ

Sets the baud rate, data bits, parity bit, and stop bits for the RS-232 1 port on the AT-HDVS-200-RX. Parameter V must be set to 1. Each argument must be separated by a comma; no spaces are permitted. Brackets must be used when specifying the arguments. Use the sta argument, without brackets and including a space, to display the current settings.

Syntax

RxRSparaZV[W,X,Y,Z]

Parameter Description Range

V Port 1

W Baud rate 2400, 9600, 19200, 38400, 56000, 57600, 115200

X Data bits 7, 8

Y Parity bit None, Odd, Even

Z Stop bits 1, 2

Example

RxRSparaZ1[115200,8,0,1]

RxRSparaZ1 sta

Feedback

RxRSparaZ1[115200,8,0,1]

RxRSparaZ1[115200,8,0,1]

Commands

SATRT

Sets the picture color saturation value. Use the sta argument to display the current setting.

Syntax

SATRT X

Parameter Description Range

X Saturation 0 ... 100, sta

Example

SATRT 50

Feedback

SATRT 50

SetCmd

Assigns an RS-232 or IP command to the specified button on the front panel.

Syntax

SetCmd X[Y]

Parameter Description Range

X Button on, off, vol+, vol-, mute

Y Command Command string

Example

SetCmd mute[Select]

Feedback

SetCmd mute[Select]

SetEnd

Sets the end-character of the specified command. Refer to the RS-232 / IP Commands (page 24) section for more information.

Syntax

SetEnd X[Y]

Parameter Description Range

X Command on, off, vol+, vol-, mute, fbkon, fbkoff, fbkmute

Y EOL character None, CR, LF, CR-LF, Space, STX, ETX, null

Example

SetEnd off[CR-LF]

Feedback

SetEnd off[CR-LF]

Commands

SetFbVerify

Sets the feedback verification state. on = the AT-HDVS-200-TX will make four attempts to send the command. If the feedback string is not acknowledged after the fourth attempt, the process will fail. off = sends the command and ignores the feedback string. Use the sta argument to display the current setting.

Syntax

SetFbVerify X

Parameter Description Range

X Value on, off, sta

Example

SetFbVerify on

Feedback

SetFbVerify on

SetStrgType

Sets the type of command string. Use the sta argument to display the current setting.

Syntax

SetStrgType X

Parameter Description Range

Sets the picture sharpness. Use the sta argument to display the current setting.

Syntax

SHARP X

Parameter Description Range

X Sharpness 0 ... 100, sta

Example

SHARP 70

Feedback

SHARP 70

Commands

System

Displays system information about the AT-HDVS-200-TX. The sta argument must be specified.

Syntax

System X

Parameter Description Range

X Status sta

Example

System sta

Feedback

Model: AT-HDVS-200-TX

MAC Addr: b8-98-b0-00-10-e6

Address Type: DHCP

IP Addr: 10.0.1.161

Netmask: 255.255.255.0

Gateway: 10.0.1.1

HTTP Port: 80

Telnet Port: 23

Firmware: 1.1.28

On/Up Time

: 00 00:53:31

TREBLE

Increases or decreases the amount of treble. In addition to specifying an integer value, the + and - arguments can be used, by themselves, to increase or decrease the amount of treble by 1 value, respectively. To display the current value, use the sta argument.

Syntax

TREBLE X

Parameter Description Range

X Value -12 ... 15, sta

Example

Treble 7

Treble -

Feedback

Treble 7

Treble 6

Commands

TrigCEC

Trigger the specified command to the display using CEC.

Syntax

TrigCEC X

Parameter Description Range

X Value on, off, vol+, vol-, mute

Example

TrigCEC on

Feedback

TrigCEC on

TrigIP

Trigger the specified command to the display using IP.

Syntax

TrigIP X

Parameter Description Range

X Value on, off, vol+, vol-, mute

Example

TrigIP vol+

Feedback

TrigIP vol+

TrigRS

Trigger the specified command to the display using RS-232.

Syntax

TrigRS X

Parameter Description Range

X Value on, off, vol+, vol-, mute

Example

TrigRS vol-

Feedback

TrigRS vol-

Commands

Type

Displays the model information of the AT-HDVS-200-TX.

Syntax

Type

This command does not require any parameters

Example

Type

Feedback

AT-HDVS-200-TX

Update

Places the AT-HDVS-200-TX in firmware update mode. MCU = will update the MCU firmware, VSTX = update the Valens firmware.

When placing the unit in update mode, it is recommended that the Using USB (page 66) procedure, outlined under Updating the Firmware (page 65), be used. Executing this command can be used if the INPUT button is not functioning or

Syntax

Update X

Parameter Description Range

X Value MCU, VSTX

Example

Update MCU

Feedback

none

Version

Displays the current firmware version of the AT-HDVS-200-TX. Do not add a space between the X parameter and the command.

Syntax

VersionX

Parameter Description Range

X Value MCU, VSTX

Example

VersionMCU

Feedback

V1.1.28

Commands

VGAAuto

Executes the VGA auto-adjust. This command automatically adjusts the phase and clock of the VGA signal.

Syntax

VGAAuto

This command does not require any parameters

Example

VGAAuto

Feedback

VGAAuto

VGAPrefT

Sets the preferred VGA input timing. Specify a value from 0 to 8.

Syntax

PrefTimg X

Parameter Description Range

X Timing 0 ... 8

Input Timing List

0 = Default	5 = 1920x1200
1 = 1280x800	6 = 1366x768
2 = 1920x1080	7 = 800x600
3 = 1024x768	8 = 1600x900

Example

PrefTimg 3

PrefTimg 3

Commands

VidOutRes

Sets the video output resolution. Use the sta argument to display the current video output resolution.

Syntax

VidOutRes

Parameter Description Range

X Value 0 ... 28, sta
Output Resolution List	14 = 720p59.94
0 = 800x600@60	15 = 720p60
1 = 1024x768@60	16 = 1080i50
2 = 1280x800@60	17 = 1080i59.94
3 = 1280x1024@60	18 = 1080i60
4 = 1366x768@60	19 = 1080p23.98
5 = 1400x1050	20 = 1080p24
6 = 1600x900@60RB	21 = 1080p25
7 = 1600x1200@60	22 = 1080p29.97
8 = 1680x1050@60	23 = 1080p30
9 = 1920x1200@60RB	24 = 1080p50
10 = 720p25	25 = 1080p59.94
11 = 720p29.97	26 = 1080p60
12 = 720p30	27 = Input
13 = 720p50	28 = Native
Example	Feedback
VidOutRes 26	VidOutRes 26

VolKeyOPT

Defines how the VOL button will be used to control a device. 0 = controls the volume using the HDVS, 1 = control using RS-232, 2 = control using IP. Use the sta argument to display the current setting.

Syntax

VolKeyOPT

Parameter Description Range

X Value 0 ... 2, sta

Example

VolKeyOPT

Feedback

VolKeyOPT

Commands

VOUT

Increases or decreases the audio output volume. In addition to specifying an integer value, the + and - arguments can be used, by themselves, to increase or decrease the volume by 1 value, respectively. To display the current value, execute the VOUT command without any arguments.

Syntax

VOUT

Parameter Description Range

X Value

-80

...

0

Example

VOUT 4

VOUT +

Feedback

VOUT 4

VOUT 5

VOUTMute

Mutes or unmutes the audio. on = enables muting; off = disables muting; sta = displays the current setting.

Syntax

VOUTMute X

Parameter Description Range

X Value on, off, sta

Example

VOUTMute on

Feedback

VOUTMute on

Appendix

Updating the Firmware

Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-HDVS-200-TX firmware can be updated using a USB-A to USB mini-B cable

Using the Web GUI

Requirements

• AT-HDVS-200-TX
• Firmware file

• Computer

• Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-HDVS-200-TX is connected.

• Go to the System page (page 28) in the web GUI.

AT-LONA Connecting Technology AT-HDVS-200-TX System Info Video Audio Display RS-232 EDD Config SYSTEM HOST GENERAL Logout System Network IP Mode: DHCP IP: 10.0.1.161 Netmask: 255.255.255.0 Save Gateway: 10.0.1.1 Telnet Port: 2.3 Telnet Login Mode OFF Telnet Timeout 120 * Broadcast OH Reset to Default Factory Default Firmware Update Choose File No file chosen Update Valens Update Choose File No file chosen Update Choose File No file chosen

1. Click the Choose File button, under the Firmware Update section.

IMPORTANT: When updating the firmware, make sure to select the Choose File button under Firmware Update. The Valens Update section does not apply to this procedure.

1. Browse to the location of the firmware file, select it, and click the Open button.
2. Click the Update button, under the Firmware Update section.

Appendix

1. The following message box will be displayed.

10.0.1.107 says: Are you Sure want to update Firmware? OK Cancel

1. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process.
2. After the firmware update process is complete, the Login screen will be displayed.

ATLONA Connecting Technology AT-HDVS-200-TX Login Login Username: Password: Submit Large Installation ? The Atlona management System (AMS) can assist: • Automatic Atlona device discovery • Multi device configuration and Management • Manage and automate firmware updates • Alerts and event logging • Free to download and use AMS Free AMS Download

Using USB

Requirements

• AT-HDVS-200-TX

• Firmware file
  • Computer running Windows
  • USB-A to USB mini-B cable

• Disconnect power from the AT-HDVS-200-TX.

• Connect the USB-A to USB mini-B cable from the computer to the FW port on the AT-HDVS-200-TX.

FW port FW RS-232 RS-232 + TX RX HDMI IN 2 LAN HDDbaseT OUT

Appendix

1. Press and hold the INPUT button, on the front panel, while connecting power to the AT-HDVS-200-TX.
2. The USB UPDATE folder will be displayed.

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

Screenshot of a file explorer window showing USB UPDATE files with a folder tree listing categories like Documents, Downloads, Music, and Public.

1. Delete all files from the USB UPDATE drive, if any are present.
2. Drag-and-drop the firmware file to the drive.
3. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-200-TX.
4. Power-cycle the AT-HDVS-200-TX by disconnecting then reconnecting the power supply.
5. The firmware update process is complete.

Default Settings

The following tables list the factory-default settings for the AT-HDVS-200-TX.

Feature Settings
Video Input Selection		HDMI 1
	Aspect	Full
	Auto Switch mode	OFF
	Fallback Port	Previous
	Fallback Time (Sec)	5
Audio HDMI 1		Auto
	HDMI 2	Auto
	Audio Freerun Status	OFF
	Mute	OFF
	Output Volume	0
	Output Bass	0
	Output Treble	0
Display Display Auto Power On		DISABLED
	Display Auto Power Off	DISABLED
	Power Button Lock	DISABLED
	Lamp cool down timer (sec)	5
	Auto power off timer (sec)	15
	Power on delay time (sec)	5
	Control Type	RS-232
	Feedback Verify	ON
	Display Mode	DispSW AVon
	Volume / Mute	AudOut
RS-232 Zone		115200, 8, N, 1
	TX RS-232	115200, 8, N, 1
EDID Prefer Timing (HDMI)		1920x1080
	Prefer Timing (VGA)	1920x1080
	Input1 HDCP	Compliant
	Input2 HDCP	Compliant
Config Username (default)		root
	Password (default)	Atlona
System IP Mode		DHCP
	Static IP Address (default)	192.168.1.254
	Netmask	255.255.255.0
	Gateway	192.168.1.1
	Telnet Port	23
	Telnet Login Mode	Off
	Telnet Timeout	120 (seconds)
	Broadcast	On

Specifications

Video
HD/SD 4096×2160@24/25/30/50+/60Hz*, 3840×2160@24/25/30/50+/60Hz*, 2048×1080p,1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz,720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560×2048, 2560×1600,	2048×1536, 1920×1200, 1680×1050, 1600×1200,1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×8001280×768, 1152×768, 1024×768, 800×600, 640×480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0*
Color Depth 8-bit, 10-bit, 12-bit

Audio
Analog IN PCM 2Ch
HDMI IN / HDBaseT OUT PCM	2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital Plus,Dolby TrueHD, DTS-HD Master AudioTM
Sample Rate 32 kHz, 44.1 kHz,	48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate 24-bit (max.)

Resolution / Distance 4K/UHD - Feet / Meters 1080p - Feet / Meters
HDMI IN / OUT 15 5	30 10
CAT-5e / CAT-6	230	70 330	100
CAT-6a / CAT-7	230	70 330	100

Signal
Bandwidth	10.2 Gbps
CEC	Yes
HDCP	1.4

Temperature	Fahrenheit	Celsius
Operating	32 to 122	0 to 50
Storage	-4 to 140	-20 to 60
Humidity (RH)	20% to 90%, non-condensing

Appendix

Power
Consumption 12 W; 30 W (when paired)

Dimensions Inches Millimeters
H x W x D 1.5 x 5 x 4.02 38 x 1	27 x 102

Weight Pounds Kilograms
Device 0.64 0.29

Certification
Unit CE, FCC

Index

A

Aspect ratio 31

Audio

muting 64

passing only audio 19

B

Bass

adjusting 19, 20

Brightness 32, 34

C

CEC

compatibility 3,21

ON/OFF 21

Commands

AnaGain 38

APwrOffTime 38

Aspect 38

ASwFstTime 39

ASwOutTime 39

ASwPrePort 39

AudioSrc 40

AutoDispOff 40

AutoDispOn 40

AutoPwrMode 41

AutoSW 41

BASS 41

Blink 42

Broadcast 42

BRT 42

CliIPAddr 43

CliMode 43

CliPass 43

CliPort 44

CliUser 44

CSpara 45

CTRST 45

DispBtn 46, 47

DispCEC 46

DisplP 46

DispKeyLock 47

DispRS 47

DisWarmUp 46, 47

FreeRun 48

HDCPSet 48

HDMIAUD 49

HDVS 49

help 49

HUE 50

Input 50

IPAddUser 50

IPCFG 51

IPDelUser 51

IPDHCP 51

IPLogin 52

IPPort 52

IPStatic 52

IPTimeout 53

LRAUD 53

Mreset 53

PictureRst 54

PrefTimg 54

ProjSWMode 54

RS232para 55, 56

RS232zone 56

RxRSparaZ 56

SATRT 57

SetCmd 57

SetEnd 57

SetFbVerify 58

SetStrgType 58

SHARP 58

System 59

TREBLE 59

TrigCEC 60

TrigIP 60

Type 61

Update 61

Version 61, 62

VGAAuto 62

VGAPrefT 62

VidOutRes 63

VolKeyOPT 63

VOUT 64

VOUTMute 64

Configuration

IP. See IP configuration

Connection

diagram 10

instructions 10

Contents

package 8

Contrast 32,45

Customer support 3

D

DC 48V

port 9

Default settings 68

Description

front / rear panel 9

DHCP 28,51

F

FCC statement 6

Features 8

Firmware

displaying 17

updating

using the web GUI 65

using USB 66

G

Gateway 28

H

HDBT

monitoring 30

Hue 32,50

|

Installation 10

IP address

default 52

IP configuration

using commands 12

using the front panel 12

using the web GUI 13

K

Kit mode 31

M

Muting

audio 64

N

Netmask 28

O

Operating notes 3

Output volume

adjusting 64

P

Panel descriptions 9

Password

default 14

setting 27

Power

port 9

Index

R

Reset

factory-default 53

Resolution

output 32,63

S

Safety information 6

Saturation 32

Sharpness 32, 58

Specifications 69

Static IP 28,52

Subnet mask 28

Switching

auto 18

T

Telnet

listening port 28

login mode 28

timeout 28

Timer

auto power-off 22

display warm-up 22

lamp cool down 22

Treble

adjusting 19, 20

U

Users

adding 27,50

editing 27

primary user name 14

removing 27,51

V

VGA

signal adjustment 18

Volume

adjusting 64

W

Warranty 4

Web GUI 14
