Congratulations!

You have just purchased a TCO'95 or TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

This product meets the requirements for the TCO'95 or TCO'99 scheme which provides for an international environmental and quality labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation), Statens Energimyndighet (The Swedish National Energy Administration) and SEMKO AB. The requirements cover a wide range of issues: environment, ergonomics, usability, reduction of electric and magnetic fields, energy consumption and electrical safety.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does the environmental labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation). These demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur. The relevant TCO'95 and TCO'99 demand require that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium \*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colour-generating layers of display screens must not contain any cadmium.

The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury \*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses.

TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. The relevant TCO'99 requirement states that batteries may not contain any mercury.

Both TCO'95 and TCO'99 also demand that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is available.

CFCs (freons)

The relevant TCO'95 and TCO'99 requirement state that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead \*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'95 and TCO'99 requirement permit the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Table of Contents

Tips and safety precautions 8

Product description 9

Connecting the monitor and turning the monitor on and off 11

Connecting the monitor to a computer 11

Connecting the monitor to a power source 11

Turning the power on 12

Changing between input terminals.... 12

Turning the power off 12

Adjusting the screen display 13

Resetting all adjustment values 13

Adjustment lock function.... 13

Adjusting the backlight 13

Adjusting the screen display (When using an analog signal) 14

Automatic screen adjustment 14

Manual screen adjustment 15

Adjusting the screen display (When using a digital signal).... 18

Monitor care and repair 20

Monitor care 20

Storage 20

Troubleshooting 20

Specifications 21

Installing set-up information and the ICC profile (For Windows) 24

Information about the ColorSync profile (For MacOS) 27

Instructions for attaching a VESA compliant arm 28

Tips and safety precautions

• The TFT color LCD panel used in this monitor is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colors or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the monitor.
• Do not leave the screen displaying idly for long periods of time, as this could cause afterimage to remain.
• If the brightness is adjusted to the minimum setting it may be difficult to see the screen.
• The quality of the computer signal may influence the quality of the display. We recommend using a computer able to emit high quality video signals.
• Never rub or tap the monitor with hard objects.
• Please understand that Sharp Corporation bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.
• This monitor and its accessories may be upgraded without advance notice.

Location

• Do not use the monitor where ventilation is poor, where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam, as this could lead to fire.
• Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.
• Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to come into contact with strong shocks or vibrations. Causing the monitor to fall or topple over may damage it.
• Do not use in places where the monitor will be subject to direct sunlight, near heating equipment or anywhere else where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

The Power Cord

• Do not damage the power cord nor place heavy objects on it, stretch it or overly bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• Use only the power cord supplied with the monitor.
• Insert the power plug directly into the AC outlet. Adding an extension cord may lead to fire as a result of overheating.

Monitor and accessory checklist

• Please check that the following items are included in the package.
• LCD monitor (1)
• AC adapter (1) (model name: NL-A61J)
• Analog signal cable (1) (model name: 0LTGD15180001)
• Utility Disk (For Windows/Macintosh) (1)
• Operation manual (1)

Notes:

• Use only the cables supplied with the monitor or designated cables that are separately purchased.
• The digital signal cable (DVI-D24 pin – DVI-D24 pin) is to be purchased separately. (model name: NL-C01E)
• You are advised to retain the carton in case the monitor needs to be transported.
• Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
• The shape of the supplied accessories may not be exactly same as shown in this booklet.

Use of AC adapter

• Do not use the AC adapter for other than the specified equipment.
• Unplug the AC adapter if it is not used for long time.
• Do not place any objects on the AC adapter.
• Do not use the AC adapter outdoors.
• Do not attempt to repair the AC adapter if it is broken or malfunctioning. Refer the servicing to the service representative.
• Do not try to open the AC adapter.
• Do not use water or wet cloth for cleaning the AC adapter.

Manual Scope

• In this booklet, Microsoft Windows XP will be referred to as "Windows XP", Microsoft Windows Millenium as "Windows Me", Microsoft Windows 2000 as "Windows 2000", Microsoft Windows 98 as "Windows 98", Microsoft Windows 95 as "Windows 95", and Microsoft Windows Version 3.1 as "Windows 3.1". When there is no need to distinguish between programs, the term "Windows" will be used.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a registered trademark of Apple Computer, Inc.
• All other brand and product names are trademarks or registered trademarks of their respective holders.

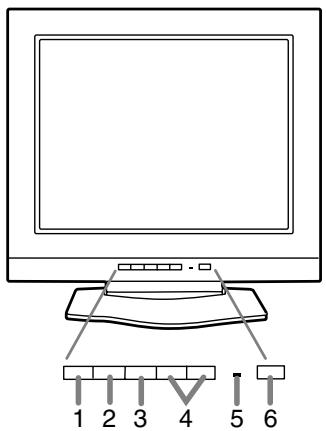

1 2 3 4 5 6

11 11 7 8 9 10

1. INPUT button .... To switch between the signal's input terminals. (Analog RGB input terminal DVI-D input terminal)
2. MENU button.... This button is used to pop-up, select and close the OSD (On Screen Display) Menu.
3. ▼ button ...... This button is used to select menu options when the OSD Menu is displayed.
4. ◀▶ buttons ...... When the OSD Menu is displayed:
   These buttons are used to select an option or adjust the value of the selected option.
   When the OSD Menu is not displayed:
   These buttons are used to adjust backlight brightness.
5. Power LED ...... This LED is lit green when in use and orange when in power-saving mode.
6. Power button
7. Power terminal

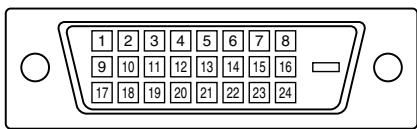

8. DVI-D input terminal .... Use this when connecting to the computer's digital RGB output terminal.
   It can be connected to a computer with a DVI-compatible output terminal (DVI-D24 pin or DVI-I29 pin) and which has SXGA output ability. (Depending on the computer to be connected, correct display may or may not be possible.)
   In order to connect, it is necessary to purchase a Digital signal cable.(Model name: NL-C01E)
9. Analog RGB input terminal ...... Use this when connecting to the computer's analog RGB output terminal.
10. Security lock anchor .... By connecting a security lock (commercially available) to the security lock anchor, the monitor is fixed so that it cannot be transported. The security slot works in conjunction with Kensington Micro Saver Security Systems.

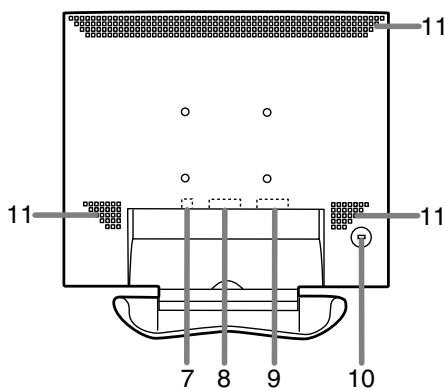

11. Ventilation openings .... Note: Never block the ventilation openings as this may lead to overheating inside the monitor and result in malfunction.

Product description

Standing up and adjusting the monitor

CAUTION!

• Pressure from hands on the LCD panel could cause damage.
• Be careful not to allow your fingers to be pinched.
• Be careful not to place any objects on the cables. Doing so may result in disconnection or other problems.

Standing up the monitor

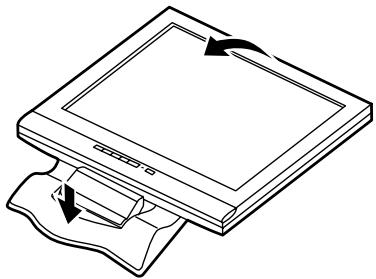

Press down on the stand and lift up the top section of the monitor.

Line drawing of a computer monitor with scroll arrows indicating rotation (no text or symbols)

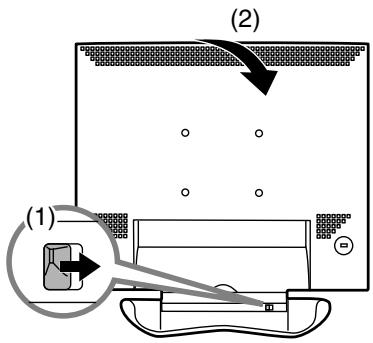

Folding up the monitor

1. Remove the AC adapter and the signal cable.
2. If carrying out adjustments to the monitor, place it upright.
3. While pressing the rear lock disable button (1), gently fold back the monitor (2).

(1) (2)

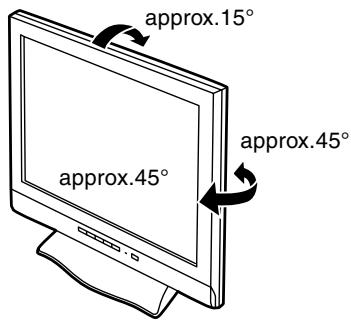

Angle adjustment

Adjust to an easy to view angle.

approx.15° approx.45° approx.45°

- Do not use the monitor when tilted back beyond approximately 15^ . The monitor may fall over leading to injury or malfunction.

approx.15°

Prohibited range

Connecting the monitor and turning the monitor on and off

CAUTION!

• When connecting, ensure that both the monitor and computer are switched off.
• Be careful not to overly bend the cable or add extension cords as this could lead to a malfunction.

Connecting the monitor to a computer

Analog RGB connection

Connect this device's analog signal cable to the computer.

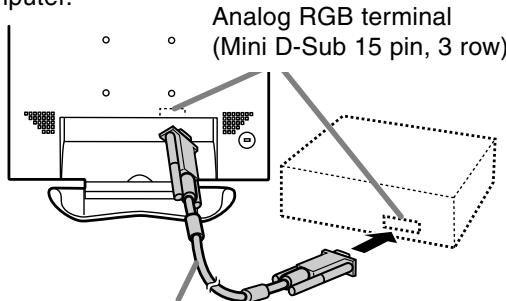

Analog RGB terminal (Mini D-Sub 15 pin, 3 row)

Analog signal cable

- Paying attention to connector direction, firmly insert the signal cable to terminal, and then tighten the screws at both sides.

If connecting to a D-sub 15 pin 2 row Apple Power Macintosh, attach a Macintosh conversion adapter (commercially available) to the analog signal cable.

Macintosh conversion adapter

conversion adapter

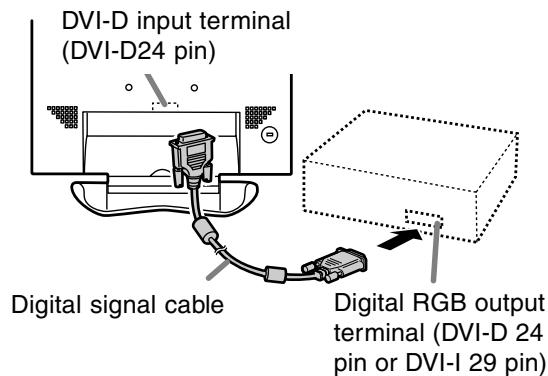

Digital RGB connection

Connecting the monitor to a computer via a Digital signal cable. (to be purchased separately)

• For digital RGB connection, the monitor has an input for connecting to a computer with a DVI-compatible output connector (DVI-D 24 pin or DVI-I 29 pin) and SXGA output capability. (Depending on the type of computer to be connected, the display may not work correctly.)

DVI-D input terminal (DVI-D24 pin) Digital signal cable Digital RGB output terminal (DVI-D 24 pin or DVI-I 29 pin)

- Paying attention to connector direction, firmly insert the signal cable to terminal, and then tighten the screws at both sides.

Connecting the monitor to a power source

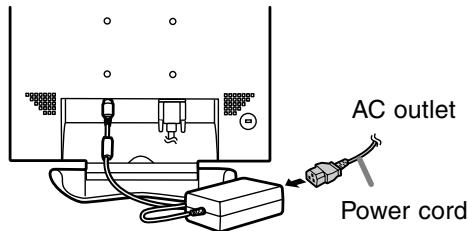

1. Connect the AC adapter to the monitor's power terminal.

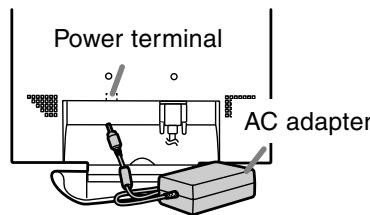

Power terminal AC adapter

1. Attach the power cord to the AC adapter and place the power plug into the AC outlet.

AC outlet Power cord

CAUTION!

- After unplugging the AC adaptor or power cord, be sure to wait at least 10 seconds before plugging in again. If you put the plug back in immediately after unplugging, damage may be caused and the screen malfunction or not display.

Connecting the monitor and turning the monitor on and off

Turning the power on

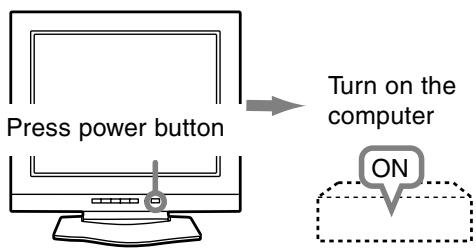

1. Press the monitor's POWER button.
2. Turn on the computer.

The power LED will be lit green, and the screen will display an image.

Press power button Turn on the computer ON

Notes: (when using an analog signal)

• If using the monitor for the first time or after having changed the system settings during use, perform an automatic screen adjustment (p.14).
• When connecting to a notebook, if the notebook computer's screen is set so that it is displaying at the same time, the MS-DOS screen may not be able to display properly. In this case, change the settings so that only the monitor is displaying.

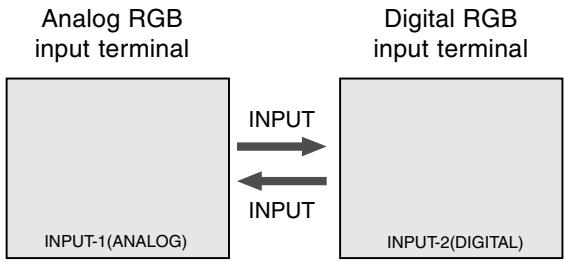

Changing between input terminals

Use the INPUT button to switch between signal input terminals.

Turning the power off

1. Turn the computer off.
2. Press the monitor's POWER button.
   The Power LED will disappear.

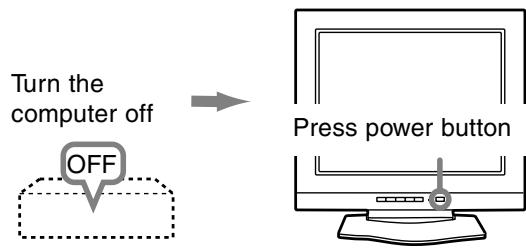

Turn the computer off OFF Press power button

If the monitor is not going to be used for a long period of time, be sure to unplug it from the AC outlet.

Adjusting the screen display

For analog signal

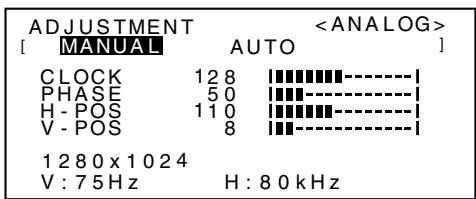

1. First perform an automatic adjustment. (p.14)
2. Perform manual adjustment where necessary. (p.15)

For digital signal

The monitor can generally be used without adjustment. If necessary perform manual adjustment. (p.18)

Note:

- All adjustments will be saved even after turning the power off.

Resetting all adjustment values

All adjustment values can be returned to their original ex-factory values in one command.

1. Turn off the monitor power.
2. Press the MENU button and the ▼ button simultaneously, and while doing this press the power button (i.e. turn the power on). When [ALL RESET] appears on the screen, the reset is complete.

Notes:

• While [ALL RESET] is displayed, the control buttons are disabled.
• It is not possible to reset values when the adjustment lock is in place. Remove the adjustment lock before attempting to operate control buttons.

Adjustment lock function

By disabling the control buttons (i.e. setting the lock) any attempted changes to adjusted values will be voided.

1. Turn off the monitor power.
2. While pressing the MENU button, press the power button (i.e. turn the power on).

Continue to press the button until [ADJUSTMENT LOCKED] appears on the screen. The lock is set when the message is displayed.

Note:

- When the lock is in place, all buttons other than the power button are disabled.

Adjustment lock release

1. Turn off the monitor power.
2. While pressing the MENU button, press the power button (i.e. turn the power on).

Continue to press the button until [ADJUSTMENT UNLOCKED] appears on the screen. The lock is released when the message is displayed.

Adjusting the backlight

1. Without the OSD Menu being displayed, press the ◀ or the ▶ button. At the bottom of the screen the BRIGHT bar will appear.

[ BRIGHT 31 ]

1. Adjust by pressing the ◀ button (darker) or ▶ button (lighter).
2. Press the MENU button. The BRIGHT bar disappears.

- The BRIGHT bar automatically disappears several seconds after the last command.

Automatic screen adjustment

Options in the ADJUSTMENT Menu can be adjusted automatically (CLOCK, PHASE, H-POS V-POS).

Note:

- When setting up this monitor for the first time or after having changed an aspect of the current system, perform an automatic screen adjustment before use.

On Screen Display for the automatic adjustment

First display an image that makes the entire screen light.

If you are using Windows, you can use Adjustment Pattern on the accompanying Utility Disk.

Opening the Adjustment Pattern (for Windows)

This explanation is for Windows 95/98/2000/Me/XP, and assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.
2. Open [My Computer] and select [3 ½ Floppy [A:]]. If using Windows 3.1, open [File Manager] and choose A drive.
3. Double click on [Adj_uty.exe] to run the Adjustment Program. The Adjustment Pattern will appear.

Adjustment pattern

Abstract geometric pattern with concentric circles and a central semicircle on a grid background (no text or symbols)

After completing the adjustments, press the computer's [Esc] key to exit the Adjustment Program.

Note:

- If your computer's display mode is set to 65K colors, you may see the different color levels in each color pattern or the gray scale may look colored. (This is due to the specification of the input signal and is not a malfunction.)

How to Adjust

1. Press the MENU button.

The ADJUSTMENT Menu will be displayed.

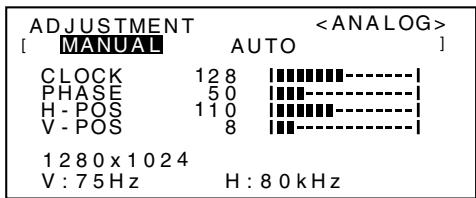

ADJUSTMENT [ MANUAL CLOCK 128 PHASE 50 H - POS 110 V - POS 8 1280 x 1024 V : 75 Hz AUTO H : 80 kHz

1. Press the ▶ button.

The screen will become dark and [ADJUSTING] will be displayed. After a few seconds the ADJUSTMENT Menu will return. (The automatic adjustment is now complete.)

1. Press the MENU button 4 times to make the OSD Menu disappear.

Notes:

• In most cases automatic adjustment is sufficient.
• If necessary due to any of the following, manual adjustments (p.15) can be performed after the automatic adjustment.
• When further fine adjustment is needed.
• When [OUT OF ADJUST] is displayed. (When the screen displays an entirely dark image, the automatic screen adjustment may be disabled. When making an automatic adjustment, be sure to either use the Adjustment Pattern or try displaying an image that makes the entire screen very bright.)

Manual screen adjustment

Adjustments can be made using On Screen Display (OSD) Menu provided.

On Screen Display for adjustment

If you are using Windows, open the Adjustment Pattern on the accompanying Utility Disk. (p.14). If your system is not Windows, you can not use the Adjustment Pattern. Therefore display an image that makes the entire screen light and adjust it through checking visually its actual tone. This chapter provides the procedure how to adjust the screen by using Adjustment Pattern (for Windows)

How to adjust

1. Press the MENU button.

The ADJUSTMENT Menu will be displayed.

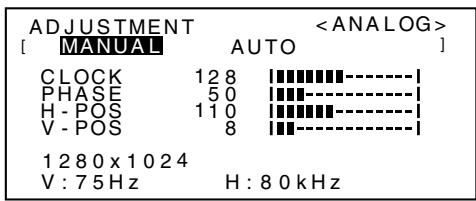

ADJUSTMENT [ MANUAL CLOCK 128 PHASE 50 H-POS 110 V-POS 8 1280x1024 V:75Hz AUTO H:80kHz

At this point relevant menu options can be adjusted.

Each time the MENU button is pressed the next menu is selected. (ADJUSTMENT → GAIN CONTROL → COLOR CONTROL → MODE SELECT → OSD Menu disappears)

Note:

- The OSD Menu automatically disappears several seconds after the last command.

ADJUSTMENT Menu

ADJUSTMENT [ MANUAL CLOCK 128 PHASE 50 H - POS 110 V - POS 8 1280 x 1024 V : 75Hz AUTO H : 80 kHz

MANUAL: Individual menu options are manually adjusted.

AUTO: Every menu option is automatically adjusted.

Notes:

• Press the ▶ button to select [AUTO].
• To choose a menu option: ▼ button
• To go to the next menu: MENU button

CLOCK

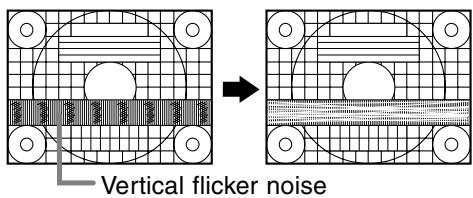

The figure below demonstrates how to adjust so that vertical flicker noise is not emitted.

(<► buttons)

Vertical flicker noise

PHASE

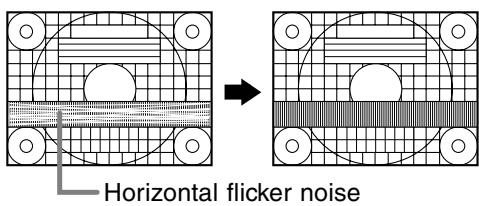

The figure below demonstrates how to adjust so that horizontal flicker noise is not emitted.

(<► buttons)

Note:

- Adjustments to PHASE should be made only after CLOCK has been correctly set.

Horizontal flicker noise

H-POS (horizontal positioning) and V-POS (vertical positioning)

To center the Adjustment pattern within the boundaries of the screen, adjust the left-right (H-POS) values and the up-down (V-POS) values.

(<► buttons)

Screen frame

Adjusting the screen display (When using an analog signal)

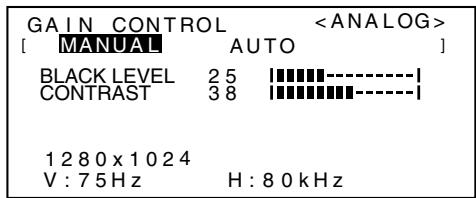

GAIN CONTROL Menu

GAIN CONTROL [ MANUAL AUTO ] BLACK LEVEL 25 [■■■■-] CONTRAST 38 [■■■■-] 1 2 8 0 x 1 0 2 4 V : 7 5 Hz H : 8 0 kHz

MANUAL: Individual menu options are manually adjusted.

AUTO: Every menu option is automatically adjusted using the Auto Gain Control* function.

Notes:

• Press the ▶ button to select [AUTO].
• To choose a menu option: ▼ button
• To go to the next menu: MENU button

\* Auto Gain Control function

- The Auto Gain Control adjusts contrast and black level based on the brightest color of the image displayed. If you are not using the Adjustment Pattern it is necessary to have an area of 5 mm x 5 mm of white displayed, and if not adjustments may not be possible. (In such case, [OUT OF ADJUST] will appear and setting values remain unchanged.) - When using the Auto Gain Control function, set [WHITE BALANCE] to other than [USER]. If [USER] is set, the Auto Gain Control function cannot be used.

BLACK LEVEL

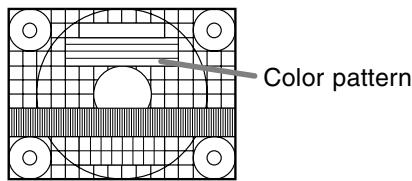

Total screen brightness can be adjusted while watching the color pattern. (◀▶ buttons)

Color pattern

CONTRAST

While watching the color pattern, adjustments can be made so that all gradations appear.

(<► buttons)

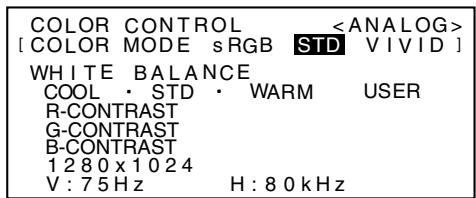

COLOR CONTROL Menu

COLOR CONTROL [ COLOR MODE sRGB STD VIVID ] WHITE BALANCE COOL · STD · WARM USER R-CONTRAST G-CONTRAST B-CONTRAST 1280 x 1024 V: 75Hz H: 80kHz

Notes:

• To choose a menu option: ▼ button
• To go to the next menu: MENU button

COLOR MODE

Color tone can be set as below. (◀▶ buttons) sRGB: sRGB is international standard of color representation specified by IEC (International Electrotechnical Commission). Color conversion is made in taking account of liquid crystal's characteristics and represents color tone close to it original image.

STD: Displays image with the color tone results from original scheme of liquid crystal panel.

VIVID: Displays an image with dynamic and VIVID primary colors.

- If [sRGB] or [VIVID] has been selected, items subsequent to [WHITE BALANCE] cannot be set.

WHITE BALANCE

• Use the ◀▶ buttons to select [COOL], [·], [STD], [·], [WARM] or [USER].
• Selecting [USER] will display the setting values for [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST], in order to make fine adjustments.
• Use the ▼ button to select [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST].

COOL ... Color tone bluer than standard

• ......Color tone slightly bluer than standard STD .....Color tone standard setting
- ......Color tone slightly redder than standard WARM ..Color tone redder than standard USER

R-CONTRAST ..... ◀ button for blue-green

▶ button for red

G-CONTRAST ..... ◀ button for purple

▶ button for green

B-CONTRAST ..... ◀ button for yellow

▶ button for blue

Adjusting the screen display (When using an analog signal)

MODE SELECT Menu

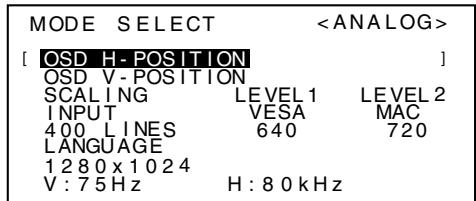

MODE SELECT [ OSD H-POSITION ] OSD V-POSITION SCALING LEVEL 1 LEVEL 2 INPUT VESA MAC 400 L INES 640 720 LANGUAGE 1280 x 1024 V: 75Hz H: 80kHz

Notes:

• Depending on the resolution of the input signal, even if menu options can be selected, the display may not change.
• To choose a menu option: ▼ button
• To complete adjustment: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD Menu can be moved to the left and right. (◀▶ buttons)

OSD V-POSITION (OSD vertical position)

The position of the OSD Menu can be moved up and down. (◀▶ buttons)

SCALING (Level of scaling)

Adjusts the image to optimum sharpness when Screen expansion is taken. (◀▶ buttons)

Notes:

• When the display mode is set to less than 1280 x 1024 pixels, the display is enlarged to cover the whole screen (i.e. the side ratio of the display may change).
• Display modes of 1280 x 1024 pixels cannot be changed.

INPUT (Input mode)

The input mode can be set. (◀▶ buttons)

VESA: VESA mode

MAC: Power Macintosh mode

400 LINES (degree of resolution)

You can specify the horizontal resolution of a 400-line screen when using US text, etc. (◀▶ buttons)

640: 640 X 400 dot mode

720: 720 X 400 dot mode (US text etc.)

Note:

- As the resolution input for other than 400 lines is done automatically, there is no need to set it.

LANGUAGE

You can choose the language used in OSD Menu.

1. Press the ▶ button.
   Language Selection Menu (LANGUAGE) will appear.

2. Chose the desired language by ▼ button.

3. Press MENU button or the ▶ button, and Language Selection Menu will disappear.

Adjustments can be made using On Screen Display (OSD) Menu provided.

On Screen Display for adjustment

If you are using Windows, open the Adjustment Pattern on the accompanying Utility Disk. (p.14). If your system is not Windows, you can not use the Adjustment Pattern. Therefore display an image that makes the entire screen light and adjust it through checking visually its actual tone.

This chapter provides the procedure how to adjust the screen by using Adjustment Pattern (for Windows)

How to adjust

1. Press the MENU button.

The COLOR CONTROL Menu will be displayed.

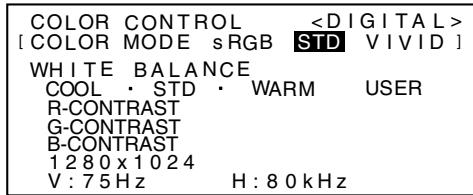

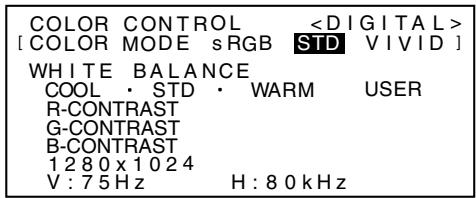

COLOR CONTROL [ COLOR MODE sRGB STD VIVID ] WHITE BALANCE COOL · STD · WARM USER R-CONTRAST G-CONTRAST B-CONTRAST 1280x1024 V:75Hz H:80kHz

At this point relevant menu options can be adjusted.

Each time the MENU button is pressed the next menu is selected. (COLOR CONTROL → MODE SELECT → OSD Menu disappears)

Note:

- The OSD Menu automatically disappears several seconds after the last command.

COLOR CONTROL Menu

COLOR CONTROL [ COLOR MODE sRGB STD VIVID ] WHITE BALANCE COOL · STD · WARM USER R-CONTRAST G-CONTRAST B-CONTRAST 1280 x 1024 V:75Hz H:80kHz

Notes:

• To choose a menu option: ▼ button
• To go to the next menu: MENU button

COLOR MODE

Color tone can be set as below. (◀▶ buttons) sRGB: sRGB is international standard of color representation specified by IEC (International Electrotechnical Commission). Color conversion is made in taking account of liquid crystal's characteristics and represents color tone close to it original image.

STD: Displays image with the color tone results from original scheme of liquid crystal panel.

VIVID: Displays an image with dynamic and VIVID primary colors.

- If [sRGB] or [VIVID] has been selected, items subsequent to [WHITE BALANCE] cannot be set.

WHITE BALANCE

• Use the ◀▶ buttons to select [COOL], [·], [STD], [·], [WARM] or [USER].
• Selecting [USER] will display the setting values for [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST], in order to make fine adjustments.
• Use the ▼ button to select [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST].

COOL ... Color tone bluer than standard

• ......Color tone slightly bluer than standard STD .....Color tone standard setting
- ......Color tone slightly redder than standard WARM ..Color tone redder than standard USER

R-CONTRAST ..... ◀ button for blue-green

▶ button for red

G-CONTRAST ..... ◀ button for purple

▶ button for green

B-CONTRAST ..... ◀ button for yellow

▶ button for blue

MODE SELECT Menu

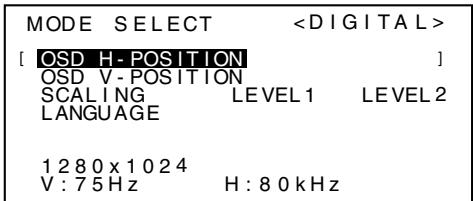

MODE SELECT [ OSD H-POSITION ] OSD V-POSITION SCALING LEVEL 1 LEVEL 2 LANGUAGE 1280x1024 V:75Hz H:80kHz

Notes:

• Depending on the resolution of the input signal, even if menu options can be selected, the display may not change.
• To choose a menu option: ▼ button
• To complete adjustment: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD Menu can be moved to the left and right. (◀▶ buttons)

OSD V-POSITION (OSD vertical position)

The position of the OSD Menu can be moved up and down. (◀▶ buttons)

SCALING (Level of scaling)

Adjusts the image to optimum sharpness when Screen expansion is taken. (◀▶ buttons)

Notes:

• When the display mode is set to less than 1280 x 1024 pixels, the display is enlarged to cover the whole screen (i.e. the side ratio of the display may change).
• Display modes of 1280 x 1024 pixels cannot be changed.

LANGUAGE

You can choose the language used in OSD Menu.

1. Press the ▶ button.
   Language Selection Menu (LANGUAGE) will appear.
2. Chose the desired language by ▼ button.
3. Press MENU button or the ▶ button, and Language Selection Menu will disappear.

Monitor care

Always remove the plug from the AC outlet when cleaning the monitor.

Cabinet and control panel section

Use a soft dry cloth to lightly wipe away any grime from the cabinet and control panel.

If they are very dirty, apply neutral detergent to a dampened soft cloth, wring it out well and wipe away grime.

LCD panel section

Use a soft dry cloth to lightly wipe away dirt and dust from the surface of the LCD panel. (A soft cloth such as gauze or that used for lens cleaning is suitable.)

CAUTION!

• Never use thinner, benzine, alcohol, glass cleaner, etc, as this could lead to color change or change in shape.
• Never scratch the monitor with anything hard or apply strong pressure as this could leave marks or result in malfunction.

Storage

If the monitor will not be used for a long period of time, be sure to remove the power plug from the AC outlet.

CAUTION!

- Do not leave the monitor in contact with rubber or plastic items for long periods of time as this could lead to color change or change in shape.

Troubleshooting

If you think the monitor may be faulty, please check the following points before taking it to be repaired. If afterwards it still does not work, please contact the shop where you purchased the monitor or your nearest Sharp authorized Service Center.

The monitor's florescent tubes have a limited life span.

• If the screen darkens, persistently flickers or does not light up, it may be necessary to replace the florescent tube unit. Please inquire at the shop where you purchased the monitor or your nearest Sharp authorized Service Center. (Never attempt this replacement on your own.)
• In the initial period of use, due to the characteristics of florescent tubes the screen may flicker. (This is not a malfunction.) Should this happen, check by first turning off the power, then turning it on again.

No image appears on the monitor (Power LED is not lit)

- Are the AC adapter and power cord connected properly? (p.11)

No image appears on the monitor (Power LED is lit)

• Is the computer connected properly? (p.11)
• Is the computer turned on?
• Is the signal's input terminal switched to the correct one? (p.12)
• Does the computer's signal timing correspond to monitor specifications? (p.22)
• Is the computer in power-saving mode?

Control buttons do not work

- Is the adjustment lock on? (p.13)

The image appears distorted or interference appears on the image

• Does the computer's signal timing correspond to monitor specifications? (p.22)
• If you are using the analog signal, perform automatic screen adjustment. (p.14)
• If you can change the refresh rate on the computer you are using, change the value to a lower frequency.

Product specifications

Model name

LL-T18A1-H (Frosty gray) / LL-T18A1-B (Black)

LCD display

46 cm measured diagonally

TFT LCD module

Resolution (max.)

SXGA 1280 x 1024 pixels

Displayable colors (max.)

16.77 million colors (8 bit)

Brightness (max.)

250cd/m²

Dot pitch

0.2805(H) × 0.2805(V) mm

Contrast ratio

350:1

Angle of visibility

Left-right 160°; Up-down 160° (contrast ratio ≥ 5)

Screen display size

Horizontal 359 mm x Vertical 287.2 mm

Video signal

Analog: Analog RGB (0.7Vp-p) [75Ω]

Digital: DVI standard based on 1.0

Sync signal

Separate Sync (TTL level: +/-), Sync on

Green, Composite Sync (TTL level: +/-)

Expansion compensation

Digital scaling (Enlarges VGA/SVGA/XGA etc. to full screen size.)

Plug & Play

VESA DDC1/DDC2B compatible

Power management

VESA: based on DPMS

DVI: based on DMPM

Input signal terminal

Mini D-sub 15 pin (3 row), DVI-D 24 pin

Screen tilt

Upward 0° -15°

Screen swivel

90° from left through right (Turn table type)

Power supply

AC100 - 240V, 50/60Hz (Use special AC adapter, type NL-A61J of Sharp Corporation.)

Temperature of operating environment 5 - 35°C

Power consumption

Maximum 48W (Standby state: 2.7W)

(Use special AC adapter.)

Dimensions

Approx. 422(W) x 217(D) x 420(H) mm

Weight

Approx. 7.0kg

Display area only, approx. 5.4kg

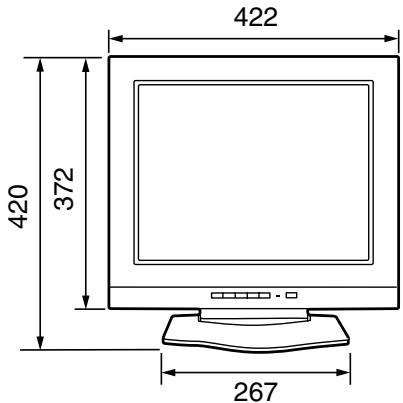

Dimensions (Units: mm)

422 372 420 267

68

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

- Special AC adapter:

Approx. 1.8 m

Approx. H 110 mm x D 60 mm x H 30 mm

- Analog signal cable: Approx. 1.8m

- Digital signal cable, NL-C01E (purchased separately): Approx. 2.0m

Specifications

Relevant signal timings (analog)

Display mode		Hsync	Vsync	Dot frequency
VESA	640x480	31.5kHz	60Hz	25.175MHz
		37.9kHz	72Hz	31.5MHz
		37.5kHz	75Hz	31.5MHz
	800x600	35.1kHz	56Hz	36.0MHz
		37.9kHz	60Hz	40.0MHz
		48.1kHz	72Hz	50.0MHz
		46.9kHz	75Hz	49.5MHz
	1024x768	48.4kHz	60Hz	65.0MHz
		56.5kHz	70Hz	75.0MHz
		60.0kHz	75Hz	78.75MHz
	1152x864	67.5kHz	75Hz	108.0MHz
	1280x960	60.0kHz	60Hz	108.0MHz
	1280x1024	64.0kHz	60Hz	108.0MHz
		80.0kHz	75Hz	135.0MHz
US text	720x400	31.5kHz	70Hz	28.3MHz
Power Macin-tosh series	640x480	35.0kHz	66.7Hz	30.2MHz
	832x624	49.7kHz	74.6Hz	57.3MHz
	1024x768	60.2kHz	75Hz	80.0MHz
	1152x870	68.7kHz	75Hz	100.0MHz
	1280x1024	64.0kHz	60Hz	108.0MHz
		80.0kHz	75Hz	135.0MHz
Sun Ultra series	1024x768	48.3kHz	60Hz	64.13MHz
		53.6kHz	66Hz	70.4MHz
		56.6kHz	70Hz	74.25MHz
	1152x900	61.8kHz	66Hz	94.88MHz
		71.8kHz	76.2Hz	108.23MHz
	1280x1024	71.7kHz	67.2Hz	117.01MHz
		81.1kHz	76Hz	134.99MHz

• Recommended resolution is 1280 x 1024.
• All are compliant only with non-interlaced.
• Frequencies for Power Macintosh and Sun Ultra series are reference values. To connect, another adapter (commercially available) may be required.
• If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will appear. Follow your computer's instruction manual to set the timing so that it is compatible with the monitor.
• If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.

Relevant signal timings (digital)

Display mode		Hsync	Vsync	Dot frequency
VESA	640x480	31.5kHz	60Hz	25.175MHz
		37.9kHz	72Hz	31.5MHz
		37.5kHz	75Hz	31.5MHz
	800x600	37.9kHz	60Hz	40.0MHz
		48.1kHz	72Hz	50.0MHz
		46.9kHz	75Hz	49.5MHz
	1024x768	48.4kHz	60Hz	65.0MHz
		56.5kHz	70Hz	75.0MHz
		60.0kHz	75Hz	78.75MHz
	1152x864	67.5kHz	75Hz	108.0MHz
	1280x960	60.0kHz	60Hz	108.0MHz
	1280x1024	64.0kHz	60Hz	108.0MHz
US text	720x400	31.5kHz	70Hz	28.3MHz

• Recommended resolution is 1280 x 1024.
• All are compliant only with non-interlaced.
• A computer with an output terminal conforming to DVI (DVI-D24 pin or DVI-I29 pin) and with SXGA output capability can be connected here. (Depending on the type of computer to be connected, the display may not work correctly.)
• If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will appear. Follow your computer's instruction manual to set the timing so that it is compatible with the monitor.
• If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.

Specifications

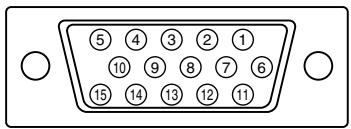

The analog RGB input connector pin

(Mini D-sub connector with 15 pins)

5 4 3 2 1 10 9 8 7 6 15 14 13 12 11

No.	Function
1	Red video signal input
2	Green video signal input
3	Blue video signal input
4	GND
5	GND
6	For red video signal GND
7	For green video signal GND
8	For blue video signal GND
9	DDC+5V
10	N.C.
11	GND
12	DDC data
13	For Hsync signal input
14	For Vsync signal input
15	DDC clock

The DVI-D input connector pin

(DVI-D connector with 24 pins)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

No.	Function	No.	Function
1	TMDS data 2-	13	N.C.
2	TMDS data 2+	14	+5V
3	TMDS data 2/4 shield	15	GND
4	N.C.	16	Hot plug detection
5	N.C.	17	TMDS data 0-
6	DDC clock	18	TMDS data 0+
7	DDC data	19	TMDS data 0/5 shield
8	N.C.	20	N.C.
9	TMDS data 1-	21	N.C.
10	TMDS data 1+	22	TMDS clock shield
11	TMDS data 1/3 shield	23	TMDS clock +
12	N.C.	24	TMDS clock -

Power management

The monitor is based on the VESA DPMS and the DVI DMPM standards.

To activate the monitor's Power Management function, both the video card and the computer must conform to the VESA DPMS standard and the DVI DMPM standard.

DPMS: Display Power Management Signalling

DPMS mode	Screen	Power consumption	H-sync	V-sync
ON	Display on	48W	Yes	Yes
STANDBY	Display off	2.7W	No	Yes
SUSPEND			Yes	No
OFF			No	No

DMPM: Digital Monitor Power Management

DMPM mode	Screen	Power consumption
ON	Display on	48W
OFF	Display off	2.7W

DDC (Plug & Play)

This monitor supports the VESA DDC (Display Data Channel) standard.

DDC is a signal standard for carrying out Plug & Play functions on the monitor or PC. It transfers information such as degree of resolution between the monitor and PC. You can use this function if your PC is DDC compliant and if it is set so that it can detect the Plug & Play monitor.

There are many varieties of DDC due to the differences between systems. This monitor works with DDC1 and DDC2B.

Installing set-up information and the ICC profile (For Windows)

Depending on the computer or OS, it may be necessary to use the computer to operate the installation of monitor set-up information etc. If so, follow the steps below to install the monitor set-up information. (Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.)

About the ICC profile

An ICC (International Color Consortium) profile is a file that describes the color characteristics of the LCD monitor. By using an application that works together with an ICC profile, a high color resolution can be realized.

• Windows 98/2000/Me/XP all use the ICC profile.
• When installing Windows 98/2000/Me/XP setup information (described below), the ICC profile is also installed. If you would like to install the ICC program only, please refer to Installing the ICC profile on page 26.
• When using an ICC profile, set [COLOR MODE] and [WHITE BALANCE] to [STD].

Installing set-up information

For Windows 95

Installing monitor set-up information into Windows 95.

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced Properties], and [Monitor], then [Change].
5. Click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:] then click [OK].
6. Confirm that the monitor details are selected, and click [OK].
7. Check that the monitor details are displayed, then click [Apply].
8. Click [OK], and close the window.
9. Remove the Utility Disk from the A drive.

For Windows 98

Installing monitor set-up information into Windows 98, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

If the "Add new Hardware Wizard" has appeared:

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click [Next].
3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].
4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
5. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish]. If the "Add New Hardware Wizard" appears, repeat the installation commands beginning from 2 above.
6. Remove the Utility Disk from the A drive.

If the "Add New Hardware Wizard" has not appeared:

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].

5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].

6. Click [Next].

7. Click on [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].

8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].

9. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish].

10. Check that the monitor details are displayed, then click [Apply].

11. Click [OK], and close the window.

12. Remove the Utility Disk from the A drive.

Installing set-up information and the ICC profile (For Windows)

For Windows 2000

Installing monitor set-up information into Windows 2000, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].
5. Click on [Properties], [Driver] and [Update Driver].
6. When [Upgrade Device Driver Wizard] appears, click [Next].
7. Check [Display a list of the known drivers for this device so that I can choose a specific driver] and click [Next].
8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
9. Select the monitor from the list displayed and click [Next].
10. Click [Next], confirm that the monitor's name appears on the screen, and click [Finish]. If [The Digital Signature Not Found] appears, click [Yes].
11. Click on [Close].
12. Click [OK], and close the window.
13. Remove the Utility Disk from the A drive.

For Windows Me

Installing monitor set-up information into Windows Me, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

If the "Add new Hardware Wizard" has appeared:

1. Place the Utility Disk (provided) into the computer's A drive.
2. Check [Specify the location of the driver [Advanced]] and click [Next].
3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].
4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
5. Select the monitor details from the list, then click [Next], [Next], and [Finish]. If the "Add new Hardware Wizard" appears, repeat the installation commands beginning from 2 above.
6. Remove the Utility Disk from the A drive.

If the "Add New Hardware Wizard" has not appeared:

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].
5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].
6. Check [Specify the location of the driver [Advanced]] and click [Next].
7. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.] and click [Next].
8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
9. Select the monitor details, then click [Next], [Next], and [Finish].
10. Check that the monitor details are displayed, then click [Apply].
11. Click [OK], and close the window.
12. Remove the Utility Disk from the A drive.

Installing set-up information and the ICC profile (For Windows)

For Windows XP

Installing monitor set-up information into Windows XP, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. Choose [Control Panel].
3. Switch to "Classic View".
4. Double click on [Display].
5. Click on [Settings], [Advanced] and [Monitor].
6. Click on [Properties], [Driver] and [Update Driver].
7. When [Hardware Update Wizard] appears, check [Install from a list or specific location [Advanced]] and click [Next].
8. Check [Don't search. I will choose the driver to install.] and click [Next].
9. Click on [Have Disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
10. Select the monitor from the list displayed and click [Next]. If [has not passed Windows Logo testing...] appears, click [Continue Anyway].
11. Confirm that the monitor's name appears on the screen.
12. Click on [Finish].
13. Click on [Close].
14. Click [OK], and close the window.
15. Remove the Utility Disk from the A drive.

Installing the ICC profile

Installing the monitor's ICC profile. (If the set-up information has already been installed, so too has the profile, and there is no need to install it.)

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings] and [Advanced].
5. Click on [General] and from [Compatibility] select [Apply the new display setting without restarting], then click on [Color Management].
6. Click [Add], and select [3 12 Floppy [A:]] as the file location.
7. Choose the color profile that you would like to install, and click on [Add].
8. Choose the profile and click on [Set As Default].
9. Click [OK], and close the window.
10. Remove the Utility Disk from the A drive.

- When using an ICC profile, set [COLOR MODE] and [WHITE BALANCE] to [STD].

Information about the ColorSync profile (For MacOS)

About the ColorSync profile

ColorSync is the Apple Corporation's color management system and is a function that enables color resolution to be realized when used with a compatible application. A ColorSync profile describes the color characteristics of the LCD monitor.

Notes:

• This monitor's ColorSync profile works with MacOS8.5 or above.
• When using the ColorSync profile, set [COLOR MODE] and [WHITE BALANCE] to [STD].

Setting up the ColorSync profile

Notes:

• A floppy disk drive is necessary. In addition, it is necessary to have PC Exchange or File Exchange installed in your system.

• Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.

• Place the Utility Disk (provided) into the computer's floppy disk drive.

• Copy the profile to be used from the Mac folder on the Utility Disk to the ColorSync profile folder located within the system folder.
• Using the ColorSync on the control panel, choose the profile to be used.

Instructions for attaching a VESA compliant arm

An arm or stand based on the VESA standard (commercially available) can be attached to the monitor.

Procurement of the arm or stand is at the customer's discretion.

Arms or stands able to be used

Attachments must satisfy the following.

• Compatible with the VESA standard
• Have a gap of 100 mm x 100 mm between the screw holes on the section to be attached
• Not be likely to fall off or break off after being attached to the monitor.

How to attach the arm or stand

• Be careful not to overly bend the cable or add extension cords as this could lead to malfunction.

• While following these instructions, please also refer to the installation instructions in the operation manual included with the arm or stand.

• Ensure that both the monitor and computer are switched off.

• Remove the AC adapter and the signal cable.

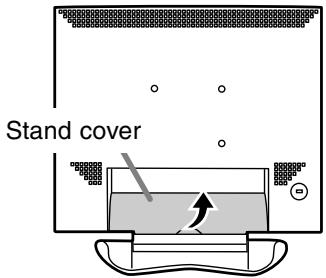

• Remove the stand cover. Pull the lower section of the stand cover upward.

Stand cover

1. Being careful not to damage the monitor, spread out a soft cloth and lay the monitor on it display-side down.

Line drawing of a table with a curved object on top, no text or symbols present

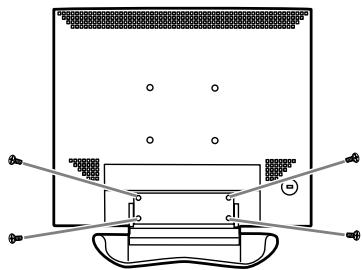

1. Remove the four screws and then remove the stand from the monitor.

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Notes:

• The stand is specially made for use with this monitor. Once having removed the stand, never attempt to attach it to another device.

• Once having removed the screws, store them together with the stand and if the stand is ever re-attached be sure to use the original screws. Using different screws could lead to a malfunction.

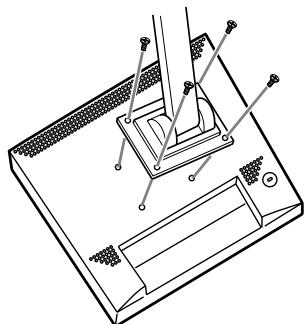

• Attach the arm to the monitor with the four screws.

Technical line drawing of a mechanical assembly with mounting brackets and connectors (no text or symbols)

Note:

• The screws used to attach the arm should be M4 screws with a length of 8 mm \~ 10 mm protruding from the surface to be attached.
  Using different screws could cause the monitor to fall off or to be internally damaged.

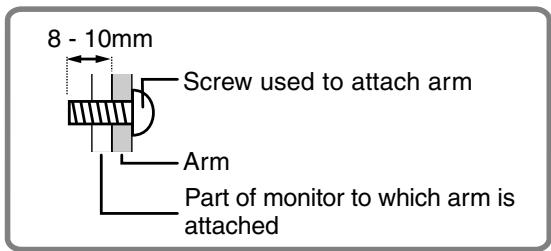

8 - 10mm Screw used to attach arm Arm Part of monitor to which arm is attached

1. Connect the AC adapter and the signal cable.

Inhaltsverzeichnis

Line drawing of a computer monitor with scroll arrows indicating rotation (no text or symbols)

ca.15° ca.45° ca.45°

Abstract geometric pattern with concentric circles and a central semicircle on a grid background (no text or symbols)

ADJUSTMENT [ MANUAL CLOCK 128 PHASE 50 H-POS 110 V-POS 8 1280x1024 V:75Hz AUTO H:80kHz

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

- Spezial-Netzadapter:

ca. 1,8 m

ca. 110 (B) x 60 (T) x 30 (H) mm

- Analogsignalkabel: ca. 1,8 m

DPMS: Display Power Management Signalling

DMPM: Digital Monitor Power Management

Line drawing of a piano with a wooden base and metal stand (no text or symbols)

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Hinweise:

Technical line drawing of a computer monitor with base and top components (no text or symbols)

Hinweis:

Line drawing of a computer monitor with an attached stand and scroll (no text or symbols)

approx.15° approx.45° approx.45°

approx.15° Plage interdite

ADJUSTMENT [ MANUAL CLOCK 128 PHASE 50 H-POS 110 V-POS 8 1280x1024 V:75Hz AUTO H:80kHz

ADJUSTMENT [ MANUAL CLOCK 128 PHASE 50 H-POS 110 V-POS 8 1280x1024 V:75Hz AUTO H:80kHz

Abstract geometric pattern with concentric circles and diagonal stripes, no text or symbols present

Modèle de couleurs

CONTRAST

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

Approx. 110 (W) x 60 (D) x 30 (H)mm

DMPM: Digital Monitor Power Management

Simple line drawing of a table with a handle and legs, no text or symbols present

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Remarques:

Technical line drawing of a mechanical assembly with no visible text or symbols

Remarques:

Line drawing of a computer monitor with scroll wheel and scrollpad, showing directional arrows (no text or symbols)

circa 15° circa 45° circa 45°

Abstract geometric pattern with concentric circles and a central semicircle on a grid background (no text or symbols)

ADJUSTMENT [ MANUAL CLOCK 128 PHASE 50 H-POS 110 V-POS 8 1280x1024 V:75Hz AUTO H:80kHz

Abstract geometric pattern with concentric circles and a diagonal bar, no text or symbols present

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

Circa 110 (L) x 60 (P) x 30 (A)mm

DPMS: Display Power Management Signalling

DMPM: Digital Monitor Power Management

Line drawing of a piano with a wooden base and metal stand (no text or symbols)

Technical line drawing of a mechanical component with mounting brackets and connectors (no text or symbols)

Note:

Technical line drawing of a computer monitor with screwdrivers and a central base (no text or symbols)

Nota:

Line drawing of a computer monitor with an attached stand and scroll, showing no text or symbols.

Bajada del monitor

Abstract geometric pattern with concentric circles and a central semicircle on a grid background (no text or symbols)

ADJUSTMENT MANUAL AUTO CLOCK 128 PHASE 50 H-POS 110 V-POS 8 1280x1024 V:75Hz H:80kHz

Abstract geometric pattern with concentric circles and diagonal stripes, no text or symbols present

Patrón de colores

CONTRAST

MAC: Modo Power Macintosh

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

Simple line drawing of a piano with a flat top and a triangular stand (no text or symbols)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Notas:

Technical line drawing of a mechanical assembly with no visible text or symbols

Nota:
