USER MANUAL DVR 351.124 SKYTRONIC

Chapter 1: DVR Features

DVR Feature

• MPEG4 compression
  ● 4-Channel: 4 BNC Camera Inputs - 2 BNC Video Outputs
  9-Channel: 9 BNC Camera Inputs - 1 BNC Video Output
  ● 4-Channel: 2 Audio Inputs - 2 Audio Outputs
  9-Channel: 1 Audio Input -1 Audio Output
  ● System Format : NTSC /PAL
  ● Motion Detection with Sensitivity and Area Settings
  ● Time Schedule, Alarm and Motion Triggered Recording Modes
  ● Hard Disk Support up to 500GB
  ● Support PTZ Control via 485 Port
  • View and Operate over Network (Broadband Connection Required)
  ● Built-in USB2.0 Port for Backup to Computer or USB Memory stick Backup (Optional)
• VGA Output (Optional)

Chapter 2: Overview

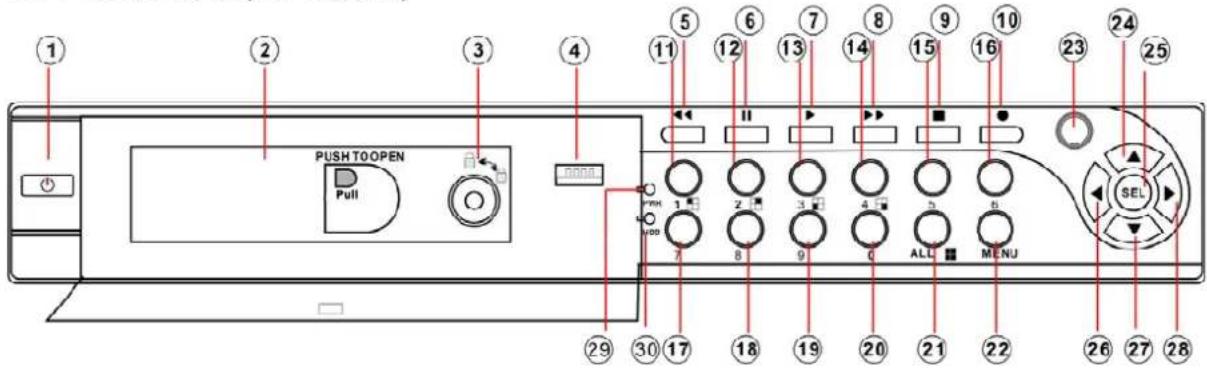

2.1 Front Panel (All Modes)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 23 24 25 PUSH TO OPEN Pull 20000 1 2 3 4 5 6 7 8 9 ALL MENU 29 30 17 18 19 20 21 22 26 27 28

1. Power switch	10. Record	22. Menu/Exit Menu
2. Removable HDD Tray	11. CH1	23. IR Receiver
3. HDD Lock	12. CH2	24. Up Arrow
4. USB 2.0 Interface	13. CH3	25. Select
5. Rewind	14. CH4	26. Left Arrow
6. Pause	15-19. CH5-CH9	27. Down Arrow
7. Play	(9CH DVR Only)	28. Right Arrow
8. Fast Forward	20. Mute Audio	29. Power Indicator
9. Stop	21. Display All Cameras	30. HDD Indicator

2.2 Rear Panel

1. Audio Input(s)
2. Video output(s)
3. CH4
4. CH3
5. CH2

6. CH1

7. VGA output (Optional)

8. LAN
9. Audio Output
10. CH9
11. CH8

12. CH7

13. CH6

14. CH5
15. RS485/Sensor Input/Alarm Output
16. DC Power Input Jack

2.3 Remote Control

1-9 Channel Select 1-9

0 Number

ALL Display all Channels

Menu Enter or Exit Menu

Move Up/Left

▲

▼

Move Down/Right

SEL Select /Modify Item

Rewind

Play Recording

Fast Forward

- Record

Pause

■

Stop Recording/Playback

Audio Audio Input/Output

Mute Mute Audio

Chapter 3: Installation

3.1 Install Hard Disk

NOTICE: Don't take out HDD when DVR is running.

Make sure the HDD is set to be MASTER according to the hard drive manual.

I. If your product comes with a removable HDD drawer (optional), please refer below:

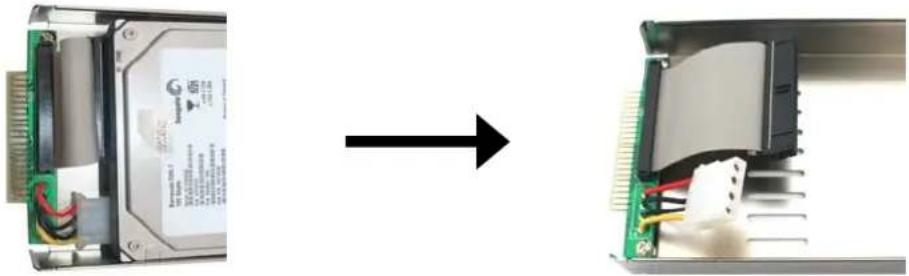

(1) Take out the hard drive drawer from the DVR side panel, Connect the power cord and data cable to hard disk;

Two-step diagram showing a computer RAM module being processed into an internal circuit board (no text or symbols visible)

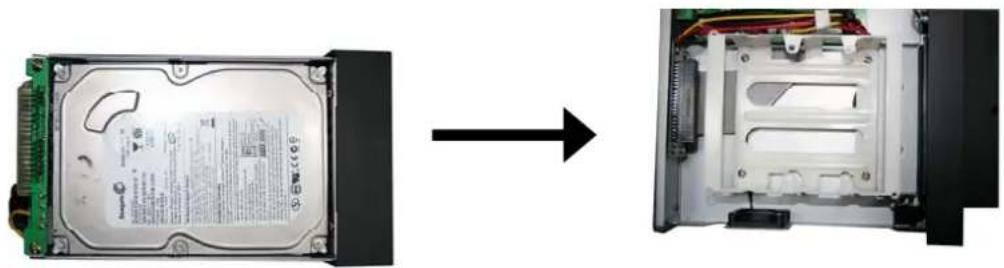

(2) Put the hard drive drawer back into the DVR (Make sure the drawer is firmly inserted to the DVR) and then lock the hard drive drawer.

Diagram showing the internal structure of a computer drive into a hard drive, with no visible text or symbols on the device itself.

II. If your product does not come with a removable HDD drawer, please refer below:

(1) Remove the screws around the top cover;
(2) Remove the top cover carefully;
(3) Connect the power cord and data cable to hard disk carefully;
(4) Use the provided screws to fix hard disk on the rack inside and then replace the top cover of the case.

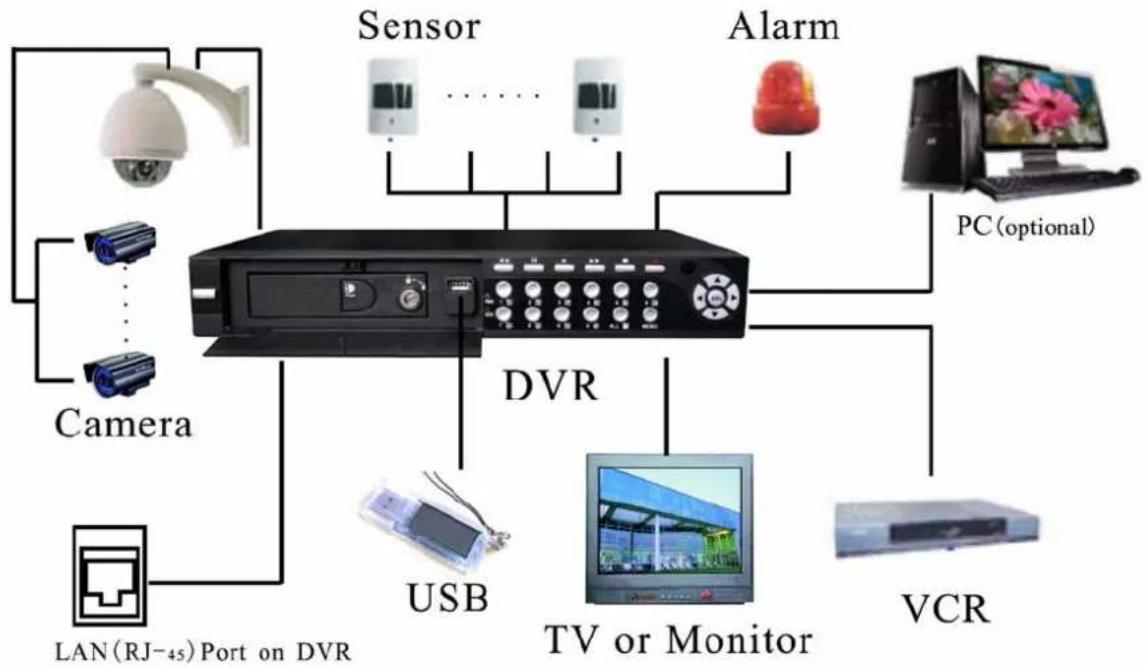

3.2 Connecting Camera and Monitor

There are 4/9 camera inputs and 2/1 Monitor outputs with BNC connectors (Refer to 2.2 Rear Panel).

3.3 VGA Output (optional)

There is 1 CRT or LCD monitor output with VGA port.

3.4 Connecting Power Supply

Please only use the power adapter supplied with the DVR.

Chapter 4: Starting the DVR

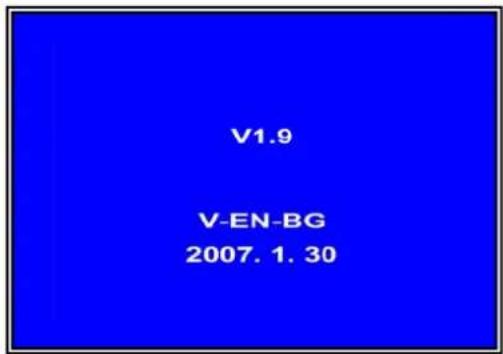

5.1 Firmware Version

V1.9 V-EN-BG 2007. 1. 30

After connecting the power adapter and turning on the power button, the system will boot-up and display the version and released date of the DVR firmware.

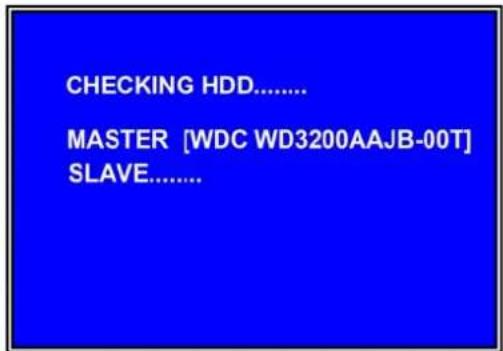

5.2 Detecting Installed Hard Drive

CHECKING HDD...... MASTER [WDC WD3200AAJB-00T] SLAVE......

DVR will detect the installed hard drive and display the hard drive information.

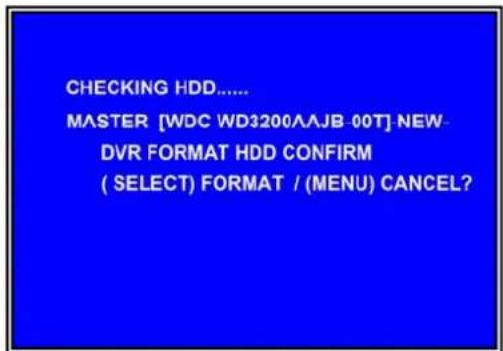

5.3 Format Hard Drive

CHECKING HDD...... MASTER [WDC WD3200AAJB-00T] NEW DVR FORMAT HDD CONFIRM ( SELECT) FORMAT / (MENU) CANCEL?

When the DVR detects a new hard drive, you will be prompted to format the hard drive before using the DVR.

Press [SEL] to format or press [MENU] to cancel.

Chapter 5: DVR Menu System

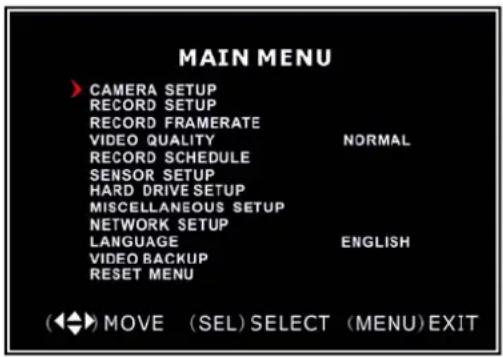

5.1 Navigating the Menus

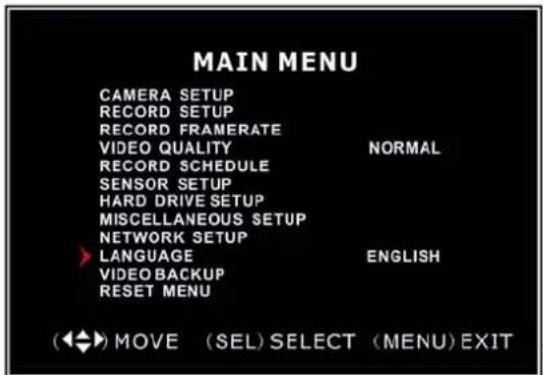

MAIN MENU >CAMERA SETUP RECORD SETUP RECORD FRAMERATE VIDEO QUALITY NORMAL RECORD SCHEDULE SENSOR SETUP HARD DRIVE SETUP MISCELLANEOUS SETUP NETWORK SETUP LANGUAGE ENGLISH VIDEO BACKUP RESET MENU (◄►) MOVE (SEL) SELECT (MENU) EXIT

When the DVR detects a new hard drive, you will be prompted to format the hard drive before using the DVR.

Press [SEL] to format or press [MENU] to cancel.

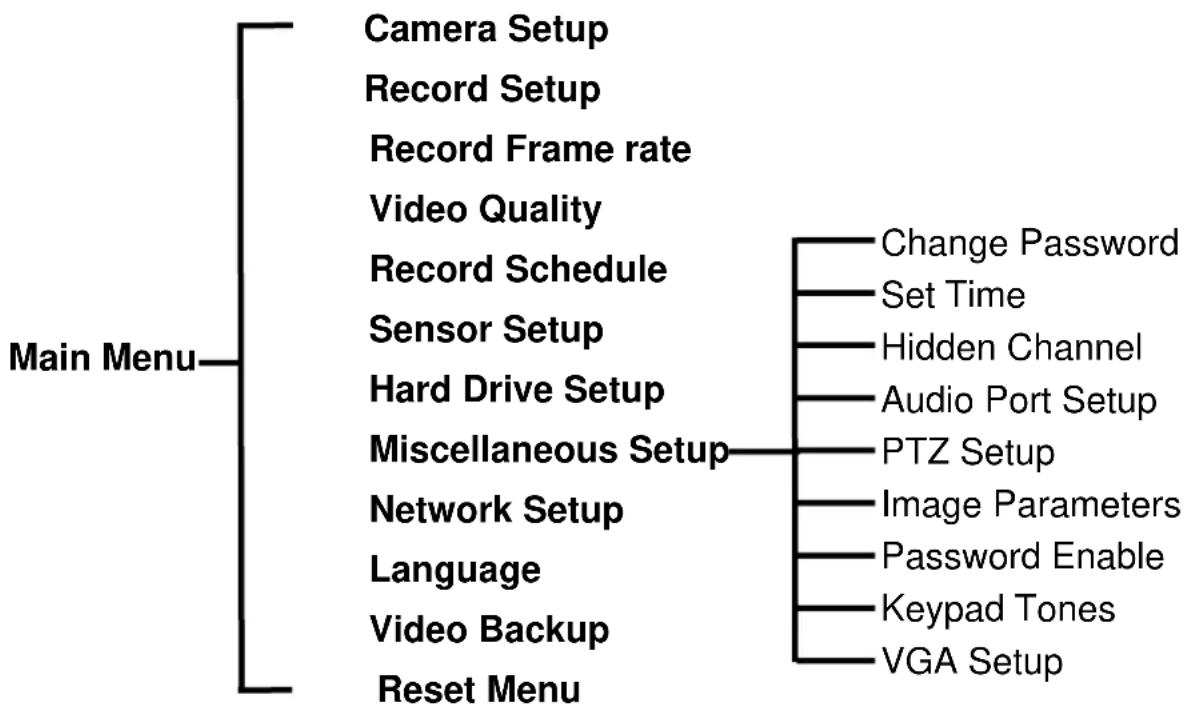

5.2 Menu Overview

Menu Directory

5.3 Camera Setup

1 > ON CAMERA SETUP	2 ON
3 ON (←→) MOVE (SEL) SELECT (MENU) EXIT	4 ON

Camera Setup allows you to turn cameras on or off.

Press [▲, ▼, ◀ and ▶] button to select a channel and then press [SEL] to modify the setting ON or OFF.

NoteIf a camera channel is set to OFF will not record(Refer to 6.4 Record Setup)

5.4 Record Setup

1 > ON RECORD SETUP 2 NOCAM 3 ON (←→) MOVE (SEL) 4 ON SELECT (MENU) EXIT

Record Setup allows you to set up recording channels.

Press [▲, ▼, ◀ and ▶] button to select a channel, and then press [SEL] to modify the setting to ON or OFF.

If a channel is disabled in Camera Setup, it will not record and the DVR will display “NOCAM” on screen.

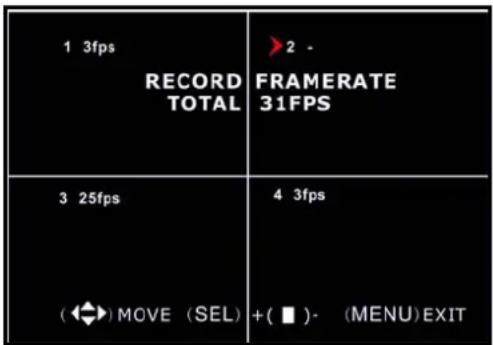

5.5 Record Frame rate

1 3fps RECORD TOTAL 2 - FRAMERATE 31FPS 3 25fps ( ◀ ) MOVE (SEL) 4 3fps +( ■ )- (MENU)EXIT

The total frame rate is 50fps (PAL) or 60fps (NTSC). You can set the frame rate for the channel which you selected to record. If the sum of the frame rate you select for all cameras is more than 50fps (PAL)/60fps(NTSC), the DVR will automatically adjust the largest frame rate value to a smaller value.

Press [▲, ▼, ◀ or ▶] button to select a channel, and then press [SEL] to increase the value or press [■STOP] to reduce the value.

Note: Higher frame rate shows smooth images but requires more hard drive space.

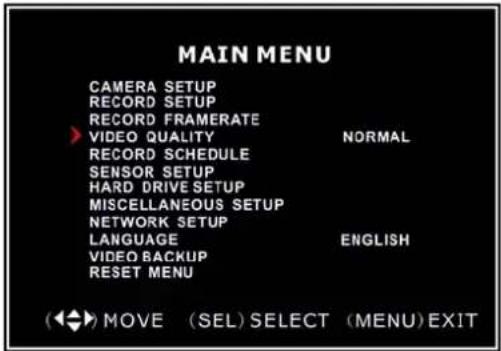

5.6 Video Quality

MAIN MENU CAMERA SETUP RECORD SETUP RECORD FRAMERATE VIDEO QUALITY NORMAL RECORD SCHEDULE SENSOR SETUP HARD DRIVE SETUP MISCELLANEOUS SETUP NETWORK SETUP LANGUAGE ENGLISH VIDEO BACKUP RESET MENU (◄►) MOVE (SEL) SELECT (MENU) EXIT

Video Quality has 4 different settings: Highest, High, Normal and Low.

The higher the video setting, the better quality images, however higher quality images require more hard drive space.

Press [SEL] to change the quality setting.

5.7 Record Schedule

Setting the Record Schedule allows you to customize the type of recording depending on the time of day.

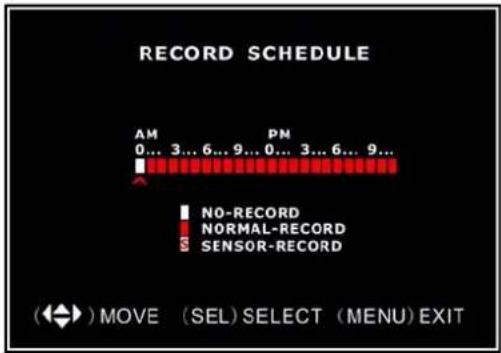

RECORD SCHEDULE AM PM 0... 3... 6... 9... 0... 3... 6... 9... NO-RECORD NORMAL-RECORD SENSOR-RECORD (◀) MOVE (SEL) SELECT (MENU) EXIT

The time line indicates 24 hours of a day based on AM/PM (0 = 12).

Press [▲, ▼, ◀ or ▶] button to select a time point, press [SEL] to modify the recording mode.

NO-RECORD [white]: DVR will not record during the time.

NORMAL-RECORD [red]: DVR will record continuously.

SENSOR-RECORD [S]: DVR will record when sensor or motion is triggered.

NOTE: In order to activate the record schedule press the [●] record button when viewing the cameras. After pressing the [●] record button if schedule is set to “NORMAL-RECORD” the DVR will start to record immediately; if the schedule is set to be “SENSOR-RECORD” the DVR will not start recording until a motion is detected by the DVR or an installed sensor is triggered.

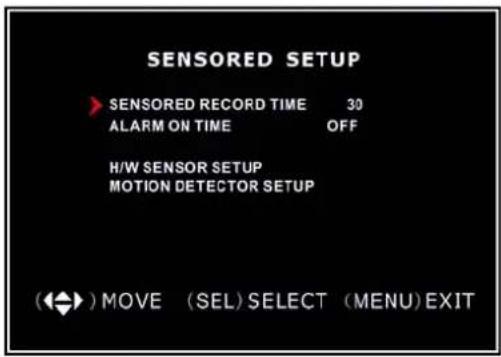

5.8 Sensor Setup

SENSORED SETUP > SENSORED RECORD TIME 30 ALARM ON TIME OFF H/W SENSOR SETUP MOTION DETECTOR SETUP (←) MOVE (SEL) SELECT (MENU) EXIT

Sensor Record Time indicates how long the recording time is when the motion or sensor is triggered.

Alarm On Time indicates whether the buzzer will sound when motion is detected.

CONT: Continuous alarm until any key is pressed..

OFF: No alarm

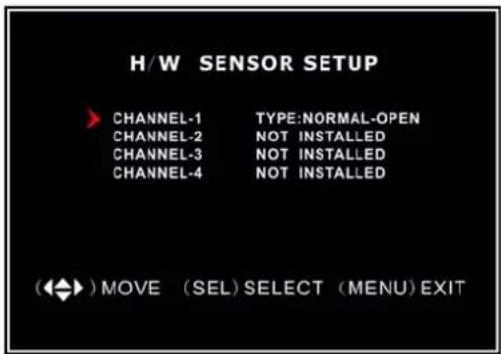

5.9 H/W Sensor Setup

Note: Sensors and extension alarm are not included with the DVR systemand may be purchased separately.

H / W SENSOR SETUP CHANNEL-1 TYPE:NORMAL-OPEN CHANNEL-2 NOT INSTALLED CHANNEL-3 NOT INSTALLED CHANNEL-4 NOT INSTALLED (◀) MOVE (SEL) SELECT (MENU) EXIT

HARDWARE SENSOR SETUP:

There are 3 different modes for sensor setting: NOT INSTALLED, NORMAL-CLOSE and NORMAL-OPEN. Consult the alarm purchased for more details on which setting is required.

Note: For 4CH DVR, there are 4CH Inputs of the Sensor;

For 9CH DVR, there are 8CH Inputs of the Sensor.

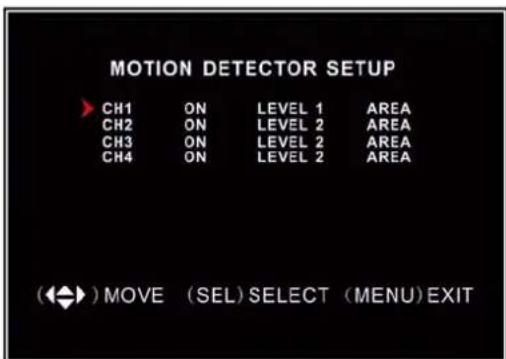

5.10 Motion Detector Setup

This section allows you to set up motion detection options for each camera.

MOTION DETECTOR SETUP CH1 ON LEVEL 1 AREA CH2 ON LEVEL 2 AREA CH3 ON LEVEL 2 AREA CH4 ON LEVEL 2 AREA (←) MOVE (SEL) SELECT (MENU) EXIT

MOTION DETECTOR SETUP:

ON/OFF: Enable or disable motion detection recording.

LEVEL: Sensitivity for motion detection.

There are 3 levels sensitivity: Level 1-low, 3-highest

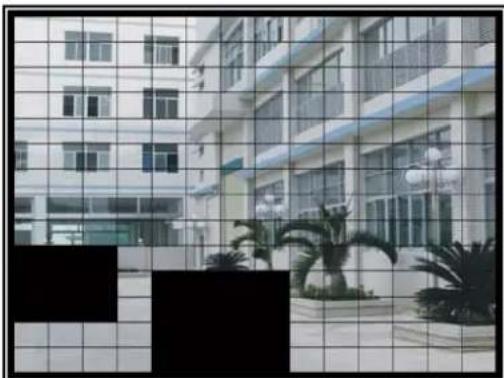

AREA: Select detectable area on the screen.

Exterior view of a modern multi-story building with glass facade and palm trees, partially obscured by grid overlay (no visible text or symbols)

Area Selection:

Press [▲, ▼, ◀ or ▶] button to select a block, and press [SEL] button to set the block to detect motion. The area is detectable when it is clear, the area is not detectable when it is covert by shadow.

5.11 Hard Drive Setup

This section will display the current hard drive status and usage options

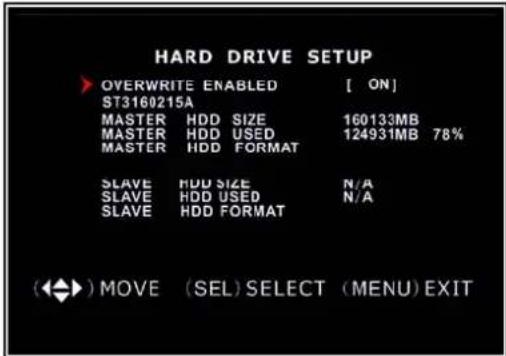

HARD DRIVE SETUP OVERWRITE ENABLED [ ON ] ST3160215A MASTER HDD SIZE 160133MB MASTER HDD USED 124931MB 78% MASTER HDD FORMAT SLAVE HDD SIZE N/A SLAVE HDD USED N/A SLAVE HDD FORMAT (◀) MOVE (SEL) SELECT (MENU) EXIT

OVERWRITE ENABLED:

ON: overwrite oldest video when hard drive is full.

OFF: stop recording when hard drive is full.

HDD SIZE: indicates the total capacity of the hard drive installed in the DVR.

HDD USED: indicates the space used in the hard disk drive for recording and the percent used.

HDD FORMAT: will erase all video and data on the installed hard drive and make it readable by the DVR

Note: You will be prompted for the password when formatting a hard drive. The default password is “111111”

5.12 Miscellaneous Setup - Change Password

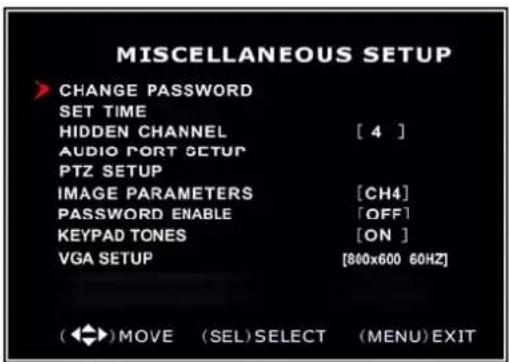

MISCELLANEOUS SETUP CHANGE PASSWORD SET TIME HIDDEN CHANNEL [ 4 ] AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS [CH4] PASSWORD ENABLE [OFF] KEYPAD TONES [ON ] VGA SETUP [800x600 60HZ] ( ◀ )MOVE (SEL)SELECT (MENU)EXIT

This option allows you to change the system password. The password must be composed with six characters.

All keys can be used as password key except the [MENU] key, which is used to exit.

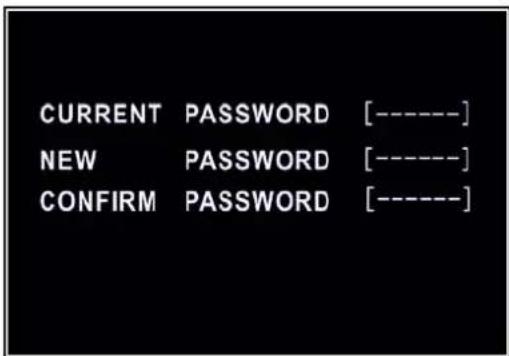

CURRENT PASSWORD [----] NEW PASSWORD [----] CONFIRM PASSWORD [----]

Enter the current password first, and then enter six characters as your new password, repeat the new password to confirm.

If you forget your password, please contact technical support for assistance.

5.13 Miscellaneous Setup - Set Time

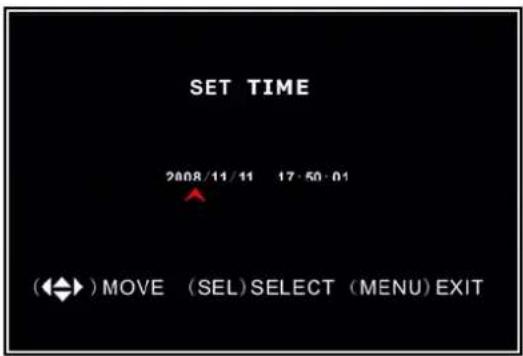

SET TIME 2008/11/11 17:50:01 (◀) MOVE (SEL) SELECT (MENU) EXIT

The system date and time format is YYYY/MM/DD and HH:MM: SS.

Press [◀] or [▶] button to select the data to modify, press [SEL] to modify. Press [MENU] to save and return to previous menu.

5.14 Miscellaneous Setup - Hidden Channel

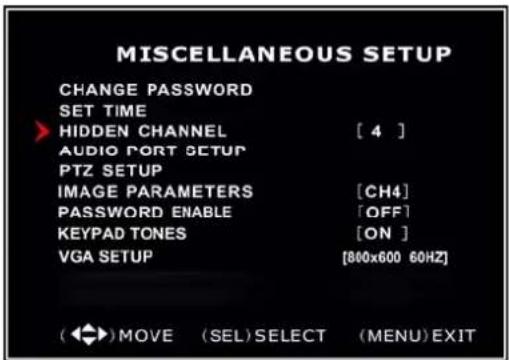

MISCELLANEOUS SETUP CHANGE PASSWORD SET TIME HIDDEN CHANNEL [ 4 ] AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS [CH4] PASSWORD ENABLE [OFF] KEYPAD TONES [ON ] VGA SETUP [800x600 60HZ] ( ◀ )MOVE (SEL)SELECT (MENU)EXIT

The system provides a function to hide a channel in monitoring mode. The selected channel can still be recorded while it's hidden; the hidden picture is viewable during playing back.

Press [SEL] to select a channel to hide.

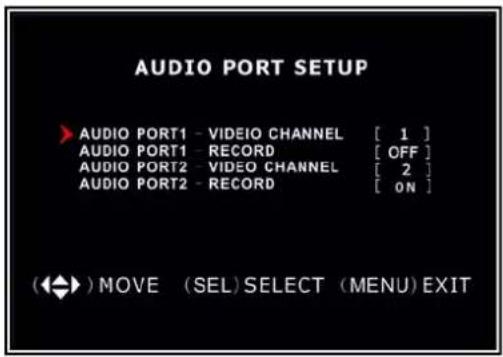

5.15 Miscellaneous Setup - Audio Port Setup

AUDIO PORT SETUP AUDIO PORT1 - VIDEO CHANNEL [ 1 ] AUDIO PORT1 - RECORD [ OFF ] AUDIO PORT2 - VIDEO CHANNEL [ 2 ] AUDIO PORT2 - RECORD [ ON ] (◀) MOVE (SEL) SELECT (MENU) EXIT

You can select the audio recording function to ON or OFF, and select the video channel that you like to record the audio on.

Note: For 4CH DVR, there are 2 Audio inputs;

For 9CH DVR, there are only 1 Audio input.

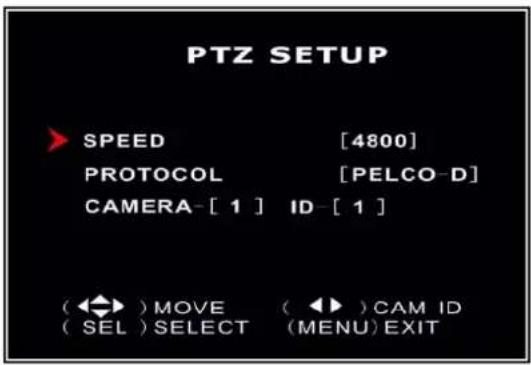

5.16 Miscellaneous Setup - PTZ Setup

PTZ SETUP SPEED [4800] PROTOCOL [PELCO-D] CAMERA-[1] ID-[1] (←) MOVE (◄) CAM ID (SEL) SELECT (MENU) EXIT

SPEED: Set the baud rate (4800, 9600, 19200, 38400) match to your speed dome.

PROTOCOL: Supports “PELCO-D” and “PELCO-P”. Select the protocol according to your speed dome’s protocol.

CAMERA: select the camera channel which is connected with the speed dome.

ID: Assign an ID to your speed dome.

Press [SEL] to select the camera, press [◀] or [▶] button to assign the ID.

5.17 Miscellaneous Setup - Image Parameters

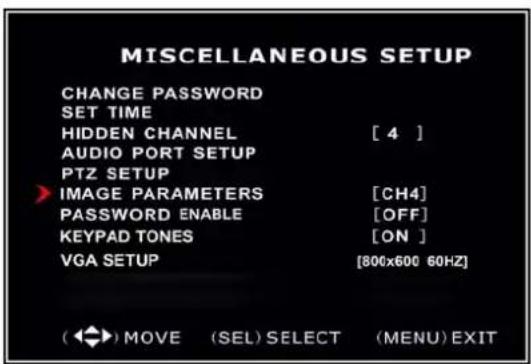

MISCELLANEOUS SETUP CHANGE PASSWORD SET TIME HIDDEN CHANNEL [ 4 ] AUDIO PORT SETUP PTZ SETUP > IMAGE PARAMETERS [CH4] PASSWORD ENABLE [OFF] KEYPAD TONES [ON ] VGA SETUP [800x600 60HZ] ( ◀ ) MOVE (SEL) SELECT (MENU) EXIT

You can adjust the image parameters according to your needs.

Move the cursor to this selection and press [◀] or [▶] button to select a channel you want to adjust, then press [SEL] button to edit parameters.

CAMERA 3 CON 64% BRI 64% HUE 64% SAT 64% (-) MOVE (-) + (-) - (MENU) EXIT

CON: Contrast

BRI: Brightness

HUE: Hue

SAT: Saturation

Press [▲] or [▼] to select the item, and then press [SEL] to adjust the value.

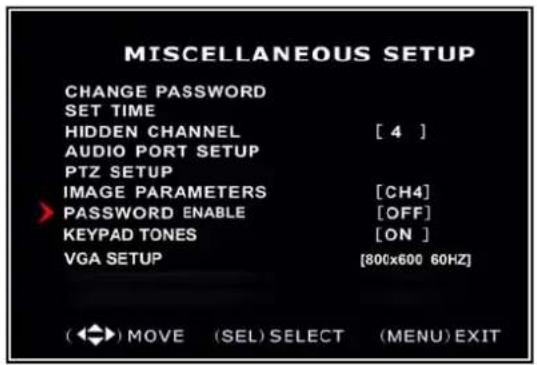

5.18 Miscellaneous Setup - Password Enable

MISCELLANEOUS SETUP CHANGE PASSWORD SET TIME HIDDEN CHANNEL [ 4 ] AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS [CH4] > PASSWORD ENABLE [OFF] KEYPAD TONES [ON ] VGA SETUP [800x600 60HZ] ( ◀ ) MOVE (SEL) SELECT (MENU) EXIT

The password will be required to control the DVR when this option is set to "ON", and the password is not required when this option is set to "OFF".

5.19 Miscellaneous Setup - Keypad Tones

MISCELLANEOUS SETUP CHANGE PASSWORD SET TIME HIDDEN CHANNEL [ 4 ] AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS [CH4] PASSWORD ENABLE [OFF] KEYPAD TONES [ON ] VGA SETUP [800x600 60HZ] ( ◀ ) MOVE (SEL) SELECT (MENU) EXIT

This function allows you to enable /disable buzzer sound when pressing a button. Press [SEL] to select ON or OFF.

5.20 Miscellaneous Setup - VGA Setup

MISCELLANEOUS SETUP CHANGE PASSWORD SET TIME HIDDEN CHANNEL [ 4 ] AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS [CH4] PASSWORD ENABLE [OFF] KEYPAD TONES [ON ] VGA SETUP [800x600 60HZ] ( ◀ ) MOVE (SEL) SELECT (MENU) EXIT

Select a VGA resolution match to your CRT or LCD monitor.

NOTE: VGA video output is an optional function and may not be available on all models

5.21 Network Setup

Network Setup allows you to prepare the DVR for viewing over the internet or local network.

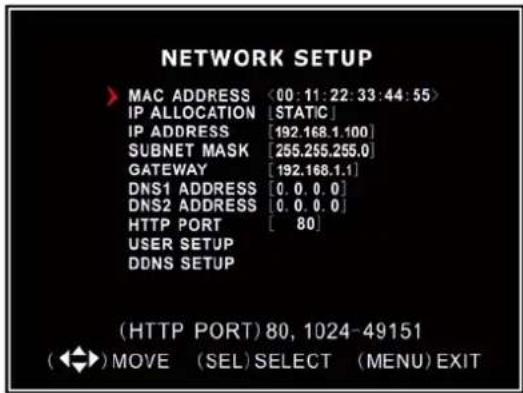

NETWORK SETUP > MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀) MOVE (SEL) SELECT (MENU) EXIT

MAC ADDRESS: In a local area network(LAN), the MAC (Media Access Control) address is your computer's unique hardware identity code.(On an

Ethernet LAN , it is the same as your Ethernet address.)When you are connected to the Internet from your computer (or host as the Internet

protocol thinks of it ) ,a corresponding table relates your IP address to your computer's physical (MAC) address on the LAN.

IMPORTANT: This setting should only be changed if multiple DVRs are being setup on the same network and the first code “00” must not to be changed.

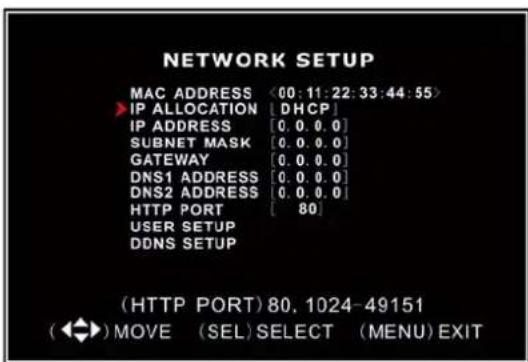

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION DHCP IP ADDRESS [0.0.0.0] SUBNET MASK [0.0.0.0] GATEWAY [0.0.0.0] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT 80 USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (←→)MOVE (SEL)SELECT (MENU)EXIT

IP ALLOCATION: DVR supports DHCP and Static IP modes. If your modem/router supports DHCP mode use DHCP. When using STATIC mode, you will be required to setup your internet settings manually.

Note: After setting the DVR to DHCP mode restart the unit.

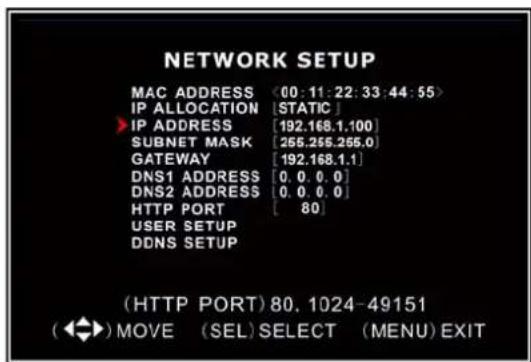

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [265.265.265.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0, 0, 0, 0] DNS2 ADDRESS [0, 0, 0, 0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL)SELECT (MENU)EXIT

IP Address: In a local network, the IP address is a unique designated address for your DVR recognized by your router. Ensure this number is within the range usable by your modem/router. Use the UP “▲” and DOWN “▼” buttons to move the cursor and use the “SELECT” button to change the numbers. Once you have finished the changes restart your DVR.

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [265.265.265.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0, 0, 0, 0] DNS2 ADDRESS [0, 0, 0, 0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀) MOVE (SEL) SELECT (MENU) EXIT

SUBNET MASK: Subnet Mask is used to determine what subnet an IP address belongs to. A number that is used to identify a sub network so that IP addresses can be recognized on a local area network. Consult your modem/router for your LAN's subnet mask.

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0, 0, 0, 0] DNS2 ADDRESS [0, 0, 0, 0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀) MOVE (SEL) SELECT (MENU) EXIT

GATEWAY: Set this number to the gateway set by your modem/router.

NOTE: To adjust the IP ADDRESS, SUBNET MASK and GATEWAY value, only when the [STATIC] mode is being selected.

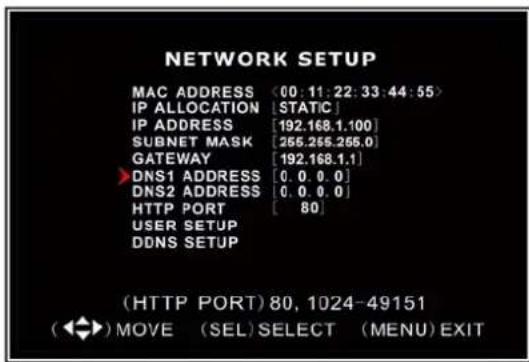

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [265.265.265.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀) MOVE (SEL) SELECT (MENU) EXIT

DNS ADDRESS: This code should be provided by your local ISP.

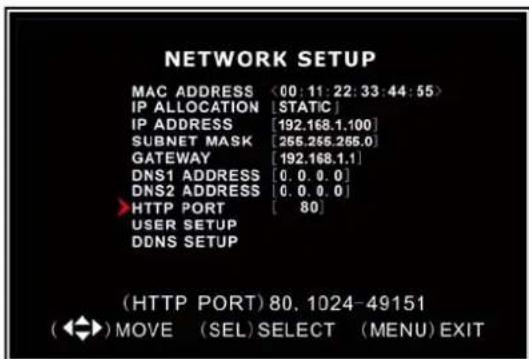

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [265.265.265.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (←→)MOVE (SEL) SELECT (MENU) EXIT

HTTP PORT: This port number is used to communicate with PC Client. The default value is 80.

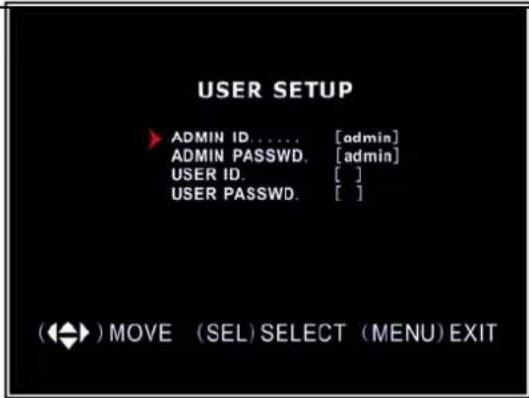

USER SETUP ADMIN ID. . . . . [admin] ADMIN PASSWD. [admin] USER ID. [ ] USER PASSWD. [ ] (◀) MOVE (SEL) SELECT (MENU) EXIT

USER SETUP: When accessing the DVR from a remote location you will be prompted for a login and password. The default is "admin" for full administrator rights. Set "User ID" and password to setup a user with limited rights to prevent tampering.

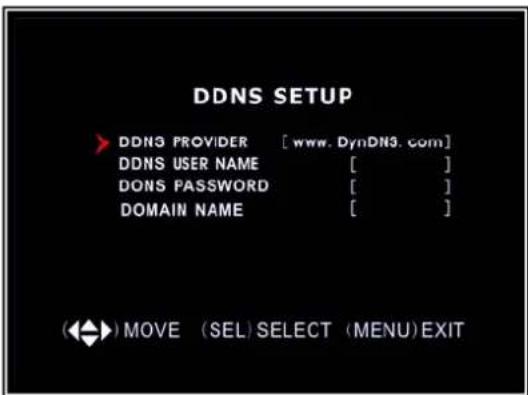

DDNS SETUP DDNS PROVIDER [ www. DynDNS.com ] DDNS USER NAME [ ] DONS PASSWORD [ ] DOMAIN NAME [ ] (◀) MOVE (SEL) SELECT (MENU) EXIT

DDNS SETUP : If you require an external service to maintain a dynamic IP address enter the user information here.

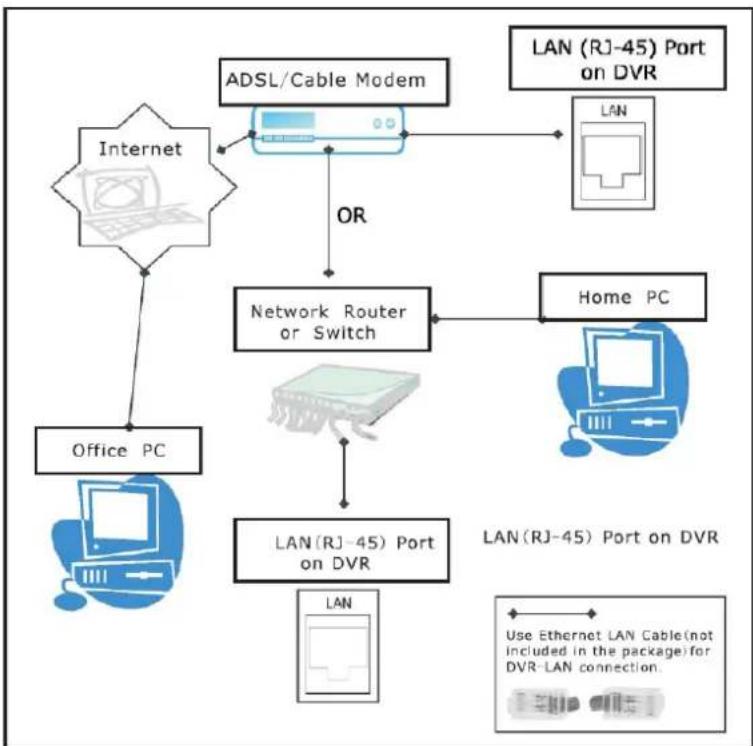

LAN-DVR Connection

See the diagram below for steps to connect your DVR to a local area network or the internet. For remote monitoring from your computer, you must have a LAN connection available or broadband Internet access.

You need to register a www.dyndns.org to get a free account .After registration , you will have a username and password. You can also register your domain name on the website. Please refer to Chapter 5 , P. Network Setup for more details. There you will learn how to input the Dyndns username , password , and domain name. You can log in from anywhere by using Internet Explorer and entering your DVR’s domain name.

5.22 Language

MAIN MENU CAMERA SETUP RECORD SETUP RECORD FRAMERATE VIDEO QUALITY NORMAL RECORD SCHEDULE SENSOR SETUP HARD DRIVE SETUP MISCELLANEOUS SETUP NETWORK SETUP LANGUAGE ENGLISH VIDEO BACKUP RESET MENU (◄◄) MOVE (SEL) SELECT (MENU) EXIT

You can change the OSD language from the default English to German, French, Italian, Spanish or Portuguese.

5.23 Video Backup (For Optional USB Memory Stick Backup) This function is only available for the model which supports USB memory stick device. If your DVR is with PC-link USB interface, please refer Charter 8 for video backup.

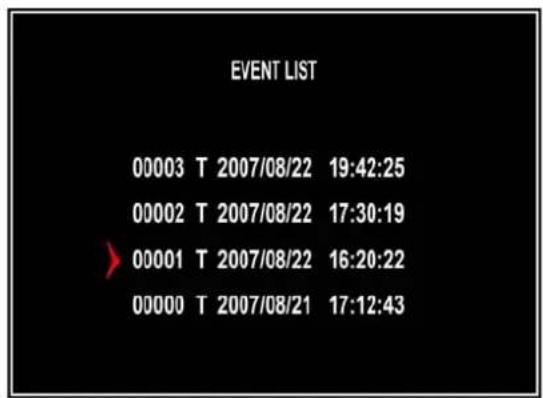

EVENT LIST 00003 T 2007/08/22 19:42:25 00002 T 2007/08/22 17:30:19 00001 T 2007/08/22 16:20:22 00000 T 2007/08/21 17:12:43

Move the cursor to "VIEW EVENTS", press [SEL] to enter event list. Press [▲] or [▼] button to move the cursor, and then press [SEL] to select the event you like to backup and return to previous menu.

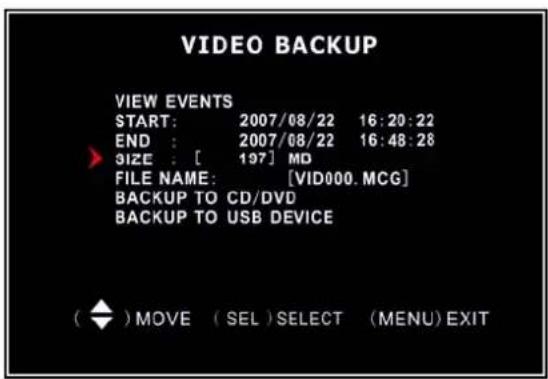

VIDEO BACKUP VIEW EVENTS START: 2007/08/22 16:20:22 END : 2007/08/22 16:48:28 SIZE : [ 197] MD FILE NAME: [VID000.MCG] BACKUP TO CD/DVD BACKUP TO USB DEVICE ( ◆ )MOVE ( SEL )SELECT (MENU) EXIT

The DVR system already indicated the start & end time of the recording event. Move the cursor to "SIZE", DVR will automatically indicate the size of the video you like to backup to USB memory stick.

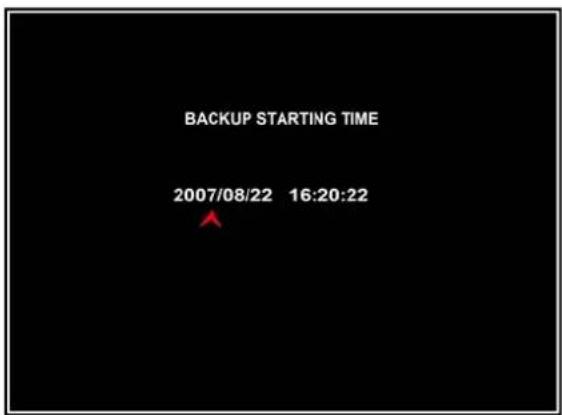

BACKUP STARTING TIME 2007/08/22 16:20:22

You can directly select the start& end time of a recording video to backup. Move the cursor to "START" or "END"; press [SEL] to enter the interface. Press [◀] or [▶] button to move the cursor, and then press [SEL] to modify the value.

Press [MENU] back to previous menu.

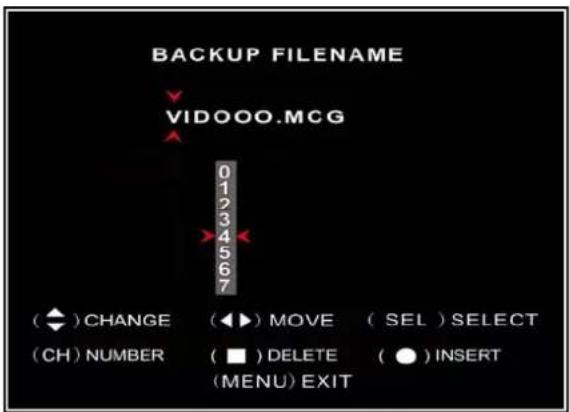

BACKUP FILENAME VIDOOO.MCG 0 1 2 3 4 5 6 7 (◆) CHANGE (◀) MOVE (SEL) SELECT (CH) NUMBER (■) DELETE (●) INSERT (MENU) EXIT

You can rename the backup file. Press [◀] or [▶] button to select the character you want to modify, press [▲] or [▼] button to select a character from the given character list, and then press [SEL] to enter.

Please note that the name must be ended with “.MCG”.

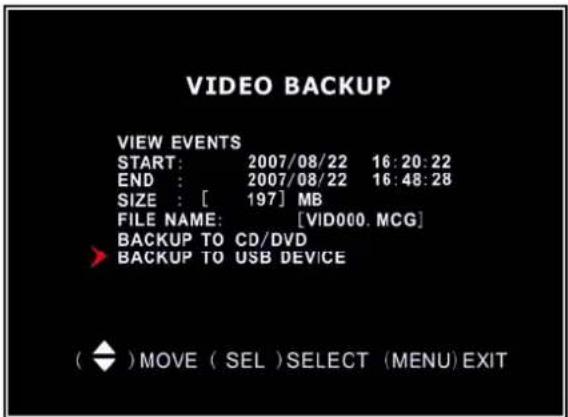

VIDEO BACKUP VIEW EVENTS START: 2007/08/22 16:20:22 END : 2007/08/22 16:48:28 SIZE : [ 197] MB FILE NAME: [VID000.MCG] BACKUP TO CD/DVD BACKUP TO USB DEVICE ( ◆ )MOVE ( SEL )SELECT (MENU) EXIT

Insert your USB memory stick device into DVR's USB port.

Move the cursor to "BACKUP TO USB DEVICE", press [SEL] button.

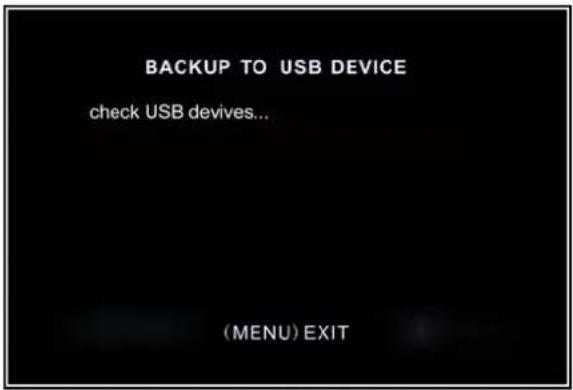

BACKUP TO USB DEVICE check USB devives... (MENU) EXIT

DVR will check your USB device as left picture showed and then start to copy the backup file.

Please read Charter 8 on how to play back your backup file.

5.24 Reset Menu

If you select this item, the system will restore all your settings to factory default values. You need to enter your password to reset the menu.

5.25 NTSC/PAL Output select

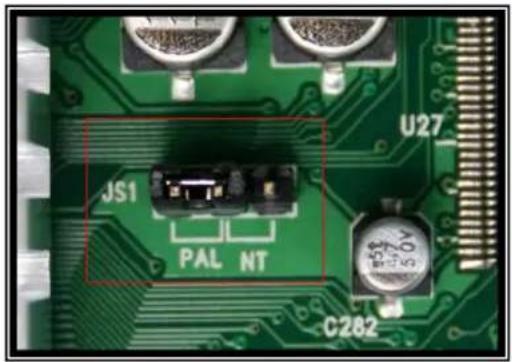

JS1 PAL NT C282 U27

Change the jumper JS1 to select NTSC or PAL video output format according to the silkscreen on the PCB.

Chapter 6: Record

6.1 Start Recording

Press [●] record button to start recording according to the record schedule you have set. System will display some information on screen.

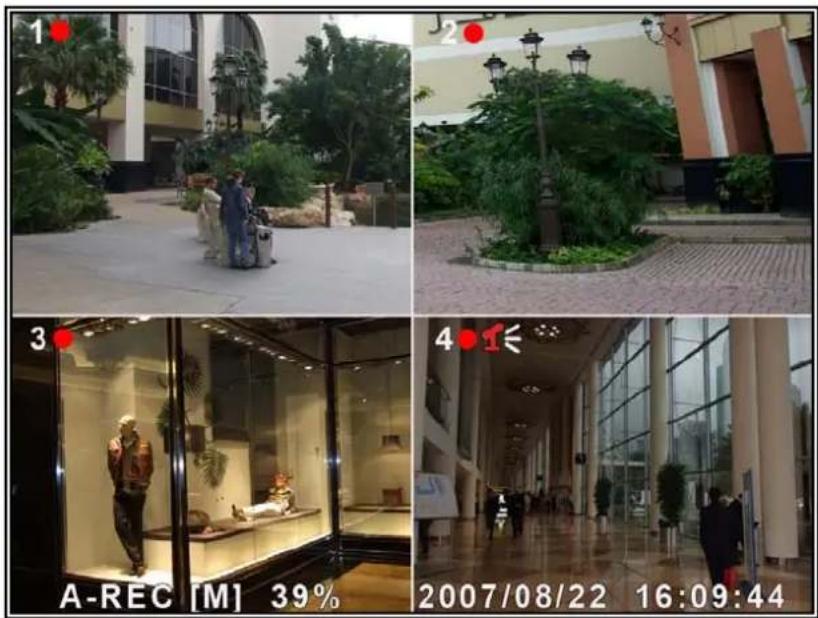

1 2 3 4 A-REC [M] 39% 2007/08/22 16:09:44

[●]: the red pot next to the channel name indicates that the channel is being recorded.

[A-REC]: indicates the current record schedule is set to NORMAL-RECORD mode.

[S-REC]: indicates the current record schedule is set to SENSOR-RECORD mode.

[N-REC]: indicates the current record schedule is set to NO-RECORD mode.

[39%]: indicates the percentage of hard disk space used.

[M]: HDD info ([M] Master Hard Disk)

6.2 Audio Recording

[1]：indicates this video channel is bundled with an audio port, and the audio output is on.

[1]: indicates the audio output is off.

[◀]: indicates the audio is being recorded and the audio output is on.

You could press [0] button on front panel to be mute mode for audio output. The audio input can be still recorded while the output is mute.

6.3 Stop Recording

Press [■] stop button will stop recording. If password protection function is enabled, system will prompt you to input password. Only correct password can stop recording process.

6.4 Estimated Recording Length

Estimated record time based on 160GB HDD

Standard	Quality	60fps	48fps	32fps	16fps	1fps
NTSC	Highest	62	78		116	232
	High	88		110	165	330
	Normal	107	134	201	401	6420
	Lower	120	150	225	450	7200

Standard	Quality	50fps	36fps	24fps	12fps	1fps
PAL	Highest	64	89		133	267
	High	90		125	188	375
	Normal	110	153	229	458	5500
	Lower	123	171	256	513	6150

Unit: Hour

Chapter 7: Playback

7.1 Playback Control

Press the [▶] PLAY button goes into PLAYBACK mode. The newest record event will be played.

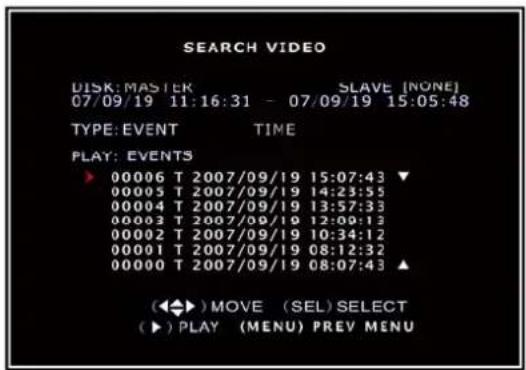

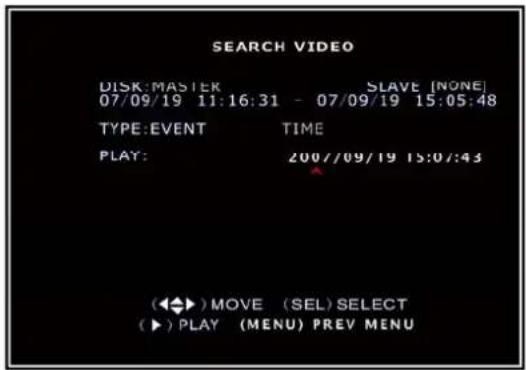

SEARCH VIDEO DISK: MASTER SLAVE [NONE] 07/09/19 11:16:31 - 07/09/19 15:05:48 TYPE: EVENT TIME PLAY: EVENTS ▶ 00006 T 2007/09/19 15:07:43 ▼ 00005 T 2007/09/19 14:23:55 00004 T 2007/09/19 13:57:33 00003 T 2007/09/19 12:09:13 00002 T 2007/09/19 10:34:12 00001 T 2007/09/19 08:12:32 00000 T 2007/09/19 08:07:43 ▲ (◀) MOVE (SEL) SELECT (▶) PLAY (MENU) PREV MENU

Press the [MENU] button during PLAYBACK mode, then the system will list all the recorded events. The latest record will be on top of the list. Press the [▲UP] or [▼DOWN] buttons

SEARCH VIDEO DISK:MASTER 07/09/19 11:16:31 - 07/09/19 15:05:48 TYPE:EVENT TIME PLAY: 200/09/19 15:07:43 (◀) MOVE (SEL) SELECT (▶) PLAY (MENU) PREV MENU

Another way to search video is directly input time period. Press the [MENU] button then use [◀] or [▶] button to select the TIME search mode. Use [SEL] button to edit time value, press [▶] to play the video. If the time you selected has no record event, it will indicate "NO EVENTS" on the screen when you press [▶] play

Chapter 8: USB Programming (optional)

8.1 Driver Installation:

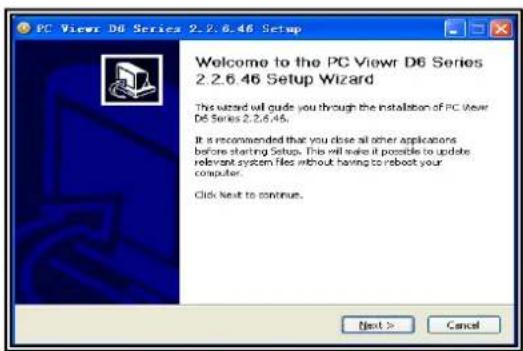

PC Viewr D6 Series 2.2.6.46 Setup Welcome to the PC Viewr D6 Series 2.2.6.46 Setup Wizard This wizard will guide you through the installation of PC Viewr D6 Series 2.2.6.46. It is recommended that you dose all other applications before starting setup. This will make it possible to update relevant system file without having to boost your computer. Click Next to continue.

(1) Insert driver CD in your CD-ROM Drive.
(2) Open CD directory.
(3) Double click on the install applications.
(4) Run "Install" program.
(5) Follow the setup wizard to finish the installation.

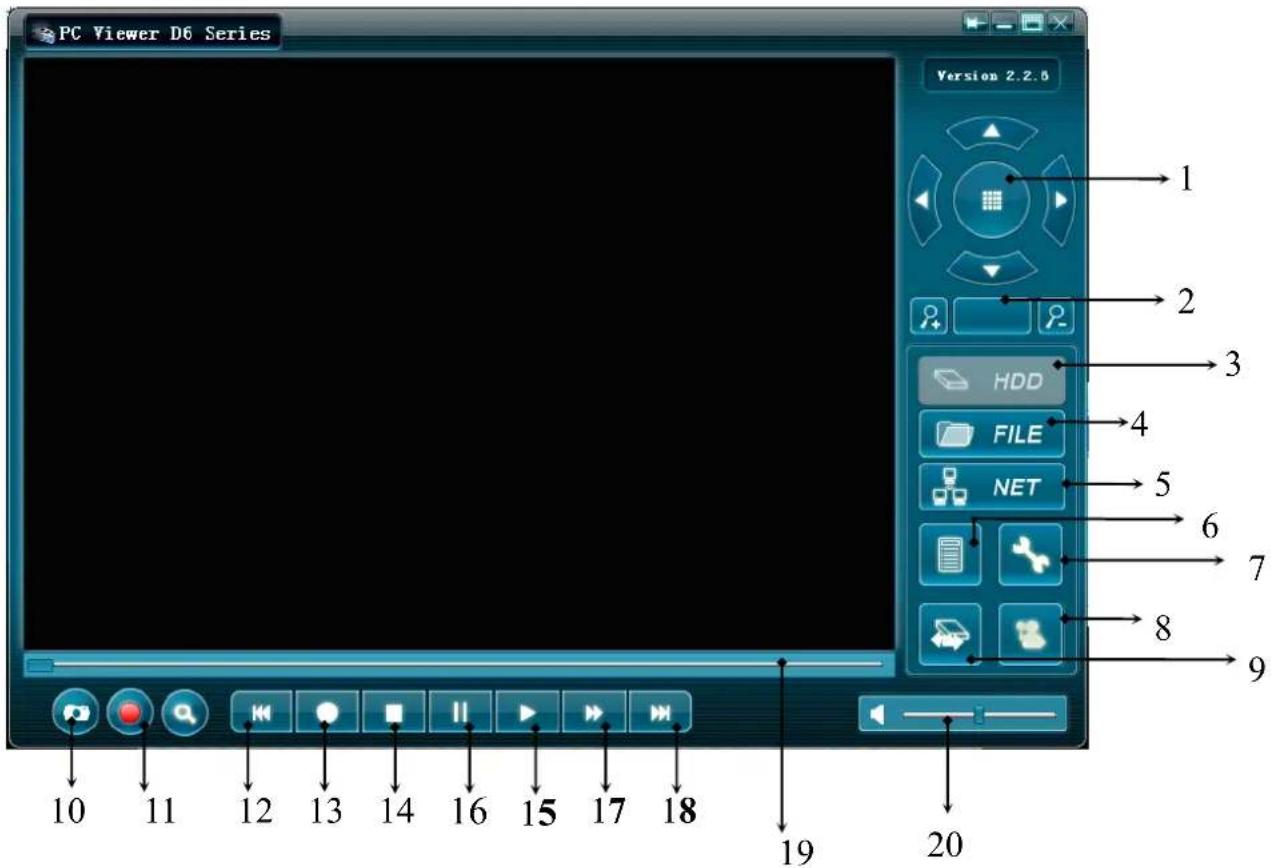

8.2 Program Interface

Button functions:

PC Viewer D6 Series Version 2.2.5 1 2 3 HDD FILE NET 5 6 7 8 9 10 11 12 13 14 16 15 17 18 19 20

1.PTZ Control 11.Convert Streams to AVI file
2.Zoom in , Zoom Out	12.Back one frame
3.HDD Play Mode 13. Record
4.File Play Mode 14.stop
5.Net Play Mode 15.Play
6.Event List 16.pause
7.Control Panel 17.fast forward
8. Remote DVR Control	18.forward one frame
9.Change Storage Device 19.Playback Slider
10Capture Image 20.Audio Slider

8.3 Program Running

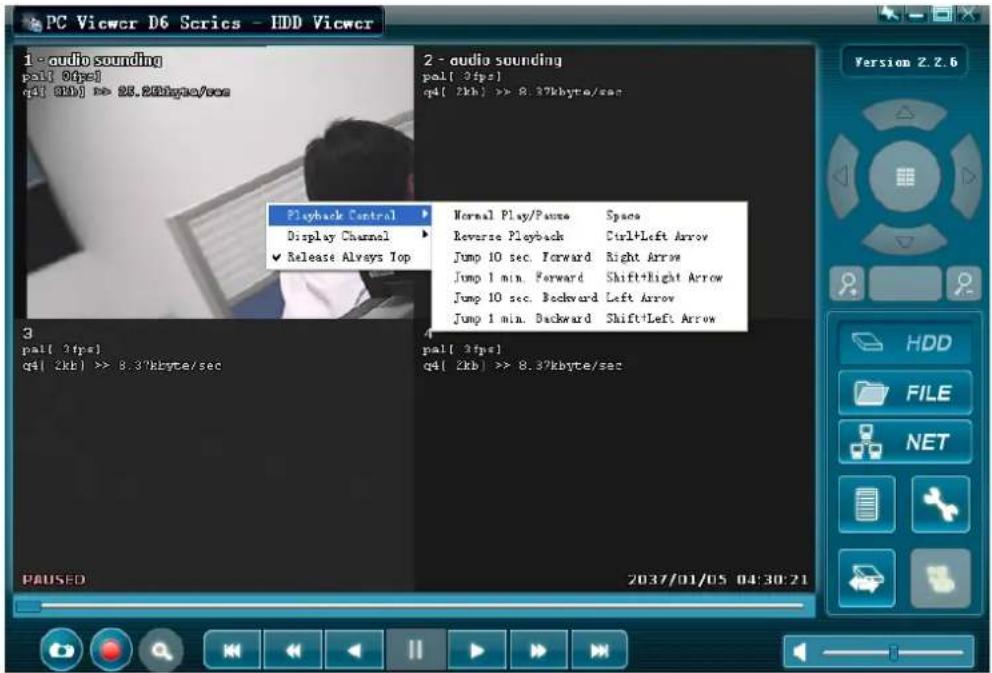

HDD play mode:

System will detect the HDD automatically when you connect the USB cable to your PC. An USB icon” ” will appear in the system tray (right bottom corner of the screen).

After you've seen the USB icon, double click icon on your desktop to run the program. Note: if you do not follow above steps, the program will fail to detect HDD

Press

to open the video event lists.

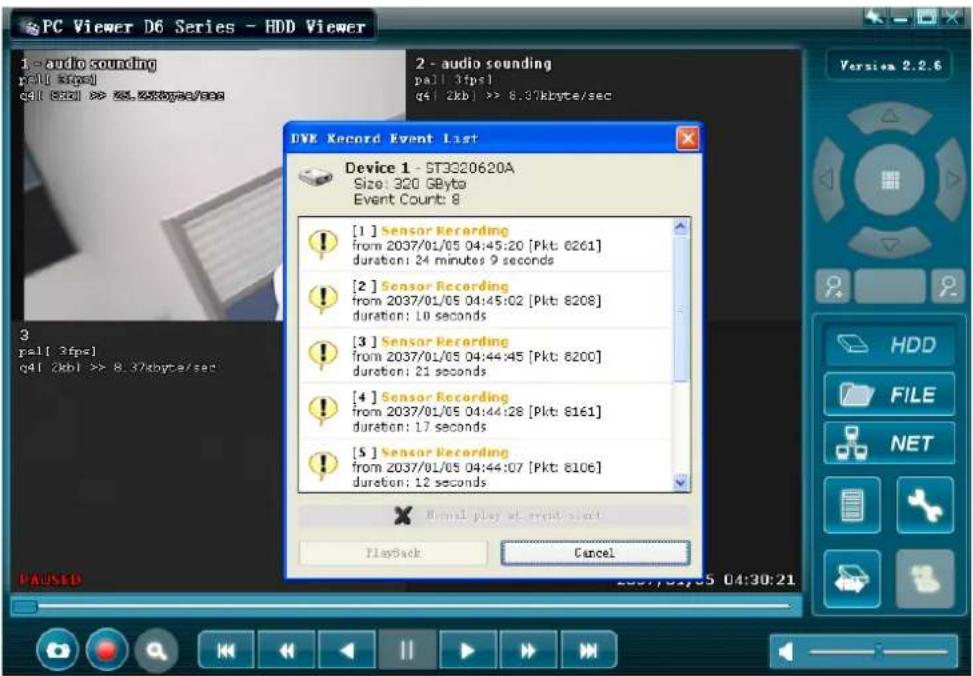

PC Viewer D6 Series - HDD Viewer 1 = audio sounding pall 3fps call 830 >> 85.828fps/sec 2 - audio sounding pall 3fps q4 | 2kb >> 8.37kbyte/sec DVE Record Event List Device 1 - ST3320620A Size: 320 GByte Event Count: 8 [1] Sensor Recording from 2037/01/05 04:45:20 [Pkt: 6261] duration: 24 minutes 9 seconds [2] Sensor Recording from 2037/01/05 04:45:02 [Pkt: 8208] duration: 10 seconds [3] Sensor Recording from 2037/01/05 04:44:45 [Pkt: 8200] duration: 21 seconds [4] Sensor Recording from 2037/01/05 04:44:28 [Pkt: 8161] duration: 17 seconds [5] Sensor Recording from 2037/01/05 04:44:07 [Pkt: 8106] duration: 12 seconds Back play at event start Playback Cancel Version 2.2.6 HDD FILE NET PAUSED 2037/01/05 04:30:21

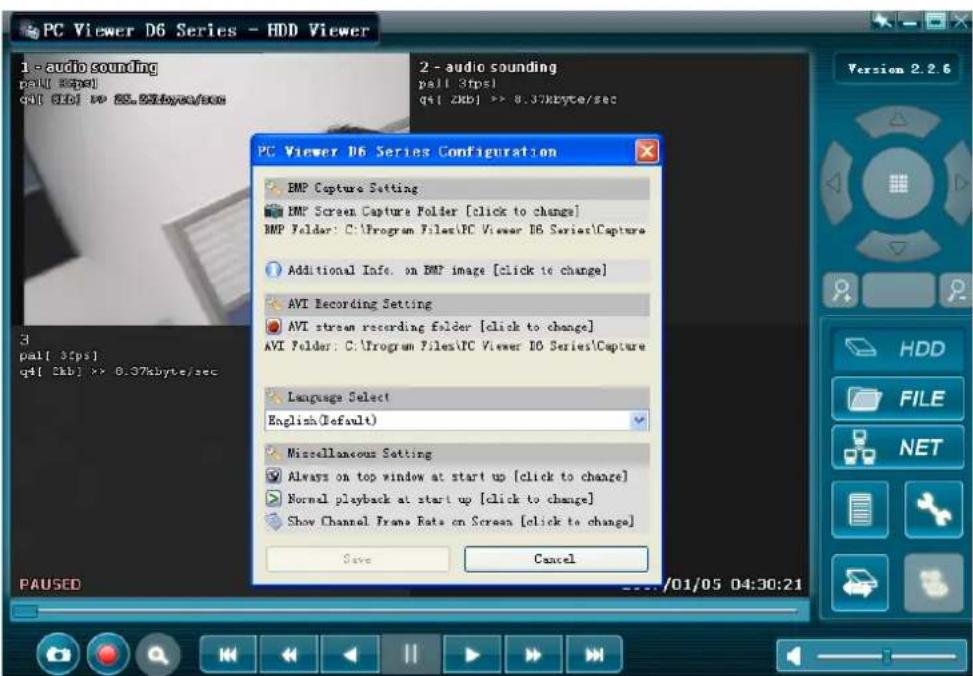

Press

to configure the program local settings

PC Viewer D6 Series - HDD Viewer 1 - audio sounding pall 84psl q4[ CSD] p0 50.93byte/sec 2 - audio sounding pall 3fpsl q4[ ZMB] >> 8.37byte/sec PC Viewer D6 Series Configuration EMP Capture Setting EMP Screen Capture Folder [click to change] EMP Folder: C:\Program Files\PC Viewer D6 Series\Capture Additional Info. on BMP image [click to change] AVI Recording Setting AVI stream recording folder [click to change] AVI Folder: C:\Program Files\PC Viewer D6 Series\Capture Language Select English(Default) Miscellaneous Setting Always on top window at start up [click to change] Normal playback at start up [click to change] Show Channel Panama Rate on Screen [click to change] Save Cancel Version 2.2.6 HDD FILE NET PAUSED ----/01/05 04:30:21

Press

ay video.

PC Viewer D6 Series - HDD Viewer 1 - audio sounding pal[ 0fps] q4[ 2kb] >> 28.28kHz/sec 2 - audio sounding pal[ 3fps] q4[ 2kb] >> 8.37kHz/sec Playback Control Display Channel ✓ Release Always Top Normal Play/Passive Space Reverse Playback Ctrl+Left Arrow Jump 10 sec Forward Right Arrow Jump 1 min. Forward Shift+Right Arrow Jump 10 sec Backward Left Arrow Jump 1 min. Backward Shift+Left Arrow pal[ 2fps] q4[ 2kb] >> 8.37kHz/sec paused 2037/01/05 04:30:21 Version Z.2.6 HDD FILE NET

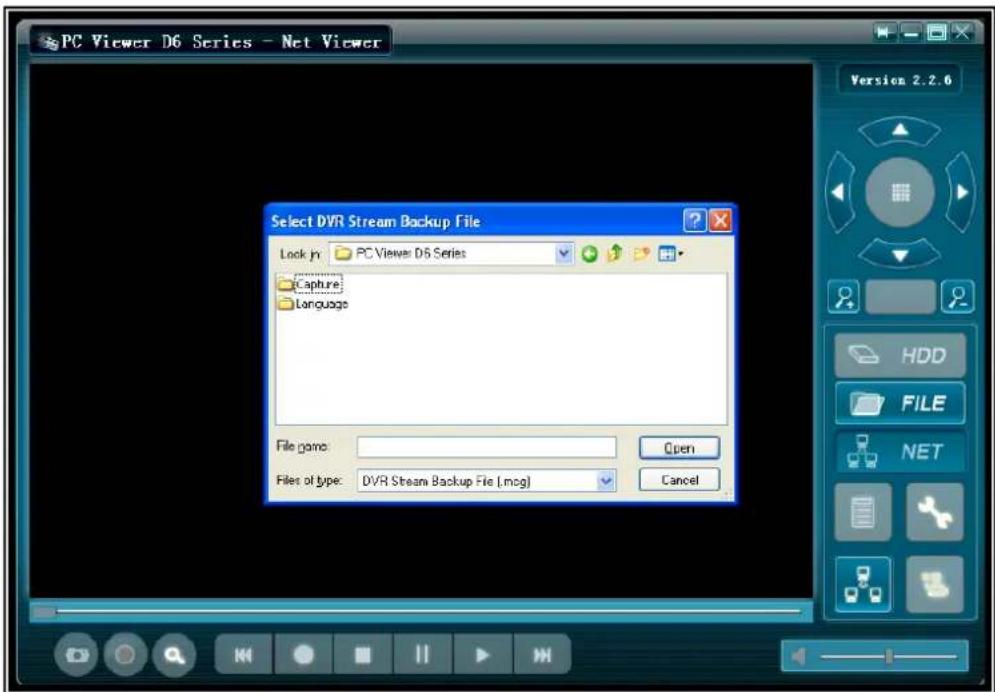

FILE play mode: (only when you plug a USB Memory Stick into your PC)

Press “” to open a folder and select the file you want play.

Double click the file.

PC Viewer D6 Series - Net Viewer Select DVR Stream Backup File Lock in: PC Viewer D6 Series Capture Language File name: Open Files of type: DVR Stream Backup File (*.mcg) Cancel

NET play mode:

This mode allows you to remote control your DVR via Internet.

Press “” to pop up the login window.

Fill in Host Name, Host Port, User Name and Password. Press Login.

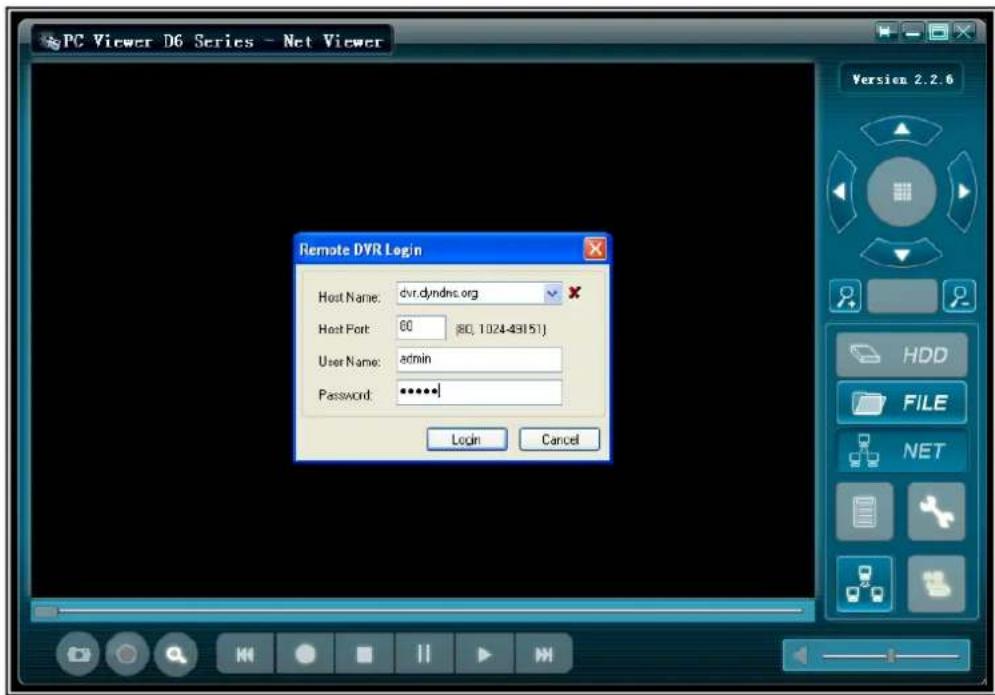

PC Viewer D6 Series - Net Viewer Remote DYR Login Host Name: dvr.dyndns.org Host Port: 60 (80, 1024-49151) User Name: admin Password: ***** Login Cancel Version 2.2.6 HDD FILE NET

Chapter 9: Specification

4 / 9-Channel DVR

Items	Descriptions
Video Standard NTSC	PAL
Video Input/Output	4 Channels/2 Channels, 9 Channels/1 Channel
Audio Input/Output	2 Channels/2 Channels, 1 Channel/1 Channel
Monitoring	Resolution	NTSC:720X480@30fps(Each Ch)PAL:720X576@25fps(Each Ch)
	Features	Full-D1, 1-CH/4-CH/9-CH Display
Recording	Resolution	NTSC:720X240@60fps(4/9Ch.Total)PAL:720X288@50fps(4/9Ch.Total)
	Features	Variable Frame Rate/Variable QL per Channel
	Quality 4-Level(Highest, High, Normal, low)
Audio	ADPCM2 CODEC
Video	MPEG4
Motion Detection Settable Window/Level
Microprocessor	32-bit RISC Processor
Network Interface TCP/IP(RJ45)
Network Monitor IE(Internet Explorer)
PTZ Interface	RS485
USB Interface	USB2.0
VGA Output	Optional
Remote control	IR remote control

Chapter 10: Appendix

10.1 System connection diagram

10.2Accessories

Power Cord

Design may vary depending on country

Software CD

DC DC-12000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 C. CAPTOK DC DC-1200000000000000 DC-125678888888888888888888888888888888888888888888888888888888888888888888888888888888

Power Adaptor

Remote Controller

USER & MANUAL BIVAR

User's Manual

USB Cable

1 2 3 4 5 6 7 8 9 SEL MELR SEL AUXRIA MELR OK OK OK Remote control

Two-step diagram showing a computer internal component being processed, with no visible text or symbols.

Two views of a computer hard disk showing internal components and wiring, before and after assembly (no text or symbols visible)

H / W SENSOR SETUP CHANNEL-1 TYPE:NORMAL-OPEN CHANNEL-2 NOT INSTALLED CHANNEL-3 NOT INSTALLED CHANNEL-4 NOT INSTALLED (◀) MOVE (SEL) SELECT (MENU) EXIT

HARDWARE SENSOR SETUP:

Exterior view of a modern multi-story building with glass facade and palm trees, partially obscured by a grid overlay (no visible text or symbols)

BRI: Helderheid (Brightness)

HUE: Kleur (Hue)

SAT: Verzadiging (Saturation)

NETWORK SETUP > MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL)SELECT (MENU)EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL) SELECT (MENU) EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.265.265.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL) SELECT (MENU) EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀) MOVE (SEL) SELECT (MENU) EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL)SELECT (MENU)EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL)SELECT (MENU)EXIT

DDNS SETUP DDN3 PROVIDER [ www. DynDN3.com ] DDNS USER NAME [ ] DONS PASSWORD [ ] DOMAIN NAME [ ] (◀) MOVE (SEL) SELECT (MENU) EXIT

1 2 3 4 A-REC [M] 39% 2007/08/22 16:09:44

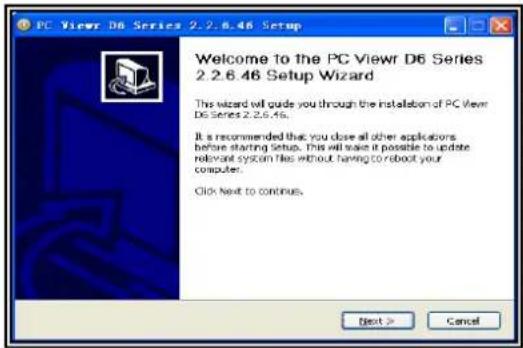

PC Viewr D6 Series 2.2.6.46 Setup Welcome to the PC Viewr D6 Series 2.2.6.46 Setup Wizard This wizard will guide you through the installation of PC Viewr D6 Series 2.2.6.46. It is recommended that you close all other applications before starting setup. This will make it possible to update relevant system files without having to reboot your computer. Click Next to continue. Next > Cancel

(1) Plaats driver CD in uw CD-ROM Drive.
(2) Open CD directory.
(3) Dubbel klik op "install applications".
(4) Run "Install" programma.
(5) Volg setup-wizard om de installatie te beeindigen.

8.2 BEDIENING:

PC Viewer D6 Series Version 2.2.5 1 2 3 HDD FILE NET 5 6 7 8 9 10 11 12 13 14 16 15 17 18 19 20

1.PTZ Bediening 11.Converteren “Streams to AVI file”

2.Zoom in / Zoom Out 12.Eén frame terug

3.HDD Play Mode 13.Opname

4.File Play Mode 14.Stop

5.Net Play Mode 15.Play

6.”Event” Lijst 16.Pauze

7.Bedieningspanel 17.Snel verder

8.Remote DVR Bediening 18.Één frame verder

9.Wijzig opslag modus 19.Afspeel indicator(slider)

10.“Image” vastleggen 20.Audio indicator(slider)

spoel

8.3 Programma afspelen

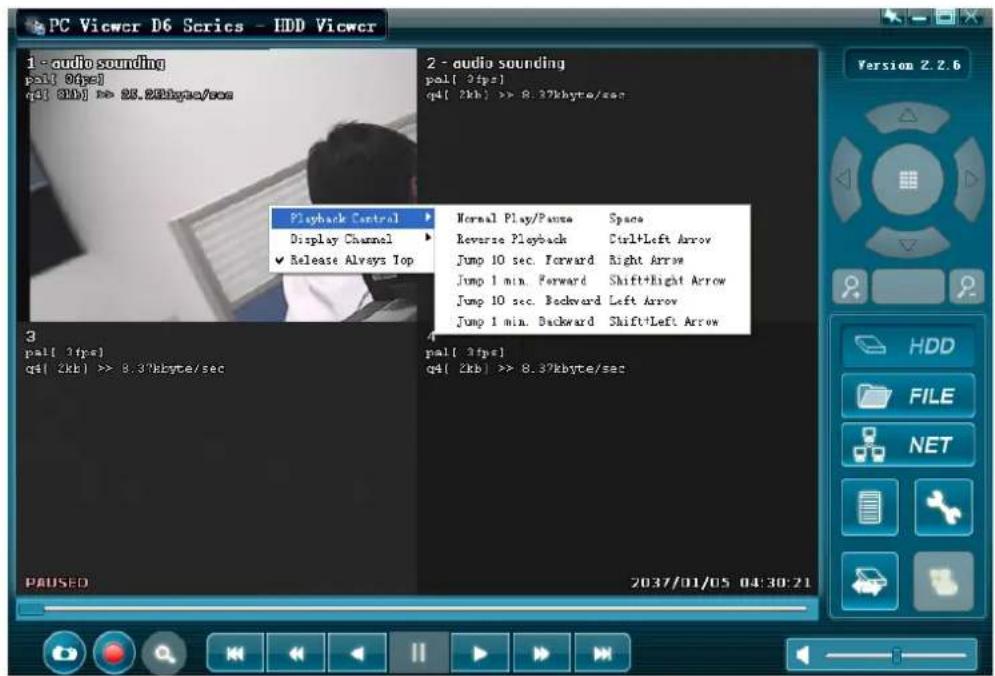

HDD afspeel-mode:

PC Viewer D6 Series - HDD Viewer 1 = audio sounding pall 3fps call 820 >> 8.37kb/pc/sec 2 - audio sounding pall 3fps q4 | 2kb >> 8.37kb/pc/sec DVK Record Event List Device 1 - ST3320620A Size: 320 GByte Event Count: 8 [1] Sensor Recording from 2037/01/05 04:45:20 [Pkt: 6261] duration: 24 minutes 9 seconds [2] Sensor Recording from 2037/01/05 04:45:02 [Pkt: 8208] duration: 10 seconds [3] Sensor Recording from 2037/01/05 04:44:45 [Pkt: 8200] duration: 21 seconds [4] Sensor Recording from 2037/01/05 04:44:28 [Pkt: 8161] duration: 17 seconds [5] Sensor Recording from 2037/01/05 04:44:07 [Pkt: 8106] duration: 12 seconds Event play at event-start Playback Cancel Version 2.2.6 HDD FILE NET PAUSED 2037/01/05 04:30:21

Kics

om de programma- “local settings” te configureren.

PC Viewer D6 Series - HDD Viewer 1 - audio sounding pall 3fps q4[ S1b] DP 50.92kHz/sec/sec 2 - audio sounding pall 3fps q4[ ZMB] >> 8.37Kbyte/sec PC Viewer D6 Series Configuration EMP Capture Setting EMP Screen Capture Folder [click to change] EMP Folder: C:\Program Files\PC Viewer D6 Series\Capture Additional Info. on BMP image [click to change] AVI Recording Setting AVI stream recording folder [click to change] AVI Folder: C:\Program Files\PC Viewer D6 Series\Capture Language Select English(Default) Miscellaneous Setting Always on top window at start up [click to change] Normal playback at start up [click to change] Show Channel frame Rate on Screen [click to change] Save Cancel Version 2.2.6 HDD FILE NET PAUSED ----/01/05 04:30:21

Kies

e video af te spelen.

PC Viewer D6 Series - HDD Viewer 1 - audio sounding pal[ 0fps] q4[ 2kb] >> 35.28Kbyte/sec 2 - audio sounding pal[ 2fps] q4[ 2kb] >> 8.37Kbyte/sec Playback Control Display Channel Release Always Top Normal Play/Passo Space Reverse Playback Ctrl+Left Arrow Jump 10 sec. Forward Right Arrow Jump 1 min. Forward Shift+Right Arrow Jump 10 sec. Backward Left Arrow Jump 1 min. Backward Shift+Left Arrow pal[ 3fps] q4[ 2kb] >> 8.37Kbyte/sec paused 2037/01/05 04:30:21 Version 2.2.6 HDD FILE NET

PC Viewer D6 Series - Net Viewer Select DVR Stream Backup File Look in: PC Viewer D6 Series Capture Language File name: Open Files of type: DVR Stream Backup File (.mcg) Cancel

NET afspeel mode:

USER'S MANUAL BVR

Handleiding

USB kabel

Abstract blue logo with a stylized 'S' shape, no text or symbols present.

skytronic

CE Declaration of Conformity

Importer:

SkyTronic BV M a r c o n i s t r a a t 9 7442 DD Nijverdal

The Netherlands

Product numbers:

351.124

Product Description: DVR, 4 CCD CAMKIT

Regulatory Requirement: EN 60950

EN 55012

EN 55024

EN 61000-3-2/-3-3

2004/108/EC

The product met the requirements of the above mentioned Standards.

This certificate does not cover the aspects that may be relevant such as performance and fitness for purpose.

N i j v e r d a l ,

05-03-2008

Signature

SK Marconista P.O. Box 2 Tel. (-) Fax (+)

SKY TRONIC b.v.

Marconstraat 9, 7442 DD NIJVERDAL NL P.O. Box 278, 7640 AG WIERDEN NL. Tel. (+31) (0) 548 - 61 25 00 Fax (+31) (0) 548 - 61 15 55

Remote control

Two-step diagram showing a computer RAM module being processed into an electronic device, with no visible text or symbols.

Two views of a computer hard drive showing internal components and wiring, before and after assembly (no text or symbols visible)

1 3fps RECORD TOTAL 2 - FRAMERATE 31FPS 3 25fps (◀)MOVE (SEL) 4 3fps +(■)- (MENU)EXIT

H / W SENSOR SETUP CHANNEL-1 TYPE:NORMAL-OPEN CHANNEL-2 NOT INSTALLED CHANNEL-3 NOT INSTALLED CHANNEL-4 NOT INSTALLED (◀) MOVE (SEL) SELECT (MENU) EXIT

SENSOREINSTELLUNG:

Exterior view of a modern multi-story building with glass facade and palm trees, partially obscured by a grid overlay (no visible text or symbols)

NETWORK SETUP > MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀) MOVE (SEL) SELECT (MENU) EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255,255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL)SELECT (MENU)EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [265.265.265.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀) MOVE (SEL) SELECT (MENU) EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL)SELECT (MENU)EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.265.265.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀) MOVE (SEL) SELECT (MENU) EXIT

NETWORK SETUP MAC ADDRESS <00:11:22:33:44:55> IP ALLOCATION [STATIC] IP ADDRESS [192.168.1.100] SUBNET MASK [255.255.255.0] GATEWAY [192.168.1.1] DNS1 ADDRESS [0.0.0.0] DNS2 ADDRESS [0.0.0.0] HTTP PORT [ 80] USER SETUP DDNS SETUP (HTTP PORT) 80, 1024-49151 (◀)MOVE (SEL)SELECT (MENU)EXIT

DDNS SETUP DDNS PROVIDER [ www. DynDNS.com ] DDNS USER NAME [ ] DONS PASSWORD [ ] DOMAIN NAME [ ] (◀) MOVE (SEL) SELECT (MENU) EXIT

1 2 3 4 A-REC [M] 39% 2007/08/22 16:09:44

8.1 Driver Installation:

PC Viewr D6 Series 2.2.6.46 Setup Welcome to the PC Viewr D6 Series 2.2.6.46 Setup Wizard The wizard will guide you through the installation of PC View D6 Series 2.2.6.46. It is recommended that you close all other applications before starting Setup. This will make it possible to update relevant system files without having to reboot your computer. Click Next to continue. Next > Cancel

PC Viewer D6 Series - HDD Viewer 1 = audio sounding pall 3fps call 8321 >> 35.85fps/sec 2 - audio sounding pall 3fps1 q4 | 2kb | >> 8.37kbyte/sec DWE Record Event List Device 1 - ST3G20620A Size: 320 GByte Event Count: 8 [1] Sensor Recording from 2037/01/05 04:45:20 [Pkt: 6261] duration: 24 minutes 9 seconds [2] Sensor Recording from 2037/01/05 04:45:02 [Pkt: 8208] duration: 10 seconds [3] Sensor Recording from 2037/01/05 04:44:45 [Pkt: 8200] duration: 21 seconds [4] Sensor Recording from 2037/01/05 04:44:28 [Pkt: 8161] duration: 17 seconds [5] Sensor Recording from 2037/01/05 04:44:07 [Pkt: 8106] duration: 12 seconds Random play at event/start Playback Cancel Version 2.2.6 HDD FILE NET PAUSED 2037/01/05 04:30:21

Auf

PC Viewer D6 Series - HDD Viewer 1 - audio sounding pal[ 3fps] q4[ 5KB] >> 82.92kHz/sec 2 - audio sounding pal[ 3fps] q4[ 2KB] >> 8.37kHz/sec PC Viewer D6 Series Configuration EMP Capture Setting EMP Screen Capture Folder [click to change] EMP Folder: C:\Program Files\PC Viewer D6 Series\Capture Additional Info. on BMP image [click to change] AVI Recording Setting AVI stream recording Folder [click to change] AVI Folder: C:\Program Files\PC Viewer D6 Series\Capture Language Select English(Default) Miscellaneous Setting Always on top window at start up [click to change] Normal playback at start up [click to change] Show Channel Frame Rate on Screen [click to change] Save Cancel Version 2.2.6 HDD FILE NET 01/05 04:30:21 PAUSED

Auf

PC Viewer D6 Series - Net Viewer Select DVR Stream Backup File Lock in: PC Viewer D6 Series Capture Language File name: Open Files of type: DVR Stream Backup File (*.mog) Cancel

Abstract logo design with a stylized 'S' inside a blue rounded square (no text or symbols)

skytronic

CE Declaration of Conformity

Importer:

SkyTronic BV

M a r c o n i s t r a a t 9

7442 DD Nijverdal

The Netherlands

Product numbers:

351.124

Product Description: DVR, 4 CCD CAMKIT

Regulatory Requirement: EN 60950

EN 55012

EN 55024

EN 61000-3-2/-3-3

2004/108/EC

The product met the requirements of the above mentioned Standards.

This certificate does not cover the aspects that may be relevant such as performance and fitness for purpose.

N i j v e r d a l ,

05-03-2008

Signature

Marconi P.O. Bo Fa

SKY TRONIC b.v.

Marconstraat 9, 7442 DD NIJVERDAL NL P.O. Box 278, 7640 AG WIERDEN NL Tel. (+31) (0) 548 - 61 25 00 Fax (+31) (0) 548 - 61 15 55
