Table of Contents

Notice for Users in the USA 4

TCO'99 5

Notice for Users in Europe 7

Notice for Users in the UK 8

Notice for Users in Australia 8

Tips and safety precautions 9

Product description 10

Connecting the monitor and turning the monitor on and off 12

Connecting the monitor to a computer (PC etc.) 12

Connecting the monitor to headphones and a microphone 12

Connecting the monitor to a power source.... 12

Turning the power on 13

Turning the power off 13

Adjusting the screen display and speaker volume 15

Adjusting the screen display 15

Automatic screen adjustment 15

Adjusting the backlight 16

Manual screen adjustment 17

Adjusting the speaker volume 19

Monitor care and repair 20

Monitor care 20

Storage 20

Troubleshooting 20

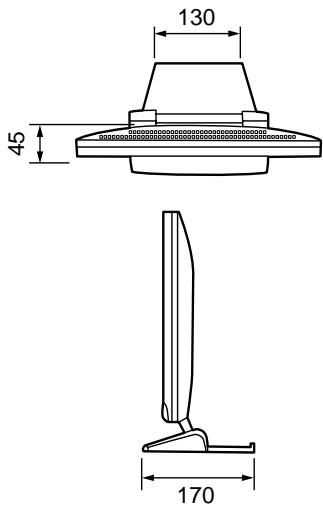

Specifications 21

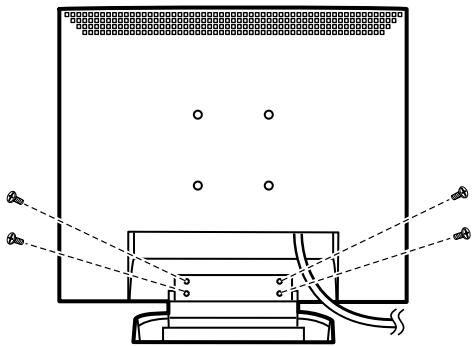

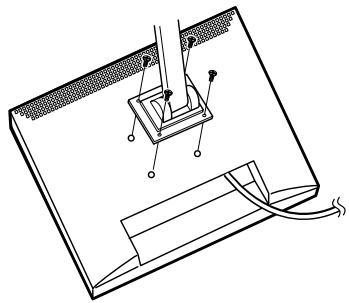

Instructions for installing a VESA compliant arm 24

FCC Statement

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Use nothing but the included cables and AC cord to insure compliance with FCC regulation for Class B computing equipment.

Declaration of Conformity

SHARP LCD Color Monitor LL-T15S1

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersized operation.

Responsible Party :

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL:1-800-BE-SHARP

* As an ENERGY STAR Partner, SHARP has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance:www.eiae.org

ECOLOGY ENERGY TCO 99 EMISSIONS ERGONOMICS

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is available.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Notice for Users in Europe

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

The wires in this mains lead are coloured in accordance with the following code :

GREEN-AND-YELLOW : Earth

BLUE : Neutral

BROWN : Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows. The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth 12 or coloured green or green-and-yellow.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

Ensure that your equipment is connected correctly-if you are in any doubt consult a qualified electrician.

"WARNING :THIS APPARATUS MUST BE EARTHED"

Notice for Users in Australia

Service Inquiries

Please contact your dealer for service if required or contact Sharp Corporation of Australia on 1 300 13 50 22 for referral to your nearest Sharp authorized Service Center.

Tips and safety precautions

• Under certain display conditions, minute specks or spots may be noticeable. This is common for liquid crystal monitors and is not a malfunction.
• The LCD panel has been manufactured using highly elaborate technology. Properly working pixels comprise 99.99% of total pixels. However, please understand that 0.01% or less of pixels may be missing or be brighter than usual.
• Do not leave the screen displaying idly for long periods of time, as this could cause afterimage to remain.
• If the brightness is adjusted to the minimum setting it may be difficult to see the screen.
• The quality of the computer signal may influence the quality of the display. We recommend using a computer able to emit high quality video signals.
• Never rub or tap the monitor with hard objects.
• Please understand that Sharp Corporation bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.
• This monitor and its accessories may be upgraded without advance notice.

Location

• Do not use the monitor where ventilation is poor, where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam, as this could lead to fire.
• Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.
• Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to come into contact with strong shocks or vibrations. Causing the monitor to fall or topple over may damage it.
• Do not use in places where the monitor will be subject to direct sunlight, near heating equipment or anywhere else where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

The Power Cord

• Do not damage the power cord or place heavy objects on it, stretch it or overly bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• Use only the AC adapter supplied with the monitor. Using an AC adapter other than that supplied may lead to fire.
• Insert the power plug directly into the AC outlet. Adding an extension cord may lead to fire as a result of overheating.

Monitor and accessory checklist

• Please check that the following items are included in the package.
• LCD monitor (1)
• AC adapter (1)
• Audio cable (2)
• Utility Disk for Windows (1)
• Operation manual (1)

Notes:

• You are advised to retain the carton in case the monitor needs to be transported.
• Authorship rights to the Monitor Settings Adjustment Disk program are held by Sharp Corporation. Do not reproduce it without permission.

Use of AC adapter

• Do not use the AC adapter for other than the specified equipment.
• Unplug the AC adapter if it is not used for long time.
• Do not place any objects on the AC adapter.
• Do not use the AC adapter outdoors.
• Do not attempt to repair the AC adapter if it is broken or malfunctioning. Refer the servicing to the service representative.
• Do not try to open the AC adapter.
• Do not use water or wet cloth to cleaning of the AC adapter.

Manual Scope

• In this booklet, Microsoft Windows 2000 will be referred to as [Windows2000], Microsoft Windows Millenium as [WindowsMe], Microsoft Windows 98 as [Windows98], Microsoft Windows 95 as [Windows95], and Microsoft Windows Version 3.1 as [Windows3.1]. When there is no need to distinguish between programs, the term [Windows] will be used.
• Microsoft and Windows are registered trademarks of Microsoft Corp. U.S. in the U.S. and the other countries.
• Macintosh is a registered trademarks of Apple Computer, INC.

Product description

Front view

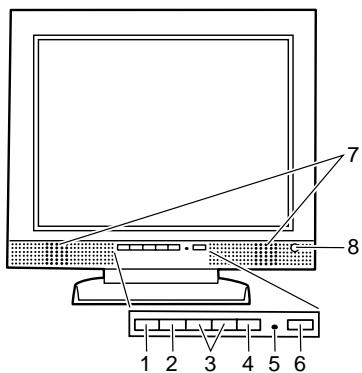

1 2 3 4 5 6 7 8

Left side surface

9 10

Rear view

15 11 12 13 14

1. MENU button ...... This button is used to pop-up, select and close the OSD Menu.
2. SELECT button.... When the On Screen Display (OSD) menu is displayed, choose the menu option to be adjusted.
3. ◀▶ buttons ...... When the OSD menu is displayed:
   Change or adjust the adjustment values by switching between the OSD options contents.
   When the backlight adjustment bar is displayed:
   The brightness of the backlight can be adjusted.
   When the OSD menu / backlight adjustment bar is not displayed:
   The speaker volume can be adjusted.
4. BRIGHT button ...... When the OSD menu is displayed:
   The OSD menu disappears.
   When the OSD menu is not displayed:
   Switch between turning the automatic brightness adjustment function [ON] and [OFF].
5. Power LED ...... This LED is lit green when in use and orange when in power-saving mode.
6. Power button....Pressing this button turns the power on. (After turning the power on, it may take a little time before the screen displays.)
   Press the button again to turn the power off.
7. Speakers ...... Audio entering via the monitor and the external device connected to the monitor can be heard.
8. Brightness sensor ....Measures the brightness of the surrounding environment.
9. Microphone terminal ...... A microphone (to be purchased separately) can be connected here.
10. Headphone terminal ...... Headphones (to be purchased separately) can be connected here.
11. Audio input terminal ...... A computer's audio output terminal can be connected here. (The audio cable included should be used.)
12. Microphone output terminal ... A computer's microphone terminal can be connected here. (The audio cable included should be used.)
13. Power terminal.... Connect the AC adapter (included) here.

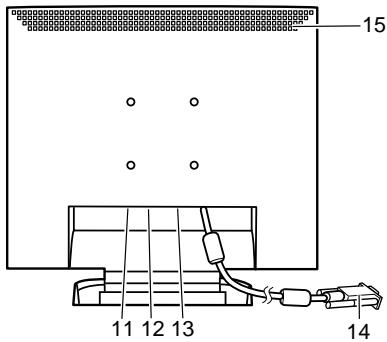

14. RGB signal cable ...... Connects to the computer's analog RGB output terminal.
15. Ventilation openings ....Note: Never block the ventilation openings as this may lead to overheating inside the monitor and result in malfunction.

Standing up and adjusting the monitor

Standing up the monitor

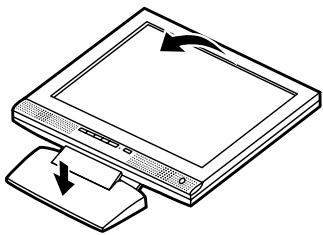

Press down on the stand and lift up the top section of the monitor.

Diagram of a computer monitor with an open base and directional arrows indicating motion (no text or symbols)

Adjusting the monitor

Lightly holding both sides of the monitor, adjust it to a suitable viewing angle.

25° 3°

Folding up the monitor (when packing it away)

- Except when folding away the monitor to transport it, do not fold down the monitor. Unnecessarily folding and unfolding the monitor could lead to malfunction.

1. Remove the AC adapter.
2. If carrying out adjustments to the monitor, place it upright.

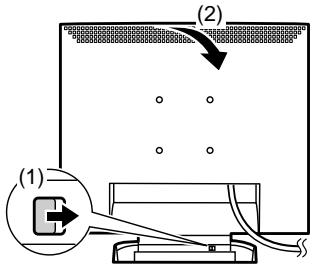

3. While pressing the rear lock disable button (1), gently fold back the monitor (2).

(1) (2)

Connecting the monitor and turning the monitor on and off

Connecting the monitor to a computer (PC etc.)

When connecting, ensure that both the monitor and computer are switched off.

Note:

- Do not overly bend the cable or add extension cords as this could lead to malfunction.

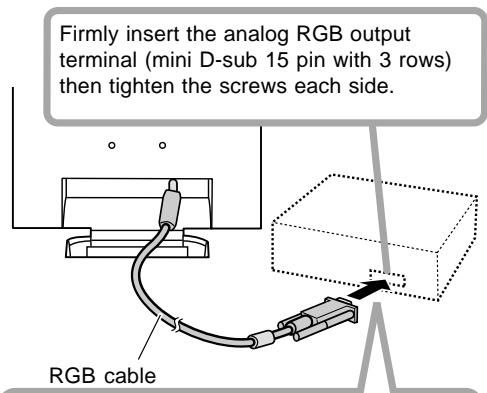

Firmly insert the analog RGB output terminal (mini D-sub 15 pin with 3 rows) then tighten the screws each side. RGB cable

If connecting to a D-sub 15 pin 2 row Apple Power Macintosh, attach a Macintosh conversion adapter (to be purchased separately) to the RGB signal cable.

Macintosh conversion adapter

RGB signal cable

After connecting the adapter, tighten the screws on each side to fix into place.

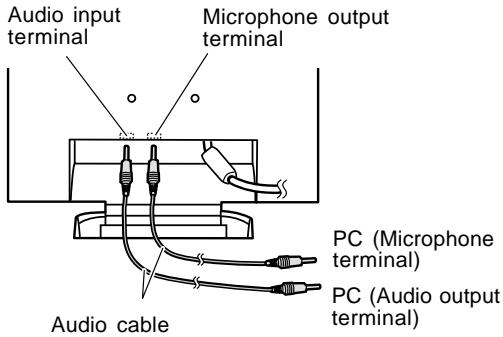

Using the audio cable included, the computer's audio output terminal or a microphone terminal can be connected.

Audio input terminal Microphone output terminal Audio cable PC (Microphone terminal) PC (Audio output terminal)

Note:

- DO only connect cables less than 3m to the LL-T15S1.

Connecting the monitor to headphones and a microphone

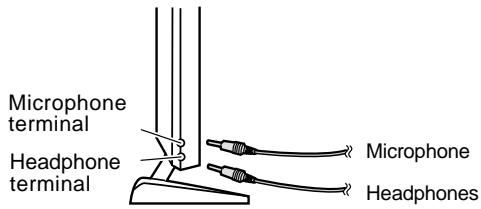

Headphones and a microphone (both to be purchase separately) can be connected here.

Note:

- Do not overly bend the cable or add extension cords as this could lead to malfunction.

Microphone terminal Headphone terminal Microphone Headphones

Note:

• DO only connect cables less than 3m to the LL-T15S1.
• When the headphones are connected, no sound can be heard from the monitor speakers.

Connecting the monitor to a power source

Before connecting, first turn off the monitor's main power switch.

Note:

• Do not overly bend the cable or add extension cords as this could lead to malfunction.
• Connect the AC adapter to the monitor's power terminal

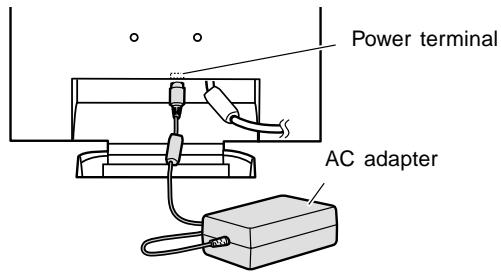

Power terminal AC adapter

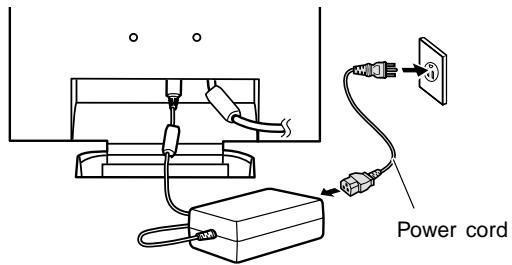

1. Attach the power cord to the AC adapter and place the power plug into the AC terminal.

Power cord

Connecting the monitor and turning the monitor on and off

Turning the power on

1. Turn on the computer.
2. Press the monitor's power button.

The power LED will be lit green, and the screen will display an image.

Simple line drawing of a monitor setup with no text or symbols

Power LED
Power button

Note:

- When setting up this monitor for the first time or after having changed an aspect of the current system, perform an automatic screen adjustment before use (p. 15).

Turning the power off

1. Turn the computer off.
2. Press the monitor's power button.

The Power LED will disappear.

Installing set-up information

Depending on the computer or OS, it may be necessary to use the computer to operate the installation of monitor set-up information etc. If so, follow the steps below to install the monitor set-up information. (Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.)

For Windows95

Installing monitor set-up information into Windows95. This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced Properties], and [Monitor], then [Change].
5. Click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:] then click [OK].
6. Confirm that the monitor details are selected, and click [OK].
7. Check that the monitor details are displayed, then click [Apply].
8. Click [OK], and close the window.
9. Remove the Utility Disk from the A drive.

For Windows98

Installing monitor set-up information into Windows98.

This explanation assumes that the floppy disk drive is "A drive".

If the "Add new Hardware Wizard" has appeared:

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click [Next].
3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].
4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
5. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish]. If the "Add New Hardware Wizard" appears, repeat the installation commands beginning from 2 above.
6. Remove the Utility Disk from the A drive.

If the "Add New Hardware Wizard" has not appeared:

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].
5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].
6. Click [Next].
7. Click on [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].
8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
9. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish].
10. Check that the monitor details are displayed, then click [Apply].
11. Click [OK], and close the window.
12. Remove the Utility Disk from the A drive.

Connecting the monitor and turning the monitor on and off

For Windows2000

Installing monitor set-up information into Windows2000. This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].
5. Click on [Properties], [Driver] and [Update Driver].
6. When [Upgrade Device Driver Wizard] appears, click [Next].
7. Check [Display a list of the known drivers for this device so that I can choose a specific driver] and click [Next].
8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
9. Select the monitor from the list displayed and click [Next].
10. Click [Next], confirm that the monitor's name appears on the screen, and click [Finish]. If [The Digital Signature Not Found] appears, click [Yes].
11. Click on [Close].
12. Click [OK], and close the window.
13. Remove the Utility Disk from the A drive.

For WindowsMe

Installing monitor set-up information into WindowsMe. This explanation assumes that the floppy disk drive is "A drive".

If the "Add new Hardware Wizard" has appeared:

1. Place the Utility Disk (provided) into the computer's A drive.
2. Check [Specify the location of the driver [Advanced]] and click [Next].
3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].
4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
5. Select the monitor details from the list, then click [Next], [Next], and [Finish]. If the "Add new Hardware Wizard" appears, repeat the installation commands beginning from 2 above.
6. Remove the Utility Disk from the A drive.

If the "Add New Hardware Wizard" has not appeared:

1. Place the Utility Disk in the computer's A drive.
2. Click on the [Start] button. From [Settings], choose [Control Panel].
3. Double click on [Display].
4. Click on [Settings], [Advanced] and [Monitor].
5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].
6. Check [Specify the location of the driver [Advanced]] and click [Next].
7. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.] and click [Next].
8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].
9. Select the monitor details, then click [Next], [Next], and [Finish].
10. Check that the monitor details are displayed, then click [Apply].
11. Click [OK], and close the window.
12. Remove the Utility Disk from the A drive.

Adjusting the screen display and speaker volume

Adjusting the screen dispray

Automatic screen adjustment (right column)

The clock, phase, H-POS (horizontal positioning) and V-POS (vertical positioning) functions can be adjusted automatically.

Adjustment of backlight (p.16)

Brightness of backlight can be adjusted.

Manual adjustment (p. 17)

Fine adjustments can be made using the On Screen Display (OSD) Menu.

Note:

- All adjustments will be saved even after turning the power off.

All Reset MENU

All adjustment values can be returned to their original ex-factory values in one command.

1. Press the power button to turn off the monitor power.
2. Press the MENU button and the SELECT button simultaneously, and while doing this press the power button (i.e. turn the power on). When [ALL RESET] appears on the screen, the reset is complete.

Notes:

• While ALL RESET is displayed, the control buttons do not function.
• It is not possible to reset values when the adjustment lock is in place. Remove the adjustment lock before attempting to operate control buttons.

Adjustment lock function

By disabling the control buttons (i.e. setting the lock) any attempted changes to adjusted values will be voided.

1. Press the power button to turn off the monitor power.
2. While pressing the MENU button, press the power button (i.e. turn the power on).

When the menu is unlocked:

[ADJUSTMENT LOCKED] will appear on the screen, and the lock will be set.

When the menu is locked:

[ADJUSTMENT UNLOCKED] will appear on the screen, and the lock will be removed.

Note:

- When the lock setting is on, only the power button and the speaker volume adjustment can be operated.

Choosing a message language

Messages displayed on the screen and OSD Menu contents can be changed to the following languages. English, German, French, Italian, Spanish.

1. Turn off the monitor.

2. Pressing the SELECT and ▶ buttons simultaneously, press the power button (i.e. turn the power on).
   The Language Selection Menu (LANGUAGE) will be displayed on the screen.

3. Use the SELECT button to choose a language.

4. Press the MENU button.

The setting is complete. From now, messages and adjustment menus will be displayed in the chosen language.

Automatic screen adjustment

Options in MENU 1 (ADJUSTMENT) can be adjusted automatically (CLOCK, PHASE, H-POS, V-POS).

Note:

• When setting up this monitor for the first time or after having changed an aspect of the current system, perform an automatic screen adjustment before use.
• First display an image that makes the entire screen very bright. If you are using Windows, you can use the Adjustment Pattern on the accompanying Utility Disk (p.16).
• Press the MENU button. The ADJUSTMENT Menu will be displayed.

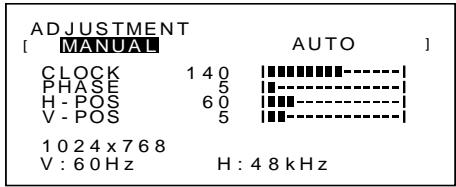

ADJUSTMENT [ MANUAL AUTO ] CLOCK 140 |■■■■■■----| PHASE 5 |■----| H-POS 60 |■■----| V-POS 5 |■----| 1024 x 768 V : 60 Hz H : 48 kHz

1. Press the ▶ button.

The screen will become dark and [ADJUSTING] will be displayed. After a few seconds the ADJUSTMENT Menu will return. (The automatic adjustment is now complete.)
4. Press the MENU button 4 times to make the On Screen Display (OSD) Menu disappear.

Notes:

- In most cases automatic adjustment is sufficient. - If necessary due to any of the following, manual adjustments (p. 17) can be performed after the automatic adjustment.

• When further fine adjustment is needed.
• When [OUT OF ADJUST] is displayed. (When the screen displays an entirely dark image, the automatic screen adjustment may be disabled. When making an automatic adjustment, be sure to either use the Adjustment Pattern or try displaying an image that makes the entire screen very bright.)

Opening the Adjustment Pattern (for Windows)

If you are using Windows, you can use the Adjustment Pattern on the accompanying Utility Disk.

This explanation is for Windows 95/98/Me/2000, and assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.
2. Open [My Computer] and select [3 ½ Floppy (A:)]. If using Windows 3.1, open [File Manager] and choose "A drive".
3. Double click on [Adj_uty.exe] to run the Adjustment Program. The Adjustment Pattern will appear.

Adjustment pattern

Notes:

• After completing the adjustments, press the computer's [Esc] key to exit the Adjustment Program.
• If the floppy disk drive of your computer is not "A drive", please read the below substituting the floppy disk drive you are using in place of "A drive" or "A".
• If your computer's display mode is set to 65K colors, you may see the different color levels in each color pattern or the gray scale may look colored. (This is due to the specification of the input signal and is not a malfunction.)

Adjusting the backlight

The backlight brightness can be set to change automatically for use in different surroundings. (Automatic brightness adjustment)

If the surroundings become brighter, the backlight will become brighter.

If the surroundings become darker, the backlight will become darker.

The brightness sensor measures the brightness of the surrounding environment. Never place anything in front of the brightness sensor.

Use the BRIGHT button to switch between automatic brightness adjustment or no automatic brightness adjustment.

Automatic brightness adjustment

↑↓ Press BRIGHT button

No automatic brightness adjustment

Notes:

• The backlight adjustment bar automatically disappears several seconds after the last command.
• On the screen that appears after the values have been set, the brightness can be further adjusted by pressing the ◀ and ▶ buttons.

Adjusting the brightness

Carry out the commands without the On Screen Display (OSD) Menu displayed. If the OSD Menu is displayed, press the MENU button (several times may be required) and begin when the OSD Menu has disappeared.

When adjusting brightness automatically

Using the adjusted backlight brightness as a base, the brightness can be adjusted automatically.

1. Without the OSD Menu being displayed, press the ◀ button or the ▶ button. The BRIGHT bar will appear at the bottom section of the screen.

1. Adjust by pressing the ◀ button (darker) or the ▶ button (lighter). Depending on the brightness of the surrounding environment, the parameters for adjustment may be limited.

2. Press the MENU button. The OSD will disappear.

When not adjusting brightness automatically

1. Without the OSD Menu being displayed, press the ◀ button or the ▶ button.

1. Adjust by pressing the ◀ button (darker) or the ▶ button (lighter).
2. Press the MENU button. The OSD Menu will disappear.

Note:

- The backlight adjustment bar automatically disappears several seconds after the last command.

Manual screen adjustment

Fine adjustments can be made using On Screen Display (OSD) Menu provided.

1. Display an image that makes the entire screen very bright. If using Windows, you can open and use the Adjustment Pattern on the accompanying Utility Disk. (p. 16)
2. Press the MENU button. The ADJUSTMENT Menu will be displayed.

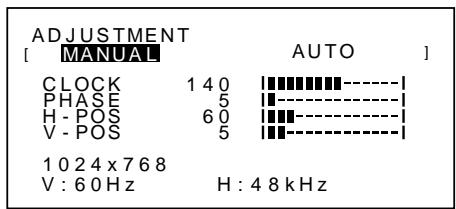

ADJUSTMENT [ MANUAL AUTO ] CLOCK 140 [■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■ PHASE 5 [■]----[●] H-POS 60 [■]----[●] V-POS 5 [■]----[●] 1024 x 768 V : 60 Hz H : 48 kHz

At this point relevant menu options can be adjusted. Each time the MENU button is pressed the next menu is selected. (MENU 1 → 2 → 3 → 4 → OSD Menu disappears)

Notes:

• The OSD Menu automatically disappears several seconds after the last command.
• This explanation is based on using the Adjustment Pattern (for Windows) to make adjustments.

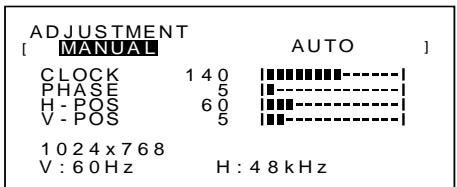

MENU 1: ADJUSTMENT

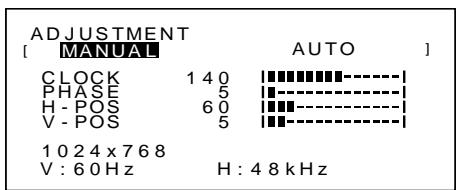

ADJUSTMENT [ MANUAL AUTO ] CLOCK 140 [■■■■■■■]---- PHASE 5 [■]---- H-POS 60 [■]---- V-POS 5 [■]---- 1024 x 768 V : 60 Hz H : 48 kHz

MANUAL: Individual menu options are manually adjusted.

AUTO: Every menu option is automatically adjusted.

Notes:

• Press the ▶ button to select AUTO.
• To choose a menu option: SELECT button
• To go to MENU 2: MENU button

CLOCK

The figure below demonstrates how to adjust so that vertical flicker noise is not emitted. (◀▶ buttons)

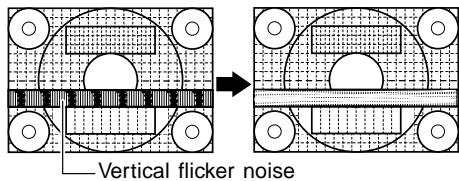

Vertical flicker noise

PHASE

The figure below demonstrates how to adjust so that horizontal flicker noise is not emitted. (◀▶ buttons)

Note:

- Adjustments to PHASE should be made only after CLOCK has been correctly set.

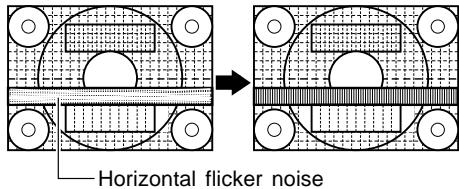

Horizontal flicker noise

H-POS (horizontal positioning) and V-POS (vertical positioning)

To center the screen image within the boundaries of the screen, adjust the left-right (H-POS) values and the up-down (V-POS) values. (◀▶ buttons)

Screen frame Adjustment pattern

Adjusting the screen display and speaker volume

MENU 2: GAIN CONTROL

BLACK LEVEL and CONTRAST are optimized before shipment, but can be adjusted to suit.

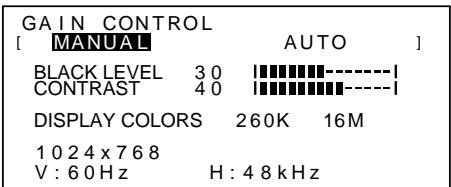

GAIN CONTROL [ MANUAL AUTO ] BLACK LEVEL 30 [■■■■■■-----] CONTRAST 40 [■■■■■■■-----] DISPLAY COLORS 260K 16M 1024x768 V:60Hz H:48kHz

MANUAL: Individual menu options are manually adjusted.

AUTO: Every menu option is automatically adjusted using the Auto Gain Control* function,

Notes:

• Press the ▶ button to select AUTO.
• To choose a menu option: SELECT button
• To go to MENU 3: MENU button

* Auto Gain Control function

- The Auto Gain Control adjusts contrast and black level based on the brightest color of the image displayed. If you are not using the Adjustment Pattern it is necessary to have an area of 5 mm x 5 mm of white displayed, and if not adjustments may not be possible. (In such case, [OUT OF ADJUST] will appear and setting values remain unchanged.)

- To perform the Auto Gain Control function, first go to MENU 3 and set [WHITE BALANCE] to something other than [USER]. If [USER] is set, Auto Gain Control will be disabled.

BLACK LEVEL

Total screen brightness can be adjusted while watching the color pattern. (◀▶ buttons)

Pure geometric diagram with circles and a diagonal line, no text or symbols present

Color pattern

CONTRAST

While watching the color pattern, adjustments can be made so that all graduations appear. (◀▶ buttons)

DISPLAY COLORS

Maximum display colors can be set. (◀▶ buttons) 260K (260,000) and 16M (16.19 million)

MENU 3:WHITE BALANCE

WHITE BALANCE (color tone) can be adjusted as necessary. (As adjustments are made before shipment, there is no real necessity for further alteration.)

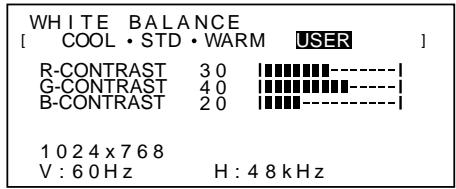

WHITE BALANCE [ COOL • STD • WARM USER ] R-CONTRAST 30 [■■■■■■----] G-CONTRAST 40 [■■■■■■----] B-CONTRAST 20 [■■■----] 1 0 2 4 x 7 6 8 V : 6 0 Hz H : 4 8 kHz

Notes:

• On settings other than [STD] not all graduations can be displayed. To display all graduations, set to STD.
• Selecting USER will display the setting values for [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST], in order to make fine adjustments.
• To choose a menu option: SELECT button
• To go to MENU 4: MENU button

COOL ..... Color tone bluer than standard - ..... Color tone slightly bluer than standard

STD..... Color tone standard setting

- ..... Color tone slightly redder than standard

WARM ..... Color tone redder than standard

USER

R-CONTRAST ... ◀ button for blue-green
▶ button for red
G-CONTRAST ... ◀ button for purple
▶ button for green
B-CONTRAST ... ◀ button for yellow
▶ button for blue

MENU 4: MODE SELECT

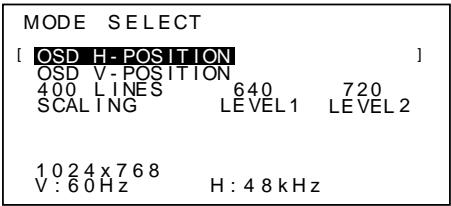

MODE SELECT [ OSD H-POSITION ] OSD V-POSITION 400 LINES 640 720 SCALING LEVEL1 LEVEL2 1024 x 768 V: 60Hz H: 48kHz

Notes:

• Depending on the resolution of the input signal, even if menu options can be selected, the display may not change.
• To choose a menu option: SELECT button
• When adjustment complete: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD display can be moved to the left and right. (◀▶ buttons)

OSD V-POSITION (OSD vertical position)

The position of the OSD display can be moved up and down. (◀▶ buttons)

400 LINES (degree of resolution)

You can specify the horizontal resolution of a 400-line screen when using US text, etc.

(<► buttons)

640 640 X 400 dot mode

720 720 X 400 dot mode (US text etc.)

Note:

- As the resolution input for other than 400 lines is done automatically, there is no need to set it.

SCALING (Level of scaling)

The sharpness of the image can be adjusted.

(<► buttons)

Note:

• When the display mode is set to less than 1024 x 768 pixels, the display is enlarged to cover the whole screen (i.e. the side ratio of the display may change).
• Display modes of 1024 X 768 pixels cannot be changed.

Adjusting the speaker volume

Without the OSD menu and backlight adjustment bar being displayed, press the ◀▶ buttons to adjust the volume.

Monitor care

Always remove the plug from the AC outlet when cleaning the monitor.

Cabinet and control panel section

Use a soft dry cloth to lightly wipe away any grime from the cabinet and control panel.

If very dirty, apply neutral detergent to a dampened soft cloth, wring it out well and wipe away grime.

LCD panel section

Use a soft dry cloth to lightly wipe away dirt and dust from the surface of the LCD panel. (A soft cloth such as gauze or that used for lens cleaning is suitable.)

CAUTION!

• Never use thinner, benzine, alcohol, glass cleaner, etc, as this could lead to color change or change in shape.
• Never scratch the monitor with anything hard or apply strong pressure as this could leave marks or result in malfunction.

Storage

If the monitor will not be used for a long period of time, be sure to remove the power plug from the AC outlet.

CAUTION!

Do not leave the monitor in contact with rubber or plastic items for long periods of time as this could lead to color change or change in shape.

Troubleshooting

If you think the monitor may be faulty, please check the following points before taking it to be repaired.

If afterwards it still does not work, please contact the shop where you purchased the monitor or your nearest Sharp authorized Service Center.

The monitor's florescent tubes have a limited life span.

• If the screen darkens, persistently flickers or does not light up, the florescent tube unit may need replacement. Please inquire at the shop where you purchased the monitor or your nearest Sharp authorized Service Center. (Never attempt this replacement on your own.)
• In the initial period of use, due to the characteristics of florescent tubes the screen may flicker. (This is not a malfunction.) Should this happen, check by first turning off the power, then turning it on again.

No image appears on the monitor (Power LED is not lit)

- Are the AC adapter and the power cord connected properly? (p. 12)

No image appears on the monitor (Power LED is lit)

• Is the computer connected properly? (p. 12)
• Is the computer turned on?
• Does the computer's signal timing correspond to monitor specifications? (p. 22)
• Is the computer in power-saving mode?

Control buttons do not work

- Is the adjustment lock on? (p. 15)

Only VGA image is displayed

- Does the Windows display timing setting meet monitor specifications? Refer to the monitor signal timings (p. 22) and set to appropriate timing.

The image appears distorted

• Does the computer's signal timing correspond to monitor specifications? (p. 22)
• Perform automatic adjustment. (p. 15)

No sound can be heard from the speakers:

• Are the headphones connected?
• Perform the volume adjustment procedure.(p. 19)

LCD display

38 cm (diagonal) TFT LCD module

Resolution (max.)

XGA 1024 x 768

Displayable colors (max.)

16.19 million colors (6bit + FRC2bit)

Dot pitch

0.297(H) x 0.297(V) mm

Brightness (max.)

200cd/m²

Contrast ratio

300:1

Angle of visibility

Left-right 120°, Up-down 95°

Screen display size

Horizontal 304.1 mm x Vertical 228.1 mm

Video signal

Analog RGB (0.7Vp-p) [75Ω]

Sync signal

Temperature of operating environment

5 - 35^ C

Power supply

AC100-240V 50/60Hz (use special AC adapter, tipe

NL-A53J of Sharp Corporation.)

Power consumption

31W max. (5W when in power-saving mode)

(use special AC adapter)

Dimensions (W x D x H)

368 mm X 170 mm x 355mm

Weight

Approx. 4.1 kg (excluding AC adapter)

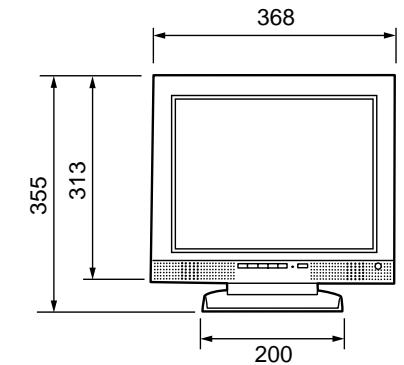

Dimensions (Units: mm)

368 355 313 200

RGB signal cable length: approx. 1.8 m

130 45 170

AC adapter

Approx.

Approx. H 120 mm x D 60 mm x H 37 mm

Weight : Approx.350g

Specifications

Signal timings

Display mode		Hsync (kHz)	Vsync (Hz)	Dot frequency (MHz)
VESA	640x480	31.5kHz	60Hz	25.175MHz
		37.9kHz	72Hz	31.5MHz
		37.5kHz	75Hz	31.5MHz
	800x600	35.1kHz	56Hz	36.0MHz
		37.9kHz	60Hz	40.0MHz
		48.1kHz	72Hz	50.0MHz
		46.9kHz	75Hz	49.5MHz
	1024x768	48.4kHz	60Hz	65.0MHz
		56.5kHz	70Hz	75.0MHz
		60.0kHz	75Hz	78.75MHz
US text	720x400	31.5kHz	70Hz	28.3MHz
Power Macintosh series	640x480	35.0kHz	66.7Hz	30.5MHz
	832x624	49.7kHz	74.6Hz	57.3MHz
	1024x768	60.2kHz	75Hz	80.0MHz

Notes:

• All are compliant only with non-interlaced.
• Frequencies for Power Macintosh are reference values.
• If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will appear. Follow your computer's instruction manual to set the timing to be compatible with the monitor.
• If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.

The connector pin

Mini D-sub connector with 15 pins

Number	Function
1	Red video signal input
2	Green video signal input
3	Blue video signal input
4	N.C.
5	N.C.
6	For red video signal GND
7	For green video signal GND
8	For blue video signal GND
9	DDC + 5V
10	N.C.
11	GND
12	DDC data
13	For H-sync signal input
14	For V-sync signal input
15	DDC clock

Power management

The monitor is based on VESA DPMS (Display Power Management Signaling).

To activate the monitor's Power Management function, both the video card and the computer must conform to the VESA DPMS standard.

DPMS mode	Screen	Power consumption	H-sync	V-sync
ON	Display on	31W	Yes	Yes
STANDBY	Display off	5W	No	Yes
SUSPEND			Yes	No
OFF			No	No

DDC (Plug & Play)

This monitor supports the VESA DDC (Display Data Channel) standard.

DDC is a signal standard for carrying out Plug & Play functions on the monitor or PC. It transfers information such as degree of resolution between the monitor and PC. You can use this function if your PC is DDC compliant and if it is set so that it can detect the Plug & Play monitor.

There are many varieties of DDC due to the differences between systems. This monitor works with DDC1 and DDC2B.

Instructions for installing a VESA compliant arm

An arm based on the VESA standard can be attached to the monitor. The arm must be purchased separately.

When choosing the arm to be installed please take note of the following points.

• The arm should be compatible with the VESA standard, and there must be a gap of 75 mm x 75 mm between the screw holes on the section to be attached.
• The arm must not fall off or break off after being attached to the monitor.

Note:

- Do not bend the RGB signal cable or the AC adapter cable nor place weight on them. Doing so could lead to damage.

1. Turn off the power switch and remove the AC adapter from the monitor's power terminal.
2. Remove the stand cover. Pull the lower section of the stand cover upward.

Simple line drawing of a device with a handle and control panel, no text or symbols present

Stand cover

1. Being careful not to damage the monitor, spread out a soft cloth and lay the monitor on it display-side down.

Simple line drawing of a table with a ruler and a flat surface (no text or symbols)

1. Remove the four screws and then remove the stand from the monitor.

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Information

The stand is specially made for use with this monitor. Once having removed the stand, never attempt to attach it to another device. Once having removed the screws, store them together with the stand and if the stand is ever re-attached be sure to use the original screws. Using different screws could lead to malfunction

1. Attach the arm to the monitor with four screws.

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

Information

The screws used to attach the arm should be M4 screws with a length of 4 mm \~ 6 mm protruding from the surface to be attached. Using different screws could lead to malfunction or may lead to the monitor falling off, internal damaged, personal injury.

4 ~ 6 mm Screw used to attach arm Arm Part of monitor to which arm is attached

1. Connect the AC adapter to the monitor's power terminal.

Inhaltsverzeichnis

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL:1-800-BE-SHARP

ECOLOGY ENERGY TCO 99 EMISSIONS ERGONOMICS

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

"WARNUNG: DIESES GERÄT MUSS GEERDET WERDEN."

Line drawing of a computer monitor with an open lid and two arrows indicating rotation (no text or symbols)

Pure technical diagram of a mechanical or electronic component with no text, numbers, or symbols

Pure geometric diagram with concentric circles and a horizontal bar, no text or symbols present

Farbmuster

CONTRAST

Technical line drawing of a mechanical component with a dimension label (170) and no visible text or symbols.

Netzadapter

ca. 120 mm (B) x 60 mm (T) x 37 mm (H)

Gewicht: ca. 350g

Signaltakte

Anzeigemodus		Hsync (kHz)	Vsync (Hz)	Punktfrequenz (MHz)
VESA	640x480	31,5 kHz	60 Hz	25,175 MHz
		37,9 kHz	72 Hz	31,5 MHz
		37,5 kHz	75 Hz	31,5 MHz
	800x600	35,1 kHz	56 Hz	36,0 MHz
		37,9 kHz	60 Hz	40,0 MHz
		48,1 kHz	72 Hz	50,0 MHz
		46,9 kHz	75 Hz	49,5 MHz
	1024x768	48,4 kHz	60 Hz	65,0 MHz
		56,5 kHz	70 Hz	75,0 MHz
		60,0 kHz	75 Hz	78,75 MHz
US-Text	720x400	31,5 kHz	70 Hz	28,3 MHz
Power Macintosh-Serie	640x480	35,0 kHz	66,7 Hz	30,5 MHz
	832x624	49,7 kHz	74,6 Hz	57,3 MHz
	1024x768	60,2 kHz	75 Hz	80,0 MHz

Hinweise:

Diagram of a computer monitor with an open screen and cable, showing no text or symbols

Monitorfußabdeckung

Simple line drawing of a bed with a fork and legs, no text or symbols present

Technical diagram of a computer monitor with base, screen, and cables (no text or symbols)

Information

Technical line drawing of a mechanical assembly with no visible text or symbols

Information

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL:1-800-BE-SHARP

ECOLOGY ENERGY TCO 99 EMISSIONS ERGONOMICS

Félicitations !

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

Line drawing of a computer monitor with an open lid and scroll wheel (no text or symbols)

M1 M2 S S S

Câble audio

Remarque :

Diagram of a computer monitor with a stand and cable, no text or symbols present

Pure diagram of a mechanical or electrical component with circular elements and grid pattern (no text or symbols)

Modèle de couleurs

CONTRAST (CONTRASTE)

Simple line drawing of a device with an arrow indicating motion, no text or symbols present

Simple line drawing of a table with a ruler and a flat surface (no text or symbols)

Diagram of a computer monitor setup with no visible text, numbers, or symbols

Information

Technical line drawing of a mechanical assembly with no visible text or symbols

Information

ECOLOGY ENERGY TCO 99 EMISSIONS ERGONOMICS

Congratulazioni!

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

Illustration of a computer monitor with an open lid and two arrows indicating rotation (no text or symbols)

Diagram of a computer monitor with a stand and cable, no text or symbols present

Pure geometric diagram with concentric circles and a central rectangle, no text or symbols present

Note

MENU 1: ADJUSTMENT (REGOLAZIONE)

ADJUSTMENT [ MANUAL AUTO ] CLOCK 140 [■■■■■■----] PHASE 5 [■----] H-POS 60 [■■----] V-POS 5 [■----] 1024x768 V:60Hz H:48kHz

Pure mechanical diagram with circles and a diagonal bar, no text or symbols present

Technical line drawing of a mechanical component with a dimension label (170) and no visible text or symbols.

Simple line drawing of a device with an arrow indicating motion, no text or symbols present

Simple line drawing of a table with a flat surface and a diagonal tool, no text or symbols present.

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Informazione

Technical line drawing of a mechanical assembly with no visible text or symbols

Informazione

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Use nothing but the included cables and AC cord to insure compliance with FCC regulation for Class B computing equipment.

Declaration of Conformity

SHARP LCD Color Monitor LL-T15S1

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersized operation.

Responsible Party :

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430

TEL:1-800-BE-SHARP

* As an ENERGY STAR Partner, SHARP has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance:www.eiae.org

ECOLOGY ENERGY TCO 99 EMISSIONS ERGONOMICS

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: [phone]

Email (Internet): [e-mail]

Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium\*\*

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury\*\*

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is available.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead\*\*

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

Notice for Users in Europe

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

The wires in this mains lead are coloured in accordance with the following code :

GREEN-AND-YELLOW : Earth

BLUE : Neutral

BROWN : Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows. The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth 12 or coloured green or green-and-yellow.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

Ensure that your equipment is connected correctly-if you are in any doubt consult a qualified electrician.

"WARNING :THIS APPARATUS MUST BE EARTHED"

Notice for Users in Australia

Service Inquiries

Please contact your dealer for service if required or contact Sharp Corporation of Australia on 1 300 13 50 22 for referral to your nearest Sharp authorized Service Center.

Illustration of a computer monitor with an open base and two arrows indicating rotation (no text or symbols)

Ajuste del monitor

ON 5M S S S

Cable de audio

Nota:

Diagram of a computer monitor with a stand and cable, no text or symbols present

Pure geometric diagram with concentric circles and a horizontal bar, no text or symbols present

Notas:

Pure mechanical diagram with circles, brackets, and grid pattern (no text or symbols)

Carta de colores

CONTRAST

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Cubierta de la base

Simple line drawing of a table with a flat surface and a diagonal tool inserted (no text or symbols)

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Información

Technical line drawing of a mechanical assembly with no visible text or symbols

Información
