USER MANUAL HP195 HANNSPREE

Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.

This device complies with requirement of EMC directive 2004/108/EC with regard to Electromagnetic Compatibility, and 73/23/EEC and 93/68/EEC with regard to Low Voltage directive.

Socket-outlet shall be near the equipment and shall be accessible.

RECYCLING INFORMATION

We, the Hanns.G care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life.

These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substances. We strongly encourage you to contact the provided information to recycle this product.

For more information, please visit

www.hannsg.com

TABLE OF CONTENTS

SAFETY NOTICE 5

PRECAUTIONS....5

SPECIAL NOTES ON LCD MONITORS 6

ADJUSTING THE VIEWING ANGLE....11

OPERATING INSTRUCTIONS 12

GENERAL INSTRUCTIONS.... 12

FRONT PANEL CONTROL 13

HOW TO ADJUST A SETTINGS 15

PLUG AND PLAY 18

TECHNICAL SUPPORT (FAQ) 19

Q & A FOR GENERAL PROBLEMS 19

ERROR MESSAGE & POSSIBLE SOLUTIONS 21

APPENDIX 23

SPECIFICATIONS 23

SAFETY NOTICE

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
4. Only use attachments/accesories specified by the manufacturer.

WARNING:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

PRECAUTIONS

• Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
• Unplug the unit during a lighting storm or when it will not be used for long period of time. This will protect the monitor from damage due to power surges.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
• Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.
• The wall socket shall be installed near the equipment and shall be easily accessible.

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
• If the screen suddenly flashes erratically or the backlighting fails, please contact your dealer or service center for repair. Do not attempt to repair the monitor yourself.

Lamp Disposal

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP SPECIFIC DISPOSAL INFORMATION CHECK WWW.LAMPRECYCLE.ORG.

The product package should include the following items:

LCD Monitor

Front view of a flat-screen monitor with no visible text or symbols on the screen face

Technical line drawing of a mechanical component with a top view and a side view (no text or symbols)

Cables and User manual

Simple concentric circle diagram with no text or symbols

User's Manual

Warranty Card

Quick Start Guide

Power Cord

VGA Cable Audio Cable

Coiled audio cable with two external connectors (no text or symbols visible)

DVI Cable (optional)

Screw

INSTALLATION INSTRUCTIONS

INSTALL REMOVE

Technical diagram of a device with labeled parts and green annotations indicating rotation or assembly steps

Technical diagram of a ventilation system with labeled components and airflow indicators

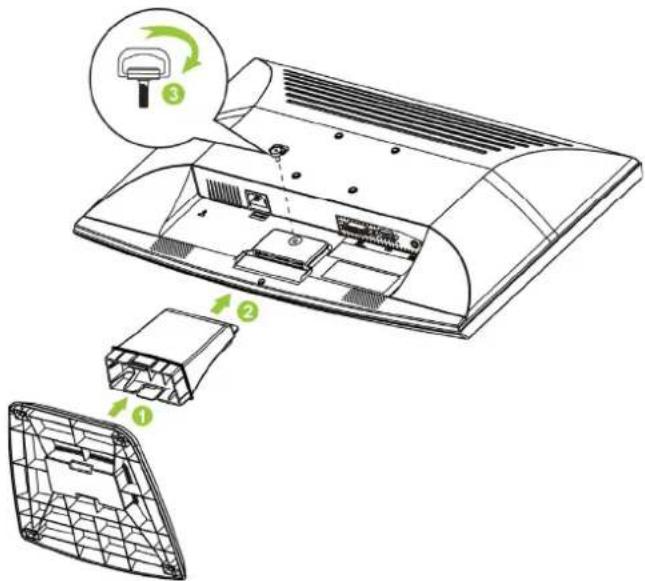

Figure.1. Installing and Removing the Base

INSTALLATION:

1. Align the base frame to the notch on the bracket and press it in. A clear click will be heard if it is properly installed.
2. Lay flat the display unit with its front face facing downward, align the properly installed bracket to the slot at the backside of the display unit and insert it. Please note that the longer end of the base frame shall point to the front face of the display unit.
3. Pull up by hand the ring of the screw enclosed to the vertical state, then screw down the screw clockwise with force so that the bracket is firmly fixed to the display unit.

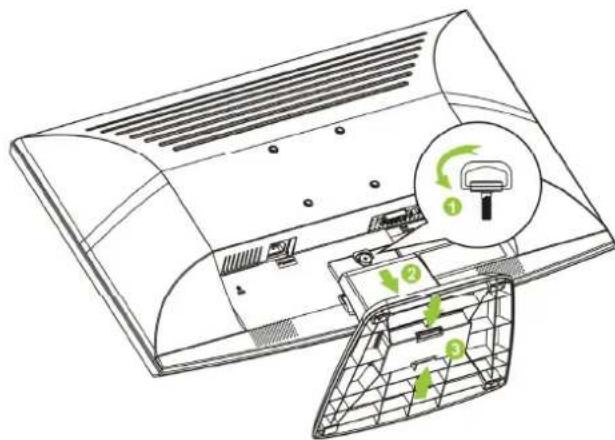

REMOVAL:

1. Lay flat the display unit with its front face facing downward, screw off the screw anticlockwise by hand.
2. Remove the bracket from the display unit.
3. Press the two snaps used for fixing the bracket on the base frame and take down the bracket to separate them.

POWER

POWER SOURCE:

1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an Internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the AC-power cord one end to your LCD monitor's AC-input socket, the other end to wall-outlet.

SETTING THE MONITOR ON THE WALL

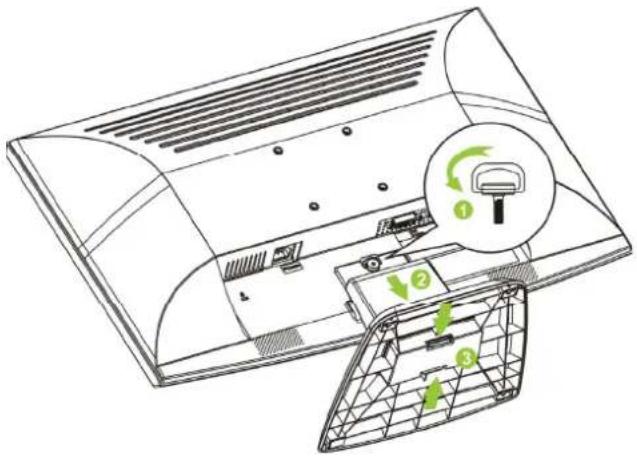

DISSEMBLING THE STAND BASE:

1. Disconnect all the cables and cords from the Monitor to prevent breakage.

2. Carefully place the Monitor face down on a soft and flat surface (blanket, foam, cloth, etc) to prevent any damage to the Monitor.

3. Screw off the screw, and take down the bracket and the base frame.

Technical diagram of a ventilation system with labeled components and airflow indicators

(For reference only)

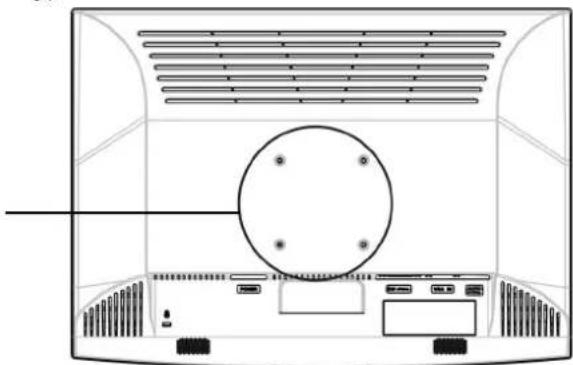

WALL MOUNTING THE MONITOR:

1. Purchase a VESA compatible wall bracket: VESA 75X75, 4 holes, M4, 10mm, 8kg.

2. Locate your ideal Monitor position on the wall.

3. Fix the wall bracket firmly on the wall.

4. Secure the Monitor to the bracket using the 4 mount holes on the back and center of the Monitor.

Top-down schematic of a computer monitor with ventilation grilles and a circular button (no text or symbols)

Note:

- Please read the instructions of your specific wall bracket to properly wall mount the Monitor.

- The pitch of the mounting holes is 75mm horizontally and 75mm vertically.

- The screws type required is metric: M4, 10mm length.

- The Monitor stand base can be screwed on a table or a hard surface using the hole on the back of the stand base.

*Installing the LCD Monitor requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. Hanns.G bears no responsibility for improper mounting or mounting that results in accident or injury. You can ask a qualified service personnel about using an optional bracket to mount the Monitor to the wall.

MAKING CONNECTIONS

CONNECTING TO A PC

Turn off your computer before performing the procedure below.

1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer's VGA port.
2. Connect one end of the DVI cable (optional) to the back of the monitor and connect the other end to the computer's DVI port.
3. Connect the audio cable between the monitor's audio input and the PC's audio output (green port).
4. Plug one end of the AC power cord to the LCD monitor's AC input socket, and the other end to Wall outlet.
5. Turn on your monitor and computer.

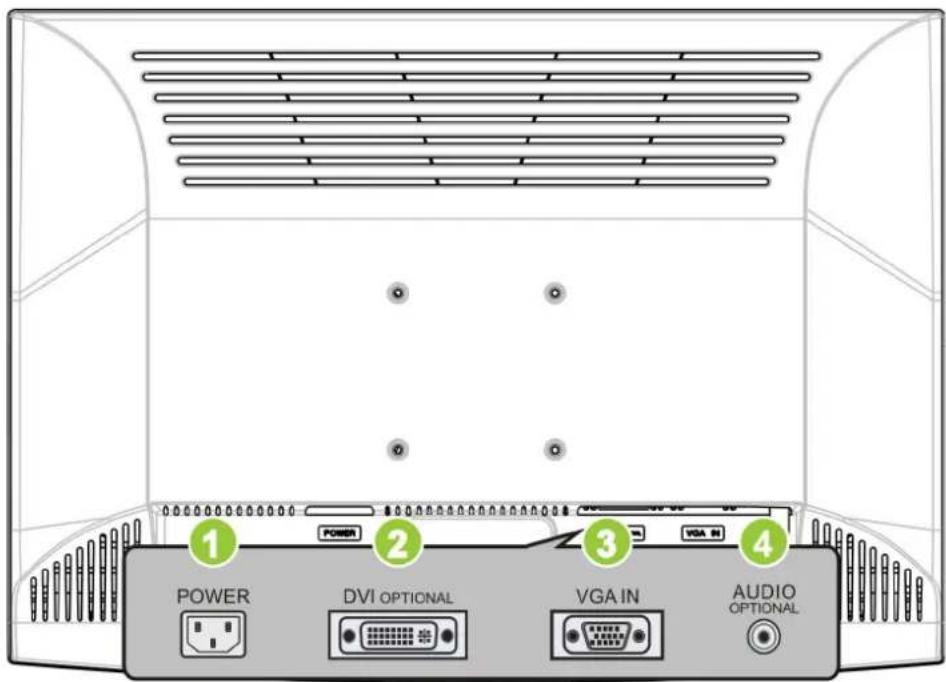

POWER 2 VGA IN 3 VGA IN 4 DVI OPTIONAL VGA IN AUDIO OPTIONAL

Figure.2. Connecting to a PC

1 Power AC Input 2 DVI Input
3 VGA Input 4 LINE IN

ADJUSTING THE VIEWING ANGLE

• For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.
• Hold the stand so you do not topple the monitor when you change the monitor's angle.
• You are able to adjust the monitor's angle from -3^ to 18^ .

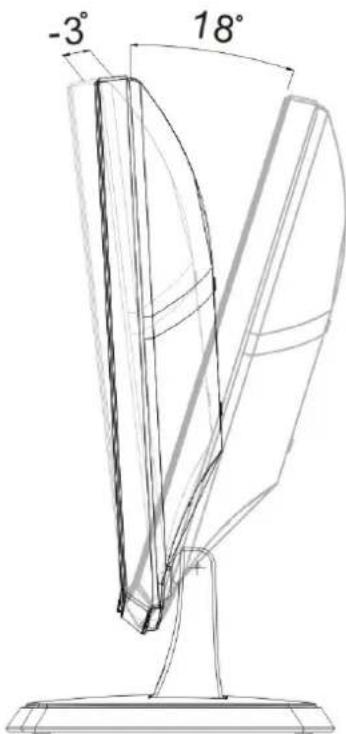

-3° 18°

Figure.3. Monitor Angle

NOTES:

• Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
• Be careful not to place fingers or hands near the hinges when tilting the monitor, otherwise pinching can result.

OPERATING INSTRUCTIONS

GENERAL INSTRUCTIONS

Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.
- Connect the Signal cable from the monitor to the VGA card.
- Press the power button to turn on the monitor. The power indicator will light up.

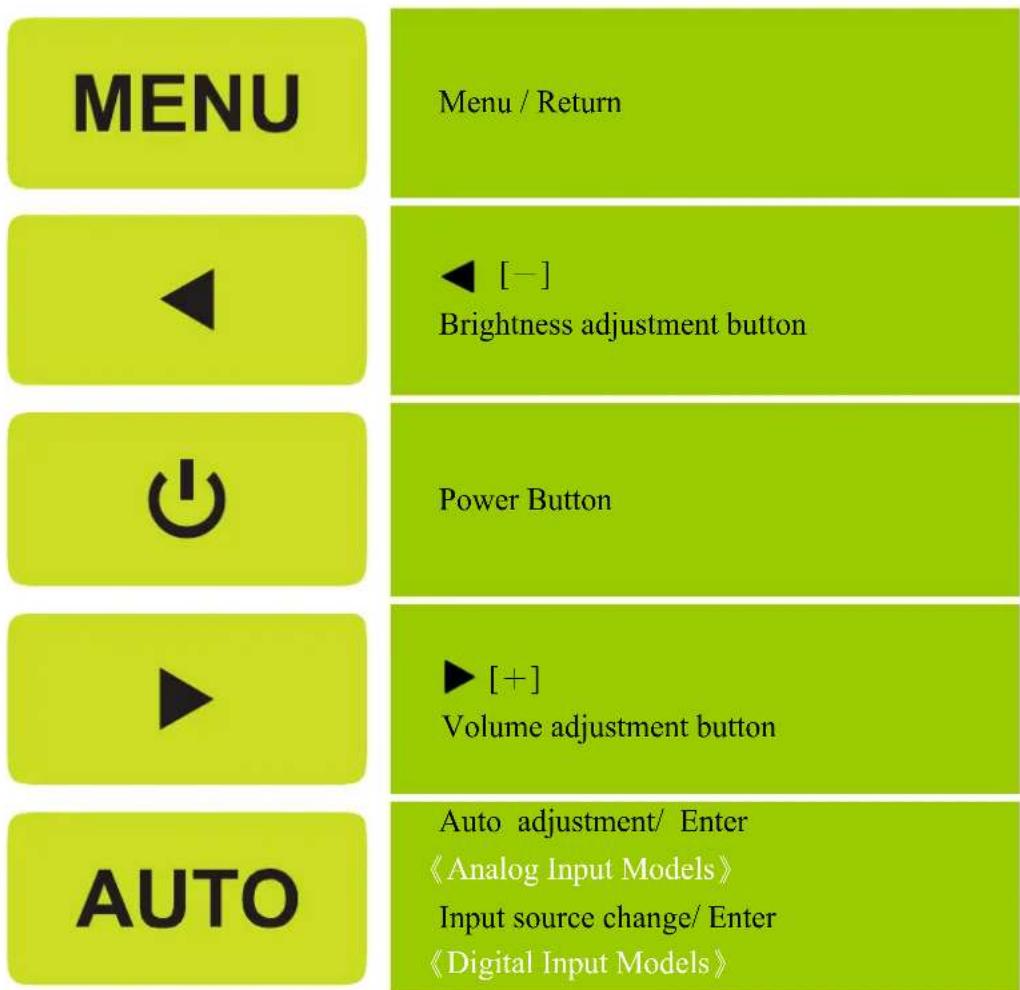

MENU Menu / Return ◀ [−] Brightness adjustment button Power Button ▶ [+] Volume adjustment button AUTO Auto adjustment/ Enter 〈Analog Input Models〉 Input source change/ Enter 〈Digital Input Models〉

Figure.4. Control Panel Buttons

FRONT PANEL CONTROL

- Power Button:

Press this button to switch ON/OFF of monitor's power.

• Power Indicator:

Blue —Power On mode.

Flickering —Power Saving mode.

- MENU / RETURN:

1. Turn the OSD menu on/off or return to the previous menu.
2. Exit OSD menu when in volume OSD status.

- Adjust【◀▶】:

1. Adjust Brightness and volume when the OSD is off.
2. Navigate through adjustment icons when OSD is ON or adjust a function when function is activated.

1. Press 【AUTO】 to enter Source selections. (Selections include VGA, DVI, etc. The actual selections may very depending on the models. This function is only available in models with digital inputs)
2. The OSD menu is used as confirmation function during start-up.
3. Press and hold this button more than 3 seconds will start 「Auto Adjust」 function when using VGA input only. (The auto adjustment function is used to optimize the 「horizontal position」, 「vertical position」, 「clock」, and 「phase」.)

- Hotkeys: [The availability of this function depends upon the selected model]

1. Restore Brightness and Contrast defaults:

To reset both the Brightness and Contrast to their default values, press the 【◀】and 【▶】 keys at the same time.

2. ASPECT RATIO:

3. Change Resolution:

For similar screen display resolutions (see table below), the screen resolution can be changed by pressing the 【MENU】 + 【◀】 button to achieve the optimal display quality.

4. Change Preset Mode:

Press【MENU】key for 3 seconds to select one of the following modes「PC」,「MOVIE」,「GAME」,「ECO」. Default is「PC」.

Resolution

640x400@70Hz ↔ 720x400@70Hz

640x400@85Hz ↔ 720x400@85Hz

640x480@60Hz ↔ 720x480@60Hz

1024x768@70Hz ↔ 1280x768@70Hz

1280x768@60Hz ↔ 1360x768@60Hz

1400x1050@60Hz ↔ 1680x1050@60Hz

1400x1050@RB 60Hz ↔ 1680x1050@RB 60Hz

1400x1050@75Hz ↔ 1680x1050@75Hz

** The screen resolutions available will depend on the purchased model.

NOTES:

• Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
• Save the original shipping box and packing materials, as they will come in handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it was originally packed at the factory.
• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

HOW TO ADJUST A SETTINGS

BRIGHTNESS/ CONTRAST
BRIGHTNESS	Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the brightness value.
CONTRAST	Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast value.
X-CONTRAST	Optimal setting for high contrast images or videos. The dark and light areas of the image are automatically detected, and the contrast is enhanced to provide a clearer, sharper image. Also, you may select the「X-CONTRAST」option.
PRESET MODE	Select the preset mode according to your preference: PC/MOVIE/ GAME/ ECO[The availability of this function depends upon the selected model]
INPUT SETTING
INPUT SETTING	Select the「INPUT SETTING」option to change between analog (VGA) or Digital (DVI) source. Enter the option and select Analog or Digital. [Dual input mode optional]
AUTO SEARCH	From the Signal Selection menu, select the「AUTO SEARCH」option to activate or deactivate the automatic signal search function. [For DVI/ HDMI Input only]
COLOR SETTING
WARMNATURE (6500K)COOL	Adjust the color temperature value of the display according to your preference: WARM /NATURE/ COOL.
USER	Move the cursor to the User option and select it,1. To adjust the red, enter the「R」option and adjust the level.2. To adjust the green, enter the「G」option and adjust the level.3. To adjust the blue, enter the「B」option and adjust the level.
IMAGE SETTING
AUTO ADJUST	The auto adjustment function is used to optimize the「H-POSITION」,「V-POSITION」,「CLOCK」,and「PHASE」.[For VGA Input only]
ASPECT RATIO	When the aspect ratio of screen is distorted, you may make adjustments by using this function.「FULL」indicates full screen display, which does not ensure the image is shown as is or ininitial scale. 「FIT」indicates scaling by the proportion of original images, which may cause the screen showing black bands. [The availability of this function depends upon the selected model]
H-POSITION	Select the 「H-POSITION」option to shift the screen image to the left or right. Enter the option and adjust the level. [For VGA only]
V-POSITION	Select the 「V-POSITION」option to shift the screen image up or down. Enter the option and adjust the level. [For VGA only]
CLOCK	Select the 「CLOCK」option to reduce the vertical flicker of characters on the screen. Enter the option and adjust the level. [For VGA only]
PHASE	Select the 「PHASE」option to reduce the horizontal flicker of characters on the screen. Enter the option and adjust the level. [For VGA only]
SHARPNESS	Select the 「SHARPNESS」option to adjust the sharpness of the display. Set the value from -2 to 2.
VIDEO MODE	Choose 「VIDEO MODE」or 「PC MODE」for video transmission. While using HDMI or HDMI to DVI ports for video transmission, the video will appear cut off slightly around the edge; choose 「PC MODE」to view videos with complete image. (VIDEO MODE only functions for inputs from HDMI or DVI that supports HDCP video (YUV format))
RESPONSE TIME	Setup the display response time through the Response time function. Available settings are MINIMUM, INTERMEDIATE, and MAXIMUM. [This feature is limited to specific models only.]
OSD SETTING
LANGUAGE	Select 「LANGUAGE」option to change the language of the OSD. Enter the option and select a language. [Reference only, the OSD Language depends on the selected model]
H-POSITION	Select 「H-POSITION」option to adjust the horizontal position of the OSD. Enter the option and adjust the level.
V-POSITION	Select 「V-POSITION」option to adjust the vertical position of the OSD. Enter the option and adjust the level.
TRANSPARENCY	Select 「TRANSPARENCY」option to adjust the transparency of the OSD. Enter the option and adjust the level.
OSD TIME-OUT	Select 「 OSD TIME-OUT 」 option to set the OSD time out from 10 to 100 seconds. Enter the option and adjust the level.
OSD COLOR	To choose the color combination of the OSD window, select 「 OSD COLOR 」 option under 「 OSD SETTING 」 menu, choose modes 1/2/3.
SYSTEM
VOLUME	Select the 「 VOLUME 」 option to change the volume level. Enter the option and adjust the level. [This function applies only to models with incorporated audio.]● By high volume, risk of hearing damage exists.
MUTE	Select the 「 MUTE 」 option to switch the function On or Off. [The availability of this function depends upon the selected model. Adjusting the volume while muted cancels Mute mode.]
DDC/CI	Select the 「 DDC/CI 」 option to switch the function On or Off. [Dual input mode optional]
FACTORY RESET	Select the 「 FACTORY RESET 」 option to reset to the monitor's default setting. This will erase the current settings. Enter the option and select On or Off.
INFORMATION	Display Horizontal frequency/Vertical frequency/Resolution information.

PLUG AND PLAY

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

TECHNICAL SUPPORT (FAQ)

Q & A FOR GENERAL PROBLEMS

PROBLEM & QUESTION POSSIBLE SOLUTION
Power LED is not on	*Check if the Power Switch is in the ON position.*Power Cord should be connected.
No Plug & Play	*Check if the PC system is Plug & Play compatible.*Check if the Video Card is Plug & Play compatible.*Check if any plug pins on the VGA or DVI connector are bent.
The display is too dark or too bright.	*Adjust the Contrast and Brightness Controls.
Picture bounces or a wave pattern is present in the picture	*Move electrical devices that may cause electrical interference.
The power LED is ON (orange) but there's no video or no picture.	*Computer Power Switch should be in the ON position.*Computer Video Card should be snugly seated in its slot.*Make sure monitor's video cable is properly connected to the computer.*Inspect monitor's video cable and make sure none of the pins are bent.*Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	*Inspect the monitor's video cable and make sure that none of the pins are bent.
Screen image is not centered or sized properly.	* Adjust pixel frequency CLOCK and PHASE or press hot-key (AUTO Button).
Picture has color defects(White does not look white)	*Adjust RGB color or select color temperature.
The screen resolution needs to be adjusted	*Use win 2000/ME/XP Right click anywhere on desktop and select Properties>Settings>Screen Resolution. Use the solder to adjust the resolution and click Apply.
No sound is outputted from monitor's built-in speaker	*Make sure PC audio output cable is connected to screen's LINE IN port (or AUDIO IN port).*Make sure the sound volume adjustment can be clearly identified.*Make sure the System > Silence option in the monitor menu is on.*While transferring via HDMI port but no sound is outputted, it is recommended to select AUDIO INPUT as a PC option, and make sure PC audio

output cable is connected to monitor's LINE IN port(or AUDIO IN port). [For HDMI Input only]

Addendum related to Windows 7

When you encounter display problem under Windows 7, you need to do the following:

1. Make sure your PC computer (Hardware requirement) can support Windows 7.
2. Make sure your video card can run Windows 7.
3. If your video card can support Windows 7, need to install the latest Win 7 driver of your video card.

Suggest to do the following:

1. Install the latest Windows 7 video driver of your video card.
2. Try to use the recommended display resolution that is supported by the monitor.
3. If the recommended display resolution is not working, try the second recommended display resolution.

1 2
35,56cm / 14” (16:9) 13	66×768@60Hz 1366×	768@50Hz
39,6cm / 15.6” (16:9) 1	366×768@60Hz 1366×	768@75Hz
40,64cm / 16” (16:9) 13	66×768@60Hz 1366×	768@50Hz
43,2cm / 17” (16:10) 14	40×900@60Hz 1440×	900@75Hz
47cm / 18.5” (16:9) 136	66×768@60Hz 1366×7	68@75Hz
48,3cm / 19” (5:4) 1280	×1024@60Hz 1280×1	1024@75Hz
48,3cm / 19” (16:10) 14	40×900@60Hz 1440×	900@75Hz
51cm / 20” (16:9) 1600	×900@60Hz 1600×900@50Hz
56cm / 22” (16:10) 168	0×1050@60Hz 1680×	1050@50Hz
54,6cm / 21.5” (16:9)
58,4cm / 23” (16:9)	1920×1080@60Hz	1920×1080@50Hz
60cm / 23.6” (16:9)
62,5cm / 24.6 (16:9)
70cm / 27.5” (16:10) 19	20×1200@60Hz 1920	×1200@50Hz

And if you still have display problem after doing the above procedure, please visit HANNS·G support and Service Website: http://www.hannsg.com

Windows is a registered trademark of Microsoft Corporation.

ERROR MESSAGE & POSSIBLE SOLUTIONS

■ CABLE NOT CONNECTED:

1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector's screws.
2. Check the signal-cable's connection pins for damage.

■ INPUT NOT SUPPORT :

Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.

FACTORY PRESET TIMING TABLE:

MODE	RESOLUTION	HORIZONTAL FREQUENCY (KHz)	VERTICAL FREQUENCY (Hz)
1	640x400 @70Hz	31.469	70.087
2	640x480 @60Hz	31.469	59.940
3	640x480 @70Hz	36.052	70.004
4	640x480 @67Hz	35.000	66.667
5	640x480 @72Hz	37.861	72.809
6	640x480 @75Hz	37.500	75.000
7	720x400 @70Hz	31.469	70.087
8	800x600 @56Hz	35.156	56.250
9	800x600 @60Hz	37.879	60.317
10	800x600 @72Hz	48.077	72.188
11	800x600 @75Hz	46.875	75.000
12	832x624 @75Hz	49.725	75.000
13	1024x768 @60Hz	48.363	60.004
14	1024x768 @70Hz	56.476	70.069
15	1024x768 @75Hz	60.023	75.029
16	1152x870 @75Hz	68.681	75.062
17	1152x864 @75Hz	67.500	75.000
18	1280x720 @60Hz	45.000	60.000
19	1280x960 @60Hz	60.000	60.000
20	1280x960 @75Hz	74.592	74.443
21	1280x768 @60Hz	47.776	59.870
22	1280x768 @75Hz	60.289	74.893
23	1280x1024 @60Hz	63.981	60.020
24	1360x768 @60Hz	47.712	60.015
25	1440x900 @60Hz	55.469	59.901
26	1440x900 @75Hz	70.635	74.984

(Video mode)

MODE RESOLUTION

1 640×480p @60Hz

2 720×480i @60Hz

3 720×480p @60Hz

4 720×576i @50Hz

5 720×576p @50Hz

6 1280×720p @60Hz

7 1920×1080i @50Hz

8 1920×1080i @60Hz

9 1920×1080p @50Hz

10 1920×1080p @60Hz

** We ensure that the monitor can be lighted under interlace signal mode, but we can not guarantee the image quality.

APPENDIX

SPECIFICATIONS

LCD Panel	Driving system TFT Color LCD
	Size 48,3cm / 19" Diagonal
	Pixel pitch 0,2835 (H) x 0,2835 (V)
Video	H-Frequency 30KHz - 80KHz
	V-Frequency 55 - 75Hz
Display Colors 16.7M Colors
Max. Resolution 1440 × 900 @ 75Hz
Plug & Play		VESA DDC2B^TM
Power consumption	ON Mode	<30 W(Typical)
	Power Saving Mode	<1W
	OFF Mode	<0.5W
Audio output Rated Power 1.0 W rms (Per channel)
Input Terminal		VGADVIAUDIO
Maximum Screen Size		Hor.: 408.24mmVer.: 255.15mm
Power Source 100-240V ~ 1.0A 50-60Hz
Environmental Considerations		Operating Temp:5° to 35°CStorage Temp.: -20° to 60°COperating Humidity: 10% to 85%
Dimensions		447.6 (W) x 382.8 (H) x 195.0 (D) mm17.6"(W)×15.1"(H)×7.7"(D)
Weight (NW) 4.3 kg

*** The above specification is subject to actual product specification and is subject to change without prior notice.

NOTES:

The Maximum Resolution will depends on the display card supporting. Related issue can refer to www.hannsg.com FAQ section.
