HP192 - Screen HANNSPREE - Free user manual and instructions

Type of Product	LCD Monitor
Brand	Hannspree
Model	HP192
Screen Size	19" (48.3 cm) viewable
Maximum Resolution	1440 x 900 @ 75 Hz
Pixel Pitch	0.2835 mm (H) x 0.2835 mm (V)
Horizontal Frequency	24 kHz - 75 kHz
Vertical Frequency	56 Hz - 75 Hz
Display Colors	16.7 million
Power Consumption (On Mode)	26 W (Typical)
Power Consumption (Power Saving)	≤ 1 W
Power Consumption (Off Mode)	≤ 0.5 W
Audio Output	1.0 W rms per channel
Input Terminals	VGA, DVI (optional)
Max Screen Size (Horizontal)	408.24 mm
Max Screen Size (Vertical)	255.15 mm
Power Source	100-240 VAC, 50/60 Hz
Adjustable Viewing Angle	-5° to 15°
Certifications	FCC Class B, TCO'03, Green Monitor
Plug & Play	VESA DDC2B
Cleaning Instructions	Use soft cloth with mild detergent; unplug before cleaning. Avoid strong solvents.
Safety Warning	Do not expose to rain or moisture. Do not open cabinet. Refer servicing to qualified personnel.

Frequently Asked Questions - HP192 HANNSPREE

Why is the power LED not on?

Check if the power switch is in the ON position and that the power cord is securely connected.

What should I do if there is no picture but the power LED is orange?

Ensure the computer is turned on, the video card is properly seated, and the monitor's video cable is connected correctly. Also check for bent pins on the cable connector.

How do I adjust the brightness and contrast?

Use the OSD menu. Press the MENU button, navigate to BRIGHTNESS/CONTRAST, then adjust using the ▲▼ buttons.

What does the orange power indicator mean?

The orange power indicator means the monitor is in Power Saving mode. This occurs when there is no video input signal. It will turn green when a signal is detected.

How can I clean the monitor?

First, unplug the monitor. Use a soft cloth lightly dampened with a mild detergent solution. Never use strong solvents like thinner, benzene, or abrasive cleaners.

Why is the screen flickering?

Flickering may occur during initial use due to the nature of fluorescent light. Turn off and on the power switch. If persistent, adjust the CLOCK and PHASE settings in the OSD menu (for VGA input).

What resolutions are supported?

Various resolutions are supported, including standard ones like 640x480, 800x600, 1024x768, 1280x1024, 1440x900, and 1680x1050. The maximum resolution is 1440x900 @ 75 Hz.

How do I switch between VGA and DVI input?

Press the ▼ button to open the source selection menu. Then choose between VGA (Analog) or DVI (Digital) depending on your connection. This is only for models with dual inputs.

What does the 'INPUT NOT SUPPORT' message mean?

Your computer is set to a display mode that the monitor does not support. Change the computer's resolution to one listed in the factory preset timing table in the manual, such as 1440x900 @ 60 Hz.

How can I reset the monitor to factory settings?

Open the OSD menu, go to SYSTEM, then select FACTORY RESET. Confirm to restore default settings.

USER MANUAL HP192 HANNSPREE

Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.

FCC Class B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The device complies with Parts 15 of the FCC Rule. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operations.

CANADA

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulation.

TcDevelopment

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

- Energy-saving mode after a certain time – beneficial both for the user and the environment - Electrical safety

Emissions

- Electromagnetic fields - Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified

RECYCLING INFORMATION

We, the Hanns.G care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life.

These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substances. We strongly encourage you to contact the provided information to recycle this product.

For more information, please visit

www.hannsg.com

TABLE OF CONTENTS

SAFETY NOTICE 6

PRECAUTIONS....6

SPECIAL NOTES ON LCD MONITORS 7

MAKING CONNECTIONS....11

ADJUSTING THE VIEWING ANGLE.... 12

OPERATING INSTRUCTIONS 13

GENERAL INSTRUCTIONS.... 13

FRONT PANEL CONTROL 14

HOW TO ADJUST A SETTINGS....16

SAFETY NOTICE

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
4. Only use attachments/accesories specified by the manufacturer.

WARNING:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

PRECAUTIONS

• Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
• If the screen suddenly flashes erratically or the backlighting fails, please contact your dealer or service center for repair. Do not attempt to repair the monitor yourself.

Lamp Disposal

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE ATWWW.FIAE.ORG. FOR LAMP SPECIFIC DISPOSAL INFORMATION CHECKWWW.LAMPRECYCLE.ORG.

The product package should include the following items:

LCD Monitor

Front view of a flat-screen monitor with no visible text or symbols on the screen face

INSTALLATION INSTRUCTIONS

INSTALL REMOVE

Line drawing of a monitor with a green arrow pointing to its side, mounted on a stand (no text or symbols present)

REMOVE

Figure.1. Installing and Removing the Base

INSTALLATION:

1. Align the monitor with the opening in the base.
2. Note that the longer section of the base points forward.
3. Snap the monitor into its base. A clear click sound will affirm that the base is connected

User's Manual

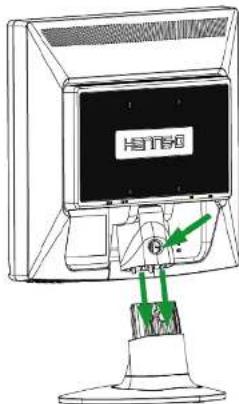

SETTING THE MONITOR ON THE WALL

DISSEMBLING THE STAND BASE:

1. Disconnect all the cables and cords from the Monitor to prevent breakage.
2. Carefully place the Monitor face down on a soft and flat surface (blanket, foam, cloth, etc) to prevent any damage to the Monitor.
3. Gently remove the stand base.

(For reference only)

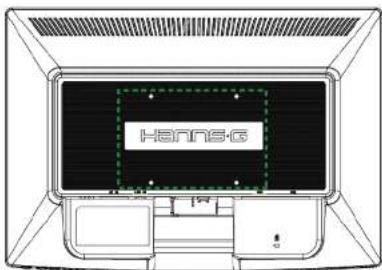

WALL MOUNTING THE MONITOR.

MAKING CONNECTIONS

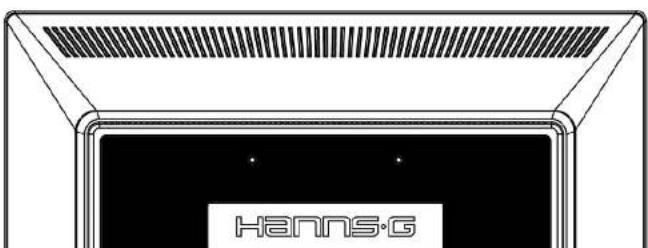

CONNECTING TO A PC

Turn off your computer before performing the procedure below.

1. Connect one end of the VGA cable to the back of the monitor and connect the other end to the computer's VGA port.
2. Connect one end of the DVI cable (optional) to the back of the monitor and connect the other end to the computer's DVI port.
3. Connect the audio cable between the monitor's audio input and the PC's audio output (green port).
4. Plug one end of the AC power cord to the LCD monitor's AC input socket, and the other end to Wall outlet.
5. Turn on your monitor and computer.

Diagram of a smart TV unit with a logo reading 'Hanns·G' on the front panel (no other text or symbols)

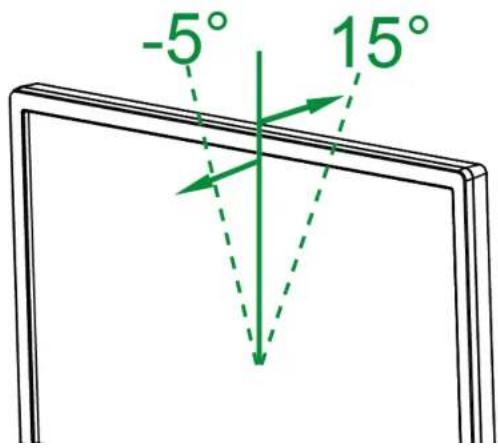

ADJUSTING THE VIEWING ANGLE

• For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.
• Hold the stand so you do not topple the monitor when you change the monitor's angle.
• You are able to adjust the monitor's angle from -5^ to 15^ .

OPERATING INSTRUCTIONS

GENERAL INSTRUCTIONS

Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.
- Connect the Signal cable from the monitor to the VGA card.
- Press the power button to turn on the monitor. The power indicator will light up.

Menu / Return

FRONT PANEL CONTROL

- Power Button:

Press this button to switch ON/OFF of monitor's power.

• Power Indicator:

Green — Power On mode.

Orange — Power Saving mode.

- MENU / RETURN:

1. Turn the OSD menu on/off or return to the previous menu.

2. Exit OSD menu when in volume OSD status.

- Adjust ▲▼:

1. Adjust Brightness and volume when the OSD is off.

2. Navigate through adjustment icons when OSD is ON or adjust a function when function is activated.

1. Press 【i】 to enter Source selections. (Selections include VGA, HDMI, etc. The actual selections may very depending on the models. This function is only available in models with digital inputs)

Resolution

640x400@70Hz ↔ 720x400@70Hz

640x400@85Hz ↔ 720x400@85Hz

640x480@60Hz ↔ 720x480@60Hz

1024x768@70Hz ↔ 1280x768@70Hz

1280x768@60Hz ↔ 1360x768@60Hz

1400x1050@60Hz ↔ 1680x1050@60Hz

1400x1050@RB 60Hz ↔ 1680x1050@RB 60Hz

1400x1050@75Hz ↔ 1680x1050@75Hz

1400x900@60Hz ↔ 1600x900@60Hz

1360x768@60Hz ↔ 1366x768@60Hz

** The screen resolutions available will depend on the purchased model.

NOTES:

• Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
• Save the original shipping box and packing materials, as they will come in handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it was originally packed at the factory.
• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

HOW TO ADJUST A SETTINGS

BRIGIITNESS/ CONTRAST
BRIGHTNESS	Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the brightness value.
CONTRAST	Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast value.
X-CONTRAST	Optimal setting for high contrast images or videos. The dark and light areas of the image are automatically detected, and the contrast is enhanced to provide a clearer, sharper image. Also, you may select the「X-CONTRAST」option.
PRESET MODE	Select the preset mode according to your preference: PC/MOVIE/GAME/ECO[The availability of this function depends upon the selected model]
INPUT SETTING
INPUT SETTING	Select the「INPUT SETTING」option to change between analog (VGA) or Digital (DVI) source. Enter the option and select Analog or Digital. [Dual input mode optional]
AUTO SEARCH	From the Signal Selection menu, select the「AUTO SEARCH」option to select the signal mode.

User's Manual

	display, which does not ensure the image is shown as is or in initial scale.「FIT」indicates scaling by the proportion of original images, which may cause the screen showing black bands. [The availability of this function depends upon the selected model]
H-POSITION	Select the「II-POSITION_option to shift the screen image to the left or right. Enter the option and adjust the level. [For VGA only]
V-POSITION	Select the「V-POSITION」option to shift the screen image up or down. Enter the option and adjust the level. [For VGA only]
CLOCK	Select the「CLOCK_option to reduce the vertical flicker of characters on the screen. Enter the option and adjust the level. [For VGA only]
PHASE	Select the「PHASE」option to reduce the horizontal flicker of characters on the screen. Enter the option and adjust the level. [For VGA only]
SHARPNESS	Select the「SHARPNESS」option to adjust the sharpness of the display. Set the value from -2 to 2.
VIDEO MODE	Choose「VIDEO MODE」or「PC MODE」for video transmission. While using HDMI or HDMI to DVI ports for video transmission, the video will appear cut off slightly around the edge; choose「PC MODE」to view videos with complete image. (VIDEO MODE only functions for inputs from HDMI or

User's Manual

	the OSD. Enter the option and adjust the level.
OSD TIME-OUT	Select「OSD TIME-OUT」option to set the OSD time out from 10 to 100 seconds. Enter the option and adjust the level.
OSD COLOR	To choose the color combination of the OSD window, select「OSD COLOR」option under「OSD SETTING menu, choose modes 1/2/3.
SYSTEM
AUDIO INPUT	While transferring via the HDMI port, it is recommended to set AUDIO INPUT to HDMI; if no sound is outputted, it is recommended to select AUDIO INPUT as PC, and make sure the PC audio output cable is connected to monitor's LINE IN (or AUDIO IN) port. [For HDMI Input only]
VOLUME	Select the "VOLUME"option to change the volume level. Enter the option and adjust the level. [This function applies only to models with incorporated audio.]● By high volume, risk of hearing damage exists.
MUTE	Select the「MUTE」option to switch the function On or Off. [The availability of this function depends upon the selected model. Adjusting the volume while muted cancels Mute mode.]
DDC/CI	Select the「DDC/CI」option to switch the function On or Off. [Dual input mode optional]
	Select the 「FACTORY RESET」option to reset to the monitor's

PLUG AND PLAY

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

This monitor meets the Green monitor standards as set by the Video Electronics Standards Association (VESA) and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees (NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is no video-input signal present. When there is no video input signal this monitor, following a time-out period, will automatically switch to power saving mode. This reduces the monitor's internal power supply consumption. After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a "Screen Saver" feature except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse.

TECHNICAL SUPPORT (FAQ)

Q & A FOR GENERAL PROBLEMS

PROBLEM & QUESTION POSSIBLE SOLUTION
Power LED is not on	*Check if the Power Switch is in the ON position.*Power Cord should be connected.
No Plug & Play	*Check if the PC system is Plug & Play compatible.*Check if the Video Card is Plug & Play compatible.*Check if any plug pins on the VGA or DVI connector are bent.
The display is too dark or too bright. *Adjust the Contrast and Brightness Controls.
Picture bounces or a wave pattern is present in the picture	*Move electrical devices that may cause electrical interference.
The power LED is ON (orange) but there's no video or no picture.	*Computer Power Switch should be in the ON position.*Computer Video Card should be snugly seated in its slot.*Make sure monitor's video cable is properly connected to the computer.*Inspect monitor's video cable and make sure none of the pins are bent.*Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.

INPUT as a PC option, and make sure PC audio output cable is connected to monitor's LINE IN port(or AUDIO IN port). [For HDMI Input only]

Addendum related to Windows 7

When you encounter display problem under Windows 7, you need to do the following:

1. Make sure your PC computer (Hardware requirement) can support Windows 7.
2. Make sure your video card can run Windows 7.
3. If your video card can support Windows 7, need to install the latest Win 7 driver of your video card.

Suggest to do the following:

1. Install the latest Windows 7 video driver of your video card.
2. Try to use the recommended display resolution that is supported by the monitor.
3. If the recommended display resolution is not working, try the second recommended display resolution.

1 2
47cm / 18.5" (16:9)	1366×768@60Hz	1366×768@75Hz
48,3cm / 19" (5:4)	1280×1024@60Hz	1280×1024@75Hz
48,3cm / 19" (16:10)	1440×900@60Hz	1440×900@75Hz
51cm / 20" (16:9)	1600×900@60Hz	1600×900@50Hz
56cm / 22" (16:10)	1680×1050@60Hz	1680×1050@50Hz
54,6cm / 21.5" (16:9)	1920×1080@60Hz	1920×1080@50Hz
58,4cm / 23" (16:9)
60cm / 23.6" (16:9)
62,5cm / 24.6 (16:9)
70cm / 27.5" (16:10)	1920×1200@60Hz	1920×1200@50Hz

And if you still have display problem after doing the above procedure, please visit HANNS·G

ERROR MESSAGE & POSSIBLE SOLUTIONS

CABLE NOT CONNECTED :

1. Check that the signal-cable is properly connected. If the connector is loose, tighten the connector's screws.
2. Check the signal-cable's connection pins for damage.

- INPUT NOT SUPPORT :

Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.

FACTORY PRESET TIMING TABLE:

MODE	RESOLUTION	HORIZONTAL FREQUENCY (KHz)	VERTICAL FREQUENCY (Hz)
1	640×350 @70Hz VGA 31.469 70.087
2	640×400 @56Hz PC9801 24.827 56.424
3	640×400@70HzVGATEXT 31.469 70.087
4	640×480 @60Hz VGA 31.469 59.94
5	640×480 @67Hz MAC' 35 66.667
6	640×480 @70Hz VGA 36.052 70.004
7	640×480 @72Hz VGA 37.861 72.809
8	640×480 @75Hz VGA	37.5	75
9	720×400@70HzVGATEXT 31.469 70.087
10	720x480@60Hz VGA	31.469 59.94
11	800×600 @56Hz SVGA	35.156 56.25

User's Manual

28	1360×768 @60Hz SXGA 47.712 60
29	1400×1050@60Hz WXGA 64.744 59.948
30	1400×1050@60Hz WXGA 65.317 59.978
31	1440×900 @60Hz WXGA+ 55.469 59.9
32	1440×900 @60Hz WXGA+ 55.935 59.887
33	1440×900 @75Hz WXGA+ 70.635 74.984

(Video mode)

MODE RESOLUTION
1 720×480i @60Hz
2 720×480p @60Hz
3 720×576i @50Hz
4 720×576p @50Hz
5	1280×720p @60Hz
6	1920×1080i @50Hz
7	1920×1080i @60Hz
8 1920×1080p @50Hz
9 1920×1080p @60Hz
10	1920×1080p @60Hz
11	1920×1080p @60Hz
12	640×480p @60Hz

** We ensure that the monitor can be lighted under interlace signal mode, but we can not guarantee the image quality.

APPENDIX

SPECIFICATIONS

LCD Panel	Driving system TFT Color LCD
	Size 48,3cm / 19" viewable
	Pixel pitch 0.2835mm(H) x 0.2835mm(V)
Video	II-Frequency 24KHz - 75KHz
	V-Frequency 56 - 75Hz
Display Colors 16.7M Colors
Max. Resolution 1440 x 900 @75Hz
Plug & Play		VESA DDC2BTM,
Power consumption	ON Mode 26W(Typical)
	Power Saving Mode ≤1W
	OFF Mode ≤0.5W
Audio output Rated Power 1.0 W rms (Per channel)
Input Terminal		VGADVI (optional)
Maximum Screen Size		IIor.: 408.24mmVer.: 255.15mm
Power Source		100~240VAC, 50~60Hz 60±3Hz
