Product Type	LCD Monitor
Brand	Hannspree
Model	HL161CGB
Display Size	15.6" (39.5 cm) diagonal
Panel Type	TFT Color LCD
Pixel Pitch	0.17925 mm (H) x 0.17925 mm (V)
Maximum Resolution	1920 x 1080 @ 60 Hz
Display Colors	16.2 million
Input Connectors	Type-C (x2), HDMI (optional), Audio In (optional)
Audio Output	Built-in speakers, 0.5W rms per channel (optional)
Power Source	100-240V, 50/60 Hz (internal universal)
Power Consumption (On)	10W (Typical)
Power Saving Mode	≤0.5W
Off Mode	≤0.3W
Dimensions (W x H x D)	355.4 x 222.88 x 11.0 mm (13.99 x 8.77 x 0.43 inches)
Weight (Net)	2.3 kg (5.1 lb)
Operating Temperature	5°C to 35°C
Storage Temperature	-20°C to 60°C
Operating Humidity	20% to 85%
Accessories Included	Type-C to Type-C cable, Type A to Type-C cable, HDMI-Mini HDMI cable, Quick Start Guide, Warranty Card, Energy Label, Protective Cover, Stand
Safety Certifications	EMC 2014/30/EU, Low Voltage 2014/35/EU
Special Features	Game mode (Gamer1/2/3, FPS1/2, RTS, MOBA), Blue Light Filter, Black Stabilization, Advanced Contrast, Low Input Lag, ECO Mode, DDC/CI
Cleaning	Use a soft cloth with mild detergent; avoid strong solvents
Repair	Refer all servicing to qualified personnel; no user-serviceable parts

Frequently Asked Questions - HL161CGB HANNSPREE

What should I do if the power LED is not on?

Check if the Power Switch is in the ON position. Ensure the power cord is properly connected to the monitor and wall outlet.

Why is there no video or picture even though the power LED is amber?

Make sure the computer is powered on. Verify the video cable is securely connected to both the monitor and the computer. Check that the video card is properly seated in its slot. Test the computer by pressing Caps Lock to see if the LED responds.

How can I fix a missing primary color (red, green, or blue)?

Inspect the video cable for bent or damaged pins. If pins are bent, carefully straighten them or replace the cable.

No sound from the built-in speakers, what should I do?

Ensure the PC audio output cable is connected to the monitor's LINE IN port. Check that the volume is not muted in the OSD menu. For HDMI input, set AUDIO INPUT to PC and connect the audio cable.

The display is too dark or too bright. How do I adjust it?

Use the OSD menu to adjust the Contrast and Brightness settings under the Color Adjust section.

The screen image is not centered or sized properly. What can I do?

Adjust the pixel frequency (Clock) and Phase settings, or use the Auto Adjust function if available. Set the correct resolution in your computer's display settings.

How do I change the input source?

Press the Menu button, go to Input Select, and choose between HDMI or Type C depending on your connection.

What does 'CABLE NOT CONNECTED' mean?

The monitor is not receiving a video signal. Check that the signal cable is securely attached to both the monitor and the computer. Ensure the connector pins are not damaged.

The monitor displays 'INPUT NOT SUPPORT'. How do I fix this?

Your computer is set to an unsupported display mode. Change the resolution to one listed in the Factory Preset Timing Table in the manual, such as 1920x1080 @ 60 Hz.

Can I clean the monitor with any cleaner?

Use a soft cloth lightly dampened with a mild detergent solution. Never use strong solvents like thinner, benzene, or abrasive cleaners, as they will damage the cabinet. Always unplug the monitor before cleaning.

USER MANUAL HL161CGB HANNSPREE

Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.

This device complies with requirement of EMC directive 2014/30/EU with regard to Electromagnetic Compatibility, and 2014/35/EU and 93/68/EEC with regard to Low Voltage directive.

【Optional, depend on selected model】

Socket-outlet shall be near the equipment and shall be accessible.

Trademark Notice:

HANNspree products incorporate High-Definition Multimedia Interface (HDMI ^TM ) technology.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

RECYCLING INFORMATION

We, the HANNspree care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life.

These devices contain recyclable materials, which can be re-decomposed and re-integrated into brand-new marvels. On the contrary, other material can be classified to hazardous and poisoned substances. We strongly encourage you to contact the provided information to recycle this product.

For more information, please visit

http://www.hannspree.eu/

TABLE OF CONTENTS

SAFETY NOTICE 5

PRECAUTIONS....5

SPECIAL NOTES ON LCD MONITORS 6

MAKING CONNECTIONS....9

OPERATING INSTRUCTIONS .... 10

GENERAL INSTRUCTIONS.... 10

FRONT PANEL CONTROL ....11

HOW TO ADJUST A SETTINGS....13

PLUG AND PLAY 16

TECHNICAL SUPPORT (FAQ) 17

Q & A FOR GENERAL PROBLEMS 17

ERROR MESSAGE & POSSIBLE SOLUTIONS 19

APPENDIX 21

SPECIFICATIONS.... 21

SAFETY NOTICE

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
4. Only use attachments/accesories specified by the manufacturer.

WARNING:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

PRECAUTIONS

• Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
• Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
• Unplug the unit during a lighting storm or when it will not be used for long period of time. This will protect the monitor from damage due to power surges.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
• Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.
• The wall socket shall be installed near the equipment and shall be easily accessible.

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.
• If the screen suddenly flashes erratically or the backlighting fails, please contact your dealer or service center for repair. Do not attempt to repair the monitor yourself.

• 39.5cm /15.6" Wide Screen TFT Color LCD Monitor
- Crisp, Clear Display for Windows
• GP Green Product
- Ergonomic Design
• Space Saving, Compact Case Design act Case Design

CHECKING THE CONTENTS OF THE PACKAGE CHECKING THE CONTENTS OF

The product package should include the following items: The product package should include the followin

LCD Monitor

Empty rectangular frame with black border (no text or symbols)

Screen

Empty white rectangle with a thin gray border (no text or symbols)

Protective Cover

Cables and User manual

Coiled network cable with two connectors (no text or symbols visible)

Type-C- Type-C Cable

Line drawing of a USB cable with connectors (no text or symbols)

Type A - Type-C Cable

HDMI-MINI HDMI Cable

Quick Start Guide Warranty Card EUR Energy Label

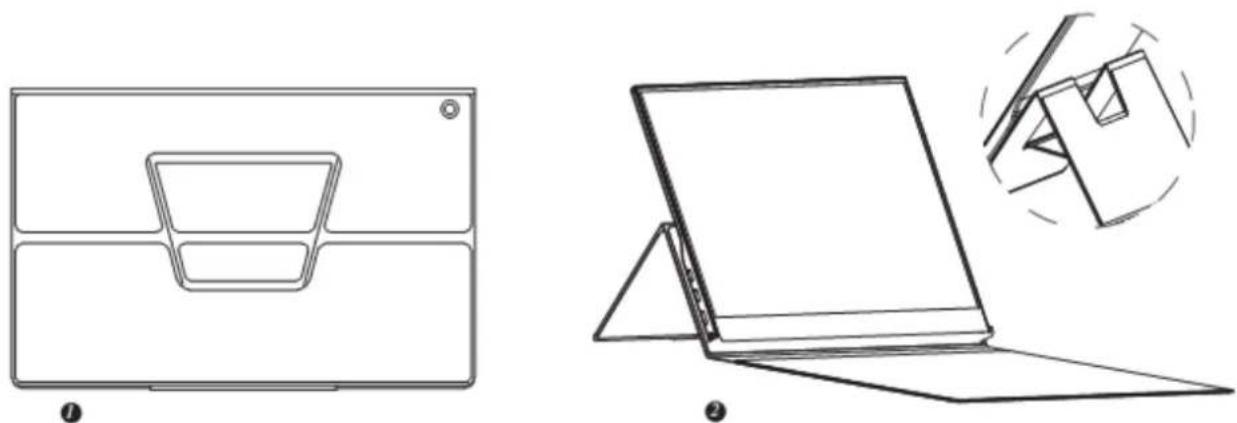

SUPPORT HOLSTER STENTS

Line drawings of two electronic devices: one with a slot, the other with a folded paper or plastic sheet (no text or symbols)

(For reference only)

POWER

POWER SOURCE:

1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an Internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the AC-power cord one end to your LCD monitor's AC-input socket, the other end to wall-outlet.

MAKING CONNECTIONS

CONNECTING TO A PC

Turn off your computer before performing the procedure below.

1. Connect one end of the Type-C cable to the back of the monitor and connect the other end to the computer's Type-C port.
2. Connect one end of the Type-C cable to the back of the monitor and connect the other end to the PowerAdaptort.
3. Connect one end of the HDMI cable (optional) to the back of the monitor and connect the other end to the computer's HDMI port.
4. Connect the audio cable between the monitor's audio input and the PC's audio output (green port).
5. Turn on your monitor and computer.

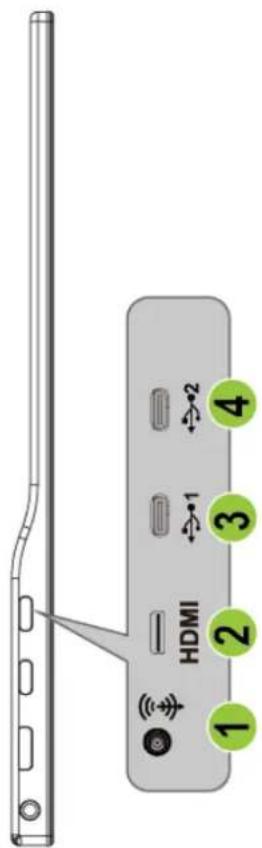

Figure.2. Connecting to a PC

1 LINE OUT 2 HDMI Input
3 Type-C Input 4 Type-C Input

OPERATING INSTRUCTIONS

GENERAL INSTRUCTIONS

Press the power button to turn the monitor on or off. The other control buttons are located on the front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.

• The power cord should be connected.
• Connect the Signal cable from the monitor to the HOMI card.
• Press the power button to turn on the monitor. The power indicator will light up.

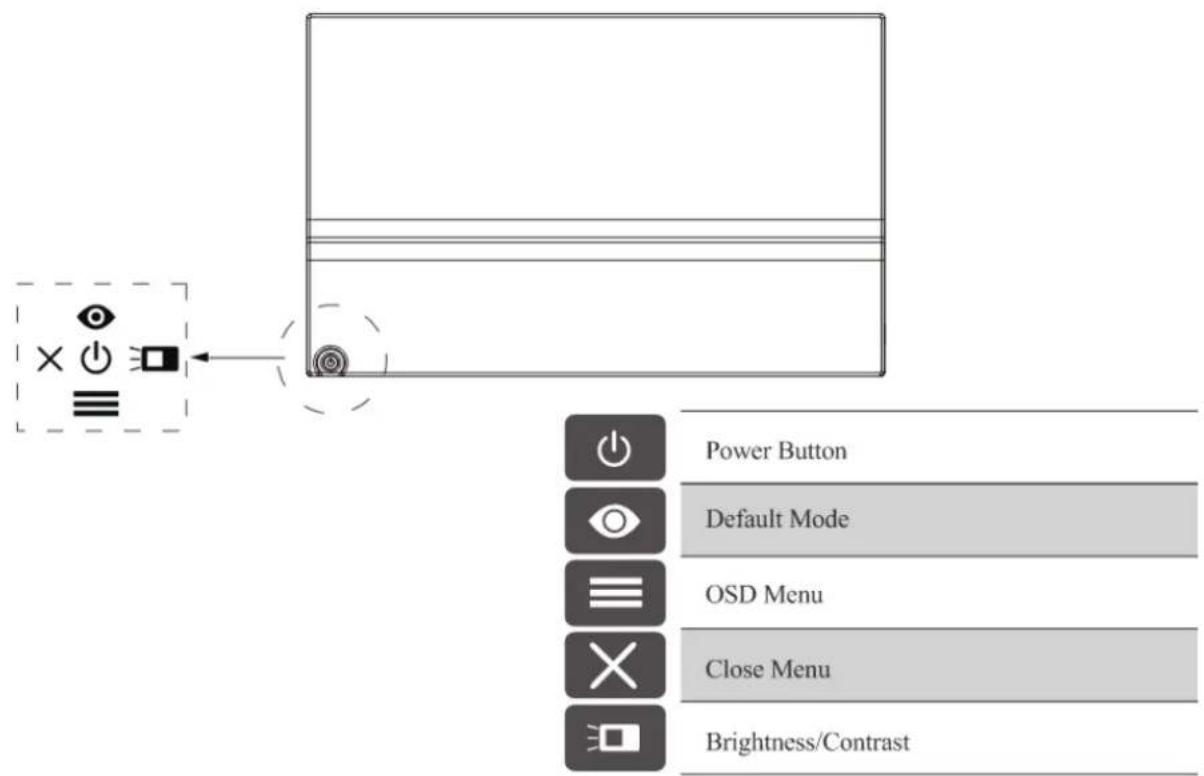

Figure.4. Control Panel Buttons

FRONT PANEL CONTROL

- Power Button:

Press this button to switch ON/OFF of monitor's power.

• Power Indicator:

Blue — Power On mode.

Amber — Power Saving mode.

- The OSD Menu and OSD Quick-Menu Symbol explanations and their functional uses are stated below.

[cx8T]	Activation symbol to turn the various modes on when operating the menu system.
Activ#n symbol	to exit, go back or deactivate the desired function that is selected.
[kwys]	Toggle the selected options up and down the icon.
[w7ZW]	Symbol used to go back or revert back to the previously selected menu.
	Left and right icons toggle your selected choice horizontally.
[z6CK]	Main menu icon that allows users access the main menu.
	Adjust the Contrast/Brightness.

Resolution

640×400@70Hz ↔ 720×400@70Hz

640×480@60Hz ↔ 720×480@60Hz

1024×768@70Hz ↔ 1280×768@70Hz

1280×768@60Hz ↔ 1360×768@60Hz

1400×1050@60Hz ↔ 1680×1050@60Hz

1400×1050@RB 60Hz ↔ 1680×1050@RB 60Hz

** The screen resolutions available will depend on the purchased model.

NOTES:

• Do not install the monitor in a location near heat sources such as radiators or air dusts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
• Save the original shipping box and packing materials, as they will come in handy if you ever have to ship your monitor.
• For maximum protection, repackage your monitor as it was originally packed at the factory.
• To keep the monitor looking new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

HOW TO ADJUST A SETTINGS

INPUT SELECT
HDMI TYPE C	Select the 「INPUT SELECT」 option to switch signals HDMI, or Type C.
AUDIO ADJUST
VOLUME	Select the 「VOLUME」 option to change the volume level. Enter the option and adjust the level. [This function applies only to models with incorporated audio.]● By high volume, risk of hearing damage exists.
MUTE	Select the 「MUTE」 option to switch the function On or Off. [The availability of this function depends upon the selected model. Adjusting the volume while muted cancels Mute mode.]
VIEW MODE
LOW INPUT LAG	Select the 「LOW INPUT LAG」 option to switch the function On or Off.
BLACK STABILIZATION	Select the「BLACK STABILIZATION」 option to adjust the Black Stabilization of the display. Set the value from 0 to 100.
ADVANCED CONTRAST	Select the 「ADVANCED CONTRAST」 option to adjust the Advanced Contrast of the display. Set the value from 0 to 100.
BLUE LIGHT FILTER	Select the 「BLUE LIGHT FILTER」 option to adjust the display's RGB “B” value. Set the value from 0 to 100.
RESPONSE TIME	Setup the display response time through the Response time function. Available settings are Standard, Advanced, and Ultra Fast. [This feature is limited to specific models only.]
RECALL	Resets the Standard monitor settings.
GAME	Integrating a gaming-oriented OSD design including pre-calibrated GAMER1, GAMER2, GAMER3, FPS1, FPS2, RTS and MOBA gaming settings, each mode is functionally customized with in-game testing and adjustments made for the best blend of color and technology. To access the game mode first open the Main Menu setting, then go to ‘ViewMode’, select 「Game」 and change your ‘GAMER MODE’ settings from there.
MOVIEWEBTEXT	Select the mode according to your preference: Movie/ Web/ Text
COLOR ADJUST
CONTRAST	Adjust the contrast value of the display according to your preference. Select「CONTRAST」option to adjust the contrast value.
BRIGHTNESS	Adjust the brightness value of the display according to your preference. Select「BRIGHTNESS」option to adjust the brightness value.
COLOR TEMPERATURE	Adjust the color temperature value of the display according to your preference: sRGB/Bluish/Cool/Native/Warm/User Color.
COLOR SPACE	Adjust the Color Space value of the display according to your preference:Auto/RGB Mode/YUV Mode.
COLOR RANGE	Adjust the Color Range value of the display according to your preference:Auto/Full Range/Limited Range .
MANUAL IMAGE ADJUST
SHARPNESS	Select the「Sharpness」option to adjust the sharpness of the display. Set the value from 0 to 100.
ASPECT RATIO	When the aspect ratio of screen is distorted, you may make adjustments by using this function.「FULL SCREEN」indicates full screen display, which does not ensure the image is shown as is or in initial scale.「✓」indicates scaling by the proportion of original images, which may cause the screen showing black bands.
OVERSCAN	Select the「OVERSCAN」option to the function On or Off.
SETUP MENU
LANGUAGE SELECT	Select「Language」option to change the language of the OSD. Enter the option and select a language. [Reference only, the OSD Language depends on the selected model]
RESOLUTION NOTICE	Select the「RESOLUTION NOTICE」option to the function On or Off.
INFORMATION	Display Horizontal frequency/Vertical frequency/Resolution information.
OSD TIMEOUT	Select「OSD TIME-OUT」option to set the OSD time out from 5 to 60 seconds. Enter the option and adjust the level.
OSD BACKGROUND	Select the「OSD BACKGROUND」option to the function On orOff.
POWER INDICATOR	Select the「POWER INDICATOR」option to the function On or Off.
AUTO POWER OFF	Select the「AUTO POWER OFF」option to the function On or Off.
SLEEP	Adjust the sleep mode value of the display according to your preference .
ECO MODE	Adjust the ECO Mode value of the display according to your preference: Standard/Optimize/Conserve.
DDC/CI	Select the「DDC/CI」option to switch the function On or Off.
MEMORY RECALL	Select the「MEMORY RECALL」option to reset to the monitor's factory setting.

PLUG AND PLAY

Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.

THIS MONITOR WILL APPEAR TO BE NON-FUNCTIONAL IF THERE IS NO VIDEO INPUT SIGNAL. IN ORDER FOR THIS MONITOR TO OPERATE PROPERLY, THERE MUST BE A VIDEO INPUT SIGNAL.

TECHNICAL SUPPORT (FAQ)

Q & A FOR GENERAL PROBLEMS

PROBLEM & QUESTION POSSIBLE SOLUTION
Power LED is not on	*Check if the Power Switch is in the ON position.*Power Cord should be connected.
No Plug & Play	* Check if the PC system is Plug & Play compatible.*Check if the Video Card is Plug & Play compatible.*Check if any plug pins on the VGA or HDMI connector are bent.
The display is too dark or too bright.	*Adjust the Contrast and Brightness Controls.
Picture bounces or a wave pattern is present in the picture	*Move electrical devices that may cause electrical interference.
The power LED is ON (Amber) but there's no video or no picture.	*Computer Power Switch should be in the ON position.*Computer Video Card should be snugly seated in its slot.*Make sure monitor's video cable is properly connected to the computer.*Inspect monitor's video cable and make sure none of the pins are bent.*Make sure computer is operational by hitting the CAPS LOCK key on the keyboard while observing the CAPS LOCK LED. The LED should either turn ON or OFF after hitting the CAPS LOCK key.
Missing one of the primary colors (RED, GREEN, or BLUE)	*Inspect the monitor's video cable and make sure that none of the pins are bent.
Screen image is not centered or sized properly.	* Adjust pixel frequency CLOCK and PHASE or press hot-key
Picture has color defects(White does not look white)	*Adjust RGB color or select color temperature.
The screen resolution needs to be adjusted	*Use win 2000/ME/XP Right click anywhere on desktop and select Properties>Settings>Screen Resolution. Use the solder to adjust the resolution and click Apply.
No sound is outputted from monitor's built-in speaker	*Make sure PC audio output cable is connected to screen's LINE IN port (or AUDIO IN port).*Make sure the sound volume adjustment can be clearly identified.*Make sure the System > Silence option in the monitor menu is on.*While transferring via HDMI port but no sound is outputted, it is recommended to select AUDIO INPUT as a PC option, and make sure PC audio

output cable is connected to monitor's LINE IN port (or AUDIO IN port). [For HDMI Input only]

Addendum related to Windows 7 / Windows 8

When you encounter display problem under Windows 7/ Windows 8, you need to do the following:

1. Make sure your PC computer (Hardware requirement) can support Windows 7/ Windows 8.
2. Make sure your video card can run Windows 7/ Windows 8.
3. If your video card can support Windows 7/ Windows 8, need to install the latest Windows 7/ Windows 8 driver of your video card.

Suggest to do the following:

1. Install the latest Windows 7/ Windows 8 video driver of your video card.
2. Try to use the recommended display resolution that is supported by the monitor.
3. If the recommended display resolution is not working, try the second recommended display resolution.

1 2
35,56cm / 14” (16:9) 13	66×768@60Hz 1366×	768@50Hz
39,6cm / 15.6” (16:9) 1	366×768@60Hz 1366×	768@75Hz
40,64cm / 16” (16:9) 13	66×768@60Hz 1366×	768@50Hz
43,2cm / 17” (16:10) 14	40×900@60Hz 1440×	900@75Hz
47cm / 18.5” (16:9) 136	6×768@60Hz 1366×7	68@75Hz
48,3cm / 19” (5:4) 1280	×1024@60Hz 1280×1	024@75Hz
48,3cm / 19” (16:10) 14	40×900@60Hz 1440×	900@75Hz
51cm / 20” (16:9) 1600	×900@60Hz 1600×900	@50Hz
56cm / 22” (16:10) 168	0×1050@60Hz 1680×	1050@50Hz
54,6cm / 21.5” (16:9)58,4cm / 23” (16:9)60cm / 23.6” (16:9)62,5cm / 24.6 (16:9)68,6cm / 27” (16:9)	1920×1080@60Hz	1920×1080@50Hz
70cm / 27.5” (16:10) 19	20×1200@60Hz 1920	×1200@50Hz

And if you still have display problem after doing the above procedure, please visit Hanns·G support and Service Website: http://www.hannspree.eu/en/monitors

Windows is a registered trademark of Microsoft Corporation.

ERROR MESSAGE & POSSIBLE SOLUTIONS

■ CABLE NOT CONNECTED:

1. Check that the signal-cable is properly connected, if the connector is loose, tighten the connector's screws.
2. Check the signal-cable's connection pins for damage.

- INPUT NOT SUPPORT :

Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.

FACTORY PRESET TIMING TABLE:

MODE	RESOLUTION	HORIZONTAL FREQUENCY (KHz)	VERTICAL FREQUENCY (Hz)
1	640×400 @70Hz 31.469	70.087
2	640×480 @60Hz 31.469	59.940
3	640×480 @70Hz 36.052	70.004
4	640×480 @67Hz 35.000	66.667
5	640×480 @72Hz 37.861	72.809
6	640×480 @75Hz 37.500	75.000
7	720×400 @70Hz 31.469	70.087
8	800×600 @56Hz 35.156	56.250
9	800×600 @60Hz 37.879	60.317
10	800×600 @72Hz 48.077	72.188
11	800×600 @75Hz 46.875	75.000
12	832×624 @75Hz 49.725	75.000
13	1024×768 @60Hz 48.363	60.004
14	1024×768 @70Hz 56.476	70.069
15	1024×768 @75Hz 60.023	75.029
16	1152×870 @75Hz 68.681	75.062
17	1152×864 @75Hz 67.500	75.000
18	1280×720 @60Hz 45.000	60.000
19	1280×960 @60Hz 60.000	60.000
20	1280×960 @75Hz 74.592	74.443
21	1280×768 @60Hz 47.776	59.870
22	1280×768 @75Hz 60.289	74.893
23	1280×1024 @60Hz 63.981	60.020
24	1280×1024 @75Hz 79.976	75.025
25	1360×768 @60Hz 47.712	60.015
26	1440×900 @60Hz 55.469	59.901
27	1440×900 @75Hz 70.635	74.984
28	1400×1050 @60Hz 64.744	59.948
29	1680×1050 @60Hz 65.290	59.954
30	1920×1080 @60Hz 67.500	60.000

(Video mode)

MODE RESOLUTION

1 640×480p @60Hz

2 720×480i @60Hz

3 720×480p @60Hz

4 720×576i @50Hz

5 720×576p @50Hz

6 1280×720p @60Hz

7 1920×1080i @50Hz

8 1920×1080i @60Hz

9 1920×1080p @50Hz

10 1920×1080p @60Hz

** We ensure that the monitor can be lighted under interlace signal mode, but we can not guarantee the image quality.

APPENDIX

SPECIFICATIONS

LCD Panel	Driving system TFT Color LCD
	Size 39.5cm / 15.6" Diagonal
	Pixel pitch 0.17925mm(H) ×0.17925 mm(V)
Video	H-Frequency 31KHz -83KHz
	V-Frequency 56Hz - 75Hz
Display Colors 16.2M Colors
Max. Resolution 1920 × 1080 @60Hz
Plug & Play		VESA DDC2B^TM
Power consumption	ON Mode 10W (Typical)
	Power Saving Mode ≤0.5W
	OFF Mode ≤0.3W
Audio output Rated Power 0.5 W rms (Per channel)
Input Terminal		PC Audio x 1 (optional)HDMI ×1 (optional)
Maximum Screen Size		Hor.: 344.16mmVer.: 193.59mm
Power Source 100-240V, 50-60Hz
Environmental Considerations		Operating Temp:5° to 35°CStorage Temp.: -20° to 60°COperating Humidity: 20% to 85%
Dimensions		355.4 (W)×222.88(H)×11.0(D) mm13.99"(W)×8.77"(H)×0.43"(D)
Weight (NW)		2.3 kg (5.1 lb)

*** The above specification is subject to actual product specification and is subject to change without prior notice.

NOTES:

The Maximum Resolution will depends on the display card supporting. Related issue can refer to http://www.hannspree.eu/en/monitors. FAQ section.
