USER MANUAL KS61 Home Electric

Exterior view of a modern electric stove with open doors and control knobs (no visible text or symbols)

Minibackofen Mini oven

1200W

Technical diagram of a toaster oven with numbered parts for identification and assembly reference.

1. BAUTEILE UND BEDIENELEMENTE

Symbol of a trash bin with crossed lines and a dot, no text or numbers present

When using electrical appliance, the following basic safety precautions should always be followed:

1. Read all instructions.
2. Before use check that the voltage power corresponds to the one shown on the appliance nameplate.
3. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning the appliance.
4. Do not let cord hang over edge of that table or counter, or touch hot surface.
5. Place the appliance on the flat surface. Do not place on the heated surface.
6. Close supervision is necessary when any appliance is used by or near children.
7. Do not touch hot surface. Use handle or knobs only.
8. When in use, the oven is hot! Never touch the oven and the glass door.
9. Don't sprinkle water on the glass window whilst it is still very hot, this could cause the glass to crack.
10. A distance of at least 10cm should be maintained between the oven and the wall.
11. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions. Return the appliance to the nearest authorized service center for examination, repair or adjustment.
12. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
13. Do not use outdoors.
14. Save these instructions.

OPERATION

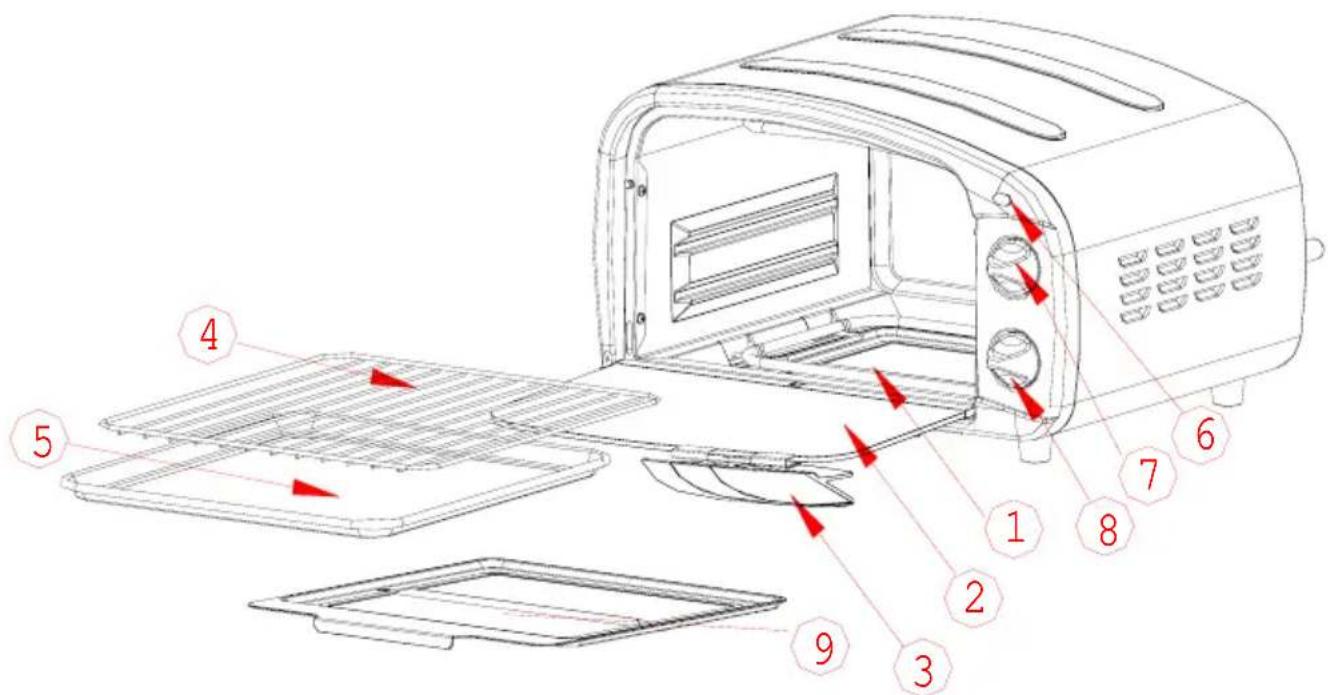

Technical diagram of a toaster oven with numbered parts for identification and assembly reference.

1. GUIDE TO THE PARTS

1. Heating Element

2. Glass Door

3. Door Handle

4. Baking Rack

5. Pizza Pan

6. Thermostat Pilotlight

7. Timer Knob

8. Crumb Tray

9. Thermostat Knob

2. APPLICATION & FEATURE

This electrical oven is designed for common family uses. It can bake kinds of light refreshments (breads, cakes, etc.) as well as a variety of dishes with perfection in color, smell and taste.

• Capacity: 12L.
  • 0\~60 minutes timer function.
• 60 – 250°C adjustable oven temperature.
• Double U shape stainless steel heating elements.
• Can toast 26 cm pizza.

3. TEMPERATURE SELECT

The oven could work at the adjustable temperature from 60^ C to 250^ C. When the oven operate, the upper and lower heating elements heat up together. Users can turn the thermostat knob to desired temperature to get delicious taste.

4. HOW TO USE

1. Before putting the food on the tray, spread a layer of edible oil onto the tray to avoid the food sticking to the tray after baking.
2. Put the food to be baked on the tray.
3. Put the food into the oven with the grip. You can select the location of the tray according to the size of the food.
4. Connect the power, set the thermostat knob to the fitting temperature position and set the timer clockwise to the timer position desired, then the pilot light turn bright,.you can observe the food through the glass door to get master of the baking time.
5. During baking, you can change baking time, temperature to suit your own personal taste.

5. CLEANING

• After use, set timer knob counter counterclockwise to "0" position.
- Remove the plug from the power socket.
- Cool the oven down to the room temperature.
- Wish the oven surface and interior with a damp cloth or a sponge and take the tray, broil rack out to wash.

Warning: ON NO ACCOUNT should water be allowed to get inside the oven.

SPECIFICATION

Technical specifications

Description: Mini baking oven / Mini pizza oven

Model: KS61

Oven capacity: 12 L

Temperature range: 60 - 250 °C

Timer: max. 60 minutes

Power consumption: 1200 Watt max.

Power supply: 220 - 240V\~ 50/60Hz

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Disposal

Symbol of a trash bin crossed with diagonal lines and a horizontal bar below (no text or labels)

Dispose of the packaging in the proper manner.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advise.

(Waste Electrical and Electronic Equipment Directive)

For the HOME ELECTRIC product we grant a Guarantee of 2 years

For this device we grant a guarantee of 24 months, starting with the date of sale regarding defects due to faulty manufacture or material. Your legal warranty claims according to §439 ff. BGB-E are not affected by this. This guarantee does not accept defects due to inappropriate treatment or use as well as defects which do not influence the function or the value of the product essentially. Further on we do not grant a guarantee for wear parts or damage in transit as well as for defects due to repairs which have not been effected by us. In case of legitimate claims we will decide whether to repair the device or to send you a new one. Apparent defects have to be indicated within 14 days after delivery. Additional claims will not be accepted.

In order to assert your warranty claims please send the device together with the sales slip carriage paid to the below address.

Please contact us before sending the device to us as any sending which is not prepaid will not be accepted.

Service hotline:

0180 5 - 22 17 84 (€ 0,14 / Min.) (Germany only)

If the product needs to be sent to the servicecenter, please call service & support to obtain a return sticker
