PO 3002 - Oven Home Electric - Free user manual and instructions

Product Type	Mini Baking Oven / Mini Pizza Oven
Brand	Home Electric
Model	PO 3002
Capacity	12 L
Temperature Range	60 - 250 °C
Timer	0 - 60 minutes
Power Consumption	1200 W
Power Supply	AC 220-240 V, 50 Hz
Heating Elements	Double U-shaped stainless steel
Maximum Pizza Size	26 cm
Control	Thermostat and timer knobs
Indicator Light	Yes (pilot light)
Door	Glass door
Included Accessories	Baking rack, pizza pan, crumb tray
Cleaning	Wipe with damp cloth; do not allow water inside
Safety Distance	At least 10 cm from walls
Service Hotline	0180 5 - 22 17 84 (Germany, 0.14€/min)
Disposal	WEEE compliant; recycle where facilities exist

Frequently Asked Questions - PO 3002 Home Electric

How do I clean the oven?

Allow the oven to cool completely. Wipe the surface and interior with a damp cloth or sponge. Remove the tray and rack to wash separately. Never allow water to get inside the oven.

What is the maximum temperature?

The oven can be set to a temperature between 60 °C and 250 °C using the thermostat knob.

What is the oven capacity?

The oven has a capacity of 12 liters.

Can I bake pizza in this oven?

Yes, this oven can toast a pizza up to 26 cm in diameter.

What safety precautions should I follow?

Always unplug the oven when not in use. Do not touch hot surfaces; use handles only. Keep at least 10 cm distance from walls. Do not sprinkle water on the hot glass door to avoid cracking.

What is the power consumption?

The oven consumes a maximum of 1200 W and operates on AC 220-240 V, 50 Hz.

How does the timer work?

Turn the timer knob clockwise to the desired time, up to 60 minutes. The pilot light will turn on during operation.

Why does the oven produce smoke or smell when first used?

It is normal for the oven to emit a slight smell and smoke during the first use. Ensure the area is well ventilated.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer or an authorized service agent to avoid hazard. Do not use the appliance.

How should I dispose of the oven?

Do not dispose with household waste. Follow local regulations for WEEE (Waste Electrical and Electronic Equipment) recycling.

USER MANUAL PO 3002 Home Electric

Pizzaofen Pizza oven

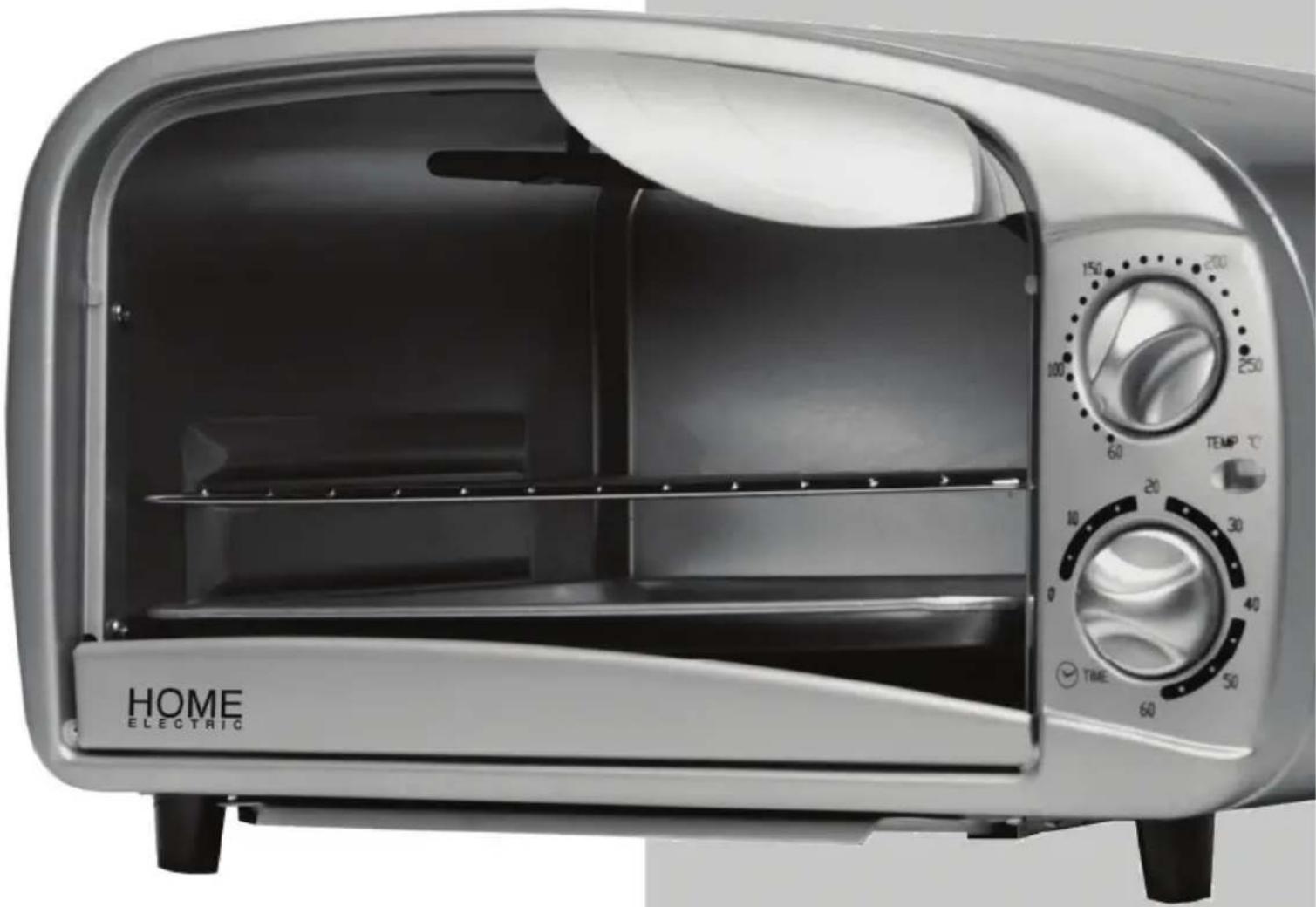

Front view of a modern electric toaster oven with visible temperature and time controls (no text or symbols on main body)

1200W

Bedienungsanleitung

User Manual

1. BAUTEILE UND BEDIENELEMENTE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

When using electrical appliance, the following basic safety precautions should always be followed:

1. Read all instructions.
2. Before use check that the voltage power corresponds to the one shown on the appliance nameplate.
3. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning the appliance.
4. Do not let cord hang over edge of that table or counter, or touch hot surface
5. Place the appliance on the flat surface. Do not place on the heated surface.
6. Close supervision is necessary when any appliance is used by or near children.
7. Do not touch hot surface. Use handle or knobs only.
8. When in use, the oven is hot! Never touch the oven and the glass door.
9. Don't sprinkle water on the glass window whilst it is still very hot, this could cause the glass to crack.
10. A distance of at least 10cm should be maintained between the oven and the wall.
11. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions. Return the appliance to the nearest authorized service center for examination, repair or adjustment.
12. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
13. Do not use outdoors.
14. Save these instructions.

OPERATION

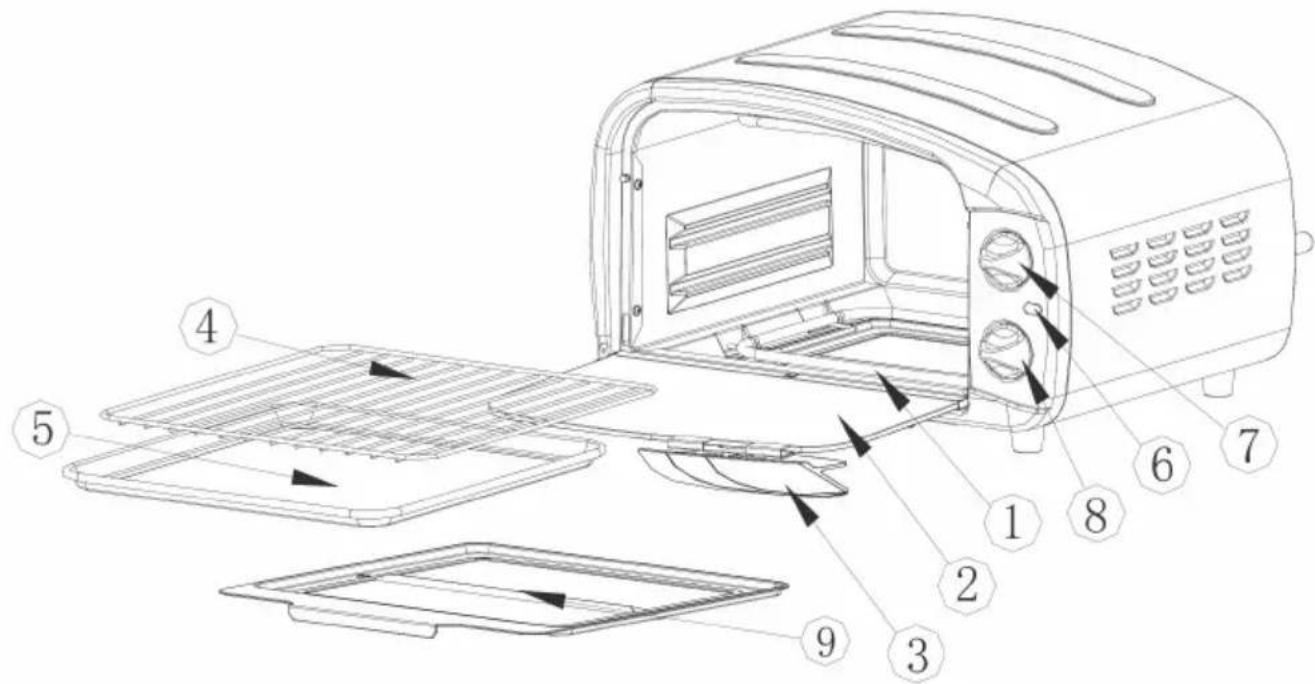

1. GUIDE TO THE PARTS

1. Heating Element
2. Glass Door

3. Door Handle

4. Baking Rack

5. Pizza Pan

6. Thermostat Pilotlight

7. Thermostat Knob

8. Timer Knob
9. Crumb Tray

2. BEFORE FIRST USE

• Remove all packaging material from the appliance
• If the unit is used for the first time, it may slightly emit smell and smoke. This is normal and only lasts for a short time. Make sure to use the appliance in a well ventilated area.

3. APPLICATION & FEATURE

This electrical oven is designed for common family uses. It can bake kinds of light refreshments (breads, cakes, etc.) as well as a variety of dishes with perfection in color, smell and taste.

• Capacity: 12L.
• 0\~60 minutes timer function.
• 60 – 250°C adjustable oven temperature.
• Double U shape stainless steel heating elements.
• Can toast 26 cm pizza.

4. TEMPERATURE SELECT

The oven could work at the adjustable temperature from 60^ C to 250^ C. When the oven operate, the upper and lower heating elements heat up together. Users can turn the thermostat knob to desired temperature to get delicious taste.

5. HOW TO USE

1. Before putting the food on the tray, spread a layer of edible oil onto the tray to avoid the food sticking to the tray after baking.

2. Put the food to be baked on the tray.

3. Put the food into the oven with the grip. You can select the location of the tray according to the size of the food.

4. Connect the power, set the thermostat knob to the fitting temperature position and set the timer clockwise to the timer position desired, then the pilot light turn bright,.you can observe the food through the glass door to get master of the baking time.

5. During baking, you can change baking time, temperature to suit your own personal taste.

6. CLEANING

• After use, set timer knob counter counterclockwise to "0" position.
- Remove the plug from the power socket.
• Cool the oven down to the room temperature.
- Wish the oven surface and interior with a damp cloth or a sponge and take the tray, broil rack out to wash.

Warning: ON NO ACCOUNT should water be allowed to get inside the oven.

SPECIFICATION

Technical specifications

Description: Mini baking oven / Mini pizza oven

Model: PO 3002

Oven capacity: 12 L

Temperature range: 60-250 °C

Timer: max. 60 minutes

Power consumption: 1200 Watt max.

Power supply: AC 220-240V 50Hz

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Disposal

Dispose of the packaging in the proper manner.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

If this product should be defective, despite our high standard quality control, please contact the service & support hotline.

The hotline is available Monday through Friday from 10am to 6pm at this number:

0180 5 - 22 17 84

(€ 0,14 / Min. Germany only)

If the product needs to be sent to the servicecenter, please call service & support.

HOME ELECTRIC

P0 3002

VERSION SW12-2007 REV A02

HE-P03002-DE-A5.PDF

(C) 2007

Hergestellt für:

JGC Company GmbH - Heckhofweg 146 - 50739 Köln- Germany
