USER MANUAL PO4002 Home Electric

Exterior view of a modern stainless steel toaster oven with open lid and control knobs (no visible text or symbols)

Bedienungsanleitung

User Manual

Labeled diagram of a toaster oven with numbered parts for identification

1 Heizelement

6 Betriebsanzeige

2 Glastür

7 Thermostat

3 Türgriff

8 Zeitschaltuhr

4 Bratrost 9 Krümelblech
5 Tropfblech

KNOW YOUR APPLIANCE 11

USER INSTRUCTION 12

CLEANING, MAINTENANCE 13

WARRANTY 14-15

Do not dispose of this appliance with household litter. Please bring it to the public collection centres of your city or return it to the retailer where you bought this appliance.

Power Supply AC 220-240V\~, 50/60Hz

Rated Input 1200 W

Temperature Range 60-250°C

Timer up to 60min

Oven Capacity 12 litre

Manufactured for JGC-Company GmbH

Heckhofweg 146

50739 Köln

Please enter here the serial number of your appliance:

Function

The Pizza Oven has an upper and a lower grill and can bake pizza and other small cakes with a diameter of up to 26cm on its two rails. You can use the oven also to finish pre-fabricated rolls.

IMPORTANT SAFEGUARDS

IMPORTANT

Before you start using the appliance please read this user manual. Keep the manual for future reference and transfer together with the appliance.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. The mains supply voltage shall match the rating of your appliance.
4. Do not operate by means of an external timer or separate remote-control system.
5. Place the appliance onto a flat, even and non-slippery surface so that the handle points in your direction.
6. CAUTION! RISK OF BURNS! The hot plates and adjacent plastic parts are liable to get hot during use. Use only the handle to open and close the hot plates. If necessary, use pot holders.
7. Certain diseases (i.e. diabetes) can cause reduced sensitivity of limbs to temperature. Therefore disables persons shall use this appliance only under supervision.
8. Before changing the plates let the appliance cool down. Pull the plug.
9. Use only the provided plates.
10. Pull the plug if you don't use the appliance, if there is a malfunction or if you leave the room. Also pull the plug in the event of a power cut.
11. Do not place this appliance on or near a hot gas cooker or a heated oven. Keep the power cord away from hot surfaces.
12. Do not immerse any part of this appliance in water or any other liquid.
13. The toaster shall not be used if it has been dropped or if there are visible signs of damage.
14. The plates and the appliance shall be cleaned after use to avoid cultures of fungi growing on it.
15. Pull the plug only by using the plug, not by pulling the cable.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Before storing the appliance let it cool down. Pull the plug.
18. When you don't use the appliance according to these instructions we reject any liability.

KNOW YOUR APPLIANCE

ENGLISH

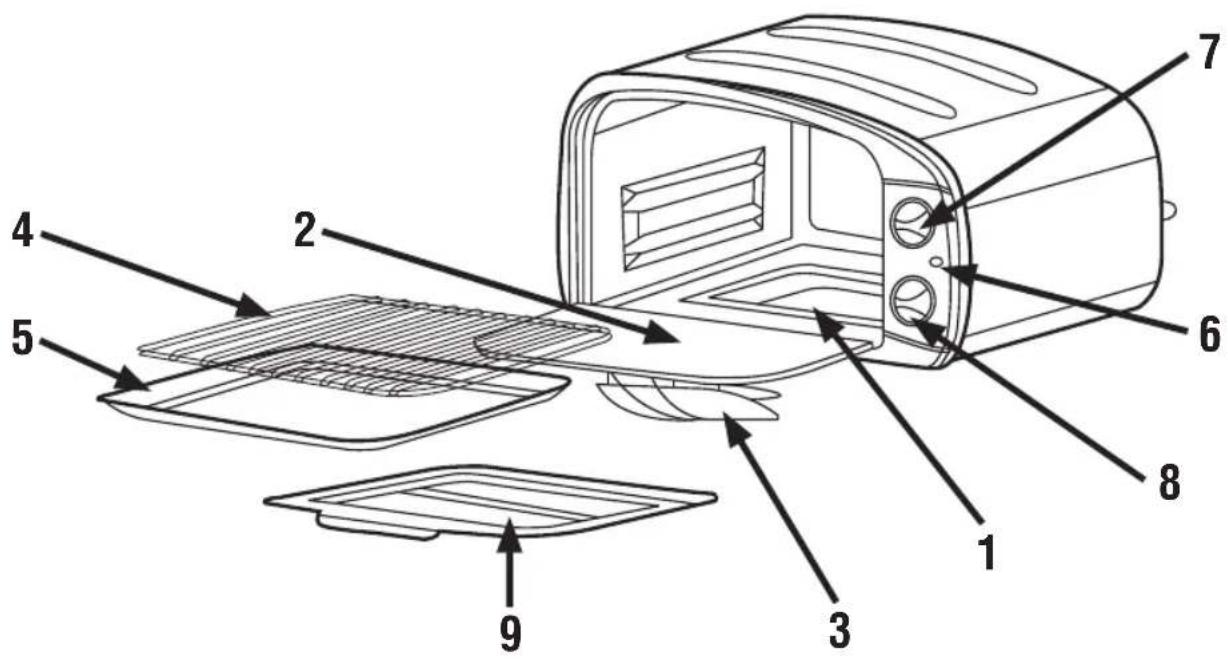

Diagram of a toaster oven with numbered parts for identification and assembly reference.

1 Heating Element

6 Pilot Lamp

2 Glass Door

7 Thermostat

3 Door Handle

8 Timer

4 Grill 9 Crumb Tray

5 Dripping Tray

USER INSTRUCTION

Unpack and Check

After unpacking please investigate the oven for damage. Do not use the appliance if it is damaged in any way. Bring it back to the dealership immediately.

Remove all packing material, plastic inserts and films. Heat the empty oven. If the appliance smokes a little bit, this is normal when this ends after a few minutes. Take care that the oven does not begin to burn, for example, because you have forgotten to remove packing material.

How to use

Put the pizza or cake tray onto the grill. Take care that the dough cannot touch the heating element after rising.

If you use the dripping tray as baking tray, put margarine or lard onto the tray and cover with breadcrumbs before adding the dough.

Acidic food (such as rhubarb, tomatoes, fruits) shall not come into contact with the aluminium dripping tray.

You can crisp up pre-fabricated rolls with the grill.

During the baking you can re-set the baking time and temperature as you wish.

Take out the tray, the pizza or cake only with pot holder as they are very hot.

Connect the power, set the thermostat knob to the required temperature, set the timer clockwise to the timer position desired. The pilot light turns on. You can observe the food through the glass door.

CLEANING, MAINTENANCE

ENGLISH

Turn the timer to "0" after use.

• Unplug the appliance and let it cool down.
- Excessive oil and fat can be removed with a paper towel when the appliance is still warm.
- Do not diswash.
• Before reassembly, dry completely.
- Clean the main appliance only with a damp cloth. Don't use a sponge and make sure that no water enters the appliance.
• NEVER immerse the appliance in water or other liquids.
- Do not use paint thinner, gasoline, or abrasive cleaners. Abrasive cleaners or utensils make scratches which provide excellent hiding places for fungi and other pests.

Customer Info Manufacturer's Warranty

HOME ELECTRIC

We are pleased that you decided purchasing a product of our house and wish you a lot of fun and joy with this high quality product. Our strict production control ensures the high quality of our equipment. In case you still have a legitimate complaint, we provide a warranty for the duration of

3 Years

from the date of purchase to the following conditions:

This warranty declaration does not limit your statutory warranty rights as a consumer against the seller of the device. Our warranty is only valid for the private use of the device and is limited to the territory of the Federal Republic of Germany.

The warranty period is 3 years from date of purchase.

At the discretion of HOME ELECTRIC, the device will be repaired or replaced or defective parts are replaced. Other claims are excluded.

If you have questions about HOME ELECTRIC products, save yourself the time-consuming way to the retailer and turn directly to our service hotline or our Service Center. A team of highly qualified product consultants and technicians is available to you Monday through Friday from 10am - 6pm.

Service-Telefon: 01805 / 22 17 84 (€ 0,14 per Min)

If you send in your device add a brief description of your complaint to support the rapid settlement. Send your device without exception only to our authorized service partners and please use the enclosed return label.

Should the return label be missing, please contact the above Service hotline.

CAUTION: We don't accept not prepaid items.

Customer Info

Manufacturer's Warranty

HOME

ELECTRIC

To effect a warranty repair our service partner needs Proof of purchase, either as an original invoice from the dealer or the cash-register printed document. Furthermore, the serial number must be legible on the appliance. Without Proof of purchase unfortunately, we can not guarantee free services.

We recommend that you keep the original packaging in order to ensure a safe transportation of the equipment.

Warranty repairs may be performed only by the E2 Servicecenter GmbH. or from their authorized subcontractors or partners.

For other repairs all warranty becomes null and void and no reimbursement is possible.

No warranty is provided for:

improper treatment

mechanical damage to the enclosure

damage during transport

wear and tear

for improper and inappropriate use

for installation of the device in damp rooms or outdoors

for damages caused by force majeure, wars, water, lightning, overvoltage and other cases for

which HOME ELECTRIC is not responsible

in case of excessive use, especially when other than private use

disregarding the instruction manual and installation errors

if the device has no technical defect

for transport and travel cost, as well as setting up and dismantling costs

The warranty does not cover any further liability on our part, particularly not for damages which are not on the device itself or those costs caused by the absence of the device until the return of the repaired or replaced appliance (e.g. transport costs, handling costs, etc.).

However, our legal liability, especially according to the Product Liability Act, is not limited or excluded.

Our repairs do not extend the warranty period of 3 years not even with regard to possibly exchanged Components.

Have fun with your new device and hope that your next product is again a HOME ELECTRIC product.
