Product Type	Bagless Cylinder Vacuum Cleaner
Model	Eco Power Cyclone BS 5562
Brand	MIA
Power Supply	220-240V~ 50/60Hz
Power Consumption	800W (1000W max)
Protection Class	II
Suction Power Control	Adjustable fingertip control on handle
Dust Container Type	Bagless, Cyclonic
Filtration System	HEPA filter, motor filter (sponge foam), air filter
Included Attachments	Floor brush, carpet brush, turbo roller brush, hardfloor brush, crevice nozzle
Telescopic Tube	Yes, adjustable length
Flexible Hose	Yes, with click tie-in
Cord Rewind	Yes, with button
Warranty	24 months
Intended Use	Dry household dust and dirt only
Motor Filter	Sponge foam, inside dust box
Air Filter	Located in left wheel, dry clean only
Accessory Storage	Under dust container for crevice nozzle
Turbo Roller Brush	For carpets and thick floorings

Frequently Asked Questions - Eco Power Cyclone BS 5562 MIA

How do I assemble the vacuum cleaner?

Insert the flexible hose into the terminal with click tie-in. Attach the telescopic tube to the hose handle, then adjust its length by pressing the button. Fit the desired floor brush or nozzle to the tube. Ensure all parts click firmly.

How do I adjust the suction power?

The suction power can be adjusted via the fingertip control on the handle. Slide it to change between minimum and maximum suction. The default setting is Max.

How do I clean the filters?

First, switch off and unplug the vacuum. Remove the dust box and open the filter lid. Take out the dust separation system and filters. Rinse them in lukewarm water (no detergents) and let them dry completely before reassembling. Do not use a washing machine or hairdryer.

How often should I replace the HEPA filter?

Clean the HEPA filter after every second or third use, or more frequently if visibly blocked. Replace it when cleaning no longer restores performance, typically every 6-12 months depending on usage.

What should I do if the vacuum loses suction?

Check if the dust box is full and empty it. Inspect the hose and tube for blockages. Ensure the filters are clean. If using suction control, make sure it is not set to minimum. If issue persists, clean the filters thoroughly.

Can I use the vacuum to pick up liquids?

No, this vacuum is designed for dry household dust only. Never use it to pick up liquids, as it poses a risk of electric shock and can damage the appliance.

How do I empty the dust box?

Press the dust box release button to remove it. Hold it over a trash bin and press the bottom release button to open. Empty contents, wipe with a soft cloth if needed, and close tightly before reinserting.

How do I rewind the power cord?

Press the cord rewind button on the vacuum while holding the plug. Guide the cord hand-over-hand to prevent whipping. Ensure the cord is fully extended before rewinding to avoid damage.

What is the warranty period?

The vacuum comes with a 24-month warranty from the date of purchase. Retain your receipt. Warranty covers material or manufacturing defects, but not wear parts, misuse, or unauthorized repairs.

Can I use an extension cord?

The manual advises not to use cord extensions. Ensure the cord is fully unwound before use. If you must use an extension, it should be of adequate rating and fully unwound to avoid overheating.

USER MANUAL Eco Power Cyclone BS 5562 MIA

Black and white photo of a vacuum cleaner with coiled tubing and a handle (no visible text or symbols)

„ECO POWER CYCLONE“

D BEUTELLOSER BODENSTAUBSAUGER

Close-up of a black vacuum cleaner with handle and control panel (no visible text or symbols)

Important safeguards.... 11

Scope of delivery.... 13

Before the first use.... 13

Special notes for use.... 13

Prepare for use.... 14

How to use.... 14

Cleaning and maintenance.... 15

Troubleshooting.... 17

Technical data.... 17

Disposal.... 17

Warranty Claims.... 17

Important safeguards

Please read this instruction manual carefully before use and keep in a safe place for future reference. Please keep also the warranty card, your receipt and if possible the original packing for later use. If you give the appliance to another person, also supply with the instruction manual.

Intended use: This appliance is suited for vacuum cleaning normal dry household dust and dirt on dry surfaces only. Only use the appliance for domestic purpose - the appliance is not suited for commercial use. Only use the appliance in the way indicated in this instruction manual. Each different use or change of the appliance is considered to be not intended and can cause risk of accident! To avoid damage or danger by improper use, this instruction manual should be followed carefully. The manufacturer shall not be liable for damage or accidents caused by ignoring the safety instructions or instruction manual or caused by improper use.

• Before first use ensure that your mains voltage corresponds to that stated on the rating plate of the appliance.
• Connect this appliance to a plug which is wired according to the regulations (220-240 V\~ AC).
• Run the cord in a way that nobody can stumble over it or pull on it to avoid accidents.
  • Take care that the cord never comes into contact with sharp edges and hot objects.
  • Take care that the cord never comes into contact with moisture
• Additional protection may be obtained by fitting a residual current device that must not exceed 30 mA (IF < 30mA,) into your home installation. Please consult a qualified electrician.

• Caution! An electric appliance is no toy! Never leave the appliance unsupervised when in use. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Explain to your children all risks which can be caused by electric current:

- Danger caused by moving, rotating or hot parts of the appliance

- Danger caused by strong suction

- Danger caused by electric current (electric shock, short circuit, fire danger)

• Keep the appliance at any time out of reach of children or persons who can not handle electric appliances properly.
• Do not leave packaging components (plastic bags, cardboard, polystyrene, etc.) within the reach of children, as it could be dangerous - danger of suffocation!

- Caution risk of electric shock! Appliance, cord and plug should never get into contact with water or any other liquids to avoid the risk of electric shock:

• never immerse the appliance, the cord or the plug in water or any other liquid for any reason whatsoever
• do not use the appliance near sinks, swimming pools or other objects filled with water, to avoid danger of falling in
• if the appliance has got wet or fallen into liquid, immediately pull the plug! Do not use the appliance any more but give it to an authorized service person
• the cord should never get wet or get in contact with moisture or humid objects
• never touch the appliance with wet hands or standing on wet ground
• never place the appliance on wet ground
• never use the appliance outdoors, it is not suited for outdoor use. Moisture and effects of the weather cause damage to electric appliances

- Warning! As long as the unit is plugged electric current is present even if the appliance is switched off! Always switch off the unit and unplug after each use.

- Caution! Always unplug the appliance

• after each use
• when malfunctioning during use
• when assembling the appliance or removing or refitting parts (e.g. dust container)

• before cleaning accessories or the appliance

• To unplug only pull the plug only, never pull on the cord to avoid damage.

• Never move the appliance by pulling the cord.
• Make sure the cord cannot get caught in any way. This can avoid accidents of stumbling or falling down.
• Do not wind the cord around the appliance and do not bend it.
• From time to time check if the cord is damaged. In this case or if the appliance is damaged it must not be used any more.

- Caution! Do not operate any appliance if:

• power cord is damaged
• in case of malfunction or if it has been dropped or damaged in any manner. Special tools are required to repair the appliance. In any case ask a (*) competent qualified electrician to check and repair it

- Should the cord be damaged, it must be replaced by a competent qualified electrician (*) to avoid any danger caused by electric current.

(*)Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger.

Scope of delivery

• Vacuum cleaner
• Telescopic tube
• Flexible hose
• Dust box with filter system
  • Floor and carpet brush
• Turbo roller brush
• Hardfloor brush
• Small nozzle
• Air filter
• Instruction manual

Before the first use

• Remove all packaging material such as carton, foil etc.
• Ensure that all parts and filters are assembled correctly and completely.
• Unroll the cord before use to avoid overheating by leaving the cord inside of the unit.

Special notes for use

Caution! The nozzles and suction tube may not come close to the head during operation. Danger of injury by strong suction!

Caution! Risk of accidents! Extreme caution is necessary while vacuuming on stairs!

Caution! Danger! Never use the cleaner to pick up liquids, harmful or sharp objects, nails, pins or any other abrasives. Never use the cleaner to pick up inflammable, explosive or burning material, incandescent ash, and cigarettes as this can cause damage to the unit, fire danger or explosion.

Never use the cleaner to pick up dust, cement, cool ash, sawdust or metal dust fine powder, or toxic dust. It may block the filter and damage the engine, can cause danger to health and invalidate the warranty.

Do not expose the unit to any source of heat, long-lasting temperature over 50^ C and keep it away from open fire to avoid fire and explosion!

• Never leave the appliance unattended during operation.
• Use the appliance in private household only. This item is designed for use for usual household dust and dirt only.
• Note: Never use the appliance outdoors and always place it in a dry environment.
• The appliance is not suited for outside use. Moisture can damage the appliance.
• Do not use this appliance for other purpose as for manual vacuum cleaning.
• Don't use the appliance if dust container and all filters are not in the proper position, damaged, worn or missing.
• It must not be used on people or animals to avoid risk of injury.
• Make sure that the air inlet- and outlet-openings are not clogged with dust, fluff, hair, etc. to avoid overheating and less suction.

• Don't place heavy objects onto the cord or the flexible hose, don't walk on or tread on the power cord and the flexible hose.

• Do not fold the cord or wind it round the unit to avoid damage.

• Don't remove the dust container while the appliance is working, it's very dangerous.
• Do not hold the appliance by its cord. Do not use cord extensions.
• Never use without filter or with a damaged filter.
• Ensure that the cord does not touch hot elements or sharp objects nearby.
• Only use original accessories to avoid damage of the unit and risk of injury for the user. Don't use parts or filters of this appliance for other purpose.
• Keep the device and the cord always away from heat, direct sunlight, moisture, sharp edges and suchlike dangers.
• Be careful when you carry the appliance by the handle of dust container. Ensure that the dust container is firmly attached to the vacuum cleaner before you carry it.
• Switch off and unplug the device whenever you are not using it, even for a short moment.
• Don't store or use the appliance in wet places.

Prepare for use

• Caution! Before use ensure that the appliance is completely and correctly assembled. Never use the appliance when dust container, all parts and all filters are not in proper position.
• Caution! Never leave the appliance unattended during operation.
  • Take out the appliance from the box and remove its internal and external packaging.
• Open the lid to check if dust box, air filter and motor filter are inside of the unit. Check if everything is in proper position and the unit is assembled correctly. After check close the lid.
• Insert the flexible tube in the terminal with click tie-in of the flexible hose.
• Stretch out the telescopic tube as long as you need by pushing the button in the end of the tube and pulling out at the same time to stretch or pushing to shorten it. Then just release the button again to fix the desired length in position. Ensure that it is properly and firmly fixed.
• Insert the handle with suction power control at the other side of the telescopic tube.
• Fit the floor brush, small nozzle or upholstery brush to the other end of the telescopic tube.
• Unwind all the cord completely and plug in.
• Caution! Check the cable while rewinding it. Rewinding the cable too fast may damage things or people.
• To remove the terminal with click tie-in of the flexible hose from the flexible hose tie-in, press and hold the button on the terminal with click tie-in.
  • After use, please empty the dust box.
• Keep perfect suction power by cleaning the filters after each use: main filter and air filter.

How to use

Power switch

- After connecting to the electrical outlet, press the on/off button to turn on or turn off the vacuum cleaner.

Suction control

- The suction control is set to Max and does not require adjustment. (Optional: Adjustable suction-power control allows you to adjust the suction power by changing the position of the fingertip control on the handle.)

Floor brush

- Attach it to the suction tube by pushing. Use it for daily care of carpets and hard floors. The floor nozzle is manually adjustable. Extended brushes for smooth floors, retracted brushes for carpets.

Turbo roller brush

- The turbo roller brush is suitable for carpets and thicker or higher floorings.

Crevice Nozzle

- For vacuuming in those normally inaccessible places i.e. reaching cobwebs or down the side of a sofa, radiators etc.

Accessory holder

- The accessory holder is situated underneath the dust-container and holds the crevice nozzle.

Motor filter

- The motor filter is inside the dust container (sponge foam).

Air filter

- The air filter is in the left wheel. It does not require extra care.

After vacuum cleaning:

- After each use always switch off the appliance and disconnect the plug from the socket. Rewind the cable by pressing the rewind-button. Note: check the cable while rewinding it. Rewinding the cable too fast may damage objects or people.

Cleaning and maintenance

Caution Danger of electric shock! Before cleaning, changing accessories or dust bags or when carrying the unit always switch OFF and unplug the appliance! Never immerse the appliance or its cord into water or any other liquids. Ensure that the unit never comes into contact with water. Dry clean the filters or clean them with cold water if necessary. Don't use any other liquids. Let filters dry completely before re-installing them.

• It is recommended to clean the filters each time you use them to allow maximum suction power.
• Don't use the appliance if the filters are damaged, worn or missing.
• Never use inflammable or corrosive liquids, which could seriously damage the appliance, things or cause risks and injury to people.
• Please check that there is no object in the tubes.
• Store the appliance in a dry and clean place.

How to empty the dust box:

• Remove the dust box by pushing the dust box releasing button.
  Remove it gently to avoid damage by tilting.
• Hold the dust box over a dust bin to empty. Press the release button of the dust box to open. If necessary wipe the dust box with a soft cloth.
• Please be sure to close the bottom tightly before using the appliance again.

Close-up of a black vacuum cleaner with attached hose and handle (no visible text or symbols)

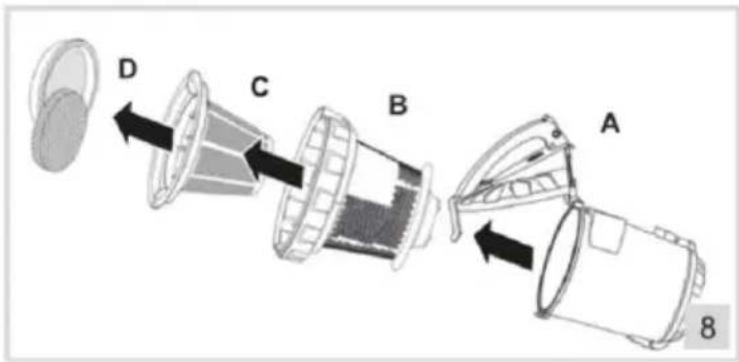

How to clean the filters:

For best results clean or replace the HEPA filter after every second or third use of the vacuum cleaner, or more frequently if the filter is visibly blocked.

Clean the filter regularly to avoid that the filter becomes clogged and the engine overheated.

• 1. Remove the waste from the dust receptacle.
• 2. Open the filter lid. (A)
• 3. Take the dust separation system from the dust container (B+C).
• 4. Take the filters from the dust separation system (D).
• 5. Rinse all filters and the dust separation system thoroughly in lukewarm water.
• 6. Allow the filters to dry thoroughly.
• 7. Mount the holders and filters in the reverse sequence.

Please note: Do not lock the second filter (C) to the dust receptacle. This happens automatically when you place back and lock the lid (A).

Ensure that all parts are completely dry and assembled before using the appliance again. Water could penetrate into the appliance if the filter is not thoroughly dry. This could result in damage. Do not clean the filter in a washing machine. Do not dry the filter with a hairdryer.

How to clean the motor filter:

- The motor filter is inside the dust box, it is the sponge foam layer. Take the motor filter off and shake it to remove dust or use a soft brush to clean.

How to clean the air filter:

• Open the cover grid of the left wheels by turning it..
• Shake and beat it slightly to remove dust or use a soft brush to clean.

How to clean the appliance:

- Clean only with a dry or slightly damp cloth or neutral detergent. Don't make wet the vacuum cleaner. From time to time, the floor brush and all nozzles must be cleaned from longer hair or lint that might block.

Troubleshooting

Defect	Reason	How to repair
Vacuum cleaner does not operate	Item is switched offItem is not connected to the mains outlet	set switch to ONconnect the plug to the mains socket
No or less suction power	Dust box is fullHose is blocked by a large objectsuction control is on minimum position	empty itdisconnect and cleanclean filterput suction control to maximum position

Technical data

220-240V\~50/60Hz 800w (1000w max.) protection class II

This appliance is tested according to GS and corresponds to CE directives.

Disposal

Please observe the environment!

Dispose the packaging according to the local garbage regulations.

Dispose paper and carton separately from plastic bags into the corresponding containers If at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Dispose the appliance at the end of its lifespan according to environmental considerations.

(Waste Electrical and Electronical Equipment Directive)

Warranty claims

The guarantee period for this appliance is 24 months. The guarantee starts from the date of purchase (cash receipt). In case of malfunction you may send the appliance to your dealer, please add information about the malfunction and the original purchase receipt (which is obligatory for a repair free of charge)

Within the guarantee period we repair defects of the appliance, which are based on material or manufacturing faults, in our choice by repair or exchange. These obligations do not extend the period of guarantee. No claim on a new period of guarantee results from it.

An exact description of the complaint reduces the processing time.

We apologise for any inconvenience, that any claims of good-will are excluded:

• after expiry of the lifetime due to the construction and especially for batteries, accumulators, electric lamps etc.

• for consumption accessories and wear parts such as driving belts, motor coals, tooth brushes, grinding attachments, dough hooks, beaters, mixer attachments, round cutters etc.

• in case of breakage, as e.g. glass, porcelain or plastic

• in case of damages in transport, misuse, as well as
• in case of lack of care, cleaning and maintenance and in case of non observance of operation or mounting instructions
• in case of chemical and/or electrochemical effects
• in case of operation with wrong type of current respectively voltage and in case of connecting to unsuitable power sources
• in case of abnormal environmental conditions and in case of strange operation conditions
• as well as then, if repairs or illegal abortions are made by persons, who are not authorised by us or
• if our appliances are equipped with spare parts, supplementary parts or accessories, which are not original parts or
• if contact with unsuitable material have caused the damage

Subject to technical alterations

Importer:
