USER MANUAL Multi Chopper 2 in 1 MC 1190 MIA

Important safeguards 9
Short term operation 11
Scope of delivery 11
Before the first use 11
Parts 11
How to use the multi chopper 11
Cleaning and storing. 12
Technical data 12
Disposal 13
Warranty claims 13

Important safeguards

To avoid damage or danger by improper use, this instruction manual should be followed and carefully kept. The manufacturer is not liable for any damages or accidents caused by not following the safeguards and instructions. If you give the appliance to another person, also supply them with the instruction manual.

Intended use: This appliance is suited for chopping and grinding pieces of dry food. It is NOT intended for liquid or hot food. This appliance is intended for domestic use only, not for commercial use. To avoid all danger and risk of injury relating to electric appliances, this appliance has to be used in the way indicated in this instruction manual and the safeguards. In case of improper use the manufacturer assumes no liability.

• Before first use ensure that your mains voltage corresponds to that stated on the rating plate of the appliance. Connect this appliance to a plug which is wired according to the regulations (220-240V~ AC).

• This appliance is forbidden to be operated by separate timer or separate remote device. This could cause fire danger and the appliance is not suited for such use.
  If necessary use extension cord according to the regulations and corresponding to the appliance.
  Additional protection may be obtained by fitting an earth-leakage circuit-breaker (IF=30mA) into your home installation. Please consult a qualified electrician.

• Caution! An electric appliance is no toy! Never leave the appliance unsupervised when in use. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Explain to your children all risks which can be caused by electric current:

• Danger caused by rotating sharp blades and moving or sharp edged parts of the appliance
• Danger caused by electric current or heat development
• Keep the appliance at any time out of reach of children or persons who cannot handle electric appliances properly. Keep the cord at any time out of reach of children, they could pull at the cord and be hurt by falling down.
• Do not leave packaging components (plastic bags, cardboard, polystyrene, etc.) within the reach of children - danger of suffocation!

• Caution! Danger of electric shock! Appliance, cord and plug should never get into contact with water or any other liquids to avoid the risk of electric shock:

• never immerse the appliance, the cord or the plug in water or any other liquid for any reason whatsoever

• never use the appliance near a sink, or bathtub to avoid danger of falling into water
• never touch the appliance with wet hands or standing on a wet ground
• never place the appliance on wet ground
• never use the appliance outdoors, it is not suited for outdoor use

Caution! Fill the chopper attachments to "max" mark only. Never overfill to avoid overflow and splashing.

Caution risk of damage! The appliance is not intended for liquid food, or food which contains liquid. Liquid could overflow and cause damage to the appliance. The appliance is not suited for hot food or hot liquid. Never fill hot food or hot liquid to avoid scalding, damage or deforming of the appliance.

Caution! Risk of injury! Always unplug whenever emptying or cleaning the appliance. Do not touch the blade to avoid risk of injury. For safety reason, the blades are not suited to remove from the appliance.

• Use accessories delivered with this appliance only! Never use accessories which are not provided by the producer. Otherwise this could constitute danger of injury to the user and risk of damaging the appliance.
• Never use the appliance outside and always place it in a dry environment to avoid damage of the electric parts.

Always switch off and unplug the appliance when not in use.

Do not operate any appliance if:

• power cord is damaged
• the blades are damaged or incomplete.

• in case of malfunction or if it has been dropped or damaged in any manner. Special tools are required to repair the appliance. In any case ask a () competent qualified electrician to check and repair it.

• Run the cable in a way that nobody can stumble over it or pull on it.

• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Take care that the cable never comes into contact with sharp edges and hot objects.
• To avoid any danger of electric shock, short circuit or risk of injury, always switch off electric appliances after each use and unplug. As well if malfunctioning or in order to change or remove accessories.

Unplug the appliance

• after each use
• when the appliance is not in use

• before changing accessories or cleaning the appliance

• To unplug only pull the plug, never pull on the cord to avoid damage.

• From time to time check if the cord is damaged. In this case or if the appliance is damaged it must not be used any more.

• Should the cord be damaged, it must be replaced by a competent qualified electrician(*) to avoid any danger caused by electric current.

(*)Competent qualified electrician: after sales department of the producer or importer or a person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger.

Short term operation

This appliance is intended for short term operation. Keep intervals of 30 seconds of chopping maximum. After 30 seconds of operation let it cool down for 1 minute minimum to avoid overheating. Otherwise the motor could be damaged. After three times of operation in sequence stop and let the motor cool down for 30 minutes.

Scope of delivery

• Motor unit
• Lid (splash protection)
• Chopper attachment
• Grinding attachment
• Instruction manual

Before the first use

Before the first use remove all packaging including the blade cover (if exists).

When using for the first time clean all the attachments of the appliance with a damp cloth.

When using for the first time little smell might occur. This is harmless and disappears after a while.

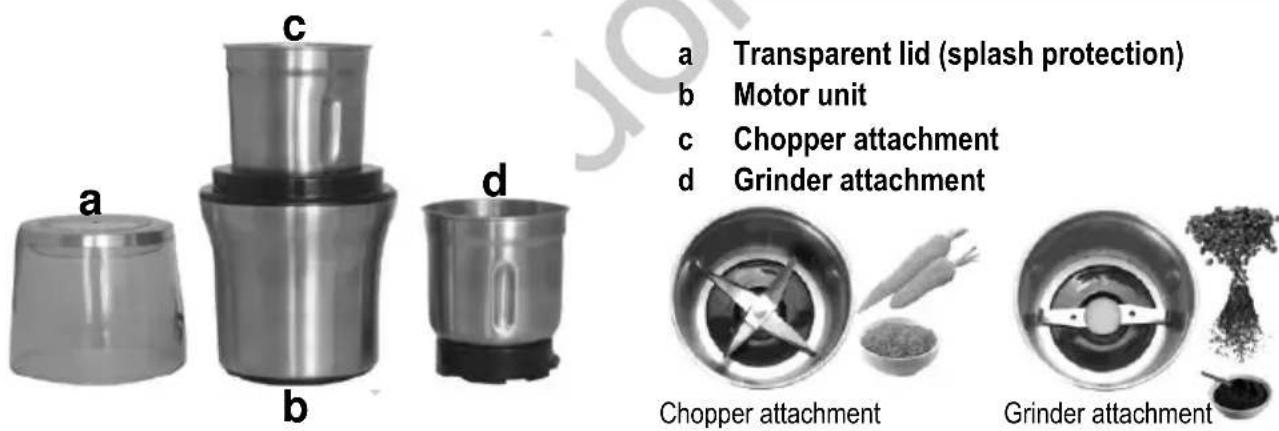

Parts

How to use the multi chopper

Caution risk of injury! The blade is very sharp! Keep your fingers, hair and cloth away from the sharp blades! Do not touch the blades while cleaning or removing it.

Caution risk of damage! The appliance is not intended for liquid food, or food which contains liquid. Liquid could overflow and cause damage to the appliance. The appliance is not suited for hot food or hot liquid. Never fill hot food or hot liquid to avoid scalding, damage or deforming of the appliance.

Caution! Always fill the mixing bowl to the "max" mark only to avoid splashing and overflowing! After each use always unplug!

The appliance is equipped with two different attachments. The chopper attachment and the grinder attachment, each with integrated blade. To chop or mix food like carrot, mushroom, pieces of dry vegetables, parsley leaves or other, use the chopper attachment.

• To grind coffee beans, spices, or dry herbs into powder, use the grinder attachment.

• Do not use very hard food as frozen food, old bread or uneatable parts of food like gristles or stones. Such misuse will damage your appliance.

• Please note the rating time: 30 seconds ON, then 1 minute OFF to allow the motor to cool down. Otherwise the motor could overheat.

• Please note that big pieces of food must be cut into small pieces (size around 1,5cm ).

• Don't fill the mixing bowl more than half to avoid splashes and overflow.

• Never blend hot liquid and food with the appliance, to avoid risk of scalding and electric shock!

Mounting

To assemble the desired attachment, attach it onto the motor unit and turn it in clockwise direction till it is engaged. Then fill your food to be chopped. Do not fill the mixing bowl more than half to avoid overflow. The transparent lid (splash protection) can be put on top in each position.

Operation

Plug in. To switch on press down the transparent lid. This will deactivate the micro safety switch and the motor will start operation.
- Hold the appliance steady. Please note the short term operation of 30 seconds of operation and 1 minute resting (see chapter "Short term operation" also).

Tip

If your chopper attachment gets blocked, always unplug before removing the blocking object. If the blade is getting slowly or does not rotate any more, the pieces of food are too big or not suited for chopping. Carefully remove the food. Also the mixture might be too dry. In this case add few water, oil or milk.
After use and before cleaning always unplug and dismantle.

Cleaning and storing

Caution danger of injury! The blades are very sharp! Do not touch the blades while cleaning to avoid injury! For safety reason, the blades are not suited for removing them.

Caution! Danger of electrical shock! Before cleaning and removing parts, switch off the electric appliance and always remove the plug from the mains. Never immerse the appliance into water. The connector parts must not get wet. Contact of electrical parts with moisture can cause electric shock or short circuit and damage.

• Do not use sharp detergents or metallic, abrasive objects to clean the unit as the surface of the unit or accessories might get damaged.
  If necessary just wipe the motor unit with a dry cloth. The motor unit and the power plug may not get into contact with water or any other liquids.
• Remove the lid and the chopper or grinder attachment. Clean this parts in warm water with a drop of dishwashing liquid.
• Never put the appliance or the accessories into a dishwashing machine to avoid damage.
• Store the unit in a dry safe place, not reachable for children.

Technical data

220-240V~ 50/60Hz 200W, protection class II

This appliance is tested according to GS regulations and is built to CE directives.

Short term operation 30 seconds operation, 1 minute cool down.

Disposal

Notice for environmental: If at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. The symbol (crossed dust bin, on the right) on the packing is indicating it.

Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

Warranty claims

The guarantee period for this appliance is 24 months. The guarantee starts from the date of purchase (cash receipt). In case of malfunction you may send the appliance add to your dealer, information about the malfunction and the original purchase receipt (which is obligatory for a repair free of charge)

Within the guarantee period we repair defects of the appliance, which are based on material or manufacturing faults, in our choice by repair or exchange. These obligations do not extend the period of guarantee. No claim on a new period of guarantee results from it.

An exact description of the complaint reduces the processing time.

We apologise for any inconvenience, that any claims of good-will are excluded:

after expiry of the lifetime due to the construction and especially for batteries, accumulators, electric lamps etc.

for consumption accessories and wear parts such as driving belts, motor coals, tooth brushes, grinding attachments, dough hooks, beaters, mixer attachments, round cutters etc.

in case of breakage, as e.g. glass, porcelain or plastic

in case of damages in transport, misuse, as well as

in case of lack of care, cleaning and maintenance and in case of non observance of operation or mounting instructions

in case of chemical and/or electrochemical effects

in case of operation with wrong type of current respectively voltage and in case of connecting to unsuitable power sources

in case of abnormal environmental conditions and in case of strange operation conditions

as well as then, if repairs or illegal abortions are made by persons, who are not authorised by us or if our appliances are equipped with spare parts, supplementary parts or accessories, which are not original parts or

if contact with unsuitable material have caused the damage

Subject to technical alterations

Version 03/2014
