Krokkante - Deep fryer JOHNSON - Free user manual and instructions
Find the device manual for free Krokkante JOHNSON in PDF.
| Product Type | Deep Fryer |
| Brand | Johnson |
| Model | Krokkante |
| Power Supply | 220-240 V~ 50/60 Hz |
| Power Consumption | 1200 W |
| Oil Capacity | 2 L (between MIN and MAX marks) |
| Dimensions (approx) | 30 x 25 x 25 cm (L x W x H) |
| Weight (approx) | 3 kg |
| Temperature Control | Adjustable knob with thermostat, working and thermostat indicator lights |
| Cover | Removable with release button, includes filter and filter cover |
| Basket | Removable with handle, hook for draining on side of oil container |
| Safety Features | Cool-touch handles, auto-off when knob turned to OFF, short-circuit protection, electrical safety |
| Cleaning | Wash basket and handle with hot water and dish soap; wipe body with damp cloth; do not immerse body or cord |
| Oil Requirements | Use good quality vegetable, corn, or light olive oil; do not mix oils; replace when dark or dense |
| Cooking Guide | Included for prawns, onions, mushrooms, fish, meat, chicken, chips with recommended temperatures and times |
| Warranty | 3 years from date of purchase with proof |
| Target Audience | Household use only |
Frequently Asked Questions - Krokkante JOHNSON
User questions about Krokkante JOHNSON
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Deep fryer in PDF format for free! Find your manual Krokkante - JOHNSON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Krokkante by JOHNSON.
USER MANUAL Krokkante JOHNSON
220-240 V\~ 50/60 Hz
1200 W 2 Lt
AVVERTENZE GENERALI
Carefully read the requirements in this manual an keep in a safe place. It contains important instructions on the safety, use and future of your appliance.
This appliance is only for domestic use and must only to be used for the purpose it was specifically designed.
Any other use is considered improper and dangerous.
The manufacturer cannot be held responsible for any damages caused by improper, incorrect and negligent use.
The installation must be carried out according to the manufacturer's instructions.
The manufacturer shall not be held responsible for any damages to people, animals or objects caused by incorrect installation.
The safety of the electrical equipment is only guaranteed if it is connected to an electrical installation equipped with a suitable earthing system in compliance with the current standards on electrical safety.
Do not leave parts of packaging (plastic bags, foam polystyrene, nails, etc) within reach of children or incapacitated people since they are potential sources of danger.
Before connecting the appliance, check that the technical data on the rating label corresponds to those of the main electricity network.
In case of incompatibility between the outlet and the plug, contact a qualified electrician for the necessary adjustments.
Do not use adaptors, multiple plugs and extension leads.
However, if absolutely necessary only use materials that conform to the current safety standards and that are compatible with the appliance and the main electricity network.
On using the appliance for the first time, remove any labels or protective sheets.
If the appliance is equipped with air inlets, make sure they are never blocked not even partially.
The use of any electrical appliance involves the observance of some fundamental rules.
In particular:
Do not immerge the appliance in water and do not wet; do not use it near water, in the tub, washbasin or near other recipients with liquids. If the appliance should accidentally fall in water, DO NOT try to touch it but immediately disconnect the plug from the mains power.
Then bring it to an authorised service centre for the necessary controls.
During use, the appliance must be kept away from any inflammable objects or substances or explosives.
Do not touch the appliance with wet hands or feet.
Do not use the appliance with bare feet.
Do not pull on the power cord or on the appliance itself to disconnect the plug from the power outlet.
Do not leave the appliance exposed to atmospheric agents (sun, rain...).
Keep the appliance out of reach of children or incapacitated people and do not let them use it. Disconnect the plug from the power outlet when the appliance is not being used and before carrying out any cleaning or maintenance. The power cord must be completely unwound to prevent it from overheating.
The power cord must be kept away from heat sources and/or sharp edges.
If power cord is damaged, have it replaced by qualified personnel.
Switch off and contact a qualified technician if the appliance should breakdown and/or not function properly.
Any tampering or interventions executed by unqualified people will cancel the guarantee.
Use a soft and non-abrasive cloth to clean the appliance.
When the appliance is unserviceable and must be eliminated, remove its cords and dispose of it at an authorised disposal centre in order to protect the environment.
- This appliance can be used by children over 8 years of age, people with reduced physical, sensory or mental abilities or with no experience or know-how if they are ensured adequate supervision or have received instructions on safe use of the appliance and have understood the related dangers.
• Children cannot play with the appliance.
- Cleaning and maintenance operations must not be carried out by children unless they are over 8 years of age and supervised.
• Always keep the appliance and its cable out of reach of children under 8 years of age.
- This appliance is not intended for use with an external timer or with a separate remote control system.
- If there are glass parts in the product, these are not covered by guarantee.
ATTENTION:
The plastic parts of the product are not covered by guarantee.
ATTENTION:
The damages of the electrical power supply cable, resulting from wear are not covered by guarantee; any repair shall therefore be at the charge of the owner.
ATTENTION:
Should it become necessary to take or ship the equipment to the authorised service centre, it is recommended to clean it carefully in all its parts.
Should the equipment be even slightly dirty or with incrustations or have limestone, dust or other deposits, externally or internally, for hygienic-sanitary reasons the service centre will reject it without viewing it.
The symbol — on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
SAFETY REQUIREMENTS
- Do not touch the hot surfaces but use the handles or knobs.
- Do not immerse the cord, plug or body of the appliance in water or other liquids.
- The use of accessories not recommended by the manufacturer can cause damage.
- Do not let the power cord hang from the bench top and do not let it come into contact with hot surfaces.
- Do not place near heat sources or gas cookers.
- Do not place oversized food in the basket.
- Do not clean with steel wool that, besides ruining the surfaces could also damage the coating, which may lead to contact with electrical parts and cause electric shocks.
- Do not place other objects in the ap-ghly. pliance, other than its basket.
- The appliance is only for domestic use
- Close supervision is necessary when the fryer is in use or when the oil is hot.
- Allow the fryer to cool completely before inserting or removing parts and cleaning.
- Do not place dishcloths or other objects on the fryer while it is in operation.
- Do not place the fryer on a plastic surface or surfaces made of other inflammable materials.
- Do not move the fryer while it is in operation or when the oil is still hot.

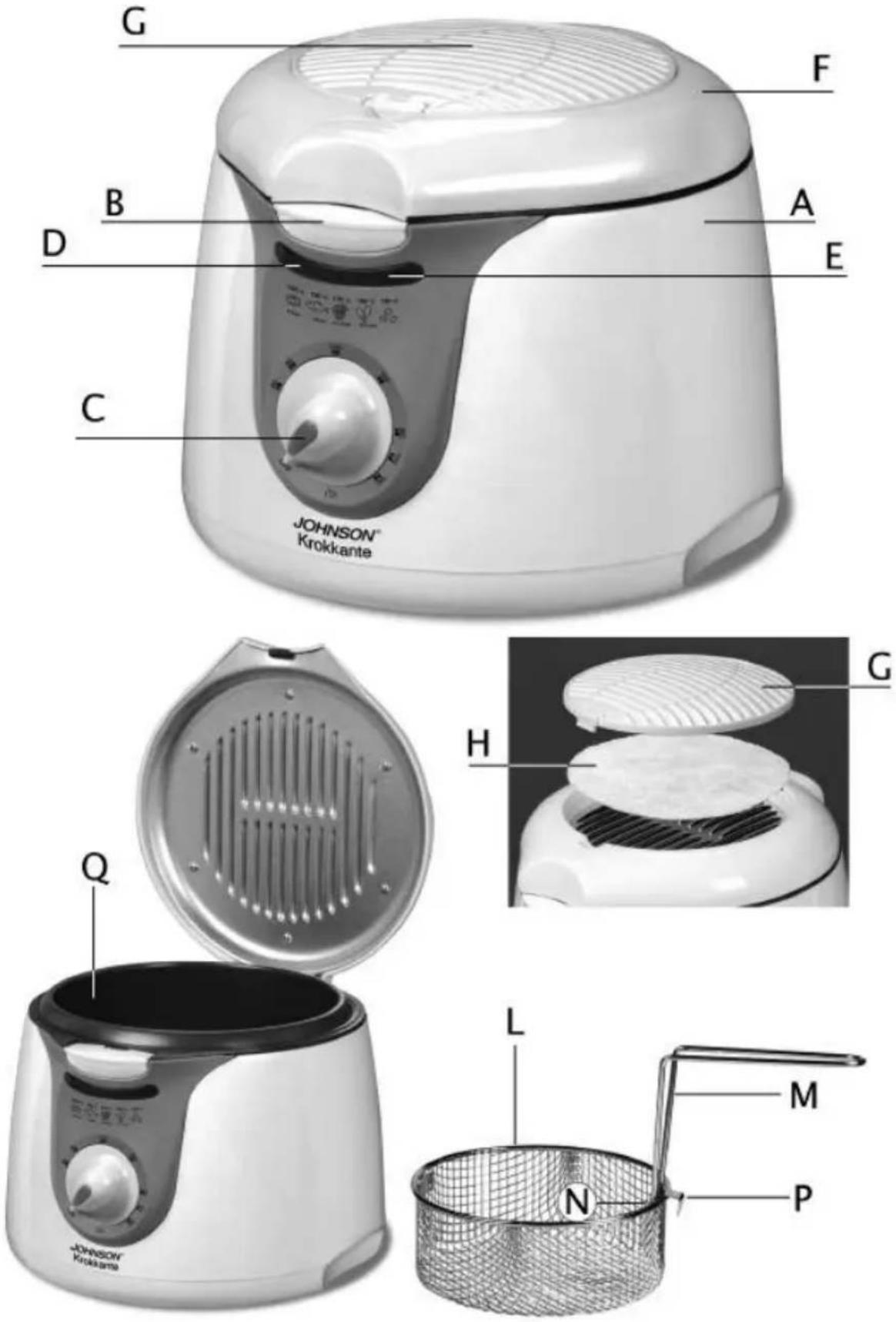

Description:
A. Appliance body
B. Cover release button
C. ON and temperature control knob
D. Working indicator light
E. Thermostat light indicator
F. Cover
G. Filter cover
H. Filter
L. Basket
M. Basket handle
N. Handle seat basket
P. Basket hook
Q. Oil container
Instructions before first use
Open the packaging remove carefully the appliance and remove all the parts of the packaging and protective sheets.
With the plug disconnected from the power point and the ON/temperature control knob (C) in the OFF position.
Disassemble all the parts of the appliance to clean it.
Press the button (B) to open the cover and remove the basket (L), the handle (M) and all in the container (Q).
Basket (L) and handle (M) cleaning
Wash with hot water and a small amount of dishwashing liquid.
Rinse with plenty of water and dry thorou-
Cleaning the oil container (Q):
Clean with a soft cloth, damp and not abrasive and dry carefully.
Cleaning the appliance body (A)
Clean the outside with a soft cloth. Do not use steel wool or chemical detergents.
Note: do not immerse the body and power cord of the fryer in any liquid.
Thoroughly dry the fryer and its parts before the use.
Food preparation
To an excellent frying, clean and cut the food to fry into pieces of equal size and place them in the basket (H).
Note: do not overfill the basket (Refer to the COOKING GUIDE)
The food must be dry. Do not add water or wet food into the hot oil (the water will make the oil spatter).
To fry chips, cut into even pieces and wash it in cold water to remove the starch (this prevents them from sticking) and then dry it carefully before put into the fryer.
To fry frozen foods, remove the ice and thaw well previously.
INSTRUCTIONS FOR USE
Frying foods Place the appliance over a firm surface, with heat resistant surfaces and away from fabrics or inflammable materials and water.
With the plug disconnected from the power outlet, make sure the ON/temperature control knob (C) is in the OFF position.
Press the (B) button to open the cover. Pour the oil into the cold container (Q), until reach the level MIN and don't over the MAX mark, regarding the foods volume that will be fried.
Close the cover softly until it clicks into place.
Insert the plug into a compatible power point (the indicating light (D) will turn on).
Using the temperature ON/adjusting handle (C), set the required temperature to fry the foods referring to the COOKING GUIDE.
Turning the temperature ON/adjusting knob (C) will also light the thermostat indicator (E) and will switch off when is reached the required temperature. So wait that the indicator light switch off before to start.
Assemble the handle (M) on the basket (L). To do this is required to tighten the handle stems and insert it in place (N). Check that it is correctly inserted in seat before to lift it.
Put in the basket the food prepared previously (see the “Food preparation”).
Press the (B) button to open the cover.
Lightly insert the basket with the food into the hot oil of the container (Q) and place it in bottom.
Pay attention to DON'T touch the oil container (Q) parts and possible/accidental oil splash.
Press to approximate the handle stems to remove it from the basket.
Close the cover lightly until it clicks into place.
Fry the food for the appropriate time (Refer to the COOKING GUIDE).
When cooked, turn on the ON/adjusting temperature knob (C) anticlockwise on OFF and remove the plug from the power point.
Press the (B) button to open the cover.
Place the handle (M) into the basket (L), tightening the handle stems and insert it into the seat (N). Check that it is correctly inserted in seat before to lift handle and
- basket.
Using the hook (P) hang up the basket on side of oil container (Q) and let the food oil to drip during 10–30 seconds.
Note: take care when opening the cover because steam produced during the frying will be released.
Retrieve the food from the basket and place it on a paper towel to remove any excess oil (do not touch the basket when it is still hot, always use the handle and a thermal insulating grip).
Transfer the food, without the paper towel, onto a clean plate.
Wait for the fryer to cool completely before moving it.
Practical advice
Only use good quality vegetable or corn oil, or light olive oil. Do not use oil that deteriorates quickly or lard. Do not mix different types of oil.
After some frying replace the oil or when it is dense or brown.
When frying different types of food, start with food that requires frying at a lower temperature, then move onto food that requires frying at a higher temperature. (Refer to the COOKING GUIDE)
When frying the same type of food a few times, wait 3–5 minutes between each fry. If the food is pre-cooked, is required a higher temperature and a lower cooking time in respect to uncooked food.
When frying chips insert slowly the basket into the oil, especially if using fresh or frozen chips (containing more water) otherwise the oil could overflow.
Never fill the basket more than halfway (1/4 to 1/2 is ideal), because the oil temperature may go below the optimal temperature and the frying will not be light and crunchy.
COOKING GUIDE
The frying times contained in this table are only indicative and must be adjusted according to the amount of fried food.
* Chips will be lighter and crunchier if fried twice.
Food Temperature Weight Cooking time
of oil (°) (grams) (Minutes)
| Prawns 130 | 250 | 3~5 | ||
| Onions 140 | 150 | 3~4 | ||
| Mushrooms | 140 | 300 | 6~8 | |
| Fish fillet | 150 | 250 | 5~6 | |
| Breaded fish fillet | 150 | 400 | 6~8 | |
| Fish balls and cakes | 150 | 400 | 6~8 | |
| Meat fillets | 170 | 400 | 7~10 | |
| Steak | 170 | 400 | 7~10 | |
| Chicken strips | 180 | 400 | 7~10 | |
| Chips (first time) | 190 | 500 | 10~12 | |
| Chips (second time) | 190 | - | 3~4 |
CLEANING after use
After use with the appliance completely cooled, the plug disconnected from the power point and the temperature control knob (C) on the OFF position:
press the (B) button to open the cover.
Note: be careful when carrying out this operation because the oil remains hot for a long time.
Pour lightly the cooled oil (Q) into a container to the waste oil correctly.
Remove the residue oil with the paper towel and with a soft cloth, damp and not abrasive, clean the container (Q).
Open the cover (G) and remove the filters to clean before to reassemble.
Wash the basket (L) and the handle (M) with hot water and a small amount of dishwashing liquid.
Rinse with plenty of water and dry thoroughly.
Clean the outside with a soft cloth. Do not use steel wool or chemical detergents.
Note: do not immerse the body and power cord of the fryer in any liquid.
Thoroughly dry the fryer and its parts before use.
GARANZIA
The duration of the warranty runs from the date of purchase of the appliance, proven by the retailers stamp, and terminates after the period specified, even if the appliance was not used. The warranty covers all replacements or repairs necessary due to material or manufacturing defects. The warranty expires when the appliance is tampered with or when the defect is due to improper use. Replacements or repairs provided during the warranty period are carried out free of charge for goods delivered to our support centres. The client must pay the transport expenses only. The parts or appliances replaced become our property.
