USER MANUAL Utile JOHNSON

White Johnson Little microwave oven with control knobs and a blank display (no visible text or symbols on the main body)

I Forno a microonde combinato con grill ISTRUZIONI D'USO
GB Combined electric oven microwave & grill INSTRUCTIONS FOR USE
Four électrique combiné micro-ondes & grill INSTRUCTIONS POUR L'UTILISATION
D Kombinierter elektrischer Backofen Mikrowelle & Grill BETRIEBSANLEITUNG

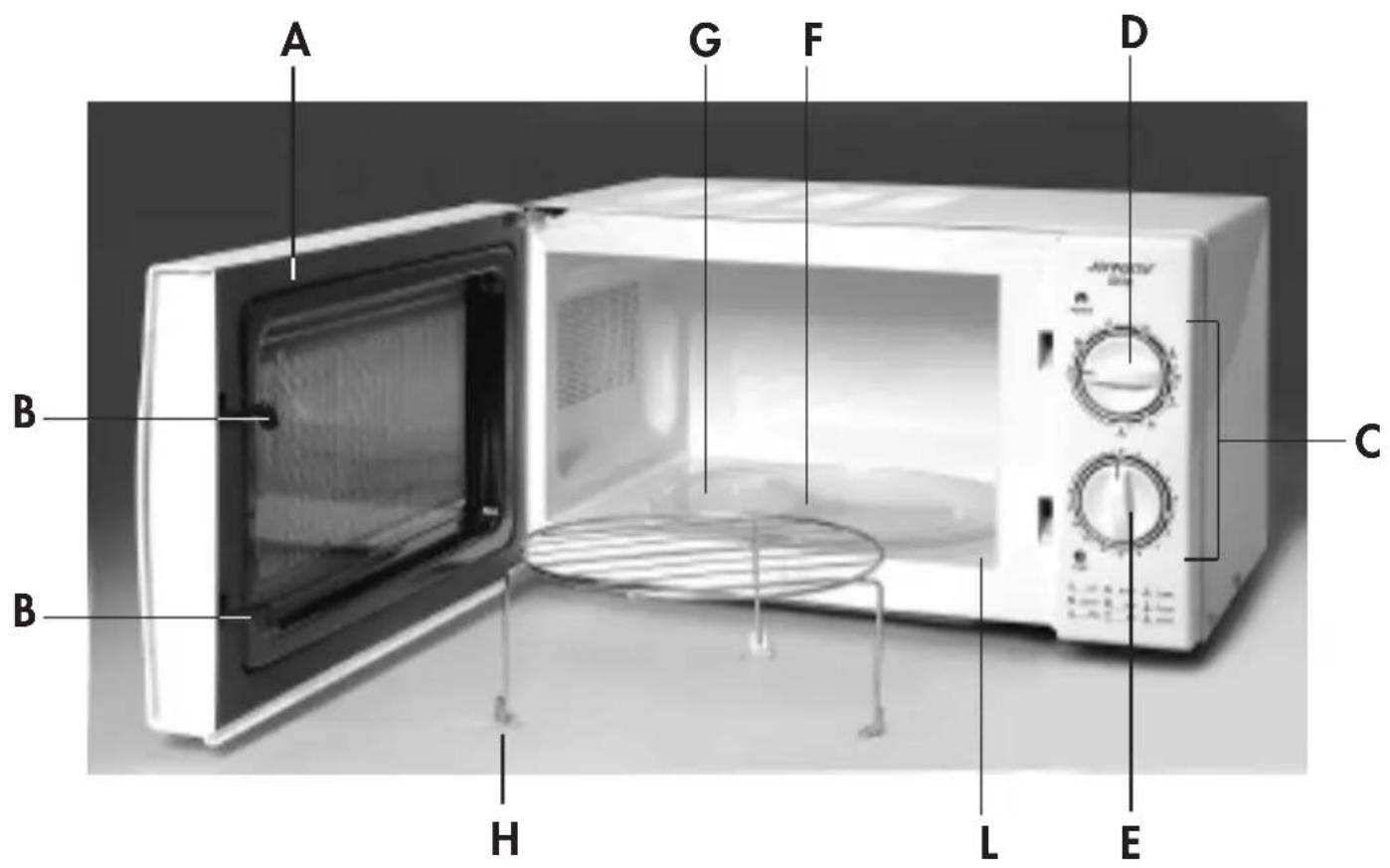

A G F D B C B H L E

230 V\~ 50/60 Hz 700+800 W 20 Lt.
RoHS CE

D3 D4 D2 D5 D1 D9 D6 D7 D8 D

E 0 1 2 3 4 5 6 7 8 9 10 15 20 25 30 TIME

AVVERTENZE GENERALI

Carefully read the requirements in this manual and keep in a safe place.

It contains important instructions on the safety, use and future of your appliance.

This appliance is only for domestic use and must only to be used for the purpose it was specifically designed: to cook food. Any other use is considered improper and dangerous.

The manufacturer cannot be held responsible for any damages caused by improper, incorrect and negligent use. The installation must be carried out according to the manufacturer's instructions. The manufacturer shall not be held responsible for any damages to people, animals or objects caused by incorrect installation. The safety of the electrical equipment is only guaranteed if it is connected to an electrical installation equipped with a suitable earthing system in compliance with the current standards on electrical safety. Do not leave parts of packaging (plastic bags, foam polystyrene, nails, etc) within reach of children or incapacitated people since they are potential sources of danger. Before connecting the appliance, check that the technical data on the rating label corresponds to those of the main electricity network.

In case of incompatibility between the outlet and the plug, contact a qualified electrician for the necessary adjustments.

Do not use adaptors, multiple plugs and extension leads.

However, if absolutely necessary only use materials that conform to the current safety standards and that are compatible with the appliance and the main electricity network.

On using the appliance for the first time, remove any labels or protective sheets. If the appliance is equipped with air inlets, make sure they are never blocked not even partially.

The use of any electrical appliance involves the observance of some fundamental rules. In particular:

Do not immerge the appliance in water and do not wet; do not use it near water, in the tub, washbasin or near other recipients with liquids. If the appliance should accidentally fall in water, DO NOT try to touch it but immediately disconnect the plug from the mains power.

Then bring it to an authorised service centre for the necessary controls.

During use, the appliance must be kept away from any inflammable objects or substances or explosives.

Do not touch the appliance with wet hands or feet.

Do not use the appliance with bare feet.

Do not pull on the power cord or on the appliance itself to disconnect the plug from the power outlet.

Do not leave the appliance exposed to atmospheric agents (sun, rain...)

dKeep the appliance out of reach of children or incapacitated people and do not let them use it.

Disconnect the plug from the power outlet when the appliance is not being used and before carrying out any cleaning or maintenance.

The power cord must be completely unwound to prevent it from overheating.

The power cord must be kept away from heat sources and/or sharp edges.

If power cord is damaged, have it replaced by qualified personnel.

Switch off and contact a qualified technician if the appliance should breakdown and/or not function properly.

Any tampering or interventions executed by unqualified people will cancel the guarantee.

Use a soft and non-abrasive cloth to clean the appliance.

When the appliance is unserviceable and must be eliminated, remove its cords and dispose of it at an authorised disposal centre in order to protect the environment.

- Warranty does not cover any glass parts of the product.

ATTENTION:

The damages of the power supply cord, originate by the wear aren't covered by guarantee; the repair will be in charge to the owner.

ATTENTION:

Warranty does not cover any plastic parts of the product

ATTENTION:

If the need should arise to take or send the appliance to an authorised service centre, make sure to clean all its parts thoroughly.

For hygienic purposes, the service centre shall reject appliances that are not perfectly clean on the outside or inside without making any controls or repairs.

The symbol 🏠 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

COMPONENTI

Before connecting the appliance make sure that the data indicated answer the ones of the electric grid. Connect the appliance to a socket with grounding in conformity with the safety rules. Avoid electric installations that are not in conformity. Any connection mistake cancels the guarantee.

2) nstallation

Place the appliance on a horizontal and stable surface, well aired, far from wash-basins and water in general. – Make sure that around it there is a space of at least 7,5 cm and above of 30 cm, this to allow the right emission of heat and steam during functioning. – Do not obstruct the ventilation grill of the appliance and do not make any type of liquid to penetrate. – Do not remove the feet from the bottom part of the casing. – Install the appliance far from heat sources.

SAFETY ADVICE

1) The appliance has been studied exclusively for domestic use; to cook heat or defreeze food and beverages.
2) Do not touch the hot parts of the appliance when in function and use insulating gloves to remove the containers from inside the appliance.
3) Do not make the microwave function when empty it must always contain food otherwise it could damage itself.
4) Your appliance has a high and adjustable microwave power. You can defreeze heat or cook much faster than with the traditional cooking systems. The time to set is indicated on the packaging of the food, if it is not indicated, set a time equal to a third of the traditional cooking time.
5) Make sure that the door (A) is closed; if not the oven will not function and however do not try to make it work with the door opened.

6) Do not use the microwave to:

• Fry, as it is not possible to control the temperature of the oil that could burn
• Cook or heat eggs in their shell, hard-boiled eggs with or without shell.
• Heat hermetically closed containers, insert them open.
• Dry laundry.

7) Food temperature: feeding bottles, jars...

• Before heating, remove the teat from the feeding bottles and the lid of the jars.
• The microwave cooking heats only the food. The containers could be cold or tepid while the food inside could be boiling.
• To avoid risks of burns, mix the goods and control the temperature (above all for

food designated to children) before serving them.

8) Heating of liquids

During heating of liquids a delay in boiling could occur, which causes a sudden rise of the liquid when the container is removed from the appliance. In fact the boiling degree has been reached, but the bubbles remain entrapped on the bottom of the container, therefore there could be risks of burns. To avoid this problem, put a plastic spoon in the liquid to heat.

9) Disposable containers

Carefully control the appliance during operation, when you are using disposable containers in plastic, paper or other combustible material. If you notice smoke, leave the door (A) closed, stop the cooking and disconnect the feeding.

10) With the grill do not use plastic dishes and cutlery as they melt

Place the food at least 5 cm from the resistances of the grill, during cooking of fat meats as squirts can occur and finish on the resistances and take fire. These however extinguish by themselves if the oven has been regularly cleaned.

Remove the accessories from the packing, wash and dry them.

1/ASSEMBLY OF THE ACCESSORIES

Place the sliding ring F on the base L of the oven; make sure that the three wheels position themselves in the slots of the base of the oven.

Lean the rotating plate G on the sliding ring F.

When the appliance will be switched on the plate will turn indifferently towards the left or the right.

For the use of the round grill H you just have to lean it on the rotating plate. It must never however be leaned directly on the base of the oven L.

2/ELIMINATION OF THE SMELL OF THE NEW GRILL

The resistances of the grill are covered with protective grease. Before using this function you therefore have to clean it. To do so, select the function grill D9, set the timer E on 15 minutes. The appliance will start and clean the resistance. This operation will provoque smell and smoke which is normal.

FUNCTIONING

The microwave oven must never be in function empty, to learn how to use it by making tests, put a glass full of water on the rotating plate G.

Microwave cooking

Put the product inside the microwave, on the rotating plate G.

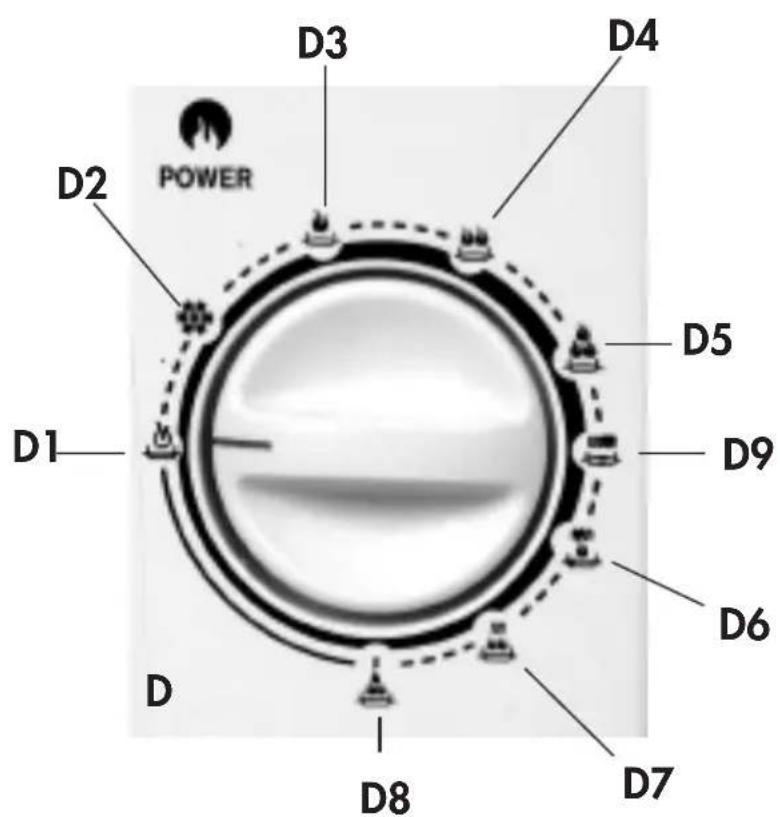

Choose the power most suitable for the food to be treated setting it with the button D on the first 5 positions.

D1. To keep warm (minimum power)
D2. Defrosting and cooking of delicate dishes
D3. Fast defreezing of small portions
D4. Slow cooking or warming up of delicate dishes

D5. Cooking and warming up (maximum power)

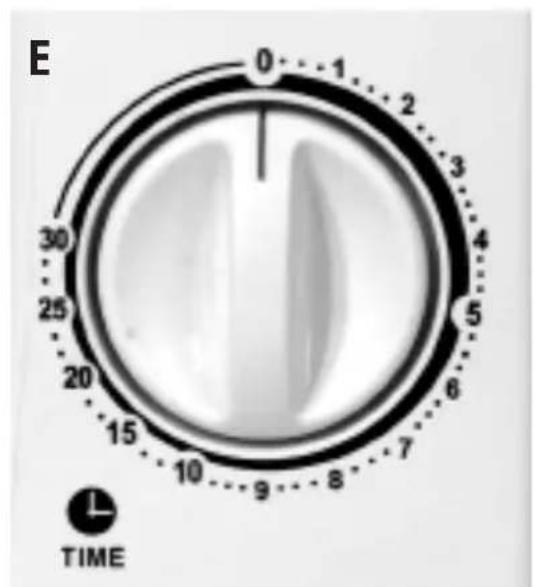

Set the time of operation with the button E.

Close the door A. The inside light will turn on and the oven will start. Once the time you have set will be passed, the oven will give out a sound and will turn off. Open the door and remove the product being careful of the temperature of the container.

Combined cooking grill-microwave

Put the product inside the microwave, on the rotating plate G.

Choose the power most suitable to the food to be treated set it with the button D on the positions D6 or D7 or D8.

D6 minimum power

D7 medium power

D8 maximum power

Set the time of operation with the button E.

Close the door. The internal light will turn on and the oven will start. After the time you have set will have passed, the oven will give out a sound and turn off. Open the door and remove the product from inside being careful to the temperature of the container.

Cooking only with the grill

Put the product inside the microwave, on the rotating plate G or on the grill H (WARNING keep a distance food-resistance of at least 5 cm)

Place the button D on position D9

Select the operation time with the button E.

Close the door. The inside light will turn on and the oven will start. Once the selected time will have passed, the oven will give out a sound and turn off. Open the door and remove the product from inside being careful to the temperature of the container.

NOTE

To regulate in the right way the cooking time less than 2 minutes, turn the timer button E well beyond the reference 2 and them bring it back on the wanted time.

During functioning it is possible to open the door A to check the cooking. The oven will stop automatically to restart the cooking if you recluse the door. After the opening of the door, if you want to stop ahead of time the cooking, re-put the timer E on position 0 before reclosing the door, to avoid functioning of the oven when empty

PRACTICAL ADVICE

1) The rotating plate G must always be in position
2) Use containers suitable for microwave cooking. To check the "transparency" to the microwaves of a container it is possible to do a simple test, put the container empty on the rotating plate G with a glass full of water. Select the maximum power D5 and make it heat for one minute. If after this operation the container is cold this means that it is transparent and can be used with the microwave. On the contrary if it is hot, this means that it is absorbent and must not be used for this type of cooking.

3) Defreeze

Remove the eventual exudates (water or blood) that form themselves during the defrosting, at half operation to avoid that they cause a heating around the food.

4) Metallic containers

It is advisable to avoid the use of metallic material inside your microwave oven (cutlery, staples that are on the packaging, plates with gold-plating or metallic plates, trays and aluminium containers).

CLEANING

The microwave oven is more efficient when clean; therefore clean your appliance regularly.

- External surfaces: DO NOT use solvents, bleach, ammonia, abrasive products etc...

- Door and cavity walls: use a cloth or sponge with non abrasive detergents and then dry it. DO NOT try in any way to disassemble the door. If the door and its frame should be damaged, do not use the microwave and contact an authorized assistance centre.

- If you see stains of grease or dry food, boil for 5 minutes in the cavity a half litre of water with the microwave function. The steam will soften the residuals rendering easier the cleaning. If necessary remove the rotating plate G and the rotating ring F to clean also the base of the cavity L. The rotating plate G and the round grill H can be washed with products for dishes or in the dishwashers.

MAINTENANCE

IMPORTANT, it is extremely dangerous to effect any type of repair or replacement, you must always contact an authorized Johnson assistance centre.

AVERTISSEMENTS GÉNÉRAUX

The validity of the guarantee starts from the purchasing date certified by the seller's stamp and expires at the end of the indicated period, even when the device has not been used. The guarantee covers all substitutions or repairs due to material or manufacturing defects. The guarantee has no validity in case of device tampering or when the defect is due to incorrect or improper use of the same. Substitutions and repair covered by the guarantee are made free of any charge for goods delivered free our service company representative. Only the freight will be at buyer's expense. All replaced parts or devices will become our property.

GARANTIE

Check before purchasing

DATA ACQUISTO

PURCHASE DATE

This certificate of guarantee has to be dulyfilled in to be valid

MOD. Utile

DATA ACQUISTO

PURCHASE?DATE

DATA RIPARAZIONE

REPARE?DATE

TIMBRO CENTRO ASSISTENZA

AFTER SALES SERVICE CENTER STAMP
