RX-800MRL - Computer Mouse Sven - Free user manual and instructions

Product Type	Wired Optical Mouse
Model	RX-800MRL
Brand	Sven
Interface	USB
Resolution	800 / 1600 DPI (switchable)
Buttons	5 + 1 (scroll wheel); 2 programmable side buttons
Optical Technology	MRL (Mirrored Reflection Lens)
Surface Compatibility	Works on practically any surface
Driver Requirement	None; plug-and-play
Compatible Operating Systems	Windows XP / Vista / 7 / 8
Dimensions (W x D x H)	125 x 69 x 44 mm
Weight	120 g
Cable Length	Approximately 1.5 m (standard)
Power Source	USB bus-powered
Ergonomic Design	Natural shape with rubber coating
Package Contents	Mouse, User Manual, Warranty Card
Certifications	FCC, CE
Manufacturer	SVEN PTE. LTD., Singapore; Made in China
Warranty	Standard manufacturer warranty (details in warranty card)
Care Instructions	Clean with a soft, dry cloth; avoid liquids
Safety Precautions	Do not disassemble; avoid exposure to moisture or extreme temperatures
Spare Parts Availability	Contact authorized service center

Frequently Asked Questions - RX-800MRL Sven

How do I connect the Sven RX-800MRL mouse to my computer?

Simply plug the mouse into any free USB port on your computer. No driver installation is required; it will be recognized automatically on Windows XP, Vista, 7, and 8.

How can I switch between DPI resolutions?

Press the DPI switch button (usually located on the top of the mouse) to toggle between 800 and 1600 DPI. The change is immediate.

What are the programmable side buttons used for?

The two side buttons are pre-configured for Internet navigation (forward and back). They can be reprogrammed using third-party software if desired.

Does the mouse work on glass surfaces?

The MRL (Mirrored Reflection Lens) optical technology allows the mouse to work on practically any surface, including glossy and transparent surfaces like glass.

Do I need to install any drivers?

No, the mouse is plug-and-play. It uses the standard Windows HID driver, so you can use it immediately after connection.

How do I clean the mouse?

Use a soft, dry cloth to wipe the exterior. For stubborn dirt, slightly dampen the cloth with water. Avoid using abrasive cleaners or getting moisture inside the mouse.

What should I do if the mouse stops working?

First, disconnect and check the USB connector for damage. Reconnect and test on a different USB port. If it still doesn't work, contact an authorized service center. Do not attempt to repair it yourself.

Is the mouse compatible with Windows 10?

The manual lists compatibility up to Windows 8, but the mouse is likely to work on Windows 10 due to standard HID support. However, Sven does not officially guarantee it.

What is the warranty period for the Sven RX-800MRL?

Warranty details are provided in the included warranty card. Typically, Sven offers a 1-year warranty. Contact SVEN support for exact terms.

Can I use the mouse with a Mac or Linux?

The mouse is designed for Windows, but basic functions (movement, clicks) may work on Mac and Linux due to standard USB HID support. Advanced features like side buttons may not work without additional configuration.

USER MANUAL RX-800MRL Sven

Close-up of a black Siemens 3.0 computer mouse with visible branding (no text beyond brand name)

RX-800MRL

www.sven.fi

Congratulations on your purchase of the Sven mouse!

Please read this User's Manual before using the unit and retain this User's Manual in safe place for future reference.

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

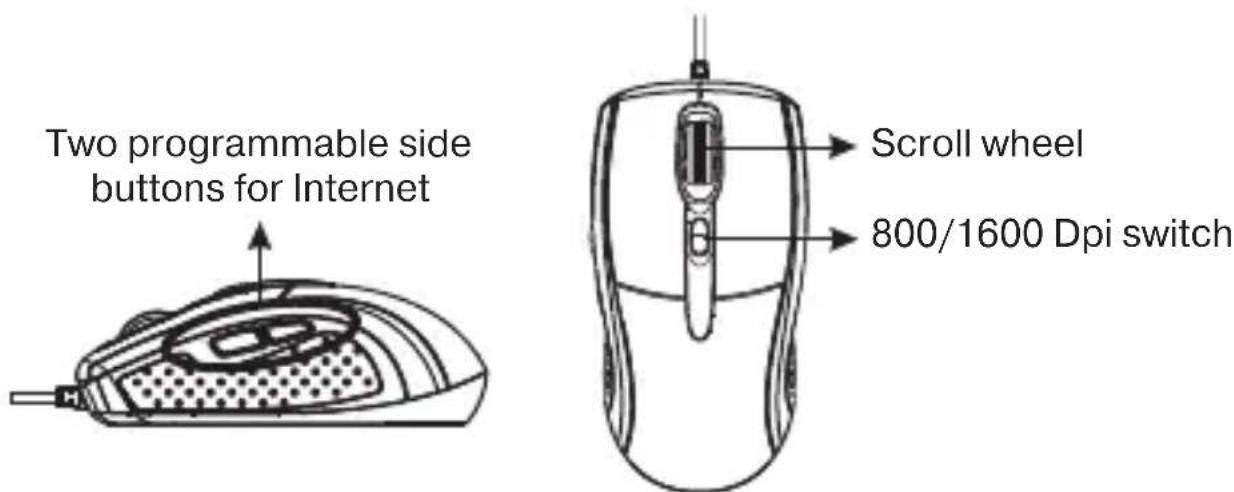

SPECIAL FEATURES

• MRL (Mirrored Reflection Lens) optical technology allows to work better and more productive compared to other computer mouse and practically on any surface
• 5 + 1 (scroll wheel)
• Two programmable side buttons for Internet
• 800/1600 Dpi switch
• USB interface
• Drivers installation not required for Windows XP/Vista/7/8
• Rubber coating on mouse case
  • Natural shape of mouse comfortable for hand

PACKAGE CONTENTS

• Wired Optical Mouse — 1 pc
• User's Manual — 1 pc
• Warranty card — 1 pc

SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8.
• Free USB port.

CONNECTION AND INSTALLATION

• To connect mouse, please connect it to USB port.
  • Installation of drivers is not necessary.
• Pressing DPI switch allows to select resolution of 800 dpi or 1600 dpi.

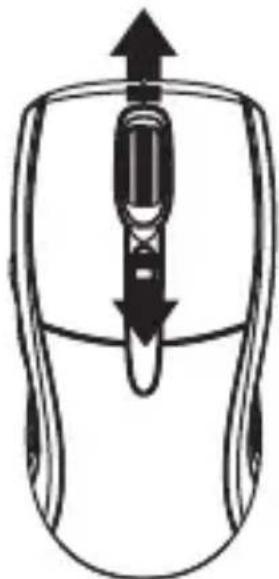

• Scrol wheel functioning:

Vertical scrolling.

For moving upwards scroll the wheel forward, and for moving downward scroll the wheel backward.

Line drawing of a computer mouse with an upward arrow indicating motion or force (no text or symbols)

FEATURES OF MRL OPTICAL TECHNOLOGY

TROUBLESHOOTING

Problem	Solution
Mouse is not working.	1. Disconnect mouse from PC and check connector pins for possible damage. If there is no external damage found and connector pins are OK, connect mouse to PC.2. Address nearest authorized service center.

If none of the above methods solves the problem, address your nearest service center. Never attempt to repair the product yourself.

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
OS compatibility	Windows XP/Vista/7/8
Type of mouse	Optical MRL
Resolution, dpi	800/1600
Q-ty of buttons	5 + 1 (scroll wheel)
Interface	USB
Conformity with	FCC, CE
Dimensions, mm	125 × 69 × 44
Weight, g	120

Notes. Technical specifications given in this table are supplemental information and cannot give occasion to claims. Technical specifications are subject to change without notice due to the improvement of SVEN production.

Wired Laser Mouse

SVEN®

YOU WANT - WE CAN

Black SVER computer mouse with visible branding (no text or symbols on body)

Модель: RX-800MRL

Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.

RX-800MRL
