Product Type	Tablet
Brand	Manta
Model	Quad Power MID1011
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Operating System	Android 10 (or similar)
Processor	Quad-core 1.3 GHz
RAM	2 GB
Storage	32 GB (expandable via microSD)
Battery Capacity	6000 mAh
Battery Life	Up to 8 hours of mixed usage
Charging	DC 5V / 2A via micro-USB
Dimensions (W x H x D)	240 x 170 x 10 mm
Weight	520 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports	1 x micro-USB, 1 x 3.5mm headphone jack, 1 x microSD slot
Cameras	Front 2 MP, Rear 5 MP
Sensors	Accelerometer, G-sensor
Power Adapter	Input: 100-240V AC, 50/60Hz; Output: 5V / 2A
Maintenance	Clean with soft dry cloth; avoid liquids.
Safety	Do not expose to water or extreme temperatures.
Spare Parts	Battery, charging cable, screen replacement available online.
Repairability	Moderate; user-replaceable battery only with tools.
General Information	User manual available in multiple languages.

Frequently Asked Questions - Quad Power MID1011 Manta

How do I turn on the Manta Quad Power MID1011 for the first time?

Press and hold the power button located on the top or side edge until the Manta logo appears. Follow the on-screen setup wizard to select language, connect to Wi-Fi, and sign in to your Google account.

How can I extend battery life?

Lower screen brightness, disable unused wireless connections (Wi-Fi, Bluetooth), close background apps, and activate battery saver mode in Settings > Battery.

What type of charger does the tablet use?

It uses a standard micro-USB cable with a 5V / 2A adapter. Using a lower amperage charger will result in slower charging.

How do I insert a microSD card?

Locate the microSD slot on one side of the tablet. Use a paperclip or SIM eject tool to open the slot door, then insert the microSD card with the gold contacts facing down until it clicks.

The screen is unresponsive. What should I do?

First, try a forced restart: press and hold the power button for 10-15 seconds until the device reboots. If the issue persists, remove any screen protector and clean the screen.

Can I connect a keyboard or mouse?

Yes, you can connect a USB keyboard or mouse via an OTG adapter (micro-USB to female USB). Bluetooth keyboards are also supported.

How do I perform a factory reset?

Go to Settings > System > Reset options > Erase all data (factory reset). Backup important data first as this will delete all personal information.

The tablet does not charge. What can I check?

Ensure the charger is plugged in properly and the cable is not damaged. Try a different cable and adapter. If still not charging, inspect the micro-USB port for debris.

How do I take a screenshot?

Press and hold the power button and volume down button simultaneously for about 2 seconds. A screenshot will be saved in the Gallery.

Where can I find the user manual?

The user manual is available for download in PDF format from the official Manta website or from notice-facile.com. A printed copy may be included in the box.

USER MANUAL Quad Power MID1011 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Tablet QUAD POWER

MID1011

Instrukcja obsługi

User's Manual

Bedienungsanleitung

Használati útmutató

Návod k obsluze

Vartotojo instrukcija

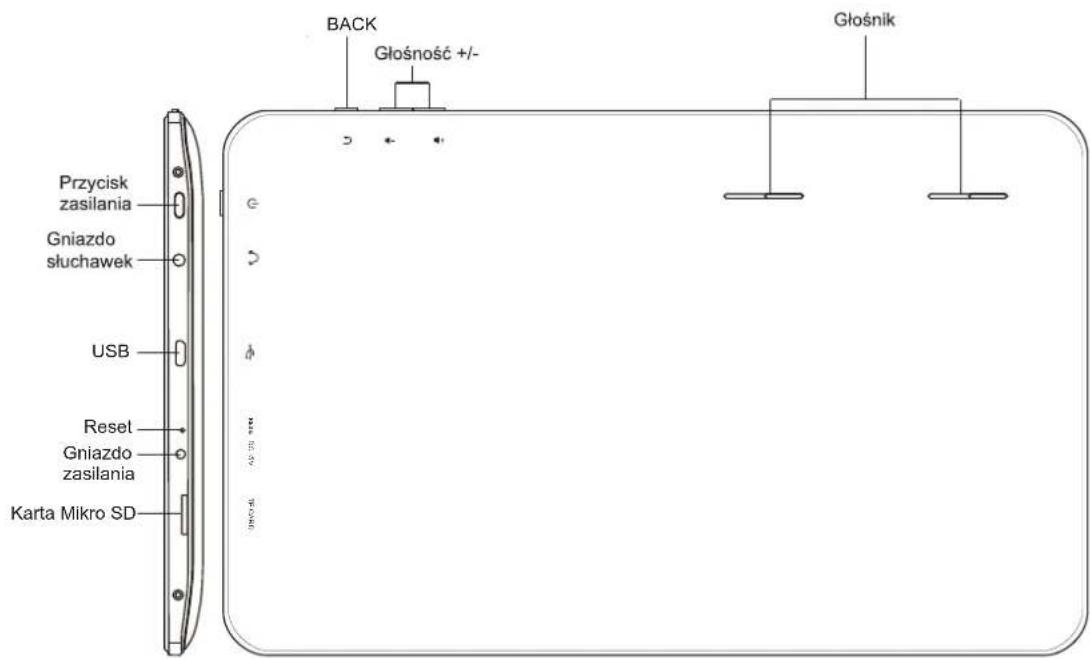

Front view line drawing of a tablet device with rounded corners and blank screen (no text or symbols)

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

INSTRUKCJA OBSŁUGI

Krok 2:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

USB Mass Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

INSTRUKCJA OBSŁUGI

Mobile phone status bar with icons for home, door, and phone number 2:58

This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Pls make sure to reading the manual carefully before use the device.

Please don't be in high temperature, moisture or very dust place—Please don't be in high temperature, Especially in summer don't put – the device in the car when Windows closed.

• Avoid fall or Violent collision of the device, don't make the TFT display screen were violent tremor. This could cause TFT display screen abnormal or damage.
• Please choose the appropriate volume, Use headphones should not be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition,

A. The battery power ICONS shows have no power
B. The system automatically shut off, startup after power off soon
C. Operation buttons no response

• When the device in the format or ongoing upload and download file, please don't suddenly disconnect, This could cause application error.
• For those who because of damage to the product, repair, or other causes of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.
• Don't disassemble the product, don't use alcohol. Thinner or benzene to scrubbing products
• Don't use the device one of the place of prohibit to use electronic equipment in regional (such as the plane)
• Please don't using the Tablet PC when you in driving or walking down the street, USB just only be used for data transmission

USER'SMANUAL

The company reserves the right to improve product, products specification and design have any change. The information is subject to changes without priornotice.(Thistabletisnowaterprooffunction)

Remark! All pictures in this manual is just for your reference. products specification and design have any change, The information is subject to changes without prior notice.

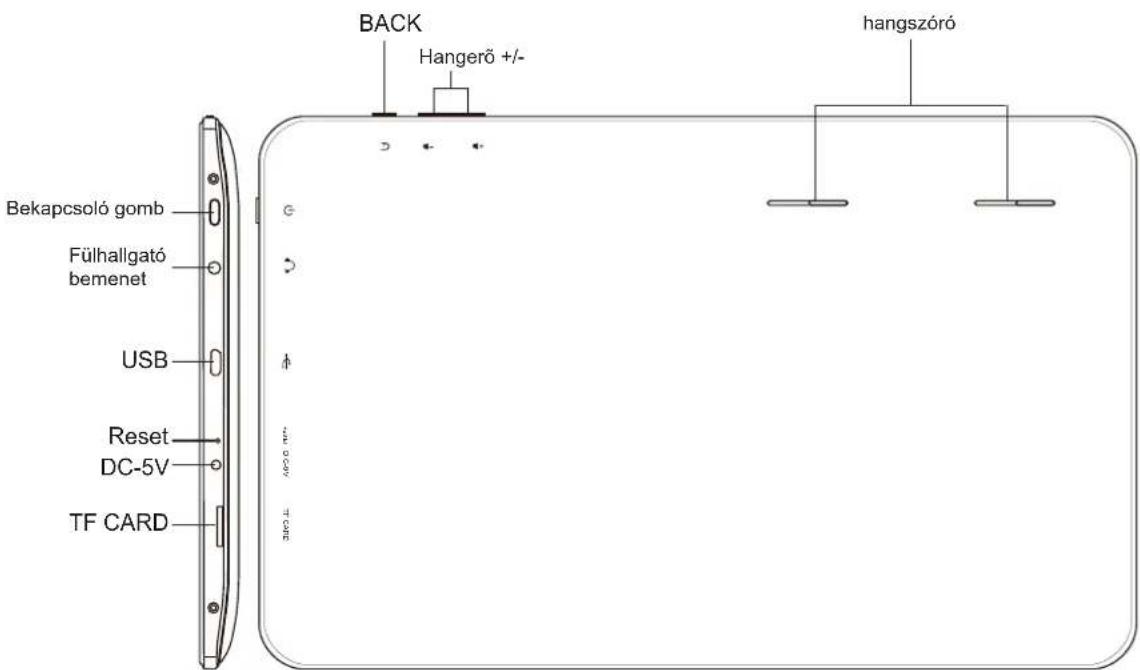

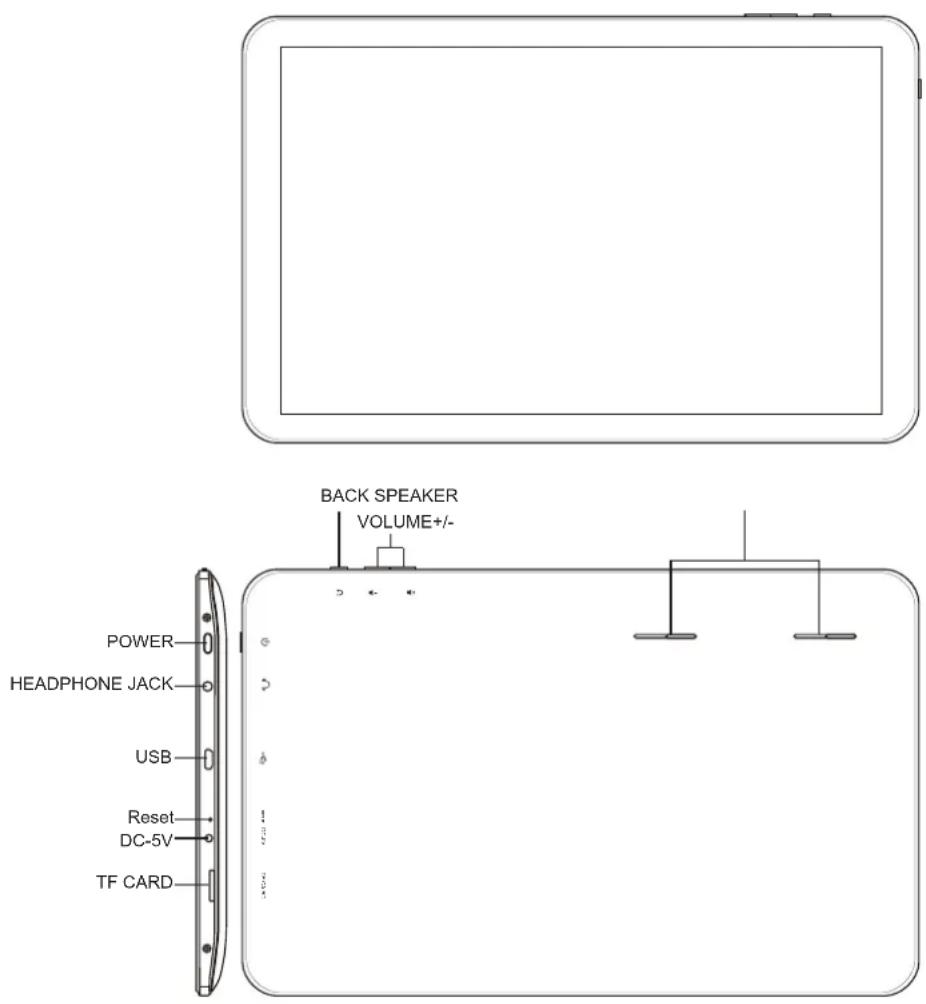

Appearance and button

BACK SPEAKER VOLUME+/- POWER HEADPHONE JACK USB Reset DC-5V TF CARD

USER'S MANUAL

Touch panel

7" Capacitive touch panel: In The Operation, to click dragging on the touch panel

POWER

Startup: Long Press and hold the power button, the system will enter the main interface

Shutdown: In the main menu interface, Press the power button about 5 second to shutdown, The system can hint "power off" option, Clike" ok". you can safely shut down.

Lock screen: Short press Power button to lock screen or unlock screen.

Remark!

1. When power is empty, system will shut down automatically.
2. Illegal turn off the device, restart will scan and restore the disk, it may take longer time to enter into system

Volume +, Volume-

The buttons on top Volume +, Volume-achieve changes in the volume.

Earphone jack

3.5 mm standard earphone jack

TF card – Slot for MicroSD card

Micro USB – you can use it to connect the computer for data transmission and external connection USB flash drive

Remark!

Unless unable to shutdown, otherwise don't use the reset, suggest you to shutdown by normal, if no will easy to damage the machine system.

USER'S MANUAL

First use

Battery management and charge

Before first use, please set the device's battery is fully charged

Just need to connect the adaptor or USB interface, then you can charge

The first two times charging please keep about 6 hours, after that you just need 4 hours to charge.

Remark:

This tablet using Built-in type polymer battery, Charge must be to choose standard adaptor (Input: AC110\~240V 50/60Hz Max: 180MA. Output: DC5.0\~5.5V/1.5A).

During the charging, the battery icon will scroll

When finished charging, battery icon will become green and stop rolling

In order to prolong the service life of the machine, suggest use out battery power before charge it

Remark:

1. If you long time don't to use this Tablet, in order to avoid power consumption caused damage, pls charge/ play the battery once a month.
2. After low battery shut down, connect DC adaptor, device will remind low battery, charging, need to wait some time until the battery is enough power to enter into main menu.
3. Device charging should be in standby status for reach normal charging time.

Because with device and screen consumption, it may cause longer charging time.

USER'S MANUAL

Connection with PC

USB connection

Using USB to connect the MID and PC, the default connection mode is a synchronous mode. You can see this USB icon and then drag the status bar to drop, appeared the following interface:

Step 1:

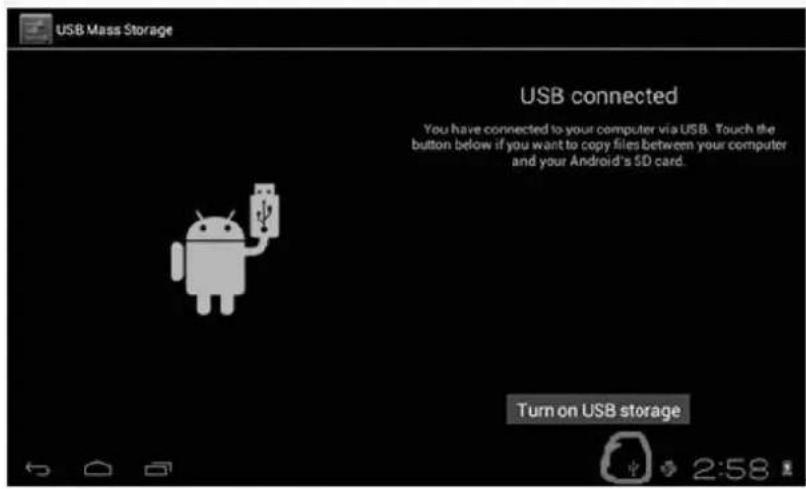

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

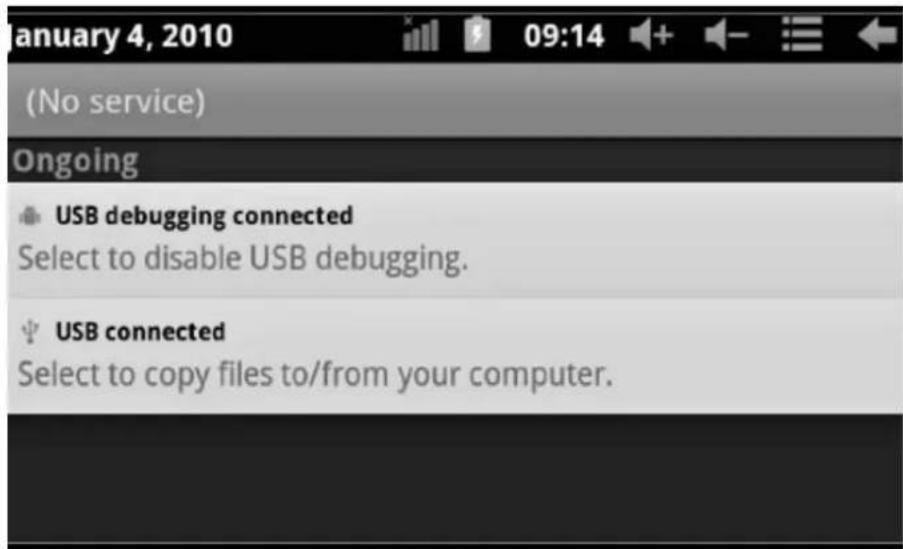

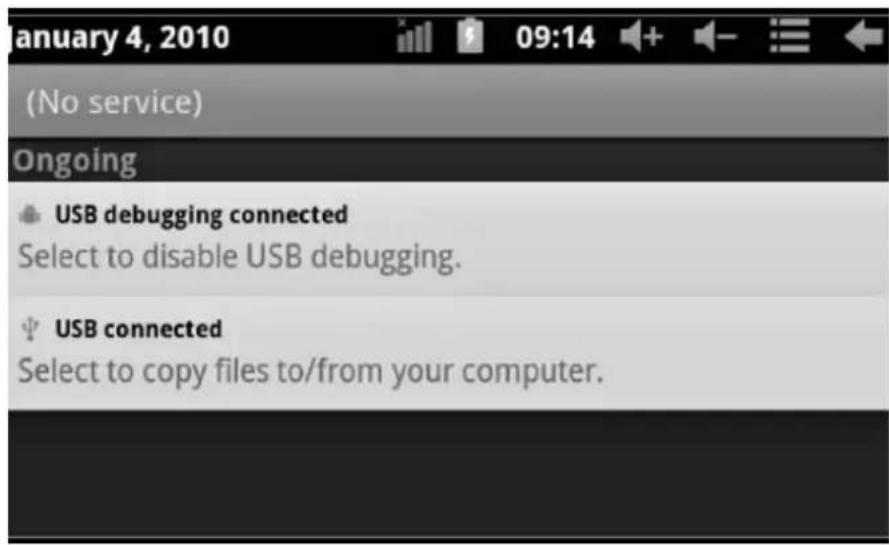

Step 2:

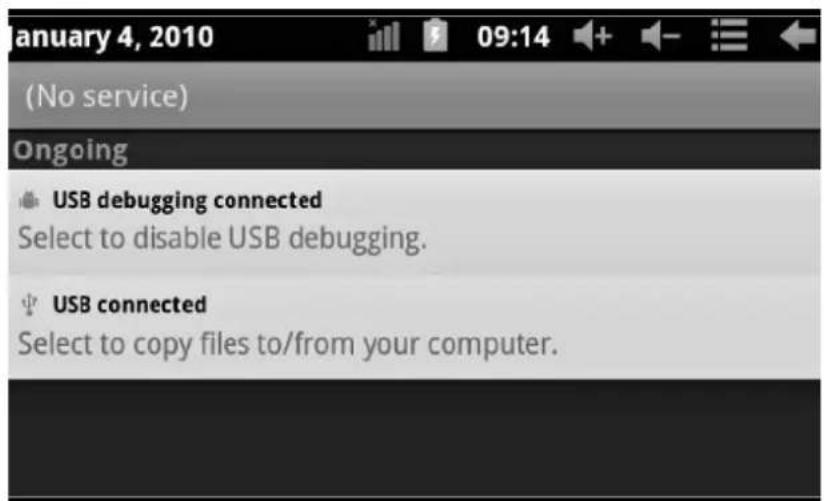

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USER'S MANUAL

Step 3: According to the above photo, please choose USB connected. Then you can see the following interface:

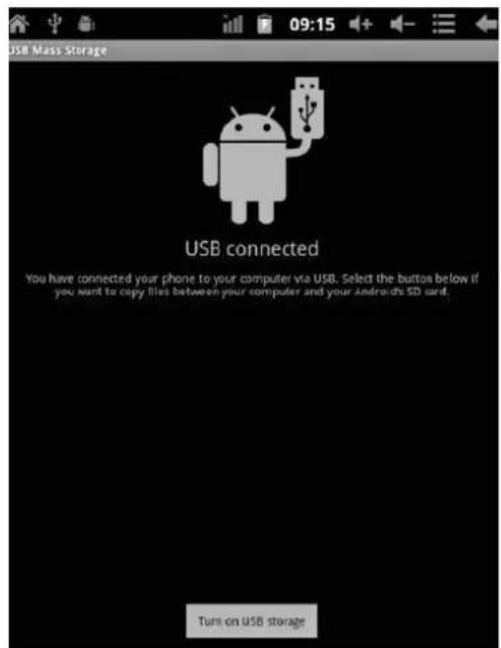

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the buttons below if you want to copy files between your computer and your Androids SD card. Turn on USB storage

USB Mass Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

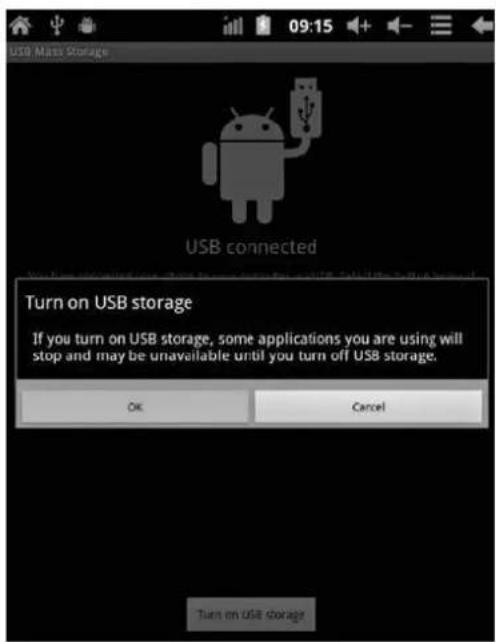

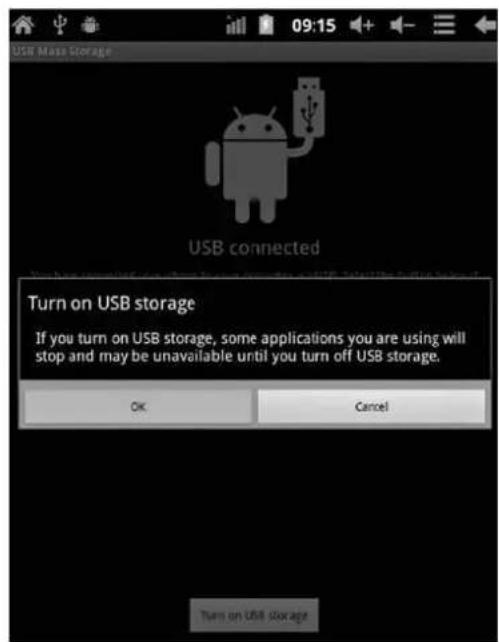

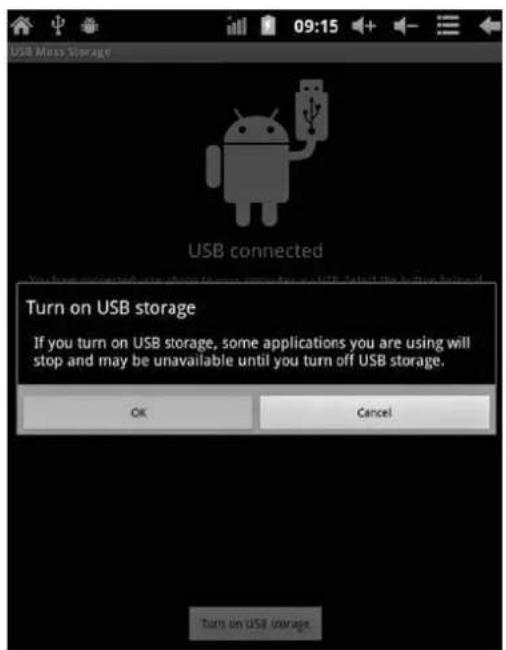

Step 4: Please press "turn on USB storage". Then you will find the following photos:

Please choose "OK". Then USB is connected. "USB is connected": means external memory (SD) loading is completed, and you can see the corresponding letter in the PC terminal.

Use USB cable to connect device to PC, device will pop up the USB connection window, click Turn on USB storage to connect to PC

USER'S MANUAL

Equipment operation interface

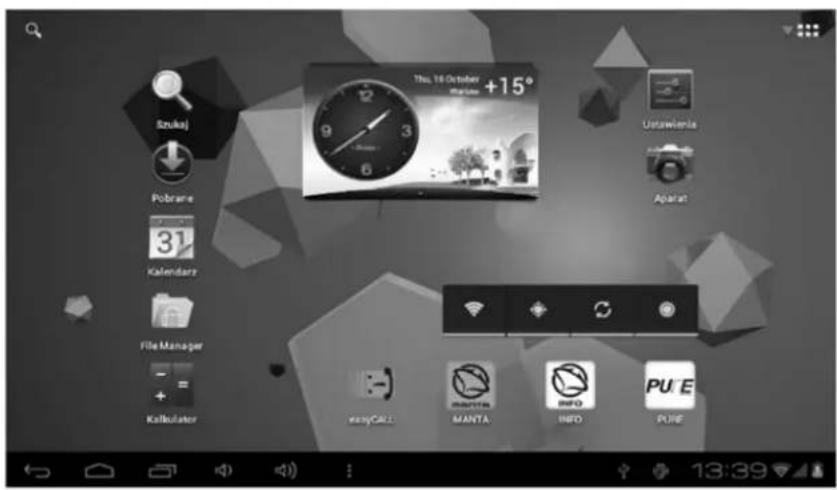

Main interface describe

After startup will enter the main interface

Szukai Pobrane 31 Kalendarz File Manager Kalkulater Thu. 18 October +15° Ustawienia Ajarat easyCALL MANTA INFO PU E PURE 13:39

In the main interface, you can:

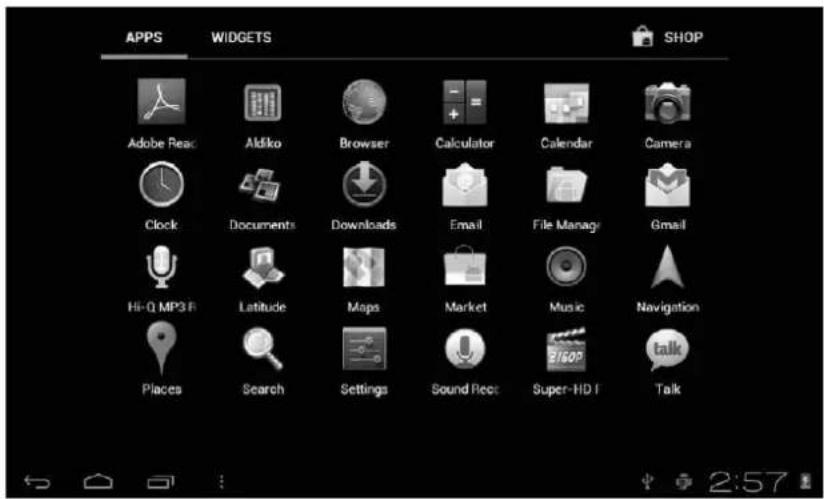

APPS WIDGETS SHOP Adobe Read Aldiko Browser Calculator Calendar Camera Clock Documents Downloads Email File Manage Gmail Hi-Q MP3-R Latitude Maps Market Music Navigation Places Search Settings Sound Rect Super-HD F Talk

USER'S MANUAL

Management main interface software ICONS: long press the icons 3 second, after the icons will bigger, then you can drag anywhere in the interface.

Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it become red, Loosen your hand, after that you can delete icon

Status bar describe

The status bar below of the screen

Mobile phone status bar with navigation icons and time display showing 2:58

From left: BACK, HOME, recent applications. From Right: battery status, time, other icons.

Use touch panel

Device equipped with a 7"touch screen. Following the main touch screen area is described, and describes some of the tips for how to use the touch screen.

No matter which interface you are on the screen, can go back to main screen through pressing the soft key on the bottom right corner of the main screen.

Attention! In different applications, by tapping the back soft key ← on the bottom right corner on the touch screen, you can return to its interface on the upfloor

In different applications, by tapping the menu key on the upper right corner of touch screen, the screen will appear the operation setting interface as follows,

Remark: In the main interface, you can touch the icon to open the APPs

In different browser(file, music, video, pictures), You shift and drag the scroll bar, so that the file list can up or down to roll.

USER'S MANUAL

Problem solution

Device can't to open

1) Check the battery power
2) Connect adaptor first, then check again
3) After charging then can't to open, pls contact with the supplier

After startup the screen or the opening picture has been appeared, the device appear shutdown

1) Power is not enough, please charge

Headset can't hear the voice

1) Pls check the volume whether set to 0
2) Check the music file whether damaged. Try playing other music, if the file have damaged may lead to serious noise or hop sounds.

Can copy file or paly music and so on

1) Pls check between computer and device is correct connection
2) Check the memory storage space is already full
3) Check the USB cable is good or not
4) USB connection is disconnected

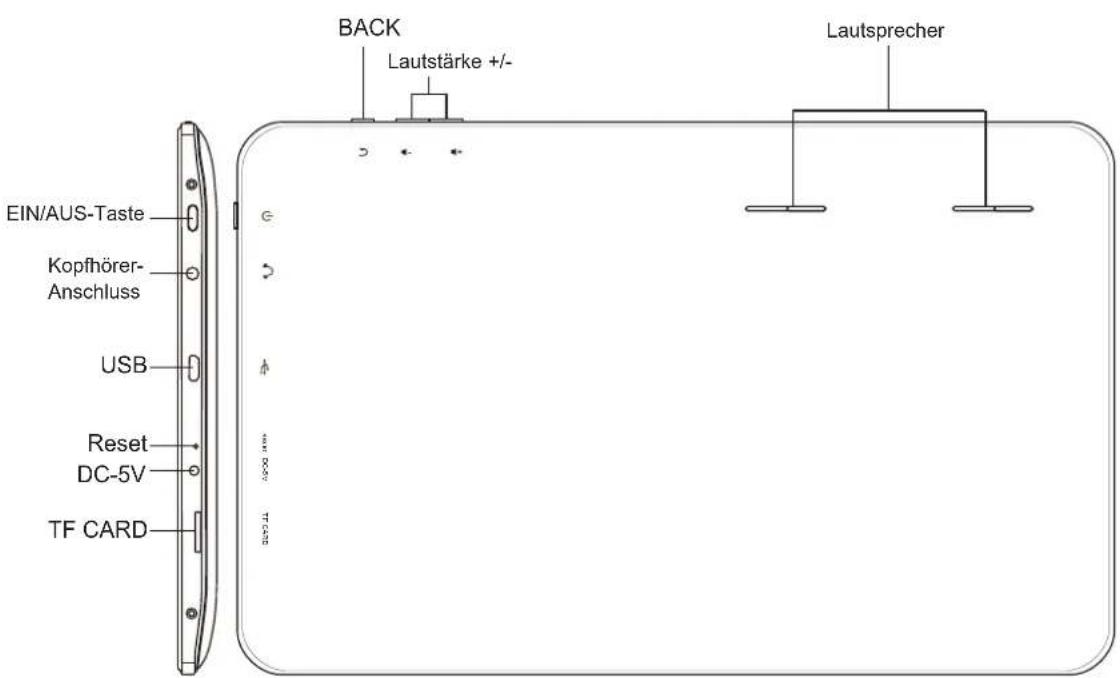

Bedienungsanleitung

Hinweis

Line drawing of a tablet device with blank screen area (no text or symbols)

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

BEDIENUNGSANLEITUNG

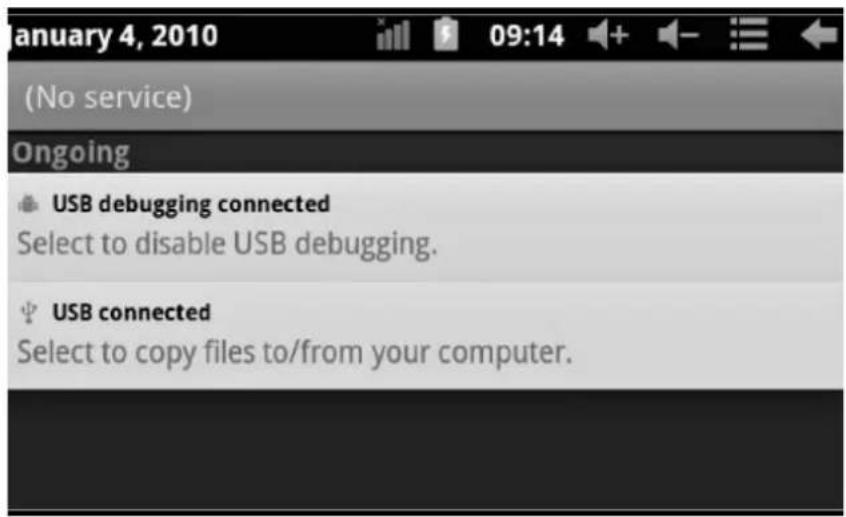

Schritt 2:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Androids SD card. Turn on USB storage

USB Max Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

Mobile phone status bar with navigation icons and time display showing 2:58

Line drawing of a tablet device with blank screen area (no text or symbols)

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

HASZNÁLATI ÚTMUTATÓ

2. lépés:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

USB Mass Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

HASZNÁLATI ÚTMUTATÓ

Mobile phone status bar with navigation icons and time display showing 2:58

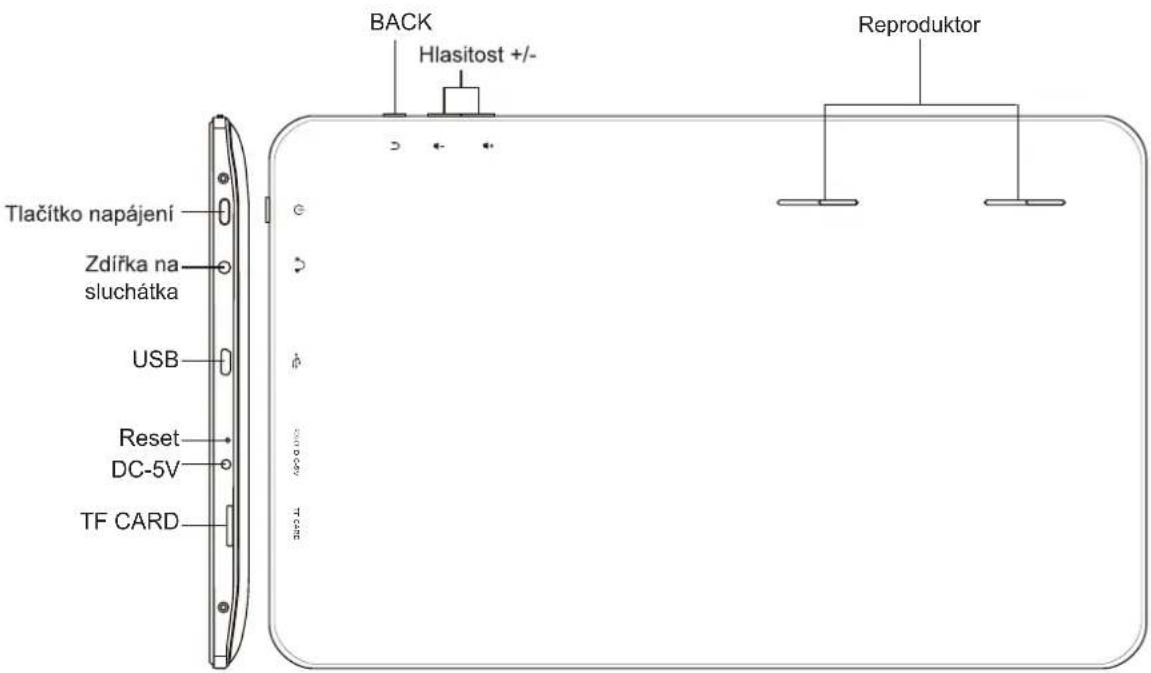

Line drawing of a tablet device with blank screen area (no text or symbols)

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

NÁVOD K OBSLUZE

Krok 2:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

USB Mass Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

NÁVOD K OBSLUZE

Mobile phone status bar with icons for home, TV, and app clock showing 2:58

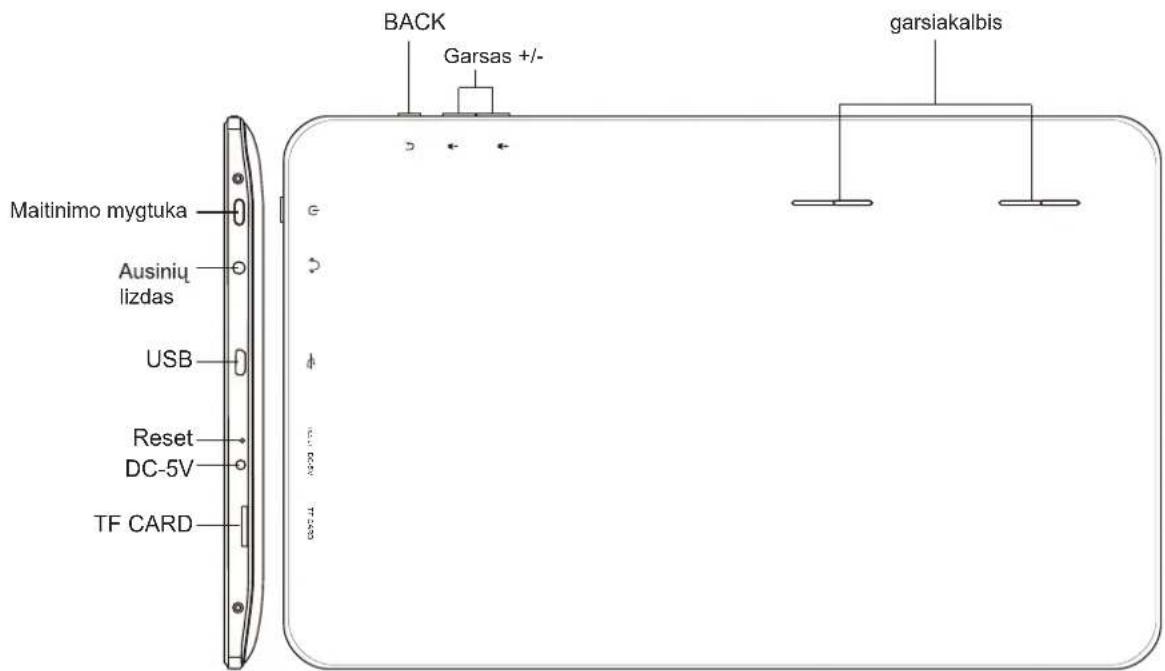

Front view line drawing of a tablet device with rounded corners and blank screen (no text or symbols)

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

VARTOTOJO INSTRUKCIJA

2 žingsnis:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

USB Mass Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

VARTOTOJO INSTRUKCIJA

Mobile status bar with icons for home, phone, and time

Line drawing of a tablet device with blank screen area (no text or symbols)

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

USB Mass Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

Mobile phone status bar with navigation icons and time display showing 2:58

Blank tablet device outline with rounded corners (no text or symbols)

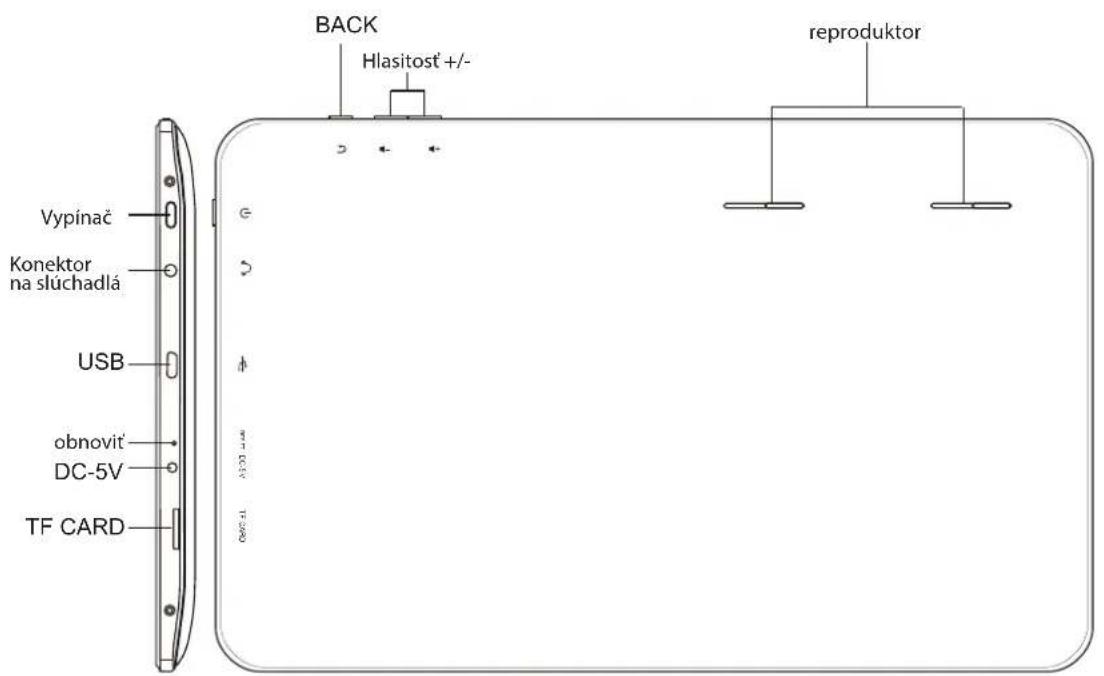

BACK Hlasitost' +/- reproduktor Vypínač Konektor na slúchadlá USB obnovit' DC-5V TF CARD

NÁVOD NA OBSLUHU

Dotykový panel

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

NÁVOD NA OBSLUHU

Krok 2:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USD storage

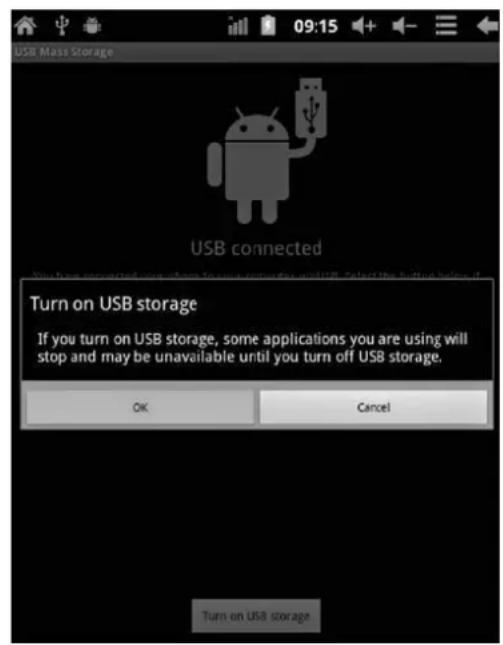

USB Mass Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

NÁVOD NA OBSLUHU

Mobile phone status bar with navigation icons and time display showing 2:58

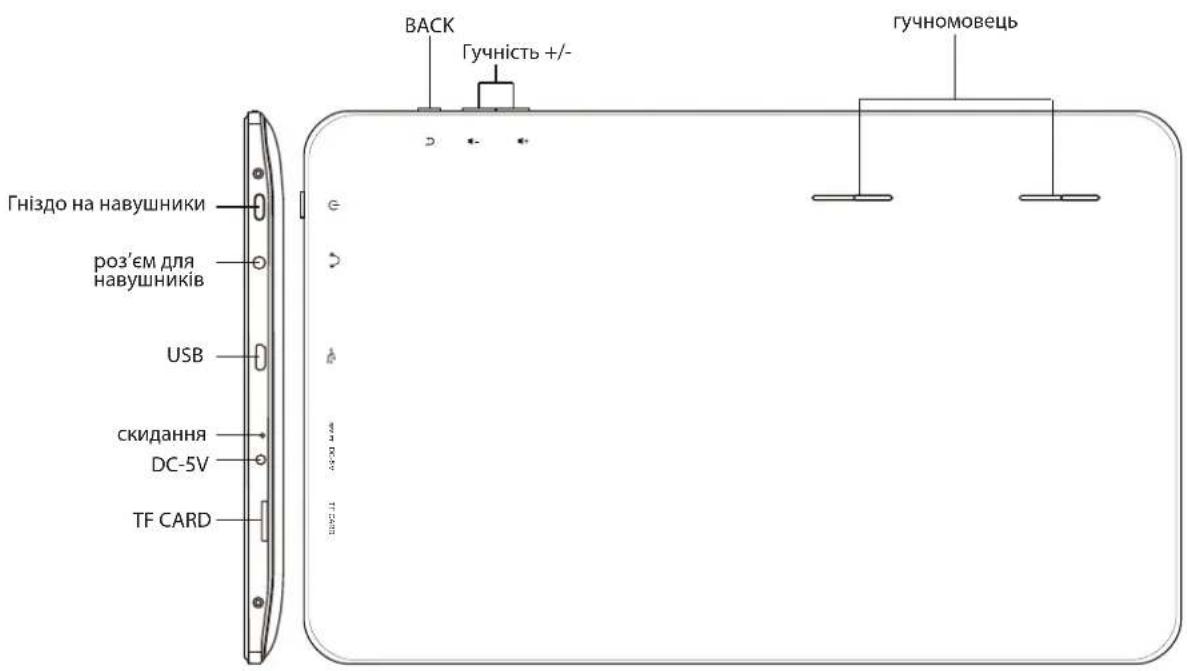

Front view line drawing of a tablet device with rounded corners and blank screen (no text or symbols)

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

Крок 2:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USD storage

USB Mass Storage USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Turn on USB storage

Mobile phone status bar with icons and time display showing 2:58

European Community Compliance Statement

This equipment is marked with the 0678 symbol and can be used throughout the European community.

This indicates compliance with the R&TTE Directive 1999/5/EC and meets the relevant parts of following technical specifications:

EN 300 328 – Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission Systems; Data transport equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

EN 301 489-1 – Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

COMPLIANCE WITH INTERNATIONAL STANDARDS

ETSI EN 301 489-7 – Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 7: Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecom munications systems (GSM and DCS)

EN 301 489-17 – Electromagnetic compatibility and Radio spectrum Matters (ERM); EMC standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

ETSI EN 301 489-24 – Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment

ETSI EN 301 511 – Global System for Mobile communications (GSM); Harmonized EN for mobile stations in the GSM 900 and GSM 1 800 bands covering essential requirements under article 3.2 of the R&TTE directive (1999/5/EC)

ETSI EN 301 908-1 – Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements, covering essential requirements of article 3.2 of the R&TTE Directive

EN 60950-1– Information technology equipment - Safety - Part 1: General requirements

EN 62311: 2008 – Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz) COMPLIANCE WITH INTERNATIONAL STANDARDS

EN

Marking by the symbol indicates that usage restrictions apply.

France - 2.4GHz for Metropolitan France:

In all Metropolitan departments, wireless LAN frequencies can be used under the following conditions, either for public or private use:

Indoor use: maximum power (EIRP*) of 100 mW for the entire 2400-2483.5 MHz frequency band

Outdoor use: maximum power (EIRP*) of 100 mW for the 2400-2454 MHz band and with maximum power (EIRP*) of 10 mW for the 2454-2483 MHz band

Certification information (SAR) The device meets guidelines for exposure to radio waves

Your device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The exposure guidelines for devices employ a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts/kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.

This equipment complies with the European Council Recommendation of 12 July 1999 on the Limitation of Exposure of the General Public to Electromagnetic Fields [1999/519/EC].

D
