MID02 - Tablet Manta - Free user manual and instructions

Brand	Manta
Model	MID02
Type	Tablet
Display Size	10.1 inches
Resolution	1280 x 800 pixels
Dimensions (H x W x D)	240 x 160 x 8 mm
Weight	500 g
Processor	Quad-core 1.5 GHz
RAM	2 GB
Storage	32 GB (expandable via microSD)
Cameras	Front: 2 MP, Rear: 5 MP
Battery Capacity	6000 mAh Li-Ion
Charging	5V/2A via micro USB
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.2
Operating System	Android 10
Power Adapter	Input: 100-240V AC, Output: 5V/2A
Safety Warnings	Keep away from water and heat; use only original accessories.
Cleaning Instructions	Wipe with a soft, dry cloth; do not use liquid cleaners.
Repairability	Battery and SIM card accessible by user; other repairs by service center.
Spare Parts	Contact Manta support for genuine parts.
Languages	English (user manual)
Manufacturer	Manta S.A.

Frequently Asked Questions - MID02 Manta

How to perform a factory reset on my Manta MID02?

Go to Settings > Backup & reset > Factory data reset. This will erase all data, so back up first.

Why is my tablet not charging?

Check the charging cable and adapter for damage. Try a different outlet. If still not charging, the battery may need replacement.

Can I expand the storage on the MID02?

Yes, the tablet has a microSD card slot supporting up to 128 GB.

How to take a screenshot?

Press and hold the Power button and Volume Down button simultaneously until the screen flashes.

Why is the touch screen unresponsive?

Clean the screen with a soft cloth. If problem persists, restart the device. If still unresponsive, contact support.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi, turn on Wi-Fi, select your network, and enter the password.

What to do if the tablet freezes?

Press and hold the Power button for 10 seconds to force restart. If frequent, check for software updates.

How to transfer files from my tablet to a computer?

Connect the tablet to your computer using a USB cable. On the tablet, select File Transfer mode from the notification panel.

Is the tablet water-resistant?

No, the Manta MID02 is not water-resistant. Keep it away from water and moisture.

How to update the operating system?

Go to Settings > System > System update. If an update is available, follow the on-screen instructions.

USER MANUAL MID02 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Black remote control device with digital display and external control unit (no visible text or symbols)

Front view of a silver electronic device with a button and indicator lights, labeled 'Włącznik zasilania' (no other text or symbols visible)

MID02 EasyTab 2

Góra

MID02 EasyTab 2

Left side

Front view of a silver electronic device with a power button and indicator lights (no text or symbols on the device body)

MID02 EasyTab 2

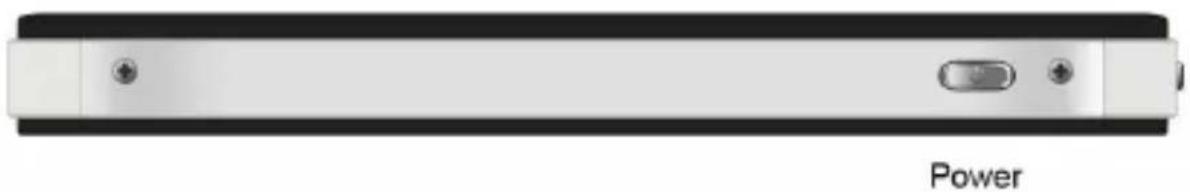

Top

Front view of a computer monitor with control buttons (no visible text or symbols)

Menu Volume
Microphone

Power Button Usage

Turn On: Press the power button and hold for 3 seconds.

Turn Off: Press the power button and hold for 3 seconds, tap OK.

Sleep Mode On/Off: Press & release the power button quickly to turn sleep mode on and off.

Force Off: If device does not respond, press and hold the power button for 8 seconds.

Note: If it is necessary, we don't suggest use Force Off. You should follow the steps to perform the shutdown.

Reset Button: Press the reset button to reset the device. Reset will erase all data on the device, please caution this feature. (Note: Current the reset function can not be restart, so after reset you need to press the power button to re-boot.)

Touch-Screen Navigation

The touch-screen allows for quick, easy and convenient navigation for all applications.

Throughout the User Guide, you are instructed to use the following tap or touch navigation methods:

Tap: Quick tap & release on an item on the screen.

Finger slide: Touch & slide your finger across the screen and then release.

Touch & hold: Touch and hold in place approx 2 seconds, and then release to display an options window.

To avoid scratching or crushing, do not place objects on the touch screen surface.

Transfer Box

You must use the transfer box if you want to use a USB storage device (U-disk) for accessing/storing your photos, music or video files.

U-Disk

Insert your U-disk to the transfer box, insert the transfer box into the Tablet. When ready for use, it's OK.

Don't insert and remove the U-disk repeatedly in a short time, as this may cause damage to the U-disk.

The transfer box is also used for Ethernet network connections.

Using microSD Card

The device supports a maximum 32GB microSD card.

Insert your card into the microSD slot until it clicks into place. it's OK

Remove microSD Card

Use one of the following methods for moving the microSD card.

Close all applications or documents which have been opened on the card.

Tap

Dotknij

→ Settings → SD card & device storage → Umount SD card.

Press the card lightly; it is partially ejected allowing you to pull the card out.

Don't insert and remove the U-disk repeatedly in a short time, as this may cause damage to the card.

We recommend using major brands of memory cards to avoid incompatibility.

Getting Started

Charge the device

You cannot charge the battery using the USB cable.

You can use the device while the battery is charging, although the charging time is longer when operating and charging at the same time.

MID02 EasyTab 2

Plug the power adapter into an electrical wall outlet, and then connect to the device to fully charge the battery before use (approx. 4hour).

While charging, the battery indicator light is red. When fully charged, the battery indicator light is green.

Turn the device on

Press the power button and hold for 2 seconds.

Wi-Fi Network Setup

Since many features require a Wi-Fi connection, we recommend you set up your Wi-Fi network now.

Tap

→ Settings, → Wireless & network.

Select Wi-Fi to turn on.

The device automatically scans and lists all local Wi-Fi Network found.

A

indicates secure networks that require login name/password to connect.

Tap the desired network to which you want to connect, → enter the Network Password if applicable, → tap Connect.

Tap

to return to the Desktop screen.

If your Wi-Fi network is set as hidden, it won't be found by the auto scan. Tap Add Wi-Fi network and follow the prompts to add your network.

MID02 EasyTab 2

Desktop

1. Return to Desktop from other apps
2. Battery charge status
3. Current Time
4. Picture capture icon
5. Volume reduction icon
6. Volume increase icon
7. Function Menu icon
8. Back icon

Screen Lock

MID02 EasyTab 2

Can be set to automatically lock screen or quickly press the power button to manually lock screen. Lock screen displays the following:

Tap and slide upside padlock icons to unlock screen.

Pre-loaded Applications

	Documents To Go	You can read and write documents
	Clock Use as alarm clock with scheduled alarms.
	Market	Downloaded applications quickly & easily
	Browser	Access the Internet and “surf the web” whenever desired
	Calendar Calendar with ability to set events.
	Camera	Take photos and save to internal memory or your memory device

MID02 EasyTab 2

	Calculator Do	Calculation
	Email	Send/Receive email using your existing email addresses
	My Pad	File manager application for viewing and managing files and apps.
	Music Player	Play and manage audio files
	Video Player	Play and manage video files
	QuicPic View and manage photo files
	Google Search	Allow to searching for files and documents
	Contacts	Create a list of personal contacts, which can also be linked with your email
	Gmail	Allow to read and compose mail in Gmail account
	APK Manager	Application manager for managing processes
	YouTube Quick launch to YouTube.com videos
	iReader Ebook

MID02 EasyTab 2

	Settings	Multiple settings for personalizing and enhancing your Device
	Wi-Fi Settings	Set Wi-Fi network
	3G Settings Set 3G network
	ADSL Settings	Set ADSL network
	Sound Recorder	Allow to record sound

Desktop Function Menu

On the Desktop screen, you can tap

play the Function

Menu.

MID02 EasyTab 2

Add	The viewable portion of the Desktop screen allows only 16 icons. In order to add more items, finger slide the screen horizontally to expose available space, and then tap the Add button again.
	Shortcuts	Add quick launch shortcuts on the Desktop to applications, bookmarks or settings.
	Widgets	Analog clock: Add a round analog clock. Calendar: Add a calendar widget to display current date & events. Music Player: Add a music widget to quickly begin playing music without launching the music application.
	Folders	Add a folder into which you can add applications as desired. To move applications on the Desktop screen into the folder, touch, hold & drag the icons directly on top of the folder icon.
Wallpaper		Select wallpaper from Picture and Wallpapers
Search		Perform a quick Google search
Notifications		List any pending notifications (i.e., new email, calendar events, etc).
Settings		Choose “Settings”

Settings

Wireless & networks	Wi-Fi Turn on Wi-Fi.
	Wi-Fi Settings Set up & manage wireless access points
	Airplane mode Disable all wireless connections
	3G network settings	Set up 3G network
Ethernet Configure Ethernet
Pppoe settings		Do ADSL settings. Input user name and password to connect
USB	Mass storage Configure USB to mass storage
	ADB Configure USB to ADB
Sound	Silent mode Silence all sounds except media & alarms
	volume	To adjust the Media volume, Alarm volume and Notification volume
	Notification ringtone	Select desired ringtone sound
	Audible selection	Select to enable a sound when making a screen selection
	Screen lock sounds	Play sounds when locking and unlocking the screen
Display	Brightness	Adjust the screen brightness as desired, and then tap OK
	Auto-rotate screen	When selected, the orientation of the screen switches between Portrait and Landscape automatically when you rotate the device
	Screen timeout	Adjust the delay before the screen automatically turns off
	Suspend timeout	Adjust the delay before the device automatically suspend after the screen turn off

MID02 EasyTab 2

Security	Set up screen lock	Lock screen with a pattern, PIN, or pas-sword
	Visible pas-swords	Show password as you type
	Select device administrators	Add or remove device administrators
	Use secure credential	Allow applications to access secure certifi-cates and other credentials.
	Install from SD card	Install encrypted certificates from SD card
	Set password	Set or change the credential storage password
	Clear storage	Clear credential storage of all contents and rest its password
Applications	Unknown sources	Allow installation of non-Market appli-cations.
	Manage appli-cations	Manage and remove installed applica-tions.
	Running se-rvices	View and control currently running se-rvices.
	Development Set options for application development.
Privacy	Factory data reset	Tap to reset the device to its initial factory state, erasing all data and downloaded applications. Tap Reset Device to proceed with reset, or tap to cancel and return to previous screen.WARNING! The following will be erased during the factory reset:~ Google account~ System and application data and set-tings~ Downloaded applicationsThe factory reset will NOT erased:~ Current system software and bundled applications~ SD card files, such as music or photos

MID02 EasyTab 2

SD card & device storage	Total space, Available space	It values appears when a SD card is inserted in device.
	Unmount SD card	When the SD card is inserted, tap it to safety remove the SD card.
	Format SD card	N/A for this device.
Language & keyboard	Select language	Select the language and region according to your location
	Android keyboard	Onscreen keyboard settings
	User dictionary	You can add words to a personal dictionary, words that may not be included in the default dictionary
Date & time	Set date Set the date
	Select time zone	Select the time zone
	Set time Set the time
	Use 24-hour format	You can choose to use 24-hour format or 12-hour format
	Select date format	You can select the date format.
About device		View Status (Battery, Wi-Fi, etc), Battery use, Legal information, Model number, Android version, Kernel version and Build number
Touchpanel calibration		Calibrate the touch screen

Návod k obsluze

Popis zařízení

Přední část

Pravá strana

Levá strana

Front view of a silver electronic device with a power button and indicator lights (no text or symbols on the device body)

MID02 EasyTab 2

Vrchní část

Front view of a computer monitor with two buttons (no visible text or symbols)

Menu Volume
Microphone

MID02 EasyTab 2

Pravá strana

L'avá strana

Front view of a silver electronic device with a power button and labeled 'Power' (no other text or symbols visible)

MID02 EasyTab 2

Pohl'ad z hora:

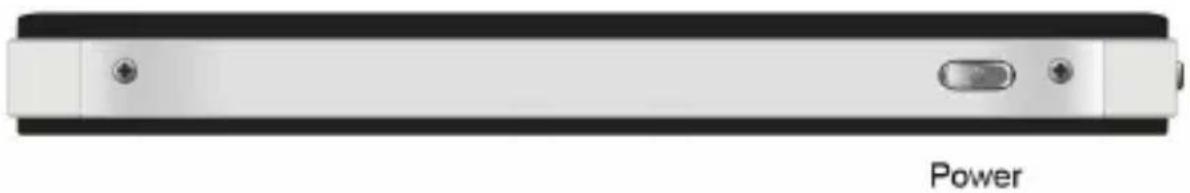

Funkcie tlačidla Power

Zapnutie: Stlačte tlačidlo Power a držte 3 sekundy.

Vypnutie: Stlačte Power a držte 3 sekundy, dotknite OK.

Jobb oldal

Bal oldal

Front view of a silver electronic device with a power button and labeled 'Power' (no other text or symbols visible)

MID02 EasyTab 2

Felülnézet

Front view of a rectangular electronic device with a button labeled 'MTH' and a small screen icon (no readable text or symbols beyond the button)

Menu Volume
Microphone

Power gomb funkciói

Dešinysis šonas

Kairysis šonas

Front view of a silver electronic device with a power button and labeled 'Power' (no other text or symbols visible)

MID02 EasyTab 2

Viršus

Front view of a rectangular electronic device with a button labeled 'MTH' and a small screen icon (no readable text or symbols beyond the button)

Menu Volume
Microphone

Левая сторона

Front view of a silver electronic device with a power button and indicator lights (no text or symbols on the device body)

MID02 EasyTab 2

Bepx

Front view of a rectangular electronic device with buttons (no visible text or symbols)

Menu Volume
Microphone
