USER MANUAL Duo Power MID9703 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Tablet DUO POWER 9.7"HD

MID9703

Instrukcja obsługi

User's Manual

Instrukcja obsługi

Uwaga!

-5 -6 -7 -8 -9 -10 -11 -12 -13

Rear panel

3 4 MID1007

1. Front camera
2. Display
3. Main camera
4. Speakers
5. MicroSD slot
6. Earphone jack
7. HDMI output
8. Micro USB port
9. DC in
10. Reset button(hole)
11. 3G SIM card slot
12. VOL+/- buttons
13. POWER button

INSTRUKCJA OBSŁUGI

Panel dotykowy

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage 2:58

INSTRUKCJA OBSŁUGI

Krok 2:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB connected nou have connected your phones to your computer via USB. Click the button below if you need to copy Film between your computer and your Androids SD card. Turn on unit manage

USB connected Turn on USB storage If you turn on USB storage, some applications you are using will step and may be unavailable until you turn off USB storage. OK Cancel Cancel

INSTRUKCJA OBSŁUGI

Screenshot of a mobile app interface displaying various app icons including Netflix, Disney+, and Amazon.

INSTRUKCJA OBSŁUGI

APPLUGUE MIDZETH App Store Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox Gamebox

Digital camera control bar showing time and duration settings with icons for home, phone, and app

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL To see available networks, turn Wi-Fi on.

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet To see available networks, turn Wi-Fi on. SCAN ADD NETWORKS 3:02

INSTRUKCJA OBSŁUGI

Dźwięk

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps CREDENTIAL STORAGE Trusted credentials Display trusted CA certificates Install from SD card Install certificates from SD card Clear credentials

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet BACKUP & RESTORE Back up my data Back up app data, Wi-Fi passwords, and other settings to Google servers Backup account Backing up to debug-only private quote Automatic restore When remtailing an app restore backed up settings and data PERSONAL DATA Factory data reset Erase all data on tablet

INSTRUKCJA OBSŁUGI

Pamięć

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL 334KB Available 5.70KB Erase SD card Erase all data on the SD card, such as music and photos. EXTSD Maser SD card Insert an SD card for recording Enable media scanning on extsd USBOGSTT Maser SD card Insert an SD card for recording Enable media scanning on usbhost1

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Language English (United States) Spelling correction Personal dictionary KEYBOARD & INPUT METHODS Default English (US) - Android keyboard Android keyboard English (US) Japanese IME 谷歌拼音输入法 3:31

INSTRUKCJA OBSŁUGI

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Automatic date & time Use network-provided time Automatic time zone Use network-provided time zone Set date 2/12/2012 Set time 7:32 PM Select time zone GMT+08 00 China Standard Time Use 24-hour format 1:00 p.m Select date format 12/31/2012

INSTRUKCJA OBSŁUGI

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tables System updates Status Status of the battery, network, and other information Legal information Model number 97FC Android version 4.9.3 Baseband version 0.7 Kernel version 3.0.8= inet.dada@inetSoftware #54

This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Pls make sure to reading the manual carefully before use the device.

Please don't be in high temperature, moisture or very dust place – Please don't be in high temperature, Especially in summer don't put – the device in the car when Windows closed.

-Avoid fall or Violent collision of the device, don't make the TFT display screen were violent tremor. This could cause TFT display screen abnormal or damage.

Please choose the appropriate volume, Use headphones shoulds not – be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition,

A. The battery power ICONS shows have no power
B. The system automatically shut off, startup after power off soon
C. Operation buttons no response

When the device in the format or ongoing upload and download file, – please don't suddenly disconnect, This could cause application error.

-For those who because of damage to the product, repair, or other causes of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.
-Don't disassemble the product, don't use alcohol. Thinner or benzene to scrubbing products
- Don't use the device one of the place of prohibit to use electronic equipment in regional (such as the plane)
- Please don't using the Tablet PC when you in driving or walking down the street, USB just only be used for data transmission

USER'S MANUAL

The company reserves the right to improve product, products specification and design have any change. The information is subject to changes without prior notice. (This tablet is no waterproof function)

Remark! All pictures in this manual is just for your reference. products specification and design have any change, The information is subject to changes without prior notice.

Appearance and button

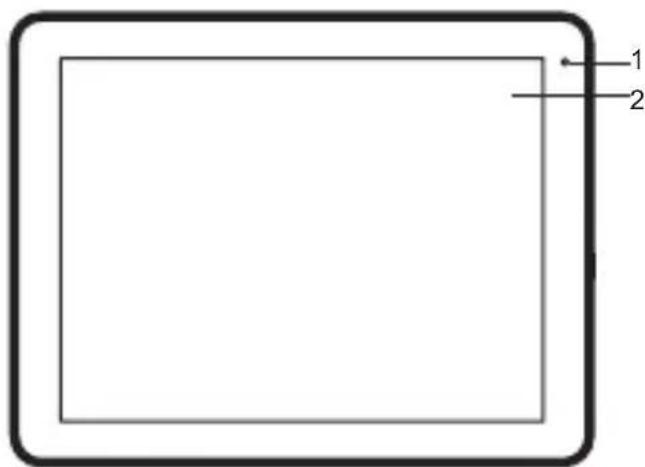

Front panel

1 2

5 6 7 8 9 10 11 12 13

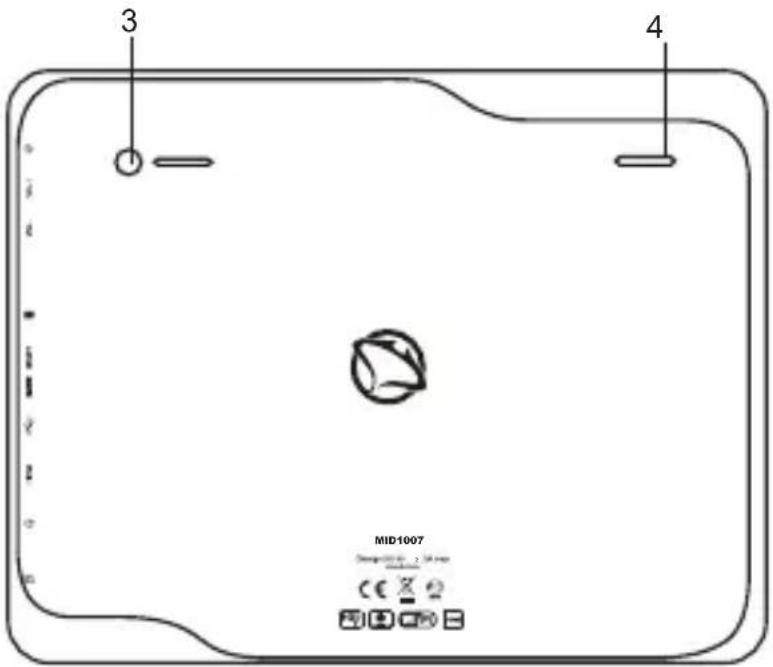

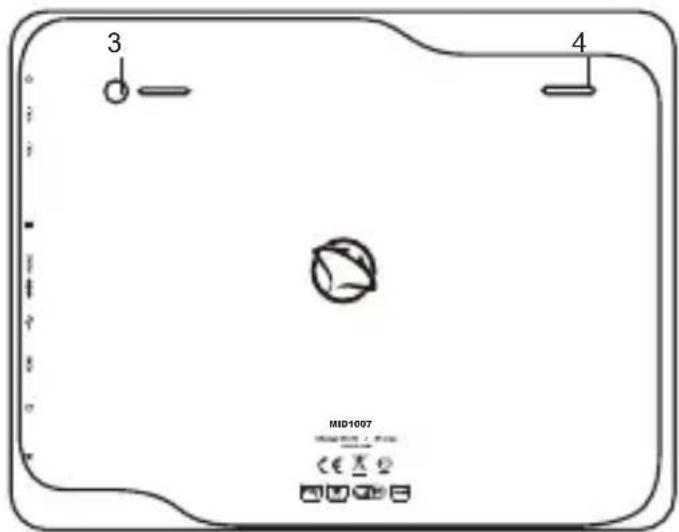

Rear panel

3 4 MID1007

1. Front camera
2. Display
3. Main camera
4. Speakers
5. MicroSD slot
6. Earphone jack
7. HDMI output
8. Micro USB port
9. DC in
10. Reset button(hole)
11. 3G SIM card slot
12. VOL+/- buttons
13. POWER button

USER'S MANUAL

Touch panel

10" Capacitive touch panel: In The Operation, to click dragging on the touch panel

POWER

Startup: Long Press and hold the power button, the system will enter the main interface

Shutdown: In the main menu interface, Press the power button about 5 second to shutdown, The system can hint "power off" option, Clike" ok". you can safely shut down.

Lock screen: Short press Power button to lock screen or unlock screen.

Remark!

1. When power is empty, system will shut down automatically.
2. Illegal turn off the device, restart will scan and restore the disk, it may take longer time to enter into system

Volume +, Volume-

The buttons on top Volume +, Volume-achieve changes in the volume.

Earphone jack

3.5 mm standard earphone jack

Video output interface – HDMI output interface

TF card – Slot for MicroSD card

Micro USB – you can use it to connect the computer for data transmission and external connection USB flash drive

Reset – When the Tablet under the condition of the crash, use the small objects to short press RESET button, Tablet will force to shutdown

Remark!

Unless unable to shutdown, otherwise don't use the reset, suggest you to shutdown by normal, if no will easy to damage the machine system.

USER'S MANUAL

First use

Battery management and charge

Before first use, please set the device's battery is fully charged

The first two times charging please keep about 6 hours, after that you just need 4 hours to charge.

Remark:

This tablet using Built-in type polymer battery, Charge must be to choose standard adaptor (Input: AC110\~240V 50/60Hz Max: 180MA. Output: DC9V/1.5-2A), this device without supply DC charging.

During the charging, the battery icon will scroll

When finished charging, battery icon will become green and stop rolling

In order to prolong the service life of the machine, suggest use out battery power before charge it

Remark:

1. If you long time don't to use this Tablet, in order to avoid power consumption caused damage, pls charge/ play the battery once a month.
2. After low battery shut down, connect DC adaptor, device will remind low battery, charging, need to wait some time until the battery is enough power to enter into main menu.
3. Device charging should be in standby status for reach normal charging time.

Because with device and screen consumption, it may cause longer charging time.

USER'S MANUAL

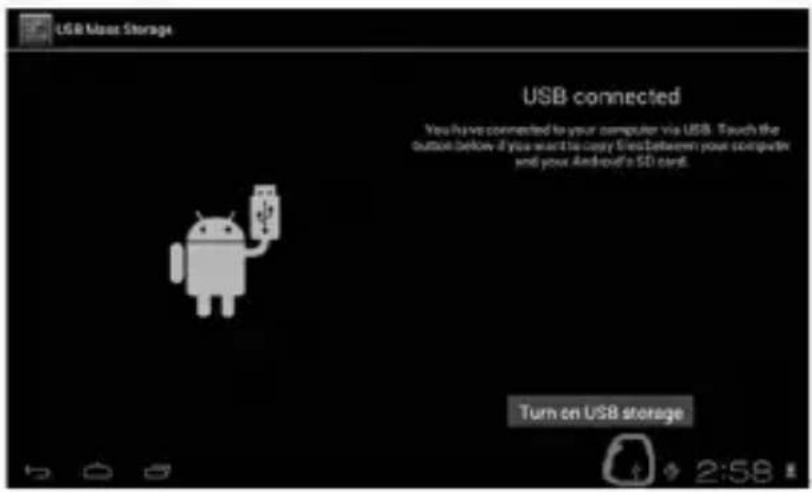

Connection with PC

USB connection

Using USB to connect the MID and PC, the default connection mode is a synchronous mode. You can see this USB icon and then drag the status bar to drop, appeared the following interface:

Step 1:

USB User Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

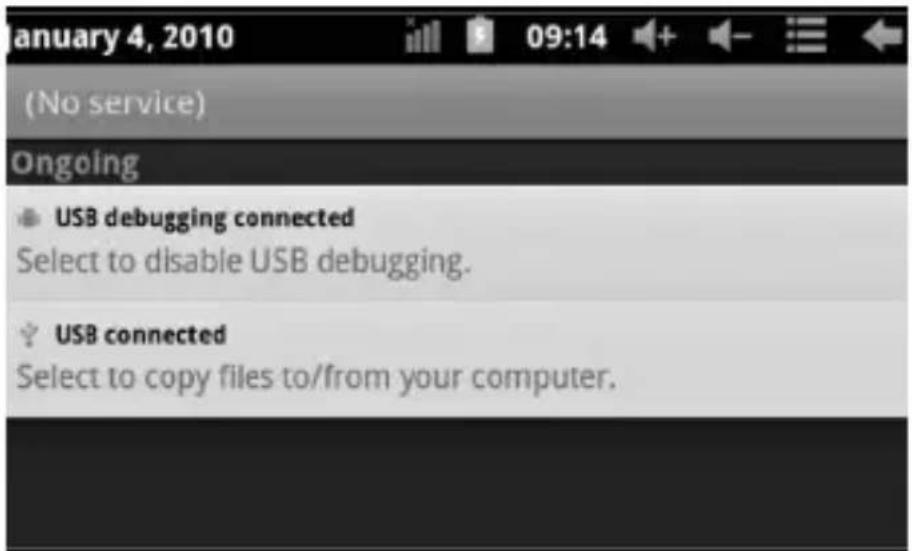

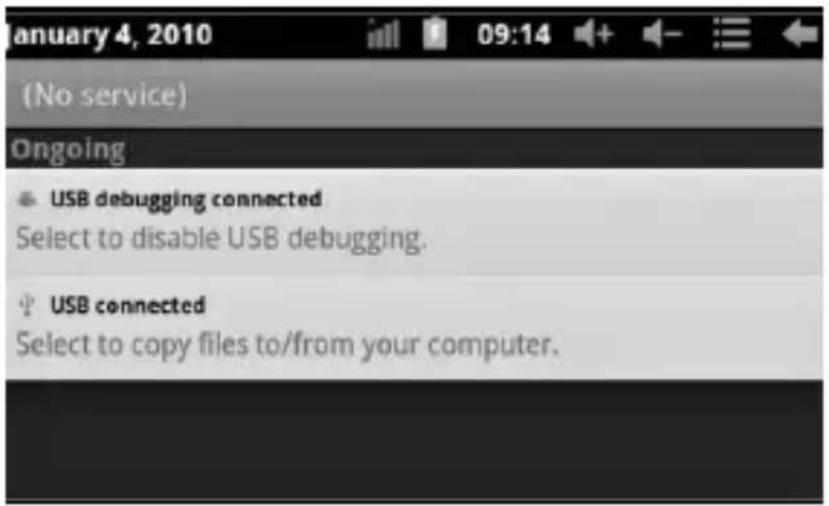

Step 2:

(No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USER'S MANUAL

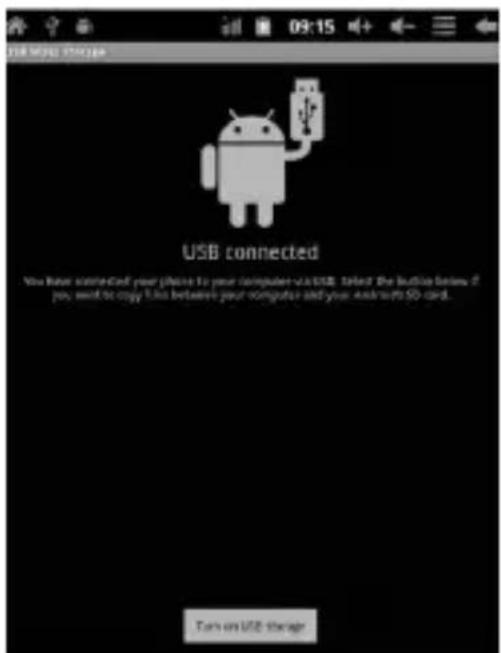

Step 3: According to the above photo, please choose USB connected. Then you can see the following interface:

USB connected You have installed your iPhone to your computer via USB. Select the button lists if pay, send to copy files between your computer and your android 50 card. Turn on USB storage

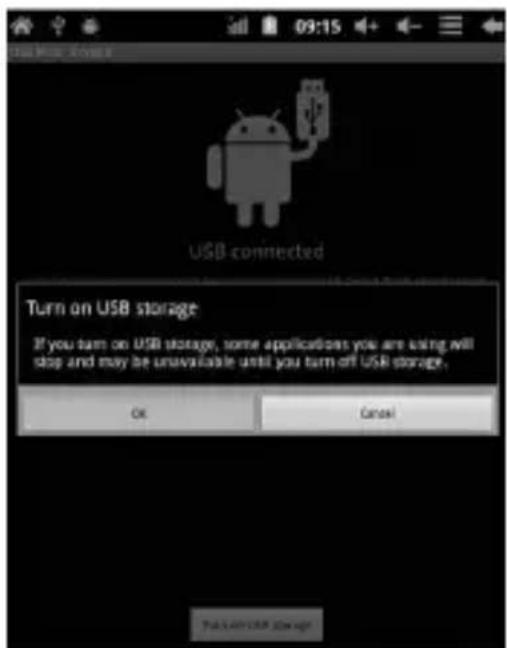

USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel

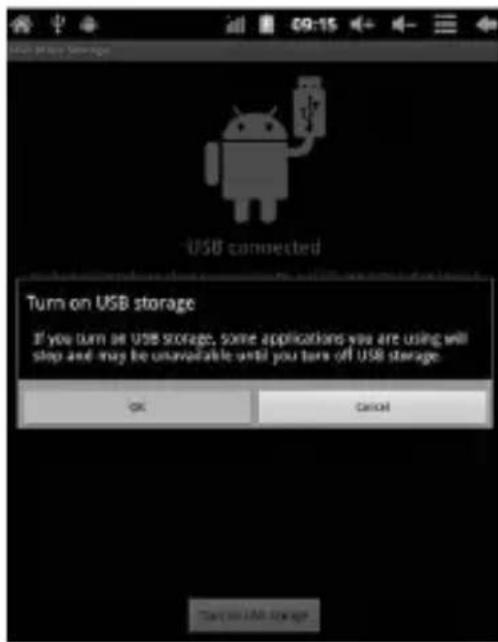

Step 4: Please press "turn on USB storage". Then you will find the following photos:

Please choose "OK". Then USB is connected. "USB is connected": means external memory (SD) loading is completed, and you can see the corresponding letter in the PC terminal.

Use USB cable to connect device to PC, device will pop up the USB connection window, click Turn on USB storage to connect to PC

USER'S MANUAL

Equipment operation interface

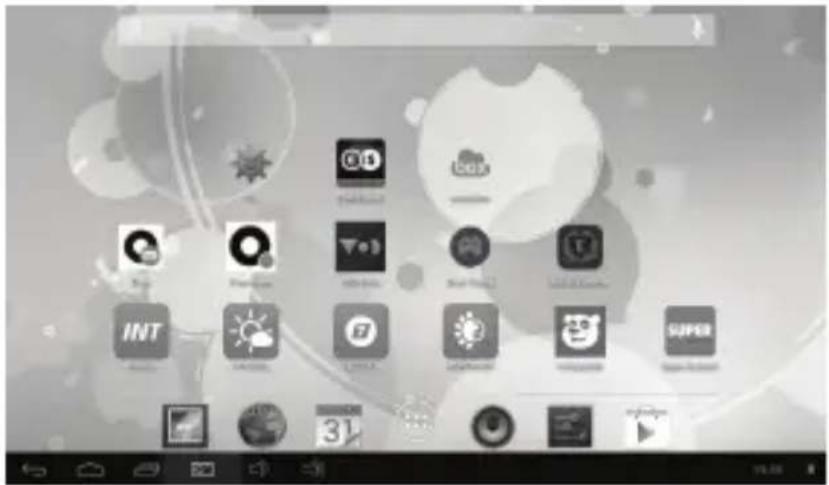

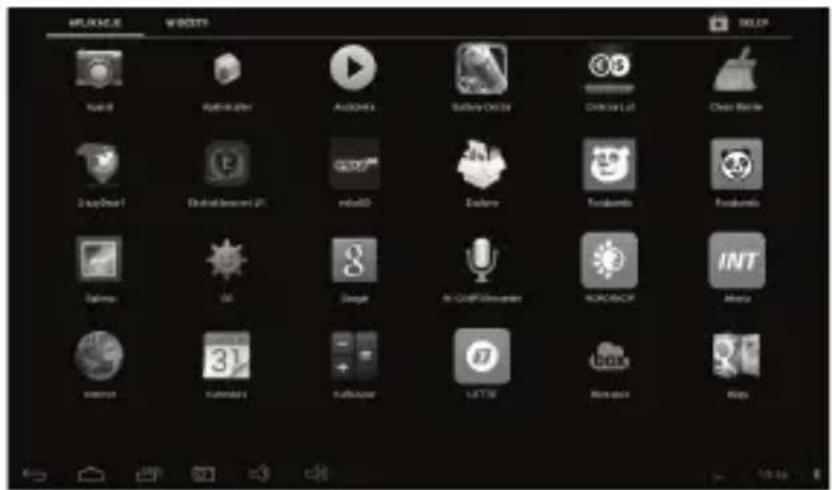

Main interface describe

After startup will enter the main interface

Screenshot of a mobile app interface with app icons and status bar, showing various functions like YouTube, Instagram, and TikTok.

In the main interface, you can:

MPLK2.0 WIDTH HKEY AUDIO Battery Color Chips Color Clear Bar Smart1 Digital兼容 2F inline2 Audio Feedbacks Feedbacks Sales AI Image AI-COM/Video NOROCOR Logic Internet Calendar1 FullButton LETTS Mouse1 Maps

USER'S MANUAL

Management main interface software ICONS: long press the icons 3 second, after the icons will bigger, then you can drag anywhere in the interface.

Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it become red, Loosen your hand, after that you can delete icon

Status bar describe

The status bar below of the screen

Digital status bar showing time and phone icons with '2:58' displayed

From left: BACK, HOME, recent applications. From Right: battery status, time, other icons.

Use touch panel

Device equipped with a 10 "touch screen. Following the main touch screen area is described, and describes some of the tips for how to use the touch screen.

No matter which interface you are on the screen, can go back to main screen through pressing the soft key to the bottom right corner of the main screen.

Attention!

In different applications, by tapping the back soft key on the bottom right corner on the touch screen, you can return to its interface on the upfloor

In different applications, by tapping the menu key on the upper right corner of touch screen, the screen will appear the operation setting interface as follows,

Remark:

In the main interface, you can touch the icon to open the APPs

USER'S MANUAL

In different browser(file, music, video, pictures), You shift and drag the scroll bar, so that the file list can up or down to roll.

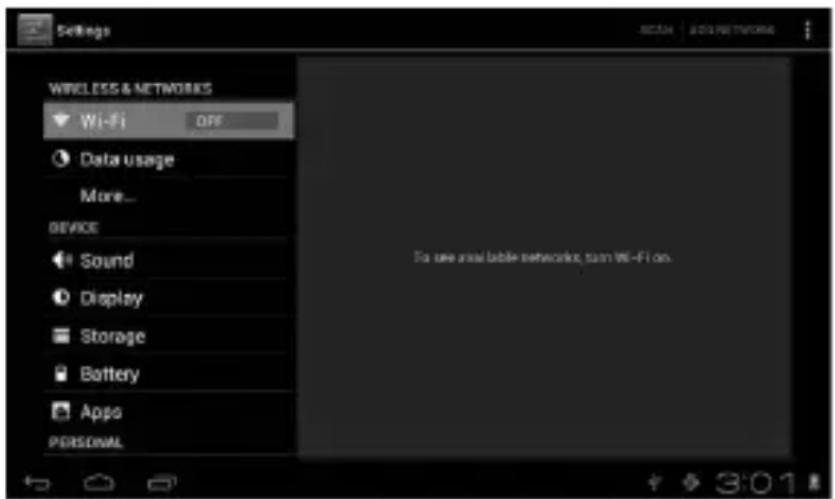

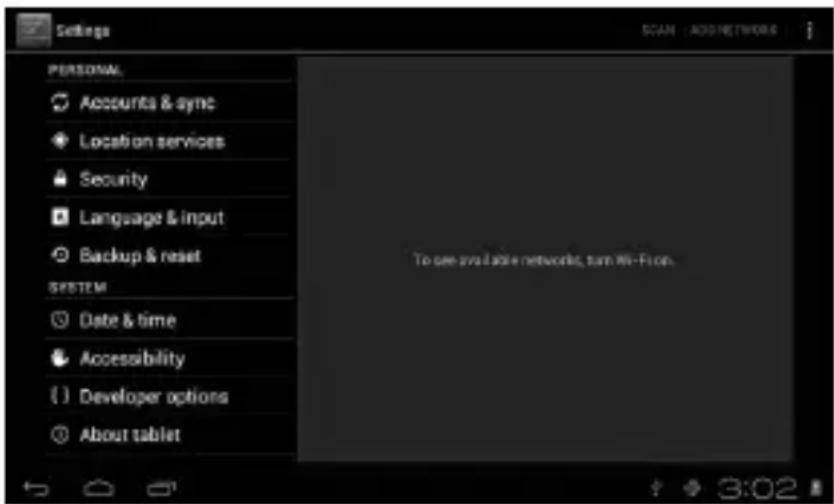

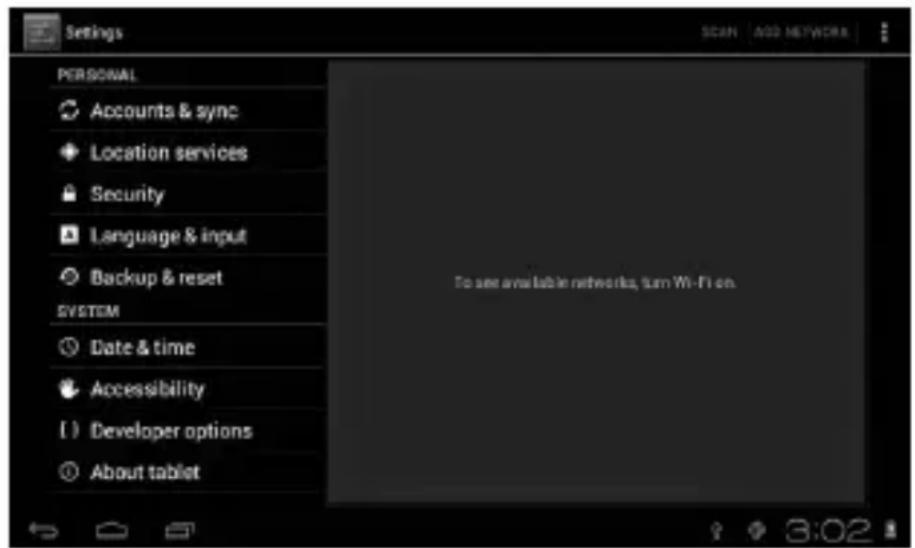

Equipment basic set

Setting: Click setting icons, Setting setting interface

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Appo PERSONAL To use available networks, turn Wi-Fi on.

Settings GOAN - ADD NETWORKS PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet To see available networks, turn Wi-Fi on. 3:02

USER'S MANUAL

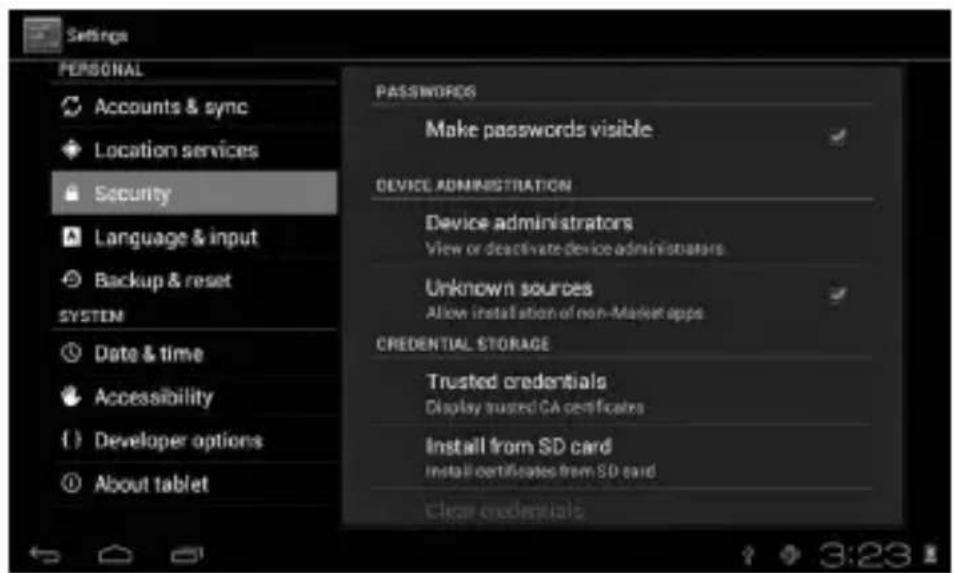

Application

Manage applications

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Unknown sources Allow installation of non-Market apps CREDENTIAL STORAGE Trusted credentials Display trusted CA certificates Install from SD card Install certificates from SD card Clear credentials

Unknown sources: Click "Unknown Sources", then click "OK"

Manage application: manager and uninstall Application

Remark:

when you Firmware Upgrade, pls close the USB connect

How to uninstall?

1. enter "Stealing">"Application">"Manage application" And then there will be installed the program list
2. Click you want to uninstall icons, will enter the following interface
3. Click Uninstall, then you can delete the application

USER'S MANUAL

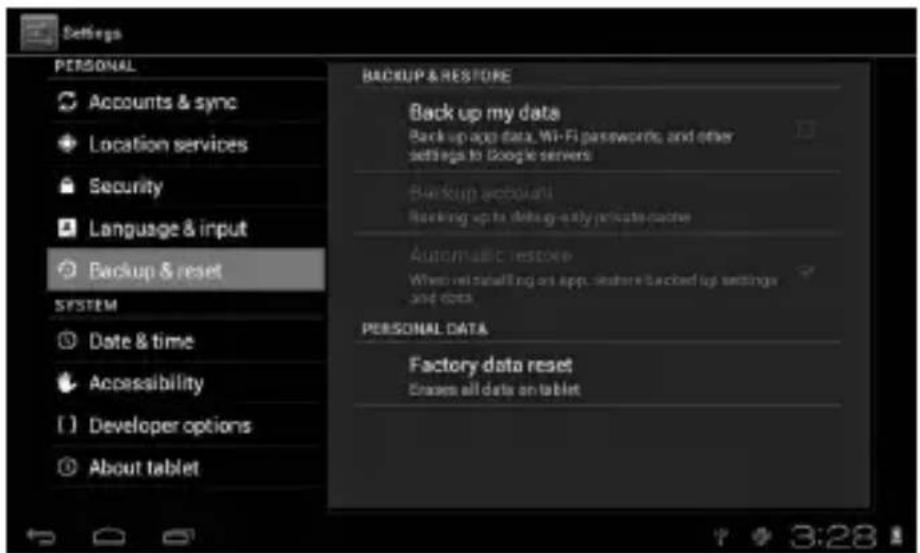

Backup & reset

Factory data reset

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet BACKUP & RESTORE Back up my data Backup app data, Wi-Fi passwords, and other settings to Google servers Backup account Banking up to default-only private cache Automatic restore When ret shall bring an app, where backed up settings and data PERSONAL DATA Factory data reset Creates all data on tablet

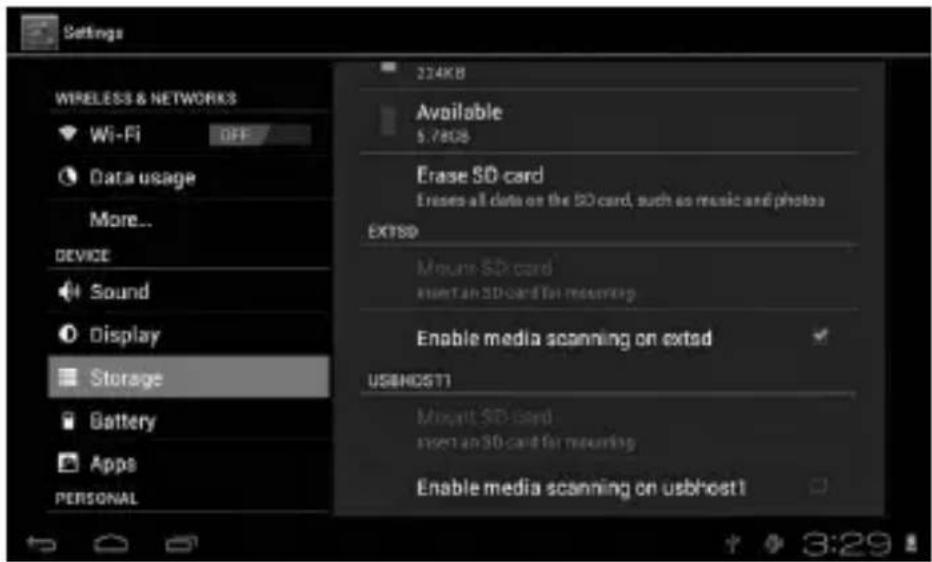

Storage

Remove TF card, view of the available storage space

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL 224KB Available $ 7,808 Erase SD card Erases all data on the SD card, such as music and photos EXTSD Mount SD card Insert an SD card for mounting Enable media scanning on extsd USBHOST1 Magnet SD card Insert an SD card for mounting Enable media scanning on usbhost1 3:29

USER'S MANUAL

Remark:

Please touch option" delete SD card", so that can safety to remove SD card

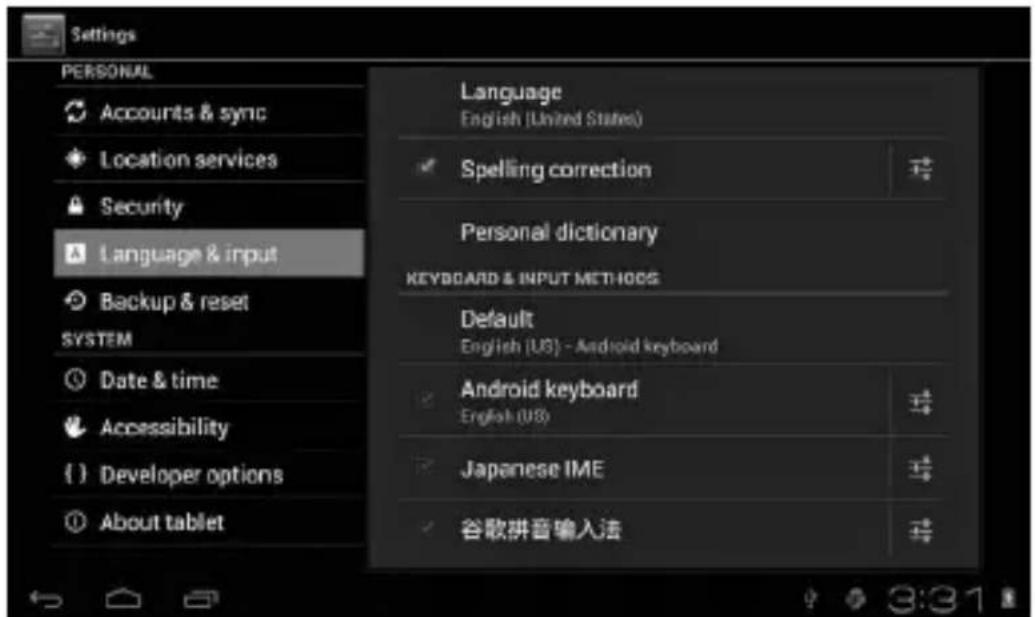

Language & input

Setting: (Language), text input and automatic error correction options;

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Language English (United States) Spelling correction Personal dictionary KEYBOARD & INPUT METHODS Default English (US) - Android keyboard Android keyboard English (US) Japanese IME 谷歌拼音输入法

Select Language: 54 kind of national languages are available

Remark: Android system can support 54 kind of language, now menu interface just support 14 language,

Android keyboard: Android keyboard setting

Sound on Key-press

Show suggestions: Display suggested words while typing

Auto-complete: Specebar and punctuation automatically insert highlighted word

USER'S MANUAL

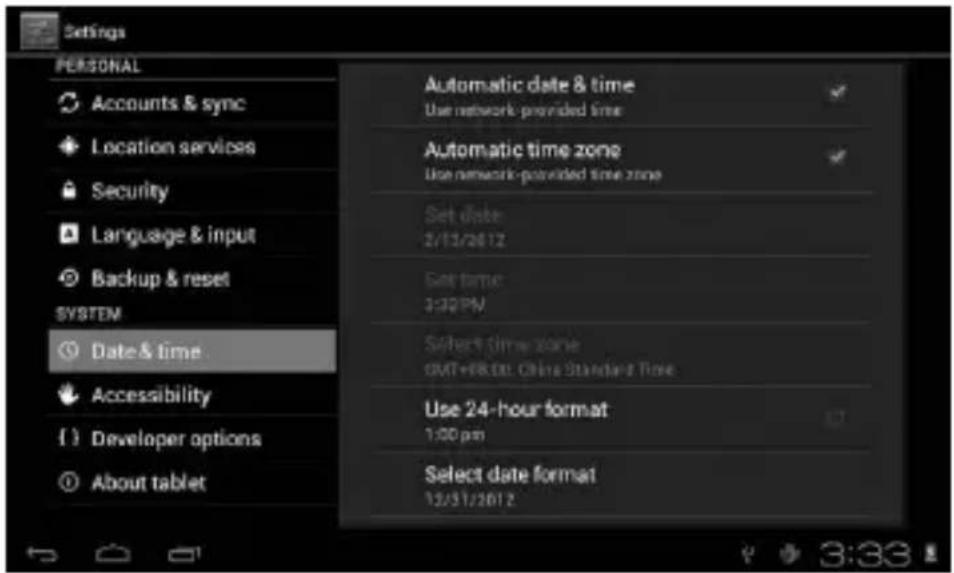

Date & time

Set date, set time, Select time zone and select date format

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet Automatic date & time Use network-provided time Automatic time zone Use network-provided time zone Set date 2/13/2012 Set time 3:30 PM Select time zone GMT+RR.00, China Standard Time Use 24-hour format 1:00 pm Select date format 12/31/2012

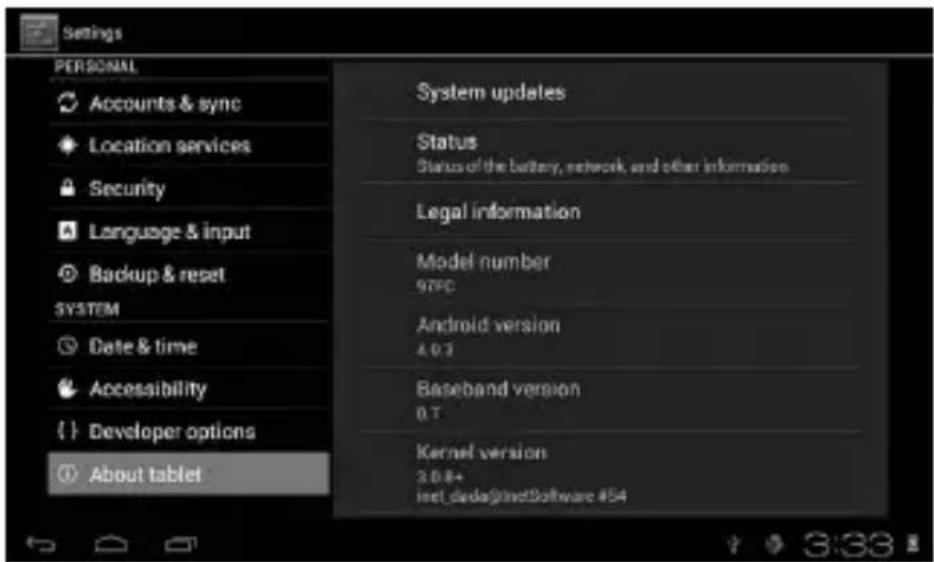

About tablet

Settings PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility Developer options About tablet System updates Status Status of the battery, network, and other information Legal information Model number 977C Android version 4.0.3 Baseband version 0.7 Kernel version 3.0.8+ inet_dada@inetSoftware #54

USER'S MANUAL

Problem solution

Device can't to open

1) Check the battery power
2) Connect adaptor first, then check again
3) After charging then can't to open, pls contact with the supplier

After startup the screen or the opening picture has been appeared, the device appear shutdown

1) Power is not enough, please charge

Headset can't hear the voice

1) Pls check the volume whether set to 0
2) Check the music file whether damaged. Try playing other music, if the file have damaged may lead to serious noise or hop sounds.

Can copy file or paly music and so on

1) Pls check between computer and device is correct connection
2) Check the memory storage space is already full
3) Check the USB cable is good or not
4) USB connection is disconnected
